1-[1-(Hydroxy­imino)eth­yl]-N-(2-methoxy­phen­yl)cyclo­propane­carboxamide

Abstract

The title compound, C₁₃H₁₆N₂O₃, adopts an E configuration with respect to the C=N bond and an intra­molecular N—H⋯N hydrogen bond results in the formation of a six-membered ring. In the crystal, inter­molecular O—H⋯O hydrogen bonds link the mol­ecules into a chain propagating along the b axis. Very weak π–π stacking inter­actions [centroid–centroid distance = 4.18 (2) Å] may further consolidate the packing, forming a two-dimensional supra­molecular network.

Related literature

For background to cyclo­propane derivatives, see: Liu & Montgomery (2006 ▶); Ogoshi et al. (2006 ▶).

Experimental

Crystal data

• C₁₃H₁₆N₂O₃

• M _r = 248.28

• Monoclinic,

• a = 16.062 (6) Å

• b = 5.483 (2) Å

• c = 14.250 (6) Å

• β = 100.055 (6)°

• V = 1235.7 (8) ų

• Z = 4

• Mo Kα radiation

• μ = 0.10 mm⁻¹

• T = 293 K

• 0.41 × 0.29 × 0.20 mm

Data collection

• Bruker SMART APEX CCD diffractometer

• Absorption correction: multi-scan (SADABS; Bruker, 1999 ▶) T _min = 0.96, T _max = 0.99

• 6430 measured reflections

• 2432 independent reflections

• 1520 reflections with I > 2σ(I)

• R _int = 0.044

Refinement

• R[F ² > 2σ(F ²)] = 0.073

• wR(F ²) = 0.170

• S = 1.09

• 2432 reflections

• 169 parameters

• 2 restraints

• H atoms treated by a mixture of independent and constrained refinement

• Δρ_max = 0.21 e Å⁻³

• Δρ_min = −0.20 e Å⁻³

Data collection: SMART (Bruker, 1999 ▶); cell refinement: SAINT (Bruker, 1999 ▶); data reduction: SAINT; program(s) used to solve structure: SHELXS97 (Sheldrick, 2008 ▶); program(s) used to refine structure: SHELXL97 (Sheldrick, 1008); molecular graphics: SHELXTL-Plus (Sheldrick, 2008 ▶); software used to prepare material for publication: SHELXL97.

Supplementary Material

Additional supplementary materials: crystallographic information; 3D view; checkCIF report

Table 1. Hydrogen-bond geometry (Å, °).

D—H⋯A	D—H	H⋯A	D⋯A	D—H⋯A
N1—H1N⋯N2	0.856 (17)	1.94 (2)	2.670 (3)	142 (3)
O3—H3O⋯O2i	0.85 (4)	1.93 (2)	2.751 (3)	162 (4)

Symmetry code: (i) .

supplementary crystallographic information

Comment

Cyclopropane and their derivatives are a significant class of compounds which can be used in a variety of studies such as organic synthesis, catalytic reaction and so on (Liu & Montgomery, 2006; Ogoshi et al., 2006). In order to extend our work on structural characterization of cyclopropane compounds, we report the synthesis and the X-ray structure of the title compound, (I), in this paper (Fig. 1).

The title molecule adopts an E configuration with respect to C=N bond. There is an intramolecular O—H···N hydrogen bonds, forming of a six-membered ring (Table 1) and the intermolecular O—H···O hydrogen bonds link the molecules into a one-dimensional chain along the b axis. The crystal structure is further stabilized by π-π interaction involving the benzene rings: Cg1···Cg1 (1 - x, 1 - y, 1 - z) = 4.18 (2) Å, where Cg1 denotes the centroid of the C2—C7 (Fig. 2).

Experimental

To a solution of 1-acetyl-N-(2-methoxyphenyl)cyclopropanecarboxamide (2.33 g, 10 mmol) and NaOAc (1.64 g, 20 mmol) in EtOH (25 ml) and H₂O (1 ml) was added NH₂OH.HCl (1.39 g, 20 mmol) in one portion. The reaction mixture was stirred at room temperature for 12 h, and then poured into ice-water (200 ml) under stirring. A white solid was precipitated, which was filtered and the residue was purified by a flash silica gel column chromatography to give colourless blocks of (I) (eluent: ether/ethyl acetate = 1/3 v/v).

Refinement

The N- and O-bound H atoms were located in a difference map and their positions were freely refined. The C-bound H atoms were geometrically placed (C—H = 0.93–0.97Å) and refined as riding. The constraints U_iso = 1.2Ueq(C,N) or 1.5Ueq(methyl C,O) were applied.

Figures

Fig. 1.

Molecule structure of (I) with displacement ellipsoids drawn at the 30% probability level for non-H atoms.

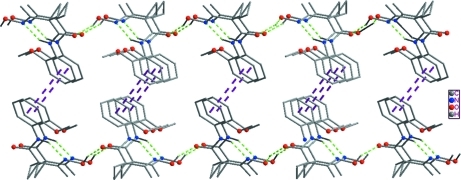

Fig. 2.

View of the two-dimensional supramolecular structure of (I): hydrogen bonds and π-π interactions are shown as dashed lines.

Crystal data

C13H16N2O3	F(000) = 528
Mr = 248.28	Dx = 1.335 Mg m−3
Monoclinic, P21/c	Mo Kα radiation, λ = 0.71069 Å
Hall symbol: -P 2ybc	Cell parameters from 2432 reflections
a = 16.062 (6) Å	θ = 1.3–26.1°
b = 5.483 (2) Å	µ = 0.10 mm−1
c = 14.250 (6) Å	T = 293 K
β = 100.055 (6)°	Block, colourless
V = 1235.7 (8) Å3	0.41 × 0.29 × 0.20 mm
Z = 4

Data collection

Bruker SMART APEX CCD diffractometer	2432 independent reflections
Radiation source: fine-focus sealed tube	1520 reflections with I > 2σ(I)
graphite	Rint = 0.044
ω scans	θmax = 26.1°, θmin = 1.3°
Absorption correction: multi-scan (SADABS; Bruker, 1999)	h = −9→19
Tmin = 0.96, Tmax = 0.99	k = −6→6
6430 measured reflections	l = −17→17

Refinement

Refinement on F2	Primary atom site location: structure-invariant direct methods
Least-squares matrix: full	Secondary atom site location: difference Fourier map
R[F2 > 2σ(F2)] = 0.073	Hydrogen site location: inferred from neighbouring sites
wR(F2) = 0.170	H atoms treated by a mixture of independent and constrained refinement
S = 1.09	w = 1/[σ2(Fo2) + (0.0648P)2 + 0.566P] where P = (Fo2 + 2Fc2)/3
2432 reflections	(Δ/σ)max < 0.001
169 parameters	Δρmax = 0.21 e Å−3
2 restraints	Δρmin = −0.20 e Å−3

Special details

Geometry. All s.u.'s (except the s.u. in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell s.u.'s are taken into account individually in the estimation of s.u.'s in distances, angles and torsion angles; correlations between s.u.'s in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell s.u.'s is used for estimating s.u.'s involving l.s. planes.

Refinement. Refinement of F2 against ALL reflections. The weighted R-factor wR and goodness of fit S are based on F2, conventional R-factors R are based on F, with F set to zero for negative F2. The threshold expression of F2 > 2σ(F2) is used only for calculating R-factors(gt) etc. and is not relevant to the choice of reflections for refinement. R-factors based on F2 are statistically about twice as large as those based on F, and R- factors based on ALL data will be even larger.

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Ų)

	x	y	z	Uiso*/Ueq
C1	0.3277 (2)	−0.2371 (7)	1.1123 (2)	0.0577 (10)
H1A	0.2878	−0.2249	1.1550	0.087*
H1B	0.3826	−0.1874	1.1447	0.087*
H1C	0.3303	−0.4029	1.0914	0.087*
C2	0.3509 (2)	−0.0767 (6)	0.9634 (2)	0.0428 (8)
C3	0.4169 (2)	−0.2323 (6)	0.9573 (3)	0.0558 (10)
H3	0.4305	−0.3561	1.0020	0.067*
C4	0.4628 (2)	−0.2049 (7)	0.8849 (3)	0.0578 (10)
H4	0.5075	−0.3099	0.8812	0.069*
C5	0.4432 (2)	−0.0246 (6)	0.8182 (2)	0.0525 (9)
H5	0.4745	−0.0076	0.7696	0.063*
C6	0.3768 (2)	0.1321 (6)	0.8233 (2)	0.0468 (8)
H6	0.3637	0.2548	0.7781	0.056*
C7	0.3297 (2)	0.1078 (5)	0.8954 (2)	0.0378 (7)
C8	0.21464 (19)	0.4042 (5)	0.8447 (2)	0.0365 (7)
C9	0.14682 (19)	0.5534 (5)	0.8782 (2)	0.0356 (7)
C10	0.0684 (2)	0.5852 (6)	0.8000 (2)	0.0516 (9)
H10A	0.0671	0.4975	0.7406	0.062*
H10B	0.0139	0.6022	0.8198	0.062*
C11	0.1292 (2)	0.7886 (6)	0.8211 (2)	0.0500 (9)
H11A	0.1116	0.9299	0.8537	0.060*
H11B	0.1647	0.8252	0.7745	0.060*
C12	0.13045 (19)	0.5525 (5)	0.9782 (2)	0.0366 (7)
C13	0.0787 (2)	0.7537 (6)	1.0116 (3)	0.0559 (10)
H13A	0.0740	0.7263	1.0770	0.084*
H13B	0.0233	0.7553	0.9731	0.084*
H13C	0.1059	0.9076	1.0059	0.084*
N2	0.16185 (17)	0.3782 (4)	1.03227 (17)	0.0405 (7)
O1	0.30181 (15)	−0.0837 (4)	1.03230 (16)	0.0589 (7)
O2	0.22453 (15)	0.4164 (4)	0.76124 (15)	0.0523 (6)
O3	0.14111 (17)	0.3914 (4)	1.12368 (16)	0.0580 (7)
H3O	0.176 (2)	0.300 (7)	1.159 (3)	0.087*
N1	0.26309 (17)	0.2616 (4)	0.90914 (18)	0.0392 (7)
H1N	0.2470 (19)	0.254 (6)	0.9632 (16)	0.047*

Atomic displacement parameters (Ų)

	U11	U22	U33	U12	U13	U23
C1	0.067 (3)	0.060 (2)	0.048 (2)	0.008 (2)	0.0146 (18)	0.0174 (18)
C2	0.051 (2)	0.0407 (17)	0.0392 (18)	0.0018 (16)	0.0135 (15)	−0.0005 (15)
C3	0.061 (2)	0.050 (2)	0.057 (2)	0.0181 (19)	0.0139 (19)	0.0073 (17)
C4	0.058 (2)	0.056 (2)	0.064 (3)	0.0165 (19)	0.0211 (19)	−0.0074 (19)
C5	0.055 (2)	0.059 (2)	0.049 (2)	0.0000 (19)	0.0237 (17)	−0.0093 (18)
C6	0.054 (2)	0.0429 (18)	0.046 (2)	−0.0002 (17)	0.0155 (17)	−0.0008 (15)
C7	0.045 (2)	0.0327 (16)	0.0372 (17)	−0.0028 (15)	0.0115 (14)	−0.0061 (14)
C8	0.046 (2)	0.0311 (15)	0.0317 (17)	−0.0094 (15)	0.0058 (14)	−0.0012 (13)
C9	0.0413 (18)	0.0258 (14)	0.0394 (17)	−0.0050 (14)	0.0064 (14)	0.0022 (13)
C10	0.049 (2)	0.053 (2)	0.050 (2)	0.0036 (18)	0.0013 (16)	0.0030 (17)
C11	0.065 (2)	0.0338 (17)	0.051 (2)	0.0036 (17)	0.0092 (18)	0.0139 (15)
C12	0.0402 (19)	0.0257 (14)	0.0444 (18)	−0.0048 (14)	0.0089 (14)	−0.0011 (13)
C13	0.068 (3)	0.0383 (19)	0.067 (3)	0.0096 (18)	0.026 (2)	−0.0046 (17)
N2	0.0562 (18)	0.0345 (14)	0.0336 (14)	0.0018 (13)	0.0154 (12)	0.0017 (12)
O1	0.0641 (17)	0.0655 (16)	0.0524 (15)	0.0226 (13)	0.0245 (12)	0.0235 (12)
O2	0.0684 (16)	0.0570 (15)	0.0329 (13)	0.0035 (13)	0.0128 (11)	0.0033 (11)
O3	0.0794 (19)	0.0602 (16)	0.0402 (14)	0.0181 (14)	0.0264 (12)	0.0069 (11)
N1	0.0509 (17)	0.0354 (13)	0.0334 (15)	0.0070 (13)	0.0133 (13)	0.0018 (12)

Geometric parameters (Å, °)

C1—O1	1.420 (4)	C8—C9	1.505 (4)
C1—H1A	0.9600	C9—C12	1.494 (4)
C1—H1B	0.9600	C9—C11	1.525 (4)
C1—H1C	0.9600	C9—C10	1.540 (4)
C2—O1	1.362 (4)	C10—C11	1.478 (5)
C2—C3	1.376 (4)	C10—H10A	0.9700
C2—C7	1.402 (4)	C10—H10B	0.9700
C3—C4	1.377 (5)	C11—H11A	0.9700
C3—H3	0.9300	C11—H11B	0.9700
C4—C5	1.369 (5)	C12—N2	1.275 (4)
C4—H4	0.9300	C12—C13	1.507 (4)
C5—C6	1.380 (5)	C13—H13A	0.9600
C5—H5	0.9300	C13—H13B	0.9600
C6—C7	1.385 (4)	C13—H13C	0.9600
C6—H6	0.9300	N2—O3	1.402 (3)
C7—N1	1.402 (4)	O3—H3O	0.85 (4)
C8—O2	1.229 (3)	N1—H1N	0.856 (17)
C8—N1	1.345 (4)
O1—C1—H1A	109.5	C12—C9—C10	115.7 (3)
O1—C1—H1B	109.5	C8—C9—C10	112.2 (3)
H1A—C1—H1B	109.5	C11—C9—C10	57.7 (2)
O1—C1—H1C	109.5	C11—C10—C9	60.6 (2)
H1A—C1—H1C	109.5	C11—C10—H10A	117.7
H1B—C1—H1C	109.5	C9—C10—H10A	117.7
O1—C2—C3	125.3 (3)	C11—C10—H10B	117.7
O1—C2—C7	114.7 (3)	C9—C10—H10B	117.7
C3—C2—C7	120.0 (3)	H10A—C10—H10B	114.8
C2—C3—C4	120.0 (3)	C10—C11—C9	61.7 (2)
C2—C3—H3	120.0	C10—C11—H11A	117.6
C4—C3—H3	120.0	C9—C11—H11A	117.6
C5—C4—C3	120.7 (3)	C10—C11—H11B	117.6
C5—C4—H4	119.6	C9—C11—H11B	117.6
C3—C4—H4	119.6	H11A—C11—H11B	114.7
C4—C5—C6	119.9 (3)	N2—C12—C9	117.5 (3)
C4—C5—H5	120.0	N2—C12—C13	122.7 (3)
C6—C5—H5	120.0	C9—C12—C13	119.8 (3)
C5—C6—C7	120.4 (3)	C12—C13—H13A	109.5
C5—C6—H6	119.8	C12—C13—H13B	109.5
C7—C6—H6	119.8	H13A—C13—H13B	109.5
C6—C7—C2	119.0 (3)	C12—C13—H13C	109.5
C6—C7—N1	125.1 (3)	H13A—C13—H13C	109.5
C2—C7—N1	115.9 (3)	H13B—C13—H13C	109.5
O2—C8—N1	122.3 (3)	C12—N2—O3	112.9 (2)
O2—C8—C9	120.0 (3)	C2—O1—C1	118.0 (3)
N1—C8—C9	117.7 (2)	N2—O3—H3O	107 (3)
C12—C9—C8	123.9 (3)	C8—N1—C7	128.2 (3)
C12—C9—C11	117.6 (3)	C8—N1—H1N	114 (2)
C8—C9—C11	111.6 (3)	C7—N1—H1N	117 (2)
O1—C2—C3—C4	−179.1 (3)	C8—C9—C10—C11	−102.3 (3)
C7—C2—C3—C4	0.8 (5)	C12—C9—C11—C10	−104.3 (3)
C2—C3—C4—C5	−0.4 (6)	C8—C9—C11—C10	103.3 (3)
C3—C4—C5—C6	0.1 (6)	C8—C9—C12—N2	−16.4 (4)
C4—C5—C6—C7	−0.2 (5)	C11—C9—C12—N2	−165.1 (3)
C5—C6—C7—C2	0.6 (5)	C10—C9—C12—N2	129.6 (3)
C5—C6—C7—N1	177.7 (3)	C8—C9—C12—C13	163.4 (3)
O1—C2—C7—C6	179.0 (3)	C11—C9—C12—C13	14.7 (4)
C3—C2—C7—C6	−0.9 (5)	C10—C9—C12—C13	−50.6 (4)
O1—C2—C7—N1	1.7 (4)	C9—C12—N2—O3	−178.6 (2)
C3—C2—C7—N1	−178.2 (3)	C13—C12—N2—O3	1.7 (4)
O2—C8—C9—C12	−179.5 (3)	C3—C2—O1—C1	10.3 (5)
N1—C8—C9—C12	0.1 (4)	C7—C2—O1—C1	−169.6 (3)
O2—C8—C9—C11	−29.2 (4)	O2—C8—N1—C7	−0.4 (5)
N1—C8—C9—C11	150.4 (3)	C9—C8—N1—C7	−179.9 (3)
O2—C8—C9—C10	33.5 (4)	C6—C7—N1—C8	23.1 (5)
N1—C8—C9—C10	−146.9 (3)	C2—C7—N1—C8	−159.8 (3)
C12—C9—C10—C11	107.8 (3)

Hydrogen-bond geometry (Å, °)

D—H···A	D—H	H···A	D···A	D—H···A
N1—H1N···N2	0.86 (2)	1.94 (2)	2.670 (3)	142 (3)
O3—H3O···O2i	0.85 (4)	1.93 (2)	2.751 (3)	162 (4)

Symmetry codes: (i) x, −y+1/2, z+1/2.
