Ethyl 5,8-dibromo-2-dibromo­methyl-6,7-dimeth­oxyquinoline-3-carb­oxy­late

Abstract

The title compound, C₁₅H₁₃Br₄NO₄, was obtained via radical bromination reaction of ethyl 6,7-dimeth­oxy-2-methyl­quinoline-3-carboxyl­ate and N-bromo­succinimide (NBS) in the presence of benzoyl peroxide (BPO) under photocatalytic conditions. The quinoline ring system is approximately planar with a maximum deviation from the mean plane of 0.035 (1) Å. The dihedral angle between the six-membered rings is 2.33 (2)°. The meth­oxy O atoms of the two neighboring meth­oxy groups are in-plane while their methyl C atoms are located on either side of the quinolyl ring plane at distances of −1.207 (1) and 1.223 (1) Å.

Related literature

The quinoline nucleus is widely present in numerous natural compounds, see: Michael et al. (1997 ▶, 2002 ▶). For the biological activity of quinoline derivatives, see: Heath et al. (2004 ▶); Keyaerts et al. (2004 ▶); Ko et al. (2001 ▶). For our previous work on the preparation of quinoline derivatives, see: Yang et al. (2007 ▶, 2008 ▶).

Experimental

Crystal data

• C₁₅H₁₃Br₄NO₄

• M _r = 590.90

• Triclinic,

• a = 8.992 (2) Å

• b = 9.632 (2) Å

• c = 11.454 (3) Å

• α = 84.868 (3)°

• β = 71.948 (3)°

• γ = 77.552 (3)°

• V = 920.8 (4) ų

• Z = 2

• Mo Kα radiation

• μ = 8.76 mm⁻¹

• T = 298 K

• 0.25 × 0.20 × 0.18 mm

Data collection

• Bruker APEXII CCD area detector diffractometer

• Absorption correction: multi-scan (SADABS; Bruker, 2002 ▶) T _min = 0.218, T _max = 0.302

• 4750 measured reflections

• 3257 independent reflections

• 2373 reflections with I > 2σ(I)

• R _int = 0.035

Refinement

• R[F ² > 2σ(F ²)] = 0.043

• wR(F ²) = 0.105

• S = 0.97

• 3257 reflections

• 220 parameters

• H-atom parameters constrained

• Δρ_max = 0.97 e Å⁻³

• Δρ_min = −0.74 e Å⁻³

Data collection: APEX2 (Bruker, 2004 ▶); cell refinement: SAINT (Bruker, 2004 ▶); data reduction: SAINT; program(s) used to solve structure: SHELXS97 (Sheldrick, 2008 ▶); program(s) used to refine structure: SHELXL97 (Sheldrick, 2008 ▶); molecular graphics: SHELXTL (Sheldrick, 2008 ▶); software used to prepare material for publication: SHELXL97 and PLATON (Spek, 2009 ▶).

Supplementary Material

Additional supplementary materials: crystallographic information; 3D view; checkCIF report

supplementary crystallographic information

Comment

The quinoline ring system is widely present in numerous natural compounds (Michael et al., 1997, 2002). Quinoline derivatives are pharmacologically active compounds displaying a wide range of biological activity (Heath et al., 2004; Keyaerts et al., 2004; Ko et al., 2001)).

In previous works, we have reported the synthesis of some new quinoline derivatives (Yang et al., 2007, 2008). Herein, we report the synthesis and structure determination of a new Bromine-containing quinoline derivative, resulting from the radical bromination of ethyl 6,7-dimethoxy-2-methylquinoline-3-carboxylate under photocatalytic conditions. Our attempt to brominate the methyl group linked at C-2 position of quinoline ring, which has an acetal function at C-3, failed and led to 5,8-Dibromo-2-dibromomethyl-6,7- dimethoxy-quinoline-3-carboxylic acid, ethyl ester and other by-pruducts. This compound is the result of a unwanted reaction.

The molecular geometry of the title compound is illustrated in Fig 1. The title molecule contains an approximate planar quinolyl moiety with a maximum deviation from the mean plane of 0.035 (1)Å. The dihedral angle between the six-membered rings is 2.33 (2)°. The methoxy O atoms of the two neighboring methoxy groups are in-plane and their methyl C atoms locate on both sides of the quinolyl ring plane with maximun out-of-plane deviations of -1.207 (1) and 1.223 (1)Å, respectively.

Experimental

The title compoud was syntheized by treating 1mmol of ethyl 6,7-dimethoxy-2-methylquinoline-3-carboxylate with 1.5mmol of N-bromosuccinimide (NBS) in presence of 0.5mmol of Benzoyl Peroxide (BPO) in CCl3 under photocatalytic conditions. The mixture was then cooled and filtered off and the filtrate was concentrated under reduced pressure. The crude product was purified by silica gel column chromatography with the gradient mixture of petroleum ether and ethyl acetate (v : v = 30 : 1) to afford the white product. Crystals suitable for X-ray analysis were obtained by slow evaporation of the mixted solution of petroleum ether and ethyl acetate of the title compound.

Refinement

The H atoms were positioned geometrically and allowed to ride on their parent atoms, with C—H = 0.93–0.98 Å, with U_iso(H) = 1.2 U_eq(C) or 1.5U_eq(C_methyl).

Figures

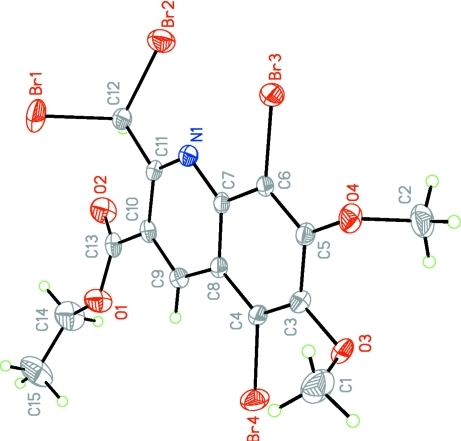

Fig. 1.

Molecular structure of the title compound showing the atom-labelling scheme. Displacement ellipsoids are drawn at the 50% probability level.

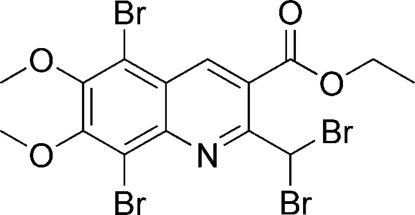

Fig. 2.

Synthesis of the title compound.
