N,N-Bis(diphenyl­phosphanyl)cyclo­propyl­amine

Ilana Engelbrecht a,*, Hendrik G Visser a, Andreas Roodt a
PMCID: PMC3009108  PMID: 21589062

Abstract

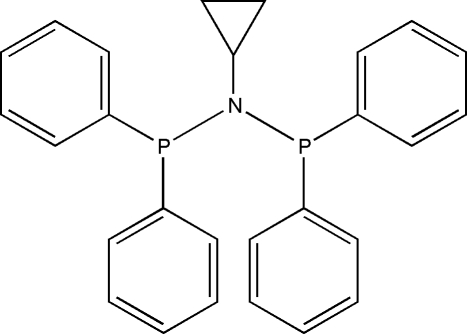

In the title compound, C27H25NP2, the diphenyl­phosphino groups are staggered relative to the PNP backbone. The dihedral angles between the phenyl rings bonded to each P atom are 51.74 (5) and 68.23 (4)°. The coordination around the N atom deviates from trigonal-pyrimidal geometry towards an almost planar arrangement between the N atom and the adjacent P and C atoms; the distance between the N atom and the plane formed by the adjacent C/P/P atoms is 0.098 (2) Å.

Related literature

For similar non-coordinated diphosphineamine ligands with distorted trigonal-pyramidal geometries see: Fei et al. (2003 ▶); Keat et al. (1981 ▶); Cotton et al. (1996 ▶); Cloete et al. (2008 ▶, 2009 ▶, 2010 ▶).graphic file with name e-66-o2881-scheme1.jpg

Experimental

Crystal data

  • C27H25NP2

  • M r = 425.42

  • Monoclinic, Inline graphic

  • a = 14.460 (4) Å

  • b = 10.486 (5) Å

  • c = 17.053 (5) Å

  • β = 119.358 (5)°

  • V = 2253.6 (15) Å3

  • Z = 4

  • Mo Kα radiation

  • μ = 0.21 mm−1

  • T = 100 K

  • 0.33 × 0.18 × 0.16 mm

Data collection

  • Bruker X8 APEXII 4K Kappa CCD diffractometer

  • Absorption correction: multi-scan (SADABS; Bruker, 2004 ▶) T min = 0.935, T max = 0.968

  • 33310 measured reflections

  • 5581 independent reflections

  • 4477 reflections with I > 2.0σ(I)

  • R int = 0.041

Refinement

  • R[F 2 > 2σ(F 2)] = 0.039

  • wR(F 2) = 0.105

  • S = 1.06

  • 5581 reflections

  • 271 parameters

  • H-atom parameters constrained

  • Δρmax = 0.33 e Å−3

  • Δρmin = −0.36 e Å−3

Data collection: APEX2 (Bruker, 2010 ▶); cell refinement: SAINT-Plus (Bruker, 2004 ▶); data reduction: SAINT-Plus; program(s) used to solve structure: SHELXS97 (Sheldrick, 2008 ▶); program(s) used to refine structure: SHELXL97 (Sheldrick, 2008 ▶); molecular graphics: DIAMOND (Brandenburg & Putz, 2005 ▶); software used to prepare material for publication: WinGX (Farrugia, 1999 ▶).

Supplementary Material

Crystal structure: contains datablocks global, I. DOI: 10.1107/S1600536810041711/pv2338sup1.cif

e-66-o2881-sup1.cif (22.3KB, cif)

Structure factors: contains datablocks I. DOI: 10.1107/S1600536810041711/pv2338Isup2.hkl

e-66-o2881-Isup2.hkl (267.7KB, hkl)

Additional supplementary materials: crystallographic information; 3D view; checkCIF report

Acknowledgments

Financial assistance from the Department of Science and Technology (DST) of South Africa, the South African National Research Foundation (NRF), as well as the DST–NRF centre of excellence (c*change) and the University of the Free State are gratefully acknowledged.

supplementary crystallographic information

Comment

This structure forms part of ongoing research on ethylene tetramerization. In the title compound, all bond distances and angles are normal and fall within the range for similar complexes (Keat et al., 1981; Cotton et al., 1996; Cloete et al., 2008; 2009; 2010). The distance of N1 from the P1—P2—C1 plane is 0.098 (2) Å showing that the N atom adapts a planar geometry with these atoms in order to accomodate the steric bulk of the phenyl groups. Dihedral angles were calculated based on planes defined by each phenyl ring and the neighboring P atom. The dihedral angles between the various phenyl rings within the molecule are: C1/C2 = 51.74 (5) ° and C3/C4 = 68.23 (4) °. TThe distorted tetrahedral angles of the P atoms range between 100.43 (7) and 105.26 (7) ° which is in good comparison with those in literature. There are no classical intermolecular hydrogen interactions. The title compound is a Cs conformer in the solid state (Keat et al., 1981) in which the phosphorous lone pairs are trans with respect to the N–C bond.

Experimental

Cyclopropylamine (0.010 mol, 693 µl) was dissolved in dichloromethane (30 ml) after which the solution was placed on an ice bath. Triethylamine (0.030 mol, 4.21 ml) was added to the solution while stirring. Chlorodiphenylphosphine (0.020 mol, 3.70 ml) was slowly added to the reaction mixture. The ice bath was removed after 1 h and the reaction mixture was allowed to stir at room temperature for a further 13 h. The dichloromethane was removed under reduced pressure. A mixture of hexane (20 ml) and toluene (2 ml) was added to the remaining white powder and was passed through a column containing neutral activated alumina (35 g). The solvent of the eluent was removed under reduced pressure and the white precipitate was collected. Single colourless crystals suitable for X-ray crystallography were obtained from recrystallization from methanol. (yield: 1.807 g, 43%)

Refinement

The methine, methylene and aromatic H atoms were placed in geometrically idealized positions at C—H = 1.00, 0.99 and 0.95 Å, respectively and constrained to ride on their parent atoms, with Uiso(H) = 1.2Ueq(C). The highest peak is located 0.71 Å from C43 and the deepest hole is situated 0.53 Å from P1.

Figures

Fig. 1.

Fig. 1.

Open in a new tab

Molecular structure of the title compound. Displacement ellipsoids are drawn at the 50% probability level. Hydrogen atoms have been omitted for clarity.

Crystal data

C27H25NP2 F(000) = 896
Mr = 425.42 Dx = 1.254 Mg m−3
Monoclinic, P21/c Mo Kα radiation, λ = 0.71069 Å
Hall symbol: -P 2ybc Cell parameters from 8432 reflections
a = 14.460 (4) Å θ = 2.5–27.5°
b = 10.486 (5) Å µ = 0.21 mm−1
c = 17.053 (5) Å T = 100 K
β = 119.358 (5)° Cuboid, colourless
V = 2253.6 (15) Å3 0.33 × 0.18 × 0.16 mm
Z = 4
Open in a new tab

Data collection

Bruker X8 APEXII 4K Kappa CCD diffractometer 5581 independent reflections
Radiation source: fine-focus sealed tube 4477 reflections with I > 2.0σ(I)
graphite Rint = 0.041
ω and φ scans θmax = 28.4°, θmin = 3.2°
Absorption correction: multi-scan (SADABS; Bruker, 2004) h = −18→19
Tmin = 0.935, Tmax = 0.968 k = −10→13
33310 measured reflections l = −22→22
Open in a new tab

Refinement

Refinement on F2 Primary atom site location: structure-invariant direct methods
Least-squares matrix: full Secondary atom site location: difference Fourier map
R[F2 > 2σ(F2)] = 0.039 Hydrogen site location: inferred from neighbouring sites
wR(F2) = 0.105 H-atom parameters constrained
S = 1.06 w = 1/[σ2(Fo2) + (0.0466P)2 + 1.0215P] where P = (Fo2 + 2Fc2)/3
5581 reflections (Δ/σ)max < 0.001
271 parameters Δρmax = 0.33 e Å−3
0 restraints Δρmin = −0.36 e Å−3
Open in a new tab

Special details

Experimental. The intensity data were collected on a Bruker X8 ApexII 4 K Kappa CCD diffractometer using an exposure time of 10 s/frame. A total of 1407 frames were collected with a frame width of 0.5° covering up to θ = 28.36° with 99.3% completeness accomplished. Spectroscopy data: 1H NMR (300 MHz, CD2Cl2): δ = 0.3 to 0.7 (m, 4H, 2 x CH2), 2.6 (m, 1H, CH), 7.3 to 7.5 (m, 20H, Ar); 31P NMR (121 MHz, CD2Cl2): δ = 63.4 (s).
Geometry. All s.u.'s (except the s.u. in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell s.u.'s are taken into account individually in the estimation of s.u.'s in distances, angles and torsion angles; correlations between s.u.'s in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell s.u.'s is used for estimating s.u.'s involving l.s. planes.
Refinement. Refinement of F2 against ALL reflections. The weighted R-factor wR and goodness of fit S are based on F2, conventional R-factors R are based on F, with F set to zero for negative F2. The threshold expression of F2 > 2σ(F2) is used only for calculating R-factors(gt) etc. and is not relevant to the choice of reflections for refinement. R-factors based on F2 are statistically about twice as large as those based on F, and R- factors based on ALL data will be even larger.
Open in a new tab

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2)

x y z Uiso*/Ueq
C1 0.59558 (12) 0.25225 (15) 0.55966 (10) 0.0209 (3)
H1 0.5473 0.1995 0.5729 0.025*
C2 0.54277 (14) 0.32353 (16) 0.47190 (11) 0.0267 (4)
H2A 0.4654 0.3121 0.4327 0.032*
H2B 0.5833 0.3354 0.4396 0.032*
C3 0.58012 (14) 0.39375 (16) 0.55920 (11) 0.0274 (4)
H3A 0.6436 0.4488 0.5804 0.033*
H3B 0.5256 0.4255 0.5735 0.033*
C11 0.71357 (12) 0.07960 (14) 0.74371 (10) 0.0184 (3)
C12 0.63529 (12) −0.00544 (14) 0.68578 (11) 0.0211 (3)
H12 0.6151 −0.0062 0.6237 0.025*
C13 0.58661 (13) −0.08882 (16) 0.71768 (11) 0.0248 (3)
H13 0.5327 −0.145 0.6773 0.03*
C14 0.61675 (14) −0.08999 (16) 0.80836 (12) 0.0258 (4)
H14 0.5834 −0.1467 0.8303 0.031*
C15 0.69601 (13) −0.00792 (15) 0.86719 (11) 0.0245 (3)
H15 0.7173 −0.0093 0.9295 0.029*
C16 0.74413 (13) 0.07601 (15) 0.83527 (11) 0.0213 (3)
H16 0.7984 0.1316 0.876 0.026*
C21 0.77084 (12) 0.33887 (14) 0.75153 (10) 0.0180 (3)
C22 0.68675 (13) 0.37085 (15) 0.76614 (10) 0.0205 (3)
H22 0.635 0.3084 0.7576 0.025*
C23 0.67822 (14) 0.49346 (15) 0.79308 (11) 0.0251 (3)
H23 0.6203 0.5145 0.8022 0.03*
C24 0.75390 (14) 0.58542 (16) 0.80678 (11) 0.0258 (4)
H24 0.7471 0.6694 0.8242 0.031*
C25 0.83918 (14) 0.55410 (15) 0.79498 (11) 0.0241 (3)
H25 0.8921 0.616 0.8057 0.029*
C26 0.84747 (13) 0.43169 (15) 0.76732 (10) 0.0207 (3)
H26 0.9061 0.4109 0.7591 0.025*
C31 0.76517 (12) −0.03248 (14) 0.55113 (10) 0.0182 (3)
C32 0.68867 (13) −0.12527 (15) 0.50250 (11) 0.0222 (3)
H32 0.6234 −0.1006 0.4519 0.027*
C33 0.70678 (14) −0.25267 (15) 0.52714 (11) 0.0262 (4)
H33 0.654 −0.3147 0.4938 0.031*
C34 0.80162 (14) −0.28923 (15) 0.60026 (12) 0.0272 (4)
H34 0.8142 −0.3766 0.6168 0.033*
C35 0.87866 (14) −0.19906 (15) 0.64963 (12) 0.0269 (4)
H35 0.9436 −0.2245 0.7002 0.032*
C36 0.86059 (13) −0.07105 (15) 0.62481 (11) 0.0223 (3)
H36 0.9137 −0.0095 0.6583 0.027*
C41 0.85308 (12) 0.20398 (14) 0.53650 (10) 0.0173 (3)
C42 0.91036 (12) 0.14796 (15) 0.49881 (10) 0.0201 (3)
H42 0.8889 0.0675 0.4699 0.024*
C43 0.99796 (13) 0.20875 (16) 0.50336 (11) 0.0239 (3)
H43 1.0358 0.1699 0.4772 0.029*
C44 1.03073 (13) 0.32609 (16) 0.54587 (12) 0.0267 (4)
H44 1.0911 0.3672 0.5492 0.032*
C45 0.97516 (14) 0.38290 (15) 0.58346 (12) 0.0266 (4)
H45 0.9978 0.4628 0.6131 0.032*
C46 0.88620 (13) 0.32314 (14) 0.57785 (11) 0.0222 (3)
H46 0.8474 0.3638 0.6024 0.027*
N1 0.70166 (10) 0.20116 (11) 0.59277 (8) 0.0171 (3)
P1 0.78650 (3) 0.18492 (4) 0.70717 (3) 0.01690 (10)
P2 0.72688 (3) 0.13260 (4) 0.51349 (3) 0.01718 (10)
Open in a new tab

Atomic displacement parameters (Å2)

U11 U22 U33 U12 U13 U23
C1 0.0195 (7) 0.0222 (8) 0.0204 (8) 0.0035 (6) 0.0094 (6) −0.0003 (6)
C2 0.0286 (9) 0.0274 (8) 0.0215 (8) 0.0078 (7) 0.0101 (7) 0.0011 (7)
C3 0.0304 (9) 0.0247 (8) 0.0227 (8) 0.0083 (7) 0.0097 (7) 0.0006 (7)
C11 0.0196 (7) 0.0158 (7) 0.0213 (8) 0.0023 (6) 0.0112 (6) 0.0005 (6)
C12 0.0254 (8) 0.0202 (7) 0.0193 (8) −0.0002 (6) 0.0124 (7) −0.0017 (6)
C13 0.0272 (9) 0.0216 (8) 0.0261 (9) −0.0058 (6) 0.0135 (7) −0.0045 (7)
C14 0.0304 (9) 0.0222 (8) 0.0306 (9) −0.0029 (7) 0.0194 (8) 0.0013 (7)
C15 0.0301 (9) 0.0257 (8) 0.0203 (8) 0.0007 (7) 0.0142 (7) 0.0019 (6)
C16 0.0227 (8) 0.0202 (7) 0.0196 (8) −0.0014 (6) 0.0092 (6) −0.0003 (6)
C21 0.0208 (8) 0.0186 (7) 0.0134 (7) 0.0010 (6) 0.0073 (6) 0.0002 (6)
C22 0.0220 (8) 0.0209 (7) 0.0187 (8) −0.0005 (6) 0.0102 (6) −0.0007 (6)
C23 0.0283 (9) 0.0251 (8) 0.0244 (8) 0.0051 (7) 0.0148 (7) −0.0007 (7)
C24 0.0362 (9) 0.0186 (7) 0.0209 (8) 0.0025 (7) 0.0127 (7) −0.0009 (6)
C25 0.0315 (9) 0.0206 (8) 0.0186 (8) −0.0048 (7) 0.0112 (7) −0.0011 (6)
C26 0.0227 (8) 0.0229 (8) 0.0165 (7) −0.0022 (6) 0.0097 (6) −0.0011 (6)
C31 0.0225 (8) 0.0173 (7) 0.0216 (8) −0.0009 (6) 0.0161 (7) −0.0015 (6)
C32 0.0253 (8) 0.0222 (8) 0.0232 (8) −0.0029 (6) 0.0150 (7) −0.0034 (6)
C33 0.0365 (10) 0.0211 (8) 0.0279 (9) −0.0086 (7) 0.0210 (8) −0.0066 (7)
C34 0.0413 (10) 0.0162 (7) 0.0311 (9) −0.0017 (7) 0.0233 (8) 0.0003 (7)
C35 0.0289 (9) 0.0238 (8) 0.0286 (9) 0.0024 (7) 0.0146 (7) 0.0052 (7)
C36 0.0226 (8) 0.0192 (7) 0.0270 (8) −0.0018 (6) 0.0136 (7) −0.0008 (6)
C41 0.0200 (7) 0.0178 (7) 0.0147 (7) 0.0011 (6) 0.0088 (6) 0.0038 (6)
C42 0.0241 (8) 0.0178 (7) 0.0198 (8) 0.0027 (6) 0.0118 (7) 0.0018 (6)
C43 0.0246 (8) 0.0263 (8) 0.0264 (8) 0.0054 (6) 0.0169 (7) 0.0078 (7)
C44 0.0248 (8) 0.0280 (8) 0.0291 (9) −0.0039 (7) 0.0147 (7) 0.0077 (7)
C45 0.0343 (9) 0.0196 (8) 0.0255 (9) −0.0068 (7) 0.0143 (8) 0.0001 (6)
C46 0.0308 (9) 0.0178 (7) 0.0224 (8) −0.0005 (6) 0.0164 (7) 0.0010 (6)
N1 0.0179 (6) 0.0186 (6) 0.0155 (6) 0.0020 (5) 0.0088 (5) −0.0004 (5)
P1 0.0173 (2) 0.01718 (19) 0.0168 (2) 0.00046 (14) 0.00886 (16) −0.00058 (14)
P2 0.0189 (2) 0.01685 (19) 0.0170 (2) 0.00047 (14) 0.00976 (16) −0.00097 (14)
Open in a new tab

Geometric parameters (Å, °)

C1—N1 1.452 (2) C25—C26 1.393 (2)
C1—C3 1.500 (2) C25—H25 0.95
C1—C2 1.504 (2) C26—H26 0.95
C1—H1 1 C31—C36 1.395 (2)
C2—C3 1.504 (2) C31—C32 1.399 (2)
C2—H2A 0.99 C31—P2 1.8349 (17)
C2—H2B 0.99 C32—C33 1.386 (2)
C3—H3A 0.99 C32—H32 0.95
C3—H3B 0.99 C33—C34 1.380 (3)
C11—C12 1.399 (2) C33—H33 0.95
C11—C16 1.399 (2) C34—C35 1.387 (2)
C11—P1 1.8342 (16) C34—H34 0.95
C12—C13 1.390 (2) C35—C36 1.393 (2)
C12—H12 0.95 C35—H35 0.95
C13—C14 1.386 (2) C36—H36 0.95
C13—H13 0.95 C41—C46 1.399 (2)
C14—C15 1.390 (2) C41—C42 1.402 (2)
C14—H14 0.95 C41—P2 1.8282 (16)
C15—C16 1.388 (2) C42—C43 1.386 (2)
C15—H15 0.95 C42—H42 0.95
C16—H16 0.95 C43—C44 1.388 (2)
C21—C22 1.396 (2) C43—H43 0.95
C21—C26 1.398 (2) C44—C45 1.384 (2)
C21—P1 1.8433 (17) C44—H44 0.95
C22—C23 1.391 (2) C45—C46 1.391 (2)
C22—H22 0.95 C45—H45 0.95
C23—C24 1.390 (2) C46—H46 0.95
C23—H23 0.95 N1—P2 1.7208 (13)
C24—C25 1.383 (2) N1—P1 1.7301 (14)
C24—H24 0.95
N1—C1—C3 119.55 (14) C26—C25—H25 120
N1—C1—C2 119.64 (14) C25—C26—C21 121.00 (15)
C3—C1—C2 60.09 (11) C25—C26—H26 119.5
N1—C1—H1 115.5 C21—C26—H26 119.5
C3—C1—H1 115.5 C36—C31—C32 118.53 (14)
C2—C1—H1 115.5 C36—C31—P2 125.74 (12)
C1—C2—C3 59.83 (11) C32—C31—P2 115.68 (12)
C1—C2—H2A 117.8 C33—C32—C31 120.89 (16)
C3—C2—H2A 117.8 C33—C32—H32 119.6
C1—C2—H2B 117.8 C31—C32—H32 119.6
C3—C2—H2B 117.8 C34—C33—C32 119.85 (15)
H2A—C2—H2B 114.9 C34—C33—H33 120.1
C1—C3—C2 60.07 (11) C32—C33—H33 120.1
C1—C3—H3A 117.8 C33—C34—C35 120.37 (15)
C2—C3—H3A 117.8 C33—C34—H34 119.8
C1—C3—H3B 117.8 C35—C34—H34 119.8
C2—C3—H3B 117.8 C34—C35—C36 119.81 (16)
H3A—C3—H3B 114.9 C34—C35—H35 120.1
C12—C11—C16 118.33 (14) C36—C35—H35 120.1
C12—C11—P1 123.02 (12) C35—C36—C31 120.55 (15)
C16—C11—P1 118.40 (12) C35—C36—H36 119.7
C13—C12—C11 120.96 (15) C31—C36—H36 119.7
C13—C12—H12 119.5 C46—C41—C42 118.17 (14)
C11—C12—H12 119.5 C46—C41—P2 122.20 (12)
C14—C13—C12 119.98 (15) C42—C41—P2 118.81 (12)
C14—C13—H13 120 C43—C42—C41 120.72 (15)
C12—C13—H13 120 C43—C42—H42 119.6
C13—C14—C15 119.78 (15) C41—C42—H42 119.6
C13—C14—H14 120.1 C42—C43—C44 120.36 (15)
C15—C14—H14 120.1 C42—C43—H43 119.8
C16—C15—C14 120.26 (15) C44—C43—H43 119.8
C16—C15—H15 119.9 C45—C44—C43 119.75 (15)
C14—C15—H15 119.9 C45—C44—H44 120.1
C15—C16—C11 120.65 (15) C43—C44—H44 120.1
C15—C16—H16 119.7 C44—C45—C46 120.09 (15)
C11—C16—H16 119.7 C44—C45—H45 120
C22—C21—C26 118.40 (14) C46—C45—H45 120
C22—C21—P1 125.20 (12) C45—C46—C41 120.89 (15)
C26—C21—P1 116.33 (12) C45—C46—H46 119.6
C23—C22—C21 120.45 (15) C41—C46—H46 119.6
C23—C22—H22 119.8 C1—N1—P2 116.03 (10)
C21—C22—H22 119.8 C1—N1—P1 120.30 (10)
C24—C23—C22 120.45 (16) P2—N1—P1 122.58 (8)
C24—C23—H23 119.8 N1—P1—C11 103.56 (7)
C22—C23—H23 119.8 N1—P1—C21 102.40 (7)
C25—C24—C23 119.71 (15) C11—P1—C21 100.43 (7)
C25—C24—H24 120.1 N1—P2—C41 103.54 (7)
C23—C24—H24 120.1 N1—P2—C31 105.26 (7)
C24—C25—C26 119.94 (15) C41—P2—C31 102.29 (7)
C24—C25—H25 120
N1—C1—C2—C3 −109.10 (16) C44—C45—C46—C41 1.6 (2)
N1—C1—C3—C2 109.25 (16) C42—C41—C46—C45 −1.6 (2)
C16—C11—C12—C13 2.0 (2) P2—C41—C46—C45 −171.14 (12)
P1—C11—C12—C13 176.10 (12) C3—C1—N1—P2 −111.08 (14)
C11—C12—C13—C14 −1.1 (2) C2—C1—N1—P2 −40.77 (18)
C12—C13—C14—C15 −0.3 (3) C3—C1—N1—P1 80.49 (16)
C13—C14—C15—C16 0.7 (3) C2—C1—N1—P1 150.80 (12)
C14—C15—C16—C11 0.2 (2) C1—N1—P1—C11 58.57 (13)
C12—C11—C16—C15 −1.5 (2) P2—N1—P1—C11 −109.08 (9)
P1—C11—C16—C15 −175.91 (12) C1—N1—P1—C21 −45.54 (13)
C26—C21—C22—C23 1.9 (2) P2—N1—P1—C21 146.81 (9)
P1—C21—C22—C23 −174.81 (12) C12—C11—P1—N1 24.39 (14)
C21—C22—C23—C24 −0.7 (2) C16—C11—P1—N1 −161.48 (12)
C22—C23—C24—C25 −1.1 (2) C12—C11—P1—C21 129.99 (13)
C23—C24—C25—C26 1.6 (2) C16—C11—P1—C21 −55.87 (13)
C24—C25—C26—C21 −0.3 (2) C22—C21—P1—N1 79.58 (14)
C22—C21—C26—C25 −1.4 (2) C26—C21—P1—N1 −97.23 (12)
P1—C21—C26—C25 175.60 (12) C22—C21—P1—C11 −26.95 (15)
C36—C31—C32—C33 0.4 (2) C26—C21—P1—C11 156.23 (12)
P2—C31—C32—C33 −177.16 (12) C1—N1—P2—C41 131.82 (11)
C31—C32—C33—C34 −0.4 (2) P1—N1—P2—C41 −60.04 (10)
C32—C33—C34—C35 0.5 (3) C1—N1—P2—C31 −121.16 (11)
C33—C34—C35—C36 −0.6 (3) P1—N1—P2—C31 46.98 (10)
C34—C35—C36—C31 0.6 (2) C46—C41—P2—N1 −25.59 (14)
C32—C31—C36—C35 −0.5 (2) C42—C41—P2—N1 164.95 (12)
P2—C31—C36—C35 176.77 (12) C46—C41—P2—C31 −134.83 (13)
C46—C41—C42—C43 0.6 (2) C42—C41—P2—C31 55.71 (13)
P2—C41—C42—C43 170.51 (12) C36—C31—P2—N1 −71.90 (15)
C41—C42—C43—C44 0.4 (2) C32—C31—P2—N1 105.44 (12)
C42—C43—C44—C45 −0.4 (2) C36—C31—P2—C41 36.03 (15)
C43—C44—C45—C46 −0.6 (3) C32—C31—P2—C41 −146.64 (12)
Open in a new tab

Footnotes

Supplementary data and figures for this paper are available from the IUCr electronic archives (Reference: PV2338).

References

  1. Brandenburg, K. & Putz, H. (2005). DIAMOND Crystal Impact GbR, Bonn, Germany.
  2. Bruker (2004). SAINT-Plus and SADABS Bruker AXS Inc., Madison, Wisconsin, USA.
  3. Bruker (2010). APEX2 Bruker AXS Inc., Madison, Wisconsin, USA.
  4. Cloete, N., Visser, H. G. & Roodt, A. (2010). Acta Cryst. E66, m51–m52. [DOI] [PMC free article] [PubMed]
  5. Cloete, N., Visser, H. G., Roodt, A., Dixon, J. T. & Blann, K. (2008). Acta Cryst. E64, o480. [DOI] [PMC free article] [PubMed]
  6. Cloete, N., Visser, H. G., Roodt, A. & Gabrielli, W. F. (2009). Acta Cryst. E65, o3081. [DOI] [PMC free article] [PubMed]
  7. Cotton, F. A., Kuhn, F. E. & Yokochi, A. (1996). Inorg. Chim. Acta, 252, 251–256.
  8. Farrugia, L. J. (1999). J. Appl. Cryst.32, 837–838.
  9. Fei, Z., Scopeleti, R. & Dyson, P. J. (2003). Dalton Trans. pp. 2772–2779.
  10. Keat, R., Manojlovic-Muir, L., Muir, K. W. & Rycroft, D. S. (1981). J. Chem. Soc. Dalton Trans. pp. 2192–2198.
  11. Sheldrick, G. M. (2008). Acta Cryst. A64, 112–122. [DOI] [PubMed]

Associated Data

This section collects any data citations, data availability statements, or supplementary materials included in this article.

Supplementary Materials

Crystal structure: contains datablocks global, I. DOI: 10.1107/S1600536810041711/pv2338sup1.cif

e-66-o2881-sup1.cif (22.3KB, cif)

Structure factors: contains datablocks I. DOI: 10.1107/S1600536810041711/pv2338Isup2.hkl

e-66-o2881-Isup2.hkl (267.7KB, hkl)

Additional supplementary materials: crystallographic information; 3D view; checkCIF report

Articles from Acta Crystallographica Section E: Structure Reports Online are provided here courtesy of International Union of Crystallography

RESOURCES
