Bis(dicyclo­hexyl­ammonium) μ-oxalato-κ4 O 1,O 2:O 1′,O 2′-bis­[aqua­(oxalato-κ2 O 1,O 2)diphenyl­stannate(IV)]

Ndongo Gueye; Libasse Diop; K C Kieran Molloy; Gabrielle Kociok-Köhn

doi:10.1107/S1600536810046738

. 2010 Nov 24;66(Pt 12):m1645–m1646. doi: 10.1107/S1600536810046738

Bis(dicyclohexylammonium) μ-oxalato-κ⁴ O ¹,O ²:O ^1′,O ^2′-bis[aqua(oxalato-κ² O ¹,O ²)diphenylstannate(IV)]

Ndongo Gueye ^a, Libasse Diop ^a,^*, K C Kieran Molloy ^b, Gabrielle Kociok-Köhn ^b

PMCID: PMC3011489 PMID: 21589314

Abstract

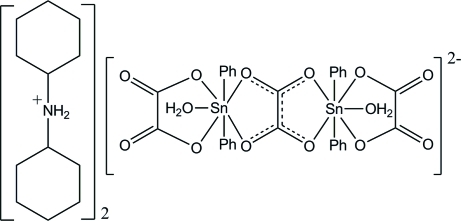

The structure of the title compound, (C₁₂H₂₄N)₂[Sn₂(C₆H₅)₄(C₂O₄)₃(H₂O)₂], consists of a bischelating oxalate ion, located on an inversion center, which is linked to two SnPh₂ groups. The coordination sphere of the Sn(IV) ion is completed by a monochelating oxalate anion and a water molecule. The Sn(IV) atoms are thus seven-coordinated. The discrete binuclear units are further connected by hydrogen bonds, leading to a supramolecular crystal structure. The asymmetric unit contains one half dianion and one (Cy₂NH₂)⁺ cation.
