On the Mechanics Underlying the Reservoir-Excess Separation in Systemic Arteries and their Implications for Pulse Wave Analysis

Abstract

Several works have separated the pressure waveform p in systemic arteries into reservoir p _r and excess p _exc components, p = p _r + p _exc, to improve pulse wave analysis, using windkessel models to calculate the reservoir pressure. However, the mechanics underlying this separation and the physical meaning of p _r and p _exc have not yet been established. They are studied here using the time-domain, inviscid and linear one-dimensional (1-D) equations of blood flow in elastic vessels. Solution of these equations in a distributed model of the 55 larger human arteries shows that p _r calculated using a two-element windkessel model is space-independent and well approximated by the compliance-weighted space-average pressure of the arterial network. When arterial junctions are well-matched for the propagation of forward-travelling waves, p _r calculated using a three-element windkessel model is space-dependent in systole and early diastole and is made of all the reflected waves originated at the terminal (peripheral) reflection sites, whereas p _exc is the sum of the rest of the waves, which are obtained by propagating the left ventricular flow ejection without any peripheral reflection. In addition, new definitions of the reservoir and excess pressures from simultaneous pressure and flow measurements at an arbitrary location are proposed here. They provide valuable information for pulse wave analysis and overcome the limitations of the current two- and three-element windkessel models to calculate p _r.

Introduction

Several works (Wang et al. 2003; Davies et al. 2007, 2010; Aguado-Sierra et al. 2008; Tyberg et al. 2008, 2009; Parker 2009; Vermeersch et al. 2009) have suggested that the time-domain analysis of pulse wave propagation in systemic arteries is improved if the pressure waveform is separated into a reservoir pressure that varies in time, but is uniform (space-independent) throughout the arteries, and an excess pressure 1 that varies in time and space due to wave propagation; the so-called reservoir-excess separation. These works have shown that the pressure waveform in systole and early diastole is made up of the combination of reservoir and excess pressures, whereas the pressure decay in late diastole is well described by the reservoir pressure only. Davies et al. (2010) have recently shown that the reservoir pressure increases with aging and correlates well with factors that determine health risk.

Despite all these studies, the physical bases of the reservoir and excess pressures have not yet been established and the reservoir-excess separation has remained an ad hoc assumption. Moreover, two different algorithms have been proposed and used to calculate the reservoir pressure (Wang et al. 2003; Aguado-Sierra et al. 2008), but their assumptions and results have not been rigorously compared.

Other separations of the pulse waveform with better understood mechanics have been suggested. Simultaneous pressure and velocity measurements at an arbitrary arterial location and an estimation of the local pulse wave speed allow us to calculate the forward-travelling waveform propagated from proximal locations and the backward-travelling waveform propagated from distal locations (Westerhof et al. 1972; Parker and Jones 1990; Hughes and Parker 2009; Zhang and Li 2009). The pulse waveform simulated at an arbitrary location using the one-dimensional (1-D) formulation can also be separated into a peripheral waveform made of waves initially reflected at peripheral branches and a conduit waveform made of the remaining reflected and transmitted waves at the arterial junctions, aortic valve (when shut) and any other change in geometry and elasticity within the arterial segments (Alastruey et al. 2009). This separation showed that most of the pressure waveform consists of peripheral reflections, especially in diastole when the conduit pressure vanishes. The rest of reflected waves mainly contribute to the pressure waveform in systole and early diastole.

The purpose of this work is to theoretically and numerically study the mechanics underlying the reservoir-excess separation in systemic arteries, explore their implications for pulse wave analysis when the algorithms described in Wang et al. (2003) and Aguado-Sierra et al. (2008) are used to calculate the reservoir pressure, and find new definitions of the reservoir and excess pressures that provide valuable information for pulse wave analysis and overcome the limitations of the current algorithms. First, the algorithms used in Wang et al. (2003) and Aguado-Sierra et al. (2008) are described and compared, and their limitations are discussed ("Reservoir-Excess Separation"). These algorithms are then related to the 1-D equations of blood flow in elastic vessels ("The 1-D Formulation, From the 1-D Equations to the Windkessel Pressure, 3-Element Windkessel and 1-D Model Pressures, and Diastolic flow"), which are a reasonable approach to model pulse wave propagation in systemic arteries (Olufsen et al. 2000; Čanić and Kim 2003; Steele et al. 2003; Quarteroni and Formaggia 2004; Matthys et al. 2007). The new reservoir and excess pressures are defined in "New Reservoir and Excess Pressures". Pulse waveforms generated using the 1-D formulation in a single-vessel aortic model and a 55-segment arterial model ("Numerical Experiments") will be used to illustrate the results.

Methodology

Reservoir-Excess Separation

The reservoir-excess separation was introduced by Wang et al. (2003) using Frank’s windkessel pressure p _w(t) as the reservoir pressure, which satisfies the mass conservation (Frank 1899)

1

where t is the time, q _IN(t) the left ventricular flow ejection, C _T the net compliance of the whole arterial tree, R _T the net resistance of the peripheral systemic circulation, and P _out the pressure at which flow to the periphery ceases. and P _out were assumed to be constant and estimated from in vivo pressure and flow waveforms measured at the ascending aorta, so that Eq. 1 could be solved for p _w,

2

with the windkessel pressure at . The excess pressure was defined as p − p _w, with p the measured pressure, and was found to be similar to in normal conditions (Wang et al. 2003), with Z _Ao the characteristic impedance of the ascending aorta (defined as the pressure-to-flow ratio of a forward-travelling wave (Milnor 1989)).

If the flow is periodic with period T, Eq. 1 leads to

3

where is the mean over the time interval , with . is, therefore, the cardiac output.

To calculate p _w we require q _IN, which cannot always be measured in vivo. To overcome this limitation, Aguado-Sierra et al. (2008) proposed to calculate the reservoir pressure as the pressure p _r satisfying the three-element windkessel equation

4

where p is the measured pressure at an arbitrary location and λ is a resistance relating q _IN and the excess pressure ; i.e.

5

with the feet of the q _IN and p waves aligned in time to eliminate the delay between them. The constants and were determined using an iterative fitting algorithm, which means that λ, and hence p _r, were not defined explicitly.

It is important to remark that if λ = Z _Ao, then Eq. 4 corresponds to the three-element windkessel model (Westerhof et al. 1969, 1971). Moreover, Eqs. 1 and 4 and their analogous electrical circuits (Fig. 1) show that p _w and p _r are conceptually different.

Fig. 1.

Analogous electrical circuit diagrams governed by the (left) two-element windkessel Eq. 1 and (right) three-element windkessel Eq. 4

From Eq. 5 we have

6

where and are the mean values of and p, respectively.

The 1-D Formulation

The nonlinear terms in the 1-D formulation will be neglected since it makes the analysis simpler and it is consistent with Eqs. 1 and 4 being linear. Moreover, the effect of nonlinearities is small for the physiological parameters used (Matthys et al. 2007).

Consider the arterial system to be a network of N elastic and homogeneous arterial segments (or edges) from 1 to N, in which pulse wave propagation is modelled using the linearised 1-D equations (Alastruey et al. 2009)

7

where the superscript i indicates the number of the edge, x  ∈ [0,l ⁱ] is the axial coordinate along the vessel, l ⁱ the edge length, p ⁱ(x, t) the average internal pressure over the luminal cross section, q ⁱ(x, t) the luminal flow rate, the cross-sectional area of the lumen, and A ⁱ ₀ the area at assumed to be uniform within each edge. The constants

8

are the viscous resistance to flow, blood inertia and elastic wall compliance, respectively, per unit length of vessel, ρ is the constant mass density of blood, and μ the constant blood viscosity. The arterial wall is assumed to be thin, homogeneous, incompressible and elastic, and to deform axisymmetrically, each cross-section independent of the others. The constants h ⁱ and E ⁱ are the thickness and Young’s modulus of the wall, respectively.

The equations in 7 form a system of hyperbolic partial differential equations. The characteristic variables w ⁱ _f and w ⁱ _b of this system are

9

where is the characteristic impedance of the edge and its pulse wave speed. Changes in pressure and flow within any edge are propagated forward by w ⁱ _f and backward by w ⁱ _b along the characteristic lines , respectively, where represent lines in the (x, t) space. If viscous dissipation is neglected (i.e. ), w ⁱ _f and , are invariant along the characteristic lines and, hence, propagate changes in pressure and flow without wave dissipation.

For convenience, the edges are indexed so that refers to the ascending aorta and to M () refer to terminal edges. The inlet flow, q ¹(0,t), is assumed to be given and equal to the flow waveform from the left ventricle q _IN. The distal ends of edges numbered from 2 to M are coupled to a matched RCR windkessel model relating to , through (Alastruey et al. 2008)

10

where R _j and C _j are the constant peripheral resistance and compliance, respectively.

At the junctions (or nodes) of the network, conservation of mass and continuity of pressure are enforced. For each of the three edges and c connected at a junction, the reflection coefficients () are defined as the ratio of the change of pressure across the reflected wave to the change of pressure in the incident wave. They can be expressed as a function of the characteristic admittance of the edge (Alastruey et al. 2009),

11

Forward- and backward-travelling waveforms

We can calculate the forward () and backward () contributions to p and q at an arbitrary location in the network as and (Parker and Jones 1990). They satisfy and . The former yields when in Eq. 9 (i.e. backward-travelling waves are absent) and the latter when (i.e. forward-travelling waves are absent) ().

Conduit and Peripheral Pressures

In a linear 1-D model simulation, the conduit contribution to pressure p _con is obtained at any location in the network by enforcing terminal boundary conditions that completely absorb any incident wave; i.e. single resistances with . The peripheral contribution to pressure p _per is then calculated for the linear case as (Alastruey et al. 2009).

From the 1-D Equations to the Windkessel Pressure

Integrating the first two equations in (7) over the edge length l ⁱ yields

12

where , and and are the space-averaged pressure and flow over an edge of length l ⁱ. Assuming conservation of mass at the nodes of the network and combining the N equations of conservation of mass in 12 yield the following equation for the conservation of mass for the network,

13

14

where p _C(t) is the compliance-weighted space-average pressure of the network, C _c the total conduit compliance and the total peripheral outflow driven by p _C.

Hereafter, , will be assumed since the resistance in large arteries is much smaller than peripheral resistances (Caro et al. 1978) [Chap. 12]. Taking , leads to , (i.e. changes in pressure and flow occur synchronously) and reduces the N equations of balance of momentum in (12) to

15

Furthermore, , at any location of the i-th arterial segment, since 15 holds for any length l ⁱ.

Assuming continuity of pressure at the nodes of the network, we obtain , where is the space-independent pressure to which the 1-D model pressures in 7 reduce when R ⁱ _0D = 0 and . Equation 13 then becomes

16

where is the total outflow to the periphery driven by and C _p is the total peripheral compliance. The solution to Eq. 16 is

17

where is the pressure at t = T ₀ and is the total compliance. Finally, Eq. 16 reduces to Frank’s windkessel Eq. 1, with , when ; i.e. we only have conduit compliance C _c.

Next, the implications of time-averaging Eqs. 13, 14 and 16 will be explored.

Time-averaged behaviour. Integrating Eq. 13 over the interval yields

18

If the flow is periodic with a period T, then Eqs. 10 and 18 lead to

19

Integrating the balance of momentum in 12 over the interval and assuming periodic flow with a period T yields . Since Eq. 12 holds for any length l ⁱ, we have being evaluated at any location of the i-th arterial segment. Combining these results with continuity of pressure at the nodes of the network leads to and i = 1, …, N. Equation 19, hence, reduces to

20

i.e. the mean pressure at any location in the network is space-independent.

Combining Eqs. 14 and 20 yields

21

and integrating Eq. 16 over the interval yields

22

Thus, .

3-Element Windkessel and 1-D Model Pressures

The calculation of the reservoir pressure using Eq. 4 is based on the assumptions of well-matched arterial junctions for the transmission of forward-travelling waves (i.e. at the outlets of internal edges) and q _IN being proportional to p _exc except for a time shift to account for the propagation of q _IN to the measurement site of p (Aguado-Sierra et al. 2008). The latter is satisfied if the outlets of terminal edges are completely absorbent (i.e. they are single resistances with ), so that reflected waves are absent in the system (i.e. ). Under these assumptions, the pressure at the aortic root will maintain its shape throughout the network, leading to with q _IN and q ⁱ time-aligned (so that the feet of both waves coincide), and , if λ = Z _Ao (Eq. 5).

If p ⁱ _exc is calculated using Eq. 5 with λ = Z _Ao in a network with reflective terminal boundary conditions (but still well-matched junctions for forward-travelling waves), then and (i = 1, …, N); i.e. p ⁱ _exc is the part of p ⁱ due to waves travelling from the aortic root to the periphery and p ⁱ_r is the part of p ⁱ made of all the reflected waves originated at the terminal (peripheral) reflection sites.

Diastolic Flow

In normal diastolic conditions q _IN = 0, so that Eqs. 13 and 16 reduce to

23

Alastruey et al. (2009) showed that , converge to (Eq. 17) in diastole. According to the analysis in "From the 1-D Equations to the Windkessel Pressure", this implies that in diastole and, hence, ; i.e. changes in pressure and flow occur synchronously. The convergence of , to leads to and, hence, , according to Eq. 23.

This equation also shows that the contribution of each edge to the total diastolic outflow q _C increases with the edge compliance C ⁱ _0D. Moreover, the conservation of mass in Eq. 7 with , shows that the flow in each edge is linearly dependent on x,

24

According to Eq. 17, decays exponentially when . In this case,

25

where is the windkessel pressure at the beginning of diastole, t = T _d.

New Reservoir and Excess Pressures

This work will explore the implications of defining the reservoir and excess pressures from simultaneous p and q measurements at an arbitrary location as

26

A tilde is used to distinguish these new reservoir and excess pressures from the corresponding pressures calculated using the three-element windkessel model (p _r and p _exc). Note that at the aortic root if λ = Z _Ao. Using and , and the relations and shown in "Forward- and Backward-Travelling Waveforms", and satisfy

27

at any location in the arterial network. Thus, is made of waves coming from distal locations only and is the difference between proximal and distal contributions to p. In a well-matched network for forward-travelling waves with the outlets of terminal edges completely absorbent, p _b = 0 and, hence, p = p _f. Therefore, and .

Numerical Experiments

The theoretical results described above will be illustrated using waveforms simulated in a single-vessel 1-D model of the human aorta coupled to a matched RCR windkessel model of the rest of the circulation (Alastruey et al. 2008). Two distributed models will also be used: a 55-artery 1-D model of the larger systemic arteries in the human, referred to as ‘normal 55-artery model’ (Fig. 2), and a version of this model with modified radii so that junctions are well-matched () for forward-travelling waves, referred to as ‘well-matched 55-artery model’. Tables 1, 2 and 3 show the parameters of these models, which have the same total resistance R _T and compliance C _T, and outflow pressure P _out = 0. Figure 4b shows the flow rate q _IN prescribed at the aortic root of the three models; it is periodic until s and zero afterward to study the relaxation of these models.

Fig. 2.

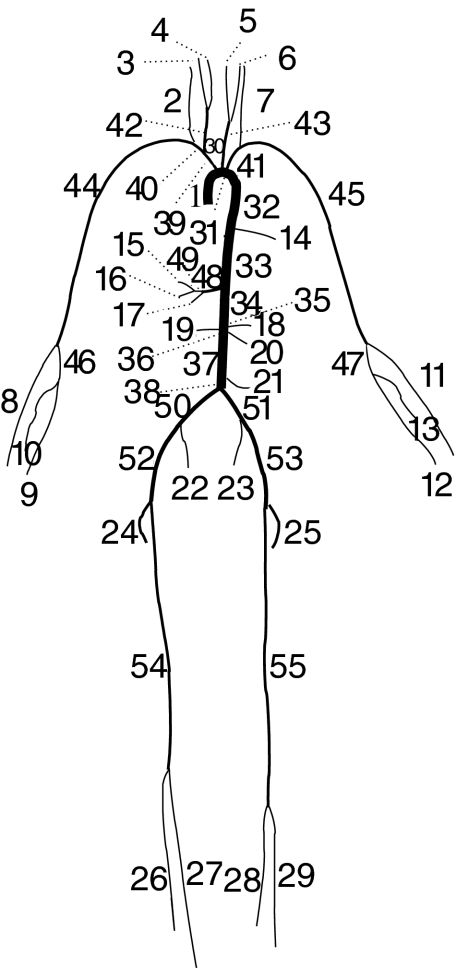

Connectivity of the 55 larger systemic arteries in the human, as proposed in Stergiopulos et al. (1992). Their names and properties are shown in Tables 2 and 3

Table 1.

Parameters of the single-vessel model of the human aorta based on Caro et al. (1978) and Westerhof et al. (1969)

Parameter	Value
Length l	0.4 m
Cross-sectional area A 0
Wall thickness h	1.0 mm
Blood mass density ρ
Elastic Young’s modulus E	0.4 MPa
Peripheral compliance C
Peripheral resistance R T

The resulting pulse wave speed is

Table 2.

Length, initial radius and wave speed of each arterial edge in the 55-artery network in Fig. 2

Arterial edge	Length (cm)	Radius (mm)	c ()	inlet	outlet
1. Ascending aorta	4.0	14.5 (14.7)	4.0 (6.2)	–	0.1
2. R. vertebral	14.8	1.9 (2.4)	8.3 (11.3)	−0.9	–
3. R. external carotid	17.7	1.3 (3.8)	9.6 (8.7)	−0.9	–
4. R. internal carotid	17.7	1.3 (3.8)	9.9 (9.0)	−0.9	–
5. L. internal carotid	17.7	1.3 (3.4)	9.9 (9.6)	−0.9	–
6. L. external carotid	17.7	1.3 (3.4)	9.6 (9.2)	−0.9	–
7. L. vertebral	14.8	1.9 (2.0)	8.3 (12.5)	−0.9	–
8. R. radial	23.5	1.6 (3.7)	8.8 (9.0)	−0.8	–
9. R. ulnar II	17.1	1.9 (4.3)	8.2 (8.5)	−0.2	–
10. R. interosseous	7.9	0.9 (1.9)	13.2 (14.1)	−0.9	–
11. L. radial	23.5	1.6 (3.2)	8.8 (9.5)	−0.8	–
12. L. ulnar II	17.1	1.9 (3.8)	8.2 (9.1)	−0.2	–
13. L. interosseous	7.9	0.9 (1.7)	13.2 (14.9)	−0.9	–
14. Intercostals	8.0	1.8 (3.1)	6.3 (7.3)	−1.0	–
15. Gastric	7.1	1.8 (2.2)	6.0 (8.3)	−0.6	–
16. Splenic	6.3	2.8 (3.4)	5.3 (7.3)	0.1	–
17. Hepatic	6.6	2.2 (4.6)	5.6 (6.1)	−0.6	–
18. Superior mesenteric	5.9	4.4 (4.1)	4.8 (7.6)	−0.6	–
19. R. renal	3.2	2.6 (3.5)	5.4 (7.2)	−0.8	–
20. L. renal	3.2	2.6 (3.5)	5.4 (7.2)	−0.9	–
21. Inferior mesenteric	5.0	1.6 (2.5)	6.2 (7.6)	−0.9	–
22. R. internal iliac	5.0	2.0 (4.1)	10.7 (11.6)	−0.8	–
23. L. internal iliac	5.0	2.0 (4.1)	10.7 (11.6)	−0.8	–
24. R. deep femoral	12.6	2.2 (3.6)	7.8 (9.5)	−0.5	–
25. L. deep femoral	12.6	2.2 (3.6)	7.8 (9.5)	−0.5	–
26. R. anterior tibial	34.3	1.3 (2.0)	13.1 (16.4)	−0.8	–
27. R. posterior tibial	32.1	1.9 (3.8)	11.5 (12.8)	−0.4	–
28. L. posterior tibial	32.1	1.9 (3.8)	11.5 (12.8)	−0.4	–
29. L. anterior tibial	34.3	1.3 (2.0)	13.1 (16.5)	−0.8	–
30. Aortic arch I	2.0	11.2 (12.6)	4.0 (5.8)	−0.3	0.0
31. Aortic arch II	3.9	10.7 (11.9)	3.9 (5.7)	−0.1	0.0
32. Thoracic aorta I	5.2	10.0 (11.2)	4.0 (5.8)	−0.1	0.4
33. Thoracic aorta II	10.4	6.6 (10.7)	4.6 (5.7)	−0.5	−0.1
34. Abdominal aorta I	5.3	6.1 (9.2)	4.6 (5.8)	−0.2	−0.2
35. Abdominal aorta II	1.0	6.0 (8.4)	4.4 (5.7)	−0.2	−0.1
36. Abdominal aorta III	1.0	5.9 (7.9)	4.4 (5.9)	−0.1	0.0
37. Abdominal aorta IV	10.6	5.6 (7.3)	4.4 (5.9)	−0.1	0.0
38. Abdominal aorta V	1.0	5.2 (6.8)	4.2 (5.7)	−0.1	0.1
39. Brachiocephalic	3.4	6.2 (7.0)	4.3 (6.3)	−0.8	0.2
40. R. subclavian	3.4	4.2 (5.4)	4.8 (6.5)	−0.5	0.2
41. L. subclavian	3.4	4.2 (4.7)	4.8 (7.0)	−0.9	0.2
42. R. common carotid	17.7	3.7 (4.7)	4.9 (6.8)	−0.6	0.8
43. L. common carotid	20.8	3.7 (4.2)	4.9 (7.2)	−0.9	0.8
44. R. brachial	42.2	3.2 (5.2)	5.5 (6.7)	−0.4	0.4
45. L. brachial	42.2	3.2 (4.6)	5.5 (7.1)	−0.4	0.4
46. R. ulnar I	6.7	2.2 (4.5)	7.8 (8.3)	−0.6	0.1
47. L. ulnar I	6.7	2.2 (4.0)	7.8 (8.9)	−0.6	0.1
48. Celiac I	1.0	3.9 (5.9)	4.8 (6.1)	−0.7	0.4
49. Celiac II	1.0	2.0 (4.0)	6.8 (7.4)	−0.7	−0.5
50. R. common iliac	5.8	3.6 (5.1)	4.9 (6.3)	−0.5	0.2
51. L. common iliac	5.8	3.6 (5.1)	4.9 (6.3)	−0.5	0.2
52. R. external iliac	14.4	3.0 (4.8)	7.2 (8.7)	−0.4	0.0
53. L. external iliac	14.4	3.0 (4.8)	7.2 (8.7)	−0.4	0.0
54. R. femoral	44.3	2.2 (3.6)	8.0 (9.7)	−0.5	0.2
55. L. femoral	44.3	2.2 (3.6)	8.0 (9.7)	−0.5	0.2

They are based on data in Stergiopulos et al. (1992). The last two columns show the reflection coefficients at the inlet and outlet of edges connected to junctions. The radii and wave speeds in brackets yield well-matched junctions for forward-travelling waves (with at the outlets of internal edges)

Table 3.

Peripheral resistances and compliances at the terminal edges of the 55-artery network in Fig. 2

Arterial edge	()	C j ()
2. R. vertebral	0.60	0.93 (0.84)
3. R. external carotid	1.39	0.40 (0.36)
4. R. internal carotid	1.39	0.40 (0.36)
5. L. internal carotid	1.39	0.40 (0.36)
6. L. external carotid	1.39	0.40 (0.36)
7. L. vertebral	0.60	0.93 (0.84)
8. R. radial	0.53	1.06 (0.96)
9. R. ulnar II	0.53	1.06 (0.96)
10. R. interosseous	8.43	0.07 (0.06)
11. L. radial	0.53	1.06 (0.96)
12. L. ulnar II	0.53	1.06 (0.96)
13. L. interosseous	8.43	0.07 (0.06)
14. Intercostals	0.14	4.02 (3.64)
15. Gastric	0.54	1.03 (0.93)
16. Splenic	0.23	2.41 (2.18)
17. Hepatic	0.36	1.54 (1.39)
18. Superior mesenteric	0.09	6.00 (5.43)
19. R. renal	0.11	4.94 (4.47)
20. L. renal	0.11	4.94 (4.47)
21. Inferior mesenteric	0.69	0.81 (0.73)
22. R. internal iliac	0.79	0.70 (0.64)
23. L. internal iliac	0.79	0.70 (0.64)
24. R. deep femoral	0.48	1.17 (1.06)
25. L. deep femoral	0.48	1.17 (1.06)
26. R. anterior tibial	0.56	1.00 (0.90)
27. R. posterior tibial	0.48	1.17 (1.06)
28. L. posterior tibial	0.48	1.17 (1.06)
29. L. anterior tibial	0.56	1.00 (0.90)

They yield and . In all these edges . The compliances in brackets correspond to the network with well-matched junctions for forward-travelling waves

Fig. 4.

a New excess pressure with time at (inlet), l/4 (1/4), l/2 (mid) and 3l/4 (3/4) in the single-vessel aortic model. b Flow with time at the inlet (q _IN) and midpoint (mid), and outflows and q _C driven by and p _C, respectively

The equations in 7 were solved in each model using a discontinuous Galerkin scheme with a spectral/hp spatial discretisation, a second-order Adams-Bashforth time-integration scheme, a time step of s, and zero pressures and flows as initial conditions (Alastruey 2006). Arterial edges were divided in non-overlaping elements with a 2 cm length (when physically possible) and a polynomial and quadrature order of 3. Elements or edges shorter than 2 cm were given a polynomial and quadrature order of 2.

Results

Single-Vessel Aorta

Blood pressure p at any location in the single-vessel aortic model and the reservoir p _r, compliance-weighted space-average p _C and windkessel pressures, calculated using Eqs. 5 (with λ = Z _Ao), 14 and 17 (with and to satisfy the initial conditions of the 1-D model), respectively, tend to the same shape with the increasing time in diastole. Figure 3a,b show these pressures (p and p _r in the midpoint) once the flow has become periodic. Figure 3a also shows the excess pressure p _exc in the midpoint, which is proportional to q _IN. The difference between and p _C is smaller than 2 kPa in systole and becomes smaller with time in diastole (Fig. 3b). From 9 to 10 s, the mean values of and p at any location, p _C and are 12.5 kPa; the same value as predicted by Eqs. 6, 20, 21 and 22.

Fig. 3.

a Pressure p and reservoir p _r and excess p _exc pressures calculated using the three-element windkessel model with λ = Z _Ao in the midpoint of the single-vessel aortic model, and windkessel pressure with time. b and compliance-weighted space-average pressure p _C. c Reservoir pressure p _r calculated using the three-element windkessel model with λ = Z _Ao at x = 0 (inlet), l/4 (1/4), l/2 (mid) and 3l/4 (3/4). d New reservoir pressure at the same locations as in (c)

Figure 3c shows that p _r calculated with λ = Z _Ao changes in space in systole and early diastole. At any location, p _r is identical to p _per and p _exc is identical to p _con. On the other hand, is space-independent except for the time alignment (Fig. 3d), and is proportional to the flow at any location (Fig. 4a). At the inlet, and .

Figure 4b shows the blood flow q in the midpoint of the vessel and the convergence of the outflows q _C and (calculated using Eqs. 13 and 16) to the same shape in late diastole. From 9 to 10 s, the mean values of q at any location, q _C and are equal to ml s⁻¹. During approximately the last half of diastole the flow satisfies (Eq. 24); i.e. q increases linearly from zero at the inlet to the exponential shape dictated by at the outlet.

The forward and backward parts of p and q are space-independent except for the time alignment. Figure 5a, b show and q _b in the midpoint: in most of the cardiac cycle p _f is greater than p _b and q _f is greater than −q _b; in most of diastole p _f and p _b have a similar shape, as do q _f and −q _b. At the inlet, and when q _IN = 0.

Fig. 5.

Forward (p _f and q _f) and backward (p _b and q _b) contributions to a pressure p and b flow q, and c new reservoir and excess pressures with time in the midpoint of the single-vessel aortic model

Figure 5c shows and in the midpoint; is the major component of p, especially in diastole, and significantly determines the pressure shape in systole and early diastole. During approximately the last half of diastole , in agreement with Eqs. 24 and 26. Thus, at the inlet so that captures all the diastolic decay. As we approach the outlet increases and decreases.

55-Artery Network

In diastole, pressures everywhere in the normal and well-matched 55-artery models eventually converge to calculated using Eq. 17 with and . Figure 6 shows this convergence at four locations in both models once the flow is periodic, including their decay up to t = 10.4 s due to q _IN = 0. The diastolic pressure decay is also well captured by p _per and p _r (with λ = Z _Ao) (Fig. 7). Moreover, and everywhere in the well-matched model (Fig. 7b). In the normal model, p _per and p _r, and p _con and p _exc differ in systole and early diastole (Fig. 7a). Figure 8a compares at several locations in the well-matched model, showing their space dependency. Both p _per and p _r are also space-dependent in the normal model.

Fig. 6.

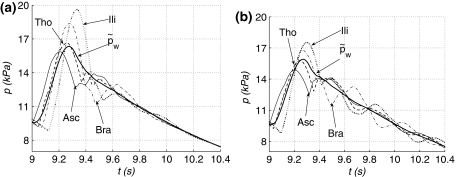

Pressure with time at the root of the ascending aorta (Edge 1, Asc) and the midpoint of the thoracic aorta II (Edge 33, Tho), left brachial (Edge 45, Bra) and right external iliac (Edge 52, Ili) arteries of the a normal and b well-matched 55-artery models. Pressures in thick solid lines. After s, to show the relaxation of both models

Fig. 7.

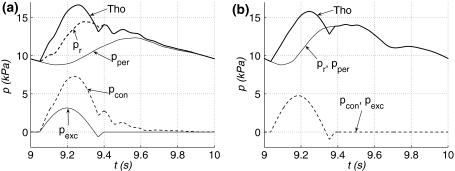

Pressure (Tho) with time in the midpoint of the thoracic aorta II (Edge 33) and reservoir p _r (with λ = Z _Ao), peripheral p _per, excess p _exc and conduit p _con pressures at the same location in the a normal and b well-matched 55-artery models

Fig. 8.

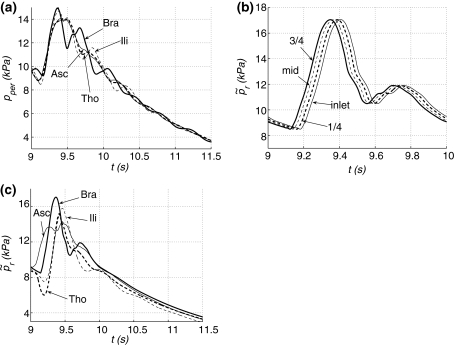

a Peripheral pressure p _per with time at the root of the ascending aorta (Edge 1, Asc), and the midpoint of the thoracic aorta II (Edge 33, Tho), left brachial (Edge 45, Bra) and right external iliac (Edge 52, Ili) arteries of the well-matched 55-artery model. b New reservoir pressure with time at (inlet), l/4 (1/4), l/2 (mid) and 3l/4 (3/4) in the left brachial artery of the normal 55-artery model. c with time at Asc, Tho, Bra and Ili of the normal 55-artery model. After s, in panels (a) and (c)

In both networks, is equal to p _r (λ = Z _Ao) at the inlet of the ascending aorta and space-independent, except for the time alignment, within any edge. Figure 8b shows this in the left brachial artery of the normal model. Comparison of within several edges shows its convergence to the decay given by , except for the time alignment (Fig. 8c).

In systole, the difference between and p _C is less than 0.8 kPa in the normal model (Fig. 9a) and 0.35 kPa in the well-matched model (Fig. 9b). This difference decreases with time in diastole. Once the flow has become periodic, the mean values (over a cardiac cycle) of and p at any location, p _C and are 12.5 kPa; the same value as predicted by Eqs. 6, 20, 21 and 22. In both models, the outflows q _C and tend to the same shape with the increasing time in diastole (Fig. 9c,d).

Fig. 9.

a, b Windkessel and compliance-weighted space-average p _C pressures, and c, d outflows and q _C driven by and p _C, respectively, with time in the normal (a, c) and well-matched (b, d) 55-artery models

Within any edge in both networks, and q _b are space-independent except for the time alignment. Figure 10a, b show them in the midpoint of the thoracic aorta of the normal model. In diastole p _f is similar to p _b in shape, and so is q _f to −q _b. They differ more in systole, with p _f and q _f being dominant. Figure 10c shows and at the same location; is the major component of the diastolic decay and is greater in systole than in diastole. This result is observed at any location in both models. At the aortic root and in diastole, and produces all the pressure decay.

Fig. 10.

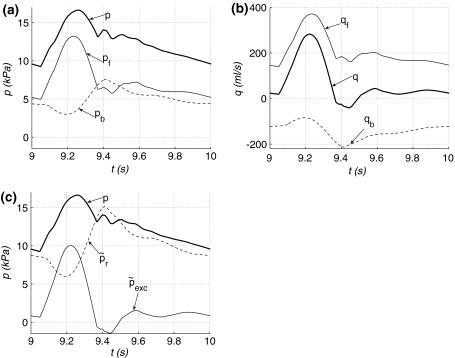

Forward (p _f and q _f) and backward (p _b and q _b) contributions to a pressure p and b flow q, and c new reservoir and excess pressures with time in the midpoint of the thoracic aorta II (Edge 33) of the normal 55-artery model

Figure 11 compares the diastolic decays of in all the models studied using a semi-logarithmic plot. They are all approximately exponential with a time constant that differs from s by less than 5 %. If peripheral compliances are zero (i.e. ) in the normal 55-artery model and , are increased so that C _c is equal to the original C _T, then the time constant is 1.6 s. This is in agreement with Eq. 25. In all cases, approaches the asymptote P _out = 0 with time.

Fig. 11.

Diastolic on a logarithm scale with time in the single-vessel aorta (1art) and the normal (55art) and well-matched (55art wm) 55-artery models. After s, to show the relaxation of the models

Discussion and Concluding Remarks

This work has provided a theoretical and numerical description of the mechanics underlying the reservoir and excess pressures calculated using the two- and three-element windkessel models, and has proposed a new definition of them that provides valuable information for pulse wave analysis and overcomes the limitations of the current algorithms. Indeed, the two-element windkessel model requires a measurement of the left ventricular flow ejection q _IN, which cannot always be measured in vivo, to calculate the reservoir pressure. The three-element windkessel model does not require q _IN, but the reservoir pressure that provides is not defined explicitly.

We start by discussing the theoretical results obtained when the two-element windkessel model is used (e.g. Wang et al. 2003; Tyberg et al. 2008, 2009; Davies et al. 2010). In a network with inviscid flow and terminal outflows modelled using single resistances (i.e. all the compliance of the vessel walls is located within the 1-D model network and all the flow resistance is at the periphery of the network), the reservoir pressure p _w calculated using Frank’s windkessel Eq. 1 is the space-independent pressure to which blood pressure p at any location tends with the increasing time in diastole. This result is in agreement with in vivo canine pressures, measured every 2 cm from the aortic root to the femoral artery, being approximately uniform during the last two-thirds of diastole (Wang et al. 2003). If we numerically allow for some peripheral compliance, then p at any location tends to the space-independent (Fig. 6), which like p _w depends on global properties (left ventricular flow ejection, total compliance and resistance and outflow pressure) (Eq. 17), dictates the total flow to the periphery (Eq. 16) and is equal to p _w when terminal outflows are modelled using single resistances.

Since was derived assuming blood inertia to be zero, the results in the previous paragraph suggest that there is a progressive loss of blood inertia in diastole, which is recovered by the time of the next left ventricular ejection. Thus, a clear distinction exists between the systolic and diastolic mechanics underlying blood flow in systemic arteries. In systole, the changes in blood pressure and flow produced by the contraction of the left ventricle propagate in the form of waves (called pulse waves) through the systemic arteries. These waves are reflected at the arterial junctions, peripheral branches, aortic valve (when shut), and any other change in arterial geometry and elasticity, and produce space-dependent pressures and flows. With the increasing time, the number of reflected waves increases exponentially, but the amplitude of the pressure and flow changes associated with these waves tends to decrease exponentially (Alastruey et al., 2009). In diastole, waves progressively lose inertia and the flow is dominated by the global relaxation of the compliant vessels.

The numerical results show a transient exponential building-up in the diastolic pressure waveform p from the initial zero pressure. Separation of p into peripheral p _per and conduit p _con contributions suggests that this building-up is due to p _per and, hence, generated by waves originated as reflections at the peripheral outflows (Alastruey et al., 2009). Indeed, a simulation started at zero pressure in a network with completely absorbent peripheral outflows produces a periodic pressure p = p _con without a physiological diastolic decay from the first heartbeat. Therefore, peripheral resistances must be greater than peripheral characteristic impedances in order for arteries to store sufficient blood volume and potential energy in systole and generate sufficient pressure and kinetic energy for the perfusion of the periphery in diastole.

The numerical results in this work also suggest that in systole and early diastole is well approximated by the compliance-weighted space-average pressure of the arterial network p _C defined in 14. In diastole and p _C (and the flows and q _C that they drive) gradually converge to the same shape (Figs. 3b, 4b, 9), which is consistent with the gradual convergence of p to . Therefore, p _C provides an approximate physical interpretation of (and hence p _w), and shows that the more compliant arteries are, the larger their contribution is to the total peripheral outflow in diastole.

The mechanics underlying the reservoir pressure p _r calculated using the three-element windkessel model (e.g. Aguado-Sierra et al. (2008); Davies et al. (2007); Parker (2009); Vermeersch et al. (2009)) have been studied taking λ = Z _Ao. Under this assumption, this work has shown that p _r is not space-independent in systole and early diastole (Figs. 3c, 8a). Moreover, the mean p _r is smaller than the mean p _w when the flow is periodic; the mean p _w being equal to the mean blood pressure for inviscid flow. Aguado-Sierra et al. (2008) assumed well-matched junctions for forward-travelling waves, which seems to be a reasonable approximation in normal humans and animals (Milnor, 1989; Papageorgiou and Jones, 1987). Under this assumption, this work has shown that p _r is equal to the pressure p _per generated by the reflected waves originated at the terminal reflection sites, and p _exc is the pressure p _con obtained by propagating the left ventricular flow ejection without any peripheral reflection (Fig. 7b). The larger the reflection coefficients for forward-travelling waves at junctions are, the less valid these descriptions of p _r and p _exc become (Fig. 7a). Indeed, if junctions are not well-matched for forward-travelling waves, p _r calculated at the ascending aorta with λ = Z _Ao differs from p _per in systole and early diastole, and only converges to p _per later in diastole. A similar relation, therefore, exists between and .

The new reservoir and excess pressures (Eq. 26) proposed here overcome the limitations of the two- and three-element windkessel models, since and are independent of q _IN and well defined at any location in the arterial network. Moreover, if local compliances are constant within each arterial edge, is space-independent within each edge (except for the time alignment) unlike p _r, and is always proportional to the local flow unlike p _exc. Calculation of requires simultaneous pressure and velocity q/A ₀ measures and an estimation of the local pulse wave speed c, which can be obtained using the methods in Davies et al. (2006) and Khir et al. (2001).

In the models studied here, is the major contribution to the diastolic pressure decay, while plays a more significant role in shaping the pressure waveform in systole and early diastole (Figs. 5c, 10c). At the aortic root produces all the diastolic pressure decay, since in diastole due to q = 0. Note that is made up of contributions to pressure from distal locations (Eq. 27) and, hence, plays a similar role to p _per. However, p _per accounts only for distal contributions that originate at peripheral reflection sites, whereas includes contributions from reflections at any other change in distal arterial geometry or elasticity; e.g. at all the arterial junctions.

The separation of p into and is closely related to the separation of p into forward p _f and backward p _b waves described in Westerhof et al. (1972), Parker and Jones (1990), and Hughes and Parker (2009), as shown by Eq. 27. In diastole, p _f and p _b are approximately equal and relatively large, leading to self-cancelling forward q _f and backward q _b flow waves (Figs. 5a, b, 10a, b). This diastolic pattern was considered to be a necessary result of the wave separation analysis, but its origin was difficult to explain physically, since the heart is not ejecting blood into the aorta in diastole (Parker 2009).

Pulse wave analysis using and provides a more physically plausible description of p _f and p _b and their relation to q. At any time, is proportional to q and, hence, determines the magnitude and direction of q (Eq. 27). The increase in systolic p _f at the aortic root generated by the left ventricular flow ejection is propagated to distal locations increasing . In diastole, a relatively smaller indicates a better balance between proximal and distal contributions to p. In normal diastolic conditions, q _IN = 0 and hence p _b is totally reflected at the closed aortic valve, so that . Thus is a better approximation to the diastolic pressure decay than p _b is. On the other hand, p _f is partially reflected at the peripheral reflection sites. This pattern of wave reflections of p _f at the peripheral reflection sites and p _b at the closed aortic valve leads to a positive in most of diastole, so that q is mostly directed toward the periphery. The progressive loss of diastolic blood inertia in the 1-D balance of momentum that leads to the convergence of p to also yields uniform p _f and p _b in diastole, and hence , except for the time alignment (Fig. 8c). The summation of p _f and p _b in diastole produces a space-independent p and their difference leads to non-zero q in diastole.

The numerical results presented here have shown that the time constant that characterises the diastolic pressure decay can be reasonably estimated using an exponential fitting to diastolic pressure at an arbitrary arterial location (Fig. 11). It is important to emphasise that the longer the diastolic time (e.g. when a heartbeat is missed) the better the accuracy of the fitting. However, the assumption of constant total compliance becomes less valid for a larger change in pressure, since in vivo arterial compliance is pressure dependent (Roy 1880–1882; Frank 1899).

Experimental and clinical investigations will be required to assess the validity of the results presented here and test the relevance of the new definition of reservoir and excess pressures. According to this work, they should improve our understanding of the relationship between the pattern of pulse waveforms and the physical properties of the cardiovascular system.
