Raloxifene stimulated experimental breast cancer with the paradoxical actions of estrogen to promote or prevent tumor growth: A Unifying Concept in Antihormone Resistance

Abstract

We have previously demonstrated that prolonged treatments with raloxifene (RAL) in vitro will result in phase II RAL resistance and RAL induced tumor growth.Clinical interest prompted us to reexamine RAL resistance in vivo, particularly the effects of long term treatments (a decade or more) on the evolution of RAL resistance. In this report, we have addressed the question of this being a reproducible phenomenon in wild type estrogen receptor (ER) positive human breast cell line MCF7. MCF7 cells cultured under estrogen-deprived conditions in the presence of 1 μM RAL for more than a year develop RAL resistance resulting in an independent cell line, MCF7-RAL. The MCF7-RAL cells grow in response to both estradiol E₂ and RAL. Fulvestrant (FUL)blocks RAL and E₂ mediated growth. Transplantation of MCF7-RAL cells into athymic ovariectomized mice and treatment with physiologic doses of E₂ causes early E₂ stimulated tumor growth. In contrast, continuous treatment of implanted animals with daily oral RAL (1.5 mg daily) causes growth of small tumors within 15 weeks. Continuous re-transplantation of the tumors growing in RAL treated mice indicated that RAL stimulated tumor growth. Tumors in the untreated mice did not grow. Bi-transplantation of MCF7-E₂ and MCF7-RAL tumors into the opposing mammary fat pads of the same ovariectomized animal demonstrated that MCF7-E₂ grew with E₂ stimulation and not with RAL. Conversely, MCF7-RAL tumors grew with RAL and not E₂, a characteristic of phase II resistance. Established phase II resistance of MCF7-RAL tumors was confirmed following up to 7 years of serial transplantation in RAL treated athymic mice. The ERα was retained in these tumors. The cyclical nature of RAL resistance was confirmed and extended during a 2 year evolution of the resistant phases of the MCF7-RAL tumors. The MCF7-RAL tumors that initially were inhibited by E₂ grew in the presence of E₂ and subsequently grew with either RAL or E₂. RAL remained the major grow stimulus and RAL enhanced E₂-stimulated growth. Subsequent transplantation of E₂ stimulated tumors and evaluations of the actions of RAL, demonstrated robust E₂ stimulated growth that was blocked by RAL . These are the characteristics of the anti estrogenic actions of RAL on E₂ stimulated breast cancer growth with a minor component of phase I RAL resistance. Continuous transplantation of the phase I RAL stimulated tumors for more than 8 months causes reversion to phase II resistance. These data and literature reports of the cyclical nature of anti-androgen/androgen responsiveness of prostate cancer growth, illustrate the generality of the evolution of anti-hormonal resistance in sex steroid sensitive target tissues.

Introduction

Selective estrogen receptor (ER) modulators (SERMs) are compounds that bind to the ER and based on tissue specificity, act as agonists or antagonists (1). Tamoxifen (TAM), the first SERM, is a proven agent for treatment of breast cancer (2) and breast cancer chemoprevention (3–4). Laboratory studies during the 1980’s demonstrated that long term tamoxifen treatment could stimulate the growth of ER positive MCF-7 breast tumors in vivo (5–6). This unique form of acquired resistance to a cancer therapy raised clinical concerns about extending adjuvant tamoxifen therapy. However, the risk of developing endometrial cancer during the use of tamoxifen for chemoprevention of breast cancer (4) prompted the examination of other compounds that would capitalize on the gains in breast cancer prevention made with tamoxifen but with a superior safety profile.

Raloxifene (also known as keoxifene or LY156,758) (7), a second generation SERM, inhibits the growth of 7, 12-dimethylbenzanthracene (DMBA) induced tumors in rats (8), prevents the development and growth of estrogen dependent N-nitrosomethylurea (NMU)-induced mammary carcinoma in rats (9) and maintains bone density in ovariectomized rats (10). The recognition that non steroidal anti estrogens like tamoxifen and raloxifene selectively exhibited estrogen-like effects in bone and anti-estrogenic effects in breast and mammary tissue (9–10) suggested a new strategy to prevent breast cancer by treating post menopausal women to prevent and treat osteoporosis and prevent breast cancer at the same time (11).

The clinical finding that patients treated with raloxifene to improve bone density (12) exhibited significant decreases in the rates of breast cancer (13), provided a clinical proof of the laboratory principle and demonstrated raloxifene’s potential as a breast cancer chemo preventive agent. Data from the Study of Tamoxifen and Raloxifene (STAR) trial (14), which directly compared raloxifene to tamoxifen for breast cancer chemoprevention, indicated that raloxifene has similar chemopreventive properties as tamoxifen but with a significantly better safety profile. A subsequent clinical trial (15) examining the effects of raloxifene on coronary heart disease (CHD) did not achieve its goals but confirmed the role of raloxifene as a breast cancer chemo prevention agent with no increase in endometrial cancer. The evaluation by Martino and coworkers (16) that long term raloxifene treatment for the prevention of osteoporosis does not increase endometrial cancer but maintains an inhibiting effect on breast cancer incidence suggests that the clinical community may use raloxifene for indefinite periods. However, the discovery that acquired tamoxifen resistance evolves (17–18) raises new questions about acquired resistance to raloxifene treatments.

Acquired tamoxifen resistance is sub-divided into 3 phases: i) Phase I, in which estrogen and the SERM stimulate tumor growth, ii) Phase II, in which the SERM stimulates tumor growth and estrogen induces tumor regression; iii) Phase III resistance or autonomous growth (1). Laboratory studies indicate that long term SERM treatments result in hyper-sensitivity to low, physiological doses of estrogen resulting in breast tumor regression and possibly estrogen-induced apoptosis. It is important to note that these observations were initially made with an estrogen supersensitive clone of MCF-7 breast cancer cells (WS8) using only tamoxifen treatment for 5–10 years in vivo (17–18) and raloxifene (19–20) resistant model in vitro and few weeks (20) or a year or two (19–20) in vivo. These data are not confined to SERM resistant models as similar observations were made in long term estrogen deprived breast cancer cells (21–24). The findings that physiological estrogen causes dramatic tumor repression in anti-hormone resistant breast cancer (17–18) are reminiscent of the early clinical trials utilizing high doses of diethylstilbestrol (DES) (25–26) to treat breast cancer in post-menopausal patients many years after their menopause. Moreover, recent clinical trial (27–28) evaluating the role of estrogen treatments in women with advanced breast cancer tumors following acquired resistance to anti hormone therapy noted a 31% objective response and indicated a substantial role for high dose estrogen treatments in hormone dependent breast cancer tumors resistant to conventional endocrine therapies.

The current ten year laboratory study has paralleled the translation of the new biology of apoptotic action (17–18, 21, 23) to clinical trials (27–28). Most importantly, the increasing clinical use of raloxifene for the prevention of osteoporosis in postmenopausal women implies that breast cancer that develops during a decade or more of raloxifene treatment will have developed raloxifene resistance. It is important to address this emerging clinical problem.

Our goal was to revisit this question by utilizing wild type MCF-7 cells to recreate a raloxifene resistant variant of MCF7 cells in vitro. The failure of wild type MCF-7 cells to create acquired resistance in vivo would expose an inadequacy of laboratory models or imply that acquired raloxifene resistance would not occur in the clinic. This was not the case as the answer is yes to the first question and the answer to the second question requires clinical investigation. We subsequently used the new model in vivo to evaluate the actions of physiological estrogen and raloxifene on the growth responses of raloxifene stimulated tumors passaged over a decade in ovariectomized athymic mice. This laboratory strategy mimics the clinical duration of raloxifene exposure.

Materials and Methods

Cell lines and tissue Culture

The MCF7 breast cells were a generous gift of Dr. Myles Brown (Harvard)in 1995. The MCF7 cells were maintained in a DMEM red medium (Invitrogen, Carlsbad, CA) supplemented with 10% fetal bovine serum (FBS), 2 mM glutamine, 100 U/ml penicillin, 100 μg/ml streptomycin and 10mM non-essential amino acids (NEAA). Raloxifene-resistant MCF7 cells (MCF7-RAL) were derived by continuously culturing the MCF7 cells for up to 10 years in estrogen-free media: DMEM yellow media with 10% charcoal stripped FBS, 2 mM glutamine, 100 U/ml penicillin, 100 μg/ml streptomycin and 10mM NEAA, supplemented with 1 μM raloxifene-HCl. All cell lines were cultured at 37°C, 5% CO₂ and 95% humidity.

Verification of cell lines identity by “DNA Fingerprinting”

The identity of the cell lines was verified by DNA fingerprinting using the commercially available kit, PowerPlexR 1.2 System (Promega). This system allows the co-amplification and two-color detection of nine loci (eight STR loci and the Y-specific Amelogenin) and provides a powerful level of discrimination in excess of 1 in 10⁸ (29). The following STR markers were tested: CSF1PO, TPOX, TH01, vWA, D16S539, D7S820, D13S317 and D5S818. The cells were harvested by trypsinization and DNA was isolated from the resultant cell pellets using standard methods (30). The PCR amplification was performed according to the manufacturer’s recommended protocol. Fragment analysis of the PCR product was achieved using an ABI 3100 capillary sequencer (Applied Biosystems, Foster City, CA). The GeneMapperR software (Applied Biosystems, Foster City, CA) was used to score the fragment sizes and generate an alphanumeric score for each locus. The data generated were then compared to allelic alphanumeric scores for MCF-7 and ECC-1 reported in the ATCC STR database generated using the same assay (ATCC, VA).

DNA Growth Assay

MCF7 and MCF7-RAL cells were seeded in estrogen-free media 4 days prior to start of the experiment. After 3 days of ligand starvation the appropriate numbers of cells were seeded in a 24-well plate. Twenty four hours later, which was denoted as Day 0, the cells were appropriately treated. The media containing treatments was changed every other day. All drugs were solubilized in ethanol and were added as 1:1000 dilutions. Following 15 days of treatment the DNA content of the cells was measured as previously described (31) with VersaFluor fluorometar (Bio-Rad Laboratories, Hercules, CA).

Animal procedures

MCF7 tumor models

The MCF7-E₂ breast tumor model was developed by bilaterally injecting 1X10⁷ MCF7 cells into the mammary fat pads of ovariectomized athymic CrTac:NCR-Foxn1<nu> mice (Taconic, Hudson, NY) (32), 4–6 weeks of age, implanted with silastic 17β-estradiol capsules. The raloxifene resistant MCF7-RAL model was similarly developed by injecting 1X10⁷ raloxifene resistant MCF7-RAL cells into the mammary fat pads of ovariectomized female mice. RAL treatments were started 24 hours post implantation by administering 1.5 mg RAL or .005 mg TAM via oral gavage. The MCF7-RAL tumor xenograft model was maintained by excising the established MCF7-RAL tumors, removing all extraneous tissues and dissecting them into approximately 1–2 mm³ pieces that were than implanted by trochar into the mammary fat pads of naïve mice subsequently treated with RAL. The RAL resistant MCF7-RAL model was continuously passaged into RAL treated athymic mice over a 10 year period. Established tumors were measured every week or as needed with Vernier calipers and cross sectional area of the tumor was calculated utilizing the formula: Length (l) X width (w) X π/4.

Drug administration

The raloxifene solution for oral gavage was prepared by grinding 10 commercially available EvistaR tablets and dissolving them into 10% PEG 400/Tween 80 (Sigma, St. Louis, MO) solution to a final concentration of 15 mg/ml. Silastic 17β-estradiol capsules were manufactured as previously described (33) and were subcutaneously implanted in the mice dorsal region. The 0.3 cm capsule delivered the equivalent of menopausal levels of estrogen while the 1.0 cm capsule delivered the equivalent of pre menopausal levels of estrogen (34). Fulvestrant (Fasoldex/ICI 182,780, AstraZeneca) is commercially available and was purchased from the hospital pharmacy. Ten mg total fulvestrant (FUL) was injected bi-weekly, subcutaneously (35). All animal studies were approved by the Fox Chase institutional animal care and use committee.

RNA extractions, reverse transcriptase reactions and real time qPCR

Total RNA was extracted with TRIzol reagent (Invitrogen, Carlsbad, CA) and further purified using RNeasy Mini and Midi kits (Qiagen, Valencia, CA). One μg of total RNA was reversely transcribed with the High Capacity cDNA Revere Transcriptase kit (Applied Biosystems, Forester City, CA) following manufacturer’s instructions. The sequences of the primers utilized for real time qPCR are as follows:

• tff1 forward primer, 5’-CATCGACGTCCCTCCAGAAGAG – 3’;

• tff1 reverse primer, 5’-CTCTGGGACTAATCACCGTGCTG – 3’;

• 36B4 forward primer, 5’-GTGTTCGACAATGGCAGGCAT – 3’;

• 36B4 reverse primer, 5’-GACACCCTCCAGGAAGCGA – 3’;

• c-myc forward primer, 5’-GCCACGTCTCCACACATCAG – 3’;

• c-myc reverse primer, 5’ - TCTTGGCAGCAGGAATAGTCCTT – 3’;

• ebag9 forward primer, 5’-CTGGCAGAGGACGGAAATTA – 3’;

• ebag9 reverse primer, 5’-TCATCCCAGGAAGTCCACTC – 3’;

the primer sets for egfr and her2 were previously described (36–37). Real time qPCR was performed using the 7900HT Real time PCR System (Applied Biosystems, Foster City, CA), the amplicons were detected with SYBR green and analysis was performed utilizing the 2^−ΔΔt method (38).

Transient transfections and luciferase assays

MCF7 and MCF7-RAL cells were maintained in estrogen free medium for 3 days and seeded at confluency of 150,000 cells per 6-well plate. The cells were co-transfected with 5ERE(5X)-TA ffluc and pTA-srluc utilizing TransIT LT1 transfection agent (Mirus, Madison, WI) (39). Luciferase activity was measured utilizing the Dual-luciferase reporter assay system (Promega) with Mithras LB 940 (Berhold Technologies, Bad Wildbad, Germany) microplate reader.

Protein isolation and Western blot

The MCF7 and MCF7-RAL cells were cultured in estrogen free media for 3 days and seeded at 50–60% confluency. Twenty-four post-seeding the cells were treated with the appropriate drug or drug combination. Following 24 hour treatment, the cells were washed with PBS and scraped off the plates. After brief centrifugation at 4°C the PBS was aspirated and the cells were resuspended in RIPA buffer (Sigma, St. Louis, MO) supplemented with complete mini protease inhibitor cocktail tablets (Roche Diagnostics, Indianapolis, IN), phosphatase inhibitors cocktail set (EMD Biosciences, La Jolla, CA) and benzonase (Call Biochem, La Jolla, CA). The cells were than incubated for additional 30 minutes at 4°C with rotation. The debris was removed with centrifugation at 12000 rpm for 30 minutes at 4°C.

Tumor protein lysates were generated by pulverizing flash frozen tumors to a fine powder with a Bio-pulverizer (BioSpec Products Inc, Bartlesville, OK) and resuspending them in 400 μls of RIPA buffer supplemented with complete mini protease inhibitor cocktail tablets and phosphatase inhibitors cocktail set. The suspension was than sonicated 3 times at maximum power and centrifuged at 12000 rpm for 20 minutes at 4°C. Supernatants were collected and stored at −80°C.

Protein quantitation was performed with the Bicinchoninic acid (BCA) Protein Assay (Pierce, Rockford, IL) as per the manufacturer’s protocols. Readings were obtained with a microplate reader (SpectraMax Plus, Molecular Devices, Sunnyvale, CA). Fifty μg of protein were resolved by SDS-PAGE and Western blotting was performed as previously described (40). Antibodies used were as follows: ERα G-20 (Santa Cruz Biotechnology, Inc., Santa Cruz, CA), phospho p42/44 MAPK (Thr202/Tyr204) (E10) antibody (Cell Signalling), p42/44 MAP kinase antibody (Cell Signalling, Danvers, MA). β-actin antibody AC-15 (Sigma, St. Louis, MO) was used as a loading control. Appropriate horseradish peroxidase conjugated secondary antibody was used to visualize bands using an Amersham Western Blotting Detection kit (GE Healthcare).

Histology and Immunohistochemistry

Tissues were fixed in 10% phosphate buffered formaldehyde for 48 hours, subsequently embedded in paraffin, sectioned and stained. Hematoxylin and Eosin (H and E) staining was used to evaluate tumor tissue morphology and extent of necrosis. Immunohistochemistry for Ki 67 (dilution 1:6000) was performed using rabbit polyclonal antibodies from Vector Labs (Burlingame, CA) and Cell Signaling (Danvers, MA), respectively. Immunostaining was preceded by antigen retrieval in citrate buffer pH6 using a 750 W microwave oven, boiling the slides at maximum setting for three minutes and at low setting for another seven minutes. A rabbit Vectastain kit (Vector) was used to develop the immunohistochemical reaction using diaminobenzidine as chromogen. Microphotographs were taken using a Nikon Optiphot research microscope with a X10 and X 20 Plan/Apo objectives and a X10 ocular lens connected to a digital photographic camera (Optronics, Magnafire camera, Optronics, Goleta, CA).

Statistical Analysis

The growth rates in Figure 2A and Figure 2B were estimated for each individual test by fitting the weight of DNA/well to the linear time term. The rates, then, were compared using Wilcoxon rank-sum tests. The tumor growth data were analyzed using growth curve models, where tumor cross sectional area (CSA) was fit assuming a linear function of time. The intercepts and the slopes were used as random effects at the individual tumor level to allow deviation of individual tumor growth from the mean growth of the group. Random mouse effects were included to account for within-animal clustering. The estimated curves were plotted and the fit examined. The differences in rates were estimated by the interaction term between time and the treatment. The comparisons of either the DNA weight/well or CSA at each time point were also conducted by using Wilcoxon rank-sum tests. All tests were 2-sided with 0.05 type I error.

Figure 2. The MCF7-RAL cells are spontaneously growing cells that are stimulated by raloxifene (RAL) and 17β-estradiol (E₂).

A) Three days before seeding the MCF7 cells were cultured in E₂-free conditions, RPMI-yellow media with charcoal stripped FBS. The MCF7 cells were than seeded in a 24-well plate and 24-hours post seeding the cells were treated with vehicle, 1nM E₂, 1 μM RAL, 1 μM fulvestrant (FUL) and combination of drugs as described in materials and methods. B) MCF7-RAL cells were seeded and treated in an identical manner as in A). C) MCF7 and MCF7-RAL cells were either E₂ or RAL starved for 3 days before transfection with the appropriate reporters. Twenty-four hours post transfection the cells were treated with vehicle control (EtOH), 1 nM E₂, 1 μM RAL, 1 μM TAM, 1 μM FUL and combination of 1 nM E₂ and1 μM FUL. Luciferase activity was measured 6 and 24 hours after post treatment.

D) Expression of ERα regulated genes in MCF7-RAL cells in steady state. Error bars = standard error of the mean (SEM); * denotes statistically significant finding (p<0.05) as compared to EtOH treated cells.

Results

Verification of cell line identity

DNA profiling of the cell lines was conducted using the PowerPlexR 1.2 System resulting in the generation of allelic scores for 8 polymorphic STR loci and the amelogenin locus which are presented in Figure 1A along with the scores for MCF-7 and ECC-1 cells reported in the ATCC STR data base. Data from the amelogenin gene amplification was consistent with all samples being of female origin as expected. Allelic score data from the eight polymorphic STR loci reveal a pattern almost identical among the 5 MCF-7 lines that is very closely related to the scores reported for MCF-7 by the ATCC, and consistent with their presumptive identity. Scores for 5 of the 8 loci (D13S317, D7S820, D16S539, TH01, and TPOX) were identical among the study and ATCC MCF-7 cells ( Fig 1–A areas of identity highlighted in pink), but there was some evidence of genetic drift in some of the study lines. ATCC MCF-7 cells have D5S818 allelic scores of 11 and 12, whereas for of the study lines (WS8, 5C, 2A, and ICI) only have one allele (12) (allelic loss highlighted in green), whereas the MCF7-RAL cells have two alleles at this locus: 12 and 13 (variant allele highlighted in blue). Similarly, for the vMA locus, the ATCC cells have alleles 14 and 15, as do the 5C, 2A, and RAL cells, whereas the WS8 and ICI cells only have one allele; 15. Scores for the CSF1PO locus were identical among the lines showing a single allele (10), with the exception of the 5C cells that have an additional allele at this locus (11). The minor variations in the DNA profile exhibited by the MCF-7 cells are similar to the sort of genetic drift that has been seen previously among sub lines of cells cultured independently (41), and overall these fingerprinting data confirm the presumptive identity of the lines as being of MCF-7 origin. Furthermore, the profiles from the study cell lines derived from MCF-7(WS8)show that they are more closely related to each other than to the ATCC MCF-7 cells, again consistent with their having been derived from a common ancestor sub-line.

Figure 1. Verification of cell line identity by DNA fingerprinting.

See Materials and Methods.

Development of a novel raloxifene resistant tumor cell line, MCF7-RAL

To examine the effects of long term raloxifene treatments on breast cancer cell growth we derived a novel breast raloxifene resistant cell line, MCF7-RAL (GMB). The MCF7-RAL (GMB) cells were developed by continuously passaging cells in estrogen free media supplemented with 1 μM raloxifene for at least 1 year.

The fingerprinting data from the independently obtained MCF7 cells p184 and MCF7-RAL p74 GMB) cells reveal a pattern of allelic scores that is identical to the scores reported for the ATCC MCF-7 cells, and highly divergent from the pattern reported for non-related cells such as the ATCC ECC-1 cells (Fig 1-B). These data suggest that the cell lines used in this study are in fact of ATCCMCF-7 origin and not a variant of the MCF-7WS8 clone. For clarity the MCF-7Ral(GMB) are referred to as MCF-7Ral throughout this paper.

Currently, the MCF7-RAL cells have been propagated in RAL containing medium for approximately 10 years. The growth characteristics in vitro were compared and contrasted with wild type MCF-7.Within 3 days of treatment the MCF7 cells are significantly (p=0.02) stimulated by 1 nM E₂, 2.2-fold increase as compared to vehicle treated controls (Figure 2A). Maximum induction, 4.8-fold increase as compared to control was observed at Day 15. The E₂ induced growth of the MCF7 cells was blocked by 1 μM FUL treatments. In contrast to E₂, 1 μM RAL did not stimulate the growth of the MCF7 cells. Similarly to the MCF7 cells, within 3 days of treatments, E₂ significantly (p=0.02) induced the growth of the MCF7-RAL cells (Figure 2B). Maximum E₂ induction was observed at Day 9, 2.67-fold increase as compared to control. At day 3 of treatment RAL also significantly (p=0.02) induced the growth of the MCF7-RAL cells. Maximum RAL induction was observed at Day 6, 2.1-fold increase as compared to the controls. The E₂ and RAL induced growth of the MCF7-RAL cells was significantly inhibited by 1 μM FUL treatments within 3 (p=0.04) and 6 days (p=0.02) of treatment, respectively. In addition, the MCF7-RAL cells were spontaneously growing.

To further characterize the RAL resistant phenotype of the MCF7-RAL cells we determined the protein expression levels of ERα. To determine the protein levels of ERα in MCF7 and MCF7-RAL cells we treated the cells with EtOH, 1 μM RAL, 1 nM E₂ and 1 μM FUL for 48 hours. The ERα protein levels in the MCF7-RAL cells are regulated in an identical manner as in the parental MCF7 cells (data not shown). Treatments with 1 nM E₂ and 1 μM FUL decreased the protein levels of ERα, while treatments with 1 μM RAL maintained the protein expression of ERα. The levels of total MAPK and total AKT in the MCF7-RAL cells appeared to remain unchanged, regardless of treatment, when compared to the parental, MCF7 cells. However, the levels of phosphorylated MAPK, increased in the EtOH treated MCF7-RAL cells (data not shown). Luciferase reporter assays indicated that 1 nM E₂ treatments significantly induced transcriptional activation of the reporter in MCF7 and MCF7-RAL cells (Figure 2C) consistent indicating similar activity of ERα in the parental and resistant cell line. Fulvestrant (FUL) and RAL treatments did not induce activation of the reporter. Furthermore, FUL treatments abolished the E₂ dependent reporter activity. TAM treatments significantly induced reporter activity in both MCF7 and MCF7-RAL cells at the 24 hours time point.

The MCF7-RAL cells grew spontaneously and were inhibited by FUL treatment (Figure 2B). To further characterize the RAL resistant phenotype of the MCF7-RAL cells at steady state, we determined by quantitative real time PCR, the basal mRNA expression of ERα regulated genes in MCF7 and MCF7-RAL cells (Figure 2D). In the basal state, the MCF7-RAL cells exhibited 3-fold up-regulation of tff-1, 4.1-fold up-regulation of the c-myc and 3.1-fold up-regulation of ebag9. In contrast, the levels of egfr and her2 were down-regulated by 7.7 and 1.99-fold, respectively.

Development of an MCF7-RAL xenograft tumor model

To develop MCF7-RAL xenograft tumor model in vivo, 1x10⁷ MCF7-RAL cells were injected into the mammary fat pads of nude athymic mice as described in Materials and Methods. The mice were treated with vehicle, implanted with 0.3 cm silastic E₂ capsule or orally gavaged with 1.5 mg daily RAL or 0.5 mg dailyTAM. At week 9, average cross sectional area (CSA) of the estradiol-treated group was 1.47 cm², significantly greater (p<0.0001) than the control and the other treatment groups (Figure 3A). The E₂ treated mice grew large tumors and were sacrificed at week 10 because of ethical considerations. By week 15, palpable tumors were observed in the RAL-treated group (average CSA=0.24 cm²) which were significantly larger than the control group (p=0.048) (Figure 3A). At week 20, a single tumor from the raloxifene-treated group was excised, resected and transplanted into 20 ovariectomized athymic mice (Figure 3B). The mice were divided into control (no treatment) and a RAL (1.5 mg daily) treated group. Starting at week 7, RAL promoted tumor growth which by the conclusion of the experiment at week 13 was statistically significant as compared to the control group (p<0.05) (Figure 3B).

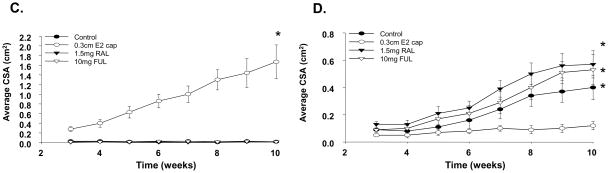

Figure 3. Establishment of MCF7-RAL tumor xenograft model.

A) 1x10⁷ MCF7- RAL resistant cells were injected into the axillary mammary fat pads of ovariectomized athymic mice. The mice were than divided into 4 groups and treated as follows: placebo, implanted with silastic 0.3 cm E₂ capsule, orally gavaged with RAL (1.5 mg daily) and TAM (1.5 mg daily). B) A single tumor from the RAL-treated group was transplanted (passage 1) into 20 naïve ovariectomized athymic mice and divided into 2 groups: placebo and RAL treated. Error bars = SEM; * p<0.0001, E₂ vs. all other treatment groups; ^ p =0.048 RAL vs. control. ** p =0.05, RAL vs. control C) MCF7-E₂ and MCF7-RAL tumor xenogratfs were bi-transplanted into each ovariectomized athymic mouse (total of 40). The MCF7- E₂ tumor was implanted in the left and the MCF7-RAL tumor was implanted in the right axillary mammary fat pad. The mice were randomized into groups of 10 and implanted with 0.3cm E₂ capsule or treated with RAL (1.5 mg daily), FUL (5mg s.c., twice a week) or no treatment (control). C) MCF7-E2 tumors; D) MCF7-RAL tumors; Error bars = SEM; * p<0.05, E₂ vs. all other treatment groups.

To further characterize the MCF7-RAL tumor xenograft model and to determine the effects of E₂ and RAL on estrogen and raloxifene dependent breast tumor growth, we bi-transplanted MCF7-E₂ and MCF7-RAL tumors on opposite sides in the axillary mammary fat pads of the same animal. MCF7-E₂ xenografts were implanted into the left and the MCF7-RAL xenografts were implanted into the right mammary fat pad of 40 ovariectomized athymic mice. As anticipated the E₂ treated MCF7-E₂ tumors displayed robust tumor growth and at week 10 the mean tumor size was 1.67 cm² (Figure 3C). No tumor growth was observed in the control, RAL and FUL treated groups (Figure 3C). In contrast, at week 10, RAL and FUL stimulated MCF7-RAL tumor growth while the E₂ treated tumors exhibited minimal growth (Figure 3D). At week 10, the mean size of the RAL and FUL treated tumors was 0.57 cm² and 0.53 cm², respectively. Interestingly, spontaneous tumor growth was observed in the control MCF7-RAL (at this point considered passage 3) (mean tumor size = 0.4 cm², p<0.05 as compared to the E₂ group) (Figure 3D).

Long term RAL treatments of the MCF7-RAL tumor xenogratfs

To determine the effects of E₂ on long term RAL treated MCF7-RAL xenografts, we evaluated the effects of pre- and post-menopausal levels of E₂ (34) on the growth of MCF7-RAL tumors that were serially transplanted and continuously treated with RAL for at least 8 years. The MCF7-RAL tumor xenografts were transplanted into 45 ovariectomized athymic mice that were treated with RAL, FUL and 0.3 cm or 1.0 cm silastic E₂ capsules (Figure 4A). At week 7, the RAL treated xenografts exhibited a statistically significant (p<0.001) RAL stimulated growth (mean CSA = 1.1 cm²) as compared to the FUL, 0.3 cm and 1.0 cm E₂-treated tumors (mean CSA = 0.37, 0.63, 0.46 cm², respectively). There were no statistical differences between the FUL, 0.3 cm and 1.0 cm E₂ treated tumors. To further characterize the effects of E₂ on the long term RAL treated MCF7-RAL tumor xenografts we analyzed the ERα expression of the xenografts (Figure 4B). The long term RAL treated MCF7-RAL xenografts continue to express ERα and RAL treatments increased the expression of ERα while FUL treatments down-regulated the expression of ERα. No differences in ERα protein expression was observed between the two different concentrations of E₂ treated tumors.

Figure 4. Pre and post menopausal concentrations of E₂ significantly impair the growth of long term RAL treated MCF7-RAL xenografts.

A) MCF7-RAL tumor xenogratfs serially transplanted for at least 8 years were implanted into 45 ovariectomized athymic mice. The animals were treated with RAL (1.5 mg daily), FUL (5mg s.c twice weekly) or implanted with either 0.3 cm or 1.0 cm silastic E₂ capsules. B) Western blot analysis of protein extracts collected from A). * p = 0.001 RAL vs. all other treatment groups.

Estrogen treatments inhibit the growth of established MCF7-RAL tumors

To determine the effects of E₂ on established MCF7-RAL tumors, MCF7-RAL tumor xenografts were implanted into ovariectomized athymic nude mice and the animals were treated with RAL until the average CSA of the tumors reached 0.3 cm². At this point the animals were randomized into 2 groups: 1) continued RAL treatments and 2) implanted with 0.3 cm E₂ capsules (Figure 5A). Within 3 days post E₂ implantation, there were visible morphological and size differences between the RAL and E₂ treated tumors (Figure 5A insert). At day 7, the mean CSA was 0.64 cm² for the RAL-treated and 0.41 cm² for the E₂ -treated tumors. At day 17 the CSA of the RAL treated tumors was 1.00 cm² and the CSA of the E₂ treated tumors was 0.64 cm² (p=0.03). At the end point of the experiment statistically significant differences (p=0.02) were observed between the RAL treated tumors (average CSA = 1.32 cm²) and the E₂ treated tumors (average CSA = 0.79 cm²) (Figure 5A).

Figure 5. 17β-estradiol treatments impair the growth of established MCF7-RAL xenografts.

A) Long term RAL treated MCF7-RAL xenografts were implanted into 30 ovariectomized athymic mice and the animals were treated with RAL until the cross sectional area (CSA) of the tumors reached 0.3 cm². The animals were than randomized into 2 groups: continued RAL treatments or implanted with 0.3 cm E₂ capsules. Estradiol treatments significantly impaired the growth of the MCF7-RAL xenogratfs by day 38 (20 days post introduction of E₂). Insert: representative images of E₂ and RAL treated tumors. B) Histological analysis of tumors from A). * p = 0.02 RAL vs. E₂

Histological analysis of the RAL and E₂ treated tumors at the experiment’s conclusion (Figure 5B) by hematoxylin and eosin staining indicated that there are no significant morphological changes between the two treatment groups. However, significant differences in the expression of Ki-67, a known marker of proliferation, were observed between the two groups. There were significant statistical differences (p=0.02) between the average labeling index (LI) of the RAL-treated group and the E₂ treated group which were 0.56±0.04 and 0.40±0.09, respectively.

Effects of long term estrogen treatments on the growth of MCF7-RAL tumors

To determine the effects of long term E₂ treatments on the growth of MCF7-RAL tumor xenografts we transplanted long term RAL treated MCF7-RAL tumors into 45 ovariectomized athymic mice. The mice were divided into 3 groups: no treatment, RAL and 0.3 cm E₂ (Figure 6A). Three weeks post implantation the average CSA of the tumors were 0.17 cm², 0.08 cm² and 0.09 cm² for the RAL, placebo and the 0.3 cm E₂ treated tumors. At week 5, differences could be observed between the treatment groups; the average CSA of the RAL treated tumors was 0.41 cm² and the average CSA of the 0.3 cm E₂ treated tumors was 0.11 cm². The average CSA of the untreated tumors was 0.2 cm² indicating spontaneously growing tumors. The 0.3 cm E₂ treatment was continued for additional 5 weeks and at week 10 the average CSA was 0.32 cm². At that point the E₂ treated tumors were excised, resected and bitransplanted into 25 ovariectomized athymic mice. The animals were divided into 5 groups: RAL, placebo, 0.3 cm E₂, FUL and combination of E₂ and RAL treated (Figure 6B). Treatment with RAL continued to induce the growth of the MCF7-RAL tumor and at week 8, the average CSA was 1.3 cm². At week 8, the average CSA of the placebo and the FUL treated tumors was 0.36 cm² and 0.29 cm². Unexpectedly, E₂ treatments either individually or in combination with RAL induced the growth of the MCF7-RAL xenografts. At week 8 the average CSA of the E₂ treated tumors was 0.64 cm² and combination of E2 and RAL treatments resulted in tumor growth (average CSA = 1.15 cm²). The placebo, E₂ and FUL treatments were continued and at week 10 the average CSA of the tumors was: 0.49 cm², 1.16 cm² and 0.52 cm². The growth rates of the RAL treated tumors were significantly different compared to the placebo (p=0.003) and FUL treated, tumors (p=0.005). However, the growth rate of the E₂ and E₂ + RAL treated tumors was indistinguishable from the RAL treated tumors. At week 10 the E₂ treated tumors were excised, resected and implanted into 25 naïve animals. The treatments were identical to the previous experiment and consisted of placebo, RAL, FUL, E₂ and combination of E₂ and RAL (Figure 6C). At week 3 post implantation there were no significant differences in the average CSA between the various treatments and the average CSA was 0.05 cm², 0.08 cm², 0.08 cm²,0.12 cm² and 0.06 cm² for the placebo, RAL, FUL, E₂ and the E₂ + RAL treated tumors. However, dramatic changes were observed at week 4 as E₂ treatments started to induce significant tumor growth (average CSA = 0.44 cm²). In contrast RAL inhibited the estrogen induced tumor growth as the combination of E₂ + RAL treatments average CSA was 0.27 cm². The average CSA of the RAL treated tumors was 0.33 cm² and the placebo and FUL treated tumors were 0.18 cm² and 0.22 cm², respectively. At conclusion of the experiment at week 6, the E₂ treated tumors reached average CSA of 1.27 cm². The average CSA of the RAL treated tumors was 0.62 cm² and the E₂ + RAL group was 0.54 cm². The growth rate of the E₂ treated group was significantly different (p<0.01) from all other groups with the exception of the RAL treated tumors, but approached significance (p=0.06). Upon conclusion of the experiment at week 6 the RAL treated tumors were excised, resected and implanted into ovariectomized athymic animals that were continuously treated with RAL. Following 28 weeks of continuous RAL treatments the long term treated MCF7-RAL tumor xenografts were implanted into 25 animals that were divided into 5 groups and treated as follows: placebo, RAL, E₂, FUL and E₂ + RAL (Figure 6D). Within 3 weeks of treatments highly statistically significant differences (p<0.01) emerged between the E₂ treated tumors and all other treatment groups. At week 3 tumor growth was observed in the placebo, FUL, RAL and E₂ + RAL while negligible tumor growth was observed in the E₂ treated group (average CSA = 0.008 cm²). These differences persisted throughout the duration of the experiment and at its conclusion at week 7, the average CSA of the E₂ treated tumors was 0.1 cm². In contrast, significant tumor growth was observed in all other treatment groups. Paradoxically, maximum tumor growth was observed in the FUL treatment groups (average CSA = 1.4 cm²). Significant tumor growth was also observed in the RAL group (CSA= 0.96 cm²) and in the placebo group (CSA=0.72 cm²). The average CSA of the E₂ + RAL group was 0.62 cm², indicating that E₂ treatments significantly inhibited the RAL stimulated tumor growth (p=0.03).

Figure 6. Long term estrogen and raloxifene treatments result in changes in the phases of SERM resistance.

A) MCF7-RAL tumor xenografts were implanted into 45 ovariectomized athymic mice, the mice were divided into 3 groups and were either left untreated, treated with RAL (1.5 mg/daily) or implanted with 0.3cm E₂ capsules. B) E₂ treated tumors from A) were resected and re-transplanted into 25 ovariectomized athymic mice that were either left untreated or treated with RAL (1.5 mg/daily), FUL (5 mg subcutaneously, twice weekly), implanted with 0.3 cm E₂ capsules and combination of RAL and E₂. C) E₂ treated tumors from B) were serially retransplanted into 25 ovariectomized athymic mice that were either left untreated or treated with RAL, FUL, implanted with 0.3 cm E₂ capsules and combination of RAL and E₂. D) RAL treated tumors from C) were implanted into naïve animals and continuously treated with RAL for 28 weeks before being implanted into 25 naïve animals that were either left untreated or treated with raloxifene, FUL, implanted with 0.3 cm E₂ capsules and combination of RAL and E₂. See results section for a precise description of the evolution of raloxifene resistance and statistical significance of the findings in the individual experiments.

Discussion

In a previous study, we used a select clone of MCF7 cells (MCF7-WS8) (42) that is extremely sensitive to estrogen stimulation, to create an MCF7 raloxifene resistant cell line in vitro (MCF7-RAL) (20). In a short term growth experiments in vivo MCF7-RAL cells grew into tumors in response to raloxifene and tamoxifen but estradiol inhibited tumor growth (20). This biological response to SERMs and estradiol is classified as phase II SERM resistance (1). We have now addressed the question of the predictable creation and evolution of SERM resistance with raloxifene in vivo using a wild type MCF7 cell line from a source that is external to our laboratory. The origins of the line (MCF7GMB) were confirmed by genotyping (Figure 1) and unlike the MCF7-WS8 cells were similar to the wild type MCF7 from ATCC and the original MCF7 cells derived by Soule (43). We created a new MCF7-RAL cell line that is able not only to grow in response to raloxifene in vitro but eventually grow in response to raloxifene in vivo with phase II resistance, i.e. estradiol inhibited tumor growth (Figure 3). However, in this 10-year re-transplantation study in vivo we demonstrate the reversal of the biological characteristics of phase II antihormone resistant tumor growth with long term estradiol therapy to phase I resistance; i.e., estradiol or raloxifene stimulated growth, and then predominately estradiol stimulated growth. Raloxifene now acts as an anti-estrogen., inhibiting estradiol stimulated growth (Figure 6C). Thus raloxifene has the potential to cause the classic evolution of SERM resistance in the clinical setting and reverse the process during long term physiologic estrogen therapy. Nevertheless clinical studies need to be considered to evaluate the efficacy of estrogen on patients whose breast tumors develop during long term raloxifene treatment to prevent osteoporosis (16).Current antihormonal therapies used for the treatment of breast cancer (tamoxifen or aromatase inhibitors) can develop acquired resistance in the clinical cells. The best clinical responses to estrogen are observed with high dose (15 mg) DES therapy following exhaustive anti hormonal therapy (27). Indeed, one patient had a complete response during 5 year to DES therapy administered continuously and a further 5 years disease free following the cessation of therapy (44). In contrast, no complete responses were observed in the Ellis study (28) probably because the patient population was not selected based on exhaustive anti-hormonal therapy but only failure of therapy following aromatase inhibitors. Experience in the laboratory demonstrates that long term (5 plus years) of tamoxifen treatment is necessary to cause the evolution of tamoxifen resistance in vivo to expose the apoptotic actions of physiologic estrogen (45). Consistent with these observations, a profound antitumor effect was noted with physiologic estrogen after 10 years of alternating treatments with raloxifene and physiologic estrogen (Figure 6D).

With regard to treatment strategies for SERM resistant disease, it is important to note that the response to the injectable steroidal pure antiestrogen fulvestrant is unpredictable (Figure 6). At some stages of acquired resistance, fulvestrant acts as an antitumor agent but at other stimulates tumor growth (Figure 6). This may in part explain the low reported efficacy of fulvestrant in clinical trials treating patients who already have acquired resistance to tamoxifen or aromatase inhibitors. However, it also appears that the recommended monthly doses of fulvestrant used clinically may be suboptimal and in fact actually enhance tumor growth in tumors with phase II resistance with physiologic estrogen present (46). A recent clinical study on metastatic breast cancer demonstrates that doubling the monthly dose of fulvestrant enhances antitumor activity (47). In a laboratory study, an antitumor dose of fulvestrant in athymic animals implanted with phase II resistant tumors reversed the apoptotic actions of estrogen (46). In the present study, despite using repeated subcutaneous injections of fulvestrant weekly, tumor growth was enhanced in some tumor passages with long term acquired resistance to raloxifene (Figure 6D). It appears that the efficacy of fulvestrant may depend both upon bioavailability, pharmacokinetics and, as yet, unresolved pharmacodynamic factors of the steroidal antiestrogens at unknown targets within the tumor with acquired raloxifene resistance.

Two further conclusions emerged from the present study. The variant of MCF7 cells that is closely related to wild type MCF7 from ATCC could develop acquired resistance to raloxifene in vitro and the resulting cell line MCF7-RAL grew in response to either estradiol or raloxifene (Figure 2). MCF7-RAL cells exhibited gene activation consistent with autonomous growth (Figure 2C). The cells responded to estradiol both in vitro and in vivo as a growth stimulus but only developed raloxifene-stimulated tumors in vivo after 5 months of continuous treatment. This was confirmed by re-transplantation into raloxifene treated ovariectomized athymic mice (Figure 3B). In contrast to MCF7-RAL cells in vitro, estradiol is no longer a growth stimulus in vivo and completely inhibits tumor development (Figure 3D). This new biology of estrogen action classifies the MCF7-RAL cells as phase II resistant in vivo. Secondly, the observation that treatment with tamoxifen in vivo (Figure 3A) did not result in tumor growth and that this MCF7 variant could not be used to develop acquired tamoxifen resistance in vitro (H. Liu, data not shown),was unusual and unanticipated based on previous studies over two decades. All cells died during incubation with 4-hydroxy-tamoxifen. This observation is currently under investigation as it may provide an insight into the cytocidal actions of tamoxifen.

Based on this long term study, and studies using prostate cancer cells, a general principle is emerging in cancer endocrinology. An androgen independent cell line, LNCaP 104 R2 was derived from the androgen dependent cell line, LNCaP 104 S (48). The LNCaP 104 R2 cells are androgen independent, continue to express the androgen receptor (AR) and low concentrations of androgen in the media inhibited their growth. Implantation of the LNCap104-R2 cells in male athymic castrated nude mice resulted in tumor growth, that was inhibited by implantation of testosterone capsules (49). In a subsequent study utilizing the LNCaP 104-R2 tumor model, Chuu et al (50) significantly impaired established tumor growth with androgen treatments; approximately 2 months post cell injections. However, within 40 days of initiation of androgen treatments tumor growth resumed, which was a clear indication that the tumors adapted to the presence of the androgen and utilized it for growth. Subsequent androgen withdrawal inhibited tumor growth. These data are consistent with the assumption that androgen-dependent and androgen-independent tumor cells coexist in prostate cancer patients resulting in positive selection of androgen-independent tumor cells during androgen ablation therapies, resulting in androgen independent growth. Therefore, intermittent androgen replacement therapy has been tested in recent years (51).

Nearly 20 years ago, we first described the antitumor potential of physiologic estrogen to destroy what is now known as Phase II acquired tamoxifen resistance (17) We noted that the interplay of apoptotic estrogen and tamoxifen would create a cyclical method for controlling the growth of ER postitive breast cancer by purging with estrogen at the appropriate time and then continuing antihormone therapy (17) The cycles could be repeated. This original work is summarized in Figure 7. Our current ten year in vitro and in vivo study of the evolution of acquired raloxifene resistance was initiated to explore the potential of raloxifene to exhibit acquired resistance in breast cancer during the long term treatment and prevention of osteoprosis (16). We conclude that the predictable evolution of acquired resistance to the SERM tamoxifen and estrogen deprivation (aromatase inhibitors) also occurs with raloxifene. The current conclusions are summarized in Figure 7, following the creation of MCF-7 Ral cells in vitro is a raloxifene/estrogen free environment which was then transplanted into athymic _mice. The development of phase II acquired resistance i.e.: estrogen induced apoptosis or estrogen inhibited tumor growth (52) occurs with raloxifene and the principle is also true for the evolution of acquired androgen withdrawal in prostate cancer in the laboratory (48–50). Preliminary studies to translate these laboratory findings to aid patients have shown merit (27–28, 44). Further understanding of the mechanism of sex steroid induced apoptosis (53) and the definition of vulnerable tumors following exhaustive anti hormonal therapy have the potential to identify appropriate patient populations to amplify the effectiveness of a sex steroids apoptotic trigger in metastatic breast cancer and possibly prostate cancer (54).

Figure 7. Proposed model of the evolution of acquired raloxifene resistance in ERα positive MCF-7 breast cancer.

On the left (Figure 7A) is our original proposal from cyclical evolution of acquired resistance to tamoxifen in a clonal derivative (MCF-7 WS8) of wild-type MCF-7 cells originally acquired from Dr. Dean Edwards (University of Texas, San Antonio, Texas) in 1985. All steps in the cycle (17–18) were documented with experimental data in the peer reviewed literature. On the right (Figure 7B) is a summary of our current results that illustrate the cyclical evolution of acquired resistance to raloxifene in wild type MCF-7 cells (MCF-7 GMB) acquired from Dr. Myles Brown (Dana Farber Cancer Center, Harvard University, Boston, Massachusetts) in 1995. The technique of employing an estrogen-deprived environment with raloxifene accelerates the evolution to Phase II acquired resistance where estradiol causes tumor regression. This process can be reversed through Phase I acquired resistance in a continuous estrogenic environment so tumor growth is again controlled by raloxifene treatment. Continuous raloxifene does again cause Phase II acquired resistance and exposes estrogen-induced tumor regression.
