3-Chloro­pyridin-2-amine

Abstract

In the title compound, C₅H₅ClN₂, a by-product in the synthesis of ethyl 2-(3-chloro­pyridin-2-yl)-5-oxopyrazolidine-3-carboxyl­ate, the amine groups form inter­molecular hydrogen-bonding associations with pyridine N-atom acceptors, giving centrosymmetric cyclic dimers. Short inter­molecular Cl⋯Cl inter­actions [3.278 (3) Å] also occur.

Related literature

The title compound was isolated as a by-product in the preparation of ethyl 2-(3-chloro­pyridin-2-yl)-5-oxopyrazolidine-3-carboxyl­ate, an inter­mediate in the synthesis of the insecticide chlorantraniliprole (systematic name 3-bromo-N-[4-chloro-2-methyl-6-[(methyl­amino)carbon­yl]phen­yl]-1-(3-chloro-2-pyridin­yl)-1H-pyrazole-5-carboxamide), see: Lahm et al. (2005 ▶). For related structures, see: Chao et al. (1975 ▶); Anagnostis & Turnbull (1998 ▶); Hemamalini & Fun (2010 ▶).

Experimental

Crystal data

• C₅H₅ClN₂

• M _r = 128.56

• Monoclinic,

• a = 11.149 (8) Å

• b = 5.453 (4) Å

• c = 9.844 (7) Å

• β = 90.581 (12)°

• V = 598.5 (7) ų

• Z = 4

• Mo Kα radiation

• μ = 0.52 mm⁻¹

• T = 296 K

• 0.38 × 0.32 × 0.22 mm

Data collection

• Bruker SMART CCD area-detector diffractometer

• Absorption correction: multi-scan (SADABS; Bruker, 2001 ▶) T _min = 0.827, T _max = 0.894

• 2778 measured reflections

• 1057 independent reflections

• 867 reflections with I > 2σ(I)

• R _int = 0.048

Refinement

• R[F ² > 2σ(F ²)] = 0.059

• wR(F ²) = 0.182

• S = 1.05

• 1057 reflections

• 73 parameters

• H-atom parameters constrained

• Δρ_max = 0.57 e Å⁻³

• Δρ_min = −0.31 e Å⁻³

Data collection: SMART (Bruker, 2001 ▶); cell refinement: SAINT (Bruker, 2001 ▶); data reduction: SAINT; program(s) used to solve structure: SHELXS97 (Sheldrick, 2008 ▶); program(s) used to refine structure: SHELXL97 (Sheldrick, 2008 ▶); molecular graphics: SHELXTL (Sheldrick, 2008 ▶); software used to prepare material for publication: SHELXTL.

Supplementary Material

Additional supplementary materials: crystallographic information; 3D view; checkCIF report

Table 1. Hydrogen-bond geometry (Å, °).

D—H⋯A	D—H	H⋯A	D⋯A	D—H⋯A
N2—H2A⋯N1i	0.86	2.22	3.051 (5)	162

Symmetry code: (i) .

supplementary crystallographic information

Comment

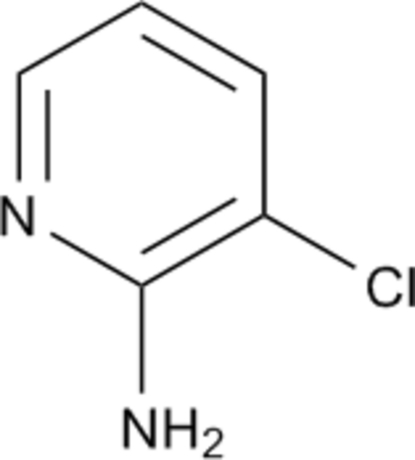

The structures of salts of the halo-substituted aminopyridine, such as 2-amino-5-chloropyridine-fumaric acid (Hemamalini & Fun, 2010), 2-amino-3,5-dichloropyridinium chloride monohydrate (Anagnostis & Turnbull, 1998), are known but the the structure of 2-amino-3-chloropyridine is not known. This compound, C₅H₅Cl₁N₂ (I) was isolated as a by-product in the preparation of ethyl 2-(3-chloropyridin-2-yl)-5-oxopyrazolidine-3-carboxylate, an important intermediate in the synthesis of the insecticide chlorantraniliprole (3-bromo-N-[4-chloro-2-methyl-6-[(methylamino) carbonyl]phenyl]-1-(3-chloro-2-pyridinyl)-1H-pyrazole-5-carboxamide) (Lahm et al., 2005). In the structure of (I) (Fig. 1), intermolecular amine N—H···N_pyridine hydrogen-bonding interactions (Table 1) give centrosymmetric cyclic dimers (Fig. 2), similar to those found in the structure of 2-aminopyridine (Chao et al., 1975). In (I) there is an intramolecular N—H···Cl interaction [3.001 (3) Å] while in the crystal structure there are also short Cl···Clⁱⁱ interactions [3.278 (3) Å] [symmetry code: (ii) -x + 2, -y, -z + 1].

Experimental

Sodium ethoxide (3.48 g, 50.4 mmol) and 150 ml of absolute ethanol was heated to reflux, after wich 6.80 g (47.4 mmol) of 3-chloro-2-hydrazinylpyridine was added and the mixture was allowed to reflux for 5 minutes. The slurry was then treated dropwise with 9.79 g (56.9 mmol) of diethyl maleate over a period of 5 minutes and the resulting solution was held at reflux for 10 minutes. After cooling to 338 K, the reaction mixture was treated with 5.0 ml (87.3 mmol) of glacial acetic acid. The mixture was diluted with 60 ml water and then cooled to room temperature, giving a precipitate which was isolated via filtration, and separated by column chromatography on silica gel (eluent: ethyl acetate/petroleum ether, 1:5). The title compound was obtained as a yellow solid (0.60 g, 8%) and recyrstallized from dichloromethane to afford colorless single crystals suitable for X-ray diffraction. Anal.: Calc. for C₅H₅Cl₁N₂: C, 46.47; H, 3.84; Cl, 27.96; N, 21.85%. Found: C, 46.71; H, 3.99; Cl, 27.58; N, 21.79. ¹H NMR(CDCl₃): 5.02(s,2H, NH₂), 6.62(dd,1H, pyridine-H), 7.48(dd, 1H, pyridine-H), 7.98 (dd, 1H, pyridine-H).

Refinement

Although all H atoms were visible in difference maps, they were placed in geometrically calculated positions, with N—H and C—H = o.86 and 0.93 Å respectively, and included in the final refinement in the riding model approximation, with U_iso(H) = 1.2U_eq(C).

Figures

Fig. 1.

The molecular structure of (I), showing atom numbering scheme and 30% probability displacement ellipsoids.

Fig. 2.

The packing of (I) in ther unit cell viewed down b, showing hydrogen-bonding interactions as dashed lines.

Crystal data

C5H5ClN2	F(000) = 264
Mr = 128.56	Dx = 1.427 Mg m−3
Monoclinic, P21/c	Mo Kα radiation, λ = 0.71073 Å
Hall symbol: -P 2ybc	Cell parameters from 1473 reflections
a = 11.149 (8) Å	θ = 3.7–27.2°
b = 5.453 (4) Å	µ = 0.52 mm−1
c = 9.844 (7) Å	T = 296 K
β = 90.581 (12)°	Block, yellow
V = 598.5 (7) Å3	0.38 × 0.32 × 0.22 mm
Z = 4

Data collection

Bruker SMART CCD area-detector diffractometer	1057 independent reflections
Radiation source: fine-focus sealed tube	867 reflections with I > 2σ(I)
graphite	Rint = 0.048
φ and ω scans	θmax = 25.0°, θmin = 1.8°
Absorption correction: multi-scan (SADABS; Bruker, 2001)	h = −13→11
Tmin = 0.827, Tmax = 0.894	k = −6→6
2778 measured reflections	l = −8→11

Refinement

Refinement on F2	Primary atom site location: structure-invariant direct methods
Least-squares matrix: full	Secondary atom site location: difference Fourier map
R[F2 > 2σ(F2)] = 0.059	Hydrogen site location: inferred from neighbouring sites
wR(F2) = 0.182	H-atom parameters constrained
S = 1.05	w = 1/[σ2(Fo2) + (0.1147P)2 + 0.2179P] where P = (Fo2 + 2Fc2)/3
1057 reflections	(Δ/σ)max < 0.001
73 parameters	Δρmax = 0.57 e Å−3
0 restraints	Δρmin = −0.31 e Å−3

Special details

Geometry. All e.s.d.'s (except the e.s.d. in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell e.s.d.'s are taken into account individually in the estimation of e.s.d.'s in distances, angles and torsion angles; correlations between e.s.d.'s in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell e.s.d.'s is used for estimating e.s.d.'s involving l.s. planes.

Refinement. Refinement of F2 against ALL reflections. The weighted R-factor wR and goodness of fit S are based on F2, conventional R-factors R are based on F, with F set to zero for negative F2. The threshold expression of F2 > σ(F2) is used only for calculating R-factors(gt) etc. and is not relevant to the choice of reflections for refinement. R-factors based on F2 are statistically about twice as large as those based on F, and R- factors based on ALL data will be even larger.

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Ų)

	x	y	z	Uiso*/Ueq
Cl1	0.89884 (8)	0.20978 (18)	0.46576 (10)	0.0821 (5)
N1	0.6085 (2)	0.5920 (5)	0.3676 (2)	0.0597 (7)
N2	0.6357 (3)	0.2720 (5)	0.5172 (3)	0.0716 (8)
H2A	0.5613	0.2836	0.5385	0.086*
H2B	0.6804	0.1628	0.5553	0.086*
C1	0.6825 (2)	0.4252 (5)	0.4237 (3)	0.0505 (7)
C2	0.8035 (2)	0.4167 (5)	0.3855 (3)	0.0535 (7)
C3	0.8465 (3)	0.5728 (6)	0.2897 (3)	0.0635 (8)
H3	0.9266	0.5667	0.2645	0.076*
C4	0.7692 (3)	0.7404 (7)	0.2306 (3)	0.0725 (10)
H4	0.7955	0.8481	0.1640	0.087*
C5	0.6520 (3)	0.7431 (6)	0.2735 (4)	0.0698 (9)
H5	0.6000	0.8571	0.2345	0.084*

Atomic displacement parameters (Ų)

	U11	U22	U33	U12	U13	U23
Cl1	0.0717 (7)	0.0833 (7)	0.0913 (8)	0.0322 (4)	0.0101 (5)	0.0145 (4)
N1	0.0545 (13)	0.0566 (14)	0.0681 (15)	0.0068 (11)	0.0018 (10)	0.0047 (11)
N2	0.0674 (16)	0.0602 (16)	0.088 (2)	0.0131 (12)	0.0194 (14)	0.0196 (13)
C1	0.0572 (14)	0.0411 (13)	0.0533 (15)	0.0036 (11)	0.0026 (11)	−0.0039 (11)
C2	0.0558 (15)	0.0510 (15)	0.0537 (15)	0.0099 (11)	0.0019 (11)	−0.0057 (12)
C3	0.0561 (15)	0.076 (2)	0.0583 (17)	−0.0019 (14)	0.0070 (13)	0.0002 (14)
C4	0.077 (2)	0.074 (2)	0.067 (2)	−0.0049 (15)	0.0047 (17)	0.0178 (15)
C5	0.073 (2)	0.0617 (19)	0.074 (2)	0.0057 (14)	−0.0054 (16)	0.0155 (15)

Geometric parameters (Å, °)

Cl1—C2	1.735 (3)	C2—C3	1.361 (4)
N1—C5	1.334 (4)	C3—C4	1.380 (4)
N1—C1	1.344 (4)	C3—H3	0.9300
N2—C1	1.351 (4)	C4—C5	1.378 (5)
N2—H2A	0.8600	C4—H4	0.9300
N2—H2B	0.8600	C5—H5	0.9300
C1—C2	1.405 (4)
C5—N1—C1	118.5 (3)	C2—C3—C4	118.9 (3)
C1—N2—H2A	120.0	C2—C3—H3	120.6
C1—N2—H2B	120.0	C4—C3—H3	120.6
H2A—N2—H2B	120.0	C5—C4—C3	117.9 (3)
N1—C1—N2	117.3 (3)	C5—C4—H4	121.0
N1—C1—C2	120.0 (2)	C3—C4—H4	121.0
N2—C1—C2	122.7 (2)	N1—C5—C4	124.0 (3)
C3—C2—C1	120.7 (3)	N1—C5—H5	118.0
C3—C2—Cl1	120.2 (2)	C4—C5—H5	118.0
C1—C2—Cl1	119.0 (2)
C5—N1—C1—N2	−179.0 (3)	C1—C2—C3—C4	0.1 (5)
C5—N1—C1—C2	1.5 (4)	Cl1—C2—C3—C4	−178.0 (2)
N1—C1—C2—C3	−1.3 (4)	C2—C3—C4—C5	0.9 (5)
N2—C1—C2—C3	179.2 (3)	C1—N1—C5—C4	−0.6 (5)
N1—C1—C2—Cl1	176.8 (2)	C3—C4—C5—N1	−0.7 (5)
N2—C1—C2—Cl1	−2.6 (4)

Hydrogen-bond geometry (Å, °)

D—H···A	D—H	H···A	D···A	D—H···A
N2—H2A···N1i	0.86	2.22	3.051 (5)	162
N2—H2B···Cl1	0.86	2.61	3.001 (4)	109

Symmetry codes: (i) −x+1, −y+1, −z+1.
