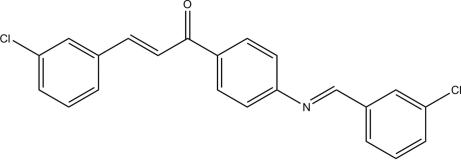

(E)-1-{4-[(E)-3-Chloro­benzyl­idene­amino]­phen­yl}-3-(3-chloro­phen­yl)prop-2-en-1-one

Abstract

In the title mol­ecule, C₂₂H₁₅Cl₂NO, the dihedral angles between the central aromatic ring and the N- and C=O-bonded rings are 43.13 (13) and 0.80 (14)°, respectively. The dihedral angle between the terminal rings is 43.15 (14)°. The major twist occurs about the C_ar—N bond [C_ar—C_ar—N=C = 42.3 (4)°; ar is aromatic].

Related literature

For background to Schiff bases, see: Chimenti et al. (2009 ▶); Shi et al. (2007 ▶). For reference bond lengths, see: Allen et al. (1987 ▶).

Experimental

Crystal data

• C₂₂H₁₅Cl₂NO

• M _r = 380.25

• Monoclinic,

• a = 17.454 (4) Å

• b = 6.1110 (12) Å

• c = 17.179 (3) Å

• β = 100.32 (3)°

• V = 1802.7 (6) ų

• Z = 4

• Mo Kα radiation

• μ = 0.37 mm⁻¹

• T = 293 K

• 0.40 × 0.30 × 0.10 mm

Data collection

• Enraf–Nonius CAD-4 diffractometer

• Absorption correction: ψ scan (North et al., 1968 ▶) T _min = 0.866, T _max = 0.964

• 3659 measured reflections

• 3539 independent reflections

• 2367 reflections with I > 2σ(I)

• R _int = 0.021

• 200 standard reflections every 3 reflections intensity decay: 1%

Refinement

• R[F ² > 2σ(F ²)] = 0.057

• wR(F ²) = 0.145

• S = 1.06

• 3539 reflections

• 235 parameters

• H-atom parameters constrained

• Δρ_max = 0.26 e Å⁻³

• Δρ_min = −0.37 e Å⁻³

Data collection: CAD-4 Software (Enraf–Nonius, 1989 ▶); cell refinement: CAD-4 Software; data reduction: XCAD4 (Harms & Wocadlo, 1995 ▶); program(s) used to solve structure: SHELXS97 (Sheldrick, 2008 ▶); program(s) used to refine structure: SHELXL97 (Sheldrick, 2008 ▶); molecular graphics: SHELXTL (Sheldrick, 2008 ▶); software used to prepare material for publication: SHELXTL.

Supplementary Material

Additional supplementary materials: crystallographic information; 3D view; checkCIF report

supplementary crystallographic information

Comment

There has been much research interest in Schiff base and chalcone compounds due to their biological activities (Shi et al., 2007; Chimenti et al., 2009). In this work, we report here the crystal structure of the title compound, (I). In (I), all bond lengths are within normal ranges (Allen et al., 1987) (Fig. 1).

Experimental

The title compound was prepared by stirring a mixture of 3-chlorobenzaldehyde (280 mg, 2 mmol) and 1-(4-aminophenyl)ethanone (135 mg, 1 mmol) in methanol (10 ml) for 4 h. After keeping the filtrate in air for 5 d, colorless block-shaped crystals of (I) were formed.

Refinement

All H atoms were positioned geometrically (C—H = 0.93 Å for the aromatic H atoms and C—H = 0.96 Å for the aliphatic H atoms) and were refined as riding, with U_iso(H) = 1.2U_eq(C) and U_iso(H) = 1.2U_eq(N).

Figures

Fig. 1.

The structure of (I) showing 30% probability displacement ellipsoids.

Crystal data

C22H15Cl2NO	F(000) = 784
Mr = 380.25	Dx = 1.401 Mg m−3
Monoclinic, P21/c	Mo Kα radiation, λ = 0.71073 Å
Hall symbol: -P 2ybc	Cell parameters from 25 reflections
a = 17.454 (4) Å	θ = 9–12°
b = 6.1110 (12) Å	µ = 0.37 mm−1
c = 17.179 (3) Å	T = 293 K
β = 100.32 (3)°	Block, colorless
V = 1802.7 (6) Å3	0.40 × 0.30 × 0.10 mm
Z = 4

Data collection

Enraf–Nonius CAD-4 diffractometer	2367 reflections with I > 2σ(I)
Radiation source: fine-focus sealed tube	Rint = 0.021
graphite	θmax = 26.0°, θmin = 1.2°
ω/2θ scans	h = −21→0
Absorption correction: ψ scan (North et al., 1968)	k = 0→7
Tmin = 0.866, Tmax = 0.964	l = −20→21
3659 measured reflections	200 standard reflections every 3 reflections
3539 independent reflections	intensity decay: 1%

Refinement

Refinement on F2	Primary atom site location: structure-invariant direct methods
Least-squares matrix: full	Secondary atom site location: difference Fourier map
R[F2 > 2σ(F2)] = 0.057	Hydrogen site location: inferred from neighbouring sites
wR(F2) = 0.145	H-atom parameters constrained
S = 1.06	w = 1/[σ2(Fo2) + (0.0633P)2 + 0.6746P] where P = (Fo2 + 2Fc2)/3
3539 reflections	(Δ/σ)max < 0.001
235 parameters	Δρmax = 0.26 e Å−3
0 restraints	Δρmin = −0.37 e Å−3

Special details

Geometry. All e.s.d.'s (except the e.s.d. in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell e.s.d.'s are taken into account individually in the estimation of e.s.d.'s in distances, angles and torsion angles; correlations between e.s.d.'s in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell e.s.d.'s is used for estimating e.s.d.'s involving l.s. planes.

Refinement. Refinement of F2 against ALL reflections. The weighted R-factor wR and goodness of fit S are based on F2, conventional R-factors R are based on F, with F set to zero for negative F2. The threshold expression of F2 > σ(F2) is used only for calculating R-factors(gt) etc. and is not relevant to the choice of reflections for refinement. R-factors based on F2 are statistically about twice as large as those based on F, and R- factors based on ALL data will be even larger.

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Ų)

	x	y	z	Uiso*/Ueq
C1	0.82827 (15)	−0.0032 (5)	−0.05196 (15)	0.0486 (7)
C2	0.87296 (15)	−0.1135 (5)	−0.09848 (16)	0.0524 (7)
H2	0.8585	−0.2535	−0.1167	0.063*
C3	0.93831 (17)	−0.0187 (6)	−0.11798 (18)	0.0617 (8)
C4	0.96089 (19)	0.1871 (6)	−0.0928 (2)	0.0732 (9)
H4	1.0054	0.2501	−0.1058	0.088*
C5	0.9159 (2)	0.2994 (6)	−0.0476 (2)	0.0802 (10)
H5	0.9301	0.4405	−0.0307	0.096*
C6	0.85060 (18)	0.2070 (5)	−0.02714 (19)	0.0652 (8)
H6	0.8213	0.2855	0.0035	0.078*
C7	0.76114 (15)	−0.1165 (5)	−0.03071 (15)	0.0515 (7)
H7	0.7557	−0.2622	−0.0462	0.062*
C8	0.70704 (15)	−0.0416 (5)	0.00740 (15)	0.0515 (7)
H8	0.7078	0.1040	0.0232	0.062*
C9	0.64549 (16)	−0.1899 (5)	0.02472 (15)	0.0498 (7)
C10	0.58642 (15)	−0.1109 (4)	0.07094 (14)	0.0428 (6)
C11	0.58854 (15)	0.0934 (4)	0.10662 (15)	0.0488 (7)
H11	0.6285	0.1902	0.1017	0.059*
C12	0.53180 (15)	0.1548 (5)	0.14945 (15)	0.0475 (6)
H12	0.5344	0.2910	0.1740	0.057*
C13	0.47135 (15)	0.0137 (4)	0.15568 (14)	0.0429 (6)
C14	0.46980 (17)	−0.1910 (4)	0.12070 (17)	0.0551 (7)
H14	0.4299	−0.2884	0.1254	0.066*
C15	0.52654 (16)	−0.2513 (5)	0.07917 (16)	0.0525 (7)
H15	0.5246	−0.3893	0.0561	0.063*
C16	0.37984 (14)	0.2508 (4)	0.18899 (14)	0.0441 (6)
H16	0.4007	0.3531	0.1586	0.053*
C17	0.31366 (15)	0.3162 (4)	0.22540 (14)	0.0435 (6)
C18	0.28087 (16)	0.5218 (5)	0.20967 (16)	0.0515 (7)
H18	0.3023	0.6187	0.1777	0.062*
C19	0.21688 (17)	0.5833 (5)	0.24099 (18)	0.0591 (8)
H19	0.1958	0.7223	0.2307	0.071*
C20	0.18380 (17)	0.4406 (5)	0.28750 (18)	0.0598 (8)
H20	0.1405	0.4819	0.3087	0.072*
C21	0.21605 (16)	0.2352 (5)	0.30206 (16)	0.0522 (7)
C22	0.28056 (15)	0.1702 (4)	0.27221 (14)	0.0456 (6)
H22	0.3017	0.0315	0.2831	0.055*
Cl1	0.99327 (5)	−0.1679 (2)	−0.17471 (6)	0.0968 (4)
Cl2	0.17205 (5)	0.05098 (15)	0.35786 (5)	0.0771 (3)
N1	0.40982 (12)	0.0634 (4)	0.19679 (12)	0.0468 (5)
O1	0.64304 (12)	−0.3797 (4)	0.00131 (13)	0.0693 (6)

Atomic displacement parameters (Ų)

	U11	U22	U33	U12	U13	U23
C1	0.0474 (15)	0.0542 (17)	0.0434 (14)	−0.0010 (13)	0.0060 (12)	−0.0006 (13)
C2	0.0494 (15)	0.0540 (17)	0.0555 (16)	−0.0054 (13)	0.0142 (13)	−0.0054 (14)
C3	0.0508 (17)	0.073 (2)	0.0626 (18)	−0.0045 (16)	0.0147 (14)	0.0011 (16)
C4	0.0557 (18)	0.076 (2)	0.088 (2)	−0.0150 (18)	0.0127 (17)	0.004 (2)
C5	0.080 (2)	0.056 (2)	0.101 (3)	−0.0187 (19)	0.008 (2)	−0.006 (2)
C6	0.0644 (19)	0.058 (2)	0.074 (2)	−0.0058 (16)	0.0129 (16)	−0.0152 (16)
C7	0.0545 (16)	0.0551 (17)	0.0463 (15)	−0.0052 (14)	0.0128 (13)	−0.0080 (13)
C8	0.0561 (16)	0.0539 (17)	0.0465 (15)	−0.0015 (14)	0.0147 (13)	−0.0061 (13)
C9	0.0544 (16)	0.0524 (18)	0.0433 (14)	−0.0001 (14)	0.0105 (12)	−0.0051 (13)
C10	0.0476 (14)	0.0451 (15)	0.0367 (13)	0.0012 (12)	0.0101 (11)	−0.0005 (11)
C11	0.0463 (15)	0.0496 (17)	0.0521 (15)	−0.0084 (13)	0.0134 (12)	−0.0080 (13)
C12	0.0504 (15)	0.0467 (15)	0.0462 (15)	−0.0026 (13)	0.0112 (12)	−0.0085 (13)
C13	0.0509 (15)	0.0417 (15)	0.0379 (13)	0.0044 (12)	0.0127 (11)	0.0077 (12)
C14	0.0620 (17)	0.0414 (16)	0.0688 (18)	−0.0072 (14)	0.0305 (15)	0.0025 (14)
C15	0.0658 (17)	0.0367 (15)	0.0588 (17)	−0.0037 (13)	0.0216 (14)	−0.0044 (13)
C16	0.0491 (14)	0.0444 (15)	0.0410 (14)	−0.0059 (13)	0.0145 (11)	0.0018 (12)
C17	0.0463 (14)	0.0418 (15)	0.0432 (13)	−0.0053 (12)	0.0102 (11)	−0.0051 (12)
C18	0.0541 (16)	0.0446 (16)	0.0576 (17)	−0.0030 (13)	0.0151 (13)	−0.0005 (13)
C19	0.0590 (17)	0.0460 (17)	0.074 (2)	0.0038 (14)	0.0155 (15)	−0.0092 (15)
C20	0.0563 (17)	0.059 (2)	0.070 (2)	−0.0035 (15)	0.0259 (15)	−0.0166 (16)
C21	0.0573 (17)	0.0535 (18)	0.0505 (16)	−0.0132 (14)	0.0218 (13)	−0.0090 (13)
C22	0.0502 (15)	0.0432 (15)	0.0455 (14)	−0.0051 (12)	0.0141 (12)	−0.0026 (12)
Cl1	0.0694 (6)	0.1239 (9)	0.1101 (8)	−0.0134 (6)	0.0507 (5)	−0.0227 (7)
Cl2	0.0919 (6)	0.0759 (6)	0.0763 (5)	−0.0213 (5)	0.0496 (5)	−0.0045 (4)
N1	0.0545 (13)	0.0444 (13)	0.0452 (12)	0.0037 (11)	0.0192 (10)	0.0070 (10)
O1	0.0787 (15)	0.0571 (13)	0.0810 (15)	−0.0079 (11)	0.0379 (12)	−0.0226 (11)

Geometric parameters (Å, °)

C1—C6	1.387 (4)	C12—C13	1.382 (4)
C1—C2	1.387 (4)	C12—H12	0.9300
C1—C7	1.462 (4)	C13—C14	1.386 (4)
C2—C3	1.373 (4)	C13—N1	1.420 (3)
C2—H2	0.9300	C14—C15	1.370 (4)
C3—C4	1.365 (5)	C14—H14	0.9300
C3—Cl1	1.742 (3)	C15—H15	0.9300
C4—C5	1.382 (5)	C16—N1	1.256 (3)
C4—H4	0.9300	C16—C17	1.464 (3)
C5—C6	1.373 (4)	C16—H16	0.9300
C5—H5	0.9300	C17—C18	1.387 (4)
C6—H6	0.9300	C17—C22	1.394 (3)
C7—C8	1.323 (4)	C18—C19	1.376 (4)
C7—H7	0.9300	C18—H18	0.9300
C8—C9	1.476 (4)	C19—C20	1.377 (4)
C8—H8	0.9300	C19—H19	0.9300
C9—O1	1.225 (3)	C20—C21	1.380 (4)
C9—C10	1.490 (3)	C20—H20	0.9300
C10—C15	1.379 (4)	C21—C22	1.377 (4)
C10—C11	1.388 (4)	C21—Cl2	1.743 (3)
C11—C12	1.387 (3)	C22—H22	0.9300
C11—H11	0.9300
C6—C1—C2	118.1 (3)	C13—C12—H12	120.0
C6—C1—C7	123.7 (3)	C11—C12—H12	120.0
C2—C1—C7	118.2 (3)	C12—C13—C14	119.1 (2)
C3—C2—C1	120.8 (3)	C12—C13—N1	124.1 (2)
C3—C2—H2	119.6	C14—C13—N1	116.8 (2)
C1—C2—H2	119.6	C15—C14—C13	120.5 (3)
C4—C3—C2	121.1 (3)	C15—C14—H14	119.7
C4—C3—Cl1	120.2 (2)	C13—C14—H14	119.7
C2—C3—Cl1	118.7 (3)	C14—C15—C10	121.2 (3)
C3—C4—C5	118.3 (3)	C14—C15—H15	119.4
C3—C4—H4	120.8	C10—C15—H15	119.4
C5—C4—H4	120.8	N1—C16—C17	123.3 (2)
C6—C5—C4	121.4 (3)	N1—C16—H16	118.4
C6—C5—H5	119.3	C17—C16—H16	118.4
C4—C5—H5	119.3	C18—C17—C22	119.5 (2)
C5—C6—C1	120.2 (3)	C18—C17—C16	119.6 (2)
C5—C6—H6	119.9	C22—C17—C16	120.8 (2)
C1—C6—H6	119.9	C19—C18—C17	120.5 (3)
C8—C7—C1	129.4 (3)	C19—C18—H18	119.8
C8—C7—H7	115.3	C17—C18—H18	119.8
C1—C7—H7	115.3	C18—C19—C20	120.5 (3)
C7—C8—C9	119.8 (3)	C18—C19—H19	119.8
C7—C8—H8	120.1	C20—C19—H19	119.8
C9—C8—H8	120.1	C19—C20—C21	118.8 (3)
O1—C9—C8	119.9 (2)	C19—C20—H20	120.6
O1—C9—C10	119.7 (3)	C21—C20—H20	120.6
C8—C9—C10	120.4 (2)	C22—C21—C20	121.9 (3)
C15—C10—C11	118.3 (2)	C22—C21—Cl2	119.3 (2)
C15—C10—C9	117.6 (2)	C20—C21—Cl2	118.8 (2)
C11—C10—C9	124.1 (2)	C21—C22—C17	118.8 (3)
C12—C11—C10	120.8 (2)	C21—C22—H22	120.6
C12—C11—H11	119.6	C17—C22—H22	120.6
C10—C11—H11	119.6	C16—N1—C13	118.7 (2)
C13—C12—C11	120.0 (2)
C6—C1—C2—C3	1.3 (4)	C11—C12—C13—C14	1.9 (4)
C7—C1—C2—C3	−177.6 (3)	C11—C12—C13—N1	−178.7 (2)
C1—C2—C3—C4	−0.6 (5)	C12—C13—C14—C15	−1.3 (4)
C1—C2—C3—Cl1	178.6 (2)	N1—C13—C14—C15	179.3 (3)
C2—C3—C4—C5	−0.6 (5)	C13—C14—C15—C10	−0.1 (4)
Cl1—C3—C4—C5	−179.7 (3)	C11—C10—C15—C14	0.7 (4)
C3—C4—C5—C6	0.9 (6)	C9—C10—C15—C14	−179.9 (3)
C4—C5—C6—C1	−0.2 (5)	N1—C16—C17—C18	−175.9 (3)
C2—C1—C6—C5	−0.9 (4)	N1—C16—C17—C22	0.6 (4)
C7—C1—C6—C5	177.9 (3)	C22—C17—C18—C19	1.1 (4)
C6—C1—C7—C8	6.8 (5)	C16—C17—C18—C19	177.6 (3)
C2—C1—C7—C8	−174.4 (3)	C17—C18—C19—C20	−0.9 (4)
C1—C7—C8—C9	−177.9 (3)	C18—C19—C20—C21	0.0 (4)
C7—C8—C9—O1	−2.6 (4)	C19—C20—C21—C22	0.7 (4)
C7—C8—C9—C10	177.1 (2)	C19—C20—C21—Cl2	−177.7 (2)
O1—C9—C10—C15	−5.9 (4)	C20—C21—C22—C17	−0.5 (4)
C8—C9—C10—C15	174.4 (2)	Cl2—C21—C22—C17	177.81 (19)
O1—C9—C10—C11	173.4 (3)	C18—C17—C22—C21	−0.4 (4)
C8—C9—C10—C11	−6.2 (4)	C16—C17—C22—C21	−176.9 (2)
C15—C10—C11—C12	0.0 (4)	C17—C16—N1—C13	176.9 (2)
C9—C10—C11—C12	−179.4 (2)	C12—C13—N1—C16	42.3 (4)
C10—C11—C12—C13	−1.3 (4)	C14—C13—N1—C16	−138.3 (3)
