Quantification of coronary microvascular resistance using angiographic images for volumetric blood flow measurement: in vivo validation

Abstract

Structural coronary microcirculation abnormalities are important prognostic determinants in clinical settings. However, an assessment of microvascular resistance (MR) requires a velocity wire. A first-pass distribution analysis technique to measure volumetric blood flow has been previously validated. The aim of this study was the in vivo validation of the MR measurement technique using first-pass distribution analysis. Twelve anesthetized swine were instrumented with a transit-time ultrasound flow probe on the proximal segment of the left anterior descending coronary artery (LAD). Microspheres were injected into the LAD to create a model of microvascular dysfunction. Adenosine (400 μg·kg⁻¹·min⁻¹) was used to produce maximum hyperemia. A region of interest in the LAD arterial bed was drawn to generate time-density curves using angiographic images. Volumetric blood flow measurements (Q_a) were made using a time-density curve and the assumption that blood was momentarily replaced with contrast agent during the injection. Blood flow from the flow probe (Q_p), coronary pressure (P_a), and right atrium pressure (P_v) were continuously recorded. Flow probe-based normalized MR (NMR_p) and angiography-based normalized MR (NMR_a) were calculated using Q_p and Q_a, respectively. In 258 measurements, Q_a showed a strong correlation with the gold standard Q_p (Q_a = 0.90 Q_p + 6.6 ml/min, r² = 0.91, P < 0.0001). NMR_a correlated linearly with NMR_p (NMR_a = 0.90 NMR_p + 0.02 mmHg·ml⁻¹·min⁻¹, r² = 0.91, P < 0.0001). Additionally, the Bland-Altman analysis showed a close agreement between NMR_a and NMR_p. In conclusion, a technique based on angiographic image data for quantifying NMR was validated using a swine model. This study provides a method to measure NMR without using a velocity wire, which can potentially be used to evaluate microvascular conditions during coronary arteriography.

coronary microvascular dysfunction occurs in a number of myocardial disease states and has important prognostic implications in different clinical settings, including acute coronary syndromes, diabetic coronary disease, hypertrophic cardiomyopathy, and transplant cardiac allograft vasculopathy (25, 26, 39). Intracoronary physiological techniques have been advocated and several indexes for the assessment of changes in the microcirculatory bed have been proposed (2, 11, 51), such as coronary flow reserve (CFR) (9, 13, 34) and microvascular resistance (MR) (12, 39, 49). Many previous study findings suggest that MR is a useful variable for directly assessing microcirculatory function. In 1974, Gould et al. (19, 20, 21) postulated a hypothesis that minimum MR is independent of epicardial stenosis severity. Recently, Fearon and colleagues (1, 7, 12, 14, 39) and Marques et al. (32) proved that the MR specifically interrogates the status of microcirculation and is independent of the presence of an epicardial stenosis using thermodilution method. When compared with CFR, MR is independent of many hemodynamic perturbations. Therefore, measurements of coronary MR play a pivotal role in diagnosing and monitoring the effects of therapeutic interventions.

Resistance is determined by dividing the pressure gradient by flow. In the case of the heart, true microcirculatory resistance (1, 12, 26) is theoretically defined as the mean aortic to coronary back pressure (vide infra) gradient divided by absolute coronary blood flow (in mmHg·ml⁻¹·min⁻¹) at hyperemia. Myocardial perfusion pressure is easy to measure invasively with a catheter or a coronary pressure wire. Therefore, the challenge for calculating MR is to measure the absolute coronary blood flow. Several invasive and noninvasive techniques have been developed for evaluating the status of the coronary microcirculation (24, 26). Some common techniques for evaluating microcirculation include positron emission tomography (PET), cardiovascular magnetic resonance imaging, myocardial contrast echocardiography (56, 57, 59), and the thermodilution method (9, 13, 16, 54). However, a widespread implementation of these techniques has been hampered by several factors including its complexity, irreproducibility, invasiveness, and expense and of the fact that it does not independently interrogate the microcirculation.

A first-pass distribution analysis (FPA) technique to measure absolute coronary blood flow using angiographic image data was validated (22, 31, 37, 38). The studies demonstrated the feasibility and potential utility of the FPA algorithm in conjunction with digital subtraction angiography for measuring volumetric coronary blood flow. When compared with other blood flow measurement techniques, the current angiographic method is simple to implement. It can be done in conjunction with routine coronary angiography, which can be accomplished during diagnostic cardiac catheterization. Furthermore, MR can be easily calculated using angiographic volumetric blood flow. The purpose of the current study is to validate the MR measurement technique in vivo using the FPA technique.

METHODS

Protocol.

In an open-chest swine model, MR measurements were performed at various stages of severity of microvascular disease in the left anterior descending coronary artery (LAD) at hyperemia. Microcirculation was disrupted by embolized microspheres. Both the coronary pressure from the angiographic catheter and blood flow from the flow probe were continuously recorded. Coronary angiograms were acquired for each data set. The study protocol was approved by the University of California, Irvine Institutional Animal Care and Use Committee.

Animal preparation.

Twelve fasted domestic Yorkshire swine (36.6 ± 6.0 kg, male, S&S Farms) were sedated and premedicated with Telazol-ketamine-xylazine (4.4, 2.2, and 2.2 mg drug/kg body wt, respectively) (27, 28) and atropine (0.05 mg/kg). Anesthesia was maintained with ∼1 to 2% isoflurane (Highland Medical Equipment Vaporizer; Temecula, CA), and supplemental oxygen was provided via endotracheal intubation. The arterial partial pressure of CO₂ was maintained within normal limits (∼40–45 mmHg). Heart rate and percent oxygen saturation were continuously monitored (Nellcor N-200 Pulse Oximeter; Hayward, CA). The carotid artery and jugular vein were cut down for sheath placement. An intravenous drip of adenosine (400 μg·kg⁻¹·min⁻¹) (17, 50, 61) was used to induce maximum hyperemia. Electrocardiogram, arterial blood pressure, X-ray pulse signal, and other relative physiological parameters were continuously recorded (MP100, Biopac Systems, Santa Barbara, CA). An example of recorded signals during baseline and hyperemia is shown in Fig. 1.

Fig. 1.

All recorded parameters during baseline and hyperemia. Continuous recording of ECG, coronary pressure (P_a), distal coronary pressure (P_d), right atrium pressure (P_v), and volumetric blood flow from the flow probe (Q_p) is shown.

Surgery and catheterization.

Lidocaine (50 μg·kg⁻¹·min⁻¹ for total ∼4 to 5 ml) was administered intravenously to prevent arrhythmia before the chest was opened. A lateral thoracotomy was performed using standard surgical techniques. The fourth and fifth ribs were spread apart, and the heart was fully exposed. The pericardium was opened, and the proximal segment of the LAD was dissected free. A transit-time ultrasound flow probe (Transonic Systems, Ithaca, NY) was placed on the proximal segment of the LAD. An extravascular occluder (IVM In Vivo Metric, Healdsburg, CA) was also placed around the LAD just distal to the flow probe to produce a 100% occlusion for reactive maximum hyperemia.

Before catheterization, heparin was administered (10,000-unit bolus followed by additional ∼4,000–5,000 U/h). Activating clotting time was tested every 30 min (model 801, Hemochron, Edison, NJ) to monitor the coagulation. The left main ostium was cannulated with a 6-Fr hockey-stick catheter through the left carotid artery under fluoroscopic guidance. Another 4-Fr hockey-stick catheter was placed in the right atrium to measure the coronary venous pressure. Microcirculation was disrupted by gradually injecting ∼50–100 μm (1.8 × 10⁴ microspheres/ml) microspheres (Polysciences, Warrington, PA) (2, 3, 5, 12, 48, 52) down the LAD through the catheter. This procedure was repeated for the different degrees of severity of microcirculatory embolism.

Image acquisition and processing.

All images were acquired using a conventional X-ray tube with a constant potential X-ray generator (Optimus M200, Philips Medical Systems, Shelton, CT). A cesium iodide-based flat panel detector (PaxScan 4030A, Varian Medical, Palo Alto, CA) was used for image acquisition. The flat panel detector has a 40 × 30 cm² field of view and pixel size of 0.194 × 0.194 mm². The zoom-center mode was used to acquire images with 1,024 × 768 pixels. Gain and flat-field corrections were performed before image acquisition. The flat panel detector has a dynamic range >8,000 with no pincushion distortions. Images were acquired at 30 frames/s. The detector signal in each pixel was digitized with 14-bit precision. All images were corrected for X-ray scatter before logarithmic transformation (10). A publicly available software (ImageJ, National Institutes of Health, Bethesda, MD) was used for image analysis.

Each swine was positioned on its right side under the flat panel detector. The projection angle was optimized for separation of the LAD and left circumflex artery perfusion beds. Pancuronium (0.1 mg/kg) was administered intravenously. Coronary angiograms were acquired when the blood flow reached maximum hyperemia. The ventilator was turned off at the end of a full expiration to minimize respiratory motion. Images of at least one full heart cycle were acquired before contrast injection for selecting a cardiac phase-matched mask image for temporal subtraction. Contrast material (Omnipaque-350; Princeton, NJ) was power injected (Leibel-Flarsheim Angiomat 6000; Cincinnati, OH) at 3 ml/s for 3 s.

An image of a calibration phantom positioned over the heart was also acquired to determine the correlation between image gray level and iodine mass. The iodine calibration phantom (35), which consisted of different cylindrical cells filled with iodine, was used to quantify iodine mass from X-ray densitometric signal. Correction was made for differential magnification of the phantom and the heart. The calibration curve and the known iodine concentration of the contrast agent were used to convert the integrated densitometric iodine signal to contrast volume, as shown in Fig. 2.

Fig. 2.

Calibration phantoms. Image of the 2 calibration phantoms is shown (A) along with an example of a calibration curve showing the relationship between iodine volumes (in ml) and measured integrated gray levels (B).

Blood flow measurement using angiographic images.

Several previous studies have evaluated coronary blood flow by using angiographic images. Pijls et al. (40, 41, 42) measured the mean transit time for the assessment of myocardial perfusion by videodensitometry. Molloi et al. (35, 37) have shown that the FPA analysis technique can be used to measure absolute coronary blood flow by analyzing the propagation of a contrast material signal in the coronary system. In the FPA theory, the volume of the vascular bed supplied by a major coronary artery is modeled as a reservoir with a single input. The model does not require any assumptions regarding the internal structure of the vascular bed or the nature of exit conduits. This technique combines the densitometric analysis of spatial and temporal aspects concerning the contrast propagation through the myocardium. Flow measurements are made by summing up the pixel values in the regions of interest (ROIs) using temporal subtraction images.

Coronary blood flow was determined from the change in volume during one cardiac cycle. An ROI for flow measurement was drawn around the LAD vascular bed that encompassed both the visible arteries and the microcirculatory blush (43, 60) (Fig. 3). Power injection of contrast material was assumed to momentarily replace blood with contrast material. The known iodine concentration in the contrast material and a linear regression analysis between the measured integrated gray levels in the calibration phantom were used to convert the gray level to volume. Therefore, the difference of densitometric signal in the vascular bed can be converted to the volume of contrast bolus entering the vascular bed between successive images using system iodine calibration. The time period of the cardiac cycle was calculated from the image acquisition rate (30 frames/s). The ratio of the measured volume change to the time period of the cardiac cycle yields volumetric coronary blood flow.

Fig. 3.

Regions of interest for flow measurement. An example of a global region of interest used for angiographic measurement of coronary volume flow is shown.

Blood flow measurement using flow probe.

Since volumetric blood flow from the transit time flow probe was used as our gold standard, the flow probe was recalibrated before every experiment. Flow measurement was performed with the flow probe around a calibration tubing (Transonic Systems, Ithaca, NY) during the saline injection. A direct volume collection for 30 s was used for flow probe calibration. The correlation between flow measurements from flow probe and volume collection was calculated using linear regression. The linear least-squares fits shows Q_flowprobe = 0.820 Q_collection + 3.540 ml/min (r² = 0.994, P < 0.0001).

MR calculation.

MR is defined as myocardial perfusion pressure divided by volumetric coronary flow (in mmHg·ml⁻¹·min⁻¹) at hyperemia:

$$\text{MR=}\frac{{\text{P}}_{\text{a}}-{\text{P}}_{\text{v}}}{\text{Q}}$$ (1)

Myocardial perfusion pressure was calculated as aortic pressure (P_a) minus venous pressure (P_v). Both P_a and P_v were measured continuously with pressure transducers using a sheath in the carotid artery and a catheter in the right atrium, respectively. However, volumetric coronary blood flow (in ml/min) and the calculated resistance (in mmHg·ml⁻¹·min⁻¹) are dependent on the arterial perfusion bed size. Therefore, it is not possible to establish a standard value for normal MR. Measured flow using PET is normalized by the myocardial mass (in ml·min⁻¹·g⁻¹). It is not possible to directly measure regional myocardial mass with angiography. However, it is possible to measure the dependent arterial lumen volume using densitometry (35), which can also be related to the myocardial mass (29, 30). Therefore, arterial lumen volume can be used to account for the dependent arterial bed size. Previous reports (36, 37, 60) have shown that a power law relationship exists between the hyperemic blood flow (Q) through a stem and the corresponding crown volume (V):

$$\text{Q}\approx {\left(\frac{\text{V}}{{\text{V}}_{\text{ref}}}\right)}^{3/4}$$ (2)

V_ref (1 ml) is a reference volume to make V raised to the power of 3/4 unitless. Normalized MR (NMR) can be calculated by combining Eqs. 1 and 2:

$$\text{NMR=}\frac{\frac{{\text{P}}_{\text{a}}-{\text{P}}_{\text{v}}}{\text{Q}}}{{\left(\frac{\text{V}}{{\text{V}}_{\text{ref}}}\right)}^{3/4}}$$ (3)

All the MR measurements were calculated using Eq. 3 where P_a is aortic pressure (in mmHg), P_v is coronary back pressure (in mmHg), Q is the hyperemic blood flow (in ml/min) through a stem, V is the corresponding crown arterial volume (in ml), and V_ref is the reference arterial lumen volume (1 ml). Therefore, angiography-based NMR (NMR_a) was calculated using the angiographic flow using the FPA technique (Q_a), whereas the reference NMR (NMR_p) was calculated using the flow from the flow probe (Q_p). Pressure and flow probe data were measured over five cardiac cycles before contrast injection.

Microcirculation evaluation involving epicardial stenosis.

Microspheres were gradually injected in the LAD to disrupt the microcirculation. The extravascular occluder was placed around the LAD just distal to the flow probe to produce an intermediate epicardial stenosis (∼75% area stenosis). NMR_p and NMR_a measurements were made for various stages of severity of microvascular disruption with and without the epicardial stenosis.

Diagnosis of microcirculation disruption involving epicardial stenosis.

Diagnostic abilities for microcirculation disruption using NMR_p and NMR_a were tested in two models: 1) normal epicardial artery model (N model), which included the normal condition and different severities of microvascular disruption with normal epicardial arteries, and 2) intermediate epicardial stenosis model (S model), which included intermediate coronary epicardial stenosis (∼75% area stenosis) and different severities of microvascular disruption with the same epicardial stenosis. The gold standard used in detecting microvascular disease was determined by the fact of whether microspheres were injected.

Statistical analysis.

Linear regression analysis was performed between angiographic flow probe measurements to determine the coefficient in the regression equation. The correlation coefficient (r) and standard error of estimate (SEE) were determined by a linear regression analysis. SEE is defined as the standard deviation of the measured values from the regression line. The degree of agreement between the different methods was also assessed using the Bland-Altman analysis (4). Paired samples t-test were made for NMR_p and NMR_a measurements at various degrees of severity of the microvascular disruption with and without epicardial stenosis. Two series of receiver-operating characteristic curves were made for both the N model and the S model. The areas under each curve (AUCs) were calculated to compare the diagnostic abilities of NMR_p and NMR_a. A P < 0.05 was considered to be statistically significant for all statistical analyses.

RESULTS

A total of 258 measurements were made at hyperemia. The mean heart rate was 93.41 ± 16.40 beats/min. The mean Q_p and Q_a were 40.90 ± 27.63 and 43.38 ± 26.02 ml/min, respectively. The mean NMR_p and NMR_a were 1.15 ± 0.69 and 1.06 ± 0.65 mmHg·ml⁻¹·min⁻¹, respectively. Q_a showed a strong correlation with the reference standard Q_p (r = 0.956, SEE = 7.627 ml/min). The equation of the regression line was determined to be Q_a = 0.90 Q_p + 6.6 ml/min (P < 0.001) (Fig. 4). NMR_a correlated linearly with NMR_p as NMR_a = 0.90 NMR_p + 0.02 mmHg·ml⁻¹·min⁻¹ (P < 0.001) with a good correlation coefficient (r = 0.956, SEE = 0.019 mmHg·ml⁻¹·min⁻¹) (Fig. 5). Additionally, in the Bland-Altman plot, the mean differences between the two measurements were 2.5 ± 15.9 ml/min for flow measurement and −0.09 ± 0.39 mmHg·ml⁻¹·min⁻¹ for NMR measurement. There was no statistically significant difference from zero, implying a lack of bias between the two techniques. Figure 6 shows the changes of Q and NMR in one animal while microspheres were gradually injected. Figure 7 compared the MR and NMR for the LAD and its branch in one animal. The results indicated that the measured NMR was nearly the same regardless of the vascular bed size.

Fig. 4.

Linear regression and Bland-Altman analysis of angiography-based flow (Q_a) and flow probe-based flow (Q_p). A linear regression analysis (A) and the Bland-Altman analysis (B) of Q_a and Q_p measurements are shown. The solid line represents the regression line (Q_a = 0.900 Q_p + 6.566 ml/min, r² = 0.914, SEE = 7.627 ml/min, P < 0.0001). All the data points were divided into 4 groups according to the amount of microspheres injection: group A (normal condition); group B (mild microvascular disruption, <1.5 × 10⁵ microspheres); group C (moderate microvascular disruption, ∼1.5 × 10⁵-3.0 × 10⁵ microspheres); and group D (severe microvascular disruption, >3.0 × 10⁵ microspheres).

Fig. 5.

Linear regression and Bland-Altman analysis of angiography-based (NMR_a) and probe-based (NMR_p) normalized microvascular resistance. A linear regression analysis (A) and the Bland-Altman analysis (B) of NMR_a and NMR_p measurements are shown. The solid line represents the regression line (NMR_a = 0.904 NMR_p + 0.022 mmHg·ml⁻¹·min⁻¹, r² = 0.915, standard error of estimate = 0.190 mmHg·ml⁻¹·min⁻¹, P < 0.0001).

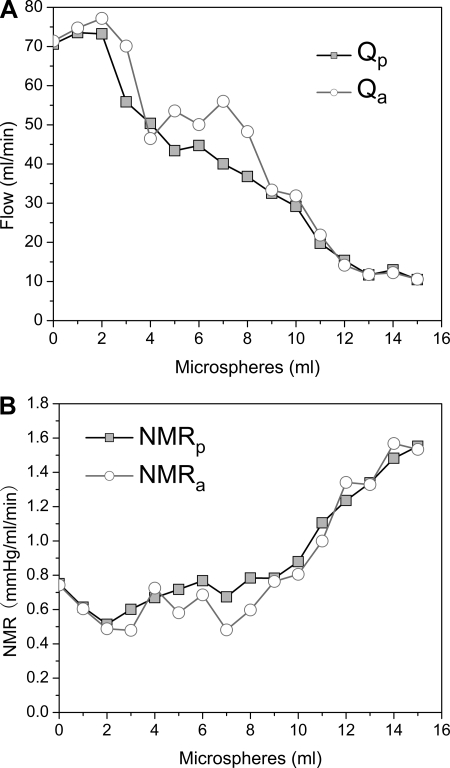

Fig. 6.

The changes of Q and NMR in 1 animal. When microspheres were gradually injected into the left anterior descending coronary artery (LAD), Q (A) dropped while NMR (B) slowly increased. There were 1.8 × 10⁴ microspheres/ml in suspension.

Fig. 7.

A: NMR for the LAD and its branch in 1 animal. An example of microvascular resistance (MR) and NMR comparison for the LAD and its branch in one animal is shown. NMR can correct the variation of MR in different size arteries. B: the results indicated that the measured NMR was nearly the same regardless of the vascular bed size.

Microcirculation evaluation involving epicardial stenosis.

From the results of the paired samples t-test for 33 pairs of NMR measurements at various degrees of severity of the microvascular disruption with and without intermediate epicardial stenosis, there were no significant differences between NMR_p (P = 0.073) and NMR_a (P = 0.057) measurements.

Diagnosis of microcirculation disruption involving epicardial stenosis.

In 167 measurements in normal model, the AUCs for NMR_p and NMR_a were 0.964 and 0.960. And in 170 measurements in the intermediate severity stenosis model, the AUCs were 0.921 and 0.920, respectively (Fig. 8). There were no significant reductions in AUCs for NMR_p and NMR_a between normal and intermediate severity stenosis models (P > 0.05).

Fig. 8.

Receiver-operating characteristic curves for NMR involving epicardial stenosis. In 167 measurements in normal model, the areas under each curve (AUCs) for NMR_p and NMR_a were 0.964 and 0.960, and in 170 measurements in intermediate severity epicardial stenosis (∼75% area stenosis) model, the AUCs were 0.921 and 0.920, respectively. There were no significant reductions in AUCs for NMR_p and NMR_a between normal and intermediate stenosis models (P > 0.05).

DISCUSSION

This study demonstrated that both the angiographic Q and NMR based on the FPA technique have strong correlations with Q and NMR from the flow probe. Bland-Altman analysis also showed that there was no significant bias between these two methods. However, when we compared our measurement of NMR, we found that NMR has a slightly lower correlation (r = 0.9562) than Q_a (r = 0.9564). This is because every data set had a different (P_a − P_v) to calculate NMR. In summary, NMR can be accurately measured using the FPA technique in a swine coronary microvascular disruption model.

Relationship between thrombolysis in myocardial infarction frame count and FPA.

The thrombolysis in myocardial infarction frame count (TFC) is a simple clinical tool used for assessing quantitative indexes of coronary blood flow. This measurement has been significantly correlated with flow velocity measurements during both baseline and hyperemia, especially after the corrected TFC was developed (46, 55). TFC is a useful angiographic assessment of both epicardial and myocardial perfusion. In the TFC technique, the number of cine frames required for contrast material to reach the standardized distal landmarks is counted (18). Essentially, it uses an estimate of the contrast material transit time as a surrogate for coronary blood flow. On the other hand, the FPA technique uses the time-density curve, assuming that blood is momentarily replaced with contrast agent to measure absolute volumetric blood flow. Instead of a frame count index, the FPA technique can measure absolute coronary blood flow (in ml/min).

Advantages of NMR_a.

Previous reports indicate that techniques used for evaluating coronary microcirculation are limited because they are complicated, not reproducible, too invasive, and expensive and do not independently interrogate the microcirculation (9, 26, 54). For example, perfusion PET suffers from its limited availability and high cost, which is mainly related to the necessity of an onsite cyclotron and expertise regarding the preparation and administration of the involved radiotracers. For cardiovascular magnetic resonance imaging, large doses of gadolinium are administered to achieve an adequate signal-to-noise ratio of the myocardial tissue enhancement. At these concentrations, however, the linear relationship between the measured signal intensity in the left ventricular cavity and the actual contrast concentrations levels off. Echocardiography suffers from a poor acoustic window in a limited number of patients and safety issues of microbubble contrast agents. Thermodilution has been routinely used for NMR measurement. However, it requires a known infusion rate for saline with a known temperature and precise infusion rate. The angiographic NMR based on FPA technique has important advantages compared with the previously reported methods for NMR measurement. The angiographic NMR measurement requires no wires and reduces the cost and procedure time associated with these techniques. All the angiographic NMR procedures can be accomplished during routine diagnostic cardiac catheterization. Therefore, both anatomical and physiological information can be derived from the same angiographic images. Furthermore, the angiographic method for NMR measurement could potentially be used for evaluating the microcirculatory system of patients with stable chest pain in the cardiac catheterization laboratory.

MR and CFR.

With the growing awareness that coronary microcirculatory dysfunction is an important pathophysiological component in many cardiac conditions, several different physiological dynamic indexes, such as CFR and MR, have been introduced. Some authors have used the concept of CFR as the theoretical framework to study microcirculation invasively. However, CFR is highly affected by epicardial stenosis and is very sensitive to hemodynamic changes. Other studies have reported that compared with other indexes, the advantages of MR allow it to be reliably applied for the interrogation of microcirculatory resistance in the catheterization laboratory (12). These advantages are twofold. First, MR is reproducible and largely independent of variations in the hemodynamic state (39). Second, MR calculated from pressure distal to stenosis (P_d) appears to be independent of epicardial artery disease. Previous reports (6, 33, 44, 47) have documented an increase in MR in the presence of an epicardial artery stenosis. However, if collateral flow is accounted for, the minimum achievable MR is not significantly affected by increasing epicardial artery stenosis (1, 14). Additionally, MR is an independent predictor of acute and short-term myocardial damage in patients undergoing primary percutaneous coronary intervention. It may allow us to determine the efficacy of therapeutic strategies for microvascular protection in patients with ST-segment elevation myocardial infarction (15, 23).

P_a and P_d.

The current study used (P_a − P_v) to calculate NMR for normal epicardial arteries because P_a is equal to P_d when there is no epicardial disease (8). However, NMR calculated from P_a combines the total resistance from the epicardial arteries and the microcirculation. Therefore, an abnormally high resistance can be due to epicardial stenosis, diffuse disease, or microvascular disease. The important question is the relative importance or balance of epicardial stenosis, diffuse disease, and microvascular disease. Therefore, NMR measurements were made with and without intermediate severity epicardial stenosis (∼75% area stenosis). From the results of the current in vivo study, our NMR_a, which is calculated from P_a, can be applicable to screen the microvascular condition with normal and intermediate severity epicardial stenosis (∼75% area stenosis). In cases of severe epicardial stenosis, when NMR calculated from P_a will be an overestimate, the NMR_a can be used to assess the MR after angioplasty.

Study limitations.

The use of microspheres to create a swine animal model for microvascular disruption was shown to be successful. When microspheres were gradually injected into the LAD, the blood flow dropped while NMR slowly increased. However, continued injections of microspheres may cause heterogeneous microinfarcts, which is not the same pathological change as normal myocardial infarction or diffused microvascular disease (5). The microspheres are not chemoattractant and thus are different from in vivo human microcirculations. In human microcirculation, dysfunction is usually caused by physical obstruction and active thrombogenic, vasoconstrictive, and inflammatory affections and their interactions with the vascular wall. Moreover, the experimental animal model only simulated a focal microcirculatory disruption. Only intermediate severity epicardial stenosis (∼75% area stenosis) was studied along with the microvascular disease. Other disease conditions or risk factors, such as ventricular hypertrophy, hypercholesterolemia, diabetes mellitus, and diffuse coronary artery disease could affect NMR. The impact of other disease conditions on NMR requires additional study.

One of the advantages of the FPA (35, 60) technique is the ability to evaluate both global and regional blood flow simultaneously. In this study, only the global blood flow and NMR of LAD were measured. For future studies, different regional blood perfusion beds need to be studied with the selective injection of microspheres.

Myocardial perfusion flow is a combination of coronary and collateral flow, so calculations using it tend to overestimate MR if they neglect collateral flow (53, 58) . In our current angiographic flow measurement, the ROI was drawn large enough to ensure that the LAD vascular bed will be within the ROI (35). As a consequence, this technique ensured that any visible potential collateral flow perfusion will be included in the angiographic NMR measurement. However, in cases of severe stenosis, coronary angiography still has only limited sensitivity for quantifying collateral circulation capacity (45, 53). The existence of collateral flow might lead to NMR overestimation because myocardial perfusion combines coronary and collateral flow. However, as pointed out above, NMR measurement is only clinically indicated in cases of mild or no epicardial stenosis. In these cases, collateral flow is not expected to be significant.

Another limitation of the current study is that only coronary angiograms without respiratory motion were analyzed for NMR measurements. Respiratory motion can introduce misregistration artifacts in phase-matched subtracted images and increase measurement error in coronary flow. However, motion artifacts can be minimized with breath holding since only a short time interval is required for blood flow measurement (∼3–5 s).

Conclusion.

This study demonstrated that the angiographic flow measurement based on the FPA technique can be used to assess the severity of microvascular disruption even in the presence of intermediate severity epicardial stenosis (∼75% area stenosis). This new method is accurate, quantitative, and easy to perform, requiring only angiographic images. The application of angiographic NMR in humans could potentially provide a method to assess both anatomically and physiologically effects of coronary artery disease using angiographic images.

GRANTS

This work was supported in part by the National Heart, Lung, and Blood Institute Grant R01-HL-89941 and the Department of Health and Human Services. Partial funding for Z. Zhang was from China National Natural Science Foundation Grant 30870698 and Tianjin Medical University Graduate Innovation Fund 2009GSLI13.

DISCLOSURES

No conflicts of interest, financial or otherwise, are declared by the author(s).
