Probing the Electronic Demands of Transmetalation in the Palladium-Catalyzed Cross-Coupling of Arylsilanolates

Abstract

The electronic characteristics of coupling partners in the transmetalation step for the cross-coupling reaction of arylsilanolates have been investigated. The ability to interrogate the transmetalation event by in situ preparation of the arylpalladium(II) silanolate intermediate has enabled a Hammett analysis for both the aryl electrophile and arylsilanolate to be conducted. These studies reveal that electron-donating groups on the silicon nucleophile and electron-withdrawing groups on the electrophile accelerate the transmetalation process.

1. Introduction and Background

Transition-metal cross-coupling reactions have ascended to premier status in the panoply of strategy level carbon-carbon and carbon-heteroatom bond forming reactions. The great diversity of organometallic donors and organic electrophiles that participate in this process accounts, in large measure, for the widespread adoption of this technology.¹ Despite the myriad permutations of donor and acceptor that engage in successful cross-coupling reactions, the basic catalytic cycle under palladium (or nickel) catalysis is remarkably uniform across various families and involves: (1) oxidative addition of an electrophilic halide or pseudo-halide to the M(0) catalyst, (2) transmetalation of the transferable group from an organometallic donor and (3) reductive elimination of the R¹ML_nR² to generate a new C-C (or C-X) bond. Although the oxidative addition of an organic halide to a Pd(0) complex is common among most coupling reactions, the transmetalation step is distinctive to the organometallic donor employed. The transmetalation of organostannanes (Stille cross-coupling) has been extensively studied but is still a matter of considerable debate.²> These transfers have been suggested to follow an intermolecular S_E2 mechanism by means of stereochemical models. Cross-coupling reactions of organoboranes (Suzuki cross-coupling) are highly base dependent and a pre-coordination of the transferring agent with the transition metal followed by delivery has been proposed for the transmetalation step but no concrete conclusions have been drawn to date.^3,4> Similarly, organosilane transmetalations can proceed via a four-centered, closed transition structure (retentive), an acyclic, open process (invertive),⁵> and a six-centered closed transition structure (synfacial).⁶> Moreover, transmetalation via both neutral 8-Si-4 and anionic 10-Si-5 intermediates have been demonstrated.^7,8 Most of the evidence available to support these pathways comes from kinetic analysis of the catalytic and, in some cases, stoichiometric reactions.

A more detailed understanding of the critical transmetalation step has been sought through the use of Hammett substituent effect analyses for a variety of organometallic donors.⁹ By establishing the influence of electronic perturbations in a catalytic reaction, the transition state structures can be further refined. The effects of substituents on arylstannanes¹⁰, -boranes¹¹, silanes¹² and -zincates¹³ have been studied for cross-coupling reactions, however the electronic influence by the organic acceptor for the transmetalation step is not well established. In a cleverly designed competition study, Hatanaka, Hiyama and co-workers established that electron-rich arenes undergo transmetalation from silicon faster than electron-deficient arenes (ρ = −1.5).^12a A more recent study from Shukla and DeShong, however reaches a contradictory conclusion that electron-deficient arenes transfer faster in intermolecular coupling reactions of aryltriethoxysilanes (ρ = 1.4).^12b The results described here will shed light on the origin of this disparity and provide the first unified insights into the electronic requirements of both the organic donor and acceptor in a palladium catalyzed cross-coupling reaction.

The general trends for various palladium-catalyzed cross-coupling reactions suggest that the transmetalation step is accelerated by more electron-rich nucleophiles (organic donors) and by electron-poor electrophiles (organic acceptors). However, these trends cannot be unambiguously ascribed to influences on the transmetalation step because the studies were conducted on fully operating catalytic systems wherein substituent effects are manifest in each of the stages of the catalytic cycle.¹⁴ Recent studies from these laboratories on the mechanism of the cross-coupling reaction of arylsilanolates with aryl halides in the presence of (t-Bu₃P)₂Pd documented the intermediacy of a three-coordinate arylpalladium(II) arylsilanolate complex as the pretransmetalation species.⁷ These studies included the isolation and spectroscopic, crystallographic and kinetic analysis of this intermediate.¹⁵ The ability to prepare the pretransmetalation intermediate enables a direct interrogation of the electronic characteristics of the critical step in the catalytic cycle. By systematic variation of the substituents on both the aryl halide and the arylsilanolate, the specific electronic demands can be elucidated. Herein, we describe the results of a Hammett substituent analysis for the transmetalation step in the cross-coupling of arylsilanolates through use of stoichiometrically generated arylpalladium(II) arylsilanolate complexes.

2. Results and Discussion

2.1. Preparation of tert-Butylphosphine Arylpalladium (II) Bromide Complexes

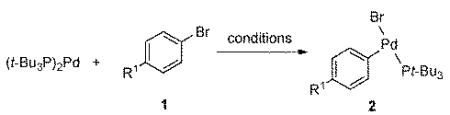

To facilitate the determination of the electronic influences of substituents on both components in the transmetalation step, a number of T-shaped arylpalladium(II) bromide complexes are needed. Fortunately, a number of methods are available to access a variety of electronically differentiated complexes, and the results of the preparation are compiled in Table 1.¹⁶ However, methods for the preparation and isolation of highly electron-deficient complexes are noticeably absent. Attempts to prepare the 4-trifluoromethylphenylpalladium bromide complex using neat aryl halide led to rapid decomposition after >1 h of heating at 70 °C.^16a To avoid decomposition of the arylpalladium(II) bromide complex, a lower temperature (23 °C) was employed, but less than 20 % of (t-Bu₃P)(4-CF₃C₆H₄)PdBr (2e) was obtained. Ultimately, the preparation of 2e was accomplished by employing t-Bu₃P•HBr as a catalyst, entry 5.¹⁷

Table 1.

Preparation of T-shaped Oxidative Addition Intermediates of Palladium

entry	R1	time, min	solvent	product	yield, %
1a	MeO	45	neat	2a	22
2b	H	120	neat	2b	50
3c	F	45	2-butanone	2c	54
4c	CF3O	50	2-butanone	2d	45
5c	CF3	45	2-butanone	2e	64

Conditions:

^aPd(dba)₂ (1.0 equiv), t-Bu₃P (1.1 equiv) aryl bromide (45.0 equiv), 22 °C

^b(t-Bu₃P)₂Pd (1.0 equiv), aryl bromide (45.0 equiv), 70 °C

^c(t-Bu₃P)₂Pd (1.0 equiv), aryl bromide (40-45.0 equiv), t-Bu₃P·HBr (0.03 equiv), 2-butanone, 70 °C (ref. 16)

2.2. Preliminary Investigation on the Electronic Influence of Substituents R¹ and R² on the Activated Transmetalation

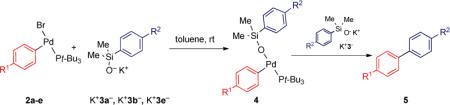

With a number of electronically disparate, three-coordinate, arylpalladium(II) bromide complexes in hand, the rate constants (k_obs) for the cross-coupling were obtained. The influence of the electronic properties of R¹ in the electrophilic partner (i.e. the arylpalladium(II) species derived from the aryl halide) was investigated for the activated transmetalation with potassium (4-methoxyphenyl)dimethylsilanolate K⁺3a⁻. Formation of the arylpalladium(II) silanolate complexes was accomplished in situ by treating the arylpalladium(II) bromides 2 with 0.95 equiv of a solution of K⁺3⁻ in toluene at room temperature which resulted in the rapid formation of the desired T-shaped complexes 4. Addition of a second quantity of K⁺3⁻ (1.05 equiv) initiated the transmetalation step and the rate constants were determined from a plot of the first order decay of 4(a-e)a.¹⁸ Each reaction was repeated in duplicate and the averaged first-order rate constants for each reaction and their relative rates are collected in Table 2. The arylpalladium(II) arylsilanolate complexes bearing electron-withdrawing substituents on the aryl electrophile ((4c-e)a) underwent transmetalation faster than those bearing either no substituent (4ba) or an electron-donating substituent (4aa) but the effect was small. For example the 4-CF₃ and the 4-OCF₃ substituted arylpalladium silanolate complexes 4da and 4ea reacted only 2.6 and 1.9 fold faster, respectively, than complex 4aa.

Table 2.

Activated Transmetalation For a Number of Arylpalladium(II) Arylsilanolate Complexes.^a,b

Arylsilanolate K+3−, R2	Arylpalladium Bromide 2, R1
	OMe (2a)	H (2b)	F (2c)	OCF3 (2d)	CF3 (2e)
OMe (3a)	2.80	3.27	4.64	5.56c	7.20
H (3b)	1.53	1.82	2.39	2.28	3.18
CF3 (3e)	1.00d	1.28	1.34	1.35	2.40

^aReactions conditions: ca 25 mM in 2a-e, ca 50 mM in K⁺3⁻ in toluene (0.8 mL).

^bThe relative rate constants were calculated from the smallest rate constant which was for the transmetalation of 4ae with K⁺3e⁻.

^cEmployed potassium (4-n-butoxyphenyl)dimethyl silanolate (see discussion).

^dk_obs for reaction of 2a with 3e = 7.48 × 10-5 s⁻¹

Given the matrix of data in Table 2, the electronic effect of substituents on the nucleophile (R²) in the transmetalation step could be secured by simply comparing the rate constants for a given electrophile (e. g. Table 2, R¹ = H). This analysis reveals that the more electron-rich nucleophile (K⁺3a⁻) reacts at a faster rate compared to the other organosilicon donor groups (K⁺3b⁻ (H) or K⁺3e⁻ (4-CF₃)). For example, the transmetalation of the 4-MeO-substituted arylsilanolate K⁺3a⁻ was roughly 2.5-4 times faster compared to the 4-CF₃-substituted arylsilanolate K⁺3e⁻ independent of the substitution of the electrophilic partner. When the relative rates for the arylsilanolate transmetalation employing 4bx are plotted against the sigma values for the substituents on the nucleophile, a negative Hammett constant is obtained (Figure 1, ρ = −0.50).¹⁹ In addition, the Hammett value for the arylsilanolate seems to be independent of the substituent on the arylpalladium electrophile. Similar ρ values were determined for each arylpalladium electrophile investigated, suggesting that any synergistic effect between the two components for transmetalation was probably negligible.²⁰

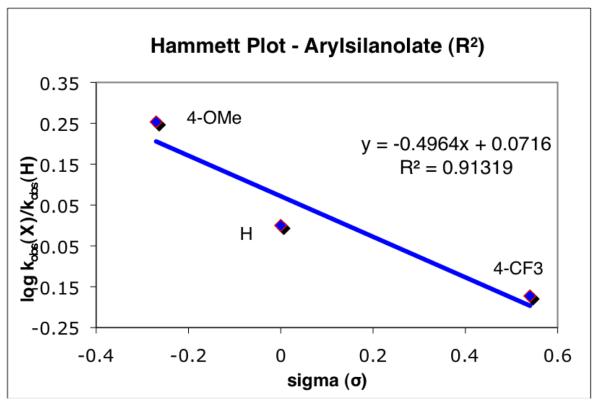

Figure 1.

Hammett plot for the transmetalation of various arylsilanolates in the phenylpalladium complexes 4bx.

To probe the contribution of the electronic properties of substituents on the electrophilic partner on the rate of cross-coupling of arylsilanolates, the relative rate constants for the coupling of both potassium (phenyl)dimethylsilanolate K⁺3b⁻ and potassium (4-trifluoromethylphenyl)dimethylsilanolate K⁺3e⁻ were investigated with each electrophilic partner, 4a-e (Table 2). Unsurprisingly, both of these nucleophiles displayed similar trends in the rate constants with the various T-shaped complexes. For each arylsilanolate employed, the more electron-rich electrophile (t-Bu₃P)(4-MeOC₆H₄)PdX (4ax) provided the smaller rate constant (i.e. slower transmetalation) whereas the electron deficient complexes (t-Bu₃P)(4-CF₃OC₆H₄)PdX and (t-Bu₃P)(4-CF₃C₆H₄)PdBr (4dx and 4ex, resp.) provided the larger rate constants (i.e. faster transmetalation).

The Hammett analysis for the cross-coupling reaction of different electrophilic partners employing K⁺3a⁻ provided a linear relationship (using simple σ values⁹) with a small ρ value (Figure 2, ρ = 0.49). The Hammett correlation for the effects of substituents on the arylpalladium electrophile on the rates of cross-coupling with arylsilanolate nucleophiles (K⁺3b⁻ and K⁺3e⁻) also provided linear free-energy relationships with ρ = 0.35 and ρ = 0.40, respectively. The fact that different arylsilanolates generate plots with similar ρ values suggests that the influence that the substituent on the arylpalladium electrophile manifests in the transmetalation step is independent of the arylsilanolate nucleophile used. In addition, the small magnitude of the ρ values implies that the rate of cross-coupling of different bromoarenes should not vary widely. In fact, this trend was observed in the preparative cross-coupling of arylsilanolates using (t-Bu₃P)₂Pd wherein the reaction times for both electron-rich and electron-deficient bromoarenes were comparable within a given arylsilanolate set (3-4 h).²¹

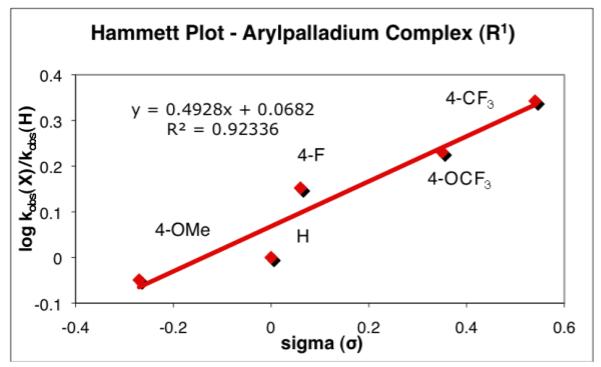

Figure 2.

Hammett plot for electronic effect for the electrophilic partner employing K⁺3a⁻.

2.3. Preequilibrium Considerations

Previous studies on the mechanism of activated cross-coupling of arylsilanolates,⁷ revealed an interesting insight that potentially complicates the interpretation of the studies herein. Specifically, the rate of cross-coupling of stoichiometrically formed complexes 4 shows a first order dependence on the concentration of added silanolate, whereas under catalytic conditions, a zeroth-order dependence on the silanolate is seen. This behavior is interpreted to reflect a preequilibrium formation of the reactive 10-Si-5 silanolate complex i shown in Scheme 1. This preequilibrium complicates the determination of the electronic influence of substituents on the silanolate (R²) because these electronic perturbations can be manifested in two separate stages of the activated transmetalation step: (1) the association of the silanolate with the silicon atom in the 8-Si-4 arylpalladium silanolate to form the 10-Si-5 species and (2) the formation of the new carbon-palladium bond in the transmetalation step.²² From all of the foregoing studies, the rate of displacement of bromide in the initial formation of the 8-Si-4 species is extremely fast independent of the substituents on the silanolate or the arylpalladium bromide.⁷ However, the electronic properties of the silanolate will influence the activation of the silicon atom from the 8-Si-4 species to the 10-Si-5 siliconate and thus the rate of the transmetalation (Scheme 1). First, the electrophilicity of the silicon atom in complex 4, and the nucleophilicity of the oxygen atom in silanolate K⁺3⁻ will affect the equilibrium concentration of complex i (step 1).²³ Second, aryl substituents on both partners will influence the accumulation of negative charge on the 10-Si-5 moiety, and thus affect the intrinsic rate of transmetalation (step 2). To eliminate the contribution of the unknown and clearly substituent dependent preequilibrium (factor 1), the activated cross-coupling must be run under conditions where the rate constant for the transmetalation has reached a saturation point. If this kinetic regime could be attained, then the relative rate constants obtained from the transmetalation studies should reflect solely the formation of the palladium-carbon bond (factor 2).

Scheme 1.

2.4. Determination of Saturation Concentration

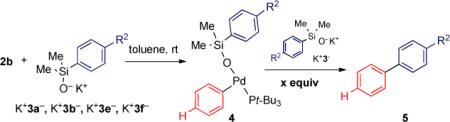

Experimentally, the rate constant at the saturation point can be established by increasing the concentration of the silanolate salts K⁺3a⁻, K⁺3b⁻, and K⁺3e⁻ relative to silanolate complex 4 until no further rate enhancement is observed. Unfortunately, the solubility of K⁺3a⁻ in toluene precluded the saturation point from being determined. Thus, a more soluble, electron-rich silanolate needed to be investigated.

Appending a more lipophilic alkoxy group at C(4) of the arene should improve organic solubility, but should not drastically impact the sigma value for the Hammett analysis.²⁴ Thus, potassium (4-butoxyphenyl)dimethylsilanolate K⁺3f⁻ was prepared. This reagent proved to be significantly more soluble and allowed the saturation point to be attained. When 2.0 equiv of K⁺3f⁻ was added to the three-coordinate palladium silanolate complex 4bf to promote the transmetalation event, an increase in the rate constant was obtained (k_obs = 3.88 × 10⁻⁴ s⁻¹ versus k_obs = 2.25 × 10⁻⁴ s⁻¹ for 1.0 equiv). At this stage, additional quantities of silanolate were added until either a solubility threshold was reached or leveling of the rate constant was obtained. Gratifyingly, as the number of equivalents of K⁺3f⁻ increased, the rate constant began to level-off (Table 3, entries 2-4). Finally, a ratio of 8:1 for K⁺3f⁻/4bf produced a maximum rate constant of 5.15 × 10⁻⁴ s⁻¹.

Table 3.

Saturation Points for the Transmetalation of Arylpalladium(II) Arylsilanolate Complexes.^a,b

entry	R2	silanolate	equiv of K+3−	kobs (s−1)
1	OMe	K+3a−	1.0	2.25 × 10−4
2	On-Bu	K+3f−	2.0	3.88 × 10−4
3	On-Bu	K+3f−	4.0	5.00 × 10−4
4	On-Bu	K+3f−	8.0	5.15 × 10−4
5	H	K+3b−	1.0	1.25 × 10−4
6	H	K+3b−	2.0	1.67 × 10−4
7	H	K+3b−	4.0	1.98 × 10−4
8	CF3	K+3e−	1.0	9.20 × 10−5
9	CF3	K+3e−	2.0	9.00 × 10−5
10	CF3	K+3e−	4.0	9.92 × 10−5

^aReactions conditions: ca 25 mM in 2a-e, ca 50 mM in K⁺3⁻ in toluene (0.8 mL).

^bRate constants were determined by the first-order decay of the arylpalladium silanolate complex 4 using Ph₃P(O) as an internal standard.

This same procedure was performed for both K⁺3b⁻ and K⁺3e⁻ and different saturation points were reached for each nucleophile (Table 3, entries 5-10). For example, the cross-coupling reaction of (t-Bu₃P)(C₆H₅)Pd(OSiMe₂C₆H₅) 4bb with 2.0 and 4.0 equiv of K⁺3b⁻ resulted in an increase in rate constants by factors of 1.33 and 1.58, resp. clearly indicating a leveling off. Moreover, carrying out the cross-coupling of (t-Bu₃P)(C₆H₅)Pd(OSiMe₂C₆H₄-4-CF₃) 4be with 2.0 and 4.0 equiv of K⁺3e⁻ result in only a minor variation in the rate constant. Therefore, even at a 1:1 ratio of 4be/K⁺3e⁻ the preequilibrium was nearly saturated.^25,26

2.5. Implications of a Hammett Correlation in the Saturated Regime

The Hammett correlation for the electronic properties associated with the organosilanolate 3 yielded a negative ρ value thereby indicating that the more electron-rich substituents improve the reactivity. Using the saturated rate constants for each nucleophile, the Hammett correlation provides a value for only the palladium-carbon bond-forming event (Scheme 1, step 2). Although a modest change was observed (ρ = −0.80) compared to the values obtained employing only 1.0 equiv of arylsilanolate (ρ = −0.50),¹⁹ the slope remained negative, confirming that the transmetalation step is accelerated by electron-rich arylsilanolates (Figure 3). The increase in the slope arises from the greater equilibrium concentration of i(bf) compared to i(be) (see Scheme 1).

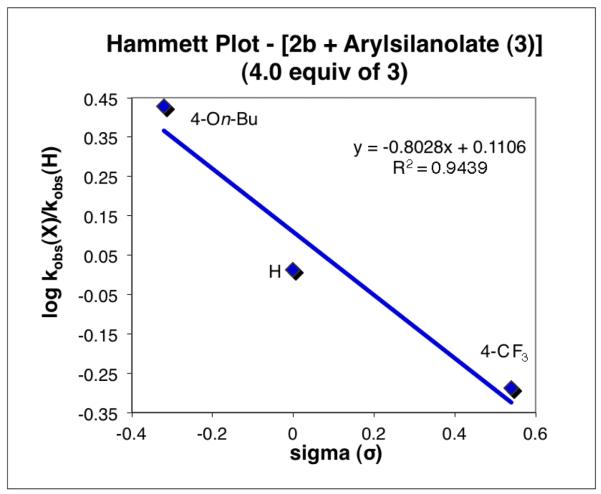

Figure 3.

Hammett plot employing k_obs at the saturation point for the activated transmetalation step.

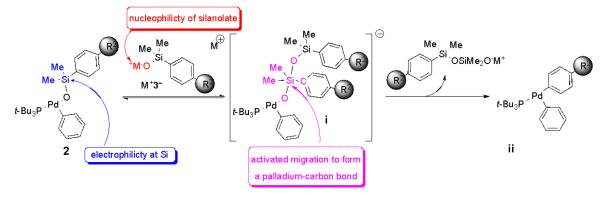

The negative Hammett value for the electronic effect of substituents on the arylsilanolate implies that, when saturated as the 10-Si-5 species, the greater electron density on the hypervalent siliconate moiety (in particular on the migrating aryl group) leads to a more facile transmetalation process. Nevertheless, the silicon atom in the 8-Si-4 species 2 plays an important role in establishing the preequilibrium, namely, the electrophilicity of this silicon atom impacted the saturation point of the activation step of the various arylsilanolate nucleophiles. As the concentration of K⁺3f⁻ increased, the rate constant increased until the concentration dependence for K⁺3f⁻ leveled off with an 8-fold excess of silanolate per complex 4. On the other hand, as the concentration of K⁺3e⁻ increased, only minor variations in the rate constant were seen. If the nucleophilicity of the silanolate were the dominant factor, then the more nucleophilic silanolate is expected to reach saturation more quickly. Therefore, the observation that the least nucleophilic arylsilanolate reached a saturation point so readily (fewest equivalents) leads to the conclusion that the electrophilicity of the silicon atom is the major contributor to the activation preequilibrium.

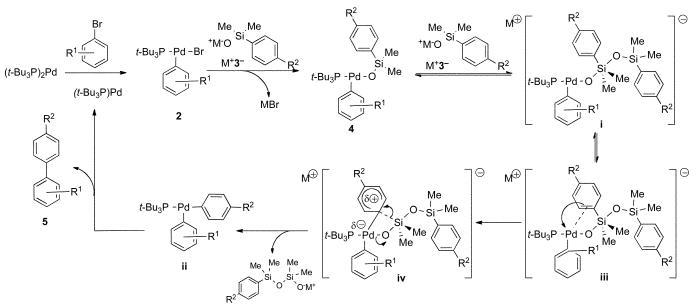

The results presented herein are consistent with an (intramolecular)²⁷ electrophilic aromatic substitution on an activated arylsilanolate moiety by an arylpalladium complex. The mechanism of the activated transmetalation proceeds by generation of an 8-Si-4 arylpalladium(II) silanolate complex (4, Scheme 2) from the first formed oxidative addition product of a bromoarene to (t-Bu₃P)₂Pd, compound 2 in combination with ^M+3⁻. In the presence of additional silanolate, a hypervalent 10-Si-5 siliconate i is formed from 4 in a preequilibrium, which renders the aryl group highly electron-rich. Because the palladium center is coordinatively unsaturated,⁷ the migrating aryl group can initiate the transmetalation by donation of electron density to the empty coordination site in the formation of a π-complex such as structure iii.²⁸ The arene is then transferred in a rate- limiting electrophilic aromatic substitution process with concerted loss of a polysiloxane unit. This process may proceed via an intermediate σ-complex iv which places a partial positive charge on the arene ring.^28,29 The negative ρ values for the arylsilanolates are consistent with an asynchronous generation of the σ-complex in which the formation of the palladium-carbon bond precedes the breaking of the carbon-silicon bond. Following reductive elimination, the monoligated palladium catalyst is regenerated to complete the catalytic cycle.³⁰

Scheme 2.

3. Conclusion

The ability to prepare a pretransmetalation precursor has provided a refined insight into the electronic requirements for the critical transmetalation step in the cross-coupling reaction of organosilanolates. These results parallel other mechanistic studies on the transmetalation of, inter alia, organoboranes in the Suzuki cross-coupling reactions and indicate a common feature among the various cross-coupling reactions. The ability to isolate the pretransmetalation precursor provides a unique opportunity to interrogate other aspects of this critical step, the subject of these studies will reported in due course.
