Discovery of Potent and Selective Inhibitors of Human Platelet type 12-Lipoxygenase

Abstract

We report the discovery of novel small molecule inhibitors of platelet type 12-human lipoxygenase, which display nanomolar activity against the purified enzyme, using a quantitative high throughput screen (qHTS) on a library of 153,607 compounds. These compounds also exhibit excellent specificity, >50-fold selectivity vs. the paralogs, 5-human lipoxygenase, reticulocyte 15-human lipoxygenase type-1, and epithelial 15-human lipoxygenase type-2, and >100-fold selectivity vs. ovine cyclooxygenase-1 and human cyclooxygenase-2. Kinetic experiments indicate this chemotype is a non-competitive inhibitor that does not reduce the active site iron. Moreover, chiral HPLC separation of two of the racemic lead molecules revealed a strong preference for the (–)-enantiomers (IC₅₀ of 0.43 +/- 0.04 and 0.38 +/- 0.05 μM) compared to the (+)-enantiomers (IC₅₀ of >25 μM for both), indicating a fine degree of selectivity in the active site due to chiral geometry. In addition, these compounds demonstrate efficacy in cellular models, which underscores their relevance to disease modification.

Introduction

Lipoxygenases (LOXs) are non-heme, iron-containing enzymes that are ubiquitous in the plant and animal kingdoms. LOXs regio- and stereo-specifically peroxidate polyunsaturated fatty acids (e.g. arachidonic acid (AA) and linoleic acid (LA)) containing cis, cis-1,4-pentadiene moieties to form the corresponding hydroperoxy fatty acids.¹ LOXs are the first committed step in a cascade of metabolic pathways that are implicated in the onset of inflammatory diseases such as cancers, heart disease and asthmas,^2-5 making LOXs ideal candidates for pharmaceutical inhibitory treatment. However, the discovery of selective, potent inhibitors is critical to providing relevant chemical tools and probes to investigate LOXs involvement in inflammation and disease states.

Human LOXs are distributed among a variety of tissues and cellular locations and have been implicated in numerous disease states. 5-LOX shuttles between the cytosol and nuclear membrane^{6, 7} and has been found to be implicated in cancer^8-10 and asthma.^{5, 7} Despite 5-LOX having been targeted by pharmaceutical companies for many years,¹¹ Zileutin, developed by the Abbott laboratories, remains the only FDA approved drug which targets a human lipoxygenase.¹² Both Pfizer and Merck have developed potent and selective inhibitors of 5-LOX (PF-4191834¹³ and MK-0633¹⁴ respectively), however, both of these appear to have been discontinued from further clinical development.¹⁵ Reticulocyte 15-LOX-1 has been implicated in colorectal^16-18 and prostate^19-21 cancers, while epithelial 15-LOX-2 is expressed in hair, prostate, lung and cornea^22,23 and has been demonstrated to have an inverse correlation of expression and prostate cancer.^24,25 Mutations in epidermis-type lipoxygenase-3 and 12-(R)-LOX, which are expressed in the skin, have been shown to cause non-bullous congenital ichthyosiform erythroderma.²⁶ Human platelet type 12-(S)-LOX (12-LOX), for which the current study focuses on, has been implicated in skin disease,²⁷ pancreatic,²⁸ breast,^{29, 30} prostate cancers,²¹ diabetes³¹ and blood coagulation³² and platelet activation.^{33, 34}

Previous studies have demonstrated elevated 12-LOX mRNA expression levels in cancerous prostate tissue cell lines³⁵ and that addition of 12-S-hydroxyeicosatetraenoic acid(12-HETE) to human prostate adenocarcinoma cells increased their motility and ability to invade neighboring tissues. This study has been supplemented with recent data that demonstrates 12-LOX enhances the excretion and expression of vascular endothelial growth factor (VEGF)³⁵ under hypoxic conditions by up-regulating the protein level, mRNA and functionality of hypoxia inducible factor-1 alpha (HIF-1α), a transcription factor that up-regulates VEGF activity.³⁶ Taken together, these studies provide a case for the involvement of 12-LOX in prostate cancer. Additional reports have implicated 12-LOX in breast cancer. 12-LOX mRNA was found to have an increased expression in breast cancer tissue cell lines³⁷ versus noncancerous breast epithelial cell lines, where the addition of the LOX inhibitor cinnamyl-3,4-dihydroxy-alpha-cyanocinnamate dramatically inhibited the growth of the breast cancer cell lines. Increased expression of 12-LOX mRNA has also been witnessed in tissues extracted from patients with breast cancer,^38-40 versus healthy adjacent tissue. 12-LOX is also expressed in human pancreatic islets, which increases with inflammatory cytokines and the 12-HETE generated leads to reduced insulin secretion and pancreatic beta cell damage.³¹

There have been many attempts to discover selective and potent 12-LOX inhibitors with limited success. Past drug discovery efforts for human lipoxygenases have utilized traditional medicinal chemistry^41-49 and natural product isolation,^50-58 yielding compounds that are reductive or promiscuous phenolic/terpene-based inhibitors. Other reports have focused on pharmacophore virtual screening⁵⁹ to yield novel, selective inhibitors for rabbit 15-LOX. However, there are few 12-LOX inhibitors that are selective or potent and even fewer which are both.^{58, 60-62}

Several natural products have been shown to exhibit micromolar inhibition of 12-LOX, particularly Hinokitiol⁵⁸ and the catechins from green tea leaf extract,⁶² albeit with moderate selectivity over other human LOXs. Our laboratory has discovered and investigated many non-selective 12-LOX inhibitors. Investigations of marine derived natural products yielded brominated aryl phenols,⁵⁷ and an SAR study, with the known reductive LOX inhibitor, NDGA, yielded a variety of potent derivatives as shown in Figure 1.⁶³ It should be noted that the mistakenly identified 12-LOX selective inhibitor, baicalein, was shown, through steady-state kinetics, to not be selective in vitro, and in fact is equipotent against both 15-LOX-1 and 12-LOX.⁶⁴

Figure 1.

Previously reported 12-LOX inhibitors.

In an attempt to move from screening to more structure-based design, our laboratory recently identified several non-reductive inhibitors for 12-LOX and 15-LOX-1 by performing docking to homology models, however these compounds displayed weak potency and poor selectivity.⁶⁵ Our laboratory has also recently discovered four potent and selective 12-LOX inhibitors while testing a high-throughput screen (HTS) against the National Cancer Institute repository and the UC Santa Cruz Marine Extract library.⁶⁰ Unfortunately, these compounds were not drug-like and not amenable to modification.

Due to the dearth of selective and potent 12-LOX inhibitors and the potential therapeutic benefit for such compounds, herein we have performed a quantitative HTS (qHTS) against a large library of 153,607 small molecules⁶⁶ in conjunction with the NIH Molecular Libraries Probe Production Center Network (MLPCN) in search of novel, potent and selective 12-LOX inhibitors. We report the discovery and SAR of an 8-hydroxyquinoline-based scaffold with nanomolar potency that is selective over the related human isoforms, 5-LOX, reticulocyte 15-LOX-1, epithelial 15-LOX-2, as well as ovine cyclooxygenase-1 and human cyclooxygenase-2. In addition, the mode of inhibition and the mechanism of action are discussed.

Chemistry

The synthesis of analogues (1-30: see Table 1) could be rapidly accomplished utilizing the Betti Reaction (a type of Mannich reaction, Scheme 1).^67,68,69 After optimization of the reaction conditions it was found that the reaction worked best in the absence of solvent (neat) and at temperatures between 120 °C-160 °C (160 °C when R₂ = F, 150 °C when R₂ = Cl or NO₂ and 120 °C when R₂ = Br (with overnight heating). One of the initial challenges that had to be overcome was purification of these substrates. While ultimately these could be purified via standard reversed-phase prep-HPLC, we found them to be not well-behaved and often resulted in having to re-prep the samples to achieve >95% purity. However, we found that recrystallization using ethanol or a mixture of ethanol-DMF provided the pure product without any chromatographic purification. This method allowed for the rapid preparation of a wide variety of analogues for SAR investigations. The synthesis of 31 and 33 (see Table 2) were conveniently achieved utilizing a common intermediate 9. Accordingly, treatment of analogue 9 with iodomethane and KOH gave the methoxy derivative 31 in good yield. Piperidine analogue 33 was synthesized via a Rh-catalyzed reduction of 9 under an atmosphere of hydrogen using methanol as a solvent. Naphthanol derivatives, such as compound 32, were synthesized in a similar manner as analogues 1-30, except longer reaction time and lower temperatures were required for optimal yields (55 °C, 15 h., See Supporting Information for a detailed synthetic procedure for 31-33).

Table 1.

12-LOX inhibition of analogues (1-30).^a

Compound	R1	R2	R3	R4	IC50 (μM) [+/- SD (μM)]
1	H	NO2	thiophene	CH2CH3	0.8 [0.2]
2	H	Cl	thiophene	CH2CH3	1.0 [0.3]
3	H	Cl	thiophene	CH3	1.0 [0.1]
4	H	Br	thiophene	CH2CH3	14 [3.0]
5	H	Br	thiophene	CH3	1.0 [0.2]
6	H	H	thiophene	CH2CH3	3.4 [0.6]
7	H	F	thiophene	CH3	2.0 [0.2]
8	H	NO2	furan	CH2CH3	1.2 [0.4]
9	H	Cl	furan	CH2CH3	1.0 [0.2]
10	H	Cl	furan	CH3	3.0 [0.5]
11	H	Br	furan	CH2CH3	2.0 [0.5]
12	H	Br	furan	CH3	2.0 [0.3]
13	H	F	furan	CH3	5.0 [1]
14	H	Cl	cyclopropane	CH2CH3	1.6 [0.3]
15	H	Cl	cyclopropane	CH3	3.0 [0.6]
16	H	Cl	isopropyl	CH2CH3	1.2 [0.4]
17	H	CI	isopropyl	CH3	2.6 [0.4]
18	H	Cl	methyl	CH2CH3	>50
19	H	Cl	methyl	CH3	>150
20	H	F	methyl	CH3	>75
21	H	Cl	H	CH3	>150
22	H	Cl	5-Me-thiophene	CH2CH3	3.5 [1]
23	H	Cl	5-bromofuran	CH2CH3	>75
24	Cl	Cl	furan	CH3	>75
25	N(Me)2	Cl	furan	CH3	>75
26	piperidine	Cl	furan	CH3	>75
27	H	Cl	4-Me-Ph	CH2CH3	>150
28	H	Cl	4-F-Ph	CH2CH3	>50
29	H	Cl	furan	Ph	>25
30	H	Cl	furan	4-Me-Ph	>25

^aThe UV-Vis-based manual inhibition data (3 replicates) were fit as described in the methods section.

Scheme 1.

Synthesis of 8-hydroxyquinoline analogues (1-30).

Table 2.

12-LOX inhibition of Analogues (31-33).^a

Compound	IC50 (μM) [+/- SD (μM)]
31	>75
32	>75
33	3.0 [0.7]

^aThe UV-Vis-based manual inhibition data were fit as described in the methods section.

Results and Discussion

To discover novel inhibitors of 12-LOX, we utilized a chromogenic assay to detect the hydroperoxide lipoxygenase reaction products, as described elsewhere.⁷⁰ Briefly, after allowing the lipoxygenase reaction to proceed to the desired completion point, ferrous Xylenol Orange was added and the purple product, generated by the oxidation of the ferrous ions to ferric ions by the hydroperoxide, was quantitated using visible light absorbance detection. Prior to the screen, the reaction parameters (concentrations of substrate and enzyme, percent substrate conversion, reagent stability under working conditions) were tested and optimized to ensure adequate performance (data not shown). The screen of the entire library involved testing each of the 153,607 compounds as a dilution series of 7 or more concentrations spanning the 57 μM to 0.7 nM range. This was accomplished by testing 936 assay plates in a fully-automated robotic system (Materials and Methods). The screen was associated with a high signal-to-background average of 4.29 and an average Z’ factor of 0.69 (Supporting Information, Figure S1A). Nordihydroguaiaretic acid (NDGA, a known pan-lipoxygenase inhibitor), present on every screening plate as a 16-point dose-response, exhibited consistent IC₅₀ throughout the screen.

Screening data analysis included classification of the concentration responses based on curve shape, presence of asymptotes, efficacy, and IC₅₀, as described elsewhere.⁷¹ In addition to 149,407 inactive samples and 2,295 inconclusive responses, samples belonging to 67 clusters of structurally similar primary screening hits and 124 singletons were associated with complete concentration-response curves (Supporting Information, Figure S1B). Further prioritization based on potency and synthetic tractability led to selection of 59 compounds for additional testing. Complete screening and follow-up data have been made available in PubChem (PubChem BioAssay identifier 2164). Orthogonal confirmation of the hits from the qHTS, using a UV-Vis-based manual assay, yielded an 8-hydroxyquinoline (8-HQ) based chemotype 1 (Figure 2) that displayed micromolar to submicromolar potency, with an IC₅₀ of 0.8 +/- 0.2 μM. To investigate requirements for inhibition and potency, we prepared derivatives of the 8-HQ scaffold that were chemically modified at the R₁, R₂, R₃ and R₄ positions (see Table 1). In general, the core scaffold of 1 was tolerant to a variety of changes in size and electrostatics in the R₂, R₃ and R₄ positions without dramatic changes in potency however, there were several combinations of modifications that were not well tolerated.

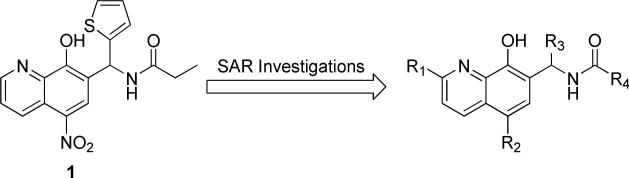

Figure 2.

Lead compound (1) and positions explored for SAR.

Investigations of various substituents at R₃ revealed that compared to the thiophene or furan moiety, both smaller groups (R₃ = Me, entries 18-20 and R₃ = H, entry 21) and larger groups (R₃ = 4-Me-Ph, entry 27 and R₃ = 4-F-Ph, entry 28) resulted in essentially complete loss in activity. However, thiophene, furan, cyclopropyl, cyclopentyl, and isopropyl groups at this position all showed comparable activity.

While only limited investigation at R₁ was conducted, all modifications at this position led to loss in activity (entries 24-26), suggesting that the binding pocket does not tolerate increased steric bulk in this position. Similarly, increasing the size of the substituents off the amide (R₄) was not beneficial for improved activity, as shown with analogues 29 and 30 (R = Ph and 4-Me-Ph, respectively). Additionally, (R₄ = CH(CH₃)₂ and (CH₂)₂CH₃) were synthesized and these analogues also displayed weak potency (data not shown). In contrast, modifications to R₂ was well tolerated, with H, Cl, Br, F, NO₂ all showing comparable activity.

8-HQ scaffolds are known metal chelators,⁷² and chelation of the LOX active site iron has been documented in the literature previously.^{73, 74} Consequently, we sought to investigate the chemical requirements for metal chelation by modifying the oxygen and nitrogen ligands that could bind the active site iron (Table 2, see compounds 31-33). Both methylation of the phenol (entry 31) and removal of the ring nitrogen (analogue 32) resulted in a loss of potency. However, when the pyridine was reduced to the piperidine (analogue 33), a non-rigid heterocycle, the inhibition was unaffected (IC₅₀ = 3.0 +/- 0.7 μM). This data is consistent with the inhibitors ligating the metal in a bidentate fashion, given that piperidines are comparable in ligand strength to pyridine⁷⁵ and that neither of the monodentate modifications of the 8-HQ core inhibit 12-LOX. This hypothesis is supported by the fact that modifications at R₁ (24, 25, 26) also lower potency, presumably due to sterics as the 8-HQ moiety binds the iron. Other small molecule 8-HQs, such as 8-HQ-5 sulfonic acid and 8-HQ-5 nitro, were found to be weak inhibitors (IC₅₀ values > 80 μM against 12-LOX), however, 5,7-dichloro-8-HQ (chloroxine) was an exception. It effectively inhibited all LOX isozymes tested (IC₅₀ values, 5-LOX = 3.6 +/- 0.8 μM, 12-LOX = 1.9 +/- 0.4 μM, 15-LOX-1 = 2.4 +/- 0.4 μM, 15-LOX-2 = 28 +/- 7 μM). Interestingly, chloroxine is a topical anti-microbial agent used in the treatment of seborrheic dermatitis and while no studies have linked lipoxygenase to this ailment, inflammation has been implicated in its treatment, suggesting a possible connection.⁷⁶

We have attempted to characterize these inhibitors binding directly to the active site ferrous and ferric ion, using UV and fluorescence spectroscopy, however neither experiment was successful. 12-LOX loses activity dramatically as it concentrates, thus making it difficult to achieve enzyme concentrations that would yield a signal of sufficient intensity to observe.

Our final investigation into the SAR around the 8-HQ scaffold was to determine whether the two enantiomers had differential potency. As such, we utilized normal-phase chiral HPLC to effectively separate the enantiomers of both analogues 2 and 5 as shown in Table 3 (HPLC traces, Supporting Information, Figure S2 and S3). Both (–)-2 (aka 36) and (–)-5 (aka 34) displayed 12-LOX inhibition at approximately half the IC₅₀ value of the racemic mixture (34 (–)-enantiomer, IC₅₀ = 0.43 +/- 0.04 μM; (racemic-5) IC₅₀ = 1.0 +/- 0.2 μM; 36 (–)-enantiomer, IC₅₀ = 0.38 +/– 0.05 μM; (racemic-2), IC₅₀ = 1.0 +/- 0.3 μM). In contrast, (+)-2 (aka 37) and (+)-5 (aka 35) displayed no inhibition (IC₅₀ > 25 μM), indicating a fine degree of selectivity in the active site due to chiral geometry. We are currently attempting to crystallize the active enantiomers to determine their absolute stereochemistry.

Table 3.

12-LOX inhibition of enantiomerically pure analogues (34-37).^a

Compound	IC50 (μM) [+/- SD (μM)]
34	0.43 [0.04]
35	>25
36	0.38 [0.05]
37	>25

^aThe UV-Vis-based manual inhibition data were fit as described in the methods section.

The above data is suggestive that these inhibitors bind directly to the active site iron, which raises the possibility that these inhibitors could have the necessary redox potential to reduce the active ferric iron to the resting ferrous state, as has been reported previously.^{63, 64, 77, 78} To investigate the redox potential of this chemotype, DPPH, a free radical scavenger, was incubated with compound 1 and no reduction of DPPH was observed. Stoichiometric reduction of DPPH was achieved by the known reductive LOX inhibitor, NDGA, suggesting that these 8-HQ inhibitors are not reductive in nature. Unfortunately, measuring the oxidation of the inhibitor (reduction of the active site iron) with the pseudoperoxidase assay is not possible with 12-LOX, due to a lack of absorbance change at 234 nm. Another mechanism of inhibition seen for LOX is promiscuous inhibition due to small molecule aggregates.⁷⁹ Compound 3 was therefore screened with increasing amounts of Triton X-100, from 0.005% to 0.02%, with negligible changes in the IC₅₀, indicating that small molecule aggregates are not responsible for inhibition.

In addition to characterizing the inhibition constants, the mode of binding was investigated with steady state kinetics using compound 3 by monitoring the formation of 12-HPETE as a function of substrate and inhibitor concentration in the presence of 0.01% Triton-X-100. Replots of K_M/k_cat and 1/k_cat versus inhibitor concentration (Supporting Information, Figure S4A and S4B) yielded linear plots, with K_ic equaling 0.7 +/- 0.09 μM and K_iu equaling 0.8 +/- 0.1 μM, which are defined as the equilibrium constants of dissociation from the enzyme and enzyme substrate complex, respectively. The similar affinity of inhibitor binding to both the enzyme and the enzyme substrate complex (K_ic is approximately K_iu) is a rare example of true non-competitive inhibition,⁸⁰ whose inhibitor affinity is not affected by substrate binding. Regarding the chemical mechanism of inhibition, compound 2 did not display a time dependent inhibition when it was incubated with 12-LOX, unlike the time dependent inhibition seen for the bidentate catechol inhibitors against sLO-1⁷⁴ and the 8-HQ derivatives against macrophage migration inhibitory factor (MIF).⁸¹ This data may suggest that compound 2 is not an irreversible inhibitor, however, this could not be proven due to the inactivation of 12-LOX upon dialysis.

To determine the selectivity of this inhibitor chemotype, a subset of compounds was screened against a variety of LOX isozymes (Table 4). In general the selectivity was excellent, with the potency difference being 25- to 150-fold against 15-LOX-1, 45- to 1300-fold against 5-LOX, and 45- to 150-fold against 15-LOX-2. Chiral analogue, 36, was not only the most potent of the inhibitors but it also had some of the best selectivity relative to 5-LOX (1300-fold) and 15-LOX-1 (130-fold). Interestingly, the selectivity of this chemotype between 12-LOX and 15-LOX-1 is less than that between 12-LOX and 5-LOX, which may be accounted for by the similar active sites of 12-LOX and 15-LOX-1.⁸²

Table 4.

Selectivity profile of representative analogues.^a

IC50 (μM)
Compound	12-LOX	5-LOX	15-LOX-1	15-LOX-2
1	0.8	ND	>25	ND
3	1.0	>100	>25	ND
5	1.0	>100	>100	>100
6	3.4	>100	>50	>100
9	1.0	>100	>50	>100
34	0.43	>100	>30	ND
36	0.38	>100	>50	ND

^aThe UV-Vis-based manual inhibition data (3 replicates) were fit as described in the methods section.

Compound 5 was also screened against the 12/15-mouse lipoxygenase-(12/15-mLO), which generates predominately 12-HPETE, with a smaller percentage of 15-HPETE and had an IC₅₀ value of 14 +/- 3.0 μM. While this value is over 10-fold larger than that for 12-LOX, it is still significantly lower than the IC₅₀ of 5 against 15-LOX-1 (IC₅₀ >150 μM), indicating the active site of 12/15-mLO is more similar to 12-LOX than 15-LOX-1. This was further supported when a highly specific inhibitor against 15-LOX-1 (IC₅₀ < 10 nM against 15-LOX-1), showed an IC₅₀ of greater than 75 μM against 12/15-mLO.⁷⁰ In addition, compound 5, did not inhibit either cyclooxygenase-1 (COX-1), or COX-2 (IC₅₀ > 100 μM for both), demonstrating a selectivity of greater than 100-fold for 12-LOX over both COX-1 and COX-2.

In order to demonstrate the potential for these compounds to be utilized in more advanced biological systems (e.g. cell-based assays), we investigated various in vitro ADME properties of a representative compound (analogue 34) as shown in Table 5. This chemotype was found to have acceptable kinetic solubility. It should be noted that these conditions are different from the conditions used for the IC₅₀ determinations, which had detergent, lower salt concentrations and higher pH, all leading to greater inhibitor solubility. The inhibitor also showed good cell permeability and excellent stability in PBS buffer and mouse plasma. However, the compound was susceptible to metabolism by mouse liver microsomes with a T_1/2 of under 10 minutes. Despite this result we were eager to determine the in vivo PK of this molecule to provide a basis for future investigations in disease relevant mouse models. As shown in Table 6, compound 34 had a reasonable plasma T_1/2 of 3.5 h and a C_max of 288 μM. Importantly, the exposure level exceeded the purified enzyme assay IC₅₀ for the full 24 h period and IC₅₀ in the platelet assay (vide infra) for 8 hours. Moreover, this compound does not efficiently cross the blood-brain-barrier (BBB), which for the treatment of diseases such as diabetes and thrombosis is considered a desirable result as CNS-active compounds could result in undesired side effects. These in vitro ADME and in vivo PK results suggest that the molecules described above should provide utility in both cell-based assays and possibility in vivo models probing the effects of 12-LOX inhibition.

Table 5.

In vitro ADME properties for representative analogue (compound 34).^a

Compound	aq. Kinetic sol. (PBS @ pH 7.4)	Caco-2 (Papp 10-6 m/s @ pH 7.4)	efflux ratio (B→A)/(A→B)	mouse liver microsome stability (T1/2)	PBS-pH 7.4 stability:% remaining after 48h	Mouse plasma stability:% remaining after 48h
34	14.5 μM	8.8	2.3	<10 min.	100	98.3

^aKinetic solubility measurements were conducted at Analiza Inc. using nitrogen detection methodologies. Caco-2 permeability, microsomal stability and mouse plasma stability experiments were conducted at Pharmaron Inc.

Table 6.

in vivo PK data for representative analogue (compound 34)^a

compound	t1/2 (h) [plasma]	t1/2 (h) [brain]	[Brain/Plasma]b	Cmax (μM) [Plasma]	Cmax (μM) [Brain]	tmax (h) [Plasma]	tmax (h) [Brain]	cLogP
34	3.5	1.7	0.01	288	5	0.25	0.5	2.8

^aIntraperitoneal (IP) administration (30 mg/kg body weight (mpk)), CD1 mice, n = 3, monitored at 8 time points (0.25 h, 0.5, 1, 2, 4, 8, 12, 24). Compound 34 formulated as a suspension in 50% PEG 200 and 10% Cremophor EL in saline solution

^bCalculated based on the average [b/p] ratio over 8 time points (24 h period). Experiments were performed by Pharmaron Inc.

Other groups have postulated that 7-substituted-8-HQ derivatives which contain substituted anilines in place of the amide moiety (at C-9) undergo a retro-Mannich reaction to afford a reactive species that can form a variety of covalent adducts (see Figure 3b).⁸³ In agreement with these findings, we too found such analogues (aniline as opposed to amide group at C-9) were relatively unstable in both assay buffer and mouse plasma. However, as shown above, our lead compounds are completely stable in both PBS buffer (pH 7.4) and mouse plasma over a 48 h period. Moreover, this particular chemotype displayed favorable exposure levels in vivo (mouse) as described above. These findings suggest that the retro-Mannich pathway is much less facile for the amide-containing series potentially as a result of amide nitrogen being less basic than the corresponding aniline nitrogen. A comparable 8-HQ chemical series was reported by Wyeth researchers as ADAMTS inhibitors, which like our chemotype contains the amide moiety at C-9 (Figure 3a). They found that the compound displayed good ADME properties (CYP inhibition and microsomal stability), supporting the notion that this subtle structural difference may have a drastic effect on the overall stability of this class of compounds.⁸⁴

Figure 3.

(a) Representative 8-HQ-based ADAMTS-5 inhibitor reported by Wyeth researchers with amide nitrogen at C-9. (b) Proposed mechanism of covalent modification for 8-HQs with aniline nitrogen at C-9.

A select group of inhibitors, 1, 34 and 35, were then tested for efficacy in a platelet cellular assay. Human platelets are known to express large amounts of 12-LOX upon stimulation of the protease-activated receptor (PAR) with its activating peptide, PAR1-AP.³³ We therefore incubated our inhibitors with human platelets, followed by stimulation with PAR1-AP and measured the change in 12-HETE production. In three separate experiments, 100 μM of 1 and 34 showed significant inhibition of PAR1-AP-mediated 12-HETE production, while 35 showed no reduction in 12-HETE production. This data confirms the in vitro data, where both 1 and 34 are potent (IC₅₀ values of 0.8 and 0.43 μM, respectively), while 35 is inactive (IC₅₀ value > 25 μM) and supports the notion that the potent in vitro inhibitors inhibit 12-LOX intracellularly. A more thorough titration of inhibition in the platelet cells was then performed with compounds 1 and 34 (inhibitor concentration ranging from 1 to 100 μM). The IC₅₀ values were determined to be 15 +/- 10 for 1 and 13 +/- 7 for 34 (Figure 4). These cell-based IC₅₀ values are over 25-fold greater than the isolated enzyme IC₅₀ values, which could be a result of limited solubility and/or intracellular metabolism of the inhibitors. We are currently testing various modifications of the inhibitor scaffold to improve the cellular potency with the hopes of applying these inhibitors as anti-coagulation therapeutics.

Figure 4.

Titration curves of 1 (Circles, solid line) and 34 (Triangles, dashed line), against platelets, measuring inhibition of 12-HETE concentration by LC-MS-MS. Fitting the data to a simple hyperbolic curve yielded IC₅₀ values of 15 +/- 10 μM for 1 and 13 +/- 7 μM for 34.

The ability of compound 1 to inhibit the activity of 12-LOX in a diabetic disease relevant model was also assessed using primary human islets obtained from donated tissues. Upon stimulation with arachidonic acid and calcium ionophore, production of 12-HETE in donor islets is significantly increased (Figure 5). This increase was a consistent response across all donor islets tested, and the degree of response was compatible with donor variation. Inclusion of compound 1 at an assay concentration of 10 μM resulted in an uniform inhibition of 68.9 ± 14.5% across the three non-diabetic donors tested (Figure 5A). The basal and stimulated level of 12-HETE was elevated in islets from confirmed type 2 diabetic donors (Figure 5B). This is consistent with the relevance of 12-LOX to diabetes disease progression. Again, compound 1 resulted in an equivalent inhibition of stimulated 12-HETE production, 70 and 74 % respectively in the two diabetic donors assayed.

Figure 5.

Inhibition of 12-HETE production in human donor islets. (A) 12-HETE levels form three non diabetic donors (ND-1 to ND-3) either unstimulated (white bars) or stimulated for 60 minutes with 100μM arachidonic acid (AA) and 30 minutes with 5 μM A23187 (I) in the absence (gray bars) or presence of 10 μM compound 1 (black bars). (B) shows 12-HETE levels in human islets from two confirmed type 2 diabetic donors (T2D-1 and T2D-2). Conditions are as described in A.

Conclusion

Due to the absence of selective, drug-like inhibitors of 12-LOX in the literature, a HTS campaign of 153,607 compounds was performed that identified an 8-HQ chemotype as a novel, potent and selective inhibitor of 12-LOX. Modifications to various positions around the core scaffold led to the development of an SAR profile. In general, the dynamic interplay between the various substitutions is not well understood, and while the SAR was relatively flat, several changes are not at all tolerated. The most dramatic loss of inhibition was observed at the C-2 position of the 8-HQ core (R₁), where all substitutions resulted in a complete loss of activity. Moreover, loss of activity was observed by removal of the nitrogen on the pyridine and/or methylation of the 8-hydroxy group, which strongly suggests the inhibitor is binding to the catalytic iron in a bidentate fashion. Further investigations demonstrated the (–)-enantiomers of this 8-HQ chemotype are seemingly responsible for the observed activity, with IC₅₀ values approximately half of the racemic mixture (IC₅₀ of 0.43 +/- 0.04 for 34 and 0.38 +/- 0.05 μM for 36). 5-LOX, 15-LOX-1, 15-LOX-2, COX-1 and COX-2 were not inhibited by this chemotype. Interestingly, this chemotype did show weak inhibition against the 12/15-mLO (IC₅₀ = 14 μM), suggesting the active site of 12/15-mLO is more similar to 12-LOX than 15-LOX-1 (15-LOX-1 IC₅₀ > 150 μM). This is consistent with the fact that 15-LOX-1 selective inhibitors were inactive against 12/15-mLO and indicates caution when performing lipoxygenase studies on particular diseases with mouse models. Investigating the mode of inhibition demonstrated that this class of compounds is thought to be non reductive and exhibits non-competitive inhibition. We are currently investigating these compounds in cell-based diabetes and blood coagulation models and it is our hope that this class of inhibitors will provide a molecular tool to determine the biological role of 12-LOX and further validate 12-LOX as a therapeutic target.

General Chemistry

Unless otherwise stated, all reactions were carried out under an atmosphere of dry argon or nitrogen in dried glassware. Indicated reaction temperatures refer to those of the reaction bath, while room temperature (rt) is noted as 25 °C. All solvents were of anhydrous quality purchased from Aldrich Chemical Co. and used as received. Commercially available starting materials and reagents were purchased from Aldrich and were used as received. Analytical thin layer chromatography (TLC) was performed with Sigma Aldrich TLC plates (5 × 20 cm, 60 Å, 250 μm). Visualization was accomplished by irradiation under a 254 nm UV lamp. Chromatography on silica gel was performed using forced flow (liquid) of the indicated solvent system on Biotage KP-Sil pre-packed cartridges and using the Biotage SP-1 automated chromatography system. ¹H- and ¹³C NMR spectra were recorded on a Varian Inova 400 MHz spectrometer. Chemical shifts are reported in ppm with the solvent resonance as the internal standard (CDCl₃ 7.26 ppm, 77.00 ppm, DMSO-d₆ 2.49 ppm, 39.51 ppm for ¹H, ¹³C respectively). Data are reported as follows: chemical shift, multiplicity (s = singlet, d = doublet, t = triplet, q = quartet, brs = broad singlet, m = multiplet), coupling constants, and number of protons. Low resolution mass spectra (electrospray ionization) were acquired on an Agilent Technologies 6130 quadrupole spectrometer coupled to the HPLC system. High resolution mass spectral data was collected in house using an Agilent 6210 time-of-flight mass spectrometer, also coupled to an Agilent Technologies 1200 series HPLC system. If needed, products were purified via a Waters semi-preparative HPLC equipped with a Phenomenex Luna® C18 reverse phase (5 micron, 30 × 75 mm) column having a flow rate of 45 mL/min. The mobile phase was a mixture of acetonitrile (0.1% TFA) and H₂O (0.1% TFA) at room temperature.

Samples were analyzed for purity on an Agilent 1200 series LC/MS equipped with a Luna® C18 reverse phase (3 micron, 3 × 75 mm) column having a flow rate of 0.8-1.0 mL/min over a 7-minute gradient and a 8.5 minute run time. The mobile phase was a mixture of acetonitrile (0.025% TFA) and H₂O (0.05% TFA), and the temperature was maintained at 50 °C. Purity of final compounds was determined to be >95%, using a 3 μL injection with quantitation by AUC at 220 and 254 nm (Agilent Diode Array Detector).

Chiral HPLC separation of the enantiomers

Methanol was added to the sample until the sample was completely dissolved. Sample dissolution and analysis was performed at room temperature. The analytical analysis was performed on a Chiralcel OD column (4.6 × 150 mm, 5 micron). The mobile phase was 100% methanol at 1.0 mL/min. The sample was detected with a diode array detector (DAD) at 220 nm and 254 nm. Optical rotation (+/–) was determined with an in line polarimeter (PDR-Chiral). Preparative purification was performed on a Chiralcel OD column (2 × 25 cm, 5 micron). The mobile phase was 100% methanol at 4.5 mL/min. Fraction collection was triggered by UV absorbance (254 nm). The LC system was limited to 100 μSL injections. The fractions containing the requisite enantiomers were combined and concentrated under reduced pressure. The enantiomeric purity was determined by re-injection on the analytical column described above. The enantiomeric ratios (er) for all separated chiral compounds were found to be greater than 99:1. The optical rotations of the final compounds were obtained using a PerkinElmer model 341 polarimeter.

General procedure for the synthesis of 8-HQ analogues (Scheme 1)

Differentially substituted-quinolin-8-ol (1 equiv.), amide (1.05 equiv.) and the requisite aldehyde (1.1 equiv.) were stirred neat at 120-160 °C for 15 min. to 12 h (depending on the substituent at C-5). Upon heating, the reaction mixture melted and solid was formed after completion of the reaction. The solid product was washed with ethyl acetate and the crude product was purified by recrystallization from ethanol or an ethanol-DMF mixture.

Representative Characterization Data

N-((8-hydroxy-5-nitroquinolin-7-yl)(thiophen-2-yl)methyl)propionamide (1)

LC MS: rt (min) = 5.16; ¹H NMR (DMSO-d₆) δ 1.03 (t, J = 7.5 Hz, 3 H), 2.23 (qd, J = 7.6 Hz and 3.1 Hz, 2 H), 6.81 (dt, J = 3.5 Hz and 1.2 Hz, 1 H), 6.89 (dd, J = 8.6 Hz and 1.0 Hz, 1 H), 6.95 (dd, J = 5.1 Hz and 3.5 Hz, 1 H), 7.43 (dd, J = 5.1 Hz and 1.2 Hz, 1 H), 7.90 (dd, J = 8.8 Hz and 4.3 Hz, 1 H), 8.76 (s, 1 H), 9.02 (dd, J = 4.1 Hz and 1.6 Hz, 1 H), 9.09 (d, J = 8.8 Hz, 1 H), and 9.19 (dd, J = 8.8 Hz and 1.6 Hz, 1 H); ¹³C NMR (DMSOn-d₆) δ 9.86, 28.38, 45.33, 121.73, 123.84, 125.21, 125.29, 125.35, 126.87, 127.23, 133.05, 134.37, 136.80, 145.17, 149.03, 157.34 and 172.29; HRMS (m/z): [M + H]⁺ calcd. for C₁₇H₁₆N₃O₄S, 358.0856; found, 358.0861.

N-((5-chloro-8-hydroxyquinolin-7-yl)(thiophen-2-yl)methyl)propionamide (2)

LC MS: rt (min) = 5.6; ¹H NMR (DMSO-d₆) δ 1.03 (t,-J = 7.6 Hz, 3 H), 2.16 - 2.28 (m, 2 H), 6.75 - 6.78 (m, 1 H), 6.89 - 6.96 (m, 2 H), 7.40 (dd, J = 5.1 Hz and 1.0 Hz, 1 H), 7.74 (dd, J = 8.6 Hz and 4.1 Hz, 1 H), 7.79 (s, 1 H), 8.50 (dd, J = 8.5 Hz and 1.5 Hz, 1 H), 8.91 (d, J = 8.8 Hz, 1 H), 8.98 (dd, J = 4.1 Hz and 1.4 Hz, 1 H) and 10.42 (brs, 1 H); HRMS (m/z): [M + H]⁺ calcd. for C₁₇H₁₆ClN₂O₂S, 347.0618; found, 347.0621. (–)-2 (e.g. 36) [α]_D ²³ = –24 (c = 0.6, CHCl₃); (+)-2 (e.g. 37) [α]_D ²³ = +24 (c = 0.6, CHCl₃).

N-((5-chloro-8-hydroxyquinolin-7-yl)(thiophen-2-yl)methyl)acetamide (3)

LC-MS: rt (min) = 5.28 ; ¹H NMR (DMSO-d₆) δ 1.94 (s, 3 H), 6.78 (d, J = 3.5 Hz, 1 H), 6.89 (d, J = 8.8 Hz, 1 H), 6.94 (dd, J = 5.1 Hz and 3.5 Hz, 1 H), 7.41 (dd, J = 5.1 Hz and 1.0 Hz, 1 H), 7.75 (dd, J = 8.5 Hz and 4.2 Hz, 1 H), 7.78 (s, 1 H), 8.51 (dd, J = 8.6 Hz and 1.4 Hz, 1 H), 8.96 - 9.02 (m, 2 H) and 10.43 (brs, 1 H); ); HRMS (m/z): [M + H]⁺ calcd. for C₁₆H₁₄ClN₂O₂S, 333.0459; found, 333.0460.

N-((5-bromo-8-hydroxyquinolin-7-yl)(thiophen-2-yl)methyl)propionamide (4)

LC-MS: rt (min) = 5.70; ¹H NMR (DMSO-d₆) δ 1.03 (t, J = 7.5 Hz, 3 H), 2.16 - 2.29 (m, 2 H), 6.76 (d, J = 3.3 Hz, 1 H), 6.87 - 6.96 (m, 2 H), 7.40 (dd, J = 5.1 Hz and 1.0 Hz, 1 H), 7.74 (dd, J = 8.5 Hz and 4.2 Hz, 1 H), 7.96 (s, 1 H), 8.43 (dd, J = 8.6 Hz and 1.4 Hz, 1 H), 8.86 - 8.99 (m, 2 H) and 10.45 (brs, 1 H); HRMS (m/z): [M + H]⁺ calcd. for C₁₇H₁₆BrN₂O₂S, 391.0105; found, 391.0108.

N-((5-bromo-8-hydroxyquinolin-7-yl)(thiophen-2-yl)methyl)acetamide (5) ML127

LC-MS: rt (min) = 5.36; ¹H NMR (DMSO-d₆) δ 1.94 (s, 3 H), 6.78 (dt, J = 3.5 Hz and 1.2 Hz, 1 H), 6.89 (dd, J = 8.9 Hz and 1.1 Hz, 1 H), 6.93 (dd, J = 5.1 Hz and 3.3 Hz, 1 H), 7.40 (dd, J = 5.1 Hz and 1.4 Hz, 1 H), 7.74 (dd, J = 8.6 Hz and 4.1 Hz, 1 H), 7.95 (s, 1 H), 8.43 (dd, J = 8.5 Hz and 1.5 Hz, 1 H), 8.95 (dd, J = 4.1 Hz and 1.6 Hz, 1 H), 9.00 (d, J = 8.8-Hz, 1 H) and 10.46 (brs, 1 H); ¹³C NMR (DMSO-d₆) δ 22.55, 45.35, 108.50, 123.41, 124.84, 125.08, 125.68, 126.34, 126.78, 129.38, 134.97, 138.89, 145.91, 149.24, 149.71 and 168.39; HRMS (m/z): [M + H]⁺ calcd. for C₁₆H₁₄BrN₂O₂S, 376.9954; found, 376.9956. (–)-5 (e.g. 34) [α]_D ²³ = –18 (c = 0.3, CHCl₃); (+)-5 (e.g. 35) [α]_D ²³ = +18 (c = 0.3, CHCl₃)

N-((5-fluoro-8-hydroxyquinolin-7-yl)(thiophen-2-yl)methyl)acetamide (7)

LC-MS: rt (min) = 4.76; ¹H NMR (DMSO-d₆) δ 1.93 (s, 3 H), 6.77 (dt, J = 3.5 Hz and 1.2 Hz, 1 H), 6.88 - 6.95 (m, 2 H), 7.40 (dd, J = 5.0 Hz and 1.3 Hz, 1 H), 7.47 (d, J = 11.2 Hz, 1 H), 7.68 (dd, J = 8.5 Hz and 4.2 Hz, 1 H), 8.44 (dd, J = 8.5 Hz and 1.7 Hz, 1 H), 8.91 - 8.99 (m, 2 H) and 10.07 (brs, 1 H); ¹³C NMR (DMSO-d₆) δ 22.55, 45.49, 104.54, 109.27, 109.48, 117.53, 117.72, 122.27, 123.67, 123.73, 124.86, 125.04, 126.73, 129.13, 129.16, 137.80, 137.83, 145.91, 146.04, 146.08, 148.17, 149.52, 150.60 and 168.37; HRMS (m/z): [M + H]⁺ calcd. for C₁₆H₁₄FN₂O₂S, 317.076; found, 317.0761.

N-(furan-2-yl(8-hydroxy-5-nitroquinolin-7-yl)methyl)propionamide (8)

LC-MS: rt (min) = 4.96; ¹H NMR (DMSO-d₆) δ 1.01 (t, J = 7.6 Hz, 3 H), 2.16 - 2.27 (m, 2 H), 6.13 (d, J = 3.3 Hz, 1 H), 6.38 (dd, J = 3.1 Hz and 1.8 Hz, 1 H), 6.69 (d, J = 8.41 Hz, 1 H), 7.61 (d, J = 1.0 Hz, 1 H), 7.90 (dd, J = 8.9 Hz and 4.2 Hz, 1 H), 8.68 (s, 1 H), 8.97 (d, J = 8.4 Hz, 1 H), 9.01 (dd, J = 4.1 Hz and 1.37 Hz, 1 H) and 9.17 – 9.21 (m, 1 H); HRMS (m/z): [M + H]⁺ calcd. for C₁₇H₁₆N₃O₅, 342.1084; found, 342.1082.

N-((5-chloro-8-hydroxyquinolin-7-yl)(furan-2-yl)methyl)propionamide (9)

LC-MS: rt (min) = 5.26; ¹H NMR (DMSO-d₆) δ 1.01 (t, J = 7.5 Hz, 3 H) 2.20 (qd, J = 7.5 Hz and 2.6 Hz, 2 H) 6.07 (d, J = 3.1 Hz, 1 H) 6.37 (dd, J = 3.0 Hz and 1.9 Hz, 1 H) 6.72 (d, J = 8.6 Hz, 1 H) 7.59 (s, 1 H) 7.66 - 7.89 (m, 2 H) 8.49 (dd, J = 8.5 Hz and 1.5 Hz, 1 H) 8.80 (d, J = 8.8-Hz, 1 H) 8.97 (dd, J = 4.2 Hz and 1.5 Hz, 1 H) and 10.38 (brs, 1 H); ¹³C NMR (DMSO-d₆) δ 9.81, 28.28, 43.99, 106.95, 110.39, 118.47, 123.04, 123.07, 125.04, 126.15, 132.50, 138.62, 142.51, 149.16, 149.42, 153.95 and 172.21; HRMS (m/z): [M + H]⁺ calcd. for C₁₇H₁₆ClN₂O₃, 331.0844; found, 331.0849.

N-((5-chloro-8-hydroxyquinolin-7-yl)(furan-2-yl)methyl)acetamide (10)

LC-MS: rt (min) = 4.83; ¹H NMR (DMSO-d₆) δ 1.92 (s, 3 H), 6.06 - 6.09 (m, 1 H), 6.37 (dd, J = 3.2 Hz and 1.9 Hz, 1 H), 6.70 (d, J = 8.4 Hz, 1 H), 7.59 (dd, J = 1.9 Hz and 1.0 Hz, 1 H), 7.71 (s, 1 H), 7.74 (dd, J = 8.5 Hz and 4.2 Hz, 1 H), 8.50 (dd, J = 8.6 Hz and 1.6 Hz, 1 H), 8.88 (d, J = 8.6 Hz, 1 H), 8.97 (dd, J = 4.1 Hz and 1.6 Hz, 1 H) and 10.39 (brs, 1 H); ¹³C NMR (DMSO-d₆) δ 22.51, 44.05, 106.99, 110.39, 118.48, 123.00, 123.05, 125.05, 126.14, 132.52, 138.62, 142.52, 149.19, 149.40, 153.86 and 168.47; HRMS (m/z): [M + H]⁺ calcd. for C₁₆H₁₄ClN₂O₃, 317.0687; found, 317.0689.

N-((5-bromo-8-hydroxyquinolin-7-yl)(furan-2-yl)methyl)propionamide (11)

LC-MS: rt (min) = 5.39; ¹H NMR (DMSO-d₆) δ 1.01 (t, J = 7.6 Hz, 3 H), 2.20 (qd, J = 7.5 Hz and 2.2 Hz, 2 H), 6.07 (d, J = 3.1 Hz, 1 H), 6.37 (dd, J = 3.2 Hz and 1.9 Hz, 1 H), 6.71 (d, J = 8.4 Hz, 1 H), 7.59 (dd, J = 1.8 Hz and 0.8 Hz, 1 H), 7.73 (dd, J = 8.6 Hz and 4.1 Hz, 1 H), 7.88 (s, 1 H), 8.42 (dd, J = 8.6 Hz and 1.6 Hz, 1 H), 8.81 (d, J = 8.8 Hz, 1 H), 8.94 (dd, J = 4.1 Hz and 1.6 Hz, 1 H) and 10.41 (brs, 1 H); ¹³C NMR (DMSO-d₆) δ 9.81, 28.29, 43.96, 106.94, 108.33, 110.39, 123.38, 123.73, 126.35, 129.63, 134.95, 138.86, 142.51, 149.17, 150.03, 153.96 and 172.22; HRMS (m/z): [M + H]⁺ calcd. for C₁₇H₁₆BrN₂O₃, 375.0339; found, 375.0344.

N-((5-bromo-8-hydroxyquinolin-7-yl)(furan-2-yl)methyl)acetamide (12)

LC-MS: rt (min) = 5.03; ¹H NMR (DMSO-d₆) δ 1.92 (s, 3 H), 6.04 - 6.11 (m, 1 H), 6.37 (dd, J = 3.2 Hz and 1.9 Hz, 1 H), 6.70 (d, J = 8.6 Hz, 1 H), 7.56 - 7.62 (m, 1 H), 7.73 (dd, J = 8.5 Hz and 4.2 Hz, 1 H), 7.87 (s, 1 H), 8.43 (dd, J = 8.6 Hz and 1.6 Hz, 1 H), 8.89 (d, J = 8.6 Hz, 1 H), 8.94 (dd, J = 4.1 Hz and 1.6 Hz, 1 H) and 10.42 (brs, 1 H); ¹³C NMR (DMSO-d₆) δ 22.51, 43.99, 106.96, 108.33, 110.39, 123.38, 123.65, 126.35, 129.61, 134.96, 138.86, 142.52, 149.18, 150.00, 153.87 and 168.47; HRMS (m/z): [M + H]⁺ calcd. for C₁₆H₁₄BrN₂O₃, 361.0182; found, 361.019.

Methods

Biological Reagents

All commercial fatty acids (Sigma-Aldrich Chemical Company) were re-purified using a Higgins HAIsil Semi-Preparative (5 μm, 250 × 10 mm) C-18 column. Solution A was 99.9% MeOH and 0.1% acetic acid; solution B was 99.9% H₂O and 0.1% acetic acid. An isocratic elution of 85% A:15% B was used to purify all fatty acids, which were stored at – 80 °C for a maximum of 6 months.

Overexpression and Purification of 12-Human Lipoxygenase, 5-Human Lipoxygenase, 12/15-Mouse Lipoxygenase and the 15-Human Lipoxygenases

Human platelet 12-lipoxygenase (12-LOX), human reticulocyte 15-lipoxygenase-1 (15-LOX-1), human epithelial 15-lipoxygenase-2 (15-LOX-2), were expressed as N-terminally, His₆-tagged proteins and purified to greater than 90% purity, as evaluated by SDS-PAGE analysis.^{50, 85, 86} Human 5-lipoxygenase was expressed as a non-tagged protein and used as a crude ammonium sulfate protein fraction, as published previously.⁸⁷ Iron content of 12-LOX was determined with a Finnegan inductively coupled plasma mass spectrometer (ICP-MS), using cobalt-EDTA as an internal standard. Iron concentrations were compared to standardized iron solutions and used to normalize enzyme concentrations.

High-throughput Screen: Materials

Dimethyl sulfoxide (DMSO) ACS grade was from Fisher, while ferrous ammonium sulfate, Xylenol Orange (XO), sulfuric acid, and Triton X-100 were obtained from Sigma-Aldrich.

Compound library

A 153607 compound library was screened in 7 to 15 concentrations ranging from 0.7 nM to 57 μM. The library included 139798 diverse small drug-like molecules that are part of the NIH Small Molecule Repository. A collection of 2893 compounds from the Centers of Methodology and Library Development at Boston University (BUCMLD) and University of Pittsburgh (UPCMLD) were added to the library. Several combinatorial libraries from Pharmacopeia, Inc. totaled 1649 compounds. An additional 1981 compounds from the NCI Diversity Set were included. Lastly, 7286 compounds with known pharmacological activity were added to provide a large and diverse screening collection.

High-throughput screening protocol and HTS analysis

All screening operations were performed on a fully integrated robotic system (Kalypsys Inc, San Diego, CA) as described elsewhere.⁸⁸ Three μL of enzyme (approximately 80 nM 12-LOX, final concentration) was dispensed into 1536-well Greiner black clear-bottom assay plate. Compounds and controls (23 nL) were transferred via Kalypsys PinTool equipped with 1536-pin array. The plate was incubated for 15 min at room temperature, and then a 1 μL aliquot of substrate solution (50 μM arachidonic acid final concentration) was added to start the reaction. The reaction was stopped after 6.5 min by the addition of 4 μL FeXO solution (final concentrations of 200 μM Xylenol Orange (XO) and 300 μM ferrous ammonium sulfate in 50 mM sulfuric acid). After a short spin (1000 rpm, 15 sec), the assay plate was incubated at room temperature for 30 min. The absorbances at 405 and 573 nm were recorded using ViewLux high-throughput CCD imager (Perkin-Elmer, Waltham, MA) using standard absorbance protocol settings. During dispense, enzyme and substrate bottles were kept submerged into +4 °C recirculating chiller bath to minimize degradation. Plates containing DMSO only (instead of compound solutions) were included approximately every 50 plates throughout the screen to monitor any systematic trend in the assay signal associated with reagent dispenser variation or decrease in enzyme specific activity.

Data were analyzed in a similar method as described elsewhere.⁷¹ Briefly, assay plate-based raw data were normalized to controls and plate-based data corrections were applied to filter out background noise. All concentration response curves (CRCs) were fitted using in-house developed software (http://ncgc.nih.gov/pub/openhts/). Curves were categorized into four classes: complete response curves (Class 1), partial curves (Class 2), single point actives (Class 3) and inactives (Class 4). Compounds with the highest quality, Class 1 and Class 2 curves, were prioritized for follow-up.

Lipoxygenase UV-Vis-based Manual Assay

The initial one-point inhibition percentages were determined by following the formation of the conjugated diene product at 234 nm (ε = 25,000 M^-1cm^-1) with a Perkin-Elmer Lambda 40 UV/Vis spectrophotometer at one inhibitor concentration. All reactions were 2 mL in volume and constantly stirred using a magnetic stir bar at room temperature (23 °C) with approximately 40 nM for 12-LOX (by iron content), 20 nM of 15-LOX-1 (by iron content), 1 μM for 15-LOX-2 (by Bradford). Reactions with 12-LOX were carried out in 25 mM HEPES (pH 8.0) 0.01% Triton X-100 and 10 μM AA. Reactions with the crude, ammonium sulfate precipitated 5-LOX were carried out in 25 mM HEPES (pH 7.3), 0.3 mM CaCl₂, 0.1 mM EDTA, 0.2 mM ATP, 0.01% Triton X100 and 10 μM AA. Reactions with 15-LOX-1 and 15-LOX-2 were carried out in 25 mM HEPES buffer (pH 7.5), 0.01% Triton X-100 and 10 μM AA. The concentration of AA (for 5-LOX, 12-LOX and 15-LOX-2) was quantitatively determined by allowing the enzymatic reaction to go to completion. IC₅₀ values were obtained by determining the enzymatic rate at various inhibitor concentrations and plotted against inhibitor concentration, followed by a hyperbolic saturation curve fit. The data used for the saturation curves were performed in duplicate or triplicate, depending on the quality of the data.

Fluorescence Iron Binding Assay

Fluorescence readings were taken with a Perkin Elmer Luminescence Spectrometer LS 50 B in the presence and absence of iron with the excitation maximum λ_ex = 360 nm and the emission maximum λ_em = 410 nm. Excitation slit was set at 5 nm and the emission slit was set at 10 nm. Due to the low intensity of the fluorophore, the filter was kept open. As a control, 1 mM 8-HQ-5-sulfonic acid was dissolved in 25 mM HEPES buffer (pH 8.5) and aliquoted to a 2 mL cuvette. In a separate cuvette, 1 mM 8-HQ-5-sulfonic acid and either 10 μM Fe²⁺ (as [NH₄]₂[Fe][SO₄]₂·6H₂O) or Fe³⁺ (as Fe₂(SO4)₃) in 25 mM HEPES buffer (pH 8.5) was added and allowed to equilibrate for 5 minutes. For the experimental, 2 mL of 1 mM 1 was dissolved in 25 mM HEPES buffer (pH 8.5) and the fluorescence intensity taken. In a separate cuvette, 1 mM 1 was dissolved in 25 mM HEPES buffer (pH 8.5) and was incubated with less than 1 μM (by iron content) of 12-LOX and allowed to equilibrate for 5 min.

DPPH Antioxidant Test

Compound 1 was dissolved in dimethyl sulfoxide (DMSO) at 1-20 mM concentration (1,000-fold concentrated). The antioxidant activity of this compound was assayed by monitoring the quenching of the standard free radical 1,1-diphenyl-2-picrylhydrazyl (DPPH) upon reaction with the testing compounds.^{89, 90} A known free radical scavanger, nordihydroguaiaretic acid (NDGA), was used as a positive control. Ten microliters of the testing reagent (1 mM), to achieve a final concentration of 5 μM, was added to 2 mL of 500 μM DPPH, stirring in a cuvette. Optical absorbance was monitored and recorded at 25-sec intervals as described elsewhere.^{89, 90} The decrease in optical absorbance at 517 nm was monitored using a Perkin-Elmer Lambda 40 spectrometer. The rate of reaction is proportional to the antioxidant potency of the test compounds.

Steady-State Inhibition Kinetics

Lipoxygenase rates were determined by monitoring the formation of the conjugated product, 12-HPETE, at 234 nm (ε = 25 000 M^-1 cm^-1) with a Perkin-Elmer Lambda 40 UV/Vis spectrophotometer. Reactions were initiated by adding approximately 80 nM 12-LOX to a constantly stirring 2 mL cuvette containing 3 – 40 μM AA in 25 mM HEPES buffer (pH 7.5), in the presence of 0.01% Triton X-100. The substrate concentration was quantitated by allowing the enzymatic reaction to proceed to completion. Kinetic data were obtained by recording initial enzymatic rates, at varied inhibitor concentrations, and subsequently fitted to the Henri-Michaelis-Menten equation, using KaleidaGraph (Synergy) to determine the microscopic rate constants, V_max (μmol/min/mg) and V_max/K_M (μmol/min/mg/μM). These rate constants were subsequently replotted and normalized to the iron content (120 nM) as 1/k_cat and K_M/k_cat versus inhibitor concentration, to yield K_iu and K_ic, respectively.

Incubation Inhibition Kinetics

12-LOX rates were determined as above, with the following modifications. One μL of 1 mM compound 2, in DMSO, was added to 30 μL of 12-LOX (approximately 5 μM), and allowed to sit on ice for intervals of 2 minutes, upwards to 10 minutes. The mixture was added at designated time periods to a constantly stirring 2 mL cuvette, containing 10 μM AA in 25 mM HEPES buffer (pH 8.0), in the presence of 0.01% Triton X-100. The control to this reaction was the same as above, but only DMSO was added. Incubated samples with inhibitor, were also dialyzed to demonstrate reversible inhibition, but the enzyme died in the 2 hour timeframe of the experiment.

Cyclooxygenase Assay

Ovine COX-1 (Cat. No. 60100) and human COX-2 (Cat. No. 60122) were purchased from Cayman chemical. Approximately 2 μg of either COX-1 or COX-2 were added to buffer containing 100 μM AA, 0.1 M Tris-HCl buffer (pH 8.0), 5 mM EDTA, 2 mM phenol and 1 μM hematin at 37 °C. Data was collected using a Hansatech DW1 oxygen electrode chamber. Inhibitors were incubated with the respective COX for 20 minutes and added to the reaction mixture and the consumption of oxygen was recorded. Ibuprofen and the carrier solvent, DMSO, were used as positive and negative controls, respectively.

12/15 Mouse Lipoxygenase Expression, Purification and IC₅₀ Assay

12/15-mouse lipoxygenase (12/15-mLO), with an N-terminus His-tag was expressed in SF9 insect cells. 12/15-mLO was PCR amplified from the pGFP-ALOX15 vector (Gift of Dr. Jerry Nadler) using the following primers, 5’-GGCGCGCGTCGACATGCACCACCATCACCATCATCACGGTGTCTACCGCATCCGCGTCTC-3’, 5’-GGCTCGAGTCTAGATCATTATATGGCCACGCTGTTTTCTACCAG-3’, yielding a fragment of approximately 2 kb. The PCR fragment was cut with SalI and XhoI and ligated into a pFastBac1 vector, cut with the same enzymes. 12/15mLO-pFastBac was then transposed into a recombinant pFastBac bacmid using DH10Bac cells and transfected into SF9 cells, as described in the product literature for pFastBac1. For purification, infected SF9 cells were harvested after 72 hrs by centrifugation and stored at -20 °C. Thawed cells were dounced in 25mM HEPES pH 7.5 and extract was loaded onto a Bio Rad UNO Q1 ion exchange column. 12/15-mLO was eluded with a 0-1M sodium chloride linear gradient using 25mM HEPES running buffer. Glycerol was added (15%) to active fractions, which were stored at -80C. It should be noted that the His-tag purification method could not be used due to rapid inactivation of the protein. It was unclear as to the cause of this inactivation, but it appears that certain salts lead to the inactivation. Inhibitor assays were performed on a Perkin Elmer Lambda 45 UV/Vis spectrophotometer. Assay buffer consisted of 10 μM arachidonic acid added to 25 mM HEPES (pH 7.5). These assays were performed in the absence of Triton X-100 because it was found to inactivate 12/15-mLO. 12/15-mLO was defrosted on ice and added to the cuvette containing substrate and inhibitor. Conjugated product formation was monitored at 234nm. The one-point inhibition percentage for weak inhibitors was calculated as 1- (Maximal experimental rate/maximal control rate) x 100%. The multi-point IC₅₀ value was determined by plotting the percent inhibition vs. [inhibitor] and fitting with a hyperbolic equation, as defined before.⁷⁰

Cellular Inhibition Assay

In order to determine if these compounds were effective in a cellular environment, a select few were tested against 12-LOX in platelets. Human platelets were obtained from healthy volunteers at Thomas Jefferson University and this study was approved by the Thomas Jefferson University Institutional Review Board. Informed consent was obtained from all donors prior to blood draw. 20 mLs of blood was drawn and centrifuged at 200 × g for 15 min. at room temperature. To the plasma, 10% ACD (1:10) and Apyrase (1 μL/2.5 mL) were added and the solution centrifuged at 2000 × g for 15 min. at room temperature. The platelets were resuspended with Tyrode's buffer and adjusted to a concentration of 3.0 × 10⁸ platelets/mL. The platelets were subsequently treated with inhibitor for 10 min. at 37 °C prior to stimulation with 20 μM PAR1-AP (SFLLRN) under stirring conditions in an aggregometer. Following aggregation, samples were centrifuged at 2,000 × g for 10 min., the supernatant transferred to scintillation vials, extracted with methylene chloride, reduced with triphenylphosphine and evaporated to dryness. The dry samples were then re suspended in methanol and stored at -20 ºC until analyzed by Finnigan LTQ liquid chromatography−tandem mass spectrometry (LC−MS/MS) system. An internal control, 12-deuterated(d₈)- HETE (12-d₈-HETE) was added to each sample prior to injection on LC-MS to account for the variation in the detector response, since it was assumed that the change in detector response for 12-HETE and 12-d₈-HETE would be similar. A Thermo Electron Corp. Aquasil (3 μm, 100 mm × 2.1 mm) C-18 column was used to detect the HETEs with an elution protocol consisting of 0.2 mL/min flow rate and a linear gradient from 54.9% ACN, 45% H₂O, and 0.1% THF to 69.9% ACN, 30% H₂O, and 0.1% THF. The corresponding 12-HETE and 12-d₈-HETE compounds were detected using selective ion monitoring analysis (m/z =318.7 to 319.7 and 326.8 to 327.7) in negative ion mode and then identified by fragmentation pattern (12-HETE, parent ion at m/z 319 and fragments at m/z 179 and 163; 12-d₈-HETE, parent ion at m/z 327 and fragments at m/z 184 and 214) from MS-MS.⁹¹ The electrospray voltage was set to 5.0 kV and a global acquisition MS mode was used. The MS-MS scan was performed for the five most abundant precursor ions. The Collision Induced Dissociation (CID) was used for MS-MS with a collision energy of 35 eV. The peak intensities of 12-HETEs were normalized to the 12-d₈-HETE intensities. The amount of 12-HETE in samples was estimated using a standard curve generated from pure 12-HETE with concentrations ranging from 0 μM to 2.5 μM along with a constant amount of 12-d₈-HETE added in each sample. The Assay is linear in the concentration range used for the 12-HETE standard curve with a R² value of 0.997.

Inhibition of 12-HETE Production in Human Donor Islets

Studies with human donor islets had institutional approval. Islets were obtained from the Integrated Islet Distribution Program. Human donor islets were incubated overnight in CMRL media (Cat# 15-110-CV MediaTech, Inc. Manassas, VA) containing 10% Fetal Bovine Serum + Pen/Strep. The islets were serum-starved by incubating in serum free media, CMRL containing Pen/Strep and 1% Fatty acid Free Human Serum Albumin (Cat# A1887 Sigma, St. Louis, MO), for 1 h. Islets were incubated in serum free media containing 100μM Arachadonic Acid (Cat# BML-FA003-0100, Enzo Life Sciences Plymouth Meeting, PA), with and without 10 SM of compound #1 for 60 min. at 37 °C. Calcium ionophore, 5 μM of A23187 (Cat# C7522, Sigma, St. Louis, MO), was added for an additional 30 min. Samples were harvested, centrifuged @ 1000RPM for 5 min. and supernatant drawn off and islet pellet stored at -80 °C. Cell pellets were extracted using CHCl₃/ MeOH and samples dried under Nitrogen gas before reconstitution in 250 μL of ELISA sample buffer. 12-HETE levels in samples were determined using a 12-HETE ELISA kit (Cat# 901-050, Assay Design, Plymouth Meeting, PA).
