. Author manuscript; available in PMC: 2011 Sep 16.
Published in final edited form as: J Am Chem Soc. 2007 Apr 7;129(17):5381–5383. doi: 10.1021/ja071205b

Kedarcidin Chromophore–Synthesis of Its Proposed Structure and Evidence for a Stereochemical Revision

Feng Ren 1, Philip C Hogan 1, Alan J Anderson 1, Andrew G Myers 1,*
PMCID: PMC3174495  NIHMSID: NIHMS62264  PMID: 17417855

Abstract

A convergent, enantioselective synthesis of the proposed structure of kedarcidin chromophore (1) is described. The route is 24 steps in the longest linear sequence (beginning with the commercial reagent 2,3-O-isopropylidene-d-erythronolactone) with an average yield of 75% per step (overall yield: 0.1%). Our 1H NMR data for 1 do not coincide with the data reported for kedarcidin chromophore. We have re-analyzed the original data and here propose a stereochemical revision at position C10, the site of attachment of the l-mycarose carbohydrate residue to the chromophore core (structure 2).

The structure of the chromophore component of the cytotoxic protein-chromophore complex kedarcidin was determined by researchers at BMS in 1992 on the basis of an extensive spectroscopic analysis of the isolated chromophore and its degradation products, an undertaking that was greatly complicated by the reactivity of the chromophore and its low natural abundance.1 The original structural proposal was modified (as 1, Scheme 1 and Figure 1) by Hirama and co-workers in 1997, thereby transforming the originally proposed α-azatyrosyl residue of the ansa-bridge to the corresponding β-amino acid derivative and reversing the handedness of the molecule.2 Here, we describe an unambiguous, enantioselective synthesis of structure 1. Our spectroscopic data show that the structure of kedarcidin chromophore must be further revised, we suggest by epimerization of the mycarose-bearing carbon, C10 (structure 2, Figure 1, see below).

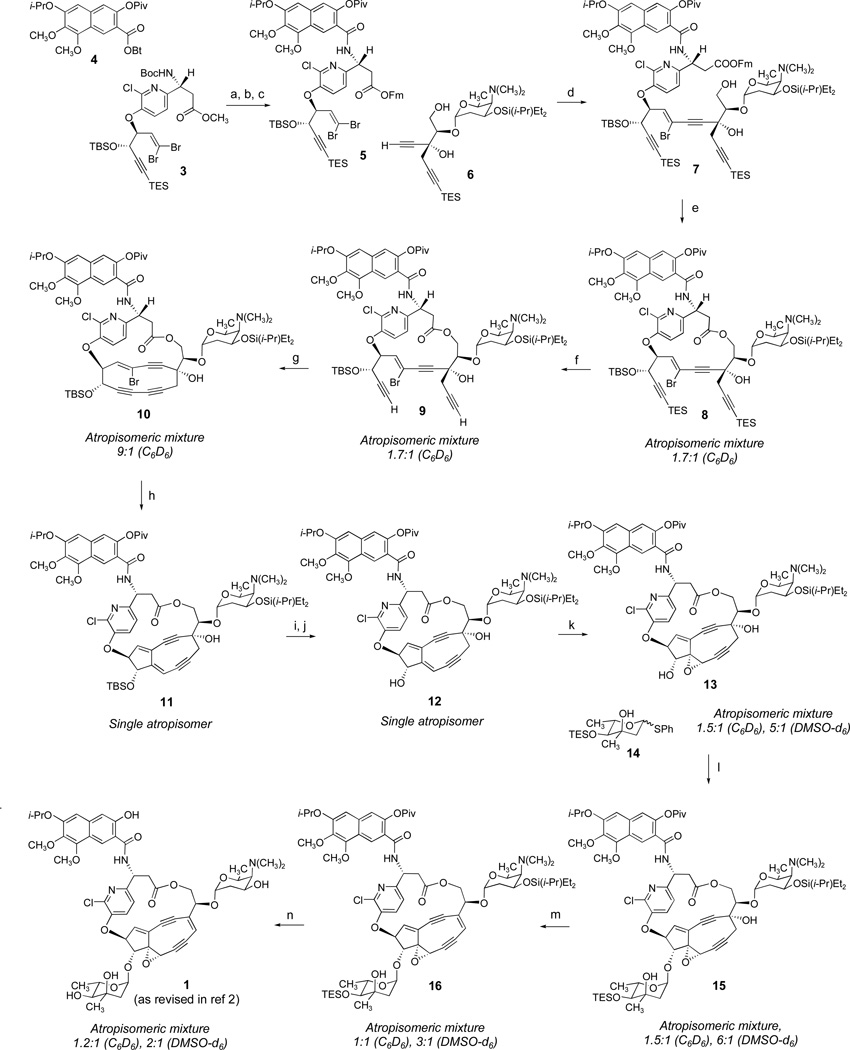

Scheme 1.

Scheme 1

Open in a new tab

(a) 3, LiOH, H2O2, THF, H2O, 23 °C; (b) 9-fluorenemethanol (FmOH), 2-methyl-6-nitrobenzoic anhydride (MNBA), DMAP, CH2Cl2, 23 °C, 93% (two steps); (c) TMSOTf, 2,6-lutidine, CH2Cl2, 23 °C; then NaHCO3, 4, 97%; (d) 6, Pd(PPh3)4, CuI, Et3N, Et2O, 23 °C, 61%; (e) Et3N, THF; MNBA, DMAP, benzene, 23 °C, 66%; (f) AgNO3, THF, H2O, 23 °C; 2,6-lutidine, 73%; (g) Cu(OAc)2, CuI, pyridine, THF, 60 °C, 59%; (h) LHMDS, THF, toluene, −78 °C; t-BuLi; HOAc, 52%; (i) TBAF, o-nitrophenol, THF, 23 °C; (j) PivCl, Et3N, CH2Cl2, 23 °C, 76%; (k) CH3C(Ph)2OOH, VO(acac)2, benzene, 23 °C, 28%; (l) AgPF6, DTBMP, 14, CH2Cl2, 0 °C; pyridine, 59%; (m) Martin sulfurane, benzene, 23 °C, 65%; (n) TBAF, o-nitrophenol, CH3CN, 23 °C; then Et3N•3HF, 50%.

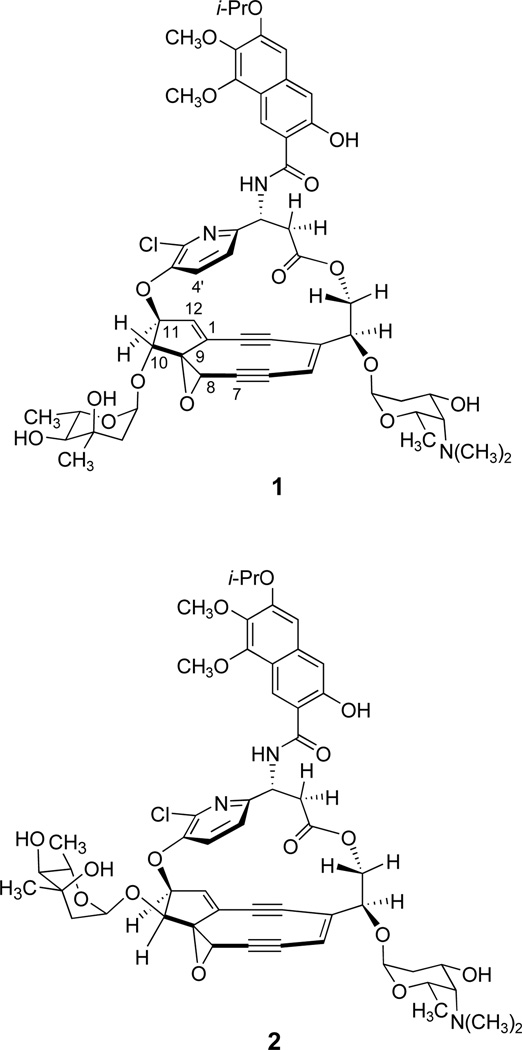

Figure 1.

Figure 1

Open in a new tab

Previous (1, ref 2) and current (2) structural revisions of kedarcidin chromophore.

We synthesized structure 1 using a highly convergent route (Scheme 1). The sequence was initiated with the azatyrosyl dibromide 3 as starting material (>95% ee), prepared by extension of our published route to the corresponding tert-butyldimethylsilyl (TBS)-alkynyl derivative3 using a different, auxiliary-based route to the β-amino acid component4 (see Supporting Information; use of the triethylsilyl (TES)-alkynyl group within 3 is a refinement that allows for a simultaneous deprotection reaction later, 8→9, vide infra). The methyl ester group of 3 was transformed into the corresponding 9-fluorenylmethyl (Fm) ester5 by saponification with lithium hydroperoxide and esterification of the resulting carboxylic acid with 9-fluorenemethanol using 2-methyl-6-nitrobenzoic anhydride as an activating agent (93%, two steps).6 Cleavage of the N-tert-butoxycarbonyl (BOC) protective group with trimethylsilyl triflate-2,6-lutidine7 and, in the same flask, addition of saturated aqueous sodium bicarbonate solution and a solution of the pivaloyl-protected, hydroxybenzotriazole-activated 2-naphthoic acid derivative 48 in dichloromethane afforded the coupled product 5 in 97% yield (22-g scale). Selection of the pivaloyl group to protect the naphthol group in the latter step allowed for a mild, fluoride-based deprotection reaction in the final step of the sequence (vide infra). Sonogashira coupling of the dibromoolefin 5 with the α-kedarosylated dialkyne component 69 formed the cis-bromoolefin 7 in 50–60% yield.10 Although the stereoisomeric trans-coupling product was never observed, the (chromatographically separable) bis-coupling product was detected as a side product, one whose formation was never completely suppressed. Selective cleavage of the Fm ester in the presence of the pivaloate ester within 7 (Et3N, THF) cleanly afforded the corresponding carboxylic acid, which was cyclized using the Shiina macrolactonization protocol11 to provide the macrolactone 8 (atropisomeric mixture, see Scheme 1 for details concerning the conformations of this and subsequent macrocyclic intermediates). The macrolactonization reaction could be performed on the gram-scale without diminishing its yield (66%). Both TES-alkynyl protective groups of 8 were selectively cleaved in the presence of the two silyl ethers by the Hirama procedure (AgNO3, H2O, THF),12 providing the substrate for intramolecular oxidative acetylenic coupling (9, 73% yield). At this point, a second macrocyclization reaction was performed employing modified Eglinton conditions (Cu(OAc)2, CuI, THF, pyridine),3,13 producing the macrobicyclic intermediate 10. The latter product was found to be extremely unstable and, for this reason, was directly subjected to transannular cyclization (10→ 11).14 Thus, sequential treatment of a solution of the macrobicyclic vinyl bromide 10 in THF–toluene (1:1, pre-stirred at 23 °C with 4Å-MS for 15 min prior to cooling to −78 °C) with LHMDS (1.0 M in THF, 6.0 equiv) then, after 2 min, with a solution of t-BuLi in pentane (1.7 M, 8.0 equiv) and immediately thereafter (<5 s) with a quenching solution of acetic acid in THF (1:3, 50 equiv), all at −78 °C, afforded the tricyclic kedarcidin core structure 11 in 50% yield.3 The TBS ether group of 11 was selectively removed in the presence of the diethyl-iso-propylsilyl ether of the kedarose sugar using o-nitrophenol-buffered tetra-N-butylammonium fluoride (TBAF);3a this simultaneously cleaved the pivaloate ester, which was re-introduced (75%, two steps 11→ 12). Vanadium-directed epoxidation15 of the resulting allylic alcohol 12 was successful only with the hindered oxygen-atom source 1,1-diphenylethyl hydroperoxide,16 and afforded the epoxy alcohol 13 (28% yield) as well as recovered starting material (12, 30%). The position- and stereo-selectivity of the epoxidation reaction as well as the conformation of the ansa-bridge were unambiguously established by several reinforcing NOE measurements within 13, as well as by chemical-shift and coupling-constant based arguments (see Supporting Information). An α-glycosidic linkage was readily formed between 13 and the thioglycoside donor 14 (a mixture of anomers) using AgPF6 (2.5 equiv) as activator in the presence of 2,6-di-tert-butyl-4-methylpyridine (DTBMP, 3.5 equiv),17 methodology previously developed by the Hirama group in their studies directed toward a synthesis of 1.18

The α-mycarosylated product 15 was formed in 59% yield; approximately 15% of the starting material (13) was also recovered. Completion of the synthesis of 1 was achieved by dehydration of 15 using the Martin sulfurane in benzene (65% yield), followed by global deprotection of the the dehydration product 16 (TBAF, o-nitrophenol, CH3CN;3a then Et3N•3HF, 50% yield). Synthetic 1 provided spectroscopic data in complete accord with the proposed structure, as did its cycloaromatization product (formed in the presence of 1,4-cyclohexadiene at 23 °C, 12 h, ~50% yield), but our 1H NMR measurements differed substantially from those reported for the natural product.1 After rigorous reevaluation of our synthetic process, in which we re-confirmed all stereochemistry and each reaction outcome, as reported herein,19 we were led to carefully reconsider the original spectroscopic data for kedarcidin chromophore, leading us to identify inconsistencies between this data and both the original and the revised (1) structural assignments.1,2 In particular, the observation of a non-zero coupling between protons bound to C10 and C11 (3.1 Hz in DMSO-d6), the lack of an NOE between the pyridyl C4' proton and H10, and the observation of an NOE between H10 and H12b (derived from hydride addition to C12) in the product of borohydride-induced cycloaromatization of kedarcidin chromophore,1 suggested that the stereochemistry of C10 may have been misassigned (in synthetic 1, H10 appears as a sharp singlet in C6D6 and as a slightly broadened singlet in DMSO-d6). On enquiry (Dr. John Leet, BMS), we have learned that the observed coupling between protons bound to C10 and C11 of authentic kedarcidin chromophore in CDCl3 (not previously reported) is 5.4 Hz, which aligns perfectly with reported values for several (cis-oriented) like compounds in the literature.20 The revised structure we propose (2, Figure 1) is consistent with all reported NOE, chemical-shift, and coupling-constant values. Further, it explains the observations that natural kedarcidin chromophore is a single atropisomer, whereas the trans-oriented molecule we synthesized (1) is a mixture of atropisomers, in two different NMR solvents (see Scheme 1). Presumably, kedarcidin chromophore (2, as proposed herein) cannot exist in the atropisomeric form that positions the chlorine atom toward the C10-mycarosyl substituent.

Supplementary Material

si20070326_050

Acknowledgment

Generous financial support from the National Institutes of Health is gratefully acknowledged. Eli Lilly and Co. provided critical support in the form of a graduate fellowship to Mr. Feng Ren. We are especially grateful to Dr. John Leet and his colleagues at BMS, who were most helpful and accommodating in providing assistance to us throughout our investigations.

Footnotes

Supporting Information Available: Detailed experimental procedures and tabulated spectroscopic data (1H and 13C NMR, FT-IR, and MS) for all new compounds. This material is available free of charge via the Internet at http://pubs.acs.org.

References

  • 1.(a) Leet JE, Schroeder DR, Hofstead SJ, Golik J, Colson KL, Huang S, Klohr SE, Doyle TW, Matson JA. J. Am. Chem. Soc. 1992;114:7946. [Google Scholar]; (b) Leet JE, Schroeder DR, Langley DR, Colson KL, Huang S, Klohr SE, Lee MS, Golik J, Hofstead SJ, Doyle TW, Matson JA. J. Am. Chem. Soc. 1993;115:8432. [Google Scholar]
  • 2.Kawata S, Ashizawa S, Hirama M. J. Am. Chem. Soc. 1997;119:12012. [Google Scholar]
  • 3.(a) Myers AG, Goldberg SD. Angew. Chem. Int. Ed. 2000;39:2732. doi: 10.1002/1521-3773(20000804)39:15<2732::aid-anie2732>3.0.co;2-9. [DOI] [PubMed] [Google Scholar]; (b) Myers AG, Hogan PC, Hurd AR, Goldberg SD. Angew. Chem. Int. Ed. 2002;41:1062. doi: 10.1002/1521-3773(20020315)41:6<1062::aid-anie1062>3.0.co;2-8. [DOI] [PubMed] [Google Scholar]; (c) Myers AG, Hurd AR, Hogan PC. J. Am. Chem. Soc. 2002;124:4583. doi: 10.1021/ja020152p. [DOI] [PubMed] [Google Scholar]
  • 4.(a) Zhou P, Chen B-C, Davis FA. Tetrahedron. 2004;60:8003. [Google Scholar]; (b) Ellman JA. Pure Appl. Chem. 2003;75:39. [Google Scholar]
  • 5.Kessler H, Siegmeier R. Tetrahedron Lett. 1983;24:281. [Google Scholar]
  • 6.Shiina I, Ibuka R, Kubota M. Chem. Lett. 2002;286 [Google Scholar]
  • 7.Sakaitani M, Ohfune Y. J. Org. Chem. 1990;55:870. [Google Scholar]
  • 8.(a) Myers AG, Horiguchi Y. Tetrahedron Lett. 1997;38:4363. [Google Scholar]; (b) Hogan PC. Thesis. Cambridge, MA: Harvard University; 2004. [Google Scholar]
  • 9.Ren F, Hogan PC, Anderson AJ, Myers AG. Org. Lett. doi: 10.1021/ol070450x. (submitted) [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 10.For examples of stereoselective (cis) palladium-mediated coupling reactions of 1,1-dihaloolefins, see: Shi J-C, Zeng X, Negishi E-I. Org. Lett. 2003;5:1825. doi: 10.1021/ol030017x. and pertinent references therein.
  • 11.Shiina I, Kubota M, Ibuka R. Tetrahedron Lett. 2002;43:7535. [Google Scholar]
  • 12.Sato I, Akahori Y, Iida K-i, Hirama M. Tetrahedron Lett. 1996;37:5135. [Google Scholar]
  • 13.Eglinton G, Galbreath AR. J. Chem. Soc. 1959;889 [Google Scholar]
  • 14.Intermediates 10–13, 15, 16, and synthetic 1, were unstable in neat form. For this reason these compounds (when stored) were maintained in dilute solution. Yields were determined using an internal standard (see Supporting Information).
  • 15.Rossiter BE, Verhoeven TR, Sharpless KB. Tetrahedron Lett. 1979;20:4733. [Google Scholar]
  • 16.Richardson WH, Hodge VF. J. Org. Chem. 1970;35:4012. [Google Scholar]
  • 17.Thioglycoside 14 was prepared from the commercial tartrate salt of Tylosin (3 steps). See Supporting Information for details.
  • 18.Lear MJ, Yoshimura F, Hirama M. Angew. Chem. Int. Ed. 2001;40:946. [PubMed] [Google Scholar]
  • 19.The relative and absolute stereochemistries of the kedarose, mycarose, and β-azatyrosine residues of kedarcidin chromophore have been rigorously established in prior work by comparison with authentic, synthetic standards. Refs 1b, 2, and Leet JE, Golik J, Hofstead SJ, Matson JA, Lee AY, Clardy J. Tetrahedron Lett. 1992;33:6107.
  • 20.(a) Comin MJ, Leitofuter J, Rodríguez JB. Tetrahedron. 2002;58:3129. [Google Scholar]; (b) Bickley JF, Roberts SM, Santoro MG, Snape TJ. Tetrahedron. 2004;60:2569. [Google Scholar]; (c) Perez M, Beau J-M. Tetrahedron Lett. 1989;30:75. [Google Scholar]
