. 1986 Mar;13(1):23–37.

Concepts in Assisted Circulation

Armand A Lefemine 1, Jacob Dunbar 1, Anthony Delucia 1
PMCID: PMC324595  PMID: 15226829

Abstract

Assisted circulation by extracorporeal and extracardiac bypass techniques must be based on the requirements of the heart and of the total body, though these may differ. The cardiac problem in cardiogenic shock is more likely to be a biventricular problem demanding decompression of both sides. Extra pulmonary oxygenation should be avoided because of complexity in long-term use. Principles of assisted circulation may be applied in an extra-thoracic temporary manner or as an intracorporeal long-term device without removal of the heart. We have compared a number of extracorporeal mechanical bypass techniques (left ventricular bypass, left atrial bypass, right atrial plus left ventrical bypass, and right atrial plus left atrial bypass) in dogs at different flow rates with control groups (nitroprusside, metabolic substrates, and no therapy) for survival during and after 4-hour treatment periods in a standard severe myocardial infarction preparation with biventricular failure. The left ventricle was cannulated in a retrograde manner. Right atrial bypass was mixed with oxygenated left ventricular blood before return without oxygenation.

Results in 50 dogs revealed that without treatment 20% survived; left ventricular plus right atrial bypass provided 100% survival during the 4-hour treatment, whereas left ventricular bypass and nitroprusside were intermediate with approximately 70% survival. Respiration and acid-base balance were not significantly altered by right atrial bypass, which provided adequate decompression of the right ventricle. Flow rates of 50% of control levels were adequate to provide normal or increased peripheral circulation as well as decompression of both ventricles and maintenance of sinus or nodal rhythm. Left atrial or left ventricular bypass alone was unable to support the heart or circulation in severe failure. Hemodynamics, including total body perfusion, atrial pressures, and dP/dt were improved significantly only by left ventricular plus right atrial bypass, even though reduced rates of flow were used. Similar findings were seen in lactic acid, CPK, and oxygen consumption. The addition of metabolic substrates currently does not improve survival though they appear to act as metabolic modulators.

We conclude that the principle of a low flow left ventricular plus right atrial bypass without an oxygenator offers a technique for long- or short-term assistance.

Full text

PDF
23

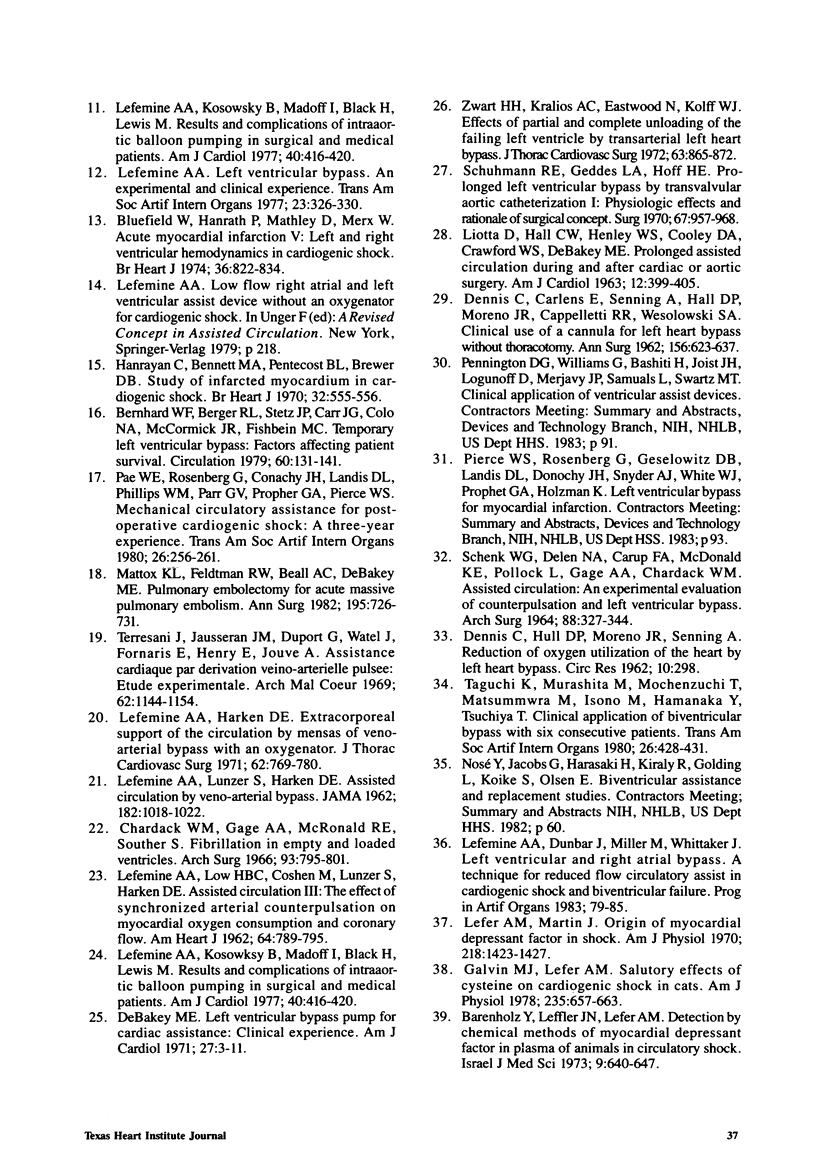

Selected References

These references are in PubMed. This may not be the complete list of references from this article.

  1. Barenholz Y., Leffler J. N., Lefer A. M. Detection by chemical methods of a myocardial depressant factor in plasma of animals in circulatory shock. Isr J Med Sci. 1973 May;9(5):640–647. [PubMed] [Google Scholar]
  2. Bernhard W. F., Berger R. L., Stetz J. P., Carr J. G., Colo N. A., McCormick J. R., Fishbein M. C. Temporary left ventricular bypass: factors affecting patient survival. Circulation. 1979 Aug;60(2 Pt 2):131–141. doi: 10.1161/01.cir.60.2.131. [DOI] [PubMed] [Google Scholar]
  3. Bernhard W. F., Colo N. A., Wesolowski J. S., Szycher M., Fishbein M. C., Parkman R., Franzblau C. C., Haudenschild C. C. Development of collagenous linings on impermeable prosthetic surfaces. J Thorac Cardiovasc Surg. 1980 Apr;79(4):552–564. [PubMed] [Google Scholar]
  4. Bleifeld W., Hanrath P., Mathey D., Merx W. Acute myocardial infarction. V: Left and right ventricular haemodynamics in cardiogenic shock. Br Heart J. 1974 Aug;36(8):822–834. doi: 10.1136/hrt.36.8.822. [DOI] [PMC free article] [PubMed] [Google Scholar]
  5. Chardack W. M., Gage A. A., McRonald R. E., Souther S. Fibrillation in empty and loaded ventricles. An experimental study of coronary artery ligation during partial and complete cardiac bypass. Arch Surg. 1966 Nov;93(5):795–801. doi: 10.1001/archsurg.1966.01330050099014. [DOI] [PubMed] [Google Scholar]
  6. DENNIS C., CARLENS E., SENNING A., HALL D. P., MORENO J. R., CAPPELLETTI R. R., WESOLOWSKI S. A. Clinical use of a cannula for left heart bypass without thoracotomy: experimental protection against fibrillation by left heart bypass. Ann Surg. 1962 Oct;156:623–637. doi: 10.1097/00000658-196210000-00009. [DOI] [PMC free article] [PubMed] [Google Scholar]
  7. DENNIS C. Certain methods for artificial support of the circulation during open intracardiac surgery. Surg Clin North Am. 1956 Apr;:423–436. doi: 10.1016/s0039-6109(16)34837-x. [DOI] [PubMed] [Google Scholar]
  8. DENNIS C., HALL D. P., MORENO J. R., SENNING A. Reduction of the oxygen utilization of the heart by left heart bypass. Circ Res. 1962 Mar;10:298–305. doi: 10.1161/01.res.10.3.298. [DOI] [PubMed] [Google Scholar]
  9. DICKSON J. F., 3rd, HAMER N. A., DOW J. W. Venoarterial pumping for relief of intractable cardiac failure in man. AMA Arch Surg. 1959 Mar;78(3):418–421. doi: 10.1001/archsurg.1959.04320030062011. [DOI] [PubMed] [Google Scholar]
  10. DOGLIOTTI A. M., COSTANTINI A. Primo caso di applicazione all'uomo di un apparecchio di circolazione sanguigna extracorporea. Minerva Chir. 1951 Nov 15;6(22):657–659. [PubMed] [Google Scholar]
  11. DeBakey M. E. Left ventricular bypass pump for cardiac assistance. Clinical experience. Am J Cardiol. 1971 Jan;27(1):3–11. doi: 10.1016/0002-9149(71)90076-2. [DOI] [PubMed] [Google Scholar]
  12. Hanarayan C., Bennett M. A., Brewer D. B., Pentecost B. L. Study of infarcted myocardium in cardiac shock. Br Heart J. 1970 Jul;32(4):555–556. [PubMed] [Google Scholar]
  13. LEFEMINE A. A., LOW H. B., COHEN M. L., LUNZER S., HARKEN D. E. Assisted circulation. III. The effect of synchronized arterial counterpulsation on myocardial oxygen consumption and coronary flow. Am Heart J. 1962 Dec;64:789–795. doi: 10.1016/0002-8703(62)90177-1. [DOI] [PubMed] [Google Scholar]
  14. LEFEMINE A. A., LUNZER S., HARKEN D. E. Assisted circulation by veno-arterial by-pass. JAMA. 1962 Dec 8;182:1018–1022. doi: 10.1001/jama.1962.03050490042009. [DOI] [PubMed] [Google Scholar]
  15. LEFEMINE A. A., LUNZER S., HARKEN D. E. Assisted circulation by veno-arterial by-pass. JAMA. 1962 Dec 8;182:1018–1022. doi: 10.1001/jama.1962.03050490042009. [DOI] [PubMed] [Google Scholar]
  16. LIOTTA D., HALL C. W., HENLY W. S., COOLEY D. A., CRAWFORD E. S., DEBAKEY M. E. PROLONGED ASSISTED CIRCULATION DURING AND AFTER CARDIAC OR AORTIC SURGERY. PROLONGED PARTIAL LEFT VENTRICULAR BYPASS BY MEANS OF INTRACORPOREAL CIRCULATION. Am J Cardiol. 1963 Sep;12:399–405. doi: 10.1016/0002-9149(63)90235-2. [DOI] [PubMed] [Google Scholar]
  17. Lefemine A. A., Harken D. E. Extracorporeal support of the circulation by means of venoarterial bypass with an oxygenator. Case study of eight patients in shock. J Thorac Cardiovasc Surg. 1971 Nov;62(5):769–780. [PubMed] [Google Scholar]
  18. Lefemine A. A., Kosowsky B., Madoff I., Black H., Lewis M. Results and complications of intraaortic balloon pumping in surgical and medical patients. Am J Cardiol. 1977 Sep;40(3):416–420. doi: 10.1016/0002-9149(77)90165-5. [DOI] [PubMed] [Google Scholar]
  19. Lefemine A. A., Kosowsky B., Madoff I., Black H., Lewis M. Results and complications of intraaortic balloon pumping in surgical and medical patients. Am J Cardiol. 1977 Sep;40(3):416–420. doi: 10.1016/0002-9149(77)90165-5. [DOI] [PubMed] [Google Scholar]
  20. Lefemine A. A. Left ventricular bypass--an experimental and clinical experience. Trans Am Soc Artif Intern Organs. 1977;23:326–330. doi: 10.1097/00002480-197700230-00080. [DOI] [PubMed] [Google Scholar]
  21. Lefer A. M., Martin J. Origin of myocardial depressant factor in shock. Am J Physiol. 1970 May;218(5):1423–1427. doi: 10.1152/ajplegacy.1970.218.5.1423. [DOI] [PubMed] [Google Scholar]
  22. Litwak R. S., Lukban S. B., Jurado R. A., Koffsky R. M., Ortiz A. F., Jr, grana V. P., Fischer A. P., Sherman J. Temporary mechanical support of left ventricular failure following open heart surgery. Adv Cardiol. 1977;20:102–109. doi: 10.1159/000399858. [DOI] [PubMed] [Google Scholar]
  23. Mattox K. L., Feldtman R. W., Beall A. C., Jr, DeBakey M. E. Pulmonary embolectomy for acute massive pulmonary embolism. Ann Surg. 1982 Jun;195(6):726–731. doi: 10.1097/00000658-198206000-00008. [DOI] [PMC free article] [PubMed] [Google Scholar]
  24. Norman J. C., Duncan J. M., Frazier O. H., Hallman G. L., Ott D. A., Reul G. J., Cooley D. A. Intracorporeal (abdominal) left ventricular assist devices or partial artificial hearts: A five-year clinical experience. Arch Surg. 1981 Nov;116(11):1441–1445. doi: 10.1001/archsurg.1981.01380230059009. [DOI] [PubMed] [Google Scholar]
  25. Pae W. E., Jr, Rosenberg G., Donachy J. H., Landis D. L., Phillips W. M., Parr G. V., Prophet G. A., Pierce W. S. Mechanical circulatory assistance for postoperative cardiogenic shock: a three year experience. Trans Am Soc Artif Intern Organs. 1980;26:256–261. [PubMed] [Google Scholar]
  26. Pierce W. S., Parr G. V., Myers J. L., Pae W. E., Jr, Bull A. P., Waldhausen J. A. Ventricular-assist pumping patients with cardiogenic shock after cardiac operations. N Engl J Med. 1981 Dec 31;305(27):1606–1610. doi: 10.1056/NEJM198112313052702. [DOI] [PubMed] [Google Scholar]
  27. SCHENK W. G., Jr, DELIN N. A., CAMP F. A., MCDONALD K. E., POLLOCK L., GAGE A. A., CHARDACK W. M. ASSISTED CIRCULATION. AN EXPERIMENTAL EVALUATION OF COUNTERPULSATION AND LEFT VENTRICULAR BYPASS. Arch Surg. 1964 Mar;88:327–344. doi: 10.1001/archsurg.1964.01310210001001. [DOI] [PubMed] [Google Scholar]
  28. Schoen F. J., Bernhard W. F., Khuri S. F., Koster J. K., Jr, Van Devanter S. J., Weintraub R. M. Pathologic findings in postcardiotomy patients managed with a temporary left ventricular assist pump. Am J Surg. 1982 Apr;143(4):508–514. doi: 10.1016/0002-9610(82)90204-5. [DOI] [PubMed] [Google Scholar]
  29. Schuhmann R. E., Geddes L. A., Hoff H. E. Prolonged left ventricular bypass by transvalvular aortic catheterization. I. Physiologic effects and rationale urgical concept. Surgery. 1970 Jun;67(6):957–968. [PubMed] [Google Scholar]
  30. Taguchi K., Murashita J., Nakagaki M., Mochizuki T., Matsumura M., Isono M., Hamanaka Y., Tsuchiya T. Clinical application of biventricular bypass with 6 consecutive patients. Trans Am Soc Artif Intern Organs. 1980;26:428–431. [PubMed] [Google Scholar]
  31. Torresani J., Jausseran J. M., Duport G., Watel J., Fornaris E., Henry E., Jouve A. Assistance cardiaque par dérivation veino-artérielle pulsée. Etude expérimentale. Arch Mal Coeur Vaiss. 1969 Aug;62(8):1144–1154. [PubMed] [Google Scholar]
  32. Zwart H. H., Kralios A. C., Eastwood N., Kolff W. J. Effects of partial and complete unloading of the failing left ventricle by transarterial left heart bypass. J Thorac Cardiovasc Surg. 1972 Jun;63(6):865–872. [PubMed] [Google Scholar]
