Structure of an Essential Type IV Pilus Biogenesis Protein Provides Insights into Pilus and Type II Secretion Systems

Abstract

Type IV pili (T4Ps) are long cell surface filaments, essential for microcolony formation, tissue adherence, motility, transformation, and virulence by human pathogens. The enteropathogenic E. colibundle-forming pilus (BFP) is a prototypic T4P assembled and powered by BfpD, a conserved GspE secretion superfamily ATPase held by inner membrane proteins BfpC andBfpE, a GspF-family membrane protein. Although the T4P assembly machinery shares similarity with type II secretion (T2S) systems, the structural biochemistry of the T4P machine has been obscure. Here, we report the crystal structure of the two-domain BfpC cytoplasmic region (N-BfpC), responsible for binding to ATPase BfpD and membrane protein BfpE. The N-BfpC structure reveals a prominent central cleft between two α/β domains. Despite negligible sequence similarity, N-BfpC resembles PilM, a cytoplasmic T4P biogenesis protein.Yet surprisingly, N-BfpC has far greaterstructural similarity to T2S component EpsL, with which it also shares virtually no sequence identity. The C-terminus of the cytoplasmic domain, which leads to the transmembrane segment not present in the crystal structure, exits N-BfpC at a positively-charged surface that most likely interacts with the inner membrane, positioning its central cleft for interactions with other Bfp components.Point mutations in surface-exposed N-BfpC residues predicted to be critical for interactions among BfpC, BfpE and BfpD disrupt pilus biogenesis without precluding interactions with BfpE and BfpD and without affecting BfpD ATPase activity. These results illuminate the relationships between T4P biogenesis and T2S systems,imply that subtle changes in component residue interactions can have profound effects on function and pathogenesis, and suggest that T4P systems may be disrupted by inhibitors that donot preclude component assembly.

Introduction

Type IV pili (T4Ps)¹ or fimbriae are surface appendages by numerous species of Gram-negative produced bacteria, some Gram-positive bacteria and some Archaea.^{1, 2} Among these microorganisms are a plethora of important pathogens responsible for a massive burden of human illness.These diseases include infections of the upper respiratory tract (Haemophilus influenzae, Moraxella catarrhalis), pneumonia and other infections in compromised hosts (Legionella pneumophila, Pseudomonas aeruginosa), meningitis (Neisseria meningitidis), sexually transmitted infections (N. gonorrhoeae), diarrhea (Vibrio cholerae, enteropathogenic Escherichia coli (EPEC), enterotoxigenic E. coli, Shiga-toxin producing E. coli, Yersinia pseudotuberculosis), enteric fever (Salmonella entericaserovarTyphi), and other systemic infections (Burkholderia pseudomallei, V. vulnificus).Numerous functions are ascribed to T4Ps including adherence to tissue culture cells, auto-aggregation, twitching motility, and formation of biofilms.¹ Several T4Ps have been confirmed in animal models^3–6 or volunteer studies to be required for colonization or virulence.^7–9 Thus, a thorough understanding of the biology of T4Ps has important implications for microbial biology and human health.

T4Ps are composed of repeating subunits of pilin, which are synthesized as pre-pilin precursors.¹Pre-pilin is processed by the pre-pilin peptidase, a bi-functional aspartic acid protease that removes the signal sequence and N-methylates the terminal residue of the mature protein.^{10, 11}The periplasmic oxido-reductatase DsbA catalysesthe formation of a disulfide bond in the globular domain of the pre-pilin.¹² As the active site of the pre-pilin peptidase is in the cytoplasm and cleavage of the signal sequence and DsbA-catalyzed disulfide bond formation occur simultaneously and independently, the pre-pilin is an integral cytoplasmic transmembrane protein with the N-terminus in the cytoplasm, a conserved hydrophobic α-helical transmembrane domain, and a globular periplasmic domain.Crystal structures of full-length pilin subunits and electron microscopy analysis of the pilus filament reveal that theconserved hydrophobic N-terminal sequence forms a long α-helix that is bundled in the core of the mature T4P filament.^13–15 A complex multimeric T4P biogenesis machine is required for extraction of the pilin protein from the cytoplasmic membrane, assembly of the pilin monomers into helical pili, and extrusion of the pili through the outer membrane (OM).¹⁶

T4Ps have been divided into two groups with evidence of divergent evolutionary histories.¹⁷ The T4aP systems are distinguished by short pre-pilin leader peptides, smaller pilin proteins, and the scattering of genes encoding essential proteins at various sites in the genome. The genes encoding T4bP systems are found on a single genetic locus, the pre-pilin leader peptides are longer and the pilin proteins larger. The bundle-forming pilus (BFP) of EPEC, a T4bP, has emerged as an important prototypic system to study T4P biogenesis and function.The fourteen genes of the bfp operon are sufficient to allow BFP assembly when expressed from an artificial promoter in a laboratory E. coli host.¹⁸The bfpA gene encodes the pre-pilin protein, pre-bundlin,¹⁹ while the bfpP gene encodes the pre-pilin peptidase.²⁰Aside from bfpH, which seems to be a pseudogene,^{16, 18} and bfpF, which encodes a member of the PilT family ATPases required for disassembly of auto-aggregates (disaggregation) and retraction of the pili,^{7, 21} the other ten genes encode proteins required for pilus assembly.^{22, 23}Ten of the Bfp proteins including bundlin and BfpF, but excluding BfpP and twootherpre-pilin peptidase substrates (also known as pseudo-pilins) BfpI and BfpK, can be detected after cross-linking and purification of the OM secretin BfpB, suggesting that they form a complex spanning both the inner and OMs.¹⁶

To facilitate analysis of the BFP biogenesis machine, we conceptually divide the Bfp proteins into components of inner membrane (IM) and OM subassemblies.The IM subassembly is composed of the two cytoplasmic ATPases BfpD and BfpF plus two transmembrane proteins, BfpC and BfpE.²⁴BfpD is a member of the highly conserved PilB/GspEhexamericsecretion ATPase superfamily, whose members act in many bacterial and archaeal macromolecular transport systems, such as Type II secretion (T2S), type IV secretion, DNA uptake by natural transformation and conjugation, and archaeal flagellar assembly systems.²⁵ BfpE is a member of the GspF secretion family of membrane proteins, which are conserved in T4P, T2S, and Gram-positive competence systems, with recognizable orthologs in archaeal flagellar systems.²⁶A detailed topological analysis suggested that BfpE has four transmembrane segments with a 114-residue cytoplasmic N-terminal domain, N-BfpE.²⁷However, in silico analysis suggests that the proposed second periplasmic domain is homologous to the N-terminal domain and the two domains may associatein the cytoplasm.²⁸BfpC is a bitopic IM protein with the N-terminal residues1–164 in the cytoplasm (N-BfpC) and C-terminal residues 188–402 in the periplasm.²⁴ Together BfpC and BfpE recruit BfpD to the membrane, while genetic evidence suggests that BfpF interacts with a small cytoplasmic sequence of BfpE.²⁴

T4P biogenesis systems are closely related to T2S systems.Indeed, the T4aP system of P. aeruginosa is capable of assembling components of T2S systems into pili²⁹ and over expression of a T2S system can lead to formation of pili.³⁰Moreover, some T4P systems have secretory functions.^{31, 32}These observations have led to the hypothesis that T2S systems use reversible assembly of pilin-like proteins into short filaments as a piston to pump substrates across the outer membrane. The GspE T2S ATPase forms a tight complex with the cytoplasmic domain of the GspL family bitopic membrane protein, as shown by the crystal structure of the complex between EpsE and EpsL from V. cholerae.^{33, 34} However, limited structure-based information about T4P assembly machines has restricted our understanding of their function. To define the molecular architecture of a prototypic T4P machine and address questions regarding the membrane-associated components of T4P and their relationship to the T2S system, we purified, crystallized and solved the crystal structure of N-BfpC and analyzed the structure for insights into the T4P machine and related T2S system.

Results

N-BfpC crystal structure, architecture and electrostatic surface

To help define the structural basis for BfpC interactions acting in the T4P IM subassembly, we expressed, purified and crystallized the cytoplasmic region of the protein (residues 1–164, N-BfpC). We solved the crystal structure of N-BfpC by multi-wavelength anomalous dispersion (MAD) phasing and refined the resulting structure to 1.9 Å resolution(Table 1). Residues 3–164 were visible in electron density maps. N-BfpC, which crystallized as a monomer,is a globular protein with a distinct cleft separating two similar domains, each comprised of anα-helix-β-sheetcombination (Figure 1A). The protein begins with aβ-hairpin (strands β1 and β2), which lies between the two domains at the back of the protein opposite to the cleft. The β-hairpin isfollowed by a short β-strand, β3, the first of three anti-parallel strands for the domain I β-sheet. A short loop connects β3 to an α-helix, α1, which runs parallel to the β-strands. Strands β4 and β5 follow, after which comes an irregular loop that runs along the back of the protein from the top of domain I tothe bottom of domain II. A single α-helical turn is located in the center of this extended loop. The loop feeds into antiparallel strands β6–β8 of the 4-stranded domain IIβ-sheet. β8is followed by α2, which, like α1, runs parallel to its associated β-strands. From α2, the polypeptide chain forms the last β-strand, β9. This short β-strand is adjacent and parallel toβ6 on the outside of the domain II β-sheet. Thus, while theoverall structures of domains I and II are similar they have distinct topologies. From β9, the polypeptide chainforms an irregular loop that again wraps around the back of the domain to lie across domain I. A 3₁₀ helix is located at the center of this terminal extended loop. The two helical turns and the β-hairpin form a sub-domain at the back of the protein, comprised of N- and C-terminal segments and flanked by the β-sheets. The cleft at the front of the protein separates domains I and II. The peripheral β-strands (β3 and β8) of the two β-sheets run parallel to each other and form the floor of the cleft but do not form canonical β-sheet hydrogen bonds. The cleft is framed by the two α-helices and lined with several exposed hydrophobic amino acids as well aspolar and charged residues.

Table 1.

Crystallographic data and refinement statistics

Data collection	SeMetNBfpC
	Peak	Edge	Remote
Beamline	ALS 5.0.1
Space group	P212121
Cell dimensions	42.83, 61.83, 78.27
α, β, γ(°)	90.0, 90.0, 90.0
Resolution (Å)	20.0–1.90	20.0–2.0	20.0–2.10
Wavelength (Å)	0.9791	0.9793	0.9639
Completeness (%)	99.9 (99.6)	98.5 (99.4)	95.2 (94.0)
Observed reflections	67,381	56,740	49,574
Unique reflections	16,999	14,243	12,283
Rsym(%)a,b	6.1 (24.7)	5.7 (23.6)	6.6 (25.8)
I/σ(I)	28.7 (4.3)	27.3 (5.6)	20.0 (3.3)

Refinement Statistics
Resolution limits (Å)	20.0–1.9
Molecules/A.U.	1
Rcryst(%)c	21.7
Rfree (%)d	22.7
No. of reflections used	16509
No. of atoms
Protein	1266
Water	119
B-factor (Å2)
Average	26.1
Protein	25.3
Water	34.6
RMS deviations
Bond lengths (Å)	0.005
Bond angles (°)	1.24
Ramachandran plot
Most favoured	92.9
Allowed	6.4
Generously allowed	0.7
Disallowed	0.0

^aValues in parentheses correspond to the highest resolution shell

^bR_sym is the unweighted R value on I between symmetry mates: Σhkl Σj |I(hkl)−<I(hkl)>| / Σhkl ΣI(hkl).

^cR_cryst= Ihkl ∥Fobs(hkl)| − |Fcalc(hkl)∥ / Σhkl |Fobs(hkl)|.

^dR_free is the cross validation R factor for 5% of reflections against which the model was not refined.

Figure 1.

N-BfpC fold, structure, and electrostatic implications for IM interactions.(A) N-BfpC fold. Domain I (blue) and II (green) show similar topologies with dissimilar regions (pink). The right view is rotated 90° from the left view. The central cleft is formed between α1 and α2. (B) N-BfpC electrostatic surface potential viewed as in Figure 1a (left) and rotated ~180 ° (right). Electrostatic potential was calculated using APBS,⁶⁰ where red represents negative charge, blue is positive and white is uncharged (scale −8 kT to +8 kT). The positively charged patch near the C-terminal end (right view) and negatively charged regions are apparent. (C) Proposed configuration of N-BfpC with respect to IM membrane phospholipids. The transmembrane segment and the beginning of the periplasmic domain of BfpC (light blue), fold, and overlaid electrostatic surface potential as calculated with APBS,⁶⁰ is shownusing PyMOL (The PyMOL Molecular Graphics System, Version 1.3, Schrödinger, LLC).

The C-terminus of N-BfpC, Lys164, is followed in native BfpC by the transmembrane segment residues 165–187.³⁵The regionsurrounding Lys164 is rich in basic residuesthat form a strong positively charged patchbased on its electrostatic surface potential (Figure 1B). This surfacelikely interacts with the negatively charged phospholipid head groups of the inner membrane, which would expose the central cleftof BfpC to the cytoplasm (Figure 1C).

Structural similarity of N-BfpC with T2S inner membrane protein EpsLand cytoplasmic T4aP protein PilM

As N-BfpC has no sequence homologues among known proteins, we performeda comprehensive search for structural homologues using the DALI server.³⁶ N-BfpC is similar to the N-terminal domain of EpsL from V. cholerae(N-EpsL, PDB ID 1YF5, DALI Z-score of 5.2). EpsL is an IM protein that binds to the T2S ATPase EpsE.^{33, 37}We showed previously that BfpC and BfpE recruit the BFP assembly ATPase BfpD to the membrane.²⁴ Thus, BfpC and EpsL are functional and structural homologs,despite the absence of recognizable sequence similarity between these proteins (Figure 2A).²⁴The globular N-EpsL has 3 αβ-domains and domains II and III superimpose well on domains I and II of N-BfpC (root-mean-square deviation, RMSD, 3.3 Å for Cα atoms of 132 aligned residues), indicatingsignificantstructural similarity (Figure 2B). The topology of the corresponding domains is identical in the two proteins. Domain I of N-EpsLlies at the back of the protein behind the cleft but is larger and more complex than the sub-domain of N-BfpC, with 3 α-helices enveloping a central β-sheet.

Figure 2.

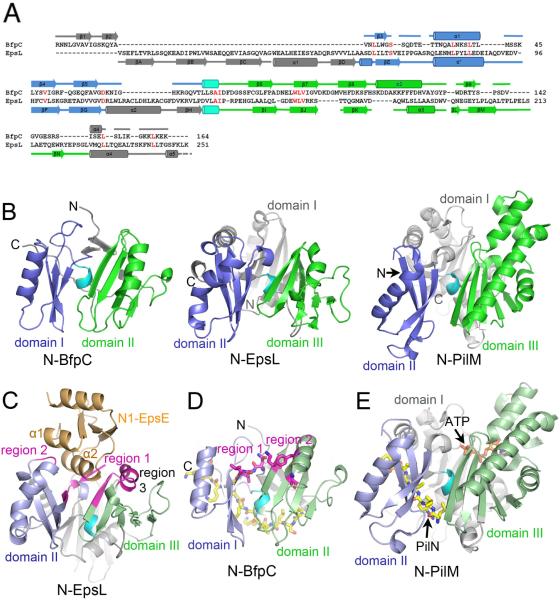

N-BfpC resembles N-EpsL and PilM. (A) Alignment of the amino acid sequences of EPEC N-BfpC and V. choleraeN-EpsL, adjusted to correspond to common secondary structure elements as aligned by the DALI server. Identical residues are shown in red. Domains I of N-BfpC and II of N-EpsL are colored in blue, domains II and III, respectively are colored in green, while cyan indicates the α-helical turn between the two domains. Cylinders correspond to α-helices and arrows to β-sheets, which in N-EpsL are numbered or lettered according to the original publication.³⁷ The second EpsL α-helix (asterisk) was resolved only when N-EpsL was co-crystalized with N-1 domain of EpsE.³³Although the secondary structural features of PilM also align to those of BfpC, residues conserved between PilM and EpsL are not shared with BfpC. (B) Structural comparison of N-BfpC, N-EpsL(from PDB ID: 2BH1) and PilM(from PDB ID 2YCH) colored as in A. Domains I and II of N-BfpC correspond to domains II and III of N-EpsL and PilM(C) N-EpsL:N1-EpsE complex. The structure is rotated relative to its orientation in (B), with the top tilted toward the reader and the bottom tilted into the page. N1-EpsE (orange) is bound at the top of the cleft between domain II (light blue) and III (light green)ofN-EpsL. Regions on N-EpsL that interact with N1-EpsE are colored magenta. (D)N-BfpC structure, rotated as for (C). Resides that correspond to those in regions 1 and 3 of N-EpsL are shown in stick representation, with carbon atoms colored magenta, oxygens in red and nitrogens in blue. The C-terminal peptide, which occupies a position in N-BfpC that corresponds to the PilN peptide in the PilM:PilN complex, is shown in stick representation with its carbons in yellow. (E) PilM:PilN complexrotated as for (C) showing the bound ATP. The PilN peptide, which binds in a cleft between domains I (grey) and II (light blue), is shown in stick representation with its carbons in yellow.Structural figures were prepared with PyMOL.

In the crystal structure of a complex between N-EpsL and the N-terminus of the T2S ATPase N1-EpsE (PDB ID 2BH1), the α2 α-helix of N1-EpsE is inserted into the top of the N-EpsL cleft and the short N-terminal N1-EpsE α-helix, α1, interacts with a loop between the β-sheet and the α-helix of N-EpsL domain II (Figure 2C). In total, NEpsL interacts with N1-EpsE via three discrete regions (Figure 2C, magenta): (1) residues 61–65;(2) 87–91;and (3) 168–181. N-EpsL region 1 residues D61, L62, and I63, the backbones of which interact with N1-EpsE, correspond to residues N19, L20, and L21 in N-BfpC, respectively(region 1, Figure 2D). N-EpsL region 3 side chains of M168, W174, L177 and L178 form hydrophobic interactions with N1-EpsE. In the corresponding site in N-BfpC,K111, F122 and V127 are oriented into the cleft (region 2, Figure 2D). Thus, these exposed cleft residues in N-BfpC may be involved in binding to the N-terminus of the EPEC assembly ATPase BfpD in a manner similar to the NEpsL:N1-EpsE interaction. Both N-EpsL alone, and its complex with N1-EpsE formed dimers in their crystal structures, although N-EpsL does not form a dimer in solution.³³ On the other hand, N-BfpC is a monomer in both solution and crystal structure. The N-BfpC structure lacks the region corresponding to the domain I of N-EpsL, which is responsible for its dimer interface, thus explaining the different oligomerization states in the respective crystal structures.

The structure of the cytoplasmic PilM T4aP biogenesis protein from Thermusthermophilus (PDB ID 2YCH) also resemblesN-BfpC (Figure 2B)in spite of the lack of detectable sequence similarity between the two proteins.³⁸Interestingly, the structure of PilM is far more similar to that of EspL (reported RMSD of alignedCα atoms of 2.8 Å) than it is to N-BfpC (RMSDof 110 aligned Cα atoms of 4.3 Å), despite the fact that PilM and N-BfpC are both from T4P systems while EpsL is from a T2S system. Domain I of EpsL, lacking in N-BfpC, is present in PilM. In addition PilMhas a complete ATP-binding domain also lacking in N-BfpC, confirming and extending the previously noted similarity between EpsL and FtsA.³⁷PilM was crystalized along with ATP and a peptide from the small cytoplasmic N-terminal segment of the bitopic T4P biogenesis protein PilN (Figure 2E). Interestingly, the PilN peptide occupies a cleft between domains I and II in PilM that in N-EpsL is occupied byits own C-terminal strand, which is immediately followed by the transmembrane domain in native EpsL. In N-BfpC there is no such cleft due to the absence of an equivalent of the EpsL domain I, however, its C-terminal segment nonetheless occupies a similar position along the back of domain I. This segment is part of the positively-charged patch on N-BfpC, predicted to interact with the inner membrane (Figure 1). Thus, whereas BfpC and EpsL are anchored to the inner membrane via their own transmembrane segments, PilM appears to use PilN for membrane anchorage.

Essential N-BfpC residues predicted to interact with BfpD

Given the structural similarities between N-BfpC and EpsL, we investigated whether residues in the BfpC cleft, particularly those corresponding to regions 1 and 3 of EpsL, are essential for BFP biogenesis.²⁴ Like EpsE, the purified BfpD assembly ATPase assembles into a hexamer (Supplemental Table 1, Supplemental Figure 1), a consistent structural feature of secretion ATPases.^{39, 40}BfpDmay bind to the BfpC cleft in a manner analogousto the N1-EpsEand N-EpsLinteraction.³³Accordingly, N19, K111 and L21, which all lie on the floor of the cleft (Figure 3A),are candidates for mediating interactions between N-BfpC and BfpD. ResiduesT28, K37 and M42are exposed on α1 in domain I and thus may also participate in binding to partner proteins.

Figure 3.

Residues of N-BfpC required for function. (A)Side chains foralteredresidues are shown in stick representation in N-BfpC structure. (B) Immunoblotting of BfpC derivatives expressed in trans from complementing plasmids in EPEC bfpC mutant strain UMD924. Loading volumes were adjusted according to Ab₆₀₀ measurements. Wild-type BfpC was expressed from plasmid pEM26; mutant proteins BfpC_N19D, BfpC_N19A, BfpC_L21A, BfpC_N19A,L21A, BfpC_T28A, BfpC_K37A, BfpC_M42A, and BfpC_K111E were expressed from plasmids pEM92, pKMS01, pEM93, pEM94, pEM95, pEM96, pEM97, and pEM98, respectively.Wild type EPEC strain E2348/60 was used as a positive control for native BfpC. The BfpC antibody, raised against the N-terminus of the protein, recognizes a BfpC degradation fragment as well as full-length BfpC. The auto-aggregation (AA) ability of each strain is indicated. (C) Auto-aggregation indexes, expressed as the percentage increase in OD₆₀₀ after vortexing, of bfpC mutant UMD924 without (None, gray bar) or with complementing plasmids pEM26, pKMS01, pEM95, pEM96, or pEM92 encoding functional BfpC variants as indicated (black bars). Each assay was performed in triplicate in three experiments and error bars indicate standard errors of the means. Symbols: *, P value < 0.05, ***, P value < 0.001 in comparison to the uncomplemented mutant; †, P value < 0.05 in comparison to all other strains: §, P < 0.05 in comparison to all other functional variants. (D) Mean fluorescence intensity of strains capable (black bars) or incapable of auto-aggregation (gray bars)examined by flow-cytometry using an anti-bundlin antibody. E2348/69 is the wild typeEPEC strain, UMD924 is the bfpC mutant and the remainder of the strains represent UMD924 containing plasmids encoding wild type bfpC (WT, pEM26) or plasmids pEM26, pEM92, pKMS101, pEM93, pEM94, pEM95, pEM96, pEM97 and pEM98 encoding BfpC variants with the respective indicated alterations. Values are the means of three separate experiments and error bars indicate standard errors of the means.

To test these predictions, we used site-directed mutagenesis on a plasmid (pEM26) designed to express BfpC variants in which residues of interestwere replaced with alanine and N19 and K111 were replaced with aspartic and glutamic acid, respectively (Table 2). We assessed the ability of these plasmids to restore auto-aggregation and disaggregation to the EPECbfpC mutant strain UMD924.The auto-aggregation phenotype is dependent on expression of BFP filaments and acts as a testfor a functional assembly apparatus while disaggregation is dependent on BfpF and its putative pilus retraction function.²³Importantly, immunoblotting revealed that each of the BfpC variants was expressed in the bfpC mutant background strain (Figure 3B). Plasmids pEM26, pKMS01, pEM92, pEM95, and pEM96, encoding wild-type BfpC, BfpC_N19A, BfpC_N19D, BfpC_T28A, and BfpC_K37A, respectively, were able tocomplement the bfpC mutant strain to restore auto-aggregation and disaggregation (Table 2). In contrast, plasmids pEM93, pEM94, pEM97, and pEM98, encoding BfpC_L21A, BfpC_N19A,L21A, BfpC_M42A, and BfpC_K111E, respectively, could not. Of note, the auto-aggregates formed by the strain containing pEM92 encodingBfpC_N19D were considerably smaller than those formed by the strains expressing wild type BfpC. To determine whether any bfpC mutations able to complement the bfpC mutant might have more subtle effects on pilus function, we calculated the aggregation index for each of these strains. Figure 3C shows the data at 4 hours, a time point at which differences were maximized, which confirm the impressions obtained by visual inspection of auto-aggregates. As a further test of function, we used flow cytometry to measure surface bundlin immunofluorescence (Figure 3D). We found that strains expressing BfpC variants that preclude auto-aggregation have levels of surface bundlin immunofluorescence no greater than background seen in the bfpC mutant UMD924, while all those that permit auto-aggregation have more surface bundlin.These results reveal that residues L21, M42 and K111 are required for function of the BFP biogenesis machine, while N19, T28 and K37 are tolerant to mutation. Interestingly, while the N19A substitution did not preclude normal function of the BFP machinery and in fact resulted in increased levels of surface bundlin and auto-aggregation, mutation N19D reduced and K111Eabolished the formation of auto-aggregates and surface bundlin expression.K11E and N19 are in very close proximity and along with L21 and M42 form a band along the top of the BfpC cleft. These residuesarethus likely to make contact with any protein bound in this region.

Table 2.

Summary of the effects of bfpC and bfpE mutations on funotion. Autoaggregation was assessed by the ability to complement an EPEC bfpC mutant strain in the case of pEM26 and derivatives or the ability to perform autoaggregation in the case of E. colicpxA^* strain ALN92 containing the entire bfp operon with or without mutations. For additional details see text.

BfpC substitutions	BfpE substitution	Autoaggregation	BfpD membrane recruitment*	Co-elution with BfpD
None	None	+	+	+
N19A	None	+	NT	NT
N19D	None	+	NT	NT
N19A, L21A	None	−	NT	+
L21A	None	−	+	NT
T28A	None	+	NT	NT
K37A	None	+	NT	NT
M42A	None	−	+	+
K111E	None	−	+	NT
None	D82N	−	NT	+
None	E83K	−	NT	NT
N19D	D82N	+	NT	+
K111E	E83K	−	NT	NT

^*NT, not tested

Mutations that disrupt BFP biogenesis are insufficient to disrupt interactions among N-BfpC, BfpD and N-BfpE or to reduce BfpD ATPase activity

BfpC and BfpE together recruit the BfpD ATPase to the cytoplasmic membrane.²⁴To assess the effect of bfpC mutations that interfere with function on interactions among these three proteins, we created a series of plasmids with an artificial operon from which we could express BfpD alone, BfpD with BfpC, or BfpD with both BfpC and BfpE. We separated lysates of E. coli strains carrying these plasmids into soluble and insoluble (membrane) fractions and detected BfpD by immunoblotting. GroEL, which served as a control for a cytoplasmic protein, was consistently present overwhelmingly in the soluble fraction (not shown). As previously reported,²⁴BfpD was predominantly soluble when expressed alone, and insoluble when expressed in conjunction with BfpC and BfpE (Figure 4A), consistent with a role for BfpC and or BfpE in recruiting BfpD to the membrane. When co-expressed only with wild type BfpC, BfpD remained predominantly soluble. Furthermore, co-expression of BfpD with bfpC mutations that interfere withautoaggregation did not substantially affect BfpD solubility. Similarly, when we expressed BfpD with both BfpC and BfpE, we found no substantial effect of bfpC mutations that preclude BFP biogenesis on BfpD solubility (Figure 4B). Thus, amino acid changes in BfpC that disrupt pilus function do not appear to alter the ability of the inner membrane proteins to recruit BfpD.

Figure 4.

Modifications of BfpC that interfere with function do not interfere with BfpD and BfpE interactions or BfpD activity. (A) Soluble (S) and insoluble (I) fractions of E. coli strain TOP 10 expressing only BfpD from pLJC1; or strain DH5α expressing BfpC, BfpD and BfpE from pEM27; BfpC and BfpD from pEM122; BfpC_L21A and BfpD from pEM124, BfpC_M42A and BfpD from pEM128; and BfpCK111A and BfpD from pEM129 were examined by immunoblot using anti-BfpD sera. (B) Soluble (S) and insoluble (I) fractions of E. coli strain DH5α expressing BfpD only from pLJC1; BfpC, BfpD and BfpE from pEM27; BfpC_L21A, BfpD and BfpE from pEM99; BfpC_M42A, BfpD and BfpE from pEM100; and BfpC_K111AM, BfpD and BfpE from pEM101 were examined by immunoblot using anti-BfpD sera. (C)The proportion of total N-BfpC (white bars, top), N-BfpE (gray bars, middle), and BfpD-His (black bars, bottom) in eluate fractions after elution from an Ni-NTA column ofthe indicated recombinant protein variants. Indicated plasmids encode WT N-BfpC and WT N-BfpE without BfpD-His (−, pEM170) or BfpD-His (+) andWT N-BfpC and WT N-BfpE (pEM171); N-BfpC_M42A and WT N-BfpE (pEM177); WT N-BfpC and N-BfpE_D82N (pEM179); N-BfpC_N19D and N-BfpE_D82N (pEM181); or N-BfpC_{N19A L21A} and WT N-BfpE (pEM184). Because the results were not normally distributed, N-BfpC and N-BfpE are shown as “box and whisker” plots where boxes indicate the interquartile range, bars within boxes indicate the medians and the “whiskers” indicate the range of six separate experiments. The asterisks indicate a significant difference compared to pEM171 (P = 0.03, Wilcoxon Matched-Pairs Signed-Ranks Test). For BfpD-His, the error bars indicate standard errors of the mean.(D) ATPase activity, in nanomoles of inorganic phosphate produced per minute per mg of total protein, of samples collected as in C. Samples collected from the strain containing pEM170 (no BfpD-His) were excluded because of extremely low protein concentrations. Error bars indicate the SEM of three separate experiments. (E) Phase-contrast micrographs of E. coli strain ALN92 harboring plasmids from which only bundlin and BfpG are expressed (−, pKDS301), all Bfp proteins are expressed (+, pKDS302) or all Bfp proteins are expressed with the following modifications: BfpC_N19D (pEM38), BfpE_D82N (pEM39) and both BfpC_N19D and BfpE_D82N (pEM42). All images were taken at the same magnification.

Next, we used co-affinity purification to determine the effect of amino acid substitutions in N-BfpC on the stability of the in vitrointeractions among N-BfpC, N-BfpE and BfpD. We attached a hexahistidine tag to the C-terminus of BfpD and created a series of plasmids with an artificial operon encoding wild type or mutant N-BfpC, wild type N-BfpE, and BfpD-His. As a control we also created a plasmid with wild type NBfpC and N-BfpE without BfpD. We applied lysates from strains containing these plasmids to a nickel affinity column, washed, and eluted bound proteins with imidazole. Coomassie blue staining revealed BfpD-His in all eluate samples, with N-BfpC and N-BfpE visible as very faint bands, if at all, and no other visible proteins (Supplemental Figure 2). We performed immunoblotting for BfpC and BfpE and quantified the amount of each protein recovered in the eluate as a percentage of the total amount in the flow-through, wash and eluate. Although there was considerable variation from experiment to experiment, abundant N-BfpC and N-BfpE could be detected in immunoblots after coelution from a nickel agarose column in the presence of BfpD-His, but significantly less of each protein was detected in the absence of BfpD (Figure 4C). However, co-elution of either N-BfpC or N-BfpE with BfpD-His was not significantly reduced by either the bfpC_M42Aor thebfpC_{N19A L21A} mutation. The percentage of BfpD-His eluted from the column did not differ substantially among the various samples.These results indicate that mutations in BfpC that interfere with BFP assembly and are predicted to interfere with specific interactions between BfpC and BfpD are insufficient to disrupt the BfpC-BfpD-BfpE complex.

The presence of partner proteins can induce allosteric alterations in enzyme activity for ATPases closely related to BfpD, such as EpsE.⁴¹ Therefore we decided to test the hypothesis that mutations in bfpC interfere with the function of the BFP biogenesis machine by reducing BfpD activity. Control experiments indicated that purified BfpD with the hexahistidine C-terminal tag has modest ATPase activity in the presence of magnesium and that this activity is increased approximately 3-fold when BfpD is purified along with N-BfpC and N-BfpE (Supplemental Figure 3). Therefore, we assayed the samples obtained by co-affinity purification of BfpD with wild type and variant N-BfpC for ATPase activity. We found no evidence that samples containing non-functional variant N-BfpC proteins exhibit reduced ATPase activity in comparison to the sample that had the wild type forms of these components (Figure 4D). The modest increase in activity observed is likely due to slightly lower total protein concentrations in the samples containing variant proteins.

Reciprocal mutations in N-BfpC and N-BfpE preserve function

Since we were unable to detect an effect of mutating BfpC residues predicted to interfere with BfpC-BfpD interactions on BfpD recruitment to the membrane, BfpD co-purification or BfpD function, we considered the possibility these amino acid changes might instead disrupt interactions with the N-terminus of BfpE. BfpE, which isa member of the GspF family of inner membrane proteins that is highly conserved in T4P, T2S and other related systems, might bind within the N-BfpC cleft in addition to or instead of BfpD. In support of this idea, a crystal structure of the N-terminal domain of the V. cholerae T2S GspF family member EpsF was solved as a dimer and was shown to be located on the cytoplasmic side of the inner membrane.²⁸Alignment analysis of the N-terminal amino acid sequences of EpsFand BfpE revealed a highly conserved region correspondingto the α5 helix in EpsF, with9 out of 16 residues beingidentical.²⁸α5 is exposed onthe surface of the EpsF dimer and thus may interact with partner proteins. Interestingly, two conserved residues, D130 and E131, on the N-terminus of the α5 helix in EpsF (D82 and E83 in BfpE) are exposed to the solvent and are predicted to lie in close proximity to the cytoplasmic membrane. Thus, these negatively charged amino acids, which would be expected to be repulsed by the negatively-charged phospholipid head groups, are candidates for critical interactions with N-BfpC polar residues such as theessential cleft residueK111 and/or N19. Thus, we sought to test the hypothesis that interactions between conserved residues D82 and E83 of BfpE with N19 andK111 of BfpC are required for T4P biogenesis.

Plasmid pKDS302 contains the entire bfp operon under the control of an isopropyl β-D-1-thiogalactopyranoside (IPTG)-inducible promoter and can direct the expression of BFPs in a laboratory E. coli host strain.¹⁸In the presence of a constitutive cpxA* mutation, sufficient pili are expressed to allow auto-aggregation.⁴²Because it is contained in a single plasmid of moderate size, this system is more suitable to engineering mutations in different bfp genes than is the system in an EPEC background strain. We created sixmodified plasmids from pKDS302 by site-directed mutagenesis with the following substitutions inbfpCand/or bfpE: bfpC_N19D, bfpE_D82N, bfpC_N19D and bfpE_D82N, bfpC_K111E, bfpE_E83K, and bfpC_K111Eand bfpE_E83K. AlthoughE. coli (strain ALN92) transformed with pKDS302 expressing wild-type BFP proteins exhibited auto-aggregation (Fig4E), the same strainharboring pKDS302 derivatives with bfpC_K111E, bfpE_D82N, bfpE_E83K, or both bfpC_K111E and bfpE_E83K failed to exhibit auto-aggregation (Table 2).These results suggest that BfpE residues D82 and E83 are critical for pilus biogenesis and/or pilus functions. As expected from the complementation assay above,E. coli with pKDS302 carrying thebfpC_N19D mutation formed aggregates. Of note, the auto-aggregation assay could not be used to quantify these results as the aggregates of even the strain carrying the plasmid with the wild type genes are too small to detect in this assay.

Significantly, while thebfpE_D82Nmutation disrupted BFP biogenesis in the setting of wild type BfpC, E. colicarrying the pKDS302 derivative with dual bfpC_N19Dand bfpE_D82Nsubstitutions was capable of auto-aggregation.This extragenic suppression of a bfpEmutation that interferes with BFP assembly suggests that BfpC and BfpE might interact through a hydrogen bond between N19 of BfpC and D82 of BfpE, although more complex interactions involving these and other residues cannot be excluded. Furthermore, this experiment confirmed that K111 of BfpC is required for BFP biogenesis and determined that E83 of BfpE is also essential. Nevertheless, we were unable to detect an effect of the bfpE_D82N mutation on the ability to co-purify BfpE or BfpC with BfpD (Figure 4C) or on BfpD activity (Figure 4D).

Discussion

We determined the crystal structure of N-BfpC, which revealed that, despite negligible sequence similarities, N-BfpC is structurally relatedto the T2S component NEpsL and the cytoplasmic T4aP protein PilM, suggesting that these proteins share a common evolutionary origin and likely a similar function. However, key differences are also apparent. Obvious differences among these proteins concern their size and topology. BfpC is a bitopic IM protein with a 214-residueperiplasmic domain (BfpC-C).²⁴ EpsL has a similar topology, but the periplasmic region has only113 amino acids,⁴³ while PilM is entirely cytoplasmic.³⁸In addition to its association with the EpsE ATPase, EpsL interacts directly with EpsM, which is another bitopic IM protein but one in which the cytoplasmic regionis short with a larger periplasmic region.⁴³In contrast, PilM interacts in a complex with PilN and PilO, which have topologies similar to EpsM, and with the predicted lipoprotein PilP.⁴⁴ The partial structures of EpsM,PilOand the periplasmic region of EpsL reveal that they are homologous proteins with common αββ circular permutations of theferredoxin fold.^45–47It is tempting to predict that BfpC-C will prove to be similar, despite its greater size and negligible sequence homology. Indeed, secondary structure prediction algorithms suggest that BfpC-C has a more complicated arrangement that could include such a fold (data not shown).

The structure of N-BfpC reveals other differences from N-EpsL and PilM. For example, N-EpsL domain I, which is also present in PilM, is absent fromN-BfpC. The function of this domain is not yet defined. The fact that N-EpsL forms a dimer in the crystal structure, while N-BfpC does not, highlights another difference between N-BfpC and N-EpsL.EpsM and the periplasmic region of EpsL each form homodimersand interact with each other.⁴⁵ Similarly, PilO forms homodimers and heterodimers with PilN.⁴⁷ Each of these proteins forms complexes with the structural homologues of N-BfpC, which suggests that BfpC might also dimerize in the presence of other Bfp proteins. Alternatively, the dimers of N-EpsL seen in the crystal structuremay be an artifact of high protein concentration, since N-EpsL exists as monomer in solution, and N-EpsL/N1-EpsE exists as a heterodimer with one copy of each partner.³³

An additionalfunctional distinction between N-EpsL and both N-BfpC and PilM is the presence of the positively charged patch on N-BfpC, which we predictto interact with membrane phospholipids. This positively charged patch is composed of the residues K45, K63, K68 and R69 from the loop following strand β3 in domain I, and K157, K159, K160 and R162 from the long loop of the C-terminal end. When N-BfpC and N-EpsL are superimposed, the N-EpsL C-terminal end and part of domain I (α2) correspond to this area. Thus, we predict that N-EpsL C-terminal residues 243–253, which were eliminated from the construct used for crystallization, play a key role in the interaction between EpsL-EpsE complex and acidic phospholipids.⁴¹Both the positively charged patch of N-BfpC and the corresponding region of N-EpsL may therefore participate in the interaction with phospholipid to analogously position both proteins with regard to the IM.

One of the most intriguing ramifications of these structural comparisons concerns the evolutionary relationships among T4aP, T4bP and T2S systems. Homologues of PilM proteins are present throughout T4aP biogenesis systems and are arranged in operons along with PilN, PilO, PilP and the secretin PilQ.⁴⁸ In contrast, homologues of these proteins, with the exception of the secretin, are not obvious among the T4bP systems. The N-BfpC structure reported hereinreveals its relationship to PilM despite the lack of sequence similarity. This relationship stands in stark contrast to those of “core” components of T4P biogenesis systems including the pilins, pilin-like proteins, pre-pilin peptidase, secretin, ATPases, and polytopic inner membrane protein, all of which display obvious similarity among all such systems in Gram negative bacteria. One implication concerning the function of the PilM/BfpC protein is that its sequence may have been less constrained by evolution than that of the core components or that evolution favored diversification of this component. It is particularly intriguing that N-BfpC more closely resembles the T2S component N-EpsL in both structure and topology,than it does the T4aP component PilM. This paradox raises the possibility that T4bP systems may share a more recent common ancestor with T2S systems than they do with T4aP systems.

Inspection of the N-BfpC structure, and comparison with that of N-EpsL,identifiedseveral residues that potentially participate in critical interactions among N-BfpC, the BfpD ATPase, and N-BfpE, the amino terminus of the polytopic transmembrane protein BfpE. Mutational analysis revealed that some of these residues are essential for function of the BFP machine, as mutations in L21, M42 and K111 disrupt auto-aggregation and thus BFP biogenesis (Table 2). In contrast other residues, such as T28 and K37, both of which extend into the solvent, could be modified without disturbing function. Surprisingly, asparagine 19, which is positioned across the cleft from K111, and is analogous to D61 in EpsL, could be changed, not only to aspartic acid, but also to alanine and still retain function.

While certain BfpC residues that potentially participate in interactions with partner proteinsare essential for function of the BFP machine, an understanding of the precise functional role for these residues remains elusive. For example, by analogy with the N-EpsL/N1-EpsE structure, L21 is predicted to be part of hydrophobic patch required for the interaction of BfpC with BfpD. However, changing this residue from leucine to alanine has no apparent effect on the ability of BfpC and BfpE to recruit BfpD to the membrane, even though it renders the BFP machine non-functional. Similarly this mutation, even in combination with an alteration of residue 19 from asparagine to aspartic acid, which seems to reduce BfpC function, had no effect on the co-purification of N-BfpC or N-BfpE with histidine-tagged BfpD and did not reduce the ATPase activity of BfpD in such preparations. Similar results were obtained when methionine residue 42 was changed to alanine.

Asparagine residue 19 appears to be a special case. As noted above, this residue is positioned directly across the cleft from lysine 111, and, while the latter residue is required for function, N19 can be replaced with either aspartic acid or alanine without disrupting BFP biogenesis. Given the crucial position of these residues with respect to the two domains of N-BfpC, we tested the hypothesis that either or both of these residues interacts with another component of the machine. Inspection of conserved domains of N-BfpE revealed several acidic residues that could potentially interact with K111. When we changed BfpE E83 to K, function was lost. Similarly when BfpC K111 was replaced with E, function was lost and when both changes were made simultaneously, function was not restored, so a simple specific interaction between these residues was not revealed. Mutation of BfpE D82 to N in the setting of wild type BfpC similarly resulted in a loss of BFP biogenesis. However, in this case biogenesis was restored by the reciprocal modification of BfpC residue 19 from N to D. This extragenic suppression of a mutation in bfpE by the reciprocal mutation in bfpC implies that these residues interact directly. However, we could not further verify this prediction as N-BfpC and N-BfpE co-purified with BfpD in similar amounts regardless of whether the native or the N82D variant of N-BfpE was used. Furthermore this change in N-BfpE did not reduce BfpD activity.

From these studies it can be concluded that residue substitutions that profoundly affect the function of the pilus biogenesis machine may do so by mechanisms that do not preclude overall interactions among its components. Rather, it seems likely that such substitutionsdisrupt the orchestrationofthese interactions. It follows thatinteractions among components of T4P biogenesis machines must be precisely maintained for proper function. Herein we present the crystallographic structure of a T4bP machine component and reveal substantial similarity to T2S and T4aP components with which it shares negligible sequence similarity. The N-BfpC structure is a critical initial step in determining the architecture of the entire machine. An appreciation of thisarchitecture is crucial to understanding the biogenesis of T4Ps both as an exemplary nanomachine and an important target for therapeutic intervention against diverse infectious diseases. Our evidence suggests that such machines may be inactivated without blocking interactions by interfering with specific residue functions.

Materials and Methods

Bacterial growth conditions and protein preparation

Bacterial strains (Supplementary Table 2) were routinely grown at 37 °C in Luria-Bertani broth with addition of ampicillin (200 μg/ml), chloramphenicol (20 μg/ml) and (kanamycin 100 μg/ml), as necessary to maintain plasmids. N-BfpC (amino acids 1–164) containing a C-terminal hexahistidine tag was purified to homogeneity from E. coli strains DH5αpRPA302 as described.³⁵

Crystallization and structure determination

The Selenomethionine (Se-Met) substituted N-BfpC was expressed in E. coli B834 (DE3) in the presence of 50 mg/l of Se-Met and purified by the same procedure as native N-BfpC, except for using Sephacryl S-100 for the final size exclusion chromatography. Se-Met N-BfpC crystals were grown at room temperature by the hanging drop vapor-diffusion method using a reservoir solution containing 2.0 M ammonium sulfate. Crystals were in space group P2₁2₁2₁ with unit cell dimension a = 42.83 Å, b = 61.83 Å, c = 78.27 Å. Crystals were cryoprotected by transfer into the reservoir solution including 20% glycerol. MAD data were collected to a resolution of 2.1 Å at beamline 5.0.2 in Advanced light source. All data sets were processed with HKL2000 suite.⁴⁹

Phases were calculated with SOLVE⁵⁰ and the subsequent density modification using RESOLVE⁵¹ gave clear electron density. Models were manually built with XtalView⁵² with the partial model made by RESOLVE. Models were refined with simulated annealing, energy minimization, and individual B-factor refinement, using CNS.⁵³ The final R and R_free factors were 21.4 and 22.6 %, respectively. The model has good stereochemistry with 90.8 % in the most favored region, and no residues in the disallowed region, as assessed by PROCHECK.⁵⁴

Auto-aggregation assay

Plasmid pACYC184⁵⁵ was modified using the Stratagene QuikChange™ site-directed mutagenesis kit using primers Donne-1180 and Donne-1181 (Supplementary Table 3) to create plasmid pEM21 in which a SacI restriction site is inserted after position1566. The bfpC gene was amplified from plasmid pMAR2⁵⁶ using primers Donne-1176 and Donne-1177 and cloned into the SacI and XbaI sites of pWKS130⁵⁷ from which it was subcloned into pEM21 to create plasmid pEM26. Variants of pEM26 and of plasmid pKDS302¹⁸, encoding the entire bfp operon, were made using QuikChange™.Overnight cultures of EPEC bfpC mutant strain UMD924²³ containing pEM26 or derivatives were diluted 50- to 100-fold in Dulbecco's modified Eagle's medium and grown for 4–6 h at 37°C before examination by phase contrast microscopyas described.³⁵E. coli cpxA* laboratory strain ALN92⁴² containing pKDS302 or its derivatives wasdiluted in Luria broth and grown for 4–6 h at 30°C with 0.1 mM IPTG before examination microscopically for auto-aggregation.A quantitative auto-aggregation assay was performed as previously described.³⁵

Flow cytometry

Overnight cultures of UMD924 with or without complementing plasmids were diluted 1:100 in DMEM/F12 without phenol red, and cultured at 37°C and 225 rpm for 4 h. Bacteria were pelleted, resuspended in PBS and fixed by heating at 65°C for 30 min. Alpha-1 bundlin antibody⁵⁸ was added to each sample at a 1:500 dilution in PBS and incubated at 4°C overnight. Anti-rabbit IgG, conjugated to Alexa Fluor 647 (Cell Signaling) secondary antibody at a concentration of 2 μg/ml was added to the bacteria and incubated at RT for 1 h. Cells were then stained with 1 μM SYTO 16 (Invitrogen) for 40 min at RT. Bacteria were analyzed for surface bundlin expression using a BD LSR II flow cytometer (BD Biosciences).

Localization of BfpD

Overnight cultures ofE. coli strain TOP10 containing pLJC1, or strain DH5acontaining pEM27, DH5α with pEM99, DH5awith pEM100, and DH5awith pEM101 were diluted (1:100) in 15ml of LB with appropriate antibiotics and incubated at 37°C with shaking for 5h. Cells were harvested by centrifugation for 20min at ambient temperature and re-suspended in 3ml of buffer containing 20mM Tris-HCl pH 7.4, 140mM NaCl, 1mM phenylmethanesulfonyl fluoride (PMSF). Cells were passed twice through a French Press set to 20,000 pounds per square inch. Lysates were centrifuged at 12,000 ×g for 20min. Recovered supernatants were centrifuged at 160,000 ×g for 40 min. Soluble fractions were saved. Tubes were rinsed twice with 1ml of 20mM Tris-HCl pH 7.4, 140mM NaCl. Insoluble fractions were re-suspended in 3ml of the same buffer and centrifuged at 160,000 ×g for 30 min. Supernatants were discarded. Tubes were rinsed twice with 1ml of 20mM Tris-HCl pH 7.4, 140mM NaCland re-suspended in 1ml of the same buffer. Supernatants and insoluble fractions were stored at −80°C until analysis by immunoblotting with anti-GroEL antibody (Sigma) or the antibodies described below.

Co-affinity purification

E. coli strain DH5α cells transformed with relevant plasmids (Supplemental Table 2) were cultured in LB and stimulated with 1 mM IPTG at an Ab₆₀₀ of between 0.5 and 0.6. After 3 h, bacteria were pelleted and resuspended in lysis buffer containing 20 mM Tris-HCl, 300 mM NaCl, 20 mM imidazole pH 7.4 and 1 mMPMSF. The cells were lysed in a French press (20,000 psi) and the insoluble proteins were removed from the lysate by centrifugation (10,000 ×g, 30 min, 4°C). The soluble fraction was incubated overnight at 4°C with nickel nitrilotriacetic acid (Ni-NTA) agarose beads and applied to a column. The flow-through was collected and the column was washed with 2 ml lysis buffer. This was followed with a 6 ml wash step with lysis buffer containing 50 mM imidazole, and a 6 ml wash with lysis buffer containing 70 mM imidazole, the final 3 ml wash fraction was collected. The bound proteins were eluted with 1ml lysis buffer containing 250 mM imidazole, and collected. The collected samples from flow-through, wash and elute fractions were diluted with SDS-PAGE loading buffer, boiled for 5 min, separated by SDS/PAGE, transferred onto Immobilon-FL polyvinylidene membranes (Millipore) and incubated with Odyssey Blocking buffer (LI-COR Biosciences) overnight at 4°C. Membranes were probed with polyclonal rabbit anti-BfpC_1–164³⁵ at a dilution of 1:2000 or a sheep polyclonal antibody raised against the N-terminal amino acids 1–114 of BfpE at a dilution of 1:15000. Secondary goat anti-rabbit IRDye 800 (LI-COR) or rabbit anti-sheep IRDye 800 (Rockland) antibodies were used at dilutions of 1:20000. Proteins were imaged and band intensities were quantified by the Odyssey Infrared Imaging System (LI-COR). For determination of co-elution values, the band intensity of N-BfpC or N-BfpE in the elution fraction of each sample was expressed as a proportion of the respective total intensities from the flow-through, wash and elution fractions. Values from six assays were compared with those of the negative control, pEM170, without BfpD, and the positive control, pEM171, containing wild type N-BfpC, N-BfpE and BfpD.

ATPase activity

Samples containing wild-type or mutated versions of N-BfpC and N-BfpE with or without BfpD separated by co-affinity purification as described above, were assayed for ATPase activity using malachite green.⁵⁹Protein samples were concentrated in anAmicon Ultra 3kDa column and quantified by spectrophotometry at Ab₂₆₀. Fifteen microliters of each quantified sample wereadded to35μlofassay buffer (0.02% (v/v) Triton X-100, 100mM Tris-HCl pH 7.4, 20mM KCl, 6mM MgCl₂ and 1mM ATP) and incubated at 37°C for 30min. The amount of free phosphate released upon ATP hydrolysis was measured by absorbance at 655nm following the addition of 10μlof 4.2% (w/v) ammonium molybdate in 4 M sulfuric acid and 10μlof 0.045% (w/v)aqueous malachite green and extrapolated from a standard curve generated using K₂HPO₄.

• The structure of essential type IVb pilus component N-BfpC is presented.

• N-BfpC resembles type 2 secretion component EpsL more than type IVb component PilM.

• Non-functional BfpC variants retain recruitment, binding and activity of ATPase BfpD.
