Morphology of Retinal Ganglion Cells in the Ferret (Mustela putorius furo)

Abstract

The ferret is the premiere mammalian model of retinal and visual system development, but the spectrum and properties of its retinal ganglion cells are less well understood than in another member of the Carnivora, the domestic cat. Here, we have extensively surveyed the dendritic architecture of ferret ganglion cells and report that the classification scheme previously developed for cat ganglion cells can be applied with few modifications to the ferret retina.

We confirm the presence of alpha and beta cells in ferret retina, which are very similar to those in cat retina. Both cell types exhibited an increase in dendritic field size with distance from the area centralis (eccentricity) and with distance from the visual streak. Both alpha and beta cell populations existed as two subtypes whose dendrites mainly stratified in sublamina a or b of the inner plexiform layer. Six additional morphological types of ganglion cells were identified: four monostratified cell types (delta, epsilon, zeta, and eta) and two bistratified types (theta and iota). These types closely resembled their counterparts in the cat in terms of form, relative field size, and stratification. Our data indicate that among carnivore species, the complement of retinal ganglion cells resemble one another closely, and that the ferret is a useful model for studies of the ontogenetic differentiation of ganglion cell types.

Introduction

Ganglion cells are the output neurons of the retina, providing the channel through which information is transmitted from the retina to central visual areas. Recent work suggests that mammalian retinas possess more than a dozen anatomically distinct types of retinal ganglion cells (Kolb et al., 1981; Amthor et al., 1989; Peichl, 1989; Watanabe and Rodieck, 1989; Kolb et al., 1992; Rodieck and Watanabe, 1993; Sun et al., 2002a; b; Kong et al., 2005; Coombs et al., 2006). These types are distinguished by unique patterns of central projection, retinal distribution, dendritic arborization, and synaptic affiliation in the inner plexiform layer (IPL). Each type appears to establish a characteristic mosaic with somata arranged in a quasi-regular lattice and dendritic fields minimally overlapping so as to efficiently tile the retinal surface (see Wässle and Boycott (1991) for review).

A central challenge for retinal biologists is to understand the developmental mechanisms driving the differentiation of these neuronal cell types. An attractive model for such studies is the ferret, which by comparison with other mammals has an immature visual system at birth (Jackson and Hickey, 1985; Henderson et al., 1988; Reese and Urich, 1994). Many events critical to shaping ganglion cell form and function occur postnatally in the ferret. These include specification of the size of the ganglion cell population, the emergence of topographic variations in cell density, synaptogenesis and sublaminar specialization within the IPL, dendritic outgrowth and remodeling, and axonal target refinement (Greiner and Weidman, 1981; Vitek et al., 1985; Maslim and Stone, 1986; Henderson et al., 1988; Maslim and Stone, 1988; Penn et al., 1994; Bodnarenko et al., 1995; Wingate and Thompson, 1995; Penn et al., 1998; Bodnarenko et al., 1999; Lohmann and Wong, 2001; Stellwagen and Shatz, 2002).

The central goal of the present study is to lay the foundation for future developmental studies of ferret retina by providing a more complete accounting of its ganglion cell types. Earlier work has established the existence of alpha and beta cells closely resembling their counterparts in cat retina and has outlined their distribution, relative frequency and central projections (Henderson, 1985; Vitek et al., 1985; Amthor and Jackson, 1986; Wingate et al., 1992). Both of these types have also been shown to comprise OFF and ON varieties, arborizing respectively in sublamina a or b of the IPL (Kageyama and Wong-Riley, 1984; Peichl et al., 1987a; Wingate et al., 1992), though stratification has yet to be analyzed quantitatively. In at least one important respect, however, ferret alpha and beta cells may differ markedly from those in cats: their dendritic fields have been reported to exhibit no systematic variation in size as a function of retinal location or ganglion cell density (Wingate et al., 1992), but see also (Vitek et al., 1985; Peichl et al., 1987a). This raises the possibility that factors and principles governing ganglion cell dendritic development may be idiosyncratic in the ferret retina, limiting its utility as a general model of ganglion cell development.

A second set of unresolved issues concerns the diverse population of ferret ganglion cells that are neither alpha nor beta cells. Several provisional types or groups have been identified within this population (Vitek et al., 1985; Wingate et al., 1992) but a formal taxonomy has not been advanced. Substantial progress has been made, however, in the formal classification of ganglion cell types in the retina of cats (Boycott and Wässle, 1974; Leventhal et al., 1980; Kolb et al., 1981; Famiglietti, 1987; Dacey, 1989; Pu et al., 1994; Stein et al., 1996; Berson et al., 1998; Berson et al., 1999b; Berson et al., 1999a; Isayama et al., 1999; Isayama et al., 2000; O’Brien et al., 2002) which belong to the same taxonomic order as ferrets and share with them many aspects of retinal organization (Weidman and Greiner, 1984; Jackson and Hickey, 1985). We were interested in the possibility that the cat classification scheme might provide a useful framework for classifying ferret ganglion cells.

In the present paper, we report findings based on a large sample of ferret ganglion cells stained by intracellular dye injection in vitro. This study provides new details regarding the stratification and topography of ferret alpha and beta cells, and demonstrates the existence of at least six other ferret ganglion cell types, each with an easily recognized counterpart in cat retina.

Materials and Methods

Intracellular staining

Methods were similar to those we have used for staining cat ganglion cells in vitro as described in detail elsewhere (Pu and Berson, 1992; Pu et al., 1994; Berson et al., 1998; Berson et al., 1999b; Isayama et al., 2000). All procedures were approved by the Brown University Institutional Animal Care and Use Committee. In short, eyes were enucleated from adult female pigmented ferrets >20 weeks old (n=48) under deep barbiturate anesthesia (Nembutal, 25 mg/kg). Afterwards, the animals were killed with an overdose of Nembutal. The globe was hemisected just behind the limbus, and the lens and vitreous removed. Several relieving cuts were made and the tissue mounted on filter paper (MSI, Westboro, MA) vitreal side up, either as a flattened eyecup or after isolation of the retina from the other layers of the globe. The tissue was placed in a chamber on a fixed-stage epifluorescence microscope (Olympus Corporation, Lake Success, NY) and superfused at approximately 4 ml/min with Ames’ medium supplemented with 10mM Dextrose (pH 7.4, Sigma, St. Louis, MO) at room temperature.

Ganglion cell bodies were stained by adding to the bath a small amount of the vital dye acridine orange (50-100 μl of a 100 μg/ml solution in Ames’ medium). Micropipettes (tip diameters <1 μm; 100-300 MΩ) contained 4% Lucifer yellow CH (LY; Sigma, St. Louis, MO) and 4% biocytin (Molecular Probes, Inc., Eugene, OR) in 0.05 M Tris buffer (pH 7.4) and had DC resistances of 50 - 200 MΩ. The pipette was advanced with a micromanipulator (Leitz) onto a labeled soma while viewing both tip and cell with a 40x water-immersion lens (Nikon, Garden City, NY). Cells were impaled by delivering very brief pulses of oscillation (capacitance overcompensation) or of voltage with an intracellular amplifier (Cygnus Technology, Inc., Delaware Gap, PA). Care was taken to keep the intensity and duration of the pulses as low as possible to avoid damage to the cell. Dyes were injected into the cell for several minutes with biphasic current pulses (up to −4 nA and +0.5 nA). As many as 50 cells were filled in each retina over periods lasting approximately 8 hr.

Retinas were fixed for 2 hr (4.0% paraformaldehyde in 0.1M phosphate buffered saline; pH 7.4), processed immunocytochemically for LY and biocytin (Pu and Berson, 1992) mounted on glass slides, and coverslipped with 60% glycerol in phosphate buffer. In order to minimize shrinkage in retinal thickness and facilitate the analysis of dendritic stratification, the retinas were neither dehydrated nor cleared. The resulting sacrifice in optical resolution was modest so that even thin processes were easily traced to abrupt endings.

Labeled cells were examined under brightfield microscopy. The positions of the area centralis and visual streak were identified from an examination of the density of cells in the ganglion cell layer (GCL), visible from nonspecific histochemical staining or by oblique illumination. The area centralis, the region of peak ganglion cell density, lies approximately 2.5 mm temporal to the optic disk. The visual streak is a horizontal band of elevated ganglion cell density in the nasal retina that grazes the optic disk and intersects the area centralis (Henderson, 1985; Vitek et al., 1985). Using a digital morphometry system (Neurolucida; MicroBrightField, Colchester, VT), we measured each cell’s eccentricity (defined as its linear distance from the area centralis) and its minimum distance from the axis of the visual streak.

Dendritic-field dimensions were measured only in cells with complete filling of their distal dendrites. We used NeuroLucida to determine the area of a convex polygon minimally encompassing the cell’s dendritic profile (i.e. with its vertices at the tips of the most peripheral processes) and calculated the equivalent diameter (diameter of a circle equal in area to this polygon). Soma diameters were taken to be the average of the maximum and minimum diameter as measured with an eyepiece graticule. For the photomicrographs of Fig. 5, cells were photographed using a green interference filter and T-MAX 100 film. Negatives were digitally scanned (Nikon Coolscan) and then processed and printed using Photoshop (Adobe Systems, Inc.). Only globally applied filters (e.g. adjust levels) were used on each image.

Figure 5.

Photomicrographs of representative ferret non-alpha/non-beta ganglion cells. A. Low power micrograph of a delta cell. Cell location (conventions as for Fig. 1): e = +0.6 mm, s = +0.6 mm. B. Low power micrograph of a epsilon cell: e = +4.2 mm, s = −1.7 mm. C. Low power micrograph of a zeta cell: e = +5.2 mm, s = +1.5 mm. D. Low power micrograph of an eta cell: e = +3.0 mm, s = +2.7 mm. E. Low power micrograph of a theta cell: e = +5.1 mm, s = −4.6 mm. F-H. An iota cell, shown at low magnification (F) and at higher magnification at planes of focus corresponding to the proximal (G) and distal (H) dendritic arbors. Cell location: e = 5.8 mm, s = −0.6 mm. All scale bars = 50 μm.

Analysis of stratification

Depth of dendritic stratification was assessed by through-focus observation in retinal wholemounts using brightfield optics and a 60x objective lens with a correction collar (numerical aperture 0.85, working distance 0.43). The limits of the IPL were inferred from the depth of somata in the GCL and of the innermost cell bodies of the inner nuclear layer (INL), visible from non-specific histochemical staining or by oblique illumination. The depth of the outer border of the IPL could be estimated more precisely (typically ±1-2 μm) than the inner border (±3-4 μm) because the cell density was higher and the soma size smaller and more uniform in the INL than in the GCL. For 113 cells, mutual overlap of dendritic fields with one or more other cells permitted through-focus assessment of the relative depth of dendritic stratification of different types. For four cells, we quantified the differences in depth using NeuroLucida. Depth measurements were corrected according to Snell’s law as described elsewhere (Berson et al., 1998).

For ten alpha and beta cells, we analyzed dendritic stratification quantitatively in radial sections. Cells selected for study were filled optimally and well isolated from other stained elements. Cells were drawn with a camera lucida, excised with a dermal punch (Acuderm, Ft. Lauderdale, FL), dehydrated in graded ethanols, and embedded in plastic (Poly/Bed 812 resin, Polysciences, Inc., Warrington, PA). Radial sections of ~20 μm thickness were cut on a sliding microtome, mounted on glass slides, coverslipped with plastic film and fresh epoxy resin, and cured. We restricted study to the periphery of the dendritic field so low order dendrites ascending to the main layer of arborization were excluded from the analysis. Camera lucida drawings were made of stained processes and of somatic profiles in the INL and GCL, which were visible from background staining. Within each section, the depths of dendritic segments were measured at regularly spaced horizontal intervals amounting to one twentieth of the horizontal extent of the measured process. Depths were expressed as a percentage of the total thickness of the IPL (with 0% corresponding to the scleral boundary and 100% to the vitreal boundary). For stout processes, the middle of the dendrite’s thickness was used for such measurements. Typically, twenty sites were analyzed per section for alpha cells, and 10 - 15 sites for beta cells.

Results

Alpha and beta cells

Cells very similar in form to cat alpha and beta cells were easily recognizable among the ferret ganglion cell population, as previously reported (Vitek et al., 1985; Amthor and Jackson, 1986; Peichl et al., 1987a; Wingate et al., 1992). Ferret alpha cells (Fig. 1) had the largest somata (Fig. 14; Table 1) and thickest axons of all ferret ganglion cells. Their stout dendrites formed a radiate, largely non-overlapping arbor that was among the largest of all ferret ganglion cell types (270 - 690 μm in diameter; Figs. 3A and 13B). Dendrites ramified either in sublamina a (OFF sublayer) or in sublamina b (ON sublayer) of the IPL.

Figure 1.

Camera lucida drawings of representative alpha cells of the ferret retina stained by intracellular injection. Both cells had filled axons but these have been omitted for clarity. Distance from the area centralis, or eccentricity (“e”), and distance from the axis of the visual streak (“s”) as follows. A): e = +0.7 mm; s = +0.7 mm; B) e = +5.7 mm; s = +1.4 mm. Negative values of e indicate locations in temporal hemiretina; negative values of s indicate locations in inferior retina. Scale bar = 100 μm.

Figure 14.

Comparison of soma size among ferret ganglion cell types. Statistics for each type appear in Table 1.

TABLE 1.

Dendritic Field and Soma Sizes of Ferret Ganglion Cells¹

	Dendritic Field			Soma
TYPE	Mean Diam. (μm)	s.d.	n	Mean Diam. (μm)	s.d.	n
Alpha	423	75	154	25.4	3.9	47
Beta	115	34	315	18.2	2.0	39
Delta	327	81	20	15.4	1.7	18
Epsilon	406	92	16	16.3	2.1	14
Zeta	160	36	59	13.7	1.4	59
Eta	195	46	33	14.0	1.3	33
Theta	183	38	71	13.7	1.3	71
Iota	304	53	19	15.4	1.7	19

¹Samples of individual cell types were similar to one another in topographic distribution (cf. Figs. 3B-D and 13A).

Figure 3.

Topographic dependence of dendritic field size for ferret alpha and beta ganglion cells. A,B: Dependence of dendritic field diameter on (A) eccentricity (i.e. distance from the center of the area centralis) and (B) distance from the axis of the visual streak. No distinction is made in A, nor in B between superior and inferior hemiretinas. Lines indicate linear least-squares fits to the data. Regression constants shown in Table 2. C,D: Plots illustrating relative contribution of eccentricity and distance from the visual streak to dendritic field size of alpha (C) and beta cells (D). Each symbol type indicates a range of distance from the axis of the visual streak, as indicated in the key. Negative eccentricities lie in the temporal hemiretina.

Figure 13.

Comparison of dendritic field size among six non-alpha, non-beta ganglion cell types of the ferret retina. A: Dendritic field diameters of each type as a function of distance from the axis of the visual streak. Negative eccentricities correspond to locations in the temporal hemiretina. Statistics for each type are shown in Table 1. B: Comparison among these types and with alpha and beta cells of the ferret retina. Each outline represents the envelope of the field-size distribution of a single type, drawn from data shown in Figs. 3B and 13A. No distinction has been made between nasal and temporal hemiretinas.

Beta cells (Fig. 2) were intermediate among ferret ganglion cells in cell body size (Fig. 14; Table 1) and axon caliber. Their bushy dendritic arbors were smaller in diameter than those of any other class of ferret ganglion cell (50 - 210 μm in diameter; Figs. 3B and 13B). Beta cell arbors ramified broadly either in sublamina a or in sublamina b of the IPL.

Figure 2.

Camera lucida drawings of beta ganglion cells of the ferret retina. Cells A-C all lay within the nasal visual streak but at progressively greater eccentricities, from left to right. Cells D-F all lay outside the visual streak, with increasing eccentricity and distance from the visual streak from left to right. Axons omitted for clarity. Cell locations as follows (conventions as for Fig. 1): A: e = +0.1, s = +0.1; B: e = +3.3, s = +0.0; C: e = +6.9, s = +0.1; D: e = −1.6, s = −0.4; E: e = +3.0, s = +3.0; F: e = +5.8, s = +4.3. Scale bar = 100 μm.

Topography of dendritic field size

Alpha and beta cell dendritic fields increased in size as a function of eccentricity (distance from the area centralis; Fig. 3A) and also as a function of their distance from the visual streak (Fig. 3B; see also Figs. 1 and 2). In the nasal retina, field size was more closely related to its distance from the streak than it was with eccentricity, accounting for more than twice as much of the variance for both cell types (linear regression analysis, Table 2). This was not true in the temporal retina.

TABLE 2.

Regression Constants for Dendritic Fields as a Function of Eccentricity or Distance from Visual Streak¹

Cell Type	Independent Variable	Hemiretina	Slope (m)	Y-Intercept (b)	m / b	r2
Alpha	Eccentricity	Nasal	15.5	367.4	0.04	0.12
Alpha	Eccentricity	Temporal	−81.5	328.5	−0.25	0.41
Beta	Eccentricity	Nasal	9.0	87.1	0.10	0.18
Beta	Eccentricity	Temporal	−27.3	55.4	−0.49	0.41
Alpha	Streak Distance	Nasal	37.7	360.9	0.10	0.34
Alpha	Streak Distance	Temporal	−69.6	358.4	−0.19	0.28
Beta	Streak Distance	Nasal	22.6	76.1	0.30	0.62
Beta	Streak Distance	Temporal	−27.3	77.0	−0.35	0.52

¹Regression constants for least squares fits of Figures 3A and 3B.

The eccentricity data (Fig. 3A) are replotted in Figs. 3C and 3D using different symbols for distinct ranges of distance from the streak. In the nasal periphery much of the variability in field size was attributable to the influence of the visual streak. The largest nasal fields lay far from the streak (open circles) and the smallest ones lay near it (filled diamonds). This source of variability did not apply to the central retina where all cells are, by definition, near the streak. Consequently, the correlation between distance from the streak and field size (Fig. 3B) ensures at least a weak relationship between field size and eccentricity (Fig. 3A). The influence of the visual streak can be factored out by restricting consideration to cells lying very near the streak (filled diamonds in Figs. 3C and D). In the nasal retina, mean field diameter for these cells increased by one third from the area centralis to the peripheral streak, a trend more apparent for alpha (Fig. 3C) than for beta cells (Fig. 3D). For alpha cells, this difference in field size was comparable to that between peripheral streak and peripheral non-streak retina (compare filled diamonds and open circles in Fig. 3C). For beta cells, by contrast, fields roughly doubled in diameter between streak and non-streak periphery, about three times as large an increase as that between area centralis and peripheral streak (Fig. 3D).

In the temporal hemiretina, beta cell field diameter was correlated with eccentricity, roughly tripling in size from center to periphery (Fig. 3D). Little if any of this correlation, however, was attributable to the influence of the visual streak. That is, beta cells near the streak were not markedly smaller than those far from the streak at a given temporal eccentricity. This was presumably because the streak is weakly developed in temporal retina (Henderson, 1985). A similar trend was apparent among alpha cells temporally (Fig. 3C), though the sample is small.

Table 2 lists the constants defining the least squares regression lines shown in Figs. 3A and B. The ratio of slope (m) to Y-intercept (b) is a measure of the proportional increase in dendritic field diameter per millimeter of retinal distance. These ratios were substantially higher for beta cells than for alpha cells. They indicate that beta cell dendritic field areas increased about 3.4-fold from the area centralis to the far periphery (7 mm eccentricity), whereas alpha fields increased only 1.7-fold. Similarly, beta cell fields increased in area an average of 7.5-fold from the visual streak to the superior or inferior periphery (6 mm from the streak) whereas alpha cell fields increased only 2.9-fold. If each type’s dendritic field area is inversely proportional to its local density (Wässle and Boycott, 1991), this suggests that the ratio of beta cell to alpha cell density should be two or three times higher in the central retina as in the periphery.

Stratification

Ferret alpha and beta cells exhibited patterns of dendritic stratification very similar to their counterparts in cat retina. Each comprised a paramorphic pair of types (Famiglietti and Kolb, 1976) which closely matched one another in somadendritic form but ramified separately in either sublamina a (OFF sublayer) or sublamina b (ON sublayer) of the IPL. Adopting conventions used in cat retina (Wässle and Boycott, 1991), we will refer to these four types as OFF alpha, ON alpha, OFF beta and ON beta cells. Figures 4A-F illustrate the stratification patterns revealed in radial sections of each type. OFF beta cells ramified throughout sublamina a and ON beta cells in most of sublamina b, sparing only its innermost part (Figs. 4C, 4D, and 4F). ON and OFF alpha cells costratified extensively with ON and OFF beta cells respectively, but were more narrowly stratified (Figs. 4E, and 4F).

Figure 4.

Depths of dendritic stratification for ferret alpha and beta ganglion cells. A - D. Camera lucida drawings of representative radial sections. A: OFF alpha; B: ON alpha; C: OFF beta; D: ON beta. Black somata and processes belong to the injected cell; the soma for the cell in A lies out of the plane of the section illustrated. Shaded profiles represent other cell bodies of the ganglion cell and inner nuclear layers. Scale bar: 20 μm. E-F. Histograms of relative frequency of dendritic processes at depths in the inner plexiform layer (IPL), expressed as a percentage of its total thickness. 0% corresponds to the distal border and 100% to the proximal border of the IPL. For both alpha cells (E) and beta cells (F), stippled bars indicate dendrites of ON type, black bars those of OFF type. Data drawn from one ON alpha, one OFF alpha, three ON beta and three OFF beta cells. G, H: Relative depths of stratification of alpha and beta cells as revealed by quantitative through-focus analysis in a single retinal wholemount of cells with overlapping dendritic profiles. For each panel, a single alpha cell was selected as a reference cell. At each point of intersection between the dendritic profiles of the reference cell and another cell with an overlapping field, the difference in depth between the two dendrites was measured. The histograms plot the distribution of these depth differences. G: Comparisons between a reference ON alpha cell (horizontal line) and two overlapping cells, an OFF alpha (black bars) and an ON beta cell (stippled bars). H: Comparisons between a reference OFF alpha cell and two overlapping beta cells, one OFF (black bars) and one ON (stippled bars). Cell locations (conventions as for Fig. 1) G: e = +4.4, s = −3.4; H: e = +4.7, s = +−3.4.

Analysis of stratification by through-focus examination in wholemounts at points of intersection between overlapping dendritic profiles (Figs. 4G and 4H) suggested somewhat narrower stratification than indicated by the radial-section data (Figs. 4E and F). Figure 4G compares the relative depth of ramification of three cells with mutually overlapping dendritic fields: an ON alpha, an OFF alpha and an ON beta cell. For clarity, the depth values were normalized to the depth of the ON alpha dendrites (horizontal dashed line at 0 depth). The OFF alpha cell’s dendrites (black bars) always lay at least several micrometers distal to those of the ON alpha. The ON beta cell’s dendrites (stippled bars) spanned a broader depth range than those of the OFF alpha cell. They clearly costratified with the ON alpha’s dendrites but extended substantially farther into the proximal part of sublamina b. Figure 4H displays a similar analysis for another triad of cells: an OFF alpha and a pair of beta cells (one ON and one OFF). The data were normalized to the depth of the OFF alpha dendrites (dashed line). Although the OFF alpha and OFF beta cells partially costratified, the OFF beta arbor extended substantially farther distal into sublamina a. There was no overlap in depth between the ON and OFF beta dendrites, and a gap of several micrometers separated the ON beta arbor from that of the OFF alpha cell.

The discrepancies between the results obtained with the two methods are not surprising. In the through-focus analysis, the benchmarks for depth (i.e. the reference cell’s processes at points of intersection) lay very close to the dendrite under study both in the plane of the retina and in depth. In the radial-section analysis, by contrast, the depth benchmarks (i.e. IPL boundaries) were more distant in depth and had to be located by horizontal interpolation when the nearest somatic profiles were laterally displaced from the point of measurement. For these reasons, the through-focus measurements were less influenced by undulations in the position or thickness of the IPL or its sublaminae. Taken together, the data suggest the laminar arrangement summarized in Fig. 12. ON beta cells ramify broadly in sublamina b (S3 and S4) while OFF beta cells arborize throughout most of sublamina a. Alpha arbors ramify more narrowly than beta arbors: ON alphas costratify with the distal part of the ON beta arbor (in S3 and S3/4) while OFF alphas costratify with the proximal part of the OFF beta arbor (in S2 and S1/2). A small gap near the S2/3 border separates the ON and OFF arbors of both types.

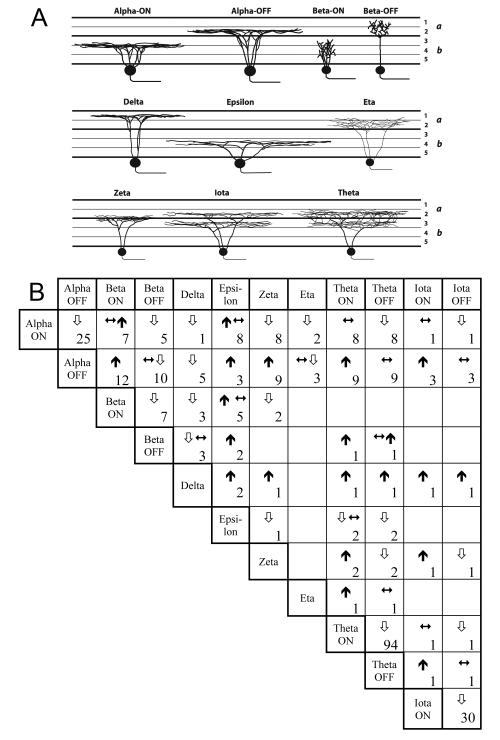

Figure 12.

Comparisons of dendritic stratification among ganglion cell types of the ferret retina. A: Schematic radial section of the inner plexiform layer (IPL) summarizing the patterns of dendritic stratification inferred for each type from the data in Fig. 4, and other through-focus observations as described in text. S1-S5: strata 1 - 5 of the IPL. Heavy dashed line marks the boundary between the OFF sublamina (a) and the ON sublamina (b). B: Summary of data on relative depth of stratification of various types obtained by through-focus inspection of overlapping dendritic arbors. Symbols in each cell of the matrix indicate whether the ganglion cell type listed to the left (row heading) stratifies proximal (), at the same depth (), or distal () to the type listed above (column heading). Numbers indicate the number of overlapping arbors studied. For the bistratified types (theta and iota) the inner (ON) and outer (OFF) arbors are considered separately.

Other ganglion cell types

We stained many ganglion cells that belonged to neither the alpha nor the beta morphological types. Generally, these cells had smaller somata and thinner axons than did alpha and beta cells. Dendritic structure varied widely among these cells, as reported by others (Wingate et al., 1992). In view of the widespread similarities between cat and ferret retina, including the presence of alpha and beta types, we reasoned that the ferret might possess homologues of several of the morphological types of ganglion cells described in cat retina. Here we provide evidence for at least 6 such types in ferret retina.

Most examples of each type possessed a well-filled axon in the optic fiber layer, but in some cases an axon could not be identified with certainty due to inadvertent bulk labeling of several axons in the vicinity of the cell or transection of the axon during somatic impalement. Such cells were left out of the following analysis unless they could be unambiguously identified as one of the following six types on the basis of their somadendritic structure and size at that retinal position. Assertions concerning the laminar positions of dendritic arbors are based partly on assessments of each cell’s approximate depth of stratification relative to the borders of the IPL. These assessments were refined substantially by close examination of relative depth of dendritic stratification in 89 instances of overlap among two or more cells of different type (see Fig. 12B).

Delta cells (Fig. 6)

Figure 6.

Camera lucida drawings of representative delta ganglion cells of the ferret (A, B) and cat (C) retina. Asterisk in this and subsequent figures indicates examples from the cat. Axons omitted for clarity. Cell locations (conventions as for Fig. 1): A: e = +5.4 mm, s = +5.2 mm; B: e = −0.9 mm, s = −0.6 mm; C: e = +3.5 mm, s = +1.8 mm. Scale bar = 100 μm.

We stained 25 ferret ganglion cells that closely resembled the delta or monoamine-accumulating ganglion cell type of the cat retina (Boycott and Wässle, 1974; Dacey, 1989). Ferret delta cells had small somata (mean diameter: 15.4 μm; Table 1; Fig. 14) and large dendritic trees (mean diameter: 327 μm; Table 1; Fig. 13B). The dendritic profile was radiate in form, with only occasional recurving processes (Figs. 5A and 6). Dendrites branched with moderate frequency and at fairly regular intervals. Dendritic overlap was uncommon, though perhaps slightly more prevalent than is typical for cat delta cells. Terminal dendrites stratified narrowly in S1, largely or completely distal to the dendrites of OFF alpha cells (Figs. 12A,B). Cells with similar form but ramifying in sublamina b were not encountered in our material. Dendritic field size varied little over the retina (Fig. 13A).

Epsilon cells (Fig. 7)

Figure 7.

Camera lucida drawings of epsilon ganglion cells of the ferret (A,C) and cat (B) retina. Axons omitted for clarity. Cell locations (conventions as for Fig. 1). A: e = +4.9 mm, s = +1.8 mm; B: e = +2.4 mm; C: e = +2.2 mm; s = +2.2 mm. Scale bar = 100 μm.

We encountered 26 cells that resembled the epsilon ganglion cell type of cat retina (Leventhal et al., 1980; Pu et al., 1994). These cells had small somata (mean diameter: 16.3 μm; Table 1; Fig. 14) and radiate, sparsely branching dendritic trees (Figs. 5B and 7). Their dendritic fields were some of the largest we have observed among ferret ganglion cells (mean diameter: 406 μm; Fig. 13B; Table 1) and exhibited no systematic topographic variation in size (Fig. 13A). Dendrites were generally smooth, but in a few cells exhibited fine hair-like processes and spines. Dendrites were narrowly stratified in the middle of sublayer b of the IPL (~S4), where they costratified and lay partly proximal to those of ON alpha cells (Figs. 12A,B). We did not encounter cells with similar dendritic profiles ramifying in sublamina a.

Zeta cells (Fig. 8)

Figure 8.

Camera lucida drawings of zeta ganglion cells of the ferret (A,B) and cat (C) retina. Axons omitted for clarity. Cell locations (conventions as for Fig. 1): A: e = +4.1 mm; s = +1.0 mm; B: e = +6.1 mm, s = +0.3 mm; C: e = +6.4 mm; s = −0.2 mm. Scale bar = 100 μm.

Eighty-nine cells in our sample closely resembled zeta cells of the cat retina (Berson et al., 1998). These cells had among the smallest somata (mean diameter: 13.7 μm; Table 1; Fig. 14), smallest dendritic arbors (mean diameter: 160 μm; Table 1; Fig. 13B) and thinnest axons of all ferret ganglion cells. Terminal and preterminal dendrites were thin, densely branched, and studded with short twigs, spines and hairs (Figs. 5C and 8). There was little overlap among dendrites, though some terminal branches closely approached one another or even made contact. Dendrites stratified narrowly at or near the a/b sublaminar border (S2/3) in the gap separating ON and OFF alpha dendrites (Figs. 12A, B). Dendritic fields were slightly smaller on average within the visual streak than in the superior or inferior periphery (Fig. 13A).

Eta cells (Fig. 9)

Figure 9.

Camera lucida drawings of eta ganglion cells of the ferret (A,B) and cat (C) retina. Axons omitted for clarity. Cell locations (conventions as for Fig. 1): A: e = +4.8 mm, s = +1.8 mm; B: e = +3.9 mm; s = +2.9 mm; C: e = +6.0 mm; s = +0.6 mm. Scale bar = 100 μm.

Forty-two cells resembled the eta ganglion cell type of cat retina (Berson et al., 1999b). They had very small somata (mean diameter:14.0 μm; Table 1; Fig. 14) and thin axons. Their dendritic fields were small (mean diameter: 195 μm; Table 1; Fig. 13B) and apparently varied little in size over the retina (Fig. 13A). Dendrites were thin and typically smooth, though in some cells they were moderately spiny. Dendrites generally followed courses that were roughly radiate in relation to the soma (Fig. 5E). However, their waviness, mutual overlap and high branch frequency gave most profiles a tangled aspect. Branch density varied somewhat among cells; the cells illustrated in Figs. 9A and B represent the extremes of the spectrum. Dendritic arbors stratified throughout most of sublamina a (Figs. 12A, B). Most of the processes costratified with those of overlapping OFF alpha cells, but some lay more distal in S1 (Fig. 12). No paramorphic type of sublamina b was encountered.

Theta cells (Fig. 10)

Figure 10.

Camera lucida drawings of theta ganglion cells of ferret (A,B) and cat (C) retina. Axons omitted for clarity. Cell locations (conventions as for Fig. 1): A: e = +1.3 mm, s = +1.3 mm; B: e = +3.5 mm, s = +3.3 mm; C: e = +1.5 mm, s = +1.3 mm. Scale bar = 100 μm.

We encountered 94 ferret ganglion cells resembling the theta cell, a bistratified cell type of the cat retina (Isayama et al., 2000). Ferret theta cells had very small somata (mean diameter:13.7 μm; Table 1; Fig. 14) and small dendritic arbors (mean diameter: 183 μm; Fig. 13B; Table 1). Dendritic profiles were very complex, displaying denser branching and more extensive overlap than any other ferret ganglion cell type (Fig. 10). Dendrites meandered chaotically, bearing no consistent orientation relative to the soma. The dendrites were thin and appeared moderately varicose in most cases (Fig. 5D), and some had a number of spines. Dendrites were concentrated in two strata lying on either side of the a/b sublaminar border and corresponded to the levels of stratification of the ON and OFF alpha cells (Figs. 12A,B). This bistratification was obscured somewhat by the large number of dendritic segments bridging the two strata but was detectable throughout the arbor except for a few areas of sparser branching. Overall, the density of branching was comparable in the two strata, but in a few cells total dendritic length appeared greater in either the proximal or distal tier. Dendritic fields were slightly smaller on average in the visual streak than elsewhere (Fig. 13A).

Iota cells (Fig. 11)

Figure 11.

Camera lucida drawings of iota ganglion cells of the ferret (A,B) and cat (C). Inner (1) and outer (2) arbors are displayed separately at reduced magnification for the cell in B. Axons omitted for clarity. Cell locations (conventions as for Fig. 1): A: e = +6.1 mm, s = +0.2 mm; B: e = +3.5 mm, s = +3.2 mm; C: e = +4.0 mm, s = +3.8 mm. Scale bar = 100 μm.

We stained 30 ganglion cells strikingly similar to the iota cell of cat retina, a bistratified type presumed to correspond to the ON-OFF direction selective cell (Famiglietti, 1987; Berson et al., 1997; O’Brien et al., 1999; O’Brien et al., 2002). In ferrets, as in cats, iota cells shared many similarities with theta cells. Viewed en face, they exhibited richly branched profiles with extensive dendritic overlap (Figs. 5F; 11A and B). Their bistratified dendrites ramified in roughly the same two strata as those of theta cells (Figs. 12A, B) but had many fewer dendrites interconnecting the two strata. This made it much easier to discern the inner and outer arbors, which individually exhibited little or no dendritic overlap (Figs. 5G,H and 11B). In addition, iota cells had larger dendritic fields (mean diameter: 304 μm; Table 1, Fig. 13B), thicker dendrites, lower branching density, and larger somata (mean diameter: 15.4 μm; Table 1; Fig. 14) than theta cells. Dendritic fields tended to be slightly smaller in the visual streak than elsewhere (Fig. 13A).

Unidentified varieties

The great majority of the cells in our sample belonged to one of the foregoing types. The remaining cells were most likely encountered in cat retina as well, but these morphological types were not studied extensively in either species and thus rigorous comparisons were not made. These unclassified ganglion cells all had dendritic fields at least as large as those of delta and iota cells and branching densities lower than those of zeta and theta cells. Otherwise these cells were heterogeneous in form. Some were narrowly stratified, others were bistratified or ramified diffusely in both a and b sublaminae. We also stained large numbers of presumed displaced amacrine cells in the GCL. These cells lacked axons in the optic fiber layer, though some extended multiple axon-like processes into the IPL. Cell bodies were typically smaller than those of ganglion cells but there was substantial overlap between the populations. Several of the amacrine cells clearly resembled those reported among cat amacrine cells, but we have not studied them in detail.

Quantitative comparisons among types

Here we summarize some of the quantitative criteria by which the ten ganglion cell types studied here may be distinguished. Figure 12 summarizes patterns of dendritic stratification. Four types ramify exclusively in sublamina a. Among these, the OFF alpha and delta cells are both relatively narrowly stratified, but ramify in largely distinct strata of the OFF sublamina. The others, the OFF beta and eta cells, ramify broadly throughout the OFF sublayer. Three types ramify exclusively in sublamina b, the ON alpha rather narrowly and the ON beta and epsilon cells more broadly. One type, the zeta cell, ramifies narrowly at the a/b sublaminar border and exhibits minimal overlap in depth with ON alpha, ON beta or OFF alpha cells. The remaining two types (theta and iota) are bistratified; for both types, the distal arbor costratifies with dendrites of OFF alpha cells, and the proximal arbor with those of ON alpha cells.

Figure 13 and Table 1 compare the dendritic field sizes of ferret ganglion cell types that fall within four broad ranges. Beta cells have the smallest dendritic fields at all retinal locations. The next smallest are the zeta, eta, and theta cells, with substantial overlap among these types. Iota and delta cells have medium-sized dendritic profiles, while alpha and epsilon cells have the largest fields of all types studied.

Figure 14 and Table 1 compare soma diameters among these types. Alpha cells had the largest cell bodies, while beta cells were intermediate in size. The remaining types form two groups: delta, epsilon and iota cells have small to medium sized cell bodies, while the zeta, eta and theta cells have very small somata. Nonetheless, there is substantial overlap among the soma size distributions of virtually all types.

Discussion

The present study extends earlier descriptions of the morphology of alpha and beta ganglion cells of the ferret retina with respect to the dendritic stratification and topographic variations in dendritic field dimensions. In addition, it provides evidence for the presence of at least six additional ganglion cell types in ferret retina, each with a clear counterpart in cat retina.

Morphology of ferret alpha and beta cells

Our data confirm and extend prior work demonstrating the existence of alpha and beta cells in ferret retinas (Vitek et al., 1985; Amthor and Jackson, 1986; Peichl et al., 1987b; Wingate et al., 1992; Penn et al., 1994). The dendritic profiles of ferret alpha and beta cells are very similar to their counterparts in cat retina (Boycott and Wässle, 1974; Kolb et al., 1981; Wässle and Boycott, 1991; Stein et al., 1996). Both types occur as paramorphic pairs (i.e. as forms virtually identical in morphology except for their stratification in different layers of the IPL, e.g. Famiglietti and Kolb, (1976)). In both species, alpha cell dendritic fields are about three to five times larger in diameter than beta cell fields at any retinal eccentricity, with no overlap between the two types (Boycott and Wässle, 1974; Kolb et al., 1981; Vitek et al., 1985; Wingate et al., 1992).

Alpha cells are apparently a universal feature of the mammalian retina with a strongly conserved pattern of dendritic stratification (Peichl et al., 1987b). Our quantitative assessment shows that ferret alpha cells conform to this stratification pattern, as anticipated by the qualitative observations of Peichl et al. (1987b). Compared to ferret beta cells, alpha cells have more narrowly stratified arbors. Our data also confirm the existence of ON and OFF subtypes of beta cells in ferret retina (Kageyama and Wong-Riley, 1984; Wingate et al., 1992), and show that their stratification pattern is comparable to that reported for beta cells of the cat retina (Famiglietti and Kolb, 1976; Watanabe et al., 1985; McGuire et al., 1986; Weber et al., 1991).

Topography of alpha and beta cells

Individual ganglion cell types form mosaics that preserve a characteristic amount of dendritic overlap among members despite large topographic variations in scale (Wässle and Boycott, 1991). One virtue of these mosaics is that they ensure that each type covers or “tiles” the retinal surface without gaps. They also ensure that every point in the retinal image falls within the receptive field centers of about the same number of cells of each type, regardless of location. In addition, they may ensure a match between the spatial resolution of individual type members and the Nyquist limit set by the spacing of type members, an arrangement that optimizes spatial acuity while avoiding aliasing (see Wässle and Boycott, 1991 for review).

The ferret is in many ways an ideal species in which to study the ontogenetic mechanisms that form such mosaics. Many of these processes occur postnatally in ferret ganglion cells, including outgrowth, differentiation of branching patterns, activity dependent segregation of dendritic arbors within specific laminae of the IPL, and programmed cell death leading to regional variations in ganglion cell density (see Introduction). There is, however, little direct evidence that ferret ganglion cells form regular dendritic mosaics. Indeed, it has been questioned whether alpha or beta cells exhibit an inverse relationship between dendritic field size and local density, a prerequisite for such mosaics. Although such a relationship received some initial support from retrograde filling studies (Vitek et al., 1985) and was corroborated for alpha cells by reduced silver methods (Peichl et al., 1987b), it was subsequently called into question for both alpha and beta cells on the basis of intracellular staining (Wingate et al., 1992).

Our own data support a systematic relationship between alpha and beta cell field size and retinal topography. Moreover, the magnitude of the systematic variation in field area is comparable to that of the topographic variation in density, as required by a mosaic with uniform dendritic overlap (Wässle and Boycott, 1991). The density of all ganglion cells and of alpha cells varies 4 - 8 fold over the region studied (Henderson, 1985; Vitek et al., 1985; Peichl et al., 1987b). This predicts that mean dendritic field diameter of each type should vary about 2 - 2.8 fold, close to the observed values of 1.7 for alpha cells and 2.7 for beta cells (Fig. 3B and Table 2). The fact that beta cells exhibit a larger proportional variation in field size than do alpha cells implies that beta cells have a steeper topographic gradient in cell density. In other words, beta cells make up a larger fraction of the ganglion cell population in the central retina than in the periphery. This appears to be true also for beta cells of cat retina (Stein et al., 1996) and midget cells in the primate retina, which may be a homologous cell type (Rodieck et al., 1985; Dacey and Brace, 1992).

The negative result of Wingate et al. (1992) concerning such topographic dependence is attributable to the indirect method used for estimating ganglion cell density together with weak systematic variation in field size. Topographic gradients in beta and alpha cell field size (and, by inference, cell density) are far more modest in ferret than in cat retina. Among alpha cells, mean local field diameter varies less than 2-fold in ferrets as compared to 4-fold in cats. For beta cells, the variation is only 3-fold in ferrets compared to 10-fold in cats (Boycott and Wässle, 1974; Kolb et al., 1981; Stein et al., 1996; Berson et al., 1998).

Generally, alpha and beta cell dendritic fields are about the same size in the two species. In the central retina, however, they are substantially larger in ferret than in cat. Because beta-cell resolution seems likely to be a limiting factor in spatial acuity among the Carnivora (see Stein et al., 1996), this difference in itself suggests lower maximum acuity in ferrets than in cats. This difference is amplified by the ferret’s smaller eye size and lower retinal magnification (i.e. millimeters of retina per degree of visual angle) and accounts in part for the lower spatial resolution of ferret geniculate neurons compared to those in cat (Price and Morgan, 1987). A further point of distinction between ferret and cat retina is in the relative development of the area centralis and visual streak. In the ferret, the streak is more prominent than in the cat, while the area centralis is less so. This is evident in maps of ganglion cell density and in plots of field size as a function of retinal location (e.g. Boycott and Wässle, 1974; Wässle et al., 1975; Hughes, 1981; Henderson, 1985; Vitek et al., 1985; Peichl et al., 1987b; Wong and Hughes, 1987; Stein et al., 1996). The visual streak is a prominent retinal feature in vertebrates inhabiting open terrain and may facilitate a form of panoramic vision; the area or fovea centralis is best developed in vertebrates with high acuity binocular vision and well developed gaze control (Hughes, 1977; Stone, 1983). Differences between ferrets and cats in retinal topography may thus reflect distinctions in visual ecology.

Other ganglion cells

Substantial morphological heterogeneity has been observed among ferret ganglion cells that are neither alpha nor beta cells (Vitek et al., 1985; Wingate et al., 1992). By analogy with work in other vertebrate retinas, it seems reasonable to assume that these cells comprise a large set of morphologically distinct types, each with a characteristic pattern of dendritic branching, field size, stratification, retinal topography, and central projection (Rodieck and Brening, 1983; Stone, 1983; Wässle and Boycott, 1991). Wingate et al. (1992) took an initial step toward developing a classification scheme for these ganglion cells by dividing their sample of intracellularly stained ganglion cells into three broad groups (termed tight, loose and sparse) that differed in dendritic complexity and patterns of central projection. However, there is substantial intra-group heterogeneity with respect to branching structure and stratification. To provide a basis for understanding this diversity, we explored the possibility that the ferret’s ganglion cell population contains counterparts of many of the ganglion cell types that have been identified in cat retina. This approach was anticipated by Vitek et al. (1985) who identified a likely equivalent of the cat’s epsilon cell among ferret retinal ganglion cells stained by retrograde transport. Here, we confirm and extend that observation and provide evidence that the ferret retina possesses counterparts of at least 5 additional cat ganglion cell types: delta, zeta, eta, theta and iota. The present findings suggest that each of these morphological classes represents a “natural type,” empirically demonstrable by the covariation of its members on many independent morphometric dimensions and by the absence of intermediate forms (Rowe and Stone, 1977; Rodieck and Brening, 1983).

This provisional taxonomy is by no means exhaustive. While we believe the great majority of ferret ganglion cells belong to one of the types identified here, both our sample and that of Wingate et al. (1992) contain cells that apparently do not. Similarities between such cells in the ferret and those qualitatively surveyed in the cat retina (e.g. Kolb et al., 1981) suggest that further parallels in ganglion cell typology in these species will emerge.

The dendritic fields of each type are generally of about the same absolute size in the two species but, due to differences in retinal magnification, are substantially larger in ferret than in cat when expressed in terms of visual angle. The rank order of these types by field size is very similar in the two species, suggesting that their relative frequency may be similar.

Delta cells

We identified delta cells in the ferret retina (Fig. 6), similar to those in cats (Boycott and Wässle, 1974; Wässle et al., 1987; Dacey, 1989; see also G18 and G19 of Kolb et al., 1981). Wingate and colleagues (1992) included presumptive delta cells within their loose group (see especially cell vii of their Fig. 9 and the loose cells of Fig. 19). According to Wingate et al. (1992), loose cells project ipsilaterally from the temporal retina, and innervate both the midbrain and thalamus, properties they share with cat delta cells (D.M. Berson and M. Pu, unpublished observations). In cat retina, delta cells accumulate exogenous monoamines and correspond to OFF center tonic W-cells (Wässle et al., 1987; Dacey, 1989; O’Brien et al., 1999). Similar to the description of cat delta cells by Dacey (1989) and Kolb et al. (1981) we did not encounter a paramorphic counterpart of the delta cell stratifying in the ON sublamina in ferrets. These data contrast with those of Wässle et al (1987) and Peichl (1989) who described delta cells with dendrites stratifying in sublamina b in cats and rats respectively.

Epsilon cells

Epsilon cells in the ferret (Fig. 7) closely resembled those in the cat (Leventhal et al., 1980; Pu et al., 1994). In cat, they correspond to ON center tonic W-cells and perhaps also to Q cells (Pu et al., 1994; Troy et al., 1995). A similar morphological type has been described in the retinas of primates (Leventhal et al., 1981; Rodieck and Watanabe, 1993), and dogs (Fig. 4k of Peichl, 1992). Epsilon cells appear to represent the predominant type within the sparse group of ferret ganglion cells (Wingate et al., 1992; see especially cell x of their Fig. 9 and the sparse cells of Fig. 19, top). However, other types were apparently included among the sparse cells by Wingate and colleagues because some of them, unlike epsilon cells, ramified insublamina a. Sparse cells in the ferret apparently innervate both the midbrain and thalamus and project ipsilaterally from the temporal retina (Wingate et al., 1992), properties they share with cat epsilon cells (Pu et al., 1994).

Zeta cells

Zeta cells in ferrets (Fig. 8) and in cats (Berson et al., 1998) had among the smallest fields, and the tiniest of these present in the visual streak, suggesting a strong tendency to concentrate there (Fig. 13 and Berson et al., 1998). In cat, zeta cells correspond to an ON-OFF phasic W cell, also known as a local edge detector (Berson et al., 1998; O’Brien et al., 1999). Zeta cells bear a strong resemblance to the local edge detectors in rabbit retina (Amthor et al., 1989; van Wyk et al., 2006) and may be homologous to the maze cell of macaque retina (Rodieck and Watanabe, 1993). Zeta cells were encountered in the ferret retina by Wingate et al. (1992; see cells i, iv and the cell just below iv in their Fig. 9 and also their Fig. 10C). They included these cells within the group they termed tight, which we believe also includes eta cells and possibly also theta cells (see below). According to Wingate et al. (1992), tight cells project contralaterally from the temporal retina, a property they share with cat zeta cells (Berson et al., 1998).

Eta cells

Eta cells in both ferrets (Fig. 9) and cats (Berson et al., 1999b) have moderately small, densely branched arbors that stratify broadly in sublamina a. Ferret eta cells were encountered by Wingate et al. (1992) and included by them in their tight group (see their Fig. 9, cells ii and v). In cat retina it has been suggested they correspond to phasic OFF center W cells (Berson et al., 1999b; O’Brien et al., 1999). Cat eta cells project ipsilaterally from the temporal retina whereas ferret tight cells project contralaterally (Wingate et al., 1992; Berson et al., 1999b).

Theta cells

Theta cells are found in both cats (Isayama et al., 2000) and ferrets (Fig. 10), but may not have been encountered in earlier studies of ferret retina, because bistratified ganglion cell types were not reported previously. Bistratification in theta cells can easily be overlooked due to the extensive crosslinking of the ON and OFF arbors. At least one tight cell illustrated by Wingate et al. (1992; Fig. 9, cell iii) closely resembles a theta cell. In cats, theta cells project to the lateral geniculate complex as well as the superior colliculus (Isayama et al., 2000). Preliminary evidence suggests that cat theta cells are ON-OFF phasic W cells (O’Brien et al., 1999).

Iota cells

Iota cells in ferrets (Fig. 11), like those in cats (Berson et al., 1997), have bistratified dendritic arbors of intermediate size. Wingate et al. (1992) did not encounter this type, since they observed no bistratified forms. Both ferret and cat iota cells closely resemble the Type I bistratified cell of rabbit, the morphological counterpart of the ON-OFF direction selective cell (Amthor et al., 1984; Amthor et al., 1989; Famiglietti, 1992; Yang and Masland, 1992; Oyster et al., 1993; Vaney, 1994; Yang and Masland, 1994; O’Brien et al., 1999).

Conclusions

The present study advances our understanding of the ganglion cell types present in the ferret retina, including their topographic organization and patterns of stratification. The findings demonstrate a remarkable degree of similarity to ganglion cell organization in the cat, despite lower retinal magnification and shallower topographic gradients in cell density and field size. Most of the same morphological types that have been described so far in the cat retina are represented in the ferret. Their relative field dimensions and stratification patterns are virtually indistinguishable from their counterparts in cat retina. Alpha cells, beta cells, and at least some other types exhibit an inverse relationship between dendritic field dimensions and ganglion cell density, as expected for regular ganglion cell mosaics. Taken together with the altricial development of the ferret visual system, the results underscore the promise of the ferret retina as a model system for studies of the differentiation of individual ganglion cell types, including their specific patterns of dendritic stratification and the generation of characteristic sampling arrays.
