Direct evidence of active site reduction and photo-driven catalysis in sensitized hydrogenase assemblies

Abstract

We report photo-catalytic H₂ production by hydrogenase (H₂ase)-quantum dot (QD) hybrid assemblies. Quenching of the CdTe exciton emission is observed, consistent with electron transfer from quantum dot to H₂ase. GC analysis shows light driven H₂ production in the presence of a sacrificial electron donor with an efficiency of 4%, which is likely a lower limit to these hybrid systems. FTIR was employed for direct observation of active site reduction in unprecedented detail for photo-driven H₂ase catalysis with sensitivity towards both H₂ase and sacrificial electron donor. Photosensitization with Ru(bpy)₃²⁺ shows distinct FTIR photo- reduction properties generating all states along the steady-state catalytic cycle with minimal H₂ production indicating slow, sequential one electron reduction steps. Comparing H₂ase activity and FTIR results of both systems shows that QDs bind more efficiently for electron transfer and the final enzyme state is different for the two sensitizers. The possible origins of these differences and their implications for the enzymatic mechanism are discussed.

H₂ases catalyze the two reactions that are fundamental for a viable hydrogen-based economy: the reduction of protons in water to hydrogen and the oxidation of hydrogen to protons One class of H₂ases, denoted [NiFe] based on the metal content of the active site, is tolerant of, or reversibly inhibited by O₂, and consequentially has been heavily studied for biotechnology applications.^1–5 Recent research has explored using light to drive the chemistry of H₂ase enzymes with a variety of photosensitizers, including photosystem I, ruthenium sensitized TiO₂ and QDs.^6–12 Light induced H₂ generation and ET has been characterized, but no one to date has used this approach to rapidly initiate turnover for mechanistic studies. Triggering enzyme turnover with light may provide exquisite control of the complex catalytic cycle (SI-1), which opens the possibility of directly observing short lived intermediates by infrared spectroscopy through the CO and CN⁻ ligands bound to iron in the active site.

Herein we present a hybrid photo-catalyst that couples H₂ase from Thiocapsa roseopersicina (Tr) and mercaptopropionic acid (MPA) capped CdTe QDs to efficiently drive hydrogen production using visible light. This [NiFe] H₂ase was selected for its overall chemical stability towards various buffers, pH and ionic strength as well as its exceptional thermal stability, high tolerance towards O₂ and reversible reactivation.⁴ FTIR spectroscopy provides direct evidence of active site reduction as well as sacrificial electron donor (SED) consumption and GC analysis confirms highly efficient enzyme turnover. Comparison with Ru(bpy)₃²⁺ sensitized H₂ase reveals striking differences that we attribute in part to the efficiency of photo-reduction which may have important implications for the catalytic mechanism.

Understanding the interaction between the QD and enzyme surface is of critical importance to design ET active binding.¹³ Electrostatic binding was used as the simplest approach to attaching the QD photosensitizer to the enzyme. Since the crystal structure of the Tr H₂ase has not been determined, homology modeling (SI-2) was performed to assess possible binding sites of the CdTe QD. ^14,15 The model shows a positively charged region around the small subunit near the distal and medial FeS clusters. We hypothesize the latter as the most likely binding site for the negatively charged CdTe QD. Binding at this site should orient the nanoparticle optimally on the enzyme surface for interfacial ET to the distal or medial FeS cluster.¹³

QD photoluminescence quantum efficiency (PLQE) has been shown previously to be sensitive to molecules and proteins adsorbed to the QD in nanoparticle assemblies.^6,16,17 We use this property of QDs to investigate the nature of H₂ase-QD binding interaction and non-radiative contributions to excitonic quenching from H₂ase adsorbed on the QD surface as shown in Figure 1.

Figure 1.

Photoluminescence titration spectra of 500 nM CdTe QDs with H₂ase (red = 0 μM H₂ase, purple = 4 μM H₂ase) in 100 mM phosphate buffer pH = 7.5. Inset shows integrated photoluminescence intensity as a function of H₂ase concentration.

Titration of QDs with H₂ase shows quenching of the PLQE. We attribute the decrease in PLQE to a non-radiative ET quenching mechanism that directly reduces the distal FeS cluster. The observed behavior is likely due to higher interfacial ET efficiency (decreases PLQE) over the proposed surface passivation effect (increases PLQE).^16,17 We postulate that surface passivation is indeed occurring, but that the high ET efficiency obscures the predicted increase in PLQE by surface passivation. The PL quenching does not show saturation over the accessible range of H₂ase concentrations, preventing detailed analysis of the binding constant and free energy, but salt screening effects, vide infra, corroborate electrostatic binding. The titration indicates a binding constant < 10⁶ M⁻¹ (SI) or that the binding is not one to one.

Encouraged by evidence for ET in the PL titration, FTIR experiments were performed in an attempt to observe photo-reduction at the active site. Light titrations, monitored by FTIR difference spectroscopy, were used to follow the active site reduction through frequency shifts in the CO and CN⁻ bands observed after enzyme reduction (Figure 2).

Figure 2.

(a) Light titrations probed by FTIR spectroscopy of 500 μM H₂ase, 1 mM QDs and 50 mM ascorbate in 100 mM phosphate buffer pH 7.4. Red = 0 s illumination, purple = 12.5 seconds of illumination. (b) Comparison of peak to peak absorbance difference from ascorbate to dehydroascorbate (blue circles) and Ni_r-B to Ni_a-S (red squares). Linear fits from 0 – 10 s of illumination give slopes of 3.3 × 10⁻⁸ and 8.5 × 10⁻⁸ for H₂ase and ascorbate respectively.

Aerobic reduction by QD excitation yields bleached bands at 2091, 2079 and 1944 cm⁻¹. These bands are nearly identical to the CN⁻ and CO frequencies associated with the oxidized Ni_r-B state of [NiFe] from D. gigas.¹⁸ Induced absorbances at 2084 cm⁻¹, 2075 cm⁻¹ and 1930 cm⁻¹ also match well with the one-electron reduced Ni_a-S state, indicating light initiated formation of the catalytically active state.¹⁸ These difference spectra represent the first infrared characterization of [NiFe] H₂ase from Thiocapsa roseopersicina and verify its similarity to other well-studied [NiFe] H₂ases.^18–20 Aerobic reduction typically results in rapid re-oxidation to the Ni_r-B state in electron rich conditions. ^4,21,22 Due to the long time scale (minutes) of the steady state FTIR difference measurements in Figure 2(a), no signal would be observed if this were the case, since the initial and final states would be the same. We thus conclude, either photo-reduction results in rapid and complete reductive O₂ consumption in the experimental cell, as has been proposed by Zadvornyy et al., or that re-oxidation is kinetically hindered.¹¹ The formation of further reduced states such as Ni_a-C and Ni_a-SR was not observed even for a short illumination times (100 ms), as expected for multi-electron reduction followed by rapid H₂ evolution (sub-millisecond) that re-oxidizes the enzyme to Ni_a-S faster than the timescale of the difference FTIR method.

The consumption of the sacrificial electron donor, ascorbate, and subsequent formation of dehydroascorbate is observable in the mid-IR by following the carbonyl modes. The rate of ascorbate consumption observed (Figure 2(b)) is approximately three times the rate of H₂ase reduction. We conclude that the apparent single electron reduction process observed in the steady state FTIR spectrum is actually the end product of a more complex cycle involving full reduction of Ni_r-B to Ni_a-SR followed by rapid H₂ evolution to form Ni_a-S. This interpretation is corroborated by anaerobic steady-state light titrations where the enzyme is activated under H₂ (SI-6). In these experiments Ni_a-C is observed to bleach as a function of illumination time with concomitant reforming of the Ni_a-S state and some Ni_a-SR along with SED consumption. The net result is the same as the aerobic case: multi-electron reduction results in H₂ evolution to re-form the catalytically active oxidized state.

To determine photo-catalytic H₂ production efficiency, gas chromatography was used to quantify H₂ production (Figure 3). Rapid H₂ production is observed with a peak of 81 nmoles produced in 40 s of illumination. Based on the H₂ production after absorbance of 2.07 × 10¹⁸ photons, 4% of absorbed photons are converted to proton reducing equivalents with an enzyme TON of 92 (explicit calculations of efficiency and TON are laid out in the SI). The efficiency is drastically reduced by electrostatic screening in high ionic strength solutions, as shown in comparison to the same system in artificial seawater (Figure 3). This observation indicates engineering better electrostatic interactions will likely increase the overall efficiency. Relative to similar work in the literature, our system has the disadvantage of an enzyme naturally biased towards H₂ oxidation, but with the significant advantages of O₂ tolerance and a better basis for mechanistic studies.²³ The system also shows some photo-decomposition after long illumination times as observed by Brown et al. for similar systems, likely due to oxidation of surface ligands of the thiolate capped QDs.²³

Figure 3.

GC assay of H₂ production versus photons absorbed. Red circles represent 1 μM H₂ase, 0.5 μM QD, 50 mM ascorbate in 100 mM phosphate buffer pH = 7.4. Blue triangles represent 1 μM H₂ase, 0.5 μM QD, 50 mM ascorbate in 50 mM TRIS buffered seawater pH = 7.4.

The inability to observe intermediates Ni_a-C and Ni_a-SR in the QD-H₂ase light initiated difference measurements means that under these conditions turnover is very efficient, consequently there is no buildup of partially reduced intermediates. Since the instantaneous fluence and duration of the laser pulse (10 ns) are large enough to produce multiple excitation and exciton generation/dissociation events (not limited by the rate of oxidation of the SED), we postulate that there are multiple electron transfer events into the protein, resulting in rapid enzyme reduction and turnover. To test this hypothesis, we compared the light driven turnover of H₂ase using Ru(bpy)₃²⁺, an intrinsic single electron photo-reductant. Light titrations of Ru(bpy)₃²⁺ sensitized H₂ase shown in figure 4, provide evidence for light-induced production of every known redox intermediate of the enzyme (each CO peak corresponds to a separate state). The amplitudes of the FTIR difference features increase linearly with illumination time over the entire light titration, indicating that the photoreduction rate is constant throughout the titration.

Figure 4.

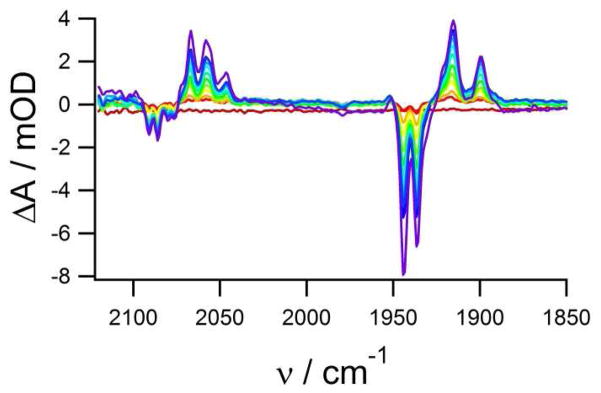

Laser-induced FTIR light titration of Ru(bpy)₃²⁺ sensitized H₂ase. 27 mM Ru(bpy)₃²⁺, 500 μM H₂ase and 100 mM ascorbate in 100 mM phosphate buffer pD = 7.4. Red = dark spectrum, purple = difference FTIR after 12 s of laser illumination.

Two CO bleaches are observed, one corresponding to Ni_r-B, and one that is 6 cm⁻¹ blue-shifted from the previously observed Ni_a-S state. This shift is likely due to the spectral crowding of positive features around bleaching bands, which shifts the apparent peak position away from the adjacent positive feature. Bleaching of the CN⁻ bands assigned to Ni_r-B and Ni_a-S is also observed, indicating that the bleach at 1937 cm⁻¹ is in fact Ni_a-S. Induced absorbances are observed at 1915 cm⁻¹ (Ni_r-S), 1899 cm⁻¹ (Ni-L^*) and 1951 cm⁻¹ (Ni_a-C), with a shoulder growing in at 1921 cm⁻¹ that is associated with the fully reduced state Ni_a-SR.^24,25 A small amount of SED consumption is observed confirming its involvement in the re-reduction of the Ru(bpy)₃³⁺, but the amount of ascorbate oxidation is too small to quantify by FTIR spectroscopy. For the reaction conditions employed, the bimolecular reaction of Ru(bpy)₃³⁺ with ascorbate is much higher than that of reduction by H₂O/OH⁻(10⁸ s⁻¹ versus 10⁻³ s⁻¹ for pseudo first order rate constants respectively).^26,27 Regeneration of Ru(bpy)₃²⁺ may occur on a fast timescale, but due to the lower binding affinity or lower ET efficiency of Ru(bpy)₃²⁺-H₂ase complexes relative to H₂ase-QDs, the likelihood of multiple reduction events from a single Ru(bpy)₃²⁺ is very low.

GC analysis of H₂ produced using photosensitization with Ru(bpy)₃²⁺ (SI-5) shows markedly lower solar to hydrogen conversion efficiency of 0.02%. This is likely due to non-specific binding and possibly preferential electrostatic binding to the large subunit not electronically connected to the active site. No H₂ production is observed without ascorbic acid, H₂ase or Ru(bpy)₃²⁺, evidence that each component is obligatory for H₂ase turnover.

The key differences between the QD and Ru(bpy)₃²⁺ photo-driven enzyme reduction can be summarized as follows: First, QD binding is electrostatic, is screened at high salt concentration and quenches QD PL. Ru(bpy)₃²⁺ is non-specifically bound or bound in ET inactive sites on the enzyme surface, based on homology modeling and PL titrations (data not shown). Secondly, H₂ production with QDH₂ase hybrids is reasonably efficient, whereas Ru(bpy)₃²⁺ is 100x less efficient per photon absorbed. And finally, light induced difference FTIR measurements shows very different populations of intermediate states. Photo-reduction with QDs results in formation of the Ni_a-S state only whereas Ru(bpy)₃²⁺ generates all known steady state intermediates. These are fundamentally different end points in photo-reduction, and the Ru(bpy)₃²⁺ spectra don’t evolve to the QD-H₂ase spectra under long illumination times. The accumulation of a distribution of intermediates is correlated with inefficient enzyme turnover.

The origins of the light titration differences are not completely understood, but certainly have to do with the fundamental differences between Ru(bpy)₃²⁺ and QDs. One possible explanation is that the observed differences are purely a consequence of the mode of photosensitizer binding. Homology modeling suggests positively charged Ru(bpy)₃²⁺ may bind non-preferentially for ET. This non-preferential binding could make observation of intermediates much more likely since the fundamental reduction events are slower. The mode of binding may also influence the flux of electrons entering the enzyme through the FeS chain versus a more direct route, which in turn could influence the turnover, for example by modulating the efficiency of coupled proton transfers. Finally, QDs may be capable of delivering multiple electrons from multiple photons without requiring hole filling.^28,29 In contrast, Ru(bpy)₃²⁺ can only deliver a single electron and then must be regenerated by the SED (no faster than bimolecular diffusion). Thus QDs may produce multiple reducing equivalents on a timescale that is fast relative to the TOF of the enzyme. This observation raises the possibility that efficient turnover requires fast multi-electron reduction, and that the partially reduced steady state intermediates are a consequence of slow single electron reduction and are not productive. Further experiments will be required to determine the source of the observed differences.

In summary we have presented direct spectroscopic and chromatographic evidence of efficient QD photo-driven enzyme reduction and H₂ production using an O₂ tolerant [NiFe] H₂ase. We have also demonstrated the power of these QD-H₂ase assemblies for studying very fast and complex redox chemistry of enzymes using light triggers that could open up new doors for sub-turnover temporal spectroscopic resolution. The strikingly different photo-reduction behaviors observed between QD and Ru(bpy)₃²⁺ sensitized H₂ases are likely due to multi-photon, multi-electron pathways in QD assemblies that are not possible in the case of Ru(bpy)₃²⁺. We intend to further elucidate the mechanism of light-driven H₂ase turnover using time resolved IR and transient absorbance experiments capable of directly probing ET rates and catalytic intermediates.
