An iron-dependent and transferrin-mediated cellular uptake pathway for plutonium

Abstract

Plutonium is a toxic synthetic element with no natural biological function, but it is strongly retained by humans when ingested. Using small angle X-ray scattering, receptor binding assays, and synchrotron X-ray fluorescence microscopy we find that rat adrenal gland (PC12) cells can acquire plutonium in vitro through the major iron acquisition pathway, receptor-mediated endocytosis of the iron transport protein serum transferrin; however only one form of the plutonium-transferrin complex is active. Low-resolution solution models of plutonium-loaded transferrins derived from small angle scattering demonstrate that only transferrin with plutonium bound in the protein’s C-terminal lobe and iron bound in the N-lobe (Pu_CFe_NTf) adopts the proper conformation for recognition by the transferrin receptor protein. Although the metal binding site in each lobe contains the same donors in the same configuration and both lobes are similar, the differences between transferrin’s two lobes act to restrict, but not eliminate, cellular Pu uptake.

Organisms have no natural mechanism for specifically recognizing plutonium (Pu) as it is a non-essential element that until 1941 only existed on earth in biologically insignificant concentrations for at least the last two billion years. Nevertheless, Pu is radiotoxic and is strongly retained by organisms¹, Pu uptake from an accident, environmental contamination, or a nuclear or radiological attack can pose significant health risks. Plutonium localizes principally in the liver and skeleton in humans where it remains for decades². It associates in vivo with the iron-containing proteins serum transferrin and ferritin^3,4, but despite the danger of plutonium poisoning, the specific molecular-level pathways Pu travels to enter and localize in cells have never been identified^2,5 and no complete structure of a plutonium-protein complex has ever been reported. Understanding how a synthetic element like plutonium subverts existing biological metal-acquisition pathways to enter cells and where the pathways of plutonium and essential metals, such as iron, converge or diverge could provide important insights into the molecular mechanisms organisms use to distinguish between metal ions and enable new treatments for plutonium poisoning.

Plutonium’s chemistry bears limited resemblance to that of biologically important transition metals. Plutonium is highly redox active with four oxidation states (III, IV, V, and VI) potentially relevant to living organisms, although Pu(IV) has long been considered the most important under physiological conditions⁶. Regardless of oxidation state, Pu ions are hard Lewis acids that generally form kinetically labile bonds with ligands⁷. They are also large ions (crystallographic radii = 0.85 – 1.14 Å for CN = 6⁸, depending on the oxidation state) that prefer high coordination numbers; plutonium complexes with coordination numbers of 8 or 9 are common⁹.

While these properties set Pu apart from transition metals commonly encountered in the metallome, Pu and transition metals do share important similarities. Similar to high-valent transition metals, tetravalent Pu is strongly hydrolyzed at physiological pH¹⁰. In the absence of steric constraints, Pu⁴⁺ tends to form complexes that are about as stable as those of trivalent first row transition metals, notably Fe³⁺, because the metals’ charge to radius ratios are similar^1,11. These properties give plutonium a chemistry that partly resembles transition metals, especially iron. The chemical similarities of Fe and Pu are particularly important to the metal transport protein serum transferrin (Tf). Transferrin functions to strongly bind and carry two Fe³⁺ ions into cells, but it also binds Pu⁴⁺ strongly¹² with a reported conditional pK_d = 21.25± 0.75¹³, and it accounts for 70–90 % of the Pu in serum^3,13.

Diferric transferrin (holo-transferrin, Fe₂Tf) delivers iron to mammalian cells through receptor-mediated endocytosis in a multi-step process. Transferrin is a bilobal glycoprotein. Each lobe of Tf, the C-lobe and N-lobe, is composed of two domains with one iron binding site located at the bottom of the inter-domain cleft in each lobe. When an appropriate metal ion and a synergistic anion (i.e., CO₃²⁻) are both present in one binding site, the domains close around the binding site, sequestering the metal and binding it tightly (K_d = 10^−21.4 M for Fe³⁺)¹⁴. When both lobes of Tf are thus properly closed, the metal-transferrin complex is in the proper conformation to be recognized by the transferrin receptor protein (TR) on the cellular surface. At the extracellular pH of 7.4, TR binds Fe₂Tf strongly (K_d = 5 nM)¹⁵. Other forms of transferrin, metal-free apo-transferrin and the monoferric transferrins Fe_NTf and Fe_CTf (with the metal-containing lobe indicated by the subscript N or C), are not in the proper conformation to be well-recognized by TR because one or both of the lobes remain open in the absence of a metal cation¹⁶. As a result, the receptor binding constants of apo-Tf, Fe_NTf, and Fe_CTf are at least an order of magnitude smaller than that of Fe₂Tf-TR¹⁵.

While some have suggested that transferrin may carry Pu into cells¹⁷, extensive in vitro experiments have been taken to imply that plutonium-transferrin complexes are not taken into cells in a manner similar to the iron-transferrin complex^2,18–20, presumably because Pu⁴⁺ is a larger ion than Fe³⁺ and strongly prefers higher coordination numbers. Instead, an ill-defined uptake pathway, which does not involve transferrin, has been invoked as the source of intracellular Pu^18,20.

Studying the conformations and biochemical interactions of plutonium-transferrin complexes using a low specific activity plutonium isotope (²⁴²Pu) to minimize radiation effects, we found that mammalian cells could acquire Pu through the common Fe uptake pathway of receptor-mediated endocytosis of metallo-transferrins. However, to be taken into the cell by receptor-mediated endocytosis, Pu needed help from Fe because only one isomer of the monoplutonium-monoiron-transferrin complex was active. In the active form of the plutonium-laden protein, Pu⁴⁺ was bound in the metal binding site of the protein’s C-terminal lobe and Fe³⁺ was bound in the protein’s N-lobe (Pu_CFe_NTf). All other forms of plutonium-transferrin that could exist in vivo failed to adopt the proper conformation for receptor recognition and uptake. Although the metal binding site in each lobe contains the same donors in the same configuration and both lobes are similar^14,21, the differences between transferrin’s two lobes restricted, but did not eliminate, cellular Pu uptake.

RESULTS

Receptor binding of plutonium-transferrins

To understand how cells take up plutonium and if the cellular uptake mechanisms of Fe³⁺ and Pu⁴⁺ diverge, we systematically examined the binding of Pu-Tf complexes to the transferrin receptor protein, which is a prerequisite for cellular uptake of a metallo-transferrin. Receptor binding assays of plutonium-bearing human transferrins were conducted using the soluble extracellular fragment of human transferrin receptor 1 isolated from serum²², which retains its capacity to bind Fe₂Tf²³. The binding of the controls apo-Tf and Fe₂Tf (Fig. 1) were as expected from the previously reported binding constants^15,24. The two Fe³⁺ cations in diferric transferrin were then systematically replaced with Pu⁴⁺, individually producing the mixed monoplutonium-monoiron-transferrin complexes Pu_CFe_NTf and Fe_CPu_NTf, and the diplutonium-transferrin complex Pu₂Tf (i.e., Pu_CPu_NTf), which were incubated with the transferrin receptor. The receptor binding assays of the three plutonium-transferrins (Fig. 1) indicated that each of these metallo-transferrins could bind soluble TR under our experimental conditions. However, the different forms of Pu-Tf showed different receptor binding behaviors. The affinity of TR for Pu₂Tf and Fe_CPu_NTf, was substantially lower than for Pu_CFe_NTf and Fe₂Tf, suggesting that although Pu⁴⁺ binds to Tf in the Fe³⁺ binding site¹³, neither Pu₂Tf nor Fe_CPu_NTf would be recognized at physiological concentrations. In contrast, Pu_CFe_NTf should be recognized by TR.

Figure 1. Pu_CFe_NTf is the only Pu-transferrin that binds TR well.

Mean binding of 1 μM serum transferrin to 1 μM soluble TR in 0.2 M NaCl/0.010 M HEPES/0.005 M CO₃²⁻ buffered at pH 7.4 as measured by gel chromatography. Error bars are given at the 95% confidence level. For the Pu-transferrins they are ±S.E.M. For the control samples, the error bars represent the propagated experimental uncertainties.

Solution conformations of plutonium-transferrins

One form of plutonium-transferrin, Pu_CFe_NTf, bound the transferrin receptor well but the two other forms, Fe_CPu_NTf and Pu₂Tf, did not. Because the transferrin receptor only binds transferrin well if both the protein’s lobes are in the closed conformation, we examined a series of metallo-transferrins using small-angle X-ray scattering (SAXS) to obtain low resolution solution models of the bovine proteins. The scattering profiles of the transferrins (see Supplementary Results and Supplementary Fig. S1a online) fell into three distinct groups. Based on the scattering of the natural transferrins, we assigned these groups of scattering curves to transferrin with both lobes open, one lobe open and one lobe closed, or both lobes closed, which we term open, mixed, and closed transferrins, respectively. The scattering profiles of the closed transferrins (i.e., Fe₂Tf, Pu_CFe_NTf, and In₂Tf, di-indium transferrin) were qualitatively distinguished from the other curves by a distinct drop in scattering intensity between 0.15 and 0.20 Å⁻¹ (Supplementary Fig. S1b)²⁵.

The differences between the protein conformations indicated by the scattering were clarified by ab initio shape reconstruction of low-resolution protein models from the SAXS by simulated annealing of dummy atom (bead) models²⁶. The resulting three-dimensional solution structures of the proteins calculated from the scattering data agree well with the reported crystal structures of serum transferrin^27,28 (Fig. 2a and Supplementary Fig. S2). As depicted in Figure 2, the two lobes of each metallo-transferrin are clearly visible at the top and bottom of each model, as was the open or closed conformation of each lobe. Most importantly, the structures of Pu_CFe_NTf and closed Fe₂Tf, which both bound TR well, were very similar (Figs. 2a and 2b), and both had two closed lobes. In contrast, the conformations of the other plutonium-bearing transferrins, Fe_CPu_NTf and Pu₂Tf, were clearly mixed. Those models (Figs. 2a and 2b) showed one smaller closed lobe at the bottom of the displayed structural model and one open lobe at the top with a cleft between the lobe’s two domains, just as observed for mixed Fe_CTf.

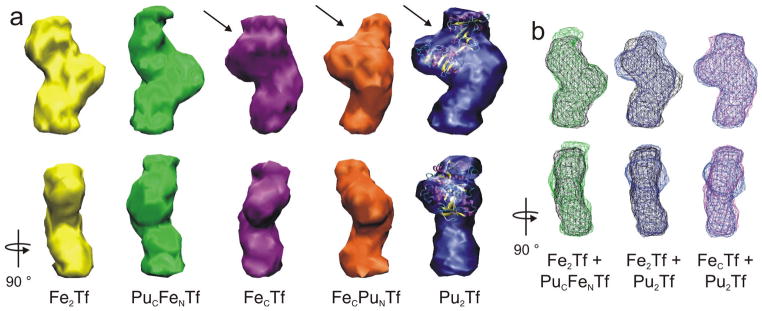

Figure 2. Structural models of bovine serum transferrins derived from SAXS demonstrate that Pu_CFe_NTf adopts a closed conformation.

(a) Orthogonal views of the three-dimensional molecular envelopes of metal-transferrin structures reconstructed from the SAXS. The inter-domain cleft in each of the open N-lobes is indicated with arrows, and the open lobe of Pu₂Tf is superimposed on the crystal structure of open N-terminal recombinant human half apo-transferrin (1BP5)²⁹. (b) Docking wireframe representations of the transferrin structures onto each other demonstrates the uniqueness of the closed (Fe₂Tf and Pu_CFe_NTf) structures and the mixed (Fe_CTf and Pu₂Tf) structures, with Pu_CFe_NTf (—), Fe₂Tf (—), Pu₂Tf (—), and Fe_CTf (—).

Although the resolution of these measurements did not allow direct identification of the C- and N-lobes of each metallo-transferrin from the SAXS data, the systematic substitution of Pu⁴⁺ into Tf allowed identification of the one open lobe observed for Fe_CPu_NTf and Pu₂Tf. Fe³⁺ binding causes lobe closure under the conditions of our experiments. Consequently, the iron-containing C-lobe of Fe_CPu_NTf was closed and the plutonium-containing N-lobe must be the open lobe observed for this form of the protein. This implied that the N-lobe of Pu₂Tf also was open. In fact, the conformation and overall dimensions of the open lobe determined for the mixed transferrins (Fe_CTf, Fe_CPu_NTf, and Pu₂Tf) from the SAXS data matched the crystal structure of the open N-terminal half apo-transferrin fragment²⁹ well, as depicted for Pu₂Tf in Fig. 2a.

The conformation of Pu₂Tf indicated that transferrin’s two iron-binding sites respond to Pu⁴⁺ differently. The N-lobe of Pu₂Tf was open; therefore the second plutonium cation in the C-lobe must promote C-lobe closure because the SAXS data indicated that one lobe of Pu₂Tf was closed (Fig. 2a). Since Pu⁴⁺ in the C-lobe and Fe³⁺ in either lobe caused lobe closure, both lobes of Pu_CFe_NTf were expected to be closed. The structural reconstruction of Pu_CFe_NTf confirmed this (Figs. 2a and 2b). Although Pu₂Tf and Fe_CPu_NTf adopted the mixed conformation with one open and one closed lobe, solutions of Pu_CFe_NTf contained the protein in a fully closed configuration that matched the native form of the protein found for Fe₂Tf. The slight deviations observed between the structures of Fe₂Tf and Pu_CFe_NTf (Fig. 2c) were within the uncertainty of the experiment and analysis, and principally arose from the slightly different maximum protein diameters derived from the SAXS data used for the shape reconstruction (D_max = 104 ± 10 Å for Pu_CFe_NTf vs. 100 ± 10 Å for Fe₂Tf, see Supplementary Table S1).

Cellular uptake of plutonium-transferrins

Plutonium’s inability to induce closure of transferrin’s N-lobe explained the receptor binding experiments and implied that under physiological conditions only Pu_CFe_NTf, the sole closed plutonium-transferrin complex, could be recognized by TR and incorporated into cells through receptor-mediated endocytosis. To test this hypothesis, we incubated PC12 cells for 3 hours in complete growth medium supplemented with rat transferrin presented as either closed Pu_CFe_NTf, which should be recognized and carry Pu into cells, or mixed Fe_CPu_NTf, which should not. The elemental content and distribution in individual cells was monitored with synchrotron X-ray fluorescence microscopy (SXFM) (Fig. 3a–e, Supplementary Figs. S3 and S4, and Supplementary Table S2). As expected from the protein conformations and receptor binding experiments, Pu presented as closed Pu_CFe_NTf was taken into the cells (Figs. 3b and 3e), and localized in the cytoplasm (Supplementary Figs. S3d–f). The average intracellular content of the Pu containing cells was 1.6 ± 0.3 ng Pu/cm² (±S.E.M at 95% confidence, n = 8). In contrast, the average cellular uptake of Pu from mixed Fe_CPu_NTf was sharply reduced to only 0.3 ± 0.2 ng Pu/cm² (±S.E.M at 95% confidence, n = 21), as illustrated in Figures 3c and 3e.

Figure 3. PC12 cells take in plutonium as Pu_CFe_NTf.

Contour plots of Pu L_α X-ray fluorescence intensity measured by SXFM superimposed on optical images of cells. (a) Pu-free control cell; (b) uptake of Pu as Pu_CFe_NTf; (c) very low uptake of mixed Fe_CPu_NTf and of (d) chloroquine-treated cells exposed to Pu_CFe_NTf. The Pu observed on the left edge of panel d is associated with cellular debris. The average background corrected Pu content (e) of the Pu-containing cells exposed to closed Pu_CFe_NTf (labeled “Pu_CFe_NTf”, n = 8) is greater than that of control cells (labeled “Control”, n = 20), cells simultaneously treated with 50 μM chloroquine and Pu_CFe_NTf (labeled “Chloroquine”, n = 8), cells exposed to Fe_CPu_NTf (labeled “Fe_CPu_NTf”, n = 21), or cells exposed to an equimolar mixture of Fe₂Tf and Pu_CFe_NTf (labeled “Fe₂Tf”, n = 4). The error bars are ±S.E.M. at 95% confidence.

To ensure that the cells remained viable over the course of treatment at the concentrations of ²⁴²Pu used, cell viability was quantified by trypan blue exclusion in separate experiments prior to the SXFM measurements. Individual determinations of the viability of cells grown in media supplemented with the highest concentrations of Pu, chloroquine (vide infra), or Pu and chloroquine ranged from 86 to 105% of control cells with a run to run range of ±10% for each measurement of control or treated cells. The average cell viabilities (Supplementary Table S3) were indistinguishable from those of PC12 control samples for the first 3 hours of incubation.

The initial plutonium-transferrin uptake experiments were consistent with receptor-mediated endocytosis of Pu_CFe_NTf, just like Fe₂Tf. To further explore this possibility, the cellular uptake of Pu from closed Pu_CFe_NTf was studied under conditions that would reduce Pu uptake by that pathway. First, Pu uptake from complete media supplemented with an equimolar mixture of Pu_CFe_NTf and Fe₂Tf was examined. While PC12 cells still took in Pu from this medium, the average intracellular concentration of Pu (Fig. 3e) decreased to 39 ± 15% of the value observed for cells incubated with Pu_CFe_NTf alone (error propagated ±S.E.M., 4 Fe₂Tf co-treated cells studied). This was in reasonable agreement with the value expected for simple competition between equal concentrations of Pu_CFe_NTf and Fe₂Tf (50%) if the all aspects of the uptake and retention of Pu and Fe are equivalent and the presence of 12.5 μM Fe₂Tf does not down regulate transferrin-mediated uptake over the time frame of our experiment.

Transferrin endocytosis also is temperature dependent³⁰. No difference was discernable between the uptake of Pu_CFe_NTf at 25 °C (1.5 ± 0.5 ng Pu/cm², ±S.E.M. at 95% confidence, n = 3 cells)and 37 °C (1.8 ± 0.4 ng Pu/cm², ±S.E.M. at 95% confidence, n = 5 cells), presumably because of normal cell-to-cell variations in the elemental content and the small sample size. However, lowering the incubation temperature to 4 °C curtailed Pu uptake as expected for active uptake of Pu_CFe_NTf by endocytosis. Bulk Pu uptake at 4 °C was 17 ± 17% of the uptake of cells incubated at 37 °C (n = 3, error propagated ±S.E.M. at 95% confidence).

To further study Pu uptake from closed Pu_CFe_NTf, PC12 cells also were incubated for 3 hours in complete media supplemented with rat Pu_CFe_NTf (12.5 – 25 μM) and chloroquine (50 μM), which is known to disrupt the uptake of iron through receptor-mediated endocytosis of Fe₂Tf. It does so by preventing complete acidification of the endosomes thereby inhibiting iron release from the Fe₂Tf-TR complex into the endosomes³⁰. In these experiments, chloroquine treatment severely reduced Pu uptake from Pu_CFe_NTf by intact cells (Fig. 3e) to an average of 0.2 ± 0.3 ng Pu/cm² (±S.E.M at 95% confidence, 8 cells studied). While very little Pu was associated with intact chloroquine-treated cells, measurable Pu was found in the SXFM maps associated with cellular debris (Fig. 3d) in the chloroquine treated system. This implied that chloroquine inhibited Pu uptake by living cells, but it did not inhibit Pu binding to the intracellular constituents from ruptured cells. Thus, a drug that disrupts Fe release from Fe₂Tf into the endosomes also disrupted the active uptake of Pu from Pu_CFe_NTf by living cells.

The lack of plutonium uptake from mixed Fe_CPu_NTf, coupled with the proportional reduction in Pu uptake from mixtures of Fe₂Tf and Pu_CFe_NTf and the ability of low temperatures or the presence of chloroquine to inhibit plutonium uptake from closed Pu_CFe_NTf demonstrated that Pu_CFe_NTf, which has the same closed conformation as Fe₂Tf, followed Fe₂Tf into the cells through receptor-mediated endocytosis and was not taken up through non-specific pinocytosis.

DISCUSSION

Our studies each indicated that plutonium could infiltrate mammalian cells using the normal Tf-TR iron uptake system, but only with help from iron and only for one particular isomer of the plutonium-iron-transferrin complex, Pu_CFe_NTf. Earlier attempts to trace the cellular uptake of plutonium either used Pu₂Tf, PuTf, or made no attempt to control the metal population of transferrin, producing conflicting results that discredited transferrin-mediated cellular uptake of plutonium without clearly defining another specific uptake pathway^2,18–20. Other pathways for plutonium uptake that do not involve transferrin likely exist, as is known for iron³¹, but our results demonstrated that Pu_CFe_NTf was capable of efficiently delivering Pu to mammalian cells in vitro through receptor-mediated endocytosis.

The specific requirement for iron binding in the N-lobe of transferrin restricted plutonium’s ability to exploit the transferrin-mediated uptake pathway; however Pu_CFe_NTf likely would constitute a substantial portion of the Pu-Tf species in the blood of exposed individuals. In circulating human blood transferrin concentrations normally range between 25 and 46 μM³². Iron usually consumes only a fraction of transferrin’s iron-binding capacity, leaving ample capacity for transferrin to bind plutonium and giving rise to a distribution of different transferrin species. For normal blood iron loadings, an average distribution of transferrin species of 37% apo-Tf, 45% Fe_NTf, 8% Fe_CTf, and 11% Fe₂Tf in human serum has been reported³³. The precursors to Pu_CFe_NTf, Fe_NTf and apo-Tf (which can react to form Pu_CTf), constitute the major fraction of the transferrin in human serum. Thus the inability of plutonium to trigger N-lobe closure in serum transferrin is not sufficient to prohibit Pu uptake through the Tf-TR pathway in vivo where iron is available to fill the N-lobe.

Several possible advantages of modern bilobal transferrins over their single-lobed progenitors have been proposed. As a partial iron mimic, the interactions between plutonium and transferrin suggest another, enhanced selectivity for iron. By itself, transferrin does not effectively discriminate against the man-made element plutonium, binding Pu⁴⁺ almost as strongly as Fe^{3+ 13}, but the bilobal nature of transferrin and the differences between the lobes confer a measure of selectivity against plutonium to the Tf-TR uptake system. Contrary to predictions^34,35, Pu⁴⁺ and Fe³⁺ are sufficiently different that plutonium binding did not trigger closure of the N-lobe. Therefore, neither Pu₂Tf nor Fe_CPu_NTf were efficiently recognized by the transferrin receptor, and cellular uptake of Pu was diminished. Plutonium could overcome the selectivity of the multi-step metal recognition system of the Tf-TR pair only with the assistance of Fe through the formation of Pu_CFe_NTf, which efficiently bound TR.

The Tf-TR iron uptake system achieves its partial selectivity for iron over plutonium in spite of the similarity of the C- and N-lobes, which show high sequence similarity (40–50% for serum transferrins)³⁶. The residues involved in metal binding are completely conserved between the two lobes and also are conserved in the closely related proteins lactoferrin (Lf) and ovotransferrin¹⁴. Since the identity and the configuration of the binding resides are the same in both lobes of serum transferrin, the partial discrimination of the Tf-TR system against Pu could not arise from plutonium’s presumed direct interactions with the binding residues (2 Tyr, 1 Asp, 1 His) in the metal binding sites. Moreover, when lactoferrin binds Ce⁴⁺, another tetravalent f-element cation with the same size and coordination preferences as Pu⁴⁺, the crystal structure of diceric lactoferrin (Ce₂Lf) shows that the coordination environment of Ce⁴⁺ matches that of Fe³⁺ in Fe₂Lf and that both the C-lobe and the N-lobe are closed³⁵. Consequently, the different responses of transferrin’s two lobes to Pu binding and the ability of the Tf-TR uptake system’s ability to attenuate Pu uptake appear to arise from one or more known structural differences between the lobes^28,37 outside of the actual metal binding sites.

The protein conformations we observed for the plutonium-iron-transferrin complexes also suggest that mixed-metal transferrin complexes may play an important role in the metallome by allowing an unsuspected trafficking pathway for naturally occurring metals. Transferrin is known to bind over 30 different metals, but the cellular uptake of the metal-transferrin complexes is believed relevant for a only a few of them¹⁴. Since transferrin’s two lobes can react differently to binding the same metal ion, the uptake of mixed iron-metal-transferrin complexes (M_CFe_NTf or Fe_CM_NTf) in vivo may represent substantial uptake pathways for other metals as well if metal binding induces closure of one lobe but not the other. The relevance of mixed-metal transferrins would not be apparent from studies of the receptor-binding or cellular uptake of simple M₂Tf complexes as one lobe of M₂Tf would be open and the complex would not be recognized by TR.

The intracellular pathways plutonium follows between its putative release from Tf in the endosomes and its retention in the cytoplasm have yet to be identified, but our demonstration that a specific form of plutonium-transferrin entered mammalian cells using the normal Fe₂Tf-TR pathway is of practical significance because this well-defined pathway presents multiple targets to block plutonium uptake and spare cells from its highly destructive α-radiation. Currently approved therapies for plutonium poisoning, based on ligands that strongly bind Pu, are unable to extract all intracellular Pu^1,38,39. In contrast, novel strategies to disrupt the Pu_CFe_NTf-TR pathway could preempt plutonium accumulation in cells. Such strategies might include blocking the binding of Pu_CFe_NTf to TR, or inhibiting the intracellular release of Pu in the endosome (mimicking the action of chloroquine in our experiments), which would keep Pu from accumulating in cells and could promote faster clearance from the body, particularly if used in conjunction with plutonium-specific chelators.

METHODS

Protein Preparation

Bovine, human, and rat serum transferrins (≥ 98%) were obtained from commercial sources (Sigma-Aldrich or Rockland Immunochemical), and further purified by gel chromatography on superfine Sephadex G-100 (GE Healthcare). Protein concentrations were measured by BCA protein assay or UV spectroscopy⁴⁰. Metal concentrations were measured by UV-visible spectroscopy for Fe or liquid scintillation counting (LSC) of ²⁴²Pu. Iron saturation of transferrin was ensured by adding freshly prepared pH 4 solutions of Fe(NTA)₂³⁻ (NTA³⁻ = nitrilotriacetate) to transferrin in 0.1 M NaCl/0.01 M HEPES/0.005 M NaHCO₃, while iron depletion was achieved by exposing the protein to 0.1 M sodium citrate/0.1 M acetate buffer solutions at pH 4.5. Unreacted material was removed by repeated buffer exchange with ultracentrifugation through a 30 kDa Centricon filter (Millipore). Monoferric transferrins Fe_CTf and Fe_NTf were prepared according to literature methods.^40,41 The purity of the preparations was established by urea-PAGE (see Supplementary Methods and Fig. S5 online). ²⁴²Pu-loaded transferrins were prepared by mixing solutions of Pu-citrate or Pu-NTA complexes with the appropriate transferrin in 0.1 M NaCl/0.01 M HEPES/0.005 M NaHCO₃ at pH 7.4 (Supplementary Methods and accompanying Supplementary Figures S6 and S7).

Receptor Binding

Soluble human transferrin receptor (≥ 95%, Hytest) consisting of extracellular residues 101–760 of the intact receptor was used as received. Solutions containing a 1:1 ratio of TR and Pu-loaded human serum transferrin as Pu₂Tf, Pu_CFe_NTf, or Fe_CPu_NTf at 1 μM were allowed to react for at least 15 minutes at 23 °C before isolation of the receptor-bound transferrin using gel chromatography on superfine Sephadex G-100⁴². Protein was quantified by UV-visible spectroscopy. Plutonium was quantified by LSC.

Small-angle X-ray Scattering

SAXS measurements at Advanced Photon Source beamline 12-ID-B⁴³ used bovine transferrin solutions of 5, 10, and 20 mg/mL purified by gel chromatography to separate protein oligomers. A quartz capillary cell⁴⁴ was used for non-radioactive samples. Plutonium-containing samples were measured in cells with polychlorotrifluoroethylene and Kapton (Chemplex) windows⁴⁵. Scattering was measured at 18.0 and 20.0 keV with a 2048 × 2048 pixel MAR-CCD-165 detector 2 m from the sample. The scattering vector, Q = 4π(sin θ)/λ where 2θ is the scattering angle and λ is the X-ray wavelength, was calibrated against a silver behenate standard at each energy. The usable Q range of the circularly averaged data was limited to 0.018 < Q < 0.30 Å⁻¹ by background scattering from the windows required to encapsulate the radioactive samples. Except for Pu_CFe_NTf, the samples were stable to radiation damage for more than 5 seconds and the scattering was taken as the average of five 1 second exposures. Pu_CFe_NTf was measured in a separate campaign with a tightly focused X-ray beam. Under these conditions, the sample was radiation stable for 0.5 seconds. The scattering of the Pu_CFe_NTf samples was determined from single 0.5 second exposures on replicate samples. The scattering data was analyzed using the ATSAS program suite⁴⁶ to produce most probable structural models for each protein (Supplementary Methods and Supplementary Fig. S8).

Cell Uptake and SXFM Imaging

PC12 cells (ATCC) were grown in F12K medium supplemented with 12.5 % horse serum, 2.5% fetal calf serum, and antibiotics in humidified 5% CO₂ at 37°C. Cells were plated in the appropriate density (ca. 70% confluency) the day before Pu exposure. The cells were then serum-starved overnight and used without other pre-treatment. Cells were exposed to 12.5 – 50 μM of the different forms of Pu-containing rat transferrin for 3 hours at 4, 25 or 37 °C in complete F12K medium with serum. Diferric rat transferrin (12.5 μM) or chloroquine diphosphate (50 μM) was also added to the media for the full incubation time in studies of the inhibition of Pu uptake. Cell viability was checked by trypan blue exclusion in select cases, and was typically 80–90%, showing no difference from Pu-free control cells (Supplementary Table S3). Surface-sorbed Pu was removed by washing the cells with the extracellular chelating agent EGTA (0.01 M) in 0.1 M NaCl thrice. The efficacy of this procedure for removing surface-bound Pu-transferrins was checked by a 20 minute post-washing incubation with 0.2% pronase at 4 °C³⁰. The amount of cell-associated Pu for the pronase treated cells, quantified by LSC, was 81 ± 22% that of the control cells (n = 3, error propagated ±S.E.M. at 95% confidence).

After washing, cells were liberated from the culture bottles by scraping into 0.1 M NaCl/0.01 M EGTA, and pelleted by centrifugation. The cells were then deposited on polyvinyl formal-coated copper electron microscopy grids from fresh NaCl/EGTA solutions and air dried without chemical fixation of the cells. The grids were mounted, encapsulated between two 500 nm silicon nitride windows, and sealed beneath a layer of 6 μm polypropylene or 8 μm Kapton film. Optical micrographs of the cells were obtained with a Leica DMRXE microscope at 10×, 20×, or 40× using QCapture software (QImaging) and were used without alteration.

Cellular distributions of the elements from P though Pu were measured simultaneously by SXFM in a He atmosphere on the Advanced Photon Source 2-ID-D hard X-ray microprobe beamline⁴⁷. The 18.1 keV X-ray beam was focused to a 0.2 μm × 0.5 μm or smaller spot and maps of the cells were obtained by raster scanning the samples in 0.5 μm steps. The monochromator energy was calibrated by setting the first inflection point of the K-edge of a Zr foil to 17.998 keV.

The fluorescence signal for each element at each spatial pixel was converted to elemental content in μg/cm² after calibration with elemental standards as previously described⁴⁸. In the absence of a traceable concentration standard, Pu was quantified by extrapolation of the calibration curve obtained from the X-ray fluorescence signals of the multi-element thin film standards NBS-1832 and NBS-1833 (NIST), taking into account relevant differences such as photo-electric absorption of incident photons, absorption in the Be detector window, and fluorescence yield. The estimated absolute accuracy is better than 40%, and the relative accuracy is better than 10%. The resulting elemental maps were visualized and analyzed using the program MAPS⁴⁹.
