Abstract
Liver infection with hepatitis B virus (HBV), a DNA virus of the Hepadnaviridae family, leads to severe disease, such as fibrosis, cirrhosis and hepatocellular carcinoma. The early steps of the viral life cycle are largely obscure and the host cell plasma membrane receptors are not known. HepaRG is the only proliferating cell line supporting HBV infection in vitro, following specific differentiation, allowing for investigation of new host host-cell factors involved in viral entry, within a more robust and reproducible environment. Viral infection generally begins with receptor recognition at the host cell surface, following highly specific cell-virus interactions. Most of these interactions are expected to take place at the plasma membrane of the HepaRG cells. In the present study, we used this cell line to explore changes between the plasma membrane of undifferentiated (−) and differentiated (+) cells and to identify differentially-regulated proteins or signaling networks that might potentially be involved in HBV entry. Our initial study identified a series of proteins that are differentially expressed in the plasma membrane of (−) and (+) cells and are good candidates for potential cell-virus interactions. To our knowledge, this is the first study using functional proteomics to study plasma membrane proteins from HepaRG cells, providing a platform for future experiments that will allow us to understand the cell-virus interaction and mechanism of HBV viral infection.
Keywords: Hepatocytes, HBV, Proteomics, Mass spectrometry, Differentiation
Background
The hepatitis B virus (HBV) is a noncytopathic, hepatotropic DNA virus of the Hepadnaviridae family [1]. Infection with this virus leads to severe liver damage, such as fibrosis, cirrhosis and hepatocellular carcinoma [2]. Despite the existence of an efficient vaccine, more than 350 million people are currently HBV carriers at risk for developing life-threatening diseases.
While our understanding of HBV replication and assembly has advanced considerably in the last years, the early steps of the viral life cycle are still a matter of debate. This is mainly a consequence of the poor in vitro infectivity systems available, which until recently were based on primary human and chimpanzee hepatocytes [3]. Their accessibility is limited and the level of HBV replication is low, which makes the experimental data often difficult to interpret. The development of the HepaRG cell line, the only proliferating cells able to support the full HBV life cycle (following a specific differentiation treatment), unfolded new opportunities to investigate HBV infection in a more reproducible and reliable manner [4]. The ability of HepaRG to allow for HBV infection is reached only when cells are maintained quiescent at confluence and are treated with DMSO and hydrocortisone. While confluence alone is sufficient to activate many hepatic functions, DMSO treatment is compulsory for HBV productive infection. During differentiation, HepaRG cells express various liver functions in amounts comparable to those existing in primary hepatocytes [5-7]. Quantification of RNA levels within the whole population of differentiated cells showed high expression of adult hepatocytes-specific markers, such as albumin and aldolase B mRNAs, while the detoxification enzymes cytochrome P450, CYP 2E1 and CYP 3A4 were up-regulated in cells undergoing trabecular organization.
Generally, viral infection begins with receptor recognition and attachment to the host cell surface, followed by internalization of the virion by direct fusion at the plasma membrane, or endocytosis and later release from the endocytic vesicle. HBV appears to enter the target cells by receptor-mediated endocytosis, a process dependent on functional caveolin-1 expression [8]. Despite several potential cellular binding partners being reported to play a role in viral entry [4], none of these molecules was further confirmed to be the specific HBV receptor(s).
The rapid development of proteomics techniques has enabled the assessment of cellular proteins biosynthesis at a global scale, as well as the investigation of expression profile alterations under certain physiological or non-physiological conditions, with potential implications in cell function [9-11]. A previous proteomics study using HBV-uninfected and HBV-infected HepaRG cells identified 19 differentially-regulated proteins [12]. However, additional proteomic studies, more focused on plasma membrane proteins, (the first recognition partners during cell-virus interaction), are needed.
In the present study, we used the HepaRG cells to explore changes between the plasma membranes of undifferentiated (−) and differentiated (+) cells, and further identify differentially-regulated proteins that may potentially be involved in HBV entry or functional signaling networks that are activated upon cell-virus interaction. Our study identified a series of plasma-membrane-specific proteins, differentially expressed in (−) and (+) cells, with a potential role in viral infection. To our knowledge, this is the first study that focused on plasma membrane proteins from HePaRG cells using functional proteomics. The results obtained provide a platform for future investigations that will allow us to understand HBV cell-virus interactions and the molecular mechanisms of viral infection.
Results & discussion
Purification and verification of plasma membranes
Upon purification, we separated the plasma membranes from the (−) cells and (+) cells by SDS-PAGE, stained them by Coomassie dye and visually compared the protein pattern between the plasma membrane preparations from (−) and (+) cells. As observed, there is a clear difference between the protein patterns in these two preparations (Figure 1A). A difference in the intensity of the Coomassie-stained bands was also observed between (−) and (+) samples, despite an equal number of cells being used for plasma membrane preparation. Most probably this is a result of a better extraction of the transmembrane proteins from differentiated cells, as a consequence of an increased plasma membrane fluidity during prolonged treatment with 1.8% DMSO. This behavior is not unusual and was also observed during extraction of lipid raft proteins from differentiated HepaRG cells (data not shown) and is not directly related to the differentiation process.
Figure 1.
SDS-PAGE of the proteins from the plasma membranes isolated from the undifferentiated (−) and differentiated HepaRG cells. A: Coomassie stain of the SDS-PAGE gel showing the protein pattern for the plasma membrane of (−) and (+) cells. B: Expression of Cav-1, TRF-2 and calnexin in cell lysates (1) and plasma membrane fraction (2) of (−) cells was detected by Western blotting using the corresponding Abs. The molecular weight markers are indicated.
To confirm the plasma membrane isolation, total cell lysates, as well as a fraction of the (−) sample, were separated by SDS-PAGE and further analyzed by WB using antibodies against proteins with known plasma membrane or intracellular organelles localization. As observed in Figure 1B, expression of caveolin-1 (Cav-1) and transferrin receptor-2 (TRF-2) was detected in both, cell lysates and plasma membrane fraction, while the endoplasmic reticulum (ER) transmembrane protein, calnexin, was absent in the latter.
The latest investigations on HepaRG show that the number of differentiated cells, following DMSO treatment, is reasonably high (>50% of the total cell population) [13]. The significant up-regulation of hepatocyte-specific markers, considering the whole cell population, was clearly possible, ever since the cell line was described [4]. Thus, it is conceivable that changes of the level of expression (or post-translational modifications) of other proteins can be monitored in these cells.
LC-MS/MS identification of plasma membrane proteins
To further identify the proteins from the plasma membranes of the (−) and (+) cells, we cut bands out of the gel, digested them with trypsin and then analyzed them by LC/MS/MS. We performed two independent experiments, from two different preparations. Overall, we identified more proteins in the plasma membranes of the (+) cells, compared with the (−) cells. The results were consistent in both experiments. The outcome of two independent experiments is shown in Figure 2. Here are presented only the proteins identified with a Mascot score higher than 40. Also, the unnamed protein products, keratins and structural proteins (actin, tubulin) were removed from the final number of proteins presented in Figure 2. In experiment 1, we identified 118 proteins in the plasma membranes from (+) cells and 36 proteins in the plasma membranes from (−) cells. In this experiment, there was very little overlap between the two conditions (7 proteins). Similar results were observed in experiment 2: we identified 108 proteins in the plasma membranes from (+) cells and 25 proteins in the plasma membranes from (−) cells. The overlap between the two conditions was 10 proteins. The differentially identified proteins (proteins found only (−) but not in (+) and vice-versa) are presented in Tables 1 and 2. The complete lists with the proteins identified in our experiments are summarized in Additional file 1: Table S1 and Additional file 2: Table S2.
Figure 2.
Proteomic analysis of the proteins from (−) and (+) cells. The Coomassie-stained SDS-PAGE gel (as the one shown in Figure 1A) was divided in gel pieces and then subjected to LC-MS/MS analysis, as described in the methods section. Venn diagrams in A &B show the number of proteins identified per condition (from both (−) and (+) cells), as well as the number of proteins that are common or different in the (−) and (+) cells. Here we show the results from experiment 1 in A and experiment 2 in B.
Table 1.
List with the proteins that were differentially identified by LC-MS/MS analysis of the plasma membranes of undifferentiated (−) and differentiated (+) cells (experiment #1)
| |
Proteins identified only in (-) cells |
|---|---|
| Protein Accession # | Protein_description |
| gi|28614 |
aldolase A [Homo sapiens] |
| gi|134665 |
RecName: Full=superoxidase dismutase [Mn], mitochondrial, Flags: prescursor |
| gi|179930 |
carboxylesterase [Homo sapiens] |
| gi|2906146 |
malate dehydrogenase precursor [Homo sapiens] |
| gi|31645 |
glyceraldehyde-3-phosphate dehydrogenase [Homo sapiens] |
| gi|205830271 |
RecName: Full=Putative annexin A2-like protein; AltName: Full=Annexin A2 pseudogene 2 |
| gi|30841303 |
manganese-containing superoxide dismutase [Homo sapiens] |
| gi|40068518 |
6-phosphogluconate dehydrogenase, decarboxylating [Homo sapiens] |
| gi|15012080 |
ACAT1 protein - Acetyl-CoA acetyltransferase [Homo sapiens] |
| gi|1723158 |
dihydrodiol dehydrogenase/bile acid-binding protein [Homo sapiens] |
| gi|134133226 |
POTE ankyrin domain family member E [Homo sapiens] |
| gi|4502013 |
adenylate kinase 2, mitochondrial isoform a [Homo sapiens] |
| gi|312137 |
fructose bisphosphate aldolase [Homo sapiens] |
| gi|5802974 |
thioredoxin-dependent peroxide reductase, mitochondrial isoform a precursor [Homo sapiens] |
| gi|257476 |
glutathione S-transferase A2 subunit [Homo sapiens] |
| gi|809185 |
Chain A, The Effect Of Metal Binding On The Structure Of Annexin V And Implications For Membrane Binding |
| gi|17389815 |
Triosephosphate isomerase 1 [Homo sapiens] |
| gi|511635 |
delta3, delta2-enoyl-CoA isomerase [Homo sapiens] |
| gi|56554357 |
Chain A, Binary Structure Of Human Decr Solved By Semet Sad. |
| gi|148733138 |
ubiquitously transcribed tetratricopeptide repeat protein Y-linked transcript variant 35 [Homo sapiens] |
| |
Proteins identified only in (+) cells |
| gi|30749518 |
Chain A, Crystal Structure Of Human Liver Carboxylesterase In Complex With Tacrine |
| gi|13937981 |
Peptidylprolyl isomerase A (cyclophilin A) [Homo sapiens] |
| gi|37267 |
transketolase [Homo sapiens] |
| gi|693933 |
2-phosphopyruvate-hydratase alpha-enolase [Homo sapiens] |
| gi|2981743 |
Chain A, Secypa Complexed With Hagpia (Pseudo-Symmetric Monomer) |
| gi|35505 |
pyruvate kinase [Homo sapiens] |
| gi|31645 |
glyceraldehyde-3-phosphate dehydrogenase [Homo sapiens] |
| gi|1633054 |
Chain A, Cyclophilin A Complexed With Dipeptide Gly-Pro |
| gi|860986 |
protein disulfide isomerase [Homo sapiens] |
| gi|291463384 |
Chain K, Acetyl-Cypa:cyclosporine Complex |
| gi|4557305 |
fructose-bisphosphate aldolase A isoform 1 [Homo sapiens] |
| gi|6009628 |
brain carboxylesterase hBr3 [Homo sapiens] |
| gi|999892 |
Chain A, Crystal Structure Of Recombinant Human Triosephosphate Isomerase At 2.8 Angstroms Resolution. |
| gi|306891 |
90kDa heat shock protein [Homo sapiens] |
| gi|4505591 |
peroxiredoxin-1 [Homo sapiens] |
| gi|61656603 |
Heat shock protein HSP 90 -alpha 2 |
| gi|55959290 |
annexin A1 [Homo sapiens] |
| gi|1710248 |
protein disulfide isomerase-related protein 5 [Homo sapiens] |
| gi|5729877 |
heat shock cognate 71 kDa protein isoform 1 [Homo sapiens] |
| gi|62088648 |
tumor rejection antigen (gp96) 1 variant [Homo sapiens] |
| gi|4505763 |
phosphoglycerate kinase 1 [Homo sapiens] |
| gi|386758 |
GRP78 precursor [Homo sapiens] |
| gi|2906146 |
malate dehydrogenase precursor [Homo sapiens] |
| gi|34709 |
manganese superoxide dismutase (MnSOD) [Homo sapiens] |
| gi|32189394 |
ATP synthase subunit beta, mitochondrial precursor [Homo sapiens] |
| gi|4505753 |
phosphoglycerate mutase 1 [Homo sapiens] |
| gi|21361176 |
retinal dehydrogenase 1 [Homo sapiens] |
| gi|438069 |
thiol-specific antioxidant protein [Homo sapiens] |
| gi|178375 |
aldehyde dehydrogenase [Homo sapiens] |
| gi|930063 |
neurone-specific enolase [Homo sapiens] |
| gi|5453549 |
peroxiredoxin-4 precursor [Homo sapiens] |
| gi|11128019 |
cytochrome c [Homo sapiens] |
| gi|458470 |
carboxylesterase [Homo sapiens] |
| gi|1065111 |
Chain A, Nmr Structure Of Mixed Disulfide Intermediate Between Mutant Human Thioredoxin And A 13 amino acid Peptide |
| |
Comprising Its Target Site In Human Nfkb |
| gi|312137 |
fructose bisphosphate aldolase [Homo sapiens] |
| gi|913159 |
neuropolypeptide h3 [human, brain, Peptide, 186 aa] |
| gi|189238 |
neuroleukin [Homo sapiens] |
| gi|38648667 |
Fatty acid synthase [Homo sapiens] |
| gi|4503143 |
cathepsin D preproprotein [Homo sapiens] |
| gi|1065322 |
Chain A, A Surface Mutant (G82r) Of A Human Alpha-Glutathione S- Transferase |
| gi|6729803 |
Chain A, Heat-Shock 70kd Protein 42kd Atpase N-Terminal Domain |
| gi|189617 |
protein PP4-X [Homo sapiens] |
| gi|4758304 |
protein disulfide-isomerase A4 precursor [Homo sapiens] |
| gi|1040689 |
Human Diff6,H5,CDC10 homologue [Homo sapiens] |
| gi|544759 |
biliverdin-IX beta reductase isozyme I {EC 1.3.1.24} [human, liver, Peptide, 204 aa] |
| gi|62897129 |
heat shock 70kDa protein 8 isoform 1 variant [Homo sapiens] |
| gi|556516 |
dihydrodiol dehydrogenase isoform DD1 [Homo sapiens] |
| gi|1421609 |
Chain A, X-Ray Structure Of Nm23 Human Nucleoside Diphosphate Kinase B Complexed With Gdp At 2 Angstroms Resolution |
| gi|20070125 |
protein disulfide-isomerase precursor [Homo sapiens] |
| gi|729433 |
RecName: Full=Protein disulfide-isomerase A3; AltName: Full=58 kDa glucose-regulated protein; AltName: |
| gi|4757900 |
calreticulin precursor [Homo sapiens] |
| gi|5031857 |
L-lactate dehydrogenase A chain isoform 1 [Homo sapiens] |
| gi|1082886 |
tumor necrosis factor type 1 receptor associated protein TRAP-1 - human |
| gi|18204869 |
TUBA1B protein [Homo sapiens] |
| gi|5802966 |
destrin isoform a [Homo sapiens] |
| gi|119602577 |
plectin 1, intermediate filament binding protein 500kDa, isoform CRA_b [Homo sapiens] |
| gi|41322916 |
plectin isoform 1 [Homo sapiens] |
| gi|5174539 |
malate dehydrogenase, cytoplasmic isoform 2 [Homo sapiens] |
| gi|4503483 |
elongation factor 2 [Homo sapiens] |
| gi|3212355 |
Chain A, P11 (S100a10), Ligand Of Annexin Ii |
| gi|188492 |
heat shock-induced protein [Homo sapiens] |
| gi|21465695 |
Chain A, Human 3alpha-Hsd Type 3 In Ternary Complex With Nadp And Testosterone |
| gi|179930 |
carboxylesterase [Homo sapiens] |
| gi|4758012 |
clathrin heavy chain 1 [Homo sapiens] |
| gi|35830 |
ubiquitin activating enzyme E1 [Homo sapiens] |
| gi|4507953 |
14-3-3 protein zeta/delta [Homo sapiens] |
| gi|662841 |
heat shock protein 27 [Homo sapiens] |
| gi|4505257 |
moesin [Homo sapiens] |
| gi|4507357 |
transgelin-2 [Homo sapiens] |
| gi|4506467 |
radixin [Homo sapiens] |
| gi|6457378 |
cytovillin 2 [Homo sapiens] |
| gi|4505751 |
profilin-2 isoform b [Homo sapiens] |
| gi|6063147 |
ezrin [Homo sapiens] |
| gi|61104911 |
heat shock protein 90Bb [Homo sapiens] |
| gi|325533983 |
Chain A, Crystal Structure Of The Globular Domain Of Human Calreticulin |
| gi|119590453 |
EDAR-associated death domain, isoform CRA_a [Homo sapiens] |
| gi|311772317 |
Chain A, Crystal Structure Of Human Nad Kinase |
| gi|4504067 |
aspartate aminotransferase, cytoplasmic [Homo sapiens] |
| gi|5630077 |
similar to ALR; similar to AAC51735 (PID:g2358287) [Homo sapiens] |
| gi|896473 |
iron-responsive regulatory protein/iron regulatory protein 1 [Homo sapiens] |
| gi|5803225 |
14-3-3 protein epsilon [Homo sapiens] |
| gi|4826643 |
annexin A3 [Homo sapiens] |
| gi|332841153 |
PREDICTED: heat shock protein 105 kDa isoform 1 [Pan troglodytes] |
| |
Proteins identified in(-) and (+) cells |
| gi|4757756 |
annexin A2 isoform 2 [Homo sapiens] |
| gi|181250 |
cyclophilin [Homo sapiens] |
| gi|291463380 |
Chain B, Free Acetyl-Cypa Orthorhombic Form |
| gi|215273984 |
RecName: Full=Putative inactive carboxylesterase 4; AltName: Full=Inactive carboxylesterase 1 pseudogene 1 |
| gi|809185 |
Chain A, The Effect Of Metal Binding On The Structure Of Annexin V And Implications For Membrane Binding |
| gi|4507913 |
wiskott-Aldrich syndrome protein family member 1 |
| gi|438069 | thiol-specific antioxidant protein [Homo sapiens] |
Table 2.
List with the proteins that were differentially identified by LC-MS/MS analysis of the plasma membranes of undifferentiated (−) and differentiated (+) cells (experiment #2)
| |
Proteins identified only in (-) cells |
|---|---|
| Protein Accession # | Protein_description |
| gi|458470 |
carboxylesterase [Homo sapiens] |
| gi|62088648 |
tumor rejection antigen (gp96) 1 variant [Homo sapiens] |
| gi|28614 |
aldolase A [Homo sapiens] |
| gi|18645167 |
Annexin A2 [Homo sapiens] |
| gi|31179 |
enolase [Homo sapiens] |
| gi|34707 |
Manganese superoxide dismutase [Homo sapiens] |
| gi|4502013 |
adenylate kinase 2, mitochondrial isoform a [Homo sapiens] |
| gi|178390 |
aldehyde dehydrogenase [Homo sapiens] |
| gi|4504505 |
peroxisomal multifunctional enzyme type 2 isoform 2 [Homo sapiens] |
| gi|4503285 |
aldo-keto reductase family 1 member C2 isoform 1 [Homo sapiens] |
| gi|1723158 |
dihydrodiol dehydrogenase/bile acid-binding protein [Homo sapiens] |
| gi|6009628 |
brain carboxylesterase hBr3 [Homo sapiens] |
| gi|386758 |
GRP78 precursor [Homo sapiens] |
| gi|4507913 |
wiskott-Aldrich syndrome protein family member |
| |
Proteins identified only in (+) cells |
| gi|306891 |
90kDa heat shock protein [Homo sapiens] |
| gi|1633054 |
Chain A, Cyclophilin A Complexed With Dipeptide Gly-Pro |
| gi|4507677 |
endoplasmin precursor [Homo sapiens] |
| gi|75766275 |
Chain A, Crystal Structure Of Human Cypa Mutant K131a |
| gi|61656603 |
Heat shock protein HSP 90 - alpha 2 [Homo sapiens] |
| gi|179930 |
carboxylesterase [Homo sapiens] |
| gi|2981743 |
Chain A, Secypa Complexed With Hagpia (Pseudo-Symmetric Monomer) |
| gi|4757756 |
annexin A2 isoform 2 [Homo sapiens] |
| gi|4826898 |
profilin-1 [Homo sapiens] |
| gi|342350777 |
Chain A, Human Annexin V With Incorporated Methionine Analogue Azidohomoalanine |
| gi|32189394 |
ATP synthase subunit beta, mitochondrial precursor [Homo sapiens] |
| gi|157833780 |
Chain A, Human Annexin V With Proline Substitution By Thioproline |
| gi|53791219 |
filamin A [Homo sapiens] |
| gi|31645 |
glyceraldehyde-3-phosphate dehydrogenase [Homo sapiens] |
| gi|14327942 |
HSP90B1 protein [Homo sapiens] |
| gi|28614 |
aldolase A [Homo sapiens] |
| gi|662841 |
heat shock protein 27 [Homo sapiens] |
| gi|999892 |
Chain A, Crystal Structure Of Recombinant Human Triosephosphate Isomerase At 2.8 Angstroms |
| |
Resolution. |
| gi|35505 |
pyruvate kinase [Homo sapiens] |
| gi|693933 |
2-phosphopyruvate-hydratase alpha-enolase [Homo sapiens] |
| gi|4503483 |
elongation factor 2 [Homo sapiens] |
| gi|5729877 |
heat shock cognate 71 kDa protein isoform 1 [Homo sapiens] |
| gi|4505591 |
peroxiredoxin-1 [Homo sapiens] |
| gi|6525069 |
tumor necrosis factor type 1 receptor associated protein [Homo sapiens] |
| gi|4502101 |
annexin A1 [Homo sapiens] |
| gi|189617 |
protein PP4-X [Homo sapiens] |
| gi|4758012 |
clathrin heavy chain 1 [Homo sapiens] |
| gi|34419635 |
70kDa heat shock protein 6 [Homo sapiens] |
| gi|4507357 |
transgelin-2 [Homo sapiens] |
| gi|577295 |
KIAA0088 [Homo sapiens] |
| gi|35830 |
ubiquitin activating enzyme E1 [Homo sapiens] |
| gi|6470150 |
BiP protein [Homo sapiens] |
| gi|5453790 |
nicotinamide N-methyltransferase [Homo sapiens] |
| gi|5803227 |
14-3-3 protein theta [Homo sapiens] |
| gi|38648667 |
Fatty acid synthase [Homo sapiens] |
| gi|31746 |
glutathione-insulin transhydrogenase (216 AA) [Homo sapiens] |
| gi|1421609 |
Chain A, X-Ray Structure Of Nm23 Human Nucleoside Diphosphate Kinase B Complexed With |
| |
Gdp At 2 Angstroms Resolution |
| gi|438069 |
thiol-specific antioxidant protein [Homo sapiens] |
| gi|61104911 |
heat shock protein 90Bb [Homo sapiens] |
| gi|4758304 |
protein disulfide-isomerase A4 precursor [Homo sapiens] |
| gi|5802974 |
thioredoxin-dependent peroxide reductase, mitochondrial isoform a precursor [Homo sapiens] |
| gi|3318841 |
Chain A, Horf6 A Novel Human Peroxidase Enzyme |
| gi|230867 |
Chain R, Twinning In Crystals Of Human Skeletal Muscle D- Glyceraldehyde-3-Phosphate |
| gi|230867 |
Dehydrogenase |
| gi|5031857 |
L-lactate dehydrogenase A chain isoform 1 [Homo sapiens] |
| gi|4507877 |
vinculin isoform VCL [Homo sapiens] |
| gi|1710248 |
protein disulfide isomerase-related protein 5 [Homo sapiens] |
| gi|5031635 |
cofilin-1 [Homo sapiens] |
| gi|83753119 |
Chain A, Crystal Structure Of Human Full-Length Vinculin (Residues 1- 1066) |
| gi|157879202 |
Chain B, Crystal Structures Of Native And Inhibited Forms Of Human Cathepsin D: Implications |
| |
For Lysosomal Targeting And Drug Design |
| gi|74722493 |
RecName: Full=Putative heat shock protein HSP 90-alpha A4; AltName: Full=Heat shock 90 kDa |
| gi|74722493 |
protein 1 alpha-like 2; AltName: Full=Heat shock protein 90-alpha D |
| gi|181250 |
cyclophilin [Homo sapiens] |
| gi|182855 |
80K-H protein [Homo sapiens] |
| gi|37267 |
transketolase [Homo sapiens] |
| gi|1065111 |
Chain A, High Resolution Solution Nmr Structure Of Mixed Disulfide Intermediate Between |
| |
Mutant Human Thioredoxin And A 13 Residue Peptide Comprising Its Target Site In Human Nfkb |
| gi|1477646 |
plectin [Homo sapiens] |
| gi|4507953 |
14-3-3 protein zeta/delta [Homo sapiens] |
| gi|2138314 |
lysyl hydroxylase isoform 2 [Homo sapiens] |
| gi|283807248 |
Chain A, Crystal Structure Analysis Of W21a Mutant Of Human Gsta1-1 In Complex With |
| |
S-Hexylglutathione |
| gi|6005942 |
transitional endoplasmic reticulum ATPase [Homo sapiens] |
| gi|1065322 |
Chain A, A Surface Mutant (G82r) Of A Human Alpha-Glutathione S- Transferase Shows Decreased |
| gi|1065322 |
Thermal Stability And A New Mode Of Molecular Association In The Crystal |
| gi|799177 |
100 kDa coactivator [Homo sapiens] |
| gi|4505753 |
phosphoglycerate mutase 1 [Homo sapiens] |
| gi|5107666 |
Chain A, Structure Of Importin Beta Bound To The Ibb Domain Of Importin Alpha |
| gi|158937236 |
puromycin-sensitive aminopeptidase [Homo sapiens] |
| gi|5825506 |
fatty acid synthase/estrogen receptor fusion protein [Homo sapiens] |
| gi|5257007 |
beta-cop homolog [Homo sapiens] |
| gi|896473 |
iron-responsive regulatory protein/iron regulatory protein 1 [Homo sapiens] |
| gi|34707 |
Manganese superoxide dismutase [Homo sapiens] |
| gi|4506715 |
40S ribosomal protein S28 [Homo sapiens] |
| gi|3212355 |
Chain A, P11 (S100a10), Ligand Of Annexin Ii |
| gi|1065361 |
Chain A, Human Adp-Ribosylation Factor 1 Complexed With Gdp, Full Length Non-Myristoylated |
| gi|159162145 |
Chain A, Rotamer Strain As A Determinant Of Protein Structural Specificity |
| gi|51247357 |
Chain A, Crystal Structure Of A Multiple Hydrophobic Core Mutant Of Ubiquitin |
| gi|215273984 |
RecName: Full=Putative inactive carboxylesterase 4; AltName: Full=Inactive carboxylesterase 1 |
| gi|215273984 |
pseudogene 1; AltName: Full=Placental carboxylesterase 3; Short=PCE-3; Flags: Precursor |
| gi|4502013 |
adenylate kinase 2, mitochondrial isoform a [Homo sapiens] |
| gi|5803013 |
endoplasmic reticulum resident protein 29 isoform 1 precursor [Homo sapiens] |
| gi|229532 |
ubiquitin |
| gi|31615803 |
Chain A, Synthetic Ubiquitin With Fluoro-Leu At 50 And 67 |
| gi|2627129 |
polyubiquitin [Homo sapiens] |
| gi|6755368 |
40S ribosomal protein S18 [Mus musculus] |
| gi|313103963 |
Chain D, Structure And Control Of The Actin Regulatory Wave Complex |
| gi|6114601 |
stromal antigen 3, (STAG3) [Homo sapiens] |
| gi|4588526 |
nuclear chloride channel [Homo sapiens] |
| |
Proteins identified in(-) and (+) cells |
| gi|32189394 |
ATP synthase subunit beta, mitochondrial precursor [Homo sapiens] |
| gi|31645 |
glyceraldehyde-3-phosphate dehydrogenase [Homo sapiens] |
| gi|1710248 |
protein disulfide isomerase-related protein 5 [Homo sapiens] |
| gi|215273984 |
RecName: Full=Putative inactive carboxylesterase 4; AltName: Full=Inactive carboxylesterase 1 |
| gi|215273984 |
pseudogene 1; AltName: Full=Placental carboxylesterase 3; Short=PCE-3; Flags: Precursor |
| gi|4758304 |
protein disulfide-isomerase A4 precursor [Homo sapiens] |
| gi|4505591 |
peroxiredoxin-1 [Homo sapiens] |
| gi|303618 |
phospholipase C-alpha [Homo sapiens] |
| gi|5031857 |
L-lactate dehydrogenase A chain isoform 1 [Homo sapiens] |
| gi|5802974 |
thioredoxin-dependent peroxide reductase, mitochondrial isoform a precursor [Homo sapiens] |
| gi|306891 | 90kDa heat shock protein [Homo sapiens] |
It has been documented that the plasma membrane is the entry point for viruses [14-16]. Therefore, we looked in our experiments for proteins that are possible interaction partners with viruses. One example is the Annexin family of proteins. For example, Annexin A2 (gi 4757756), a calcium-regulated protein that binds to the plasma membrane, is usually a heterotetramer of two Annexin A2 proteins and two S100A10 (gi 3212355) proteins. We identified both Annexin A2 proteins and S100A10 in the plasma membrane of the (+) cells, but not from the (−) cells, confirming the established interaction between these 2 proteins. Since Annexin A2 already has a history of interacting with viruses [17-19], this suggests that an interaction with HBV may well be possible.
Two other proteins, also from the Annexin family, identified in our experiments were Annexin A1 (gi 4502101) and Annexin A5 (gi 157833780). Annexin A1 is a known phospholipase A2 inhibitory protein, but is also predicted to interact with Annexin A2 and perhaps form a protein complex (Figure 3). However, Annexin A1 was identified only in the plasma membranes from (+) cells, but not from the (−) cells, suggesting that this protein may be specific for the plasma membrane of (+) cells. The other protein, Annexin A5 is not predicted to interact with any of the other Annexins. However, it is well documented that Annexin A5 is an interaction partner for HBV [20]. Examples of MSMS spectra that correspond to peptides that are part of Annexin A2, Annexin A1, S100A10 protein and Annexin A5 are shown in Figure 4.
Figure 3.
Map of possible interaction partners for Annexin A2, Annexin A2 and S100A10. A: Annexin A2 (ANXA2) is predicted to interact with S100A10 and form a heterotetramer. B: Annexin A1 is predicted to interact with Annexin A2, via S100A11, ACTB or via ILB and TNF.

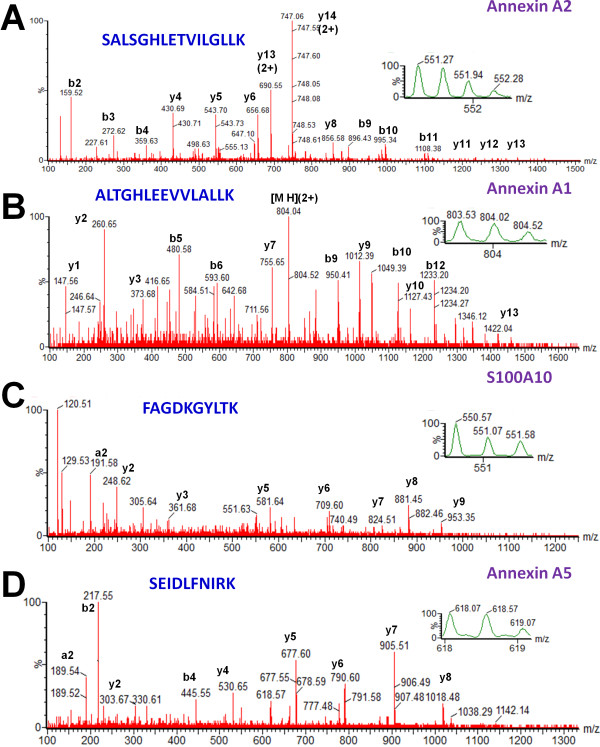

Figure 4.
MS/MS spectra of precursor ions that correspond to peptides that are part of Annexin A2, Annexin A1, S100A10, or Annexin A5. (A) A triple-charged peak at m/z of 551.27 (expanded in the inbox) was fragmented by MS/MS and produced a MS/MS spectrum. Fragmentation of the peptide backbone in the MS/MS produced a series of b and y peaks, marked in the MS/MS. Data analysis of the b and y peaks from the MS/MS spectrum led to identification of a peptide with the sequence SALSGHLETVILGLLK, which was part of Annexin A2 protein. (B): A double-charged peak at m/z of 803.53 (expanded in the inbox) was fragmented by MS/MS and produced a MS/MS spectrum. Data analysis of the MS/MS spectrum led to identification of a peptide with the sequence ALTGHLEEVVLALLK, which was part of Annexin A1 protein. (C) A double-charged peak at m/z of 550.57 (expanded in the inbox) was fragmented by MS/MS and produced a MS/MS spectrum. Data analysis of this MS/MS spectrum led to identification of a peptide with the sequence FAGDKGYLTK, which was part of S100A10 protein. (D) A double-charged peak at m/z of 618.07 (expanded in the inbox) was fragmented by MS/MS and produced a MS/MS spectrum. Data analysis of this MS/MS spectrum led to identification of a peptide with the sequence SEIDLFNIRK, which was part of Annexin A5 protein.
To further confirm that Annexin 2 and S100A10 interact with each other and also to investigate the interaction partners of these proteins and of other Annexin proteins, we explored the protein-protein interactions using the Search Tool for the Retrieval of Interacting Genes (STRING), a software tool that identifies known (experimentally documented) and predicted (theoretical only and yet to be demonstrated by experiments) protein-protein interactions [21-24]. As observed, we did identify Annexin A2 as an interaction partner for S100A10 protein. However, we also identified a connection between Annexin A2 and Annexin A1, via S100A11, ACTB or via ILB and TNF proteins. The predicted interaction partners for Annexins A1 & A2 are presented in Figure 3.
Differential distribution of the proteins from the plasma membranes of (−) and (+) cells
The differential distribution of the proteins found by SDS-PAGE and LC-MS/MS in the plasma membranes of both (−) and (+) cells was also evaluated by their relative abundance using label-free methods for relative quantitation. These proteins differed in their abundance by either an increase or decrease of their relative amounts, as determined by both Mascot score (Additional file 1: Table S1), emPAI score [25], or by comparison of the relative intensity of the precursor ions that correspond to peptides that were part of the same proteins and that were identified in both (−) and (+) cells. The relative quantitation of these proteins was mostly used to determine whether some proteins were indeed specific to the plasma membranes from (+) cells, but not (−) cells. Using Annexin proteins as example, we looked at both the Mascot scores and emPAI scores for these proteins, as well as for the number of peptides identified per protein per condition in the database search, as well as direct comparison of the intensities of the precursor ions that correspond to the same peptide and for which MS/MS was observed in the same protein in both (−) and (+) conditions. For example, in the plasma membranes of (+) cells we identified Annexin A2 isoform 2 based on the MS/MS of 22 peptide, a mascot score of 957 and an emPAI score of 3.01, as compared with identification of the same protein in the plasma membranes of (−) cells, where we identified the same protein based on the MS/MS of only 6 peptides, a mascot score of 213 and an emPAI score of 0.63. To confirm that the relative amounts of Annexin A2 in the plasma membranes from (+) cells, but not (−) cells are indeed different in these two conditions, as reflected by the number of peptide and by Mascot scores in each condition, we further compared the intensity of precursor ions for two different peptides that were part of the same Annexin A2 protein and that were identified in the plasma membrane of the (−) and (+) cells. The intensity scale for the spectra for these peaks was normalized to identical number of counts. This comparison is shown in Figure 5. As observed, for the peak with m/z of 612.01 (2+) that corresponds to a peptide with the amino acid sequence TPAQYDASELK, a higher amount of this peptide is observed in the plasma membranes from the (+) cells, compared with the (−) cells (Figure 5A). Similar results were also observed for the peak with m/z of 623.03 (2+) that corresponds to a peptide with the amino acid sequence TNQELQEINR (Figure 5B).

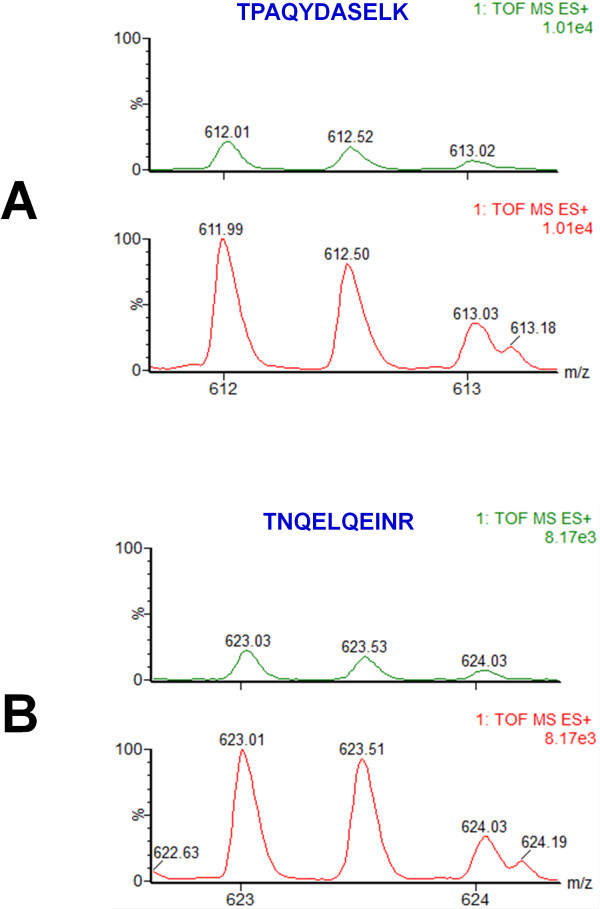

Figure 5.
Comparison of the intensities of MS spectra for peaks corresponding to peptides that are part of Annexin A2 protein from the plasma membranes of (−) and (+) cells, found by SDS-PAGE and MS. A: The peak with m/z of 612.01 (2+) that corresponds to peptide TPAQYDASELK has a higher intensity in the plasma membranes of (+) cells, compared with the (−) ones. B: The peak with m/z of 623.03 (2+) that corresponds to peptide TNQELQEINR has a higher intensity in the plasma membranes of (+) cells, compared with the (−) ones. The intensity scale for the spectra from both (−) and (+) cells for each individual peptide was identical.
Concluding remarks
In this study, we used the HepaRG cells to investigate the differences between the protein content of the plasma membranes from differentiated and undifferentiated cells. We aimed to identify functional signaling networks and plasma membrane molecules that are expressed in differentiated cells and may potentially be involved in HBV entry. Using a proteomics approach, we identified the differentially expressed proteins and also concluded that they may form protein complexes such as Annexin A2 and S100A10 protein heterotetramer, with potential implications in cell-virus interaction. This approach is not only a source of the proteins present in the plasma membranes of the (−) and (+) cells, but also a starting point for identification of post-translational modifications of these proteins, as well as for determination of stable and transient protein-protein interactions, specifically HepaRG cell - HBV proteins interactions.
Experimental design
Chemicals
All chemicals were purchased from Sigma-Aldrich, unless mentioned otherwise.
Cell culture and differentiation
HepaRG cells (a kind gift from Dr. David Durantel, INSERM U871, Lyon, France) were grown in T75 flasks, in William’s E medium (Gibco) supplemented with 10% FCS, 50 units/ml penicillin, 50 μg/ml streptomycin, 2 mM GlutaMAX, 5 μg/ml insulin, and 5 x 105 M hydrocortisone hemisuccinate, as described [4]. To induce differentiation, cells were maintained for 2 weeks in William’s complete medium, without splitting, followed by 2 weeks in the same medium containing 1.8% DMSO. The typical cell morphology associated with differentiation was constantly monitored under the microscope and the up-regulation of albumin and aldolase B mRNAs was confirmed at the end of the differentiation process.
Preparation of plasma membranes
Differentiated (+) and non-differentiated (−) HepaRG cells were amplified in T75cm2 flasks (6 for each condition). All further steps were performed at 4°C. Cells were washed twice with 5 ml buffer A (0.25 M sucrose, 1 mM EDTA and 20 mM Tricine, pH = 7.8) and gently scraped in 3 ml of the same buffer. The cells were pelleted by centrifugation at 1400xg for 5 min, resuspended in 1 ml buffer A and disrupted with 20 strokes in a Douncer homogenizer. The homogenate was centrifuged at 1000xg for 10 min. The post nuclear supernatant (PNS) was stored on ice, and the pellet was resuspended in 1 ml buffer A, re-homogenized with 20 strokes in a Douncer homogenizer, as above. The first and second PNS were combined and layered on top of a 23 ml of 30% Percoll in buffer A, followed by centrifugation at 28,000 rpm in a Beckman ultracentrifuge SW41Ti rotor, for 30 min. The plasma membrane fraction was visible as a ring at approximately 5.7 cm from the bottom of the tube. This was collected and the Percoll was removed by dilution in 9.5 ml cold phosphate buffer saline (PBS), followed by 2 h ultracentrifugation at 30,000 rpm, as above. The supernatant was concentrated on a 10 kDa cutt-of centricon (Millipore) to a final volume of 150 μl.
SDS-PAGE and Western blotting
The isolated membranes were solubilized in Laemmli sample buffer for 5 minutes at 95°C and separated by SDS-PAGE, followed by Coomassie blue staining. To validate the plasma membrane fraction purification, the proteins were also transferred to nitrocellulose membranes (GE Healthcare) using a semi-dry blotter (Millipore). The blots were incubated with goat anti-TFR-2, goat anti-Calnexin (both Santa Cruz Biotechnology, dilution 1/1000), or rabbit anti–Cav-1 (Cell Signaling Technology, dilution 1/1000) antibodies (Ab), respectively, followed by donkey anti-goat (Santa Cruz Biotechnology, dilution 1/2000) or goat anti-rabbit horseradish peroxidase (HRP) Ab (Pierce, dilution 1/1000). Proteins were detected using the ECL (GE Healthcare) or the SuperSignal West Femto maximum Sensitivity Substrate (Thermo Scientific) detection systems according to the manufacturers’ instructions
Protein digestion and peptide extraction
The Coomassie-stained SDS-PAGE gels were cut into 3 gel pieces for each condition (plasma membranes isolated from undifferentiated (−) and differentiated (+) cells), and then treated according to published protocols [26-29]. Briefly, the gel pieces were washed in high purity HPLC grade water for 20 minutes under moderate shaking and then and cut into very small pieces. The gel pieces were then dehydrated by incubation for 20 minutes in 50 mM ammonium bicarbonate, 20 minutes in 50 mM ammonium bicarbonate/50% acetonitrile, and 20 minutes in 100% acetonitrile. These three steps were performed under moderate shaking at room temperature. After the last incubation step, the gel pieces were dried in a Speed-vac concentrator and then rehydrated with 50 mM ammonium bicarbonate. The washing procedure was repeated twice. The dried gel bands were then rehydrated with a solution containing 10 mM DTT and 50 mM ammonium bicarbonate and incubated for 45 minutes at 56°C. DTT solution reduced the disulfide bridges in the proteins from the gel. The DTT solution was then replaced by a solution containing 100 mM iodoacetamide and 50 mM ammonium bicarbonate and further incubated for 45 minutes in the dark, with occasional vortexing. In this step, the cysteine residues were irreversibly modified by iodoacetamide to form carbamydomethyl-cysteine. The initial washing procedure was then repeated one more time, and then the gel pieces were dried in the Speed-vac concentrator and then rehydrated using 10 ng/μL trypsin (this leaves proteins at the peptide backbone at the Arg and Lys residues) in 50 mM ammonium bicarbonate, and then incubated overnight at 37°C under low shaking. The resulting peptides were extracted from the gel pieces by incubation with 5% formic acid/50 mM ammonium bicarbonate/50% acetonitrile (twice) and with 100% acetonitrile (once) under moderate shaking. Solutions containing peptide mixture were then combined and then dried in a Speed-vac concentrator. The peptides were then solubilized in 20 μL of 0.1% formic acid/2% acetonitrile/HPLC water, placed in UPLC vials and further used for LC-MS/MS analysis.
LC-MS/MS
The peptides mixture was analyzed by reversed phase liquid chromatography (LC) and MS (LC-MS/MS) using a NanoAcuity UPLC (Micromass/Waters, Milford, MA) coupled to a Q-TOF Micro MS (Micromass/Waters, Milford, MA), according to published procedures [29-31]. Briefly, the peptides were loaded onto a 100 μm x 10 mm nanoAquity BEH130 C18 1.7 μm UPLC column (Waters, Milford, MA) and eluted over a 60 minute gradient of 2–80% organic solvent (acetonitrile containing 0.1% formic acid) at a flow rate of 400 nL/min. The aqueous solvent was HPLC water containing 0.1% formic acid. The column was coupled to a Picotip Emitter Silicatip nano-electrospray needle (New Objective, Woburn, MA). MS data acquisition involved survey MS scans and automatic data dependent analysis (DDA) of the top three ions with the highest intensity ions with the charge of 2+, 3+ or 4+ ions. The MS/MS was triggered when the MS signal intensity exceeded 10 counts/second. In survey MS scans, the three most intense peaks were selected for collision-induced dissociation (CID) and fragmented until the total MS/MS ion counts reached 10,000 or for up to 6 seconds each. Preliminary experiments were performed using an Alliance 2695 HPLC (Waters Corp, Milford, MA) that was coupled to the same Q-TOF Micro MS (Micromass/Waters, Milford, MA) described above. The peptides mixture was loaded onto an XBridgeTM C18 3.5 μm, 2.1 x 100 mm column (Waters Corporation, Milford, MA) and eluted over a 60 minutes gradient of 2–100% acetonitrile containing 0.1% formic acid at a flow rate of 200 μL/min. The aqueous phase was HPLC water containing 0.1% formic acid. The MS parameters in these experiments were unchanged from the previously described settings, except the source (micro source instead of nanosource). The entire procedure used was previously described [29,32]. Calibration was performed for both precursor and product ions using either 1 pmol or 100 fmol GluFib standard peptide (Glu1-Fibrinopeptide B) with the sequence EGVNDNEEGFFSAR, with the monoisotopic m/z of 1770.68. The precursor ion monitored was the double charged peak of GluFib, with m/z of 785.84.
Data processing and protein identification
The raw data were processed using ProteinLynx Global Server (PLGS, version 2.4) software with the following parameters: background subtraction of polynomial order 5 adaptive with a threshold of 30%, two smoothings with a window of three channels in Savitzky-Golay mode and centroid calculation of top 80% of peaks based on a minimum peak width of 4 channels at half height. The resulting pkl files were submitted for database search and protein identification to the public Mascot database search ( http://www.matrixscience.com, Matrix Science, London, UK) using the following parameters: human databases from NCBI and SwissProt, parent mass error of 1.3 Da, product ion error of 0.8 Da, enzyme used: trypsin, one missed cleavage, and carbamidomethyl-Cysteine as fixed modification and Methionine oxidized as variable modification. To identify the false negative results, we used additional parameters such as different databases or organisms, a narrower error window for the parent mass error (1.2 and then 0.2 Da) and for the product ion error (0.6 Da), and up to two missed cleavage sites for trypsin. In addition, the pkl files were also searched against in-house PLGS database version 2.4 ( http://www.waters.com) using searching parameters similar to the ones used for Mascot search. The Mascot and PLGS database search provided a list of proteins for each gel band. To eliminate false positive results, for the proteins identified by either one peptide or a mascot score lower than 50, we verified the MS/MS spectra that led to identification of a protein. The proteins identified in our experiments are presented in Additional file 1: Table S1 and Additional file 2: Table S2. These proteins were identified with a Mascot score higher than 40. The proteins identified with a Mascot score lower than 40 were not considered, but the data can be provided upon request. The MS/MS spectra that allowed identification of a protein based on only one peptide are provided in Additional file 3: Figure S1. The MS/MS spectra provided in Additional file 3: Figure S1 were identified in Mascot database search with a score of 50 or higher in (+) cells. For the (−) cells, all MS/MS spectra are shown.
Abbreviations
HepaRG cells: A hepatoma-derived cell line, HBV, hepatitis B virus; SDS-PAGE: Aodium dodecyl sulfate-polyacrylamide gel electrophoresis; WB: Western blotting; MS: Mass spectrometry; LC-MS/MS: Liquid chromatography mass spectrometry; TIC: Total ion current; m/z: Mass/charge; CID: Collision-induced dissociation.
Competing interests
The authors declare that they have no competing interests.
Authors’ contributions
IS, CD, NBN & CCD designed the study. IS, CD, AGW & AM performed the work. IS, CD, AGW, AM, NBN & CCD interpreted the data. IS, CD, AGW, AM, NBN & CCD wrote the manuscript. IS, CD AGW, AM, NBN & CCD approved the manuscript. All authors read and approved the final manuscript.
Supplementary Material
Table S1. LC/MS/MS experiment (experiment #1) of the proteins from the plasma membranes of undifferentiated (−) and differentiated (+) cells.
Table S2. LC/MS/MS experiment (experiment #2) of the proteins from the plasma membranes of undifferentiated (−) and differentiated (+) cells.
Figure S1. MS/MS spectra that led to identification of a protein by a unique peptide. In the (+) cells, the MS/MS spectra were identified with a Mascot score of 50 or higher. In the (−) cells, all MS/MS spectra are shown.
Contributor Information
Izabela Sokolowska, Email: sokoloi@clarkson.edu.
Cristina Dorobantu, Email: cristina.m.dorobantu@gmail.com.
Alisa G Woods, Email: awoods@clarkson.edu.
Alina Macovei, Email: alina_deliu@yahoo.com.
Norica Branza-Nichita, Email: nichita@biochim.ro.
Costel C Darie, Email: cdarie@clarkson.edu.
Acknowledgements
C.C.D. thanks Ms. Laura Mulderig and her colleagues (Waters Corporation) for their generous support in setting up the Proteomics Center within the Biochemistry & Proteomics Group at Clarkson University. C.C.D. also thanks Dr. Thomas A. Neubert, Skirball Institute of Biomolecular Medicine, New York University for donation of the TofSpec2E MALDI-MS. This work was supported in part by Clarkson University (start-up to C.C.D.) and by the Army Research Office through the Defense University Research Instrumentation Program (DURIP grant #W911NF-11-1-0304 to C.C.D.). Drs. Norica Nichita, Alina Macovei and PhD student Cristina Dorobantu were supported by the Romanian Academy project 3 of the Institute of Biochemistry and the POSDRU/89/1.5/S/60746 grant.
References
- Chisari FV, Ferrari C. Hepatitis B virus immunopathogenesis. Annu Rev Immunol. 1995;13:29–60. doi: 10.1146/annurev.iy.13.040195.000333. [DOI] [PubMed] [Google Scholar]
- Ganem D, Prince AM. Hepatitis B virus infection–natural history and clinical consequences. N Engl J Med. 2004;350(11):1118–1129. doi: 10.1056/NEJMra031087. [DOI] [PubMed] [Google Scholar]
- Glebe D, Urban S. Viral and cellular determinants involved in hepadnaviral entry. World J Gastroenterol. 2007;13(1):22–38. doi: 10.3748/wjg.v13.i1.22. [DOI] [PMC free article] [PubMed] [Google Scholar]
- Gripon P, Rumin S. et al. Infection of a human hepatoma cell line by hepatitis B virus. Proc Natl Acad Sci U S A. 2002;99(24):15655–15660. doi: 10.1073/pnas.232137699. [DOI] [PMC free article] [PubMed] [Google Scholar]
- Aninat C, Piton A. et al. Expression of cytochromes P450, conjugating enzymes and nuclear receptors in human hepatoma HepaRG cells. Drug Metab Dispos. 2006;34(1):75–83. doi: 10.1124/dmd.105.006759. [DOI] [PubMed] [Google Scholar]
- Guillouzo A, Corlu A. et al. The human hepatoma HepaRG cells: a highly differentiated model for studies of liver metabolism and toxicity of xenobiotics. Chem Biol Interact. 2007;168(1):66–73. doi: 10.1016/j.cbi.2006.12.003. [DOI] [PubMed] [Google Scholar]
- Turpeinen M, Tolonen A. et al. Functional expression, inhibition and induction of CYP enzymes in HepaRG cells. Toxicol In Vitro. 2009;23(4):748–753. doi: 10.1016/j.tiv.2009.03.008. [DOI] [PubMed] [Google Scholar]
- Macovei A, Radulescu C. et al. Hepatitis B virus requires intact caveolin-1 function for productive infection in HepaRG cells. J Virol. 2010;84(1):243–253. doi: 10.1128/JVI.01207-09. [DOI] [PMC free article] [PubMed] [Google Scholar]
- Pandey A, Mann M. Proteomics to study genes and genomes. Nature. 2000;405(6788):837–846. doi: 10.1038/35015709. [DOI] [PubMed] [Google Scholar]
- Mann M, Hendrickson RC. et al. Analysis of proteins and proteomes by mass spectrometry. Annu Rev Biochem. 2001;70:437–473. doi: 10.1146/annurev.biochem.70.1.437. [DOI] [PubMed] [Google Scholar]
- Aebersold R, Mann M. Mass spectrometry-based proteomics. Nature. 2003;422(6928):198–207. doi: 10.1038/nature01511. [DOI] [PubMed] [Google Scholar]
- Narayan R, Gangadharan B. et al. Proteomic analysis of HepaRG cells: a novel cell line that supports hepatitis B virus infection. J Proteome Res. 2009;8(1):118–122. doi: 10.1021/pr800562j. [DOI] [PubMed] [Google Scholar]
- Schulze A, Mills K. et al. Hepatocyte polarization is essential for the productive entry of the hepatitis B virus. Hepatology. 2012;55(2):373–383. doi: 10.1002/hep.24707. [DOI] [PubMed] [Google Scholar]
- Caffrey M. HIV envelope: challenges and opportunities for development of entry inhibitors. Trends Microbiol. 2011;19(4):191–197. doi: 10.1016/j.tim.2011.02.001. [DOI] [PMC free article] [PubMed] [Google Scholar]
- Connolly SA, Jackson JO. et al. Fusing structure and function: a structural view of the herpesvirus entry machinery. Nat Rev Microbiol. 2011;9(5):369–381. doi: 10.1038/nrmicro2548. [DOI] [PMC free article] [PubMed] [Google Scholar]
- Cosset FL, Lavillette D. Cell entry of enveloped viruses. Adv Genet. 2011;73:121–183. doi: 10.1016/B978-0-12-380860-8.00004-5. [DOI] [PMC free article] [PubMed] [Google Scholar]
- Raynor CM, Wright JF. et al. Annexin II enhances cytomegalovirus binding and fusion to phospholipid membranes. Biochemistry. 1999;38(16):5089–5095. doi: 10.1021/bi982095b. [DOI] [PubMed] [Google Scholar]
- Rai T, Mosoian A. et al. Annexin 2 is not required for human immunodeficiency virus type 1 particle production but plays a cell type-dependent role in regulating infectivity. J Virol. 2010;84(19):9783–9792. doi: 10.1128/JVI.01584-09. [DOI] [PMC free article] [PubMed] [Google Scholar]
- Yang SL, Chou YT. et al. Annexin II binds to capsid protein VP1 of enterovirus 71 and enhances viral infectivity. J Virol. 2011;85(22):11809–11820. doi: 10.1128/JVI.00297-11. [DOI] [PMC free article] [PubMed] [Google Scholar]
- Hertogs K, Leenders WP. et al. Endonexin II, present on human liver plasma membranes, is a specific binding protein of small hepatitis B virus (HBV) envelope protein. Virology. 1993;197(2):549–557. doi: 10.1006/viro.1993.1628. [DOI] [PubMed] [Google Scholar]
- Snel B, Lehmann G. et al. STRING: a web-server to retrieve and display the repeatedly occurring neighbourhood of a gene. Nucleic Acids Res. 2000;28(18):3442–3444. doi: 10.1093/nar/28.18.3442. [DOI] [PMC free article] [PubMed] [Google Scholar]
- von Mering C, Jensen LJ. et al. STRING 7--recent developments in the integration and prediction of protein interactions. Nucleic Acids Res. 2007;35(Database issue):D358–D362. doi: 10.1093/nar/gkl825. [DOI] [PMC free article] [PubMed] [Google Scholar]
- Jensen LJ, Kuhn M. et al. STRING 8--a global view on proteins and their functional interactions in 630 organisms. Nucleic Acids Res. 2009;37(Database issue):D412–D416. doi: 10.1093/nar/gkn760. [DOI] [PMC free article] [PubMed] [Google Scholar]
- Szklarczyk D, Franceschini A. et al. The STRING database in 2011: functional interaction networks of proteins, globally integrated and scored. Nucleic Acids Res. 2011;39(Database issue):D561–D568. doi: 10.1093/nar/gkq973. [DOI] [PMC free article] [PubMed] [Google Scholar]
- Ishihama Y, Oda Y. et al. Exponentially modified protein abundance index (emPAI) for estimation of absolute protein amount in proteomics by the number of sequenced peptides per protein. Mol Cell Proteomics. 2005;4(9):1265–1272. doi: 10.1074/mcp.M500061-MCP200. [DOI] [PubMed] [Google Scholar]
- Shevchenko A, Wilm M. et al. Mass spectrometric sequencing of proteins silver-stained polyacrylamide gels. Anal Chem. 1996;68(5):850–858. doi: 10.1021/ac950914h. [DOI] [PubMed] [Google Scholar]
- Darie CC, Biniossek ML. et al. Structural characterization of fish egg vitelline envelope proteins by mass spectrometry. Biochemistry. 2004;43(23):7459–7478. doi: 10.1021/bi0495937. [DOI] [PubMed] [Google Scholar]
- Darie CC, Biniossek ML. et al. Mass spectrometric evidence that proteolytic processing of rainbow trout egg vitelline envelope proteins takes place on the egg. J Biol Chem. 2005;280(45):37585–37598. doi: 10.1074/jbc.M506709200. [DOI] [PubMed] [Google Scholar]
- Sokolowska I, Woods AG, Wagner J, Dorler J, Wormwood K, Thome J, Oxidative Stress: Diagnostics, Prevention and Therapy. Washington: ACS Symposium Miniseries, ACS Publications; 2011. Mass Spectrometry for Proteomics-based Investigation of Oxidative Stress and Heat Shock Proteins; pp. 369–411. [Google Scholar]
- Spellman DS, Deinhardt K. et al. Stable isotopic labeling by amino acids in cultured primary neurons: application to brain-derived neurotrophic factor-dependent phosphotyrosine-associated signaling. Mol Cell Proteomics. 2008;7(6):1067–1076. doi: 10.1074/mcp.M700387-MCP200. [DOI] [PMC free article] [PubMed] [Google Scholar]
- Darie CC, Deinhardt K, Zhang G, Cardasis HS, Chao MV, Neubert TA. Identifying transient protein-protein interactions in EphB2 signaling by blue native PAGE and mass spectrometry. Proteomics. 2011;11(23):4514–4528. doi: 10.1002/pmic.201000819. [DOI] [PMC free article] [PubMed] [Google Scholar]
- Sokolowska I, Woods AG, Gawinowicz MA, Roy U, Darie CC. Identification of potential tumor differentiation factor (TDF) receptor from steroid-responsive and steroid-resistant breast cancer cells. [Research Support, Non-U.S. Gov't] J Biol Chem. 2012;287(3):1719–1733. doi: 10.1074/jbc.M111.284091. [DOI] [PMC free article] [PubMed] [Google Scholar]
Associated Data
This section collects any data citations, data availability statements, or supplementary materials included in this article.
Supplementary Materials
Table S1. LC/MS/MS experiment (experiment #1) of the proteins from the plasma membranes of undifferentiated (−) and differentiated (+) cells.
Table S2. LC/MS/MS experiment (experiment #2) of the proteins from the plasma membranes of undifferentiated (−) and differentiated (+) cells.
Figure S1. MS/MS spectra that led to identification of a protein by a unique peptide. In the (+) cells, the MS/MS spectra were identified with a Mascot score of 50 or higher. In the (−) cells, all MS/MS spectra are shown.
