Sulforaphane causes a major epigenetic repression of myostatin in porcine satellite cells

Abstract

Satellite cells function as skeletal muscle stem cells to support postnatal muscle growth and regeneration following injury or disease. There is great promise for the improvement of muscle performance in livestock and for the therapy of muscle pathologies in humans by the targeting of myostatin (MSTN) in this cell population. Human diet contains many histone deacetylase (HDAC) inhibitors, such as the bioactive component sulforaphane (SFN), whose epigenetic effects on MSTN gene in satellite cells are unknown. Therefore, we aimed to investigate the epigenetic influences of SFN on the MSTN gene in satellite cells. The present work provides the first evidence, which is distinct from the effects of trichostatin A (TSA), that SFN supplementation in vitro not only acts as a HDAC inhibitor but also as a DNA methyltransferase (DNMT) inhibitor in porcine satellite cells. Compared with TSA and 5-aza-2′-deoxycytidine (5-aza-dC), SFN treatment significantly represses MSTN expression, accompanied by strongly attenuated expression of negative feedback inhibitors of the MSTN signaling pathway. miRNAs targeting MSTN are not implicated in posttranscriptional regulation of MSTN. Nevertheless, a weakly enriched myoblast determination (MyoD) protein associated with diminished histone acetylation in the MyoD binding site located in the MSTN promoter region may contribute to the transcriptional repression of MSTN by SFN. These findings reveal a new mode of epigenetic repression of MSTN by the bioactive compound SFN. This novel pharmacological, biological activity of SFN in satellite cells may thus allow for the development of novel approaches to weaken the MSTN signaling pathway, both for therapies of human skeletal muscle disorders and for livestock production improvement.

Introduction

Pig is an economically important animal in livestock production, as well as in biomedical studies for humans because of the similarity in physiology, organ development and disease progression.¹ Skeletal muscle growth is one of the major economic traits in meat production. Postnatal muscle maintenance and growth rely on the activation of a unique population of quiescent “satellite cells” (referred to as muscle stem cells), which are capable of self-renewal and myogenic differentiation to form hypernucleated myotubes.^2,3 Satellite cells can be also activated under injury and pathological conditions and contribute to muscle repair and regeneration.³ Nevertheless, little is known about the effects of bioactive compounds on this multipotent muscle cell population and the mechanisms that mediate their effects.

Sulforaphane (SFN), an isothiocyanate derived from cruciferous vegetables, is a common bioactive compound that has the ability to inhibit type I and II histone deacetylases (HDAC), and is also an antioxidant, anti-carcinogenic and chemotherapeutic agent.^4,5 In this context, we became interested in the HDAC inhibitor property of SFN. In human colorectal cancer cells and prostate epithelial cells, this HDAC inhibition was accompanied by increased histone acetylation in global histone H3, H4 and P21 gene promoter region, associated with elevated expression of P21 protein.^5,6 In vivo studies with SFN-fed mice, HDAC activity was inhibited significantly in various tissues with a concomitant increase in global and local histone acetylation.⁷ In healthy human volunteers, oral consumption of SFN-rich broccoli sprouts resulted in strong HDAC inhibition associated with histone hyperacetylation at 3 and 6 h in peripheral blood mononuclear cells (PBMC).⁸ However, as a novel natural HDAC inhibitor, the potential epigenetic effects of SFN supplementation on skeletal muscle cells remain undiscovered.

Myostatin (MSTN; previously called growth differentiation factor 8, GDF8) is a member of the transforming growth factor-β (TGF-β) superfamily and a potent inhibitor of skeletal muscle growth.⁹ MSTN can also block satellite cell activation and negatively regulate self-renewal of satellite cells.¹⁰ It has been identified that follistatin (FST), Smad family member 7 (Smad7), Smad specific E3 ubiquitin protein ligase 1 (Smurf1) and human small glutamin-rich tetratricopeptide repeat-containing protein (hSGT) are involved in the MSTN pathway and inhibit MSTN activity to attenuate MSTN signaling.¹¹ In the skeletal muscle field, epigenetic research has emerged only during the last years.¹² Numerous studies have unveiled that epigenetic alterations, including DNA methylation and histone modifications, are important players in finely tuned regulation of gene expression. Small non-coding microRNAs (miRNAs), capable of inducing stable changes in gene expression without altering the sequence of genes, also contribute to the epigenetic landscape.¹³ Recently, evidence is accumulating supporting a posttranscriptional regulatory role for miRNAs in the regulation of MSTN expression. Data from Drummond et al. show that rapid increase of miR-499 expression by essential amino acids (EAAs) results in the suppression of MSTN expression in human skeletal muscle.¹⁴ Allen and Loh have shown that miR-27b targets 3′ untranslated region (3′UTR) of MSTN efficiently and may contribute to fast-specific and glucocorticoid-dependent MSTN expression in skeletal muscle.¹⁵ In a trans-regulatory manner, transcription factor forkhead box O1 (FoxO1) could bind to the mouse MSTN promoter and activate its activity to upregulate MSTN expression.¹⁶ Transcriptional activity of human MSTN promoter was strongly enhanced by myocyte enhancer factor 2 (MEF2) binding to the element present in the promoter region.¹⁷ However, the ability and mechanism of SFN to epigenetically regulate the MSTN gene in satellite cells are unknown.

Taking the above observations into account, the objective of this study was to test the hypothesis that SFN supplementation influences satellite cell growth and that epigenetic mechanisms account for MSTN gene modulation in response to SFN exposure. In the present study, we also employed the typical epigenetic reagents 5-aza-2′-deoxycytidine (5-aza-dC) and trichostatin A (TSA) and compared their effects to those of SFN treatment. We show that, different from what occurs with TSA, SFN and 5-aza-dC significantly suppress MSTN expression and inhibit HDAC activity as well as DNA methyltransferase (DNMT) expression in porcine satellite cells. If its effects are verified and applied to in vivo models, SFN may have therapeutic benefits in the treatment of human skeletal muscle disorders and practical value in meat production.¹⁸

Results

Epigenetic reagents affect porcine satellite cell growth and inhibit HDAC activity

In this study, we followed cell culture procedure as shown in Figure 1A. By design, we selected three serial doses (5 μM, 10 μM and 15 μM) of SFN to avoid oxidative stress and apoptosis, which occurs at higher concentrations in vitro.^19,20 Cells were harvested 48 h after exposure, as it is known that 15 μM SFN inhibits HDAC activity and increases histone acetylation level in prostate cell lines after 48 h treatment.⁶ For 5-aza-dC, 10 μM concentration was selected because it is the optimal dose to upregulate both FST isoforms (FST288 and FST315).²¹ For TSA, we used the general concentration of 50 nM in accordance with previous reports, to serve as a positive control.^22,23 Almost all of the satellite cells were not viable after treatment at day 2 (data not shown); therefore, we selected day 3 (the myoblast stage) to start the treatment. To examine the cytotoxic effects of SFN, TSA and 5-aza-dC treatments on porcine satellite cell growth, we determined cell viability (Fig. 1B) and cell proliferation rate (Fig. 1C). No difference in cell viability was observed, with the exception of an increase in the SFN5 group. Only the 5-aza-dC and SFN15 groups showed reduction of cell proliferation two days after treatment. Given that 5-aza-dC is a DNMT inhibitor, we first quantified DNMT1 mRNA expression. In addition to the 5-aza-dC group, DNMT1 transcripts were also remarkably decreased in the SFN10 and SFN15 groups (Fig. 1D). These results indicated that SFN10 was the optimal group for our experiments. To confirm this and the pro-apoptotic effect of SFN, we examined caspase 3 and caspase 9 activity, which are related to apoptosis induced by SFN.^24,25 As shown in Figure 1E and F, caspase activities were inhibited, except for caspase 3 in TSA group. Then, we selected the SFN10 group and analyzed HDAC activity in different treatments. In line with previous reports, relative HDAC activities were significantly inhibited in all three treatments (Fig. 1G, lower panel). However, global acetylation levels in histone H3 and H4 were notably decreased in 5-aza-dC and SFN10 groups, which differed from the highly elevated histone acetylation observed in the TSA group (Fig. 1G, upper panel).

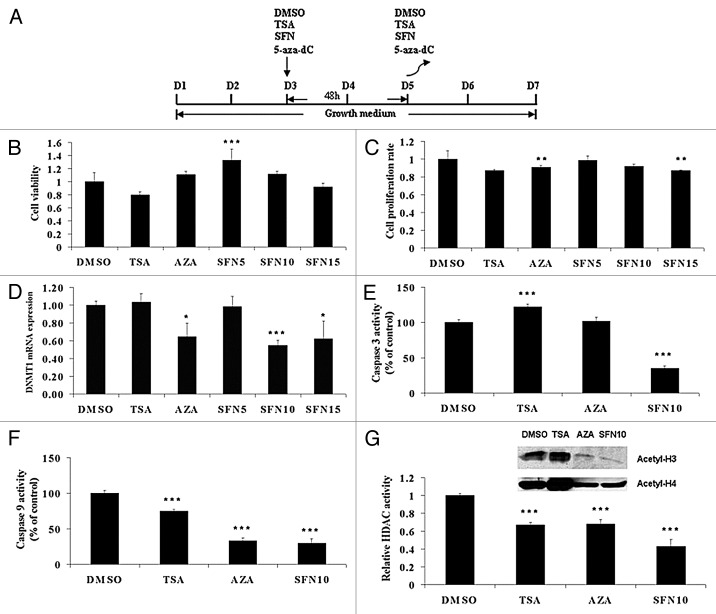

Figure 1. Epigenetic reagents affect porcine satellite cell culture and inhibit HDAC activity. (A) Scheme of porcine satellite cell culture and treatment procedure. (B) Cells were treated following the procedure as shown in (A). Cell viability was determined by WST-1 kit. (C) After removal of epigenetic chemicals, cells were allowed to proliferate for 2 d. Then cell proliferation rate was assessed by WST-1 kit. (D) DNMT1 relative mRNA expression was quantified by qRT-PCR after treatments. (E and F) Caspase-3 and 9 activity in cultures were evaluated using the caspase-3/CPP32 Colorimetric Assay Kit and caspase-9 Colorimetric Assay Kit, respectively. (G) Relative HDAC activity (lower panel) was examined using the Color-de-Lys HDAC colorimetric activity assay kit. Equal amounts of isolated histone protein were subjected to western blotting analysis to investigate acetylated histone H3 and H4 levels (upper panel). The results represent the mean ± standard deviations (SD) of three independent experiments each performed in duplicate (* p < 0.05; ** p < 0.01; *** p < 0.001).

FST variants were not involved in epigenetic effects of SFN on satellite cells

Acting as a potent HDAC inhibitor, TSA can induce the natural MSTN antagonist FST.^23,26 Our initial interest was focused on whether SFN exhibited a similar mechanism as TSA. Therefore, we quantified the total FST (Fig. 2A) and FST315 (Fig. 2B) expression, as it is not possible to distinguish another porcine FST isoform, FST288, from FST315 due to their identical sequence. To gain a full profile of influences of SFN on FST, other two doses (5 μM and 15 μM) were also used. Nevertheless, upregulated total FST and FST315 were not observed in SFN groups. Considering the DNMT1 alterations, we plotted 31 CpG sites in the second predicted CpG island (Fig. 2C) of the porcine FST 5′regulatory region and determined their DNA methylation status (Fig. 2D). Bisulfite sequencing analysis revealed that all of the 31 CpG sites were sparsely methylated, except for some sporadic methylation sites. Taken together, these results indicate that FST is not induced by SFN and not involved in SFN effects on porcine satellite cells.

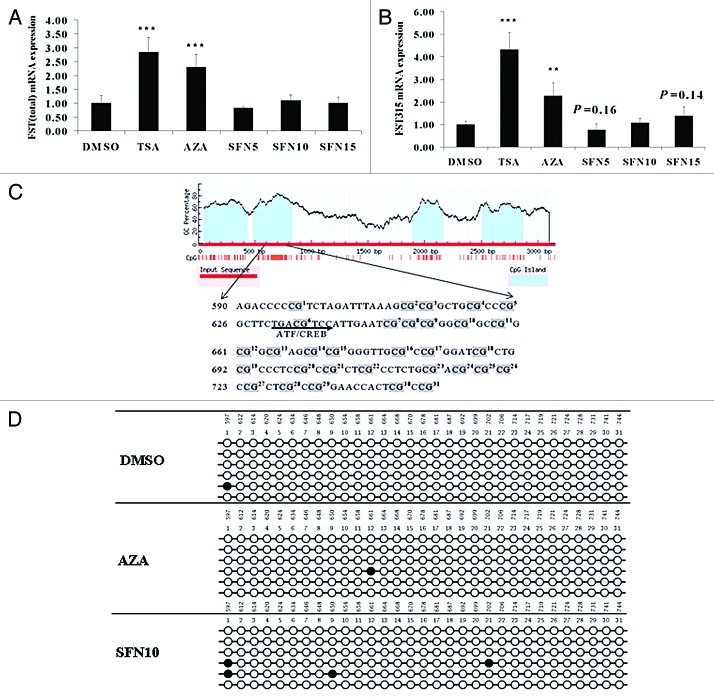

Figure 2.FST variants were not involved in epigenetic effects of SFN on satellite cell. (A and B) Total FST and FST315 mRNA levels were quantified by qRT-PCR after treatments. The results represent the mean ± standard deviations (SD) of three independent experiments each performed in duplicate (**p < 0.01; ***p < 0.001). (C) CpG islands in the FST promoter region were predicted by MethPrimer online (upper panel). Thirty-one numbered CpG dinucleotides were mapped in genomic sequence (lower panel). (D) DNA methylation status within CpG island 2 spanning putative activating transcription factor (ATF)/cAMP response element binding protein (CREB) binding site was quantified by bisulfite sequencing PCR. A minimum of six positive clones were randomly picked for sequencing with M13 primers. Sequencing results were visualized by QUMA software. Unfilled (white) circles correspond to unmethylated Cs and filled (black) circles correspond to methylated Cs.

MSTN and its signaling pathway were inhibited by SFN treatment

MSTN is a potent negative regulator of myogenesis, and inactivation of MSTN results in heavy muscle growth.²⁷ Given that FST gene expression was not induced by SFN, we then studied MSTN as the candidate gene and determined its expression levels, which were significantly upregulated by TSA and downregulated by 5-aza-dC and SFN (Fig. 3A). In this experiment, other two doses of SFN (5 μM and 15 μM) were also tested to gain a full profile of influences of SFN on MSTN signaling pathway genes. Besides FST, Smad7, Smurf1 and hSGT have also been identified as inhibitors of the MSTN signaling pathway in skeletal muscle.¹¹ Our results show that hSGT expression was upregulated in TSA, 5-aza-dC and SFN15 groups (Fig. 3B). In comparison, Smad (Fig. 3C) and Smurf1 (Fig. 3D) were only upregulated in SFN treatment groups. Collectively, our observations thus suggested that MSTN itself and its pathway were more strongly attenuated by SFN.

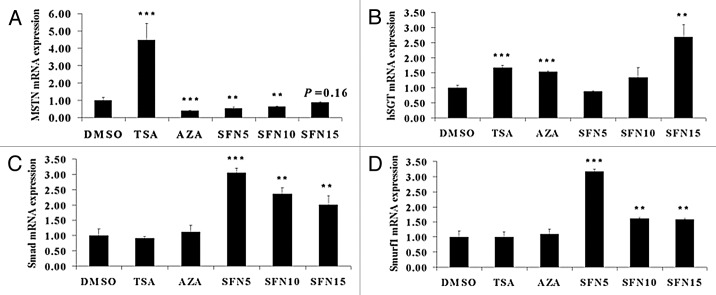

Figure 3. MSTN and its signaling pathway were inhibited by SFN treatment. qRT-PCR was performed to quantify MSTN (A), hSGT (B), Smad7 (C) and Smurf1 (D) mRNA level. The results represent the mean ± standard deviations (SD) of three independent experiments each performed in duplicate (**p < 0.01; ***p < 0.001).

Predicted miRNAs targeting porcine MSTN 3′UTR region were not involved in epigenetic repression of MSTN

miRNAs can silence mRNAs by endonuclease cleavage, translational repression and mRNA degradation.²⁸ In order to investigate whether specific miRNAs play regulatory roles in modulating MSTN transcription, we identified several miRNA targeting MSTN, including miR-21, miR-26a, miR-29abc and miR-181a, and also obtained experimentally confirmed miRNAs such as miR-27ab,¹⁵ miR-208b,²⁹ miR-499³⁰ previously shown to target MSTN. miR-208b and miR-499 expression was not able to be determined, as indicated by threshold cycle (Ct) value above 35 cycles (data not shown). All of the miRNAs, except miR-27b, were remarkably downregulated in the 5-aza-dC group (Fig. 4A–H). miR-29a and miR-29b expression dramatically decreased in the SFN group (Fig. 4E and F). Only miR-29b exhibited notably increased expression in the TSA group (Fig. 4F).

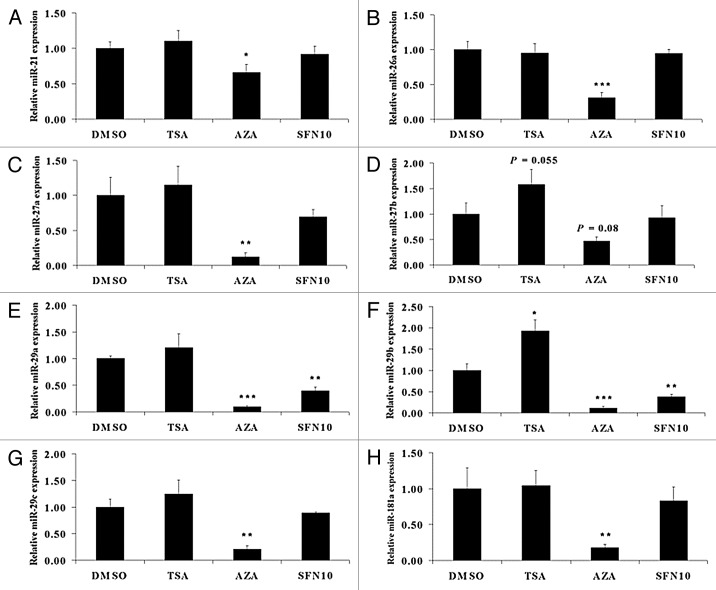

Figure 4. Predicted miRNAs targeting porcine MSTN 3′UTR region were not implicated in MSTN epigenetic repression. qRT-PCR was undertaken to quantify miR-21 (A), miR-26a (B), miR-27a (C), miR-27b (D), miR-29a (E), miR-29b (F), miR-29c (G) and miR-181a (H) expression level. The results represent the mean ± standard deviations (SD) of three independent experiments each performed in duplicate (* p < 0.05; **p < 0.01; ***p < 0.001).

Myoblast determination protein (MyoD) can bind to MSTN promoter to regulate its transcription involving histone deacetylation by SFN

Accumulating evidences report that MSTN expression could be regulated at the transcriptional level. Further analysis of porcine MSTN promoter sequence revealed three putative MyoD binding sites (Fig. 5A). To study the transcriptional regulation of the MSTN gene, we next examined whether MyoD would be recruited to the promoter regions of MSTN. ChIP with an antibody against MyoD confirmed that endogenous MyoD was present in binding site 1 of MSTN promoter region, indicating that MyoD interacts with MSTN to regulate MSTN transcription (Fig. 5B). In order to examine MyoD availability as transcription factor, we quantified MyoD mRNA and protein level. In accordance with mRNA expression, MyoD protein level was significantly elevated in the TSA group but decreased in 5-aza-dC and SFN10 groups (Fig. 5C). To examine the recruitment of MyoD to the MSTN promoter region, ChIP was conducted to quantify the relative enrichment. ChIP results demonstrated weak recruitment of MyoD in 5-aza-dC and SFN10 group, compared with a robust recruitment of MyoD in the TSA group (Fig. 5D). We were unable to investigate the epigenetic regulatory role of DNA methylation in MSTN gene transcription because no CpG island in the promoter region of porcine MSTN is available. Moreover, ChIP assays were performed to determine the local histone acetylation status of MyoD response element. In contrast to the dramatic histone hyperacetylation in TSA group, hypoacetylation status of histone H3 and H4 was observed in the 5-aza-dC and SFN10 groups (Fig. 6A and B). Taken together, these results suggest diminished MyoD and promoter-specific hypoacetylation could downregulate MSTN expression at transcription level.

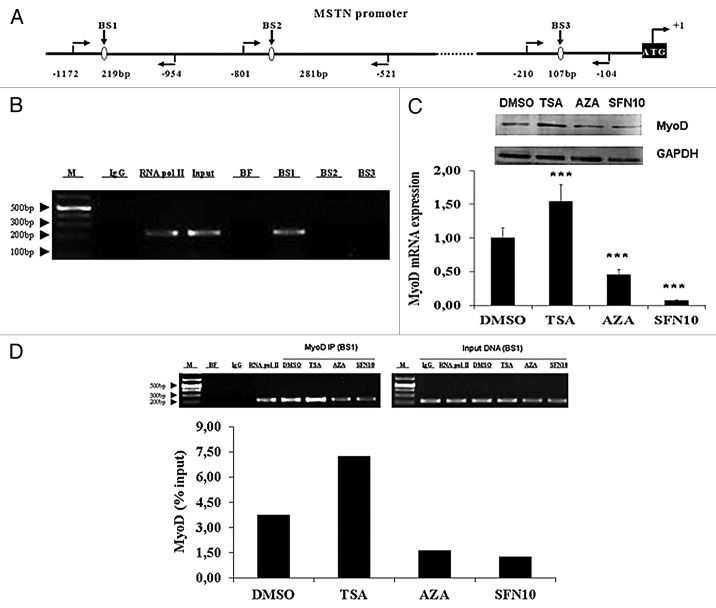

Figure 5. MyoD expression and occupancy in the MSTN promoter were significantly diminished by SFN and 5-aza-dC. (A) Schematic representation of three potential MyoD binding sites and PCR-amplified fragments located in MSTN promoter region. (B) ChIP was performed for MyoD recruitment to MSTN promoter following 48 h treatment. Soluble chromatin was immunoprecipitated with antibodies against rabbit IgG, RNAP II and MyoD. Immunoprecipitates were subjected to PCR with primer-pairs for each amplicon indicated in (A). The sequences of primer pairs are described in Table 1. As a negative control, a set of primers were used to amplify binding free region that was not expected to interact with the MyoD. Amplification products were resolved in 2% agarose gel stained with ethidium bromide. M, DNA marker; BF, MyoD binding free region; BS1–3, MyoD binding site 1–3. (C) MyoD mRNA (lower part) and protein (upper part) expression were quantified by qRT-PCR and western blotting, respectively. The results represent the mean ± standard deviations (SD) of three independent experiments each performed in duplicate (***p < 0.001). (D) Abundance of MyoD binding in BS1 of MSTN promoter region was determined by quantitative PCR following ChIP assay with MyoD antibody (lower part). Data are shown as a ratio to the input DNA. The PCR products were generated and visualized in 2% agarose gel (upper part). M, DNA marker; BF, MyoD binding free region; BS1, MyoD binding site 1.

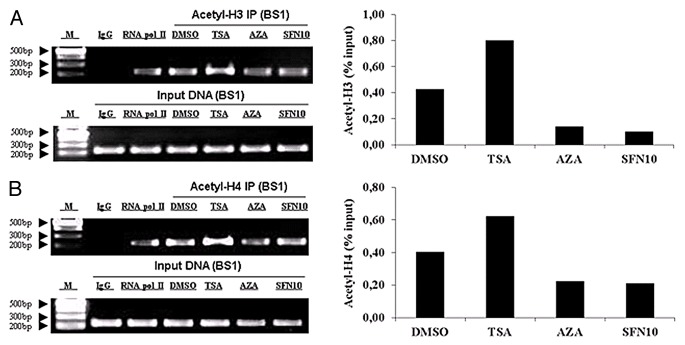

Figure 6. SFN and 5-aza-dC caused weak enrichment of acetylated histones around the MSTN BS1. (A) Acetyl-histone 3 was examined by quantitative PCR following ChIP assay with MyoD antibody (right part). Amplification products were visualized in a 2% agarose gel (left part). (B) Acetyl-histone 4 was determined by quantitative PCR following ChIP assay with MyoD antibody (right part). PCR products were visualized in a 2% agarose gel (left part). Data are normalized to the amount of input chromatin. M, DNA marker; BS1, MyoD binding site 1.

Discussion

For understanding human diseases, pig represents a promising model for biomedical research because it closely resembles and reflects human biology.³¹ In this study, we provided the first evidence for both SFN and 5-aza-dC as inhibitor of HDAC and DNMT in porcine satellite cells, demonstrating epigenetic mechanisms that are different from the ones exerted by TSA. A previous report has described protective effects of SFN treatment on rat skeletal muscle damage and oxidative stress,³² but not in the context of HDAC inhibition. To our knowledge, this is the first study of the effect of SFN in satellite cells. As for 5-aza-dC, there is only one report demonstrating that human skeletal muscle ryanodine-receptor gene (RYR1) transcription was reactivated after treatment with 5-aza-dC,³³ but without evidence for epigenetic effects of 5-aza-dC on myoblasts.

In this study, we investigated the potential epigenetic effects of SFN, TSA and 5-aza-dC treatments on porcine satellite cell growth. Our results demonstrate that none of SFN, 5-aza-dC and TSA influenced the cell viability, except for 5 μM SFN. The increased cell viability in the SFN5 group may indicate the protective effects of SFN on satellite cells at lower concentration.³² We also found that cells in 5-aza-dC and SFN15 groups had a reduction in cell proliferation as compared with negative control. SFN at 10 μM did not have anti-proliferative effect in satellite cells. The reduction detected after 2 d of treatment may be due to apoptotic response to 5-aza-dC and high dose of SFN.^6,24,25 We then aimed to investigate the effects of 5-aza-dC on the DNA methylation status, and how the alteration of promoter region methylation affected gene expression. DNMT1 expression was significantly suppressed in the 5-aza-dC group, and also in HDAC inhibitor group (SFN10 and SFN15). These results are in line with previous studies that report that SFN significantly decreased the expression of DNMT1 in response to SFN in breast cancer cells³⁴ and prostate cancer cells.³⁵ Gomyo et al.²⁴ and Singh et al.²⁵ reported that 5-aza-dC and SFN-induced apoptosis is associated with activation of caspase-3 and caspase-9. SFN dramatically reduced the activity of caspase-3 in the cortex and hippocampus after hypoxia-ischemia insult³⁶ and was able to counteract rat skeletal muscle damage induced by acute exercise.³² In our study, we determined caspase-3 and caspase-9 activities, which decreased in 5-aza-dC and SFN10 groups, suggesting that 10 μM SFN had no pro-apoptotic effect in the cells. Multiple studies from cell to human have established that SFN is an effective inhibitor of HDAC activity, with evidence for increased global and local histone acetylation status.³⁷ However, our work shows that SFN and 5-aza-dC are potent inhibitors of HDAC activity, but decreased global acetylated histones H3 and H4, which differ from the effect observed with TSA. Although HDAC inhibitor is expected to induce hyperacetylation, no changes in the H3 or H4 acetylation,²⁰ and even histone deacetylation,³⁸ were observed. Following similar treatment conditions as ours (48 h exposure to 15 μM SFN), Pledgie-Tracy et al. demonstrated significantly inhibited HDAC activity in four human breast cancer cell lines without significant changes in the acetylation of H3 or H4.²⁰ Another two HDAC inhibitors, MS-275 or SK-7068, also effectively inhibited cellular HDAC activity in human gastric adenocarcinoma cells (SNU-16) and caused decreased H3 or H4 acetylation after 48 h, 72 h and 96 h exposure.³⁸ These findings indicate that HDAC inhibitory effects by SFN withdraw, and cannot last longer to maintain histone acetylation in porcine satellite cells.

FST is one of the regulatory proteins which is capable of binding directly to MSTN, inhibiting its activity and acting as a potent MSTN antagonist.³⁹ Both FST315 and total FST expression increased remarkably in TSA and 5-aza-dC groups, whereas SFN was not able to induce FST. Bisulfite sequencing PCR results demonstrated a few sporadic methylated sites. In contrast, a significant increase in FST mRNA expression and peptide secretion was detected after 5-aza-dC treatment in human NCI-H295R adrenocortical cells, as well as hypomethylation in FST promoter region.²¹ The present study suggests that FST isoforms were not induced by SFN and that DNA methylation may not be involved in the regulation of FST expression.

MSTN inhibits myoblast proliferation and differentiation via a typical TGF-β pathway.¹¹ Here we show, for the first time, that SFN and 5-aza-dC treatments clearly result in attenuated MSTN expression. In keeping with previous report that show that TSA increased MSTN mRNA expression up to 40-fold in C2C12 myoblast after treatment for 24 h,⁴⁰ a substantial increase in MSTN expression was observed in the TSA group. These results indicate that these epigenetic reagents affect MSTN expression through distinct regulatory mechanisms. In skeletal muscle, several proteins involved in the MSTN signaling pathway have been identified as inhibitors of its secretion, activation, or receptor binding, including FST, Smad7, Smurf1 and hSGT.¹¹ We determined mRNA expression of these negative regulators in different treatments, which illustrates differential mechanisms involved in the inhibition of the MSTN signaling pathway. Upregulated FST and hSGT may mainly cause MSTN pathway inhibition in TSA and 5-aza-dC group. Moreover, enhanced Smad and Smurf1 could participate in such inhibition in the SFN group. A recent study has shown that TSA induced expression of Smad7 in nasal polyp-derived fibroblasts (NPDFs) exposed to TSA (50–400 nM) with TGF-β1 for 24 h.⁴¹ Our results show that TSA did not affect expression of Smad7, which may be due to the different treatment and cells. No data are available for SFN or 5-aza-dC regulating Smad7 expression. As for Smurf1, in contrast to no alterations observed in TSA and 5-aza-dC groups, we report for the first time that SFN could upregulate its expression. With regard to hSGT, elevated expressions were also observed in TSA, 5-aza-dC and SFN15 groups.

Recently, decreased expression of miR-136 and miR-500 have been detected in low protein fed pigs at finishing stage, which is related to higher MSTN mRNA expression.⁴² Here, we demonstrate in porcine satellite cells that miRNAs and MSTN were not expressed in a reciprocal manner, suggesting that miRNAs may be not involved in the posttranscriptional regulation of MSTN expression. We speculate that increased miRNAs expression in TSA group and decreased miRNAs expression in the 5-aza-dC and SFN10 groups are highly linked with deregulated permissive mark histone acetylation, as indicated by global acetylated histone H3 and H4 level (Fig. 1G). Upregulation of miR-127 has been observed in T24 human bladder cancer cells treated by 5-aza-dC and another HDAC inhibitor, 4-phenylbutyric acid. Importantly, acetylated histone H3 restored miR-127 expression, confirming that histone acetylation epigenetically regulates miRNA gene expression.⁴³ Reduced expression of miR-200 family and miR-205 in bladder cancer cells is also caused by repressive histone marks in their promoter region.⁴⁴ miRNA microarray analysis revealed 22 downregulated miRNA species and 5 upregulated miRNAs in the breast cancer cell line SKBr3 in response to HDAC inhibitor LAQ824.⁴⁵

Our ChIP assay results confirmed that MyoD was recruited to the first putative binding site in vivo. We also demonstrated by quantitative PCR that MyoD was relatively lowly enriched in 5-aza-dC and SFN10 groups, which coincides with the lower levels of MyoD mRNA and protein abundance. It can be suggested that MyoD could be regulating MSTN gene expression by binding to its response element in the promoter region. Spilleret al.⁴⁶ reported that one of bovine MSTN gene upstream regulatory elements appears to be critical for MSTN promoter activity and that MyoD interacts with this binding motif in vitro as well as in vivo to regulate MSTN gene expression. More recently, Liu et al.⁴² have described that increased histone H3 acetylation, an activation mark, may account for transcriptional activation of MSTN in response to maternal dietary protein at finishing stage in pigs. In our study, compared with hyperacetylation of histone H3 and H4 in the TSA group, hypoacetylation at the MyoD binding site in the 5-aza-dC and SFN10 groups diminishes binding of MyoD to its binding element, inactivating MSTN transcription.

In summary, this is the first demonstration that SFN can regulate MSTN and inhibitors of MSTN signaling pathway in porcine satellite cells. Our data revealed the following: (1) Both 5-aza-dC and SFN significantly inhibit HDAC activity and DNMT1 expression. (2) 5-aza-dC, SFN and TSA function by different mechanisms to inhibit MSTN expression and negative regulators of the MSTN pathway. (3) Deregulated miRNA may be not involved in epigenetic repression of MSTN. (4) Epigenetic repression of MSTN by 5-aza-dC and SFN is associated with reduced MyoD expression, diminished binding of MyoD to the MSTN promoter and hypoacetylation of the MyoD binding site. These results provide new insight into the manipulation of muscle cell phenotypes. In the future, it will be interesting to verify the functional roles of SFN in vivo and evaluate the potentials for its use in the therapy of human muscle diseases and livestock muscle growth.

Materials and Methods

Porcine satellite cells isolation

The right and left semimembranosus muscles from 6 purebred Pietrain piglets at 20 d of age were collected for porcine satellite cells isolation. Piglets were slaughtered by intracardiac injection of T61 (Intervet). All the pigs were kept and slaughtered according to German performance test directions.⁴⁷ The porcine satellite cells isolation procedure was outlined by Mau et al.⁴⁸ Briefly, the muscle samples were quickly removed, sterilized with 70% ethanol, rinsed in cold phosphate-buffered saline (PBS), minced, and digested with 0.25% trypsin (27250-018, Invitrogen) for 1 h at 37°C with continuous shaking. Digestion was stopped by 20% fetal bovine serum (FBS, 10270106, Invitrogen). The resulting cell suspension was then filtered through 2 × 70 μm (352350, BD Falcon) and 1 × 40 μm cell strainer (352340, BD Falcon). Satellite cells were enriched by using a Percoll (P1644, Sigma-Aldrich) gradient (90%, 40% and 25%) centrifugation. Then the enriched satellite cells were collected and diluted with minimum essential medium α (MEMα, M0894, Sigma-Aldrich) supplemented with 4 mM glutamine (25030, Invitrogen), 100 IU/ml penicillin, 100 μg/ml streptomycin (15140, Invitrogen), 2.5 μg/ml fungizone (15290, Invitrogen) and 10% FBS. After counting by a hemocytometer, aliquots of the cells were frozen in liquid nitrogen until making a pool. Before starting experiments, a uniform pool was made from all aliquots obtained from several isolation procedures.

Cell culture, cell viability and cell proliferation rate

Aliquots of uniform porcine satellite cells pool were thawed and reseeded in gelatin-coated (0.1%, G1890, Sigma-Aldrich) CytoOne cell culture dishes or flasks (USA Scientific, Inc.). All incubations were performed at 37°C under a humidified atmosphere of 5% CO₂ in air. The medium was changed every other day and all experiments were repeated for three times with duplicates. Details of cell culture procedure are shown in Figure 1A. At day 3, the cells were exposed to DMSO (7029.1, Carl Roth GmbH), TSA (T8552, Sigma-Aldrich), 5-aza-dC (A3656, Sigma-Aldrich), and SFN (S8044, LKT) for 48h in MEMα with 10% FBS (growth medium, GM). Treatments were categorized into 0.04% DMSO (vehicle control, equal 0.04% DMSO present in other reconstituted chemicals), TSA (50 nM TSA), AZA (10 μM 5-aza-dC), SFN5 (5 μM SFN), SFN10 (10 μM SFN) and SFN15 (15 μM SFN) groups.

WST-1 kit (10008883, Cayman Chemical) was used to quantify cell viability and cell proliferation rate according to the manufacturer's instruction. Cell viability was measured after treatment. Cell proliferation rate was determined after two additional days in GM without treatment.

Measurement of cell apoptosis

Cells were reseeded in gelatin coated plates, followed by a 48 h treatment. Caspase-3 and 9 activity in cultures were measured using the caspase-3/CPP32 Colorimetric Assay Kit (K106-25, Biovision) and caspase-9 Colorimetric Assay Kit (K119-25, Biovision), according to the manufacturer's instructions. Samples were read at 405 nm in a microtiter plate reader (Molecular Devices).

In vitro HDAC activity assay and histone isolation

After treatment at day 5, in vitro HDAC activity was determined using the Color-de-Lys HDAC colorimetric activity assay kit (BML-AK501-0001, Enzo Life Sciences), following the protocol described by the manufacturer. Briefly, approximately 10 μg nuclear extract for each sample was incubated with the HDAC assay buffer and the HDAC colorimetric substrate for 30 min at 37°C. Lysine developer was then added, and the samples were incubated at 37°C for another 30 min. Samples were read at 405 nm using a microtiter plate reader.

Satellite cells were cultured without or with different treatment for 48 h. Histone proteins were then isolated by EpiQuik Total Histone Extraction Kit (OP-0006, Epigentek) according to the manufacturer’s manual, followed by western blotting analysis of acetylated histone 3 and histone 4.

Prediction of miRNAs targeting MSTN

To determine the differentially expressed miRNAs targeting MSTN, we used two miRNA target prediction algorithms: MicroCosm Targets Version 5 (www.ebi.ac.uk/enright-srv/microcosm/htdocs/targets/v5), and TargetScan.⁴⁹ The putative binding sites were further verified by RNAHybrid (http://bibiserv.techfak.uni-bielefeld.de/rnahybrid/submission.html) and RNA22 (http://cbcsrv.watson.ibm.com/rna22.html).

qRT-PCR of miRNA and mRNA

Total RNAs including miRNAs were isolated using miRNeasy Mini Kit (217004, Qiagen) and reverse transcribed using miScript II RT Kit (218161, Qiagen). Total RNAs for mRNA expression were isolated and reverse transcribed as described previously.⁴ Primers were designed using the online Primer3 program.⁵⁰ Quantitative real time PCR (qRT-PCR) was performed with a StepOnePlus Real-Time PCR System (Applied Biosystems) using miScript SYBR Green PCR Kit (218073, Qiagen) and iTaq SYBR Green Supermix with ROX (172–5850, Bio-Rad) for the detection of miRNAs and mRNAs, respectively. Primers used for the detection of miRNA and mRNA are listed in Table 1. qRT-PCR data were analyzed using the 2^-ΔΔCt method⁵¹ with hypoxanthine phosphoribosyltransferase 1 (HPRT1)⁵² for mRNAs and 18S rRNA for miRNAs as endogenous references.

Table 1. List of primer sequences used in this study.

Applications and targets		Primers sequence (5′-3′)	GenBank ID
qRT-PCR for mRNA expression	DNMT1	F: GCGGGACCTACCAAACAT R: TTCCACGCAGGAGCAGAC	DQ060156
	Myostatin	F: GATTATCACGCTACGACGGA R: CCTGGGTTCATGTCAAGTTTC	AY448008
	FST315	F: AGTGACAATGCCACCTACGC R: CCTCGGTGTCTTCTGAAATGG	M19529.1
	FSTtotal	F: AAAACCTACCGCAACGAATG R: CAGAAAACATCCCGACAGGT	NM_001003662
	MyoD	F: TGCAAACGCAAGACCACTAA R: GCTGATTCGGGTTGCTAGAC	GU249575
	Smurf1	F: CAGCGTCTGGATCTATGCAA R: CTAACAGGCCTCTGCAGTCC	XM_003354460
	Smad7	F: CCAACTGCAGACTGTCCAGA R: CAGGCTCCAGAAGAAGTTGG	HM803236
	hSGT	F: GACCCCGACAATGAGACCTA R: TGATGCCATGCTCATAAAGC	NM_001244392
	HPRT1	F: AACCTTGCTTTCCTTGGTCA R: TCAAGGGCATAGCCTACCAC	NM_001032376.2
qRT-PCR for miRNA expression	ssc-miR-21	F: GCACCTAGCTTATCAGAC
	ssc-miR-26a	F: TTCAAGTAATCCAGGATAGGCT
	ssc-miR-27a	F: TTCACAGTGGCTAAGTTCTGC
	ssc-miR-27b	F: TTCACAGTGGCTAAGTTCTGC
	ssc-miR-29a	F: CTAGCACCATCTGAAATCGGTTA
	ssc-miR-29b	F: TAGCACCATTTGAAATCAGT
	ssc-miR-29c	F: TAGCACCATTTGAAATCGGTTA
	ssc-miR-181a	F: AACATTCAACGCTGTCGGTGAGTT
	18S	F: ACGGACAGGATTGACAGATT
Bisulfite sequencing PCR	FST-met-nest1	F: TATTGGGAGATYGTTTATYGTAAAT R: CTTAAAACRAACCATTCT	M19529
	FST-met-nest2	F: AGATTTTYGTTTAGATTTAAAG R: CARCAAATAATTCCARCAAA	M19529
ChIP assay	MyoD-BSF	F: TGAATCAGCTCACCCTTGACT R: ATGATTGGCTCTTGCTCCAC	AY527152
	MyoD-BS1	F: CCAGACCTTACCCCAAATCC R: GCAGTTTGCCTCAGATTTCC	AY527152
	MyoD-BS2	F: CAGTTGAAAACTGAGCACGA R: TTTAGACAAACATTTGAGGAAAAA	AY527152
	MyoD-BS3	F: GTGGAGCAAGAGCCAATCAT R: ACAACTTGCCACACCAGTGA	AY527152

Western blotting analysis

A protocol for this procedure was described previously.⁵³ For acetylated histone 3 and histone 4, equal protein was loaded and confirmed by ponceau S staining. For MyoD, blots were probed with glyceraldehyde 3-phosphate dehydrogenase (GAPDH) antibody to correct for differences in protein loading. Western blotting was performed with the following primary antibodies: MyoD (1:1000, sc-31940 X, Santa Cruz), acetyl-histone H3 (0.05 μg/ml, 06-599, Millipore), acetyl-histone H4 (1:1000, 06-866, Millipore), GAPDH (1:3000, sc-20357, Abcam), followed by horseradish peroxidase (HRP)-conjugated secondary antibodies (donkey anti-goat, 1:3000, sc-2020, Santa Cruz; goat anti-rabbit, 1:2000, sc-2004, Santa Cruz). Finally, the specific signals were detected by chemiluminescence using the SuperSignal West Pico Chemiluminescent Substrate (34077, Thermo Scientific). Images were acquired by Quantity One 1-D analysis software (Bio-Rad).

DNA methylation study

The 5′-regulatory region of FST (GenBank: M19529) was submitted to the online program Methprimer⁵⁴ to identify the CpG islands. Genomic DNA (1 μg) was subjected to bisulfite modification using EZ DNA Methylation-Direct Kit (D5020, Zymo Research) according to the manufacturer’s protocol. The FST 5′-regulatory region containing CpG island was amplified by nested PCR with FST-met-nest primer pairs (Table 1) designed using PerlPrimer⁵⁵ and Methyl Primer Express Software v1.0 (Applied Biosystems Inc.). PCR products were purified with QIAquick PCR purification kit (28104, Qiagen) and then subcloned into the pGEM T-easy vector (A1360, Promega). A minimum of six different positive clones were randomly selected for sequencing with M13 primers performed by the CEQ8000 sequencer system (Beckman Coulter). The final sequence results were processed by QUMA software.⁵⁶ Sequences with a conversion rate below 90% were excluded from analysis.

ChIP assays

The chromatin immunoprecipitation (ChIP) assay kit (17-295, Millipore) was used in accordance with the manufacturer’s instructions. Soluble chromatin was immunoprecipitated with anti-MyoD (sc-31940 X, Santa Cruz), anti-acetyl-histone H3 (06-599, Millipore) or anti-acetyl-histone H4 (06-866, Millipore). Immunoprecipitates were subjected to quantitative PCR with MSTN promoter specific primers spanning the putative binding sites of interest (Table 1). As a negative control, a primer pair of MyoD binding site free region was used to amplify another genomic region that was not expected to interact with MyoD. Antibodies against RNA polymerase II (sc-899 X, Santa Cruz) and normal rabbit IgG (2729S, Cell signaling Technology) were used as a positive and a negative control in the assay, respectively. PCR products were separated on a 2% agarose gel stained with ethidium bromide for visualization. With the percent input method, signals obtained from the ChIP are divided by signals obtained from an input sample. Quantitative PCR data were normalized to and expressed as % of input.

Statistical analysis

Pairwise comparisons were made between treatment groups and the vehicle-treated control, using Student’s t-test. The data were expressed as means ± standard deviations (SD) and *p < 0.05, **p < 0.01 and ***p < 0.001 were set statistically significant.

Glossary

Abbreviations:

5-aza-dC

5-aza-2′-deoxycytidine

ATF

activating transcription factor

CREB

cAMP response element binding protein

ChIP

chromatin immunoprecipitation

DNMT

DNA methyltransferase

EAAs

essential amino acids

FBS

fetal bovine serum

FST

follistatin

FoxO1

forkhead box O1

GAPDH

glyceraldehyde 3-phosphate dehydrogenase GDF8, growth differentiation factor 8

GM

growth medium

HDAC

histone deacetylase

HRP

horseradish peroxidase

HPRT1

hypoxanthine phosphoribosyltransferase 1

hSGT

human small glutamin-rich tetratricopeptide repeat-containing protein

MEF2

myocyte enhancer factor 2

MEMα

minimum essential medium α

miRNAs

microRNAs

MSTN

myostatin

MyoD

myoblast determination protein

NPDFs

nasal polyp-derived fibroblasts

PBMC

peripheral blood mononuclear cells

PBS

phosphate-buffered saline

qRT-PCR

quantitative real time PCR

RYR1

ryanodine-receptor gene

SD

standard deviations

SFN

sulforaphane

Smad7

Smad family member 7

Smurf1

Smad specific E3 ubiquitin protein ligase 1

Ct

threshold cycle

TGF-β

transforming growth factor-β

TSA

trichostatin A

UTR

untranslated region

Disclosure of Potential Conflicts of Interest

No potential conflicts of interest were disclosed.
