Synthesis of Copper(I) Thiolate Complexes in the Thioetherification of Aryl Halides

Chaohuang Chen †, Zhiqiang Weng †,*, John F Hartwig ‡,*
PMCID: PMC3540417  NIHMSID: NIHMS412821  PMID: 23316098

Abstract

The copper(I) thiophenolato complexes 1–3 containing 1,10-phenanthroline (phen) and 2,9-dimethyl-1,10-phenanthroline (Me2phen) were isolated in excellent yields from reactions of [CuOtBu]4 with the dative ligands and subsequent addition of 1 equiv of arylthiol and characterized spectroscopically. X-ray structural analysis of a single crystal of [(phen)Cu(µ-SC6H5)]2 (1) revealed that this complex adopts a neutral dimeric form with a weak Cu–Cu bonding interaction. These complexes were found to react with iodoarenes to form aryl sulfide products. The intermediacy of such complexes in copper-catalyzed thioetherification of aryl halides was demonstrated by the reactivity with p-tolyl iodide and o-tolyl iodide to form two aryl thioethers with selectivities similar to those of catalytic reactions conducted with the same two iodoarenes.

Introduction

Much research has focused on the development of copper catalysis in organic synthesis during the past decade.1,2,3,4,5,6,7,8,9,10,11,12 When simple ligands are used, the catalysts are inexpensive and less toxic than those based on precious metals. Copper-catalyzed coupling reactions to form C(aryl) –C, C(aryl) –N and C(aryl) –O bonds starting from aryl halides and suitable reagents have been a particular focus of this work. Given the importance of aryl sulfides and their derivatives in numerous biological and pharmaceutically active compounds,13,14,15,16,17,18,19 the development of copper-catalyzed C(aryl) –S bond formation (eq 1)20,21,22,23,24,25,26,27,28,29,30 is an important process. However, this reacation has been studied much less than other copper-catalyzed couplings.31 Most relevant to the work described here, no studies on the mechanism of copper-catalyzed coupling of thiol nucleophiles have been reported.

graphic file with name nihms412821f5.jpg (1)

A series of ligands have been used with different copper precursors for the coupling of thiols with aryl halides, including ethylene glycol,32 neocuproine,33 1,2-diamine derivatives,34 1,1,1-tris(hydroxymethyl)ethane,35 amino acids36 and β-keto esters.37,38 These ligands have been proposed to increase the catalyst solubility or stability and prevent aggregation of the metal, but the identity of thiolate complexes containing these ligands and the reactions of these complexes with haloarenes has not been reported.

Liebeskind and co-workers proposed that the coupling of boronic acids and N-thioimides proceeded through a combination of CuI and CuIII species.39 More recently, Liebeskind and Musaev et al reported a density-functional-theory study on the mechanism of the CuI-templated aerobic cross-coupling of thiol esters with boronic acids to form ketones in which the nature of the active oxidized species [LC(O)R1]Cu-(O2)-Cu[LC(O)R1]2+ in these reactions was assessed.40 In addition Punniyamurthy and co-workers suggested that the C–S cross coupling of thiols with aryl halides occurs by oxidative addition of RX to form the intermediate LnRCuX followed by reductive elimination of LnRCuSAr.41 However, the composition of the species that undego these steps has not been established.

Recent contributions from our laboratory include the synthesis, characterization and reactivity of a series of copper(I) imidate, amidate, amido and phenoxide complexes that are chemically and kinetically competent to be intermediates in the Ullmann reactions.42,43,44 This information has clarified several mechanistic questions about the copper-catalyzed coupling reactions. In brief, the phenoxide and amidate complexes adopt ionic structures consisting of a copper cation containing two dative ligands and a copper anion containing two of the anionic ligand. These structures were shown to be the most stable form of these complexes in the solid state and in solution. Here, we report the preparation and isolation of copper(I) thiophenolato complexes, the structures of these species and their reactions with aryl iodides. The structures of these species are distinct from the analogous copper(I) phenoxide complexes.

Results and Discussion

Synthesis of Copper(I) Thiophenolato and Alkylthiolate Complexes

A series of copper(I) thiophenolato complexes containing 1,10-phenanthroline (phen) and 2,9-dimethyl-1,10-phenanthroline (Me2phen) were prepared by the methods outlined in Scheme 1. Treatment of [CuOtBu]4 with the dative ligand and subsequent addition of 1 equiv of arene thiol resulted in the formation of complexes 1–3 containing phen and Me2phen as the ancillary dative ligand. These complexes were isolated in excellent yields (81–86% yield). All these Cu(I) thiophenolates are diamagnetic and were characterized by NMR spectroscopy and elemental analysis.

Scheme 1.

Scheme 1

Open in a new tab

The reaction of CuCl with KSBn, followed by addition of Me2phen produced complex 4, containing two K+ ions ligated by six Me2phens and an anionic tetranuclear copper(I) cluster ligated by six thiolates (Scheme 2). This Cu(I) alkylthio complex was obtained after crystallization from the reaction mixture in 92% yield. This result highlights that the site for binding of the dative ligand can be the counteraction, as well as the copper reaction site.

Scheme 2.

Scheme 2

Open in a new tab

To assess whether the arene thiolate complexes adopt ionic forms in solution or maintain the neutral forms observed in the solid state (vide infra), we measured the conductivity of 0.01 mM solutions containing complexes 1–4 in DMSO. The small values of 1–3 (2.55, 2.07, 7.89 Ω−1 cm2 mol−1, respectively) versus [NBu4]Br (30.0 Ω−1cm2 mol−1) implies that the neutral structure is the major form of the thiophenolato in solution, even in polar solvents. For reference, the conductivity of ferrocene was 0.09 Ω −1 cm2 mol−1. The higher conductivity value of 15.7 Ω −1 cm2 mol−1 for 4 is consistent with a structure similar to that of the solid state.

X-ray Structures of [(phen)Cu(µ -SC6H5)]2 (1)

Crystals of 1 suitable for X-ray diffraction were grown from CH2Cl2 at −30 °C. An ORTEP diagram is shown in Figure 1, and selected bond lengths and angles are summarized in Table 1. Related structures of ortho-substituted copper thiolates ligated by substituted phenanthroline lignads were reported previously.45 In sharp contrast to the ionic phenoxide complexes of phenanthroline we isolated and characterized previously,42,43,44 complex 1 adopts a neutral dimeric structure in the solid state. The coordination geometry about the copper atom is pseudotetrahedral. Both Cu atoms are ligated by one phen ligand and bridged by the S atoms of the thiophenolato to form a planar Cu2S2 ring.

Figure 1.

Figure 1

Open in a new tab

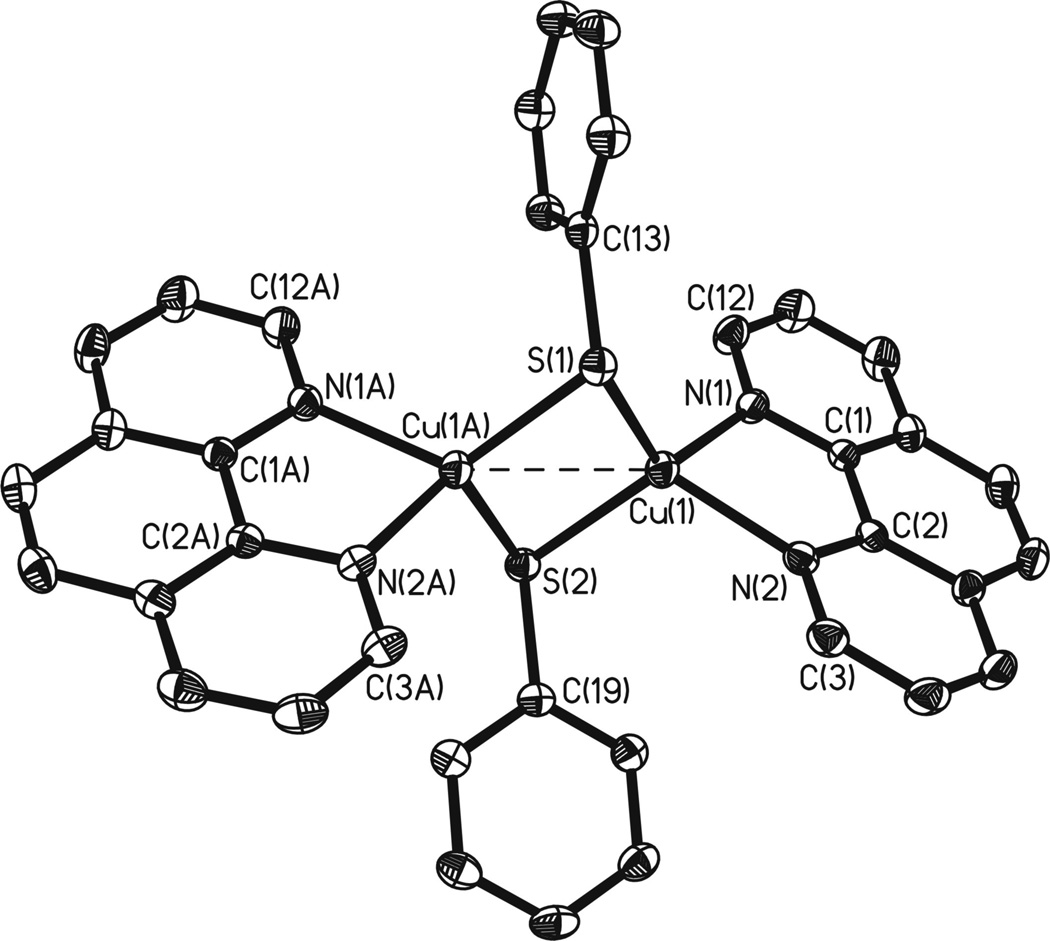

ORTEP drawings of 1 showing 40% probability thermal ellipsoids. The hydrogen atoms are omitted for clarity.

Table 1.

Selected Bond Lengths and Angles of Complexes 1

Bond Lengths (Å)
Cu(1)-Cu(1A) 2.7207(4) Cu(1)-S(1) 2.2913(5)
Cu(1)-S(2) 2.3400(5) Cu(1)-N(1) 2.0923(13)
Cu(1)-N(2) 2.0710(14)
Bond Angles (deg)
S(1)-Cu(1)-S(2) 108.011(14) Cu(1)-S(1)-Cu(1A) 72.84(2)
N(2)-Cu(1)-N(1) 80.69(5) N(1)-Cu(1)-S(1) 122.30(4)
N(2)-Cu(1)-S(2) 114.31(4)
Open in a new tab

The Cu–Cu distance in 1 (2.7207(4) Å) is slightly longer than that observed in related thiolato complexes [(phen)Cu(µ-SC6H4CH3-o)]2 (2.613(3) Å)46 and [(Me2phen)Cu(µ-SC6H4CH3-o)]2 (2.613 Å),45 but is short enough to suggest that the complex contains a weak Cu-Cu bonding interaction. These Cu-Cu distances are much shorter than that in the complex (Ph3P)2Cu(µ-SPh)2Cu(PPh3)2 (3.662(2) Å).47 The Cu–S distances are 2.2913(5) and 2.3400(5) Å, and these distances are slightly shorter than those found in (Ph3P)2Cu(µ-SPh)2Cu(PPh3)2 (2.344(4) and 2.415(4) Å) and a thiolate-bridged polymeric copper(I) compound, [(Me2phen)Cu(SC6H5)]n (average 2.319 Å).48 However, all of these bond lengths are longer than those observed in the monomeric Cu(I) complexes, (tmphen)Cu(SAr) (2.1470(8) and 2.1687(14) Å).49 The Cu-S-Cu angle in 1 is only 72.84(2), and this angle is much smaller than that the 102.75 (4) and 98.63 (4)° Cu-S-Cu angles in (Ph3P)2Cu(µ-SPh)2Cu(PPh3)2. This small angle in 1 leads to the short Cu-Cu distance. The Cu–N distances (2.0923(13) and 2.0710(14) Å) are similar to those in the neutral and ionic compound of phen ligated copper(I) imidate, amidate and aryloxide complexes.

X-ray Structure of [(Me2phen)3K]2[Cu4(µ-SCH2C6H5)6] (4)

Single crystals of the tetranuclear copper complex 4 were grown by the diffusion of pentane into a THF solution of 4 at −30 °C. An ORTEP diagram is shown in Figure 2, and selected geometric parameters are listed in Table 2. In contrast to the copper(I) thiophenolato complexes, complex 4 exists as an ionic form in the solid state. The anion cluster comprises a tetrahedral array of copper(I) centers ligated by six SBn ligands. Each copper atom is surrounded by three ligands to form a nearly trigonal-planar geometry.

Figure 2.

Figure 2

Open in a new tab

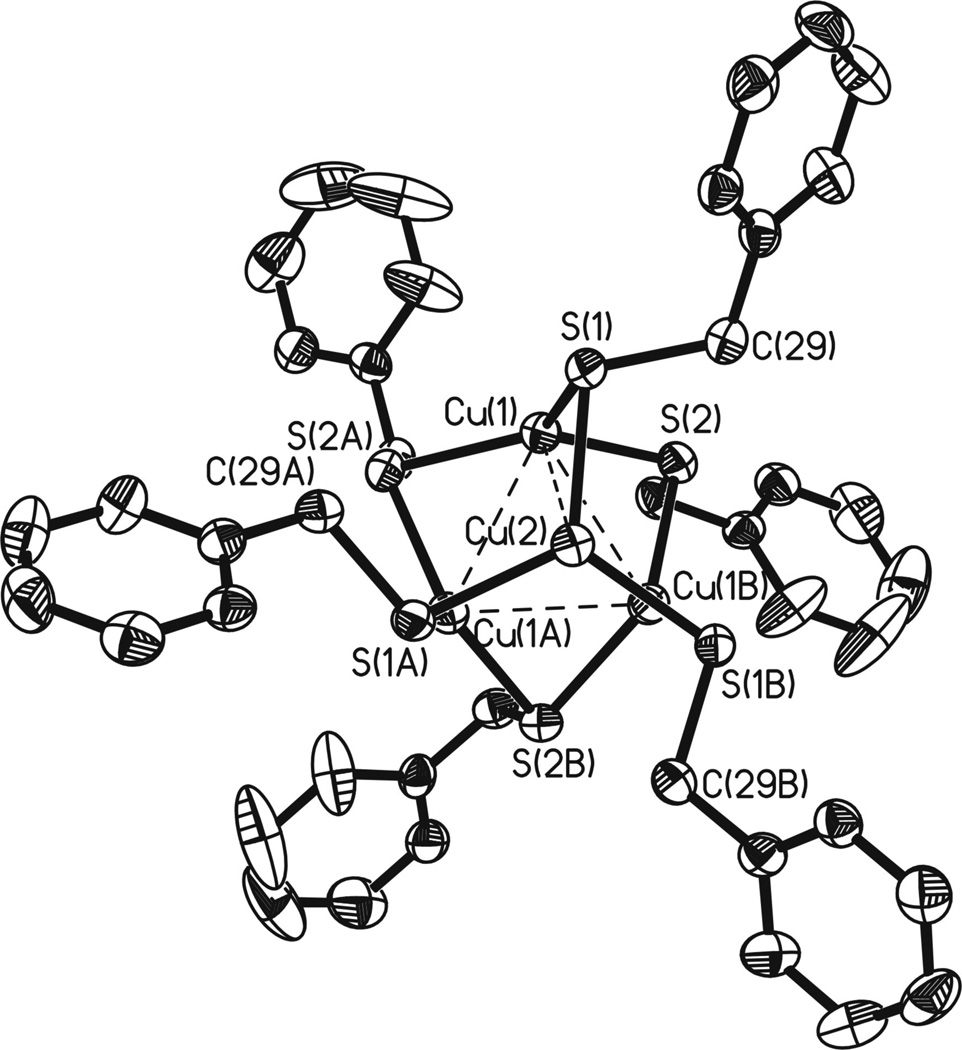

ORTEP drawings of the dianion 4 showing 50% probability thermal ellipsoids. The hydrogen atoms are omitted for clarity.

Table 2.

Selected Bond Lengths and Angles of Complexes 4

Bond Lengths (Å)
Cu(1)-Cu(2) 2.7126(8) Cu(1)-Cu(1A) 2.7273(7)
Cu(1)-Cu(1B) 2.7273(7) Cu(2)-Cu(1B) 2.7126(8)
Cu(2)-Cu(1A) 2.7126(8) Cu(1)-S(1) 2.2848(10)
Cu(2)-S(1) 2.2651(8) Cu(1)-S(2) 2.3044(8)
Cu(1A)-S(2) 2.2706(8) Cu(1)-S(2A) 2.2706(8)
Bond Angles (deg)
S(1)-Cu(1)-S(2) 110.06(3) S(2A)-Cu(1)-S(1) 124.57(3)
S(2A)-Cu(1)-S(2) 125.13(4) S(1)-Cu(1)-Cu(2) 53.07(3)
S(2)-Cu(1)-Cu(2) 103.69(2) Cu(2)-Cu(1)-Cu(1B) 59.80(1)
Cu(2)-Cu(1)-Cu(1A) 59.821(11) Cu(1B)-Cu(1)-Cu(1A) 60.0
Cu(2)-S(1)-Cu(1) 73.20(3) Cu(1B)-S(2)-Cu(1) 73.18(3)
Open in a new tab

The Cu–Cu distances in 4 range from 2.7126(8) to 2.7273(7) Å and are comparable to the observed bond distances in 1 and a related thiolato tetranuclear Cu(I) complex (Ph4P)2[Cu4(SPh)6] (a mean Cu-Cu distance of 2.76 (2) Å)50 and also shows a weakly bonding interaction. The Cu-S distances (average 2.2812 Å) are marginally shorter than those found in 1. The Cu-S-Cu angles (73.20(3) and 73.18(3) °) are also similar to those of complex 1.

Reactivity of 1–4 with Aryl Iodides

These copper(I) thiophenolato complexes react with haloarenes to form aryl thioethers. The results of these experiments are summarized in eq 2. Reaction of the phen-ligated complex 2 with 5 equiv of p-iodotoluene in DMSO-d6 produced bis(4-methylphenyl) sulfide in 99% yield after 3 h at 110 °C, and reaction of the Me2phen-ligated complex 3 with 5 equiv of p-iodotoluene in DMSO-d6 formed bis(4-methylphenyl) sulfide in 83% yield after 6 h at 110 °C. These results indicate that the complex 2 containing the less sterically hindered phen ligand reacts faster than complex 3 containing more sterically hindered ortho, ortho′-methyl disubstituted Me2phen ligand. This observation parallels the relative reactions of aryl halides with copper(I) phenoxide complexes containing the same two ligands,43 despite the difference in the ground state structures. Complex 4 reacted with 5 equiv of p-tolyl iodide after 16 h at 110 °C in DMSO to afford the coupled product in 95% yield (eq 3).

graphic file with name nihms412821f6.jpg (2)
graphic file with name nihms412821f7.jpg (3)

To evaluate the intermediacy of the thiophenolato complexes in the copper catalyzed etherification, we conducted the reactions of 2 with two iodoarenes and compared the ratio of the products of this reaction to that from a catalytic reaction between the arene thiol and the same two aryl halides. If complexes 1–3 are intermediates in the catalytic reaction, then the ratio of products from a single-turnover experiment and a catalytic reaction should be similar.

Isolated complex 2 reacted with a mixture of p-tolyl iodide and o-tolyl iodide to produce a 57:43 ratio of bis(4-methylphenyl) sulfide and o-tolyl(p-tolyl)sulfide (eq 4). The reaction of NaSC6H4Me-p with a 1:1 mixture of the two iodoarenes catalyzed by Cu/phen formed the same two aryl sulfides in a similar ratio (eq 5; Cu:phen = 1:1, 56±1 : 44; Cu:phen = 1:2, 57±1 : 43; Cu:phen = 1:4, 57±1 : 43). The presence of the phen ligand affects the selectivity of the metal for the two haloarenes, although the effect was subtle. The reaction of a 1:1 ratio of the two iodoarenes catalyzed by CuI alone gave a 51 ±2 : 49 ratio of the two aryl sulfides, rather than a 56–62 : 38–44 ratio and formed the two products in a lower combined yield (eq 5). In sharp contrast, in the absence of copper catalyst, the reaction afforded the two aryl sulfide products in a decreased yield with a 36±3 : 64 ratio.51 Thus, these data are at least consistent with the intermediacy of the isolated copper(I) thiophenolato complexes in the couplings of thiols with iodoarenes in the presence of CuI and phenanthroline as ligand.

graphic file with name nihms412821f8.jpg (4)
graphic file with name nihms412821f9.jpg (5)

The mechanism of the reactions of these complexes with iodoarenes was evaluated by conducting experiments that probe the potential for initial electron transfer and the potential intermediacy of free aryl radical intermediates. To probe the potential of an initial, outher-sphere electron-transfer mechanism, we compared the reactivity of the copper(I) thiophenolato with 4-chlorobenzonitrile to the reactivity of this complex with 1-bromonaphthalene. The chloroarene is more easily reduced than the bromoarene, and the resulting aryl radical anions undergo dissociation of halide at the same fast rates.52,53 However, concerted oxidative addition of chloroarenes are typically much slower than concerted oxidative additions of bromoarenes.

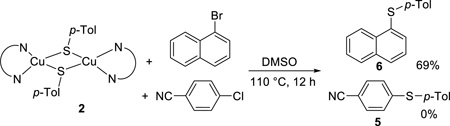

In the event, the reaction of 2 in DMSO at 110 °C with 4-chlorobenzonitrile and 1-bromonaphthalene for 12 h produced the corresponding aryl sulfides 5 and 6 in 0% and 69% yields, respectively. Consistent with this observation, the reaction of 2 with a mixture of 4-chlorobenzonitrile and 1-bromonaphthalene in DMSO at 110 °C after 12 h generated 5 and 6 in 0% and 32% yield, respectively (eq 6). This lack of reaction with the chloroarene, but reaction with the less readily reduced bromoarene argues against a mechanism involving initial, outer-sphere electron transfer.

graphic file with name nihms412821f10.jpg (6)

The intermediacy of an aryl radical formed by another mechanism was probed by conducting reactions with o-(allyloxy)iodobenzene. This aryl radical corresponding to this iodoarene is known to undergo cyclization to yield the 2,3-dihydrobenzofuranyl-methyl radical with a rate constant of 9.6 × 109 s−1 in DMSO with subsequent formation of 2-methyldihydrobenzofuran. Thus, if the copper complex led to generation of a free aryl radical from the iodoarene, the reaction of 2 with o-(allyloxy)iodobenzene would generate cyclized products.

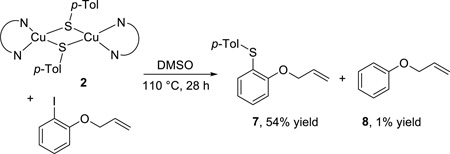

The reaction of 2 with o-(allyloxy)iodobenzene in DMSO-d6 at 110 °C 28 h gave the product 7 from C-S coupling at the aryl group in 54% yield, along with phenyl allyl ether 8 in 1% yield from hydrodehalogenation (eq 7). The catalytic reaction of p-toluenethiol with o-(allyloxy)iodobenzene, in the presence of 10 mol % CuI and 20 mol% phen in DMSO solvent at 110 °C produced 7 and 8 in 62% and 5% yields, respectively (eq 8). No cyclized product 3-methyl-2,3-dihydrobenzofuran was formed in either of these reactions. This absence of products from cyclization in the stoichiometric or catalytic reactions implies that the C-S coupling process occurs without the intermediacy of aryl radicals.

graphic file with name nihms412821f11.jpg (7)
graphic file with name nihms412821f12.jpg (8)

Conclusion

In conclusion, we have prepared copper(I) thiophenolato complexes that are kinetically and chemically competent to be intermediates in the copper-catalyzed thioetherification of aryl halides. The arene thiolate complexes to exist in a neutral dimeric form in the solid state, whereas the benzyl thiolate complex adopts a tetranuclear ionic structure with the dative phenanthroline ligand bound to the potassium cation and the tetranuclear copper species possessing a dianionic charge. The reactivity of the complexes with two haloarenes that probe for electron transfer processes and the reactivity of an aryl iodide that probes for the intermedicy of aryl radicals provide evidence against electron transfer to form free or caged aryl radicals. Further investigations on the mechanisms of copper-catalyzed coupling reactions are currently being conducted.

Experimental Section

General Experimental Procedure and Reagent Availability

All manipulations were carried out under an inert atmosphere using a nitrogen-filled glovebox or standard Schlenk techniques. All glassware was oven or flame dried immediately prior to use. Solvents were freshly dried and degassed according to the procedures in Purification of Laboratory Chemicals prior to use. Deuterated solvents were purchased from Cambridge Isotope Laboratories, Inc., and were degassed and stored over activated 4 Å molecular sieves. Unless otherwise noted, all other reagents and starting materials were purchased from commercial sources and used without further purification. Copper t-butoxide ([CuO-tBu]4) were prepared using the reported procedures.54,55 The 1H and 13C{1H} NMR spectra were obtained at 293 K on a Bruker Avance 400 spectrometer, and chemical shifts were recorded relative to the solvent resonance. GC-MS measurements were conducted on a Shimadzu QP2010SE. GC measurement was conducted on a Shimadzu 2010Plus with an FID detector. Elemental analyses were performed at the Microanalytical Laboratory of Fujian Institute of Research on the Structure of Matter.

Preparation of [(phen)Cu(µ-SC6H5)]2 (1)

A solution of 1,10-phenanthroline (18.0 mg, 0.100 mmol) in 1 mL of THF was added dropwise to a solution of [CuOtBu]4 (13.6 mg, 0.0250 mmol) in 5 mL of THF. The resulting reddish brown solution was stirred at room temperature for 30 min. To this mixture was added a solution of thiophenol (11.0 mg, 0.100 mmol) in 1 mL of THF. The product precipitated from the reaction mixture immediately as a red-brown precipitate. The mixture was stirred for an additional 1 h at room temperature, at which time pentane (12 mL) was added to precipitate the remaining product. The product was separated by filtration through a fine fritted funnel and washed with pentane to afford 28.5 mg (81% yield) of 1 that was analytically pure after recrystallization from CH2Cl2/Et2O.1H NMR (400 MHz, DMSO-d6).™ 9.09 (s, 2H), 8.48 (s, 4H), 7.96 (s, 4H), 7.65 (s, 4H), 6.90 (s, 4H), 6.46 (s, 2H), 6.34 (s, 4H); 13C{1H} (101 MHz, DMSO-d6) δ 149.69, 142.91, 136.58, 131.88, 129.93, 128.07, 127.73, 127.03, 124.96, 122.14; Anal. Calcd for C36H26Cu2N4S2·0.25CH2Cl2: C, 59.88; H, 3.67; N, 7.71. Found: C, 60.24; H, 3.71; N, 8.03. Conductivity (34 °C, 0.01 mM in DMSO): 2.55 Ωcm2mol−1.

Preparation of [(phen)Cu(µ-SC6H4CH3-p)]2 (2)

A solution of 1,10-phenanthroline (18.0 mg, 0.100 mmol) in 1 mL of THF was added dropwise to a solution of [CuOtBu]4 (13.6 mg, 0.0250 mmol) in 5 mL of THF. The resulting reddish brown solution was stirred at room temperature for 30 min. To this mixture was added a solution of p-thiocresol (12.4 mg, 0.100 mmol) in 1 mL of THF. The product precipitated from the reaction mixture immediately as a red-brown precipitate. The mixture was stirred for an additional 1 h at room temperature, at which time pentane (12 mL) was added to precipitate the remaining product. The product was separated by filtration through a fine fritted funnel and washed with pentane to afford 31.5 mg (86% yield) of 2 that was analytically pure after recrystallization from CH2Cl2/Et2O. 1H NMR (400 MHz, DMSO-d6) δ 9.07 (s, 4H), 8.51 (s, 4H), 7.99 (s, 4H), 7.71 (s, 4H), 6.76 (s, 4H), 6.18 (s, 4H), 1.91 (s, 6H).; 13C{1H} (101 MHz, DMSO-d6) δ 149.78, 143.42, 139.41, 131.69, 130.58, 128.79, 127.75, 126.91, 124.79, 20.70; Anal. Calcd for C38H30Cu2N4S2·CH2Cl2·Et2O: C, 57.84; H, 4.74; N, 6.27. Found: C, 57.91; H, 4.28; N, 6.09. Conductivity (34 °C, 0.01 mM in DMSO): 2.07 Ωcm2mol−1.

Preparation of [(me2phen)Cu(µ-SC6H4CH3-p)]2 (3)

A solution of 2,9-dimethyl-1,10-phenanthroline (21.7 mg, 0.100 mmol) in 1 mL of THF was added dropwise to a solution of [CuOtBu]4 (13.6 mg, 0.0250 mmol) in 5 mL of THF. The resulting reddish brown solution was stirred at room temperature for 30 min. To this mixture was added a solution of p-Thiocresol (12.4 mg, 0.100 mmol) in 1 mL of THF. The product precipitated from the reaction mixture immediately as a red-brown precipitate. The mixture was stirred for an additional 1 h at room temperature, at which time pentane (12 mL) was added to precipitate the remaining product. The product was separated by filtration through a fine fritted funnel and washed with pentane to afford 33.0 mg (83% yield) of 3 that was analytically pure after recrystallization from CH2Cl2/Et2O. 1H NMR (400 MHz, DMSO-d6) δ 8.75 (d, J = 8.3 Hz, 4H), 8.21 (s, 4H), 7.96 (d, J = 8.3 Hz, 4H), 7.00 (s, 4H), 6.44 (s, 4H), 2.39 (s, 12H), 2.06 (s, 6H); 13C{1H} (101 MHz, DMSO-d6) δ 158.18, 147.74, 137.95, 136.97, 132.45, 128.04, 127.69, 126.43, 126.20, 125.79, 25.70, 20.89; Anal. Calcd for C42H38Cu2N4S2·0.5CH2Cl2: C, 61.32; H, 4.72; N, 6.73. Found: C, 61.12; H, 5.00; N, 6.62. Conductivity (34 °C, 0.01 mM in DMSO): 7.89 Ωcm2mol−1.

Preparation of [(Me2phen)3K]2[Cu4(µ-SCH2C6H5)6] (4)

A solution of KSCH2C6H5 (16.2 mg, 0.100 mmol) in 1 mL of THF was added to a suspension of CuCl (9.9 mg, 0.10 mmol) in 5 mL of THF. The resulting mixture was stirred at room temperature for 1 h. To this yellow mixture was added a solution of 2,9-dimethyl-1,10-phenanthroline (21.7 mg, 0.100 mmol) in 1 mL of THF. The resulting solution turned reddish brown immediately and was further stirred at room temperature for 30 min. The resulting reaction mixture was filtrated through a layer of Celite. Pentane (12 mL) was added to the filtrate to precipitate the product. The product was separated by filtration through a fine fritted funnel and washed with pentane to afford 35.6 mg (92% yield) of 4. 1H NMR (400 MHz, DMSO-d6) δ 8.35 (d, J = 8.2 Hz, 12H), 7.87 (s, 12H), 7.63 (d, J = 8.2 Hz, 12H), 7.43 (d, J = 7.2 Hz, 12H), 7.14 (t, J = 7.2 Hz, 12H), 7.05 (t, J = 6.7 Hz, 6H), 3.90 (s, 12H), 2.80 (s, 36H). 13C{1H} (101 MHz, DMSO-d6) δ 157.57, 142.14, 137.35, 128.07, 127.33, 127.09, 125.84, 125.61, 124.94, 124.01, 37.01, 25.11.. Conductivity (34 °C, 0.005 mM in DMSO): 15.7 Ωcm2mol−1.

Representative procedure for measuring the yield of [(phen)Cu(µ-SC6H4CH3-p)]2 (2) with p-iodotoluene

Complex 2 (7.3 mg, 0.020 mmol) and 1,3,5-trimethoxybenzene (3.4 mg, 0.020 mmol) as internal standard were weighed into a vial and dissolved in 0.6 mL of DMSO-d6. The contents of the vial were agitated and then transferred to an NMR tube containing a septum-lined screw cap. An initial 1H NMR spectrum was acquired. p-Iodotoluene (21.8 mg, 0.100 mmol, 5.0 equiv) was then added as a DMSO-d6 solution (0.1 mL), and the resulting mixture was heated at 110 °C in an oil bath. The NMR tube was removed at regular intervals, and 1H-NMR spectra were acquired at 25 °C until the yield did not change. The yield of the p-tolyl phenyl sulfide was calculated to be 99%.

Representative procedure for measuring the yield of [(me2phen)Cu(µ- SC6H4CH3-p)]2 (3) with p-iodotoluene

Complex 3 (7.9 mg, 0.020 mmol) and 1,3,5-trimethoxybenzene (3.4 mg, 0.020 mmol) as internal standard were weighed into a vial and dissolved in 0.6 mL of DMSO-d6. The contents of the vial were agitated and then transferred to an NMR tube containing a septum-lined screw cap. An initial 1H NMR spectrum was acquired. p-Iodotoluene (21.8 mg, 0.100 mmol, 5.0 equiv) was then added as a DMSO-d6 solution (0.1 mL), and the resulting mixture was heated at 110 °C in an oil bath. The NMR tube was removed at regular intervals, and 1H-NMR spectra were acquired at 25 °C until the yield did not change. The yield of the p-tolyl phenyl sulfide was calculated to be 83%.

Representative procedure for measuring the yield of [(Me2phen)3K]2[Cu4(µ-SCH2C6H5)6] (4) with p-iodotoluene

Into a small vial was placed 4 (7.7 mg, 0.0033 mmol), p-iodotoluene (21.8 mg, 0.100 mmol), and 0.6 mL DMSO. The vial was sealed with a Teflon-lined screw cap, and the mixture was stirred at 110 °C for 16 h. The resulting solution was allowed to reach room temperature, and 100 µL disulfide diphenyl (0.20 mmol/mL in DMSO) was added as internal standard. The mixture then was filtered through a layer of Celite. The filtrate was analyzed by GC/MS. The yield was calculated to be 95%.

Competition reaction of [(phen)Cu(µ-SC6H4CH3-p)]2 (2) with p-iodotoluene and o-iodotoluene

Into a small vial was placed 2 (7.3 mg, 0.020 mmol), p-iodotoluene (21.8 mg, 0.100 mmol), o-iodotoluene (21.8 mg, 0.100 mmol), and 0.6 mL DMSO-d6. The vial was sealed with a Teflon-lined screw cap, and the mixture was stirred at 110 °C for 3 h. The resulting solution was allowed to reach room temperature, and 100 µL of a solution of 1,3,5-trimethoxybenzene (0.20 mmol/mL in DMSO-d6) was added as internal standard. The mixture then was filtered through a layer of Celite. The filtrate was analyzed by 1H NMR spectroscopy. The yields of the p-tolyl phenyl sulfide and o-tolyl phenyl sulfide were calculated to be 57% and 43%, respectively.

Competition reaction of NaSC6H4Me-p with p-iodotoluene and o-iodotoluene catalyzed by CuI/phen (1:2)

Into a small vial was placed CuI (1.0 mg, 0.0050 mmol, 10 mol %), 1,10-phenanthroline (1.8 mg, 0.010 mmol, 20 mol %), NaSC6H4Me-p (7.3 mg, 0.050 mmol), p-iodotoluene (54.5 mg, 0.250 mmol), o-iodotoluene (54.5 mg, 0.250 mmol), and 0.6 mL DMSO-d6. The vial was sealed with a Teflon screw cap, and the reaction mixture was stirred at 110 °C for 24 h. The resulting mixture was allowed to reach room temperature, and 100 µL of 1,3,5-trimethoxybenzene (0.20 mmol/mL in DMSO-d6) was added as internal standard. The mixture then was filtered through a layer of Celite. The filtrate was analyzed by 1H NMR spectroscopy. The yields of the p-tolyl phenyl sulfide and o-tolyl phenyl sulfide were calculated to be 54% and 34%, respectively.

Competition reaction of NaSC6H4Me-p with p-iodotoluene and o-iodotoluene catalyzed with CuI/phen (1:1)

Into a small vial was placed CuI (1.0 mg, 0.0050 mmol, 10 mol%), 1,10-phenanthroline (0.9 mg, 0.005 mmol, 10 mol%), NaSC6H4Me-p (7.3 mg, 0.050 mmol), p-iodotoluene (54.5 mg, 0.250 mmol), o-iodotoluene (54.5 mg, 0.250 mmol), and 0.6 mL DMSO. The vial was sealed with a Teflon-lined screw cap, and the reaction mixture was stirred at 110 °C for 24 h. The resulting mixture was allowed to reach room temperature, and 100 µL disulfide diphenyl (0.20 mmol/mL in DMSO) was added as internal standard. The mixture then was filtered through a layer of Celite. The filtrate was analyzed by GC/MS. The yields of the p-tolyl phenyl sulfide and o-tolyl phenyl sulfide were calculated to be 54% and 41%, respectively.

Competition reaction of NaSC6H4Me-p with p-iodotoluene and o-iodotoluene catalyzed with CuI/phen (1:4)

Into a small vial was placed CuI (1.0 mg, 0.0050 mmol, 10 mol%), 1,10-phenanthroline (3.6 mg, 0.020 mmol, 40 mol%), NaSC6H4Me-p (7.3 mg, 0.050 mmol), p-iodotoluene (54.5 mg, 0.250 mmol), o-iodotoluene (54.5 mg, 0.250 mmol), and 0.6 mL DMSO. The vial was sealed with a Teflon-lined screw cap, and the reaction mixture was stirred at 110 °C for 24 h. The resulting mixture was allowed to reach room temperature, and 100 µL disulfide diphenyl (0.20 mmol/mL in DMSO) was added as internal standard. The mixture then was filtered through a layer of Celite. The filtrate was analyzed by GC/MS. The yields of the p-tolyl phenyl sulfide and o-tolyl phenyl sulfide were calculated to be 56% and 41%, respectively.

Competition reaction of NaSC6H4Me-p with p-iodotoluene and o-iodotoluene catalyzed by CuI

Into a small vial was placed CuI (1.0 mg, 0.0050 mmol, 10 mol %), NaSC6H4Me-p (7.3 mg, 0.050 mmol), p-iodotoluene (54.5 mg, 0.250 mmol), o-iodotoluene (54.5 mg, 0.250 mmol), and 0.6 mL DMSO-d6. The vial was sealed with a Teflon-lined screw cap, and the reaction mixture was stirred at 110 °C for 24 h. The resulting mixture was allowed to reach room temperature, and 100 µL 1,3,5-trimethoxybenzene (0.20 mmol/mL in DMSO-d6) was added as internal standard. The mixture then was filtered through a layer of Celite. The filtrate was analyzed by 1H NMR spectroscopy. The yields of the p-tolyl phenyl sulfide and o-tolyl phenyl sulfide were calculated to be 42% and 37%, respectively.

Competition reaction of NaSC6H4Me-p with p-iodotoluene and o-iodotoluene without CuI/phen

Into a small vial was placed NaSC6H4Me-p (7.3 mg, 0.050 mmol), p-iodotoluene (54.5 mg, 0.250 mmol), o-iodotoluene (54.5 mg, 0.250 mmol), and 0.6 mL DMSO. The vial was sealed with a Teflon-lined screw cap, and the reaction mixture was stirred at 110 °C for 24 h. The resulting mixture was allowed to reach room temperature, and 100 µL disulfide diphenyl (0.20 mmol/mL in DMSO) was added as internal standard. The mixture then was filtered through a layer of Celite. The filtrate was analyzed by GC/MS. The yields of the p-tolyl phenyl sulfide and o-tolyl phenyl sulfide were calculated to be 23% and 40%, respectively.

Procedure for the reaction of [(phen)Cu(µ-SC6H4CH3-p)]2 (2) with 4-chlorobenzonitrile

Into a small vial was placed 2 (7.3 mg, 0.020 mmol), 4-chlorobenzonitrile (14.0 mg, 0.100 mmol), and 0.6 mL DMSO. The vial was sealed with a Teflon-lined screw cap, and the mixture was stirred at 110 °C for 48 h. The resulting solution was allowed to reach room temperature, and 100 µL 1,3,5-trimethoxybenzene (0.20 mmol/mL in DMSO) was added as internal standard. The mixture then was filtered through a layer of Celite. The filtrate was analyzed by GC/MS. Formation of p-tolyl thiophenyl benzonitrile product was not detected.

Procedure for the reaction of [(phen)Cu(µ-SC6H4CH3-p)]2 (2) with 1-bromonaphthalene

Into a small vial was placed 2 (7.3 mg, 0.020 mmol), 1-bromonaphthalene (21 mg, 0.10 mmol), and 0.6 mL DMSO. The vial was sealed with a Teflon-lined screw cap, and the mixture was stirred at 110 °C for 48 h. The resulting solution was allowed to reach room temperature, and 100 µL 1,3,5-trimethoxybenzene (0.20mmol/mL in DMSO) was added as internal standard. The mixture then was filtered through a layer of Celite. The filtrate was analyzed by GC/MS. The yield of the 1-p-tolyl thiophenyl naphthalene was calculated to be 69%.

Competition reaction of [(phen)Cu(µ-SC6H4CH3-p)]2 (2) with 4-chlorobenzonitrile and 1-bromonaphthalene

Into a small vial was placed 2 (7.3 mg, 0.020 mmol), 4-chlorobenzonitrile (14 mg, 0.10 mmol), 1-bromonaphthalene (21 mg, 0.10 mmol), and 0.6 mL DMSO. The vial was sealed with a Teflon-lined screw cap, and the mixture was stirred at 110 °C for 48 h. The resulting solution was allowed to reach room temperature, and 100 µL of a solution of 1,3,5-trimethoxybenzene (0.20 mmol/mL in DMSO) was added as internal standard. The mixture then was filtered through a layer of Celite. The filtrate was analyzed by GC/MS. The yield of 1-p-tolyl thiophenyl naphthalene was calculated to be 32%. The p-tolyl thiophenyl benzonitrile product was not detected.

Procedure for the reaction of [(phen)Cu(µ-SC6H4CH3-p)]2 (2) with ortho-allyloxy iodobenzene

Into a small vial was placed complex 2 (7.3 mg, 0.020 mmol), ortho-allyloxyiodobenzene (26.0 mg, 0.100 mmol), and 0.6 mL of DMSO-d6. The mixture was agitated and transferred to a Teflon-lined screw-capped NMR tube. The NMR tube was heated at 110 °C in a constant temperature bath for 24 h. The resulting solution was allowed to reach room temperature, and 100 µL of 1,3,5-trimethoxybenzene (0.20 mmol/mL in DMSO-d6) was added as internal standard. A 0.1 mL aliquot of the solution was withdrawn, diluted with ethyl acetate, and the resulting solution was filtered through a layer of Celite. The mixture was analyzed by GC/MS. The yield determined by GC/MS of phenyl allyl ether and the p-tolyl aryl thioether versus the 1,3,5-trimethoxybenzene internal standard was calculated to be 1% and 54%, respectively.

Procedure for the reaction of NaSC6H4Me-p with ortho-allyloxy iodobenzene catalyzed by CuI/phen

Into a small vial was placed CuI (1.0 mg, 0.0050 mmol, 10 mol%), 1,10-phenanthroline (1.8 mg, 0.010 mmol, 20 mol%), NaSC6H4Me-p (7.3 mg, 0.050 mmol), ortho-allyloxyiodobenzene (130.0 mg, 0.2500 mmol), and 0.6 mL of DMSO-d6. The mixture was agitated and transferred to a Teflon-lined screw cap NMR tube. The NMR tube was heated at 110 °C in a constant temperature bath for 24 h. The resulting solution was allowed to reach room temperature, and 100 µL of a solution of 1,3,5-trimethoxybenzene (0.20 mmol/mL in DMSO-d6) was added as internal standard. A 0.1 mL aliquot of the solution was withdrawn, diluted with ethyl acetate, and the resulting solution was filtered through a layer of Celite. The mixture was analyzed by GC/MS. The yield determined by GC/MS of phenyl allyl ether and the p-tolyl aryl thioether versus the 1,3,5-trimethoxybenzene internal standard was calculated to be 5% and 62%, respectively.

Supplementary Material

1_si_001
2_si_002

Acknowledgment

We thank the NIH (GM-55382) for funding and Z.W acknowledge the financial support from National Natural Science Foundation of China (21072030) and Fuzhou University (022318).

Footnotes

ASSOCIATED CONTENT

Supporting Information

CIF file, table and figure giving details of the X-ray structure of 1. This material is available free of charge via the Internet at http://pubs.acs.org.

Notes

The authors declare no competing financial interest.
