The permeation of dynorphin A 1–6 across the blood brain barrier and its effect on bovine brain microvessel endothelial cell monolayer permeability

Courtney D Kuhnline Sloan a,d, Kenneth L Audus a, Jane V Aldrich b,d, Susan M Lunte a,c,d,*
PMCID: PMC3540977  NIHMSID: NIHMS423393  PMID: 23046728

Abstract

Dynorphin A 1–17 (Dyn A 1–17) is an endogenous neuropeptide known to act at the kappa opioid receptor; it has been implicated in a number of neurological disorders, including neuropathic pain, stress, depression, and Alzheimer’s and Parkinson’s diseases. The investigation of Dyn A 1–17 metabolism at the blood-brain barrier (BBB) is important since the metabolites exhibit unique biological functions compared to the parent compound. In this work, Dyn A 1–6 is identified as a metabolite of Dyn A 1–17 in the presence of bovine brain microvessel endhothelial cells (BBMECs), using LC-MS/MS. The transport of Dyn A 1–6 at the BBB was examined using this in vitro cell culture model of the BBB. Furthermore, the permeation of the BBB by the low molecular weight, permeability marker fluorescein was characterized in the presence and absences of Dyn A 1–6.

1. Introduction

Investigating the transport and metabolism of endogenous substances at the blood brain barrier (BBB) is important for determining their potential role in neurodegenerative diseases. In particular, the metabolism and transport of neuropeptides at the BBB can provide insight into their role in CNS disorders. Dynorphin A 1–17 (Dyn A 1–17) is an endogenous neuropeptide known to act at the kappa opioid receptor. Upregulation of Dyn A 1–17 synthesis has been implicated in a variety of neurological disorders, including Alzheimer’s [20], Parkinson’s [11], neuropathic pain [14], stress[12], and depression [17], and at elevated concentrations, has been shown to be neurotoxic [9, 10, 15]. Once released into the extracellular space, neuropeptides undergo enzymatic degradation, and therefore, investigating Dyn A 1–17 metabolism at the blood-brain barrier (BBB) is important since the metabolites exhibit unique biological functions compared to the parent compound. Therefore, it is possible that a metabolite, rather than the parent peptide, may be responsible for some of the reported neurotoxic effects of dynorphin.

Dyn A 1–6, the N-terminal fragment of Dyn A 1–17, has been identified as a major metabolite of the parent peptide Dyn A 1–17, by our group and others, in both the central nervous system (brain and spinal cord) [11, 13, 16] and peripheral tissues (blood and plasma) [6, 7, 13, 21]. Therefore, this communication describes the initial studies employed to characterize the BBB permeability of Dyn A 1–6 and the effect of the peptide on cell monolayer integrity, utilizing the in vitro cell culture model of the BBB developed by Audus and Borchardt [1]. The bovine brain microvessel endothelial cells (BBMECs) [1] cells exhibit many of the physical characteristics typical of the BBB such as tight junctions, decreased pinocytosis, and minimal fenestration. Additionally, the biological aspects of the blood-brain barrier are simplified considerably enabling the investigation of a compound’s behavior at the brain endothelium as opposed to the whole brain [8].

The studies described here employed liquid chromatography with tandem mass spectrometry (LC-MS/MS) to determine the permeation of Dyn A 1–6 across the BBMEC monolayers. The LC-MS/MS method required minimal sample preparation and no derivatization steps. Improved limits of detection were achieved using LC-MS/MS in comparison to a previously described CE-UV method [13]. Additionally fluorescein was employed as a low molecular weight, membrane-impermeant molecule to probe the effect of Dyn A 1–6 on cell monolayer integrity. This is the first report examining the transport of Dyn A 1–6 using BBMECs.

2. Experimental

2.1. Materials

All dynorphin peptides (Dyn A 1–17, 2–17, 1–13, 1–8, and 1–6) were obtained from Bachem Biosciences Inc. (King of Prussia, PA, USA). Bradykinin was purchased from Sigma-Aldrich (St. Louis, MO, USA). Fisher Optima acetonitrile (LC-MS grade) was used for all mobile phases (Fisher Scientific, Fair Lawn, NJ, USA). Formic acid was purchased from Acros Organics (Morris Plains, NJ, USA) at 99.9% purity. All aqueous mobile phases were made from 18 MΩ deionized (D.I.) water from a benchtop Milli-Q Synthesis A10 Water Purification System (Millipore, Billerica, MS, USA) and filtered with 0.2 µm Magna nylon filters from Osmonics (Minnetonka, MN, USA). Minimum essential medium (MEM) and Ham’s F12 were purchased from Life Technologies, Invitrogen Corporation (Carlsbad, CA, USA). All other reagents were purchased from Sigma Aldrich.

2.2. Isolation and maintenance of bovine brain microvessel endothelial primary cultures

Microvessel endothelial cells were isolated from the cortical grey matter of bovine brains by enzymatic digestion and centrifugation as described by Audus and Borchardt in 1986 [1]. A short description of the isolation procedure is included in the Supplemental Information.

2.3. Analysis of BBMEC integrity and Dyn A 1–6 transport at the cell monolayer

At the beginning of each transport study, the polycarbonate membranes were removed and mounted in Side-by-Side™ diffusion chambers (Crown Glass Inc., Somerville, NJ, USA). Prior to studies, the diffusion chambers were silanized with Sigmacote (Sigma-Aldrich) to prevent peptide adsorption to the chamber walls during the study. On the day of the study, chambers were pre-warmed (37 °C) and rinsed three times with mPBSA. The chamber temperature was maintained for the duration of the study by external circulating water baths (at either 37 °C or 4 °C, depending on the experiment) and each chamber was stirred constantly at 600 rpm by Teflon-coated magnetic stir bars driven by an external console. The donor side was then spiked with Dyn A 1–6, and 60 µL aliquots were removed from the receiver side at various timepoints and replaced with an equal volume of mPBSA to prevent changes in volume that could affect flux. Studies typically lasted 2–4 h. All samples were collected into autosampler vials containing H2O with formic acid. Mass balance samples were collected from the receiver chamber at the start and finish of each experiment. Quantitation was performed via LC-MS/MS. All Liquid chromatography-tandem mass spectrometry instrumentation and experimental details are described in the supplemental information.

Upon completion of the transport study, fluorescein was added to the apical side of the monolayer and utilized to test the monolayer integrity. Immediately, a 100 µL aliquot was removed from the donor chamber and placed in a 96-well plate. Additional 100 µL aliquots were taken from the receiver chamber (t = 10, 20, 30, and 60 min), and a final sample was taken from the donor chamber after 60 min as well. Fluorescein samples were placed directly into a 96-well plate and analyzed using a fluorescence microplate spectrophotometer (Molecular Devices, Sunnydale, CA, USA) at excitation and emission wavelengths of 490 and 520 nm, respectively.

For studies determining the permeation of fluorescein without Dyn A 1–6 pretreatment, chambers were filled with the modified medium (mPBSA), and the cells were allowed to equilibrate for 5 min. After the equilibration period, fluorescein was added to the apical side and samples were removed from the donor chamber as described above.

All permeation values determined using the following equation: Papp = (ΔQ/Δt)/ A × C0, where ΔQ/Δt is the linear appearance of fluorescein in the receiver chamber, A is the cross-sectional area of the cell monolayer (0.636 cm2), and C0 is the initial concentration in the donor chamber at t = 0.

3. Results

In this work and that of others, Dyn A 1–6 has been identified as a major metabolite of the parent peptide Dyn A 1–17 in both the central nervous system (brain and spinal cord) [11, 13, 16] and peripheral tissues (blood and plasma) [6, 7, 13, 21]. Dyn A 1–6 was also identified as a metabolite in the presence of bovine brain microvessel endothelial cells (BBMEC) (supplemental information- Figure S1). For this reason, the BBB permeability of Dyn A 1–6 was investigated, using BBMECs grown on polycarbonate membranes and mounted in Side-by-Side™ diffusion chambers. Fluorescein was utilized as a low permeability control following all experiments to examine monolayer integrity.

Both the directional and temperature dependence of Dyn A 1–6 permeation were determined by replacing 20 µL of mPBSA with Dyn A 1–6 stock solution resulting in a peptide concentration of 18.6 µM in the donor compartment. The apparent permeability coefficient of Dyn A 1–6 was calculated to be Papp = 6.59 × 10−5 cm/s (±1.74 × 10−5 n = 4), in the apical to basolateral direction, and Papp = 6.43 × 10−5 cm/s (±1.61 × 10−5 n = 4), in the basolateral to apical direction. There was no difference in the permeability based on direction (Fig. 1A). A decrease in permeation was observed at 4 °C, Papp = 1.11 × 10−5 cm/s (±2.90 × 10−6, n = 4, p < 0.005), suggestive of a carrier-mediated transport system (Fig. 1A). Fluorescein was utilized as a low molecular weight permeability marker and control following the end of each experiment. Values for fluorescein permeation are presented in Fig. 1B.

Fig. 1.

Fig. 1

Fig. 1

Open in a new tab

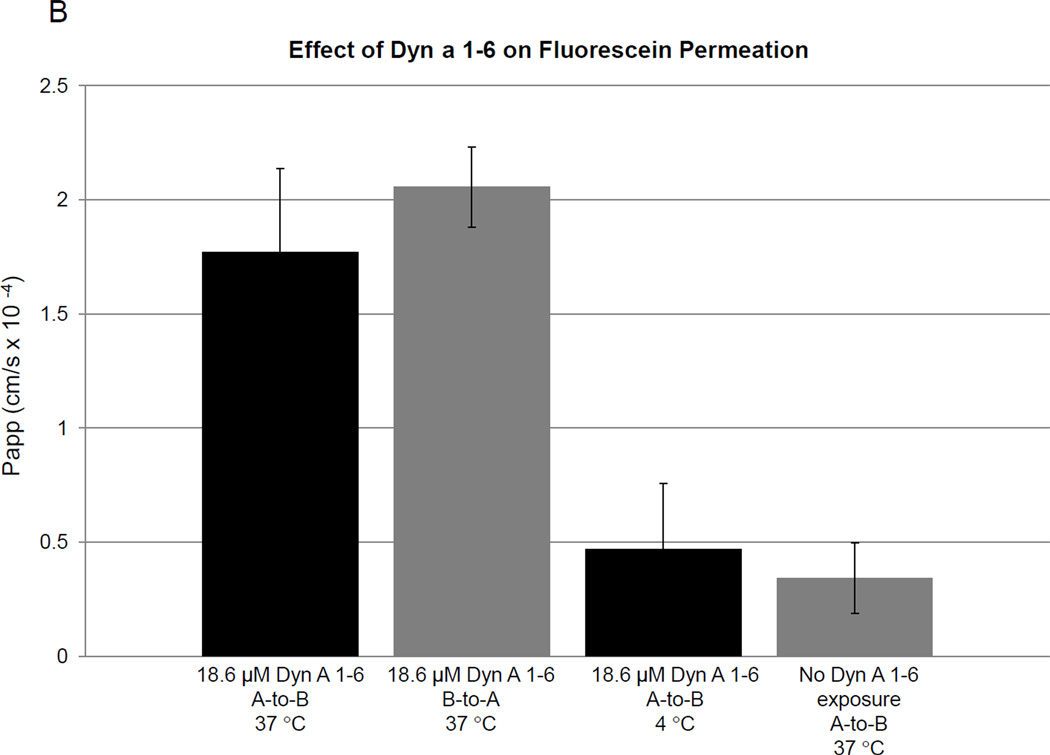

(A) Bi-directional apparent permeability coefficients of Dyn A 1–6 (n =4 in each direction) and the temperature dependence of the apical-to-basolateral transport of Dyn A 1–6 (n = 4 at each temperature) p < 0.005. (B) Effect of pretreatment with 18.6 µM Dyn A 1–6 on the BBB permeability of the low molecular weight, low permeation marker, fluorescein (10 µM), n = 4.

Interestingly the permeation values for fluorescein were increased following Dyn A 1–6 exposure at 37 °C in comparison to those at 4 °C. Thus control experiments were performed to confirm the permeation value for fluorescein without Dyn A 1–6 preincubation. Fluorescein permeation was calculated to be 3.42 × 10−5 cm/s (± 2.90 × 10−5 n = 4), and this value agrees well with previous literature reports [18, 19], indicating that the cell monolayers were confluent and intact on the polycarbonate membranes.

The effect of Dyn A 1–6 preincubation on fluorescein permeation was further investigated by incubating mounted monolayers for 2 h in mPBSA at 37 °C. Following the 2-h incubation, 0, 20, and 100 µL of mPBSA were removed and replaced with Dyn A 1–6 resulting in final concentrations in the chamber of 0, 18.6, and 46.6 µM. The fluorescein permeability increased in a linear fashion with increasing exposure to Dyn A 1–6, R2 = 0.9995. The permeation values for Dyn A 1–6 in the apical-to-basolateral and basolateral-to-apical directions fall along this line, as shown by the open square and open diamond data points in Fig. 2, suggesting that this peptide is responsible for increasing BBB permeability. A similar phenomenon was observed by Thompson and Audus with the opioid peptide leucine enkephalin [18, 19], and the reported values for fluorescein permeation both with and without leucine enkephalin pretreatment are also plotted in Fig. 2 for comparison.

Fig. 2.

Fig. 2

Open in a new tab

Effect of pretreatment with varying Dyn A 1–6 concentrations (solid diamonds) on the BBB permeation of the low molecular weight, low permeability marker fluorescein (10 µM). Fluorescein permeation without Dyn A 1–6 incubation (open diamonds), fluorescein permeation following 240-min Dyn A 1–6 pretreatment A to B (open triangles) and B to A (open squares), and fluorescein permeation following 120-min Dyn A 1–6 pretreatment at 4 °C (open circles). Also shown are literature values for the permeation of fluorescein alone (dash) and following pretreatment with leucine enkephalin (plus sign).

4. Discussion

It has been reported that leucine enkephalin can increase the permeation of low molecular weight, membrane-impermeant molecules such as sucrose and fluorescein in a concentration-, energy-, and temperature-dependent manner [2, 18, 19]. Metabolites of Leu-enkephalin did not exhibit this effect, nor did metabolically stable analogs. It is also well known that there exists a saturable peptide transport system for small, N-tyrosinated peptides at the blood-brain barrier [3–5], and that this system is responsible for the brain-to-blood efflux of the small opioid peptide leucine enkephalin. Thompson and Audus found that non-opioid peptides capable of utilizing this transport system did not alter BBB permeability to fluorescein or sucrose, suggesting that binding this efflux system is not responsible for BBB opening [18, 19]. However, the use of naloxone, a mu- and delta-opioid antagonist, was shown to attenuate the increased transport caused by Leu-enkephalin.

This result indicates that opioid receptor activity (delta or mu) may play a role in the ability of these peptides to open the BBB. Dyn A 1–17 acts preferentially at the kappa-opioid receptor, while Dyn A 1–6 shares affinity for the kappa, mu, and delta receptors. Dyn A 1–6 has not been found to be neurotoxic, but it could be responsible for opening the blood-brain barrier, allowing increased transport of the parent peptide in addition to other harmful substances. Further studies are underway to determine the mechanism responsible for the Dyn A 1–6-induced increase in BBB permeability.

4. Conclusions

This paper describes the application of the BBMEC culture model to the permeation of Dyn A 1–6, a metabolite of the neuropeptide Dyn A 1–17, at the blood brain barrier. LC-MS/MS was utilized to quantify Dyn A 1–6 in order to determine the bi-directional permeation of the peptide the BBB. Dyn A 1–6 transport was decreased at 4 °C, indicating an energy- (ATP) driven transport mechanism is likely responsible. The metabolite was also found to increase the permeability of the BBB to a low molecular weight, low permeability control substance, fluorescein. Such effects suggest a role of this dynorphin metabolite in the opening of the BBB, specifically to low molecular weight compounds, including the peptide itself.

Supplementary Material

01

Highlights.

  • Dynorphin A 1–6 is identified as a metabolite of Dynorphin A 1–17 in the presence of bovine brain microvessel endothelial cells (BBMECs).

  • The blood brain barrier (BBB) permeability of the neuropeptide Dyn A 1–6 is investigated using the BBMEC culture model of the BBB.

  • The directional and temperature dependent permeation of Dyn A 1–6 is evaluated.

  • Dyn A 1–6 pretreatment is found to induce an opening of the BBB, increasing the permeation of fluorescein, a low molecular weight, low permeability control substance.
