Roles of Nucleus Accumbens CREB and Dynorphin in Dysregulation of Motivation

Abstract

Psychostimulants such as amphetamine and cocaine are believed to produce dependence by causing rapid, supraphysiological elevations in synaptic dopamine (DA) within the nucleus accumbens (NAc) (Volkow et al. 2009, Neuropharmacology 56: 3–8). These changes in forebrain DA transmission are similar to those evoked by natural reinforcers (Louilot et al. 1991, Brain Res 553: 313–317; Roitman et al. 2004, J Neurosci 24: 1265–1271), but are of greater magnitude and longer duration. Repeated drug exposure causes compensatory neuroadaptations in neurons of the NAc, some of which may modulate excess DA in a homeostatic fashion. One such adaptation is the activation of the transcription factor CREB (cAMP response element-binding protein) within neurons of the NAc. Although elevated levels of transcriptionally active CREB appear to attenuate DA transmission by increasing expression of the endogenous κ opioid receptor (KOR) ligand dynorphin, increased dynorphin transmission may ultimately have undesirable effects that contribute to drug withdrawal states as well as comorbid psychiatric illnesses such as depression. This state may prompt a return to drug use to mitigate the adverse effects of withdrawal. This article summarizes our current understanding of how CREB and dynorphin contribute to the dysregulation of motivation and describes novel therapeutic strategies that derive from preclinical research in this area.

Drugs like cocaine activate the transcription factor CREB within neurons of the nucleus accumbens. This causes an increase in CREB-regulated dynorphin, which may contribute to a drug withdrawal state and thus continued drug use.

Although the exact nature of its role continues to be refined in the literature, there is broad agreement on the importance of nucleus accumbens (NAc) dopamine (DA) in addiction, particularly to psychostimulants. Indeed, rodents will self-administer these drugs directly into the NAc, where they elevate extracellular DA by actions on transporter proteins in vesicles or the presynaptic membrane (Hoebel et al. 1983; Carlezon et al. 1995; Ikemoto and Wise 2004). It is outside the scope of this article to review this extensive literature, but a few key details provide perspective. The NAc is critically involved in motivation and emotion (i.e., the affective states that typically accompany motivated behavior). Although the dorsolateral aspect of the striatum receives projections from the sensorimotor cortex, the ventromedial regions, including the NAc, receive afferents from the prefrontal cortex as well as limbic structures like the amygdala and hippocampus (Voorn et al. 2004). The NAc thus exists at a “limbic-motor interface” and integrates memory with affectively valenced input from the amygdala and contextual information from the hippocampus (Mogenson et al. 1980). It may then coordinate appropriate goal-directed behavioral responses by recruiting elements of the basal ganglia that are critical for motor output (Groenewegen et al. 1996; Pennartz et al. 2009; Redgrave et al. 2011). The role of DA in this process is facilitative with regard to acute locomotor activation (Jackson et al. 1975; Ikemoto and Panksepp 1999), but DA is also important for reward learning in which it also fulfills a facilitative role (Wise 2004). For instance, rats will perform an operant (nosepoke response) to selectively stimulate their midbrain DA neurons (Witten et al. 2011). This circuitry likely evolved to process information about biological reinforcers and the cues that predict them. Drugs of abuse “co-opt” this circuitry (Kauer and Malenka 2007), such that over time the ability of drugs and drug-related cues to influence behavior becomes stronger, whereas the significance of natural reinforcers weakens (Chambers et al. 2007).

Although NAc DA is critical for behavioral output, the extent to which it encodes distinct affective states is uncertain, because DA transmission can increase in response to both rewarding and aversive stimuli (Joseph et al. 2003; Schultz 2007; Brischoux et al. 2009). It seems plausible, however, that hypodopaminergic states observed during withdrawal from chronic psychostimulant exposure represent an important component of the mechanism underlying the dysphoria and anergia that accompany withdrawal (Weddington et al. 1990; Parsons et al. 1991; Robertson et al. 1991; Coffey et al. 2000). Within the NAc, DA regulates the excitability of GABAergic medium spiny neurons (MSNs), the predominant (∼95%) type of cell within this structure (Meredith 1999). Studies in awake, freely moving rats show that MSNs respond to the hedonic valence of external stimuli by altering their firing rate (Roitman et al. 2005), leading to theories of how affective states of reward and aversion may be encoded in the activity of these neurons (Carlezon and Thomas 2009). Interactions among neuronal activity, intracellular signaling cascades, and transcriptionally active molecules such as CREB play key roles in translating experience into molecular adaptations that can influence the behavior of an organism for its lifespan.

CREB-MEDIATED TRANSCRIPTIONAL ACTIVATION

Neurons are among the most transcriptionally active cells in the body. This is clear not only from modern expression profiling techniques (Okaty et al. 2011), but also from casual inspection of neuronal ultrastructure that typically includes a large, round nucleus containing a high proportion of euchromatin. High transcriptional activity is required for neurons to integrate a complex array of chemical signals and respond appropriately with lasting changes in gene expression that can influence various cellular properties like electrical excitability and dendritic morphology (Hobert et al. 2010). The extracellular signals that stimulate these changes do so by using second messenger cascades to recruit transcription factors that interact directly with genomic DNA.

CREB is a ubiquitously expressed nuclear protein that allows stimulus-dependent regulation of transcriptional activity in postsynaptic neurons (Fig. 1) (Montminy and Bilezikjian 1987; Shaywitz and Greenberg 1999). The formation of CREB dimers at 8-bp consensus sequences called cAMP response elements (CREs) is the first step in transcriptional activation (Montminy et al. 1986; Yamamoto et al. 1988). In contrast, CREB transcription may be attenuated by dimer formation between CREB and other proteins that contain the leucine zipper protein interaction motif but lack a CRE-binding domain (e.g., cAMP response element modulator, CREM) (Foulkes et al. 1991). The traditional view has been that CREB-regulated genes contain CREs located in promoters near the transcriptional start, but recent work suggests that CREB can also exert its effects at CREs in more distally situated enhancer elements (Kim et al. 2010). Another requirement for CREB transcription is association with CREB-binding protein (CBP), which has histone deacetylase activity that is necessary to decondense chromatin and enable the transcriptional complex access to DNA (Chrivia et al. 1993; Bannister and Kouzarides 1996; Ogryzko et al. 1996). The association between CREB and CBP follows phosphorylation of CREB at a conserved serine residue in position 133 (Gonzalez and Montminy 1989; Radhakrishnan et al. 1997). Although the term “pCREB” is often used as shorthand for CREB phosphorylated at ser133, which is transcriptionally active, phosphorylation at other residues can also affect CREB activity (see below, and Carlezon et al. 2005). Characterization of this mechanism has enabled the development of mutant forms of CREB including one (i.e., mCREB/CREB-M1) with a serine to alanine substitution at residue 133, which prevents phosphorylation (Gonzalez and Montminy 1989). As described below, mCREB functions as dominant negative—a defective form of the protein that blocks the normal (wild-type) form of the protein—which has enabled the design of experiments in which CREB function is disrupted in discrete brain structures (e.g., Carlezon et al. 1998). Once pCREB dimers bind to CRE sequences, and CBP acetylates histones, CREB binds to a TATA Binding Protein (TBP)-associated factor protein (TAF4) within transcription factor 2D (TFIID), an essential part of the preinitiation complex that binds to gene promoter regions with very high affinity and activates RNA polymerase II (Ferreri et al. 1994; Kee et al. 1996; Papai et al. 2011). These complex interactions are all necessary for transcription of CREB-regulated target genes.

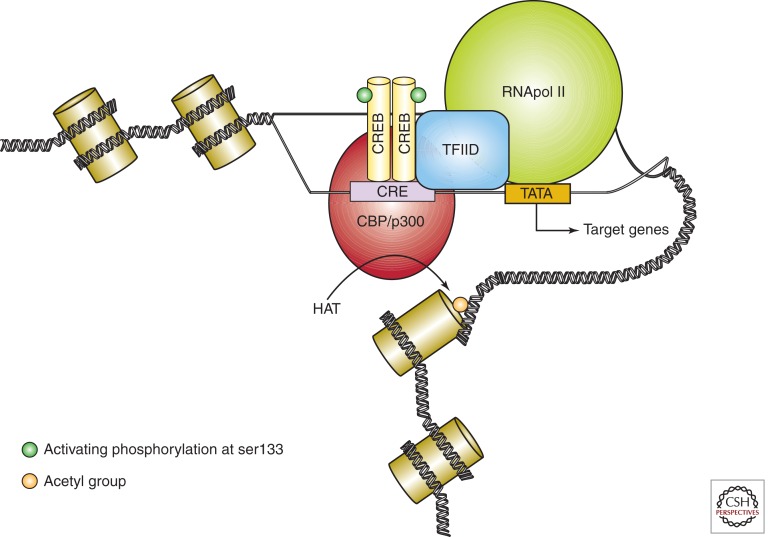

Figure 1.

Simplified depiction of the CREB-mediated gene transcription cascade. CREB dimers bind to a cAMP response element (CRE) in the promoter region of target genes. On phosphorylation at ser133, pCREB dimers interact with binding proteins (e.g., CBP/p300) and stimulate histone acetyltransferase (HAT) activity. Histone acetylation permits loosening of chromatin and formation of a transcriptional complex, enabling transcription of CREB target genes. Mutant forms of CREB that are resistant to phosphorylation at ser133 (e.g., mCREB) bind to CREs but do not trigger this cascade, resulting in blockade of endogenous pCREB and disruption of gene transcription.

MECHANISMS OF CREB INDUCTION AND ACTIVATION

Intracellular Signals

Multiple signaling pathways converge on CREB to drive gene transcription (Fig. 2). Effects on transcription can be pathway specific. For example, CREB phosphorylation at ser133 via stimulation of cAMP-dependent protein kinase (PKA), calcium/calmodulin-dependent kinase IV (CaMKIV), or ribosomal S6 kinase activate transcription (see Carlezon et al. 2005). In contrast, CREB phosphorylation at ser142 by CaMKII inhibits the interaction between CREB and CBP, resulting in transcriptional repression (Sun et al. 1994; Loweth et al. 2010).

Figure 2.

Simplified depiction of how extracellular signals influence gene transcription via CREB. Phosphorylation of CREB at ser133 increases its transcriptional activity and target gene expression. CREB activity can be attenuated by phosphorylation of CREB at ser142. Within the NAc, neurons expressing G_s-coupled receptors (e.g., dopamine D₁) activate adenylate cyclase (AC), whereas neurons expressing the G_i/o-coupled receptors (e.g., dopamine D₂) inhibit AC. Exposure to psychostimulants can also trigger activation of MAPK- and calcium (Ca²⁺)-sensitive signal transduction pathways. For clarity, cross talk between second messengers is not included. Black lines signify activation; gray lines signify inhibition.

Additional modulators of CREB function have been identified. One such class of proteins is cAMP-regulated transcriptional coactivators (CRTCs) like transducer of regulated CREB-1 (TORC1) (Conkright et al. 2003; Altarejos and Montminy 2011). When dephosphorylated and exposed to conditions of high cAMP or Ca²⁺, TORC1 translocates to the nucleus and binds to CREB, enhancing transcriptional activity. It was recently shown that microRNA-mediated expression of TORC1 can reduce cocaine self-administration by enhancing CREB signaling in striatal regions (Hollander et al. 2010). Other modulators of CREB function (e.g., CREM; inducible cAMP early repressor, ICER) have received comparatively less scrutiny than CREB in the context of drug addiction, but recent work suggests that ICER may impair enhanced locomotor activation in response to repeated methamphetamine exposure (behavioral sensitization) (Molina et al. 1993; Han et al. 2011).

The timescale for CREB activation by many of these signaling pathways is believed to be on the order of minutes; as one example, pCREB levels peak about 30 min after adenylate cyclase (AC) stimulation (Hagiwara et al. 1993). The rate-limiting step in this process may be the passive diffusion of cytosolic proteins (e.g., catalytic subunits of protein kinase [PKA]) into the nucleus. After peak activation, pCREB levels then decrease gradually over hours as it is inactivated by protein phosphatases 1 and 2A (Hagiwara et al. 1992; Wadzinski et al. 1993). In this relatively short time window (<18–20 h), however, CREB can orchestrate profound changes in neuronal transcriptomes that in turn cause significant alterations in the physiology of individual cells as well as the circuits in which they are embedded.

Extracellular Signals and Organismal Stimuli

Extracellular stimuli that recruit various second messenger cascades can induce CREB activation. An increase in extracellular DA induced by drugs like cocaine and amphetamine is one such stimulus that reliably induces CREB phosphorylation in the NAc (Turgeon et al. 1997). Experiments using selective D₁ receptor ligands suggest that this effect is the result of DA activating this subtype of G_s-coupled receptor (Liu and Graybiel 1998). More recent work, however, suggests that the ERK pathway may also be important (Mattson et al. 2005). This can also be inferred from cocaine-induced elevations in brain-derived neurotrophic factor (BDNF)-TrkB receptor signaling (Graham et al. 2007). These investigators report that enhanced TrkB signaling is an important mediator of relapse to cocaine self-administration in rats undergoing withdrawal.

Stress and stress-associated psychiatric syndromes such as major depression and posttraumatic stress disorder (PTSD) are frequently comorbid with addiction, and play a particularly prominent role in triggering relapse to drug use in abstinent former users (Swendsen et al. 2010). Addiction researchers have sought to understand this relationship by identifying neuroadaptations that are common to drug exposure and stress. One common neuroadaptation in animal models is CREB activation in the NAc. Both noxious stressors and aversive stimuli (e.g., forced swim or social stress, FST) are responsible for enhanced CREB phosphorylation, possibly by elevating synaptic DA in NAc and subsequent recruitment of the cAMP/PKA pathway (Tidey and Miczek 1996; Pliakas et al. 2001; Wilkinson et al. 2009; Muschamp et al. 2011). Like cocaine, stress may also activate CREB via BDNF stimulation of the ERK pathway (Covington et al. 2011).

CELLULAR AND MOLECULAR CONSEQUENCES OF CREB ACTIVATION

CREs are found widely throughout mammalian genomes. CREB is capable of regulating the expression of thousands of genes (Impey et al. 2004; Zhang et al. 2005), but there are important factors that constrain the number of genes whose expression can be directly influenced by CREB. For example, nucleotides that make up CREs may be methylated or otherwise unavailable for CREB binding. Additionally, CREs may not be located proximal (∼250 bp) to transcriptional start sites for a particular gene, thus limiting the ability of CREB to couple the transcriptional complex to its locus of action in a target gene (Mayr and Montminy 2001). Layered on top of these fundamental constraints on the CREB-mediated transcriptome are those that are specific to a given cell type and its immediate extracellular signaling milieu. The presence or absence of various cell-surface receptors, their associated signaling cascades, and the action of different CREB modulators further shortens the list of genes that are potentially regulated by CREB. Considering these factors, predicting a set of target genes from primary sequence data is difficult. Ultimately, this information must be determined empirically by using in vitro or in vivo techniques.

Expression profiling of tissue from the NAc by microarray has identified >100 genes that are up-regulated by CREB overexpression (McClung and Nestler 2003). Among them are genes involved in synaptic transmission (e.g., syntaxin 1A), intracellular signaling (e.g., AC VI), cell growth (e.g., BDNF), as well as other transcriptionally active proteins like c-Fos, which multiplies the number of potential target genes CREB can influence. The functional effects of these CREB-induced gene products and their behavioral relevance require careful characterization. One strategy has been to use viral-mediated gene transfer as a tool for manipulating CREB expression in NAc and other brain structures implicated in drug reward and stress. An early concern when using viral vectors to elevate CREB levels was that this approach would create an unintended dominant-negative effect by overwhelming the ability of a transduced cell to phosphorylate all available CREB, resulting in blockade of pCREB dimer binding at CREs by unphosphorylated CREB dimers. Work showing increased transcription of known CREB-regulated target genes and opposite effects of dominant-negative forms of CREB (Carlezon et al. 1998) established that elevated CREB levels result in elevated CREB activity. This technique was subsequently combined with slice physiology to assess how elevated CREB activity affects the electrophysiological properties MSNs in the NAc (Dong et al. 2006). When infected with viral constructs encoding CREB, MSNs show marked increases in excitability, showing an ∼35% mean increase in the number of action potentials evoked by current injection. Expression of mCREB produced opposite effects, causing reductions in excitability. In a related study, the same gene transfer technique was used to show that elevated CREB prolongs the duration of depolarized “up-states” in MSNs (Huang et al. 2008), an effect that may be due to CREB-mediated induction of the NR1 subunit of the N-methyl-d-aspartate (NMDA) receptor and its incorporation into functional N-methyl-d-aspartate receptors (NMDARs) at the cell surface. Together these findings suggest that a major cellular effect of CREB on NAc cell physiology is to increase firing probability and thus excitability. Increased excitability in this structure could play a key role in influencing reward processing and affective state in the context of drug addiction (Carlezon and Thomas 2009).

Regulation of genes that encode excitatory neurotransmitter receptors is one way that CREB can influence network activity in the NAc and structures that receive its projections. Another way is by the induction of genes for peptide neuromodulators that fulfill an important signaling role in this circuit. One of these genes encodes enkephalin, the endogenous transmitter at δ opioid receptors. Enkephalin is found in D₂ receptor-expressing striatopallidal neurons of the “indirect pathway” (Gerfen and Surmeier 2011). In these neurons, CREB enhances the expression of enkephalin (Konradi et al. 1993; Kobierski et al. 1999). This can be shown by treatment with the D₂ antagonist haloperidol, which results in disinhibition of AC and CREB phosphorylation, presumably by PKA because the D₂ receptor is coupled to the G_i protein.

CREB can also induce the expression of dynorphin (Daunais et al. 1995; Simpson and McGinty 1995; Carlezon et al. 1998), the endogenous agonist at κ opioid receptors (KORs) (Chavkin et al. 1982). Dynorphin is coexpressed in D₁-expressing striatonigral neurons of the “direct pathway,” so CREB effects on dynorphin levels in these neurons should be secondary to D₁ activation and recruitment of PKA (Gerfen and Surmeier 2011). Support of this view comes from experiments in cultured striatal neurons in which DA or the AC activator forskolin both caused large increases (two- or sevenfold, respectively) in prodynorphin messenger RNA (mRNA) (Cole et al. 1995). Gel supershift assays showed that this effect required binding of pCREB to three CRE sequences in the prodynorphin promoter, and that pCREB could be induced by treatment with D₁ but not D₂ agonists. In experiments that mirror those performed with D₂-selective drugs and enkephalin expression, a D₁/PKA initiated, CREB-dependent process of dynorphin induction can be observed in vivo (Haberny and Carr 2005). These investigators report that treatment with D₁ agonists stimulates dynorphin expression, whereas other experiments show that D₁ activation also results in activation of CREB in the NAc (Liu and Graybiel 1998). Interestingly, this effect is relatively long lasting, with elevations in pCREB detectible in immunolabeled tissue for up to 24 h after a drug treatment. Increases in dynorphin expression are also long lasting, although they tend to have a slow onset and thus may not be evident in studies in which measurements are made shortly after a treatment (Knoll et al. 2011). These observations illustrate how CREB, once activated, can produce enduring alterations in transcriptional activity. Dynorphin has received increasing scrutiny for its potential involvement in addiction and mood disorders (Carlezon and Thomas 2009; Knoll and Carlezon 2010). As addressed below, the dynamics of CREB activation and dynorphin expression have immediate relevance to conditions like psychostimulant addiction in which repeated exposure to amphetamine or cocaine causes elevations in NAc DA.

BEHAVIORAL CONSEQUENCES OF CREB ACTIVATION AND DYNORPHIN INDUCTION

Acute treatment with either cocaine or morphine elevates the activity of adenylate cyclase and PKA in numerous brain structures (Terwilliger et al. 1991). One area of anatomical overlap in these effects is the NAc. This is likely due to the ability of both drugs to elevate extracellular concentrations of DA in this structure and activate the cAMP/PKA pathway via G_s-coupled D₁ receptors. As discussed above, the activity of PKA influences the activity of CREB, which can be expected to undergo phosphorylation following exposure to drugs of abuse. Indeed, after these initial reports of the effects of cocaine on PKA in the NAc, it was shown that amphetamine also elevates levels of pCREB in the NAc (Konradi et al. 1994; Turgeon et al. 1997). These findings, coupled with awareness of the essential role of the NAc in motivated behavior (Mogenson et al. 1980; Koob et al. 1989; Wise and Rompré 1989), stimulated interest in directly manipulating NAc CREB activity to determine its influence on drug seeking and reward. This was achieved using a combination of genetic engineering and behavioral pharmacology.

Viral vector-induced elevations of CREB within the NAc shell cause fundamental changes in the motivational properties of cocaine: rats avoid environmental cues that were previously paired with low doses of the drug (i.e., aversion), and are less sensitive to the rewarding effects of the drug at higher doses (i.e., anhedonia) (Carlezon et al. 1998). Potential explanations for these effects are that elevated CREB in the NAc enhances the anxiogenic effects of cocaine or somehow reduces the strength or duration of cocaine reward, which at low doses might result in an acute withdrawal state that becomes associated with the drug chamber in place conditioning studies. CREB-mediated reductions in cocaine reward together with increases in aversive or stressful withdrawal signs might help to explain why the same viral vector treatment causes increases in cocaine intake in a drug self-administration paradigm (Larson et al. 2011), reflecting negative reinforcing effects (Koob and Le Moal 2008). Importantly, CREB overexpression in the NAc increases local levels of prodynorphin mRNA, and pretreatment with the long-acting KOR antagonist nor-binaltorphimine (norBNI) restores the rewarding effects of cocaine (Carlezon et al. 1998). Mirroring the effects of CREB, viral constructs encoding a dominant-negative CREB (mCREB) can enhance sensitivity to cocaine, conditioning a place preference at lower doses than those effective in rats expressing only a control gene (Carlezon et al. 1998). Cocaine reward is also enhanced in transgenic mice that inducibly overexpress mCREB in basal forebrain (Chen et al. 1998; Dinieri et al. 2009). In these mice, occluding basal CREB activity further potentiates the reward-enhancing effects of cocaine on electrical brain stimulation in the intracranial self-stimulation (ICSS) paradigm. In addition, mCREB-overexpressing mice also show reduced sensitivity to the depressive effects of the KOR agonist U50488 (Dinieri et al. 2009)—an agent that mimics dynorphin actions at KORs—providing further evidence that elevated CREB in NAc is associated with an aversive state that might contribute to place aversions or increased drug self-administration in paradigms in which animals can control drug intake. Regardless, these studies suggest that CREB-regulated increases in dynorphin within the NAc have profound consequences for behavior, particularly in animal models used to study addiction.

Just as psychostimulants activate CREB in the NAc, they also increase the expression of dynorphin in this (and related) regions. This effect is apparent in rodents (Hurd et al. 1992), as well as in postmortem tissue from humans with a history of cocaine use and detectible blood cocaine levels at time of autopsy (Hurd and Herkenham 1993). Elevated NAc dynorphin may be conceptualized as a compensatory adaptation that modulates psychostimulant-induced DA release (see below) (Koob and Le Moal 2008). Given the relative stability of pCREB and dynorphin, levels of these molecules may remain elevated well past the drug exposure that elicited their formation. Because dynorphin induces dysphoria and anergia, its presence after the offset of the acute euphoric effects of psychostimulants may be responsible for the negative affect associated with drug withdrawal. Data from rodent place conditioning experiments support this view (Pliakas et al. 2001). In this report, rats were placed in a place conditioning apparatus for 15 min immediately following a low dose of cocaine. This time window captured the initial rewarding phase of cocaine and conditioned a preference for the drug-paired side of the apparatus. Placing rats in the apparatus 1 h after cocaine injection captured the offset of drug action and the onset of drug withdrawal, consequently producing place aversions that were equal in magnitude to those produced by overexpression of CREB, which increases dynorphin expression within NAc (Carlezon et al. 1998). Importantly, aversions to cocaine withdrawal were blocked by occluding NAc CREB function by overexpressing mCREB, which reduces dynorphin expression within this structure (Carlezon et al. 1998). Elevation of CREB also causes an increase in depressivelike behavior in the forced swim test—an effect mimicked by cocaine withdrawal (Potter et al. 2011)—that is blocked by KOR antagonists, again implicating elevated dynorphin (Pliakas et al. 2001). As predicted, attenuation of CREB activity by mCREB produced opposite effects, in this case an antidepressant-like phenotype that has been subsequently verified in other reports using comparable methods (Newton et al. 2002).

Given systemically, KOR agonists are aversive in humans, producing dysphoria and anxiety (Pfeiffer et al. 1986; Walsh et al. 2001). In rodents, central administration of KOR agonists into the NAc establishes conditioned place aversions (Bals-Kubik et al. 1993). Because brain stimulation reward is nonsatiating and not confounded by drug effects on learning and memory, ICSS provides an excellent method for measuring the contribution of the KOR system to basal function of brain reward circuitry in “real time” (Carlezon and Chartoff 2007). When given to rodents performing ICSS, KOR agonists reliably increase reward thresholds, indicating anhedonia (Todtenkopf et al. 2004; Carlezon et al. 2006). This effect originates in the NAc, where infusions of the KOR agonist U50488 also elevate ICSS thresholds (Muschamp et al. 2011). Surprisingly, systemically administered KOR antagonists do not have the opposite effect of decreasing reward thresholds (Potter et al. 2011). This suggests that any tonic dynorphin transmission does not strongly contribute to basal mood state. Instead, it seems likely that dynorphin is released phasically, as is common with peptide neuromodulators, and in response to strong extrinsic stimuli.

There is considerable evidence demonstrating that dynorphin and KOR systems mediate aversive effects that produce depressive-like effects on their own and decrease the impact of other types of reward, including psychostimulants. For example, KOR agonists can disrupt the ability of cocaine to condition a place preference (Crawford et al. 1995). In instrumental procedures used to measure drug reward, acute KOR activation produces dose-dependent reductions in cocaine self-administration and blocks drug-primed reinstatement of cocaine or amphetamine self-administration (Glick et al. 1995; Schenk et al. 1999; Morani et al. 2009). Finally, KOR agonists can attenuate the rewarding effects of cocaine as measured by the ICSS test in mice and rats (Tomasiewicz et al. 2008). The ability of KOR agonists to offset the rewarding effects of psychostimulants might appear to be a useful therapeutic mechanism, although these drugs exert broader effects on the function of brain reward systems that make this approach problematic.

Together, these data indicate that drug exposure activates CREB in the NAc, which subsequently elevates dynorphin expression within this region. Dynorphin transmission appears to mediate negative effects associated with drug withdrawal that can occasion further drug taking as a means of staving off the aversive symptoms of withdrawal. In this model, psychostimulant addiction is maintained in large part by negative reinforcement (Koob and Le Moal 2008).

Psychological stressors are another class of stimuli that increase dynorphin activity in the NAc. Dynorphin immunoreactivity in the NAc increases following both immobilization and footshock stress (Shirayama et al. 2004). In addition, forced swim stress elevates prodynorphin mRNA in the NAc (Chartoff et al. 2009). When footshock is used to condition a place aversion, this effect is absent in prodynorphin knockout mice, suggesting that it is not simply expression, but also dynorphin transmission that is critical for encoding negative effects associated with noxious stressors (Land et al. 2008). As noted above, these same stressful stimuli also activate CREB in the NAc (Pliakas et al. 2001; Muschamp et al. 2011), strongly implicating it as an important mediator of stress-induced dynorphin expression. Withdrawal from drugs of abuse may also serve as a stressor that can elevate dynorphin and KOR systems in the NAc, but this possibility needs to be tested more explicitly in the future.

CIRCUITRY INVOLVED IN THE EFFECTS OF CREB AND DYNORPHIN ON DRUG REWARD

The sections above have focused on the cellular and molecular mechanisms by which CREB and dynorphin are believed to influence affect and behaviors associated with animal models of psychostimulant addiction. If this mechanism indeed functions in a negative feedback capacity to homeostatically limit excess striatal DA resulting from drug exposure, how does this process influence at a neural systems level? Below are briefly discussed the circuitry on which CREB and dynorphin act to influence mood and drug-taking behavior.

In the dorsal striatum, MSNs that express D₁ receptors and dynorphin, and that project to the substantia nigra (direct pathway) have long been viewed as a potential negative feedback mechanism that can modulate forebrain DA transmission (Gerfen and Surmeier 2011). This anatomical arrangement is also apparent in the ventral striatum and NAc, where D₁-dynorphin-expressing neurons project to the ventral tegmental area (VTA) (Fig. 3). It is well established that systemic administration of KOR antagonists reduces basal as well as cocaine-evoked DA levels in NAc and dorsal striatum (Spanagel et al. 1990; Maisonneuve et al. 1994; Carlezon et al. 2006). Surprisingly, this effect may not always be due to activation of KORs in the VTA and shows species differences (Devine et al. 1993; Margolis et al. 2006). Although KORs in the VTA attenuate the activity of NAc-projecting DA neurons in mice (Ford et al. 2006), the modulatory effect of KOR activation on NAc DA levels in rats seems to be due to hyperpolarization of KOR-expressing DA terminals by dynorphin released from recurrent collaterals of the direct pathway (Svingos et al. 1999). Indeed, reverse dialysis of dynorphin itself into NAc reduces local extracellular DA levels (Donzanti et al. 1992; Zhang et al. 2004). As noted in the introduction, NAc DA is intimately linked to reward and behavioral activation. As such, reductions in NAc DA that result from KOR activation may be necessary for the anhedonia and anergia experienced during withdrawal from psychostimulant use.

Figure 3.

Simplified depiction of the mesolimbic dopamine (DA) feedback circuit in which psychostimulants and CREB exert key effects. Psychostimulants trigger activation of CREB in the GABAergic neurons of the NAc via indirect actions on receptors (e.g., D₁, TrkB) and/or channels that gate calcium (Ca²⁺). CREB-mediated increases in dynorphin (DYN) expression reduce release of DA by acting on inhibitory κ opioid receptors (KORs) located on DA terminals in the NAc and/or VTA cell bodies. The inhibitory effect of DYN in VTA would also be expected to influence DA transmission in prefrontal cortex (PFC), amygdala (AMG), and other structures that receive projections from this region.

A second neuroadaptation that may contribute to the aversive effects of psychostimulant withdrawal involves the ability of CREB to increase the excitability of MSNs in the NAc. This increased excitability would favor the release of peptides like dynorphin from neurons of the direct pathway, and, as described, depress levels of NAc DA. Reduced DA can be predicted to disinhibit D₂-expressing striatopallidal neurons within the indirect pathway. Previous work suggests that the inhibition of this pathway encodes the rewarding effects of DA, and its stimulation may produce anhedonia or dysphoria (Carlezon et al. 1995; Durieux et al. 2009; Lobo et al. 2010). Broad (∼75%) increases in MSN population activity are associated with aversive stimuli (Roitman et al. 2005; Wheeler et al. 2008; Wheeler and Carelli 2009), as well as behavioral inhibition (Ghazizadeh et al. 2012). We propose that activation of CREB following repeated drug exposure or stress results in NAc hyperexcitability. This phenomenon underlies a generalized dysregulation of brain reward systems that can play a role in addiction and comorbid psychiatric illness (Carlezon and Thomas 2009). Treatments that can normalize excitability within the NAc may be therapeutic for conditions involving dysregulation of motivation.

IMPLICATIONS FOR TREATMENT

As described in the other articles in this collection, concerted research efforts have yielded insight into the molecular mechanisms of abused drugs and the neurobiology of addiction. Despite a number of promising leads (Kampman 2010; Olive et al. 2012), these advances have not yet translated into highly effective pharmacotherapies. This problem has special relevance to methamphetamine and cocaine addiction, for which there are currently no U.S. Food and Drug Administration-approved medications. Although only a relatively modest percentage of people who try psychostimulants will become regular users or addicts, the absolute number of those who do is significant, with a worldwide market for cocaine and amphetamine of between 28 and 77 million users (Degenhardt and Hall 2012). Also significant are the costs to those addicted to psychostimulants, and in turn, to their communities, and society at large. These statistics reemphasize the importance and urgency of seeking novel, effective treatments for psychostimulant addiction to help individual users achieve abstinence, and to reduce the global drug market, mitigating its social costs.

The fact that CREB is expressed ubiquitously in the brain, together with its involvement in other important neural processes (e.g., learning and memory) and the lack of multiple isoforms that show differential patterns of expression in the central nervous system, make it a difficult target for small molecule therapeutics (Carlezon et al. 2005). A particularly salient illustration of this principle is BDNF, a neurotrophic factor that is regulated by CREB (Shieh et al. 1998; Tao et al. 1998). Whereas BDNF within the hippocampus plays a crucial role in stress resistance and antidepressant actions (Schmidt and Duman 2007), it paradoxically promotes prodepressive effects via its actions in the NAc (Berton et al. 2006). The use of therapeutic agents that broadly target CREB function with the intention of enhancing BDNF function in hippocampus could have unintended consequences in the NAc that exacerbate illness. Instead, drug development efforts may be more fruitful if focused on the intracellular cascades that activate CREB, or other gene products induced by CREB that are responsible for the deleterious effects of chronic psychostimulant exposure. In this respect, KORs may be a useful target for novel therapeutic agents. Reports describing the antidepressantlike effects of KOR antagonists began appearing almost a decade ago (Pliakas et al. 2001; Newton et al. 2002; Mague et al. 2003; Beardsley et al. 2005). These agents also have acute anxiolytic and anti-fear effects (Knoll et al. 2007). In the context of addiction, KOR antagonists block cocaine craving (Beardsley et al. 2005), as well as the motivational aspect of cocaine and nicotine withdrawal (Jackson et al. 2010; Chartoff et al. 2012). The common link among all of these findings may be a unique ability of KOR antagonists to block stress: the stress of forced swimming, novel environments, footshock, and drug withdrawal. Although the mechanisms by which KOR antagonist block stress are not currently understood, they may involve interactions with CRF (corticotropin-releasing factor) systems (Land et al. 2008), which are thought to play a key role in the maintenance of addictive behavior (Koob 2010; Wee and Koob 2010). KORs are widely distributed in the brain (Mansour et al. 1994), and brain areas including the NAc (Pliakas et al. 2001; Newton et al. 2002), amygdala (Bruchas et al. 2009; Knoll et al. 2011), and dorsal raphe nucleus (Bruchas et al. 2011) have been implicated in the antistress effects of KOR antagonists; unlike the case of BDNF, however, the effects of KOR antagonists in all of these regions appears to be uniformly therapeutic. It is also important to point out that KOR agonists may also have some utility in treating addiction by virtue of their ability to decrease the rewarding effects of drugs of abuse (Negus et al. 1997; Tomasiewicz et al. 2008), which might target other aspects of the addicted state (Wise 2008), although these agents are poorly tolerated in humans (Pfeiffer et al. 1986). Partial KOR agonists may provide the potentially beneficial effects of both KOR antagonists and agonists in the context of addiction. Regardless, in light of the broad effects of CREB on multiple target genes that are potentially involved in addiction, multimodal treatment may be necessary to address multiple harmful neuroadaptations caused by chronic drug exposure.

CONCLUSION

Tracing the effects of psychostimulants from the synapse to the nucleus has led to a model of addiction in which problem drug use is maintained by the negative reinforcing effects of relieving drug withdrawal. As described above, CREB and the CREB-regulated target gene prodynorphin play significant roles in the aversive drug withdrawal state. As additional molecular targets of CREB in other brain areas are identified and their contribution to drug seeking is characterized, new treatment strategies may become evident. The work described in this article may provide a template for these future endeavors.
