β-Adrenergic Stimulation Activates Early Afterdepolarizations Transiently via Kinetic Mismatch of PKA targets

Abstract

Sympathetic stimulation regulates cardiac excitation-contraction coupling in hearts but can also trigger ventricular arrhythmias caused by early afterdepolarizations (EADs) in pathological conditions. Isoproterenol (ISO) stimulation can transiently cause EADs which could result from differential kinetics of L type calcium (Ca) current (I_CaL) vs. delayed rectifier potassium current (I_Ks) effects, but multiple PKA targets complicate mechanistic analysis. Utilizing a biophysically detailed model integrating Ca and β-adrenergic signaling, we investigate how different phos-phorylation kinetics and targets influence β-adrenergic-induced transient EADs. We found that: 1) The faster time course of I_CaL vs. I_Ks increases recapitulated experimentally observed ISO-induced transient EADs (which are due to I_CaL reactivation). These EADs disappear at steady state ISO and do not occur during more gradual ISO application. 2) This I_CaL vs. I_Ks kinetic mismatch with ISO can also induce transient EADs due to spontaneous sarcoplasmic reticulum (SR) Ca release and Na/Ca exchange current. The increased I_CaL, SR Ca uptake and action potential duration (APD) raise SR Ca to cause spontaneous SR Ca release, but eventual I_Ks activation and APD shortening abolish these EADs. 3) Phospholemman (PLM) phosphorylation decreases both types of EADs by increasing outward Na/K-ATPase current (I_NaK) for I_CaL-mediated EADs, and reducing intracellular Na and Ca loading for SR Ca-release-mediated EADs. Slowing PLM phosphorylation kinetics abolishes this protective effect. 4) Blocking phos-pholamban (PLB) phosphorylation has little effect on I_CaL-mediated transient EADs, but abolishes SR Ca-release-mediated transient EADs by limiting SR Ca loading. 5) RyR phosphorylation has little effect on either transient EAD type. Our study emphasizes the importance of understanding non-steady state kinetics of several systems in mediating β-adrenergic-induced EADs and arrhythmias.

Introduction

β-adrenergic receptors (β-AR) critically modulate ventricular excitation-contraction coupling (ECC) through signaling cascades (Fig. 1A) that lead to PKA-dependent phosphorylation of several proteins to orchestrate the positive inotropic and lusitropic cell response [1]. Briefly, βAR agonists, such as isoprotenorol (ISO) or norepinephrine (NE), activate stimulatory G protein causing adenylate cyclase (AC) to enhance cAMP production, which in turn activates protein kinase A (PKA) [2, 3]. In ventricular myocytes, PKA phosphorylates multiple targets that regulate L-type calcium (Ca) current (I_CaL), ryanodine receptor (RyR) gating, phospholamban (PLB)-dependent sarcoplasmic reticulum (SR) Ca-ATPase (SERCA), phospholemman (PLM)-dependent Na-K ATPase (NKA), slowly-activating delayed rectifier potassium current (I_Ks), cystic fibrosis transmembrane regulator current (I_CFTR), and myofilament sensitivity.

Figure 1. β-AR model and kinetics of phosphorylation.

A. Schematic of β-AR signaling network and ECC. β-AR agonists bind to βAR and cause PKA-phosphorylation of numerous cellular targets. (PDE, phosphodiesterase; PKI, protein kinase inhibitor; PP1, protein phosphatase-1; PP2A, protein phosphatase-2A; I1, inhibitor-1.) B. Normalized phosphorylation time course of I_CaL and I_Ks following 1 μM ISO application in the original SS model (solid) [15] and in experimental data (dashed lines) from Lui et al. [19]. C. Our modified I_Ks kinetics (solid lines) recapitulate experiment data of I_Ks vs. I_CaL increase upon ISO (as in B). Shaded are is where EADs are observed in Fig. 2.

β-AR stimulation can also induce ventricular arrhythmias caused by early afterdepolarizations (EADs) [4]. EADs have been widely investigated both in experiments [5–7] and simulations [8–12], and key dynamical mechanisms of EAD formation have been established [13, 14], but most studies focused on events occurring at steady state. Detailed information about the time courses and kinetics of PKA-dependent modulation of its numerous targets is incomplete, although phosphorylation of sarcolemmal ion channels seems to be faster than that of cytosolic targets [15]. Differential kinetics of modulation of cellular targets may cause transient instabilities which are especially arrhythmogenic. This picture is further complicated by effects of the ISO-induced elevation of intracellular [Ca] ([Ca]_i) on I_CaL (via Ca dependent inactivation, CDI), Na/Ca exchanger (NCX) current (I_NCX), Ca-activated Cl⁻ current (I_Cl(Ca)), and I_Ks, all of which can influence AP configuration. Computer models of cardiac myocyte electro-physiology integrating Ca and β-AR signaling are especially useful to analyze these complex interactions. A recent theoretical study has shown that a time delay between the PLM- and PLB-mediated effects on NKA and SERCA (a slower decrease in [Na]_i caused by the former vs. a more rapid [Ca]_i elevation in [Ca]_i by the latter) leads to adaptation of the Ca transient (CaT), causing a temporarily larger CaT followed by a smaller steady state CaT [16]. Transient prolongation of action potential duration (APD) was also found experimentally upon ISO application [17, 18]. Recent experiments also found that I_CaL increases much faster than I_Ks upon ISO application [19], suggesting that PKA-dependent regulation of these channels may have different kinetics, which were assumed similar in previous models [15, 20].

Here, we utilize a computational framework to assess whether differential kinetics of PKA phosphorylation of I_CaL and I_Ks are sufficient to induce transient EADs following βAR stimulation, as found experimentally [19]. We also analyze the impact of altered kinetics of the signaling cascade. Also, we test whether and how this transient EAD formation is affected by changes in [Ca]_i due to PKA-dependent phosphorylation of RyR and PLB. Further, we incorporate PKA phosphorylation of PLM, which by modulating I_NaK influences both membrane voltage and [Na]_i, and thus [Ca]_i via I_NCX. All these effects might impact EAD generation. In addition to demonstrating EADs due to I_CaL recovery (referred as I_CaL-mediated EADs), the differential kinetics of I_CaL and I_Ks regulation also induce transient EADs due to spontaneous Ca releases (Ca-release-mediated EADs). Understanding the mechanism underlying transient EADs could facilitate the development of anti-arrhythmic drugs and therapeutic strategies.

Methods

We use the β-adrenergic signaling branch of the Soltis-Saucerman (SS) rabbit myocyte model [15], which integrated the Shannon-Bers ECC model [21] with the β-adrenergic and CaMKII signaling networks (Fig. 1A). In the SS model, the time constant of I_Ks phosphorylation (I_Ksp) is similar to that of L-type Ca channel phosphorylation (LCC_p) (Fig. 1B, solid, τ_IcaL=7.7s, τ_IKsp=7.5s). However, recent experimental data [19] shows that upon ISO application I_Ks grows much more slowly than I_CaL (Fig. 1B and C red dotted). Therefore, we slowed down the rate constants of I_Ks phosphorylation and dephosphorylation from 84 and 8.52 s⁻¹ to 1.87 and 0.19 s⁻¹, respectively (τ_IKsp=39.7s), to recapitulate the measured kinetics, but without perturbing the steady state effect (Fig. 1C solid lines and Fig S1, at α=45). Since the rise is better fit by a sigmoid function (vs. exponential), we used a Gompertz sigmoid approximation to the data for time constant τ.

A previous study used time constants for I_CaL and I_Ks changes in relatively simple simulations [19], but here we use a detailed β-adrenergic signaling model to alter PKA and phosphatase activity. This also allows us to consider the effect of other PKA targets and investigate Ca-release-mediated EADs. This is also advantageous in providing a mechanistic signaling framework for devising further novel experimental tests. For example, both LTCCs and I_Ks channels have associated AKAPs that localize PKA to the channel [22, 23], but the rate of PKA activation could differ because: a) the relative extent of local PKA activation, b) the proximity of the AKAP-bound PKA and phosphatase to the target site (which influences the effective local [PKA] and [phosphatase]), c) the proximity and coupling efficiency of β-AR/G_s/adenylate cyclase to the AKAP (which for LTCC are in the same complex). These and other factors could cause the differential I_Ca,L and I_Ks activation kinetics. The formulation for PLM phosphorylation by PKA and NKA modulation was that in Yang and Saucerman [24].

Transient EADs caused by I_CaL recovery (Type 1 EAD, EAD1) and spontaneous SR Ca releases (Type 2 EAD, EAD2) are studied separately. Table 1 shows parameter changes (in %) for EAD1 and EAD2 compared to the original SS model [15]. For EAD2, the only changes were reducing G_Kr by 40% to prolong APD and enhance EAD occurrence, and a slight (15%) increase in I_CaL maximal conductance, G_CaL (to match what we used for EAD1 below). Using the original SS I_Ca,L produced the same qualitative results (just slightly fewer total EAD2s; not shown).

Table 1.

Parameter modifications in the baseline models (comparing with the original model in %)

	GKr	GCa	GNCX	RyR EC50	Figs
EAD1 (ICaL- mediated)	5%	115%	125%	178%	2–6; S3–S4; S8
EAD2 (Ca-release-mediated)	60%	115%	-	-	7; S5–S7; S8

For EAD1, we prevent spontaneous SR Ca releases by increasing RyR EC₅₀ for intra-SR [Ca] ([Ca]_SR) by 78% and increasing G_CaL by 15% to ensure ECC fidelity with the desensitized RyR2. To maintain cell Ca balance and limit SR Ca loading we also increased the maximal conductance of I_NCX (G_NCX) by 25%. In addition, the maximal conductance of rapid-activating delayed rectifier potassium current (I_Kr) was strongly inhibited (G_Kr -95%) as in the experimental data [19], which prolongs APD, and enhances EAD propensity.

For both cell models we used a pacing cycle length (PCL) of 4 s, to explicitly match direct experimental data regarding EAD induction in rabbit myocytes [19] (faster PCL was also explored). At this PCL, the 40% G_Kr inhibition in the EAD2 case prolongs baseline APD from 409 to 588 ms. The Ca handling changes in the EAD1 model prolong baseline APD to 573 ms. With the additional block of G_Kr APD lengthens further to 1148 ms. Similar long APDs have been reported with I_Kr block [25, 26] or I_CaL inactivation mutation [27] at slow rate (PCL>2s).

No EADs were observed in either basal state. Maximal ISO-induced increase of I_CaL was increased (by 70%) to allow roughly doubling of I_CaL upon 1μM ISO application in both models, consistent with experiments [28]. Unless specified, 1 μM ISO is abruptly applied to the myocyte at time zero. The model was implemented in C++, and simulations run with a 1 μs integration time step using the forward Euler method.

While blocking I_Kr (as in genetic or acquired LQT2) prolongs APD in a relevant manner, we explored other methods, such as increasing late Na current (I_NaL), to test whether the results were I_Kr-dependent. Likewise, we explored alternative mechanisms to prevent spontaneous SR Ca release (other than shifting RyR2 EC₅₀). None of these influenced the mechanistic conclusions of our study (see below).

Results

I_CaL-mediated transient EADs

In the original SS model, the time constants of I_Ks and I_CaL increase in response to ISO are almost identical (Fig 1B), and in this case no EADs were observed during abrupt ISO application (Fig. 2A, top), and APD smoothly shortened after the first beat (grey in Fig. 2B). However, with more realistic differences of these time courses (Fig 1C) prominent EADs appeared transiently upon ISO application (Fig. 2A, bottom). APD increased progressively (black in Fig. 2B), until EADs occur from the 4^th to 10^th beat, where the PKA-dependent increase of I_CaL is further advanced than that of I_Ks (red shaded area in Fig. 1C). The point of I_CaL reactivation precedes EAD takeoff (marked by the dashed line in Fig. 2C), which is followed by the SR Ca release. This indicates that the secondary Ca release is not spontaneous but triggered by Ca entry via I_CaL. EADs persist for 7 beats although APD decreases progressively due to increasing I_Ks. As I_Ks enhancement overcomes the larger I_CaL at the 11^th beat, EADs are suppressed, and at steady state the APD is much shorter (Fig 2B). This simulation demonstrates that transient EADs occurring during ISO application are caused by I_CaL reactivation in a time window where a large enough mismatch exists between LCC_p and I_Ksp. Fig. 2D shows that as the time constant for I_Ks (τ_IKs) is made slower than 14.2s, EADs start appearing as the kinetic mismatch with I_CaL grows (τ_LCCp =7.7s; Fig. S1D). The larger the difference, the higher number of transient EADs.

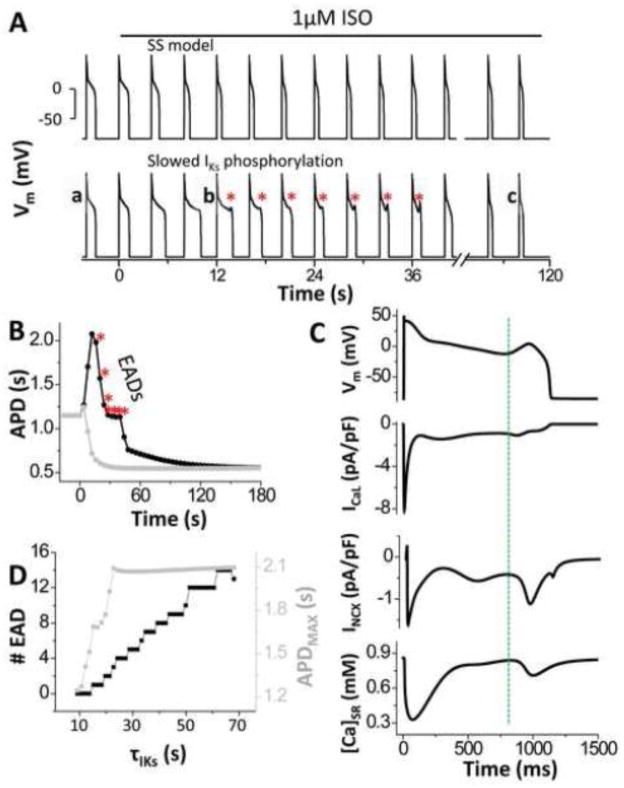

Figure 2. Abrupt ISO application induces I_CaL-mediated transient EADs due to differential PKA phosphorylation kinetics of I_CaL vs. I_Ks.

A. V_m traces for the original SS model and after modifying I_Ks activation kinetics upon ISO application (* transient EADs). B. APD transiently prolongs (* EADs) and then shortens at steady state. C. EADs are caused by reactivation of I_CaL (dashed vertical line), which occurs before EAD takeoff and causes SR Ca release. D. Number of total EADs (black) and maximum transient APD (grey) upon ISO application.

We also explored whether this kinetic regulatory mismatch between I_CaL and I_Ks would persist during a more gradual rise in ISO concentration ([ISO]), whereby [ISO] increases gradually with time from 0 μM to 1 μM (Fig. 3A). For example, Fig. 3 shows that even a stepwise increase in [ISO] fails to generate EADs. Here [ISO] was increased to 5, 10 and 1000 nM for 2 min each (Fig. 3A). During this protocol, peak I_CaL and I_Ks changes are shown in Fig. 4B. At the beginning of each [ISO] step, APD is first prolonged and then shortened without EADs (Fig. 3C). In this gradual application, the transient increase of both I_CaL and I_Ks are attenuated (Fig. 3B). Fig. 4 shows APD, I_CaL and I_Ks for three stages of the abrupt (left) vs. gradual (right) ISO application. With the progressive [ISO] increase maximal I_CaL occurs later (c vs. b) at a time when there is already substantial I_Ks activation, which limits I_CaL-induced APD prolongation and EAD opportunity. Therefore, we can extrapolate that slowing the ISO-induced I_CaL enhancement (at any upstream step in the signaling cascade) might abolish transient EADs.

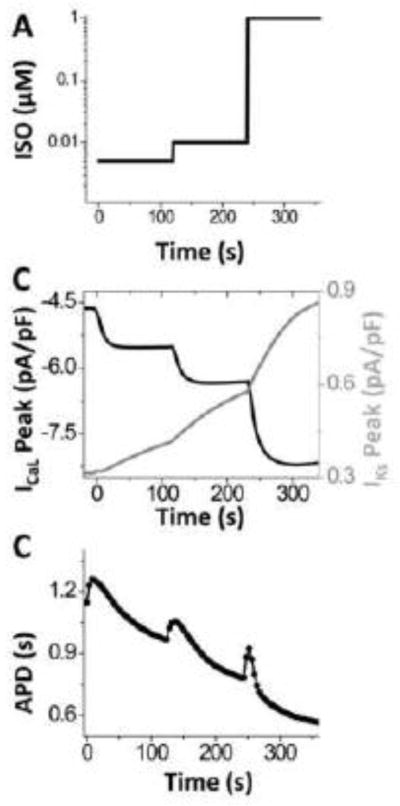

Figure 3. Gradual ISO application fails to induce EADs.

A. Protocol of gradual application of ISO. B. Time courses of peak I_CaL and I_Ks during gradual ISO application. C. APD changes during gradual ISO application. While APD prolongs, no EADs occur.

Figure 4. Comparison between sudden and gradual ISO application.

AP (top), I_CaL (middle) and I_Ks (bottom) before (black) and after (dotted) ISO application at steady state, and during the 1^st EAD (grey) with abrupt (A) and gradual (B, as in Fig. 3A) ISO application. Inset in B (top) shows APs before and after gradual ISO application (occurring at time 0). Removal of time delay between I_CaL and I_Ks phosphorylation by gradual ISO application abolishes EADs.

Effects of phosphorylation of PLB, RyR, and PLM on I_CaL-mediated transient EADs

As I_CaL recovery can be affected by [Ca]_i, we also test how phosphorylation of the other PKA targets might influence transient EADs. Experimental data [29, 30] have shown that the time constants of PLB phosphorylation and PKA-dependent activation of I_NaK (due to PLM phos-phorylation) are ~10–15 s. Consistent with these observations, PLB and PLM phosphorylation kinetics are intermediate between I_CaL and I_Ks in our model (Fig. S2D). Fig. 5A shows that preventing PLB phosphorylation slightly prolongs APD and increases EAD incidence (right panel). Without PLB phosphorylation SERCA function will not increase, which limits [Ca]_SR and the rise in peak [Ca]_i (green in Fig. S3F and B). This smaller [Ca]_i contributes to less Ca-dependent I_CaL inactivation, very slightly higher peak I_CaL (green in Fig. S3A), which causes prolonged transient and steady state APDs vs. control (Fig. 5A, left). The greater integrated inward I_CaL appears to dominate the reduced inward I_NCX (green in Fig S3E) with respect to APD.

Figure 5. Effects of PLB, PLM and RyR phosphorylation on I_CaL-mediated transient EADs.

A. Inhibition of PLB phosphorylation prolongs APD (left) and increases EAD occurrence (* right). B. PLM phosphorylation reduces ISO effect of prolonging APD and decreases EAD occurrence. Only 1 EAD occurs at 6^th beat after ISO application. C. Inhibition of RyR phosphorylation has little effect on APD prolongation and EAD formation.

Inclusion of PLM phosphorylation decreases APD and transient EADs (vs. control, Fig. 5B) due to a rapid increase of I_NaK (Fig. S3D, red). Although I_CaL is temporarily larger (Fig. S3A, red), due to slightly lower [Ca]_i (Fig. S3B, red) caused by activation of I_NCX following [Na]_i decrease (Fig. S3C, red), the increase of I_NaK adds repolarizing current and helps limit APD while I_Ks is still growing. Slowing PLM phosphorylation (Fig. S4B) slows I_NaK enhancement and fails to suppress transient EADs. [Na]_i changes more slowly than does I_NaK, but that leads to a progressive increase in I_NCX (Fig. S3E, red) and a secondary decrease in I_NaK which approaches a new steady state in parallel to the slower [Na]_i changes. RyR phosphorylation in the cleft is fast, similar to I_CaL (Fig. S2D), but inhibition of RyR phosphorylation has little effect on [Ca]_i (Fig. S3B blue). Consequently it has almost no effect on I_CaL or EAD formation (Fig. 5C). In this condition, the elevation in [Ca]_SR is balanced by the reduced sensitivity of RyR (due to inhibition of RyR phosphorylation), leading to little effect in the Ca transient amplitude.

Influence of the heart rate acceleration by ISO

β-adrenergic stimulation also influences heart rate by effects on sino-atrial node cells (SANC). We used experimental results by Tanaka et al [31] on SANC firing in response to abrupt 10 μM ISO application (Fig. 6A inset), to control PCL in our ventricular myocyte model (Fig. 6A). This is justified by the fact that dose-dependency of heart rate acceleration by ISO saturates at 1 μM [32, 33], which is the [ISO] simulated here. In the experiment by Tanaka et al., ISO increased heart rate by 36.5% with a half time of 9.5 s at physiological rates [31]. We simulated both 36.5% (black) and 100% (red) acceleration on heart rate and found that even when heart rate is accelerated concomitant with the other PKA effects, the induction of potentially arrhythmogenic transient EADs was unaltered (Figs. 6B and C). As we reduced PCL from 4 to 1.5 s (Fig. 6D), there is relative large PCL window where transient EADs occur (Fig. 6D).

Figure 6. Transient EADs still occur at faster heart rate.

A. Simulated acceleration of heart rate (PCL reduction) by 1 μM ISO mimics experiment data (inset, dots are experimental data[31]; solid line is sigmoidal fit). B–C. The total number of EADs and the corresponding maximal APD are not appreciably affected by acceleration in PCL by 36.5% (black) and 100% (red). D. This reveals a wide PCL window that is permissive of EAD formation.

SR Ca-release-mediated transient EADs

When we restored the normal SS model (normal RyR2 gating) and only blocked I_Kr by 40% to prolong APD (and retain the small enhancement of I_Ca as above) there were no EADs present prior to ISO addition. That was also true if I_CaL and I_Ks activation kinetics were similar (as in the SS model; Fig. 7A, top and 7B, gray). However, when using the realistic kinetic difference between I_CaL and I_Ks phosphorylation, ISO addition again led to a train of transient EADs (Fig. 7A, bottom and Fig. 7B, black). In this case the EADs were due to SR Ca release because the EAD takeoff (dotted line in Fig. 7D) occurs after SR Ca release and before the slowing of I_CaL decline. No net reactivation of I_CaL was observed during EADs, indicating that these transient EADs are due to spontaneous SR Ca release and I_NCX. The increase in local [Ca]_i and more positive E_m should both accelerate I_CaL decline, so the slowing of I_CaL decline may reflect a synergy between I_NCX and I_CaL to produce a larger EAD than would the small I_NCX at this voltage.

Figure 7. Induction of SR Ca-release-mediated EADs upon ISO application.

A. APs during ISO application for the SS model (top) and when I_Ks activation is slowed (bottom). B. APD for simulation in A, EADs occur at all APs between lines. C. Number of total EADs (black) and maximum transient APD (grey) upon ISO application as I_Ks activation is slowed. D. EADs are caused by SR Ca release (which starts before the dashed vertical line), which occurs before EAD takeoff and activates inward I_NCX.

The mismatch between I_CaL and I_Ks phosphorylation kinetics allows a transient prolongation of APD upon abrupt ISO application. This allows the rapid increase in Ca influx (via I_CaL) and SR Ca uptake to increase cellular Ca gain and [Ca]_SR (Fig. S5B and F black). The ability of NCX to compete with SERCA is also limited at more positive E_m during the long APD and this exacerbates the cellular and SR Ca gain. As [Ca]_SR reaches the threshold for spontaneous Ca release, spontaneous Ca releases occur from the 3^rd beat after ISO application (bar in Fig. S5B). This Ca release and I_NCX is not large enough to produce net depolarization at the plateau E_m at this beat, but further prolongs APD, favoring further Ca gain. EADs start to occur from the 5^th beat, where the accumulated [Ca]_SR and release-induced I_NCX is large enough to produce net depolarization during the plateau (Fig. 7D). EADs continue until the 24^th beat as enhanced I_Ks causes APD shortening (Fig. 7B black), and spontaneous Ca release stops when [Ca]_i falls below the level supporting that release. Without the kinetic mismatch of PKA mediated increase of I_CaL vs. I_Ks, the APD smoothly shortens after the 1^st beat (Fig. 7B grey) and Ca loading is limited such that [Ca]_SR remains below the spontaneous release threshold. Thus, no spontaneous SR Ca releases or EADs occur. The larger the kinetic mismatch is for PKA dependent increase of I_CaL vs. I_Ks, the more transient EADs occurs (Fig. 7C).

Unlike I_CaL-mediated transient EADs, SR Ca-release-mediated EADs can be significantly modulated by PLB or PLM. Slowing of PLB phosphorylation decreases transient EAD incidence (Fig. S7A). Complete dephosphorylation of PLB abolishes EADs (Fig. S6A) as [Ca]_SR does not rise as much and no spontaneous Ca releases occur (Fig. S5F, green). The inclusion of PLM phosphorylation reduces EAD incidence (Fig. S6B) as it removes Na and Ca from the cell and thus reduces [Ca]_SR (Fig. S5 red). Accelerating PLM phosphorylation significantly decreases EAD incidence (Fig. S7B), but does not abolish them, presumably because the decline in [Na]_i is much slower than the rise in [Ca]_i and [Ca]_SR (Fig. S5C vs. B red). RyR dephosphorylation reduces the incidence of transient EADs (Fig. S6C) because the threshold [Ca]_SR for these events is increased.

Discussion

EADs are recognized as a cellular cause of arrhythmias and sudden cardiac death [34, 35]. Theoretical studies have helped to understand the dynamic mechanisms underlying EADs [13, 14], but they have mainly focused on the steady state. Here we focus on the transient state, upon acute perturbation with β-AR activation which is known to be a trigger for arrhythmias. This area has been largely overlooked, in part because computational models with realistic kinetics for signaling cascades are limited. Here we use such a model [15, 24] and show how acute βAR stimulation can cause transient AP prolongation and EADs (as observed experimentally [17–19]) that are potentially arrhythmogenic, even though these EADs can be eliminated at steady state. We examine how kinetic differences among several key PKA targets may make this acute transition especially dangerous, and indeed EADs via both of the known mechanisms may be involved (I_CaL reactivation and SR Ca release).

Our key findings are: 1) Incorporating measured differential kinetics of I_CaL and I_Ks phos-phorylation into the SS rabbit ventricular myocyte model recapitulated experimentally observed transient EADs following ISO administration (in conditions of prolonged repolarization)[19]. 2) EAD occurrence was prevented by more gradual β-AR activation. 3) This kinetic mismatch was key for transient EADs mediated by both I_CaL reactivation and SR Ca release. 4) I_CaL-mediated transient EADs were enabled by AP prolongation, but not much influenced by preventing PLB or RyR phosphorylation. However, a rapid increase in outward I_NaK due to PLM phosphorylation was protective with respect to transient EADs. 5) SR Ca-release-mediated transient EADs occur due to progressive SR Ca loading by rapid increases in I_CaL and SR Ca uptake during long APs, before the increase in I_Ks limits APD. These SR Ca-release-mediated EADs can be blunted by PLB and RyR dephosphorylation and by PLM phosphorylation (due mainly to reduced [Na]_i and [Ca]_SR). Thus, while the steady state co-activation of I_CaL, I_Ks, SERCA, RyR and NKA by PKA can stabilize the inotropic state and APD shape induced by β-AR activation, kinetic mismatches create unique windows of vulnerability during acute activation.

Two types of EADs induced by β-AR activation

The importance of β-AR signaling in hearts has been well documented [1, 12, 36], but the signaling network is complex and includes feedback mechanisms, including that PKA contributes to β-AR desensitization [2] but also enhances cAMP levels by effects of Inhibitor-1 to reduce phosphatase 1 activity [37], as included in the model. Acute PKA activation can rapidly enhance Ca transients (as critical for rapid inotropy and lusitropy), but more slowly via PLM phosphorylation PKA limits the rise in [Na]_i that occurs as an integral part of the fight-or-flight response with β-AR [38]. That NKA activation was shown to limit arrhythmogenic events in the steady state, but the slower changes in [Na]_i could again leave this vulnerable window during acute sympathetic activation. Our results here agree with this notion.

EADs tend to occur at slow pacing rate, where repolarization is prolonged [35]. We use slow pacing and I_Kr block, as done in some experiments to understand EAD formation [19]. This may relate to bradycardias, such as, sick sinus node or atrial-ventricular node disorder [39]. EADs occur over a large range of PCLs in both experimental and theoretical studies [11, 18, 40].

EADs have been shown to be induced by 1) I_CaL reactivation (EAD1) or 2) SR Ca release and activation of I_NCX (EAD2) [18, 41, 42]. EAD2s are thus mechanistically the same as for delayed afterdepolarizations (DADs) except that for DADs the inward I_NCX current for a given SR Ca release is larger because the I_NCX driving force is much stronger at more negative E_m (vs. EADs during the plateau) [1]. EAD1s occur at slow pacing rates and long APD (e.g. in genetic or drug-induced LQT), while EAD2s are more likely when cell and SR Ca load are increased, typically at faster heart rates and with β-AR activation [43]. Notably, long APDs prolong Ca entry via I_CaL and limit Ca extrusion via NCX both during the AP and in the shortened time at diastolic V_m, all of which favor SR Ca loading. This degree of Ca loading may not cause spontaneous SR Ca release. However, ISO rapidly increases Ca influx and SR Ca uptake and greatly enhances the likelihood of spontaneous SR Ca release events (EAD2s) during these long APs, and that can be exacerbated by RyR sensitization. We show that acute (but not gradual) β-AR activation can induce transient appearance of both EAD1s and EAD2s under the conditions studied. If we had not examined differential target activation kinetics, these effects would not have been seen.

We used different baseline conditions to demonstrate the transient appearance of EAD1s and EAD2s separately upon β-AR activation to investigate the underlying mechanisms. Whereas the EAD1s may be more likely to occur in bradycardia and in conditions of prolonged repolarization (e.g., Long QT Syndrome), the latter could be more relevant to faster heart rates (e.g., Catecholaminergic Polymorphic Ventricular Tachycardia), although they may coexist when the SR is overloaded [18]. As one may imagine, making the conditions favoring EAD1s or EAD2s stronger (e.g. longer APD) makes the transient EADs continue for more beats or become chronic. So in that sense the extent of G_Kr reduction in the two cases highlighted shows that this transient EAD occurrence happens under conditions where they would not occur in steady state. This may well explain why arrhythmias are sometimes transiently observed immediately after strong β-AR activation (e.g. [44]). These initiating events can also lead to life-threatening arrhythmias already in that vulnerable period.

Modeling of transient EAD1 vs. transient EAD2

For the EAD2 studies (Fig. 7) we used the baseline SS model with the only change being the 15% increase in I_CaL at baseline (as in the EAD1 case; Fig. 2–6). If we reduce I_CaL back to the control SS model, EAD2s were still transiently observed, although slightly fewer than the example in Fig 7. While the SS model demonstrates EAD2s, we limit our mechanistic analysis here because the SR Ca release events, which reflect Ca waves in myocytes, are not ideally modeled by common pool Ca models as used here. More detailed Ca wave induction and propagation will require spatially detailed intracellular models [45], because thousands of individual junctions are independently regulated and exert only local effects (unlike voltage gated channels which influence and are influenced by V_m cell-wide).

Studying the EAD1 mechanism separately during ISO exposure (Figs. 2–6) required: 1) preventing spontaneous SR Ca release events and 2) prolonging APD (to allow for I_CaL recovery and reactivation). To prevent SR Ca release, we raised the Ca threshold for spontaneous SR Ca release. We also slightly increased basal I_CaL to ensure realistic ECC efficacy with the desensitized RyR2, and I_NCX to maintain Ca flux balance and limiting SR Ca load. Notably, spontaneous Ca release can also be prevented by either doubling RyR passive leak or decreasing SR Ca uptake by 55%, as in the context of heart failure. Using either of those methods to limit SR Ca load still yielded transient EAD1s upon abrupt ISO application (not shown). The increased RyR passive leak also required I_NCX enhancement (250%) to limit diastolic [Ca]_i rise. So, any method of preventing spontaneous SR Ca release suffices for requirement 1. To prolong APD and favor I_CaL recovery at plateau V_m (requirement 2) [46, 47], we blocked I_Kr, as done pharmacologically or genetically in experimental EAD studies [19, 26]. Again, we still obtained transient EADs with abrupt ISO exposure with increased I_NaL as in LQT3 (not shown). However, enhanced I_NaL elevates diastolic [Na]_i, [Ca]_i and SR Ca load potentiating spontaneous Ca release, thereby complicating the separation between EAD1s and EAD2s. Since I_Ks activation kinetics is central to this study, we did not reduce that. So, this vulnerable period for β-AR-induced EADs is inherent to the differential I_Ca,L and I_Ks activation kinetics and not the details of the parameter settings. The model also allowed us to compare the impact of PKA kinetics at I_Ks, RyR, PLB and PLM on the appearance of EAD1s.

ISO induces Slower I_Ks vs. I_Ca activation and is modulated by other PKA targets

The faster I_Ca activation vs. I_Ks [19] suffices to drive the transient appearance of both EAD1s and EAD2s during ISO exposure. For EAD1s neither phosphorylation of RyR and PLB nor a wide range of phosphorylation kinetics had appreciable effects (Fig. 5 and S4). Without PLB phosphorylation the longest APD was higher, because the limited rise in SR Ca release caused less I_CaL inactivation, but the number of EAD1s was not altered. In contrast, allowing PLM phos-phorylation suppressed EAD1s, and slowing PLM phosphorylation blocked this protective effect (Fig. 5 and S4). The majority of this protective effect was due to enhanced outward I_NaK and less APD prolongation, rather than effects on [Na]_i or [Ca]_i.

EAD2s depend upon increased SR Ca loading, and the fast increase of both I_CaL and PLB phosphorylation contribute to this effect, because they load the SR (Fig. 7 and S6–7). Moreover, slowing PLB phosphorylation reduces the occurrence of transient EAD2s. Removing or slowing RyR phosphorylation had remarkably modest effects on EAD2s. Adding PLM phos-phorylation had little effect early (despite enhanced I_NaK), but could limit APD and EAD2s late, primarily because of lower [Na]_i and consequently lower [Ca]_SR (via NCX function). Thus the kinetics and extent of I_CaL, I_Ks, PLB and PLM phosphorylation can all influence the occurrence of transient EADs, but the role of RyR phosphorylation seems limited.

Therefore, drugs or therapeutic strategies that tend to slow I_CaL and/or speedup PLM phosphorylation by PKA might be therapeutically beneficial with respect to limiting EAD-related arrhythmias, and this might explain why some antiarrhythmic drugs have been ineffective [48]. I_Ks in the model is enhanced by elevated submembrane [Ca], but the sensitivity is high (K_d =38 nM) [49]. Thus, alterations in Ca transients do not appreciably alter I_Ks activation kinetics with ISO application.

Here we show that gradual ISO application, slowing β-AR activation upstream of PKA, abolishes transient EADs by reducing the kinetic mismatch between I_CaL and I_Ks. Drugs or endo-genous proteins that speed up the upstream PKA activity will tend to increase the incidence of transient EADs, by amplifying the mismatch between I_CaL and I_Ks. Conversely, agents that slow the activation of PKA could be protective against the type of transient EADs we describe here.

It is known that cAMP levels rise in distinct subcellular regions with β-AR stimulation [3, 36] and that target phosphorylation is also controlled by phosphatases, which are also in distinct microdomains [50]. While further refinement of the effective compartmentalization in the model [2, 15] could provide insight on cAMP compartmentalization, some details are controversial and it would require major model redesign and experimental validation. More importantly here, it would not alter our conclusions. The reason for that is that our model already reproduces the experimentally measured effects of (compartmentalized) β-AR activation on all of the ionic currents (e.g. I_Ks and I_CaL), Ca-related aspects (e.g. SERCA and myofilament Ca buffering) and EADs, thereby functionally accounting for overall cAMP signaling.

Our focus here was on β-AR signaling, but the SS model includes CaMKII signaling (which we had disabled). Since CaMKII can also induce spontaneous Ca release-related arrhythmias when it is overexpressed [15], we tested whether including CaMKII effects would modify our conclusions. Figure S8 shows that a normal functional level of CaMKII slightly increased I_CaL and APDs, and exacerbates the appearance of transient EADs (EAD1s and EAD2s) upon abrupt ISO application. However, CaMKII neither prevented EADs nor made them chronic under these conditions.

Fight-or-flight response

During the fight-or-flight response, norepinephrine is released locally within the myocardium and rapidly activates myocyte β-ARs. Under conditions of prolonged APD, such as LQT syndrome (genetic or drug-induced) or heart failure, we have shown that there is a sort of vulnerable period created by the temporal mismatch between I_Ca and I_Ks activation. Moreover, the APD shortening that is expected because of the concomitant increase in heart rate, does not prevent this vulnerable period for EAD induction (Fig. 6).

EADs are nonlinearly rate-dependent [11, 14, 40], but occur over a range of CLs [9, 11, 40]. Thus, EADs can still occur during heart rate acceleration. Indeed, the increase of I_CaL may occur faster than the steady heart rate change upon adrenergic stimulation which takes several seconds [31, 51], creating a brief time window where EADs could also occur at long cycle lengths. Transient EADs are likely within a large CL window (Fig. 6D) as shown by both experimental and theoretical studies [9, 40]. Of course, as heart rate increases and when APD is short, this CL window for EADs shrinks and disappears. Therefore, this vulnerable period for EADs may not occur in the normal healthy heart during normal fight-or-flight responses, but may be a heretofore underappreciated problem in pathological conditions where acceleration of the (slow) heart rate alone by β-adrenergic stimulation fails to prevent EADs and arrhythmias [52].

The impact of cellular EADs like these at tissue level with respect to arrhythmogenesis has been previously examined [11, 53, 54]. All cells might respond as described here, which would create global EADs and QT prolongation. Additionally, heterogeneity (e.g. associated with local sympathetic activation) could create greater dispersion of repolarization and regional EAD islands where a critical number of cells would need to exhibit EADs synchronously to allow propagation to the whole tissue. Indeed, a local β-AR stimulation can induce PVC by synchronizing afterdepolarizations regionally and inducing whole heart arrhythmias [55].

In conclusion, our study provides a novel perspective for the mechanism of EAD formation via signaling pathways and may contribute to anti-arrhythmic drugs development. For example, targeting ion channels that have a slow time course is less likely to eliminate arrhythmias caused by transient EADs.

Research highlights.

• We model differential PKA phosphorylation kinetics of I_CaL vs I_Ks on transient EADs.

• A mismatch between ISO-induced I_CaL and I_Ks increase is key for transient EADs.

• PLB dephosphorylation barely affects transient EAD1s, but reduces EAD2s.

• PLM phosphorylation attenuates transient EAD1s and EAD2s by different mechanisms.
