A Simple Method for the Preparation of Crude Gintonin from Ginseng Root, Stem, and Leaf

Abstract

Ginseng has been used as a general tonic agent to invigorate the human body as an adaptogenic agent. In a previous report, we have shown that ginseng contains a novel glycolipoprotein called gintonin. The main function of gintonin is to transiently enhance intracellular free Ca²⁺ [Ca²⁺]_i levels in animal cells. The previous method for gintonin isolation included multiple steps using organic solvents. In the present report, we developed a simple method for the preparation of crude gintonin from ginseng root as well as stem and leaf, which produced a higher yield of gintonin than the previous one. The yield of gintonin was 0.20%, 0.29%, and 0.81% from ginseng root, stem, and leaf, respectively. The apparent molecular weight of gintonin isolated from stem and leaf through sodium dodecyl sulfate polyacrylamide gel electrophoresis was almost same as that from root but the compositions of amino acids, carbohydrates or lipids differed slightly between them. We also examined the effects of crude gintonin from ginseng root, stem, and leaf on endogenous Ca²⁺-activated Cl- channel (CaCC) activity of Xenopus oocytes through mobilization of [Ca²⁺]_i. We found that the order of potency for the activation of CaCC was ginseng root > stem > leaf. The ED₅₀ was 1.4±1.4, 4.5±5.9, and 3.9±1.1 μg/mL for root, stem and leaf, respectively. In the present study, we demonstrated for the first time that in addition to ginseng root, ginseng stem and leaf also contain gintonin. Gintonin can be prepared from a simple method with higher yield of gintonin from ginseng root, stem, and leaf. Finally, these results demonstrate the possibility that ginseng stem and leaf could also be utilized for ginstonin preparation after a simple procedure, rather than being discarded.

INTRODUCTION

Ginseng, the root of Panax ginseng, has been used as a general tonic or an adaptogen to promote longevity and enhance bodily functions against stress, fatigue, and various diseases including cancer and diabetes mellitus [1]. Ginseng is one of the most widely used and precious herbal medicines consumed around the world, containing various biologically active ingredients such as ginsenosides (also called ginseng saponins), acidic polysaccharides, polyacetylenes, and other minor components [1]. Among them, ginsenosides were regarded as representative agents of ginseng for pharmacological and physiological investigations. In previous reports, we have demonstrated that crude ginseng total saponin fraction activates endogenous Ca²⁺-activated Cl^- channel (CaCC) in Xenopus oocytes, of which CaCC channel is activated by transiently mobilizing intracellular Ca²⁺ [Ca²⁺]_i [2-4]. We demonstrated that active agents which caused CaCC activation in Xenopus oocytes and transiently elevated [Ca²⁺]_i in mammalian cell are not ginsenosides, but rather novel glycolipoproteins called gintonin [5]. Thus, we provided evidence that ginseng contains the novel ingredient gintonin that could also be the primary agent for various Ca²⁺-mediated cellular events.

The previous methods for crude gintonin preparation included multiple steps using various organic solvents with a time intensive separation process [5]. In present study, we developed a simple method for crude gintonin preparation from ginseng root as well as from stem and leaf with CaCC activation. We report here that this procedure simplified the crude gintonin preparation process and produced a much higher yield of gintonin as compared to the previous method. In addition, the apparent molecular weight of gintonin isolated from stem and leaf was almost same as that of root. Finally, the present report suggests the possibility that ginseng stem and leaf could also be utilized for gintonin preparation, which is usually otherwise discarded.

MATERIALS AND METHODS

Materials

BioLogic DuoFlow^TM chromatography systems were purchased from Bio-Rad (Hercules, CA, USA). Six-year-old Korea red ginseng (Korea Ginseng Corporation, Daejeon, Korea) was purchased from a local ginseng market. Prepacked columns (Superdex 75 10/30/300 GL and HiTrap^TM DEAE FF) and media (DEAE Sepharose CL-6B) were purchased from GE Healthcare (Uppsala, Sweden). Schiff’s reagent, tubing cellulose membrane with molecular weight cut off at 13,000 and other reagents were all purchased from Sigma-Aldrich (St. Louis, MO, USA).

Preparation of gintonin fraction from ginseng root

Eight kilograms of 4-year-old ginseng roots were ground into small pieces (>3 mm) and refluxed with 80% methanol (MeOH) three times for 8 h at 80℃ each. The MeOH extracts (1.3 kg) concentrated in vacuo were partitioned between n-butanol (n-BuOH) and water. n-BuOH fraction (fr., 300 g) of Panax ginseng dissolved in phosphate buffer saline (PBS, pH 7.2) was loaded onto a column packed with DEAE sepharose CL-6B (GE Healthcare) and equilibrated with PBS (pH 7.2). The unbound materials were eluted with the same buffer and the bound materials were eluted with a linear gradient of 0 to 1 M NaCl in PBS (pH 7.2). The eluted fraction was further dialyzed at 4℃ for 8 h with 1,000-fold excess distilled water (DW) using Spectra/Por dialysis membrane (molecular weight cut off 6,000-8,000; Spectrum Laboratories Inc., Rancho Dominguez, CA, USA) to remove small molecular components such as ginsenosides and other components that might remain in the fraction (16 g) [5]. We labeled this fraction as crude gintonins, which were derived from the root (Fig. 1).

Fig. 1. Diagram for simple preparation of crude gintonin from Panax ginseng root. (A) A complete diagram for crude gintonin preparation from ginseng root. (B) The representative Ca²⁺-activated Cl^- channel (CaCC) current traces are representative of one obtained from each preparation step. Treatment with butanol fraction and the bound component obtained after elution with NaCl in Tris-HCl (pH 8.2) induced endogenous CaCC activation in Xenopus oocytes, whereas H₂O layer and unbound component had no effect. The amount of each fraction used to test CaCC activity was 10 μg/mL. Inward currents were recorded at –80 mV holding potential. CGSF, crude ginseng total saponin fraction; fr., fraction; GT, gintonin.

Preparation of gintonin fraction from ginseng stem

The dried thirty eight grams of 4-year-old red ginseng stems were ground into small pieces (>3 mm) and refluxed with 80% MeOH three times for 8 h at 80℃ each. The MeOH extracts (10.32 g) concentrated in vacuo were partitioned between n-BuOH and water. The n-BuOH fr. (2 g) of ginseng stems after concentration was further extracted with methanol:hexane (MeOH:Hexane=90:10), while the MeOH fr. (1.82 g) after concentration was dissolved in PBS (pH 7.2), loaded onto a column packed with DEAE sepharose CL-6B (GE Healthcare) and equilibrated with PBS (pH 7.2). The unbound materials were eluted with the same buffer and the bound materials were eluted with a linear gradient of 0 to 1 M NaCl in PBS (pH 7.2). The eluted fraction was further dialyzed at 4℃ for 8 h with 1,000-fold excess DW using Spectra/Por dialysis membrane (molecular weight cut off 6,000-8,000; Spectrum Laboratories Inc.) to remove small molecular components such as ginsenosides and other components that might remain in the fraction (0.11 g). We labeled this fraction as crude gintonins, which were derived from the stem (Fig. 2).

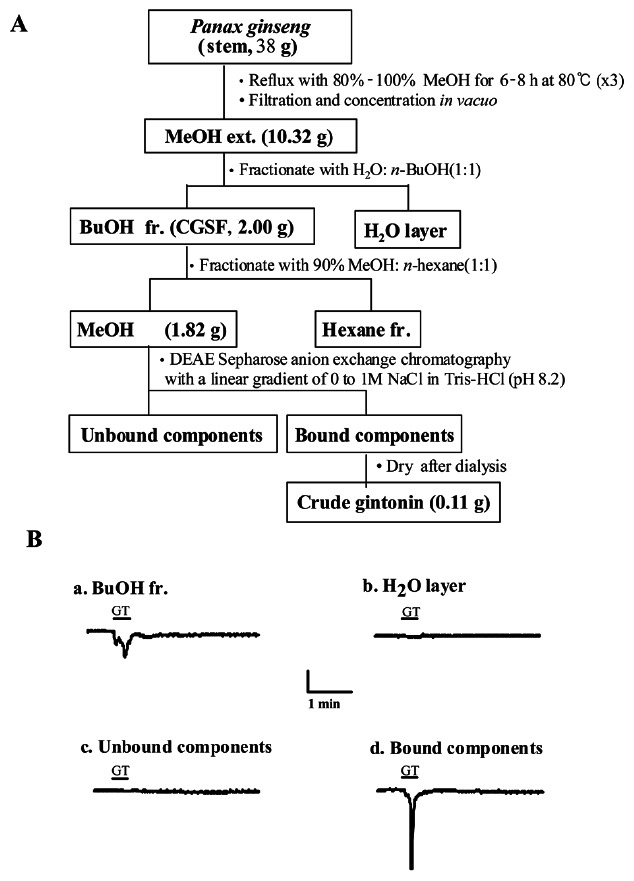

Fig. 2. Diagram for preparation of gintonin fraction from Panax ginseng stem. (A) A complete diagram for crude gintonin preparation from ginseng stem. (B) The representative Ca²⁺-activated Cl^- channel (CaCC) current traces are representative of one obtained from each crude gintonin preparation step. Treatment with butanol fraction and the bound component obtained after elution with NaCl in Tris-HCl (pH 8.2) induced endogenous CaCC activation in Xenopus oocytes, whereas H₂O layer and the unbound component had no effect. The amount of each fraction used to test CaCC activity was 10 μg/mL. Inward currents were recorded at –80 mV holding potential. CGSF, crude ginseng total saponin fraction; fr., fraction; GT, gintonin.

Preparation of gintonin fraction from ginseng leaf

The dried 37.3 g of 4-year-old red ginseng leaves were ground into small pieces (>3 mm) and refluxed with 80% MeOH three times for 8 h at 80℃ each. The MeOH extract (10.84 g) concentrated in vacuo was partitioned between n-BuOH and water. n-BuOH fr. (5.26 g) of ginseng stems after concentration was further extracted with methanol:hexane (MeOH:Hexane=90:10) and methanol fraction (6.04 g) after concentration was dissolved in PBS (pH 7.2) and was loaded onto a column packed with DEAE sepharose CL-6B (GE Healthcare) and equilibrated with PBS (pH 7.2). The unbound materials were eluted with the same buffer and the bound materials were eluted with a linear gradient of 0 to 1 M NaCl in PBS (pH 7.2). The eluted fraction was further dialyzed at 4℃ for 8 h with 1,000-fold excess DW using Spectra/Por dialysis membrane (molecular weight cut off 6,000-8,000; Spectrum Laboratories Inc.) to remove small molecular components such as ginsenosides and other components that might remain in the fraction (0.3 g). We labeled this fraction as crude gintonins, which were derived from the leaf (Fig. 3).

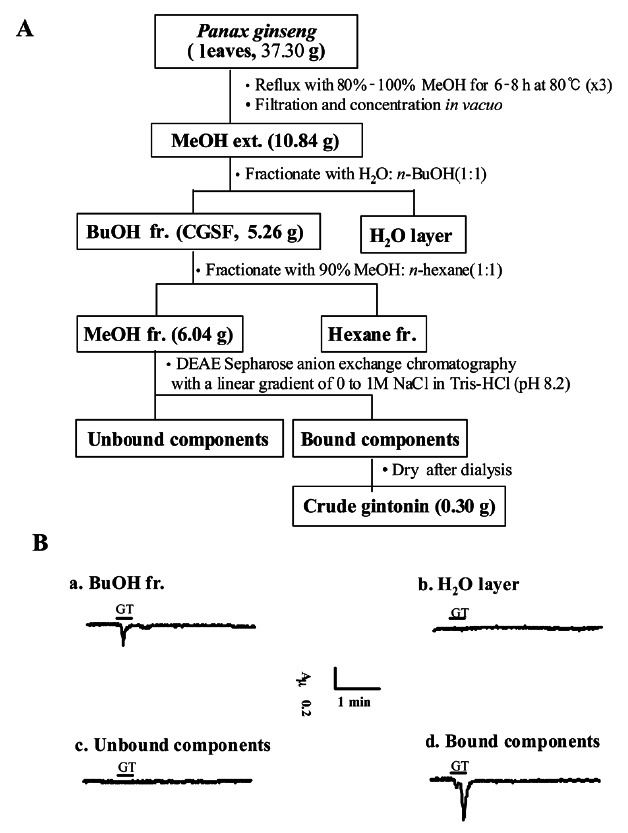

Fig. 3. Diagram for preparation of gintonin fraction from Panax ginseng leaf. (A) A complete diagram for crude gintonin preparation from ginseng leaf. (B) The representative Ca²⁺-activated Cl^- channel (CaCC) current traces are representative of one obtained from each gintonin preparation step. Treatment with butanol fraction and the bound component obtained after elution with NaCl in Tris-HCl (pH 8.2) induced endogenous CaCC activation in Xenopus oocytes, whereas H₂O layer and the unbound component had no effect. The amount of each fraction used to test CaCC activity was 10 μg/mL. Inward currents were recorded at –80 mV holding potential. CGSF, crude ginseng total saponin fraction; fr., fraction; GT, gintonin.

Gel filtration chromatography

Gel filtration chromatography of gintonin fractions obtained from ginseng root, stem or leaf was carried out using a Superdex 75 column (10×300 mm) equilibrated with PBS (pH 7.2) on a BioLogic DuoFlow^TM Chromatography system (Bio-Rad). Fractions were collected with a flow rate of 0.5 mL/min and monitored at 280 nm. Each fraction was tested on endogenous CaCC activations in Xenopus oocytes [5].

Electrophoresis and periodic acid-Schiff base staining

The crude gintonins from ginseng root, stem, and leaf were subjected to sodium dodecyl sulfate polyacrylamide gel electrophoresis (SDS-PAGE) using 12.0% separating gel [6]. Crude gintonins (100 μg each) from ginseng root, stem, and leaf were loaded in each lane. After electrophoresis, gintonin bands were visualized by Coomassie Brilliant Blue R-250 staining. For glycoprotein detection, gels were stained using periodic acid-Schiff base staining (PAS). The gel was incubated in 40% ethanol-7% acetic acid in H₂O for 30 min, followed with 1% periodic acid-3% acetic acid for 1 h. The periodic acid solution was removed. Next, Schiff’s reagent was added to the gel followed by further incubation for 1 h. Bands of stained glycoproteins developed a pink color and the PAS-stained gels were stored in water after soaking in 7.5% acetic acid [5].

Gintonin amino acid composition analysis

Gintonin (30 μg) from ginseng root, stem, and leaf was hydrolyzed in vacuo in 6 N HCl for 24 h at 110℃ for general amino acid analysis. For the analysis of cysteine, gintonin was hydrolyzed in 6 N HCl for 24 h at 110℃ after peroxidation treatment with formic acid:hydrogen peroxide=10:1. For the analysis of tryptophan, the sample was hydrolyzed in 4 M methanesulfonic acid and 4 M KOH was also added. Amino acids converted to phenylisothiocyanate derivates were analyzed by high performance liquid chromatography (Hewlett-Packard 1100 series; Hewlett-Packard, Palo Alto, CA, USA) with Waters Nova-Pak C18 column (3.9×300 mm) at the Korea Basic Science Institute (Seoul, Korea). Protein contents were determined by the Bradford method using BSA as a standard [5].

Carbohydrate composition

Gintonins from ginseng root, stem, and leaf were hydrolyzed in 2 M trifluoroacetic acid for 4 h at 100℃ for neutral sugar and hydrolyzed in 6 N HCl for 4 h at 100℃ for amino sugar and acid sugar in glass tube. Carbohydrate compositions of gintonin were analyzed by high performance anion exchange chromatography-pulsed ampherometric detection system (HPAEC-PAD system; Dionex, CA, USA) with a CarboPac^TM PA1 column at the Carbohydrate Bioproduct Research Center, Sejong University (Seoul, Korea). The molar ratios of monosaccharides were calculated from peak areas. The carbohydrate contents were also determined by phenol-sulfuric acid method for neutral sugar [7] and anthrone method for acid sugar [8].

Lipid composition analysis

Gintonins from ginseng root, stem, and leaf were hydrolyzed in 6 N HCl for 4 h at 100℃ or digested by lipoprotein lipase to confirm lipid and hydrophobic moieties. Acid hydrolyzed or digested gintonins were partitioned between distilled water and n-BuOH. The n-BuOH layer, after concentration, was further partitioned between distilled water and n-hexane. The n-hexane layer was prepared for lipid and hydrophobic moiety analysis by an Agilent 6890N GC-MS system (Agilent Technologies, Palo Alto, CA, USA) with a DB5-MS capillary column (30 cm×250 μm×0.25 μm) at the Korea Basic Science Institute and by gas chromatography (Agilent 6890N) equipped with flame ionization detector and a split injection system and fitted with a supelco SPB-1 capillary column (15 m×0.32 mm inside diameter, 0.25 mm thickness) [5].

Oocyte preparation

Xenopus laevis frogs were obtained from Xenopus I (Ann Arbor, MI, USA). Their care and handling were in accordance with the highest standards of Konkuk University guidelines. To isolate oocytes, frogs were operated on under anesthesia with an aerated solution of 3-amino benzoic acid ethyl ester. Oocytes were separated by treatment with collagenase and agitation for 2 h in a Ca²⁺-free medium containing 82.5 mM NaCl, 2 mM KCl, 1 mM MgCl2, 5 mM HEPES, 2.5 mM sodium pyruvate, 100 units/ml penicillin and 100 mg/mL streptomycin. Stage V-VI oocytes were collected and stored in ND96 (96 mM NaCl, 2 mM KCl, 1 mM MgCl₂, 1.8 mM CaCl₂, and 5 mM HEPES, pH 7.5) supplemented with 50 μg/mL gentamicin [2]. This oocyte-containing solution was maintained at 18℃ with continuous gentle shaking and changed daily.

Measurements of endogenous CaCC currents

Two-electrode voltage-clamp recordings were obtained from individual oocytes placed in a small Plexiglas net chamber (0.5 mL), which was continuously superfused with the bathing medium (i.e., ND96). The microelectrodes were filled with 3 M KCl and had a resistance of 0.2-0.7 MΩ. The electrophysiological experiments were performed at room temperature using an oocyte clamp amplifier (OC-725C; Warner Instrument, Hamden, CT, USA). CaCC was recorded at –80 mV holding potential, where gintonins were applied to oocytes by bath perfusion [2].

Data analysis

To obtain the concentration-response curve in the presence of crude gintonin from ginseng root, stem, or leaf the observed peak amplitudes were normalized, plotted and subsequently fitted to the Hill equation below using Origin software (Northampton, MA, USA). y/y_max=[A]ⁿ/([A]ⁿ+[EC₅₀]ⁿ), where y represents % activation at given concentration of gintonin, y_max represents maximal peak current, EC₅₀ is the concentration of gintonin producing half-maximum effect of the control response to gintonin, A is the concentration of gintonin, and n is the interaction coefficient. All values were presented as means±SEM. The differences between means of control and gintonin treatment data were analyzed using unpaired Student’s t-test. A value of p<0.05 was considered statistically significant.

RESULTS

A simple procedure for crude gintonin preparation from ginseng root, stem, and leaf

We found that gintonin is co-fractionated with ginsenosides following butanol extraction, although physico-chemical properties of gintonin and ginsenosides differ from each other. Gintonin consists of carbohydrate, lipid, and protein portion [5]. In a previous report, we demonstrated that crude gintonin could be separated from ginsenosides in the butanol fraction through multiple steps using various organic solvents including anion exchange chromatography [5].

The previous method required numerous organic solvents, required a considerable amount of time, and produced a lower yield of gintonin [5]. In the present study, we directly applied the butanol fraction of ginseng root to an anion exchange column since gintonin, but not ginsenosides with anion charges, could bind to the anion column. As shown in Fig. 1B, the unbound components within the column did not induce any activation of CaCC, but the bound portion eluted by NaCl gradient induced a large inward Cl^- current by activating CaCC. These results indicate that the main component for CaCC activation is gintonin, which carries charges, and that unbound components possibly including ginsenosides and other uncharged or neutral components, had no effects on CaCC activity. By using a similar method we also prepared crude gintonin from ginseng stem and leaf with additional hexane extraction to further remove hydrophobic components that might exist in stem and leaves (Figs. 2 and 3). We found that the bound components in the anion exchange column also activated CaCC in ginseng stem and leaf but the degree of CaCC activation was less than that from the ginseng root. The yield was 0.20, 0.29, and 0.81% for ginseng root, stem and leaf, respectively. This method produced a higher yield compared to the previous method with less time and less organic solvents [5].

Determination of molecular weight of crude gintonin

We next compared the apparent molecular weight of the gintonin fraction prepared from ginseng root, stem, and leaf, respectively. For this, we performed SDS-PAGE using crude gintonin from ginseng root, stem or leaf. We found a broad but single major band and its apparent molecular weight at approximately 13 kDa, revealing the possibility that their molecular weights are nearly identical among all three sources (Fig. 4).

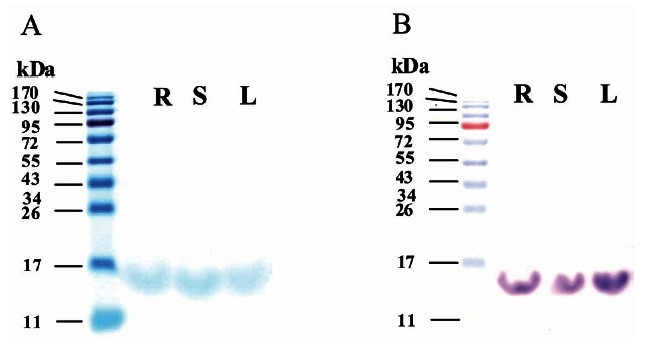

Fig. 4. Sodium dodecyl sulfate polyacrylamide gel electrophoresis (SDS-PAGE) of each gintonin prepared from ginseng root, stem, and leaf. (A) SDS-PAGE of the crude gintonins obtained from anion exchange chromatography. Coomassie Brilliant blue staining was used to stain protein moieties of gintonins. Crude gintonin prepared from ginseng root (R), stem (S), and leaf (L) in SDS–PAGE showed that the apparent molecular weight of gintonin is about 13 kDa. (B) Periodic acid-Schiff staining demonstrated that crude gintonins contain carbohydrate moiety.

Gintonin fraction from ginseng root, stem, and leaf exhibits different pattern gel filtration chromatography

We next compared the patterns of gel filtration chromatography of crude gintonin prepared from ginseng root, stem, and leaf, respectively. As shown in Fig. 5, crude gintonin from ginseng root showed a main peak and minor peaks, whereas crude gintonin prepared from ginseng stem and leaf showed a main peak with additional peaks as shown in ginseng root. The main peaks of ginseng root, stem, and leaf largely exhibited CaCC activation in Xenopus oocytes (data not shown). Gel chromatographic patterns from the gintonin fraction of root, stem, and leaf differ from each other, yet these results indicate thattonin prepared from ginseng root, stem, and leaf has a common main peak that lead to CaCC activation.

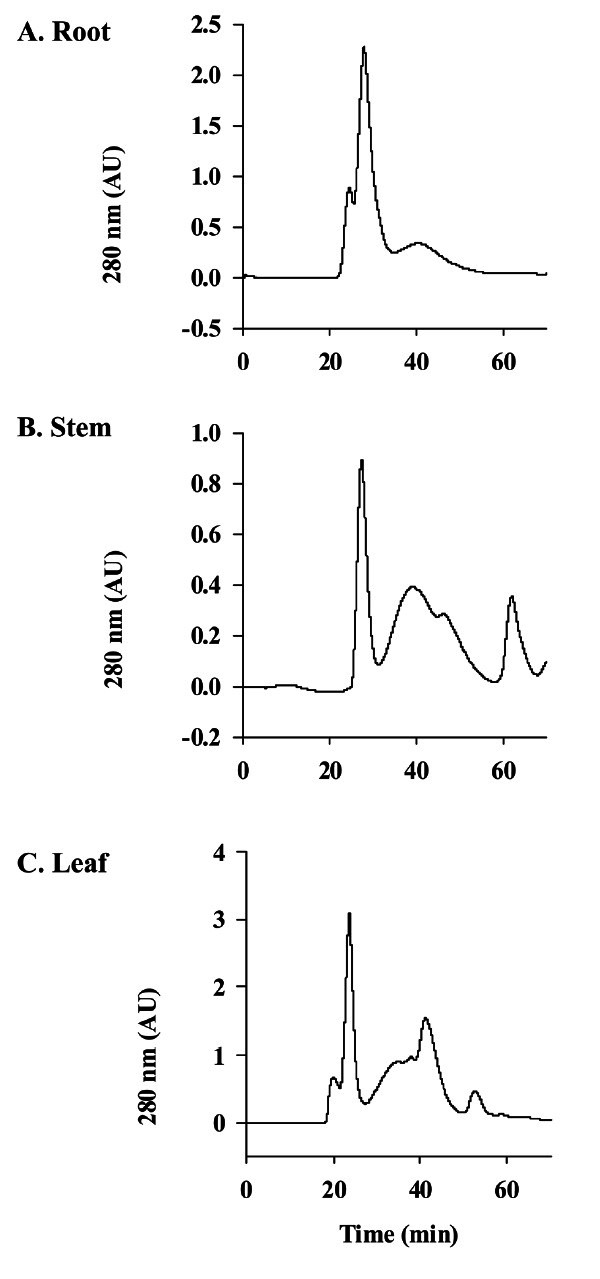

Fig. 5. Elution patterns of gintonin prepared from ginseng root, stem, or leaf by gel chromatography. Gel filtration chromatograms on Superdex 75 column with phosphate buffer saline (pH 7.2) of crude gintonin prepared from ginseng root (A), stem (B) or leaf (C). Analysis through gel filtration chromatograms showed that the main peaks of crude gintonin prepared from root, stem, or leaf are almost same but ginseng stem and leaf showed an additional peak after the main peak. We found that the main peak was active for the activation of Ca2+-activated Cl- channel.

Amino acid, carbohydrates, and lipid composition of gintonin prepared from ginseng root, stem, and leaf

The contents of total proteins in crude gintonin analyzed by Bradford method were approximately 25%, 13.8%, and 12.5% for ginseng root, stem, and leaf, respectively. Thus, protein contents of crude gintonin prepared from root were about three times higher than that from stem and leaf, leading to the possibility that stem and leaf contain other unidentified components besides protein. Amino acid composition of individual gintonins was summarized in Table 1.

Table 1.

Amino acid composition of gintonins

Amino acid	Root	Stem	Leaf
CYA1)	5.36	8.74	10.31
ASX2)	11.26	4.98	6.71
GLX3)	7.15	5.20	5.24
Ser	5.46	4.60	5.17
Gly	10.99	15.83	18.93
His	0.00	0.00	0.00
Arg	2.57	1.32	1.38
Thr	4.46	1.76	2.25
Ala	6.71	3.87	3.86
Pro	6.48	5.14	5.24
Tyr	1.31	0.99	0.84
Val	5.06	4.70	3.49
Met	0.89	1.19	0.70
Ile	5.39	8.15	6.78
Leu	7.98	5.39	5.34
Phe	11.45	17.42	14.89
Trp	1.10	1.86	1.65
Lys	6.38	8.85	7.22

The detail methods for amino acid compositions of each gintonin are described in Materials and Methods section.

Data are presented as percentage.

¹⁾The sum of cysteine and cystine.

²⁾The sum of asparagine and aspartic acid.

³⁾The sum of glutamine and glutamic acid.

As shown in Fig. 4 (right panel), the bands representative of crude gintonin from SDS-PAGE are single but broad and are not strongly stained with Coomassie Brilliant blue staining, indicating the possibility that crude gintonin might contain carbohydrate moieties. Therefore, we used PAS technique to determine whether gintonin contains carbohydrates as a previous report had suggested [5]. Crude gintonin from ginseng root, stem, and leaf was strongly stained by PAS as shown in Fig. 4B. Next, we examined carbohydrate composition of gintonins using the HPAEC-PAD system. Table 2 showed that carbohydrate compositions of gintonin prepared from ginseng root, stem, and leaf slightly differ from each other. Glucose was a major component (Fig. 6). Finally, the contents of total carbohydrate in crude gintonin were about 21.9%, 16.5%, and 33% for ginseng root, stem, and leaf, respectively. These results confirmed once again that gintonins are glycoproteins.

Table 2.

Carbohydrate composition of gintonins

Carbohydrates	Root	Stem	Leaf
Galactosamine	3.59	1.66	1.89
Galactose	19.72	12.13	53.09
Glucose	70.74	79.43	45.02
Glucuronic acid	5.95	6.78	-

The detail methods for carbohydrate compositions of each gintonin are described in Materials and Methods section.

Data are presented as percentage.

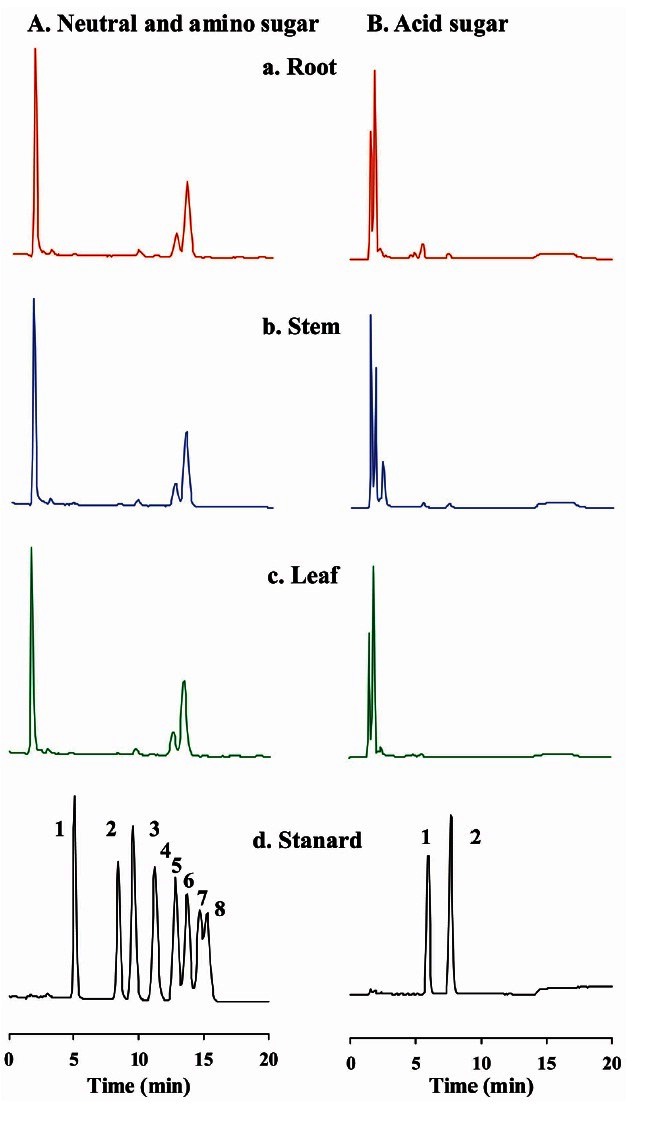

Fig. 6. Analysis of carbohydrate components of crude gintonin prepared from ginseng root, stem, or leaf by HPAEC-PAD chromatograms. (A-C) HPAEC-PAD chromatograms show that gintonins are composed of two different kinds of neutral sugars:glucose and galactose, one amino sugar, galactosamine, and one acid sugar, glucuronic acid. (A) Std stands for standard carbohydrates used; 1. L-fucose, 2. L-rhamnose, 3. D-galactosamine, 4. D-glucosamine, 5. D-galactose, 6. D-glucose, 7. D-mannose, 8, D-xylose. (B) Acid sugar; 1. Galacturonic acid, 2. Glucuronic acid.

We also examined lipid moieties. As shown in Table 3, crude gintonin of ginseng root, stem, and leaf contained fatty acids such as palmitic, stearic, linoleic acid, and other minor fatty acids. The portion of polyunsaturated fatty acid, linoleic acid intonin of ginseng root, stem, and leaf were greater than saturated fatty acids such as palmitic and stearic acid (Fig. 7). We found linoleic acid was the predominant lipid in crude gintonin of ginseng root, stem, and leaf. Next, we estimated total contents of lipid moiety in gintonins by gas chromatography. The contents of total lipids in crude gintonin were 25%, 13%, and 16% for ginseng root, stem, and leaf, respectively, once again reiterating that crude gintonin prepared from ginseng stem and leaf is composed of glycolipoproteins.

Table 3.

Lipids composition of gintonins

Lipids	Root	Stem	Leaf
Palmitic acid (16:0)	38.79	35.78	40.33
Stearic acid (18:0)	2.29	2.08	2.33
Linoleic acid (18:2)	52.66	57.34	57.34
Others	6.26	4.81	-

The detail methods for lipid compositions of each gintonin are described in Materials and Methods section.

Data are presented as percentage.

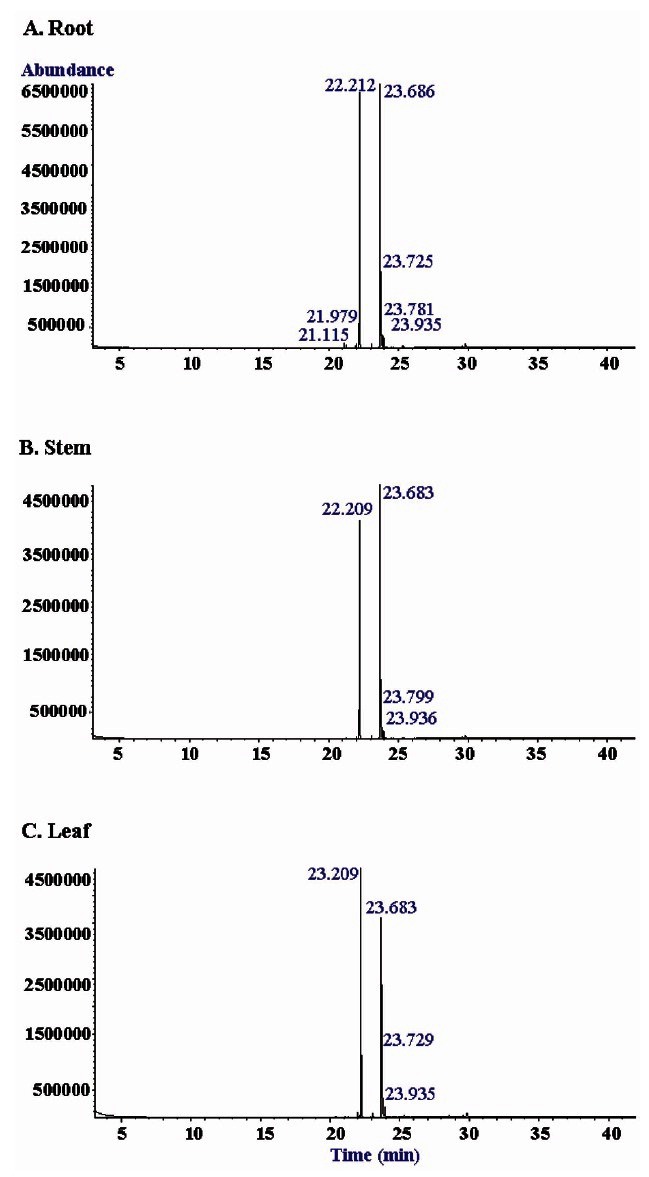

Fig. 7. GC-MS spectral analysis of lipid components of crude gintonin prepared from ginseng root, stem, or leaf. Acid hydrolyzed gintonin was partitioned between distilled water and n-butanol (n-BuOH). The n-BuOH layer, after concentration, was further partitioned between distilled water and n-hexane. The n-hexane layer was subjected to GC-MS with a DB5-MS capillary column. Several peaks were present in the hexane fraction of gintonin and were identified as palmitic acid, stearic acid, oleic acid, linoleic acid ester or free form. The 22.11 peak of palmitic acid (C_16:0) and 23.59 peak of linoleic acid (C_18:2) were dominant fatty acid in gintonins.

Effects of gintonin prepared from ginseng root, stem, and leaf on endogenous CaCC in Xenopus oocytes

We compared the degree of activation of CaCC of crude gintonin prepared from ginseng root, stem, and leaf. As shown in Fig. 8, treatment of crude gintonin prepared from ginseng root, stem, and leaf induced large inward Cl^- currents in a concentration-dependent manner at –70 mV holding potential (Fig. 8). However, there was a difference among them for the potency for CaCC activation. The order of potency for CaCC activation by crude gintonin was root > stem > leaf. The ED₅₀ was 1.4±1.4, 4.5±5.9, and 3.9±1.1 μg/mL for ginseng root, stem, and leaf, respectively. Thus, these results indicate that although crude gintonin prepared from ginseng root, stem, and leaf are similar to each other in terms of molecular weights and physico-chemical properties, there are differences in the degree of activating CaCC in Xenopus oocytes.

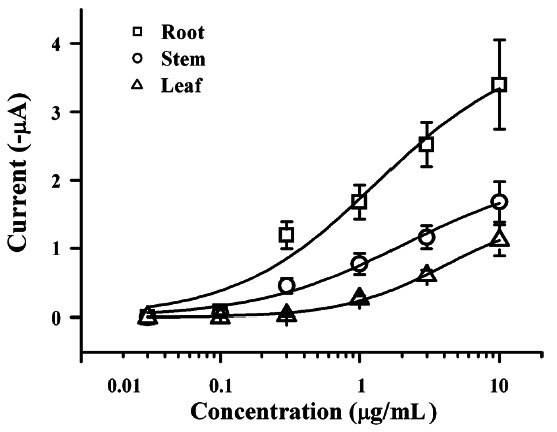

Fig. 8. Crude gintonin prepared from ginseng root, stem, or leaf activates Ca²⁺-activated Cl^- channel (CaCC) with concentration-dependent manner. Crude gintonin prepared from ginseng root, stem, and leaf increased inward CaCC currents in a concentration-dependent manner. The order of gintonin potency for CaCC activation was root > stem > leaf. Data represent means±SEM (n=7-8).

In the previous report, we demonstrated that ginseng root contains novel glycolipoprotein ingredients [5]. We named, which we named it as gintonin. Although gintonin was co-fractionated with ginsenosides in the butanol fraction, gintonin showed several distinguishing characteristics from ginsenosides. For example, gintonin carries charges, since gintonin consists of carbohydrates, lipids, and proteins, whereas in general we have determined that ginsenosides are one of neutral glycosides without any charges. The apparent molecular weight of gintonin is about 13 kDa but that of ginsenosides overall is about 0.8-1.3 kDa. More importantly, gintonin treatment caused activation of Ca²⁺-dependent ion channels such as the endogenous CaCC in Xenopus oocytes through mobilization of [Ca²⁺]_i, but ginsenosides did not [5].

DISCUSSION

In the present study, we report two major findings. First, we confirmed that ginseng stem and leaf contain gintonin, in addition to the root that was originally known. Second, we have developed a simple method for gintonin preparation from ginseng root, stem, and leaf. The simple method for crude gintonin preparation from ginseng root, stem, and leaf has at least three advantages as compared to previous method. First, the newly developed method requires a significantly lesser amount of organic solvents than the previous one. Second, the newly developed method takes less time for crude gintonin preparation, and finally third, the gintonin yield using this method is much higher than the previous method and we can apply this procedure to prepare a massive amount of gintonin using ginseng stem and leaf, which are otherwise usually discarded.

We observed some similarities and differences among gintonin prepared from ginseng root, stem, and leaf, respectively. Their molecular weights in SDS-PAGE were nearly identical (Fig. 4). In amino acid compositions, crude gintonin prepared from ginseng root, stem, and leaf contained high amounts of hydrophobic amino acids including phenyalanine, leucine, isoleucine, alanin and proline. Interestingly, phenylalanine was the most abundant amino acid in all gintonin fractions prepared from root, stem and leaf. Next, glycine was also abundant in all crude gintonin (Table 1). In carbohydrate compositions, glucose was the most abundant component in gintonin prepared from ginseng root, stem, and leaf (Table 2). Linoleic acid (C18:2) was the major lipid component in gintonin overall and was followed by palmitic acid (C16:0). Stearic acid (C18:0) was only a minor component (Table 3). Thus, crude gintonins of ginseng root, stem, and leaf are glycolipoproteins. Currently, we do not know how carbohydrate, lipid and protein components combine with each other to form the gintonin structure, and their respective roles in CaCC activation. In addition, we could not exclude the possibility that gintonin content or composition in ginseng root, stem, and leaf might vary from batch-to-batch and from different sources of ginseng. Further studies will be needed to establish standardization of gintonin and will be required to elucidate the physico-chemical properties of gintonin and the role(s) of each portion of ginseng.

In our previous study we demonstrated that gintonin from ginseng root induced CaCC activation in Xenopus oocytes through mobilization of [Ca²⁺]_i [5]. Interestingly, when we compared the potency for endogenous CaCC activation in Xenopus oocytes using gintonin fraction prepared from ginseng root, stem, and leaf, we found that crude gintonin prepared from ginseng root was much more potent than that from stem and leaf for the activation of CaCC. Thus, the potency of gintonin from ginseng stem for the activation of CaCC was half that of gintonin from ginseng root. The potency of gintonin from ginseng leaf was about one-third of gintonin prepared from ginseng root (Fig. 8). We could not clearly explain why there are some differences for the activation potency of CaCC among the different sources of gintonin. A possible reason is that gintonin prepared from ginseng stem and leaf might contain other unidentified components that were not revealed in ginseng root by gel chromatography (Fig. 5), although we have extracted with hexane to remove hydrophobic components that may have remained in the butanol fraction.

Usually, ginseng stem and leaf are discarded as waste after ginseng root harvest, since the traditional herbal medicines only use ginseng root. Although the amount of discarded ginseng stem and leaf annually are considerably large compared to the amount of ginseng root used, no efficient methods were available to utilize ginseng stem and leaf until now. In the present study, we found that ginseng stem and leaf also contain gintonin and could be prepared from a simple preparation method similar to ginseng root. Therefore, we have at least two benefits for gintonin preparation from ginseng stem and leaf: we can utilize ginseng stem and leaf that are usually discarded after ginseng is harvested as described above for crude gintonin preparation instead of ginseng root, which is quite expensive to buy. Additionally, we could obtain a large amount of gintonin from ginseng stem and leaf, if the methods for mass processing of ginseng stem and leaf are developed.

Taken together, we identified that ginseng stem and leaf in addition to ginseng root contain a novel glycolipoprotein, which we refer to as gintonin, that causes the activation of CaCCs in Xenopus oocytes through mobilization of [Ca²⁺]_i. Since elevation of intracellular Ca²⁺ as a second messenger plays an important role in a variety of cellular functions [9], the present findings also demonstrate the possibility that gintonins prepared from ginseng stem and leaf as well as ginseng root could be utilized for the explanation of Ca²⁺-mediated physiological and pharmacological effects of ginseng.
