Targeting the Binding Function 3 (BF3) Site of the Human Androgen Receptor Through Virtual Screening

Abstract

The androgen receptor (AR) is the best studied drug target for the treatment of prostate cancer. While there are a number of drugs that target the AR, they all work through the same mechanism of action and are prone to the development of drug resistance. There is a large unmet need for novel AR inhibitors which work through alternative mechanism(s). Recent studies have identified a novel site on the AR called Binding Function 3 (BF3) that is involved into AR transcriptional activity. In order to identify inhibitors that target the BF3 site, we have conducted a large-scale in-silico screen followed by experimental evaluation. A number of compounds were identified that effectively inhibited the AR transcriptional activity with no obvious cytotoxicity. The mechanism of action of these compounds was validated by biochemical assays and x-ray crystallography. These findings lay a foundation for the development of alternative or supplementary therapies capable of combating prostate cancer even in its anti-androgen resistant forms.

INTRODUCTION

Prostate cancer is the most commonly diagnosed non-skin cancer in men and one of the leading causes of cancer related death¹. If the cancer is diagnosed early, it is frequently curable by surgery or radiotherapy. However, locally advanced, recurrent or metastatic prostate cancer is difficult to control. Such patients are often treated with androgen withdrawal therapies that are designed to either target the production of androgens or their binding to the androgen receptor (AR)^2-3. While initially successful, the effectiveness of this type of treatment is usually temporary and the surviving tumor cells almost always progress to a “castration-resistant” state. The treatment options for these patients are very limited and the median survival is only 1-2 years⁴.

While the molecular mechanisms responsible for progression to a castration-resistant stage are largely unknown, there is considerable evidence that in most cases the activation of AR is still the main driver of cancer growth^5-6. In over 80% of locally advanced castration-resistant prostate cancers, high levels of nuclear AR have been observed^7-8 and in bone metastases, the amount of AR present is often higher than in primary tumors⁹. There is considerable evidence that some form of inappropriate AR activation is linked to recurrent growth of most prostate cancers^5-6. Therefore, targeting the AR remains a viable option with potentially curative outcomes for even castration-resistant prostate cancers^{5, 10-12}. However, this will likely require a different type of agent than what is presently available.

Currently, all clinically approved AR-targeting anti-androgens work through a similar mechanism of action, whereby the compound directly inhibits the binding of androgen to the ligand binding site of the receptor. While this approach is initially effective, the cancer will often develop resistance. In addition, there are several limitations to this class of drugs. First, because of the location of drug binding, it is not uncommon for these anti-androgens to act as partial agonists or mixed agonists and inadvertently increase the growth of the cancer¹³. Second, as all of these anti-androgens work through the same mechanism, it is not possible to use the compounds concurrently to prevent the emergence of drug resistance. Therefore, there is a pressing need for new therapeutic strategies to inhibit AR activity.

The activation of the AR follows a well-characterized pathway. First, androgen binds to the AR and initiates a cascade of events, including dissociation of repressor proteins, dimerization, translocation of the AR into the nucleus and DNA binding to the AR enhancer sequences^14-15. Once in the nucleus the AR interacts with co-activator proteins such as steroid receptor co-activators (SRC) at the activation function-2 (AF2) site of the AR (Figure 1). This triggers the recruitment of RNA polymerase II and other transcriptional factors to form a complex with the AR that leads to the transcription of target genes. These co-activator proteins are important for the transcriptional activation of the AR. Cellular environments enriched in co-activators can cause the AR to become more sensitive or responsive to low levels of androgens¹⁶ and may also allow promiscuous activation of the AR by abundant, yet low-affinity, androgenic ligands¹⁷. Importantly, without co-activator protein interactions the AR cannot initiate transcription¹⁸.

Figure 1.

AF2 and BF3 site on AR.

Recently, a high throughput screen of AR with a known compound library identified several compounds that bind to the protein's surface at a novel structural pocket, referred to as the binding function 3 (BF3)¹⁹ (Figure 1). It was proposed that when a small molecule binds to the BF3 the AR protein undergoes an allosteric modification that prevents AR interactions with co-activators. Importantly, the BF3 site is located near, but distinct from, the ligand-binding site that is normally targeted by conventional anti-androgen drugs. Chemicals such as flufenamic acid (FLUF), thriiodothyronine (T3) and 3,3′,5 –triiodo thyroacetic acid (TRIAC), can bind to the BF3 cleft, inhibit AF2 interactions and interfere with AR activity¹⁹. While these compounds revealed the importance of the BF3 site, they had low potency (IC₅₀ > 50μM) and were found to bind non-specifically to the AR.

In an effort to improve target affinity and BF3 specificity, we have conducted a large-scale computational screen to identify BF3-directed AR inhibitors. Using an iterative combination of virtual and biological screenings, we have discovered a number of potent small molecules that bind to this site and inhibit AR activity.

RESULTS

Virtual screen for potential BF3 binders

Using a previously described²⁰, consensus-based in silico methodology (Figure 2) we conducted a virtual screen of ~10 million purchasable chemical substances from the ZINC database²¹ to identify BF3-specific binders. The screening method used a combination of large-scale docking, ligand-based QSAR modeling, pharmacophore search, molecular field analysis, molecular-mechanic and molecular dynamic simulations^22-24. The results from each stage of this multi-parametric approach were compiled and the compounds were ranked using a consensus scoring procedure (Figure 2). The 10,000 highest ranked compounds were visualized and 213 initial candidates, predicted to have a high potential for binding to the BF3 pocket, were selected for empirical testing (the hit list is provided as Supporting Information 1).

Figure 2.

In-silico pipeline developed to identify potential AR BF3 binders from the ZINC database.

Cell-based testing

All 213 compounds were screened for their ability to inhibit AR transcriptional activity using a non-destructive, cell-based eGFP screening assay²⁵. In this assay, the expression of eGFP is under the control of an androgen responsive probasin-derived promoter and can quantify AR transcriptional activity. From the compounds purchased, 55 exhibited >50% inhibition of AR transcription at 50μM concentration (Figure 3). Compounds that exhibited non-specific cellular toxicity were removed from further analysis. The most potent molecules had IC₅₀'s ranging in from 0.5 to 50μM range (Figure 4 and Table 1). These results were confirmed using a transient transfection androgen receptor transcriptional luciferase assay in both LNCaP and HELA-AR cells²⁶. Compounds that had an IC₅₀<50μM and no obvious cytotoxicity were used for further studies.

Figure 3.

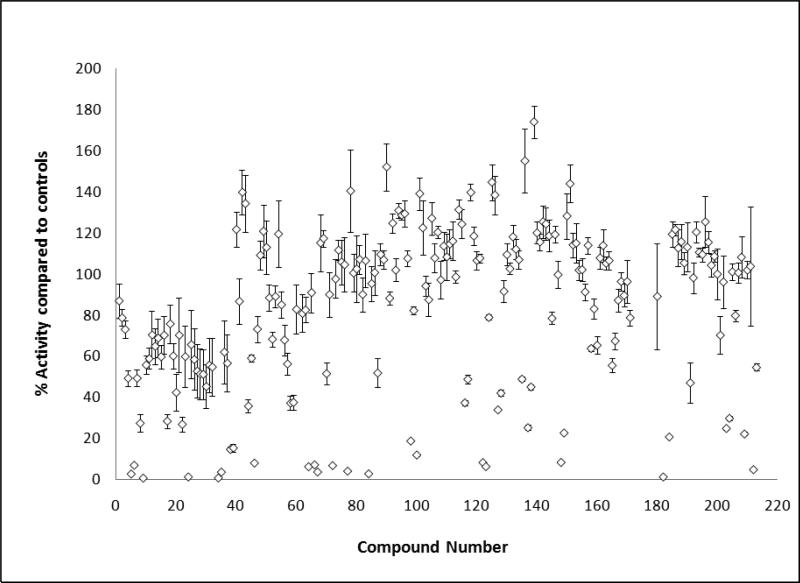

Relative AR inhibition potentials of tested compounds.

Figure 4.

Concentration-dependent inhibition of the AR by four selected compounds.

Table 1.

Structural and experimental data for the AR BF3 interactors evaluated by the X-ray.

#	Compound (with ZINC ID)	AR Transcriptional IC50 (± SE), (μM)	LNCaP LD50 (μM)1	AF2 FP IC50(μM)	DHT IC50(μM)	AR-LBD SPR
1		50-100	>100	>502	>10	Binds3
2		50-100	>100	>50	>10	Binds3
3		13.1 ± 1.2	>100	>50	>10	Binds3
4		38.8 ± 1.3	>100	>50	>10	Binds3
		1.2 ± 0.3	>100	>50	>10	Binds3
		0.9 ± 0.2	>100	>50	>10	Binds3
		0.5 ± 0.1	50	>50	>10	Sensor destabilizes
		50-100	>50	>50	NT	Binds3
		50-100	>100	>50	>10	Binds3

¹As determined by MTS assay (see Materials and Methods) this represents the concentration whereby >50% of cells have died;

²Peptide displacement was observed at higher concentrations;

³No compound could be fitted by a 1:1 model, suggesting multiple binding sites at higher concentrations

In vitro biochemical characterization

Next, the most active compounds were tested by surface plasmon resonance (SPR) to quantify direct binding to the AR ligand binding domain (AR-LBD). Multiple strategies were explored for the immobilization of the AR-LBD to the surface of the SPR chip. N-terminal site-specific biotinylation of the protein was chosen as it allows homogenous presentation of the AR-LBD in a semi-permanent fashion. Direct measurements of the binding of known AF2 interacting peptides were regularly tested to confirm the stability and function of the coated chips. When tested by SPR, the majority of the active inhibitors were found to directly interact with the AR-LBD as determined by response units (Figure 5). However, it is important to note that none of these compounds exhibit a simple 1:1 mode of interaction, suggesting multiple binding sites at high micromolar ranges (>100 μM). In addition, compound 3 clearly shows aggregation-like behaviour at higher concentrations.

Figure 5.

SPR curves describing direct interactions between compounds 1-4 and the AR.

Crystallographic structures of AR in complexes with the BF3 inhibitors

In an effort to unambiguously confirm the site of the compounds interaction, X-ray crystallographic studies were conducted with the AR and nine potential BF3 binders (Table 1). Following optimization, four structures of the AR in complex BF3-bound molecules (corresponding to compounds 1-4 from Table 1) were determined with 2.3-2.5Å resolution. The crystallographic data refinement statistics for the corresponding PDB entries 2YLQ, 2YLP, 2YLO and 2ZQT are presented in Table 2. In all of the crystallographic datasets there was clear electron density supporting the presence of a ligand in the BF3 (Figure 6). Interestingly, similar to previously published BF3 binders such as compound 5 (TRIAC), 6 (T3) and 7 (FLUF)¹⁹ (Supplementary Figure 1), compound 1 was found to reside in both the AF2 and BF3 (Supplementary Figure 2 in Supporting Information 2) and could be characterized as non-specific AR interactor.

Table 2.

Data collection and refinement statistics.

PDB code (compound)	2YLP (1)	2YLQ (2)	2YLO (3)	3ZQT (4)
X-ray Source	ALS 5.03	ALS 5.03	ALS 5.03	ALS 5.03
Space Group	P212121	P212121	P212121	P212121
Unit cell parameters a, b, c (Å), α, β, γ (°)	56.7, 66.5, 73.5, 90.0, 90.0, 90.0	56.2, 66.5, 73.3, 90.0,90.0,90.0	55.3, 66.5, 73.1, 90.0, 90.0, 90.0	55.9, 66.2, 72.9 90.0,90.0,90
Data collection statistics
Resolution (Å)	2.3 (2.3-2.42)	2.4 (2.4-2.53)	2.5 (2.5-2.64)	2.34 (2.34-2.38)
Rsym or Rmerge	0.079 (0.451)	0.093 (0.405)	0.103 (0.555)	0.098 (0.66)
No. of unique reflections	12422 (1786)	11260 (1624)	9822 (1414)	11031 (1532)
I/σ (I)	10.1 (3.1)	11.1 (3.6)	10.5 (2.9)	21 (1.5)
Completeness (%)	97.3 (97.4)	100.0 (100.0)	100.0 (100.0)	93.6 (73.7)
Multiplicity	5.5 (5.6)	5.7 (5.9)	6.4 (6.6)	6.4 (4.4)
Refinement and model statistics
Resolution (Å)	2.3	2.4	2.5	2.34
No. reflections used (work + test)	11755	10669	9316	11306
Rworka	0.195	0.201	0.224	0.228
Rfreea	0.249	0.272	0.289	0.298
No. of residues	249	249	250	250
No. of water molecules	56	12	22	26
Additional molecules	3	3	3	3
Total No. of atoms	2124	2066	2154	2071
R.M.S.D bond length (Å)	0.019	0.018	0.016	0.015
R.M.S.D bond angles (Å)	1.7	1.7	1.6	1.5
Wilson B-factor (Å2)	35.4	44.7	44.6	49.1
Mean B-factor (Å2)	32.4	35.6	40.5	51.7
Ramachandran statistics (%)
Favoured region	92.1	89.9	88.1	91.6
Additional allowed region	7.0	9.3	11.5	7.9
Generously allowed region	0.9	0.9	0.4	0.4
Disallowed	0	0	0	0

Figure 6.

Electron-density for the identified BF3 binders 1-4 inside the BF3 target site.

The conformation of the bound compounds 1-4 inside the AR BF3 site are presented on Figure 7. The anchoring of 1 inside the AR BF3 site is mainly controlled by van der Waals interactions between the two benzene rings and hydrophobic sidechains of Pro723, Phe673, Tyr834, Leu830 Phe826 (illustrated on Figure 7). One of the chlorine atoms is also involved into a number of strong hydrophobic interactions with a side-chain of Glu829 residue. The binding pose of 1 can be viewed as similar to a conformation of a previously reported crystallographic ligand 7 (Supplementary Figure 1) of the BF3¹⁹; the superposition of the two molecules inside the BF3 is shown on Supplementary Figure 5 in Supporting Information 2.

Figure 7.

Crystallographically determined conformation of the identified BF3 binders 1-4 inside the BF3 target site.

The binding of a compound 2 is anchored by a strong hydrogen bond between its carboxylic group and a side chain of Asn727 and hydrophobic interactions between ligand's bezimidazole core and side-chains of Pro723, Phe673 and Tyr834. Relatively strong van der Waals interactions also occur between the ligand and Leu830 residue. Additional stabilization of a bound ligand includes pipi interaction between side-chain carbonyl of Asn833 residue and ligand's benzene ring reaching outside the BF3 groove (Figure 7).

Good overall steric fit of compound 2 in the BF3 is illustrated by the 3D representation of the binding pose featured on Figure 7. Notably, the positioning of compound 2 is also very similar of earlier observed binding of 2-Methylindole (8 on Supplementary Figure 1) and Indole-3-caroxylic acid (9) (Supplementary Figure 1) to the BF3 site presented in PDB structures 2PIO and 2PIP¹⁹ (shown on Supplementary Figure 6 in Supporting Information 2).

The structure of AR-LBD in complex with compound 3 is similar to previously described molecule 2 but their BF3-bound conformations are quite different. The bezimidazole moiety of compound 3 is turned inside the BF3 site, compared to compound 2 and benzene fragments of the two molecules expand from the binding site in opposite directions. Supplementary Figure 7 in Supporting Information 2 features the superposition of experimentally established conformations of 2 and 3 inside the BF3 groove. Main protein-ligand interaction forces coordinating 3 in the site also include strong hydrophobic interactions with Pro723, Phe673 and Tyr834. Additional stabilization of a ligand inside the target site occurs due to arene-arene conjugation between a benzene ring of 3 and Phe826; this strong interaction can likely account for a difference in binding of 2 and 3.

In 3ZQT structure, the crystallographic BF3 ligand - nordihydroguaiaretic acid (compound 4) was found to be in a good overall fit to the protein cavity (Figure 7). It is important to note that this structure had the weakest electron density; however the structure of the AR in this complex also revealed significant changes to the protein conformation compared to the previously reported structures of the AR with 5-7¹⁹ (Supplementary Figure 1). As Supplementary Figure 8 in Supporting Information 2 illustrates, four residues in the BF3 site were significantly repositioned by the binding of 4. In particular, the Asn727 side chain underwent conformation change inward to the ligand to form a hydrogen bond with its OH group bridged through a water molecule (HOH1 shown on Supplementary Figure 8) that has not been observed in previous AR structures. Also, the residues Glu829 and Glu837 were pushed away from 4, perhaps due to the presence of non-polar fragments in the corresponding areas. Such repositioning of Glu side chains led to a loss of 2 water molecules that are present in all previously reported AR structures. There is also a very significant change in the position of Phe826 likely caused by above-mentioned relocation of Asn727. Further analysis of protein-ligand contacts in the resolved complex identified several strong hydrophobic interactions between an aromatic ring of 4 and Leu830 residue as well as anchoring hydrophobic interactions between Phe673 and the second aromatic system of 4 (Supplementary Figure 8 in Supporting Information 2). Notably, Arg840 which has previously been characterized as critical anchoring point of the BF3¹⁹ is also considerably repositioned in the BF3-4 complex and forms an internal salt bridge with Glu837 side chain of the receptor.

In the crystal structure of 4, three hydrophilic hydroxyl groups that are not involved into interactions with the BF3 are all exposed to the solvent (Figure 7) contributing to overall favourable energy of protein-ligand interaction.

Ligand efficiencies of the identified BF3 binders

The ligand efficiencies (LE) and the lipophilicity-corrected ligand efficiencies (LiPE) have been calculated for all molecules featured in Table 1. These values (shown in Supplementary Table 1) indicate that compounds ZINC01088536, ZINC13389506 and ZINC17889531 possess the highest LiPE amongst the established actives and may represent good potential for future lead optimization. Notably, the reported ligand efficiencies of the identified BF3 ligands are significantly higher than of the previously reported BF3 binders ¹⁹ (2.7 versus -0.27).

AF2 binding with inhibitors and BF3 specific mutants

Previous work proposed that the binding of a ligand to the BF3 site would cause the surface of the adjacent AF2 pocket to undergo conformational changes that would prevent co-activator interaction¹⁹. In an effort to test this hypothesis, the identified BF3 binders (1-4) were analyzed for their ability to disrupt the interaction between an AF2 specific peptide (SRC23) and the AR (Figure 7). While these compounds have been demonstrated to bind the BF3, they did not disrupt AF2 interactions as previously proposed. Compound 3 was found to cause an increase in mP, which may be due to the aggregation-like behavior previously observed in the SPR experiments. Further, none of the compounds acted as antagonists of the AR ligand binding site similar to conventional anti-androgens (Table 1). These data suggest that the identified compounds do not inhibit endogenous interactions at either the ligand binding site or the AF2 pocket. Thus, the results of the SRC23 peptide- and DHT displacements experiments allow characterizing compounds 2-4 as selective BF3 binders, while compound 1, similar to previously reported compounds 5 and 7 (and structurally resembling the latter), appears to be a weaker and non-specific AR interactor.

To better understand the relationship between the AF2 and BF3 sites, a series of AR BF3 mutants were created, expressed and purified. From the previously published crystal structure of the AR in complex with 5 (Supplementary Figure 1), the mutants created were expected to significantly disrupt the molecule's BF3 binding¹⁹. However, when these mutants were tested with 5, there were no significant changes in the compound IC₅₀ (WT= 34.8±1.1, R840A = 42.8±1.1, F673R = 28.3±1.4 [Mean±SE]). Importantly, both the mutants and wild type AR were found to have a similar affinity for the SRC23 peptide (Supplementary Figure 3 in Supporting Information 2). These experiments suggest that the displacement of AF2 specific peptides by 5 does not likely require interactions with the BF3.

DISCUSSION

Using a BF3-targeted in silico screen combined with biochemical testing, we have identified a structurally diverse series of compounds with potent anti-AR activity. Importantly, these inhibitors do not act as conventional anti-androgens, and may offer a potentially new therapeutic avenue. In the structures of the AR in complex with the identified inhibitors, the compounds were found to locate directly in the BF3 site as computationally predicted, with the corresponding RMSD values not exceeding 1.5Å (Supplementary Figure 4 in Supporting Information 2 features predicted docking poses of compounds 1-4 versus their experimentally identified AR-bound conformations).

Interestingly, following the completion of the screen, it was found that compound 4 was previously described to have anti-cancer activity and had even been used in a clinical trial to treat prostate cancer^27-28. In that work, its anti-cancer activity was suggested to occur through the inhibition of insulin-like growth factor - 1 receptor and not the AR. However, the FRET assay used in that study to test AR activation would only be able to test AR dimerization and could not detect inhibition that would occur following translocation. Interestingly, in the clinical trial of prostate cancer patients, compound 4 was demonstrated to have much greater activity in patients with androgen dependent prostate cancer²⁹. This could be explained with the results of the present study, which suggests that the BF3 interaction also contributes to the anti-prostate cancer activity of compound 4 via AR inhibition.

Our results with the identified BF3 ligands demonstrate that binding to the BF3 site does not always cause AF2 peptide displacement (Figure 7). Previous studies proposed that binding of small molecules to the BF3 site allosterically alters the AF2 site of the AR through movement of Arg840, subsequently preventing interactions with co-activator proteins¹⁹. This mechanism of action was proposed for compound 5 and 7 (Supplementary Figure 1), which were found crystallographically to bind the BF3 site of the AR and also inhibit AF2 peptide binding. However, when these crystals were soaked for longer periods, it was determined that the compounds also bind to the AF2. From our data with compounds 1-4, as well as additional studies with compound 5 (Supplementary Figure 1) and BF3 mutants, it is likely that the results reported¹⁹ in peptide displacement are due to direct AF2 binding rather than interactions with the BF3. It is particularly interesting that compound 1, which also bound to the AF2, did not show detectable SRC23 peptide displacement at the tested concentrations. A similar phenomenon was also previously observed with compound 3-((1-tert-butyl-4-amino-1Hpyrazolo [3,4-D]pyrimidin-3-yl)methyl)phenol (compound 10 on Supplementary Figure 1) whereby they bound the AF2 but did not prevent interactions with the co-activator¹⁹. While surprising, this does raise additional questions about the role of the BF3 site. Despite this uncertainty about the exact role of the BF3 site in AR interactions and activation, it is undoubtedly important. Thus, a very recent study indicated that BF3-directed ligands are likely to interfere with the AR association with FKPB52 protein – an important positive regulator of the receptor³⁰. Furthermore, there have been several clinical cases of androgen insensitivity syndrome that were apparently caused by mutations in the BF3 site of the AR³¹.

CONCLUSIONS

To summarize the current work it is possible to conclude that the developed BF3-oriented compounds demonstrate mechanism of anti-AR action that is distinct from all clinically used anti-androgens and with little toxicity. Thus, there is a strongly likelihood that compounds that target the BF3 may be used synergistically with the current anti-androgen therapies. This has many advantages as it would greatly decrease the opportunity for AR mutations and subsequent anti-androgen resistance.

MATERIALS AND METHODS

In silico screening

Ten million commercially available compounds from the ZINC-5.0 and ZINC-8.0 structural libraries²¹ were imported into a molecular database using Molecular Operating Environment (MOE) version 2007.09³². These structures were energy minimized using an MMFF94x force field, exported in SD format and rigidly docked into the BF3 site of the protein structures 2PIT and 2PIX with Glide software³³ (two conserved water molecules were kept in the BF3 during the docking). In order to evaluate the reproducibility of the docking programs, compounds 5 and 7 were self-docked into the BF3 site. The generated poses are in good agreement with crystallographic conformations of the compounds having an RMSD of 1.75 and 0.95 (5 and 7) respectively (Supplementary Figure 1). Subsequently, the large scale virtual screening was done on the BF3 site using compound 5 as the native template compound. About 2 million molecules that had a GlideScore<-6.0 were then re-docked into the same BF3 binding cavity using the electronic high-throughput screening (eHiTS) docking module³⁴. From this, 500,000 structures with eHiTS docking scores <-3.0 threshold were identified. These molecules were then further tested by six different parameters. First, they were re-docked using the ICM-Dock module of the ICM-Pro 3.6 program³⁵ allowing all rotatable bonds to be varied and a series of low energy conformations to be generated (www.molsoft.com/docking.html). Second, they were scored by the LigX module of the MOE³² to account for the receptor/ligand flexibility. Third, the pKi binding affinity was scored after energy minimization to select the ligands that showed the best binding characteristics defined mainly by the energy of hydrogen bonds and hydrophobic interactions. Fourth, the virtual hits were scored using Molecular Mechanics, the Generalized Born model and Solvent Accessibility (MM-GB/SA) method with OPLS_2005 and GB/SA in MacroModel to calculate the free energies of the optimal chemical poses³⁶ (www.schrodinger.com). Fifth, the root mean square deviation (RMSD) was calculated between the Glide poses and the eHiTS poses to evaluate the docking consistency and thus to establish the most probable binding pose for a given ligand. Sixth, very large and very small molecules were penalized based on a heavy atom count.

With this information, a cumulative scoring of six different predicted parameters (RMSD, ICM, heavy atoms count, LigX, Macromodel, pKi) was generated where each molecule receive a binary 1.0 score for every ‘top 10% appearance’. The final cumulative vote (with the maximum possible value of 6) was then used to rank the training set entries. Based on the cumulative score 10,000 compounds were selected and subjected to visual inspection. After this final selection step 300 compounds were selected out of which 213 chemical substances could be readily purchased in sufficient purity and quantity.

When analysing the protein-ligand interactions in the resolved crystal structures we have used a Scoring.svl module of the MOE (32) to quantify the relative strength of protein-ligand interactions bonds, expressed in a percentage relative to an “ideal” bonding of that type.

eGFP Cellular Transcription Assay

AR transcriptional activity was assayed as previously described²⁵. Briefly, stably transfected eGFP-expressing LNCaP human prostate cancer cells (LN-ARR2PB-eGFP) containing an androgen responsive probasin-derived promoter (ARR2PB) were grown in phenol red free RPMI 1640 supplemented with 5% CSS. After 5 days, the cells were plated into a 96-well plate (35,000 cells/well) with 0.1 nM of the synthetic androgen R1881 and increasing concentrations (0-100 μM) of compound. The cells were incubated for three days and the fluorescence was then measured (excitation 485 nm, emission 535 nm). The viability of these cells was assayed by MTS cell proliferation assay (CellTiter 961 Aqueous One Solution Reagent, Promega). This assay quantifies mitochondrial activity by measuring the conversation of a tetrazolium salt is to a purple formazan.

Luciferase Transcription Assay

HeLa-AR cells (gift of M. Carey, University of California at Los Angeles, Los Angeles, USA) or LNCaP cells were seeded in 24-well plates and when they reached 90% confluency they were transfected with 125 ng/well of pARR3-tk-Luc using lipofectamine 2000 reagent (Invitrogen). Cells were incubated with the transfection mix for 16 h at 37°C and then incubated with 5% CSS RPMI containing 1 nM R1881 and increasing concentrations of the compound (0-100 μM) for 24 h. Luciferase activity was quantified with the Dual-Luciferase Reporter Assay System (Promega) and normalized to protein concentration. Each assay was performed in triplicate.

Surface Plasmon Resonance

The AviTag sequence (GLNDIFEAQKIEWHE) followed by a six-residue glycine serine linker (GSGSGS) was incorporated at the N-terminus of the AR-LBD (669-919). Expression was carried out in the presence of the dihydrotestosterone (DHT) and biotin in BL21 cells carrying vectors for the biotin ligase and the avitag AR-LBD. Following IMAC purification by Talon resin, the biotinylated AR (bAR) was further purified by size-exclusion (S200 1660) and cation exchange (HiTrap SP).

Custom surfaces were prepared by covalent coupling of avidin and subsequent capture of the purified bAR. Briefly, dextran-free C1 chips were primed with phosphate buffer (pH 7.4) and preconditioned by injection of 0.25% SDS and 50 mM NaOH at 25°C. Standard amine coupling protocols (EDC/NHS) were used for the immobilization of between 300 and 600 response units (RU) of avidin. Following covalent capture of avidin, the remaining activated NHS esters were quenched by injection of 1 M ethanolamine. At this point, temperature was dropped to 8°C and small molecule assay buffer (20 mM HEPES, 150 mM NaCl, 100 μM TCEP, 500 nM DHT, 3% DMSO) was introduced. Prior to capture of bAR, the instrument was normalized using 70% glycerol. The bAR was flowed past the surface at a concentration of 100nM for the controlled immobilization of between 400 to 800 RU. Following capture of the bAR, free biotin (1 μM) was injected across both reference and active surfaces to ensure saturation of the remaining sites. Relative activities of the surfaces were assayed by dose response of the AR N-terminal domain (YRGAFQNLFQSV) peptide.

In order to minimize competition with hormone agonist and focus on potential surface binding compounds, initial screens at a single concentration of 150 μM were performed at 8°C with a background of 500 nM DHT. Each cycle consisted of a 20 second buffer injection, a 60 second injection of the small molecule sample, and then a 30 second injection of the control peptide. Consistency of the control peptide response over the course of an individual screen was critical in ensuring that the immobilized protein remained functional. Reference-subtracted and solvent-corrected sensorgrams for each sample were ordered by measured response and evaluated for specific binding vs. aggregation potential. Small molecules that exhibited aggregation or non-specific behaviour were discarded and not investigated further by the SPR.

Those compounds that displayed similar kinetic profiles to the known AF2-interacting control peptides were prioritized for further characterization by dose-response experiments. Conducted under the same conditions as the single point screen, compounds were serially diluted from the high concentration. The resulting isotherms were again filtered for aggregation potential and analyzed by a standard 1:1 langmuir binding model.

Heterologous Expression of AR-LBD

LB supplemented with 50 μg/ml kanamycin and 25 μM DHT was inoculated (1/100 dilution) with an overnight culture of E. coli BL21 (DE3) containing pET28b-AR-LBD. The bacteria were grown at 28°C to an OD600 0.8 - 1.0 and then induced overnight at 15°C with 0.1 mM isopropyl-b-D-thiogalactoside. The bacteria were pelleted (6,000 × g, 15 min), resuspended in lysis buffer (10% glycerol, 50 mM HEPES pH 7.5, 150 mM Li₂SO₄, 0.5 mM TCEP, 25 μM DHT and Roche EDTA-free complete protease inhibitors) and then lysed by sonication. The resulting lysate was centrifuged (15,000 × g, 20 min) and the supernatant was purified by immobilized metal affinity chromatography using a Ni-NTA column.

Site Directed Mutagenesis

Site directed mutagenesis was conducted with the QuikChange method (Stratagene) as per the manufacturer's instructions (www.stratagene.com).

Androgen Displacement Assay

Androgen displacement was assayed with radioactive DHT as previously described³⁷.

AF2 Fluorescence Polarization Assay

Purified AR-LBD (1 μM) and 5-iodoacetamidofluorescein labeled SRC23 peptide (CKENALLRYLLDKDD; 5 nM) were incubated with increasing concentration of compound (0-250 μM) in 25 mM HEPES pH 7.5, 50 mM NaCl, 0.01% NP40 and 2 μM DHT. The experiments were conducted in triplicate and the mean ± standard deviation was calculated. The data was analyzed by nonlinear regression with the software GraphPad (GraphPad Software, San Diego, CA, USA) and fit using the following equation:

$$Y=Bottom+\frac{Top-Bottom}{1+{10}^{(LogI{C}_{50}-X)-HillSlope}}$$

Determination of compound purity

Compound identity and purity was confirmed by LC-MS/MS. Briefly, an Acquity UPLC with a 2.1×100mm BEH 1.7μM C18 column coupled to a PDA detector in line with a Quattro Premier XE (Waters, Milford, MA) was used with water and acetonitrile containing 0.1% formic acid as mobile phases. A 5–95% acetonitrile gradient from 0.2–10.0 minutes was used, 95% was maintained for 2min followed by re-equilibration to starting conditions for a total run time of 15.0min. The MS was run at unit resolution with 3kV capillary, 120°C and 300 °C source and desolvation temperatures, 50 and 1000L/hr cone and desolvation N2 gas flows and Argon collision gas set to 7.4-3 mbar. Based on the full range of the diode array absorbance (210-800nm) the relative purity (AUC_CMPD vs. AUC_{All other peaks}) was calculated. All compounds described had a purity of >90-95%. The HPLC and MS spectra of compounds 1-4 are presented as Supplementary Figures 10-13 in Supporting Information 2 file.

Protein expression, purification, crystallization and data collection

The LBD of human AR containing amino acid residues 663–919 was expressed as a glutathione S-transferase (GST) fusion protein in the E. coli BL21 (DE3) cells. Cell culture was carried out in 2-YT medium at 18°C. Testosterone was added into cell culture medium (200 μM) before induction with 100 mM isopropyl-b-D-thiogalactoside . Fusion proteins were purified by glutathionesepharose affinity column and subsequently cleaved with thrombin. The protein was further purified by cation exchange chromatography. In order to stabilize the AR-LBD all solutions during purification contained 50μM testosterone.

The binary complex of AR-LBD and testosterone was crystallized using sitting drop vapour-diffusion method at 294 K. The protein sample contained 3 mg/ml AR-LBD, 50 μM testosterone, 50 mM NaCl, 70 mM Li₂SO₄, 0.1% n-octyl-beta-glucoside, 40mM Tris-HCl, pH 7.5. The well solution contained 0.35 M Na₂HPO₄/K₂HPO₄, 0.1 M (NH₄)₂HPO₄, 7.0 % PEG 400, 50 mM Tris-HCl, pH 7.5. Crystals were selected and then soaked in 8.0 mM solution of a compound.

For each of the studied complexes three individual crystals were flash frozen in liquid nitrogen after soaking with the compound over 8 hours, 16 hours and 24 hours. X-ray diffraction data sets were collected using beam line 5.0.3 at the Lawrence Berkeley National Laboratory Advanced Light. Data sets were indexed with iMosflm of CCP4 package (www.mrclmb.cam.ac.uk/harry/mosflm). The crystallographic and refinement statistics are shown in Table 2.

Structure Solution and Refinement

The ternary complex structure was solved by molecular replacement using the Phaser program³⁸ and the coordinate of an apo-protein structure of AR-testosterone complex (Protein Data Bank entry 2AM9) as the search model. The structures were refined with iterative cycles of manual density fitting with COOT and refinement with Refmac³⁹. The extra density of testosterone was clearly observed at the initial refinement step. A characteristic electron density of the compound was observed at the BF3 binding site.

Figure 8.

Displacement of co-activator SRC23 peptide from the AR AF2 site by compounds 1-4.

ABBREVIATIONS

AR

androgen receptor

bAR

biotinylated androgen receptor

AF2

Activation function 2

SRC

steroid receptor co-activator

FP

fluorescence polarization

RMSD

root mean square deviation

LBD

ligand binding domain

eGFP

enhanced green fluorescent protein

HTS

high throughput screening

DHT

dihydrotestosterone

FRET

fluorescence resonance energy transfer

FKPB52

the 52 kDa FK506 binding protein
