Assessment of multidrug resistance on cell coculture patterns using scanning electrochemical microscopy

Abstract

The emergence of resistance to multiple unrelated chemotherapeutic drugs impedes the treatment of several cancers. Although the involvement of ATP-binding cassette transporters has long been known, there is no in situ method capable of tracking this transporter-related resistance at the single-cell level without interfering with the cell’s environment or metabolism. Here, we demonstrate that scanning electrochemical microscopy (SECM) can quantitatively and noninvasively track multidrug resistance-related protein 1–dependent multidrug resistance in patterned adenocarcinoma cervical cancer cells. Nonresistant human cancer cells and their multidrug resistant variants are arranged in a side-by-side format using a stencil-based patterning scheme, allowing for precise positioning of target cells underneath the SECM sensor. SECM measurements of the patterned cells, performed with ferrocenemethanol and [Ru(NH₃)₆]³⁺ serving as electrochemical indicators, are used to establish a kinetic “map” of constant-height SECM scans, free of topography contributions. The concept underlying the work described herein may help evaluate the effectiveness of treatment administration strategies targeting reduced drug efflux.

Cancer cells, such as lung cancer or leukemia, acquire resistance to multiple unrelated drugs in response to treatment with chemotherapeutic agents (1, 2). Resistance impedes therapeutic effectiveness, which in turn, reduces the long-term survival rate of cancer patients (2). The emergence of multidrug resistance (MDR) involves the overexpression of transmembrane proteins P-glycoprotein (P-gp) and MDR-related protein 1 (MRP1), which both belong to the family of 5′-triphosphate-binding cassette transporters (known as ABC transporters). P-gp and MRP1 act as molecular “pumps,” actively removing therapeutic agents from the cancer cells, thereby preventing the drug from inducing the desired effect on the cell nucleus or cytoplasm. MDR based on P-gp is relatively well understood and involves binding of hyaluronan to the cell surface glycoprotein CD44. The resulting up-regulation of the transcriptional cofactor p300 expression and therefore the NFkappaB-specific transcriptional up-regulation lead to the production of P-gp, and with that chemoresistance in cells (3). However, the mechanism that causes MRP1-mediated MDR remains unclear.

Currently, quantification of MDR relies on immunohistochemical analyses, such as real-time PCR, focusing mostly on P-gp or other members of ABC transporters (4–9). Fluorescent MRP1-specific studies were also conducted, revealing that resistant and nonresistant cancer cells have differential intracellular content of glutathione and GST, which affect their cell death mechanism during hyperthermia (10). Microvoltammetry was also used to measure the efflux of chemotherapeutic drugs from normal and MDR cancer cells on the single-cell level, with detection limits in the nanomolar range (11). Finally, flow cytometry has routinely been used to quantify and compare expression levels and activity of different ABC transporters that are linked to MDR (12–14). Although the transporter activity can be inferred from the drug retention in the cell, this method has been advanced by using the invariable drug retention on polymer beads as a standard in flow cytometry measurements (15). Herein, we report the use of cell coculture patterns for quantitative analysis of MDR in adenocarcinoma cervical cancer cells on the single-cell level using scanning electrochemical microscopy (SECM). In contrast with flow cytometric quantification of MDR, SECM allows for in situ observation on the single-cell level without interfering with the cell’s environment or metabolism.

In SECM, a microelectrode is scanned across a surface while the electrochemical current is recorded with high spatial and temporal resolution (16). Since the first studies on single human cells emerged in 1998 (17), SECM has gained increasing attention as an analytical tool for biological studies (18–21). After successfully confirming cell viability and oxidative stress in living cells (22–24), the focus of analytical studies shifted toward the investigation of MDR. For example, the MRP1-mediated efflux of the menadione-S-glutathione conjugate (thiodione) was monitored in yeast and hepatoblastoma cells, making it possible to estimate the export rate of thiodione by SECM (24, 25). Most recently, Bard et al. monitored the formation of thiodione from menadione in adenocarcinoma cervical cancer cells (HeLa). In this study, the detection of thiodione by SECM not only allowed for the quantification of MRP1-mediated efflux of thiodione, but with the use of MK571 as an MRP1 blocker, the MRP1 efflux pump was identified as a major carrier for thiodione in living HeLa cells (26). The work presented in this study uses genetic modification of HeLa cells to compare a wild-type culture with MRP1 overexpressing cells (HeLa-R). The redox mediator ferrocenemethanol (FcCH₂OH) is used to quantify MRP1 activity of these two cell lines through its unique interaction with glutathione, a peptide molecule involved in MRP1-related transport. Tracking the evolution of MRP1 activity and expression is important because direct clinical implications make MRP1 a relatively unique molecular marker in comparison with other prognostic variables identified for several cancer types (27, 28).

Results and Discussion

Patterning of Cell Islands.

Comparative SECM measurements on the single-cell level benefit from culture substrates that allow for arrangement of cells in a regular format. A consistent template providing alignment and registration between cells (as opposed to a random distribution) makes it possible to perform measurements multiple times and achieve a high level of reliability. In addition, it facilitates the positioning of cells underneath the microelectrode, thereby reducing preparation and analysis time. Because growth of cells largely depends on the properties of the surface on which they grow, template formation generally requires a patterning step to be performed with the substrate. One approach involves activation of selected regions on a nonresponsive surface. A number of modification schemes involving self-assembled monolayers (29, 30), polymer films (31), and proteins (32) have been shown to direct cell attachment on a variety of natural and artificial substrates. Another approach relies on masking selected sites on an active surface to prevent adhesion of cells in these regions. The use of microfluidic systems (33, 34) and stencil masks (35, 36) are examples of this approach. Both methodologies take advantage of topographic features that provide a physical barrier in the patterning process. Even though many techniques are readily applicable to the patterning of a single cell line, they often fail to be effective when two (or more) cell lines are to be considered for array formation, especially at reduced scale.

Herein, we describe a stencil-based patterning approach that constitutes a practical solution to this end. We use an open through-hole membrane fabricated from an elastomeric block-copolymer (e.g., Versaflex CL30, GLS Corp.) (37) (see SI Text for details) in combination with oxygen plasma treatment to achieve live cell patterns on an insulating plastic substrate (e.g., Zeonor 1060R, Zeon Chemicals). Versaflex CL30 is a melt-processable styrenic ethylene/butylene block-copolymer (38, 39) which has recently been shown to promote the fabrication of thin-film membranes with small-scale openings in a single step using hot embossing lithography (HEL) (37). In principle, open through-hole membranes can be produced from other elastomers such as poly(dimethylsiloxane) (PDMS), which to this end constitutes the prime material for soft microfabrication and patterning (35, 36). However, the method described herein provides several advantages with respect to fabrication and handling of the membranes (37). For example, Versaflex CL30 provides off-the-shelf availability as it can be stored (e.g., as an extruded sheet) over extended periods of time, whereas PDMS as a thermoset polymer necessitates timely preparation. Thin, open through-hole membranes obtained with standard PDMS formulations (e.g., Sylgard 184) are relatively fragile, which makes their handling nontrivial and limits the scope of possible applications. Versaflex CL30, on the other hand, provides superior mechanical stability as reflected by 780% elongation at break (whereas PDMS generally does not exceed 140%), diminishing the risk of damage during removal from the mold and providing the possibility of reducing vertical and lateral dimensions of the replicated features. Spin-casting of PDMS further contributes to irregularities in thickness of the membrane (40), whereas those fabricated from Versaflex CL30 using HEL are smooth and uniform in thickness, with the embossed open through-holes showing excellent lithographic definition. We produced membranes with openings ranging from 50 to 500 µm, as shown in Fig. 1 A and B. Openings are used to form oxygen plasma-treated spots (OPS) on Zeonor serving as a solid cell culture substrate. Previous work has shown that hydrophilic, oxygen-containing groups promote cell attachment on a Zeonor surface (33). Each membrane made it possible to achieve cell islands with different dimensions, as shown for both HeLa (Fig. 1 C–E) and HeLa-R cells (Fig. 1 F–H). However, the details of the patterning process must be adjusted for each cell line according to morphology and characteristics of growth. For example, HeLa cells are more efficiently patterned on OPS provided by an untreated membrane that is placed on the Zeonor slide following exposure to oxygen plasma. Due to their tendency to grow in colonies, HeLa-R cells are preferably seeded on a Zeonor substrate from which the membrane was removed upon oxygen plasma treatment. Regardless of the option used, formation of OPS benefits from the ability of the elastomeric membrane to achieve intimate, yet reversible contact with the substrate (37). OPS ranging from 200 to 400 µm in diameter enable cell growth in defined, well-populated islands, whereas 50-µm OPS (either circular or rectangular) result in groups with a limited number (e.g., 2–9 cells) for both HeLa and HeLa-R cell lines. The defined physical separation of cells provides control over several experimental parameters, such as location of target cells, cell movement during acquisition, and analysis time (which can be extended to at least 8 h). Studies on cell communication or cell signaling, observation of cell death, and examination of the cell response to drugs or other medical treatments will benefit from this patterning procedure.

Fig. 1.

Layout of the elastomeric stencil and resulting cell patterns. (A) Photograph of an open through-hole membrane as used within this study. (Inset) Scanning electron micrograph of a corner section. (Scale bar: 500 µm.) (B) Close-up view of the central part of the membrane. The array contains 100 openings of 50 µm in diameter arranged in a 10 × 10 configuration. (Scale bar: 500 µm.) (Inset) Scanning electron micrograph depicts a cross-sectional view of the array after the membrane had been cut in half using a blade. (Scale bar: 100 µm.) (C‒H) Optical micrographs of cell islands formed from HeLa (C‒E) and HeLa-R cells (F‒H). OPS were generated using circular through-holes of 400 and 200 µm in diameter as well as rectangular features of 50 µm in width and length, respectively. (Scale bar: 100 µm.)

SECM Imaging.

We performed SECM measurements on patterned HeLa cells using a Pt microelectrode biased at a potential where the dissolved redox mediator FcCH₂OH is oxidized to [FcCH₂OH]⁺ (Scheme S1) under mass-transfer control. Fig. 2A represents a redox reactant competition mode to illustrate electrochemical reactions during SECM measurements. In this scheme, the reactant FcCH₂OH is “consumed” by the cell through passive diffusion, whereas the microelectrode “consumes” FcCH₂OH to produce the [FcCH₂OH]⁺ that will be regenerated by the cell. The faradaic microelectrode current monitored during SECM imaging inherently contains contributions from both topography and electrochemical activity of the underlying surface. Because the substrate itself does not show any electrochemical activity, the microelectrode current progressively decreases with decreasing tip-to-substrate distance as a result of the hindered diffusion of the redox mediator. Using this negative feedback signal, the microelectrode is first prepositioned over a bare region of the substrate at a tip-to-substrate distance greater than the maximum cell height (e.g., 12 µm). The biased microelectrode is then scanned at this constant height across a defined area of patterned cells. As the microelectrode scans over the patterned cells, the measured current monitors the gradient in concentration of FcCH₂OH, which is concomitantly affected by the topography of the cell, the cell’s permeability to FcCH₂OH, and the glutathione-dependent regeneration of FcCH₂OH (Fig. 2A). Overall, the contributions from negative feedback and passive FcCH₂OH diffusion into cells are outweighed by the enhanced mass transport contribution of the regeneration reaction of FcCH₂OH (Fig. 2B). The SECM image in Fig. 2B shows a distinct, well-separated signal for each cell island, which correlates with the original layout of 50-µm features with a spacing of 100 µm in between. The color bar presents the dimensionless microelectrode current Ni_T described as

where i_T is the measured microelectrode current and i_T∞ is the measured microelectrode current in bulk solution. Regions of increased Ni_T over the patterned cells in Fig. 2B result from the action of FcCH₂OH, which is cell-permeable and alters intracellular glutathione disulfide levels, thereby producing an excess of glutathione (GSH) that is expelled from the cell by MRP1. GSH serves as an antioxidant (Scheme S2) in mammalian cells, and can be used as an indicator for a cell’s redox state. Furthermore, its concentration is dependent on MDR (10). The active efflux of GSH from the cell participates in the FcCH₂OH/[FcCH₂OH]⁺ redox cycle by reducing [FcCH₂OH]⁺ back to FcCH₂OH (41). As a result, the flux of FcCH₂OH to the electrode surface increases, leading to a higher electrochemical signal.

Fig. 2.

Cell imaging using SECM. (A) Schematic illustration of constant-height feedback mode SECM imaging with a living cell in the presence of FcCH₂OH as a redox mediator. FcCH₂OH is oxidized to [FcCH₂OH]⁺ at the Pt microelectrode, and regenerated in proximity to the cell as a result of GSH efflux. (B) Normalized SECM current recorded at a distance of 12 µm above the substrate when HeLa cells were exposed to FcCH₂OH (1 mM) for 75 min. (Inset) Close-up 3D view of the signal obtained from an individual cell island. (Scale bar: 50 µm.)

Formation of Cell Coculture Patterns.

Uniformity of the pattern geometry and chemistry is critical in coculture formation because both parameters can alter the natural morphology and metabolism of the studied cells (42). Within the context of SECM measurements, the dimensions of cocultured patterns should comply with the scan range provided by the instrument to enable simultaneous analysis under identical conditions, which has proven difficult in the past (42–46). We responded to this challenge by partly shielding the template with a thin cover slab of PDMS to produce cocultures of HeLa and HeLa-R cells in a side-by-side format (Fig. 3). During incubation with a first cell line (e.g., HeLa-R), only noncovered OPS are occupied, whereas the PDMS prevents access of the cells to the surface underneath. Once completed, the cell suspension is removed from the substrate, followed by washing and peeling off the PDMS slab. Subsequent incubation with a second cell line (e.g., HeLa) favors adhesion to OPS previously covered by the PDMS slab. The process can also be performed in an alternative fashion by using an open through-hole membrane for incubation, and covering designated sections with PDMS. In principle, this variant would limit the risk of contaminating OPS because PDMS contains low-molecular-weight residues that can be transferred upon contact (47). Dividing an array of 50-µm OPS using a PDMS slab requires alignment, yet the spacing between features was maintained sufficiently large (e.g., 100 µm) to facilitate manual manipulation using a standard microscope setting. A HeLa-R cell pattern with the PDMS slab still in place is included in Fig. 3, demonstrating the ability of the PDMS slab to effectively protect the OPS underneath during the first incubation step. To facilitate discrimination of individual cells in each segment, we performed patterned coculture using HeLa and HeLa-R cells stained with red and green fluorescent dyes, respectively (see SI Text for details). Inspection of the patterned sample revealed that it is possible to produce high-quality arrays in which both cell lines remain perfectly separated from each other as shown by the example in Fig. 3. Patterns obtained with 50-µm OPS usually contain 2.8 ± 1.5 HeLa cells and 5.2 ± 2.1 HeLa-R cells. Despite the fact that the number of cells is prone to variation, patterns produced in this way are well suited for quantitative SECM investigation.

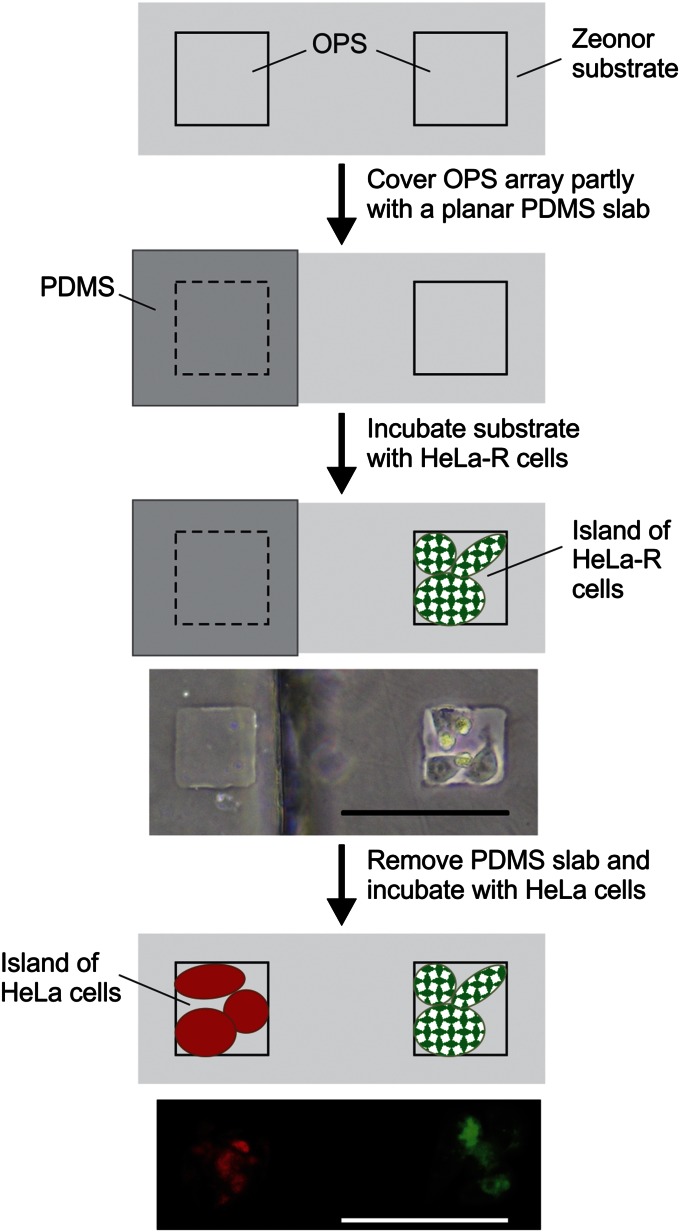

Fig. 3.

Formation of cell coculture patterns in a side-by-side configuration. Patterning scheme involves a template partly covered by a PDMS slab to promote selective adhesion and growth of a first cell line (HeLa-R) on the substrate. The optical microscope image depicts an OPS occupied by three HeLa-R cells whereas the adjacent one remains covered by the PDMS slab. Once the slab is removed, the sample is exposed to a second cell line during which cells adhere on OPS that were inaccessible during the first incubation step. The fluorescence micrograph shows stained HeLa cells (red) and HeLa-R cells (green) in the form of a side-by-side coculture pattern. (Scale bar: 100 µm.)

SECM Imaging of Cocultures and Data Analysis.

We imaged cell cocultures in two different electrochemical solutions to effectively decouple the cell height variability across patterns and quantitatively compare the electrochemical signals produced by each cell line, using the pattern in Fig. 4A. The sample comprises HeLa-R (Fig. 4A, Left) and HeLa cells (Fig. 4A, Right) free of cross-contamination, as confirmed by the fluorescence image in Fig. 4B. To decouple topography from electrochemical activity, the coculture was first imaged in a solution of [Ru(NH₃)₆]³⁺ (Fig. 4C), serving as a control, and then in FcCH₂OH solution (Fig. 4D) under the same experimental conditions. As a highly charged cation, [Ru(NH₃)₆]³⁺ is a cell-impermeable redox mediator that allows for recording a pure negative feedback response (Fig. 4C), which is analogous to surface topography. As the microelectrode is scanned above the patterned cells, the diffusion of [Ru(NH₃)₆]³⁺ to the microelectrode surface is hindered by the physical presence of the cells. Increased cell heights lead to more pronounced decrease in Ni_T. Using pure negative feedback theory and the experimental response of [Ru(NH₃)₆]³⁺, it was possible to transform the SECM current image (Fig. 4C) into a topography image (Fig. 4E), where the color bar represents the tip-to-substrate distances (micrometers). Wittstock et al. have demonstrated a similar transformation procedure (48). In our study, the dimensional distances were calculated from the normalized tip-to-substrate distances L, which were extracted from the experimental data using the Nelder–Mead simplex algorithm (49) and the analytical approximation for negative feedback current (50)

Fig. 4.

SECM imaging and decoupling of feedback response for a HeLa and HeLa-R cell coculture substrate. (A) Optical micrograph of a coculture pattern containing seven HeLa-R cells (Left) and six HeLa cells (Right). (B) Fluorescence micrograph of the sample shown in A, with HeLa-R cells stained green and HeLa cells stained red. (C and D) Normalized SECM currents recorded with the same sample at 12 μm above the substrate in 1 mM [Ru(NH₃)₆]³⁺ (C) and 1 mM FcCH₂OH (D). (E) Extracted normalized tip-to-substrate distance profile. (F) Profile of the extracted apparent heterogeneous rate constant (cm⋅s^–1) for the sample shown in A. (Scale bar: 50 μm.)

where Ni_T^ins is the normalized current over an insulator, L is the normalized distance defined as the ratio of the tip-to-substrate distance and the radius of the metal wire of the electrode, and RG is the ratio of the microelectrode outer radius and metal wire radius. The L values used to calculate the tip-to-substrate distances in Fig. 4E were extracted for a microelectrode with RG = 5.5, which is within the validity limits of Eq. 2 (RG < 200 and all L values). Also, the value of the normalized distance of the first point in the scan (upper left-hand side corner) was 0.92, which corroborates the value extracted from the prepositioning approach curve (0.96). Finally, the slopes in x and y at the edges of the images remained unaltered following the transformation from Fig. 4 C to E. Although PBS is known to alter cell’s morphology and hence its metabolism over time (41), studies on human gastric carcinoma cells have shown a change in cell height of just 55–365 nm when exposed to PBS for a period of 2 h (51). Even when cells were exposed to hypotonic or hypertonic solutions, a height variation of 0.75–2 µm was observed (52). Given an electrode diameter of 25 µm and a significantly more sustaining environment during our studies in cell medium, any possible effect of alteration in cell height lies within the measurement error.

Following this first SECM scan, the [Ru(NH₃)₆]³⁺ solution is removed and replaced by FcCH₂OH solution to acquire a second SECM scan (Fig. 4D) using the same experimental conditions. Given the presence of a regeneration reaction, the total normalized microelectrode current Ni_Tot, which contains contributions from both cell topography and electrochemical activity, is described by (53, 54)

where Ni_s is the kinetically controlled substrate current, Ni_T^cond is the normalized current over a conductor, and Ni_T^ins is the normalized current over an insulator (see SI Text for further details). The behavior of homogeneous reactions toward SECM is not yet described. We assume the reactions to take place mainly in close proximity to the cell surface. Using Eq. 3, the extracted normalized distances (from Fig. 4E), and the Nelder–Mead simplex algorithm, the SECM current image acquired in FcCH₂OH solution (Fig. 4D) is converted into a kinetic map (Fig. 4F), where the color bar quantifies the apparent heterogeneous rate constant (k_f). The extracted values for k_f fall within the validity ranges of Eq. 3, for which 0.1 ≤ L ≤ 1.5 and 0.01 ≤ Λ ≤ 1,000 (53). For the bare Zeonor substrate, k_f is on the order of 10⁻⁷ cm⋅s^–1, which is indistinguishable from pure negative feedback behavior. The slope in x and y at the edges of the image on the nonpatterned plastic surface was also insignificant, which demonstrates that the decoupling procedure successfully removed the topographical component from the total current and allowed for the extraction of the kinetic contribution. In comparing the kinetic constants extracted for both patterned cell areas, a clear differential response is observed between normal HeLa cells and their MDR variant. The overall distribution of k_f values over HeLa cells is significantly lower than over their MDR counterparts. Furthermore, the maximum k_f value observed over HeLa-R cells was 2.4 times greater than over HeLa cells (e.g., k_f = 3.18 × 10⁻⁶ cm⋅s⁻¹ vs. 1.35 × 10⁻⁶ cm⋅s⁻¹, respectively). From Fig. 4F, we conclude that the MRP1 phenotype of human cancer cells can be monitored using a nontoxic, electrochemical indicator that causes minimal alterations to the metabolism of the cell.

Conclusions

The SECM measurements presented in this study suggest that it is possible to decouple microelectrode current into two separate profiles for topography and electrochemical activity. The extracellular regeneration of FcCH₂OH was detected and imaged in real time by an SECM microelectrode positioned 12 µm above cell patterns. Comparison of electrochemical signal intensities revealed that a differential response is obtained between HeLa and HeLa-R cells, the latter showing increased activity. The ability to produce cocultures of both HeLa and HeLa-R cells in a spatially controlled manner was essential in this context. The stencil-based patterning method differs from preceding work insofar as it employs a cover slab to control the configuration of the cell culture template, making it accessible for cells on demand in subsequent incubation steps. The relative proximity and regular arrangement of cell islands shortens registration and analysis time. Moreover, this configuration enables multiple experiments to be performed under the exact same microenvironmental conditions, promoting the acquisition of electrochemical data with a high statistical significance. It is possible that this quantitative methodology can be generalized and extended to several adhesive cell lines, given the anticipated versatility of the patterning strategy presented herein. Ideally, we envision a series of cocultured cells having an increasing MRP1 phenotype as obtained through doxorubicin drug challenges (55). The action of selective or competitive MRP1 inhibitors could then be monitored under normal and stressed conditions. Also, the evolution of MDR in cells having an initial low MDR phenotype could be monitored with increasing chemotherapeutic exposure time. In the future, SECM-based methods could indicate the risk of resistance using cells harvested from biopsies. They could be also used for rapid screening of different MDR inhibitors and classify the resistance signature of several cancer cells so that a patient can receive the most appropriate and personalized treatment.

Materials and Methods

Formation of Cell Culture Patterns.

For HeLa cell patterning, the Zeonor substrate was first exposed to oxygen plasma and then brought in contact with an untreated elastomeric membrane containing open through-holes (see SI Text for further details). The cell culture substrate was placed in a 30-mm Petri dish and fixed using biocompatible high-vacuum grease (Dow Corning). Next, 2.5 mL of DMEM⁺ was added, followed by removal of air bubbles under reduced pressure for 15 min. A suspension of 5 × 10⁵ cells along with 4 mL of DMEM⁺ was added to the Petri dish, and the sample was incubated at 37 °C in a 5% (vol/vol) CO₂ atmosphere for 5‒24 h. Upon completion of the seeding process, the membrane was peeled off the surface. For HeLa-R cell patterning, the membrane was placed on the Zeonor substrate before treatment with oxygen plasma. The membrane was removed and the Zeonor substrate was placed in a 30-mm Petri dish, followed by addition of a suspension containing 3.5 × 10⁵ cells along with 4 mL of DMEM⁺. The sample was incubated at 37 °C in a 5% (vol/vol) CO₂ atmosphere for 5‒24 h. To obtain coculture patterns, both Zeonor substrate and membrane were exposed to oxygen plasma. The membrane was then removed and the substrate was placed in a 30-mm Petri dish and fixed using biocompatible high-vacuum grease. A section (∼50%) of the central array comprising 50-µm OPS was covered using a planar PDMS slab. A cell suspension of 5 × 10⁵ green-stained HeLa-R cells was added and completed to 4 mL with DMEM⁺. The sample was incubated at 37 °C in a 5% (vol/vol) CO₂ atmosphere for 12 h, followed by washing with DMEM⁻. Upon removal of the PDMS slab, a suspension of 7 × 10⁵ red-stained HeLa cells was added and completed to 4 mL with DMEM⁺ if necessary. The sample was incubated at 37 °C in a 5% (vol/vol) CO₂ atmosphere for 14‒18 h.

Electrochemical Measurements.

Electrochemical imaging was performed in constant-height mode (12 µm above sample normal) at a scan rate of 15 µm⋅s^–1 using an Electrochemical Probe Scanner 3 SECM instrument manufactured by HEKA Elektronik Dr. Schulze GmbH (56). Pt microelectrodes (25 µm in diameter) were fabricated and assembled as described previously (41). Oxidation of FcCH₂OH (1 mM dissolved in DMEM⁻) was recorded at a potential of 0.5 V vs. Ag/AgCl for which a steady-state current was determined using cyclic voltammetry. An electrochemical approach curve was recorded at a speed of 2 µm⋅s^–1. Before electrochemical measurements, HeLa and HeLa-R cells were exposed to 1 mM FcCH₂OH in DMEM⁻ solution for 75 min. Electrochemical imaging of [Ru(NH₃)₆]³⁺ (1 mM dissolved in DMEM⁻) reduction was performed at a potential of −0.35 V vs. Ag/AgCl. SECM data were analyzed using Matlab R2012b (MathWorks).
