Temporal patterning of Drosophila medulla neuroblasts controls neural fates

Abstract

In the Drosophila optic lobes, the medulla processes visual information coming from inner photoreceptors R7 and R8 and from lamina neurons. It contains ~40,000 neurons belonging to over 70 different types. We describe how precise temporal patterning of neural progenitors generates these different neural types. Five transcription factors--Homothorax, Eyeless, Sloppy-paired, Dichaete and Tailless--are sequentially expressed in a temporal cascade in each of the medulla neuroblasts as they age. Loss of either Eyeless, Sloppy-paired or Dichaete blocks further progression of the temporal sequence. We provide evidence that this temporal sequence in neuroblasts, together with Notch-dependent binary fate choice, controls the diversification of the neuronal progeny. Although a temporal sequence of transcription factors had been identified in Drosophila embryonic neuroblasts, our work illustrates the generality of this strategy, with different sequences of transcription factors being used in different contexts.

Generation of neuronal diversity requires both spatial and temporal patterning of neural progenitors. Vertebrate neural progenitors transit through different competence states as they age, and thus generate a conserved order of different neural types^1–4. Similarly, Drosophila neuroblasts (NB) generate differently fated progeny in a defined order^5–10. A molecular mechanism of temporal specification has been identified in the Drosophila embryonic nerve cord where NBs sequentially express several transcription factors (TF) as they age: Hunchback (Hb), Krüppel (Kr), Pdm1/Pdm2 (Pdm), Castor (Cas), and Grainyhead (Grh)^{7, 11–13}. This temporal cascade is necessary and sufficient for the specification of neuronal identities in multiple lineages of the nerve cord^{7–9, 11, 14–17}. Does the same temporal gene cascade pattern neural progenitors in other systems? In Drosophila antennal lobe NBs, Kr defines one out of 40 fates of projection neurons¹⁸. In vertebrates, Ikaros, a mouse ortholog of Hb, is both necessary and sufficient for the early competence state of retinal progenitors¹⁹. However, a cascade of TFs analogous to that of Drosophila nerve cord NBs has not been reported elsewhere. Thus, it is still not clear whether this powerful mechanism is widely utilized in other systems. Here we address this question in the Drosophila medulla.

The medulla, containing ~40,000 neurons belonging to over 70 cell types, is the largest neuropil in the visual-processing center (optic lobe)^{20, 21}. It is derived from a larval crescent-shaped neuroepithelium (NE) termed the Outer Proliferation Center (OPC). The single-layered NE cells of the OPC proliferate by dividing symmetrically. They are sequentially converted into medulla NBs in a wave of neurogenesis that initiates at the medial edge of the NE crescent and progresses laterally^22–27 (Fig.1a,c). Each NB then divides asymmetrically multiple times to self-renew and to generate Ganglion Mother Cells (GMCs), which in turn divide once to produce medulla neurons^{22, 28, 29}. The neuronal progeny of each NB form a chain, with newly generated neurons occupying the most superficial layer close to NBs and GMCs, and the first-born neurons occupying the deepest layer close to the medulla neuropil^{30, 31} (Fig.1c,d). Pioneering studies have identified several TFs specifying different subsets of medulla neuron types^{21, 30, 31}. However, it was not clear how their expression in neurons is controlled to generate neuronal diversity.

Figure 1. The developing medulla.

a. Model of a larval brain showing that the NE (blue) gives rise to the lamina on the lateral (L) side and to the medulla on the medial (M) side. A wave of neurogenesis (light red) converts NE cells (blue) into NBs (red). VNC: ventral nerve cord.

b. Surface view showing NE (Phalloidin, blue), medulla NBs (Dpn, red), and lamina neurons (Elav, purple).

c. Cross-section model showing NBs (red), GMCs (green), and neurons (purple). A single NB clone is shown by grey thick outlines.

d. Cross-section view showing the NE (DE-Cadherin, blue), medulla NBs (Dpn, red), medulla GMCs (Pros, green), medulla and lamina neurons (elav-Gal4>UASCD8-GFP, purple).

a-d. Small Red arrow: the wave of neurogenesis.

We found that five TFs, Homothorax (Hth), Eyeless (Ey), Sloppy-paired1 and 2 (Slp), Dichaete (D) and Tailless (Tll), are sequentially expressed in medulla NBs as they age. Ey, Slp and D are each required for turning on the next TF in the dividing NBs. Slp and D are also required for turning off the preceding TF. These TFs control the expression of downstream TFs that mark the identities of the neuronal progeny. Notch-dependent asymmetric division of GMCs further diversifies neuronal identities. Our identification of a novel temporal cascade of TFs distinct from the Hb->Kr->Pdm->Cas->Grh sequence suggests that TF-dependent temporal switching of neural progenitors is a common theme in neuronal specification, with different TF sequences being recruited in different contexts.

A temporal gene cascade in medulla NBs

In the developing medulla, the wave of conversion of NE into NBs makes it possible to visualize NBs at different temporal stages in one snapshot, with newly generated NBs on the lateral edge and the oldest NBs on the medial edge of the expanding crescent shaped NB region (Fig.1a,b). We conducted an antibody screen for TFs expressed in the developing medulla and identified five TFs, Hth, Ey, Slp1, D and Tll that are expressed in five consecutive stripes in NBs of increasing ages, with Hth expressed in newly differentiated NBs, and Tll in the oldest NBs (Fig.2a,b). This suggests that these TFs are sequentially expressed in medulla NBs as they age. Neighboring TF stripes show partial overlap in NBs with the exception of the D and Tll stripes, which abut each other. We and others had previously reported that Hth³¹ and Ey³⁰ were expressed in medulla NBs, but they had not been implicated in controlling NB temporal identities. Hth and Tll also show expression in the NE.

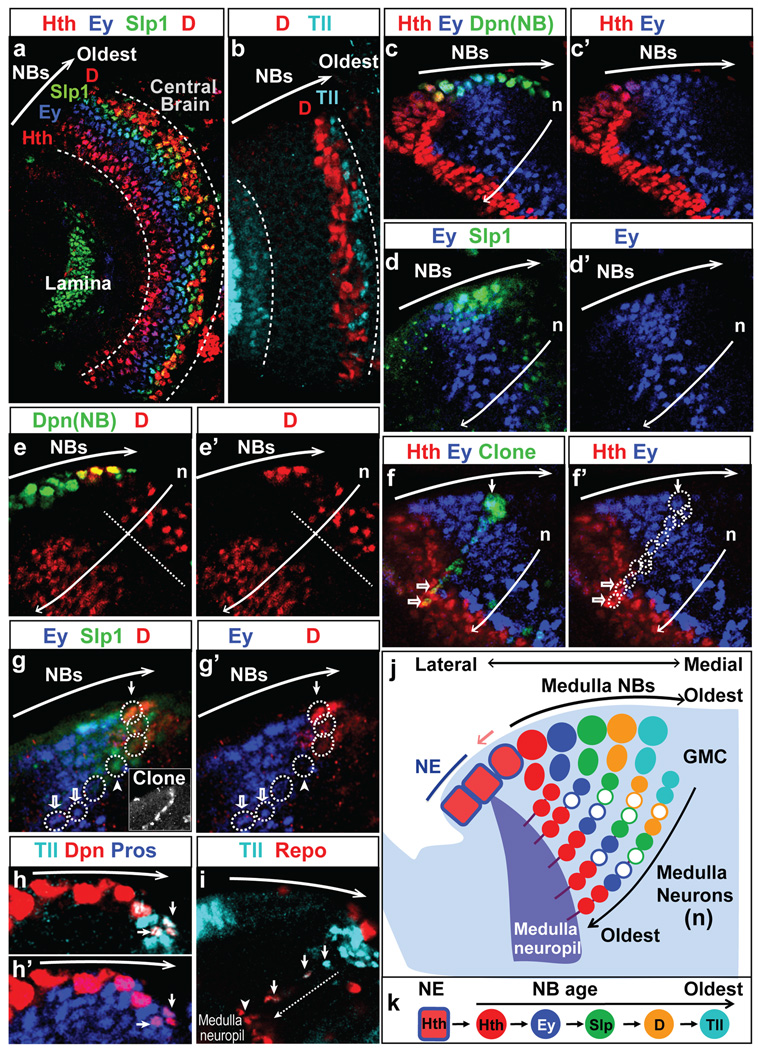

Figure 2. A temporal sequence of TFs in medulla NBs.

a,b. Surface views showing that NBs sequentially express:

a. Hth (red), Ey (blue), Slp1 (green) and D (red).

b. D (red) and Tll (cyan).

c-i. Cross-section views showing the expression of the five TFs in NBs and their progeny.

c,c’. Hth (red), Ey (blue), Dpn(green).

d,d’. Ey (blue), Slp1 (green).

e,e’. D (red). The dashed line separates the two populations of D⁺ neurons (see text).

f,f’. In a NB clone (βGal, green in f, dashed circles in f’), the NB is Ey⁺ (blue, small arrow), while its progeny are Ey⁺ or Hth⁺ (red, open arrows).

g,g’. In a NB clone (βGal, white in inset), the NB is D⁺ (red, small arrow). It has generated Slp⁺ (green) GMCs (arrowhead), and Ey⁺ (blue) neurons (open arrows).

h,h’. The oldest NBs (small arrows) express Tll (cyan in h), Dpn (red) and nuclear Pros (blue in h’).

i. Tll⁺ NB progeny (small arrows) lose Tll (cyan), and turn on Repo (red) while migrating (along the dashed arrow) to become medulla neuropil glia (arrowhead).

j. Schematic model. For simplicity, the overlap between TFs is not shown; only one NB/GMC is shown for each stage. D expression in the deeper neuron population is not shown. Empty cells indicate a subset of neurons born during the Ey, Slp or D windows do not maintain the NB TF.

k. Model showing each NB sequentially expresses five TFs.

To ask whether each NB sequentially expresses the five TFs, we examined their expression in the NB progeny (Fig.1c,d). Hth, Ey and Slp1 are expressed in three different layers of neurons that correlate with birth-order, i.e. Hth in the first-born neurons of each lineage in the deepest layers; Ey or Slp1 in correspondingly more superficial layers, closer to the NBs. This suggests that they are born sequentially in each lineage (Fig.2c,c’,d,d’,j). D is expressed in two distinct populations of neurons. The more superficial population inherit D from D⁺ NBs (above dashed line, Fig.2e,e’). D⁺ neurons in deeper layers (corresponding to the Hth and Ey layers) turn on D expression independently and will be discussed later (below dashed line, Fig.2e.e’). We generated single NB clones and examined the expression of the TFs in the NB and its progeny. Single NB clones where the NB is at the Ey⁺ stage include Ey⁺ GMCs/neurons as well as Hth⁺ neurons (Fig.2f,f’). This indicates that Ey⁺ NBs have transited through the Hth⁺ stage and generated Hth⁺ neurons. Clones where the NB is at the D⁺ stage contain Slp1⁺ GMCs and Ey⁺ neurons (Fig.2g,g’), suggesting that D⁺ NBs have already transited through the Slp⁺ and Ey⁺ stages. This supports the model that each medulla NB sequentially expresses Hth, Ey, Slp1 and D as it ages, and sequentially produces neurons that inherit and maintain expression of the TF.

slp1 and slp2 are two homologous genes arranged in tandem and function redundantly in embryonic and eye development^{32, 33}. Slp2 is expressed in the same set of medulla NBs as Slp1 (Supp. Fig.1a-a’’). We will refer to Slp1 and Slp2 collectively as Slp.

Tll is expressed in the oldest medulla NBs. The oldest Tll⁺ NBs show nuclear localization of Prospero (Pros) (Fig.2h,h’), suggesting that they undergo Pros-dependent cell-cycle exit at the end of their life, as in larval nerve cord and central brain NBs³⁴. Tll⁺ NBs and their progeny express glial-cells-missing (gcm) (Supp.Fig.1b-b’), and the progeny gradually turn off Tll and turn on Repo, a glia-specific marker. These cells migrate towards deeper neuronal layers and take their final position as glial cells around the medulla neuropil (Fig.2i). Thus Tll⁺ NBs correspond to previously identified glioblasts between the optic lobe and central brain that express gcm and generate medulla neuropil glia^{35, 36}. Clones where the NB is at the Tll⁺ stage contain Hth⁺ neurons and Ey⁺ neurons, among others (Supp. Fig.1c,c’), confirming that Tll⁺ NBs represent the final temporal stage of medulla NBs rather than a separate population of glioblasts. Therefore, these data clearly show that medulla NBs sequentially express five TFs as they age. The four earlier temporal stages generate neurons that inherit and maintain the temporal TF present at their birth, although a subset of neurons born during the Ey, Slp or D NB stages lose expression of the NB TF (Fig.2j). At the final temporal stage, NBs switch to glioblasts and then exit the cell cycle (Fig.2j,k).

Cross-regulations between temporal TFs

We examined whether cross-regulation among TFs of the NB temporal sequence contributes to the transition from one TF to the next. Loss of hth or its cofactor, extradenticle, does not affect the expression of Ey and subsequent progression of the NB temporal sequence (data not shown).

We generated ey null mutant clones using a BAC rescue construct recombined on an FRT chromosome in an ey^J5.71 null background. We also examined ey^J5.71 homozygous mutant larvae. In both cases, Slp expression is lost in NBs, along with neuronal progeny produced by Slp⁺ NBs, marked by the TF Twin of Eyeless (Toy, see below) (Fig.3a,a’, Supp.Fig.2a). However, NB division is not affected (Supp.Fig2b,b’), and Hth remains expressed in only the youngest NBs and first-born neurons (Fig.3b and data not shown). Targeted Ey RNAi using a VsxGal4 driver that is expressed in the central region of the NE and NBs³⁷ gives the same phenotype (data not shown). This suggests that Ey is required to turn on the next TF, Slp, but is not required to repress Hth (Fig.3c).

Figure 3. Cross-regulations between TFs in the gene cascade.

a,a’. Surface view: in an ey^J5.71 mutant clone marked by lack of GFP (red) and of Ey (blue), Slp1 (green) is lost in NBs.

b. Cross-section view: in ey^J5.71 mutants, Hth (red) is only in the youngest NBs (Dpn marking all NBs, blue).

c. Summary model.

d-d”. Surface view: in slp mutant MARCM clones (GFP, white in d, dashed line in d’,d’’), NBs continue to express Ey (blue) and do not turn on D (red).

e. Summary model.

f-f’’. Surface view: in D mutant clones marked by lack of GFP (white in f, dashed line in f-f’’), NBs continue to express Slp1 (green) and do not turn on Tll (cyan).

g. Summary model.

h. Model summarizing cross-regulations between the five TFs. (*): sufficient but not required.

In clones of a deficiency mutation, slp^S37A, that deletes both slp1 and slp2 ³³, NBs normally transit from Hth⁺ to Ey⁺, but older NBs maintain the expression of Ey and do not progress to express D or Tll (Fig.3d-e, Supp.Fig.2f,f’), suggesting that Slp is required to repress ey and activate D.

Similarly, in D mutant clones, NBs are also blocked at the Slp⁺ stage, and do not turn on Tll (Fig.3f-g), indicating that D is required to repress slp and activate tll.

Finally, in tll mutant clones, D expression is not expanded into oldest NBs, suggesting that tll is not required for NBs to turn off D (Supp.Fig.2j-j’’).

Thus, in the medulla NB temporal sequence, ey, slp and D, are each required for turning on the next TF. slp and D are also required for turning off the preceding TF (Fig.3h).

We also examined gain-of-function phenotypes of each gene. However, mis-expression of Hth, Ey, Slp1 or 2, or D in all NBs or in large NB clones is not sufficient to activate the next TF or repress the previous TF in NBs (Supp.Fig.2e-e’’,g-i’, and data not shown). Only mis-expressing tll in all NBs is sufficient to repress D expression (Supp.Fig.2k,k’).

In summary, cross-regulation among TFs is required for at least some of the transitions. We did not observe cross-regulation between hth and ey. Since ey is already expressed at low levels in the NE and in Hth⁺ NBs, an as yet unidentified factor might gradually up-regulate ey and repress hth to achieve the first transition. As tll is sufficient but not required to repress D expression, additional factors must act redundantly with Tll to repress D.

Notch-dependent binary fate choice

The temporal sequence of NBs described above could specify at least four neuron types plus glia (in fact more than 10 neuron types plus glia considering that NBs divide several times at each stage with overlaps between neighboring temporal TFs; see Discussion). As this is not sufficient to generate the 70 medulla neuron types, we asked whether another process increases diversity in the progeny neurons born from a NB at a specific temporal stage. Apterous (Ap) is known to mark about half of the 70 medulla neuron types²¹. In the larval medulla, Ap is expressed in a salt and pepper manner in subsets of neurons born from all temporal stages³⁰ (Fig.4a,b). In the progeny from Hth⁺ NBs, all neurons appear to maintain Hth, with a subset also expressing Ap (Fig.4a). However, only half of the neurons born from NBs at other TF stages maintain expression of the NB TF. For instance, in the progeny of Ey⁺ NBs, Ey⁺ neurons are intermingled with about an equal number of Ey⁻ neurons that instead express Ap (Fig.4a). NB clones contain intermingled Ey⁺ and Ap⁺ neurons (Fig.4d-d’’). This is also true for the progeny of Slp⁺ NBs: Slp1⁺ neurons are intermingled with Slp1⁻Ap⁺ neurons (Supp.Fig.3a). In the progeny of D⁺ NBs, D and Ap are co-expressed in the same neurons, and they are intermingled with neurons that express neither D nor Ap (above dashed line, Fig.4b). As mentioned above, neurons in deeper neuronal layers (corresponding to the Ey⁺ and Hth⁺ neuron layers, below dashed line, Fig.4b) also express D independently, and these neurons are Ap⁻. The expression of Ap is stable from larval to adult stages³⁰ (Supp.Fig.3c,d).

Figure 4. Notch-dependent asymmetric division of medulla GMCs.

All panels are cross-section views with Ap (green) and Ey (blue).

a. A subset of Hth⁺ neurons (red) are Ap⁺ while Ey⁺ neurons are intermingled with Ap⁺ neurons.

b. D⁺ neurons above the dashed line co-express Ap; D expression below the dashed line is in Ap⁻ neurons.

c,c’. Two daughters of a GMC are labeled by GFP (red). One is Ap⁺ and the other is Ap⁻.

d-d’’. Wild type tubGal4 MARCM clones marked by CD8-GFP (red) contain both Ap⁺ and Ey⁺ neurons.

e-f’’. Su(H) mutant MARCM clones (CD8-GFP, red in e, blue in f). e-e’’. Ap is lost and Ey expanded. f-f’’’. D (red) in NBs is not affected (open arrow) but D and Ap are lost in D⁺ NB progeny (above the dashed line, white arrow); the deeper layer of D expression in Ap⁻ neurons (below the dashed line, star) is expanded.

g, A simplified schematic model.

The intermingling of Ap⁺ and Ap⁻ neurons raised the possibility that asymmetric division of GMCs gives rise to one Ap⁺ and one Ap⁻ neuron. We generated two-cell clones to visualize the two daughters of a GMC. In every case (n=11), one neuron is Ap⁺ and the other is Ap⁻ (Fig.4c,c’; Supp.Fig.3b,b’), suggesting that asymmetric division of GMCs diversifies medulla neuron fates by controlling Ap expression.

Asymmetric division of GMCs in Drosophila involves Notch (N) dependent binary fate choice^38–40. In the developing medulla, the N pathway is involved in the transition from NE to NB, and loss of Su(H), the transcriptional effector of N signaling, leads to faster progression of neurogenesis and NB formation²⁴. However, Su(H) mutant NBs still follow the same TF sequence and generate GMCs and neuronal progeny (Supp.Fig.3e,f, Fig.4f-f’’, open arrow), allowing us to analyze the effect of loss of N function on GMC progeny diversification. Strikingly, neurons completely lose Ap expression in Su(H) mutant clones. All mutant neurons born during the Hth⁺ stage still express Hth, but not Ap, suggesting that the N^ON daughters of Hth⁺ GMCs are the neurons expressing both Ap and Hth (Supp. Fig.3h). In contrast to wild-type clones (Fig.4d-d’’), all Su(H) mutant neurons born during the Ey⁺ NB stage express Ey and none express Ap (Fig.4e-e’’). Similarly, all mutant neurons born during the Slp⁺ NB stage express Slp1 but lose Ap (Supp. Fig.3g,g’ and data not shown). These data suggest that, for Ey⁺ or Slp⁺ GMCs, the N^OFF daughter maintains the NB TF expression, while the N^ON daughter loses this expression but expresses Ap. In the wild type progeny born during the D⁺ NB stage, Ap⁺ neurons co-express D. Both D and Ap are lost in Su(H) mutant clones in the D⁺ NB progeny (arrow in Fig.4f-f’’’), confirming that D is transmitted to the Ap⁺N^ON daughter of D⁺ GMCs. In contrast, the D⁺Ap⁻ neurons in the deeper layers (corresponding to the N^OFF progeny born during the Ey⁺ and Hth⁺ NB stages, see above) are expanded in Su(H) mutant clones at the expense of Ap⁺ neurons (star in Fig.4f-f’’’). Therefore, the deeper layer of D expression is turned on independently in the N^OFF daughters of Hth⁺ and Ey⁺ GMCs.

Finally, in wild type, we observe a significant amount of apoptotic cells dispersed among neurons, suggesting that one daughter of certain GMCs undergoes apoptosis in some of the lineages (Supp. Fig.3i).

Together these data suggest that Notch-dependent asymmetric division of GMCs further diversifies neuronal identities generated by the temporal sequence of TFs (Fig.4g).

Temporal TFs control neural fates

How does the NB TF temporal sequence, together with the Notch-dependent binary fate choice, control neuronal identities in the medulla? We used TF markers specifically expressed in subsets of medulla neurons, but not in NBs, including Brain-specific homeobox (Bsh) and Drifter (Dfr)³¹, as well as other TFs identified in our antibody screen, e.g. Lim3 and Toy. Bsh is required and sufficient for the Mi1 cell fate⁴¹, and Dfr is required for the morphogenesis of nine types of medulla neurons, including Mi10, Tm3, TmY3, Tm27, Tm27Y³¹. We first investigated at which NB temporal stage these neurons were born by examining co-expression with the inherited NB TFs. We then examined whether the NB TFs regulate expression of these markers and neuron fates. The results for each NB stage are described below.

-Hth⁺ NB stage

Bsh is expressed in a subset of Hth⁺ neurons³¹ that also express Ap (Fig.5a,a’), suggesting that Bsh is in the N^ON daughter of Hth⁺ GMCs. Indeed, Bsh expression is lost in both Su(H) and hth mutant clones (Fig.5b,b’,c). Thus both Notch activity and Hth are required for specifying the Mi1 fate, consistent with the previous report that Hth is required for the Mi1 fate³¹. Ectopic expression of Hth in older NBs is also sufficient to generate ectopic Bsh⁺ neurons, although the phenotype becomes less pronounced in later parts of the lineage (Fig.5d). These data suggest that Hth is necessary and sufficient to specify early-born neurons, but the competence to do so in response to sustained expression of Hth decreases over time. This is similar to embryonic CNS NBs where ectopic Hb is only able to specify early-born neurons during a specific time window^{8, 42}.

Figure 5. Hth and Ey are required for neuronal diversity.

All images are cross-section views of larval medulla.

a,a’. In wild type, Bsh (blue) is in neurons expressing both ap-LacZ (green), an enhancer trap that perfectly mimics Ap expression, and Hth (red).

b,b’. Bsh (blue), but not Hth (red) is lost in Su(H) mutant clones (GFP, green).

c. Bsh (blue) is lost in hth^P2 mutant clones (GFP, green).

d. Bsh (blue) is ectopically expressed when UAS-GFP::Hth is driven by tubGal4 in a MARCM clone (GFP, red).

e, In wild type, Dfr (red) is expressed in two-three rows of Ap⁺ (green) neurons. There are also Dfr⁺Dac⁺(blue) Ap⁻ neurons in a more superficial layer.

f. The Ap⁺Dfr⁺ neurons (below the dashed line) are intermingled with Ey⁺ (blue) neurons.

g,g’. Dfr expression (red) is lost in ey^J5.71 mutant clones marked by lack of GFP (green in g, dashed line in g’).

h,h’. Dfr⁺ (red) neurons are expanded in slp mutant clones (GFP, green). In this region there are very few Dfr⁺ Dac⁺ (blue) neurons. The expanded Dfr⁺ neurons do not express Dac.

- Ey⁺ NB stage

Lim3 is expressed in all Ap⁻ progeny of both Hth⁺ and Ey⁺ NBs (Supp. Fig.4a-a’’, Fig.6i). Toy and Dfr are expressed in subsets of neurons born from Ey⁺ NBs, as indicated by their expression in the Ey⁺ neuron progeny layer. The most superficial row of Ey⁺Ap⁻ neurons express Toy (and Lim3), suggesting that they are the N^OFF progeny of the last-born Ey⁺ GMCs (Supp. Fig.4c,c’). Dfr is co-expressed with Ap in two or three rows of neurons that are intermingled with Ey⁺ neurons (Fig.5e,f), suggesting that they are the N^ON progeny from Ey⁺ GMCs (Fig.6i). In addition to these Ap⁺Dfr⁺ neurons, Dfr is also expressed in some later-born neurons that are Ap⁻ but express another TF: Dachshund (Dac), in specific sub-regions of the medulla crescent^{31, 37} (Fig.5e).

Figure 6. Slp is required for neuronal diversity.

a-b’. Cross-section views of larval medulla, with Toy in red and Ap (or ap-lacZ) in blue.

a. In wild type, Toy⁺ neurons in the deeper layer are Ap⁻. The superficial Toy⁺ neurons are Ap⁺ and are intermingled with Slp1⁺ neurons (green).

b,b’. In slp mutant clones (GFP, green in b, dashed outline in b’), Toy⁺Ap⁺ neurons disappear.

c,d. Adult medulla with OrtC1-Gal4>UAS-CD8GFP (green), ap-lacZ (blue) and Toy (red). c. Horizontal view. d. View through the medulla cortex.

e,f. Flip-out clones in adults (OrtC1-Gal4, hsFLP, UAS-FRT-STOP-FRT-CD8GFP). Arrows point to neuron cell bodies.

e. Tm20. Photoreceptor axons in blue.

f. Tm5 and TmY10.

g,h. OrtC1-Gal4 MARCM clones in adults.

g. wt.

h. slp mutant.

i. Simplified model showing neuronal TF markers expressed in progeny of NBs of different stages. The lineage is approximate and does not take into account regional differences. The brackets for “D” indicate that D is not maintained in all N^ON progeny of D⁺ NBs.

We tested whether Ey in NBs regulates Dfr expression in neurons. As expected, Dfr expressing neurons are lost in ey null mutant clones (Fig.5g,g’), suggesting that they require Ey activity in NBs, even though Ey is not maintained in Ap⁺Dfr⁺ neurons. Furthermore, in slp mutant clones in which NBs remain blocked in the Ey⁺ state, the Ap⁺Dfr⁺ neuron population is expanded into later-born neurons (Fig.5h,h’) suggesting that the transition from Ey⁺ to Slp⁺ in NBs is required for shutting off the production of Ap⁺Dfr⁺ neurons. In addition, Ap⁺Dfr⁺ neurons are lost in Su(H) mutant clones (Supp.Fig4b). Thus Ey expression in NBs and the Notch pathway together control the generation of Ap⁺Dfr⁺ neurons.

- Slp⁺ and D⁺ NB stages

In addition to its expression with Ey in the N^OFF progeny of the last-born Ey⁺ GMCs, Toy is also expressed in Ap⁺ (N^ON) neurons in more superficial layers generated by Slp⁺ and D⁺ NBs (Supp.Fig.4c,c’,d, Fig.6a,i). Consistently, in Su(H) mutant clones, we see an expansion of Toy⁺Ey⁺ neurons in the Ey progeny layer, followed by loss of Toy in the Slp and D progeny layer (Supp.Fig.4e).

We tested whether Slp is required for the NBs to switch from generating Toy⁺Ap⁻ neurons, progeny of Ey⁺ NBs, to generating Toy⁺Ap⁺ neurons. Indeed, in slp mutant clones, the Toy⁺Ap⁺ neurons largely disappear, while Toy⁺Ap⁻ neurons expand (Fig.6b,b’).

We examined Ap and Toy expression in specific adult neurons. OrtC1-Gal4 labels primarily Tm20 and Tm5 (Chi-Hon Lee, personal communication) plus a few TmY10 neurons, and these neurons express both Ap and Toy (Fig.6c-f). To examine whether Slp is required for the specification of these neuron types, we generated wild type or slp mutant MARCM clones by heat shocking for 1hr at early larval stage and analyzed the number of OrtC1-Gal4 marked neurons in the adult medulla. In wild type clones, OrtC1-Gal4 marks ~100 neurons (95.1±19.3, n=8) per medulla (Fig.6g, Supp. Fig.4f,h). In contrast, very few neurons (9.7±11.2, n=17) are marked by OrtC1-Gal4 in slp mutant clones (Fig.6h, Supp. Fig.4g,i). Slp is unlikely to directly regulate the ort promoter since Slp expression is not maintained in Ap⁺Toy⁺ neurons. Furthermore, the expression level of OrtC1-Gal4 in lamina L3 neurons (Chi-Hon Lee, personal communication) is not affected by slp mutation (Fig.6h). These data suggest that loss of Slp expression in NBs strongly affects the generation of Tm20 and Tm5 neurons.

In summary, our data show that the sequential expression of TFs in medulla NBs controls the birth-order dependent expression of different neuronal TF markers, and thus the sequential generation of different neuron types (Fig.6i).

Discussion

Although a temporal TF sequence that patterns Drosophila nerve cord NBs was reported more than a decade ago^{7, 12}, it was not clear whether the same or a similar TF sequence patterns neural progenitors in other contexts³. Our identification of a novel temporal TF sequence patterning the Drosophila medulla suggests that temporal patterning of neural progenitors is a common theme for generating neuronal diversity, and that different TF sequences might be recruited in different contexts.

There are both similarities and differences between the two NB temporal sequences. In the Hb->Kr->Pdm->Castor->Grh sequence, ectopically expressing one gene is sufficient to activate the next gene, and repress the previous gene, but these cross-regulations are not necessary for the transitions, with the exception of Castor^{7, 11, 12, 15}. In the Hth->Ey->Slp->D->Tll sequence, removal of Ey, Slp, or D does disrupt cross-regulations necessary for temporal transitions (except the Hth->Ey transition). However, in most cases these cross-regulations are not sufficient to ensure temporal transitions, suggesting that additional timing mechanisms or factors are required.

For simplicity, we represented the medulla NBs as transiting through five TF stages, while in fact the number of stages is clearly larger than five (Fig.6i). First, NBs divide more than once while expressing a given temporal TF, and each GMC can have different sub-temporal identities. Furthermore, there is significant overlap between subsequent temporal NB TFs: NBs expressing two TFs are likely to generate different neuron types from NBs expressing either one alone.

Although we are still investigating the complete lineage of medulla NBs, we show here how a novel temporal sequence of TFs is required to sequentially generate the diverse neurons that compose the medulla. The requirement for TF sequences in the medulla and in embryonic NBs suggests that this is a general mechanism for the generation of neuronal diversity. Interestingly, the mammalian orthologue of Slp1, Foxg1, acts in cortical progenitors to suppress early-born cortical cell fates⁴³. Thus TF-dependent temporal patterning of neural progenitors might be a common theme in both vertebrate and invertebrate systems.
