Mechanics of the Toxoplasma gondii oocyst wall

Abstract

The ability of microorganisms to survive under extreme conditions is closely related to the physicochemical properties of their wall. In the ubiquitous protozoan parasite Toxoplasma gondii, the oocyst stage possesses a bilayered wall that protects the dormant but potentially infective parasites from harsh environmental conditions until their ingestion by the host. None of the common disinfectants are effective in killing the parasite because the oocyst wall acts as a primary barrier to physical and chemical attacks. Here, we address the structure and chemistry of the wall of the T. gondii oocyst by combining wall surface treatments, fluorescence imaging, EM, and measurements of its mechanical characteristics by using atomic force microscopy. Elasticity and indentation measurements indicated that the oocyst wall resembles common plastic materials, based on the Young moduli, E, evaluated by atomic force microscopy. Our study demonstrates that the inner layer is as robust as the bilayered wall itself. Besides wall mechanics, our results suggest important differences regarding the nonspecific adhesive properties of each layer. All together, these findings suggest a key biological role for the oocyst wall mechanics in maintaining the integrity of the T. gondii oocysts in the environment or after exposure to disinfectants, and therefore their potential infectivity to humans and animals.

Resistance to physical and chemical degradation is essential for the perpetuation of the lifecycle of environmentally exposed microbial pathogens. In the coccidian parasite Toxoplasma gondii, this function is served by the oocyst, the only stage of the parasite structurally equipped to survive in harsh environments (1). Oocyst-related infections in humans and other warm-blooded animals worldwide have been increasingly reported as more prevalent and severe than previously thought (2–6). Infections lead to possible deleterious ocular and neurological complications and even death (7). In this context, a global effort has emerged to decipher the basic structures (8, 9) and biological processes of the oocyst (10–13) that allow the parasite to survive different environmental conditions and disinfectants (14–18).

The oocyst is the result of sexual multiplication of T. gondii in the intestinal epithelium of cats (19–21). A few days postinfection, unsporulated (uninfective) spheroid oocysts (10 × 12 µm) are excreted in cat feces and become rapidly infective following aerobic sporulation (22). Sporulation results in different subpopulations of maturing oocysts during the first few days (22): unsporulated (NS), “sporoblast-staged” (SB), and fully sporulated (SP) oocysts (11, 22). SP oocysts are ovoid, measure 11 × 13 µm in size and have two sporocysts (6 × 8 µm), each containing four infective banana-shaped sporozoites (2 × 6–8 µm) (SI Appendix, Fig. S1) (23, 24).

T. gondii oocysts are highly resistant to environmental influences; this resistance to various physical and chemical stressors, including disinfectants such as UV, ozone, and chlorine-based products, is attributed to the oocyst wall (4, 25, 26). In contrast, oocysts are rapidly inactivated following exposure to temperatures above 60 °C for a few minutes (27). The oocyst wall is bilayered, with the outer layer being thinner than the inner layer (24). The layers are not tightly bound to each other because the outer layer can be stripped off easily using sodium hypochlorite (refs. 10, 12, and 22 and the present study). The oocyst wall is made of more than 90% proteins with several structural cysteine- and tyrosine-rich proteins having been identified in the outer layer only (13) or in whole oocyst wall fractions (10, 12). How these different proteins are processed and/or packed to form the oocyst wall is still not clear (8). Current models support a strong contribution of protein-tyrosine cross-linking in the formation and hardening of the oocyst wall in Toxoplasma-related coccidia (8, 12, 26, 28) and results in the development of its typical blue autofluorescence (AF) under UV excitation (10, 26, 28, 29) (SI Appendix, Fig. S1B). This complex polymeric organization also suggests an important robustness of the T. gondii oocyst wall in terms of mechanics (8, 26). Thus, measuring mechanical properties of the T. gondii oocyst wall appears to be relevant to addressing the respective roles of structure and chemistry of each layer of the oocyst wall in the overall resistance of the oocyst to various physical and chemical agents (8).

Atomic force microscopy (AFM) is a rather new technique in biology that fits perfectly for this purpose (30). AFM provides valuable information regarding the surface topography and/or allows force measurements in physiological media, with fixed or unfixed samples, from proteins to cells (31–33). AFM uses a finger-like tip at the extremity of a very soft cantilever (30). This tip can be used to: (i) delineate the surface (imaging mode; refs. 34–36), (ii) indent objects’ surface by pressing on them and allowing measurement of their mechanical properties (force mode, mechanics) (37–40), or (iii) probe the adhesion of surface molecules when decorated with suitable haptens and pulling the lever off the surface until all built bridges are broken. This allows direct quantifying of the force that these bridges can sustain (force mode, adhesion). For modes ii and iii, the AFM cantilever is held at a given x,y above the sample (a surface or a cell) and ramped in z-direction. Measuring cantilever deflection as a function of piezo position produces force-extension curves (FC) (30).

Using the AFM tip as a microindentor and using the part of the FC where the tip is pressed on the surface, one can gain information regarding the local elastic properties as measured as a Young’s modulus, E, using a Hertz model for elastic indentation. E moduli measured for different eukaryotic cell types vary greatly from cell type to cell type and usually range from 1 kPa to several hundred kilopascals (37, 38). Using the part of the FC where the tip is retracted from the surface, adhesion force measurements can be performed and have been used in cell biology, from single molecules measurements to cell–cell measurements (31, 41–47). The sensitivity of force determination is usually limited by the thermal noise of the system and the properties of the chosen cantilever (30).

Here, we investigate, using AFM, the wall mechanics of T. gondii oocysts submitted to physical (heat inactivation) and chemical (bleach exposure) treatments separately or in combination to evaluate the contribution of each layer in the overall mechanics of the oocyst wall. Our results present a simple way to gently but firmly immobilize oocysts on surfaces to image them using fluorescence microscopy or test their mechanics using AFM under moderate forces. Our findings may be correlated to structural modifications of the oocyst wall and suggest a key biological role of the wall mechanics in maintaining the integrity of the T. gondii oocysts in the environment or exposed to disinfectants, therefore affecting potential infectivity to humans and animals.

Results

Microscopic Characteristics of T. gondii Oocysts Following Sporulation in Water.

To evaluate the basic mechanics of the T. gondii oocyst wall, we limited the use of chemicals to avoid any modification of the wall structure because of handling or storage conditions. For this, oocysts were sporulated in water rather than in 2% (vol/vol) aqueous sulfuric acid solution, which is commonly used for oocyst sporulation and subsequent storage (11, 22, 48). After a 5-d sporulation process, the oocyst suspension contained 18.6 ± 2.7% of NS, 18.3 ± 6.4% of SB, and 63.0 ± 5.9% of SP oocysts (SI Appendix, Fig. S1). All these different oocyst subpopulations exhibited the same typical AF under UV excitation (SI Appendix, Fig. S1B). Careful observation, before and during AFM experiments, was a key step to the exact categorization of the objects.

Characterization of Bleach Effects on T. gondii Walls by EM.

EM confirmed that control (H₂O-conserved) oocysts retained their typical double-layered wall (observed thickness ∼50 nm, Fig. 1 A and B). In contrast, the outer layer (observed thickness ∼18–20 nm) was absent in bleach-treated oocysts, with only the inner layer (observed thickness ∼30 nm) remaining with, in certain cases, slight remnants of the outer layer persisting (Fig. 1C). The oocyst wall thicknesses that were observed here are consistent with but in the lower end of the values of such structures reported in literature (up to 100 nm for the bilayered wall) (24). The bilayered structure of the T. gondii sporocyst wall was maintained following bleach treatment of the oocyst wall (Fig. 1 D and E).

Fig. 1.

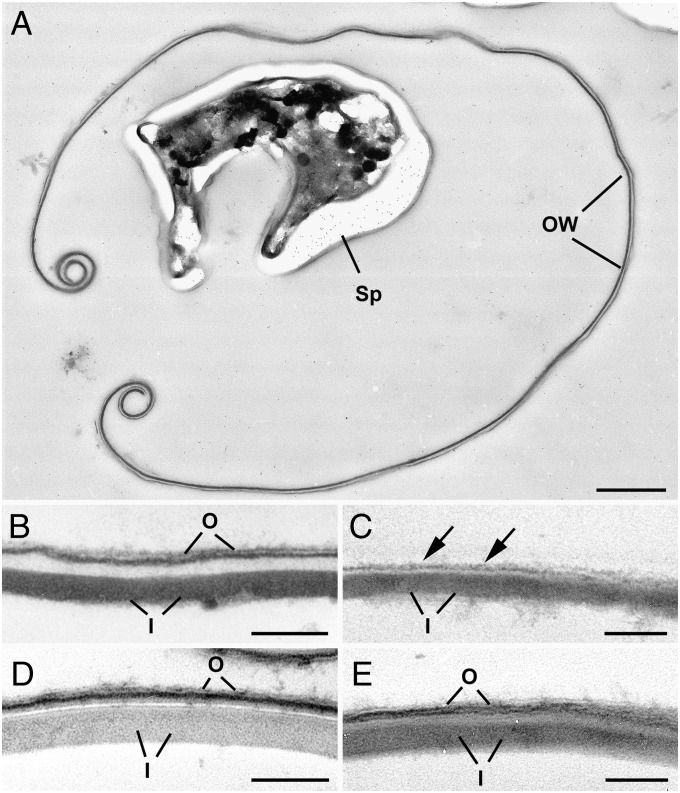

Ultrastructure of the T. gondii oocyst wall. (A) Low-magnification image of a control (water maintained) oocyst showing the ruptured oocyst wall (OW) and the remnants of a sporocyst (Sp). Bar is 1 µm. (B) Detail of the oocyst wall from a control oocyst showing the thinner outer layer (O) and the thicker inner layer (I). Bar is 100 nm. (C) Detail of the oocyst wall from a bleached oocyst showing the inner layer (I) with loss of the outer layer except for a few remnants (arrows). (D) Detail of the sporocyst wall from a control oocyst showing the outer (O) and inner (I) layers of the wall. (E) Detail of the sporocyst wall from a bleached oocyst showing the retention of both the outer (O) and inner (I) layers for the wall. (Scale bar, 100 nm.)

Characterization of T. gondii Walls by Fluorescence Microscopy.

The properties of the wall of NS, SB, and SP oocysts were first assessed microscopically by analyzing their reactivity to the mAb 4B6, which is specific to the inner layer of the oocyst wall (49). To induce structural modifications of the bilayered oocyst wall, the parasites were treated with bleach to remove the outer layer and/or heated at 80 °C. In contrast to bleach treatment, heating oocysts at 80 °C efficiently kills the sporozoites; however, the effects on the wall structure remain largely unknown. Oocysts exposed only to water during their maturation and storage served as controls. The percentages of oocysts at different maturing stages exposing partially or totally their inner wall following these different surface treatments are shown in Fig. 2. Corresponding immunofluorescence and AF representative images are shown in SI Appendix, Fig. S2.

Fig. 2.

Fluorescence labeling of the inner wall of T. gondii oocysts submitted to different surface treatments. NS, SB, and SP oocysts were bleached and/or heated before being allowed to react with 4B6 antibody specific to their inner wall (49, 58). The percentages of labeled parasites in each treatment condition are presented. No significant differences were observed between the stages of oocyst maturation for any given treatment. However, there were significant differences among treatments, with control H₂O oocysts differing from heated, bleached, and bleached then heated oocysts (P <0.001–0.05) and heated oocysts differing from bleached, and bleached then heated oocysts (P < 0.001). No statistical difference was noted between bleached oocysts and bleached then heated oocysts at any maturing stage. The corresponding typical fluorescence images are presented in SI Appendix, Fig. S2.

Between 21.2 and 25.6% of H₂O-exposed oocysts were labeled with antibody mAb 4B6 (Fig. 2). A mixture of unstained to totally mAb 4B6–stained oocysts was observed irrespective of the oocyst developmental stage (SI Appendix, Fig. S1A). Fluorescent staining appeared randomly distributed at the oocyst surface and ranged from almost continuous staining of the entire surface (SI Appendix, Fig. S2A, case 1) to very discrete patches (SI Appendix, Fig. S2A, case 2). In these conditions, 4B6 staining of the inner wall layer appeared to result from the infiltration of the antibody through cracks in the oocyst wall rather than the exposure of the outer aspect of the inner layer of the oocyst wall. This hypothesis was further supported by the fact that ∼25–30% of H₂O-exposed oocysts were permeable to FITC in solution, again indicating possible openings in the oocyst wall (SI Appendix, Fig. S3). Irrespective of their 4B6 pattern, SB and SP oocysts were more autofluorescent than NS oocysts (SI Appendix, Figs. S2A and S4).

Heating oocysts at 80 °C for 10 min led to a significant reduction of the percentage of 4B6-positive oocysts at all maturation stages (0.6–3.1%) (Fig. 2). The few positive oocysts observed were very faintly stained in localized areas of the oocyst wall (SI Appendix, Fig. S2B). In these experimental conditions, heating did not appear to alter significantly the microscopic structure or internal content of NS, SB, and SP oocysts or the AF of the oocyst wall (SI Appendix, Fig. S2 B compared with A).

In contrast, there was a significant increase in mAb 4B6 staining of oocysts bleached with 3% bleach solution for 30 min (final mAb 4B6–labeled oocysts from 48.3 to 80.7% depending on the maturing stage) compared with control or heated oocysts (Fig. 2). In these experimental conditions, the antibody stained, at least partially, the inner layer of NS, SB, and SP oocyst wall usually with a strong intensity (SI Appendix, Fig. S2C), indicating that modifications of the wall structure increase the access of mAb 4B6 to the outer aspect of the inner layer of the wall, but not its infiltration through it because only ∼25–30% of bleach-exposed oocysts were again permeable to FITC resulting from possible fractures in their wall (SI Appendix, Fig. S3). We also observed that several bleach-treated oocysts displayed a reduced AF pattern of the oocyst wall compared with the control oocysts (SI Appendix, Fig. S4), suggesting possible differences in the biochemical content of the oocyst wall between untreated and bleach-treated oocysts.

When bleached oocysts were subsequently heated at 80 °C, the percentages of mAb 4B6–positive parasites were similar to that observed with bleaching alone (40.1–74.3%) (Fig. 2). Microscopically, these oocysts had similar 4B6 and AF patterns compared with bleached-only oocysts, irrespective of the stage of maturation (SI Appendix, Fig. S2D compared with Fig. S2C). However, a few mAb 4B6–positive oocysts still had a very discrete wall AF (SI Appendix, Fig. S2D, case 5).

Attachment of the Oocysts for AFM Experiments.

The mechanical properties of the wall of H₂O-stored, bleach-, and/or heat-treated oocysts at different maturing stages were then evaluated using AFM. For this, oocysts were first allowed to adhere onto poly-l-lysine (PLL)-coated glass microscopic slides before being approached by the AFM tip (SI Appendix, Fig. S5 A–C). We verified that the coating procedure on glass did not change significantly the initial observed proportions of the different subpopulations of the oocysts irrespective of their pretreatment SI Appendix, Fig. S5B). This coating procedure was suitable for firmly attaching the oocysts onto the glass surface, thus allowing repeated contacts between the AFM tip and each oocyst at a preset contact force of 1 nN. The fine positioning of the AFM tip on top of the substructures (i.e., sporocysts) does not largely affect the measurements (SI Appendix, Fig. S5 D and E).

Elastic Properties of the Oocyst Wall.

Following our immobilization protocol, repeated force curves were obtained for each adhered object (Fig. 3 A and B). We observed that the indentation depth was <50 nm and typically ∼20 nm (Fig. 3 C and D) irrespective of the maturing oocyst stages or its pretreatment (SI Appendix, Table S1). This median indentation is of the same order of magnitude as the most outer layer of the oocyst wall (20 nm) and smaller than the thickness of the most inner layer (30 nm) as measured in EM micrographs. Following this, (i) in absence of bleach treatment, we concluded that we measured the mechanics of, if not the outer layer alone, the bilayered structure of the wall, and (ii) following bleach treatment, we were able to access the mechanical properties solely of the inner layer of the wall.

Fig. 3.

Measuring mechanical properties of T. gondii oocysts. (A) Typical force curve (force vs. tip-sample separation) used for quantifying the Young modulus (note that pressing and pulling curves are almost superimposed). The dotted line is the point of contact. (B) Magnification of the contact region of the curves presented in A, showing the superimposition of pressing and pulling curves together with the Hertz fit described in the text (dotted line) and d as the maximal indentation. The superimposition of pressing and pulling curves shows that little if no dissipation is occurring in the material when indenting, ruling out any viscoelastic behavior under the conditions of our experiments. (C) Example of maximal indentation for untreated oocysts of different subtypes, showing no tendency upon repeated indentation. Note that 100 nm was used as the scale maximum because it is the upper bound of the thickness of the oocyst wall found in the literature. (D) Maximal indentation under a force of 1 nN as a function of oocyst subtype and treatment. (E) Repeated measured values of Young modulus of three untreated oocysts of various subtypes, showing that for a given object no tendency can be observed upon repeated indentation. Note that the value of 10⁴ Pa used as the lower limit of the scale corresponds to the values recorded for hard eukaryotic cells as found in the literature. (F) Young modulus as a function of oocyst subtype and treatment. In D and F, each point is the median value obtained for a single oocyst upon successive indentations. The line is the median of the subsequent distribution. No significant differences are observed between the conditions for indentation (D and SI Appendix, Tables S1 and S4) or for Young modulus (F and SI Appendix, Tables S2 and S4).

Young moduli, E, obtained for NS, SB, and SP H₂O-stored oocysts were typically in the 10⁶–10⁷ Pa range and were not significantly different from each other (Fig. 3 E and F). Those elevated E values are similar to the ones reported for artificial polymeric capsules of comparable thicknesses (50). The median E moduli showed no significant variation between the different maturing oocyst stages irrespective of the oocyst pretreatment (SI Appendix, Tables S2 and S4). Force relaxation experiments during contact of the tip on the oocyst and the superposition of trace and retrace parts of the force curves indicated that no viscous behavior could be identified in this range of stimulations (Fig. 3 A and B). In addition, repetitions of contacts lead to rather unvarying indentation depths, with no apparent tendency of any plastic deformation of the oocyst wall for the investigated forces (Fig. 3C).

Pressing the oocysts at higher forces (30 or 120 nN) did not appear to strongly modify the mechanics of the oocyst wall (SI Appendix, Fig. S5 F and G). However, in these conditions, we observed that oocysts were accidently removed from the slide because of the higher pressing force, making the AFM tip into a golf club and the oocyst the ball.

Adhesive Properties of the Oocyst Wall.

In addition to indentation and elasticity measurements, the nonspecific adhesive properties of the oocyst wall were examined. Surface adhesion (Fig. 4) was measured as the force required to detach the AFM tip from the surface of the oocyst after indentation at 1 nN, with a fixed pulling speed of 1 µm/s. We observed that at least 50% of the force curves showed some adhesion (Fig. 4 A vs. B). The proportion of oocysts showing a detectable adhesion was observed to depend on the developmental stage and on the treatment of the oocyst surface. Temperature alone lowered the proportion of oocysts with adhesive surface properties, whereas application of bleach increased it (Fig. 4 C and D). Upon repeated pulling on the same object, adhesive forces did not show any marked tendency (Fig. 4E), indicating that materials coming from the wall did not pollute the tip. We observed that the strength of adhesion (i.e., the force required to fully detach the tip from the oocyst) was rather low (<100 pN) for control and temperature-treated oocysts but was significantly stronger when bleach was applied as a first treatment (Fig. 4F and SI Appendix, Table S3), suggesting important bleach-induced modifications of the wall. In conclusion, bleach treatment increases both the proportion of oocysts showing detectable adhesion and the overall strength of the adhesion, whereas high-temperature treatment alone did not affect adhesion force but reduced the proportion of oocysts showing significant adhesion.

Fig. 4.

Measuring nonspecific adhesive properties of T. gondii oocysts. (A) Typical force curve showing no adhesion event. (B) Typical force curve showing adhesion event. Magnification of the force curve near the contact/adhesion zone, with the recorded maximal adhesion force. The noise is far below the forces measured (typically 15–30 pN). (C) The fraction of adhesion as a function of oocyst subtypes and treatments (mean ± SD over the different days of experiments). Arrows show cases in which only one object for a given condition was observed over different repetitions. The dotted line has been placed at 75% adhesion as a guide for the eye. (D) Same data as in C, showing the comparison of NS and SP oocysts as a function of treatment. (E) Example of maximal separation force for untreated oocysts of different subtypes, showing no tendency upon repeated indentation/pulling, indicating that no strong pollution of or transfer of material to the lever tip was observed. The dotted line corresponds to the average observed noise on the baseline of the force curves. (F) Distribution of adhesion forces as whisker plots for oocysts of different subtypes and treatments. The significant differences correspond to the high- and low-adhesion separation on the graph (SI Appendix, Tables S3 and S4).

Discussion

The T. gondii oocyst is a superstructure that protects the dormant but potentially infective sporozoites from many extreme conditions that would be deleterious for survival (24). Facing the external environment, the oocyst wall acts as a primary barrier to physical and chemical attacks as long as its complex polymeric organization is perfectly maintained (8, 12, 26). Different, but complementary, approaches have been applied to investigate the structure and molecular basis of the oocyst wall resilience, such as EM (9, 12, 24, 51) and proteomics studies (10, 12). However, oocysts are technically difficult to process for EM examination because of the impervious nature of the walls and proteomics usually require large numbers of highly purified oocysts, which are difficult to obtain because oocysts cannot be generated in vitro. Here, we addressed the structure and chemistry of each oocyst wall layer through measurement of their respective mechanical properties by combining wall treatments, fluorescence and EM observations, and AFM techniques on immobilized parasites.

In coccidian parasites such as T. gondii, the oocyst wall results from the particular arrangement of structural proteins through a sclerotization process involving both quinone tanning and protein dityrosine cross-linking and dehydration (12, 26). This process probably takes place very early in the development of the oocyst wall, from the NS stage before it leaves the host (21), and is thought to lead to hardened structures, which excludes water-soluble molecules to form a complex polymeric covering capable of resisting extended physical and chemical-induced disorganization. Interestingly, it has been recently claimed that the inner wall layer of Eimeria tenella oocysts possesses discrete pores of 5–250 nm (9). However, such structures in the T. gondii oocyst wall were not observed in the present or previous studies (26).

The oocyst wall layers in T. gondii are assumed to differ in their thickness and molecular content, the inner one being thicker, less electron-dense and more resistant to chemical degradation than the outer one (8). Using fluorescence imaging and EM combined with different treatments, we provide insights on the structure and chemistry of the wall of T. gondii oocysts. Specific immunostaining of the inner wall layer of H₂O-exposed oocysts was infrequent and appeared to result from the infiltration of the antibody through focal openings of the oocyst wall rather than exposure of the external surface of the inner layer. After heating, antibody staining was significantly decreased in control oocysts, whereas it had little, if no, effect on bleach-treated oocysts. This would suggest that heating is not denaturing the antigen recognized by the antibody and probably results from heat-induced reticulation of poly-protein structures of the outer layer reducing penetration of the antibody. In contrast, bleach treatment clearly affected both the structure and chemistry of the oocyst wall by removing the outer layer as seen in our EM micrographs and significantly affecting the oocyst wall AF. Consequently, most of the 4B6 staining observed in bleached oocysts could be linked to the exposure of the external surface of the inner layer of the oocyst wall.

Then, we investigated the mechanical properties of the double-layered oocyst wall and then those specific to the inner layer after removing the outer layer by treatment with bleach. We observed high E moduli comparable to polymeric shells (50), with neither viscous nor plastic behaviors. The E moduli were not significantly different between the different maturing stages and treatments involving temperature and bleach (alone or in combination). Considering the small indentation and high E modulus, our results strongly support that the global stiffness of the bilayered oocyst wall is in the same order as that of the inner layer alone. Interestingly, we showed that the oocyst wall stiffness did not vary significantly following parasite incubation at 80 °C, which was quite unexpected because heat-induced stresses usually result in increasing stiffness of polymeric multilayer microcapsules from an increased shell thickness or reticulation (52). The conservative hypothesis suggests that each wall layer retains its basic mechanical properties by maintaining to large extend its molecular architecture, even at this temperature.

Besides mechanical measurements, AFM has also permitted examination of the nonspecific adhesive properties of each layer of the wall. It was observed that the proportion of oocyst showing adhesive properties was lower, as was the strength of the adhesion (i.e., overall force needed to fully detach the tip from the oocyst) in parasites retaining their typical double-layered wall structure, whereas there was a higher proportion of oocysts with adhesive properties and stronger adhesion was recorded in oocysts exposing solely the inner wall layer (SI Appendix, Fig. S6). This contrasting behavior might indicate the existence of important differences regarding the biochemical nature of the molecules and/or their arrangement from one wall layer to the other resulting from oocyst treatments modulating the structure of the wall. We speculate an increasing number of residual polypeptidic chains resulting from removal of (most of, if not all) the outer layer of the wall (SI Appendix, Fig. S6). Such differences have also been hypothesized by others (10), based on proteomics analyses of purified wall fractions of T. gondii oocysts exposed or not to bleach. It is not yet clear whether these different adhesive properties play a role in the oocyst fate. Recent studies have shown that the negative charges covering the surface of the oocyst wall prevent, in most cases, any aggregation of the parasites with other particles, thus allowing the parasites to disperse freely in fresh water (8). Further investigations, in particular on molecule-specific adhesion and the effects of digestive enzymes found in the host's gut, are required to extend our study and refine the biological significance of the adhesive properties of the oocyst wall.

From a methodological point of view, this study proposes a simple but efficient way to immobilize hardened biological microparticles such as T. gondii oocysts on glass slides for investigating the biophysical properties of their multilayer wall by using AFM and fluorescence microscopy techniques. It opens the possibility of extending such studies to immobilized T. gondii sporocysts and to other environmentally resistant parasitic pathogens such as Cryptosporidium and Giardia (53–56).

In conclusion, our study demonstrates that the overall rigidity of the bilayered T. gondii oocyst wall is as high as common plastic materials and that the inner layer is as robust as the bilayered wall itself. These findings strongly suggest that the mechanical characteristics of the T. gondii oocyst wall sustain the survival of the enclosed sporozoites facing physical and chemical attacks outside the host. In particular, our results suggest that chlorine-based products used as surface disinfectants or for treating drinking water are ineffective for efficiently killing T. gondii oocysts because these compounds are not able to permeabilize or disrupt the oocyst wall. However, it is clear that these properties have to be circumvented following oocyst ingestion by the host to safely deliver the sporozoites near the enterocytes. Because chemicals are ineffective in breaking the oocyst wall, a supplementary physical stimulus (still to be determined) seems to be required to prime oocyst-related infections in humans and animals.

Materials and Methods

Oocyst Purification and Sporulation.

Oocysts of the genotype II TgNmBr1strain of T. gondii (57) were harvested from feces of cat 6–8 d after feeding infected mouse tissues to a T. gondii–free cat (1), then purified by flotation, and allowed to sporulate at room temperature (RT) for 5 d. Oocyst suspension was stored in distilled water at 4 °C until used within 3 mo. More details can be found in the SI Appendix.

Chemical and Physical Treatment of the Oocysts.

Bleach treatment.

H₂O-stored oocysts were washed three times in PBS at 5000 × g 5 min and then incubated with 1 mL of bleach solution containing 3% sodium hypochlorite (Fouque Chimie Service) in PBS for 30 min at 4 °C. The oocysts were then washed three times in PBS to remove bleach before being immobilized on coverslips for AFM experiments.

Heat inactivation.

H₂O- or bleach-treated oocysts were washed three times in PBS at 5,000 × g for 5 min, resuspended in 500 µL PBS, and then placed in a dry block heater for 10 min at 80 °C to allow their inactivation before AFM experiments.

EM.

Samples of water maintained and bleached oocysts were mechanically ruptured before fixation in 2.5% glutaraldehyde in 0.1 M phosphate buffer and processed for routine EM. In summary, the samples were postfixed in osmium tetroxide, dehydrated in ethanol, treated with propylene oxide, and embedded in Spurr’s epoxy resin. Thin sections were cut and stained with uranyl acetate and lead citrate before examination in a Jeol 1200EX electron microscope.

Immunofluorescence assay.

The effects of bleach and heat treatments on the integrity of the oocyst wall were evaluated by immunofluorescence assay combined with the AF. We labeled oocysts in suspension using a monoclonal antibody (IgM mAb 4B6), which was previously shown to react mainly with the inner layer of the oocyst wall (49, 58). More details can be found in the SI Appendix.

FITC infiltration assay.

The permeability of the wall of oocysts exposed or not to bleach treatment was assessed by incubating oocysts with FITC at 0.5 mg/mL in PBS for 1 h at RT. Oocysts were subsequently washed four times in PBS by gentle centrifugations at 5,000 × g for 5 min and examined for fluorescence of FITC bound to internal proteins (SI Appendix, Fig. S3).

Measurements of the oocyst wall autofluorescence intensity.

The effects of bleach treatment on the autofluorescence pattern of the oocyst wall were evaluated on AF gray scale images as described in SI Appendix, Fig. S4.

AFM Experiments.

Oocyst immobilization on glass cover slides.

Clean glass cover slides were coated with PLL after activation using residual air-based plasma. After rinsing and mounting on an observation chamber, a diluted suspension of untreated, heat-inactivated, or bleach-treated oocysts was seeded onto the PLL-treated zone and left to settle for 45 min to 1 h at RT before removal of nonadherent objects. We observed that this procedure did not grossly affect the different subpopulations ratios compared with the original suspension (SI Appendix, Fig. S5B). More details can be found in the SI Appendix.

AFM measurements.

A Nanowizard I (JPK Instruments, used in closed loop mode) sitting on an Axiovert 200 (Zeiss) equipped with 10× and 40× lenses (with an optional 1.6× lens) was used to measure the oocyst mechanics. The system was sitting on an active damping table (Halcyonics) to suppress mechanical noise. Blunt AFM levers (MLCT, Veeco, nominal spring constant 10 pN/nm) were used and calibrated in situ. The spring constant (∼15–18 pN/nm) was determined in situ using a built-in thermal calibration method, far from the glass surface to avoid any hydrodynamical bias from the coupling with the substrate (59).

Using bright field, a given oocyst was chosen and a calibrated AFM cantilever was positioned on top of it (SI Appendix, Fig. S5 C and D). We checked that the measurements were not affected by the fine positioning of the tip on top of the structures (e.g., over the two substructures of SP oocysts and between them), so only the mid position was used to quantify the structure’s mechanics (SI Appendix, Fig. S5 D and E).

At least 10 force curves, with a preset contact force of 1 nN, a preset contact time of 0 s, pressing/pulling speeds of 1 μm/s and an acquisition frequency of 1024 Hz, were acquired per oocyst (Fig. 3 A and B). Each force curve was evaluated by eye and processed on a PC using the built-in JPK IP software (JPK Instruments), resulting in three to more than 15 data points extracted for each structure. We first observed that the maximal indentation depth at 1 nN was on average ∼20 nm (Fig. 3 C and D); this was less than the thickness of the bilayered wall structure, so the model was accurate enough to allow us to extract the Young modulus of the structures, E, one per valid force curve. To quantify the mechanics, we used as a first approximation a Hertz model for contact to fit the pressing part of the force curves assuming a pyramidal tip of α = 21° half angle and incompressibility of the material (ν = 0.5) (37) (Fig. 3 A and B). Because the indentation was <50 nm, we also tried the Hertz model for a spherical indenter of 25–50 nm radius and found little difference in the quality of the fit and subsequently calculated E moduli.

For adhesion measurements, we retrieved from the return/pulling part of the force curves the maximum detachment force (Fig. 4B) and frequency of adhesion events (i.e., the ratio between the number of force curves having adhesion divided by the total number of force curves taken into account) (Fig. 4 C and D). We then calculated median adhesion forces and plotted the entire force distribution as whisker plots. We did not observe any tendency of adhesion force versus upon repetitions of tests (Fig. 4E).

Experiments lasted maximum 2 h at RT before changing the sample and the cantilever, with occasional supplementations of water to counteract the evaporation.

Data Processing and Statistical Analysis.

The distributions of the pooled data being non-Gaussian, median values with data points and/or whisker plots were then plotted as a function of the oocyst stage and treatment using Prism 5.0 and 6.0 (GraphPad). The data sets were compared using nonparametric tests such as Kruskal–Wallis.
