Animal Models for Vascular Tissue-Engineering

Abstract

Due to rise in cardiovascular disease throughout the world, there is increasing demand for small diameter blood vessels as replacement grafts. The present review focuses on the animal models that have been used to test small-diameter TEVs with emphasis on the attributes of each model. Small animal models are used to test short-term patency and address mechanistic hypotheses; and large, pre-clinical animal models are employed to test long-term patency, remodeling and function in an environment mimicking human physiology. We also discuss recent clinical trials that employed laboratory fabricated TEVs and showed very promising results. Ultimately, animal models provide a testing platform for optimizing vascular grafts before clinical use in patients without suitable autologous vessels.

Introduction

Clinical Necessity

Due to rise in cardiovascular disease throughout the world, there is increasing demand for small diameter blood vessels as replacement grafts. In 2006 heart disease was responsible for more than 600,000 deaths, half of which were caused by coronary heart disease. Notably, 400,000 surgical bypass operations were performed in the same year, highlighting the need for a small diameter arterial substitute. To date, saphenous veins, internal mammary and radial arteries are considered the golden standard for replacement of diseased coronary arteries. However, autologous vessels are unsuitable in many patients presenting with vascular disease due to small size, varicosities, anatomic variation, previous removal, or other abnormalities. Vessel quality is a critical factor in the long-term patency and function of vascular grafting procedures, as well, vessel harvest is time-consuming and a major contributor to postoperative morbidity [1]. Therefore, the limited graft availability, especially in elderly patients, together with the increased 10 year failure rate of venous grafts suggest that alternative strategies are urgently needed [2]. Although synthetic materials such as Darcon and polytetrafluorethlene can be used to substitute large diameter vessels, thrombogenicity and poor elasticity make them inappropriate for engineering small diameter vessels [3].

Tissue engineering approaches were developed to bypass the drawbacks of synthetic materials [4–13]. Technological advances in biomaterials and bioreactor technologies have produced strong vascular grafts that can be optimally pre-conditioned to withstand the mechanical microenvironment of arterial circulation [9,11,14] (Fig. 1). However, two major issues remain: cell source and animal models to test implantability of tissue engineered vessels (TEVs) prepared from different cells and materials.

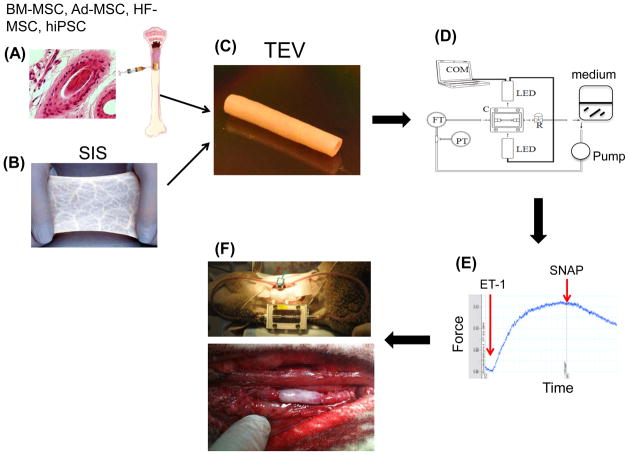

Figure 1. Stem cells, biomaterials and bioreactors for engineering vascular grafts.

Adult mesenchymal stem cells (MSC) from various sources e.g. bone marrow (BM), adipose tissue (Ad), hair follicles (HF) or induced pluripotent stem cells (iPSC) have been used to engineer a functional vascular wall. Our group employed SIS in combination with fibrin glue to incorporate BM- or HF-MSC into the vascular wall of the cylindrical construct. After seeding the lumen with BM-derived endothelial cells, the TEVs were subjected to shear stress and pulsatile pressure using a dynamic bioreactor. Measurements of vascular contractility were used to evaluate the function of TEVs in response to vascular agonists such as endothelin- 1 (ET-1) and SNAP. After only two weeks in culture these TEVs were implanted into the arterial system of an ovine animal model where they remained patent for the duration of the experiment i.e. 3 months.

Cell sourcing

Autologous EC and SMC have been successfully introduced into engineered grafts, but their isolation requires patient biopsies. Moreover expansion of those cells to the large numbers required for engineering TEVs is limited by their low proliferation potential, especially when originating from elderly patients [15]. Terminally differentiated vascular cells isolated from aged patients exhibited reduced functionality and decreased extracellular matrix remodeling resulting in failing grafts [16,17]. On the other hand stem cells are promising cell sources that have the potential to overcome the limitations of mature and terminally differentiated cells. Stem cells, adult or induced pluripotent stem cells (iPSC), have increased proliferation and broad differentiation capacity, making them ideally suited for regenerative medicine. In particular, adult mesenchymal stem cells (MSC) have been widely investigated for clinical use to treat a variety of degenerative diseases and more than 200 clinical trials have been initiated to date using MSC as functional therapeutics [18].

However, similar to terminally differentiated cells, donor aging and culture senescence appears to affect the proliferation and differentiation potential of stem cells as well [19,20]. Our laboratory reported that the proliferation capacity, the myogenic differentiation potential and the ability to generate force were greatly diminished with donor aging [21]. Notably, we also showed that ectopic expression of Nanog reversed the proliferation and myogenic differentiation potential of bone marrow-derived MSC (BM-MSC) from adult donors to a similar level as that of their neonatal counterparts [22]. In addition, we developed an efficient stage-wise strategy that enabled hiPSC differentiation into contractile SMC through an intermediate population of clonogenic and multipotent MSC, suggesting that this may be an alternative strategy to overcome the effects of donor aging in adult stem cells [23]. Finally, our laboratory discovered a novel source of MSC, namely hair follicle derived (HF)-MSC, which showed high proliferation and multi-lineage differentiation potential as well as higher resistance to culture senescence as compared to bone marrow derived MSC [24–27]. The use of stem cells for cardiovascular tissue engineering and regenerative medicine is a topic of intense scientific interest and has been reviewed recently [28].

Animal models

In addition to cell sourcing, pre-clinical assessment of TEVs using appropriate animal models is essential to determine the clinical potential of engineered tissues. There are several variables that need to be considered when selecting an appropriate animal model, including thrombogenicity, immunogenicity, size of vascular graft, implantation site and the specific clinical need that is being assessed. The present review focuses on the animal models that have been used to test small-diameter TEVs with emphasis on the attributes of each model.

Animal Model Selection Criteria

During the course of TEV development there are many criteria that are utilized in the assessment of clinical potential. Each of these criteria may be best analyzed in different experimental settings. The optimal target criteria would obviously be those that match the naturally occurring physiology of the native blood vessel that is being substituted. As normal human physiology is difficult to mimic, there have been minimally acceptable criteria established and published to guide the development of vascular substitutes [29,30]. These include the ability to be sterilized, reproducibility, acceptable cost, low porosity, implantability (anastomosis, site plasticity, and kink resistance), lack of immunogenicity, site-specific strength, and long-term remodeling and function. In addition, it would be necessary for the TEV to be physiologically functional and non-thrombogenic [31]. These criteria can be examined in in-vitro and in-vivo settings. There are no in-vivo models, which are optimal for testing all criteria and hence the need for multiple animal models to optimize testing for specific developmental criteria.

The selection of an appropriate animal model needs to include criteria relevant to the TEV graft such as implantation site, TEV diameter and length, and time frame of implantation. Equally important are criteria relevant to the animal species selected such as cost, availability, ease of handling, animal response to surgical procedure, target vessel diameter and length and target physiology. Optimally, an animal model needs to be selected that meets most of these criteria. It is best to match site and diameter to test hemodynamics and implantability; use longer grafts (>4 cm) to test patency; type of anastomosis (end-to-end, end-to-side) to test shear stress; or select species that exhibit similar immunogenicity and thrombogenicity mechanisms as those at work in humans. The type of analysis - e.g. serial imaging or monitoring vs. a single measurement at the end of the experiment - is also important in determining the choice of animal model.

Similarity to human physiology is one major factor that is considered when assessing criteria specifically related to translational studies. For example, ovine and non-human primate models show greater similarity to humans in terms of thrombogenicity mechanisms as compared to dogs or pigs. On the other hand, similar to humans, dogs exhibit lack of spontaneous endothelialization of vascular grafts and they tend to be hyperthrombogenic. These two features make the dog model more stringent for TEV testing. In contrast, lack of similarity in vascular dimensions and hemodynamics make small animals like mice and rats poor models for long-term TEV evaluation. However, the plethora of transgenic mice presents a very useful resource to dissect molecular mechanisms related to immune response, remodeling, vascular reactivity and other aspects of graft physiology.

Just as donor age affects the quality of stem cells and the resulting TEVs, the age of recipient animals may affect the microenvironmental factors that are critical for successful grafting and long-term tissue regeneration. To date, little attention has been paid into understanding how the outcome of grating procedures depends on the age of the recipient. Optimal vascular grafting requires integration, remodeling and functionality of the graft, which is highly dependent upon the recipient’s regenerative ability, primarily determined by age. It is reasonable to expect that young adults represent an optimal age group of recipients due to high regeneration capacity and relative growth stability. However, if one is to consider the “real” clinical environment, it is the elderly who are typically the recipients of vascular grafting procedures and therefore, the age of the recipient should be considered in studies of pre-clinical TEV assessment. Age of the recipient is also critical when considering vascular grafting procedures into children. In this case, the ability of the graft to grow with the patient is of high clinical relevance.

Gender can also be a significant factor, as estrogen/testosterone and pre-puberty/post-puberty are well-documented factors affecting gene expression and cellular function. Also, gender can be used to differentiate between host vs. donor cells, thereby enabling studies to monitor host cell infiltration and track donor cell fate post-implantation. As the concerns of animal rights and limitations on the use of non-human primate increase, the pig and sheep models have become more widely used in recent years. In addition to the ethical considerations, cost is also a factor, making the pig and sheep the models of choice. In the following, we present studies using large and small animals models as well as the few clinical studies that have begun to test tissue-engineered vascular grafts. Table 1 summarizes tissue engineered graft implantation studies that employed large or small animal models.

Table 1.

Pre-clinical and clinical developments of Tissue-Engineered Vascular Grafts

Species	Vascular graft/work	Site	Year	Ref.
Human	TEVs made of l-lactide and caprolactone scaffold and BMCs, transplanted into cardiac vessels into pediatric patients; no failure up to 32 months.	Pulmonary cavo	2001–2005	[53] [49, 54]
Sheep	Fibrin-based TEVs with vascular ECs and SMCs was successfully implanted.	Jugular Vein	2005	[13]
Sheep	Decellularized ovine pulmonary arteries seeded with autologous ECs and implanted.	Pulmonary artery	2006	[55]
Sheep	Ovine bone marrow progenitor cell-derived ECs and SMCs were seeded onto SIS and implanted into an ovine animal model. The bone marrow-derived TEVs demonstrated superior elastogenic potential.	Carotid artery	2007	[12]
Rat	Poly(L-lactic acid) nanofibrous scaffolds were seeded with BM-MSCs and implanted.	Carotid artery	2007	[56]
Human	TEVs generated from autologous dermal fibroblasts and venous Ecs were implanted in 10 patients for dialysis.	Arterio/Venous shunt	2007	[51]
Sheep	PGA scaffold coated with l-lactide and epsilon-caprolactone seeded with BM-MNCs and implanted.	Inferior venacava	2008	[57]
Pig	BM-MNCs were induced into ECs and SMCs in vitro, seeded onto porcine decellularized aorta, and implanted.	Abdominal aorta	2009	[58]
Rat	TEVs constructed with PEUU scaffolds seeded with MD-SCs and implanted.	Abdominal aorta	2010	[59]
Sheep	Fibrin-polylactide-based TEVs seeded with explanted Ecs and SMCs from carotid artery and implanted.	Carotid artery	2010	[33]
Sheep	Autologous bone marrow cells seeded on decellularized arterial scaffold and implanted in an ovine model.	Carotid artery	2010	[60]
Human	Autologous bone marrow cells were seeded on a biodegradeable PGA/eCaprolactone scaffold an implanted into single ventricle pediatric cases.	Cavo/pulmonary	2001–2010	[53]
Dog	Canine smooth muscle cells seeded onto polyglycolic acid (PGA) scaffold. Decellularized and seeded with canine EC.	Coronary/Peripheral	2011	[8]
Pig	Porcine cell seeded PGA scaffold. Decellularized, seeded with autologous EC or EPC and implanted.	Carotid artery	2011	[38]
Rabbit	Establish a chronic total occlusion (CTO) model, atherosclerosis. Human osteblast seeded on polycaprolactone (CPL) scaffold and implanted, observed for occlusion.	Femoral artery	2012	[61]
Rat	Decellularized rat aortic arches were implanted, with eight week follow up.	Infrarenal aorta	2012	[62]
Rat	Heparin conjugated nanofiber matrix (1mm) implanted.	Carotid artery	2012	[63]
Dog	Canine decellularized arterial vessels implanted into arterial system.	Arterial	2012	[64]
Dog	Heparinized decellularized dog artery seeded with donor EPCs and implanted.	Carotid artery	2012	[41]
Sheep	Decellularized arterial scaffolds seeded with autologous EPC. Assessed for needle puncture and venous outflow.	Carotid/Jugular shunt	2012	[34]
Sheep	Autologous vascular cells seeded onto biodegradable PGA/P4HG. Followed up to 2 years and monitored MMP expression.	Pulmonary artery	2012	[36]
Sheep	SIS-based TEVs with HF-MSC in the wall and BM-EC in the lumen where connected in a arteriovenous loop to test short-term patency	Arteriovenous shunt	2012	[11]

Large Animal Models

Non-human primates

Non-human primates demonstrate considerable similarity to humans in terms of cardiovascular physiology and thrombogenic mechanisms as well as high susceptibility in developing atherosclerosis. Non-human primates, such as baboons, also allow a significant advantage in greater availability of cellular markers, non-invasive imaging technologies, thrombosis evaluation assays, and limited fibrous encapsulation as compared to other large animal models. A recent study by the Niklason group employed this animal model to test the first off-the-shelf TEV that was prepared from allogeneic human vascular smooth muscle cells that were seeded onto a polyglycolic acid (PGA) scaffold and cultured for 7–10 weeks in vitro to allow for significant matrix remodeling and collagen production. At that time, the grafts were decellularized to minimize thrombogenicity and to become amenable to long-term storage. Decellularized TEVs were implanted into a baboon model of arteriovenous access for hemodialysis where they retained their patency and strength for up to 6 months [8]. The ability to store these engineered tissues for several months or longer means that they can be prepared ahead of time and transported as needed, i.e. they become readily available off-the-self human grafts. The success of this pre-clinical model demonstrated that decellularized, off-the-shelf TEVs are a feasible alternative with high clinical potential. However, due to ethical concerns and high cost, the non-human primate model is not the model of choice for the majority of researchers who use other models such as sheep, pig and dog.

Sheep (ovine)and goats (caprine)

Sheep and goats are large animals that have long necks that allow for easy access and implantation into the carotid artery, a preferred site for TEV assessment. These large animals are ideal for testing TEVs of 4–6 mm in diameter with blood thrombogenic mechanisms similar to humans. The common carotid artery is long with no major bifurcations and allows easy access to assess waveform pulsatility and patency via ultrasound. The sheep and goats are quickly maturing animals that are amenable to long-term studies due to cost effectiveness, ease of handling and similarities of their cardiovascular physiology with humans.

Swartz and colleagues generated TEVs from ovine SMC and ECs that were embedded in fibrin hydrogels and implanted them into the jugular veins of 12 week-old lambs [13]. These vessels demonstrated excellent remodeling with considerable collagen and elastin production demonstrating implantability of fibrin-based TEVs (Fig. 2). In a follow up study our group developed a novel method to isolate smooth muscle cells from bone marrow (BM) derived mesenchymal stem cells using a tissue specific promoter and fluorescence activated cell sorting [12]. TEVs prepared from BM-MSC derived SMC and BM-derived endothelial cells (EC) were implanted into the jugular vein of the same animal model. As early as five weeks post-implantation, BM-derived SMC aligned circumferentially and produced large amounts of collagen. In contrast to previous results with vascular SMC, BM-MSC derived SMC synthesized high amounts of elastin that was organized in a fibrillar network very similar to native vessels (Fig. 2), suggesting that BM-MSC have high potential for development of stem cell therapeutics for treatment of cardiovascular disease. To enable arterial implantation, our group combined the properties of fibrin hydrogel with the mechanical strength of a native biomaterial, small intestinal submucosa (SIS) into a hybrid cylindrical construct that was able to withstand arterial pressure as an arteriovenous shunt and as interpositional graft in the ovine carotid artery [11,32 ]. Using a slightly different approach Koch and colleagues seeded autologous arterial cells onto a fibrin scaffolds that were supported by a polylactide mesh and implanted them interpositionally into the carotid artery of sheep [33]. At 6 months post-implantation, the grafts were patent and showed no signs of thrombosis with EC markers present in the lumen.

Figure 2. Remodeling of TEV after implantation.

Fibrin-based TEV were prepared from vascular smooth muscle cells (V-TEV; A, C) that were isolated from saphenous veins or from BM-MSC derived SMC (BM-TEV; B, D) and implanted into the external jugular veins of 12-week old lambs. At the indicated times (15 or 5 weeks) the tissues were explanted and processed for histology. (A, B) Mason’s trichrome showed abundant collagen (blue/green). (C, D) Verhoff’s stain showed elastin fibers as black lines. Note the abundant expression and fibrillar organization of elastin (black lines) only in BM-TEV but not in V-TEV despite the longer implantation time of the later. Luminal surface is at the top of each panel and blood flows in the direction that crosses the plane of the page. (E, F) Quantitative RT-PCR for collagen (E) and elastin (F) expression in neonatal (n1–n3) BM-MSC, adult (a1–a3) BM-MSC or V-SMC. The data was normalized relative to GAPDH. The relative expression level was defined as the ratio of the normalized expression level of each gene in BM-SMC to that in V-SMC from umbilical veins of neonatal lambs. Note the difference in elastin expression between nBM-MSC, aBM-MSC and V-SMC.

In another approach, decellularized arterial ovine scaffolds were seeded with autologous circulating EPCs and after pre-conditioning were implanted as arterio-venous shunts between the jugular vein and carotid artery of sheep [34]. Needle puncture and venous outflow was assessed up to 6 months. TEVs showed stable wall geometry but all grafts eventually developed venous anastomotic stenosis, the primary mode of graft failure. TEVs were also constructed from human amniotic membranes and implanted into the external jugular vein of juvenile sheep, where they remained patent for 48 weeks, and the grafts had no signs of inflammation or fibrosis, intimal hyperplasia, or dilation [35]. Finally, matrix remodeling was assessed in vivo by implantation of TEVs from biodegradable scaffolds of polyglycolic-acid/poly-4-hydroxybutyrate (PGA/P4HB) [36]. Two studies by the same group [36,37] demonstrated that these TEV s possessed the ability to grow with the recipients, a finding of high clinical relevance when grafting into children. Collectively, these studies showed that the ovine model is an excellent pre-clinical model to evaluate the short-term patency and long-term remodeling of tissue engineered vascular grafts.

Pigs (Porcine)

Pigs also resemble vascular human anatomy and physiology and they are used extensively for assessing cardiovascular devices, and in studies of vascular injury and restenosis. However, pigs mount an extensive immune response to transplants and their rapid growth presents difficulties in handling of adult animals, thereby restricting their use to short-term studies. For these reasons, the miniature pig has gained popularity in recent years as a model system for TEV assessment.

In a pioneering study Niklason and colleagues employed polyglycolic acid (PGA) as a scaffold for engineering TEVs that were subjected to pulsatile flow for 8 weeks in vitro before implantation into a pig model [4]. This was the first study to demonstrate short-term patency (24 days), establishing the feasibility of implanting tissue engineered vascular grafts. In a more recent study the same group engineered PGA-based TEVs that were later decellularized, leaving behind the mechanically robust extracellular matrix of the graft wall. The presence of autologous EC or EPC in the lumen promoted short-term (30 days) patency in pigs, demonstrating the feasibility of readily available decellularized TEVs for implantation [38]. Grafts of small intestinal submucosa were also implanted into the thoracic superior vena cava of piglets to assess their potential to grow with the animals over a 3-month period. In this time, the diameter almost doubled and the length increased by 50%, demonstrating the potential of these TEVs as a cardiovascular substitutes in growing children [39].

Dog (canine)

Dogs are widely used for a variety of cardiovascular applications. They exhibit significant differences in thrombogenic mechanisms and vascular viscoelastic properties as compared to humans, ovine and non-human primate models. In addition, their marked immune response to the implants poses restrictions to the use of dogs in long-term patency studies. The dog however, provides a greater selection of diameter and implantation site options. Large diameter vessels can be implanted into the thoracic or abdominal aorta, while small diameter (3–5 mm) vessels can be implanted interpositionally into the common carotid and aortoiliac arteries.

Dogs have been used for testing the efficacy and patency of TEVs that were engineered with a variety of synthetic and biological matrices seeded with autologous cells derived from adipose tissue, epithelium, smooth muscle, and small intestinal sub mucosa. Watanabe and colleagues used biodegradable scaffolds that were seeded with mixed cells from the femoral veins of mongrel dogs [40]. After one week, the TEVs were placed interpositionally into the inferior vena cavas (IVCs) of the same dogs. Upon angiographic imaging, there was no evidence of stenosis or dilatation and the grafts remained patent. L’Heureux and colleagues utilized a scaffold-free method, in which cell sheets of human fibroblasts were rolled into cylindrical TEVs that exhibited very good mechanical properties enabling implantation as interposition grafts into the femoral artery of mongrel dogs. These xenogeneic grafts were not seeded with luminal EC and maintained a patency of 50% at 1 week after implantation [6]. In another study from the Niklason group, canine smooth muscle cells were seeded onto a polyglycolic scaffold and after 7–10 weeks of culture TEVs were decellularized to create an off-the-shelf product. Then the grafts were luminally seeded with autologous endothelial cells and implanted into the left anterior descending coronary artery or as carotid artery bypass grafts in a dog animal model for up to 12 months. The grafts demonstrated high patency rates (83%) and resisted calcification and intimal hyperplasia [8]. In a similar approach, heparin-coated, decellularized dog carotid arteries were seeded with autologous circulating EPCs and implanted into the carotid arteries of donor dogs. At 3 months, the grafts were mostly patent and exhibited minimal intimal hyperplasia [41].

Small Animal Models

Rabbits (leporine)

Rabbits are the optimal small animal model for studying small diameter (1–4mm) vascular grafts. The rabbit vascular physiology resembles that of humans in several aspects, more so than the rat, including thrombogenicity mechanisms, patency and endothelialization rates. The rabbit is the largest of the small animal models that enables bilateral interposition implantation of longer TEVs into aorta, carotid or femoral arteries and there are more non-invasive techniques available to evaluate the grafts, such as, palpation of ipsilateral central ear artery or by Doppler ultrasound [42,43]. On the other hand, long-term patency studies are difficult to perform in the rabbit due to its size and vascular physiology. For these reasons, rabbits can be employed to assess short-term efficacy and safety of implanted TEVs and screen multiple conditions before moving onto large animal models.

Rats and mice (murine)

Rats and mice can only be used to study very small diameter (1–2 mm) and very short length (1 cm) TEVs. These small rodents allow for high throughput experimentation as they are more cost effective and require less maintenance. A major advantage is the utilization of specific transgenic models to further study integration and developmental aspects of TEV implantations. However, the cardiovascular physiology and thrombogenicity mechanisms are not as similar to humans as some of the large animal models.

TEVs from different biomaterials such as a polysaccharide gel [44] or decellularized rat aortas [45] have been tested in rats with various degrees of success. A severe combined immunodeficiency (SCID) mouse model was developed by Lopez-Soler and colleagues for testing xenogeneic TEVs [46]. Small diameter aortic interposition grafts were made from decellularized ovine arterial tissue. These grafts were implanted interpositionally as infrarenal aortic grafts and demonstrated very good patency from 1 to 35 days. This model decreased the complications of immune reaction and the higher cost associated with large animal models. Others used a CD11b-diptheria toxin receptor (DTR) transgenic mouse model to study the role of macrophages in TEV stenosis [47]. They found that the transition from M1 to M2 macrophage phenotype correlated with increased graft stenosis, which was eliminated significantly in DTR mice as well as in mice in which macrophages were depleted by chemical treatment. On the other hand, lack of macrophages inhibited infiltration of endothelial and smooth muscle cells into the grafts and eliminated collagen deposition and long-term remodeling, suggesting that macrophage infiltration is critical for successful TEV remodeling. It would be interesting to test some of these findings in large animals models and ultimately in humans.

Clinical Studies

Human clinical trials with TEVs are still in their early stages. Preclinical evaluation studies utilizing large animal models may predict the success of tissue engineered vascular grafts, however, extrapolating the results to humans is difficult. Clinical trials should be performed with long-term clinical evaluation to determine the integration, patency and function of tissue engineered vascular grafts. In a case report, the pulmonary artery was successfully reconstructed in a four-year-old girl and remained patent with increasing diameter over time [48]. A clinical application also conducted by Shin’oka and collaborators in 2001 using TEVs made of a biodegradable synthetic scaffold (copolymer of l-lactide and -caprolactone (50:50)), seeded with autologous bone marrow cells and implanted into 42 patients as extracardiac total cavopulmonary connections or tissue engineered patches (low pressure environment). The patients were followed for up to 32 months and showed normal vascular function with no thrombosis, stenosis, or obstruction [49]. In a long-term follow up (mean follow up time 5.8 years) with clinical and radiologic surveillance of 25 patients there was no indication of aneurysm formation, graft rupture, infection or ectopic calcification [50].

Autologous fibroblast based tissue engineered blood vessels have been used for adult human peripheral arterial vascularization and clinical results have been very promising [51,52]. Specifically, arteriovenous shunt grafts were engineered using the rolled sheet method and implanted into ten patients with end stage renal disease. The grafts were followed up for 6 months and demonstrated 78% patency even after repeated puncturing for hemodialysis [52]. Testing of TEVs in humans is an exciting success for vascular tissue engineering that will hopefully pave future investment in the development of cellular therapies and their translation to the clinic.

Summary-Conclusions

There are no absolute ideal animal models or international consensus on standards associated with the development and testing of TEVs. The lack of standardized models makes it difficult to compare results among investigators. In order to best evaluate the implantation of TEVs assessed in such a variety of animal models require optimal model selection and use of proper internal controls. Some critical aspects that need to be considered in choosing the correct animal model include the species, strain, size, relevant aspects of cardiovascular physiology, and site of implantation. It is also important to use suitable controls (e.g. re-anastomosed native vessels), preferably in the same animal and same position.

Selection of an animal must be based on its suitability to examine the TEV property under investigation, e.g. thrombogenicity, cell infiltration or the capacity to grow with the host. The best animal models to examine certain TEV features are summarized in Table 2. Small animal models are more cost-effective and amenable to high throughput experimentation. Use of transgenic and knock in mice and rats may be very useful in addressing mechanistic questions related to vascular implantation. However, studies that aim at obtaining pre-clinical data to establish the clinical potential of TEVs must employ large animal models that resemble human anatomy and physiology more closely. These may include implantation of site-specific, full-size grafts and long-term studies of vascular integration and function. Ultimately, it would be optimal to use immune-controlled, large animal models for testing of human TEVs in translational pre-clinical studies.

Table 2.

Animal models to study various aspects of TEV function

TEV Study Feature	Animal Model
Endothelialization	sheep
Follow-up imaging	sheep/dog/rabbit/rat
TEV growth	pig/sheep
Patency	sheep
Thrombogenicity	non-human primate/sheep
Lipid metabolism/plaque formation	non-human primate/pig
Matrix materials	rat/mice
Cell infiltration into matrix	rat/mice
Thrombogenicity-microvascular	rabbit
Transgenic/gene manipulation	rabbit/rat/mice
Intimal hyperplasia (IH)	rabbit
Post-assessment (antibodies)	Non-human primate/dog/pig/rabbit/rat/mice

Highlights.

1. There is increasing demand for small diameter blood vessels as replacement grafts

2. Major roadblocks in engineered vascular grafts: cell sources and in vivo testing.

3. Clinical application of vascular grafts requires testing in relevant animal models
