ANKS6 is a central component of a nephronophthisis module linking NEK8 to INVS and NPHP3

Abstract

Nephronophthisis (NPH) is an autosomal recessive cystic kidney disease that leads to renal failure in childhood or adolescence. Most NPHP gene products form molecular networks. We have identified ANKS6 as a new NPHP family member that connects NEK8 (NPHP9) to INVERSIN (INVS, NPHP2) and NPHP3 to form a distinct NPHP module. ANKS6 localizes to the proximal cilium and knockdown experiments in zebrafish and Xenopus confirmed a role in renal development. Genetic screening identified six families with ANKS6 mutations and NPH, including severe cardiovascular abnormalities, liver fibrosis and situs inversus. The oxygen sensor HIF1AN (FIH) hydroxylates ANKS6 and INVS, while knockdown of Hif1an in Xenopus resembled the loss of other NPHP proteins. HIF1AN altered the composition of the ANKS6/INVS/NPHP3 module. Network analyses, uncovering additional putative NPHP-associated genes, placed ANKS6 at the center of the NPHP module, explaining the overlapping disease manifestation caused by mutations of either ANKS6, NEK8, INVS or NPHP3.

NPH is the most frequent genetic cause of renal failure in children, presenting with cystic kidney disease combined with extrarenal manifestations such as retinitis pigmentosa (Senior-Løken syndrome), liver fibrosis, cerebellar vermis hypoplasia (Joubert-syndrome), situs inversus or cardiac malformations ^1,2. Since most NPHP gene products localize to the cilium or its appendages, NPH, the related Joubert-syndrome and Meckel-Gruber syndrome (MKS) have been termed ciliopathies ³. Although more than a dozen causative genes have been identified, a surprisingly large proportion of patients with NPH (approximately 60%) do not have a mutation in any of the known NPHP genes ⁴. Most NPHPs display domain architectures typical for adaptor molecules involved in protein-protein interactions, and form large protein networks ^5,6. Hence, a remaining challenge is the identification of the missing components to understand how these protein complexes exert their developmental and tissue-specific functions. Although NPHP members engage in multiple protein-protein interactions, four distinct sub-networks have been identified, the NPHP1-4-8, the NPHP5-6, the NPHP2-3-9 and the MKS modules ^5,6,7. However, how specific complexes are assembled and how the composition of individual complexes is regulated, is currently unknown.

NEK8, a NimA (Never in mitosis A)-related serine-threonine kinase is mutated in NPHP9. INVS recruits NEK8 and NPHP3 to the cilium and has only been shown to interact with NEK8 directly ^7,8,9. To obtain insight in the molecular function of NEK8 in NPH, we expressed NEK8 in human embryonic kidney (HEK293T) cells and identified interacting proteins by mass spectrometry (MS) ¹⁰. This approach identified ANKS6, a protein containing nine N-terminal ankyrin repeats and a C-terminal sterile alpha motif (SAM), as a potential binding partner (Supplementary Table 1); co-immunoprecipitation assays confirmed the interaction between NEK8 and ANKS6 (Supplementary Fig. 1). An Arg823Trp missense mutation of Anks6 (SamCystin, Pkdr1) has recently been identified as the underlying cause of cystic kidney disease in the Han:SPRD +/Cy rat ¹¹. Anks6 was detected at the proximal segment of the cilium in murine inner medullary collecting duct (IMCD) cells (Fig. 1a and Supplementary Fig. 1), similar to the localization of INVS, NPHP3 and NEK8 at this compartment ^7,12. To analyze the role of Anks6 during embryogenesis, we used morpholino antisense oligonucleotide (MO)-mediated depletion in zebrafish. Injection of two independent anks6 MOs caused pronephric cyst formation (Fig. 1b, c and Supplementary Fig. 2). The cystic phenotype caused by anks6 depletion in the pronephric tubule was identical to nek8 and nphp3 morphants ^13,14 (Fig. 1d, e) and combined knockdowns had an additive effect on cyst formation (Supplementary Fig. 2). In addition, laterality defects, detected by cmlc2 staining of early heart looping were observed in anks6 depleted zebrafish, and were comparable to nphp3- and nek8-deficient embryos (Fig. 1f, g).

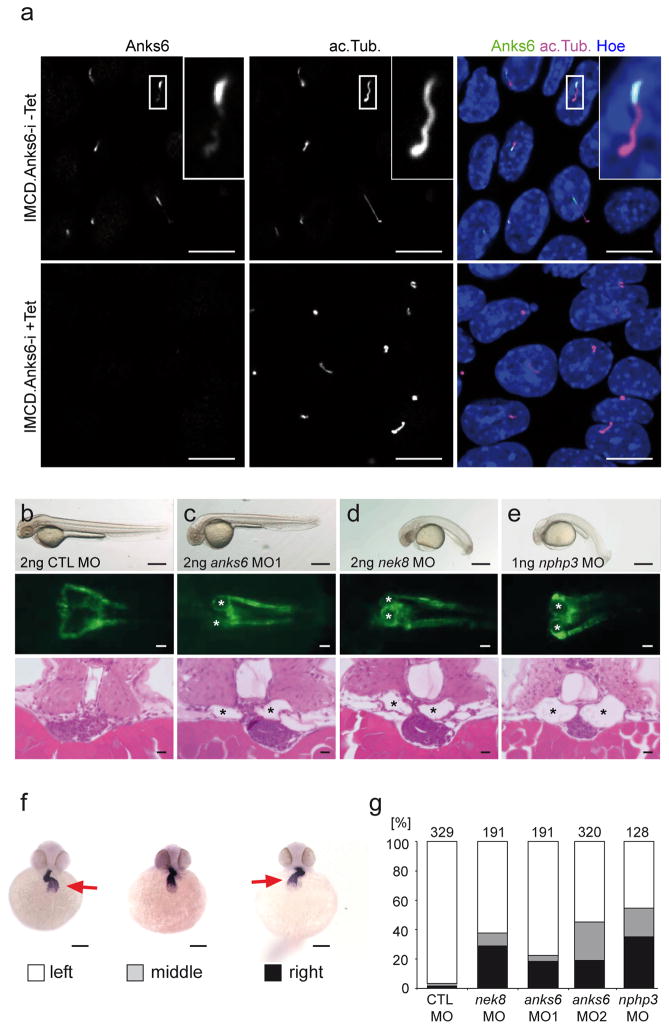

Figure 1. Anks6 localizes to the cilium and knockdown results in pronephric cyst formation and laterality defects in zebrafish.

(a) Confocal microscopy pictures of immunostaining for Anks6 in IMCD3 cells showed localization to the proximal cilium (green). Tetracycline induced knockdown of Anks6 confirmed the specificity of the signal. Cilia are labelled by acetylated tubulin (magenta) and nuclei by Hoechst (blue). Scale bars; 10 μm.

(b-d) Zebrafish embryos injected with morpholinos (MOs) targeted against nek8, anks6 and nphp3 at 48 hours post fertilization (hpf). Whereas the control embryos (b) and anks6 morphants (c) did not show any malformation, nek8 (d) and nphp3 (e) morphants showed a ventral body curvature. Scale bars; 100 μM. Depletion of anks6, nek8 and nphp3 caused pronephric cyst formation (white asterisk). Scale bars; 50 μM. Histological sections were HE-stained and the pronephric cysts indicated by black asterisk. Scale bars; 10 μM. (f) Representative pictures of normal zebrafish heart looping in control embryos and reversed heart looping in the morphants. In situ hybridization using the heart specific probe cmlc2 showed that the heart laterality in nek8 (2ng MO), anks6 (2ng MO1, 3ng MO2) and nphp3 (1ng MO) deficient zebrafish embryos was partially reversed (red arrow indicates the atrium). Scale bars; 100 μM. (g) Quantification of the percentage of embryos that showed laterality defects.

Since unilateral injections allow a tissue restricted knockdown and analysis of organ specific phenotypes, we turned to the Xenopus model to analyze the developmental events in renal formation in further detail. Both nek8 and anks6 were expressed during Xenopus development, and were enriched within the proximal Xenopus pronephros at later developmental stages (Supplementary Fig. 3). Bilateral knockdown of anks6 by MO (Supplementary Fig. 4) resulted in gross body edema typical for a renal excretory defect (Fig. 2a) ^15,16, also observed after nphp3 (Supplementary Fig. 5) and invs depletion ¹⁷. Depletion of either nek8 or anks6 resulted in a striking simplification of the proximal pronephros convolute (Fig. 2b, c), a phenotype previously also reported for the knockdown of Invs ¹⁷. Co-expression of a MO-insensitive mRNA coding for nek8 or anks6 respectively rescued the abnormalities, supporting the specificity of the observed phenotypes (Fig. 2b and Supplementary Fig. 4) The nek8 MO-mediated defects were partially rescued by co-expression of anks6 (Fig. 2c). This suggests that both proteins have common molecular effects, allowing Anks6 to partially substitute for Nek8. Early pronephric progenitor and later segmentation markers were not affected by nek8 or anks6 depletion (Supplementary Fig. 5 and Fig. 2d). The reduction in SGLT-1K- and NKCC2-positive pronephros segments indicated a shortening of the proximal and intermediate tubule (Fig. 2d). These data support the overlapping roles of Nek8 and Anks6 during early tubular morphogenesis, and are consistent with the phenotypic changes after nphp3 (Supplementary Fig. 5) and invs depletion ¹⁷.

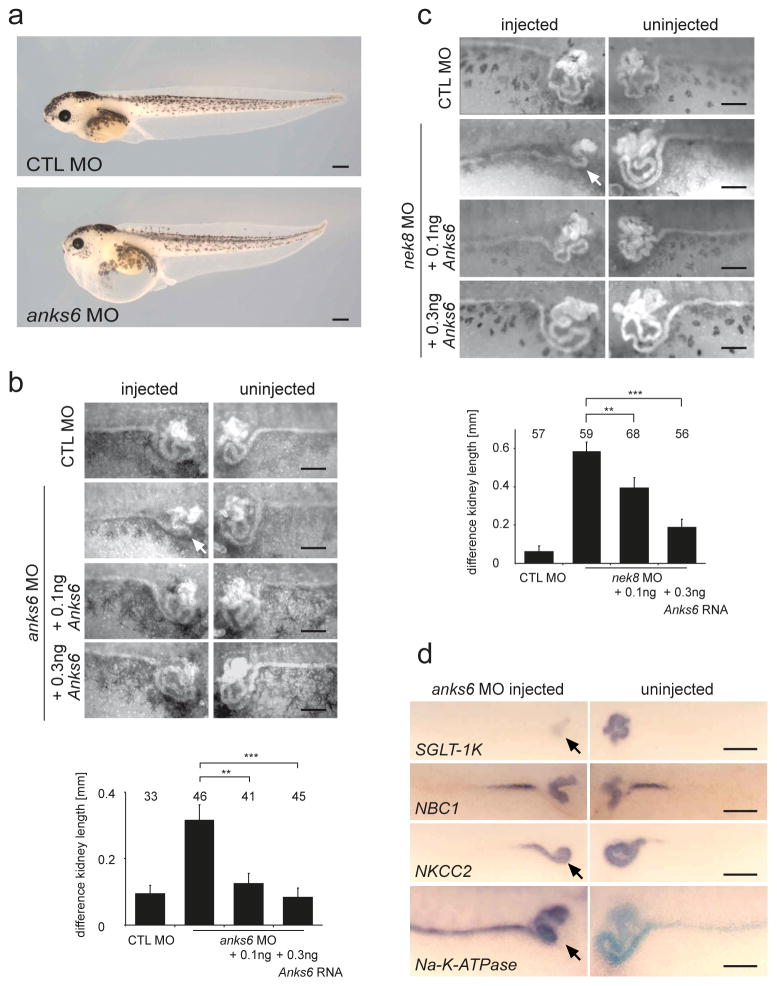

Figure 2. anks6 deficiency affects pronephros development in Xenopus.

(a) Bilaterally anks6 MO injected Xenopus embryos developed edema in contrast to control embryos. Scale bars; 500μM. (b) Xenopus morphants were stained with fluorescein conjugated lectin to visualize the pronephric epithelia after unilateral anks6 MO injection. anks6 MO injected embryos showed a strong simplification of the proximal tubules in contrast to the uninjected pronephros (white arrow). Scale bars; 200 μM. The difference of the kidney length [mm] from the uninjected to the injected side could be rescued by co-injection of rat Anks6 RNA (** p= 0.002; *** p=< 0.001); t-test; error bars: SEM. (c) nek8 knockdown phenocopies the pronephric phenotype of anks6 (white arrow) and can be rescued by co-expression of Anks6 RNA (** p= 0.01; *** p=< 0.001); t-test; error bars: SEM. (d) Whole mount in situ hybridization for pronephric segment markers after unilateral injection of anks6 MO. The expression of SGLT-1K, NKCC2 and Na-K-ATPase was reduced on the anks6 MO injected side (black arrows). Scale bars; 200 μM.

The striking genetic and phenotypic similarities between NEK8 and ANKS6 suggested that ANKS6 might be involved in human cystic kidney disease, presenting with a nephronophthisis-like clinical syndrome. Mutation analysis of our NPHP cohorts yielded eight patients from six families with six different homozygous ANKS6 mutations (Table 1, Supplementary Fig. 6 and 7): two families with truncating mutations (c.2054_2064del, p.His685Profs*12 [B6794], c.2370_2372delTCA, p.Tyr790* [A649]), two families with splice site mutations (c.1973-3C>G [A3114], c.2512-2A>C [NPH316]) and two families with non-synonymous missense mutations (c.934G>C, p.Ala312Pro [A3121], c.1322A>G, p.Gln441Arg [B7397]). All affected individuals had polycystic kidney disease (PKD) with an early (infantile) onset, except for family NPH316 (juvenile). While patients with missense mutations showed normal-sized cystic kidney disease without extrarenal manifestations, splice site and truncating mutations were associated not only with an enlarged renal size, but also with severe extrarenal defects such as hypertrophic obstructive cardiomyopathy, aortic stenosis, pulmonary stenosis, patent ductus arteriosus, situs inversus and periportal liver fibrosis (Supplementary Fig. 6). Only in family NPH316 (Supplementary Fig. 6, Table 1), a splice site mutation (c.2512-2A>C) did not lead to early onset ESRD and liver involvement, possibly due to the localization in intron 14, affecting splicing of the last exon only.

Table 1.

Mutations of ANKS6 in 6 families with polycystic kidney disease (PKD)

Family -Individual	Ethnic origin	Nucleotide alterationa (segregation)	Deduced protein change	Exon/ Intron (zygosity)	Continuous amino acid sequence conservation	Parental consan- guinity	Renal Phenotype	Extrarenal phenotype
A3121 -21	Egypt	c.934G>C (M: het, P: het)	p.Ala312Pro	4 (Hom)	Mus musculusc	yes	PKD, not enlarged increased echogenicity (US) ESRD at 6 yr	Heart/Liver: not affected Other: died at 8 yr Affected sib: died in utero, presumed RF
B7397	Serbia	c.1322A>G (M: het, P: het)	p.Gln441Arg	6 (Hom)	Drosophila melanogasterd	ND	PKD, not enlarged increased echogenicity (US) CRF since early childhood	Heart/Liver: not affected
A3114 -21	Iran	c.1973-3C>G (M: het, P: het)	3′ Splice site (80% conserved)b	10 (Hom)	-	yes	PKD, not enlarged increased echogenicity (US) ESRD at 2 yr, RTX at 4 yr	Heart: AS + PS Liver: periportal LF
B6794	Denmark	c.2054_2064del (M: het, P: het)	p.His685Profs*12	11 (Hom)	-	ND	PKD, enlarged increased echogenicity (US) ESRD at 1 yr	Heart: AS Liver: periportal LF Other: delayed PMD
A649 -21	India	c.2370_2372delTCA (M: het, P: het)	p.Tyr790*	13 (Hom)	-	no	PKD, enlarged increased echogenicity (US) ESRD at birth	Heart: AS + HOCM, PDA Liver: cholestatic hepatopathy Other: SI, died at 4 mo Affected sib: died in utero, PKD, oligohydramnios
NPH316 -21 -22 -23	Turkey	c.2512-2A>C (M: het, P: het)	3′ Splice site	14 (Hom)	-	yes	-21: PKD, enlarged ESRD at 25 yr, RTX at 30 yr -22: PKD, enlarged CRF at 16 yr -23: PKD, enlarged CRF at 12 yr	Heart: AS (-23) Liver: not affected

^aANKS6: cDNA mutations are numbered according to human cDNA reference sequence NM_173551.3. +1 corresponds to the A of ATG start translation codon.

^bG is not among alternative nucleotides according to the splice site consensus (−3 acceptor splice site base: 80% C / 20% T).

^cMissense mutation is predicted to be disease causing: Mutation Taster (p-value 0.571), PolyPhen2 (Score 0.99).

^dMissense mutation is predicted to be disease causing: Mutation Taster (p-value 0.54), PolyPhen2 (Score 0.80), Danio rerio: Ala, Ciona intestinalis: Ser.

AS, aortic stenosis; CRF, chronic renal failure; ESRD, end-stage renal disease; het, heterozygous; HOCM, hypertrophic obstructive cardiomyopathy; Hom, homozygous; LF, liver fibrosis; ND, no data; M, maternal; mo, months; P, paternal; PKD, polycystic kidney disease; PMD, psycho-motor development; PS, pulmonary stenosis; PDA, patent ductus arteriosus; RTX, renal transplantation; RF, renal failure; SI, Situs inversus totalis; US, ultrasound; yr, years.

Structural heart defects are often associated with laterality defects, and can result from defective cardiac looping during embryogenesis, which we observed in Anks6, Nek8 and Nphp3 deficient zebrafish embryos (Fig. 1g, f). INVS and NPHP3 mutations cause ventricular and atrial septal defects, pulmonary and aortic stenosis, and ventricular hypertrophy ^18–20. Four of our patients with ANKS6 mutations (A3114, B6794, A649, NPH316) had aortic stenosis, causing obstructive cardiomyopathy in one patient (A649); another one of them (A3114) displayed additional pulmonary stenosis (Table 1), linking these three NPHP proteins by their clinical manifestations. The conserved missense ANKS6 Gln441Arg mutation (B7397) did not alter the interaction with other NPHP proteins nor its ciliary localization (Supplementary Fig. 7), but failed to rescue the renal phenotype in Xenopus, confirming the clinical relevance of this mutation (Supplementary Fig. 6). These observations indicate that ANKS6 is a novel member of the NPHP gene family and part of the phenotypically distinct NEK8-INVS-NPHP3 subgroup, which is characterized by structural heart defects in addition to infantile nephronophthisis and situs inversus.

To determine whether ANKS6 is part of a larger NPHP-associated protein network, we evaluated its interaction with other NPHP proteins. The kinase domain and the region between amino acid 259 and 312 of NEK8 was required for the interaction with the ankyrin repeat domain of ANKS6 (Fig. 3a, b and Supplementary Fig. 8), which also recognized NPHP3 and INVS (Fig. 3c), but not the structurally related ankyrin repeat protein Diversin (Supplementary Fig. 8). When NEK8 was precipitated from cells co-expressing INVS, the immobilization of INVS was strongly enhanced by the presence of ANKS6 (Supplementary Fig. 8). Similarly, when NEK8 was co-expressed with NPHP3, ANKS6 connected NEK8 to NPHP3 (Fig. 3d). Analysis of cilia in various tissues and model systems did not detect a role for ANKS6 in cilia formation or length control, but knockdown in Xenopus epidermal cells showed a mild defect of polarized orientation (Supplementary Fig. 9).

Figure 3. ANKS6 interacts with NEK8, INVS and NPHP3.

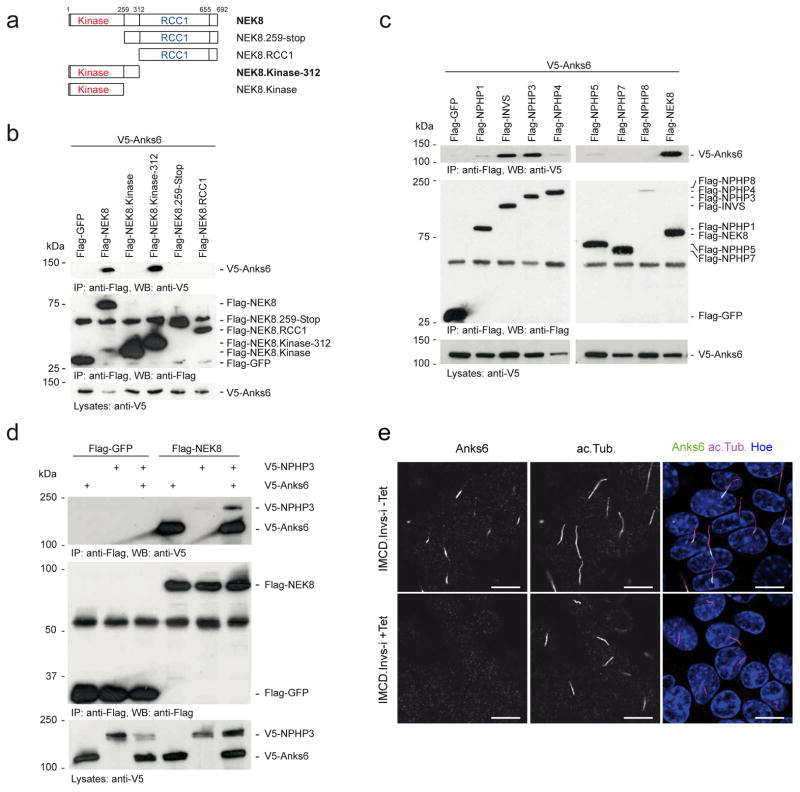

(a) Schematic representation of NEK8 truncations used for co-immunoprecipitation (CoIP). NEK8 contains a kinase and a regulator of chromosome condensation (RCC1) domain. (b) V5 tagged full-length rat Anks6 was co-transfected with Flag tagged NEK8 truncations. Anks6 was found in the precipitates of full-length NEK8 and the truncation containing the kinase domain up to a.a. 312 (Kinase-312) after immunoprecipitation with an anti-Flag antibody. (c) Anks6 was found in precipitates of INVS, NPHP3 and NEK8 in CoIPs of V5 tagged Anks6 and Flag tagged NPHP proteins. (d) Flag tagged NEK8 was co-expressed with V5 tagged NPHP3 and Anks6. NPHP3 was detected only in the precipitates in which Anks6 was co-expressed. (e) Confocal images of tetracyclin inducible Invs-knockdown cells (IMCD3) stained for Anks6 and acetylated tubulin (cilia, magenta). Ciliary staining for Anks6 (green) was lost in Invs depleted cells. Hoechst (Hoe) stained nuclei. Scale bars; 10 μm.

Juvenile cystic kidney (jck) mice carry a missense mutation in Nek8. Anks6 localization was identical in wild type and jck mice, even detectable in cyst lining cells (Supplementary Fig. 9). Consistent with a role for INVS to recruit other NPHPs, endogenous Anks6 was lost from the proximal segment of cilia in Invs-depleted IMCD3 cells (Fig. 3e) without affecting total Anks6 protein levels (Supplementary Fig. 8). Thus, ANKS6 not only acts as a central component of a distinct NPHP associated module, but appears to organize its assembly by linking INVS and NPHP3 to NEK8, while INVS is required to localize this complex to the proximal ciliary axoneme.

To further dissect the composition of the ANKS6-based module, we expanded our affinity proteomics screens using ANKS6 and different ANKS6 module partners as baits (Supplementary Table 1). Integration of the ANKS6 screens with data from a proteomics screen of TAP-tagged NPHP-associated proteins (Fig. 4a) retrieved a subset of at least seven proteins with a known mitochondrial localization and/or function, and also identified the NEK family member NEK7, and the ankyrin repeat protein ANKS3 as participants of this network. Since mutations of the mitochondrial X-prolyl aminopeptidase 3 were recently found to cause an NPH-like syndrome ²¹, these proteins including the mitochondrial components of the ANKS6 module may represent additional candidates for NPH and related ciliopathies.

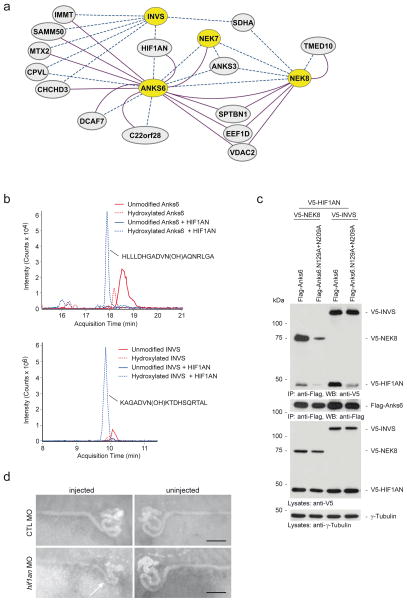

Figure 4. ANKS6 forms a complex with NEK8, INVS, NPHP3 and HIF1AN.

(a) Protein-protein interaction network, visualized by Cytoscape (cytoscape.org) generated by affinity purification data from TAP tagged (dashed lines) and Flag tagged (solid lines) baits in HEK293T or IMCD3 cells. Proteins that were identified in complex with at least two bait proteins (ANKS6, INVS, NEK8) or in two different experiments (TAP tagged and Flag tagged bait protein) are shown. (b) Extracted ion chromatograms (EIC) of hydroxylated and unhydroxylated peptides. MS analysis of unmodified (blue line) and hydroxylated forms (dashed blue line) of the rat Anks6 peptide illustrate the intensity of hydroxylation of Anks6 at Asn-129 (upper EIC) and of the human INVS peptide at Asn-75 (lower EIC). (c) Co-IP of V5 tagged INVS, NEK8 and HIF1AN with rat Anks6 and Anks6 mutated at the hydroxylation sites N129 and N209. The mutated Anks6 precipitated less NEK8, but had no effect on binding to INVS.

(d) Unilaterally hif1an MO injected Xenopus embryos stained with fluorescein conjugated lectin to visualize the pronephric tubules. hif1an MO injected embryos showed a strong simplification of the proximal tubules in contrast to the uninjected pronephros (arrow). Scale bars; 200 μM.

The MS screens revealed a consistent connection between ANKS6 and the asparaginyl-hydroxylase HIF1AN (FIH, factor inhibiting HIF), which was also identified after affinity purification of INVS (Fig. 4a). HIF1AN is an oxygen-sensor that hydroxylates HIF1α as well as other ankyrin repeat proteins during normoxic conditions ²². We confirmed the interaction of HIF1AN with INVS and ANKS6, but not with the ankyrin repeat protein Diversin (Supplementary Fig. 10). Both INVS and ANKS6 contain well-defined and evolutionarily conserved hydroxylation recognition motifs (Supplementary Fig. 10); MS detected hydroxylated peptides at asparagines N75 of INVS and N129 of Anks6 (Fig. 4b). Co-immunoprecipitation experiments revealed that HIF1AN facilitated the ANKS6/INVS/NPHP3 module formation (Supplementary Fig. 10) and that mutation of the hydroxylation sites in ANKS6 resulted in decreased binding to NEK8 (Fig. 4c). The results suggest that hydroxylation of ANKS6 by HIF1AN mediates the complex formation by altering specific protein binding capacities. Hif1an is expressed in distal renal tubules ²³, and knockdown of hif1an in Xenopus resulted in edema formation and tubular shortening (Fig. 4d and Supplementary Fig. 10), supporting a role for Hif1an in renal development. Hif1α and its target genes are up-regulated in the cy/+ rat kidneys ²⁴, and VEGF receptor inhibition slows cyst progression in these rats ²⁵, suggesting that activation of the Hif1α-dependent hypoxia pathway contributes to cyst progression in Anks6-deficient tubules. The ANKS6/INVS complex could potentially compete with HIF1α for hydroxylation by HIF1AN and induce a pseudo-hypoxic state when dysregulated. However, levels of HIF1α were not affected by overexpression of Anks6 in renal epithelial cells (HEK293T), excluding the possibility that expression levels of Anks6 alone would affect hypoxia signalling (Supplementary Fig. 10). The response to chemically simulated hypoxia was also not affected in either condition (Supplementary Fig. 10).

Our study identifies ANKS6 as a new NPHP family member that assembles a distinct module of NPHP-associated proteins, encompassing NEK8, INVS and NPHP3. The clinical findings as well as the in vivo data suggest that this network controls normal renal and cardiovascular development. HIF1AN connects the ANKS6 module to oxygen-dependent hydroxylation, which appears to alter the composition of the ANKS6 complex.
