Abstract
Background
Mammography is a radiological diagnostic method which relies on an X-ray examination of breasts and is a process involving the use of low-dose amplitude-X-rays (usually around 0.7 mSv). Combining the use of small doses and high quality images requires extensive quality protocols, part of them being included in regulations adopted by the Minister of Health.
Aim
The aim of this study was to check the usefulness and efficacy of selected quality tests associated with mammography.
Material/methods
The study was performed in the mammography service of the Greater Poland Cancer Centre in Poznan. Following equipment was used: densitometer, sensitometer, mammographic scales, electronic scales, thermometer, hygrometer, PMMA plates, Europhantom, screen film contact phantom, viewing boxes and magnifying glasses. The methods were based on basic mammography tests. Quality control in mammography demands: clean darkroom, marked and clean cassettes, clean viewing boxes with homogenous light.
Results
The results of the “Development Process” test show that each sensitometer has to be used with an appropriate densitometer. Phantoms with abnormal structures cannot be used to “AEC System – Solidity exposure” test. “Compression – The force of compression” test may only be carried out with suitable scales and compressible material. Analysis of rejected films shows that the main reasons for rejection were wrong collimation and underexposure.
Conclusion
Every quality control in mammography provides essential information about the functioning of a laboratory. Apart from recommended standard sterility, it should be remembered that equipment should always be adjusted and repaired.
Keywords: Mammography, Basic tests, Quality control, Densitometer, Sensitometer
Mammography is a radiological diagnostic method which relies on an X-ray examination of breasts and is a process involving the use of low-dose amplitude-X-rays (usually around 0.7 mSv). The aim of mammography is to detect very small abnormalities in the breast tissue before they develop into breast cancer, typically through detection of characteristic masses and/or microcalcifications.
Mammography is a very sensitive diagnostic method that requires very precise equipment and qualified medical personnel to perform the examination. Combining the use of small doses and high quality images requires extensive quality protocols,1,2 part of them being included in regulations or recommendations adopted by legal scientific organisations.1,3,4
1. Aim
The aim of this study was to check the usefulness and efficacy of selected quality tests associated with mammography.
2. Equipment and methods
2.1. Equipment
The study was performed in the mammography service of the Greater Poland Cancer Centre in Poznan. The following equipment was used: densitometer, sensitometer, mammographic scales, electronic scales, thermometer, hygrometer, PMMA plates, Europhantom, screen film contact phantom, viewing boxes, and magnifying glasses. The manufacturers and serial numbers are shown in Table 1.
Table 1.
The apparatus used in the Greater Poland Cancer Centre for basic tests in mammography.
Apparatus | Manufacturer | Serial number | |
---|---|---|---|
1. | Sensitometer | PTW Freiburg SensiX | T51003-5206 |
2. | Sensitometer | PTW Freiburg SensiX | T51003-3536 |
3. | Sensitometer | Pehamed | 4987 |
4. | Densitometer | PTW Freiburg SensodensiX auto Cal | T52004 |
5. | Densitometer | Pehamed | N1031 |
6. | Densitometer | PTW Freiburg SensodensiX | T52004-N 1167 |
7. | Mammographic scales | Soehnle | 775507TH00946 |
8. | Mammographic scales | Nuclear Associates | 18-241-44-26 |
9. | Electronic scales | Rinstrum | EWP 0201 27/2006 |
10. | Theromometer | Testo | 31618309/604 |
11. | Theromometer | Testo | I-33-02-012 06021293 |
12. | Hygrometer | Thermohygro | – |
13. | PMMA plates | PTW Freiburg | – |
14. | Europhantom | PTW Freiburg | T 42024-0109 |
15. | Screen film contact phantom | PTW Freiburg | T 42022-0020 |
16. | Viewing box | BAKMED | I-48-44-065 |
17. | Magnifying glass | Hama | – |
A densitometer was used to measure the optical density of exposed films. This study used three densitometers by three different manufacturers. The use of each of the three densitometers was tested with each of the three sensitometers. The sensitometers were used to ensure that the delicate chemical balance needed to process films remains consistent. The sensitometer generates a consistent exposure time and is considered constant. The sensitometer must be set to match the colour spectrum of the test film used (in mammography it is usually green).11,12 Figs. 1 and 2 show the sensitometer and densitometer used in the study.
Fig. 1.

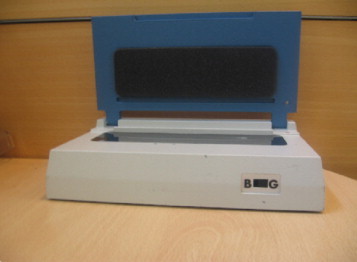

Sensitometer Sensix PTW Freiburg.
Fig. 2.
Densitometer SensodensiX PTW Freiburg.
3. Methods
3.1. Basic mammography tests
Quality control in mammography demands clean darkroom, marked and clean cassettes, and clean viewing boxes with homogenous light. It is important to choose a suitable kind of film, chemical reagent, developer and parameters of the development process and films storage. Equally significant for the QA process is the choice of a suitable thermometer and densitometer, development and reading of sensitograms, establishment of a control method, and setting of a reference value and tolerance limit. The darkroom was cleaned at the beginning of each workday, before any films were handled or processed. A darkroom should be as free as possible of any dust or dirt that could result in artefacts in the image. A daylight processor for mammography largely eliminates artefacts that occur in the process of film handling. If the darkroom and the processor were shared rather than dedicated to mammography, mammography quality standards would still have to be maintained by quality control technicians. Keeping the darkroom clean was very important in quality control because it was the main source of problems. Humidity in the darkroom was around 40–60%.
All the cassettes and screen-films in the mammographic laboratory were marked. All the cassettes and screen-films were cleaned once a week. Films were usually kept in temperature lower than 25 °C and humidity between 40% and 60%. A digital thermometer was used in the mammographic laboratory. At the beginning of quality control tests, it was essential to assign a reference value and tolerance limit to control parameters.2
Four tests were made to verify quality control in mammography Unit. The first test was that of “Process development”. Three different sensitometers were used: PTW Freiburg SensiX 5206, PTW Freiburg SensiX 3536, Pehamed 4987, and three different densitometers: PTW Freiburg SensodensiX auto Cal 0600, Pehamed 1031, PTW Freiburg SensodensiX 1167. The study applied the mammograph GE Diamond, the developer AGFA Mamoray Compact Plus and a film by AGFA. Five measurements were made for each measurement set. The optical density was measured and recorded in 21 boxes. Each line in the table corresponds to one measurement. There are five lines with measurements. The mean optical density was derived from five measurements. These measurements were also used to calculate the standard deviation to show the difference between results. The temperature of the developer in each measurement was set at 34 °C.
The next test was that of AEC System – Solidity exposure. It involved eight different phantoms and three sensitometers: 0600, 1031, and 1167. The third test checked the compression force. Two compression paddles (small and large) were used in this test to measure the force of compression. Three mammographic scales were used (one of them was bigger and covered the whole bucky). A small compression paddle and three scales were used during the first test. Three measurements were made with additional compressible material and three without it. The test used Phantom 4.5 cm PMMA, Mode Auto kV and the AEC detector was located in the position closest to the chest wall. The density was +0.
The fourth test was the “Analysis results of rejected films”. 5980 mammogram films were analysed from April 2006 to April 2009. The Mammogram films were divided into three types of projection: oblique projection left or right, targeted projection, and cranio-caudal projection. The reasons for film rejection were: collimation, overexposure, underexposure, patient motion, artefacts, fog, wrong identification, and others.
4. Results
4.1. Test no. 1: Process of development
The results of this test show that each sensitometer should be used with an appropriate densitometer. The sensitometer 4987 has to be used to measure mammograms which are exposed to the densitometer 1031. When used with an inappropriate densitometer, all the optical density levels were incorrectly indicated at 0.16. To measure the optical density, 15 films were used. The films were divided into three groups as there were three different measurement sets. The nine results thus received prove that all the three measurement sets provide the same results, but only if each sensitometer is used with an adequate densitometer. In Tables 2 and 3, five measurements made with the samesensitometer but different densitometer are shown in five rows. The other tables with results are shown in Appendix A.
Table 2.
The results of the development process with the use of sensitometer 4987 and densitometer 1031.
Field number | ||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 |
0.18 | 0.18 | 0.18 | 0,18 | 0.19 | 0.20 | 0.22 | 0.28 | 0.43 | 0.82 | 1.60 | 2.39 | 3.05 | 3.50 | 3.75 | 4.02 | 4.18 | 4.28 | 4.37 | 4.38 | 4.38 |
0.18 | 0.18 | 0.18 | 0,18 | 0.20 | 0.20 | 0.22 | 0.28 | 0.43 | 0.82 | 1.59 | 2.39 | 3.03 | 3.51 | 3.82 | 4.04 | 4.18 | 4.29 | 4.38 | 4.38 | 4.38 |
0.18 | 0.18 | 0.18 | 0.19 | 0.20 | 0.20 | 0.22 | 0.28 | 0.45 | 0.84 | 1.62 | 2.44 | 3.07 | 3.51 | 3.82 | 4.05 | 4.19 | 4.28 | 4.36 | 4.38 | 4.38 |
0.19 | 0.19 | 0.19 | 0.20 | 0.20 | 0.20 | 0.22 | 0.28 | 0.45 | 0.83 | 1.61 | 2.42 | 3.06 | 3.53 | 3.82 | 4.05 | 4.20 | 4.30 | 4.38 | 4.38 | 4.38 |
0.18 | 0.18 | 0.18 | 0.18 | 0.20 | 0.20 | 0.22 | 0.27 | 0.43 | 0.81 | 1.59 | 2.38 | 3.02 | 3.50 | 3.79 | 4.01 | 4.15 | 4.25 | 4.34 | 4,37 | 4.37 |
Mean optical density | ||||||||||||||||||||
0.18 | 0.18 | 0.18 | 0.19 | 0.20 | 0.20 | 0.22 | 0.28 | 0.44 | 0.83 | 1.60 | 2.40 | 3.05 | 3.51 | 3.80 | 4.03 | 4.18 | 4.28 | 4.37 | 4.38 | 4.38 |
Standard deviation | ||||||||||||||||||||
0.004 | 0.004 | 0.004 | 0.008 | 0.004 | 0.00 | 0.00 | 0.004 | 0.010 | 0.010 | 0.012 | 0.023 | 0.019 | 0.011 | 0.028 | 0.016 | 0.017 | 0.018 | 0.015 | 0.004 | 0.004 |
Table 3.
The results of the development process with the use of sensitometer 4987 and densitometer T 52004-N0600.
Field number | ||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 |
0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 |
0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 |
0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 |
0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 |
0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 |
Mean optical density | ||||||||||||||||||||
0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 |
Standard deviation | ||||||||||||||||||||
0.00 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 |
4.2. Test no. 2: AEC System – Solidity exposure
The test results show that all the three densitometers provide the same levels of optical densities. The optical density measured for phantom 7 was higher than 1.80, because this phantom contains structures which imitate abnormal structures in female breast. Therefore, this phantom may not be used in this type of tests. The other phantoms performed their functions correctly. The optical density of received films was in the range of 1.3–1.8. The results are showed in Table 4.
Table 4.
The results of AEC System test – Solidity exposure.
Item | Phantom | High voltage [kV] | Exposure time [mA s] | Densitometer |
||
---|---|---|---|---|---|---|
T 52004-N0600 | N 1031 | T-49-031-013 | ||||
1 | Large rectangular plexi plates | 25 | 173 | 1.52 | 1.50 | 1.45 |
2 | Small rectangular plexi plates | 24 | 66 | 1.54 | 1.53 | 1.55 |
3 | Rectangular plexi plate with circular-shapes | 26 | 82 | 1.52 | 1.46 | 1.52 |
4 | Semicirrcural plexi plate | 26 | 87 | 1.45 | 1.42 | 1.42 |
5 | Square plexi plate | 24 | 83 | 1.48 | 1.45 | 1.45 |
6 | Small square plexi plate | 26 | 76 | 1.45 | 1.41 | 1.47 |
7 | ACR Phantom | 25 | 82 | 1.87 | 1.8 | 1.90 |
8 | Europhantom | 27 | 74 | 1.52 | 1.47 | 1.55 |
Mean | 25.38 | 90.38 | 1.54 | 1.51 | 1.54 |
4.3. Test no. 3: Compression – The force of compression
Three measurements were made with additional compressible material and three without it. In the case of the measurements without additional compressible material, the nominal values of the force of compression were at the same level of 20 kg. For scales 2 and 3 they were too high, exceeding 20 kg. The force of compression measurement values for scales 2 and 3 were two times higher than the standard value: 55 kg and 49.5 kg, respectively. In the case of measured and nominal values of the force of compression with additional compressible material, results were out of limit for scales 2. The second test was made with a large compression paddle. In this case, also when scales 2 and 3 were used, the results were different from the standard levels. The value of the force of compression measured with phantom on scales 2 was about 8 kg higher than the limit value of 20 kg. In the other case, measured and nominal values of the force of compression were within the limit. The results of this test are presented in Tables 5 and 6.
Table 5.
Test results of “Compression test – The force of compression” with the use of small compression paddle.
Mammographic scales | EWP0201 | 18-241-4426 | SOEHNLE |
---|---|---|---|
Without additional compressible material | |||
Nominal force of compression [kg] | 18.0 | 23.5 | 21.5 |
Measured force of compression [kg] | 19.6 | 55.0 | 49.4 |
Force of compression after 1 min [kg] | 18.9 | 53.8 | 47.8 |
With additional compressible material | |||
Nominal force of compression [kg] | X | 12.0 | 12.5 |
Measured force of compression [kg] | X | 29.8 | 13.3 |
Force of compression after 1 min [kg] | X | 28.2 | 12.6 |
Table 6.
Test results of Compression test – The force of compression with the us of a large compression paddle.
Mammographic scales | EWP0201 | 18-241-4426 | SOEHNLE |
---|---|---|---|
Without compressible material | |||
Nominal force of compression [kg] | 13.50 | 25.00 | 22.50 |
Measured force of compression [kg] | 15.06 | 26.00 | 23.80 |
Force of compression after 1 min [kg] | 17.70 | 35.60 | 21.90 |
With compressible material | |||
Nominal force of compression [kg] | 13.50 | 11.50 | 11.00 |
Measured force of compression [kg] | 15.06 | 28.00 | 12.45 |
Force of compression after 1 min [kg] | 17.70 | 11.50 | 11.90 |
4.4. Test no. 4: Analysis of rejected films
5980 mammogram films were analysed from April 2006 to April 2009. 32 films were replayed and accounted for 0.54% of all films. The main reasons for rejecting films in left or right oblique projection were wrong collimation and underexposure. In the case of targeted mammogram films, the main reason for rejection was wrong collimation. Other reasons for rejection, together with collimation, applied to CC projection. Other factors did not influence the results (Table 7).
Table 7.
Results of rejected films analysis.
Projection | Collimation | Overexposure of film | Underexposure of film | Patient motion | Artefacts | Fog | Identification | Other |
---|---|---|---|---|---|---|---|---|
Oblique projection left or right | 2 | 1 | 2 | – | – | – | – | – |
Targeted | 3 | – | – | – | – | – | – | 1 |
CC (cranial-caudal view) | 7 | 1 | 5 | 2 | – | – | – | 8 |
5. Discussion
The analysis of quality control tests shows that routine control of medical equipment is necessary when conducting quality control tests in mammography. Accurate quality control guarantees high quality of conducted examinations, and consequently, a correct diagnosis of the patient on the basis of resulting mammograms. For the assessments to be consistent, the same assessment image criteria, e.g. density, should be measured at one reference point, i.e. 6 cm from the chest. It is also necessary to use a correctly illuminated viewing box, keep the same evaluation conditions, and use a magnifying glass as in the case of analysis of mammographic images. The room where mammograms are performed should be dimmed by cutting off additional outside light. A correct use of densitometer and sensitometer sets is essential, as well as working in compliance with manufacturer's recommendations, otherwise results may be misleading. The choice of a suitable sensitometer enables a quality control to be conducted in conditions of irradiation close to those of clinical examinations. It is important to set a reference level and acceptable tolerance range at the beginning of a quality control program in a mammographic laboratory. Values received while measuring parameters of a correctly functioning system during routine work serve as reference levels.
As shown by the examination results, all the three densitometers in the Greater Poland Cancer Centre measured the optical density equally. The examination results show clearly that the densitometer 4987 is the only one to be used to measure the density of mammographic film irradiated by the sensitometer 1031. To carry out basic quality control tests, it is recommended to use a sensitometer and densitometer by the same manufacturer. A failure to follow manufacturer's recommendations may result in erroneous interpretation of the results. Using the above mentioned sensitometer with another densitometer proved wrong as all the results achieved were at the same level of 0.16. All the three sets of sensitometers and densitometers show similar levels and fall within the range of standard quantities. To carry out AEC System test, it is highly important to avoid using a phantom featuring various hidden structures imitating irregularities in female breasts. Other phantoms can be freely used in the test. The use of matching phantoms is essential as each test requires a different phantom. To measure the strength of compression, it is recommended to use digital scales which should be set in the place of breast placement during clinical research. The outcome is similar for a rolled towel used as a phantom. It allows an actual measurement. Regular scales are not recommended for this test as they are not precise enough. While carrying out quality control tests, it is also essential to pay attention to the possibility of artefacts appearing in mammograms. Artefacts are likely to distort the information about the object under examination. The main reason for artefacts to appear may be the darkroom. Artefacts can be caused by external conditions (diagnostic equipment) or mistakes made by people conducting quality control tests and clinical examinations. Artefacts can be observed on the entire area of the picture. Most dangerous are those appearing in the area of a diagnosed organ and blurring the image. When similar to anatomic structures to be detected, they create the risk of wrong decisions, thus lowering the efficacy of the examination.
6. Conclusion
All the three measurement sets used in the test development process provide the same results but only with a properly matched sensitometer and densitometer.
The “AEC System – Solidity exposure” test has to be carried out with a phantom which is intended for this test. Using unsuitable phantom can deliver misleading results. Phantoms containing structures which resemble abnormal structures in female breast near the measurement point may not be used.
The “Compression – The force of compression” test may only be carried out with suitable scales and compressible material.
The analysis of rejected films shows that the main reason for rejection of films was wrong collimation and underexposure.
Appendix A.
See Tables 8–14.
