DABO Boronates: Stable Heterocyclic Boronic Acid Complexes for Use in Suzuki-Miyaura Cross-Coupling Reactions

Abstract

Diethanolamine complexed heterocyclic boronic acids (DABO boronates) are air-stable reagents that can be used directly in Suzuki-Miyaura reactions in the presence of water or a protic co-solvent. Interestingly, heterocyclic DABO boronates can be stored for extended periods of time at room temperature with no noticeable degradation, unlike their boronic acid counterparts. Heterocyclic DABO boronates constitute an operationally simple and efficient alternative to other boronic acid derivatives as coupling partners in palladium catalyzed cross-coupling reactions under standard Suzuki-Miyaura conditions.

Boronic acids are versatile building blocks essential to a variety of important carbon-carbon bond forming reactions. Key examples of their application include the Suzuki-Miyaura cross-coupling reaction,^1,2 asymmetric conjugate addition,³ and hydroarylation of alkynes,⁴ among others.⁵ While boronic acid couplings have many desirable characteristics such as nontoxic byproducts, high functional group tolerance, and many commercially available building blocks,⁵ cross-coupling reactions with labile boronic acids pose a challenge.^6,7 Herein, we describe a new class of heterocyclic boronic acid analogues that can be directly applied to Suzuki-Miyaura reactions.

Boronic acids are often unstable in air and can form cyclic trimers with loss of water, troubling characteristics that complicate reaction stoichiometry and reproducibility. Conversion of boronic acids into pinacol boronic esters provides more stable reactants, but their isolation and purification often requires distillation or chromatography, and the transmetalation of pinacol boronic esters is slower than that of boronic acids, which can lead to sluggish reactions.⁵ Vinyl,⁸ aliphatic,⁹ and heteroaryl⁶ potassium trifluoroborate salts are air-stable, crystalline solids that can be used in coupling reactions. Their isolation and purification, however, can be tedious, often requiring extended Soxhlet extraction. N-Methyliminodiacetic acid (MIDA) has been shown to react with boronic acids¹⁰ to form complexes that function as a protecting groups for boronic acids under anhydrous conditions.^11,12 Their synthesis, however, requires heating in DMF for 2–18 h with the azeotropic removal of water, followed by column chromatography purification. Although boronic acids complexes have been used in coupling reactions, there is room for the development of more convenient forms of labile boronic acids.

Various N-alkyldiethanolamine adducts of arylboronic acids, including methyl^13,14 and phenyl,¹⁵ or N,N-diethanolaminomethyl polystyrene,¹⁶ have been developed to improve stability and ease of use of boronic acids, but most of these derivatives are not crystalline and their use in coupling reactions often requires copper additives.^13,15,16 In contrast, simple diethanolamine (DEA) complexes of boronic acids, or 2,8-dioxa-5-aza-1-bora-bicyclo[3:3:0]octanes (DABO boronates) are air and water stable adducts that allow for easy isolation, characterization, and storage,^17,18,19 DEA is the least expensive auxiliary for stabilizing boronic acids when compared to MIDA, KHF₂, and pinacol.²⁰ DABO boronates are known to hydrolyze to the boronic acid or ester in aqueous solutions and protic solvents²¹ commonly used in coupling reactions, suggesting that they would be viable candidates for Suzuki-Miyaura cross-coupling reactions (Scheme 1). In the past DEA complexes have been used to facilitate the handling of aryl boronates, but a separate hydrolysis step was considered necessary prior to a transition metal mediated coupling reaction.²² The recent report from the Gras group on the direct coupling of aryl DABO boronates prompted us to report our findings with much more diverse boronate structures.²³

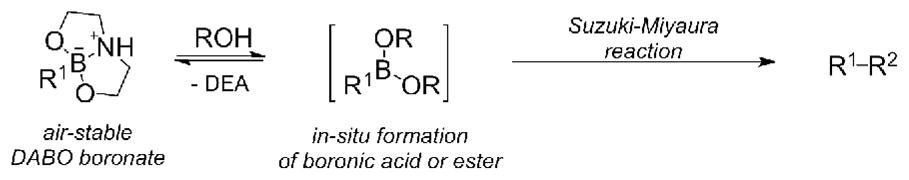

Scheme 1.

Proposed reactivity of DABO boronates

The synthesis of aryl and heteroaryl DABO boronates from the corresponding boronic acid is simple and efficient (Table 1). Stirring the boronic acid with DEA and dichloromethane in an open flask at room temperature provides a solid that can be isolated in pure form by filtration and/or recrystallization.²⁴ This procedure allows for the isolation of aryl DABO boronates 1–6 in high yield. Complexation of diethanolamine with 2,6-dimethylphenylboronic acid did not yield the DABO boronate; steric hindrance by the adjacent methyl groups apparently prevented formation of a tetrahedral boronate species. Substitution only at the 2-position, however, did not adversely affect formation of 2-methoxyphenyl DABO (4). Heteroaryl DABO boronates 7–12 were isolated in pure form from the corresponding labile boronic acids as air-stable solids.²⁵ Both electron rich and electron poor boronates were isolated in high yields. In addition, vinyl DABO boronate 13 was isolated as a crystalline solid, illustrating the versatility of the DEA auxiliary. Syntheses of vinyl and heteroaryl DABO boronates are remarkably straightforward because these complexes are poorly soluble in organic solvents and usually precipitate from the reaction solution.

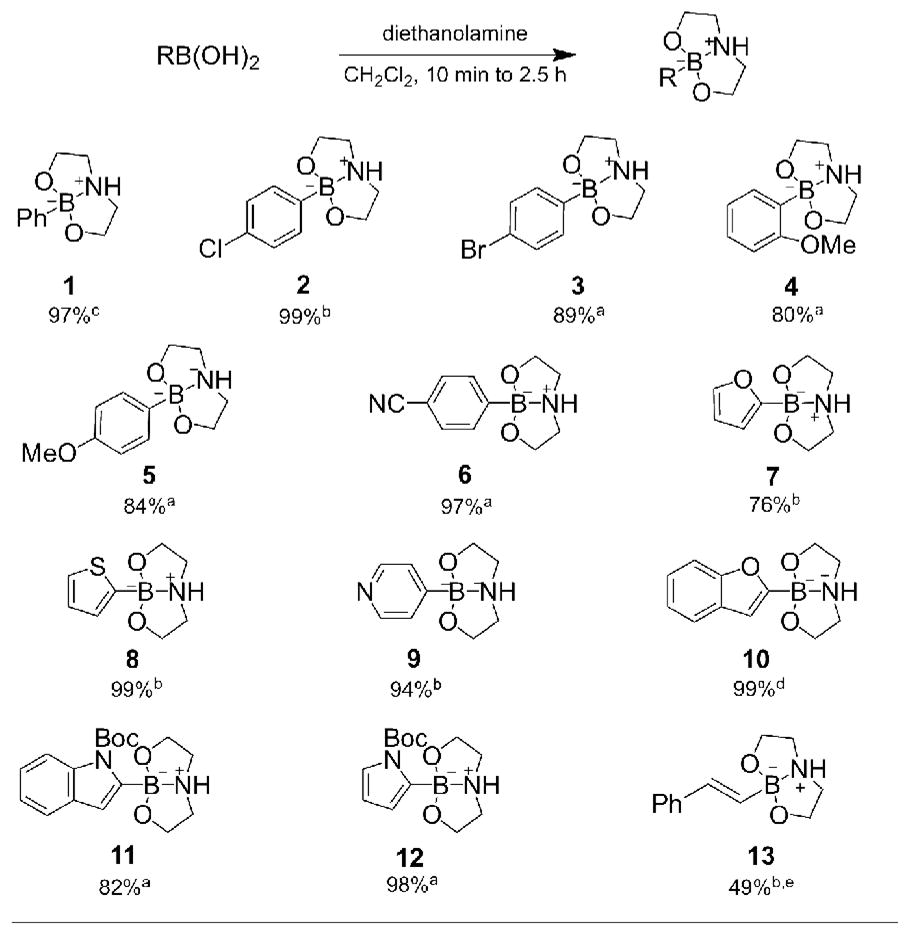

Table 1.

Preparation of Diverse DABO Boronates

^aSynthesis was conducted on a 2.5–9.5 mmol scale.

^bSynthesis was conducted on a 11–28 mmol scale.

^cSynthesis was conducted on a 42 mmol scale.

^dSynthesis was conducted on a 123 mmol scale.

^eEthyl acetate was used instead of CH₂Cl₂.

The Suzuki coupling reaction with phenyl DABO 1 and 4-bromoanisole was optimized as outlined in Table 2. Initially several ligands were screened; both dppf and JohnPhos worked very well in the coupling, but all the phosphine ligands gave acceptable yields. The Pd(OAc)₂/JohnPhos was selected because the palladium source was stable and easily handled, and the combination gave the best yield. Screening the base showed that Cs₂CO₃ was optimal (entry 5), but all the bases worked well. Other solvents and temperatures were explored, and all of the conditions were reasonably successful. In this system copper was not necessary for excellent reactivity.

Table 2.

Optimization of Suzuki-Miyaura Coupling with DABO Boronate 1

entry	cat./ligand	base	yield (%NMR)a
1	Pd(dppf)Cl2	Cs2CO3	91
2	Pd(PPh3)4	Cs2CO3	67
3	Pd2(dba)3	Cs2CO3	37
4	Pd(PPh3)Cl2	Cs2CO3	70
5	Pd(OAc)2/JohnPhos	Cs2CO3	98
6	Pd(OAc)2/JohnPhos	CsF	74
7	Pd(OAc)2/JohnPhos	K2CO3	92
8	Pd(OAc)2/JohnPhos	K2PO3	74
9	Pd(OAc)2/JohnPhos	tBuOK	87
10	Pd(OAc)2/JohnPhos	NaOH	73

^aAn internal standard, 4-methylbiphenyl, was added to the crude reaction mixture after it was filtered through Celite rinsing with CH₂Cl₂ and concentrated. The ¹H NMR ratio of the internal standard Me and the product OMe were compared to provide an NMR yield.

The Suzuki-Miyaura coupling reaction was first optimized with phenyl DABO 1 and 4-bromoanisole. Pd(OAc)₂ was chosen as a catalyst because it was inexpensive and air-stable. JohnPhos provided the highest reactivity, and was thus used in subsequent reactions. All reactions were set up in air and evacuated and refilled with argon before the addition of liquid reagents and solvents. Reaction with various aryl halides led to the formation of the desired coupled product in good yields (Table 3). Individual reactions, however, were unoptimized. These reactions do not require the addition of a copper cocatalyst.²³ In these palladium cross-coupling reactions, DEA did not adversely affect the catalytic cycle or the availability of the boronic acid for transmetalation. Reduced yields were observed under anhydrous (or aprotic) conditions, suggesting that the formation of the boronic acid (or ester) is necessary for efficient transmetalation. The reaction of sterically hindered 2,4,6-triisopropylbromobenzene was slow under the original conditions, and a higher temperature and longer reaction time were adopted to promote formation of 15 in moderate yield (Entry 2). DABO boronates are effective in Suzuki-Miyaura coupling reactions with no additional catalysts.

Table 3.

Suzuki-Miyaura Cross-Coupling Reactions with DABO Boronates^a

Entry	DABO	DABO equiv	RX	Product	Yield(%)
1	1	1.5		14	92
2	1	2.5		15	53
3	10	1.5		16	97
4	11	2.0		17	97
5	7	1.3	18	19	99b
6c	9	1.5		20	92
7	12	2.0		21	65
8	8	2.0		22	94
9	13	1.2		23	82
10	13	1.2		24	87

^aReaction condition changes and details are denoted in the experimental section.

^bXPhos was used instead of JohnPhos.

^cThe solvent was anhydrous n-butanol, and the base was K₃PO₄. JohnPhos = (2-biphenyl)di-t-butylphosphine; XPhos = 2-dicyclohexyl-phosphino-2′,4′,6′-triisopropylbiphenyl

Heterocyclic DABO boronates were successful coupling partners in Suzuki-Miyaura reactions (Table 2). Coupling reactions with 2-furyl boronic acids can be challenging;⁶ however, the coupling of 2-furyl DABO (7) with sterically hindered vinyl triflate 18, which is reported to be a poor substrate for Pd-catalyzed coupling reactions, provided vinyl furan 20 in excellent yield using XPhos as the ligand (Entry 6).²⁶ Coupling reactions were conducted with a variety of aryl halides to give heterobiaryl products 16–17 and 19–22 in good yields. Although excess DABO boronates were used to drive these test reactions to completion, upon further optimization it was found that only a modest excess of the DABO boronate was necessary, vide infra. The coupling of 4-pyridyl DABO 9 with 3-bromothiophene using Buchwald’s conditions⁶ led to the formation of 20 in good yield despite evidence that pyridines are challenging coupling partners.⁶ This coupling reaction was run under anhydrous conditions in n-butanol; presumably the DABO complex exchanges with the solvent to form a reactive dibutyl boronate ester. Vinyl DABO boronate 13 coupled nicely with both 4-bromobenzonitrile and 3-bromothiophene to provide vinylogous products 23 and 24, respectively. Heteroaryl and vinyl DABO boronates thus proved to be effective boronic acid surrogates for the Suzuki-Miyaura reaction.

The viability of large-scale DABO boronate cross-coupling reactions was demonstrated using only 1.1 equiv of benzofuran DABO boronate 10 (eq 1).²⁷ The catalyst loading was reduced to 0.5 mol % palladium for greater economy, and triphenylphosphine, an inexpensive ligand, was employed. A 44 mmol coupling reaction under these conditions provided 8.9 g of coupled product 16 in 89% yield.

Equation 1.

Large-scale Suzuki-Miyaura cross-coupling reaction

Aliphatic boronates were also found to be effective in cross-coupling reactions. The synthesis of DABO boronate 25 was less efficient that most examples because the product is less crystalline than other DABO boronates, and the preparation was run on a small scale. Aliphatic DABO boronate 25 coupled effectively under classic Suzuki conditions with palladium dppf catalyst system.²⁸ When conducted in anhydrous THF, a significant amount of homocoupled product, biphenyl-4,4′-dicarbonitrile, was observed. The addition of water as a cosolvent led to significantly decreased amount of homocoupled product and increased yield of 26, supporting the hypothesis that water enhances the availability of the boronate for transmetalation. No β-hydride elimination was observed in the crude reaction mixture, consistent with previous findings.²⁸ Ethylbenzene was also absent from the crude reaction mixture, which suggests that protodeboronation is not a significant decomposition pathway.

DABO boronates exhibit excellent stability in air and provide a convenient and inexpensive alternative to boronic acids. We have established that these complexes can be used directly in Suzuki-Miyaura cross-coupling reactions in conjunction with water or protic solvent to provide biaryl products. Heterocyclic DABO boronates can be stored open to the air for months with no noticeable decomposition. Aryl, vinyl, heterocyclic and even aliphatic DABO boronates are practical replacements for boronic acids in Suzuki-Miyaura cross-coupling reactions, and are superior to other masked boronic acids based on ease of formation, convenience in handling, and cost.

Synthesis of 2-Benzofuranyl DABO boronate 10

To a suspension of 2-benzofuranyl boronic acid (20.0 g, 123 mmol, 1 equiv) in methylene chloride (500 mL) in a 1-neck 1 L round bottom flask was added diethanolamine (12.0 mL, 123 mmol, 1 equiv) via syringe. A plastic cap was placed on top of the flask to minimize solvent evaporation. The suspension changed color from white to off-white and was stirred for 20 min under an atmosphere of air at room temperature to provide a suspension of the DABO boronate. The resulting suspension was vacuum filtered to provide the crude DABO boronate with some excess diethanolamine as a powdery solid (33.8 g). Excess diethanolamine was removed by triturating the solid in 60 mL of ethyl acetate for 5 min and vacuum filtering, rinsing with ethyl acetate. The filtration provided DABO boronate 10 as a white solid (28.2 g, 122 mmol, 99% yield). Decomposition point 225–227 °C; ¹H NMR (500 MHz, CD₃CN) δ 7.52 (d, J = 7.5 Hz, 1H), 7.43 (d, J = 8.0 Hz, 1H), 7.19 (dt, J = 1.5, 7.5 Hz, 1H), 7.14 (dt, J = 1.5, 8.0 Hz, 1H), 6.74 (s, 1H), 5.56 (br s, 1H), 3.97 (m, 2H), 3.89 (m, 2H), 3.25 (m, 2H), 2.86 (m, 2H); ¹H NMR (500 MHz, DMSO) δ 7.51 (d, J = 7.0 Hz, 1H), 7.46 (d, J = 8.0 Hz, 1H), 7.30 (br s, 1H), 7.16–7.10 (m, 2H), 6.70 (s, 1H), 3.86 (m, 2H), 3.81 (m, 2H), 3.14 (m, 2H), 2.86 (m, 2H); ¹³C NMR (125 MHz, DMSO) δ 156.2, 128.9, 122.7, 121.6, 120.2, 110.7, 110.1, 62.7, 50.4 (missing boronate carbon); IR (KBr) 3093 (br), 2871, 1950, 1908, 1639, 1552 cm⁻¹.

Suzuki-Miyaura reaction to provide tert-Butyl 2-(thiophen-3-yl)-1H-pyrrole-1-carboxylate (21)

To a reaction vial equipped with a stir bar was added all solid reactants, including Pd(OAc)₂ (7.9 mg, 0.035 mmol, 7 mol %), JohnPhos (12 mg, 0.035 mmol, 7 mol %), Cs₂CO₃ (489 mg, 1.5 mmol, 3.0 equiv), and DABO complex (1.0 mmol, 2.0 equiv). A PFT crimp-on septum cap was then placed on the reaction vial, and the system was evacuated on high vacuum and backfilled with argon twice. Tetrahydrofuran (3.0 mL) and H₂O (0.6 mmol) were added via syringe followed by 3-bromothiophene (0.047 mL, 0.5 mmol, 1.0 equiv). The vial was then placed in a pre-heated heating block at 60 °C. After 6 h, the vial was removed from the heating block and allowed to cool to room temperature. The reaction mixture was filtered through a pad of Celite, rinsing with methylene chloride. The resulting orange/brown solution was concentrated by rotary evaporation to give a viscous liquid. Purification by chromatography on silica gel using 80:1 hexanes/ethyl acetate as the eluant provided the product as a mixture with tert-butyl 1H-pyrrole-1-carboxylate, resulting from protodeboronation of the boronic acid in solution. The impurity was removed by subjecting the clear, colorless liquid to high vacuum to provide tert-butyl 2-(thiophen-3-yl)-1H-pyrrole-1-carboxylate 21 as a clear, colorless oil (81 mg, 0.32 mmol, 65% yield). The sample was subjected to GC-MS, and the chromatogram contained one peak. Doubling in the ¹H NMR spectrum was attributed to rotamers: ¹H NMR (500 MHz, CDCl₃) δ 7.34 (m, 1H), 7.28–2.24 (m, 2H), 7.10 (d, J = 4.0 Hz, 1H), 6.22–6.18 (m, 2H), 1.43 (s, 9H); ¹³C NMR (125 MHz, CDCl₃) δ 149.4, 134.4, 129.9, 129.5, 124.1, 123.0, 122.5, 114.8, 110.6, 83.7, 28.0; IR (thin film) 3151, 3109, 2981, 2935, 2873, 1747 cm⁻¹; HRMS (ES/MeOH) m / z calcd for C₁₃H₁₅NO₂SNa (M + Na)⁺ 272.0721, found 272.0722.

Scheme 2.

Synthesis and cross-coupling of aliphatic DABO boronate 25
