IDENTIFICATION OF THE GPR55 ANTAGONIST BINDING SITE USING A NOVEL SET OF HIGH POTENCY GPR55 SELECTIVE LIGANDS

Abstract

GPR55 is a Class A G protein-coupled receptor (GPCR) that has been implicated in inflammatory pain, neuropathic pain, metabolic disorder, bone development and cancer. Initially deorphanized as a cannabinoid receptor, GPR55 has been shown to be activated by non-cannabinoid ligands such as L-α-lysophosphatidylinositol (LPI). While there is increasing evidence for physiological and pathophysiological roles for GPR55, the paucity of specific antagonists has limited its study. In collaboration with the Molecular Libraries Probe Production Centers Network initiative, we identified a series of GPR55 antagonists using a β-arrestin, high-throughput, high-content screen of ~300,000 compounds. This screen yielded novel, GPR55 antagonist chemotypes with IC₅₀s in the 0.16 to 2.72 μM range (Heynen-Genel, et al., (2010) “Screening for Selective Ligands for GPR55 – Antagonists” [ML191, ML192, ML193] Bookshelf ID: NBK66153; PMID: 22091481). Importantly, many of the GPR55 antagonists were completely selective, with no agonism or antagonism against GPR35, CB1 or CB2 up to 20 μM. Using a model of GPR55 inactive state, we studied the binding of an antagonist series that emerged from this screen. These studies suggest that GPR55 antagonists possess a head region that occupies a horizontal binding pocket extending into the extracellular loop region, a central ligand portion that fits vertically in the receptor binding pocket and terminates with a pendant aromatic or heterocyclic ring that juts out. Both the region that extends extracellularly and the pendant ring are features associated with antagonism. Taken together, our results provide a set of design rules for the development of second generation GPR55 selective antagonists.

GPR55, a rhodopsin-like (Class A) G protein-coupled receptor (GPCR), is a receptor for L-α-lysophophosphatidylinositol (LPI), which has the potential to become an important therapeutic target (Genbank accession # NM-005683) (1). GPR55 has been proposed to be a cannabinoid receptor because it binds a subset of CB1/CB2 ligands. GPR55(−/−) knock-out mice studies (2, 3) have suggested a role for GPR55 in inflammatory pain, neuropathic pain, and bone development. Other studies indicate that activation of GPR55 is pro-carcinogenic (4–7). While GPR55 shares some ligands with the cannabinoid receptors (see (1, 8, 9)), we and others have identified additional agonist ligands with novel chemotypes for GPR55(10–12).

One reason for the lack of more potent and selective GPR55 ligands is that initial ligand searches were conducted using cannabinoid receptor/lipid biased compound libraries (12, 13). Therefore, discovering and characterizing novel GPR55 chemotypes is a crucial next step in the field. This should lead to the design of higher quality GPR55 ligands that will become new research tools or novel new drugs. In collaboration with the Molecular Libraries Probe Production Centers Network initiative, we identified a series of GPR55 antagonists using a β-arrestin, high-throughput, high-content screen of ~300,000 compounds. This screen yielded novel, GPR55 antagonist chemotypes with IC₅₀s in the 0.16 to 2.72 μM range (Heynen-Genel, et al., (2010) “Screening for Selective Ligands for GPR55 – Antagonists” [ML191, ML192, ML193] Bookshelf ID: NBK66153; PMID: 22091481) that belong to unreported GPR55 antagonist chemotypes (11). Importantly, many of these ligands were completely selective, with no observed agonism or antagonism against GPR35, CB1 or CB2 up to 20 μM. This manuscript focuses on three GPR55 antagonists identified in this screen (and nominated as probe compounds for future studies): ML191 (CID23612552), ML192 (CID1434953), and ML193 (CID1261822) (see Figure 1 for compound drawings).

Figure 1.

GPR55 antagonist structures are shown here. ML191, ML192 and ML193 are the focus of this work. CID16020046 is another GPR55 antagonist recently published (48) by Kargl and co-workers.

We previously published a refined homology model of the GPR55 activated state (GPR55 R*) and its subsequent use to explore the interaction between GPR55 and the novel GPR55 compounds identified in our agonist screen (14). We report here the development of a refined homology model of the GPR55 inactive state and the binding conformations of ML191, ML192 and ML193 at GPR55. Our modeling identifies a common binding region despite the chemical diversity of their scaffolds, as well as, those portions of each molecule that render it an antagonist. Taken together, our results provide a set of design rules for the development of second generation, highly selective GPR55 antagonists.

METHODS

Chemical Library Screening

A β-arrestin (see methods below), high-throughput, high-content screen (HCS) of 300,000 compounds was used here to identify potent GPR55 selective antagonists. This work was performed in collaboration with the Molecular Libraries Probe Production Centers Network program (11). For more details about this library of compounds, see http://mli.nih.gov/mli/compound-repository/mlsmr-compounds/. Compounds were screened for antagonism (PubChem AID 2026) at GPR55 (using LPI as the agonist), as well as for both agonism and antagonism at GPR35 (PubChem AIDs 2809, 2815), CB1 (PubChem AIDs 2814, 2835) and CB2 (PubChem AIDs 2822, 2836). A cell line permanently expressing a β-arrestin GFP biosensor and an enhanced receptor of interest (i.e., GPR55, GPR35, CB1 or CB2) were employed in the high content imaging assay. Assay protocol descriptions (according to AID number) are accessible at the PubChem website (http://pubchem.ncbi.nlm.nih.gov/). Potent GPR55 antagonist compounds that lacked agonism or antagonism at GPR35, CB1 or CB2, were further evaluated for inhibition of pERK activation and PKCβII translocation produced by the GPR55 agonists, LPI or ML186 (see methods below). A set of novel GPR55 antagonist molecular scaffolds were selected from the screen ML191 (CID23612552), ML192 (CID1434953) and M193(CID1261822), and the binding of each compound was explored using a computer model of the GPR55 inactive state (see methods below).

Biochemical Studies

Compounds

LPI, (Sigma Aldrich), ML191, ML192, ML193 and ML186 (MolPort) were dissolved in DMSO to 10mM. 10mM stock solutions were dissolved in Hanks’ balanced salt solution (HBSS) to working concentrations.

β-Arrestin Translocation

U2OS cells permanently expressing HA-GPR55E and βarr2-GFP have been previously described (15). Cells were seeded onto glass coverslips at 80–85% confluence and placed in 24-well plates (BD Falcon ^™). Cells were maintained at 37°C in 5% CO₂ overnight. Cells were washed briefly with HBSS before drug application. Experiments were performed using HBSS (Fisher Scientific) as the assay buffer. Agonist-stimulated redistribution of βarr2-GFP was assessed following 40 min drug treatment at room temperature (RT). Cells were then fixed with 4% paraformaldehyde for 25 min at room temperature followed by three washes with PBS and one wash with double distilled water. The antagonism protocol included 15 min of pre-incubation with the antagonist, followed by a 40 min co-application with the agonist.

The high-throughput protocol for identifying small antagonists molecules has been previously described (11) (PubChem AID 2026).

Data quantification

The RGB color images captured from the fluorescent microscope were transformed into 8-bit gray-scale images using the Automate-Batch function in Adobe Photoshop CS5. To quantify βarr2-GFP aggregates, Gray-scale images were processed through ImageJ software, (http://rsbweb.nih.gov/ij/), using a custom written plug-in ((16) Inhibition curves were analyzed by nonlinear regression using Graph-Pad Prism 5.0 software (GraphPad, San Diego, CA), and data were fitted to sigmoidal concentration-response curves to obtain IC₅₀ values. Activity values were normalized to the maximal response achieved by agonist (ML186 or LPI).

PKCβII TranslocationAssay of GPR55 Activation

HEK 293 cells plated in 35-mm glass well Matek plastic dishes were transiently transfected with 175 μl of solution containing 1.5 μg/ml PKCβII-GFP cDNA or the PKC plasmid and 5 μg/ml human GPR55 cDNA in pCMV-Sport6 (Open Biosystems, Huntsville, Al) using a standard calcium phosphate protocol. Cells expressing GPR55 and PKCβII-GFP were utilized 24 h after transfection. Cells were washed with warm MEM and maintained at 37°C in 5% CO₂ for 30–45 min after drug application. Inhibition of agonist -stimulated redistribution of PKCβII-GFP was assessed after drug treatment at room temperature.

Extracellular signal-regulated kinase 1/2 assays

Extracellular signal-regulated kinase 1/2 phosphorylation was measured by immunoblotting, as previously described (14). GPR55E-expressing U2OS cells were grown to sub-confluence in 60-mm plates and serum-starved overnight before assay. Cells were rinsed once with HBSS and antagonists compounds were applied for 30 min prior to agonist application (LPI 10 μM, 10 min). Following drug treatment the cells were disrupted in a lysis buffer (50 mM Hepes, 150 mM NaCl, 1 mM EDTA, 1 mM EGTA, 10% glycerol, 1% Triton X-100, 10 μM MgCl2, 20mM p-nitrophenyl phosphate, 1 mM Na₃VO₄, 25mM NaF, and a protease inhibitor mixture (1:25, pH 7.5)). Lysates were immediately placed on ice for 10 min and then centrifuged at 16,000 × g for 30 min at 4°C. Supernatants, corresponding to the cytosolic fraction, were collected, and protein concentrations were determined by the Bradford assay (Bio-Rad) using bovine serum albumin as a standard. Cytosolic fractions (20 μg) were separated on a 10% gel by SDS-PAGE followed by immunoblotting. Antibodies against doubly phosphorylated ERK1/2 (1:5000) were detected using a LI-COR Odyssey IR Imager (LI-COR Biotechnologies, Lincoln, NE). A polyclonal antibody against total ERK1/2 (Cell Signaling 9102, 1:1000) was used to confirm equal protein loading. Densitometric analysis was performed using LI-COR Odyssey IR Imager. The value obtained for both ERK1 and ERK2 was normalized to total ERK1/2 levels. The data were normalized to response achieved by 10 μM LPI, and presented as percentage inhibition.

Receptor Model Development

The construction of our initial GPR55 receptor homology model was described previously in Kotsikorou et al. (17). This homology model used the crystal structure of β₂-AR (PDB Name: 2RH1) (18) as the template. This initial model has been modified to reflect several structural elements found in the x-ray crystal structure of CXCR4 in its inactive state, a receptor with which the GPR55 receptor has high homology (19). (1) TMH2 and TMH4 of GPR55 were modeled using the corresponding helices in the CXCR4 structure. GPR55 and CXCR4 have prolines in the positions 2.58 and 4.59 that would lead to very different conformations of TMHs 2 and 4 compared to the β₂-AR template which has prolines at 2.59 and 4.60. In addition, preceding the prolines at positions 2.56 and 4.57, CXCR4 has threonines in a g- conformation that influence the overall bend of each helix. Analogously, GPR55 has serines at 2.56(76) and 4.57(153), that can assume a g- conformation. Therefore, the use of the CXCR4 TMH2 and TMH4 as templates is well-justified. (2) The high sequence homology between GPR55 and CXCR4 in the extracellular ends of TMHs 6 and 7, dictated the introduction of extracellular (EC) helical extensions to the EC3 loop of GPR55 to match that of CXCR4. (3) The EC2 loop in CXCR4 contains a beta sheet. Due to high sequence similarity in this region, as well, the beta sheet motif was built into the EC-2 loop in GPR55. (4) In addition to the disulfide bridge between the EC-2 loop and C3.25, CXCR4 has another disulfide bridge between a Cys in the N-terminus Cys(28) and Cys(274) in the EC-3 loop. The same residues (Cys(10) and Cys(260)) are found in the GPR55 sequence, so this second disulfide bridge was added to the GPR55 model. The GPR55 inactive state model is also characterized by an intracellular hydrogen bond between R3.50(119) and Q6.30(221) that closes off the intracellular domain of the receptor, preventing G-protein interaction.

The resultant homology model was energy minimized using the OPLS 2005 force field in Macromodel 9.9 (Schrödinger Inc.; Portland, OR). An 8.0-Å extended nonbonded cutoff (updated every 10 steps), a 20.0-Å electrostatic cutoff, and a 4.0-Å hydrogen bond cutoff were used in each stage of the calculation. The minimization was performed in two stages. In the first stage, a harmonic constraint was placed on all the TMH backbone torsions (ϕ, ψ, and ω); this was done to preserve the general shape of the helices during minimization. In addition, the backbone atoms of the loops were frozen. The minimization consisted of a conjugate gradient minimization using a distance-dependent dielectric of 2.0, performed for 500 steps. In the second stage of the calculation, the TMH bundle was frozen, but the loops were allowed to relax. The Generalized Born/Surface Area (GB/SA) continuum solvation model for water as implemented in Macromodel was used. This stage of the calculation consisted of a Polak–Ribier conjugate gradient minimization for 500 steps. Figure 2 illustrates an extracellular view of the resultant GPR55 R model.

Figure 2.

An extracellular view of the GPR55 inactive state (R) model is illustrated here. The location of the two extracellular disulfide bridges are indicated.

Conformational Analysis of CID Compounds

Complete conformational analyses of ML191, ML192 and ML193 were performed using ab initio Hartree-Fock calculations at the 6-31G* level as encoded in Spartan ‘08 (Wavefunction, Inc., 18401 Von Karman Ave., Suite 370, Irvine, CA 92612). Figure 1 provides the numbering system for each compound. HF 6-31G* 6-fold conformer searches were performed for the rotatable bonds (CID23612552 (ML191) bonds: C2-C3, C3-C4, C9-N10, and C13-C14, CID1434953 (ML192) bonds: C2-N3, N6-C7, and C7-C9, and CID1261822 (ML193) bonds: C2-C3, C5-C6, N7-C8, C11-S12, S12-N13, and N13-C14). In each conformer search, local energy minima were identified by rotation of a subject torsion angle through 360° in 60° increments (6-fold search), followed by HF 6-31G* energy minimization of each rotamer generated. To calculate the energy difference between the global minimum energy conformer of each compound and its final docked conformation, rotatable bonds in the global minimum energy conformer were driven to their corresponding value in the final docked conformation and the single point energy of the resultant structure was calculated at the HF 6-31G* level.

Electrostatic Potential Map Calculation

The electrostatic potential density surface for each ligand was calculated using Spartan ‘08 (Wavefunction, Inc., 18401 Von Karman Ave., Suite 370, Irvine, CA 92612). The electrostatic potential energy was calculated using the ab initio Hatree-Fock method at 6-31G* level of theory and was mapped on the 0.002 isodensity surface of each molecule. The surface was color coded according to the potential, with electron rich regions colored red and electron poor regions colored blue.

Docking of Ligands

The lowest energy conformation of each antagonist was manually docked in our inactive model of GPR55. The automatic docking program, Glide (version 5.7, (Schrödinger Inc.; Portland, OR), was then used to explore other possible receptor binding modes for each compound. Glide was used to generate a grid based on the centroid of select residues in the binding site (from the manual dock). The grid defines the region in which Glide is allowed to attempt to dock ligands. The grid dimensions were 26Å × 26Å ×26Å; this grid size enabled Glide to thoroughly explore the receptor for possible binding sites. Other than the requirement that ligands must be docked within the grid, no constraints were used. Standard precision (SP) was selected for the docking setup. The receptor and ligand Van der Waals radii were set to the default value of 0.80 and the number of maximum poses to be produced was also set to 1000.

Ligand/Receptor Minimization

The energy of the receptor/ligand complexes, including loop regions, were minimized using the OPLS 2005 force field in Macromodel 9.9 (Schrödinger Inc.; Portland, OR). Since the receptor model was minimized before the docking of the ligands, only a brief minimization was necessary to resolve any steric clashes after docking. An 8.0-Å extended nonbonded cutoff (updated every 10 steps), a 20.0-Å electrostatic cutoff, and a 4.0-Å hydrogen bond cutoff were used in each stage of the calculation. The minimization was performed in two stages. In the first stage, a harmonic constraint was placed on all the TMH backbone torsions (ϕ, ψ, and ω); this was done to preserve the general shape of the helices during minimization. In addition, the backbone atoms of the loops were frozen. No constraints were placed on the ligands during this stage. The minimization consisted of a conjugate gradient minimization using a distance-dependent dielectric of 2.0, performed for 500 steps. In the second stage of the calculation, the ligand and TMH bundle were frozen, but the loops were allowed to relax. The Generalized Born/Surface Area (GB/SA) continuum solvation model for water as implemented in Macromodel was used. This stage of the calculation consisted of a Polak–Ribier conjugate gradient minimization for 500 steps.

Interaction Energy Calculations

After defining the atoms of each ligand as one group (Group 1) and the atoms corresponding to a residue that lines the binding site in the final ligand/GPR55 R complex as another group (Group 2), Macromodel (version 8.6, Schrödinger, LLC, New York, NY) was used to output the pair interaction energy (coulombic and van der Waals) for a given pair of atoms. The pairs corresponding to Group 1 (ligand) and Group 2 (residue of interest) were then summed to yield the interaction energy between the ligand and that residue. The total of the interaction energies for all residues in the binding site was summed with the conformational cost for the ligand to assume its conformation in the final complex. This sum yielded the total interaction energy for each ligand/GPR55 R complex.

Molecular Dynamics Simulation of Ligands Docked at GPR55 R (inactive)

The minimized models of the antagonist docked in GPR55 R (inactive), were further studied using molecular dynamics. The OPLS2005 force field was utilized with a distance dependent dielectric (coefficient of 2.0 to match the docking studies). The extended nonbonded treatment was employed, as in the minimization procedure discussed above. The dynamics module of Macromodel 9.1 was invoked, using stochastic dynamics at 300K with the use of SHAKE constraints for bonds to hydrogen allowing a 1.5 fs time step. The models were first minimized for 500 steps with restraints on all the heavy atoms, using a large force constant of 4184.kJ/mol. The molecular dynamics was then initialized to 300K, and an initial 100 ps of molecular dynamics was run. Subsequently, these restraints were slowly released for the side chain heavy atoms (4184–0.05 kJ/mol halving in each step for a total of 16 steps), at each step 150 ps of dynamics was performed. Finally, a 22.5 ns molecular dynamics simulation was conducted. Because the goal of this simulation was to explore the dynamic behavior of the antagonists in the binding pocket, in these simulations only the amino acid side chains and ligands were free to move. Visual Molecular Dynamics (VMD) was used to evaluate RMSDs, as well interactions between the ligands and residues as a function of simulation time.

RESULTS

Identification and Biochemical Characterization of GPR55 antagonists

ML191 (CID23612552), 5-phenyl-3-(1-(1-(p-tolyl)cyclopropane-carbonyl)piperidin-4-yl)-1,3,4-oxa-diazol-2(3H)-one; ML192 (CID1434953), furan-2-yl(4-(2-methyl-5,6,7,8-tetrahydro-benzo-[4,5]thieno[2,3-d]pyrimidin-4-yl)piperazin-1-yl)methanone; and ML193 (CID1261822), N-(4-(N-(3,4-dimethylisoxazol-5yl)sulfamoyl)-phenyl)-6,8-dimethyl-2-(pyridin-2-yl)quinoline-4-carbox-amide (Figure 1) were identified in a high throughput screen on the basis of their ability to inhibit the response of LPI to recruit a a β-arrestin-GFP reporter (11). These ligands were chosen for computer modeling of the GPR55 binding pocket due to their potencies, 702–1076 nM IC₅₀s, and their selectivity for GPR55 over GPR35, CB1 and CB2 in the β-arrestin translocation assay in U2OS cells permanently expressing HA-GPR55E and βarr2-GFP (11) (Figure 1). Figure 3 illustrates concentration response curves for antagonist activity in the β-arrestin trafficking assay. ML191, ML192 and ML193 inhibited trafficking induced by 10 μM LPI with IC₅₀’s of 1.08 ± 0.03, 0.70 ± 0.05 and 0.22 ± 0.03 μM, respectively (mean ± S.E.M., n ≥ 2) (Figure 3A). A similar rank order of antagonist potency was obtained using a different agonist, ML186 (CID15945391, N-(2-methoxy-5-morpholin-4-ylsulfonylphenyl)-4,5,6,7-tetrahydro-1- benzothio-phene-2-carboxamide) (Figure 3B). ML191, ML192 and ML193 inhibited trafficking induced by 1 μM ML186 with IC₅₀’s of 1.03 ± 0.03, 0.29 ± 0.09 and 0.12 ± 0.02 μM, respectively (mean ± S.E.M., n ≥ 2) (Figure 3B).

Figure 3.

Antagonist Activity of ML191, ML192 and ML193. Concentration response curves for antagonist activity of ML191, ML192, and ML193 in the β-arrestin trafficking assay using LPI (A) or ML186 (B) as an agonist. Concentration response curves for LPI (C) and ML186 (D).

We and others have previously demonstrated the ability of LPI to activate the ERK1/2 pathway (5, 15, 20). GPR55 antagonists were therefore evaluated for their ability to inhibit ERK1/2 phosphorylation in GPR55-expressing U2OS cells (Figure 4). Inhibition curves for LPI- mediated ERK1/2 phosphorylation revealed a significant decrease in ERK1/2 phosphorylation and yielded IC₅₀ values of 0.4 ± 0.1, 1.1 ± 0.3 and 0.2 ± 0.3 μM for ML191 (Figure 4A), ML192 (Figure 4B) and ML193 (Figure 4C), respectively. In untransfected U2OS cells, neither LPI nor any of the antagonist compounds induced ERK1/2 phosphorylation, while activation by pervanadate indicated that the MAPK pathway was intact (Figure 4D). In addition, all compounds inhibited PKCβII translocation (Table 1). This imaging assay utilizes HEK293 cells transiently expressing a PKCβII-GFP biosensor and a wild type GPR55 receptor (11, 21). Upon agonist treatment, the GPR55-mediated G-protein signaling is measured by PKCβII-GFP recruitment to the plasma membrane and formation of widespread plasma membrane remodeling. This PKC recruitment is shown as increased fluorescence on plasma membrane and development of blebs. The inhibitory effect of the probe compounds was determined by quantifying inhibition of the PKCβII-GFP recruitment to the plasma membrane and formation of widespread plasma membrane remodeling in the presence of agonist. Because of the manual image analysis, results were binned into 5 categories (none, ~1%, ~10%, ~30%, ~60% GFP membrane recruitment/blebs formation) and compounds were tested at 4 concentrations (see Table 1).

Figure 4.

LPI mediated ERK1/2 phosphorylation is largely inhibited by ML 191–193 compounds in U2OS cells overexpressing GPR55E and βarr2/GFP. Cells were pre-incubated with increasing concentrations of ML compounds 30 min prior to the application of LPI (10 μM). ERK1/2 phosphorylation levels were monitored and normalized to total ERK1/2 levels and IC₅₀ values for each of the compounds was determined. Data are mean ± SEM from three independent experiments performed in duplicate (*P<0.05, **P<0.01, ***P<0.001). LPI mediated ERK1/2 phosphorylation was significantly attenuated following treatment with ML191 (A), ML192(B) and ML193(C). In untransfected U2OS cells, neither LPI nor any of the antagonist compounds induced ERK1/2 phosphorylation, while activation by pervanadate indicated that the MAPK pathway is intact (D).

Table 1.

Inhibition of PKC βII Translocation (AID 488947) in cells with wild-type GPR55 receptor:

	PKCβII Translocation
	Membrane Recruitment/Blebs AID 488947
	100 μM	30 μM	10 μM	0 μM
ML191	−	+	++	++++
ML192	+	+++	++++	++++
ML193	−	−	+	++++

* Manual Image Analysis Result Definition:

‘−’ no GFP membrane recruitment or blebs formation

‘+’ ~1% GFP membrane recruitment or blebs formation

‘++’ ~10% GFP membrane recruitment or blebs formation

‘+++’ ~30% GFP membrane recruitment or blebs formation

‘++++’ ~60% GFP membrane recruitment or blebs formation

Ligand Conformational Analysis

Global Minimum Energy Conformers of GPR55 Antagonists

Overall, the GPR55 probe molecules have three regions. The first two regions include a broad or bent head connected to a central portion of the ligand that is vertical. Together, this gives these molecular sections the shape of the number ”7” (ML191, ML192) or a “T” (ML193). The third section at the end of the vertical segment is a pendant aromatic or heterocyclic ring that is nearly perpendicular to the vertical segment. See Figure 1 for compound drawings. At the global minimum energy conformer of CID23612552 (ML191), the para-methylphenyl ring is at an angle with the carbonyl group that joins the cyclopropyl and the piperidine rings (C1-C2-C3-C4 = 53.5° and C2-C3-C4-N6 = 72.5°). The piperidine, which is in a chair conformation, and the attached 1,3,4-oxadiazo-2-one ring form the vertical segment of the “7”. The 1,3,4-oxadiazo-2-one ring is perpendicular to the plane of the piperidine ring (H-C9-N10-C11 = −179.9°) and the pendant phenyl ring is in plane with the 1,3,4-oxadiazo-2-one ring (O12-C13-C14-C15 = −0.4°).

At the global minimum energy conformer of CID1434953 (ML192), the molecule has the piperazine ring (part of the vertical segment of “7”) out of plane with the thienopyrimidine group (N1-C2-N3-LP = 137.1°). The piperazine is in a chair conformation and the N3 lone pair points 180° away from the N6 lone pair. The lone pair of the piperazine N6 is almost perpendicular to the carbonyl group (O8-C7-N6-LP = −115.3°) that connects the piperazine to the furan ring. The pendant furan ring is nearly in plane with the carbonyl group (O8-C7-C9-C10 = −2.0°).

The global minimum energy conformer of CID12440433 (ML193) has the pyridine ring almost coplanar to the dimethylquinoline ring (N1-C2-C3-C4 = 3.7°). The amide group is out of plane with the dimethylquinoline ring (C4-C5-C6-N7 = −48.5°) and nearly in plane with the central phenyl ring (C6-N7-C8-C9 = −5.8°). The sulfonamide group is perpendicular to the central phenyl ring (C10-C11-S12-N13 = 89.2°) and the nitrogen of the sulfonamide is cupped with the nitrogen lone pair pointing down, in the opposite side of the rest of the molecule (C11-S12-N13-LP = −173.5°). The plane of the pendant dimethylisoxazole ring is almost perpendicular to the axis formed by the N-S bond of the sulfonamide (S12-N13-C14-O15 = −103.1°). The methyl groups of the dimethyoxazole are pointing down, away from the rest of the molecule.

GPR55 Agonist Molecular Electrostatic Potential Maps

Figure 5 illustrates the molecular electrostatic potential maps (ranges in kJ/mol given next to each ligand) of the docked conformations of ML191, ML192 and ML193 at GPR55 R. In the second row, the conformer of each used to calculate the map is shown in tube display. Each ligand possesses a head region connected to a central portion of the ligand that has a thin profile. The most electronegative region of each ligand is located close to the far end of this central section and this portion is followed by a pendant aromatic or heterocyclic ring that juts out nearly perpendicular to the central portion of the molecule. The carbonyl oxygen of the 1,3,4-oxadiazo-2-one ring of ML191, the amide group carbonyl oxygen of ML192 and the sulfonamide oxygens of ML193 are the most or one of the most electronegative regions of the ligands and form the part of each molecule that interacts with K2.60(80) (see docking results below).

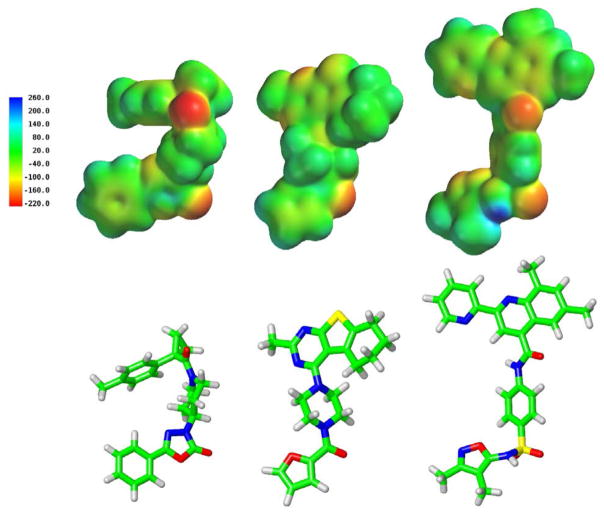

Figure 5.

Molecular electrostatic potential maps of ML191, ML192 and ML193 are shown here in the top row. In the second row, the conformer of each used to calculate the map is shown in tube display.

GPR55 Inactive (R) State Model

Because ML191, ML192 and ML193 are GPR55 antagonists, each was docked in the inactive state model of GPR55. In this model, there is a hydrogen bond between R3.50(119) and Q6.30(221) that corresponds to the R3.50-D/E6.30 “ionic lock” found in many Class A GPCRs. This hydrogen bond is facilitated by the SFLP hinge motif (CWXP in most Class A receptors) that hinges the intracellular end of TMH6 towards the intracellular end of TMH3. The interaction of these two residues closes the intracellular side of the receptor to any interaction with G protein. Within the binding pocket of each Class A GPCR, there is a set of residues for which agonist binding promotes a conformational change. For many Class A GPCRs, these “toggle switch” residues include a residue on TMH6 close to the TMH6 CWXP motif and a residue (or covalently bound ligand) that interacts directly with this TMH6 residue. In rhodopsin, W6.48 (part of the TMH6 CWXP hinge motif), adopts a g⁺ χ¹ dihedral angle. In the inactive state of rhodopsin, 11-cis-retinal’s beta-ionone ring directly interacts with W6.48, blocking its movement (22) (23) (24). When rhodopsin is light activated, 11-cis retinal isomerizes to all-trans-retinal and the beta-ionone ring moves away from TMH6 and towards TMH4. This movement frees the χ¹ of W6.48 to undergo a g⁺ → trans conformational change (25). Mutation studies have shown that W6.48 and F3.36 form the “toggle switch” in the cannabinoid CB1 receptor (26). In the crystal structure of the agonist bound beta-2-adrenergic receptor, the residues that comprise the “toggle switch” are F6.44, P5.50 and I3.40 (27). When agonist binding trips the toggle switch within the binding pocket, TMH6 straightens (using the CWXP hinge motif) and moves its intracellular end away from the TMH bundle. This movement of TMH6 breaks the “ionic lock” between R3.50 and E/D6.30 at the intracellular end of the receptor. What results is an intracellular opening in the TMH3/4/5/6 region large enough to allow the G-alpha protein to insert its alpha-5 helix C-terminal region into the activated GPCR (28). This sequence of events is consistent with the recent x-ray crystal structure of the β2-adrenergic receptor in complex with Gs protein (29).

In this paper, we are studying molecules that should prevent GPR55 from being activated. In GPR55, the TMH6 hinge motif sequence is SFLP. In the inactive state model, the χ¹ dihedral angle F6.48(239) is g⁺ and is held in this conformation by M3.36(104) (χ¹ = trans). We have hypothesized that the M3.36/F6.48 interaction constitutes the “toggle switch” for GPR55. As discussed below, one key feature of each of the GPR55 antagonists studied here is a structural component that prevents this M3.36/F6.48 toggle switch from changing conformation.

Compound Docking in GPR55 Inactive State (R) Model

Docking studies identified the putative binding sites for ML191, ML192 and ML193 to be the TMH 2-3-5-6-7 region of the GPR55 R model. Although Glide docking studies were performed without a primary interaction specified, in each case K2.60(80), the only positively charged TMH residue in the putative binding site, formed a hydrogen bond with each ligand in the final complex identified by Glide. Because ML191, ML192 and ML193 differ in size. We begin this section considering the binding pocket for ligands based on size (ML193>ML191>ML192).

Figure 6 illustrates the ML193/GPR55 R complex obtained using Glide. The ML193 sulfonamide oxygen forms a hydrogen bond with K2.60(80). The hydrogen bond (N-O) distance and (N-H—O) angle are 2.78Å and 178° respectively. ML193 also forms extensive π-π stacking interactions with the receptor. The N-terminal amino acid F12 stacks with the dimethylquinoline ring that forms part of the broad head region. The ring centroid to centroid distances of F12 to the fused dimethylbenzyl and pyridyl rings of the dimethylquinoline are 5.23Å and 6.36Å and angles between ring planes 93° and 91° respectively. The EC2 loop residue F169 forms aromatic stacking interactions with both the dimethylquinoline and the pendant pyridine rings. The ring centroid to centroid distances are 4.97Å and 4.90Å for the dimethylbenzyl and pyridyl rings of the dimethylquinoline respectively and 6.50Å with the pendant pyridine ring. The angles between the ring planes are 54° for the dimethylquinoline rings and 53° for the pendant pyridine. Finally, the transmembrane residue F5.39(182) forms an offset parallel stack with the pendant pyridine ring (ring centroid to centroid distance: 5.86Å; the angle between ring planes: 36°) and F6.55(246) forms a T-stack with the pendant dimethylisoxazole ring (ring centroid to centroid distance: 5.64Å and angle between ring planes: 117°). The net Glide score for ML193 with GPR55 is −3.18 kcal/mol (see Table S.9). The hydrogen bonding interaction with K2.60(80) and the Van der Waals interactions with M7.39(274) are the major contributors to the interaction energy. The aromatic stacking interactions with F169, Y3.32(101), and F12 add significantly to interaction energy. Finally, Q7.36(271), Q6.58(249), and F3.33(102) contribute some Van der Waals interaction energy for the complex. The pendant dimethylisoxazole ring prevents a change in the χ¹ of M3.36(104) and therefore keeps GPR55 in the inactive state. The interaction energy for ML193 with specific GPR55 binding pocket residues is summarized in Table S-1 in Supporting Information. The conformational energy cost for ML193 to adopt the docked conformation is 2.34 kcal/mol and the RMSD between the docked conformation and the global minimum energy conformer is 2.14 (see Table S.10).

Figure 6.

ML193 (blue) is shown docked in the GPR55 R model. In the view shown here, the top of TMH7 has been omitted for clarity. K2.60(80) (pink) was observed to be a primary interaction site during docking studies. The toggle switch residues M3.36(104)/F6.48(239) are shown in purple. Residues that contributed at least 2.5% to the total interaction energy are shown in orange. See Table S.1 in Supplemental Information for a breakdown of the energy of interaction ofML193 in GPR55 R with specific residues.

Figure 8 illustrates the ML191/GPR55 R complex obtained using Glide. The ML191 1,3,4-oxadiazo-2-one carbonyl oxygen forms a hydrogen bond with K2.60(80). The hydrogen bond (N-O) distance and (N-H—O) and angle are 2.81Å and 166° respectively. ML191 forms a number of aromatic stacking interactions. The methylphenyl ring next to the cyclopropyl group forms a stack with the EC2 loop residue F169 (ring centroid to centroid distance is 5.27Å and the angle between ring planes is 117°). The pendant phenyl group adjacent to the 1,3,4-oxadiazo-2-one ring stacks with F6.55(246). The ring centroid to centroid distance is 5.71Å and the angle between ring planes is 60°. The net Glide score for ML191 with GPR55 is −2.25 kcal/mol (see Table S.9). The major interaction energy contributions for this compound are the hydrogen bonding interaction with K2.60(80) and Van der Waals interactions with M7.39(274). Aromatic stacking interactions with F169 and Van der Waals interactions with Y3.32(101) also contribute to the interaction energy. The remainder of the aromatic stacking interactions identified contribute less to the overall interaction energy. The pendant phenyl group prevents a change in the χ¹ of the toggle switch residue, M3.36(104) and therefore keeps GPR55 in the inactive state. The interaction energy for ML191 with specific residues is summarized in Table S-2 in Supporting Information. The conformational energy cost for ML191 to adopt the docked conformation is 2.09 kcal/mol and the RMSD between the docked conformation and the global minimum energy conformer is 0.71 (see Table S.10)

Figure 8.

ML192 docked to GPR55 R. ML192 (blue) is shown docked in the GPR55 R model. In the view shown here, the top of TMH7 has been omitted for clarity. K2.60(80) (pink) was observed to be a primary interaction site during docking studies. The toggle switch residues M3.36(104)/F6.48(239) are shown in purple. Residues that contributed at least 2.5% to the total interaction energy are shown in orange. See Table S.4 in Supplemental Information for a breakdown of the energy of interaction of ML192 in GPR55 R broken down by residue.

Figure 9 illustrates the ML192/GPR55 R complex obtained using Glide. The ML192 carbonyl oxygen preceding the pendant furan ring hydrogen bonds with K2.60(80). The hydrogen bond (N-O) distance and (N-H—O) angle are 2.79Å and 160° respectively. Additionally, two phenylalanines form aromatic stacking interactions with the ligand. The EC2 loop residue F169 stacks with the aromatic rings of fused ring system in the broad head region of the molecule. The ring centroid to centroid distances of F169 to the pyrimidine and thiophene rings are 5.77Å and 5.21Å respectively and the angles between the ring planes are 73° and 73° respectively. The transmembrane residue F3.33(102) forms an aromatic T-stack with the pendant furan ring that juts out nearly perpendicular to the central portion of the molecule (distance 4.58Å and angle 35°). The net Glide score for ML192 with GPR55 is −1.23 kcal/mol (see Table S.9). While the hydrogen bonding interactions with K2.60(80) and the aromatic stacking interaction with F169 contribute to the interaction energy, Van der Waals interactions with the hydrophobic residue M7.39(274) have a major contribution to the total interaction energy of this complex. Finally, the amino acids E3.29(98), Y3.32(101), F12, Q7.36(271), and S7.32(267) have lesser Van der Waals contributions to the interaction energy. ML192 is significantly smaller than ML193 and ML191 and therefore does not penetrate the binding pocket as deeply. ML192 interacts directly with F3.33(102) which in turn interacts with the toggle switch residue, M3.36(105). This interaction would prevent the movement of M3.36(105) and therefore ML192 keeps GPR55 in the inactive state. The interaction energy for ML192 with specific residues is summarized in Table S-4 in Supporting Information. The conformational energy cost for ML192 to adopt the docked conformation is 3.51 kcal/mol and the RMSD between the docked conformation and the global minimum energy conformer is 0.25 (see Table S.10).

Figure 9.

MD studies suggested that ML192 was more mobile in the binding pocket such that it could adopt a more extracellular binding region than that of the static ML192/GPR55 R dock. To understand the differences, we extracted a frame from the MD trajectory and energy minimized the system using the same minimization protocol as described earlier. The results are illustrated here. ML192 (blue) is shown docked in the GPR55 R model. In the view shown here, the top of TMH7 has been omitted for clarity. K2.60(80) (pink) was observed to be a primary interaction site during the molecular dynamics simulation. The toggle switch residues M3.36(104)/F6.48(239) are shown in purple. Residues that contributed at least 2.5% to the total interaction energy are shown in orange. See Table S.4 in Supplemental Information for a breakdown of the energy of interaction of ML192 in GPR55 R broken down by residue.

Correlation of Interaction Energies with Biological Results

It is interesting to note that GPR55 R net Glide energies (Table S.9) calculated for the three antagonists reported here (ML193 (−3.18 kcal/mol) < ML191(−2.25 kcal/mol) < ML192 (−1.23 kcal/mol)) correlate best with the trend in potency in the PKC βII Translocation Assay, with ML-193 being the most potent antagonist and also the ligand with the most net Glide score. In the β-arrestin trafficking assay (versus LPI and ML186) and in the LPI- mediated ERK1/2 phosphorylation assay, ML193 remains the most potent antagonist, however, ML192 ranks as the next most potent antagonist in these assays.

Molecular Dynamics Simulation of Antagonists/Receptor Complexes

In order to elucidate the dynamic behavior of ML191, ML192, and ML193 with the receptor, a 22.5 ns molecular dynamics simulation was run on the final three antagonist/GPR55 complexes (shown in Figures 6, 8, 9). Specifically, the simulations were run for three reasons: (1) to observe if the general binding site (that was proposed in the static models) for each antagonist persist, or if it evolves over the simulation trajectory; (2) to observe if the interaction (as proposed in the static model) between each antagonist and K2.60(80) persists in a dynamic simulation; (3) to observe if the interaction between each antagonist and M3.36(104) (either directly or via F3.33(102)) persists in a dynamic simulation.

The ML193/GPR55 complex did not significantly change over the course of the simulation trajectory. Specifically, Figure S.1 illustrates that the RMSD for the receptor is quite low and does not significantly change over the course of the simulation. In addition, Figure S.2 illustrates that ML193’s RMSD was low and did not significantly change over the course of the trajectory, with the exception of an increase from 16ns to 18ns, that was followed by a return to the previous RMSD value for the rest of the simulation. This change in RMSD between 16ns to 18ns is caused by the pyridine ring flipping 180° and then returning to its original position. This is captured by the ω1 torsion angle (see Figure S.4 for drawing and Figure S.3 for the dihedral plot). ML193 maintained a hydrogen bond with K2.60(80) for 58.2% of the trajectory, but stays in close proximity to K2.60(80) throughout the simulation. ML193 also forms a hydrogen bond between the amide oxygen and Q7.36(271) for 6.4% of the trajectory (see Table S.11). Together, these results are consistent with the binding mode for ML193 proposed by the static model.

The ML191/GPR55 complex also did not significantly change over the course of the simulation trajectory. Specifically, Figure S.5 illustrates that the RMSD for the receptor is quite low and does not significantly change over the course of the simulation. Figure S.6 illustrates that the RMSD for ML191 is low with the exception of the periods between 4ns to 6ns and 20ns to 22.5 ns. During these two time periods the phenyl ring rotates from 180° to 0°. This is captured by the ω5 torsion angle (see Figure S.8 for drawing and Figure S.7 for the dihedral plot). ML191 maintained a hydrogen bond with K2.60(80) for 93.1% of the trajectory, see Table S.11. These results suggest that the proposed static model of the ML191/GPR55 complex is stable, and that ML191’s location and interactions with the receptor do not significantly change during the simulation.

ML192 is the smallest of the three GPR55 antagonists considered here and the antagonist with the poorest net Glide score (−1.23 kcal/mol). MD simulations showed this ligand to be more mobile in the binding pocket. This is reflected in an increased RMSD for the ligand (see Figure S.10) relative to ML193 and ML191. However, the conformation of receptor does not significantly change; this can be observed by the low RMSD for the receptor (see Figure S.9). Figure S.11 illustrates that ML192’s dihedral angles (see Figure S.12 for dihedral definitions) have persistent values throughout the simulation except during the period from 3ns to 5ns. This is captured by the ω3 torsion angle (see Figure S.12) which changes from 60° to −60° at 3 ns, but switches back at 5 ns, and stays 60° for the remainder of the simulation. ML192 maintains its interaction with K2.60(80), as predicted by the static model. ML192 forms a hydrogen bond with K2.60(80) for 44.2% of the simulation. In addition, ML192 formed a hydrogen bond with Q7.36(271) and S7.32(267) for a significant duration of the simulation (35.3% and 27.9% of the simulation time, respectively; see Table S.11).

MD studies suggested that ML192 was mobile enough to adopt a more extracellular binding region than that of the static ML192/GPR55 R dock. To understand the differences, we extracted the last frame from the MD trajectory and energy minimized the system using the same minimization protocol as described earlier. Figure 9 illustrates the ML192/GPR55 R complex obtained from this frame of the molecular dynamics simulation. The ML192 carbonyl oxygen preceding the pendant furan ring hydrogen bonds with K2.60(80). The hydrogen bond (N-O) distance and (N-H—O) angle are 3.12Å and 130° respectively. Interestingly, K2.60(80) also forms a hydrogen bond with Q7.36(271); the hydrogen bond (N-O) distance and (N-H—O) angle are 2.83Å and 167° respectively. In turn, Q7.36(271) forms a hydrogen bond with one of ML192’s pyrimidine nitrogens; the hydrogen bond (N-N) distance and (N-H—N) angle are 3.10Å and 162° respectively. Additionally, two phenylalanines form aromatic stacking interactions with the ligand. The N terminus residue F 12 stacks with the aromatic rings of the fused ring system in the broad head region of the molecule. The ring centroid to centroid distances of F 12 to the pyrimidine and thiophene rings are 5.10Å and 4.88Å respectively and the angles between the ring planes are 61° and 61° respectively. The EC2 loop residue F169 also stacks with the aromatic rings of fused ring system in the broad head region of the molecule. The ring centroid to centroid distances of F169 to the pyrimidine and thiophene rings are 5.68Å and 4.82Å respectively and the angles between the ring planes are 134° and 133° respectively. The net Glide score for this MD frame was poor, −0.16 kcal/mol. It is interesting, however, that even though ML192 is higher in the binding pocket here, it still would function as an antagonist because it would inhibit the movement of the EC-2 loop (see Discussion below).

DISCUSSION

High-throughput screening has revolutionized our ability to identify new chemotypes acting at GPCRs. This has been particularly true for the GPR55 field because the initial use of cannabinoid receptor/lipid biased compound libraries, lead to low chemical diversity and lack of receptor selectivity. Based upon the docking and MD studies reported here, we propose that each of the antagonists (ML191, ML192 and ML193) although from very different chemotypes, share important conformational and electronic features that result in similar binding modes and antagonism of GPR55. These GPR55 antagonists possess (1) a head region that occupies a horizontal binding pocket near the extracellular (EC) end of GPR55; (2) a central ligand portion that fits vertically in the receptor binding pocket with the most electronegative region of each ligand located close to the far end of this central section; and (3) a pendant aromatic or heterocyclic ring that juts out from the central section and is located deepest in the binding pocket. The pendant aromatic or heterocyclic ring binds deep enough in the binding pocket to block M3.36(104) (or a residue that blocks M3.36(104)) preventing the M3.36(104)/F6.48(239) toggle switch from undergoing the conformational change that is likely associated with GPR55 activation. However, because the primary interaction site for the most electronegative region of each ligand is K2.60(80) which is located only two turns down from extracellular loops, a portion of each of these antagonists extends into the EC loop region of GPR55. The fact that these ligands also extend into EC receptor regions may be an additional feature important for their function as antagonists.

GPCR Activation

Antagonists block receptor activation. It is therefore important to underst and how these receptors are activated. While there are likely multiple activated states of a given receptor depending on the agonist that triggers activation, there are commonalities amongst all of these activated states both in the intracellular domains and within the binding pocket.

Intracellular Domain

The structural characteristics that define the GPCR inactive (R) and active (R*) states have been deduced primarily from biophysical studies of rhodopsin and the β2-AR receptor. In the inactive or off state (R), the intracellular (IC) end of TMH6 is bent towards TMH3 and a salt bridge between R3.50 and E/D6.30 on the intracellular side of the TMH bundle forms an “ionic lock”. In the activated state, TMH6 undergoes a conformational change, straightening in the highly conserved CWXP hinge region (30), (31), (32), (33), (34), (35). This results in the intracellular ionic lock breaking as TMH3 and TMH6 move away from each other (36). The intracellular opening created by this change allows the G-protein then to couple to the receptor. In our model of the GPR55 inactive state, the intracellular ends of TMH3 and 6 are kept in close proximity by a hydrogen bond between R3.50(119) and Q6.30(221) that functions as GPR55’s “ionic lock”.

Binding Pocket

The change from the inactive to active state also is associated with changes within the ligand binding pocket. In the R state, a tryptophan residue in the CWXP hinge motif on TMH6, W6.48, adopts a g⁺ χ¹ dihedral angle. This conformation in rhodopsin is due to the close proximity of the beta-ionone ring of rhodopsin’s covalently bound ligand, 11-cis-retinal to W6.48, such that the tryptophan is locked in place (22), (23), (24). W6.48 is part of the highly conserved TMH6 CWXP motif and has been identified as important for GPCR activation through early mutagenesis studies. An x-ray crystal structure of a constitutively active rhodopsin mutant suggests that when rhodopsin is activated and undergoes the isomerization of 11-cis retinal to all-trans-retinal, the retinal beta-ionone ring is shifted 4.3Å towards the cleft between TMH5 and TMH6 and W6.48 is released from its locked position. The indole group of W6.48 moves 3.6Å away from its ground-state position as a consequence of rhodopsin activation (37) and W6.48 undergoes a change in its χ¹ angle from g⁺ → trans (25). For the CB1 receptor, we have documented via mutation the existence of a binding pocket toggle switch that involves F3.36 and W6.48 (26, 38). Here, the χ¹ of F3.36 must undergo a trans → g⁺ conformational change in order to free the W6.48 χ¹ to undergo its g⁺ → trans conformational change. In GPR55, M3.36(104) appears to serve a similar function in holding F6.48(239) in a g⁺ χ¹ conformation. Although this W6.48 χ¹ g⁺ → trans conformation change is not seen in recent activated GPCR crystal structures, it is possible that such a change is transient and therefore not captured in the crystalline state. In fact, in molecular dynamics simulations of cannabinoid CB2 receptor activation by its endogenous ligand, we observed such a transient change in W6.48 (39). Likewise, a rotameric change of W6.48 has been documented to occur in microsecond long molecular dynamics simulations (40) of the β-2 adrenergic receptor in complex with Gs protein (29).

Extracellular Regions

We show here that the GPR55 antagonist ligands, ML191, ML192 and ML193 all bind high enough in GPR55 to interact directly with and block movement of the EC-2 loop. In addition, ML192 may be mobile enough to move closer to this region while maintaining its interaction with K2.60. Extracellular loop conformational changes have been shown to be critical for signal transduction of many Class A GPCRs. For example, the results of NMR studies have suggested that upon activation, rhodopsin’s EC-2 loop undergoes a necessary conformational change that is coupled to the breaking of the intracellular ”ionic lock” (i.e. an ionic interaction between R3.50 and D/E6.30 that promotes an inactive GPCR conformation) (41). Additionally, the results of recent mutation studies of the angiotensin II type 1 receptor suggest that the EC-2 loop undergoes ligand-specific conformational changes that are required for receptor activation (42, 43). Circular dichroism and steady-state fluorescence studies have been used to illustrate that the EC-2 loop, of the serotonin 5-HT_4(a) receptor, adopts specific loop conformations that are determined by the receptor’s activation state (44). Mutation studies of the cannabinoid CB1 receptor have suggested that the EC-2 loop may move down towards the transmembrane core upon receptor activation (45, 46). Thus, ligands located high enough in the binding pocket to interfere with such movements could act as antagonists by blocking these changes.

Comparisons with Other Published GPR55 Antagonists

Recently, several papers have presented other GPR55 antagonists that come from additional chemotypes. In some cases, the antagonists are selective for GPR55 (47, 48), while in other cases the ligand retains activity at one or more additional receptors (3, 49). Kargl and coworkers used CID16020046, 4-[4-(3-hydroxyphenyl)-3-(4-methylphenyl)-6-oxo-1H,4H,5H,6H-pyrrolo [3,4-c] pyrazol-5-yl] benzoic acid (see Figure 1 for drawing) to show that in yeast cells expressing human GPR55, CID16020046 antagonized agonist-induced receptor activation with an IC₅₀ of 0.15 μM (48). In HEK293 cells stably expressing human GPR55 (HEK-GPR55), the compound behaved as an antagonist on LPI-mediated Ca²⁺ release and extracellular signal-regulated kinases (ERK1/2) activation, but not in HEK293 cells expressing CB1 or CB2 (48). The dock of the S enantiomer of CID16020046 in GPR55 R is shown in Figure S.13 and its interaction energy table (Table S.5) can be found in Supplemental Information. Here the methylphenyl ring penetrates deepest into the binding site and prevents M3.36(104) from undergoing a conformational change. The 6-oxo group of the central heterocyclic ring has the highest electrostatic potential and hydrogen bonds with K2.60(80). The net Glide score for CID16020046 (S enantiomer) is −3.75 kcal/mol (see Table S.9) and the RMSD of the docked conformation is 1.35.

The cannabis constituent, cannabidiol (CBD) has been reported to function as a GPR55 antagonist by attenuating the effects produced by GPR55 agonists O-1602 and LPI on mouse and human osteoclast polarization and resorption in vitro (3). CBD has also been reported to be a low efficacy agonist at GPR18 (50). Figure S.14 in Supplementary Information shows CBD docked in GPR55 R. Here, the pentyl sidechain of CBD penetrates deepest in the binding pocket and blocks the movement of M3.36(104). The two hydroxyls of CBD interact with K2.60(80) and E3.29(99). These two interactions are the major interactions for CBD at GPR55 (see Table S.6). The net Glide score for this complex is −2.39 kcal/mol (see Table S.9) and the RMSD for the docked conformation relative to the global min is 0.64.

Docks of two other recently reported GPR55 antagonists 3-(2-hydroxybenzyl)-5-isopropyl-8-methyl-2H-chromen-2-one (47) (Referred to in ref 47 as Compound 12; see Figure S.15) and tetrahydromagnolol (49) (see Figure S.16) are included in Supplemental Information along with their interaction energies (Table S.7 and S.8),. The net Glide score for the 3-(2-hydroxybenzyl)-5-isopropyl-8-methyl-2H-chromen-2-one/GPR55 R complex is −0.59 kcal/mol (see Table S.9) and the RMSD for the docked conformation relative to the global min is 1.66. (see Table S.10). The net Glide score for the tetrahydromagnolol/GPR55 R complex is −1.34 kcal/mol (see Table S.9) and the RMSD for the docked conformation relative to the global min is 0.75 (see Table S.10).

Of the four GPR55 antagonists discussed in this section, CID16020046 (48) and 3-(2-hydroxybenzyl)-5-isopropyl-8-methyl-2H-chromen-2-one (47) are GPR55 selective; while CBD (3, 50) and tetrahydromagnolol (49) act at additional receptors. It is worth noting that although CBD and tetrahydromagnolol can dock at GPR55 and function as antagonists, neither ligand conforms completely to the general shape description we use in the paper to describe ML191, ML192 and ML193. The fact that these are also the only two ligands that lack GPR55 selectivity leads to the speculation that this shape difference may be the origin of their non-selectivity.

The Key Molecular Features That Discriminate GPR55 Agonists from Antagonists

Previously, by modeling of the GPR55 activated state, we compared the GPR55 binding conformations of three novel agonists CID1792197, CID1172084 and CID2440433 [PubChem Compound IDs] with that of the endogenous GPR55 agonist, LPI (17). Our modeling indicated that the molecular shapes and electrostatic potential distributions of these agonists mimic that of LPI. We found that the GPR55 R* binding site accommodates agonists that have T or inverted-L shapes with long, thin profiles that can fit vertically deep in the receptor binding pocket, while their broad head regions occupy a horizontal binding pocket near the extracellular end of the GPR55 TMH bundle. The most electronegative region of each agonist was located at one end of the broad head region. The structure of one of these agonists, CID1792197 is provided in Figure 11 where it is compared to the structure of the antagonist, ML191.

There are two striking differences between the GPR55 agonist vs. antagonist structures (see Figure 11). First, GPR55 agonist structures lack the pendant phenyl or heterocyclic ring found in the antagonist structures after the central portion. Instead, agonist structures maintain a thin vertical profile in the binding pocket. This pendant portion in ML193, ML192 and ML191 may be able to block putative toggle switch residues, M3.36(104)/F6.48(239) from undergoing any conformational change, providing one means by which these compounds may function as antagonists. Second, the location of the highest negative electrostatic potential region of the two classes deviate from each other. The agonists have their most electronegative region (which hydrogen bonds to K2.60(80)) near the broad head region, while the most electronegative region found in antagonists is near the end of the central portion of the molecule. Because K2.60(80) is located two turns from the extracellular end of the GPR55 TMH bundle, the GPR55 antagonists studied here bind higher than GPR55 agonists, extending into the EC loop region. The EC-2 loop residue, F169, for example is an important interaction site for ML191, ML192 and ML193. As discussed above, EC-2 loop conformational changes have been reported to be critical for signal transduction of numerous Class A GPCRs. The fact that ML191, ML192 and ML193 all bind high enough in GPR55 to interact directly with and block movement of the EC-2 loop may be another reason for the antagonism exhibited by these compounds.

Future Directions

The diverse ML191, ML192 and ML193 chemotypes together with knowledge of the key GPR55 binding pocket interaction sites identified here should stimulate the creation of more potent and efficacious next generation ligands with GPR55 selectivity. Such studies are underway in our laboratories. For example, our modeling studies suggest that there is a pocket underneath the EC2 loop above K2.60(80) and next to C3.25(94), that is currently not taken advantage of by the first generation antagonists. This region is partly hydrophobic [L2.63(83), V3.28(97), M(167)] and partly hydrophilic [K2.60(80), E3.29(98)]. In addition, mutation studies currently underway include mutations to test the effects of key amino acids in the ligand pocket, including the M3.36(104)/F6.48(239) toggle switch.

Figure 7.

ML191 (blue) is shown docked in the GPR55 R model. In the view shown here, the top of TMH7 has been omitted for clarity. K2.60(80) (pink) was observed to be a primary interaction site during docking studies. The toggle switch residues M3.36(104)/F6.48(239) are shown in purple. Residues that contributed at least 2.5% to the total interaction energy are shown in orange. See Table S.2 in Supplemental Information for a breakdown of the energy of interaction of ML191 in GPR55 R broken down by residue.

Figure 10.

The structures of a GPR55 agonist (CID1792197) (14) and the GPR55 antagonist (ML191) are shown here. The agonist has its most electronegative region (which hydrogen bonds to K2.60) near the broad head region, while this region is found in antagonists near the end of the central portion of the molecule. In addition, agonist structures lack the pendant phenyl ring found in ML191 after the central portion. Instead, agonist structures maintain a thin vertical profile in the binding pocket.

ABBREVIATIONS

β₂-AR

β₂ Adrenergic receptor

CB1

Cannabinoid type 1 receptor

CB2

Cannabinoid type 2 receptor

CM

Conformational Memories

EC

extracellular

ERK

extracellular regulated kinase

GFP

Green Fluorescent Protein

GPCR

G protein coupled receptor

IC

intracellular

LP

lone pair of electrons

LPI

lysophosphatidylinositol

MAPK

mitogen activated protein kinase

ML186 (CID15945391)

N-(2-methoxy-5-morpholin-4-ylsulfonylphenyl)-4,5,6,7-tetrahydro-1-benzothiophene-2-carboxamide

ML191 (CID 23612552)

5-phenyl-3-(1-(1-(p-tolyl)cyclopropane-carbonyl)piperidin-4-yl)-1,3,4-oxadiazol-2(3H)-one

ML192 (CID 1434953)

furan-2-yl(4-(2-methyl-5,6,7,8-tetrahydro-benzo[4,5]thieno[2,3-d]pyrimidin-4-yl)piperazin-1-yl)methanone

ML193 (CID 1261822)

N-(4-(N-(3,4-dimethylisoxazol-5yl)sulfamoyl)-phenyl)-6,8-dimethyl-2-(pyridin-2-yl)quinoline-4-carboxamide

MLPCN

Molecular Libraries Probe Production Centers Network

TMH

transmembrane helix
