Mono- versus polyaxial locking plates in distal femur fractures: a prospective randomized multicentre clinical trial

Abstract

Purpose

Treatment of complex fractures of the distal femur utilizing monoaxial locking plates (e.g. Less Invasive Stabilisation System, LISS®, Synthes) is considered to be superior to conventional plating systems. Due to the limitation that the thread forces the screw into pre-determined positions, modifications have been made to allow screw positioning within a range of 30° (Non Contact Bridging, NCB®-DF, Zimmer). For the first time, this multicenter prospective randomized clinical trial (RCT) investigates the outcome of LISS® vs. NCB®-DF treatment following complex fractures of the distal femur.

Methods

Since June 2008, 27 patients with a fracture of the distal femur (AO ASIF 33-A-C and periprosthetic fractures) were enrolled in this study by four university trauma centres in southern Germany. Clinical (e.g. range of motion, Oxford knee score, Tegner score) and radiological (e.g. axis deviation, secondary loss of realignment) follow-ups were conducted one and six weeks, as well as three, six, and 12 months after the operation.

Results

This study comprises data of 27 patients (8 male, 19 female; 15 NCB®-DF, 12 LISS®). Polyaxial osteosynthesis using the NCB® system tended to result in better functional knee scores and a higher range of motion. Interestingly, fracture union tended to be more rapid using the polyaxial plating system.

Conclusions

We present the analysis of a multicenter prospective RCT to compare the monoaxial LISS® vs. the polyaxial NCB®-DF treatment following complex fractures of the distal femur. NCB®-DF treatment tended to result in better functional and radiological outcomes than LISS® treatment.

Level of Evidence

Level I

Introduction

Distal femur fractures constitute 4–7 % of all femur fractures [1]. The occurrence is bimodal, i.e. most of the younger patients sustain a high energy trauma (e.g. motor vehicle accident), whereas older patients with substantial osteoporosis usually sustain a lower energy trauma [2]. The treatment of complex fractures of the distal femur remains to be a challenge due to displacement, articular involvement, delayed union or osteoporosis. Relevant clinical problems may arise concerning postoperative functioning and integrity [3]. The goals of surgery include anatomic reduction, especially of the articular surface, axis alignment, gentle tissue handling and stable primary fixation in order to ensure rapid fracture healing with an optimal functional outcome [2].

Albeit treatment of these fractures used to involve bicondylar plate fixation systems, recent studies advocate the use of a unicondylar locking plate system, functioning as an internal fixation system with angular stable junction of screws and plates. This system called “Less Invasive Stabilizing System” (LISS®, Synthes Corp., Umkirch, Germany) proved to show excellent results concerning primary and secondary quality criteria (realignment loss, axial deformity, soft tissue damage) [4–6]. The LISS® system is characterized by angular stable locking of screws in the plate. A thread integrated in the plate pre-determines the direction of the fixed screw position. While the fixed connection between screws and plate promotes stability in the system, the higher caliber of LISS® screws leads to a better load distribution. Both factors lead to a lower rate of secondary loosening and screw dislocation [7]. Especially in osteoporotic bones these advantages account for higher stability and reduction of secondary dislocation [2, 8]. In addition, implantation of locking plates does not require full contact to the bone, thereby limiting periostal circulation disorders with subsequently impaired bone healing.

Though obvious advantages of LISS® locking plates are apparent as compared to conventional non-angular stable plate/screw systems, there are also disadvantages to be considered. The existing thread forces the plate to rest in one pre-determined position. Albeit LISS® plates are anatomically confected and fit the distal femur very well, the pre-determined screw position often leads to positioning of screws in bone areas which intraoperatively have to be considered of minor quality. This may be associated with secondary loss of realignment and loosening of screws. In addition, periprosthetic fractures can only be treated with locking plates by applying mono-cortical screws, as there is no tolerance concerning screw and plate axis relation [9].

Recently, modifications of the thread integrated into the plate have been made to allow the surgeon to choose the screw position within a range of 30°. The chosen position can be locked by application of a screw nut (Non Contact Bridging - Distal Femur NCB®-DF, Zimmer Corp.). The system has already been approved and is used in clinical practice.

This novel system may contribute to improvements in the treatment of complex distal femur fractures. Up to now, only utilization and biomechanical observations have been published [10, 11], showing low-risk implantation as compared to similar procedures. Unfortunately, studies comparing the available angular stable plating systems are missing [12]. The objective of this multicenter prospective randomized clinical trial is therefore to analyse the quality of complex distal femur fracture treatment using NCB®-DF plates as compared to using mono-axial LISS® plates.

Patients and methods

Before initiation of the study, it was approved by the human research ethics committee of the Ludwig-Maximilians-University of Munich (Trial Number 385–07). The trial included 27 patients with fractures of the distal femur, recruited from four level-one university trauma centers (Munich, Ulm, Regensburg, Wuerzburg). Patient recruitment was conducted between 2008 and 2011. Fractures of the distal femur, as defined by the AO-ASIF classification system, were included in this trial as soon as they were identified by the treating surgeon being applicable for locking plate treatment. All type 33-A (11), 33-B (3), and 33-C (7) fractures were included, as well as periprosthetic fractures of the distal femur (6). Patients were randomized according to a randomization plan (Randlist®). In order to ensure balanced randomization in all four trauma centers, randomization was performed blockwise. Twelve patients received treatment with the LISS® system (Synthes Corp., Umkirch, Germany), and 15 patients were randomized to receive a NCB®-DF plate (Zimmer Corp., Freiburg, Germany).

Surgical technique

The surgical technique was standardized as far as possible prior to the study. All surgeons were experienced specialists and agreed to the following procedure. Depending on the fracture classification, a standardized antero-lateral or additional medial approach was used for the reduction of intra-articular fragments. After temporary fixation of articular fragments using screws, K-wires, or clamps, etc., the condyle block was adjusted to the axis of the femur and the whole leg. Therefore, a thorough reduction of the condyle block towards the distal femur was achieved. Then, the locking plate was adjusted and temporarily fixated using K-wires. After intraoperative fluoroscopy control of the correct plate position and axis of the femur, the plate was fixed using either monoaxial or polyaxial screws. In case of the monoaxial system, additional lag screws were inserted before plate application due to the lack of the lag screw mechanism. All patients received perioperative antibiotics. Postoperatively, physiotherapy was commenced and active range of motion exercises were permitted immediately. Non-weight bearing was recommended for six to eight weeks, followed by partial weight bearing until callus formation was apparent in radiographic follow-up examinations.

Intra- / peri-operative data

Intra- and perioperative data were assessed using surgeon’s questionnaires. The operative time and intraoperative X-ray time were documented. In addition the size of the implant, skin cut length and need for skin cut extension were evaluated.

Postoperative clinical follow-up

The primary follow-up for each patient was one year. The first postoperative assessment was conducted in the clinical setting, assessments at six weeks as well as three, six, and 12 months postoperatively took place in the outpatient department. Assessment of pain using the visual analog scale and demand on analgesics were documented prospectively during each follow-up. Additionally, clinical outcome measures like range of motion, cruciate ligament stability or collateral ligament stability were documented during each follow-up using standardized scoring sheets. Secondary outcome measurements comprised pre-operative details, operation details and four different postoperative knee scoring systems, the Tegner score [13], the Oxford knee score [14], the Rasmussen score [15], and the Lysholm score [13].

Postoperative radiologic follow-up

Primary outcome measurements included standard radiological evaluation and clinical assessment. Postoperative radiographs were evaluated for screw misplacement, secondary loss of reduction, and evidence of delayed union in AP and lateral views. In addition, the radiological part of the Rasmussen score was calculated [15]. Assessment of screw misplacement included investigation for intra-articular and interfragmentary screws. Additionally, screws with tips more than 5 mm outside of the opposite corticalis were considered as misplaced. Secondary loss of reduction included investigation for fragment angulation and investigation for fragment torsion (in each case scoring as follows: A, none; B, <10°; C, 10–20°; D, >20°). Union / delayed union was assessed according to the following scoring system based on the phases of bone healing: A, cloudy cortical edges and condensation (granulation phase); B, defined edges, bridging, lamellar bone deposition, cartilage callus formation (reparative phase); C, remodeling to original bone contour (remodeling phase); D, pseudarthrosis. In addition to the above-mentioned analysis, the radiologic part of the Rasmussen score was calculated, comprising information about depression, condylar widening and fragment angulation [15].

Statistics

Statistical analysis was conducted using SigmaStat Version 11.0 software (Systat Software, San Jose, CA, USA). Data from the groups were analysed using the chi-squared test for binominal variables and the Student’s t-test for continuous parametric variables. The data were plotted as mean values ± SEM. The significance level was set at p = 0.05.

Results

Epidemiological data

There were no statistically significant differences in patient characteristics or the injury type (Table 1). The mean age was 63.9 and 73.1 years for LISS® and NCB® patients. Falls from heights below 2 metres and motor vehicle accidents were the most common causes for distal femur fractures in both groups.

Table 1.

Patient and injury characteristics

Characteristics	LISS® (n = 12)	NCB® (n = 15)
Mean age (years)	63.9	73.1
Sex (males : females)	3 : 9	5 : 10
AO classification
33-A	5	6
33-B	1	2
33-C	5	2
Periprosthetic	1	5
Trauma characteristics
Motor vehicle accident	3	2
Falls from stairs	0	2
Falls >2 m height	0	0
Falls <2 m height	8	10
Other	1	1
Soft tissue injury
Open	3	2
Gustilo I	1	1
Gustilo II	2	0
Gustilo III	0	0
Not specified	0	1
Closed	9	13
Tscherne 0	0	2
Tscherne I	1	2
Tscherne II	0	0
Tscherne III	0	0
Not specified	8	9

A total of 27 patients, presenting with a fracture of the distal femur (AO-type 33), were recruited to this multicenter study. Patients were randomized for treatment with monoaxial LISS® (Less Invasive Stabilisation System) and polyaxial NCB®-DF (Non-Contact Bridging Distal Femur) treatment. There were no statistically significant differences in patient demographics or injury characteristics between the groups

Intra- / perioperative data

Peri-operative data were assessed utilizing surgeon’s questionnaires (Table 2). Intra-operative details such as the size of the implant, the size of the skin cut and need for arthroscopy or skin cut extension were comparable between the groups, thus showing comparable invasiveness of the surgery performed in both groups. The mean operative time tended to be higher using the NCB® plating system (NCB® 141.9 min vs. LISS® 134.1 min). Though allowing positioning of screws within a range of 30°, the mean intra-operative X-ray time was significantly lower in the group using the NCB® plating system (103.3 s) as compared to the LISS® plating system (188.9 s) (Table 2).

Table 2.

Perioperative data

Perioperative data	LISS® (n = 12)	NCB® (n = 15)	P-value
Mean operative time [minutes]	134.1	141.9	0.71
Mean intraoperative x-ray time [seconds]	188.9	103.3	0.35
Mean skin cut length [cm]	9.6	10.4	0.68
Need for skin cut extension	0	1	NA
Mean size of implant [holes]	9.3	10.1	0.48
Intraoperative arthroscopy	0	0	NA
Surgical complications
Wound infection	0	0	NA
Peroneal lesions	0	0	NA
Compartment syndrome	0	0	NA

Follow-up analysis of 27 patients following distal femur fracture undergoing surgery with monoaxial (LISS®, Less Invasive Stabilisation System) vs. polyaxial (NCB®, Non-Contact Bridging) plating systems included assessment of peri-operative data. As compared to the LISS® system, NCB® plating was accompanied by a significantly lower intraoperative X-ray time. In contrast, NCB® plating tended to be associated with a higher mean operative time. Besides, there were no other significant differences detected in the peri-operative data. NA not applicable

Postoperative clinical follow-up

Following inclusion to this trial, patient data were acquired in a follow-up of 12 months. This included assessment of primary clinical and radiologic data, as well as secondary clinical details. Clinical follow-up included documentation of swelling, redness, joint effusion, delay in wound healing, crepitation, and atrophy of the M. vastus lateralis. We did not see any significant differences between the groups in these clinical parameters. In addition, no significant differences were seen in postoperative pain, as assessed using a visual analogue scale (VAS). Furthermore, the use of analgesics was comparable, and no significant differences could be observed.

Clinical outcome measurements included the assessment of clinical parameters such as the range of motion, cruciate ligament and collateral ligament stability, extension deficit and knee extension strength, as well as meniscal pathology. Interestingly, the flexion of the knee tended to be higher following NCB-DF® treatment as compared to LISS® treatment, which can be seen in Fig. 1. No significant differences could be observed concerning postoperative extension deficit or knee extension strength. Furthermore, no significant differences were documented concerning ligament stability (cruciate ligaments and collateral ligaments) or meniscal pathology. Clinical scores were included to further characterize the outcome in the follow-up. While pain and functionality are being reflected by the Lysholm score and Rasmussen score, the Oxford knee score provides information about pain and daily life activity, and the Tegner score about pain and sports activity. Interestingly, scores at six weeks and three months showed lower results for the NCB®-DF plating system. In contrast, in the six months follow-up the NCB®-DF plating system tended to result in higher scores as compared to the LISS® system (Table 3).

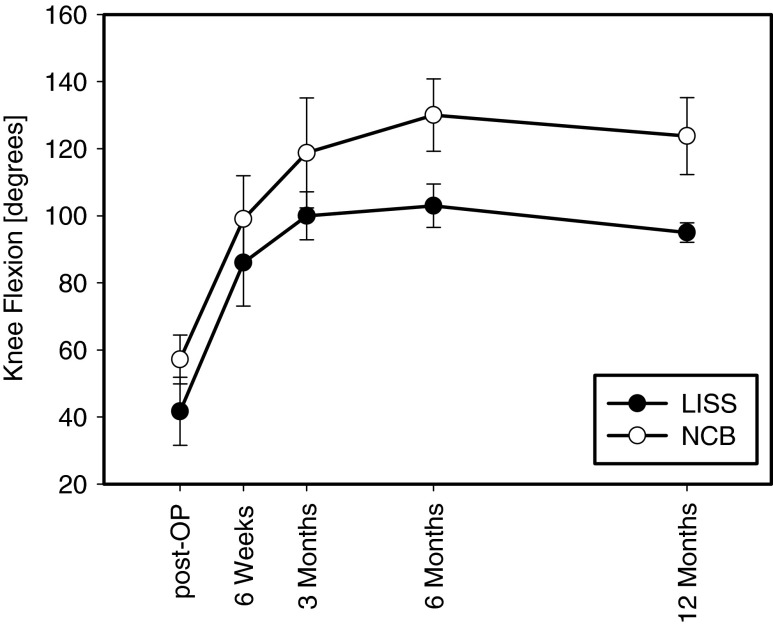

Fig. 1.

Knee flexion. Clinical examination included the assessment of the postoperative range of motion. Displayed is the one-year follow up of knee flexion following distal femur fracture and plating with the monoaxial LISS®- vs. polyaxial NCB®-DF-plating system. As compared to the LISS® system, flexion tended to be higher following NCB®-DF-system osteosynthesis. This observation did not reach statistical significance (six months, p = 0.077; 12 months, p = 0.074); data given as mean ± SEM

Table 3.

Clinical scores

Scoring system	Plating system	Six weeks	Three months	Six months	12 months
Oxford knee score	LISS	28.5 ± 9.5	28 ± 2	23.3 ± 2.7	NA
	NCB	23.3 ± 5.4	22.2 ± 3.7	31.8 ± 3.7	31.6 ± 3.2
Rasmussen score	LISS	23 ± 1	17.5 ± 0.5	18.7 ± 1.8	NA
	NCB	20.4 ± 2.9	20.5 ± 3.3	25 ± 1.1	22.8 ± 1.4
Lysholm score	LISS	64 ± 12	67 ± 10	55 ± 14	NA
	NCB	49.5 ± 15.2	44 ± 5	63 ± 11.2	64.8 ± 4.4
Tegner score	LISS	0	1 ± 1	0.7 ± 0.3	NA
	NCB	1.3 ± 0.5	0.4 ± 0.2	1.5 ± 0.5	2.6 ± 0.7

Four different clinical scores were assessed to monitor the outcome of patients following distal femur fractures undergoing surgery with monoaxial LISS® vs. polyaxial NCB® plating systems. As compared to the LISS® system, osteosynthesis with the NCB® plating system tended to result in higher functional scores after six months. This observation did not reach the level of significance. NA not applicable

Postoperative radiologic follow-up

Representative X-ray follow-up can be seen in Fig. 2, where pre-operative documentation as well as postoperative follow-up documentation in a case of NCB®-DF treatment is shown. Radiologic data were assessed by a radiologist, X-rays of the postoperative and the follow-up examinations (six weeks, three, six, and 12 months) were analysed. Postoperative X-rays were investigated for screw misplacement. Following LISS® and NCB® plating of the distal femur, we did not see any intra-articular screw misplacement. Interfragmentary screw misplacement was detected in one patient following NCB®-DF plating. Secondary loss of reduction was assessed by measuring fragment angulation and fragment torsion. No significant differences were seen in the two groups. In contrast, in this study bone healing tended to show differences between the groups. Bone healing was assessed using a score reflecting the phases of bone healing as described above (A, granulation phase; B, reparative phase; C, remodeling phase; D, pseudarthrosis). Following NCB®-DF plating, bone healing tended to be more rapid as compared to LISS® plating (Fig. 3, Panel a). In addition to the above-mentioned radiologic parameters, the Rasmussen score was calculated to further characterize the radiologic outcome. No significant changes were detected between the groups, as can be seen in Fig. 3, Panel b.

Fig. 2.

Radiologic follow-up. The follow-up for each patient was one year, including postoperative evaluation of radiographs, after six weeks and three, six, and 12 months. Exemplary radiographs of a 41-year-old patient are shown, who presented with an AO-type 33-B fracture of the right distal femur following motor vehicle accident. Preoperative X-ray (a) and postoperative images (b) following NCB®-DF plating are shown. Follow-up included radiographic examination at three (c), six (d), and 12 months (e) postoperatively. In addition, radiographs following removal of the NCB®-DF plate after 18 months are shown (f)

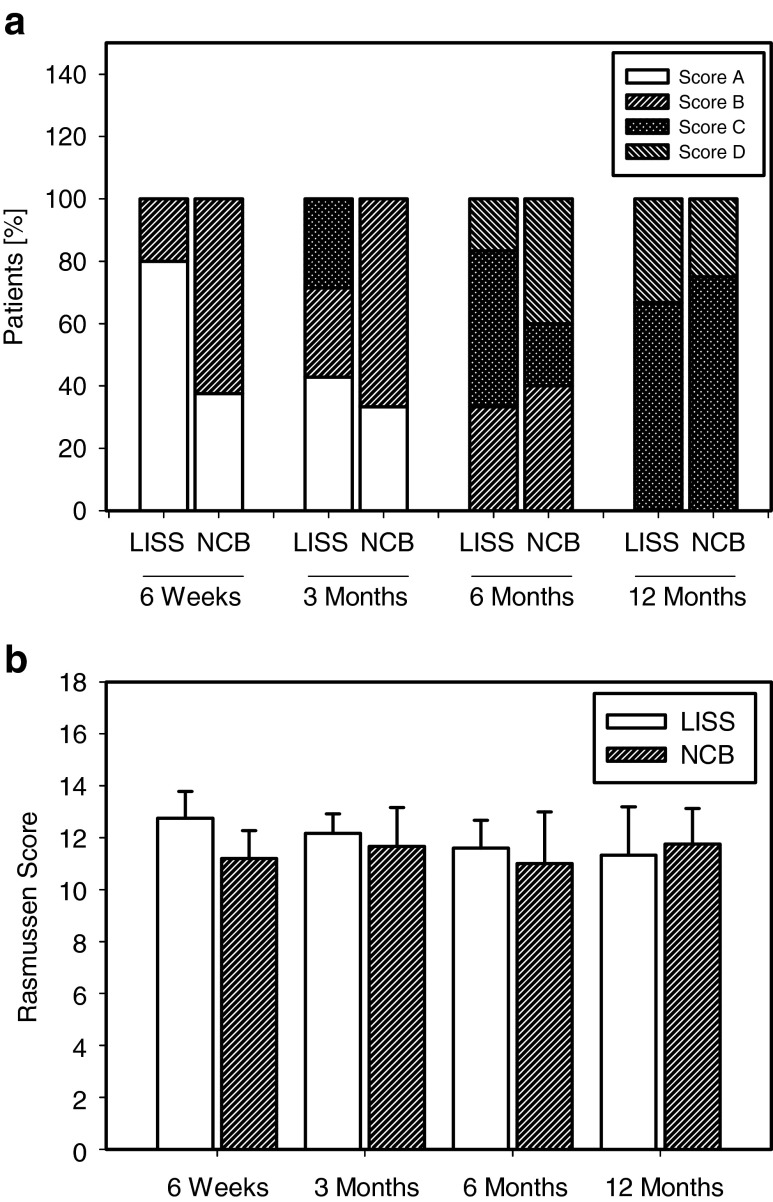

Fig. 3.

Radiologic follow-up included assessment of union and the radiological part of the Rasmussen score. During the one-year follow-up following monoaxial (LISS®) vs. polyaxial plating (NCB®-DF) of distal femure fractures, radiological data were obtained. Progress of union (Panel a) was analysed using a scoring system (score A: cloudy condensation [granulation phase]; score B: bridging and cartilage callus formation [reparative phase]; score C: remodeling to original bone contour [remodeling phase]; score D: pseudarthrosis). Osteosynthesis with the NCB®-DF plating system tended to result in a more rapid union of the fracture. The radiological part of the Rasmussen score (Panel b) was assessed during the follow-up and did not show any significant differences between the groups

Discussion

Due to the risk of displacement, articular involvement or delayed union, treatment of complex fractures of the distal femur remains to be a challenge to the surgeon. In addition, the increasing incidence of osteoporosis, characterized by decreased mineral content, changes in bone architecture and thinner cortices [16], contribute to this challenge. A recent advance in the treatment of complex fractures of the distal femur has been the introduction of the monoaxial locked plate osteosynthesis called LISS® (‘less invasive stabilization system’, Synthes Corp.). Due to the angular stable locking of the screws in the plate, the osteosynthesis acts as an ‘internal fixator’. The LISS® system showed excellent results in primary and secondary outcome criteria following complex distal femur fractures [4–6]. It has been identified though, that the predetermined position of the screws might be a potential drawback to this system. In contrast to the LISS® system, the NCB®-DF plate (‘non-contact bridging-distal femur’, Zimmer Corp.) allows the surgeon to choose screw positioning within a range of 30°. Unfortunately, studies comparing these locking plate systems applied to the distal femur are missing so far. This is the first randomized clinical trial to assess whether mono-(LISS®) versus polyaxial (NCB®-DF) locking screw osteosynthesis has an impact on primary and secondary outcome parameters following complex fractures of the distal femur.

Non-locked plate osteosynthesis depends on frictional force, creating a load transfer from the bone to the plate. The construct remains stable as long as the frictional force exceeds the applied load [17]. In case of construct instability, the screws begin to toggle resulting in screw pull-out [17, 18]. High compression forces can lead to disturbances of periostal blood circulation, associated with delayed union and non-union [19]. In contrast, locked plate osteosynthesis provides high primary stability functioning as an internal fixation device not requiring frictional force between the implant and the bone.

Previous studies have tried to delineate differences between mono- versus polyaxial locking plates. Biomechanical studies have been conducted in the past to test whether monoaxial and polyaxial screw-plate designs are comparable. In a biomechanical study using synthetic distal femurs, no differences in stiffness, load to failure and mode of failure were detected between the LISS® and NCB®-DF groups [10]. In a biomechanical study performed in formalin-fixed proximal humerus bone, the same results in the cyclic tests, the fatigue tests and the crash tests were found [20]. In a randomized prospective study using radiographic evaluation, similar results were detected for secondary varus displacement and screw cut-out using mono- vs. polyaxial angular stable plating of displaced proximal humeral fractures [21]. Using formalin-fixed femurs, the treatment of periprosthetic fractures with LISS® and NCB® plating was investigated. Though NCB® plating allowed for bicortical screw fixation in contrast to LISS® plating, no notable differences in osteotomy failure load or amount of motion in the osteotomy gap were detected [22]. Biomechanical studies did not detect differences between mono- versus polyaxial plating systems. According to the manufacturer, the following differences in design between the plating systems exist: NCB® screws are self-tapping, plates and screws are made of titanium alloy, the plate is available in five, nine, and 13 holes designs (167, 246, 324 mm), and the plate thickness is 5.7 mm (shaft and head). Locking screws are 5.0 mm in diameter. In contrast, LISS® plates are made of either stainless steel or titanium alloy. The LISS® plate is available in five, seven, nine, 11, 13, 15, 17, and 19 hole designs (156, 196, 236, 376, 316, 356, 296, and 436 mm) and has a plate thickness of 5.6 mm (shaft) and 2.8 mm (head). Locking screws are 5.0 mm in diameter. In contrast to the LISS® system, the NCB® system allows screws to be inserted as lag screws first, therefore allowing for compression and indirect reduction. Screws may be locked at a fixed angle at any time [23].

In this study, the mean operative time for NCB®-DF osteosynthesis tended to be higher as compared to LISS® osteosynthesis. This is in line with findings in the literature, that locking plates might require time in application [16]; polyaxial screw placement and fixation of screws may account for the difference in operative time. In particular, while using the NCB® system the application of screw nuts can be time consuming. Interestingly, though allowing for polyaxial screw placement, the mean intraoperative X-ray time was significantly lower in the NCB® group as compared to the LISS® group. This might be due to the above-mentioned differences in plate design, i.e. the NCB® plate allows for indirect reduction using inserted screws as lag screws first.

Osteosynthesis using the polyaxial NCB®-DF system tended to result in higher knee scores following six months as compared to the LISS® system. In addition, during 12 months follow-up a higher and more rapid restoration of knee flexion was observed in the NCB®-DF group as compared to the LISS® group. At first sight, this observation seems rather contradictory to the expected outcome. Patients following osteosynthesis of the distal femur using the NCB®-DF plate sporadically reported discomfort and pain due to the higher head thickness of NCB®-DF plates as compared to LISS® plates. Along with pain and discomfort, the higher thickness of NCB® plates could potentially affect the integrity of the vastus lateralis muscle and the iliotibial tract. Although the above-mentioned potential drawbacks of the NCB®-DF plate exist and have been reported, superior outcomes in clinical parameters such as flexion capability and knee scores were determined in this study. Observations in the radiologic analysis might account for this better clinical outcome. We observed a more rapid union of the fracture using the NCB®-DF system as compared to the LISS® system. Further contributing factors of the superior clinical outcome remain speculative. The NCB®-DF system, although thicker, might cause less tractus irritation due to its optimized anatomic alignment in comparison to the LISS® system. Furthermore, the lag screw mechanism might reduce the distance between bone and NCB® plate, thereby leading to better plate positioning.

Limitations of this study are the low number of patients included and the heterogeneity of fractures included. In contrast, the high quality of the data due to the collection of data during a 12-month follow-up and the multicenter randomization underline the results presented.

In summary, this is the first multicenter prospective randomized clinical trial to investigate differences in the clinical and radiological outcome following treatment of complex fractures of the distal femur using poly-axial NCB®-DF plates as compared to using mono-axial LISS® plates. Though being demanding in application and technique, the poly-axial NCB®-DF system tends to be associated with a higher functional outcome as compared to the LISS® system. This might be due to the more rapid fracture union, as observed in the radiologic analysis. Further studies will have to focus on the impact of screw positioning on fracture union. The relevance of this study is emphasized by the lack of a comparative study between NCB®-DF and LISS® and the reliance on utilization observations so far.
