Abstract
Th17 cells have been implicated in autoimmunity and inflammatory bowel disease (IBD). Antigen presenting cell (APC) derived cytokines such as IL-1β and IL-6 are key mediators supporting Th17 differentiation, yet how these factors are induced in vivo remains unclear. Here we show that IL-27 acting on APCs enhances IL-6 and IL-1β production and Th17 differentiation. IL-27Rα−/− TCRβ−/− recipients fail to develop gut inflammation following naïve CD4 T cell transfer, while IL-27Rα+/+ TCRβ−/− recipients develop severe colitis. Investigation of T cell responses exhibits that IL-27Rα−/− TCRβ−/− mice do not support Th17 differentiation with significantly decreased levels of IL-6 and IL-1β by APCs. Our study has identified a novel proinflammatory role for IL-27 in vivo that promotes Th17 differentiation by inducing Th17-supporting cytokines in APCs.
Keywords: CD4, APC, IBD
Introduction
Upon antigen stimulation naïve CD4 T cells differentiate into distinct effector T cell subsets1. One key determinant involved in this process is cytokines primarily produced by non-T cells, mainly APCs. IL-12 produced by activated APCs promotes naïve T cell differentiation into IFNγ-producing Th1 type cells via STAT4 and T-bet1. Combination of IL-1β, IL-6, IL-23, and TGFβ drives Th17 differentiation via STAT3 and RORγt1. Dysregulated proinflammatory responses have been linked to inflammatory disorders including IBD and multiple sclerosis2, 3. In a mouse model of IBD, naïve CD4 T cells transferred into immunodeficient hosts differentiate into effector cells producing Th1 and Th17 type cytokines and induce chronic inflammation in the colon4. A cellular mechanism(s) underlying the induction and regulation of Th17 type inflammatory immunity still remains unclear.
IL-27 is a heterodimeric cytokine consisting of the subunits IL-27p28 and EBV-induced gene 3 (Ebi3), produced by activated APCs. It binds to the IL-27 receptor consisting of IL-27Rα (WSX-1/TCCR) and gp1305 that are expressed on many cell types including lymphocytes and APCs6. Both pro- and anti-inflammatory properties of IL-27 have been reported. For example, IL-27 induces IL-12R expression, supporting subsequent Th1 differentiation7. Mice deficient in IL-27Rα thus exhibit elevated susceptibility to Leishmania infection, emphasizing the Th1-promoting role of IL-276. On the other hand, IL-27 also exhibits immunosuppressive properties. IL-27Rα−/− mice infected with Toxoplasma gondii fail to downregulate immune responses, developing lethal T cell mediated immune responses6. Particularly interesting is the immunosuppressive functions of IL-27 in the context of Th17 immunity. IL-27Rα−/− mice are highly susceptible to the induction of Th17 mediated neuroinflammation8. One proposed mechanism is that IL-27 induces IL-10 production by T cells9. IL-27 also modulates regulatory T cell (Treg) functions. IL-27 promotes the development of Treg cells that control inflammatory immunity at the site of inflammation10. IL-27 also exacerbates inflammatory responses by restraining inducible Treg development11.
In the context of intestinal inflammation, the roles of IL-27 again remain controversial. Immunodeficient hosts transferred with IL-27Rα−/− CD4 T cells develop attenuated colitis, which has been attributed to increased inducible Foxp3+ Treg conversion11. The fact that Il27a and Ebi3 mRNA expression is upregulated in biopsy samples of active IBD patients further supports the notion that IL-27 may play a crucial proinflammatory role12. On the other hand, a recent genome wide association study has identified five new regions associated with early onset IBD susceptibility, including IL-2713. In this study, IL-27 expression in patients with early-onset Crohn’s disease was significantly lower than that in healthy control13. In the DSS model of colitis, IL-27 can be either protective or pathogenic14, 15. With regard to IL-27 action on non-T cells, IL-27 upregulates MHC and TLR4 expression in human monocytes, leading to increased production of IL-6 and IL-1β upon LPS stimulation in vitro16,17. By contrast, IL-27 downregulates IL-12 production by activated macrophages in M. tuberculosis infection model18. The roles for IL-27 in non-T cells in vivo remain unclear.
Here we report that IL-27 acting on APCs plays a crucial role in optimizing Th17 differentiation by augmenting production of Th17 promoting cytokines. IL-27Rα−/− lymphopenic hosts were completely protected from T cell-mediated colitis, while IL-27Rα+/+ lymphopenic mice develop fulminant inflammation in the colon. T cell differentiation into Th17 lineage effector cells was selectively impaired in mice without IL-27Rα. APCs, primarily macrophages and dendritic cells (DCs), were defective in producing Th17 promoting cytokines, IL-1β and IL-6. Therefore, IL-27, acting on APCs, plays an important proinflammatory function in supporting Th17 differentiation in vivo.
Results
IL-27Rα−/− lymphopenic mice are resistant to naïve CD4 T cell mediated colitis
Besides T cells, IL-27 also stimulates various cell types, including B cells, NK cells, macrophages, and DCs. However, its biological functions on these targets have not formally been explored. To examine whether IL-27 signaling on non-T cells affects CD4 T cell immunity, we adoptively transferred WT naïve CD4 T cells into TCRβ−/− recipients that express or lack IL-27Rα. We recently reported that CD4 T cells rapidly differentiate into colitogenic cells in TCRβ−/− recipients and that cells expressing IFNγ and/or IL-17 are highly enriched in gut associated tissues like mesenteric LN (mLN) and lamina propria (LP)4. TCRβ−/− recipients of naïve CD4 T cells rapidly lost body weight (Figure 1a), and the colon tissue was heavily infiltrated with inflammatory cells (Figure 1b). Cellular infiltrates were mostly CD3+ T cells4 and macrophages (data not shown). By contrast, IL-27Rα−/− TCRβ−/− recipients of CD4 T cells exhibited no signs of weight loss, and the colonarchitecture as well as goblet cells remained mostly intact with minor inflammation (Figure 1a and 1b). As CD4 T cells secreting IFNγ and/or IL-17 are thought to mediate inflammatory processes, we next examined cytokine profiles of the donor T cells at 4 weeks after transfer. We first noticed that the overall expansion of donor cells in both groups was comparable (Figure 1c). However, the total numbers of CD4 T cells expressing intracellular IL-17A (both IL-17A+ and IL-17A/IFNγ+) were significantly reduced in IL-27Rα−/−TCRβ−/− recipients (Figure 1c). The failure of CD4 T cells to differentiate into Th17 type cells within IL-27Rα−/− conditions was further supported by gene expression profiles in the mLN. The expression of cytokines involved in Th17 differentiation, namely Il1b, and Il6 was markedly decreased in IL-27Rα−/− TCRβ−/− mice (Figure 1d). Expression of IL-12 subunits, Il12a and Il12b, was similar between the two groups (not shown). Importantly, phenotypes in IL-27Rα−/− TCRβ−/− recipients was not due to altered Treg development11, since Foxp3 expression of the donor T cells in both recipients were similar (not shown). Given the fact that donor T cells express the functional IL-27R, these results strongly suggest that IL-27 acting on the resident cells appears to play a central role in promoting CD4 T cell differentiation into Th17 type effector cells and the subsequent development of colitis.
Figure 1. Mice deficient in IL-27Rα fail to develop T-cell mediated colitis.
2.5×105 naïve CD4 T cells were transferred into TCRβ−/− or IL-27Rα−/− TCRβ−/− mice. (a) Weight loss was monitored weekly. (b-d) All data is from 4 weeks after transfer. (b) H&E staining (20×) of the colon and colitis score. (c) Donor CD4 T cell recovery and cytokine production after PMA/Ionomycin stimulation from the mLN. (d) Gene expression from the mLN tissue. All values were normalized to GAPDH expression. Data shown are from 2 independent experiments, N=7 9. Error bars indicate mean ± SEM. *, p<0.05; **, p< 0.01; ***, p<0.001.
CD4 T cells fail to differentiate into Th17 CD4 T cells in IL-27Rα−/− recipients
We next examined CD4 T cell differentiation profiles 7 days after transfer, prior to the onset of colitis. IL-17A producing cells were predominantly found in the mLN (Figure 2a), and ~70% of them coexpressed IFNγ in TCRβ−/− recipients (data not shown). By contrast, in IL-27Rα−/− TCRβ−/− recipients CD4 T cells primarily became IFNγ producing cells and Th17 differentiation was selectively impaired (Figure 2a). CD4 T cell expansion in IL-27Rα−/− TCRβ−/− recipients was comparable to that in TCRβ−/− mice (Figure 2b). The total numbers of differentiated IL-17A-producing cells (both IL-17A+ and IL-17A/IFNγ+) were significantly reduced in IL-27Rα−/− TCRβ−/− recipients (Figure 2c), while the absolute numbers of IFNγ+ cells remained unchanged (Figure 2c). Similar defects in Th17 differentiation was observed when neutralizing anti-IFNγ Ab was injected into IL-27Rα−/− TCRβ−/− recipients of T cells, suggesting that the impaired Th17 differentiation was not due to overproduction of IFNγ (Figure 2d). We also found that expression of Il6 and Il1b was markedly decreased in the absence of IL-27 signaling (Figure 2e), further supporting the lack of Th17 differentiation. The expression of IL-23 was similar between the groups, suggesting that impaired Th17 differentiation was not due to differential expression of IL-23 (Figure 2e). Il4 expression was not found (data not shown). Il10 expression was similar between the groups; therefore, defective Th17 differentiation in IL-27Rα−/− TCRβ−/− recipients was not due to elevated production of anti inflammatory cytokines such as IL-10 (not shown). Collectively, these results demonstrate that the IL-27Rα deficiency in recipient-derived cells plays a key role particularly in Th17 differentiation possibly by controlling the production of Th17-promoting cytokines.

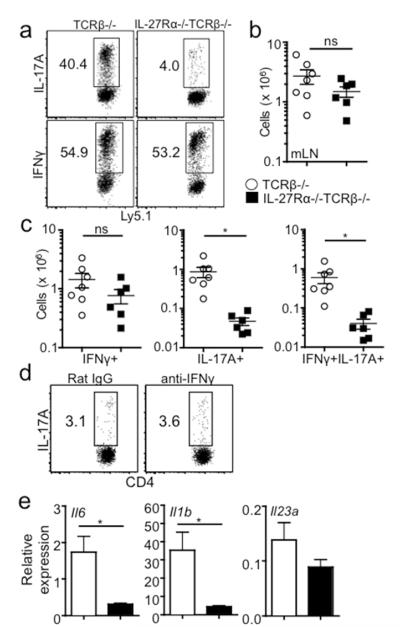

Figure 2. CD4 T cells transferred into lymphopenic TCRβ−/− mice deficient in IL-27Rα fail to differentiate into IL-17 producing CD4 T cells.
2.5×105 naïve CD4 T cells were transferred into TCRβ−/− or IL-27Rα−/− TCRβ−/− mice. All data is from 7 days after transfer. (a) Frequency of the donor CD4 T cell cytokine production after PMA/Ionomycin stimulation from the mLN. (b) Donor cell recovery from the mLN. (c) Number of cytokine producing donor CD4 from the mLN. (d) T cell differentiation profiles in IL-27Rα−/− TCRβ−/− recipients after anti IFNγ mAb treatment. (e) Gene expression from the mLN tissue. All values were normalized to GAPDH expression. Data shown are representatives of 2-3 independent experiments, N=3-6. Error bars indicate mean ± SEM. *, p<0.05; **, p< 0.01; ***, p<0.001.
Non-colitogenic cells generated in IL-27Rα−/−TCRβ−/− recipients still express gut homing molecules and gut antigen (Ag) specificity
The failure of colitis induction in IL-27Rα−/− TCRβ−/− recipients may be due to defects in migration of colitogenic T cells to the gut. To address this question, WT CD4 T cells were transferred into TCRβ−/− or IL-27Rα−/− TCRβ−/− mice and gut homing integrin, α4β7, expression was assessed from T cells in the mLN. mLN T cells of both recipients had no defects in upregulating α4β7 expression (Figure 3a). Alternatively, gut Ag-specific colitogenic T cell generation may be impaired in IL-27Rα−/− TCRβ−/− mice. Donor T cells were isolated from the mLN and stimulated in vitro with fecal extract Ag. As shown in Figure 3b, T cells from both recipients proliferate in response to gut Ag stimulation. The proliferation did not occur without Ag and was completely blocked by anti MHCII Ab (Figure 3b). Although T cells activated within IL-27Rα−/− TCRβ−/− mice became α4β7+, IFNγ+, and gut Ag specific cells, they are unable to induce intestinal inflammation, suggesting that IL-17 production by CD4 T cells is the major contributing factor to gut inflammation. Consistent with this finding, transfer of naïve CD4 T cells deficient in RORγt, or blockade of both IL-17A and IL-17F ameliorates intestinal inflammation19, 20.
Figure 3. Failure of colitis development in IL-27Rα−/−TCRβ−/− recipients is not due to defects in gut homing or antigen specificity.
2.5×105 naïve CD4 T cells were transferred into TCRβ−/− or IL-27Rα−/− TCRβ−/− mice. (a) α4β7 expression on transferred CD4 T cells from the mLN 7 days after CD4 transfer (b) α4β7+ donor T cells were isolated from the mLN of TCRβ−/− or IL-27Rα−/− TCRβ−/− recipients 7 days post transfer, CFSE labeled, and cocultured with T-depleted splenocytes pulsed with fecal extract. CFSE profile of CD4 T cells was determined after 5 day culture. In some conditions, anti-MHCII blocking mAb was added. The experiments were repeated more than twice with similar results.
Dendritic cells and macrophages both express and respond to IL-27
To understand mechanisms underlying IL-27-mediated Th17 differentiation it is important to examine the sources and targets of IL-27. Dendritic cells (CD11c+), macrophages (CD11b+CD11c-), and B cells (CD19+) were sorted from the mLN of TCRβ−/− mice prior to or 7 days after T cell transfer. Both DCs and macrophages upregulated Il27a subunit expression following T cell transfer, while its expression in B cells remained undetectable (Figure 4a). Interestingly, the upregulation following T cell transfer was less pronounced in IL-27Rα−/− TCRβ−/− recipients (Figure 4a). Therefore, it is possible that IL-27 acting on APCs may promote autocrine IL-27 production, further supporting Th17 differentiation. In contrast, Ebi3 expression remained unchanged regardless of T cell transfer in both types of recipients (not shown). The increase of IL-27p28 without Ebi3 may result in the formation of p28 homodimers, which has recently been shown to antagonize IL-27 functions21. However, we believe that it is not likely since the concentration of p28 homodimers needed for such antagonistic roles requires >5 fold increase in concentration over IL-621. It was reported that nonactivated DCs express minimal level of IL-27 receptors compared to that of T cells22; however, the IL-27Rα expression was detectable in all tested APCs in naïve animals (Figure 4b). gp130 expression was found in DCs and macrophages, while CD19+ B cells were mostly gp130 negative23 (Figure 4b). Therefore, DCs and macrophages likely have the potential to produce and respond to IL-27. In support of this notion, DCs and macrophages upregulated the expression of both Il1b and Il6 following T cell transfer, whereas those cells from IL-27Rα−/− TCRβ−/− recipients failed to do so (Figure 4c). These results directly indicate that these cells may be the key targets of IL-27 in vivo and that IL-27 strongly induces the production of IL-6 and IL-1β from these target cells. B cell production of these cytokines was negligible.
Figure 4. Dendritic cells and macrophages both express and respond to IL-27.
(a-c) CD11c+ dendritic cells, CD11b+ macrophages/monocytes, and CD19+ B cells were FACS sorted from WT or IL-27Rα−/− mLN prior to or 7 days post WT or IFNγ−/− naïve CD4 transfer and examined for expression of the indicated genes. All values were normalized to the GAPDH. Data shown are from 2-3 independent experiments (n=5-7). Error bars indicate mean ± SEM. *, p<0.05; **, p< 0.01; ***, p<0.001.
IL-27 can be induced by IFNs6. Since T cells proliferating in this condition produce IFNγ, we examined if T cell derived IFNγ is a key inducer of IL-27. CD4 T cells deficient in IFNγ were transferred into TCRβ−/− mice. As shown in Figure 4a, Il27a expression in both DCs and macrophages was significantly reduced. Moreover, the expression of Il1b and Il6 was also reduced when IFNγ−/− CD4 T cells were transferred (Figure 4c). Of note, the reduction of Il1b and Il6 in IFNγ−/− T cell recipients was partial compared to the reduction of IL-27 expression. In support of this, transfer of IFNγ−/− T cells into immunodeficient hosts still induce colitis (Do and Min, unpublished observation)24, 25.
IL-27Rα−/− APCs are unable to support Th17 differentiation
We next determined if IL-27 directly enhances IL-1β and IL-6 from APCs. MHCII+CD19- cells were isolated from the mLN of WT or IL-27Rα−/− mice and stimulated with LPS overnight (Figure 5a). While LPS stimulation of WT cells induced robust expression of Il1b and Il6 in a dose dependent manner, IL-27Rα−/− cell upregulation of these cytokines was impaired (Figure 5a). This finding suggests that IL-27 is produced by LPS-stimulated APCs and subsequently acts on the APCs to increase cytokine expression. To test whether the increase in proinflammatory cytokine production was directly induced by IL-27, neutralizing anti-p28 Ab was added to the cultures. We found that cytokine expression was significantly diminished in the presence of anti-p28 mAb (Figure 5b). Although recent in vitro studies demonstrated that IL-27 stimulation enhances LPS-induced production of proinflammatory cytokine via TLR4 upregulation17, we found that TLR4 expression of WT and IL-27Rα−/− cells following T cell transfer was similar (not shown). To closely examine molecular mechanisms underlying defective cytokine production in IL-27Rα−/− APCs, WT and IL-27Rα−/− peritoneal exudate cells (PECs) were harvested, stimulated with IL-27, and assessed for the intracellular signaling processes. Upon IL-27 stimulation, enhancement in pSTAT1 and pSTAT3 was seen in WT while IL-27Rα−/− PECs were absent in upregulating activated STAT molecules (Figure 5c), which also demonstrate that PECs do express functional IL-27R. We next assessed for activation of downstream signaling molecules following LPS stimulation. Phosphorylation of p65 and IκB was comparable between the cell types (Figure 5d). However, expression of phosphorylated JNK, ERK1/2, and p38 MAPK was markedly diminished in IL-27Rα−/− PECs compared to those in WT PECs (Figure 5d). IL-27 was previously shown to regulate IL-1β expression in human neutrophils through p38 MAPK signaling pathways26, suggesting that the lack of MAP kinase activation in IL-27Rα−/− cells may be directly related to the IL-27Rα deficiency. Furthermore, the IL-6 promoter region contains binding elements of transcription factors including AP-127. Therefore, defects in the activation of JNK, ERK, and p38 in IL-27Rα−/− may be responsible for the failure of APCs to produce those cytokines and further to promote Th17 immunity. This notion was further supported by in vitro coculture experiments using LPS stimulated APCs and T cells. PECs isolated from WT or IL-27Rα−/− mice were cocultured with OT-II CD4 T cells plus OVA peptide. Addition of LPS and TGFβ without IL-6 was sufficient to induce Th17 differentiation when WT PECs were used. However, IL-27Rα−/− PECs were unable to support Th17 differentiation in the same condition (Figure 5e). Th17 production of OT-II cells was IL-6 dependent as neutralizing IL-6 completely abolished IL-17 production by CD4 T cells (Figure 5e). Therefore, these results demonstrate that IL-27 induces key cytokines involved in Th17 differentiation, mainly IL-6, and subsequently promotes naïve T cell differentiation into Th17 pathway.
Figure 5. IL-27Rα−/− APCs are unable to support Th17 differentiation.
(a) MHCII+CD19 mLN cells were FACS sorted and stimulated with various concentrations of LPS overnight. RNA was isolated for gene expression analysis. All values were normalized to the GAPDH. (b) WT PECs were treated with 10ng/ml LPS in the presence of isotype control or anti-IL-27p28 mAb. (c) PECs were isolated from WT or IL-27Rα−/− mice were stimulated with 10ng/ml IL-27 for 15 min and subsequently measured for phosphorylated STAT1 and STAT3 expression. The results are expressed as delta mean fluorescence intensity (ΔMFI) which is the difference between the MFI of stimulated cells and the MFI of background nonstimulated cells. (d) PECs from WT or IL-27Rα−/− stimulated with LPS for indicated time were examined for phosphorylated protein expression by Western Blot analysis. (e) Naïve OT-II were co cultured with PECs from WT or IL-27Rα−/− mice in the presence of exogenous TGFβ, LPS, and OVA peptide for 4 days. Cells were restimulated with PMA/Ionomycin and cytokine expression was assessed by FACS analysis gated on OT-II cells. All data shown are representative from 3-5 independent experiments.
IL-27Rα−/− CD4 T cells restore Th17 differentiation in IL-27Rα−/−TCRβ−/− mice
IL-27 antagonizes Th17 differentiation when it acts on T cells8, 9. Since CD4 T cells transferred into lymphopenic recipients express the functional IL-27Rα, it is possible that in addition to suboptimal production of Th17 promoting cytokine production by IL-27Rα−/− APCs, IL-27 may play an additional role on CD4 T cells, antagonizing Th17 differentiation. This possibility then predicts that if T cells are unable to receive the antagonizing signals via IL-27, Th17 differentiation may be partially restored even in the presence of suboptimal production of Th17 promoting cytokines. Indeed, IL-27Rα−/− naïve CD4 T cells transferred into IL-27Rα−/− TCRβ−/− mice were able to differentiate into IL-17A-producing cells within IL-27Rα−/− recipients (Figure 6a and 6b). Foxp3 expression in donor CD4 was slightly enhanced in mice receiving IL-27Rα−/− compared to WT CD4 (1.7% vs. 0.7%) but the difference did not reach a statistical significance. However, it should be noted that the total numbers of cytokine producing CD4 T cells remained low in this condition (Figure 6b). The diminished expansion of IL-27Rα−/− CD4 may be due to altered survival in the absence of IL-27 signaling28.
Figure 6. The lack of Th17 differentiation in IL-27Rα−/− recipients is restored when T cells are unable to respond to IL-27.
(a) Naïve CD4 from WT or IL-27Rα−/− mice were transferred into IL-27Rα−/− TCRβ−/− recipients. Differentiation of T cells was determined 7 days post transfer. Dot plots shown represent donor T cell intracellular cytokine expression. (b) Frequency and the absolute numbers of the cytokine producing donor CD4 T cells in the mLN. (c) Gene expression from mLN tissue (day 7). All values were normalized to GAPDH. (d) Naïve IL-27Rα−/− CD4 T cells were transferred into IL-27Rα−/− TCRβ−/− recipients and given 1mg isotype or anti-IL-6 mAb every 3 days. The frequency and absolute numbers of the cytokine-producing CD4 T cells are shown. All data shown are representative of 2-3 independent experiments (n=4-7). *, p< 0.05; **, p< 0.01; ***, p< 0.001.
Likewise, tissue expression of Th17 promoting cytokines remained low compared to that in IL-27Rα+/+ conditions (Figure 6c). Low levels of IL-6 present in these conditions are likely responsible for a partial restoration of Th17 differentiation, since neutralizing IL-6 further inhibited the development of IL-17 producing CD4 T cells (Figure 6d), while the overall expansion and IFNγ-production of CD4 T cells remained unchanged (Figure 6d).
IL-27-mediated Th17 differentiation also occurs in non-lymphopenic settings
Because the experiments shown above utilized an adoptive T cell transfer into T cell-deficient recipients, we wanted to confirm that IL-27-mediated Th17 differentiation is not a lymphopenia specific finding. FACS purified naïve OT-II CD4 T cells were transferred into B6 or IL-27Rα−/− recipients, which were subsequently immunized intratracheally with OVA plus LPS. In vivo differentiation of OT-II CD4 T cells was examined 7 days post immunization. As shown in Figure 7a, a significant proportion of the transferred OT-II T cells had acquired IL-17A producing capacity within the draining LN of B6 recipients. By contrast, IL-17A expression of OT-II CD4 T cells was greatly diminished in IL-27Rα−/− recipients (Figure 7a). Impaired Th17 differentiation in IL-27Rα−/− recipients was accompanied with elevated Th1 differentiation (Figure 7a), a finding consistent with T cell differentiation pattern observed in lymphopenic settings (Figure 2a). Notably, the overall expansion of OT-II cells was comparable between the two groups (Figure 7b), suggesting that the defect in Th17 differentiation cannot be attributed to the lack of activation. This data suggests that IL-27 signaling in APCs is crucial for optimal Th17 differentiation both in lymphopenic and lymphocyte-sufficient settings.

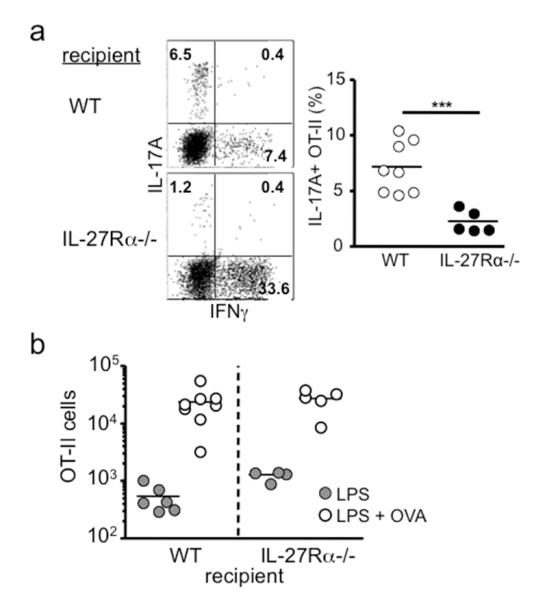

Figure 7. Th17 differentiation is defective in IL-27Rα−/− mice in nonlymphopenic models of Th17 differentiation.
OT-II cells were transferred into WT or IL-27Rα−/− and challenged intratracheally with LPS or LPS + OVA. (a) Representative FACS plot of donor OT-II cytokine production after LPS + OVA challenge from and (b) cell recovery 7 days after challenge from the mediastinal LN. Data representative of from 2 independent experiments (n=4-8). ***, p< 0.001.
Discussion
Our study provides in vivo evidence that IL-27 mediated stimulation of non-T cells (especially APCs including macrophages and DCs) plays an essential role in generating optimal Th17 type T cell responses and intestinal inflammation. Therefore, the lack of functional IL-27R on non-T cells alone resulted in diminished production of IL-6 and IL-1β, leading to substantial defects in Th17 differentiation and colitis development. Importantly, impaired Th17 differentiation within IL-27Rα−/− recipients was partially reversed when T cells were also unable to respond to IL-27. Therefore, we would argue that when both T cells and APCs are responsive to IL-27, an optimal production of IL-1β and IL-6 seems sufficient to induce a robust Th17 immunity even in the presence of IL-27-mediated action on T cells. With suboptimal production of these cytokines by IL-27Rα−/− APCs, IL-27-mediated inhibitory action on T cells becomes more effective, inhibiting Th17 differentiation9. When both T cells and APCs lack IL-27R, low levels of IL-1β/IL-6 production by APCs are capable of inducing Th17 differentiation, although its magnitude is still substantially lower than that of optimal Th17 responses. Therefore, the balance of opposing roles of IL-27 on different target cells appears to be the key determinant of productive Th17 type immunity. Our results also imply the key role of IL-6 (and possibly IL-1β) produced by non-T cells in Th17 immunity and the pathogenesis of colitis. Consistent with this, transfer of encephalitogenic WT T cells induce less severe experimental autoimmune encephalomyelitis (EAE) in IL-6−/− mice 29, suggesting that APC derived IL-6 may be critical for the differentiation of naïve T cells into Th17 lineage cells. It is still unclear how the proinflammatory roles of IL-27 dominate over its anti-Th17 function on T cells. It was recently demonstrated that IL-27 receptor mRNA expression on CD4 T cells is transiently downregulated following activation22. This may warrant them refractory to further inhibitory signals from IL-27 during differentiation.
In the absence of IL-27R on non-T cells, it is possible that more IL-27 may be available to T cells, and this may become the dominant mechanism inhibiting Th17 differentiation. However, we would argue that suboptimal production of APC-derived cytokines in response to IL-27 is the primary mechanism underlying the defects in Th17 differentiation. First, we were unable to detect increased IL-27 levels in the serum or whole colon cultures from the IL-27Rα−/− recipients compared to WT (data not shown). Second, it was recently reported that IL-27 priming of naïve T cells upregulate expression of PD-L1, which further inhibit Th17 differentiation in trans through a PD-1-PD-L1 interaction22. However, PD-L1 expression on WT T cells transferred into IL-27Rα−/− recipients remained comparable to those cells transferred into IL-27Rα+/+ recipients (data not shown).
Both microbial products and cytokines such as IFNs are known to induce IL-27 production in activated APCs6. Indeed, we observed a dramatic reduction of IL-27 expression when IFNγ−/− CD4 T cells were transferred, indicating that IFNγ derived from CD4 T cells may be a dominant inducer of IL-27. Nevertheless, those mice that receive IFNγ−/− CD4 T cells still develop colitis. In support of this, we observed that the production of Th17 promoting cytokines was only partially reduced in this condition, suggesting an alternative pathway. Type I IFN is also known as a potent IL-27 inducer30. Indeed, it was recently reported that Rag−/− mice deficient in IFNAR produced less IL-2731, although these mice exhibited accelerated colitis. Severe disease seen in this condition could be attributed to low production of anti inflammatory cytokines such as IL-10 and IL-1R antagonist31. These results suggest that IFNγ and type I IFN, although equally potent in inducing IL-27, may contribute to the inflammation via a different mechanism.
IL-27 activates multiple pathways involving STAT1 and STAT36. IL-27 acts on T cells through both STAT1 to upregulate T-bet expression and STAT3 to induce IL-10 expression and inhibit inducible regulatory T cell generation6. It is possible that in macrophages, IL-27 signals through STAT1 and STAT3 which are controlled by expression of suppressor of cytokine signaling 3 (SOCS3)6. In CD4 T cells SOCS3 inhibits Th17 differentiation by inhibiting STAT3 binding to the Il17a and Il17f promoters and suppress IL-2 production32. Interestingly, in monocyte/macrophage populations, macrophages also upregulate SOCS3 expression upon IL-27 stimulation33, but unlike its suppressive role in CD4 T cells, SOCS3 may be essential for the development of classical/M1 inflammatory macrophages34. Of particular interest, CD68+ macrophages in active IBD patients have increased proportion of SOCS3+ cells35. Molecular mechanisms underlying different roles of IL-27 in different target cells are under investigation.
In the current study, we primarily focused on the role of IL-27 on APCs. However, there might be other cell population(s) besides APCs that may contribute to inflammatory responses by responding to IL-27. For example, γδ T cells also express IL-27 receptors and we also noticed a rapid phosphorylation of STAT1/3 following in vitro IL-27 stimulation (Visperas and Min, unpublished observation). Whether IL-27 stimulated γδ T cells also play a role in regulating T cell differentiation in vivo is under investigation.
It is very interesting to note that effector T cells generated in both conditions (i.e., Th1 type in IL-27Rα−/− vs. Th1/Th17 type in IL-27Rα+/+) respond to fecal Ag stimulation. Although the precise Ag inducing this proliferation remains to be determined, these results strongly suggest that Th17 but not Th1 phenotype effector cells are essential to induce inflammatory responses leading to colitis.
In conclusion, our results demonstrate that during inflammatory responses IL-27 acts on APCs and T cells, delivering both pro- and anti-inflammatory signals, respectively. Further examination of IL-27 functions in different cell types will offer key insight into the development of Th17 immunity in vivo and may further uncover therapeutic strategies to intervene the inflammatory processes seen in Th17-associated disorders, such as multiple sclerosis and IBD.
Methods
Mice
C57BL/6, B6 CD45.1, B6 TCRβ−/−, and B6 OT-II mice were purchased from The Jackson Laboratory (Bar Harbor, ME). B6 IL-27Rα−/− mice were provided from Amgen (Thousand Oaks, CA). All of the mice were maintained under specific pathogen-free facility located in the Lerner Research Institute. All animal procedures were conducted according to the guidelines of the Institutional Animal Care and Use Committee of the Cleveland Clinic.
Cell sorting and adoptive transfer
Lymph node (LN) naïve CD4 (CD4+CD25-CD44low) T cells were sorted using a FACSAria cell sorter (BD Biosciences, San Jose, CA). A total of 2.5×105 naïve T cells were transferred into TCRβ−/− or IL-27Rα−/− TCRβ−/−. After T cells transfer, mice were weighed weekly and monitored for signs of disease. For intratracheal immunization, CD45.1 OT-II LN cells were sorted based on Vβ5+CD4+CD25- and 1-1.5×106 cells were transferred one day prior to immunization. Some mice were also treated with 1mg anti IL6 (MP5-20F3), 250μg anti IFNγ (XMG1.2) or Rat IgG (BioXcell, West Lebanon, NH) on days -1, 2, and 5.
FACS analysis
Cells were stained with anti-CD4 (RM4-5), anti-CD45.1 (A20), anti-IL-17A (17B7), anti-IFNγ (XMG1.2), anti-Thy1.1 (HIS51), anti-CD19 (1D3), anti-CD11c (N418), anti-CD11b (M1/70), anti-Foxp3 (FJK 16a), anti-α4β7 (DATK32) Abs (all Abs from eBioscience). For pSTAT staining cells were stained with anti-STAT1(pY701; clone 4a) and anti-STAT3(pY705; clone 4/P-STAT3) (from BD Biosciences). Cells were acquired using an LSRII cytometer (BD Biosciences) and analyzed using FlowJo software (Tree Star, Ashland, OR).
Ex vivo stimulation
Tissue cells were ex vivo stimulated with PMA (10ng/ml) and ionomycin (1 μM) for 4 hours in the presence of 2 μM monensin (Calbiochem, San Diego, CA) during the last 2 hours. Cells were immediately fixed with 4% paraformaldehyde, permeabilized, and stained with fluorescence-conjugated Abs.
Real-time PCR
mLN tissue was disrupted using a TissueLyser II (Qiagen, Valencia, CA). Total RNA was extracted using an RNeasy column (Qiagen). cDNA was subsequently obtained using SuperScript III reverse transcriptase (Invitrogen, Carlsbad, CA). Real time PCR was performed using gene-specific Taqman primer and probe sets (Applied Biosystems, Foster City, CA) and ABI 7500 PCR machine (Applied Biosystems).
Fecal Ag stimulation assay
Preparation of fecal extract and APC pulse were done as previously described36. α4β7+ CD4 T cells were isolated from the mLN 7 days post transfer and labeled with CFSE. T cells and APCs were cultured at a 1:5 ratio (APCs pulsed with 0.3mg fecal extract). CFSE dilution was assessed 5 days later. In some experiments anti MHCII mAb (Y3P, 10 μg/ml) was added.
APC stimulation
5×104 MHCII+CD19- mLN cells were stimulated with LPS (10, 50, 100ng/ml) overnight. Cells were used for qPCR. PECs were stimulated with 10ng/ml IL-27 or 2μg/ml LPS for intracellular signaling analysis.
In vitro Th17 differentiation
OT-II cells were stimulated with 1μg/ml OVA peptide with peritoneal macrophages either stimulated with 2μg/ml LPS or LPS + TGFβ (5ng/ml) or LPS + TGFβ + anti-IL-6 (10μg/ml- BioXCell) for 3 days. In some experiments 20μg/ml anti-IL-27 p28 mAb or goat IgG isotype control (R&D Systems, Minneapolis, MN) was added.
Intratrachael challenge
Mice were challenged with LPS (25μg) or LPS + OVA protein (100μg) and mediastinal lymph node was collected seven days after challenge for cytokine analysis.
Histology
Colon tissues were fixed in 10% acetic acid/60% methanol. Slides were cut and stained with H&E. Colon tissues were scored in a blinded fashion as previously reported37 by two individuals and scores were averaged. In brief, colon tissues were assessed at both low and high magnification to get an overall score using the scoring system: 0: no sign; 1: low infiltration and inflammation; 2: medium infiltration/inflammation; 3: high infiltration/inflammation; 4: severe infiltration with moderate loss of goblet cells and crypt structure; 5: transmural infiltration, loss of goblet cells and crypt structure.
Western Blotting
Cells stimulated as indicated were harvested, washed once with cold PBS, and lysed for 30 min at 4°C in 1% Triton X-100, 20 mM HEPES (pH 7.4), 150 mM NaCl, 12.5 mM β glycerophosphate, 1.5 mM MgCl2, 10 mM NaF, 1 mM sodium orthovanadate, 2 mM EGTA, and 1 mM PMSF. Cellular debris were removed by centrifugation at 10,000 × g for 15 min. For immunoblotting, cell extracts were fractionated by SDS-PAGE and transferred to Immobilon-P transfer membranes (Millipore), using a wet transfer apparatus (Bio-Rad). Immunoblot analysis was performed, and the bands were visualized with HRP-coupled Ig as appropriate (Rockland), using the ECL Western blotting detection system (GE Healthcare). Protein levels were equilibrated with the Protein Assay Reagent (Bio-Rad).
Statistical analysis
Results represent the mean ± SEM. Statistical significance was determined by the Student t test (unpaired, two-tailed) or 1 way ANOVA using Prism 5 software (GraphPad, La Jolla, CA). A p-value < 0.05 was considered statistically significant.
Acknowledgements
The authors thank Ms. Jennifer Powers for cell sorting, Dr. Michael Freeman for scoring, and Drs. Robert Fairchild, Bo Shen, Carol de la Motte, and Alex Huang for critical comments. This study was supported by NIH grants R01-AI074932 (B.M.) and T32-GM88088 (A.V.).
Footnotes
Conflict of interest: Authors have no conflict of interest to report.
Disclosure
The authors declare no conflicts of interest.
References
- 1.Zhu J, Yamane H, Paul WE. Differentiation of effector CD4 T cell populations (*) Annu Rev Immunol. 2010;28:445–489. doi: 10.1146/annurev-immunol-030409-101212. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 2.Kaser A, Zeissig S, Blumberg RS. Inflammatory bowel disease. Annu Rev Immunol. 2010;28:573–621. doi: 10.1146/annurev-immunol-030409-101225. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 3.Kebir H, Ifergan I, Alvarez JI, Bernard M, Poirier J, Arbour N, et al. Preferential recruitment of interferon-gamma-expressing TH17 cells in multiple sclerosis. Ann Neurol. 2009;66(3):390–402. doi: 10.1002/ana.21748. [DOI] [PubMed] [Google Scholar]
- 4.Do JS, Visperas A, Dong C, Baldwin WM, 3rd, Min B. Cutting edge: Generation of colitogenic Th17 CD4 T cells is enhanced by IL-17+ gammadelta T cells. J Immunol. 2011;186(8):4546–4550. doi: 10.4049/jimmunol.1004021. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 5.Pflanz S, Hibbert L, Mattson J, Rosales R, Vaisberg E, Bazan JF, et al. WSX-1 and glycoprotein 130 constitute a signal-transducing receptor for IL-27. J Immunol. 2004;172(4):2225–2231. doi: 10.4049/jimmunol.172.4.2225. [DOI] [PubMed] [Google Scholar]
- 6.Hall AO, Silver JS, Hunter CA. The immunobiology of IL-27. Adv Immunol. 2012;115:1–44. doi: 10.1016/B978-0-12-394299-9.00001-1. [DOI] [PubMed] [Google Scholar]
- 7.Hibbert L, Pflanz S, De Waal Malefyt R, Kastelein RA. IL-27 and IFN-alpha signal via Stat1 and Stat3 and induce T-Bet and IL-12Rbeta2 in naive T cells. J Interferon Cytokine Res. 2003;23(9):513–522. doi: 10.1089/10799900360708632. [DOI] [PubMed] [Google Scholar]
- 8.Batten M, Li J, Yi S, Kljavin NM, Danilenko DM, Lucas S, et al. Interleukin 27 limits autoimmune encephalomyelitis by suppressing the development of interleukin 17-producing T cells. Nat Immunol. 2006;7(9):929–936. doi: 10.1038/ni1375. [DOI] [PubMed] [Google Scholar]
- 9.Diveu C, McGeachy MJ, Boniface K, Stumhofer JS, Sathe M, Joyce-Shaikh B, et al. IL-27 blocks RORc expression to inhibit lineage commitment of Th17 cells. J Immunol. 2009;182(9):5748–5756. doi: 10.4049/jimmunol.0801162. [DOI] [PubMed] [Google Scholar]
- 10.Hall AO, Beiting DP, Tato C, John B, Oldenhove G, Lombana CG, et al. The cytokines interleukin 27 and interferon-gamma promote distinct Treg cell populations required to limit infection-induced pathology. Immunity. 2012;37(3):511–523. doi: 10.1016/j.immuni.2012.06.014. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 11.Cox JH, Kljavin NM, Ramamoorthi N, Diehl L, Batten M, Ghilardi N. IL-27 promotes T cell-dependent colitis through multiple mechanisms. J Exp Med. 2011;208(1):115–123. doi: 10.1084/jem.20100410. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 12.Schmidt C, Giese T, Ludwig B, Mueller-Molaian I, Marth T, Zeuzem S, et al. Expression of interleukin-12-related cytokine transcripts in inflammatory bowel disease: elevated interleukin-23p19 and interleukin-27p28 in Crohn’s disease but not in ulcerative colitis. Inflamm Bowel Dis. 2005;11(1):16–23. doi: 10.1097/00054725-200501000-00003. [DOI] [PubMed] [Google Scholar]
- 13.Imielinski M, Baldassano RN, Griffiths A, Russell RK, Annese V, Dubinsky M, et al. Common variants at five new loci associated with early-onset inflammatory bowel disease. Nat Genet. 2009;41(12):1335–1340. doi: 10.1038/ng.489. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 14.Honda K, Nakamura K, Matsui N, Takahashi M, Kitamura Y, Mizutani T, et al. T helper 1-inducing property of IL-27/WSX-1 signaling is required for the induction of experimental colitis. Inflamm Bowel Dis. 2005;11(12):1044–1052. doi: 10.1097/01.mib.0000191611.05466.1f. [DOI] [PubMed] [Google Scholar]
- 15.Troy AE, Zaph C, Du Y, Taylor BC, Guild KJ, Hunter CA, et al. IL-27 regulates homeostasis of the intestinal CD4+ effector T cell pool and limits intestinal inflammation in a murine model of colitis. J Immunol. 2009;183(3):2037–2044. doi: 10.4049/jimmunol.0802918. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 16.Feng XM, Liu N, Yang SG, Hu LY, Chen XL, Fang ZH, et al. Regulation of the class II and class I MHC pathways in human THP-1 monocytic cells by interleukin-27. Biochem Biophys Res Commun. 2008;367(3):553–559. doi: 10.1016/j.bbrc.2007.12.154. [DOI] [PubMed] [Google Scholar]
- 17.Guzzo C, Ayer A, Basta S, Banfield BW, Gee K. IL-27 enhances LPS-induced proinflammatory cytokine production via upregulation of TLR4 expression and signaling in human monocytes. J Immunol. 2012;188(2):864–873. doi: 10.4049/jimmunol.1101912. [DOI] [PubMed] [Google Scholar]
- 18.Holscher C, Holscher A, Ruckerl D, Yoshimoto T, Yoshida H, Mak T, et al. The IL-27 receptor chain WSX-1 differentially regulates antibacterial immunity and survival during experimental tuberculosis. J Immunol. 2005;174(6):3534–3544. doi: 10.4049/jimmunol.174.6.3534. [DOI] [PubMed] [Google Scholar]
- 19.Leppkes M, Becker C, Ivanov II, Hirth S, Wirtz S, Neufert C, et al. RORgamma-expressing Th17 cells induce murine chronic intestinal inflammation via redundant effects of IL-17A and IL-17F. Gastroenterology. 2009;136(1):257–267. doi: 10.1053/j.gastro.2008.10.018. [DOI] [PubMed] [Google Scholar]
- 20.Wedebye Schmidt EG, Larsen HL, Kristensen NN, Poulsen SS, Lynge Pedersen AM, et al. TH17 cell induction and effects of IL-17A and IL-17F blockade in experimental colitis. Inflamm Bowel Dis. 2013;19(8):1567–1576. doi: 10.1097/MIB.0b013e318286fa1c. [DOI] [PubMed] [Google Scholar]
- 21.Stumhofer JS, Tait ED, Quinn WJ, 3rd, Hosken N, Spudy B, Goenka R, et al. A role for IL-27p28 as an antagonist of gp130-mediated signaling. Nat Immunol. 2010;11(12):1119–1126. doi: 10.1038/ni.1957. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 22.Hirahara K, Ghoreschi K, Yang XP, Takahashi H, Laurence A, Vahedi G, et al. Interleukin-27 priming of T cells controls IL-17 production in trans via induction of the ligand PD-L1. Immunity. 2012;36(6):1017–1030. doi: 10.1016/j.immuni.2012.03.024. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 23.Oberg HH, Wesch D, Grussel S, Rose-John S, Kabelitz D. Differential expression of CD126 and CD130 mediates different STAT-3 phosphorylation in CD4+CD25- and CD25high regulatory T cells. Int Immunol. 2006;18(4):555–563. doi: 10.1093/intimm/dxh396. [DOI] [PubMed] [Google Scholar]
- 24.Ito H, Fathman CG. CD45RBhigh CD4+ T cells from IFN-gamma knockout mice do not induce wasting disease. J Autoimmun. 1997;10(5):455–459. doi: 10.1016/s0896-8411(97)90152-9. [DOI] [PubMed] [Google Scholar]
- 25.Simpson SJ, Shah S, Comiskey M, de Jong YP, Wang B, Mizoguchi E, et al. T cell-mediated pathology in two models of experimental colitis depends predominantly on the interleukin 12/Signal transducer and activator of transcription (Stat)-4 pathway, but is not conditional on interferon gamma expression by T cells. J Exp Med. 1998;187(8):1225–1234. doi: 10.1084/jem.187.8.1225. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 26.Li JP, Yang SG, Dong CL, Wu H, Jia HR, Zhao YJ, et al. [IL-27 regulates the expression of Mac-1, fMLP-R and IL-1beta in human neutrophils through p38 MAPK and PI3K signal pathways] Zhongguo Shi Yan Xue Ye Xue Za Zhi. 2010;18(2):391–395. [PubMed] [Google Scholar]
- 27.Beetz A, Peter RU, Oppel T, Kaffenberger W, Rupec RA, Meyer M, et al. NF-kappaB and AP-1 are responsible for inducibility of the IL-6 promoter by ionizing radiation in HeLa cells. Int J Radiat Biol. 2000;76(11):1443–1453. doi: 10.1080/09553000050176207. [DOI] [PubMed] [Google Scholar]
- 28.Kim G, Shinnakasu R, Saris CJ, Cheroutre H, Kronenberg M. A novel role for IL-27 in mediating the survival of activated mouse CD4 T lymphocytes. J Immunol. 2013;190(4):1510–1518. doi: 10.4049/jimmunol.1201017. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 29.Mendel I, Katz A, Kozak N, Ben-Nun A, Revel M. Interleukin-6 functions in autoimmune encephalomyelitis: a study in gene-targeted mice. Eur J Immunol. 1998;28(5):1727–1737. doi: 10.1002/(SICI)1521-4141(199805)28:05<1727::AID-IMMU1727>3.0.CO;2-#. [DOI] [PubMed] [Google Scholar]
- 30.Molle C, Goldman M, Goriely S. Critical role of the IFN-stimulated gene factor 3 complex in TLR-mediated IL-27p28 gene expression revealing a two-step activation process. J Immunol. 2010;184(4):1784–1792. doi: 10.4049/jimmunol.0902005. [DOI] [PubMed] [Google Scholar]
- 31.Kole A, He J, Rivollier A, Silveira DD, Kitamura K, Maloy KJ, et al. Type I IFNs Regulate Effector and Regulatory T Cell Accumulation and Anti-Inflammatory Cytokine Production during T Cell-Mediated Colitis. J Immunol. 2013;191(5):2771–2779. doi: 10.4049/jimmunol.1301093. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 32.Owaki T, Asakawa M, Kamiya S, Takeda K, Fukai F, Mizuguchi J, et al. IL-27 suppresses CD28-mediated [correction of medicated] IL-2 production through suppressor of cytokine signaling 3. J Immunol. 2006;176(5):2773–2780. doi: 10.4049/jimmunol.176.5.2773. [DOI] [PubMed] [Google Scholar]
- 33.Zeitvogel J, Dalpke A, Eiz-Vesper B, Kracht M, Dittrich-Breiholz O, Werfel T, et al. Human primary keratinocytes show restricted ability to up-regulate suppressor of cytokine signaling (SOCS)3 protein compared with autologous macrophages. J Biol Chem. 2012;287(13):9923–9930. doi: 10.1074/jbc.M111.280370. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 34.Spence S, Fitzsimons A, Boyd CR, Kessler J, Fitzgerald D, Elliott J, et al. Suppressors of Cytokine Signaling 2 and 3 Diametrically Control Macrophage Polarization. Immunity. 2012 [Google Scholar]
- 35.Li Y, de Haar C, Peppelenbosch MP, van der Woude CJ. SOCS3 in immune regulation of inflammatory bowel disease and inflammatory bowel disease-related cancer. Cytokine Growth Factor Rev. 2012;23(3):127–138. doi: 10.1016/j.cytogfr.2012.04.005. [DOI] [PubMed] [Google Scholar]
- 36.Brimnes J, Reimann J, Nissen M, Claesson M. Enteric bacterial antigens activate CD4(+) T cells from scid mice with inflammatory bowel disease. Eur J Immunol. 2001;31(1):23–31. doi: 10.1002/1521-4141(200101)31:1<23::aid-immu23>3.0.co;2-2. [DOI] [PubMed] [Google Scholar]
- 37.O’Connor W, Jr., Kamanaka M, Booth CJ, Town T, Nakae S, Iwakura Y, et al. A protective function for interleukin 17A in T cell-mediated intestinal inflammation. Nat Immunol. 2009;10(6):603–609. doi: 10.1038/ni.1736. [DOI] [PMC free article] [PubMed] [Google Scholar]
