Specific collagen XVIII isoforms promote adipose tissue accrual via mechanisms determining adipocyte number and affect fat deposition

Significance

A previously unrecognized role is described for collagen XVIII—a ubiquitous, structurally complex basement membrane proteoglycan—in supporting preadipocyte differentiation and the maintenance of this differentiated state, and hence the size and lipid-clearing/storage functions of white adipose tissue depots. Specific lack of medium and long isoforms of this nonfibrillar collagen in mice led to reduced adiposity, ectopic deposition of fat in liver, and elevated very low-density lipoprotein-triglyceride levels. The finding of a previously unidentified extracellular mechanism contributing to control of adipogenesis is expected to promote understanding of the molecular and functional bases of human hyperlipidemic syndromes associated with fatty liver.

Abstract

Collagen XVIII is an evolutionary conserved ubiquitously expressed basement membrane proteoglycan produced in three isoforms via two promoters (P). Here, we assess the function of the N-terminal, domain of unknown function/frizzled-like sequences unique to medium/long collagen XVIII by creating P-specific null mice. P2-null mice, which only produce short collagen XVIII, developed reduced bulk-adiposity, hepatic steatosis, and hypertriglyceridemia. These abnormalities did not develop in P1-null mice, which produce medium/long collagen XVIII. White adipose tissue samples from P2-null mice contain larger reserves of a cell population enriched in early adipocyte progenitors; however, their embryonic fibroblasts had ∼50% lower adipocyte differentiation potential. Differentiating 3T3-L1 fibroblasts into mature adipocytes produced striking increases in P2 gene-products and dramatic falls in P1-transcribed mRNA, whereas Wnt3a-induced dedifferentiation of mature adipocytes produced reciprocal changes in P1 and P2 transcript levels. P2-derived gene-products containing frizzled-like sequences bound the potent adipogenic inhibitor, Wnt10b, in vitro. Previously, we have shown that these same sequences bind Wnt3a, inhibiting Wnt3a-mediated signaling. P2-transcript levels in visceral fat were positively correlated with serum free fatty acid levels, suggesting that collagen α1 (XVIII) expression contributes to regulation of adipose tissue metabolism in visceral obesity. Medium/long collagen XVIII is deposited in the Space of Disse, and interaction between hepatic apolipoprotein E and this proteoglycan is lost in P2-null mice. These results describe a previously unidentified extracellular matrix-directed mechanism contributing to the control of the multistep adipogenic program that determines the number of precursors committing to adipocyte differentiation, the maintenance of the differentiated state, and the physiological consequences of its impairment on ectopic fat deposition.

Collagen XVIII, one of the multiplexin subfamily of nonfibrillar collagens (1), is a component of basement membranes (BM) of both epithelial and endothelial cells. Collagen XVIII has attracted much interest on several accounts. It has the structural properties of both a collagen and a proteoglycan (2); it contains the antiangiogenic molecule, endostatin (3), and its coding gene, collagen α1 (XVIII) (COL18A1), is mutated in the rare, recessively inherited Knobloch syndrome (4). This condition is characterized by high myopia and vitro-retinal degeneration, and occasionally by occipital encephalocele (5, 6). Epilepsy, renal anomalies, lung hypoplasia, and acute lymphoblastic leukemia also figure in isolated cases (5, 7) but it remains to be established which, if any, of these diverse features result from disturbances of collagen XVIII-mediated BM functions, the antiangiogenic actions of endostatin, or hitherto unsuspected biological activities of this proteoglycan.

Col18a1^−/− mice recapitulate the human eye disease of Knobloch syndrome, including delayed regression of the hyaloid vessels and impaired angiogenesis of retinal vessels (8, 9). Moreover, on a specific background, Col18a1^−/− mice have increased susceptibility to hydrocephalus associated with broadening of the epithelial BM of the choroid plexuses (10). Curiously, these mice also display postprandial hyperlipidemia (11) and, on an apolipoprotein E (ApoE)^−/− background, develop severe atherosclerosis because of increased plaque angiogenesis and permeability of the vasculature to lipids (12). Thus, collagen XVIII is obligatory for controlling blood vessel formation in the eye, and may also partake in BM or cell-signaling functions in extraocular tissues.

An unresolved issue concerns the physiological roles of the three distinct N-terminal, noncollagenous (NC) domains of collagen XVIII (13, 14). The “short form,” which is present in most vascular and epithelial BMs and around smooth and skeletal muscle (15), derives from promoter (P) 1 transcripts and lacks, through exon skipping, exon 3-encoded amino acid residues. In contrast, the medium and long variants, abundant in liver sinusoids (15), are generated from a downstream promoter (P2) and alternative splicing of exon 3 (16). Medium and long collagen XVIII possess an N-terminal domain of unknown function (DUF), whereas the “long” isoform alone has a domain-sharing structural identity with the extracellular domain of frizzled (Fz) receptors (17). P2-derived gene-products also undergo proteolytic processing, thereby producing Fz-cysteine rich sequences that bind Wnt3a in vitro and inhibits Wnt/B-catenin-signaling and downstream gene expression (18).

In this study, we have further investigated the consequences of complete lack of collagen XVIII and examined the individual roles of P1- and P2-derived gene-products. Mice lacking P2-derived DUF/Fz sequences exhibit reduced adiposity, manifesting as a reduction in the number of precursor cells that attain a mature fat-cell phenotype, increased deposition of fat in liver, and elevated very low-density lipoprotein (VLDL)-triglyceride levels. In contrast, P1-null mice exhibit no such abnormalities. P2-derived transcript levels rose dramatically following induction of adipocyte differentiation, and fell upon Wnt3a-mediated dedifferentiation of mature adipocytes. The finding of a previously unidentified mechanism contributing to the development and metabolic functions of white adipose tissue (WAT) has implications for understanding the nature and causes of hyperlipidemia associated with visceral obesity and fatty liver.

Results

Ablating Medium/Long Collagen XVIII Modulates Adiposity and Liver Weights.

Fig. 1A provides a schematic of the collagen XVIII isoforms encoded by P1- and P2-derived Col18a1 transcripts (Fig. 1B). To complement studies on Col18a1^−/− mice we produced mice expressing only P1 or P2 transcripts, as depicted in Fig. S1. Specific inactivation of exon 1 (P1-null, Col18a1^P1/P1) and deletion of exon 3 (P2-null, Col18a1^P2/P2) were confirmed by Southern blot and PCR analysis (Fig. S1) plus real-time quantitative-PCR (RT-qPCR) of liver, epididymal (e)WAT, and kidney RNA (Fig. S2). Neither P-null mouse models displayed compensatory rises in Col18a1 RNA from the nontargeted promoter (Fig. S2). Col18a1^−/− mice transcribed varying amounts of RNA from both promoters (Fig. S2), potentially because of placing the inactivating cassette into a 3′ Col18a1 exon (8).

Fig. 1.

Isoform-specific effects of collagen XVIII on BW, adiposities, and liver weights. (A) Horizontal and vertical stripes denote signal sequences of short (Top) and medium/long isoforms of mouse collagen XVIII, respectively. White and gray boxes depict collagenous and NC regions, respectively. Brick pattern denotes the DUF. Black dots denote the Fz homology domain containing 10 conserved cysteines (cys) followed by the Tsp1 homology domain depicted in diagonal stripes. Predicted HS attachment sites, recombinant fragments produced, and epitopes of the anti–all-18 and anti–medium/long-18 antibodies are shown. (B) Collagen XVIII isoforms derive from utilization of alternative promoters. Exons 1 and 2 are specific to the short variant. Exon 3 (subject to alternative splicing) encodes middle and long variants. Exons 5–43 (not shown) are common to all isoforms. (C) Specified 12-wk-old mice were fed a Western diet for 5 wks. Ventral views (Upper) and eWAT of representative mice. (D) BW of 12-wk-old, male WT (n = 15), Col18a1^−/− (n = 5), Col18a1^P1/P1 (n = 7), and Col18a1^P2/P2 (n = 5) mice fed a Western diet for 5 wk. (E) Weights of eWAT (total mass of both fat pads) and livers of mice in D, expressed as percentage of BW. (F) Relative Col18a1 RNA levels in liver, eWAT, and kidney of 12-wk-old WT mice fed standard chow were quantified by RT-qPCR. Data (mean ± SD), normalized to β-actin, are relative to eWAT. *P < 0.05, ***P < 0.001.

To further validate the quality of the newly created Col18a1 mouse lines, we immunofluorescently stained the kidney, an organ that expresses all three collagen XVIII variants (19), using two antibodies: “anti–all-18,” which recognizes all three collagen XVIII species, and “anti–medium/long-18,” which is reactive toward the two longer variants (Fig. 1A). The anti–all-18 antibody strongly stained the tubuli of P2-null and WT mice and produced no corresponding signal in Col18a1^P1/P1 mice, whereas the anti–medium/long-18 antibody stained the glomeruli of the Col18a1^P1/P1 and WT mice kidneys, but not those of the Col18a1^P2/P2 animals (Fig. S3). Neither antibody stained Col18a1^−/− samples, suggesting that few, if any, stable collagen XVIII homotrimers are assembled from the truncated Col18a1 P1- and P2-derived transcripts (Fig. S2), as expected from structural data (20). Thus, collectively our data show that the strategy depicted in Fig. S1 successfully generated mice producing only short (Col18a1^P2/P2) or medium/long (Col18a1^P1/P1) collagen XVIII (Fig. 1B), and at levels comparable to the WT animals (Fig. S2), whereas the Col18a1^−/− mice produced neither.

Reanalysis of Col18a1^−/− mice identified two previously unrecognized consequences of total collagen XVIII deficiency: generalized reduction in adiposity, observed on both Western (Fig. 1 C and E) and standard diets (Fig. S4), and a percentage of their body weight (BW) (Fig. 1D) increased liver weights on the Western diet (Fig. 1E). P1- and P2-null mice displayed no gross phenotypic alterations, were fertile, and had normal lifespans. However, adult P2-null mice had reduced adiposity (Fig. 1 C and E and Fig. S4) and increased liver weight (Fig. 1E and Fig. S4). No such changes developed in Col18a1^P1/P1 mice on a Western diet (Fig. 1 C–E), although they were lighter on chow (Fig. S4). However, despite reduced adiposities, Col18a1^−/− and P2-null mice had adipocytes of comparable sizes to WT animals (Fig. S5).

We quantified by RT-qPCR, P1- and P2-derived transcript levels in the two tissues macroscopically affected in Col18a1^−/− and Col18a1^P2/P2 mice. Primers that amplify all three RNA species indicate that the liver and eWAT of WT mice contain 8.5- and 2.7-fold more Col18a1 RNA than kidney (Fig. 1F, Upper Left). Although, the use of isoform-specific primers precludes exact comparisons of the relative levels of each Col18a1 transcript in any one tissue, it is evident that P1-derived RNA encoding short collagen XVIII predominated in the kidney (Fig. 1F, Upper Right). In comparison, P2-derived transcripts encoding the medium isoform were the majority species in the liver (Fig. 1F, Lower Left), and in this organ it was 90- and 55-fold more abundant than in kidney and eWAT, respectively. The longer P2-derived transcript was present at comparable levels in liver and eWAT, and at much higher levels than kidney (Fig. 1F, Lower Right). This transcript was also selectively up-regulated in eWAT of mice fed a short-term, high-fat diet (Table S1). Thus, taken together our data suggest that P2-derived Col18a1 gene-products conduct key functions in WAT and liver.

Isoform-Specific Contributions of Collagen XVIII Variants to WAT Development.

FACS of eWAT samples from mutant mice revealed that relative to WT and P1-null samples, eWAT from Col18a1^−/− and P2-null mice contained significantly bigger pools of the cell population (i.e., Lin⁻/CD29⁺/CD34⁺/Sca-1⁺/CD24⁺) enriched in early adipocyte progenitors (21) (Fig. 2A), whereas immunofluorescent staining studies with the anti–medium/long-18 and CD31 antibodies showed that P2-derived Col18a1 products reside between adipocytes and within the vasculature (Fig. 2B, first panel). Thus, the anti–medium/long-18 antibody produced no staining in the Col18a1^−/− samples (Fig. 2B, second panel), whereas the pattern and strength of staining of Col18a1^P1/P1 eWAT (Fig. 2B, third panel) were similar to WT; it also produced no or minimal staining with Col18a1^P2/P2 samples (Fig. 2B, fourth panel). In contrast, the anti–all-18 antibody returned some staining around adipocytes and within vessels of P2 samples, indicating presence of short collagen XVIII (Fig. S6). Critically, the level of P1-derived Col18a1 RNA in the eWAT of these mice was not increased to compensate for loss of P2-derived products (Fig. S2D). Moreover, as judged by the comparable distribution of CD31⁺ blood vessels among genotypes, angiogenesis in the WAT of the Col18a1^−/− and P2-null mice was not impaired (Fig. 2B and Fig. S6). The lack of medium/long collagen XVIII species in eWAT of these mice was confirmed by Western blotting (Fig. 2C), and incubations of WT and P1-null samples with heparitinase I established that medium/long collagen XVIII contain heparin sulfate (HS) side-chains (Fig. 2C, Right).

Fig. 2.

Collagen XVIII variants contribute to the composition and development of WAT. (A) Percentages of the Lin⁻:CD29⁺:CD34⁺: Sca1⁺:CD24⁺ cell subpopulation, enriched in early adipocyte progenitors, in eWAT of 22- to 26-d-old male mice fed standard chow: WT (n = 11), Col18a1^−/− (n = 6), Col18a1^P1/P1 (n = 6), and Col18a1^P2/P2 (n = 10). (B) Immunostaining of extracellular matrix of adipocytes and vasculature with anti–medium/long-18 (red) and anti-CD31 (green) antibodies, respectively. The yellow fluorescence indicates colocalization of medium/long collagen XVIII isoforms with CD31⁺ blood vessels. Samples from 12-wk-old mice fed a Western diet for 5 wk. (Scale bar, 100 µm.) (C) Western blots of eWAT cell homogenates from specific mice without (w/o) and with heparitinase I treatment. The distinct immunoreactive products in heparitinase I-treated samples indicate that medium/long collagen XVIII contains HS chains. Estimated sizes of medium and long collagen XVIII isoforms are respectively 156 and 182 kDa, but collagens run anomalously on SDS/PAGE. (D) Representative images of H&E-stained eWAT from specified male mice on standard chow at specified ages. (Scale bars, 100 µm.) (E) Mean adipocyte sizes of eWAT from age-matched WT and mutant mice reared on standard chow. All cells in two to five microscopic fields per sample were counted at each weekly time point. Error bars show SD calculated from ≥3 mice. *P < 0.05, **P < 0.01, ***P < 0.001.

We profiled younger mice to gain insights into the role of medium/long collagen XVIII in WAT accrual. On standard chow, 4- to 6-wk-old Col18a1^P1/P1 mice had lower BWs than age-matched control animals, but they did not have decreased adiposities (Table S2), independently replicating the findings in mature mice (Fig. S4). Standard histological staining of eWAT samples also revealed no reductions in adipocyte size (Fig. 2 D and E). In contrast, 4-wk-old Col18a1^−/− and P2-null mice displayed reduced adiposities (Table S2) and, in contrast to mature mice (Fig. S5), had smaller adipocytes than age-matched WT and P1-null animals (Fig. 2 D and E). This size difference diminished with age, such that by 7 wk of age Col18a1^−/− and P2-null mice had adipocytes of comparable size to their WT and P1-null littermates (Fig. 2 D and E), despite continuing reduced adiposities (Table S2). Hence these data, plus the finding of a significantly larger adipocyte progenitor cell population within the eWAT of ∼4-wk-old mice (Fig. 2A), suggest that the origin of reduced adiposities in Col18a1^−/− and P2-null mice (Fig. 1 C and E, Fig. S4, and Table S2) is complex, potentially involving defects at the adipocyte progenitor cell stage, a delay in the enrolment of preadipocytes into an adipogenic differentiation program (21–24), and enhanced dedifferentiation of adipocytes (25).

Reciprocal Regulation of P1- and P2-Col18a1 Transcripts During Differentiation and Dedifferentiation.

To explore the potential contribution of medium/long collagen XVIII to adipocyte differentiation, we used 3T3-L1 cells, a well-characterized mouse embryo-derived preadipocyte differentiation model (24, 26). Col18a1 RNA levels rose ∼fourfold during differentiation (Fig. 3A, first panel, Upper) as a result of marked rises in P2-derived transcript numbers. Thus, before differentiation (0 h), P1-derived Col18a1 transcripts were the predominant species, and P2 transcripts encoding medium collagen XVIII were the least abundant (Fig. S7). Four days following induction of differentiation, P1-derived RNA levels fell dramatically (Fig. 3A, second panel, Upper), and P2-transcripts increased strongly (Fig. 3A, third and fourth panels, Upper). These changes were paired with a marked fall in Wnt10b RNA (Fig. 3A, fifth panel, Upper), which encodes a potent adipogenic inhibitor (27, 28); increased RNA levels of peroxisome proliferator-activated receptor-γ (Pparγ) (Fig. 3A, Lower Left), encoding a key adipogenic transcription factor (29); and of the PPARγ target, adipocyte protein 2 (aP2) (Fig. 3A, Lower Right) (30). Complementing the RNA data, the anti–medium/long-18 antibody stained induced 3T3-L1 cells much more strongly than noninduced cells (Fig. 3B). Moreover, as shown for Wnt3a (18), recombinant DUF/Fz collagen XVIII sequences (Fig. 1A) pulled-down Wnt10b in vitro (Fig. 3C, Right), and to a far greater extent than the equivalent protein lacking the Fz domain (Fig. 3C). Thus, these data—plus the profiling of younger mice (Fig. 2 D and E and Table S2)—suggest that sequences unique to medium and long collagen XVIII support preadipocyte differentiation.

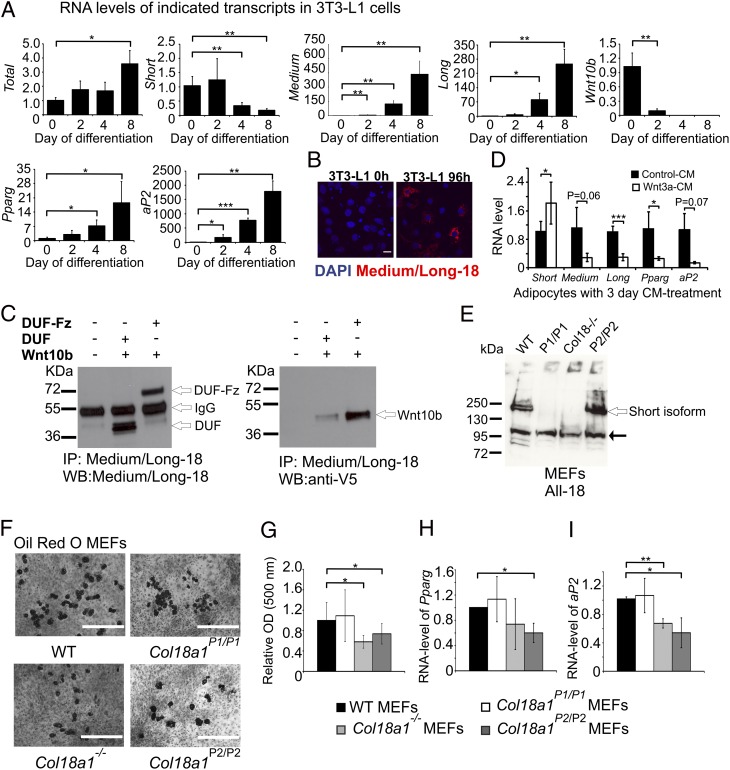

Fig. 3.

Medium/long collagen XVIII isoforms promote an early stage of adipogenesis. (A) Postconfluent 3T3-L1 cells (assigned day 0) were induced to differentiate as described in Methods. Transcripts were quantified by RT-qPCR. Values (mean ± SD), normalized to 18s rRNA and relative to 0 h, are from two independent experiments performed in duplicate. (B) Confocal images of 3T3-L1 cells stained with the anti–medium/long-18 antibody (red). Nuclei counterstained with DAPI (blue). (Scale bar, 100 µm.) (C) HEK293 cells expressing the N termini of either medium (lane 2) or long (lane 3) collagen XVIII (Fig. 1A) and Wnt10b-V5 were harvested by scraping into native lysis buffer. Immunoprecipitation (IP) and Western blot (WB) analysis were performed with specified antibodies. (D) 3T3-L1 cells were induced to differentiate, and at day 10 of differentiation the cells were treated for 3 d with either 10% (vol/vol) Wnt3a-CM, to induce dedifferentiation, or 10% (vol/vol) Ctrl-CM. Transcript levels were quantified by RT-qPCR. (E) Western blot of MEFs homogenates from WT and mutant mice. Note, P1-derived Col18a1 gene-product is the predominate isoform in undifferentiated MEFs. Black arrow indicates a nonspecific immunoreactive product. (F) Oil-red O staining of representative cultures of MEFs incubated with adipocyte differentiation media for 8 d. (Scale bars, 400 µm.) (G) Histograms show Oil-red O content of differentiated MEF cultures (two to four embryos per genotype). Values (mean ± SD) expressed relative to WT are from three independent experiments. (H and I) Pparg and aP2 RNA levels were quantified by RT-qPCR. MEFs were incubated with adipocyte differentiation media for 8 d. Values (mean ± SD) normalized to 18s rRNA and relative to WT are from two (Col18a1^−/−) or three (all other lines) independent experiments. *P < 0.05, **P < 0.01, ***P < 0.001.

To determine if medium/long collagen XVIII sequences might also contribute to adipocyte dedifferentiation, we incubated differentiated 3T3-L1 cells in Wnt3a-conditioned medium (CM). This process produced the expected signs of dedifferentiation, such as a marked decrease in the number and size of lipid droplets (not shown) and reduced levels of PPARγ and aP2 RNA (Fig. 3D). The levels of medium and long Col18a1 RNA fell, but P1-derived Col18a1 RNA rose (Fig. 3D). Thus, these results, and the finding that the Fz-sequences of collagen XVIII (Fig. 1A) sequester Wnt3a (18, 31), suggest that P2-derived gene-products may inhibit rather than support adipocyte dedifferentiation.

To substantiate the in vivo (Fig. 2A and Table S2) and in vitro (Fig. 3 A–D) data that lack of medium/long collagen XVIII would reduce the number of precursor cells attaining or maintaining a fully differentiated adipogenic state, we cultured murine embryonic fibroblasts (MEF) from the WT and mutant animals. Before addition of the adipogenic stimuli, collagen XVIII was detectable only in WT and P2-null MEFs (Fig. 3E), indicating that short collagen XVIII is the major species produced in this undifferentiated cell type, similar to 3T3-L1 cells (Fig. 3A and Fig. S7). RT-qPCR showed that 8 d after induction, P2-derived transcripts were 2.8- (medium) and 3.1- (long) fold higher in WT cultures, compared with 1.6-fold for P1-RNA (data from two independent experiments). As judged by cell morphology and Oil-red O staining, MEF cultures contained heterogeneous populations of cells, with the numbers of fully differentiated adipocytes varying from experiment to experiment.

Cultured P1-null MEFs contained Oil-red O-stained cells at a level comparable to WT cultures, when challenged by an adipogenic differentiation cocktail (Fig. 3 F and G). In comparison, in each of three independent experiments, fewer Col18a1^−/− and P2-null MEFs attained/maintained the characteristics of mature adipocytes (Fig. 3F), and mean levels of Oil-red O staining (Fig. 3G), Pparγ (Fig. 3H), and aP2 (Fig. 3I) RNAs were all reduced. Thus, these data (Fig. 3 E–I) and previous work (18, 25) suggest that the reduced adiposities of P2-null and Col18a1^−/− mice (Fig. 1C and Table S2) stem, at least in part, from fewer precursor cells attaining/maintaining a fully differentiated adipogenic state, and that collagen XVIII–DUF/Fz sequences inhibit Wnt-signaling in pre- and mature adipocytes.

Reciprocal Relationship Between P1- and P2-Col18a1 Transcripts in Abdominal Visceral Fat.

We also compared P1- and P2-derived COL18A1 transcript levels in visceral and subcutaneous fat using WAT samples from 102 participants undergoing Roux-en-Y gastric bypass surgery (32). Total COL18A1 RNA was comparable in these two depots (Fig. S8). However, relative to subcutaneous fat, visceral fat contained proportionally more P2-derived species and fewer P1-transcripts (Fig. S8) (all P < 0.001 for differences from subcutaneous fat). Moreover, whereas P1-derived COL18A1 RNA levels in subcutaneous and visceral fat samples displayed no correlation with serum free fatty acid levels, the levels of P2-derived RNA in visceral fat samples did (Spearman correlation, P < 0.01).

Medium/Long Collagen XVIII Isoform Line Liver Sinusoids and Bind ApoE.

Because free fatty acids released from abdominal visceral fat directly accesses the liver via the portal vein, and mice lacking medium/long collagen XVIII develop a liver phenotype (Fig. 1 C and E and Fig. S4), we examined the microanatomy of this organ in more detail. Hepatocytes from Col18a1^−/− and P2-null mice tended to contain more lipid and apoE than WT and P1-null samples (Fig. 4A and Fig. S9), indicating that loss of medium/long collagen XVIII did not impair hepatic free fatty acid uptake or apoE-mediated internalization of chylomicron and VLDL remnants (33, 34). The anti–all-18 antibody produced comparable staining signals in WT and P1-null mice livers, but only stained the portal regions of P2-null mice livers (Fig. 4B). Thus, these analyses, plus the RNA data (Fig. 1F), indicate that medium collagen XVIII is the most abundant isoform in hepatic sinusoids. Moreover, in P2-null mice there is minimal, if any, compensatory rise in production of the short isoform (Fig. S2).

Fig. 4.

Hepatic lipid accumulation in mice lacking collagen XVIII in the Space of Disse. (A) Livers were excised from 12-wk-old mice after 5 wk on a Western diet and stained with Oil-red O. Representative samples from WT and mutant mice. (Scale bars, 100 µm.) (B) Collagen XVIII staining of the portal regions and sinusoidal spaces lining hepatocytes of WT and Col18a1^P1/P1 mice livers. Staining is restricted to portal region of Col18a1^P2/P2 livers. (Scale bar, 100 µm.) (C) Immunoelectron microscopy analyses of WT sample with the anti–medium/long-18 antibody localizes medium/long collagen XVIII to the Space of Disse. H, hepatocyte; D, Space of Disse; E, endothelial cell; arrowhead, immunogold particle. (Scale bar, 1 µm.) (D) Enzymatic digestion of WT mouse liver homogenate. Lane 1, undigested. Heparitinase I (HepI) (lane 2) and chondroitinase ABC (Chond) (lane 3) digested. Product sizes are not directly comparable to those in eWAT (Fig. 2C) because of tissue-specific differences in isoform expression and conditions of the SDS/PAGE analysis.

Immunoelectron microscopy studies using the anti–medium/long-18 antibody identified immunoreactive products in the Space of Disse, evenly distributed between hepatocytes and endothelial cells (Fig. 4C), indicating that medium/long collagen XVIII contributes to the discontinuous BM of the subendothelial space. Western blot analysis detected a smear of high molecular-weight immunoreactive products, which disappeared on incubation with heparitinase I but not chondroitinase ABC (Fig. 4D). Thus, these data indicate that sinusoidal collagen XVIII contains HS side-chains.

Immunofluorescent staining of WT liver revealed possible colocalization of sinusoidal medium/long collagen XVIII with apoE (Fig. 5 A–C). The anti–medium/long-18 antibody pulled down an immunoreactive product of the expected size of apoE (34 kDa) from WT but not Col18a1^P2/P2 homogenates (Fig. 5D), and in an ELISA, recombinant DUF-Fz-thrombospondin 1 (Tsp1) collagen XVIII sequences (Figs. 1A and 5E) bound apoE in a concentration and HS-dependent manner (Fig. 5F). Thus, collectively these data suggest that the binding between medium/long collagen XVIII and apoE within hepatic sinusoids is mediated through HS-modified, N-terminal NC sequences. Additionally, the loss of this interaction in Col18a1^−/− and P2-null mice may contribute to their observed liver phenotypes (Figs. 1 C and E and 4A).

Fig. 5.

Hepatic collagen XVIII interacts with ApoE. (A–C) Immunofluorescence was performed on livers from WT mice with specified antibodies. Colocalization is indicated by the overlay (yellow color). (Scale bars 20 µm.) (D) Col18a1^P2/P2 and WT liver homogenates were incubated with the anti–medium/long-18 antibody. Western blot of immunoprecipitated products (IP) using an anti-apoE antibody. (E) Recombinant DUF-Fz-Tsp1 (Fig. 1A) purified from HEK293 cell media. Lane 1, digested with heparitinase I. Lane 2, undigested. (F) Binding of recombinant DUF-Fz-Tsp1 to immobilized apoE3 was quantified using anti–medium/long-18 and HRP-conjugated secondary antibodies. Data are from a representative experiment.

Col18a1^P2/P2, but Not Col18a1^P1/P1, Mice Develop Metabolic Abnormalities.

The reduced adiposities and liver phenotypes of P2-null and Col18a1^−/− mice (Figs. 1 C and E, 4A, and 5D) obliged us to undertake lipid and lipoprotein analyses. Col18a1^P1/P1 mice had a comparable blood lipid profile to WT animals (Fig. 6 A and B and Fig. S10 A and B), whereas P2-null mice had ∼70% higher serum triglyceride levels (Fig. 6A, Fig. S10A, and Table S3). Cholesterol levels were not increased (Fig. 6B, Fig. S10B, and Table S3). On standard chow, Col18a1^−/− mice had less marked hypertriglyceridemia than P2-null mice (Fig. 6A) and no triglyceride phenotype on a Western diet (Fig. S10).

Fig. 6.

Mice deficient for medium/long collagen XVIII have abnormal lipid and lipoprotein profiles. (A and B) Data are from ∼8-wk-old male mice reared on standard chow. Fasting serum triglyceride (Trigly) (A) and cholesterol (Chol) (B) in WT (n = 18), Col18a1^−/− (n = 10), Col18a1^P1/P1 (n = 7), and Col18a1^P2/P2 (n = 5) mice. (C and D) Lipoproteins in pooled serum from the specified mice were analyzed by FPLC gel-filtration, and the amounts of Trigly (C) and Chol (D) in each fraction determined. *P < 0.05, ***P < 0.001.

The hypertriglyceridemia of the P2-null mice was paired with increased VLDL triglyceride levels (Fig. 6C and Fig. S10). However, this finding was not attributable to reduced lipoprotein lipase activity in postheparinized plasma: activity levels in male P2-null and WT samples of free fatty acid were 17.6 ± 3.6 and 15.6 ± 2.4 µmol⋅mL⋅h, respectively; and in female mice the corresponding values for free fatty acid were 18.0 ± 3.7 and 14.7 ± 2.5 µmol⋅mL⋅h. Activity levels of hepatic lipase, a facilitator of hepatic uptake of high-density lipoprotein (HDL), and of chylomicron and VLDL remnants (35–37), were also not reduced: values of free fatty acid in male P2-null and WT mice were 11.9 ± 2.0 and 10.6 ± 1.6 µmol⋅mL⋅h, respectively, and the free fatty acid in the females was 10.7 ± 2.7 and 11.7 ± 1.6 µmol⋅mL⋅h (both not significant).

The increased VLDL-triglyceride levels in the P2-null mice could also not be ascribed to increased activity levels of phospholipid transfer protein (PLTP), known to increase VLDL secretion and the production of less-dense HDL particles (38, 39). PLTP activities in male P2-null and WT mice were 13,019 ± 1,190 and 16,212 ± 799 nmol⋅mL⋅h (P < 0.01 for difference), respectively. Similarly, female P2-null mice had lower, rather than increased, PLTP activity (10,523 ± 1,534 vs. 16,137 ± 3,000 nmol⋅mL⋅h in WT mice, P < 0.01 for difference). Thus, collectively our data suggest that the hypertriglyceridemia of Col18a1^−/− and P2-null mice develops because of an imbalance between adipocyte differentiation and dedifferentiation (Fig. 3).

Discussion

The morphological and functional maturation of WAT is a complex process. First, mesenchymal cell precursors commit to becoming preadipocytes, which may then differentiate into fat-laden adipocytes (40). Second, adipocytes may dedifferentiate, thereby regaining their proliferative capacity (25). Herein, we demonstrate that the eWAT of mice genetically engineered to lack collagen XVIII–DUF/Fz sequences contained a larger reservoir of a cell population enriched in early adipocyte progenitors, and that MEFs from these animals have reduced adipogenic capacity, as judged by fewer cells attaining/maintaining a fully differentiated state upon culture in an adipogenic mixture. We also found that medium/long collagen XVIII expression markedly rises during the differentiation of 3T3-L1 preadipocytes to mature adipocytes (Fig. 3 A and B and Fig. S7), and that these increases coincide with a dramatic fall in P1 RNA (short isoform) (Fig. 3A and Fig. S7). Conversely, inducing Wnt3a-mediated dedifferentiation of mature 3T3-L1 adipocytes produced marked falls in medium and long Col118a1 RNA, and a rise in short transcript levels. Mirroring previous Wnt3a data (18, 31), we also show that collagen XVIII–DUF/Fz sequences bind the potent adipogenic inhibitor, Wnt10b in vitro. Taken together, our results indicate that collagen XVIII’s DUF/Fz sequences support the differentiation of adipogenic progenitors, as well as the maintenance of the differentiated state. Furthermore, an imbalance between adipocyte differentiation and dedifferentiation helps explain the liver and lipid abnormalities that ensue in mice lacking these sequences.

The proposition that collagen XVIII–DUF/Fz sequences support preadipocyte differentiation fits well with the recent findings of Park et al. (24). In essence, the authors established that 3T3-L1 preadipocytes irreversibly commit to an adipocyte fate early on in the differentiation process, coincident with attainment of a high PPARγ state and well before cytologically evident fat accumulation. Furthermore, the control of this switch (commitment) is under mixed regulation (which can include glucocorticoids and cAMP stimuli), with only minor contribution from insulin. In contrast, following commitment, insulin-signaling dominates and tightly regulates the individual cellular accumulation of fat. Here, we confirmed that glucocorticoid induction of 3T3-L1 preadipocytes increased Pparγ and produced the expected drop in Wnt10b RNA (41), and moreover showed that the timings of the dramatic rises in P2-derived Col18a1 transcript levels (and precipitous fall of P1-derived RNA) mirrored those of Pparγ (Fig. 3A), consistent with the notion that it is only the medium/long collagen XVIII isoforms, and not the short form, that positively contribute to the mix of regulatory factors controlling recruitment of 3T3-L1 cells to an adipogenic differentiation program. We also found that despite their reduced adiposities (Fig. 1 C and E and Fig. S4), adult P2-null mice (who do not produce collagen XVIII–DUF/Fz sequences) had comparable sized adipocytes to equivalently fed WT mice (Fig. 2 E and F and Fig. S5), again indicating that individually committed Col18a1^P2/P2 preadipocytes had the same capacity to accumulate lipid as committed WT and P1-null preadipocytes and that the attainment of this committed state is aided by medium/long collagen XVIII species.

Previous studies have made good progress in documenting the changes in Wnt expression that accompany adipogenesis (27, 41), and their mechanisms of signaling through cell-surface Fz receptors (42). For example, it has been shown that Wnt10b—but not Wnt3a—RNA is present at a relatively high level in human mesenchymal precursor cells (27) and preadipocytes (41), and that Wnt10b RNA levels fall quite dramatically in these cell types following addition of adipocytogenic mixtures (43). Conversely, enforced Wnt10b expression in ST2 marrow-derived stromal cells (44) and 3T3-L1 preadipocytes suppresses adipocyte differentiation and lowers Pparγ RNA, even before adipogenesis is induced (41, 43). Moreover, high-level Wnt10b expression in transgenic mice reduces both Pparγ expression and WAT development but not adipocyte size (45). It has also been shown that Wnt10b inhibits preadipocyte differentiation via activation of Fz receptors 1 and 2 (42), and that collagen XVIII-derived Fz sequences suppress Wnt3a-activated signaling through its extracellular decoy receptor activity (18, 31). Here we show that any sequestering of Wnt10b and of other secreted Wnt inhibitors of adipogenesis (41) by this decoy receptor is likely to be minimal in 3T3-L1 preadipocytes and undifferentiated MEFs because of their inherently low level of long collagen XVIII expression (Fig. 3 A, B, and E and Fig. S7), and also note that sequestering of these inhibitors via collagen XVIII-generated DUF/Fz sequences cannot occur in P2-null mice. Importantly, we further show that a significant lowering of P2 (P1 increased) -derived Col18a1 gene-products forms part of a regulatory system mediating Wnt3a-induced dedifferentiation of adipocytes (Fig. 3D), reinforcing the notion that reduced sequestration of Wnt3a and other Wnt molecules via collagen XVIII’s DUF/Fz decoy activity could serve to maintain/restore an undifferentiated state, all other factors being equal. In this regard, we recognize that these decoy sequences do not contain a HS attachment site (Fig. 1A) and, as such, that the reduced adiposity of P2-null animals is unlikely to be directly attributable to the loss of collagen XVIII-mediated HS signaling activities, especially as P2-derived Col18a1 gene-products make very modest contributions to the extracellular collagen XVIII contents of undifferentiated MEFs (Fig. 3E) and preadipocytes.

The observation that eWAT of 22- to 26-d-old male P2-null mice tended to have a larger reservoir of a cell population enriched in early adipocyte progenitors than Col18a1^−/− mice (Fig. 2A) fits well with our data, which strongly indicate that P1- and P2-derived Col18a1 gene products play reciprocal roles in the processes controlling the commitment of undifferentiated cells to an adipogenic state (Fig. 3 A, B, and F), and of the subsequent processes maintaining the differentiated state (Fig. 3D). Specifically, the data suggest a model whereby the selective absence of medium/long collagen XVIII species (i.e., as occurs in P2-null mice) creates a cellular environment more conducive to progenitor cell proliferation than differentiation, whereas total absence of collagen XVIII produces two opposing environments: one that is conductive for early adipocyte progenitor differentiation (rather than proliferation) because of lack of short collagen XVIII expression, and one that helps maintain the undifferentiated state because of the absence of medium/long collagen XVIII species.

With respect to the counterintuitive finding that only P2-null mice had higher serum triglyceride levels than WT on a high-fat diet (Fig. S10), we note that the liver weights of the P2-null mice (as a percentage of their BW) tended to be lower than those of equivalently aged (i.e., 12 wk) and fed Col18a1^−/− mice (Fig. 1E), whereas ∼8-wk-old P2-null mice fed standard chow tended to have slightly higher, rather than lower, liver weights than Col18a1^−/− animals (Fig. S4B). Hence, it is tempting to speculate that the more pronounced increase in the liver weights of the high-fat diet fed Col18a1^−/− mice (versus P2-null) (Fig. 1E) may be ascribed, at least in part, to increased uptake of apoE-containing lipoproteins, such as VLDL (Fig. S9), especially as the livers of these mice contained more lipid than WT mice (Fig. 4A), and this was paired with normalization of their serum triglyceride levels (Fig. S10) plus continued reduced adiposity (Fig. 1E). The implication, which seems entirely consistent with studies on apoE-lipoprotein clearance in liver (33, 34) and this study’s observation that N-terminal HS-modified collagen XVIII species interact with apoE (Fig. 5F), is that collagen XVIII serves to delay the clearance of triglyceride-rich lipoproteins by binding/sequestering apoE, and therefore total ablation of collagen XVIII in the liver sinusoidal space is more consequential than the lack of only the medium/long isoforms, particularly in the setting of a primary defect in adipogenesis.

Results from a recent microarray study (46) add further credence to the proposition that sinusoidal collagen XVIII contributes to hepatic triglyceride homeostasis. In short, it turns out that hepatic XBP1 ablation lowered serum triglyceride levels and that this was attributable to activation of a feedback mechanism that lowered not only Dgat2 (triglyceride synthesis) and Angplt3 (LPL inhibitor) mRNA levels, but also Col18a1 transcripts. Thus, combining these data with the results of the present study suggest that restoring the deposition of collagen XVIII in the sinusoidal area of P2-null mouse livers would very likely reduce their susceptibility to steatosis (and potentially lipotoxicity), albeit at the expense of exacerbating their hypertriglyceridemia.

What of the clinical relevance? Tantalizingly, while this paper was in preparation, Peloso et al. (47) reported that the low-frequency COL18A1 c.331G > A variant (predicted to encode p.Gly111Arg) (Fig. 1A, present in medium/long isoform) has a large effect of serum triglyceride levels (−16%; P = 2 ×10⁻¹⁶) and a marginal impact on HDL-C (2 mg/dL; P = 4 × 10⁻⁴). Complementing these results, human genetic linkage studies have returned robust statistical evidence of linkage between the chromosome 21 interval housing COL18A1 and the Familial Combined Hyperlipidemia-Triglyceride trait (Fig. S11), and raised serum triglyceride and LDL-C in hypertensive pedigrees (48). Here, we have shown that P2-COL18A1 transcript levels in visceral but not subcutaneous fat are positively correlated with serum free fatty acid concentrations (Fig. S8), and note that fatty acid uptake is ∼30% higher in visceral (on a gram to gram basis) than subcutaneous fat (49). We also found proportionally more P2-derived COL18A1 RNAs and fewer P1-transcripts in visceral than subcutaneous fat of obese subjects, which—based on the results emanating from our P2-null mice studies—suggest that this fat depot contains more cells committing to adipogenesis and maintenance of the differentiated state. Thus, although additional studies are required to establish whether the COL18A1 c.331G > A variant itself (or an allele in linkage disequilibrium) is responsible for the triglyceride-lowering effect, from the data presented herein it seems conceivable that COL18A1 variants having a major deleterious impact on collagen XVIII’s DUF/Fz sequences could cause atherogenic dyslipidemia and fatty liver, secondary to impaired adipogenesis. Furthermore, we note that factors regulating collagen XVIII expression may contribute to kidney health in later life by affecting the BM of proximal tubules (short isoform) and of glomerular podocyte foot processes (medium/long isoforms) (19). It may also be clinically relevant that short collagen XVIII is expressed widely in the BM of the retina, and that the retinal vessels of P1-, but not P2- mice develop the same vessel outgrowth abnormality seen in Col18a1^−/− mice (50).

Methods

Generation of P1- and P2-Null Mice.

All animal experiments were approved by the Laboratory Animal Centre of the University of Oulu, Oulu, Finland. To deplete P1 transcripts, a targeting construct with a LacZ-Neo cassette was inserted in-frame into Col18a1 exon 1. To deplete P2 transcripts, an HSV-tk-neo^r selection cassette flanked by LoxP sequences were introduced downstream of exon 3. SI Methods and Table S4, respectively, provide further details on the generation of the P1- and P2- null lines and the primer sequences. The creation of the Col18a1^−/− mouse line, which has been previously described (8), used a targeting vector (insertion site, exon 30) that interrupts all collagen XVIII variants (8). All mouse lines were bred into a C57BL/6JOlaHsd background (Harlan Laboratories) for at least seven generations and WT littermates were used as controls. All mice were maintained on a 12-h light/12-h dark cycle and fed ad libitum with standard chow [5% (wt/wt) fat] or a Western diet [0.2% cholesterol and 21% (wt/wt) fat].

Human Studies.

Subcutaneous and visceral adipose tissue biopsies were collected from 102 morbidly obese participants of the ongoing Kuopio Obesity Surgery Study (32) undergoing Roux-en-Y gastric bypass surgery at Kuopio University Hospital (>90% participated). Clinical parameters including serum free fatty acid levels were assessed before the surgery. The study protocol was approved by the Ethics Committee of Northern Savo Hospital District and carried out in accordance with the Helsinki Declaration. Informed written consent was obtained from all participants.

RT-qPCR.

RNA from snap-frozen mouse tissues, 3T3-L1 cells, or MEFs were isolated with Qiagen kits (QIAzol and RNeasy mini). cDNA was produced with the iScript cDNA synthesis kit (Bio-Rad). RT-qPCR was performed with iTaq SYBR Green Supermix with ROX reagents (Bio-Rad). All assays were performed in duplicate using a MX3005P QPCR system (Stratagene). Relative RNA levels were calculated by the 2^ΔΔCt method (51). Values were normalized to β-actin or 18s rRNA. RNA from snap-frozen human subcutaneous and visceral adipose tissue biopsies was isolated and analyzed, as previously described (32). Tables S5 and S6 provide primer sequences.

Immunofluorescent Staining.

Snap-frozen tissues were embedded in Tissue-Tek OCT Compound (Sakura Finetechnical). Cryosections (5 μm, kidney and liver, 10 μm, eWAT) were fixed in acetone and blocked with 1% BSA-PBS for 1 h at room temperature. Cells grown on cover-slips were fixed in 4% (wt/vol) paraformaldehyde–PBS and blocked for 1 h with 5% (vol/vol) normal goat serum-0.3% TritonX-100-PBS at room temperature. Sections were incubated for 24 h at 4 °C with the mouse anti–all-, anti–medium/long-18 (Fig. 1) (21), anti-mouse CD31 (BD Biosciences), or apoE antibodies (Santa Cruz Biotechnology), and then Cy3- or Alexa 488-conjugated secondary antibodies (Jackson ImmunoResearch Laboratories). Cell nuclei were visualized with 4′,6′-diamino-2-phenylindole hydrochloride (DAPI) (Sigma-Aldrich). Images were captured with an Olympus IX81 laser confocal microscope.

FACS and Morphometric Analysis of Adipose Tissue.

eWAT was excised and analyzed as described previously (21, 52), with minor modifications. Tissues were minced in PBS and digested with collagenase (Worthington Biochemical Corporation) (1 mL/g of homogenized tissue) at 37 °C for 2 h. Cells were collected by centrifugation at 200 × g for 10 min, and the floating adipocyte layer and supernatant discarded. Red blood cells were lysed with PharmLyse buffer (BD Biosciences), washed in DMEM/F12, recollected by centrifugation, and resuspended in PBS supplemented with 4% (vol/vol) FBS. The remaining stromovascular cells were passed through a 40-um cell strainer. For FACS, cells were incubated for 10 min with saturating concentrations of anti-mouse CD16/CD32 (Mouse Fc block, BD Biosciences) at room temperature, washed twice in PBS + 4% (vol/vol) FBS, and then incubated for 1 h at 4 °C with a mix of the following antibodies (BD Biosciences): APC Mouse lineage antibody mixture, PE-CD24, PE-Cy5-CD29, FITC-CD34, and Pe-Cy7-Ly-6A/E (Sca-1). Samples were acquired on a BD Biosciences FACSCalibur cytometer and CellQuest software. Analysis was performed with FlowJo software (Tree Star). For morphometric analysis, eWAT was fixed in 4% (wt/vol) paraformaldehyde–PBS for 24 h and embedded in paraffin. Deparaffinized sections (5 µm) were stained with H&E. Adipocyte size was determined using a Leica Microsystems microscope and ImageJ software (National Institutes of Health).

Western Blotting of eWAT and Liver Samples.

Tissues were snap-frozen in liquid nitrogen, homogenized in PBS, and solubilized in 4× sample buffer [250 mM Tris⋅HCl, pH 6.8, 2 M urea, 8% (wt/vol) SDS, 0.01% bromophenol blue, 40% (wt/vol) glycerol, 4% (vol/vol) β-mercaptoethanol]. Samples were size-fractionated in denaturing SDS/PAGE followed by Western blotting for anti-medium/long antibody. Secondary antibodies were horseradish peroxidase-conjugated (Jackson ImmunoResearch Laboratories); detection was with Chemiluminescent Western blotting substrate (Amersham). Heparitinase I and chondroitinase ABC digestions were performed with 15-μL tissue homogenate (0.67mg of tissue per microliter of PBS) combined with 15 μL of 100 mM Tris-120 mM sodium acetate, pH 8.0, and 20 mU chondroitinase ABC (Sigma) or 15 μL PBS-3 mM CaCl₂, pH 7.0, and 5 mU heparitinase I (Seikagaku).

Differentiation of 3T3-L1 Cells and MEFs.

The 3T3-L1 preadipocytes (ATCC-CL-173) were maintained in DMEM supplemented with 10% (vol/vol) BCS (ATCC). For differentiation, cells were grown to 2-d postconfluence and induced with a 3T3-L1 Adipocyte kit (Zen-Bio). Primary MEFs were isolated from mouse embryos at 13.5–15.5 d postcoitum; all experiments were performed with passage 2 or 3 cells. For differentiation, MEFs were split into six-well plates and cultured to confluence. Two days postconfluence, cell media were supplemented with 0.5 mM 3-Isobutyl-1-methylxanthine (Sigma-Aldrich), 1 µM dexamethasone, and 1 µg/mL insulin (Sigma-Aldrich) for 2 d, then 1 µg/mL insulin for 6 d. For Western blotting, cells were harvested in 1× native lysis buffer (Cell Signaling Technology). Oil-red O staining was performed with six parts 0.6% dye in isopropanol (Sigma-Aldrich) and four parts H₂O for 10 min. Excess stain was removed with H₂O. Retained Oil-red O was extracted with 100% isopropanol and quantified on a spectrophotometer at 500 nm.

Wnt3a-CM.

Control (CRL-2648) and Wnt3a-expressing (CRL-2647) mouse L cells (ATCC) were cultured as described (25), and the resulting CM added to 3T3-L1 cells (10 d after initiation of differentiation) to a concentration of 10% (vol/vol).

Production and Purification of Recombinant Collagen XVIII Polypeptides.

Col18a1 cDNAs encoding the entire N-terminal NC domain of long collagen XVIII with (DUF-Fz-Tsp1) and without the Tsp1 region (DUF-Fz), plus the DUF domain alone, were adjoined to a C-terminal histidine tag and cloned into pcDNA3.1(+) (Invitrogen). Primers are described in Table S7. The constructs were transfected with FuGENE 6 Transfection Reagent (Roche) into HEK293 cells and stable cell lines generated. Recombinant proteins were purified from the cell media by metal ion affinity chromatography (ProBond Purification System; Invitrogen), and dialyzed against 1× PBS, pH 7.0. When indicated, purified DUF-Fz-Tsp1 (7.5 µg) was digested with 0.33 mU heparitinase I/µg of protein units (Seikagaku) at 37 °C for 2 h.

Wnt10b Coimmunoprecipitation.

Murine Wnt10b cDNA was inserted into pcDNA3.1/V5-HIS (Invitrogen) and transfected into specified HEK293 cell lines. Primers are described in Table S7. Cells were harvested in native lysis buffer (Cell Signaling Technology), and incubated with the anti-medium/long antibody bound to sheep anti-rabbit magnetic beads (Dynal) in PBS, pH 7.4. Washing was performed with PBS, pH7.4, containing 1% Triton X-100 and 0.1% SDS. Immunoprecipitates were eluted in 4× sample buffer and Western blot analysis performed with an anti-V5 antibody (Invitrogen).

Analyses of Liver Sections.

For Oil-red O staining (0.3%), samples were snap-frozen and embedded in Tissue-Tek OCT Compound (Sakura Finetechnical). Cryosections were fixed in 10% (wt/vol) neutral-buffered formalin. Nuclei were stained with hematoxylin. For immunoelectron microscopy, liver pieces were fixed in 4% (wt/vol) paraformaldehyde in 0.1 M phosphate buffer, pH 7.4, containing 2.5% (wt/vol) sucrose for 2 h and then immersed in 2.3 M sucrose. Cryosections (60–70 nm) were incubated in 0.05 mM glycine in PBS, followed by incubation in 5% (wt/vol) BSA and 0.1% gelatin (Aurion) in PBS and exposed to the anti–medium/long-18 antibody and protein A-gold (10 nm) conjugates, both diluted in PBS containing 0.1% BSA-C. Controls were incubated with no primary antibody. Cryosections were embedded in methylcellulose and examined with a Tecnai Spirit microscope.

ApoE Binding Studies.

Anti–medium/long-18 antibodies were bound to sheep anti-rabbit beads (Dynal) and incubated with 80 μL liver homogenate (1 g tissue per milliliter PBS). Captured proteins were resuspended in 20 μL of 4× sample buffer and size-fractionated in 6% (wt/vol) SDS/PAGE and Western blotted with an anti-mouse apoE antibody (Santa Cruz Biotechnology). In a solid-phase binding assay, ApoE3 (Invitrogen; 5 µg/mL in 100 µL PBS, pH7.4, per well) was immobilized in 96-well microtiter plates (Maxisorp; Nalgene Nunc) by an overnight 4 °C incubation. Wells were washed twice with 1× PBS, pH 7.4, 0.05% Tween 20 (PBST). Blocking was performed with 5% (wt/vol) nonfat milk for 1.5 h at room temperature. Specified amounts of purified DUF-Fz-Tsp1 and heparitinase-treated DUF-Fz-Tsp1 (diluted in PBS) were added to wells and incubated for 2.5 h at 37 °C. Incubations with the anti–medium/long-18 [1 µg/mL in 5% (wt/vol) nonfat milk] and secondary [HRP-conjugated goat anti-rabbit IgG, 1:5,000 in 5% (wt/vol) nonfat milk] antibodies were each for 1 h at room temperature. The 3,3′,5,5′-tetramethylbenzidine substrate reaction was terminated after 13 min with 0.2 M H₂SO₄. Absorbance was measured with a plate reader (Victor; PerkinElmer).

Lipid, Lipoprotein, and Activity Assays.

Blood samples were collected by cardiac puncture after fasting for >3 h. Serum total cholesterol, free cholesterol, phospholipids, and triglycerides were measured by enzymatic colorimetry (53). Esterified cholesterol was calculated as total cholesterol minus free cholesterol. HDL-C was estimated after heparin-MnCl₂ precipitation of apoB-containing lipoproteins (53). FPLC-lipoprotein profiles were analyzed from pooled serum samples after gel-filtration separation of 100 µL of serum on a superose-6 column (Amersham Biosciences) in PBS-0.5 mM EDTA. For cholesterol and triglyceride determinations, 0.5-mL fractions were collected and concentrated to dryness. Heparin (0.1 U/g; Sigma) was injected into tail veins of 2-mo-old mice, and blood samples collected by cardiac puncture after 15 min. LPL, HL, and PLTP assays were performed as previously described (54, 55).

Statistical Analysis.

Results are presented as mean ± SD. Differences between two groups (each mutant line compared with WT) were tested for statistical significance with a two-tailed Student t test. P values less than 0.05 were considered significant. *P < 0.05, **P < 0.01, ***P < 0.001.
