Discovery of Spiro[cyclohexane-dihydropyrano[3,4-b]indole]-amines as Potent NOP and Opioid Receptor Agonists

Abstract

We report the discovery of spiro[cyclohexane-pyrano[3,4-b]indole]-amines, as functional nociceptin/orphanin FQ peptide (NOP) and opioid receptor agonists with strong efficacy in preclinical models of acute and neuropathic pain. Utilizing 4-(dimethylamino)-4-phenylcyclo-hexanone 1 and tryptophol in an oxa-Pictet–Spengler reaction led to the formation of spiroether 2, representing a novel NOP and opioid peptide receptor agonistic chemotype. This finding initially stems from the systematic derivatization of 1, which resulted in alcohols 3–5, ethers 6 and 7, amines 8–10, 22–24, and 26–28, amides 11 and 25, and urea 12, many with low nanomolar binding affinities at the NOP and mu opioid peptide (MOP) receptors.

For decades, opioid peptide receptors have been targeted for the treatment of pain, and the present day opioids remain the most effective clinically used drugs for the treatment of moderate to severe acute and chronic pain. However, opioids also carry the risk of severe side effects such as respiratory depression, nausea, vomiting, and constipation, and their use may lead to physical dependence and tolerance.¹ The nociceptin receptor and its endogenous ligand nociceptin/orphanin FQ (N/OFQ), a 17-amino acid neuropeptide, have been described almost 20 years ago.^2,3 Because of its partial homology to the three opioid peptide receptor subtypes mu opioid peptide (MOP), kappa opioid peptide (KOP), and delta opioid peptide (DOP) and its insensitivity to opioid agonists (e.g., morphine) and antagonists (e.g., naloxone), the receptor was initially termed “opioid-receptor-like 1” (ORL 1). More recently, however, it was renamed after its endogenous ligand to nociceptin/orphanin FQ peptide (NOP) receptor. Despite its structural and functional homology to opioid receptors, the NOP receptor is not an opioid peptide receptor from a pharmacological perspective and, as such, is considered a nonopioid member of the opioid peptide receptor family.⁴

NOP and MOP receptor agonists modulate pain and nociception via distinct yet related targets. Addressing both mechanisms may constitute a novel approach for the development of innovative analgesics. Indeed, recent publications indicate that concurrent activation of NOP and MOP receptors may potentiate opiate analgesia and at the same time lead to an improved side effect profile.^5,6 We therefore aimed at identifying highly potent, small molecule NOP and MOP receptor agonists.

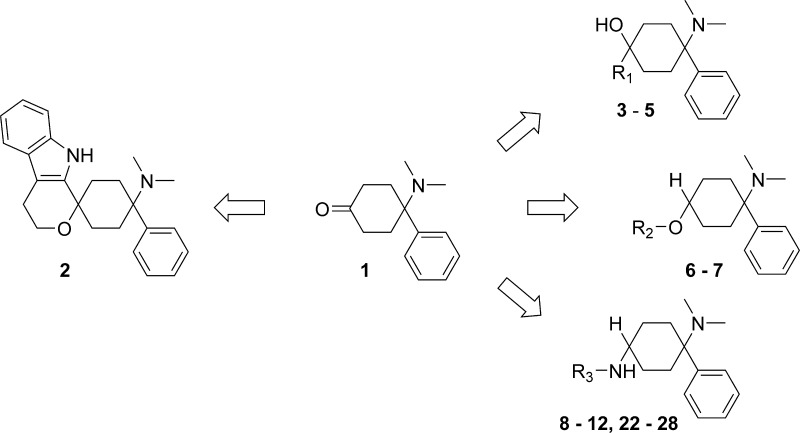

This endeavor started with a literature-to-lead approach based on cyclohexanone 1, which has previously been reported by Lednicer et al. as representing a novel class of analgesics.^7,8 As a starting point it was clear that, due to its size, compound 1 would lack key interactions within the binding pocket of both the NOP and MOP receptors and therefore would have only minimal receptor binding affinities (K_i(NOP) = 1.5 μM; K_i(MOP) = 1.7 μM). It was our strategy to utilize 1 as a core and its ketone moiety for functionalization. Thus, fixing the 4-N,N-dimethylamino-4-phenyl-cyclohexane head, we initiated a scouting exercise probing a range of simple aryl and more complex moieties.

The impact of the linking functionality and linker length on the NOP and MOP receptor binding affinities was to be investigated first. Alcohols 3a–5a, ethers 6a,b and 7a, amines 8a–10a, amide 11a, and urea 12a were scrutinized as linking moieties.

Essentially, all examples in this article are based on 4-dimethyl-4-phenyl-cyclohexanone 1 (Scheme 1), which was prepared from monoketal-protected 1,4-cyclohexanedione 13. Utilizing this in a Strecker synthesis gave aminonitrile 14, which, when employed in a Bruylants reaction, furnished the ketal-protected phenyl dimethylamino-cyclohexane 15. Ketal deprotection gave 1.

Scheme 1. Synthesis of Investigated Chemotypes.

Reagents and conditions: (a) (i) HNMe₂/H₂O, MeOH, HNMe₂·HCl, KCN, 67–99%; (b) (i) PhMgCl, THF, 0 °C to rt; (ii) NH₄Cl, H₂O, 0 °C to rt; (iii) HCl, Et₂O; (iv) 25% NH₃ aq. pH 8–9, 28–92%; (c) (i) HCl aq.; (ii) NaOH aq., 66–99%; (d) (i) RMgHal, THF; (ii) phosphate buffer, pH 7, 13–30%; (e) NaBH₄, ethanol, 0 °C, 98%; (f) (i) KOt-Bu, DMF; (ii) BnCl; (iii) H₂O, 0 °C; (iv) distillation, 77%; (g) (i) Ph(CH₂)₂I, AgOTf, anh MeCN, reflux; (ii) NaHCO₃, EtOAc, 12%; (h) R¹R²NH, NaBH(OAc)₃, DCE, THF, 7–45%; (j) H₂NOH·HCl, Amberlyst A 21, quantitative yield; (k) Devarda (Cu/Zn/Al) alloy, MeOH, 5 N NaOH, 97%; (l) RCOCl, Et₂O, (70–71%); (m) Ph(CH₂)₃NHCOOPh, 1,4-dioxane, reflux; 53%.

Tertiary alcohols 3–5 were obtained by addition of Grignard reagents to 1.⁹ Ethers 6 and 7 were obtained in a 5 step sequence starting from the monoketal-protected 1,4-diketone 13. Reduction of the ketone to the secondary alcohol 16 and subsequent alkylation gave ethers 17 and 18, which were deprotected, converted into dimethylamino-nitriles 19 and 20, and subjected to the Bruylants reaction to yield diastereomeric mixtures of ethers 6 and 7. Amines were prepared by reductive amination of cyclohexanone 1 with primary or secondary amines to yield cyclohexyl-1,4-diamines 8 to 10. Amides were prepared by reducing cyclohexanone oxime 21 to the corresponding primary amine 22, which was subsequently converted into amide 11a and urea 12a.

The tertiary alcohols 3a–5a allowed us to assess the impact of the spacer length, between the cyclohexyl core and the new aryl moiety, on the NOP and MOP receptor binding affinities. Phenyl and benzyl compounds 3a and 4a, representing a C₀ and C₁ carbon spacer, showed only moderate binding activities at the NOP receptor. Extending the carbon spacer by one further carbon atom (C₂ spacer), exemplified by phenethyl example 5a, resulted in single digit nanomolar potencies. Furthermore, crucially with 5a we had identified a compound that demonstrated equal binding affinities for the NOP and MOP receptors.

The potency shift induced by the extended spacer could be rationalized through docking studies. Compounds with a prolonged spacer are able to reach deeper into the lipophilic pocket of the binding site and form additional hydrophobic interactions with residues Ile127, Val126, and Trp116 (see Figure 1).

Figure 1.

Binding mode of 2a/10a in the NOP receptor.

Ether linkers were also well tolerated (6a and 7a) resulting in double digit nanomolar potencies for 6a. Interestingly, 6a and 7a were significantly more potent at the MOP receptor than at the NOP receptor, and the trans diastereomer 6a demonstrated superior potency on both receptors over the cis diastereomer 6b. Amine linkage was also well tolerated, as exemplified by examples 8a to 10a. The dibasic analogue 8a led to a leap in binding potency at the NOP receptor, as compared to ether 6a, being equipotent to the corresponding alcohol 5a.

One could presume that hydrogen bond donation enables an additional interaction with the receptor, especially since carboxamide 11a and urea 12a also showed single digit nanomolar potencies.

Docking studies strengthened this hypothesis revealing potential interactions with Tyr131 or Gln107 (see Figure 1). In analogy to the alcohol series, the binding potencies within the amine series increased with the spacer length as in 9a and 10a.

The incorporation of a simple aryl moiety has already resulted in a significant increase of the receptor binding potencies as compared to 1 (Table 1), which was in accordance with previous findings by Lednicer et al.¹¹ Key learnings, which were to be considered while further optimizing the compounds, were the beneficial impact of H-bond donors and the spacer length on the receptor binding affinities as well as the significant impact of the stereochemistry.

Table 1. Alcohol, Ether, and Amine Linkers.

				% inhibition @ 1 μM or Ki (nM)
compd	X	R	config	hNOPr	hMOPr
3a	Ph	OH	trans	205	44.5
4aa	PhCH2	OH	trans	1600	62.5%
5aa	Ph(CH2)2	OH	trans	4.4	1.9
6aa	PhCH2O	H	trans	78	12
6ba	PhCH2O	H	cis	290	830
7a	Ph(CH2)2O	H	transc	81.5%	98.5%
8ab	PhCH2NH	H	trans	10	3
9ab	Ph(CH2)2NH	H	trans	7.4	11
10ab	Ph(CH2)3NH	H	trans	0.5	22
11aa	PhCH2–C(=O)NH	H	transd	5.4	2.1
12aa	Ph(CH2)3–NHC(=O)NH	H	trans	1.9	0.7

^aHydrochloride.

^bDihydrochloride.

^cTrans/cis mixture (5:3).

^dTrans/cis mixture (2:1).

For most examples, both diastereomers were isolated from the mixture via column chromatography. Relative configuration of key compounds was assigned by 2D homonuclear NOESY NMR measurements.

In a second round we set out to apply our key learnings and explore our options to modify the phenyl moiety itself (see Table 2). Complete removal of the aryl residue, as exemplified in diamine 22, resulted only in weak activities at the NOP and especially MOP receptors. Nonaromatic replacements, exemplified by 1-piperidinyl 23 or 4-morpholinyl 24 again did not achieve the desired low nanomolar potencies. Moreover, potent NOP and MOP receptor binding only returned upon linking a long aliphatic side chain via an amide group 25.

Table 2. Amine and Amide Linked Examples.

				% inhibition @ 1 μM or Ki (nM)
compd	R1	R2	config	hNOPr	hMOPr
22a	H	H	trans	120	69%
23ba	–(CH2)5–		cis	110	56%
24ba	–CH2CH2OCH2CH2–		cis	810	40%
25aa	cyclopentyl(CH2)2C(=O)	H	trans	0.5	0.3
26a	1H-indol-3-yl-CH2	H	transc	5.4	6.4
27ab	1H-indol-3-yl-(CH2)2	H	trans	1.1	9.5
28ab	5-F-1H-indol-3-yl-(CH2)2	H	trans	0.4	9

^aHydrochloride.

^bDihydrochloride.

^cTrans/cis mixture (85:15).

Probing both the role of a lipophilic pendant and the potential for identifying further beneficial H-bond donor receptor interactions triggered the use of indoles and the synthesis of examples 26 to 28. The free NH indole derivative 26a exhibited good levels of potency at the NOP and MOP receptors (see Table 2). Increasing the spacer length from one carbon atom to two 27a gave an example with high binding affinities at the NOP and MOP receptors.

Following the observation from compound 27a that highly potent NOP receptor binding can be achieved, albeit at the loss of MOP receptor affinities, it was reasoned that it may be possible to regain MOP receptor potency through replacing the amino linker with the ether linkage as exemplified by hMOPr biased (×6.5) compound 6a. We therefore set out to synthesize compound 29 (Scheme 2).

Scheme 2. Spirocyclization of Tryptophol and Analogues with 1.

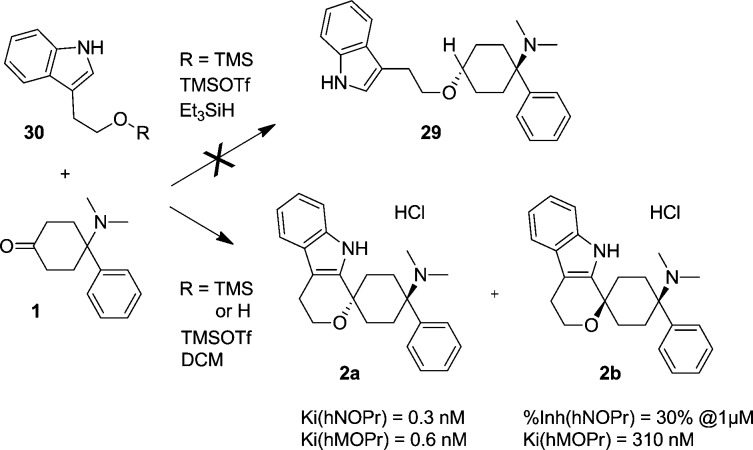

We envisioned a reductive etherification of ketone 1 with the trimethylsilyl ether of tryptophol 30 under TMSOTf catalysis.¹⁰ To our disappointment we did not obtain the desired product 21, but instead isolated spiroethers 2a and 2b. These products resulted from a cyclization that had been known for quite some time and has recently been coined oxa-Pictet–Spengler reaction.¹²

The trans diastereomer 2a hydrochloride exhibited very high binding affinities to the NOP as well as the MOP receptors K_i(hNOPr) = 0.3 nM (N = 4, SEM = 0.05 nM), K_i(hMOPr) = 0.6 nM (N = 2, SEM = 0.14 nM), while the cis-diastereomer 2b was significantly less active (%Inh.(hNOPr) = 30% @1 μM, K_i(hMOPr) = 310 nM). This observation is in line with the deterioration in binding affinity observed previously in the uncyclized series (6a vs 6b) and could be retrospectively explained by docking studies. More detailed characterization revealed that 2a hydrochloride had binding affinities of 4.9 nM (N = 3, SEM = 0.8 nM) and 2.3 nM (N = 3, SEM = 0.63 nM) at the hDOP and hKOP receptors.

Examples showed a stepwise binding affinity increase upon side chain prolongation. The binding mode of elongated compound 10a (green) is shown as compared to 2a (orange). It occupies the free space on the right side formed by trans membrane helixes 7 (hidden for clarity) and 1 and 2 (blue trans membrane helixes). The interactions within that pocket are determined by hydrophobic residues and additional cation–pi interactions between Arg302 and the phenyl ring.

To further rationalize our understanding of the structure–activity relationship (SAR), compounds 2a and 10a were docked into the recently published X-ray structure of the NOP receptor (PDB code 4EA3)^13,14 keeping side chains flexible (see Figure 1). In accordance to other aminergic G-protein coupled receptors the central Asp130 plays a major role in the interaction between ligand and receptor. The tertiary amine, which is protonated under physiological conditions, forms an ionic interaction with Asp130. In the case of the trans configured 2a, cis configuration of both nitrogens, the indole NH forms an additional hydrogen bond with Asp130. This reflects a bidentate, chelating binding mode. In contrast, the cis configured 2b, trans configuration of both nitrogens, does not allow for the additional hydrogen bond to Asp130, which results in a drop in binding affinity.¹⁵ Additionally the hydrophobic pocket in the binding site of the receptor is occupied by the phenyl moiety of 2a and 10a. The hydrophobic pocket formed by the transmembrane helices 4, 5, and 6 (red TMs) is shown on the left side of Figure 1. These two functional groups, a tertiary amine group and the phenyl group at a distinct spatial orientation, form the basic pharmacophore that is present in all examples. It was possible to derive residue ligand interactions from this exercise supporting the observed SAR, although the NOP receptor has been cocrystallized with the antagonist C-24 and the crystal structure therefore reflects the inactive form of the receptor.

The relative spiroether configuration was assigned by 2D NOESY measurements (see Supporting Information).

Uncyclized analogue 29 was finally obtained by building the indole in the last step of the sequence via a Larock cyclization,¹⁶ utilizing 2-iodoaniline and the corresponding triethylsilylalkyne (K_i(hNOPr) = 20 nM; K_i(hMOPr) = 2 nM).

Functional in vitro investigations of selected examples, using a GTPγS assay, on the NOP and MOP receptors revealed that not all compounds act as full agonists on both receptors (Table 3). Example 12a appeared to be a partial agonist at the NOP and MOP receptors, while compounds 27a and 2a displayed high levels of potency and full efficacy at both the NOP and MOP receptors.

Table 3. Functional Human NOP and MOP Receptor Efficacies.

compd	EC50hNOPr GTPγS (μM)	rel. eff.a hNOPr GTPγS	EC50hMOPr GTPγS (μM)	rel. eff.ahMOPr GTPγS
27ac	20	94%	51	104.5%
12ab	43	23%	12	70%
2ad	11	105%	1	107%

^aEfficacy of 100% is defined as maximum [³⁵S]GTPγS binding induced by stimulation with nociceptin (NOP receptor) and DAMGO (MOP receptor).

^bHydrochloride.

^cDihydrochloride.

^dCitrate.

More detailed in vitro characterization revealed that 2a had a very low potential for disturbing cardiac electrophysiology. By using whole-cell patch-clamp recordings¹⁷ in CHO cells stably transfected with the human ether-à-gogo related gene (hERG), it was demonstrated that up to 30 μM 2a inhibited the hERG channel by less than 30%. Furthermore, cardiac repolarization measured by conventional microelectrode techniques in isolated guinea-pig papillary muscle¹⁸ was only slightly prolonged. At 10 μM, the action potential duration at 90% repolarization (APD₉₀) was increased by 8 ± 4% (mean ± SD; n = 4) versus time-matched vehicle control. The concentration range at which 2a may induce a prolongation of cardiac repolarization is thus by a factor of about 10,000× higher than the K_i-values at the NOP and MOP receptors. We therefore consider the risk of ECG changes in vivo very unlikely.

Cytochrome-P450 inhibition on 1A2, 2C9, 2C19, 2D6, and 3A4 was assessed for 2a and found to result in IC₅₀ values ≥5 μM.

After these promising in vitro results, 2a was progressed for pharmacokinetic (PK) and efficacy evaluation in rodents. The compound showed poor PK properties in rat with high clearance, large volume of distribution, moderate half-life (Cl = 4.0 L/h·kg; V_ss = 7.52 L/kg; t_1/2 = 1.6 h), and low oral bioavailability (F = 4%; C_max = 0.48 nM at a dose of 50 μg/kg). However, because of its high potency, the exposure was considered sufficient to advance it into efficacy profiling.

Compound 2a was evaluated for its activity in a rat tail-flick model of acute nociceptive pain as well as in a rat spinal nerve ligation (SNL) model of neuropathic pain.

The tail-flick test was carried out in female Sprague–Dawley rats using a modification of the method described by D’Amour and Smith.¹⁹ An increase in tail-flick latency, i.e., the time to withdraw the tail from a radiant heat source, was measured as an indicator of antinociceptive activity of a test compound.²⁰ Compound 2a induced dose-dependent antinociception with ED₅₀ values (95% CI) of 3.63 (2.95–4.38) nmol/kg i.v. (Figure 2), 19.05 (15.51–23.43) nmol/kg i.p., and 72.93 (59.79–89.35) nmol/kg p.o., and full efficacy at the highest dose tested. A mononeuropathic pain state was induced in male Sprague–Dawley rats by ligation of the left L5/L6 spinal nerves.²¹ The antihypersensitive efficacy of compound 2a was assessed after i.v. and i.p. administration by means of an electronic von Frey filament.²⁰ Compound 2a showed a dose-dependent inhibition of mechanical hypersensitivity. Potency was quantified by ED₅₀ values (95% CI) of 1.05 (0.79–1.40) nmol/kg i.v. and 4.82 (4.07–5.80) nmol/kg i.p. calculated from the peak effect versus time-matched control values in sham operated animals. A maximum efficacy of 75% was reached after dosing 2.19 nmol/kg i.v. (Figure 3).

Figure 2.

Antinociceptive effect of 2a citrate after intravenous administration in the rat tail-flick test. Each point of the graph represents the mean ± SEM of the maximum possible effect; n = 10 animals per group. *, p < 0.05 versus vehicle control.

Figure 3.

Dose-dependent effects of 2a citrate on tactile hypersensitivity (spinal nerve ligation), heat nociception (tail-flick), on horizontal distance moved (open field), and on arterial pCO₂ (blood gas analysis) after intravenous administration in rats. ^#, Relative effect refers to percentage of maximum possible effect (%MPE) for spinal nerve ligation and tail-flick, inhibition of distance moved (open field), and increase in pCO₂ compared to baseline (blood gas analysis). Error bars indicate SEM (n = 6–10). *, p < 0.05 versus vehicle control.

Compound 2a showing antinociceptive as well as antihypersensitive efficacy in rats after i.v. dosing with a potency comparable to the strong opioid fentanyl²² was encouraging and considered proof of concept for our strategy from an efficacy point of view. In order to further evaluate whether combined agonistic activity at NOP and MOP receptors also resulted in a broader therapeutic window of these compounds, the side effect profile of 2a was assessed. Because of the poor PK properties of 2a, a parenteral route of administration was used to investigate typical MOP receptor mediated side effects like opioid-type sedation, respiratory depression, inhibition of gastrointestinal transit, and induction of physical dependence.

Sedation is a prominent central nervous system (CNS) side effect of MOP receptor agonists resulting in an impairment of spontaneous locomotor activity.²³ A standard open-field test was used to monitor locomotor activity in male Sprague–Dawley rats.²⁴ After intravenous administration, 2a dose-dependently reduced the distance that the animals moved within the open-field arena during a 5 min time interval starting 10 min after administration. The ED₅₀ value (95% CI) for reduction in distance moved was 42.92 (30.66–62.63) nmol/kg i.v. (n = 10/treatment group) (Figure 3).

Potential respiratory depressant activity of 2a was evaluated in conscious male Sprague–Dawley rats by monitoring arterial blood gas tensions of CO₂ and O₂ (pCO₂ and pO₂). Intravenous administration of 2a induced a dose-dependent increase in arterial pCO₂ and a concurrent decrease in pO₂. In the highest dose group, treated with 37.04 nmol/kg, pCO₂ was increased by up to 66.1 ± 16.0% (mean ± SD; n = 6), while pO₂ was reduced by up to 41.6 ± 3.1% (mean ± SD; n = 6) (Figure 3). As a threshold dose for effects of 2a on respiratory function, an ED₁₀ value of 4.28 nmol/kg i.v. (n = 6/treatment group) was determined.

The effects of 2a on gastrointestinal transit were investigated in NMRI mice according to the method of Macht et al.²⁵ Compound 2a induced a dose-dependent decrease in intestinal transit with ED₅₀ values (mean (95% CI); n = 10) of 46.12 (39.56–53.42) nmol/kg i.v. and 143.89 (122.47–170.35) nmol/kg p.o. These doses were 2 to 5 times higher than antinociceptive doses in a mouse tail-flick model, in which ED₅₀ values (mean (95% CI); n = 10) of 8.87 (7.21–11.26) nmol/kg i.v. and 72.32 (58.97–90.72) nmol/kg p.o. were determined for 2a.

The potential of 2a to induce opioid-type physical dependence was investigated by naloxone precipitated withdrawal in NMRI mice.²⁶ Up to the highest tested dose of 219 nmol/kg i.p. (cumulative dose of 1244 nmol/kg i.p.), 2a did not induce significant symptoms of withdrawal thereby indicating a very low potential to induce physical dependence (see Supporting Information for figure and details). This dose was at least 5.5 times higher than antinociceptive doses in a mouse tail-flick model, in which an ED₅₀ value (mean (95% CI); n = 10) of 39.9 (29.3–57.6) nmol/kg i.p. was determined for 2a.

In summary, spiroether 2a exhibited strong efficacy in rodent models of acute and neuropathic pain with an about 3 times higher potency in the neuropathic pain model. Moreover, the side effect profile of 2a reveals clear advantages compared to standard opioids. Morphine, for example, induces marked sedation,²³ as well as respiratory depression, inhibition of gastrointestinal transit, and physical dependence already at doses below or within the half-maximum effective analgesic dose range.^22,27 Compound 2a exhibits distinct margins of factor 5.5–30 between the ED₅₀ in animal models of pain and the doses that induced significant sedation, respiratory depression, or physical dependence. Thus, compounds like 2a acting as combined NOP and MOP receptor agonists may be particularly suited to provide powerful analgesia with reduced opioid-like side effects and an improved therapeutic index compared to the current standard of care.

On the basis of these overall very promising proof of concept results for 2a we continued to investigate the structural class of the spiroethers in more depth, especially aiming at improving the PK parameters.
