Transcription factor-pathway co-expression analysis reveals cooperation between SP1 and ESR1 on dysregulating cell cycle arrest in non-hyperdiploid multiple myeloma

Abstract

Multiple myeloma is a hematological cancer of plasma B-cells and remains incurable. Two major subtypes of myeloma, hyperdiploid (HMM) and non-hyperdiploid myeloma (NHMM), have distinct chromosomal alterations and different survival outcomes. Transcription factors (TrFs) have been implicated in myeloma oncogenesis but their dysregulation in myeloma subtypes are less studied. Here we develop a TrF-pathway co-expression analysis to identify altered co-expression between two sample types. We apply the method to the two myeloma subtypes and the cell cycle arrest pathway, which is significantly differentially expressed between the two subtypes. We find that TrFs MYC, NF-κB and HOXA9 have significantly lower co-expression with cell cycle arrest in HMM, co-occurring with their over-activation in HMM. In contrast, TrFs ESR1, SP1 and E2F1 have significantly lower co-expression with cell cycle arrest in NHMM. SP1 ChIP targets are enriched by cell cycle arrest genes. These results motivate a cooperation model of ESR1 and SP1 in regulating cell cycle arrest, and a hypothesis that their over-activation in NHMM disrupts proper regulation of cell cycle arrest. Co-targeting ESR1 and SP1 shows a synergistic effect on inhibiting myeloma proliferation in NHMM cell lines. Therefore, studying TrF-pathway co-expression dysregulation in human cancers facilitates forming novel hypotheses towards clinical utility.

Introduction

Multiple myeloma (myeloma or MM) accounts for 10% of all hematological cancers¹. It is a cancer of plasma B cells that undergoes monoclonal expansion in bone marrow, leading to symptoms such as kidney failures, frequent infections, anemia and bone fractures. The past decade has seen effective new treatment of MM such as proteasome inhibitors, but MM is still incurable and the median survival time of myeloma patients is 7–8 years². Chromosomal alterations revealed by cytogenetics and genomics techniques divide MMs into two major subtypes: hyperdiploid multiple myeloma (HMM, 55–60% of MM) and non-hyperdiploid multiple myeloma (NHMM, the rest of MM). HMM usually contains trisomies of chromosomes 3, 5, 7, 9, 11, 15, 19, and 21 and lacks translocation events; while NHMM is often associated with one-copy deletion of chromosome 13 and translocations involving the immunoglobulin heavy chain (IgH) locus at 14q32, such as t(4;14), t(11;14), and t(14;16)^{2, 3}. The survival outcome of HMM patients is better than that of NHMM^{2, 4}. Therefore, it’s of biological and clinical interest to ask whether and how the different genomic alteration profiles in the two subtypes contribute to MM pathogenesis and response to treatments.

Genome-wide gene expression profiling has contributed to the understanding of transcriptional alterations in myeloma and its subtypes compared to normal plasma B cells. Dysregulation of cell cycle-related genes Cyclin D1, D2 or D3 by translocation or hyperdiploidy, has been found to be a unifying and early pathogenic event in MM^{5, 6}. Chng and colleagues have compared the gene expression between HMM and NHMM and found that HMM is associated with the activation of NF-κB, MYC and MAPK pathways, whereas the NHMM is associated with oncogene-activating translocations^{7, 8}. Agnelli and colleagues have reported that differentially expressed genes and pathways between HMM and NHMM are mainly involved in protein biosynthesis, transcriptional machinery and oxidative phosphorylation⁹. Most of these genes locate in the trisomy chromosomes of HMM and therefore could represent direct dosage effect of copy number gains. However, genomic alterations could also have indirect effect in gene expression through dysregulating transcription factors (TrFs) and members in signaling pathways^10–12. In this project we study how dysregulated TrFs in MM contribute to such indirect effect.

TrFs are the downstream effectors of signaling pathways within cells that receive growth and other signals from microenvironment. They also survey internal cellular homeostasis and make decisions on cell survival and proliferation¹³. Consequently, mutations in TrF genes or dysregulation of TrFs could play significantly roles in cancer pathogenesis and drug resistance. In myeloma, over-activation of TrFs such as NF-κB and MYC is frequently observed and targeted as potential therapy^{14, 15}. Several approaches have been developed to infer TrF dysregulation from global gene expression profiles. Gene set enrichment analysis identifies the enrichment of the target genes of a TrF in differentially expressed genes between two biological conditions as indication for the TrF’s own dysregulation¹⁶. Co-expression patterns between genes can also be analyzed to infer network changes between biological conditions^17–20.

In this study, we hypothesize that between the HMM and NHMM myeloma subtypes, distinct TrF pathways dysregulate converging cancer pathways. This hypothesis motivates us to develop a TrF-pathway co-expression analysis method to identify TrFs that correlate with the cell cycle arrest pathway differently between the two subtypes. From this analysis, we find robust, subtype-specific co-expression patterns between TrFs and the cell cycle arrest pathway. These results support a novel cooperation model of ESR1, SP1 and E2F1 on dysregulating cell cycle arrest in NHMM and their potential therapeutic implication. We then validate this prediction by drug combination treatments using four NHMM cell lines.

Materials and Methods

Gene expression profiling data sets

We used the following public GEO data sets of myeloma gene expression profiling. GSE6477⁷ contains 70 expression samples of HMM and 70 samples of NHMM. GSE19784²¹ contains 201 samples with HMM status out of 320 samples. HMM and NHMM status are measured by FISH in these two studies. Samples with ambiguous HMM status such as those with both FISH-measured trisomies and translocations were excluded from our analysis. GSE6365²² has 90 samples without information of HMM status. We applied a KNN-based method to classify samples into HMM and NHMM by their expression profiles²³. The accuracy of this method is more than 85% when compared to FISH-based and copy number microarray-based HMM status. All the data sets were normalized and processed by the RMA method of Bioconductor to obtain expression values.

We used a transcription factor list containing nearly 200 common TrFs²⁴, which is downloaded from the UCSC Genome Browser database.

The TrF-pathway co-expression algorithm

1. Paired t-test and correlation calculation

Paired t-test was used to compare the overall expression change of cancer related pathways between the two subtypes of myeloma (Figure 1A). Each pathway gene has a pair of average expression value across the samples in the two subtypes, and the test assesses the overall expression difference of pathway genes between the two subtypes of myeloma.

Figure 1.

(A) Differential expression of cancer-related pathways between HMM and NHMM. The bars show the gene counts (y-axis) vs. pathways ordered by the number of genes (x-axis). The gene lists are downloaded from the Gene Ontology database. P-values on the top of the bars are computed from paired t-test using each pathway gene’s average expression in HMM and in NHMM as paired data points. Data set used: GSE6477.

(B) Co-expression between TrF SP1 and a cell cycle gene CDK2 in HMM and NHMM. The gene expression values of SP1 (y-axis) is plotted against that of CDK2 (x-axis) for HMM samples (left) and for NHMM samples (right). The correlation coefficient is stronger in HMM. Both genes are not significantly differentially expressed between HMM and NHMM (CDK2, p-value=0.053, SP1, p-value=0.11). Data set used: GSE6477.

(C) Overview of the TrF-pathway co-expression analysis. Using gene expression profiling data, we identify differentially expressed cancer pathways between two biological conditions. Next, we use a formula to score TrFs for their differential co-expression patterns with pathways of interest between the two conditions. Permutation of sample group labels was used to assess the statistical significance of top-ranked TrFs.

Next, we apply Spearman’s rank correlation to calculate the correlation coefficient between TrF and each pathway’s genes in the HMM and NHMM subtypes respectively (Figure 1B). Defined as Pearson’s correlation between rank-transformed values, Spearman’s correlation can detect non-linear correlation and reduce bias caused by outlier samples.

2. Define Pattern Score to quantify TrF-pathway co-expression changes

In the next step, we have developed a formula to measure the change of TrF-pathway correlation pattern between the two myeloma subtypes. In the co-expression plot between a TrF and pathway genes (Figure 2A and 2B), the X value and Y value of each point represents the co-expression coefficient of a TrF and a gene in HMM and NHMM, respectively, rather than expression levels. Our analysis compares the co-expression alteration between the two subtypes.

Figure 2. Scoring significant TrF-pathway co-expression changes between two myeloma subtypes.

Key ideas are illustrated using GSE6477, a myeloma expression data set that compares global gene expression differences between HMM and NHMM. (A) The co-expression scatterplot between a TrF (COMP) and genes. Each point stands for the correlation coefficients between the TrF and a gene in HMM samples (X-axis) and in NHMM samples (Y-axis). Blue: genes in the pathway of interest (cell cycle arrest); black: all other genes. (B) A cartoon version of (A). Blue points stand for cell cycle arrest genes while black ones stand for other genes. The point (X1, Y1) indicates a gene that has respective correlation coefficients with the TrF in HMM (X1) and NHMM (Y1). The blue arrow stands for the distance between (X1, Y1) and the diagonal line, Y=X. (C) Two diagonal lines divide the correlation space into four regions. For the points (genes) in regions A and B, the absolute Y-axis value is larger than the absolute X-axis value. The opposite is true for the points in regions C and D. Panel C–E: Three typical TrF-pathway co-expression patterns. (D) The TrF COMP has no significant co-expression changes with cell cycle arrest genes between HMM and NHMM. (E) SP1 has a lower overall correlation with the pathway genes in NHMM (Y-axis) than in HMM (X-axis). (F) MYC has a lower overall correlation in HMM (X-axis) than in NHMM (Y-axis).

We then define a score for the scatterplot pattern based on individual pathway genes (x, y) as:

• Pattern Score = Sum of all blue points {Distance between (x, y) and the diagonal line * sign(|y|-|x|) } * −log(p-value of Hotelling test)

The Hotelling p-value tests whether the correlation coefficients between the TrF and the pathway genes (blue points in Figure 2A) are differently distributed compared to the correlation coefficients between the TrF and all the other genes (black points). Hotelling's T-squared test is a multivariate version of the t-test²⁵ and tests for the difference between the multivariate means of two populations. A significant p-value suggests that the TrF has a different functional relationship with this pathway compared to all other genes. The distance to the diagonal line of a point measures its degree of correlation coefficient change between the two subtypes, while the sign indicates in which subtype the point has higher absolute correlation with the TrF. For example, a gene point (x, y) in region A or B of Figure 2C has |y|>|x|, so this gene has higher absolute correlation with the TrF in NHMM (the Y-axis subtype) than in HMM (the X-axis subtype).

Pattern Score has larger absolute value when the scatterplot deviates from y=x (Figure 2E and 2F) than when it is close to y=x (Figure 2D). The significance of the Pattern Score is determined by permuting the subtype labels of the samples and comparing the observed Pattern Score to the distribution of the maximal score obtained from 1000 permutations (in the Bayesian model below we performed 100 permutations).

3. Linear regression to test the co-expression scatterplot’s deviation from y=x

A typical co-expression plot between a TrF and pathway genes is shown in Figure 2A, where blue points (pathway genes) and black points (the rest genes) represent the correlation coefficient between a specific TrF and a gene in HMM subtype (X-axis) and NHMM subtype (Y-axis). To detect the overall change of TrF-pathway co-expression between HMM and NHMM, we also checked whether or not the slope is 1 for the blue points (pathway genes) in Figure 2A. If the slope is significant different from 1, it indicates that the co-expression of TrF and pathway genes has a global change between the two subtypes of myeloma. We rotated the coordinates of all points by 45 degrees clockwise and then tested whether the regression slope in the new scatterplot is 0. A significant p-value indicates the change of TrF-pathway co-expression between the two subtypes.

4. Bayesian meta-analysis of multiple data sets

In the meta-analysis step, we used a Bayesian method to pool information across multiple data sets and down-weight the results specific to a single-data set²⁶. Briefly, in each data set we first computed the correlation coefficient r between a transcription factor and a pathway gene, and then converted r into a standard normal statistic using Fisher’s r-to-z transformation, with associated variance determined by sample size. Next, a hierarchical Bayesian model was used to combine the z values from different data sets to arrive at the TrF-gene correlation coefficient pooled across multiple data sets. We followed the formulas in Choi et al. 2005²⁶. This meta-analysis was also performed on the null data generated from 100 permutations of sample group labels to assess the statistical significance of identified top TrFs.

Drug treatment, cell proliferation assay and isobologram analysis

U266, MM1S and RPMI-8226 myeloma cells were obtained from the American Type Culture Collection (ATCC). OPM2 were obtained from the German collection of microorganisms and cell cultures (DSMZ). The INA6 cell line was provided by Renate Burger. All the cell lines are NHMM-characterized subtype: INA-6 is a IL-6-dependent human myeloma cell line²⁷, while U266, OPM-2, RPMI-8226 and MM1S contain Ig locus translocation^{28, 29}.

The MM cell lines were cultured in RPMI 1640 supplemented with 10% fetal bovine serum. In the combination treatment experiments, cells were cultured with or without Tamoxifen (TMX) in the absence or presence of Terameprocol (TMP) for 48 hours. MM cell proliferation was measured by DNA synthesis through [3H]thymidine (Perkin-Elmer) incorporation assay, as previously described³⁰. All experiments were carried out in triplicates.

The interaction between TMP and TMX was analyzed using the CalcuSyn software program (Biosoft, Ferguson, MO), which is based on the Chou-Talalay method³¹. When combination index (CI) = 1, it represents the conservation isobologram and indicates additive effects. CI < 1 indicates synergism and CI > 1 indicates antagonism.

Results

Motivations for studying the cell cycle arrest pathway and its co-expression with TrFs

Using the Chng data set and major cancer pathways^{32, 33}, we found that the cell cycle arrest pathway is significantly up-regulated in HMM compared to NHMM (Figure 1A), and is up-regulated in both subtypes compared to normal plasma cells. We also observed co-expression changes between TrFs and their target genes. For example, the co-expression pattern between a TrF SP1 and cyclin-dependent kinase CDK2, a transcriptional target of SP1³⁴, is much stronger in HMM than in NHMM (Figure 1B). The co-expression analysis can detect such changes that are not obvious from gene-wise differential expression analysis of either SP1 or CDK2 (p-value is 0.11 and 0.053, respectively). These results and existing knowledge of cell cycle’s dysregulation in myeloma motivated us to develop a TrF-pathway co-expression analysis method to identify TrFs that differently correlate with the cell cycle arrest pathway between the two subtypes.

TrF-pathway differential co-expression analysis

We developed a statistical analysis method to detect co-expression changes between transcription factors and genes in cancer-related pathways. Figure 1C outlines the analysis pipeline. Differentially expressed, cancer-related pathways between two biological conditions were first identified. We next scored TrFs that have significant co-expression changes with pathways of interest between two sample conditions. This method ranks TrFs by the degree of TrF-pathway co-expression changes between the two conditions. Finally, permutation of sample group labels was used to generate null data sets and call significantly TrFs.

We used this pipeline to ask what TrF’s co-expression with the cell cycle arrest pathway has significant difference between the two myeloma subtypes, HMM and NHMM. The Pattern Score (defined in Methods) measures whether a TrF-pathway pair has an overall different correlation pattern between the two subtypes. If the pathway genes (blue points in Figure 2) and a TrF have largely unchanged co-expression between the two subtypes, the scatterplot of blue points centers along the diagonal line (y=x) and the Pattern Score is close to zero (Figure 2D). If the scatterplot has a slope far from 1, it indicates an overall change of TrF-pathway co-expression between the two subtypes and the Pattern Score will be much larger or smaller than 0 (Figure 2E and 2F). We also used a linear regression to test whether the pattern has significant deviation from the diagonal line (see Methods). The p-value of this test is 0.896, < 2.2e-16 and 3.7e-08 for the patterns in Figure 2D, E, F, respectively.

TrFs involved in IL-6 and MAPK signaling have significantly lower co-expression with cell cycle arrest genes in HMM

We first applied the TrF-pathway co-expression analysis on the data set GSE6477⁷ and compared our findings to those in the original study for evaluation of the co-expression analysis. Table 1 lists top-ranked TrFs that have significantly lower co-expression with cell cycle arrest genes in HMM compared to NHMM, including HOXA9, MYC and NF-κB family member c-Rel (REL). Also from Table 1, CEBPB and STAT3 are involved in the IL-6 pathway, and NF-κB, MYC and ATF2 are involved in the MAPK signaling pathway^{35, 36}. Both pathways promote myeloma initiation and progression². Furthermore, RELA (p65, an NF-κB subunit, score=−138) and FOS (an IL-6 pathway member; score=−141) also have high scores but their permutation p-values are not as significant. These two TrFs also associate with the MAPK signaling pathway and the IL-6 pathway. Our co-expression analysis arrived at findings consistent with the original study of GSE6477, which has reported that MYC, NF-κB, MAPK and IL-6 pathways are over-expressed in HMM than in NHMM⁷.

Table 1.

Top-ranked TrFs that have significantly lower co-expression with cell cycle arrest genes in HMM compared to NHMM from the GSE6477 analysis. The TrFs in Tables 1–3 are selected by the permutation p-value threshold of 0.06 and linear regression p-value threshold of 1E−5. For the column of “Known roles in cancer”, see Supplementary Tables for literature references.

Symbol	Gene	Pattern Score	Chromosome	Regression p-value	Permutation p-value	Known roles in cancer
HOXA9	NM_152739	−311.0993844	Chr7	7.76E-29	0.018	myeloma
FOXD1	NM_004472	−284.6487066	Chr5	8.72E-21	0.016	associated with placental growth factor (PLGF)
CEBPB	NM_005194	−258.7742785	Chr20	3.68E-12	0.015	myeloma
BPTF	NM_004459	−237.042492	Chr17	6.31E-21	0.03
PAX3	NM_181460	−257.9273348	Chr2	5.4E-09	0.039	PAX3-FKHR fusion; chromosomal rearrangements
IRF1	NM_002198	−231.9772177	Chr5	7.76E-11	0.012	myeloma
TAL1	NM_003189	−228.7284582	Chr1	3.4E-10	0.051	TAL1/SCL; leukemia
MZF1	NM_003422	−226.4785758	Chr19	2.44E-15	0.052	Myeloid malignancies
MYC	NM_002467	−206.9462599	Chr8	3.71E-08	0.06	myeloma; hyperdiploid
NFE2L1	NM_003204	−185.2599543	Chr17	0.000000467	0.018
ATF2	NM_001880	−160.7918875	Chr2	0.000000271	0.028	associated with AP-1 complex
STAT3	NM_003150	−159.6504808	Chr17	0.00000699	0.057	myeloma
ATF6	NM_007348	−140.8047495	Chr1	0.00000868	0.018	myeloma
REL	NM_002908	−94.94920668	Chr2	4.78E-09	0.047	myeloma

ESR1, SP1 and E2F1 have significantly lower co-expression with cell cycle arrest genes in NHMM

In contrast to HMM, the transcriptional dysregulation in NHMM has been less studied, although the translocation events are more associated with NHMM. Table 2 lists top-ranked TrFs that have significantly lower co-expression with cell cycle arrest genes in NHMM compared to HMM. Among them, ESR1 (Estrogen receptor alpha), SP1 and E2F1 are three TrFs known to influence cellular processes that include proliferation and apoptosis^37–39. These results have not been reported by the original study of GSE6477⁷.

Table 2.

Top-ranked TrFs that have significantly lower co-expression with cell cycle arrest genes in NHMM compared to HMM from the GSE6477 analysis. See Table 1 legend for the selection criteria.

Symbol	Gene	Pattern Score	Chromosome	Regression p-value	Permutation p-value	Known roles in cancer
SP1	NM_003109	407.6157627	Chr7	1.23E-40	0.011	myeloma
EGR3	NM_004430	383.5931729	Chr8	1.67E-21	0.006	breast cancer
NFIC	NM_205843	366.5650056	Chr19	3.88E-15	0.013
SREBF1	NM_001005291	352.3150398	Chr17	1.26E-20	0.032	breast cancer
ESR1	NM_001122741	312.6539295	Chr6	4.75E-25	0.036	myeloma
RFX1	NM_002918	309.4206141	Chr19	8.29E-23	0.028
FOXL1	NM_005250	292.2963268	Chr16	7.02E-10	0.026	colon cancer; gastrointestinal
FOXC1	NM_001453	289.9529049	Chr6	1.54E-16	0.055	associated with VEGF expression; cancer
YY1	NM_003403	254.8226128	Chr14	0.00000111	0.029	cancer biology
E2F1	NM_005225	252.5363106	Chr20	9.85E-15	0.025	myeloma; Myc
TFAP2C	NM_003222	245.9572093	Chr20	1E-23	0.036	invasive breast cancer

Bayesian meta-analysis of multiple data sets improves the robustness of analysis

We next asked whether these findings are specific to one data set (GSE6477) or general in myeloma. We added two other myeloma expression data sets that have both HMM and NHMM samples, GSE6365²² and GSE19784²¹. We used a Bayesian hierarchical model to compute correlation coefficients between TrFs and genes by pooling across data sets and weighting their respective sample sizes²⁶. The meta-analysis down-weights TrF-pathway co-expression patterns specific to one data set, even if this pattern may be significant in the data set (Figure 3A); and enhances the patterns consistent across data sets but may not be significant in any one data set (Figure 3B). Table 3 lists the TrFs with significantly different co-expression with cell cycle arrest genes between HMM and NHMM after pooling the three data sets. Table 3B and Figure 3B show that both SP1 and ESR1 are still top-ranked as having significantly lower co-expression with cell cycle arrest genes in NHMM compared to HMM across different patient cohorts.

Figure 3. The co-expression patterns of TrFs AHR and ESR1 in individual data sets and in the meta-analysis.

Meta-analysis averages out conflicting patterns in (A) and strengthens consistent patterns in (B). (A) The TrF AHR does not have a robust co-expression alteration between HMM and NHMM across the three individual data sets. The red and green dots represent two pathway genes and their correlation coefficients with the TrF. Because the coefficients of the same genes are quite different in the three data sets, the meta-analysis does not lead to a significant Pattern Score. (B) ESR1 has a robust co-expression alteration between HMM and NHMM across the three data sets. Most pathway genes such as those highlighted by the red and green dots remain at similar correlation coefficient positions in the three data sets, so the meta-analysis leads to a significant Pattern Score.

Table 3.

Top-ranked TrFs that have significantly lower co-expression with cell cycle arrest genes in HMM (a) and in NHMM (b) from Bayesian meta-analysis of three data sets. See Table 1 legend for the selection criteria.

(a)
Symbol	Gene	Pattern Score	Chromosome	Regression p-value	Permutation p-value
HOX9	NM_152739_at	−267.4627552	Chr12	6.8E-31	0.03
PAX3	NM_181460_at	−197.9994386	Chr2	2.31E-15	0.05
CREB1	NM_004379_at	−187.2967718	Chr2	7.74E-16	0.03
TAL1	NM_003189_at	−176.9745554	Chr1	1.27E-14	0.05
TP53	NM_000546_at	−155.3202053	Chr17	1.83E-09	0.06
ATF2	NM_001880_at	−147.651126	Chr2	2.51E-12	0.04
HLF	NM_002126_at	−147.014587	Chr17	5.86E-11	0.04
HOXA5	NM_019102_at	−119.8556556	Chr7	1.07E-10	0.02
ZNF238	NM_006352_at	−93.4493948	Chr1	1.13E-07	0.03
(b)
ESR1	NM_000125_at	260.5433561	Chr6	1.13E-25	0.04
SOX5	NM_006940_at	238.5539368	chr12	3.90E-26	0.02
MYC	NM_002467_at	148.8921877	Chr8	1.32E-07	0.03
POU6F1	NM_002702_at	156.3538726	Chr12	1.08E-19	0.02
TCF3	NM_003200_at	170.4257588	Chr19	7.76E-10	0.03
SP1	NM_003109_at	51.73820256	Chr7	3.25E-07	0.02

Cell cycle arrest genes are enriched by SP1 ChIP targets

Although co-expression analysis suggests regulatory role of SP1 on cell cycle arrest genes, it cannot determine whether such regulation is direct or indirect. We next analyzed SP1 ChIP-seq (chromatin immunoprecipitation followed by sequencing) data of GM12878, a lymphoblastoid cell line from the ENCODE project, to check if SP1 targets are enriched by cell cycle arrest pathway genes (http://hgdownload.cse.ucsc.edu/goldenPath/hg19/encodeDCC/wgEncodeHaibTfbs). An enrichment supports a direct regulatory role of SP1 on the cell cycle arrest pathway. There are 2150 genes whose transcript starting site (TSS) is within 3 kb upstream or downstream of the top 5000 SP1 peaks. Among the 310 cell cycle arrest genes we used in the co-expression analysis (Suppl. Table 1), 85 have strong SP1 binding peaks near their TSS regions (27%). Therefore, cell cycle arrest genes are enriched by SP1 targets (p-value = 3.86e-08) in this B lymphocyte cell line. Since myeloma cells come from the B cell lineage, SP1 dysregulation is likely to directly affect the gene expression of cell cycle arrest pathway in myeloma.

We then analyzed an ESR1 ChIP-seq data in a breast cancer cell line MCF-7 (GSE25021), since ESR1 ChIP data are not available for B cells. There is no enrichment of ESR1 targets in cell cycle arrest genes. However, ESR is known to regulate genes indirectly through interactions with Sp1 transcription factor⁴⁰, supporting its possible indirect regulation of the cell cycle arrest pathway.

A model of cooperation between SP1 and ESR1 on regulating cell cycle arrest

Based on these results and literature evidences, we proposed a model of cooperation between SP1 and ESR1 on regulating cell cycle arrest and their over-activation in NHMM (Figure 4). Over-activation of ESR1 in myeloma cells induces MAPK/ERK pathways through c-SRC⁴¹ (Step 1 in Figure 4), which in turn activate SP1, leading to increased expression of the downstream factor E2F1 (Step 2). Furthermore, both SP1 and ESR1 regulate Cyclin D1 (CCND1)^{42, 43}, which is frequently abnormal in myeloma⁵, and lead to cell cycle progression (Step 3). This model suggests a combination therapy to inhibit both SP1 and ESR1 activities to overcome the limitations of single-drug treatments that inhibit either SP1 or ESR1 alone. For example, anti-estrogens therapy, especially the most commonly used tamoxifen, has major limitations including its partial agonist activity and constitutive or acquired resistance⁴⁴. Tamoxifen resistance has been shown to be a result of increased ERα (product of ESR1) and Sp1 interaction that enhances the expression of E2F1^{45, 46}.

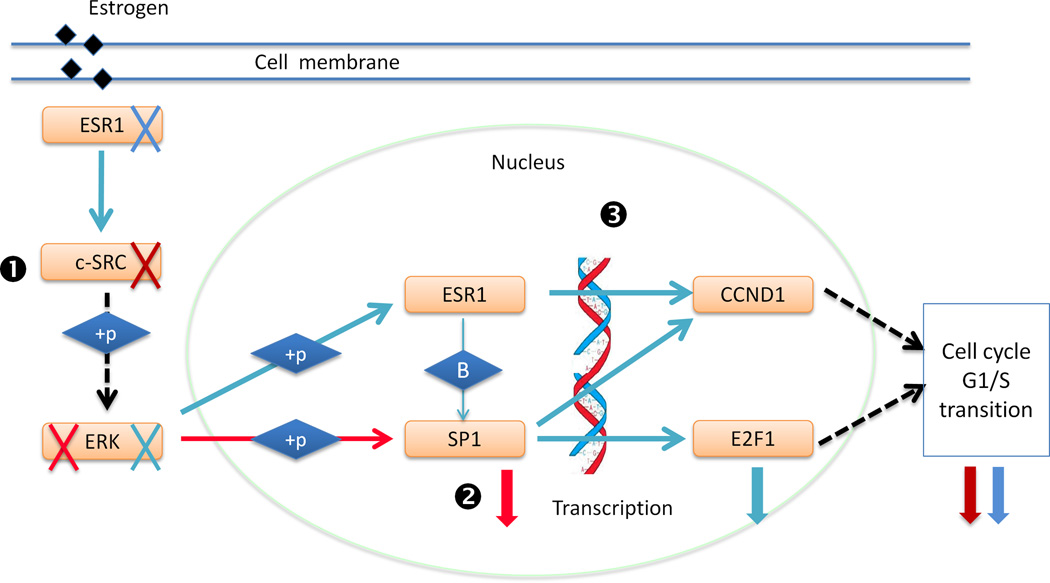

Figure 4. A model of cooperation between SP1 and ESR1 on regulating cell cycle arrest and their over-activation in NHMM.

ESR1, SP1 and their target E2F1 all have significantly lower co-expression with the cell cycle arrest pathway in NHMM compared to HMM. See Discussion for details. Blue arrows refer to literature-supported regulation in breast cancer, and red arrows in myeloma. “+p” stands for phosphorylation. Black dotted arrows indicate indirect regulation. Red and blue crosses and corresponding downward thick arrows indicate literature-supported knock-down of upstream genes or TrFs and the corresponding effects in reducing downstream genes’ activity or expression in breast cancer (blue) and in myeloma (red).

Synergistic growth inhibition effect of co-targeting SP1 and ESR1 in myeloma cells

The cooperation model predicts an approach to preventing cell proliferation by intervening SP1 and ESR1’s dysregulation in myeloma cells. We investigated the effect of co-targeting SP1 and ESR1 proteins on MM cell growth. Our recent work showed that Sp1 plays a regulatory role in multiple myeloma cell growth and survival, and it can be inhibited by the anti-MM activity of TMP, a small molecule that specifically competes with Sp1-DNA binding in vitro and in vivo³⁰. In addition, tamoxifen (TMX), an antagonist of estrogen receptor, has been shown to induce growth arrest and apoptosis in multiple myeloma cell lines^{37, 44}. In our combination treatment experiments, NHMM cells were cultured for 48 hours with TMX (0.5 and 20 µM), TMP (5 and 10 µM) or their combinations, and cell proliferation was measured by [3H]thymidine uptake at 48 hours. In four of the five cell lines treated, all combinations of TMX and TMP resulted in significant (p-value < 0.05) and synergistic anti-proliferative effect (Figure 5), except the treatment TMP 5 uM and TMX 20 uM for the OPM2 cell line. For example, treatment of TMX at 0.5 and 20 µM alone triggers 10% and 40% growth inhibition in U266 cells, respectively (Figure 5A), which was further enhanced to 40% (combination index = 0.68) and 70% (combination index = 0.5) by combined treatment with TMP at 5 µM (Figure 5C, table rows in blue). In MM1S cells, a synergistic effect was achieved only at 72 hours (data not shown).

Figure 5. Synergistic growth inhibitory effect of Sp1 inhibitor TMP and ESR1 antagonist tamoxifen (TMX) on MM cells.

Cell proliferation is measured as percentage of untreated cells at 48 hours for four different MM cell lines: (A) U266, and (B) INA6, RPMI-8226 and OPM2. Data are means ± SD (n = 3). (C) Combination indices (CI) and the fraction of cells affected by drug concentration (Fa) for the combinations of TMX and TMP are shown in the tables. CI < 1, CI = 1, CI values >1 indicate synergism, additive effect and antagonism, respectively. For analyses of combinations, different doses of each drug were used, but only the most representative doses of each combination were included in the figure.

Discussion

This study starts from the two myeloma subtypes that have distinct and characteristic genomic alterations, which may have been selected during cancer cell evolution and lead to different paths to oncogenesis and differential survival outcomes. We hypothesize that the dysregulation of TrFs can induce co-expression alteration between a TrF and the genes it regulates directly or indirectly. Because the cell cycle arrest pathway has significant expression level changes between the HMM and NHMM subtypes among cancer-related pathways, and that cell cycle dysregulation could be a common pathogenic mechanism in myeloma⁵, we have focused on the cell cycle arrest pathway. We have developed a co-expression analysis method to identify TrF-pathway co-expression dysregulation in two major myeloma subtypes. Our analysis has revealed specific TrFs that could be dysregulated in each myeloma subtype which in turn may lead to their reduced regulation of cell cycle arrest. Based on these results and literature evidences, we have proposed a cooperation model between TrFs SP1 and ESR1 in contributing to cell cycle dysregulation in myeloma. Our experiments show that combination treatment targeting both TrFs has synergistic effect on growth inhibition of myeloma cell lines, and therefore support the proposed model.

Compared to the traditional method of differential expression analysis followed by gene set enrichment of pathways or TrF target sets, our co-expression method may identify TrFs whose targets are not differentially expressed but are differentially regulated by the TrFs, which are biologically relevant and complementary results to existing methods. In addition, the co-expression analysis can identify TrFs that dysregulate downstream genes in indirect ways, while TrF target enrichment analysis cannot. For example, using predicted TrF target information based on TRANSFAC²⁴, we identified only a few TrFs, whose target genes are enriched in cell cycles arrest genes and which are also differentially expressed between HMM and NHMM in the GSE6477 dataset, including MYC, MYB, CREB1, E2F3 and USF2 (Suppl. Table 4). This is in contrast to many TFs that we identified to differentially regulate cell cycle arrest genes between the two myeloma subtypes (Table 1 and 2). In particular, our analysis identified ESR1’s dysregulation in NHMM. ESR1 had been reported to regulate genes through indirect mechanisms such as by interacting with cofactors AP-1 and Sp1⁴⁰, and our ChIP-seq analysis of ESR1 binding peaks showed no enrichment of cell cycle arrest genes. Finally, although TrF target enrichment analysis may suggest direct regulation, it is restricted to available target prediction or ChIP-seq data; while the co-expression does not require such information.

The TrF-pathway co-expression analysis has revealed dysregulated pathways that are consistent with previous analysis of HMM. Both our analysis and the original study of GSE6477 have found MYC and NF-κB pathways as dysregulated in HMM. In addition, we have identified HOXA9 as the top TrF dysregulated in HMM due to its reduced co-expression with cell cycle arrest genes both in the GSE6477 data and in the Bayesian meta-analysis (Tables 1 and 3A). Although HOXA9 was not identified in Chng et al.⁷, it has recently been suggested as a candidate oncogene in myeloma by a genome-wide sequencing study⁴⁷. HOXA9 is a transcription factor regulating gene expression, morphogenesis and differentiation⁴⁸. A translocation event causing a fusion between HOXA9 and NUP98 has been associated with myeloid leukemogenesis^{49, 50}. In MM, it has high expression level in patients lacking IgH translocations⁴⁷, agreeing with that HOXA9 has a higher expression in HMM than in NHMM in the three data sets we analyzed (p-values of 0.076, 0.019, 0.008). HOXA9-depleted cells show a competitive growth disadvantage⁴⁷, suggesting its expression-related carcinogenesis role in myeloma. Therefore, HOXA9 with higher expression level in HMM is associated with oncogenesis, co-occurring with our analysis results of HOXA9’s reduced co-expression with cell cycle arrest pathway in HMM.

We have also identified TrFs SP1, ESR1 and E2F1 as having significantly lower co-expression with the cell cycle arrest pathway in NHMM compared to HMM (Tables 2 and 3B). SP1 regulates a variety of processes such as cell growth, apoptosis, differentiation and immune responses³⁸. It also mediates the transcription of cyclins and cyclin-dependent kinases^{43, 51}. It has been recently shown to play an important regulatory role in MM cell growth and survival³⁰. MM cells display increased SP1 protein (Sp1) nuclear levels and DNA binding activity compared to normal cells, and their interaction with bone marrow stromal cells (BMSC) lead to Sp1 activation via induction of the ERK signaling pathway³⁰. Moreover, genetic inhibition of Sp1 with siRNA and shRNA technologies and pharmacological inhibition with a specific Sp1 inhibitor significantly reduced MM cell growth and survival in vitro and in vivo³⁰. Estrogen receptors (ESR1 and ESR2) are nuclear receptors that are activated by the hormone estrogen and then bind to DNA to regulate downstream genes⁵². They are over-expressed in 70% of breast cancer samples, and these ER-positive cancers respond to estrogen receptor antagonist such as tamoxifen^{46, 53}. Studies show that MM cells often express and over-activate estrogen receptors (ER), and selective estrogen receptor modulators induce G1-S cell cycle arrest and apoptosis in MM cells^{44, 54, 55}. Moreover, ESR1 interacts with Sp1 to regulate transcription of downstream genes, including E2F1, a key regulator of the G1-S cell cycle checkpoint ^{46, 56}.

Drug combination is widely used in treating cancers, helping achieve synergistic therapeutic effect and minimizing drug resistance³¹. Based on the TrF-pathway results and literature reviews, we have proposed a cooperation model of SP1 and ESR1’s roles in regulating cell cycle arrest and their dysregulation in NHMM. A combination treatment targeting both SP1 and ESR1 has synergistic growth inhibition effect on NHMM cell lines. These result support the SP1-ESR1 cooperation model and point to further experimental follow-up.

There are areas for further improvement on this study. First, since myeloma is a cancer of bone marrow, no normal bone marrows are available in large numbers for comparative expression profiling. Due to small sample size or lack of normal samples in the data sets used, we have not included normal samples in the analysis. In this study, we have used the evidence that TrFs such as MYC and HOXA9 are both over-activated in HMM and have lower co-expression with the cell cycle arrest pathway to associate a TrF’s lower co-expression in a subtype with its dysregulation in the subtype. Comparing MM subtypes with normal samples in future studies using the co-expression analysis could help confirm this association. Comparing to normal samples can also reveal TrFs that are commonly dysregulated in both subtypes. The second limitation is the use of TrFs that are based on TRANSFAC TrFs, which are well studied⁵⁸. Although this helps interpreting these TrFs’ roles in cell cycle pathways and designing experimental validation, we may miss novel mechanisms involving TrFs not in the list. Expanding the analysis to predicted TrFs based on their DNA-binding domains will alleviate this limitation⁵⁹. The third limitation is that when a TrF has significant co-expression with a gene in a pathway, relationship between the TrF and the gene may not be causal or direct. Other genetic regulators may regulate both the TrF and the gene, or the TrF regulates the gene via intermediate regulators. We have checked the ChIP-seq based gene targets of SP1 and found that they are enriched by cell cycle arrest genes. This lends support that SP1 directly regulates many cell cycle arrest genes, but wet experiments are needed to validate these predictions. Bioinformatic algorithms such as ARACNE may be used to better distinguish direct and indirect co-expression relationship⁶⁰. These limitations point to areas to improve the TrF-pathway co-expression analysis for better understanding of regulatory alterations in cancer. Another interesting direction is to use co-expression signatures as biomarker for patient prognosis⁵⁷. The TrF-pathway co-expression analysis code is available at http://chenglilab.weebly.com/.

Abbreviations

TrF

Transcription Factor

MM

Multiple Myeloma

CI

Combination Index
