. Author manuscript; available in PMC: 2014 Oct 2.
Published in final edited form as: Dev Cell. 2012 Apr 17;22(4):824–836. doi: 10.1016/j.devcel.2012.01.011

Chemokine signaling directs trunk lymphatic network formation along the preexisting blood vasculature

Young Ryun Cha 1, Misato Fujita 1, Matthew Butler 1, Sumio Isogai 2, Eva Kochhan 3, Arndt F Siekmann 3, Brant M Weinstein 1,4
PMCID: PMC4182014  NIHMSID: NIHMS366979  PMID: 22516200

SUMMARY

The lymphatic system is crucial for fluid homeostasis, immune responses, and numerous pathological processes. However, the molecular mechanisms responsible for establishing the anatomical form of the lymphatic vascular network remain largely unknown. Here, we show that chemokine signaling provides critical guidance cues directing early trunk lymphatic network assembly and patterning. The chemokine receptors Cxcr4a and Cxcr4b are expressed in lymphatic endothelium, while chemokine ligands Cxcl12a and Cxcl12b are expressed in adjacent tissues along which the developing lymphatics align. Loss- and gain- of function studies in the zebrafish demonstrate that chemokine signaling orchestrates the stepwise assembly of the trunk lymphatic network. In addition to providing evidence for a lymphatic vascular guidance mechanism, these results also suggest a molecular basis for the anatomical co-alignment of lymphatic and blood vessels.

INTRODUCTION

The lymphatic system is essential for tissue fluid homeostasis and immune surveillance, and is important in a number of pathological processes including inflammation, lymphedema, and tumor metastasis (Alitalo et al., 2005; Oliver and Alitalo, 2005; Tammela and Alitalo, 2010). Like blood vessels (BV), lymphatic vessels (LV) assemble into a complex but highly stereotypic and evolutionarily conserved network. The lymphatic network is anatomically separate and distinct from the circulatory system, although larger caliber LV and BV (in particular, arteries) frequently co-align (Gray, 1918; Sabin, 1902; Sabin, 1909).

The molecular factors regulating emergence of the embryonic lymphatic vasculature have been studied in a number of different vertebrates, in particular in mice, resulting in the identification of key molecules regulating lymphatic specification and differentiation such as Sox18, Prox1, CoupTFII, VegfC, Vegfr3, and Nrp2 (reviewed in (Alitalo et al., 2005; Butler et al., 2009; Oliver and Alitalo, 2005; Tammela and Alitalo, 2010). However, progress has been slowed by the difficulty in imaging lymphatics or in experimentally or genetically manipulating them in most vertebrate model organisms. The zebrafish has been shown to be a valuable model for experimental and genetic analysis and imaging of the blood vascular system (McKinney and Weinstein, 2008), and recent studies have provided evidence that the zebrafish is also useful for studying lymphatic development (Bussmann et al., 2010; Del Giacco et al., 2010; Geudens et al., 2010; Hogan et al., 2009; Kuchler et al., 2006; Pedrioli et al., 2010; Saharinen et al., 2010; Yaniv et al., 2006). The zebrafish has a well-defined lymphatic vascular system that shares many of the morphological, molecular, and functional characteristics of the LV found in other vertebrates (Kuchler et al., 2006; Yaniv et al., 2006). A distinct, anatomically conserved system of lymphatics is present with an overall pattern and morphology resembling that found in other developing vertebrates. Furthermore, zebrafish lymphatics express known molecular markers of lymphatic endothelial cell (LEC) fate and require the function of genes known to be important for lymphangiogenesis in mice and other species, including the genes noted above. Zebrafish lymphatics also drain and collect subcutaneously injected dyes, a key functional feature reported for the lymphatics of other species (Ny et al., 2005; Tilney, 1971). The identification of a lymphatic system in the zebrafish is an important finding given the accessibility of the fish to forward-genetic analysis and high-resolution in vivo imaging of the vasculature.

As in the blood vascular system, the major vessels of the lymphatic vascular system have a defined, evolutionarily conserved anatomical pattern. Recent work has begun to provide insights into guidance cues directing early patterning of blood vascular networks, many of which are common to those used for the patterning of other tissues and organs, in particular the nervous system (Melani and Weinstein, 2010). The mechanisms responsible for guiding the assembly of the lymphatic vascular system and establishing its anatomical form remain largely unknown, however. A number of zebrafish studies have begun to explore the mechanisms directing lymphatic development and patterning. Imaging and cell lineage tracing studies documented the assembly of the trunk lymphatic system from posterior cardinal vein (PCV)-derived lymphatic progenitors that form the “parachordal line” (PC), a structure that serves as the source of lymphatic endothelium for all trunk lymphatics (Hogan et al., 2009; Isogai et al., 2003; Kuchler et al., 2006; Yaniv et al., 2006). Lymphatic endothelial progenitors initially emerge from the PC and migrate adjacent to trunk arterial intersegmental blood vessels (aISV), suggesting that arteries might provide a guidance template (Bussmann et al., 2010; Geudens et al., 2010; Yaniv et al., 2006). The involvement of Notch signaling in this arterial alignment has been proposed (Geudens et al., 2010), but there is evidence for both positive and negative functions for Notch in lymphatic development, and its role remains unclear (see discussion). Zebrafish studies have highlighted the functional requirement for a number of other factors during trunk lymphatic development. The extracellular matrix-associated protein collagen and calcium-binding EGF domain-1 (ccbe1) is required non-autonomously for emergence of lymphatic endothelium from the primitive veins and for lymphatic assembly, probably acting as a permissive factor for lymphatic migration (Hogan et al., 2009). Loss of either claudin-like protein 24 (clp24) or synectin leads to defects in lymphatic development in both mice and zebrafish (Geudens et al., 2010; Saharinen et al., 2010). The microRNA miR-31 has been shown to be required for lymphatic gene expression, differentiation, and sprouting of human LEC and lymphatics in developing Xenopus and zebrafish (Pedrioli et al., 2010). The spleen tyrosine kinase (syk) and related zeta associated protein-70 (zap-70) are required for both angiogenic and lymphatigiogenic development in the fish (Christie et al., 2010).

Although a variety of molecular regulators of lymphatic development have now been identified in mice, zebrafish, and other models, none of these factors has been shown to act as a direct guidance cue guiding lymphatic patterning, in a manner analogous to the way in which neuronal guidance factors such as semaphorin signaling direct both neural and vascular patterning (see (Torres-Vazquez et al., 2004) for example). Here, we provide evidence that migration of chemokine receptor Cxcr4a- and Cxcr4b-positive LEC is guided by chemokine ligands Cxcl12a (SDF1a) and Cxcl12b (SDF1b) expressed in neighboring tissues located along the migration pathways taken by these cells. Our data suggest that chemokine signaling helps direct and orchestrate the stepwise assembly and patterning of the trunk lymphatic network.

RESULTS

Stepwise Assembly of the Trunk Lymphatic Network

The emergence of the lymphatic vascular system of the zebrafish has been described in studies from this and other laboratories (Bussmann et al., 2010; Geudens et al., 2010; Hogan et al., 2009; Kuchler et al., 2006; Yaniv et al., 2006). We used confocal and two-photon time-lapse imaging of Tg(fli1a:EGFP)y1 zebrafish to examine early zebrafish trunk lymphatic development in detail (Figure 1; Movie S1). Lymphatic progenitors initially emerge from the PCV as sprouts that grow dorsally near or along vertical intersegmental boundaries (Isogai et al., 2003) (Figures 1A-1C). As they reach the horizontal myoseptum (HM), a tissue border dividing the dorsal and ventral halves of the somites, these sprouts turn laterally into the HM, then branch rostrally and caudally, tracking along the superficial HM near the lateral surface of the trunk to populate the PC (Figures 1D-1K). By 60 hpf, dorsal and ventral sprouts emerge from the PC at aISV, tracking closely along the aISV as they grow dorsally and ventrally (Figures 1L-1O). The sprouts grow and extend to form the intersegmental lymphatic vessels (ISLV). The dorsal sprouts branch rostrally and caudally as they reach the dorsal longitudinal anastomotic blood vessels (DLAV) to form the dorsal lymphatic lines (DLL), while ventral sprouts branch rostrally and caudally just below the dorsal aorta (DA) and just above the PCV to form the lymphatic thoracic duct (TD) (Figures 1P-1R; see also (Yaniv et al., 2006)). It is important to reiterate that the ISLV that branch and grow dorsally and ventrally from the PC do so only along aISV, not along venous intersegmental blood vessels (vISV) (Figures 1S and 1T; also noted previously in (Yaniv et al., 2006) and more recently in (Bussmann et al., 2010; Geudens et al., 2010). The complete series of steps of trunk lymphatic network assembly described above are visualized in the two-photon time-lapse imaging sequence shown in Movie S1. This and previously published (Yaniv et al., 2006) time-lapse imaging movies show that developing trunk lymphatics grow and extend as continuous vascular sprouts, in a similar manner to angiogenic BV. Expression of Prox1, a specific marker of lymphatic endothelium (Wigle and Oliver, 1999), is detected in lymphatic progenitors and LEC at each stage of trunk lymphatic network development beginning from their appearance as individual cells within the PCV (Figure 1K; Figure S1).

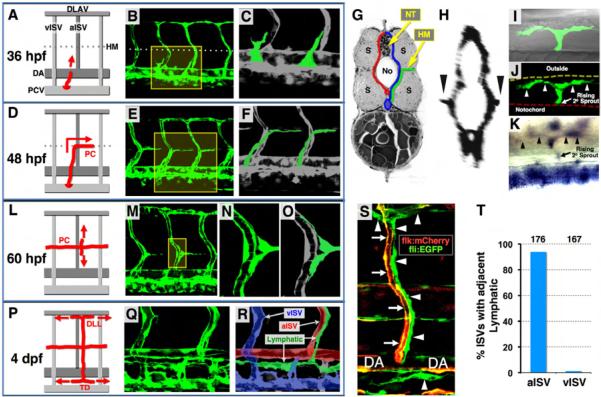

Figure 1. Anatomy and assembly of the trunk lymphatic network in the developing zebrafish.

Figure 1

Open in a new tab

(A, D, L, and P) Diagrams illustrating successive steps in trunk lymphatic network assembly at different developmental stages (red, developing lymphatics; red arrows, their growth direction). (B, E, M, and Q) Confocal images of the vasculature in Tg(fli1a:EGFP)y1 animals at each stage (yellow boxes, magnified areas shown to the right). (C, F, N, and O) Magnified views of the boxed portions of the images to the left (green, developing lymphatic vessels except N). (R) Color-coded image of Q (green, lymphatic vessels; red, arterial BV; blue, venous BV). (G) Cross-sectional diagram illustrating lateral growth of lymphatic progenitors (green) toward the superficial HM (red, arterial BV; blue, venous BV; No, notochord; NT, neural tube; S, somites). (H) Cross-sectional reconstruction (rotated 90 degrees) of confocal stacks used in E (arrowheads, vascular spouts extending laterally along the HM). (I and J) Dorsal view confocal/DIC (I) and confocal only (J) images of a single branching PC sprout (arrowheads) in the superficial HM of a 60 hpf Tg(fli1a:EGFP)y1 larva. (K) Dorsal view image of a branching PC sprout (arrowheads) in the superficial HM of a 56 hpf larva WISH-stained for prox1. (S) Confocal image of an aISV (red/yellow, arrows) with a co-aligned ISLV and other developing lymphatics (green, arrowheads) in a 3 dpf Tg(flk:mCherry), Tg(fli1a:EGFP)y1 double transgenic animal. (T) Quantification of aISV and vISV (determined by observing vessels using confocal microscopy at 5 dpf) with a co-aligned ISLV. The total number of aISV or vISV counted is shown above each bar.

Chemokine receptor Cxcr4a is Expressed in LEC

Chemokine signaling plays roles in cellular guidance and patterning in various tissues (Bussmann et al., 2011; David et al., 2002; Doitsidou et al., 2002; Fujita et al., 2011; Ghysen and Dambly-Chaudiere, 2007; Haas and Gilmour, 2006; Knaut et al., 2003; Nair and Schilling, 2008; Siekmann et al., 2009). Examination of the expression pattern of zebrafish chemokine receptors suggested that some of them might be involved in directing the assembly of the trunk lymphatic network (Figure 2). The chemokine receptor cxcr4a is expressed in developing lymphatic endothelium (Figures 2A-2O). Whole-mount in situ hybridization (WISH) shows that cxcr4a is initially expressed in the DA and in the primary intersegmental blood vessel (ISV) sprouts emerging from it (Figures 2A and 2B). However, cxcr4a expression is rapidly extinguished in trunk BV after this stage, and cxcr4a becomes expressed in developing lymphatics, including the PC (Figures 2F and 2G) and ISLV (Figures 2J and 2K). Higher-magnification WISH images indicate that cxcr4a is indeed expressed in LEC (Figure 2N). This is confirmed by high-resolution confocal imaging of vessels in Tg(fli1a:EGFP)y1 animals injected with a recombineered BAC transgene containing the cxcr4a promoter upstream of TagRFP-T (Figures 2C-E, 2H, 2I, 2L, 2M, and 2O; Figure S2A-S2I). TagRFP-T expression (red/yellow) is detected in endothelial cells (EC) of the DA and primary ISV, where endogenous cxcr4a is initially expressed (Figures S2B-S2E and S2I), as well as in some EC in the PCV, where lymphatic progenitors emerge (Figure S2I). TagRFP-T expression is also detected in lymphatic progenitors sprouting from the PCV (arrowheads in Figures 2C-2E; arrowheads in Figures S2B and S2C), in lymphatic sprouts generating the PC (arrowheads in Figures 2H and 2I), in the PC (arrows in Figures 2H and 2I; arrows in Figures S2F-S2H), in LEC migrating dorsally and ventrally from the PC (arrowheads in Figures 2L and 2M), and in the TD (arrowheads in Figure 2O) with relatively high frequency (Figure S2I). In addition to cxcr4a, we found that the related chemokine receptor cxcr4b is also expressed in the developing lymphatic endothelium (Figures S2J-S2N). Higher-magnification WISH images revealed cxcr4b expression in selected cells in the PCV (black arrows in Figures S2J and S2K), in lymphatic sprouts from the PCV (white arrow in Figure S2K), in LEC migrating dorsally and ventrally from the PC (arrows in Figure S2L), and in the developing TD (arrows in Figures S2M and S2N).

Figure 2. Chemokine receptor Cxcr4a expression in the developing zebrafish trunk.

Figure 2

Open in a new tab

(A, F, and J) Diagrams indicating Cxcr4a expression domains as red at stages shown at left. (B,G, and K) WISH images corresponding to left panels (arrows, Cxcr4a expression domains; arrowheads, Cxcr4a expression in DA at 24 hpf). (C-E) Confocal images of a 35 hpf Tg(fli1a:EGFP)y1 embryo (green) injected with a recombineered BAC clone with TagRFP-T driven by the cxcr4a promoter (red). TagRFP-T is detected in lymphatic progenitors sprouting from the PCV. (C) Merged image. (D) Red channel only. (E) Magnified view in the red box of panel C. (H and I) Confocal images of a 45 hpf Tg(fli1a:EGFP)y1 embryo (green) injected with a recombineered BAC clone with TagRFP-T driven by the cxcr4a promoter (red). TagRFP-T is detected in sprouting lymphatic progenitors forming the PC. (H) Merged image. (I) Red channel only. (L and M) Confocal image of a 62 hpf Tg(fli1a:EGFP)y1 embryo (green) injected with a recombineered BAC clone with TagRFP-T driven by the cxcr4a promoter (red). TagRFP-T is detected in LEC migrating dorsally and ventrally from the PC. (L) Merged image. (M) Red channel only. (N) High-magnified WISH image showing a cxcr4a-expressing TD sprout extending along the intersegmental boundary (arrows) and between the DA and PCV (arrowheads) at a 3 dpf animal. (O) Confocal image of ventral trunk vessels in a 5 dpf Tg(fli1a:EGFP)y1 embryo (green) injected with a recombineered BAC clone with TagRFP-T driven by the cxcr4a promoter (red). TagRFP-T expression is present in both TD (arrowheads) and DA, but not in the PCV.

Cxcl12 Ligands are Expressed in Tissues Adjacent to Migrating LEC

Previous work has documented that Cxcl12a and Cxcl12b are ligands for Cxcr4a and Cxcr4b in the zebrafish (Bussmann et al., 2011; Chong et al., 2007; Fujita et al., 2011; Nair and Schilling, 2008; Siekmann et al., 2009). We observe expression of these ligands adjacent to the paths taken by growing Cxcr4a/b-positive trunk lymphatics. WISH shows that cxcl12a is initially expressed in the superficial HM towards which PCV-derived lymphatic progenitors migrate and along which they form the PC (Figures 3A-3D). HM expression of cxcl12a is extinguished at later stages, when ISLV sprouts begin to exit the PC, and cxcl12a becomes expressed instead in the PCV, particularly the dorsal aspect of the PCV immediately below where the ventral ISLV sprouts grow and branch to form the TD (Figures 3E-3H). At 3 dpf, trunk expression of cxcl12b is restricted almost exclusively to aISV, along which the ISLV are migrating, although weak expression is also seen in the DA immediately above where the ventral ISLV will branch to form the TD (Figures 3I and 3J). We verified that cxcl12b expression is in aISV but not in vISV by examining cxcl12b expression in individual WISH-stained animals in which we had previously determined the arterial or venous identity (based on blood flow) of each of the ISV on both sides of the trunk (Figure 3K; Figure S3A; Movie S2). We also confirmed that cxcl12b is expressed in the EC of the aISV and DA, but not in adjacent ISLV, using high-resolution confocal imaging of vessels in Tg(fli1a:EGFP)y1 animals injected with a recombineered BAC transgene containing the cxcl12b promoter upstream of TagRFP-T (Figures 3L and 3M; Figures S3B-S3G). Together, our expression data suggest that Cxcr4a/b-positive lymphatic progenitors might assemble a lymphatic network by migrating toward and/or along Cxcl12a- or Cxcl12b-expressing tissues.

Figure 3. Chemokine ligand Cxcl12 expression in the developing zebrafish trunk.

Figure 3

Open in a new tab

(A-D) Cxcl12a expression in the superficial HM at 24 hpf, as shown in diagram (blue in A) and in WISH lateral view (B), dorsal view (C), and cross-section (D). (E-H) Cxcl12a expression in the PCV at 3 dpf, as shown in diagram (blue in E) and in WISH lateral view (F) and cross-sections (G and H). (I and J) Cxcl12b expression in the aISV and DA, as shown in diagram (magenta in I) and in WISH lateral view image (J) at 3 dpf. (K) Quantification of aISV and vISV (determined by direction of blood flow and by connection to either the DA or PCV as shown in Movie S2) expressing cxcl12b at 56 hpf and 3 dpf. Numbers of counted aISV or vISV at each time point are indicated above the bars. (L and M) Confocal images of mid-to-ventral trunk vessels in a 3 dpf Tg(fli1a:EGFP)y1 embryo (green) injected with a recombineered BAC clone with TagRFP-T driven by the cxcl12b promoter (red), showing green and red fluorescence together (L), or red fluorescence only (M). TagRFP-T expression is present in aISV, but not in adjacent LV.

Chemokine Signaling is Required for Distinct Steps of Lymphatic Network Formation

We performed loss-of-function studies using morpholino oligonucleotides (MO) previously shown to efficiently knock down Cxcr4a, Cxcl12a, and Cxcl12b in the zebrafish (Chong et al., 2007; Hollway et al., 2007; Knaut et al., 2003) to determine whether the function of these genes is required for formation of the trunk lymphatic network (Figures 4A-4K). MO knockdown of either Cxcr4a (Figures 4D and 4E) or Cxcl12a (splice-blocking Cxcl12a MO1; Figures 4F and 4G) leads to loss of the PC (white arrows in Figure 4B) at 55 hpf, and loss of the TD (yellow arrow in Figure 4C) at 5 dpf. Embryos injected with a Cxcl12a translation-blocking MO (Cxcl12a MO2) (Doitsidou et al., 2002) also displayed lymphatic defects (Figures S4A-S4F) that were indistinguishable from those in embryos injected with Cxcl12a MO1 (Figures 4F and 4G). MO knockdown of Cxcl12b does not cause any defects in PC formation (Figure 4H) but does cause loss of the TD at later stages (Figure 4I). All of these results were confirmed by quantitative analysis (Figures 4J and 4K). Although a PC is not formed in Cxcl12a and Cxcr4a morphants, vascular sprouts still emerge from the PCV and grow dorsally to the level of the HM (purple arrowheads in Figures 4D and 4F; Figure S4B). We visualized this sprouting more clearly using a Plcg1 morphant background (Lawson et al., 2003) in which primary DA-derived ISV sprouts do not form but secondary PCV-derived sprouts and PC form normally (Figures S4G-S4I). In Cxcl12a/Plcg1 double morphants PCV-derived sprouts form and grow dorsally to the level of the HM, but they fail to form PC along the superficial HM (Figures S4H and S4I). These results suggest that chemokine signaling is not involved in the PCV-derived sprouting and migration to the level of the HM. We further verified an endothelial-specific functional requirement for Cxcr4a for trunk lymphatic development by performing a transgenic rescue experiment (Figures 4L and 4M). Ecdysone-inducible, endothelial-specific over-expression of Cxcr4a using the fli1a promoter in animals injected with a bidirectional expression construct (Figure 4L; see below for further description) rescues the majority of PC formation defects in Cxcr4a morphants, despite mosaic expression of injected transgenes (Figure 4M). In addition to defects in ventral ISLV growth and TD formation, Cxcl2b- or Cxcr4a-deficient animals also show defects in dorsal ISLV formation (Figures S4J-S4O).

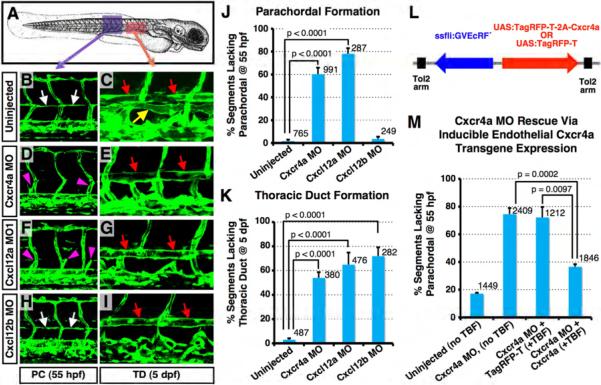

Figure 4. Lymphatic network formation is disrupted in chemokine morphants.

Figure 4

Open in a new tab

(A) Diagram of a zebrafish embryo (a purple box, the region shown in B, D, F, and H; a red box, the region shown in C, E, G, and I). (B-I) Confocal images of trunk vessels in 55 hpf (B, D,F, and H) or 5 dpf (C, E, G, and I) Tg(fli-EGFP)y1 embryos that were either not injected, or injected with MOs indicated at left. (J) Quantification of the PC formation defect in 55 hpf MO-injected embryos (as shown in B, D, F, and H). Values are the mean ± SEM. Numbers of counted PC segments are indicated above the bars. (K) Quantification of the TD formation defect in 5 dpf MO-injected embryos (as shown in C, E, G, and I). Values are the mean ± SEM. Numbers of counted TD segments are indicated above the bars. (L) Diagram of Cxcr4a rescue constructs for spatiotemporal overexpression of either TagRFP-T + Cxcr4a or TagRFP-T alone (arrows, direction of gene expression). (M) Quantification of the PC formation defect in control (column 1) or Cxcr4a morphant animals (columns 2-4), some of which were co-injected with transgenes for ecdysoneinducible endothelial-specific over-expression of either TagRFP-T (column 3) or Cxcr4a (column 4). Values are the mean ± SEM. Numbers of counted PC segments are indicated above the bars. White arrows, PC; yellow arrow, TD; red arrows, DA; magenta arrowheads, secondary sprouts migrating to the level of the HM.

We further analyzed the functions of chemokine signaling for lymphatic network formation in Cxcr4a mutant, Cxcl12b mutant (Bussmann et al., 2011) and Cxcl12a medusa mutant (Valentin et al., 2007) animals (Figures 5A-5E). The cxcl12at30516 mutant has a G to A base change creating a premature stop at codon 33 removing the last two-thirds of the protein (Valentin et al., 2007), the cxcl12bmu100 mutant has a frameshift in the cxcl12b coding sequence after 37 amino acids with a stop codon 23 amino acids later (Bussmann et al., 2011), and the cxcr4aum21 mutant has a frameshift in the cxcr4a coding sequence after 79 amimo acids with a stop codon 32 amino acids later (Bussmann et al., 2011). As in Cxcl12a, Cxcl12b, or Cxcr4a morphants (Figures 4E, 4G, 4I, and 4K; Figures S4D and S4F), TD formation is compromised in either cxcl12at30516 or cxcl12bmu100 ligand mutants, or the cxcr4aum21 receptor mutant (Figures 5B, 5C, 5D, and 5E).

Figure 5. Deficiency of chemokine signaling results in the loss of lymphatic network.

Figure 5

Open in a new tab

(A-D), Confocal images of trunk vessels in 5 dpf Tg(fli-EGFP)y1 wild type (A), cxcl12at30516−/− (B), cxcl12bmu100−/− (C), and cxcr4aum21−/− (D) homozygous mutant animals. Red and yellow arrows indicate DA and TD, respectively. (E) Quantification of TD formation defect in 5 dpf mutant animals. Values are the mean ± SEM. Numbers of counted TD segments are indicated above the bars. (F-I) Confocal images of trunk vessels in 55 hpf Tg(fli-EGFP)y1 animals treated from 30 to 55 hpf (F and H) or 5 dpf Tg(fli-EGFP)y1 animals treated from 3 to 5 dpf (G and I) with either DMSO vehicle (F and G) or Cxcr4 inhibitor (H and I). (J) Quantification of the PC formation defect in 55 hpf DMSO vehicle or Cxcr4 inhibitor-treated embryos. Values are the mean ± SEM. (K) Quantification of the TD formation defect in 5 dpf DMSO vehicle or Cxcr4 inhibitor-treated embryos. Values are the mean ± SEM. In J and K, numbers of counted PC or TD segments are indicated above the bars.

To further clarify the temporal requirement for Cxcr4 function during lymphatic network formation, we treated zebrafish embryos with a known specific Cxcr4 inhibitor, TF10416 (4F-benzoyl-TN14003) previously used in mice (Tamamura et al., 2003a; Tamamura et al., 2003b). Inhibitor treatment from 30 to 55 hpf results in loss of the PC at 55 hpf (Figures 5F, 5H, and 5J) as well as loss of the TD at later stages (data not shown), although emergence of lymphatic sprouts from the PCV and migration of sprouts to the level of the HM are normal (Figure 5H), as shown previously for Cxcr4a and Cxcl12a morphants (magenta arrowheads in Figures 4D and 4F; Figure S4B). Inhibitor treatment from 3 to 5 dpf, beginning after PC formation is complete, still results in loss of the TD at 5 dpf (Figures 5G, 5I, and 5K). These results suggest that Cxcr4a function is required independently for both early (PC) and later (TD) stages of trunk lymphatic network formation, and that loss of TD formation following Cxcr4a knockdown is not merely a secondary consequence of earlier loss of the PC. This notion is supported by the finding that PC-positive Cxcr4a MO-injected animals (Figure S5A) often lack a TD at later stages (Figure S5B). Taken together, our loss-of-function data show that chemokine signaling is required for at least two distinct steps of trunk lymphatic network formation.

Since a recent study reported that netrin1a-mediated guidance of motoneuron axons into the HM is also required for PC formation (Lim et al., 2011), we examined whether these two signaling pathways might cooperate during trunk lymphatic network formation by performing combined knockdown using sub-maximal MO doses. Indeed, double knockdown of Netrin1a and Cxcr4a more strongly suppresses early PC formation (Figure S5C), and later TD formation (Figure S5D) than either Netrin1a or Cxcr4a knockdown alone. In addition, since Cxcr4b is also expressed in the developing lymphatic endothelium (Figures S2J-S2N) we examined whether the cxcr4a and cxcr4b receptors also cooperate during trunk lymphatic network formation by using combined knockdown with sub-maximal MO doses. Again, we found that double knockdown of Cxcr4a and Cxcr4b more strongly suppresses early PC formation (Figure S5E), and later TD formation (Figure S5F) than either Cxcr4a or Cxcr4b knockdown alone. These two sets of data suggest that a number of partially redundant mechanisms are acting in concert to direct trunk lymphatic patterning.

Chemokines Direct the Migration and Alignment of LEC

We performed additional gain-of-function studies to examine whether Cxcl12a and Cxcl12b ligands attract and/or align the growth of developing lymphatics in vivo. We generated bidirectional expression constructs in which a chimeric tebufenozide (TBF)-inducible Gal4-VP16-EcRF′ (GV-EcRF′) transactivator (Esengil et al., 2007) is placed under the control of either shh- (for neural floor plate expression) or fli1a (for endothelial expression)-derived promoter-enhancers and used to drive UAS-dependent transgene expression. Constructs were injected into Tg(fli1a:EGFP)y1 animals for TBF-inducible ectopic neural floor plate (FP) expression of either Cxcl12a + TagRFP-T, or TagRFP-T alone (Figures 6A-6H), or for TBF-inducible ectopic pan-endothelial expression of either Cxcl12b + TagRFP-T, or TagRFP-T alone (Figures 6I-6M; Figure S6).

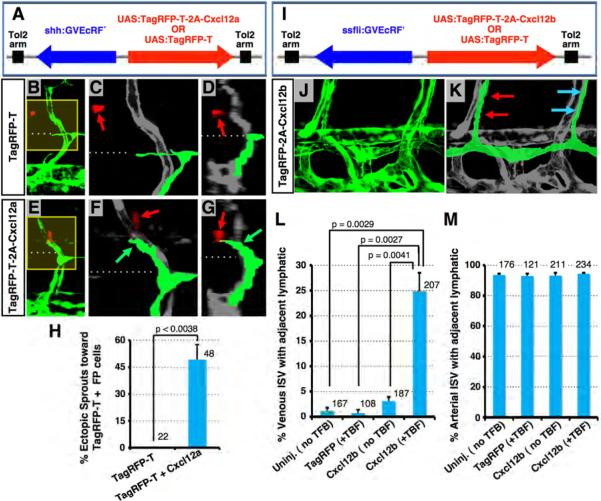

Figure 6. Ectopic overexpression of chemokine ligands induces abnormal migration of LEC.

Figure 6

Open in a new tab

(A) Diagram of constructs for spatiotemporal overexpression of either TagRFP-T + Cxcl12a (produced co-translationally using a viral 2A peptide linker) or TagRFP-T alone (arrows indicate direction of gene expression; see Supplemental Methods for details). (B-G) Confocal images of trunk vessels in 55 hpf Tg(fli-EGFP)y1 embryos injected with constructs as shown at left and treated with TBF from 30 hpf (see Supplemental Methods). Yellow boxes in B and E indicate areas magnified in C and F, respectively. Images in D and G are 3D reconstructed cross-sectional views of the same confocal data shown in B and E, respectively (90° horizontal rotation). Dashed lines mark the level of the HM, where the PC normally forms. Red fluorescence (noted with red arrows) shows neural FP cells expressing TagRFP-T (B-D) or TagRFP-T + Cxcl12a (E-G). Developing lymphatics are colorized green in C, D, F, and G. Green arrows in F and G point to an ectopic lymphatic sprout extending dorsally beyond the HM toward nearby TagRFP-T + Cxcl12a-expressing FP cells. (H) Quantification of ectopic lymphatic sprout migration in segments with TagRFP-T-positive cells in embryos injected with the constructs shown in A. Values are the mean ± SEM. The total number of secondary sprouts counted is shown above each bar. (I) Diagram of constructs for spatiotemporal overexpression of either TagRFP-T + Cxcl12b or TagRFP-T alone (arrows, direction of gene expression) (see Supplemental Methods). (J) Confocal image of ventral trunk vessels in a 5 dpfTg(fli-EGFP)y1 embryo injected with TagRFP-T + Cxcl12b expression construct and treated with TBF from 55 hpf (see Supplemental Methods). (K) Same image as in J with developing lymphatics colorized green (red arrows, a normal ISLV adjacent to an aISV; blue arrows, a mislocalized ISLV adjacent to a vISV). (L) Quantification of venous ISV with an immediately adjacent ISLV in uninjected embryos or embryos injected with constructs shown in I with or without TBF treatment. Values are the mean ± SEM. (M) Quantification of arterial ISV with an immediately adjacent ISLV in uninjected embryos or embryos injected with constructs shown in I, with or without TBF treatment. Values are the mean ± SEM. The total number of vISV (L) or aISV (M) counted is shown above each bar.

As noted above, PCV-derived lymphatic sprouts normally all turn laterally at the level of the HM, migrating toward the Cxcr12a-expressing superficial HM at the lateral surfaces, and do not grow further dorsally past the HM (Figures 1D-1K). As expected, lymphatic sprouts adjacent to FP cells expressing only TagRFP-T do not migrate dorsally past the HM (Figures 6B-6D and 6H). However, lymphatic spouts near FP cells expressing both TagRFP-T and Cxcl12a frequently migrate dorsally past the HM toward the Cxcl12a-expressing cells (Figures 6E-6H), showing that Cxcl12a can direct migration of lymphatic progenitors.

As also noted above, ISLV normally sprout from the PC adjacent to, and grow along, Cxcl12b-expressing aISV, but do not grow along Cxcl12b-negative vISV (Figures 1S and 1T). Injection of a construct for mosaic, TBF-inducible expression of TagRFP-T alone in EC (Figure 6I) does not cause significant misalignment of ISLV along vISV following TBF treatment (Figure 6L). However, mosaic endothelial expression of TagRFP-T together with Cxcl12b results in frequent misalignment of ISLV along vISV (Figures 6J-6L; blue arrows in Figure 6K), without affecting the normal alignment of ISLV along aISV (red arrows in Figure 6K; Figure 6M). A low level of lymphatic misalignment along vISV is seen in Cxcl12b expression construct-injected animals even without TBF, but it is strongly increased by addition of TBF, confirming that misexpression of Cxcl12b is responsible for the misalignment phenotype (Figure 6L). Although embryos mis-expressing cxcl12b throughout the vasculature show ectopic alignment of ISLV along many vISV (Fig. 6L), the normal alignment of ISLV along aISV is not affected (Fig. 6M), as might be expected since the endogenous expression of cxcl12b in aISV has not been perturbed. This results in a somewhat increased total number of ISLV in cxcl12b mis-expressing animals. These results show that Cxcl12b can direct the alignment of lymphatics along BV.

DISCUSSION

Properly directed and coordinated migration of EC is essential for formation of stereotypic and evolutionarily conserved networks of blood and lymphatic vessels during development. Despite recent advances in our understanding of lymphatic development (Butler et al., 2009), the molecular mechanisms regulating lymphatic assembly and patterning remain largely undetermined. In this study, we provide evidence that chemokine signaling is critical for orchestrating the stepwise assembly of the trunk lymphatic vascular network (Figure 7). Cxcl12 (SDF1)- Cxcr4 chemokine signaling is required for multiple steps of trunk lymphatic network assembly. Cxcl12a-Cxcr4 signaling directs PCV-derived lymphatic progenitors (Figure 7A) to the superficial HM to form the PC, a transient endothelial cord containing the precursor cells for the developing trunk lymphatic network (Figure 7B). Cxcl12b-Cxcr4 signaling subsequently guides the dorsal and ventral growth of lymphatic precursors sprouting from the PC to form the ISLV alongside aISV (Figure 7C). Later, ventral expression of Cxcl12a in the PCV and Cxcl12b in the DA appear to mediate the alignment of the assembling TD between these two BV (Figure 7D).

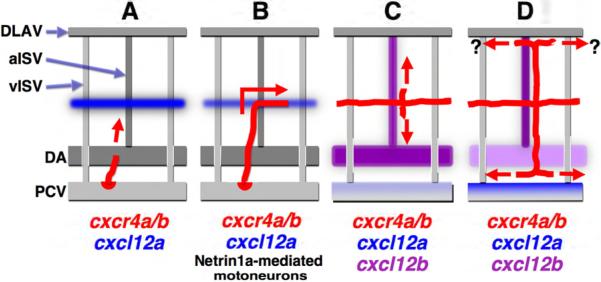

Figure 7. A proposed model for trunk lymphatic network formation.

Figure 7

Open in a new tab

Initial sprouting and dorsal migration of PCV-derived lymphatic progenitors (A) appears to occur independently of chemokine signaling, since sprouts form and migrate to the level of the HM without this signaling. Cxcl12a guides Cxcr4a/b-expressing PCV-derived sprouting EC into the superficial HM to form the PC (B). PC formation is also regulated by netrin1a-guided motoneuron axons in the HM, suggesting cooperative roles of chemokine and non-chemokine signaling mechanisms during PC formation. Cxcl12b-Cxcr4a/b signaling then guides dorsoventral growth of PC-derived lymphatic sprouts along aISV but not vISV (C). Finally, Cxcl12a and Cxcl12b direct TD formation in the space between the DA and PCV (D). The mechanism directing formation of the DLL adjacent to the DLAV blood vessels is at present unknown. Red, developing lymphatics; red arrows, their growth direction.

As described previously, primitive trunk vasculature in zebrafish is formed by DA-derived angiogenic “primary sprouts” and subsequent PCV-derived “secondary sprouts” (Isogai et al., 2003). Some of the secondary sprouts have an angiogenic fate, connecting with the primary sprouts to form vISV. Other secondary sprouts adopt a lymphangiogenic fate, migrating further dorsally to the HM and contributing to the lymphatic PC. Our results show that Cxcr4a signaling is not required for the initial specification of Prox1-postive lymphatic progenitors, or for their incorporation into secondary sprouts and dorsal migration to the level of the HM, since these early events occur normally in chemokine signaling-deficient animals (Figures 4D, 4F, 5H, and 7A; Figures S4B, S4H, and S5E). Although initial lymphatic specification is intact, later lymphatic migration and patterning such as PC formation along the superficial HM are disrupted in chemokine-deficient animals (Figures 4D and 4F; Figures S4B and S4H). In addition, mis-expression of Cxcl12a in the FP attracts ectopic migration of lymphangiogenic sprouts (Figures 6A-6H). Interestingly, previous studies have reported similar PC formation defects in zebrafish deficient in Netrin1a-Unc5b signaling (Navankasattusas et al., 2008; Wilson et al., 2006). Although a variety of studies have shown that Netrin acts as an antiangiogenic or repulsive factor for BV growth (Bouvree et al., 2008; Larrivee et al., 2007); reviewed in (Melani and Weinstein, 2010), other studies have reported an attractive guidance role, notably for zebrafish PC formation (Navankasattusas et al., 2008; Wilson et al., 2006). Like Cxcl12a, Netrin1a is also expressed along the superficial HM (Lauderdale et al., 1997), and deficiency of either Netrin1a, its presumptive receptor Unc5b or Deleted in colorectal cancer (Dcc) results in loss of PC formation (Lim et al., 2011; Navankasattusas et al., 2008; Wilson et al., 2006). However, recent work has shown that Netrin1a signaling appears to be playing a non-autonomous role in PC formation and lymphatic patterning (Lim et al., 2011). The Dcc receptor is expressed in ventrally migrating motor neuron axons but not in migrating lymphatic endothelial progenitors, and Netrin1a and Dcc are required for motor axon positioning along the HM. Loss of these neurons through genetic or laser ablation results in defects in PC formation, suggesting that the motor neuron axons provide a cue (either direct or indirect) for PC alignment (Lim et al., 2011). Indeed, chemokine and netrin signaling appear to be required independently for PC formation (Figure 7B), since netrin1a MO injection does not alter the superficial HM expression of Cxcl12a, and vice-versa (unpublished results), but deficiency of these molecules together additively inhibits PC formation (Figure S5C).

LEC migration away from the PC is required for the formation of the trunk lymphatic vascular network, including the ISLV, TD, and DLL (Figures 1L, 1P, 1S, 7C, and 7D). As we and others have reported previously (Bussmann et al., 2010; Geudens et al., 2010; Hogan et al., 2009; Kuchler et al., 2006; Yaniv et al., 2006), LV form along preexisting BV, in particular arterial BV. Sprouts emerge from the PC adjacent to, and then migrate dorsoventrally exclusively along, aISV, avoiding vISV (Figure 1T). The close anatomical association between ISLV and aISV suggests that arterial BV provide a guidance cue for growing lymphatics. Indeed, we find that Cxcl12b ligand is expressed exclusively in aISV at 3 dpf (Figures 3I-3M; Figures S3A and S3C-S3E), and Cxcl12b-deficient animals exhibit failure of both dorsal migration of LEC from the PC (Figures S4J-S4N) and formation of a ventral TD (Figure 4I) by 5 dpf, despite normal formation of the PC at earlier stages of development (Figure 4H). Furthermore, ectopic panendothelial expression of Cxcl12b promotes both ectopic migration of LEC and mis-alignment of ISLV along vISV (Figure 6I-6M; Figure S6), suggesting that Cxcl12b is the key molecule guiding LEC migration along aISV (Figure 7C). A previous study examining the role of Notch signaling in zebrafish lymphatic development suggested that in addition to its role in lymphatic emergence Notch might also regulate lymphatic vessel pathfinding along arteries (Geudens et al., 2010). This result probably in large part reflects the requirement for Notch for artery specification. Notch-deficient animals form predominately vISV instead of aISV, depriving migrating LEC of most of their Cxcl12b-expressing arterial templates. However, these authors also observed a few cases where lymphatic sprouts failed to migrate along or stalled during migration on “residual aISV.” Notch signaling appears to still be active in aISV during LEC migration from the PC (Geudens et al., 2010), raising the possibility that Notch plays a more direct role in lymphatic pathfinding. In this regard, it would be important to determine whether Cxcl12b expression is reduced in the residual aISV found in Notch-deficient animals, since our results suggest that Cxcl12b is both necessary and sufficient to direct ISLV-aISV alignment.

Later expression of Cxcl12a and Cxcl12b in the PCV and DA, respectively (Figure 3E-3j; Figure S3A-S3E), suggests that these ligands also guide the positioning of the TD. During TD assembly Cxcl12b expression in the DA is gradually decreasing while Cxcl12a expression in the PCV is gradually increasing. This spatial-temporal gradient of chemokine ligand expression probably ensures that the final destination of ventrally migrating LEC is the area between DA and PCV (Figure 7D). The role of Cxcr4a/b-dependent signaling in DLL formation along the ventral surface of the DLAV (Isogai et al., 2001) is less clear. Close apposition between the DLL and the DLAV suggests that the DLAV provides a guidance template for the DLL, but Cxcl12a and Cxcl12b expression is not detected in the DLAV at the level of detection of our WISH method.

Together, our results indicate that chemokine signaling plays a central role in directing trunk lymphatic vascular network assembly. Cxcr4-expressing LEC migrate to the superficial HM, along aISV, and then between the DA and PCV by responding to Cxcl12 ligands (Figure 7). The blood endothelial expression of chemokine guidance cues is interesting in light of the well-documented common anatomical alignment of larger lymphatics with BV, particularly arteries, throughout the vertebrates (Gray, 1918; Sabin, 1902; Sabin, 1909). This suggests that the mechanisms described here may have wider implications for lymphatic patterning and LV growth not only during embryogenesis but also during tumor-derived lymphangiogenesis. Recent studies have shown that the lymphatic vasculature is an important route for the metastatic spread of tumor cells (Achen et al., 2005; Alitalo et al., 2005; Wang and Oliver, 2010). Tumors actively induce both lymphangiogenesis and angiogenesis in the vicinity of tumors by secreting growth factors such as VEGF-C, VEGF-D and VEGF-A. Interestingly, many tumors are also known to express chemokine ligands and receptors in the tumor microenvironment, playing important roles in tumor-induced angiogenesis, tumor growth and metastasis by autocrine and paracrine mechanisms (Raman et al., 2007; Somasundaram and Herlyn, 2009). For example, the CC chemokine receptor 7 (CCR7) in tumor cells responds to its ligand CCL21 in LEC, facilitating tumor cell invasion into LEC (Issa et al., 2009; Muller et al., 2001; Wiley et al., 2001). The identification of novel lymphatic guidance cues may therefore also lead to potential new clinical targets for lymphangiogenesis.

EXPERIMENTAL PROCEDURES

Zebrafish

Zebrafish (Danio rerio) embryos were obtained from natural spawning of laboratory lines. Embryos were raised and fish maintained as previously described (Kimmel et al., 1995; Westerfield, 2000). Zebrafish lines used in the study are wild-type EK, Tg(fli1a:EGFP)y1 (Lawson and Weinstein, 2002), cxcr4aum21 (Bussmann et al., 2011), medusa (cxcl12at30516) (Valentin et al., 2007), and cxcl12bmu100 (Bussmann et al., 2011). Embryos were treated with 1-phenyl-2-thiourea (PTU) to inhibit pigment formation (Westerfield, 2000) to facilitate imaging and staining for whole-mount in situ hybridization (WISH). To immobilize embryos for imaging they were treated with tricaine (Westerfield, 2000).

Microscopy and imaging

Embryos were mounted with 9% methyl cellulose for single time point imaging. Embryos stained via WISH were imaged with a ProgRes C14 camera mounted on a Leica MZ12 stereomicroscope. High-magnification images were captured via a digital camera (The IMAGINGSOURCE™) mounted on an Olympus BX61WI compound microscope and iMovie program (Apple Inc.). A movie showing blood flow was obtained from the digital camera (The IMAGINGSOURCE™) mounted on a Leica MZ FLIII stereomicroscope using iMovie (Apple Inc.). A Leica DC 500 digital camera mounted on a Zeiss Axioplan 2 compound microscope was used for obtaining images of sectioned cxcl12a in situ-stained embryos. Confocal microscopy images were acquired using a FluoView 1000 confocal microscope (Olympus). The images shown in this paper are single-view 2D reconstructions of collected z-series stacks. Time-lapse imaging using two-photon microscopy (Zeiss LSM) was performed as described previously (Kamei and Weinstein, 2005). Image z-stacks were collected using a Tg(fli1a:EGFP)y1 animal from 1.4 dpf (34 hpf) to 4.6 dpf (100 hpf), collecting images every 15-20 min. Each z-stack contains 54 sections collected 3μm apart. Time-lapse movies were assembled using NIH ImageJ.

BAC engineering using homologous recombination

To investigate the endogenous expression domains of chemokine ligand and receptor, we modified BAC clones containing genomic elements of Cxcl12b (ZC106B24) and Cxcr4a (ZH268G8) using homologous recombination (Figures S2A and S3B). Targeting vectors were made by Multisite Gateway Cloning (Invitrogen) and In-Fusion® PCR cloning system (Clontech). Each BAC clone was electroporated into SW105 (Warming et al., 2005) and selected with chloramphenicol (12.5 ug/ml). The modified Cxcr4a BAC clone was further changed by inserting iTol2 using homologous recombination (iTol2-Cxcr4a BAC; (Suster et al., 2009)). See Supplemental Experimental Procedures for targeting vector construction and homologous recombination.

Plasmid constructs for in situ RNA probes

Because of high degree of identity in coding sequences between cxcl12a and cxcl12b, 3′ UTRs for each gene were amplified from stage mixed cDNAs by PCR. A 324 bp PCR product for cxcl12a was generated with cxcl12aF (AAAAAGCCCAACAGCAGCAGG) and cxcl12aR (ACACGGAGCAAACAGGACTCC) primers and cloned into pCRII-TOPO vector (Invitrogen). For cxcl12b, a 548 bp-long PCR product was amplified with cxcl12bF (ATCCTTGCTTTGTGGTCCAG) and cxcl12bR (TAGCGTTGTGTGACCAGAGG) and cloned into pGEM-T (Promega). For cxcr4a, cxcr4aF (ACTTGCTGGAGACTGAAGGAG) and cxcr4aR (TGCAATGGTCTACATAAGTGC) primer pairs were used to PCR amplify a portion of the coding sequence from stage mixed cDNAs. PCR products were inserted into the pCRII-TOPO vector.

Whole-mount in situ hybridization (WISH) and section

RNA probes for cxcl12a, cxcl12b, cxcr4a, and prox1 were labeled with DIG and a probe for dab2 with fluorescein using a DIG/fluorescein labeling kit (Roche). WISH was carried out as described previously with some modifications (Hauptmann and Gerster, 1994). In some cases, to improve penetration of probes and color substrate in later-stage animals fixed embryos were cut transversely across the head or trunk with a scalpel in 0.3 M sucrose solution before WISH procedure. For color staining, BM purple was used for DIG-labeled probes and INT/BCIP for the fluorescein-labeled probe. To better characterize the expression domain of cxcl12a, embryos stained with this probe were embedded with JB-4 plastic resin (Polysciences Inc.) and transverse sections (7-10 μM) were carried out using a microtome (Leica RM 2165).

Microinjections

For the Cxcr4a rescue experiment, capped Tol2 transposase RNA (35 pg) and Tol2 plasmids (40 pg) containing a fli1a-derived promoter, EcRF′, and TagRFP-T or Cxcr4a-encoding sequences (see Figure 4L) were co-injected with 9 ng Cxcr4a MO into one blastomere of one-cell stage Tg(fli1a:EGFP)y1 embryos. For cxcl12a or cxcl12b ectopic expression experiments, capped Tol2 transposase RNA (35-50 pg) and Tol2 plasmids (35-50 pg) containing a tissue-specific promoter, EcRF′ and chemokine ligand-encoding sequences (see Figures 6A and 6I) were co-injected into the blastomere of one-cell stage Tg(fli1a:EGFP)y1 embryos. For visualization of Cxcr4a- or Cxcl12b-expressing cells, 100-150 pg of recombineered BAC DNA (see Figure S2A and S3B) was injected into the blastomeres of one-cell stage embryos. For the iTol2-Cxcr4a BAC, 70-80 pg BAC DNA was co-injected with capped Tol2 transposase RNA (40-50 pg) into the blastomeres of one-cell stage embryos. Morpholinos (MOs; Gene Tools) were injected into yolk of 1-2 cell stage embryos. See Supplemental Experimental Procedures for MO sequences and the injection doses.

Inducible overexpression constructs

The Gal4-VP16-Ecdysone (GV-EcRF′):UAS system was utilized for spatiotemporal overexpression of chemokine ligands (Esengil et al., 2007). For expression of cxcl12a in neural floor plate (FP), shh promoter and FP-specific enhancer (Ar-B) in intron 1 was used (Ertzer et al., 2007). Ar-B (1329 bp) and shh promoter (2941 bp) fragments were separately amplified from a shh genomic DNA-containing BAC clone (ZC150E22), and connected each other by overlapping PCR. The PCR product was cloned into pDONR P2R-P3 vector in an opposite direction. For expression of cxcl12b and Cxcr4a in EC, fli1ep fragment (Covassin et al., 2009) was cloned into pDONR P2R-P3 vector in an opposite direction. DNA fragments encoding either TagRFP-T only, or TagRFP-T and chemokine ligand-coding sequences (containing whole cDNA sequences including N-terminal signal peptide-coding sequences), or TagRFP-T and Cxcr4a-coding sequences linked by a viral 2A peptide sequence (Provost et al., 2007; Szymczak et al., 2004) were amplified by overlapping PCR and cloned into pDONR 221. The complete inducible constructs were generated using Multisite Gateway Cloning (Invitrogen) and In-Fusion® PCR cloning system (Clontech). See Supplemental Experimental Procedures for inducible constructs.

Treatment of Cxcr4 inhibitor and Tebufenozide (TBF)

Cxcr4 antagonist TF10416 (4F-benzoyl-TN14003) (Tamamura et al., 2003a), a T140 analog, was provided by Dr. Nobutaka Fujii (Kyoto University, Japan). A stock solution for TF10416 was made by dissolving it in water at 10 mM concentration. To test Cxcr4 function in PC formation, embryos were incubated from 30 to 55 hpf in E3 embryo buffer (5 mM NaCl, 0.17 mM KCl, 0.33 mM CaCl2, 0.33 mM MgSO4) containing 25-35 uM Cxcr4 inhibitor. The role of Cxcr4 in TD formation was tested by treating embryos from 3 to 5 dpf with 0.5-1 uM Cxcr4 inhibitor. Tebufenozide pestanal® was purchased from Fluka, and a stock solution was made by dissolving it in dimethyl sulfoxide (DMSO, Sigma) at 50 mM concentration. Ecdysone was activated by incubating embryos with E3 embryo buffer containing 10-20 uM Tebufenozide (TBF). Buffer containing either Cxcr4 inhibitor or TBF was replaced daily. See Supplemental Experimental Procedures for more detail on TBF treatment.

Statistical Analysis

Data were evaluated with two-tailed unpaired Students t-test. Each value on graphs represents the mean ± standard error of the mean (SEM).

Supplementary Material

01
02
Download video file (7.4MB, mov)
03
Download video file (7.1MB, mov)

HIGHLIGHTS.

Cxcr4a and Cxcr4b are expressed in lymphatic endothelium.

Cxcl12a and Cxcl12b are expressed in adjacent tissues along which lymphatics migrate.

Chemokine signaling coordinates the stepwise assembly of the trunk lymphatic network.

ACKNOWLEDGEMENTS

We thank members of the Weinstein lab for technical help and critical suggestions. We would like to thank Dr. Nobutaka Fujii for providing the Cxcr4 inhibitor (TF10416). We are also grateful to James Chen for the gift of GV-EcRF′ plasmid. This research was supported by intramural program of the NICHD, NIH and by the Leducq Foundation. A.F.S. was supported by the Max Planck Society, a grant from the Deutsche Forschungsgemeinschaft (SI 1374/3-1) and an ERC starting grant (260794-ZebrafishAngio).

Footnotes

Publisher's Disclaimer: This is a PDF file of an unedited manuscript that has been accepted for publication. As a service to our customers we are providing this early version of the manuscript. The manuscript will undergo copyediting, typesetting, and review of the resulting proof before it is published in its final citable form. Please note that during the production process errors may be discovered which could affect the content, and all legal disclaimers that apply to the journal pertain.
