Wild Type Bone Marrow Transplant Partially Reverses Neuroinflammation in Progranulin-Deficient Mice

Abstract

Frontotemporal dementia (FTD) is a neurodegenerative disease with devastating changes in behavioral performance and social function. Mutations in the progranulin gene (GRN) are one of the most common causes of inherited FTD due to reduced progranulin expression or activity, including in brain where it is expressed primarily by neurons and microglia. Thus, efforts aimed at enhancing progranulin levels might be a promising therapeutic strategy. Bone marrow-derived cells are able to engraft in the brain and adopt a microglial phenotype under myeloablative irradiation conditioning. This ability makes bone marrow (BM)-derived cells a potential cellular vehicle for transferring therapeutic molecules to the central nervous system. Here, we utilized BM cells from Grn^+/+ (wild type or wt) mice labeled with green fluorescence protein for delivery of progranulin to progranulin deficient (Grn^−/−) mice. Our results showed that wt bone marrow transplantation (BMT) partially reconstituted progranulin in the periphery and in cerebral cortex of Grn^−/− mice. We demonstrated a pro-inflammatory effect in vivo and in ex vivo preparations of cerebral cortex of Grn^−/− mice that was partially to fully reversed five months after BMT. Our findings suggest that BMT can be administered as a stem cell-based approach to prevent or to treat neurodegenerative diseases.

Homozygous mutations in the progranulin gene (GRN) cause a disease of childhood and young adults called neuronal ceroid lipofuscinosis-11 (OMIM Entry: #614706). ^{1, 2} GRN haploinsufficiency is a common cause of a form of dementia in middle-aged adults called frontotemporal dementia (FTD) that derives from a neurodegenerative disease called frontotemporal lobar degeneration (FTLD) with transactive response DNA-binding protein 43 kDa (TDP-43)-positive inclusions, or FTLD-TDP. ^2–11 Indeed, at least 70 different GRN mutations (http://www.molgen.ua.ac.be/FTDMutations/), all of which result in progranulin deficiency, cause FTLD-TDP ^12–14.

Progranulin is expressed in diverse tissue including bone marrow and circulating immune cells as well as solid organs including the brain, and is present in plasma and cerebrospinal fluid. ^15–19 In brain, progranulin is expressed largely by neurons and microglia ^{2, 16} with increased expression in activated microglia. ^{13, 20} Progranulin is pleiotropic and is secreted into the extracellular fluid where it exerts autocrine and paracrine effects. ²¹ Its direct actions include regulation of innate immunity ^{22, 23} and neurotrophism. ^24–28 Progranulin also is cleaved by multiple enzymes including neutrophil elastase, ²⁹ various matrix metalloproteinases, ³⁰ and proteinase 3 ³¹ to produce granulin that contributes to regulation of the cell cycle and inflammation, among other actions. ^{32, 33} Moreover, there is a complex interplay between progranulin and granulin cleavage products. For instance, full-length progranulin is anti-inflammatory while proteolytically released granulins can have the opposite action. ^{22, 29, 34, 35}

Insight into the mechanisms of progranulin deficiency has been aided by development of mice homozygous deficient for progranulin (Grn^−/−), ^36–38 which display increased innate immune activation, behavioral abnormalities, and neuropathologic changes that share some of the features of FTLD-TDP. ^{2, 22, 23} Mice hemizygous for Grn exhibit much milder pathologic and behavioral changes. ^{2, 39} Attempts to effectively reverse the deficits caused by progranulin deficiency have been attempted in cell culture using small molecules. ⁴⁰ We tested the hypothesis that bone marrow transplantation (BMT) from Grn^+/+ (wt) mice into Grn^−/− mice would result in increased levels of circulating and CNS progranulin, and mitigate the pro-inflammatory changes in the central nervous system that characterize progranulin deficiency in younger adult mice.

Material and Methods

Animals

All mice were maintained in a C57BL/6 background and were congenic with identical MHC.⁴¹ Bone marrow (BM) recipient mice were 2-month-old progranulin knock-out (Grn^−/−) or Grn^+/+ (wt) mice and their non-transplanted littermates were used as controls. Grn^−/− mice on a C57BL/6 background ^{22, 37} were purchased from the Jackson Laboratory (B6.Cg-Grntm1.1Aidi/J catalog #013175, Bar Harbor, ME). BM donor mice were male wt mice homozygous for green fluorescent protein (GFP). GFP expression is under control of the β-actin promoter and cytomegalovirus enhancer. Mice were housed in standard laboratory conditions with a strict 12-hour light/dark cycle and with free access to mouse chow and water. All protocols were approved by the University of Washington Institutional Animal Care and Use Committee.

Bone Marrow Transplantation

Bone marrow transplantation (BMT) was performed in recipient wt or Grn^−/− mice using wt-GFP mice as donors. Recipient wt or Grn^−/− mice at 2 months of age received total body irradiation (10.5 Gy) in a single dose at approximately 2 Gy per minute from a Cesium-137 source (JL Shepherd, Model 81-14, San Fernando, CA). Previous studies^{42, 43} have reported a 100% incidence of death at this dose. BM was isolated from 6-week-old male wt-GFP mice by flushing the femurs and tibias with RPMI media with 10% fetal bovine serum. The samples were combined, passed through a 25-gauge needle filtered through a 70 μm nylon mesh, and centrifuged. Erythrocytes were lysed in ammonium chloride potassium (ACK) buffer (Invitrogen, Carlsbad, CA) and the remaining leukocytes were resuspended in sterile PBS at a concentration of ~5×10⁶ viable nucleated cells per 200 μl. Irradiated wt or Grn^−/− mice received wt-GFP BM cells via retroorbital venous plexus injections one day after total body irradiation and were housed in autoclaved cages. Chimeric mice were then euthanized for analysis 5 months after transplantation.

Tissue Collection and Processing

Animals were anesthetized with 2.5% tribromoethanol (Avertin; Sigma-Aldrich, St. Louis, MO) 5 months post transplantation. Blood was drawn via cardiac puncture and processed for flow cytometry before the mice were transcardially perfused with ice-cold PBS. Brains were rapidly removed from the skulls and divided by mid-sagittal section. One hemibrain was dissected into anatomically distinct regions (including frontal and parieto-occipital cerebral cortex, striatum, hippocampus, cerebellum, thalamus/midbrain, and brainstem). The parieto-occipital cortex fragment was immediately placed in cold HBSS and processed for microglia isolation. Central engraftment and microglia molecular phenotype were analyzed by flow cytometry. The frontal cortex was divided into an RNA fraction and a protein fraction, and along with the other regions, immediately flash-frozen in liquid nitrogen and stored at −80°C for RNA or protein analysis. Four sections of coronal slices (400 μm per section) were obtained for ex vivo experiments from the contralateral hemibrain of each animal, and the rest of the hemibrain was then post-fixed for 2 days in 4% paraformaldehyde and then placed in PBS solution containing 30% (w/v) sucrose for 2 days at 4°C. The frozen brains were embedded in optimal cutting temperature compound, frozen in liquid isopentane, and then coronally sectioned in 40 μm increments using a cryostat (Leica CM3050; Leica, Wetzlar, Germany). Slices were collected in cold cryoprotectant solution [0.05 mol/L sodium phosphate buffer (pH 7.3), 30% ethylene glycol, and 20% glycerol] and stored at −20°C until needed for immunostaining.

Ex vivo Culture

Coronal slices sectioned in 400 μm were obtained from hemibrain of BM recipients or their non-transplanted controls using a McIIwain Tissue Chopper (Vibratome Company). Two pieces of slices were placed into one well of a 24 well plate and cultured for 6 hrs in serum free DMEM/F12 medium with or without 1 μg/ml LPS treatment. The conditioned medium were collected and stored at −80°C for cytokine measurements using ELISA.

Flow Cytometric Assay

Peripheral (non-CNS) engraftment and differentiation of GFP⁺ donor BM-derived cells were assessed by flow cytometry of peripheral blood. Red blood cells were removed using lysis buffer (Sigma-Aldrich, St. Louis, MO). Cells were then washed three times in PBS and incubated with antibodies on ice for 30 minutes. Cells were fixed with 1% paraformaldehyde and then analyzed using a LSR II flow cytofluorometer (BD Biosciences, Franklin lakes, NJ). Identically processed blood from wt-GFP and wt mice were used as positive and negative controls, respectively. Peripheral blood engraftment was determined as a percentage of GFP⁺ cells divided by the total number of nucleated cells. Multilineage differentiation of donor BM cells was determined by staining with Alexa Fluor 700–conjugated CD3 (T cells), PE-Cy7–conjugated CD19 (B cells), allophycocyanin (APC)-conjugated Gr-1 (neutrophils), and eFluor 450-conjugated CD11b (monocytes/macrophages) antibodies (eBioscience, San Diego, CA). Appropriately labeled IgG isotype control antibodies were used as negative controls.

For central nervous system (CNS) engraftment, mononuclear cells were isolated from cerebral cortex homogenates as described previously. ⁴⁴ Briefly, cerebral cortex was dissociated by gentle homogenization in HBSS. The cell suspension was passed through a 70-μm nylon cell strainer and centrifuged at 300 × g for 7 minutes. Supernatant was removed, and cell pellets were resuspended in 70% isotonic percoll (GE Healthcare, Uppsala, Sweden). A discontinuous percoll density gradient was set up as follows: 70%, 35%, and 0% isotonic percoll. The gradient was centrifuged for 30 minutes at 1200 × g. Mononuclear phagocytes were collected from the interphase between the 70% and 35% percoll layers. The cells were washed and then stained with eFluor 450–conjugated CD11b and Alexa Fluor 700–conjugated CD45 antibodies for 30 minutes. The cell suspension was analyzed to identify the population of CD11b⁺CD45^low microglia. ^{45, 46} Cerebral cortex engraftment of BM-derived microglia was determined by dividing the CD11b⁺CD45^lowGFP⁺ cell population by total CD11b⁺CD45^low microglia. The assessment of cell-surface protein expression was performed using PE-Cy7–conjugated major histocompatibility complex (MHC) class II (eBioscience, San Diego, CA), PE-conjugated CD36 (LifeSpan BioSciences, Seattle, WA), and APC-conjugated CD126 (Biolegend, San Diego, CA) antibodies. After washing, the cells were incubated with the fluorescent-labeled primary antibody or IgG isotype control for 30 minutes at 4°C. The expression of MHC class II, CD36 and CD126 was assessed as mean fluorescence intensity (MFI) in microglia populations. Antibody-capture beads (CompBeads, BD Biosciences) were used for single-color compensation controls for each reagent used in the study. After each control was acquired, the negative and positive populations for each color were identified. The spectral-overlap values from single color controls were automatically calculated to compensate using BD FACSDiva™ software (BD Biosciences). For MFI, fluorochrome-conjugated isotype controls were used to quantify background, nonspecific fluorescence intensity. Subtraction procedures were applied to compare the background level with the observed intensity.⁴⁷ All flow cytometry experiments were performed using a 12-color flow cytofluorometer LSR II (BD Biosciences). Data were analyzed with FlowJo software version 7.2.2 (Tree Star, Ashland, OR).

ELISA

Progranulin levels from mouse plasma and cerebral cortex were quantified using an ELISA kit (Adipogen, San Diego, CA) according to the manufacturer’s protocol. To isolate protein, mouse cerebral cortex was dissected and homogenized in lysis buffer (20 mM Tris, pH 7.5, 150 mM NaCl, 1 mM PMSF, and 0.1% Triton x-100) supplemented with protease inhibitors (Roche, South San Francisco, CA). Samples were then spun at 16,000 × g for 10 min at 4°C. The supernatant was collected, and the concentration of soluble protein in each sample was determined using Biorad Dc Protein Assay reagent (Bio-Rad, Hercules, CA). A total of 200 μg of protein was added to 1× diluents, and samples were run in duplicate. To isolate plasma, blood was collected from the right atrium of the heart, and samples were spun at 2000 × g for 10 min at 4°C. Mouse plasma was then diluted 1:500 in 1× diluent and run in duplicate. Average absorbance values were calculated for each set of duplicate standards and duplicate samples and were then used for statistical analysis. Level of acceptance for duplicates was within 20% of the mean. Unacceptable duplicates were rejected and new ones were measured. Recombinant mouse progranulin supplied with the kit was used for generating a standard curve. Concentrations of IL-6 and TNF-α in conditioned medium from slice cultures were determined by ELISA kits (R & D Systems, Minneapolis, MN) according to the manufacturers’ instructions.

Immunohistochemistry and Stereology

Every sixth coronal section was used for immunostaining and unbiased stereological methods (n = 4 to 6 per group). Immunofluorescence staining was performed according to previously published protocols. ^{48, 49} Primary antibodies included anti-ionized calcium binding adaptor molecule 1 (Iba-1) (dilution 1:500; Wako, Richmond, VA) and anti-progranulin (dilution 1:200; R&D Systems, Minneapolis, MN); species-appropriate secondary antibodies were conjugated to Cy3 (dilution 1:400; Jackson Immunoresearch, West Grove, PA). Prolong-gold anti-fade with DAPI (Invitrogen, Carlsbad, CA) was used for coverslipping and nuclear counterstain. All images were captured using an FV1000 laser scanning confocal microscope (Olympus, Center Valley, PA).

To quantify Iba-1⁺ microglia and BM-derived cells (GFP⁺), sections were analyzed using unbiased stereological cell quantification using systematic random sampling. Every sixth brain section (240 μm apart) was analyzed at 200X magnification using a Nikon fluorescence microscope (Melville, NY) and Stereo Investigator software version 7.52 (MBF Bioscience, Williston, VT). An optical fractionator was used with a counting frame measuring 100 μm Χ 100 μm applied every 600 μm in cerebral cortex. Cells were assessed as Iba-1⁺, GFP⁺, or Iba-1⁺ and GFP⁺ double immunopositive.

RT-PCR and Quantitative Real-time PCR

Total RNA was extracted from mouse cortex with RNeasy (Qiagen, Valencia, CA) according to the manufacturer’s suggestions. Progranulin expression was determined via RT-PCR using RNA from cerebral cortex of wt-GFP→wt, wt-GFP→Grn^−/−, wt or Grn^−/− mice as templates, and amplified with a primer (forward, 5′-CTGTCGTGTGCCCTGATGCTAAG-3′; reverse, 5′-CCCCAGTCCCCAGAATTGAGTTTG-3′). Mouse β-actin was used as control.

To quantify progranulin or cytokine expression in cerebral cortex, real-time RT-PCR was performed in a model 7300 real-time PCR system (Applied Biosystems, Foster City, CA) using iTaq Universal SYBR Green assay (BioRad, Hercules, CA). One μg of total RNA was reverse-transcribed using a RETROscript kit (BioRad, Hercules, CA). The cDNA synthesized from total RNA was diluted 20-fold with DNase-free water, and each cDNA sample was independently tested three times. The primer sequences are: Grn (forward, 5′-GACACATGGCCTAGAATAAC-3′; reverse, 5′-AAGACACACCCTTAGAGAAC-3′); CCL2 (forward, 5′-CAAGATGATCCCAATGAGTAG-3′; reverse, 5′-TTGGTGACAAAAACTACAGC-3′); CX3CL1 (forward, 5′-CTTCCATTTGTGTACTCTGC-3′; reverse, 5′-ACTCCTGG TTTAGCTGATAG-3′); Macrophage migration inhibitory factor (MIF) (forward, 5′-GGGTCTACATCAACTATTACG-3′; reverse, 5′-GGATAAACACAGAACACTACG-3′); CXCL10 (forward, 5′-AAAAAGGTCTAAAAGGGCTC-3′; reverse, 5′-AATTAGGACTAGCCATCCAC-3′). Mouse β-actin expression was used as an endogenous control (forward, 5′-GATGTATGAAGGCTTTGGTC-3′; reverse, 5′-TGTGCACTTTTATTGGTCTC-3′). Cycling conditions for real-time PCR were 95°C for 20 seconds, followed by 40 cycles at 95°C for 1 second and 60°C for 20 seconds. Quantitative PCR was performed according to the guidelines provided by Applied Biosystems. The comparative cycle threshold (CT) method (ΔΔCT quantitation) was used to assess the difference between samples. Quantitative data analysis followed the suggestions of the manufacturer.

Statistical Analysis

Results are expressed as mean ± standard error of the mean (SEM). Statistical analysis was performed by the unpaired Student t-test or one- or two-way analysis of variance as indicated. Post hoc testing used the Bonferroni method. Statistical significance was assumed if P < 0.05. All statistical analyses were performed using GraphPad Prism software version 5.03 (San Diego, CA).

Results

Partial Reconstitution of Progranulin in Periphery and Cerebral Cortex of Grn^−/− Mice

BMT-derived cells migrate into the CNS where they adopt a microglial phenotype and partially replace existing monocyte-lineage cells in irradiated wt recipient mice.^{48, 50–52} We transplanted erythrocyte-depleted whole bone marrow from wt-GFP donor mice into 2-month-old wt (wt-GFP→wt) or age-matched Grn^−/− (wt-GFP→Grn^−/−) recipient mice 24 hours after myeloablative (10.5 Gy) total body irradiation. All recipients survived until they were euthanized 5 months post-BMT. Flow cytometry (Figure 1a) showed essentially complete marrow replacement since >96% of blood mononuclear cells were GFP⁺ (donor-derived). The extent of peripheral engraftment did not differ by recipient genotype (Figure 1b): wt-GFP→wt, 96.4±0.3%; wt-GFP→Grn^−/−, 96±0.7%. Using lineage-specific antibodies, we compared the proportion of T cells, B cells, neutrophils and monocytes/macrophages in the blood of BMT-recipient mice (Figure 1c) and found no significant effect of recipient Gm genotype.

Figure 1. Engraftment of GFP⁺ cells in peripheral blood and CNS of BMT recipients.

(a) Representative flow cytometric histograms showing the expression of GFP⁺ cells in blood 5 months after transplantation with BM cells into lethally irradiated wt (wt-GFP→wt) or Grn^−/− (wt-GFP→Grn^−/−) mice. A C57BL6;GFP mouse (GFP) and a C57BL6 mouse (wt) were used as positive and negative controls, respectively. (b) Percent peripheral engraftment was calculated by comparing GFP⁺ leukocytes to total leukocytes using flow cytometry, and revealed nearly complete peripheral engraftment with no significant host genotype differences detected. (c) Flow cytometric analysis of peripheral blood comparing the proportion of T cells, B cells, neutrophils, and monocytes/macrophages in BMT-recipient mice and controls. Data revealed no significant influence of host genotype on the percentage of respective cell populations. Data are expressed as mean ± SEM. Six animals per group were analyzed. (d) Mononuclear cells were isolated using percoll gradient from rapidly dissected cerebral cortex from wt-GFP→wt and wt-GFP→Grn^−/− chimeras five months post-transplantation after transcardial perfusion with ice-cold PBS. Representative flow cytometric histogram of GFP fluorescence (x axis) in CD11b⁺CD45^low gate are shown for population of recipient (GFP) versus donor (GFP⁺) microglia from cerebral cortex. Negative control graph shows the histogram of a C57BL6 mouse (wt – upper left). Positive control graph shows the histogram of a C57BL6;GFP mouse (GFP - upper right). (e) Flow cytometric analysis showed engraftment of BMT-derived microglia (GFP⁺CD11b⁺CD45^low) was decreased in wt-GFP→Grn^−/− chimeras compared with wt-GFP→wt mice. **p < 0.01, unpaired Student’s t-test. (f) Quantitative real-time PCR analysis of CXCL10 and CCL2 mRNA expression in cerebral cortex of BMT recipients and the nontransplanted controls. Expression of CCL2 was below the limit of detection in cortex of wt or Grn^−/− nontransplanted mice. Expression of CCL2 in cortex was induced in wt-GFP→wt and wt-GFP→Grn^−/− mice, but no significant difference was observed between the two types of chimeras. CXCL10 mRNA expression was increased in wt-GFP→wt mice compared with wt mice (*p<0.05), whereas no significant difference was observed between wt-GFP→Grn^−/− mice and Grn^−/− mice. One way ANOVA was performed using the Bonferroni post hoc test. Data are expressed as mean ± SEM. n=4–6. (g) Iba-1 immunostaining was performed on 40-μm sections from 7-month-old wt-GFP→Grn^−/− or wt-GFP→wt mice sacrificed 5 months post-BMT. Merged images confirm that GFP⁺ cells are also uniformly Iba-1⁺ (yellow) and therefore of donor origin, whereas others represent endogenous microglia and only express Iba-1 (red). Arrowheads indicate representative ramified GFP⁺ and Iba-1⁺ colabeled cells in the cortex. High magnification images of GFP⁺ (green) and Iba-1⁺ immunoreactivity (red) for microglia revealed predominantly ramified morphology in both groups with no clear differences between groups. Scale bars: 50 μm; 10 μm (high magnifications). (h) Unbiased stereological quantitation of BMT-derived microglia engraftment in the cortex of chimeric mice reveals reduced engraftment in wt-GFP→Grn^−/− mice compared with wt-GFP→wt mice. **p < 0.01, unpaired Student’s t-test. Individual mice and the mean ± SEM per group are shown.

We next determined whether recipient genotype influenced the engraftment of wt cells into cerebral cortex. Mononuclear cells from cerebral cortex (perfused with ice-cold PBS) were isolated for flow cytometry and microglia (CD11b⁺CD45^low) probed for expression of GFP (Fig. 1d). In contrast to peripheral leukocyte engraftment, significantly less BMT-derived microglia engrafted in cerebral cortex of Grn^−/− recipients (10.6±2.3%) than in wt recipients (22.8±2.8%, Figure 1e, p < 0.01). We investigated four potential mediators of reduced engraftment of BMT-derived cells in Grn^−/− cerebral cortex (Figure 1f): CXCL10 (IP-10), CCL2 (MCP-1), CX3CL1 (fractalkine/neurotactin), and macrophage migration inhibitory factor (MIF). CXCL10 cerebral cortical mRNA level was increased about twofold in wt-GFP wt mice without significant change in wt-GFP Grn^−/− mice compared to non-transplanted controls. In contrast, similarly increased expression of CCL2 was observed in the cerebral cortex of both recipient groups compared to their non-transplanted controls. Finally, qPCR analysis of cerebral cortical CX3CL1 and MIF mRNA levels showed that each was unchanged in recipient cerebral cortex compared to non-transplanted controls (data not shown).

Confocal microscopic examination of cerebral cortex showed that donor BMT-derived (GFP⁺) parenchymal cells exhibited a ramified phenotype and were decorated with the microglial marker Iba-1 in wt-GFP→wt and in wt-GFP→Grn^−/− chimeric mice (Figure 1g). Unbiased stereological quantitation of endogenous and donor-derived microglia confirmed our flow cytometric results since there was a significant (p < 0.01) reduction in donor-cell engraftment in the cerebral cortex of wt-GFP→Grn^−/− mice compared with wt-GFP→wt mice (Figure 1h).

Progranulin in plasma and cerebral cortex from Grn^−/− mice was below the limit of detection by ELISA (Figures 2a and b). There was no difference in plasma or cerebral cortical progranulin level between wt and wt-GFP wt mice. Average progranulin levels in plasma of wt-GFP→Grn^−/− mice was 23% of wt-GFP wt mice, while average progranulin level in cerebral cortex of wt-GFP→Grn^−/− mice was 8% of wt-GFP wt mice (Figures 2a and b). Progranulin transcription was detected in cerebral cortex of wt-GFP→Grn^−/− mice (Figures 2c and d). These data indicate that cellular sources other than BMT-derived cells contribute to plasma and cerebral cortical progranulin concentration. BMT led to in situ transcription of progranulin in Grn^−/− cerebral cortex, suggesting that BMT-derived microglia are able to partially reconstitute CNS progranulin.

Figure 2. Detection of progranulin levels in BMT recipients.

(a) Progranulin protein levels (ng/ml) in the plasma of chimeric mice 5 months post-BMT and nontransplanted controls were measured by ELISA. No progranulin was detected in plasma of Grn^−/− mice. The progranulin level in wt-GFP→Grn^−/− mice was 23% of the level of wt-GFP→wt mice. No difference was observed between wt-GFP→wt mice and wt nontransplanted control mice. (b) Cortex Tris-HCl buffer lysates from chimeric mice 5 months post-BMT were subjected to ELISA for progranulin. The nontransplanted wt and Grn^−/− mice served as controls. The progranulin level (ng/mg) in wt-GFP→Grn^−/− was 8% of the level (ng/mg) of wt-GFP→wt mice. No difference was found between wt control mice and wt-GFP→wt mice. (c) Progranulin mRNA in cerebral cortex from BMT recipient mice and their nontransplanted controls were measured by real-time PCR analysis. Grn transcripts were not detected in non-transplanted Grn^−/− but were identified in wt-GFP→Grn^−/− mice. (d) Agarose gel assay of progranulin PCR production compared with beta-actin (actb) as a control. (e) Progranulin and Iba-1 immunostaining was performed on 40-μm sections from 7-month-old wt or Grn^−/− mice sacrificed 5 months post-BMT or their age-matched nontransplanted controls. Representative images from Grn^−/− mouse demonstrate no progranulin immunoreactivity, whereas co-immunostaining of progranulin (red) and Iba-1 (green) was observed in cerebral cortex of wt controls, confirming microglial expression of progranulin. BMT-derived (GFP⁺) microglia (green) express progranulin (red) in wt-GFP→Grn^−/− mice. Images of areas of interest (white squares) are shown at increasing magnifications (scale bars: 20 μm). Scale bars: 50 μm.

To further evaluate for this possibility, we performed immunofluorescent double labeling with anti-progranulin antibody and specific markers for microglia Iba-1. Abundant Iba1⁺ microglia were present in Grn^−/− mice but these cells were uniformly negative for progranulin immunoreactivity (Figure 2e, upper, left). As expected, wt mice demonstrated strong and diffuse neuronal and microglial progranulin immunoreactivity (Figure 2e, upper, right). In BMT-recipient mice, GFP⁺ ramified cells in cerebral cortex of wt-GFP→Grn^−/− mice co-labeled with progranulin (Figure 2e, lower, left), demonstrating that BM-derived cells express progranulin following engraftment in brain where they adopt a microglia phenotype. We verified the presence of GFP⁺ ramified cells in cerebral cortex of wt-GFP wt mice that co-labeled with progranulin (Figure 2e, lower, right); in this case we also observed expected extensive neuronal progranulin immunoreactivity, which presumably represents the non-BMT-derived source of progranulin from Figure 2b.

Immune Modulation Ex Vivo

Prominent neuropathological changes and behavioral differences are described in Grn^−/− mice older than those in our study; however, alterations in innate immune function occur much earlier. To evaluate the functional consequences of BMT in Grn^−/− mice, we assayed the immune modulatory activity of progranulin ex vivo using cerebral slice cultures. In these experiments, we stimulated innate immune reaction by administering LPS (activator of Toll-like receptor (TLR) 4), and assessed innate immune response in microglia by measuring TNF-α levels in cell culture media and in astrocytes by measuring IL-6 in culture media. ^53–55 TNF-α was undetectable in conditioned medium from unstimulated cerebral coronal slices from control and BMT-recipient wt mice. In contrast, TNF-α was present at low concentrations in conditioned medium from unstimulated Grn^−/− and wt-GFP Grn^−/− slices, consistent with a net immunosuppressive role of progranulin at baseline ²² (Figure 3). TNF-α expression was increased significantly in cerebral slices exposed to LPS compared to vehicle for all groups (Figure 3, p<0.0001). LPS-induced TNF-α secretion was significantly increased in Grn^−/− cerebral slices compared wt slices (Figure 3, p<0.0001), confirming an exaggerated innate immune response in the absence of progranulin. ^{13, 22} This pro-inflammatory effect was significantly mitigated by wt BMT; cerebral slices from wt-GFP Grn^−/− mice had an average 38% reduction in LPS-induced TNF-α expression compared to slices from non-transplanted Grn^−/− mice (Figure 3, p<0.01), indicating BMT-mediated partial restoration of progranulin immunomodulation that, in this slice preparation from a perfused brain, is interpreted as a direct result of wt microglia engraftment. IL-6 was detectable in conditioned medium from all slice cultures exposed to vehicle and its concentration was not significantly different among the four groups (not shown). LPS exposure significantly increased IL-6 concentration in all groups (p<0.0001); however, there was no significant difference in IL-6 concentration between Grn^−/− slices (33.2±7.8 pg/ml) and wt-GFP Grn^−/− slices (42.1±7.5 pg/ml) in response to LPS. IL-6 in slice cultures is primarily produced and secreted by astrocytes, providing further support for neuroimmunomodulation in Grn^−/− that is BMT-derived microglia mediated.

Figure 3. Alteration of ex vivo inflammatory responses to LPS in BMT recipients.

Hemibrain slices were incubated with serum free DMEM/F12 medium with or without LPS. Conditioned media collected 6 h after adding 1 ug/ml LPS was analyzed by ELISA. TNF-α expression was significantly increased in conditioned media from slices treated with LPS. Two-way ANOVA had ****p<0.0001 for untreated versus LPS. TNF-α expression in response to LPS was significantly higher in Grn^−/− mice compared with wt mice (****p<0.0001), but was significantly decreased in wt-GFP→Grn^−/− brain slices in comparison to Grn^−/− brain slices (**p<0.01, Bonferroni corrected posttest). No significant difference in TNF-α expression in response to LPS was found between wt and wt-GFP→wt mice. All results are expressed as means ± SEM, n = 4 to 6.

Immune Modulation In Vivo

CD126 is a receptor for IL-6, and dysregulated production of IL-6 and CD126 are implicated in innate immune modulation. ^{53, 56–58} CD36 is a key microglial receptor for phagocytosis ^{59, 60} and innate immune response. ⁶¹ MHC class II is critically involved in microglia innate immune regulation and antigen presentation and is increased in BMT-derived microglia. ^{48, 62} We hypothesized that progranulin deficiency-related alterations in microglia molecular phenotype would be mitigated in BMT-derived cells. To test this, we measured microglia CD126, CD36, and MHC class II protein expression using flow cytometry of cortical microglia from control or BMT-recipient wt and Grn^−/− mice. Two way ANOVA revealed that CD126 (Figure 4a) and CD36 (Figure 4b) mean fluorescence intensity (MFI) were significantly different for genotype (wt vs. Grn^−/−, p<0.01 for CD126, p<0.001 for CD36) with no significant difference for transplant vs. non-transplant but a significant interaction (p<0.05 for CD126, p<0.01 for CD36) between these two dimensions. Bonferroni-corrected posttests showed that wt vs. Grn^−/− were significantly different (p<0.01 for CD126, p<0.001 for CD36) with MFI of both CD126 and CD36 increased in Grn^−/− compared to wt. Importantly, the two transplanted groups were not significantly different for either CD126 or CD36 MFI. Together these data demonstrate an immunomodulatory effect of progranulin or its proteolytic products on cerebral cortical microglia in vivo that is completely restored by BMT.

Figure 4. Microglia molecular phenotype modulation in BMT-recipient mice.

Mononuclear cells in cerebral cortex were isolated using percoll gradient and subjected to flow cytometric analysis for microglial expression of innate immune effector molecules. (a) Representative histogram of flow cytometric analysis for CD126 expression in CD11b⁺CD45^low microglia (left panel). CD11b⁺CD45^low microglial CD126 mean fluorescence intensity (MFI) was significantly increased in Grn^−/− mice compared with wt mice (**p<0.01). No significant difference was observed between transplanted groups (right panel). (b) Representative histogram of flow cytometric analysis for CD36 expression on CD11b⁺CD45^low microglia population (left panel). CD36 expression on microglia (CD11b⁺CD45^low) was significantly increased in Grn^−/− mice compared with wt mice (***p<0.001) with no significant difference for the two transplanted groups (right panel). (c) CD126 expression was significantly lower in donor (CD11b⁺CD45^low GFP⁺) vs. recipient (CD11b⁺CD45^low GFP⁻) microglia in wt-GFP→wt mice (**p<0.01), but not different in the wt-GFP→Grn^−/− mice. (d) CD36 MFI was significantly greater in donor vs. recipient microglia in wt-GFP→Grn^−/− mice (***p<0.001) but no difference in donor vs. recipient microglia in wt-GFP→wt mice. (e) MHC class II expression on donor-derived microglia was significantly increased for both wt-GFP→wt mice (**p<0.01) and wt-GFP→Grn^−/− mice (***p<0.001). MHC class II MFI on donor microglia was significantly greater in wt-GFP→Grn^−/− mice than in wt-GFP→wt mice (***p<0.001). All results are expressed as means ± SEM, n = 4 to 6. Two-way ANOVA was performed using the Bonferroni post hoc test.

In order to determine if the restored immunomodulatory effect of progranulin by BMT was mediated by donor or recipient microlglia, we analyzed CD126 (Figure 4c) and CD36 (Figure 4d) MFI using two-way ANOVA for cerebral cortical microglia distinguished as either recipient (GFP⁻) or BMT-derived (GFP⁺) for the two transplanted groups. CD126 MFI was significantly different for recipient vs. donor microglia (p<0.01) but not for treatment and there was not a significant interaction term; Bonferroni-corrected posttests showed that CD126 MFI was significantly greater in recipient vs. donor microglia for the wt-GFP→wt (p<0.01) but not different in the wt-GFP→Grn^−/− mice, indicating a potential recipient-dependent reduction of CD126 levels in donor microglia. CD36 MFI was significantly different for donor vs. recipient microglia (p<0.001), wt-GFP→wt vs. wt-GFP→Grn^−/− (p<0.001) and there was a significant interaction between genotype and treatment (p<0.01). Bonferroni-corrected posttest showed that this significant interaction resided in significantly greater CD36 MFI in donor vs. recipient microglia in wt-GFP→Grn^−/− mice (p<0.001) but no difference in CD36 MFI in donor vs. recipient microglia in wt-GFP→wt mice. These results show that, at least for microglial CD36 MFI, the effect of lack of proganulin on recipient microglia could be completely reversed in donor microglia.

We measured MHC class II expression and found that, unlike CD126 and CD36, there was no significant difference between non-transplanted wt and Grn^−/− mice. MFI for wt mice was 651 ± 386 and for Grn^−/− mice was 1327 ± 248 (n=4–6; p>0.05). As expected, MHC class II MFI on total microglia was significantly increased in wt-GFP wt mice ^{48, 62} (p<0.05) with similar increase in MHC class II MFI in wt-GFP Grn^−/− mice (p<0.01) such that the MHC class II total microglia MFI was not different between the two BMT groups (not shown). In spite of this, donor and recipient MHC class II was also analyzed to determine whether brain progranulin deficiency differentially modulated donor or recipient MHC class II expression. MHC class II MFI was at the limit of detection for recipient (GFP⁻) microglia in both wt-GFP wt and wt-GFP Grn^−/− mice (Figure 4e), which most likely underlies a lack of genotype differences in overall MHC II expression. Donor-derived (GFP⁺) microglia MHC II was significantly increased for both transplant groups (Figure 4e, p<0.01 for wt-GFP→wt mice and p<0.001 for wt-GFP→Grn^−/−). MHC class II MFI on BMT-derived microglia was significantly greater in wt-GFP→Grn^−/− mice than in wt-GFP→wt mice (Figure 4e, p<0.001), consistent with altered immunomodulation of donor microglia in Grn^−/− mice in a similar fashion to CD36.

Next, we assessed microglia cell densities in control and transplant recipients to determine whether progranulin deficiency affects total microglia and whether this was altered with wt BMT. Grn^−/− mice display age-dependent cerebral microgliosis that has been reported at 7 months of age ⁶³ and reaches a peak at around 12 months of age. ^{37, 64} We performed unbiased stereological analysis of total Iba-1⁺ cell density in cerebral cortex (Figure 5a) and analyzed the data by two-way ANOVA comparing non-transplanted vs. BMT in wt vs. Grn^−/− mice (Figure 5b). Our results confirmed a significant approximately 20% increase in Iba-1⁺ cells in Grn^−/− compared to wt non-transplanted mice at 7 months of age (5 months post BMT, p < 0.05). BMT had a significant effect on microglia density (p<0.001) with Bonferroni-corrected posttests showing significantly reduced microglia density in both wt-GFP→Grn^−/− mice compared to Grn^−/− mice (p<0.001) and in wt-GFP→wt mice compared to wt mice (p<0.01). There also was a significant interaction term (p<0.05). Although we are unsure of the mechanism by which wt-GFP→wt reduced cerebral cortical microglia density compared to wt, the major finding of this experiment is that wt-GFP→Grn^−/− completely erases progranulin deficiency-dependent cerebral cortical microgliosis.

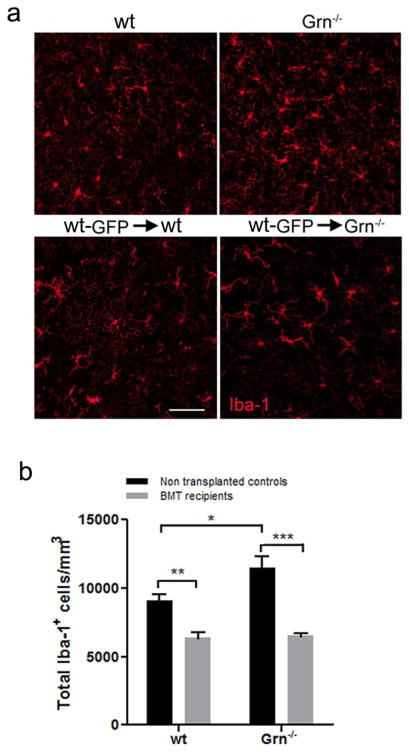

Figure 5. Microgliosis in Grn^−/− mice was erased by BMT.

(a) Representative images of Iba-1 immunofluorescence in cerebral cortex of chimeric mice and their nontransplanted controls. Scale bars: 50 μm. (b) Unbiased stereological quantitation of microglia (total Iba-1⁺ microglia/mm³) in the cerebral cortex reveals a significant increase in Iba-1⁺ cells in Grn^−/− compared to wt mice (*p<0.05). BMT had a significant effect on microglia density (***p<0.001) with Bonferroni-corrected posttests showing significantly reduced microglia density in both wt-GFP→Grn^−/− mice vs. Grn^−/− mice (***p < 0.001) and in wt-GFP wt mice vs. wt mice (**p<0.01). Error bars show the means ± SEM, n = 4 to 6. Two-way ANOVA was performed using the Bonferroni post hoc test.

Discussion

Progranulin replacement therapy represents a potentially attractive approach to prevent or treat forms of FTLD-TDP caused by GRN haploinsufficiency. Such efforts are complicated by the many, sometimes functionally antagonistic, actions of progranulin and its bioactive proteolytic products. Indeed, we are unaware of any successful small molecule program to enhance progranulin expression or activity, ⁶⁵ although one group has published on small molecule inhibitors of sortilin that increase extracellular concentrations of progranulin in cell culture. ⁴⁰ Another group recently reported that viral-mediated transfer of progranulin into substantia nigra partially protected from 1-methyl-4-phenyl-tetrahydropyridine dopaminergic neurotoxicity. ⁶⁶ Since BM-derived cells, including microglia, express and secrete progranulin, here we tested the hypothesis that BMT would partially replace progranulin and its activity in cerebral cortex of Grn^−/− mice. Our results showed that wt BMT partially reconstituted progranulin in the periphery and in cerebral cortex of Grn^−/− mice, and that this was sufficient to reverse, either in part or in full, ex vivo and in vivo measures of exaggerated immune response that are characteristic of Grn^−/− mouse cerebral cortex.

Similar to previous results from others and us, myeloablative BMT led to near complete peripheral (blood) engraftment and partial engraftment in the cerebral cortex with microglia ^{62, 67–69}. New to these experiments, we observed by both flow cytometry and stereologic cell counting that cerebral cortical engraftment in wt-GFP Grn^−/− mice was about one-half of wt-GFP wt mice. We investigated four factors that might contribute to reduced engraftment in wt-GFP Grn^−/− mice, and observed that only cerebral cortical CXCL10 levels were selectively increased in wt-GFP wt but not in wt-GFP Grn^−/− mice. Myeloablative conditioning increases CXCL10 expression in brain where its levels correlate with myeloid cell recruitment. ⁷⁰ CXCR3/CXCL10 signaling has been suggested to be one of the most relevant pathways in the attraction of immune cells such as monocytes/macrophages, T cells, natural killer (NK) cells, and dendritic cells to inflamed tissues.⁷¹ It also has been demonstrated that CXCR3/CXCL10 signaling is crucial in microglia recruitment.⁷² Although not exhaustive, these results provide one clue about a potentially important molecular mechanism to enhance brain engraftment following BMT.

Since peripheral engraftment was near complete, it was not surprising that plasma progranulin concentration in wt-GFP wt recipients was similar to non-transplanted wt mice. However, plasma progranulin concentration in Grn^−/− recipients was only about 23% of wt mice, indicating that cellular sources other than BMT-derived cells contribute the majority of progranulin in mouse plasma. Results were similar in cerebral cortex where only about 8% of wt progranulin concentration was detected in wt-GFP Grn^−/− mice. A likely additional source of progranulin here is neurons. Despite this relatively low level of cerebral cortical progranulin, we demonstrated biological activity in both ex vivo and in vivo assays of enhanced immune response in Grn^−/− mice. Indeed, our ex vivo assay of TLR4 activation of cerebral slices showed approximately 40% rescue in wt-GFP Grn^−/− mice from the progranulin deficiency-induced exaggerated immune response. It is worth noting that there was a trend of increased immune response in BMT wt recipients, perhaps as a result of radiation, and thus this reduction occurred even in the face of a potentially larger response. In addition, our three in vivo assays showed complete reversal of the effects of progranulin deficiency in wt-GFP Grn^−/− mice with respect to total cerebral cortical microglia CD126 or CD36 expression, and cerebral cortical microgliosis.

Although not a focus of our study, our results do add to our knowledge of the immune modulatory effects of progranulin deficiency in cerebral cortex. Grn^−/− mice had increased microglial CD126 and CD36 expression that was completely reversed by BMT, but not significantly increased MHC class II. Indeed, others have reported that deletion of progranulin increases macrophage CD36 expression and induces local inflammation. ⁷³ Several studies have linked progranulin activity with IL-6 expression; ^{74, 75} however, we are unaware of previous work linking progranulin deficiency and increased expression of CD126, a receptor of IL-6. As expected from previous work, wt microglia MHC class II expression was increased following BMT,⁴⁸ and this effect was equivalent in wt and Grn^−/− BMT recipients. Finally, we investigated differences in donor vs. recipient microglia with respect to MHC class II, CD126, and CD36 expression. Our results confirm the work of others and us by showing that donor and recipient microglia are not identical, ^{48, 76} and suggest a complex interplay between source of mononuclear cell and environment of target tissue with respect to microglial expression of these three molecules. Other factors, such as differences between wt and Grn^−/− mice in homing efficacy of extraneous cells to the CNS might also contribute to these observed difference.

We recognize that our experiments are proof-of-concept, and demonstrate only proximate biochemical effects of wt BMT in cerebral cortex of Grn^−/− mice, but not therapeutic benefit. We think that this is an appropriate first step because, even though Grn^−/− mice are by far the dominant experimental model in FTLD-TDP research, ⁷⁷ it is not at all clear that the behavioral changes in Grn^−/− mice, which would be the endpoints for therapeutic studies, are reflective of pathologic processes in patients with FTLD-TDP from GRN mutations. Indeed, it will be more appropriate to conduct future behavioral studies in Grn^+/− mice following BMT. Other limitations of our study are that we did not demonstrate durability of the partial reconstitution of progranulin in cerebral cortex following BMT; however, we have previously shown that the proportion of microglia in cerebral cortex that are BM-derived increases over time up to 8 months post BMT (our latest time point examined). ⁶⁷ Finally, we focused on immune response in the cerebral cortex as a measure of bioactivity of BMT because engrafted cells are microglia; however, we appreciate that these are surrogates and that specific action(s) of progranulin and its cleavage products that are relevant to FTLD may or may not involve immune regulation.

We envision BMT as a stem cell-based approach to preventing or to treating neurodegenerative diseases related to microglial dysfunction, like TREM2 mutations in some forms of AD, or molecular deficiencies that may be partially reversed by microglia, like GRN haploinsufficiency in some forms of FTD. Myeloablative BMT carries significant morbidity and mortality that should not be undertaken except to treat life-threatening illnesses. Neuronal ceroid lipofuscinosis-11 and perhaps FTD from GRN mutations might be appropriate indications. Recent studies have reported success with BMT in a murine model of infantile neuronal ceroid lipofuscinosis; ⁷⁸ however, older studies with animal models or volunteers who had different forms of neuronal ceroid lipofuscinosis were at best modestly successful. ^{79, 80} We were unaware of any BMT approach to alleviating neuronal ceroid lipofuscinosis-11. Non-myeloablative BMT carries substantially less morbidity and mortality, and has been attempted in the treatment of several non-cancerous diseases that do not require ablation of the marrow. We have shown in mice that, although non-myeloablative BMT engrafts the periphery with efficiency of about 90% at 8 months post transplant, it does not engraft brain. ⁸¹ There are no data on the interactions between peripheral and central progranulin, so we cannot predict the likelihood that non-myeloablative BMT might ameliorate biochemical deficits in cerebral cortex of Grn^−/− mice or behavioral changes in Grn^+/− mice; these complicated experiments are underway.

In summary, our results confirm a pro-inflammatory effect in vivo and in ex vivo preparations of cerebral cortex of Grn^−/− mice that can be partially to fully reversed at 5 months post-transplant following wt BMT at 2 months of age. Although several important issues remain to be investigated, these results raise the possibility of BMT as a potential intervention for inherited degenerative diseases caused by progranulin deficiency.

Abbreviations

ACK

ammonium chloride potassium

BMT

bone marrow transplantation

CNS

central nervous system

FTD

frontotemporal dementia

FTLD

frontotemporal lobar degeneration

FTLD-TDP

frontotemporal lobar degeneration with transactive response DNA-binding protein 43 kDa (TDP-43)-positive inclusions

GFP

green fluorescent protein

MFI

mean fluorescence intensity

MIF

macrophage migration inhibitory factor
