A practical guide to the synthesis and use of membrane-permeant acetoxymethyl esters of caged inositol polyphosphates

Abstract

This protocol describes a method for efficient chemical synthesis of an analog of inositol-1,4,5-trisphosphate (IP₃) hexakis acetoxymethyl ester having an ortho-nitroveratryl photochemical caging group on the 6-hydroxyl position. The six esters render the probe membrane permeant, such that it can be loaded into intact living cells in vitro or in vivo. Inside cells, the caged IP₃ is inert until activated by two-photon excitation at 720 nm. The photoliberated signaling molecule can mobilize release of Ca²⁺ from intracellular stores on the endoplasmic reticulum. When co-loaded with the fluorescent Ca²⁺ indicator rhod-2, one laser can be used for stimulating and monitoring intracellular Ca²⁺ signaling with single-cell resolution. This protocol has chemistry and biology sections; the former describes the organic synthesis of the caged IP₃, which requires 12 d, and the latter an application to a day-long study of astrocyte-regulated neuronal function in living brain slices acutely isolated from rats. As Ca²⁺ is the single most important intracellular second messenger and the IP₃-Ca²⁺ signaling cascade is used by many cells to produce increases in Ca²⁺ concentration, this method should be widely applicable for the study of a variety of physiological processes in intact biological systems.

Introduction

Photochemical uncaging of signaling molecules has proven to be a useful technique for many areas of biology investigation¹. A particularly powerful feature of caged compounds is that inert, intracellular messengers can be loaded into cells. Light, which passes through the plasma membrane, can then be used to activate a chosen process in the intracellular environment. The cytosol is relatively inaccessible to rapid solution changing; accordingly, uncaging can bypass any diffusional delays that would be involved in other methods of cell stimulation (e.g., microinjection of the signaling molecule). When uncaging is used in conjunction with imaging intracellular signaling, it becomes an even more impressive tool: light, with appropriate chemical probes, takes on a dual function as the activator and sensor of signaling cascades². Since 1991, the most prominent pairing of sensor and activator chemical probes has been with fluorescent Ca²⁺ dyes and caged Ca²⁺ molecules³.

Using whole-cell dialysis, quantitative correlations of intracellular calcium concentrations [Ca²⁺]I and cell function have been made in several neuroendocrine cell types^4–6. Even though this approach has proven to be extremely fruitful, there are a number of disadvantages to single-cell uncaging in this manner: (i) the necessity of patch clamping individual cells makes the approach quite laborious; (ii) typically only one cell can be studied at a time; and (iii) dialysis displaces vital intracellular components (e.g., G-actin and calmodulin from neurons). Loading cells with membrane-permeant probes is an important alternative approach to studying cell signaling using fluorescence microscopy⁷.

The extremely wide use of acetoxymethyl (AM) ester derivatives of the fluorescent Ca²⁺ indicators developed by Tsien and co-workers in the 1980s is the best example of such non-invasive loading and imaging; the 1985 fura-2/AM paper⁸ has been cited more than 17,000 times to date. In contrast to such fluorescent indicators, membrane-permeant caged compounds are comparatively recent, and thus have not been so widely used. It should be noted, however, that the first caged compound (cAMP⁹) was membrane permeant.

The development of two-photon microscopy allows facile imaging of [Ca²⁺]i and has proven to be especially useful to neuroscientists working in acute brain slice preparations or in vivo¹⁰. In another protocol, the synthesis of two-photon–sensitive caged neurotransmitters is described¹¹. The reader is referred to that protocol for a more detailed discussion of two-photon microscopy. We have recently published studies with cell-permeant caged Ca²⁺¹² and caged inositol-1,4,5-trisphosphate (IP₃)¹³ probes in which these probes have been loaded into astrocytes in acutely isolated hippocampal brain slices. Two-photon uncaging in single cells was effected using the fluorescence recovery after photobleaching (FRAP) function in the microscope software. All commercial laser-scanning confocal microscopes have such a feature; hence, no custom programming is required for the uncaging experiments that we describe.

This protocol describes the synthesis of a membrane-permeant caged IP3 analog (Fig. 1) that undergoes facile two-photon uncaging at 720 nm using a mode-locked Ti:sapphire laser^{14, 15}. We reveal that the key step in the high-yielding synthesis of membrane-permeant AM esters of caged inositol polyphosphate is the initial partial deprotection of the penultimate synthetic cyanoethylphosphate intermediate, followed by steps of reprotection with AM bromide and further cyanoethyl deprotections/AM bromide reactions, to create the final caged compound. This key step is performed on ~0.25 mmol but may be easily scaled up by two- to tenfold. The initial synthetic steps are performed in the range of 2–20 mmol.

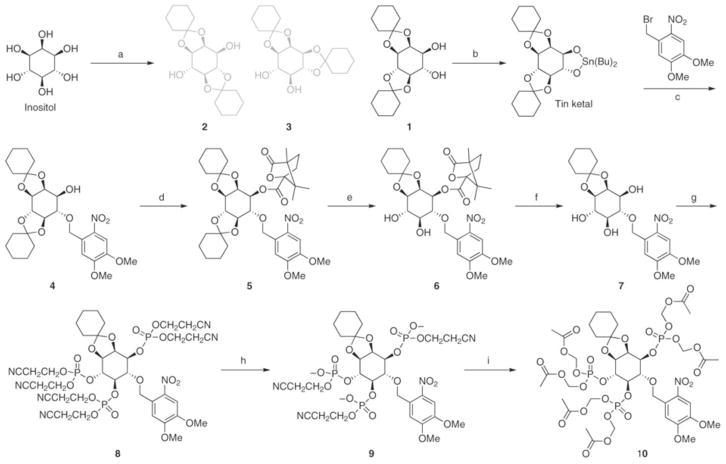

Figure 1. Scheme for the synthesis of nitroveratryl-IP3/AM.

Reagents: (a) cyclohexanone; (b) dibutyltin oxide; (c) CSF; (d) camphanic chloride; (e) acetyl chloride; (f) KOH; (g) N,N-diisopropyl-bis(2-cyanoethyl)-phosphoramidite and then t-BuOOH; (h) Hünig’s base; and (i) AM bromide.

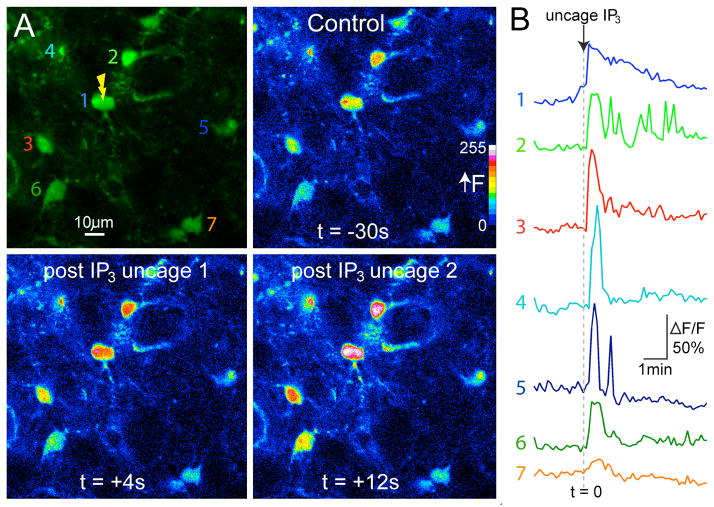

Application of cell-permeant caged IP3: experimental rationale and practical considerations

When the caged compound is co-loaded into cells with the fluorescent Ca²⁺ indicator rhod-2, a single laser may be used to image photo-evoked changes in [Ca²⁺]_i at the same wavelength used for uncaging. As uncaging and imaging are effected in different power regimes (we use a tenfold difference, which equates to 100-fold in two-photon excitation), long-term imaging is essentially optically independent of uncaging at a single wavelength. This protocol outlines methods for such uncaging and imaging experiments in astrocytes from acutely isolated (i.e., immediately taken from a euthanized rat) brain slices. Given the ubiquity of the intracellular IP₃-Ca²⁺ signaling cascade, the uncaging method we present is applicable to many cell types (e.g., smooth muscle, hepatocytes, neurons and so on). Such uncaging experiments allow one to address questions involving the importance of IP₃, as photorelease separates the upstream signal that transduces IP₃ release from the downstream effects of IP₃. Second, questions on the timing of IP₃ release can be addressed very precisely by uncaging. Third, as light may be focused on one cell in a large cluster or on one part of a cell, questions about the localization of IP3 signaling may be addressed with the uncaging technique.

The peak power of the focused two-photon laser beam is designed to be extremely high; therefore, the application of such lasers to uncaging needs to be done carefully, even more so than in normal uncaging experiments. Thus, for each cell type, microscope, laser and objective lens, the power threshold for laser damage must be quantified. In the case of two-photon uncaging inside cells, the same procedure for probe loading described in Steps 86–97 should be followed, except that the caged compound should be omitted from the loading solution. The power threshold for cell damage can then be determined by illuminating a calcium dye–loaded cell with a range of laser energies. Photodamage of astrocytes is readily apparent when the cell body becomes intensely saturated with fluorescent signal (i.e., it appears white on a pseudocolor scale), and this signal remains constant. We have found that the exact power level for photodamage is different for every system and must be determined for each type of experiment. As the efficiency of two-photon excitation is dependent on the fourth power of the numerical aperture (NA), the most important variable in any system is the objective lens. We have successfully used three types of objectives for two-photon uncaging (×40, 1.0 NA (this protocol); ×40, 0.8 NA¹¹; ×20, 0.95 NA¹⁵). Once determined, we recommend using 30–50% of this power value for uncaging of IP3.

REAGENTS

Critical

HPLC-grade acetone is important for one synthetic step; otherwise no special care is required for any solvent used in any synthetic step. HPLC-grade acetonitrile, trifluoroacetic acid and water must be used for HPLC. Other reagents obtained from Sigma-Aldrich or Acros have been used with equal effectiveness.

Caution

Chemical safety considerations

Most of the reagents used in the protocol require protective goggles, gloves and lab coats. As several reagents are toxic or harmful, much (but not all) of the work must be carried out in a fume hood using round-bottomed flasks with ground glass joints.

• Inositol (Sigma, cat. no. I5125)

• Cyclohexanone (Aldrich, cat. no. W390909)

• Para-toluenesulfonic acid

  Caution: It is an irritant.

• (1S)-(−)-camphanic chloride (Acros, cat. no. 20989)

  Critical: This reagent is sensitive to atmospheric water, and thus should be purchased and used fresh.

• Triethylamine

• Dimethylaminopyridine

• DMSO

• Acetylchloride

  Caution: It is a lachrymator.

• Tetrazole (Fluka, cat. no. 17234)

• Diisopropylphosphoramidous dichloride (Aldrich, cat. no. 307254)

• 2-Cynaoethanol

• 4,5-Dimethoxy-2-nitrobenzyl (ortho-nitroveratyl) bromide (Aldrich, cat. no. 392855)

• Hünig’s base

• Dibutyltin oxide

• Aritificial cerebrospinal fluid (ACSF; see REAGENT SETUP)

• Rhod-2 (Invitrogen, cat. no. R1244)

• Bromomethyl acetate (AM bromide; Aldrich, cat. no. 303208)

• Methylene chloride

• Acetonitrile (HPLC grade)

  Caution:It is flammable.

• Methanol

  Caution: It is flammable.

• Chloroform

  Caution: It is toxic.

• Chloroform-d (CDCl3)

  Caution: It is toxic.

• Acetone

  Caution: It is flammable.

• Acetone-d6

  Caution: It is flammable.

• Tetramethylsilane (TMS)

• Dimethyl formamide (DMF)

  Caution: It is flammable.

• Hexane

  Caution: It is flammable.

• Ethyl acetate

  Caution: It is flammable.

• Tert-BuOOH 30% (vol/vol) solution in water

  Caution: It is an oxidizer.

• Anisaldehyde

• Acetic acid

• Ethanol

• H₂SO₄

• KOH (1 N) solution

• NaHCO₃

• NaH₂PO₄

• K₂HPO₄

• CaCl₂

• MgCl₂

• NaCl

• KCl

• Glucose

• Sucrose

• Nanopure water

• Toluene

• Silica gel 60 (230–400 mesh; Fisher, cat. no. S825)

  Caution: This reagent is made up of fine particles; handle the dry powder in a fume hood.

• Thin-layer chromatography (TLC) plates, silica gel 60 F254 (Whatman, cat. no. 4861-820)

• Cyanoacrylate glue (e.g., Super Glue)

• O2 (95%)/CO2 (5%) gas

• Sprague-Dawley rats

  Critical: Experiments must be conducted according to appropriate local and national animal care protocols.

EQUIPMENT

• Round-bottomed flask

• Fume hood

• Rotary evaporator

• Silica gel flash chromatography columns

• Filter funnels

• Reflux condensers

• Azeotropic adaptor

• Separatory funnels

• Spatulas

• Teflon-coated magnetic stirrer bars

• Magnetic stirrer/hot plates

• TLC-developing chambers

• UV handheld lamp

• Culture dish (12-well plate)

• Two-photon microscope

• Vibratome brain slicer

REAGENT SETUP

• Anisaldehyde thin-layer chromatography (TLC) stain

  • Combine 18 mL anisaldehyde, 4 mL acetic acid, 350 ml ethanol and 10 mL concentrated H₂SO₄. Stored at 4°C, the stain is stable for several months.

• ACSF (artificial cerebrospinal fluid)

  • Combine NaCl, 126 mM; KCl, 2.5 mM; NaHCO₃, 26 mM; CaCl₂, 1.5 mM; MgCl₂, 1.5 mM; NaH₂PO₄, 1.25 mM; glucose, 10 mM; saturated with 95% O₂/5% CO₂. Prepare this solution fresh for each experiment.

• Slicing solution

  • Combine NaCl, 87 mM; KCl, 2.5 mM; NaHCO₃, 25 mM; CaCl₂, 0.5 mM; MgCl₂, 7 mM; NaH₂PO₄, 1.25 mM; glucose, 25 mM; sucrose, 75 mM; saturate with 95% O₂/5% CO₂.

    Critical: Prepare this solution fresh for each experiment.

Steps 1 – 14: Synthesis of (±)-2,3-4,5-di-O-cyclohexilydene-myo-inositol. Timing: 48 h

• 1In a 1-liter round-bottomed flask equipped with a stirrer bar, dissolve 36 g of inositol (36 g, 0.2 mol) and cyclohexanone (200 mL, 1.93 mol) in DMF (200 mL) and toluene (150 mL).

  Critical step: All experiments must be conducted in a room with yellow-filtered lights to prevent photolysis of photosensitive compounds.

• 2Thereafter, add 10 mL of a 10% solution (wt/wt) of para-toluenesulfonic acid in DMF.
• 3Heat the reaction at reflux temperature for 22 h and collect the water side product (~11 mL) in an azeotropic adaptor.
• 4Allow the reaction to cool to room temperature (RT, 20–25°C) and add triethylamine (50 mL).
• 5TLC analysis (chloroform/acetone (2:1)) shows the three diol products (1, 2, 3) present in equal amounts (see Fig. 2).
• 1Remove the solvents in vacuo (5 mmHg) on a rotary evaporator at 70–80 °C to produce a brown liquid. Diol 2 spontaneously precipitates and is removed by filtration, leaving a mixture of diols 1 and 3.
• 2Fill a flash chromatography column with a bed of silica gel (dimensions 1.5 × 10 inches).
• 3Equilibrate the column with running solvent (chloroform/acetone (1:10)) by shaking it. Empty the column of excess solvent by applying a low pressure (house compressed air is convenient). During this process, adjust the air pressure to give 5 cm min⁻¹ linear flow of solvent.

  Caution: Mixing solvent with silica is exothermic and causes the solvent to evaporate, so periodically relieve pressure by removing the stopcock.

• 4Load 2 g of diols in an equal volume of running solvent onto the top of the column.

  Critical step: This must be performed with care in order to form an even layer that does not disturb the silica gel bed.

• 5Separate by silica gel chromatography, collecting 25-mL fractions.
• 6Analyze each fraction by TLC to detect products.
• 7Stain the TLC plate with anisaldehyde to visualize components by dipping the plate into a bath of stain and heating the plate on a hot plate until the spots develop.
• 8Bulk all fractions with pure diol 1 in a 500-mL round-bottomed flask.

  Critical step: Select only pure fractions, as purity at this stage is the basis of successful synthesis of the caged compound.

• 9Remove the solvents by rotary evaporation at reduced pressure to yield diol 1 as a white solid.

  Pause point: Compound 1 can be safely stored at RT for several years.

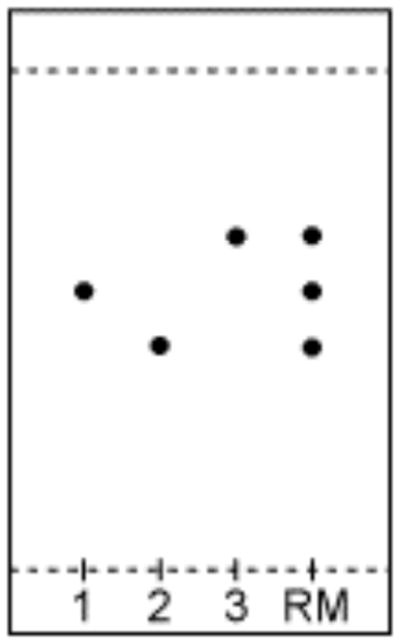

Figure 2. TLC plate for Step 5 of the procedure.

The relative migrations of diols 1–3 from the first step in the synthesis. Running solvent: chloroform/ acetone (2:1).

Steps 15 – 24: Synthesis of (±)-2,3-4,5-di-O-cyclohexilydene-6-O(ortho-nitroveratryl)-myo-inositol. Timing: 48 h

• 15In a 125-mL round-bottomed flask equipped with a stirrer bar, dissolve diol 1 (1.7 g, 5.0 mmol) and dibutyltin oxide (1.25 g, 5.0 mmol) in benzene (30 mL). Toluene may be used in place of benzene.
• 16Heat at reflux temperature with azeotropic distillation for 24 h.
• 17Remove the benzene (toluene) in vacuo using rotary evaporation.

  Pause point: The tin ketal can be safely stored at −20°C for several months.

• 18Dissolve the tin ketal in DMF (25 mL) with ortho-nitroveratryl bromide (1.4 g, 5.1 mmol) and CSF (0.8 g, 0.52 mmol).
• 19Stir at RT for 18 h.
• 20Remove the solvent in vacuo on a rotary evaporator at 5 mmHg, at 70–80°C.
• 21Dissolve the crude residue in water and extract with methylene chloride (3 washes of 25 mL each).
• 22Dry the organic phase by adding sufficient solid MgSO4 until some of the drying agent appears to float as a fluffy solid, remove by filtration and concentrate in vacuo on a rotary evaporator at 30–40 °C.
• 23Purify by silica gel chromatography as described above for compound 1, except use ethyl acetate/hexane (1:3) as the running solvent.
• 24Isolate alcohol 4 (R_f = 0.26) in 59% yield.

  Pause point: Compound 4 can be safely stored at −20°C for several months.

Steps 25 – 31: Synthesis of (±)-1-O-camphanyl-2,3-4,5-di-O-cyclohexilydene-6-O-(ortho-nitroveratryl)-myo-inositol. Timing: 18 h

• 25In a 25-mL round-bottomed flask, prepare a solution of alcohol 4 (0.535 g, 1.0 mmol) and (1S)-(-)-camphanic chloride (0.25 g, 1.2 mmol) in methylene chloride (30 mL).

  Critical step:Use fresh camphanic chloride.

  Troubleshooting

• 26Add triethylamine (0.5 ml) and catalytic dimethylaminopyridine (25 mg) to the reaction mixture (RM).

  Troubleshooting

• 27Allow the RM to stand at RT for 12 h.

  Troubleshooting

• 28Add water (25 mL) and separate the organic layer.
• 29Dry over MgSO4, filter off MgSO₄ and concentrate in vacuo on a rotary evaporator at 30–40°C.
• 30Purify by silica gel chromatography as described above for compound 1, except use ethyl acetate/hexane (1:4) as the running solvent.
• 31Isolate ester 5 (R_f = 0.35) in 89% yield.

Steps 32 – 44: Synthesis of (±)-2,3-O-cyclohexilydene-6-O-(ortho-nitroveratryl)-myo-inositol. Timing: 15 h

• 32In a 25-mL round-bottomed flask, dissolve compound 5 (0.40 g, 0.56 mmol) in methylene chloride/methanol (9:1, 5 mL).
• 33Cool with ice bath to 10°C.
• 34Add acetylchloride (0.1 mL).

  Troubleshooting

• 35After 15 min, analyze the RM by TLC (ethyl acetate/hexane (1:1)) to confirm the disappearance of 5 (Rf = 0.83) and appearance of diol product 6 (R_f = 0.22).

  Critical step: Allowing the reaction to stand too long also deprotects the 2,3 cyclohexylidene protecting group. In our hands, the use of trifluoroacetic acid for deprotection of ketal¹⁶ was unsuccessful.

  Troubleshooting

• 33Quench the reaction with triethylamine (1 ml) and wash the RM with water and separate the organic layer.
• 34Dry over MgSO₄, filter off MgSO₄ and concentrate in vacuo on a rotary evaporator at 30–40°C.
• 35Dissolve the crude diol 6 in methylene chloride/methanol (1:1, 5 mL).
• 36Add KOH (0.25 ml 1 N) and stir for 12 h. TLC (100% ethyl acetate) shows the disappearance of diol 6 (R_f = 0.69) and appearance of triol product (R_f = 0.40).
• 37Remove the methanol in vacuo using a rotary evaporator at 30–40°C.
• 38Redissolve the RM in methylene chloride (25 mL), wash with water and separate the organic layer.
• 39Dry over MgSO4, filter off MgSO₄ and concentrate in vacuo on a rotary evaporator at 30–40°C.
• 40Purify by silica gel chromatography as described above for compound 1, except use ethyl acetate.
• 41Isolate triol 7 (R_f = 0.41) in 72% yield.

  Pause point: Compound 7 can be safely stored at −20 °C for several months.

  Timing: 48 h

• 45In a round-bottomed flask equipped with a stirrer, cool a solution of diisopropylphosphoramidous dichloride (2.0 g, 9.9 mmol) and 2-cyanoethanol (1.45 g, 20 mmol) in methylene chloride (20 ml) to 10°C.

  Critical step: The phosphitylation reagent must be freshly prepared. A single peak in ³¹P NMR at 149 p.p.m. (see Fig. 3) is indicative of a good reagent.

• 46Add diisopropylethyl amine (2.8 g, 22 mmol).
• 46Allow the RM to warm to RT and stir overnight (approximately 12–18 h).
• 47Dilute the RM with methylene chloride (30 mL).
• 48Wash the RM in a separatory funnel with saturated NaHCO3 (20 ml) and then with brine (20 mL).
• 49Dry the organic phase over MgSO₄, filter off the MgSO₄ and separate the organic layer.
• 50Concentrate in vacuo on a rotary evaporator at 30–40°C. The ³¹P NMR (CDCl₃) will show several peaks (Fig. 3a).
• 51Purify by silica gel chromatography, as described above for compound 1, except use ethyl acetate/hexane (1:4).
• 52Isolate N,N-diisopropyl-bis(2-cyanoethyl)-phosphoramidite (R_f = 0.26) in 50% yield. The ³¹P NMR should now show a single peak at 150 p.p.m. (Fig. 3b).

  Critical step: This reagent should be used immediately in the next step.

  Troubleshooting

• 53In a 25-ml round-bottomed flask equipped with a stirrer, mix a solution of triol 7 (0.112 g, 0.25 mmol) and phosphitylation reagent (0.42 g, 1.5 mmol) in methylene chloride (2 mL).
• 54The RM at this juncture is clear and homogeneous.
• 55Add tetrazole (0.1 g, 1.5 mmol) in acetonitrile (1 mL).

  Critical step: The appearance of a milky white precipitate is indicative of the reaction proceeding successfully.

  Troubleshooting

• 56TLC analysis of the RM after 12–16 h should reveal one spot (R_f = 0.86, ethyl acetate).

  Troubleshooting

• 57Cool the RM to 5–10 °C with an ice bath.
• 58Carefully add t-BuOOH (0.4 mL 30% solution in water) dropwise to the RM.
• 59Allow the RM to stand at RT for 3 h.

  Critical step: Oxidation to the desired phosphate product causes the RM to clarify.

• 60Dilute with methylene chloride (20 mL), wash in a separatory funnel with saturated NaHCO₃ (20 mL) and then with brine (20 mL).
• 61Dry the organic phase over MgSO₄, filter off the MgSO₄ and then separate the organic layer.
• 62Concentrate in vacuo on a rotary evaporator at 30–40°C.
• 63Purify by silica gel chromatography as described for compound 1, except use ethyl acetate/methanol (95:5) as the running solvent.
• 64Isolate trisphosphate 8 (R_f = 0.14 in ethyl acetate) in 56% yield.

  Critical step: Three peaks in ³¹P NMR at −1.75, −2.14 and −2.23 p.p.m. are indicative of a pure product. We have found that phosphorus NMR is particularly useful in the diagnosis of phosphitylation reagents (Fig. 3) and reactions.

  Pause point: Compound 8 can be safely stored at −20°C for several months.

  Troubleshooting

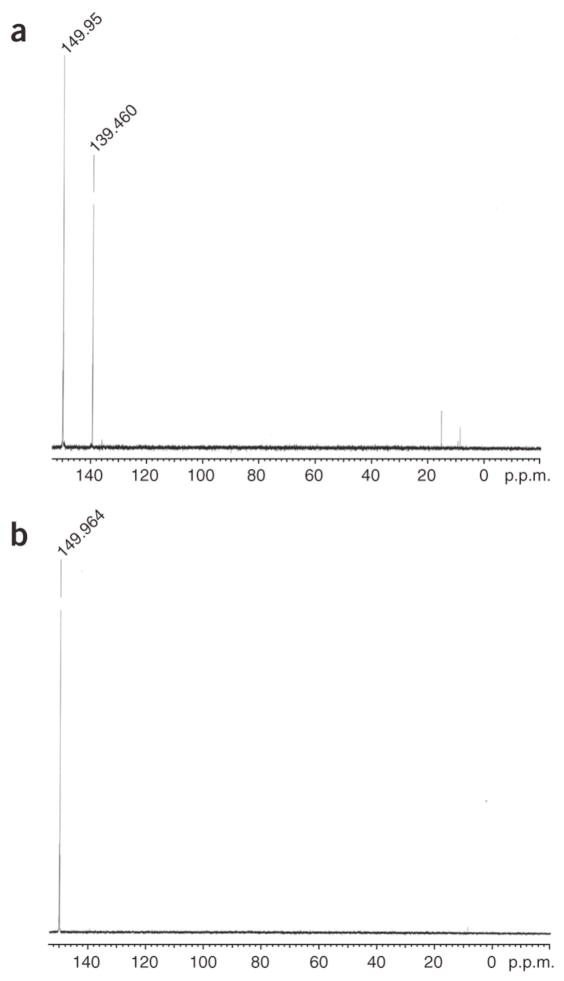

Figure 3. ³¹P NMR spectra.

(a,b) Panel a shows that of RM and b that of product (N,N-diisopropyl-bis(2-cyanoethyl)-phosphoramidite) for Step 52.

Steps 66 – 76: Synthesis of (±)-2,3-O-cyclohexilydene-6-O-(ortho-nitroveratryl)-myo-inositol-1,4,5-trisphosphate hexakis (acetoxymethyl)ester. Timing: 48 h

• 66In a 25-mL round-bottomed flask equipped with a stirrer, mix a solution of hexakiscyanoethylphosphate 8 and ethyldiisopropyl amine (1 mL, Hunig’s base) in acetonitrile (2 mL).
• 67After stirring for 24 h at RT, analyze by reverse-phase HPLC (elution at 1 ml min⁻¹ on C-18 from 10% to 100% acetonitrile over 30 min).
• 68The RM should show one main peak with a retention time of 12.5 min (Fig. 4, purple trace).
• 69This intermediate was shown by ¹H NMR to be the triscyanoethylphosphate, compound 9.
• 70Concentrate the RM to dryness and add dry acetonitrile (2 mL), Hunig’s base (0.3 mL) and AM bromide (0.2 mL).
• 71HPLC after 5 h shows peaks between 18 and 23 min (Fig. 4, cyan trace).
• 72The next day there will be essentially one peak in the HPLC (Fig. 4, pink trace).

  Critical step: Enough reaction time must be allowed for only one peak at 12.5 min for the initial deprotection to appear, as the second cyanoethyl group at each reaction center is removed only after the first AM group is added to the phosphate. In our hands, use of ammonium hydroxide/methanol for deprotection of the phosphates16 has been unsuccessful.

  Troubleshooting

• 67Concentrate the RM to dryness by rotary evaporation at 30–40°C to yield a yellow/orange solid.
• 68Purify by flash chromatography using a 10-ml Pasteur pipette as the column with 6 ml of silica gel (elute with ethyl acetate and then with 1% (vol/vol) methanol in ethyl acetate).
• 69Collect small column fractions (~0.5 mL). Compound 10 has an R_f of 0.26.
• 70Isolate the target-caged IP₃ product (compound 10) in 35% yield.

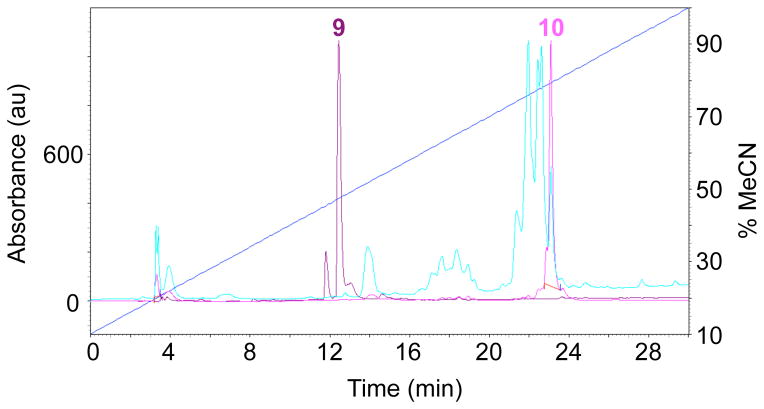

Figure 4. HPLC of AM ester synthesis.

The purple trace shows the retention time of compound 9, the cyan trace the reaction of 9 with AM bromide after 5 h and the pink trace shows the composition of the final reaction mixture before silica gel chromatography. The target compound 10 is the major component of the RM.

Steps 77 – 97: Two-photon uncaging in astrocytes in living brain slices. Timing: 5 h

• 77Critical step: All experiments on living tissue immediately isolated from rodents must be carried out according to appropriate institutional guidelines for the use and care of animals.

  Prepare freshly oxygenated ACSF and slicing solutions (see REAGENT SETUP).

  Critical step: The level of oxygenation and pH set by bubbling 95% O₂/5% CO₂ is crucial for the production of healthy acute brain slices. Continuously bubble all ACSF and slicing solutions.

• 78Anesthetize a Sprague-Dawley rat (P15–19 for hippocampus and cortex; P15–21 for hypothalamus) with halothane.
• 79Decapitate the rat.
• 80Rapidly remove the brain.

  Critical step: The speed of brain removal is essential to produce healthy acute brain slices.

• 81Immerse the whole brain in ice-cold slicing solution.
• 82Select the volume of brain to be sliced by rapidly dissecting the appropriate brain region.
• 83Glue the brain portion to slicer using cyanoacrylate glue.
• 84Prepare acute brain slices of 300- to 400-μm thickness in ice-cold slicing solution.
• 85Allow the slices to recover in ACSF at 32.5°C for 1 h.
• 86Dissolve 50 μg of caged IP₃/AM (compound 1) and 50 μg of Ca²⁺ dye (rhod-2/AM ester) in 3-μL DMSO.
• 87Sonicate for 5 min.
• 88Add ACSF (0.5 mL) at RT to rhod-2/cage solution.
• 89Provide fine bubbling of 95% O₂/5% CO₂ to the well (Fig. 5).
• 90Transfer brain slices from a large recovery chamber to a small well chamber containing 2.5-mL ACSF at RT and then add the rhod-2/ cage solution (Fig. 5). Load for 1–1.5 h.

  Critical step: The health of the brain slice is maintained by the gases. Care must be taken not to agitate the solution, as this will cause the brain slice to decay.

• 91Transfer the slice to the microscope chamber.
• 92Check for health of cells using infrared differential interference contrast (IR-DIC).
• 93Image loaded cells by two-photon microscopy by imaging with low power (~4 mW after the objective) at 720 nm. Any water-dipping objective that passes two-photon wavelengths may be used.

  Troubleshooting

• 94Only astrocytes should be apparent, as shown by their distinctive shape (Fig. 6).
• 95Select a cell visually for uncaging and define the area of uncaging by drawing a region of interest inside the cell using microscope software. All commercial microscopes have such subroutines available for FRAP experiments. This method uses the FRAP tool to liberate IP₃ rather than locally bleach a chromophore.
• 96Scan the region of interest at high power (~40–48 mW after the objective) using the FRAP software function using the same pixel dwell time used for imaging.

  Troubleshooting

• 97Return to full-frame Ca²⁺ imaging after photoactivation.

  Troubleshooting

Figure 5. Loading astrocytes in acute brain slices with nitroveratyl-IP₃/AM and the Ca²⁺ indicator rhod-2/AM.

Step 1: A single well in a multiwell plate is filled with 2.5 ml ACSF and bubbled with carbogen using a thin, flexible pipette-filling syringe tip. When the tip is placed at the bottom of the well, numerous fine bubbles are produced (shown in expanded image below). This is critical for providing adequate O₂ and CO₂ without physically disturbing the slices. Step 2: Carefully add brain slices from the large post-slicing recovery chamber to the well. Step 3: Add 0.5 mL of ACSF to the freshly sonicated rhod-2/AM–DMSO solution and then carefully add this to the well containing the slices. Step 4: Cover the well with a square piece of parafilm wax without disturbing the bubbler. A depression in the middle of the wax sheet will prevent the solution from gathering on the underside of the wax and instead allows the solution to fall back into the well. Incubate for 1–2 h.

Figure 6. Two-photon imaging and IP3 uncaging (720 nm) in astrocytes in acute brain slices of the paraventricular nucleus of the hypothalamus.

(a) Loaded astrocytes showing resting rhod-2 fluorescence. Numbers indicate the somas of seven different astrocytes, which constitute the regions of interest for measuring increases in rhod-2 fluorescence as a consequence of elevations in free intracellular Ca²⁺. Pseudocolored images depict changes in free intracellular Ca²⁺ within astrocyte somas before and at two time points after IP3 uncaging in astrocyte 1. (b) Ca²⁺ signals in astrocyte somas in response to uncaging IP3 in astrocyte 1. Numbers correspond to the astrocytes in a.

Timing

• Steps 1–14: 48 h

• Steps 15–24: 48 h

• Steps 25–31: 18 h

• Steps 32–44: 15 h

• Steps 45–65: 48 h

• Steps 66–76: 48 h

• Steps 77–97: 5 h

Anticipated results

Analytical data

NMR standards

TMS for ¹H, CHCl3 or acetone for ¹³C and 70% phosphoric acid for ³¹P.

Compound 4

¹H NMR δ (300 MHz, CDCl₃) δ = 7.75 (s, 1H), 7.21 (s, 1H), 5.14 (dd, J = 7.4, 6.1, 2H), 4.48 (dd, J = 2.6, 1.3, 1H), 4.40 (t, J = 2.3, 1H), 4.1–4.2 (m, 2H), 4.08 (s, 3H), 3.94 (s, 3H), 3.87 (dd, J = 3.0, 0.9, 1H), 3.61 (dd, J = 3.9, 2.7, 1H), 2.6 (s, 1H) and 1.4–1.8 (m, 20H). MS ESI (mass spectrometry–electrospray ionization) m/z: 536 (M+H), 558 (M+Na).

Compound 5

¹H NMR: δ (300 MHz, CDCl₃) (NB: the diastereomers appear throughout this spectrum) 7.70 and 7.69 (s, 1H); 7.40 and 7.39 (s, 1H); 5.48–5.45 (m, 1H); 5.17 (Abq, J = 55.4, 15.0 Hz, 2H); 4.70–4.65 (m, 1H); 4.50 (dd, J = 8.0, 5.1 Hz); 4.10–3.99 (m, 3H); 3.99 (s, 3H); 3.97 (s, 3H); 3.80–3.72 (m, 1H); 2.53–2.42 (m, 1H); 2.08–1.83 (m, 2H) and 1.77–1.40 (m, 20H); six singlets for diastereomeric camphor methyl groups: 1.14; 1.07; 1.05; 1.04; 0.89 and 0.85. High-resolution mass spectrum (HRMS) C37H49NO13 requires 715.3204, 715.3238 (M+) found.

Compound 7

¹H NMR: δ (300 MHz, CDCl₃) 7.69 (s, 1H), 7.34 (s, 1H), 5.23 (s, 1H), 4.44 (dd, J = 5.9, 4.1 Hz, 1H), 4.08 (dd, J = 7.4, 5.8 Hz, 1H), 4.00 (s, 3H), 4.02–3.98 (m, 1H), 3.95, (s, 3H), 3.88–3.81 (m, 1H), 3.72 (t, J = 7.8 Hz, 1H), 3.52–3.45 (m, 1H), 2.76 (d, J = 2.6 Hz, 1H), 2.66 (d, J = 2.8 Hz, 1H), 2.51 (d, J = 6.3 Hz, 1H) and 1.74–1.42 (m, 10H). HRMS: C21H29NO10 455.1791, 455.1778 (M+) found.

Compound 8

¹H NMR: δ (300 MHz, CDCl₃) 7.69 (s, 1H), 7.30 (s, 1H), 5.16 (ABq, J = 42.1, 13.7 Hz, 2H), 4.91–4.86 (m, 1H), 4.83 (dd, J = 14.0, 8.4 Hz, 1H), 4.68 (dd, J = 8.7, 5.8 Hz, 1H), 4.66–4.62 (m, 1H), 4.42–4.21 (m, 14H), 4.04 (s, 3H), 3.96 (s, 3H), 2.86–2.80 (m, 8H), 2.79–2.66 (m, 4H) and 1.80–1.25 (m, 10H). ¹³C NMR: δ (70 MHz, acetone-d₆) 156.56, 150.36, 141.28, 131.93, 119.90, 119.82, 119.66, 119.48, 119.41, 114.92, 112.92, 110.34, 82.72, 80.68, 78.56, 77.32, 76.15, 73.27, 65.74, 65.65, 65.58, 65.47, 65.40, 65.34, 58.59, 58.24, 39.33, 36.98, 27.29, 26.50, 26.24, 21.71, 21.66, 21.61, 21.47 and 21.36. ³¹P NMR: δ (121 MHz, CDCl₃) −1.75, −2.14 and −2.23. HRMS: C39H50N7O19NaP3 requires 1,036.2272, 1,036.2309 (M+Na) found.

Compound 10

¹H NMR: δ (300 MHz, CDCl₃) 7.71 (s, 1H), 7.47 (s, 1H), 5.74–5.61 (m, 8H), 5.47–5.41 (m, 2H), 5.40–5.24 (m, 2H), .20 (s, 2H), 4.81 (td, J = 8.5, 3.7 Hz, 1H), 4.72 (dt, J = 8.8, 6.6, 1H), 4.64–4.54 (m, 2H), 4.31 (t, J = 6.2 Hz, 1H), 4.19 (t, J = 7.5 Hz, 1H), 4.05 (s, 3H), 3.95 (s, 3H), 2.15 (s, 3H), 2.14 (s, 3H), 2.13 (s, 3H), 2.11 (s, 3H), 2.03 (s, 3H), 2.01 (s, 3H), 1.82–1.41 (m, 10H). ³¹P NMR: δ (121 MHz, CDCl₃) −3.67, −3.71 and −3.96. HRMS: C39H56NO31P3Na requires 1,150.1947, 1,150.1965 (M+Na) found.

Application of cell-permeant caged IP₃

Our experience with the photolysis method described here is that, as long as dye-loaded cells can be clearly visualized with low power (TROUBLESHOOTING), cells respond extremely reliably to the uncaging protocol, using approximately ten times as much power required for imaging, with robust increases in intracellular calcium signals (Fig. 6). In a recent publication, we used the method described here to modulate the electrical activity of a patch-clamped neuron immediately adjacent to the photostimulated astrocyte in a living brain slice13. As the cell-permeant caged IP3 loaded multiple cells within the field of view of the microscope, we tested the spatial relationship between the photo-evoked calcium response and the change in neuronal electrical activity, and found that only those astrocytes intimately entwined with neurons could change their electrical properties. Such experiments are really only feasible with AM ester–loaded brain slices, as loading a succession of individual astrocytes around a single patch-clamped neuron with a second patch pipette is not very practical, even for the most skilled electrophysiologist. However, in certain experiments, whole-cell dialysis with calcium dye and caged probe is the method of choice, as this approach allows one to establish a quantitative relationship between the effects produced by uncaging and the biological readout. In contrast, AM ester loading with monowavelength calcium dyes allows only qualitative correlations to be defined.

Table 1.

Troubleshooting table.

Step	Problem	Solution
25–27	Acylation gives low yield	Buy fresh reagent; should be a powder and not a gummy solid
34,35	Deprotection too slow	Distill acetyl chloride before use; follow up carefully by TLC
34,35	Deprotection too fast, very polar product on TLC (tetrahydroxyl)	Use less acetyl chloride, as 2,3-cyclohexyl group is somewhat labile
53	Phosphitylatlon reagent impure	Buy fresh dichloride and distill at 5 mmHg
56	No milky white precipitate	Make new phosphitylation reagent
57	Reaction shows multiple spots on TLC	Add more phosphitylation reagent
65	Multiple products	Add oxidizer (Step 59) very carefully, ensuring that temperature does not rise too high
65	Multiple peaks in 31P NMR spectrum	Re-purify by silica gel chromatography
68	Too many peaks in HPLC	Allow more time for first three cyanoethyl groups to deprotect
72	Product HPLC not pure	Add more AM bromide
93	Cells are poorly stained and show no calcium signal	Ensure that AM esters are dissolved in ACSF by using 20% pluronic/DMSO in place of DMSO and/or sonicate longer
96	Cells are stained with dye but show no calcium signal	Increase FRAP power or pixel dwell time by two- or threefold
97	Fluorescence signal does not eventually return to baseline after uncaging	Decrease FRAP power by two- or threefold
