Implications of Mesenchymal Cells in Cancer Stem Cell Populations: Relevance to EMT

Abstract

The epithelial to mesenchymal transition (EMT) generates tumor cells having stem cell characteristics with phenotypes similar to cancer stem cells (CSCs). Evidence suggests CSCs are in an intermediate state of EMT expressing reduced levels of E-cadherin and exhibiting mesenchymal features including invasiveness associated with metastasis. These findings suggest mechanisms regulating EMT and stemness are closely integrated. Recent reports from multiple laboratories have identified novel mechanisms regulating EMT and stemness involving epigenetics, microenvironment, and dedifferentiation. Circulating tumor cells (CTCs) have also been shown to exhibit features of EMT, but it is unclear what fraction has CSCs properties. EMT characteristics of both CSCs and CTCs are associated with resistance to current clinical treatments, indicating therapies targeting the CSC in addition to the more differentiated tumor cells are required for durable responses. Thus, EMT characteristics of CTCs may prove useful biomarkers for effective therapies for many cancers.

Introduction

Epithelial to mesenchymal transition (EMT) is a reversible developmental program responsible for the formation of the tissues and organs of the body whereby nonmotile epithelial cells with tight cell-to-cell adhesions and apical-basal polarity convert to individual, motile mesenchymal cells with front to back polarity (Figure 1) (1). Molecular markers of EMT include the loss of the epithelial marker E-cadherin, and the gain of EMT-inducing transcription factors and mesenchymal markers including N-cadherin, fibronectin, and vimentin (2). EMT is associated with the reorganization of the actin cytoskeleton including the loss of cortical actin and the gain of filamentous actin. However, the most important marker of the gain of mesenchymal features is the acquisition of motility (3). Examples of EMT in development include implantation, gastrulation, neural crest formation, and cardiac valve formation. EMT also occurs as a normal physiological response to tissue injury that can become pathological as seen with tissue and organ fibrosis (4). Importantly, the developmental program of EMT is reactivated in cancer, such that epithelial cells undergo an EMT, acquiring mesenchymal features that enable them to migrate and invade. This reactivation of the developmental program of EMT in cancer is thought to be responsible for metastasis of the primary tumor to distant sites, which is responsible for the majority of cancer related deaths. The process of EMT is reversible through a mesenchymal to epithelial transition (MET), where the motile mesenchymal cells once reaching their destination revert to an epithelial phenotype. MET is essential in normal development.

Figure 1. Molecular characteristics of EMT and stemness in development versus cancer.

The similar features of EMT in both development and cancer are illustrated. Also, the differences in the maintenance/acquisition of stemness in development versus cancer is shown.

The primary model to explain tumorigenesis and tumor heterogeneity has been the clonal evolution theory whereby cells acquire changes, genetic or epigenetic, that provide them with a growth advantage. These cells become the dominant clone in the tumor that are responsible for its tumorigenic capacity. More recently, a cancer stem cell (CSC) model has been proposed to explain tumor heterogeneity (5). Unlike the clonal evolution model, the CSC hypothesis is based on a hierarchical organization such that only a small subset of cells in a tumor is responsible for tumorigenesis. CSCs are cancer cells that exhibit the stem cell properties of self-renewal and differentiation. CSCs can self-renew to generate more CSCs and can differentiate to generate all the Non-CSC progeny in the tumor. Importantly, CSCs do not necessarily originate from transformation of a stem cell. In addition, CSCs can arise from the transformation and dedifferentiation of Non-CSCs via genetic or epigenetic changes to Non-CSCs. The presence of CSCs has been demonstrated in hematopoietic, breast, pancreatic and colon cancers. In addition, CSCs have been implicated in several other cancers, but are most likely not responsible for all cancer types.

EMT promotes stem cell features and induces CSCs

A critical topic in the field of EMT and CSCs is the intersection between EMT and stemness. Mani et al. demonstrated that the induction of EMT in human mammary epithelial cells by overexpression of the transcription factors Snail or Twist generated stem cell-like cells (Figure 1) (6,7). These stem cell-like cells continued to exhibit properties of EMT. Induction of EMT in mammary cells induced a stem cell phenotype similar to CSCs. They went on to show that EMT gives rise to metastatic CSCs. Post-therapy breast tissue was found to be enriched in tumor cells with CSC-like and mesenchymal features (8). Recent studies by Abell et al. and Rhim et al. have shown that CSCs may represent a population of cells in an intermediate state of EMT (Figure 1)(9,10). These cells express low to moderate levels of the epithelial marker E-cadherin and at the same time, exhibit mesenchymal features. Abell et al. showed that mutant stem cells in an intermediate stage of EMT and claudin-low breast cancer (CLBC) cells with mesenchymal features shared a gene expression signature (10). These cells were similar to cancer stem cells, maintaining stemness features and tumor initiating properties, and were highly invasive (11). Similarly, Rhim et al. found that pancreatic ductal adenocarcinoma cells (PDACs) exhibited features of an intermediate stage of EMT, coexpressing both epithelial and mesenchymal markers. They found that PDACs metastasized “early”, prior to the histological evidence of malignancy (9). Further, circulating PDACs exhibited pancreatic stem cell properties being CD24/CD44 positive and demonstrating growth in pancreatosphere assays. Together, these studies suggest that cancer cells passing through EMT acquire self-renewing stem cell traits.

That CSCs may exist in an intermediate stage of EMT suggests mechanisms that regulate EMT and stemness are closely integrated. Recent papers from multiple laboratories have identified novel mechanisms regulating EMT and stemness that include epigenetic modifications, changes in the microenvironment, and dedifferentiation of NonCSCs to CSCs. Each of these potential mechanisms is discussed below.

Promotion of EMT and stemness by epigenetic changes

An important focus of research in the field of EMT and stem cell features of cancer cells relates to the mechanisms that regulate EMT to promote stemness in CSCs. Several recent publications have demonstrated the power of epigenetic changes to promote EMT and induce stemness in CSCs. Abell et al. identified an epigenetic mechanism controlling EMT in stem cells and CLBC cells with stem cell features (10). MAP3K4, a MAP3K kinase regulating the JNK pathway, activates the acetyl transferase CBP, promoting acetylation of histone H2BK5 to maintain the epithelial phenotype. Loss of H2BK5 acetylation on a specific set of genes in both stem cells and CLBC resulted in an intermediate state of EMT. One of the genes regulated by H2BK5 acetylation is SMARCD3, a SWI/SNF chromatin-remodeling factor (12). Knockdown of SMARCD3 in mesenchymal-like basal breast cancer cells partially restored epithelial features of these cells. Further, overexpression of SMARCD3 was sufficient to induce EMT in mammary epithelial cells and to induce a gene expression signature similar to mesenchymal CLBC cells with stemness characteristics being CD44 and ALDH1 positive and CD24 negative.

In addition to the identification of acetyl transferases and chromatin modifiers that regulate the induction of EMT and stemness, recent studies from Song et al. and Taube et al. have demonstrated the role of specific microRNAs (miRs) in the regulation of stemness and EMT in breast cancer (13,14). Song et al. showed the ability of miR-22 to promote EMT and stemness. miR-22 silenced the miR-200, which controls epithelial maintenance, by targeting the expression of the Ten eleven translocation (TET) family of methylcytosine dioxygenases, inhibiting demethylation of the mir-200 promoter (13). miR-22 expression was sufficient to induce the expansion of the mammary stem cell compartment, EMT features, and invasiveness, suggesting that it is a trigger of tumor initiation. Overexpression of miR-22 correlated with poor patient outcomes in breast cancer, suggesting that miR-22 may represent a viable therapeutic target for breast cancers with EMT and stemness features.

In contrast to the EMT-inducing properties of miR-22, Taube et al. has found that miR-203 represses EMT and stemness (14). Expression of miR-203 in human mammary epithelial cells was repressed by induction of EMT by TGF, or by overexpression of the EMT-inducing transcription factors Twist or Snail. It was also repressed in CLBC cells and in CD44hi/CD24low stem cell enriched fractions. Importantly, restoration of miR-203 expression inhibited stemness and EMT properties of CLBC cells, inhibiting invasiveness, mammosphere formation, tumorigenesis and metastasis, suggesting a potential role for miR-203 in suppressing transformation and breast cancer.

Promotion of EMT and stem cell like features by signals from the microenvironment

Recent work has identified factors produced and released by the tumor microenvironment that promote EMT and stemness. In colon cancer, hepatocyte growth factor (HGF) secreted by stromal myofibroblasts promoted EMT and stemness (15). These colon CSCs expressed high levels of Wnt induced by factors secreted by stromal myofibroblasts. Colon CSC self-renewal capacity was demonstrated by tumor initiation capacity, spheroid culture, and stem cell markers. Significantly, these factors secreted by the microenvironment were sufficient to promote CSC formation from more differentiated Non-CSC tumor cells showing the ability of the microenvironment to control EMT and stemness in colon cancer. Work from Scheel et al. has identified signals that induce and/or maintain the mesenchymal features and stem cell fate in the breast (16). In this study, they used previously identified spontaneously arising mesenchymal subpopulations of cells (MSPs) isolated from immortalized human mammary epithelial cells. They found that the mesenchymal and stem cell state of MSPs was maintained by increased TGF 1, BMP antagonists and Wnt signaling, and by decreased BMPs and Wnt antagonists. Importantly, the self-renewal and motility properties of the MSPs could be reversed by inhibiting TGF or by adding back BMP4 or Wnt antagonists. These findings emphasize the importance of autocrine signaling to maintain the stem cell fate of these MSPs. They also asked whether this autocrine loop applies to cancer stem cell tumorigenicity and metastasis. For example, do Ras transformed MSPs behave like CSCs? They found that Ras transformed MSPs have more tumor initiating potential and are more metastatic than Ras transformed mammary epithelial cells. Importantly, blocking the autocrine loop created by TGF and Wnt that supports MSPs, also blocked tumor initiation and metastasis in the Ras transformed MSPs.

EMT promotes stem cell like features in cancer cells through dedifferentiation

Until recently, CSCs were thought to exist at the top of a cellular hierarchy giving rise to both new CSCs with high tumor initiating properties and to more differentiated Non-CSC tumor cells. More recently, several studies have suggested that Non-CSCs can acquire CSC features. Initial studies from Scheel et al. and Chaffer et al. described the ability of normal and non-CSC cells to convert to stem-like cells that were dependent on signals from the microenvironment (16,17). They predicted that this conversion/dedifferentiation may be promoted by signals that drive EMT. Similarly, as described above, studies of colon CSCs showed the ability of HGF to reprogram non-CSCs to CSCs (15). This conversion or dedifferentiation was dependent on the factors secreted by stromal cells like HGF and on Wnt signals. These studies were extended to basal like breast cancers where it was shown that conversion of non-CSCs to CSCs was frequent in specific subtypes of breast cancer such as basal-like breast cancers. These conversions were dependent on the EMT-inducing factors TGF and ZEB1, which promoted high levels of expression of the stem cell marker CD44. The ability of specific cancer cell types to interconvert between non-CSC and CSC states, thus controlling the tumorigenic and invasive potential of the cancer cells, represents an important mechanism that may be targeted therapeutically to both inhibit tumorigenesis and metastasis.

Circulating tumor cells (CTCs), CSCs, AND EMT: Mesenchymal features of CTCs and how CTCs relate to CSCs

Recent studies in multiple cancer types have demonstrated EMT and stem cell properties in CTCs (Figure 2). In pancreatic cancer, most pancreatic CTCs were found to exclusively express mesenchymal markers and to display stemness properties including being CD24+/CD44+ and forming pancreatospheres (9). In prostate cancer, CTCs were identified with stemness markers (18). These CTCs displayed varying levels of epithelial and mesenchymal marker coexpression suggesting that the prostate cancer CTCs were in different transitional states. In metastatic breast cancer patients, a major proportion of CTCs were found to display EMT and tumor stem cell properties (19). This study was further extended to CTCs from breast cancer patients without diagnosis of metastasis, suggesting that acquisition of EMT and stemness can occur early in the dissemination process similar to that observed in pancreatic cancer (9,20,21). These studies have been significantly extended by a recent study from Yu et al. showing that CTCs from metastatic breast cancer exhibit features of EMT (Figure 2) (22). Importantly, they found that EMT in CTCs correlated with breast cancer treatment responses and patient relapse. They suggest the importance of EMT as a potential biomarker for therapeutic resistance and as a drug target in breast cancer. They also found that CTCs with mesenchymal markers often circulated as clusters instead of individual cells (Figure 2). It remains unclear what proportion of CTCs are CSCs and what are the consequences to patient treatment, response, and survival. A major hurdle in the use of CTCs to monitor patient response to treatment/relapse is the presence of subpopulations of CTCs that are dedifferentiated CSCs with mesenchymal features. These cells that have undergone EMT are not likely to be detected by current CTC isolation approaches that rely heavily on epithelial markers like EpCAM and cytokeratins, which may be lost in aggressive CTC/CSC phenotypes that have lost their epithelial features and gained mesenchymal characteristics. This is very relevant to patient response to current therapies because drug resistant CTCs clearly exhibit mesenchymal features associated with EMT. Productive response to therapeutic intervention correlated with reduced mesenchymal CTCs, whereas therapeutic resistance correlated with increased mesenchymal CTCs, indicating the importance of being able to monitor, study, and treat these subpopulations in patients (22).

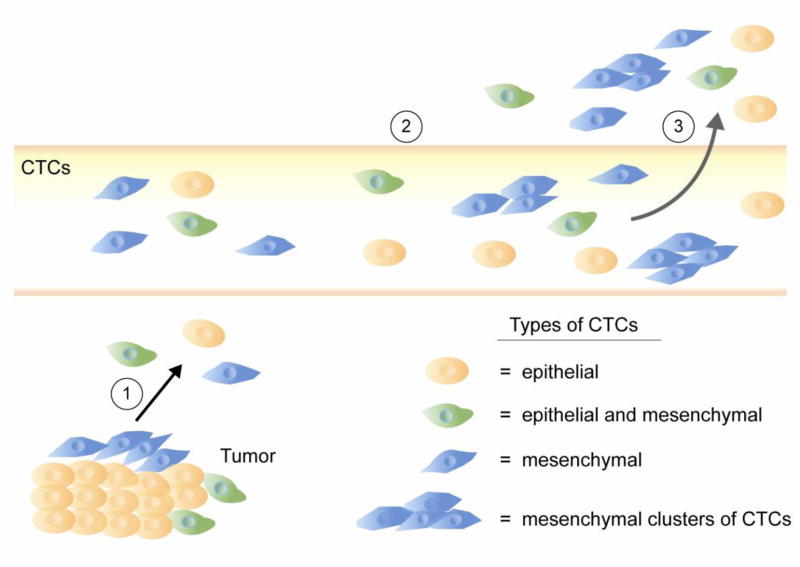

Figure 2. EMT, CSCs and CTCs. Mesenchymal CTCs are likely to represent the CTCs/CSCs with tumor initiating potential.

Epithelial tumor cells lacking mesenchymal features are shown in orange. Tumor cells in an intermediate state of EMT possessing both epithelial and mesenchymal features are shown in green. Individual or sheets of tumor cells primarily showing mesenchymal features are shown in blue. It is postulated that it is the sheets of mesenchymal tumor cells (1), and not the epithelial tumor cells, which will successfully traverse the vasculature (2), exiting to form metastases (3), but this hypothesis needs additional experimental support.

Conclusions

Recent work has established the critical link between EMT and stemness features in CSCs. This work has identified novel mechanisms regulating the induction and maintenance of EMT and CSCs that will pave the way to finding novel solutions to target CSCs that are resistant to traditional cancer therapies (23,24). Clearly, better treatment of patients with CSCs could be achieved if CTC isolation methods could detect CTCs that have undergone EMT. Currently, there are many clinical trials underway to examine either EMT or CTCs (ClinicalTrials.gov). There are however only two trials, one in metastatic colorectal cancer (NCT01286883) and one in breast cancer (NCT01866202), that are examining EMT markers in CTCs and CSCs, with the idea to use these as biomarkers/prognostic markers of treatment. Defining molecular mechanisms controlling EMT in cancer cells will aid in the treatment of patient cancers. The resistance of CSCs with EMT to traditional therapies clearly demonstrates the importance of targeting CSCs and/or the conversion of non-CSCs to CSCs. Recent high throughput small molecule screens have focused on the identification of treatments to specifically target CSCs/EMT (25). Additional work has focused on the identification and use of approved drugs to reduce CSCs/EMT. One such treatment is the proposed use of the broad acting tyrosine kinase inhibitor sunitinib in claudin-low breast cancer and other EMT-dependent cancers (26). The biotechnology industry is attempting to develop novel therapeutic strategies to specifically target EMT and CSCs. As we learn more about the genomic/proteomic landscape of these cells therapeutic targeting becomes a real possibility for developing new therapies to treat cancer.
