Directionality of temperature-activation in mouse TRPA1 ion channel can be inverted by single-point mutations in ankyrin repeat six

Summary

Several transient receptor potential (TRP) ion channels are activated with high sensitivity by either cold or hot temperatures. However, structures and mechanism that determine temperature-directionality (cold vs. heat) are not established. Here we screened 12,000 random mutant clones of the cold-activated mouse TRPA1 ion channel with a heat stimulus. We identified three single-point mutations that are individually sufficient to make mouse TRPA1 warm-activated, while leaving sensitivity to chemicals unaffected. Mutant channels have high temperature-sensitivity of voltage-activation, specifically of channel opening, but not channel closing, which is reminiscent of other heat-activated TRP channels. All mutations are located in ankyrin repeat six, which identifies this domain as a sensitive modulator of thermal activation. We propose that a change in the coupling of temperature-sensing to channel-gating generates this sensitivity to warm temperatures. Our results demonstrate that minimal changes in protein sequence are sufficient to generate a wide diversity of thermal sensitivities in TRPA1.

Introduction

Somatosensory neurons detect pressure, various chemicals, cold or hot temperatures and mediate the sensation of pain in animals. Their temperature-sensitivity is enabled by expression of a set of transient receptor potential (TRP) ion channels that are activated with high sensitivity by cold or hot temperatures at various thresholds (Dhaka et al., 2006). The molecular mechanism of TRP ion channel activation by temperature is not known. TRP ion channels can be temperature-activated in cell-free systems and with extremely short latency, which together is strong evidence that the composition of the membrane bilayer is not the origin of temperature-sensitivity and instead the sensing mechanism is delimited to the physical state of the bilayer and the ion channel (Cao et al., 2013; Tominaga et al., 1998; Yao et al., 2009; Zakharian et al., 2010). The existence of different TRPA1 isoforms as well as studies using chimeric approaches in TRPA1 and TRPV1 demonstrate that large domains within the N-terminal are involved in modulating thermal-sensitivity (Cordero-Morales et al., 2011; Kang et al., 2012; Yao et al., 2011; Zhong et al., 2012). Other studies used unbiased random mutagenesis and cysteine-accessibility and have pointed to the pore-domain as a structure that is specifically involved in temperature-activation (Grandl et al., 2008; Grandl et al., 2010; Kim et al., 2013; Salazar et al., 2009).

An outstanding feature of TRP channels is that different members from a relatively homologous family of ion channels can have opposite thermal sensitivities, i.e. some are activated by cold temperatures, whereas others are activated by hot temperatures (Dhaka et al., 2006). Thermodynamically these differences have been well described (Baez-Nieto et al., 2011; Brauchi et al., 2004; Liu et al., 2003; Voets, 2012; Voets et al., 2004; Yao et al., 2010). However, structural correlates that determine cold-sensitivity vs. heat-sensitivity are not firmly established (Brauchi et al., 2006). TRPA1 is arguably the most fascinating TRP ion channel in this respect, as orthologues from different species demonstrate opposite temperature-irectionality. For example, mouse TRPA1, human TRPA1 (80% homology with mouse) and C. elegans TRPA1 (22% homology) are cold-activated in the presence of calcium, whereas rattlesnake TRPA1 (57% homology), rat snake TRPA1 (60% homology) and Drosophila TRPA1 (54% homology) are heat-activated (Chatzigeorgiou et al., 2010; Cordero-Morales et al., 2011; Gracheva et al., 2010; Karashima et al., 2009; Lee et al., 2005; Sawada et al., 2007; Story et al., 2003; Tracey et al., 2003; Viswanath et al., 2003; Xiao et al., 2013; Zurborg et al., 2007). Here, we hypothesized that specific structures (amino acid residues) mediate temperature-directionality (cold vs. heat-sensitivity) and that mutation of these residues could perturb the temperature-activation profile. To find these residues, we performed an unbiased mutagenesis screen of a random mutant library of mouse TRPA1 (cold-activated) by challenging it with hot temperatures. We identified three single-point mutations in ankyrin repeat six that are each individually sufficient to make mouse TRPA1 a warm-activated ion channel without changing sensitivity to chemical agonists. Our results suggest that temperature-directionality is mediated by changes in coupling to the channel gate and that ankyrin repeat six of mouse TRPA1 is uniquely sensitive to promote this change in coupling.

Results

Single-point mutations are sufficient to make mouse TRPA1 warm-activated

To test our hypothesis that specific residues mediate temperature-directionality (cold vs. heat-sensitivity), we performed an unbiased random mutagenesis screen searching for single-point mutations that could turn mouse TRPA1 (cold-activated) into a heat-activated ion channel. We generated a library of 12,000 random mutant clones of mouse TRPA1 and screened it using hot temperatures (45°C) as a stimulus and measured channel-activation with a calcium-influx assay (Grandl et al., 2008). We searched the library for clones that upon heat-stimulation showed increased calcium levels when compared to pcDNA transfected cells (see Methods). From 12,000 clones we identified and validated seven clones that show a transient, but robust heat-induced calcium increase that was inhibited by the channel blocker ruthenium red (Figure 1). Sequencing of these seven clones revealed 12 point-mutations. In order to find out which specific single-point mutation caused activation by hot temperatures we then engineered all 12 mutations individually and tested heat-sensitivity electrophysiologically. Since intracellular calcium can directly activate TRPA1, we performed all our electrophysiological experiments in the absence of intracellular calcium (10 mM BAPTA) (Bobkov et al., 2011; Doerner et al., 2007; Karashima et al., 2009). Chinese hamster ovary (CHO) cells transfected with cDNA coding for wild-type mouse TRPA1 or single-point mutants all showed outwardly-rectifying currents when probed with a voltage-ramp protocol (±100 mV) at 25°C, whereas pcDNA transfected cells failed to show voltage-induced currents. We then challenged patches with a temperature-stimulus (25°C − 40°C − 25°C) and a subsequent application of 100 µM mustard-oil (Figure 2A). Heating induced unspecific current increases for both inward and outward currents in all cells tested, irrespective if they were transfected with wild-type mouse TRPA1 or pcDNA control, which is likely due to a diminished seal resistance. Cells transfected with wild-type mouse TRPA1 Showed a 2.8 ± 0.2 fold change in outward currents and a 3.0 ± 0.5 fold change in inward currents and cells transfected with pcDNA had a 3.6 ± 0.5 fold change in outward currents and a 2.5 ± 0.3 fold change in inward currents. Of all single-point mutants tested, three stood out because of their high heat-induced responses: S250N, M258L and D261G. Amongst these three mutants S250N evoked the highest heat-response, with an average 9.8 ± 1.5 fold change in outward current (+100 mV) and 7.1 ± 1.3 fold change in inward current (−100 mV) (Figure 2B,C). Mutants M258L and D261G had only a modest change in outward-currents, but significant increases of 6.7 ± 1.1 fold and 3.9 ± 0.7 fold in their respective inward currents. The heat-induced current increases were completely reversible in all mutants and application of mustard-oil induced currents with nearly complete loss of rectification, as is typical for TRPA1. To better quantify the thermal sensitivity we generated Arrhenius plots from representative measurements of mutant S250N, wild-type mouse TRPA1 and pcDNA transfected cells and calculated temperature-coefficients (Q₁₀) from the steep linear segments (Figure 2D). We obtained for wild-type mouse TRPA1 Q₁₀ = 2.8 ± 0.3 and pcDNA Q₁₀ = 1.9 ± 0.2 and for mutant S250N Q₁₀ = 14.8 ± 7.9 with an activation-threshold of 29.2 ± 0.9°C. We thus identified single-point mutations that are individually sufficient to make mouse TRPA1 a warm-activated channel.

Figure 1. An unbiased screen reveals heat-responsive mouse TRPA1 mutant clones.

(A) Fluorescence responses of HEK293 cells transfected with cDNA for mouse TRPA1 wild-type, pcDNA and representative mutant clone N56F7 (plate N56, well F7) upon heating. Cells are loaded with the calcium-dye fluo-3 and measured in a FLIPR-Tetra plate reader. The mutant clone shows a transient peak response in addition to the increase seen in pcDNA or wild-type mouse TRPA1 transfected cells. Traces are averages of 4 wells (for clones) or 12 wells (for mouse TRPA1 wild-type and pcDNA). (B) Ratiometric calcium imaging of CHO cells transfected with wild-type mouse TRPA1 or mutant clone N56F7 and exposed to a heat stimulus, 100 µM mustard-oil (MO) or 1 µM ionomycin (IM) and 10 µM ruthenium red. Lines are averages of 30–60 cells from three different coverslips. Grey shades indicate s.e.

Figure 2. Warm temperatures activate TRPA1 single-point mutants.

(A) Whole-cell recordings of transiently transfected CHO cells in Ca²⁺-free buffer. Representative currents evoked by ramp-protocol (±100 mV) for pcDNA, wild-type mouse TRPA1 and mutants S250N, M258L and D261G during a temperature-step, followed by application of MO (100 µM). Numbers indicate basal currents (1), peak-responses (2) recovery currents (3) and mustard-oil application (4). (B) Current-voltage relationships at indicated time points. (C) Average of maximal current amplitudes at ±100 mV for different single-point mutants. Numbers of experiments are indicated above bars. Data represent mean ± s.e. Stars indicate statistical significance as compared to pcDNA (*** p< 0.001, ** p<0.01). (D) Representative Arrhenius plots at ±100 mV. Data represent mean ± stdv. Dotted lines are weighted exponential fits to sections before and after channel activation. N = 9 for mutant S250N, n = 16 for wild-type mouse TRPA1 and n = 4 for pcDNA.

Single-point mutations do not change chemical sensitivity or channel expression and localization

Next, we wanted to determine the effect the identified mutations (S250N, M258L and D261G) have on chemical sensitivity. First, we used mustard-oil as a proxy for chemicals that activate TRPA1 through covalent modification of N-terminal cysteine residues (Hinman et al., 2006; Macpherson et al., 2007). We measured concentration-response curves for all three single-point mutants in our FLIPR assay and found that responses to mustard-oil were completely identical when compared with wild-type mouse TRPA1 (Figure 3A).

Figure 3. Effect of single-point mutants on chemical activation, channel expression and localization.

Concentration-response curves of mustard-oil (A) and caffeine (B) for heat-activated single-point mutations S250N, M258L, D261G, wild-type mouse TRPA1 and pcDNA. Data are mean ± stdv (n = 4). Straight lines are fits of Hill equations (mustard oil) or double-Hill equations (caffeine). For mustard-oil (in µM): S250N EC₅₀ = 10.8 ± 1.5; M258L EC₅₀ = 9.4 ± 2; D261G EC₅₀ = 11.7 ± 2.7; wild-type mouse TRPA1 EC₅₀ = 11.1 ± 1.6. For caffeine (in mM) S250N EC₅₀ = 0.6 ± 0.4, IC₅₀ = 7.2 ± 6.3; M258L EC₅₀ = 0.3 ± 0.3, IC₅₀ = 6.7 ± 3.3; D261G EC₅₀ = 0.2 ± 0.1, IC₅₀ = 11.9 ± 1.5; wild-type mouse TRPA1 EC₅₀ = 0.4 ± 0.1, IC₅₀ = 8.2 ± 0.1. (C) Western blots of whole cells lysates obtained from CHO cells expressing mouse TRPA1-myc, S250N-myc, M258L-myc and D261G-myc. Bar graph represents band intensity normalized to actin. Data represent mean ± s.e, n = 13. (D) Representative immunoblots of biotinlyated surface protein elutes obtained from CHO cells transfected with wild-type mouse TRPA1-myc or S250N-myc, M258L-myc or D261G-myc 12h, 24h, 36h and 48h after transfection. Graph represents band intensity at different time points normalized to the amounts at 48h. Each data point is an average of at least three measurements. Data are mean ± s.e, (E) Representative confocal images of cells expressing myc-tagged channel constructs stained with myc (green) and WGA (red). Graph shows quantification of near-surface levels of myc-tagged channel constructs. Data represent mean ± s.e, n = 10 cells.

Caffeine is another chemical that acts on TRPA1, but it was reported to have opposite effects on different TRPA1 sequence orthologues - whereas it activates mouse TRPA1, it inhibits human TRPA1 (Nagatomo and Kubo, 2008). In addition, this activation of mouse TRPA1 by caffeine can be inversed into an inhibition by a single-point mutation (M268P) (Nagatomo et al., 2010). Since this mutation is in close proximity to the ones we identified, we hypothesized that they might act through a common mechanism and switch the sensitivity of different agonists. We found that caffeine has a bimodal effect on wild-type mouse TRPA1 in that it causes activation at low concentrations that is diminished at higher concentrations (Figure 3B). This is reminiscent of menthol, which affects mouse TRPA1 in a similar fashion (Karashima et al., 2007; Xiao et al., 2008). To our surprise, we found that none of the single-point mutations that modify temperature-sensitivity changed the effect caffeine has on wild-type mouse TRPA1 (Figure 3B).

The fact that maximal responses upon chemical stimulation were identical suggests that channel expression or more specifically the number of functional membrane-bound channels is not affected by the point-mutations. To investigate this directly we generated myc-tagged mutant channel constructs and performed immunoblots from total cell lysates (Macpherson et al., 2007). We found that total channel expression was normal for mutants S250N and D261G, but slightly increased for mutant M258L as compared to wild-type mouse TRPA1 (p>0.05, unpaired student t-test) (Figure 3C). Using a biotinylation assay we then specifically measured the membrane bound fraction as a function of time after transfection. We found no significant differences either in the time course of protein synthesis or in the absolute amounts of biotinylated protein between wild-type mouse TRPA1 and mutant channels indicating that overall channel stability is unchanged (p>0.05, unpaired student t-test) (Figure 3D). We further assessed channel localization by immunocytochemistry and quantified the near membrane fraction by overlap staining with wheat germ agglutinin (WGA). We found that channel membrane localization was unaffected by the mutations (p>0.05, unpaired student t-test) (Figure 3E). Altogether, these findings show that the mutations we identified do not alter either activation by chemical agonists, such as mustard-oil and caffeine or channel stability and localization.

Heat-activated mutations cluster in one ankyrin repeat

The three mutations we identified are not scattered over the protein, but are clustered in ankyrin repeat six (Figure 4A). This suggests that ankyrin repeat six plays a role in determining temperature-directionality. Ankyrins consist of a conserved 33 amino-acid motif that folds into one long and one short alpha helix that are connected by a short loop. A longer hair-pin loop connects adjacent ankyrins and three or more units form an ankyrin repeat (Gaudet, 2008). Residue S250 is located within the predicted short loop connecting both helices, whereas residues M258 and D261 are located at the upper part of the predicted long helix (Figure 4B). These parts of the ankyrin repeats are highly conserved amongst different ankyrin repeat proteins and are thought to convey the general backbone structure, whereas residues within the short helix and the hair-pin loop are known to give specificity to various ligands (Gaudet, 2008; Mosavi et al., 2004; Mosavi et al., 2002).

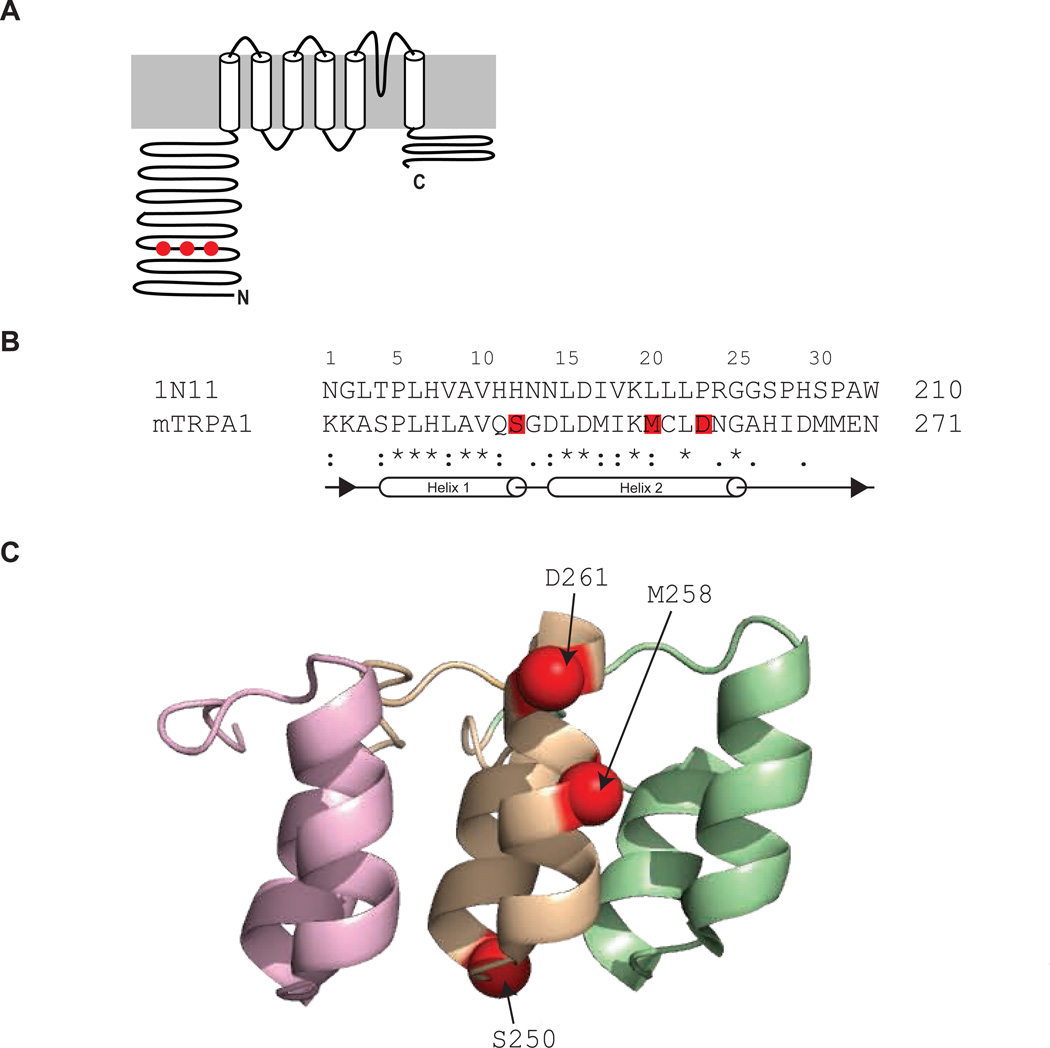

Figure 4. Location of single point mutations.

(A) Topology of TRPA1 with locations of identified single-point mutations indicated in red. (B) Sequence alignment of ankyrin repeat six of wild-type mouse TRPA1 and ankyrin repeat 18 of human ankyrin R generated with ClustalW. (*) indicates identical amino acids, (:) and (.) similar amino acids. Identified point-mutations are highlighted in red. Secondary structures are indicated below. (C) Structure of repeats 17–19 of human ankyrin R (1N11). Residues corresponding to mouse TRPA1 S250, M258 and D261 are highlighted as red balls.

We wanted to better understand how the three mutations are located relative to each other. Since there is no crystal structure for mouse TRPA1 or its ankyrin repeats, we aligned the sequence of mouse TRPA1 with that of the ankyrin protein crystal structure that shares the highest sequence homology - the human ankyrin R (Michaely et al., 2002). The sequence homology within the helical domains of ankyrin repeat six of mouse TRPA1 and repeat 18 of human ankyrin R is very high (86% homology). Interestingly, the crystal structure of human ankyrin R reveals that residues aligning with S250, M258 and D261 all locate at the convex surface of the ankyrin repeat (Figure 4C). This common location of the three single-point mutations suggests that they mediate their effect by disrupting the native characteristic ankyrin fold rather than interfering with binding of an unknown ligand. Together this identifies the convex surface of ankyrin repeat six as a domain that can modulate temperature-directionality.

Mutation S250N increases temperature-dependence of voltage-sensitivity

Voltage activates many temperature-activated TRP ion channels and voltage and temperature sensors are allosterically coupled (Brauchi et al., 2004; Latorre et al., 2007; Matta and Ahern, 2007; Voets et al., 2004). To find out how voltage-sensitivity is affected, we measured whole-cell currents using voltage-step protocols at various temperatures (25°C to 40°C in 5°C increments). We focused on mutation S250N, because it demonstrated the highest temperature-sensitivity. Cells transfected with pcDNA had only small voltage-activated currents at +100mV consistent with a gigaohm seal that increased on average 1.8 ± 0.8 fold (Figure 5A). Similar to this, cells transfected with wild-type mouse TRPA1 showed an average 2.7 ± 0.5 fold increase in outward currents. This result is consistent with our data from voltage-ramp recordings. Compared to wild-type mouse TRPA1 mutant S250N showed stronger temperature-induced increase in plateau-currents (Figure 5A and B). However, the effect of desensitization was more pronounced, because of the relatively slow change in temperature (see Methods). Still, the current increase from 25°C to 35°C was 4.0 ± 1.1 fold. In all patches voltage-induced currents returned to initial levels when temperature was lowered back to 25°C (data not shown).

Figure 5. Effect of hot temperature on gating of wild-type mouse TRPA1 and mutant S250N.

(A) Representative whole-cell recordings upon voltage-steps (−100 mV to +140 mV) in Ca²⁺-free intracellular and extracellular solutions at consecutive temperatures steps of 5°C. (B) Representative conductance-voltage (G–V) curves of plateau-currents at different temperatures. Data represent mean ± stdv. Lines are fits of a Boltzman function to the data. (C) Activation and deactivation rates of mutant S250N at +140 mV as a function of temperature. Data represent mean ± stdv. Lines are exponential fits to the data (D) Voltage of half-maximal activation (V_1/2) as a function of temperature. All above data are mean ± s.e., n = 4 for wild-type mouse TRPA1, n = 5 for mutant S250N and n = 4 for pcDNA. Straight lines are linear fits to the data.

We then analyzed the kinetics of channel activation and inactivation upon voltage-steps and found that in mutant S250N the time-course of activation is strongly temperature-dependent (18.3 ± 3.1 ms at 25°C vs. 1.7 ± 0.4 ms at 40°C) which corresponds to a Q₁₀ of 4.5 ± 1.2, whereas deactivation is nearly temperature-insensitive (5.5 ± 0.8 ms at 25°C vs. 3.31 ± 0.8 ms at 40°C), which corresponds to a Q₁₀= 1.5 ± 0.2 (Figure 5C). This is reminiscent of the heat-activated ion channel TRPV1, where hot temperatures specifically affect the rate of channel-opening, whereas channel-closing has little temperature-dependence (Brauchi et al., 2004; Voets et al., 2004). Voltage itself had no significant effect on the time constants of activation and deactivation (data not shown). These data demonstrate in more detail that mutation S250N generates strong heat-sensitivity in mouse TRPA1.

We calculated conductance-voltage (G–V) curves from the plateau currents of these recordings and determined the voltage of half-maximal activation (V_half) (Figure 5D). We found that for S250N mutant channels the V_half at 25°C was higher (67.0 ± 7.6 mV) than for wild-type mouse TRPA1 (45.1 ± 6.0 mV) (Figure 5D). In addition, we observed that for mutant S250N heating strongly shifted the V_half to more negative potentials (67.0 ± 7.6 mV at 25°C to 27.8 ± 7.8 mV at 40°C, p<0.05, unpaired student t-test), whereas in wild-type mouse TRPA1 heating did not affect the V_half significantly (45.1 ± 6.0 mV at 25°C to 41.2 ± 3.2 mV at 40°C, p>0.05, unpaired student t-test). We therefore conclude that mutation S250N induces a strong temperature-dependence on the voltage-sensitivity, which is again reminiscent of other temperature-activated TRP channels (Brauchi et al., 2004; Voets et al., 2004). Altogether, these findings show that mutation S250N specifically generates temperature-activation and temperature-sensitivity of voltage activation, without affecting activation by chemical agonists.

Mutation S250N reduces cold-sensitivity of wild-type mouse TRPA1

It had been reported before that in the absence of calcium wild-type mouse TRPA1 is a mildly cold-activated ion channel (Chen et al., 2013; Karashima et al., 2009; Sawada et al., 2007). We probed the effect of cold temperature (13°C) on wild-type mouse TRPA1 using whole-cell recordings and a voltage-step protocol (−140 mV to +100 mV) in calcium-free conditions. To overcome desensitization we built a rapid solution-switching perfusion enabling temperature changes (25°C to 13°C) within less than 10 seconds (see Methods). We found that in wild-type mouse TRPA1 cooling increases voltage-induced currents in a reversible manner (Figure 6A). The effect was small (40.4 ± 9.8% increase at +100 mV), but consistent across all patches tested. On the contrary, currents in cells transfected with pcDNA were consistently reduced (48.7 ± 5.6% reduction at +100 mV) upon cooling. Therefore, our results support that in the absence of calcium mouse TRPA1 is mildly cold-activated. Next, we wanted to know if the cold-activation of wild-type mouse TRPA1 was preserved in mutant S250N. Here, we found that cold temperatures also increased plateau-currents (15.2 ± 13.9% increase at +100 mV). However, the change was reduced in comparison to wild-type mouse TRPA1, suggesting that mutation S250N makes the channel less sensitive to cold.

Figure 6. Effect of cold temperature on wild-type mouse TRPA1 and mutant S250N.

(A) Representative whole-cell recordings of wild-type mouse TRPA1, pcDNA and mutant S250N upon voltage-steps (‒140 mV to +100 mV) in Ca²⁺-free intracellular and extracellular solutions at 25°C and 13°C, (n = 5). Line plots indicate individual experiments and adjacent bars represent the average current of all recordings at 25°C (open) and 13°C (closed). (B) Bar graph represents relative change in plateau-currents upon cooling (25°C − 13°C) in wild-type mouse TRPA1, pcDNA and heat-activated mutant S250N at +100 mV. Numbers of experiments are indicated above bars. Data are mean ± s.e. (C) Representative conductance-voltage (G–V) curves of plateau-currents of wild-type mouse TRPA1 and heat-activated mutant S250N at 25°C and 13°C. Numbers of experiments are indicated above bars. Data represent mean ± stdv. Lines are fits of a Boltzman function to the data. (D) Representative whole-cell recordings of wild-type mouse TRPA1, pcDNA and mutant S250N upon voltage-steps (−140 mV to +100 mV) in 2 mM calcium extracellular solution at 25°C and 13°C. Line plots indicate individual experiments and adjacent bars represent the average current of all recordings at 25°C (open) and 13°C (closed). (E) Bar graph represents relative change in plateau-currents upon cooling (25°C − 13°C) in wild-type mouse TRPA1, pcDNA and heat-activated mutant S250N at +100 mV. Numbers of experiments are indicated above bars. Data are mean ± s.e.

The temperature-dependence of voltage-gating is arguably a better measure of temperature-sensitivity, because it is not skewed by desensitization. We therefore calculated conductance-voltage (G–V) curves from these recordings (Figure 6C). We found that in wild-type mouse TRPA1 cooling shifted the V_hal_f towards more negative potentials from 48.2 ± 1.4 mV at 25°C to 41.2 ± 2.4 mV at 13°C (p<0.05, unpaired student t-test). This temperature-dependence of voltage-sensitivity is characteristic of temperature-activated TRP channels and further substantiates that in the absence of calcium wild-type mouse TRPA1 is a mildly cold-sensitive ion channel. On the contrary, in mutant S250N cold temperatures shifted the voltage of half-maximal-activation to more positive potentials, although the change was small and statistically not significant (57.0 ± 4.2 mV at 25°C to 61.2 ± 5.4 mV at 13°C, p>0.05, unpaired student t-test). This further supports the idea that mutation S250N diminishes the weak sensitivity of wild-type mouse TRPA1 to cold temperatures.

Calcium is known to potentiate the cold-sensitivity of wild-type mouse TRPA1 (Karashima et al., 2009). We therefore repeated the previous experiment in the presence of 2 mM extracellular calcium (Figure 6C). We found that in wild-type mouse TRPA1 cooling induced a strong current increase (531 ± 213% at +100mV), that was absent in cells transfected with pcDNA (26 ± 12% decrease) and nearly abolished in mutant S250N (40 ± 23% increase). Altogether, these experiments show that mutation S250N strongly reduces or completely abolishes the sensitivity to cold temperatures.

Mutation S250N increases temperature-dependence of open-probability, but not unitary conductance

High temperature-sensitivity can originate from either temperature-sensitivity of the unitary conductance i or the open-probability P_o or both. High temperature-dependence of the unitary conductance would be an indication of conformational changes of the pore itself. In fact, pore dilation and changes in ion-selectivity have been described in TRPA1 and other TRP ion channels (Banke et al., 2010; Chen et al., 2009; Chung et al., 2005, 2008). On the contrary, high temperature-dependence of the open-probability would point towards an effect on channel gating. To measure the temperature-dependence of unitary conductance, we recorded single-channel activity in the cell-attached configuration with a voltage-step protocol (±120 mV) at various temperatures (5°C to 40°C) (Figure 7A). For each temperature we measured the single-channel current at various potentials and calculated the unitary conductance from linear fits. At 25°C the unitary conductance of wild-type mouse TRPA1 at positive potentials was 122 ± 9 pS. The unitary conductance of mutant S250N was similar to wild-type mouse TRPA1 (124 ± 14 pS). In addition, we found that for both channels the unitary conductance at positive potentials had identical temperature-dependence: in mouse TRPA1 Q₁₀ = 1.4 ± 0.1 and in the S250N mutant Q₁₀ = 1.4 ± 0.1 (Figure 7B). This degree of temperature-dependence is expected from the diffusion of ions in aqueous solution and is therefore not indicative of structural effects of heat on the pore itself.

Figure 7. Single-channel recordings of wild-type mouse TRPA1 and mutant S250N.

(A) Representative traces of single-channel activity and calculated amplitude histograms in cell-attached patches (+100 mV) at different temperatures. Upward deflections are channel-openings. Lines in amplitude histograms are fits of two Gaussian functions to the data. (B) Unitary conductance of wild-type mouse TRPA1 and mutant S250N as a function of temperature. Data represent mean ± stdv. Data are averages of 5–8 cells and 2–5 measurements per step protocol. Straight lines are exponential fits to the data. (C) Representative single-channel traces recorded from inside-out patches (+100 mV) at 25°C and 40°C. (n = 4 for wild-type mouse TRPA1, pcDNA and mutant S250N). Recordings were idealized with QuB software and NP₀ calculated (Qin et al., 1996, 1997). Changes in open-probability were calculated by averaging NP_o for 60 seconds at 25°C and 120 seconds at 40°C.

Next, to determine the effect mutation S250N has on open-probability, we continuously recorded single-channel activity in the inside-out configuration (+100 mV) upon temperature-stimulation (Figure 7C). Similar to cell-attached recordings, we saw occasional single-channel openings in both wild-type mouse TRPA1 and mutant S250N at 25°C. In contrast, single-channel events were nearly completely absent from all control patches of pcDNA transfected cells, indicating that the observed activity originated from wild-type or mutant TRPA1 channels. We further observed that a heat stimulus (25°C − 40°C − 25°C) strongly increased single-channel activity in patches with mutant S250N, whereas hot temperatures caused no change in channel-activity in patches with wild-type mouse TRPA1. To quantify this observation we calculated the change in open-probability (N·P_o). The results confirmed that heating increased the open-probability in mutant S250N (12.8 ± 8.9 fold), but not in wild-type mouse TRPA1 (0.8 ± 0.4 fold). Taken together, the temperature-dependences of unitary conductance and open-probability are consistent with that of total currents measured in our whole-cell experiments. These data demonstrate that mutation S250N renders TRPA1 heat-activated, specifically because of inducing strong heat-sensitivity in open-probability but not unitary conductance.

Point-mutations and replacement of ankyrin repeat 6 in Drosophila TRPA1

The sequence homology of ankyrin repeat 6 between mouse TRPA1 and the heat-activated rat snake TRPA1 is very high (>61%) (Figure 8A). Specifically, the three residues we identified in our screen are conserved (S250 and M258) or identical (D261 and E261, both acidic). However, in the heat-activated Drosophila TRPA1 all three residues are different compared to mouse TRPA1 (Figure 8A). This comparison demonstrates that these three residues cannot be exclusively sufficient to determine temperature-directionality amongst TRPA1 orthologues and suggests that additional structures (domains) are required.

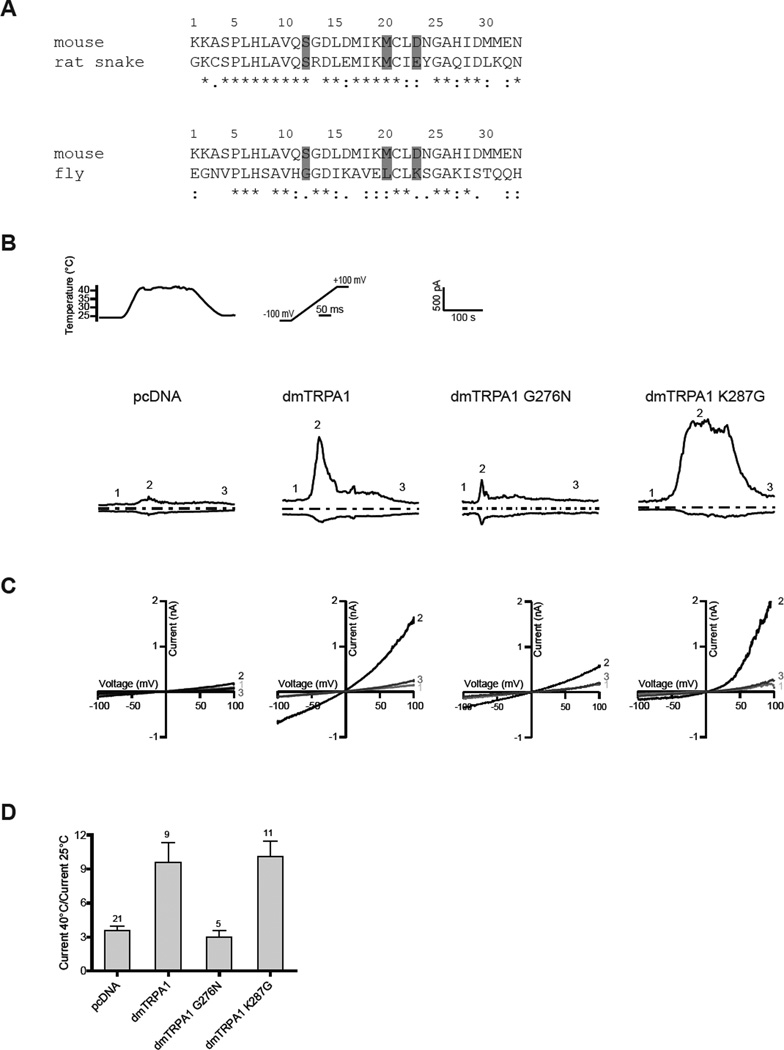

Figure 8. Comparison of orthologues and effects on temperature-sensitivity.

(A) Sequence alignments of ankyrin repeat six of wild-type TRPA1 from mouse (mus musculus), rat snake (Pantherophis obsoletus lindheimeri) and fruit fly (Drosophila melanogaster) generated with ClustalW. (*) indicates identical amino acids, (:) and (.) similar amino acids. Residues aligning with identified point-mutations are highlighted. (B) Representative currents evoked by ramp-protocol (±100 mV) for pcDNA, wild-type Drosophila TRPA1 and Drosophila mutants G276N and K287G during a temperature-step. Numbers indicate basal currents (1), peak-responses (2) and recovery currents (3). Dashed lines represent zero current (C) Current-voltage relationships at indicated time points. (D) Average of maximal current amplitudes at +100 mV. Numbers of experiments are indicated above bars. Data represent mean ± s.e.

To test the possibility that the entire ankyrin repeat 6 constitutes a domain that is sufficient in setting temperature-directionality, we generated chimeric channel constructs by swapping ankyrin repeat 6. Mouse TRPA1 with ankyrin repeat 6 of Drosophila TRPA1 (mTRPA1-dmAR6) and Drosophila TRPA1 with ankyrin repeat of mouse TRPA1 (dmTRPA1-mAR6) did not respond to heat or cold or mustard-oil, suggesting that overall channel function was lost and that despite high sequence homology ankyrin repeat 6 is not generally interchangeable (Figure S1).

How would the single-point mutations we identified in mouse TRPA1 affect temperature-sensitivity in Drosophila TRPA1? We individually mutated the two aligning residues G276N and K287G of Drosophila TRPA1 (L284 is identical) and tested their sensitivity to cold and hot temperatures. We found that in Drosophila TRPA1 mutation G276N completely ablated channel responses to hot temperatures without inducing sensitivity to cold temperatures (Figure S1 and data not shown). Contrary to this, heat-responses remained unchanged in Drosophila TRPA1 K287G as compared to wild-type Drosophila TRPA1 (Figure 8B–D). Specifically, the temperature-sensitivity (Q₁₀ = 10.9 ± 3.7 for wild-type Drosophila TRPA1 and Q₁₀ = 19.6 ± 5.7 for Drosophila TRPA1 K287G, p>0.05, unpaired student t-test) and temperature-threshold (30.7 ± 1.0°C for wild-type Drosophila TRPA1 and 32.7 ± 1.4°C for Drosophila TRPA1 K287G, p>0.05, unpaired student t-test) remained unchanged. Together, these data demonstrate that temperature-sensitivity in Drosophila TRPA1 is not perturbed by mutations in ankyrin repeat 6 in an identical manner.

Discussion

We set out to identify structures that determine the directionality of temperature-activation in TRP ion channels, i.e. activation by cold vs. hot temperatures. We followed the rationale that such structures when perturbed by mutations could switch temperature-directionality. We discovered by using an unbiased random mutagenesis screen and patch-clamp electrophysiology three single-point mutations that are each individually sufficient to make mouse TRPA1 heat-activated. The point-mutation with the strongest temperature-phenotype S250N generates a heat receptor with a high temperature-sensitivity (Q₁₀=14.8 ± 7.9). Although this temperature-dependence is lower than that of other temperature-sensitive TRP channels (e.g. TRPV1 Q₁₀ ~ 26 and TRPM8 Q₁₀ ~24) (Brauchi et al., 2004; Liu et al., 2003; Voets et al., 2004), it is comparable to that of other TRPA1 orthologues (e.g. rattlesnake Q₁₀ = 13.9, rat snake Q₁₀ = 8.8) (Cordero-Morales et al., 2011; Gracheva et al., 2010).

TRP ion channels are distinct in that they are activated by many physically diverse stimuli, and these activation-mechanisms are allosterically connected (Brauchi et al., 2004; Latorre et al., 2007; Voets et al., 2004). Yet, it had been shown that distinct activation-mechanisms can be functionally separated in TRPV3, TRPV1 and TRPM8, either by mutations that selectively ablate one activation mechanism or by combined application of saturating stimuli (Bandell et al., 2006; Grandl et al., 2008; Grandl et al., 2010; Hu et al., 2009; Jordt and Julius, 2002; Jordt et al., 2000; Matta and Ahern, 2007). Although we did not select our clones for chemical responsiveness, the mutations we identified here are stimulus-specific in that they have a profound effect on temperature-sensitivity and temperature-dependence of voltage-sensitivity, but not chemical sensitivity. The data therefore highlight that TRPA1 has, like other polymodal TRP ion channels, distinct modular functionalities.

We were interested how the existence of a single-point mutation that turns TRPA1 into a heat-activated ion channel could be explained mechanistically. At least three distinct concepts for temperature-activation have been put forward:

First, temperature-sensitivity has been explained by a mechanism that is based on a fine balance of large changes in enthalpy and entropy (Brauchi et al., 2004; Liu et al., 2003; Voets et al., 2004). Within this mechanism, changes in enthalpy (ΔH) and entropy (ΔS) upon gating have to be large, but must have the opposite sign in cold-sensitive and heat-sensitive channels. For example, in heat-activated TRPV1 ΔH ~ +150 kcal/mol, whereas in cold-activated TRPM8 ΔH ~ −110 kcal/mol (Brauchi et al., 2004; Liu et al., 2003; Voets et al., 2004). This is important, because this large energy difference between a heat-activated and a cold-activated ion channel cannot be generated by a single amino-acid substitution, unless this mutation produces structural changes on a large scale. In other words, a single amino-acid is unlikely to contain an independent thermo-sensitive domain.

A second alternative mechanism for temperature-activation was proposed, where temperature-gating is not based on large changes in enthalpy and entropy, but instead driven by changes in heat-capacity (Clapham and Miller, 2011). As a consequence, TRP channels are predicted to be activated by both hot and cold temperatures (and closed at intermediate temperatures). Another important prediction of the heat-capacity mechanism is that thermal-sensitivity (Q₁₀) is equal for both cold and hot temperatures. As is the case with all native TRP channels we do not see any strong sign of this dual sensitivity in our mutants. Also, voltage-sensitivity is predicted to have a non-linear temperature-dependence. We observed perfect linearity in our S250N mutant within 25°C and 40°C, where the channel was heat-activated, but not within 25°C and 13°C. However, this experimentally accessible temperature window is too narrow to firmly establish a deviation from linear temperature-sensitivity. Moreover, 40–80 residues are estimated to be required for a sufficiently large change in heat-capacity (Clapham and Miller, 2011). Following the same energetic argument as above, it is unlikely that a single amino-acid substitution induces a change in heat-capacity of this order of magnitude. Rather, the phenotype we identified could be best explained by mutations shifting the temperature of minimal channel-activity.

Third, very recently it had been directly proposed that temperature-directionality could be determined by the degree of allosteric coupling of a unidirectional temperature-sensor to the channel gate, instead of assuming the existence of separate cold-sensors or heat-sensors (Jara-Oseguera and Islas, 2013). Applied to our data this would mean that each of the three point-mutations alters the coupling of the sensor to the gate to such a degree that a switch of temperature-directionality becomes apparent.

Clearly, although these three proposed mechanisms of temperature-activation differ substantially in nature, they all agree in that the phenotype we discovered could be best explained by a substantial change in the coupling of temperature-sensing to channel-gating and not by altering the nature (directionality) of the sensor itself. This conclusion is important, because other studies have addressed the question of modular temperature-domains before. One study found that the C-terminal domains of TRPV1 (heat-activated) and TRPM8 (cold-activated) can confer temperature-directionality (Brauchi et al., 2006). Other studies have pointed to the N-terminal domain as a modulator of thermal-sensitivity: two large domains, each consisting of six ankyrin repeats (~200 amino-acids) in the heat-activated rattlesnake TRPA1 are sufficient to confer heat-sensitivity to the temperature-insensitive human TRPA1 orthologue (Cordero-Morales et al., 2011). Similarly, splice variants of Drosophila TRPA1 that differ in a 37 amino-acid domain within the N-terminus have distinct temperature-sensitivities (Kang et al., 2012; Zhong et al., 2012). Identically, the N-terminal linker region (76 amino-acids) between the ankyrin repeats and the first transmembrane domain can confer thermal-sensitivity of rat TRPV1 to human TRPV2 (Yao et al., 2011). In mouse TRPA1 cold-sensitivity can be abolished by a single amino-acid change (Chen et al., 2013). Our study differs from all of the above studies in that we found that a gain in temperature-sensitivity can be achieved by single-point mutations vs. replacement of large domains. This argues that similar to the interpretation we have for our data, swapping of larger domains between different TRP channels or addition of domains in splice variants could change channel-gating instead of transporting a temperature-sensing domain.

Interestingly, all three heat-activated mutations we discovered are not scattered all across the protein, but are localized in ankyrin repeat six of the N-terminal domain. How do the structures identified in other studies (C-terminal domain, ankyrin-repeats, N-terminal linker) relate to this? All of the above domains had been identified by the same approach of constructing chimeric proteins (Brauchi et al., 2006; Cordero-Morales et al., 2011; Kang et al., 2012; Yao et al., 2011; Zhong et al., 2012). Our study was different in that it was unbiased, i.e. the entire protein was uniformly tested, and in that we screened for the effect of comparably small structural changes, i.e. single residues vs. large coherent domains. By default our screen was therefore unlikely to discover all domains that can affect the gating of temperature-activation, but was instead biased to find structures that are most sensitive to mutations. Our study therefore highlights ankyrin repeat six as a sensitive structure that when mutated can modulate temperature-gating. Interestingly, the recent high-resolution structure of the heat-activated TRPV1 revealed that one of its six ankyrin repeats interacts with a β-sheet structure within the C-terminus of the adjacent subunit (Liao et al., 2013). It is unclear, whether a similar interaction exists within TRPA1 orthologues, but it is obvious how mutations within an ankyrin repeat could interfere with this coupling and affect channel gating. Collectively, our data demonstrate that minimal changes in the protein sequence of a TRP ion channel can cause opposite temperature-sensitivities. This functional plasticity might have been a key to evolve a single ancestor ion channel into the wide diversity of temperature-activated ion channels we know today.

Experimental Procedures

Mutant Library Generation

A library of 12,000 random mutant clones of mouse TRPA1 was generated by using the GeneMorph II Random Mutagenesis Kit (Strategene). Specifically, from wild-type mouse TRPA1 in a pcDNA3.1(−) we separately mutagenized an N-terminal fragment (~1,800 bp) and a C-terminal fragment (~1,500 bp), separated by a unique Cla1 restriction site. For several test reactions 20 randomly selected clones were fully sequenced to adjust PCR conditions to an average mutation rate of 12 ± 2/10,000, which corresponds to ~2 amino-acid changes per fragment. Subsequently, the respective mutagenized PCR fragments were ligated into wild-type mouse TRPA1 vector and transformed into XL-10 Gold competent cells. 12,000 clones were selected and mini-prep DNA prepared as described before (Bandell et al., 2006).

Site-directed Mutagenesis and Chimeras

Single-point mutations were generated using the QuikChange Site-Directed Mutagenesis Kit (Agilent) and fully sequence-verified. Chimeras of mouse and Drosophila TRPA1 were constructed using overlapping PCR (Agilent) and fully sequence-verified.

Cell-Culture

CHO cells were cultured in Ham's F-12K Media (Life Technologies) with 10% heat-inactivated fetal bovine serum (Life Technologies), 50 units/ml penicillin and 50mg/ml streptomycin (Life Technologies). Cells were harvested by incubating with 0.05% trypsin (Sigma). Cells were transiently transfected by adding suspended cells to a mix of DNA, Fugene and Opti-MEM according to manufacturer’s protocol (Promega). For 384-well assays cells were seeded at 400,000/ml (25 µl/well). For electrophysiology cells were seeded in the presence of 10 µM ruthenium red at 25,000/ml (1 ml/well) on 10mm glass coverslips (Warner Instruments). Cells were incubated at 37°C and 5% CO₂ for 16–72 hours prior to experiments.

Library Screening and Mutant Selection

384-well assay plates were washed with HANKS buffer, loaded with fluo-3 and washed with HANKS buffer as described before (Grandl et al., 2008). The mutant library was screened on a FLIPR Tetra (Molecular Devices): 384-well assay plates were heated from 25°C to 45°C for 120s each using a custom-made device (Grandl et al., 2008). For each individual plate the background signal from pcDNA transfected cells (n = 4) was subtracted and clones were selected if they showed an increased signal over pcDNA upon heat-stimulation in 3 or 4 wells. From the primary screen 108 clones were selected, fresh mini-preps prepared and re-screened in an identical assay on two separate plates. From this experiment 25 clones were confirmed and further selected. Clones were regrown and Maxi-prep DNA prepared for a third screen on one single plate from which seven clones were confirmed and selected.

Calcium Imaging

Cells plated on glass coverslips were loaded with pluronic acid containing 2 µM Fura-2 AM (Invitrogen) and dissolved in HANKS buffer (Sigma) at room temperature for 30–60 minutes.

Cells were imaged every second with an inverted microscope (Nikon) at 340 nm and 380 nm. Movies were analyzed with Nikon Elements software: background was subtracted, regions of interest for GFP-positive and GFP-negative cells selected and the 340/380-ratio calculated.

Immunoblotting

Total lysates from CHO cells transfected with myc-tagged TRPA1 and mutant plasmids were prepared in ice-cold RIPA lysis buffer with freshly added protease inhibitor cocktail, PMSF and sodium orthovanadate (Santa Cruz Biotechnology), scraped, sonicated and cleared by centrifugation. 2× Laemmli Sample Buffer (Bio-Rad) containing 50 mM DTT (Sigma) was added to total lysates and heated to 37°C for 30 minutes. Denatured samples were subjected to SDS/PAGE and Western blotting (anti-myc antibody, Invitrogen). Signal intensity was measured by ImageJ (NIH).

Surface Biotinylation

Transfected CHO cells were washed 3 times with ice-cold PBS and incubated in PBS containing 0.5 mg/ml Sulfo-NHS-SS-biotin (ProteoChem) for 30 minutes. The biotinylation reaction was quenched in PBS containing 50 mM glycine by washing 3 times for 5 minutes each. Cell lysates were collected and cleared as described. Cleared lysates were incubated with NeutrAvidin agarose beads (Pierce) at 4°C with constant rotation for 3 hours or overnight. Biotintylated protein was eluted from beads by heating to 37°C in sample buffer containing 50 mM DTT, and resulting eluent was examined by immunoblot for the myc epitope.

Immunocytochemistry

CHO cells were plated on poly-D-lysine-coated glass bottom dishes (MatTek), additionally coated with laminin (10 µg/ml). Cells were washed three times in pre-warmed Hanks balanced salt solution (HBSS) and incubated with wheat germ agglutinin Alexa Fluor 555 conjugate (WGA, 1:100, Invitrogen) diluted in HBSS for 10 min at 37°C. Cells were washed twice in HBSS, once in PBS, and fixed with 4% PFA (paraformaldehyde in PBS). Fixed cells were permeabilized in PBS containing 0.4% Triton X-100, blocked with 10% NGS (normal goat serum in PBS) and incubated for 1 hour in presence of c-myc mouse monoclonal antibody (1:1000 in 1% NGS, Invitrogen). After three washes in PBS, secondary antibody Alexa Fluor 633 goat-anti-mouse IgG (1:500 in 1% NGS, Invitrogen) was added for 1 hour.

Cells were imaged at a Zeiss 780 Axio Observer Z1 microscope (Carl Zeiss MicroImaging) using a 63×/1.4 Oil NA Plan-Apochromat DIC objective, alkali PMT and GaAsP detectors, and Zen 2011 software. Images were taken using identical acquisition parameters. For each experimental group at least 10 TRPA1 positive cells were randomly analyzed. Raw images were analyzed using ImageJ software (NIH). The mean fluorescence intensity of each cell was measured from a 4 pixel wide band region of interest drawn along the surface of the plasma membrane, as indicated by WGA membrane staining.

Electrophysiology

Patch-clamp recordings were performed using an EPC10 amplifier (HEKA) and Patchmaster software (HEKA). Data were sampled at 20 kHz for single-channel recordings and at 5 kHz for whole-cell recordings and filtered at 2.9 kHz. Borosilicate glass pipettes (Sutter Instruments) had a resistance of 3–6 MΩ when filled with pipette buffer solution. Ca²⁺-free bath solution contained (in mM):150 NaCl, 1 MgCl₂, 10 Glucose, 1 EGTA and 10 HEPES (pH 7.4 with NaOH) and the pipette solution (in mM): 150 CsCl, 1 MgCl₂, 10 BAPTA (1, 2-bis (o-aminophenoxy) ethane-N, N, N’, N’- tetraacetic acid), 10 HEPES (pH 7.2 with CsOH). Extracellular solution for Ca²⁺-experiments contained (in mM): 140 NaCl, 5 KCl, 2 MgCl₂, 2 CaCl₂, 10 Glucose and 10 HEPES (pH 7.4 with NaOH) and the pipette solution (in mM): 140 KCl, 5 EGTA and 10 HEPES (pH 7.4 with KOH). Single-channel recordings were made in the inside-out or the cell-attached configuration. In inside-out recordings both the pipette solution and the bath solution contained (in mM): 140 NaCl, 5 EGTA, 10 HEPES (pH 7.4 with NaOH). Cell-attached recordings were performed in bath solution containing (in mM): 120 KCl, 1 MgCl₂, 2 CaCl₂, 5 HEPES (pH 7.4 with KOH) and the pipette solution contained (in mM): 100 KCl, 1 MgCl₂, 10 EGTA, 10 HEPES (pH 7.2 with KOH). Solutions were applied via a gravity-driven perfusion system and the temperature of the solution was controlled by a CL-100 temperature controller (Warner Instruments) and a SC-20 dual in-line heater/cooler (Harvard Apparatus). Temperatures were measured using a TA-29 thermistor (Warner Instruments) placed in line and adjacent to the cell of interest. Experiments probing cold-activation of wild-type mouse TRPA1 were done with a custom-built rapid temperature-switching system. The setup consists of two parallel aligned glass pipettes, each perfused by pre-chilled buffer reservoirs (25°C and 13°C), that could be rapidly positioned to perfuse the measured cell. This set-up allowed temperature-changes from 25°C to 13°C in less than 10 seconds. Voltage-step data were derived from cells that demonstrated initial and reversible (after temperature application) >500 MΩ resistance. Voltage-ramp data were obtained from cells with initial resistance of >500 MΩ and at least 50% reduction in heat-induced currents upon reversal to 25°C. For voltage-step protocols temperature was held constant for ~30 s while voltage-step protocols were executed and then temperature was rapidly changed to the next 5°C increment. Conductance-voltage (G–V) curves were obtained from plateau currents and fitted with a Boltzmann equation to obtain the V_half. Temperature-dependence of the channel currents was determined by calculating the Q₁₀ values according to Q₁₀ = (I₁/I₂)^{10/(T₂−T₁)}, where I₁ and I₂ are the respective currents at temperatures T₁ and T₂. Activation and deactivation time constants were determined by fitting of exponential functions. To determine the unitary conductance amplitude histograms were calculated from single-channel recordings at various voltages (+20 to +120 mV). Histograms were fitted with two Gaussian functions. The current difference between both Gaussians was calculated to obtain the single-channel current and the larger of both standard deviations was used as an error. Calculations were made from 5–8 cells and 2–5 measurements for each voltage step.

Statistical Analysis

Data were analyzed with Igor pro 6.22A (Wavemetrics), Excel (Microsoft) and GraphPad 5.0 prism (GraphPad Software Inc.) softwares. Data were tested for statistical significance using an unpaired, student’s t-test.

Highlights.

• Identified three single-point mutations that make mouse TRPA1 warm-activated

• All three mutations are located in ankyrin repeat six

• Mutations do not affect chemical sensitivity

• Biophysical properties of mutants are identical to heat-activated TRP channels
