. Author manuscript; available in PMC: 2016 Mar 1.
Published in final edited form as: J Mol Cell Cardiol. 2015 Jan 26;80:156–165. doi: 10.1016/j.yjmcc.2015.01.007

Depletion of PHD3 Protects Heart from Ischemia/Reperfusion Injury by Inhibiting Cardiomyocyte Apoptosis

Liang Xie 1,*, Xinchun Pi 1, Zhongjing Wang 2, Jun He 2, Monte S Willis 3, Cam Patterson 4
PMCID: PMC4374643  NIHMSID: NIHMS660838  PMID: 25633836

Abstract

PHD3, a member of a family of Prolyl-4 Hydroxylase Domain (PHD) proteins, has long been considered a pro-apoptotic protein. Although the pro-apoptotic effect of PHD3 requires its prolyl hydroxylase activity, it may be independent of HIF-1α, the common substrate of PHDs. PHD3 is highly expressed in the heart, however, its role in cardiomyocyte apoptosis remains unclear. This study was undertaken to determine whether inhibition or depletion of PHD3 inhibits cardiomyocyte apoptosis and attenuates myocardial injury induced by ischemia-reperfusion (I/R). PHD3 knockout mice and littermate controls were subjected to left anterior descending (LAD) coronary artery ligation for 40 minutes followed by reperfusion. Histochemical analysis using Evan’s Blue, triphenyl-tetrazolium chloride and TUNEL staining, demonstrated that myocardial injury and cardiomyocyte apoptosis induced I/R injury were significantly attenuated in PHD3 knockout mice. PHD3 knockout mice exhibited no changes in HIF-1α protein level, the expression of some HIF target genes or the myocardium capillary density at physiological condition. However, depletion of PHD3 further enhanced the induction of HIF-1α protein at hypoxic condition and increased expression of HIF-1α inhibited cardiomyocyte apoptosis induced by hypoxia. In addition, it has been demonstrated that PHD3 plays an important role in ATR/Chk1/p53 pathway. Consistently, a prolyl hydroxylase inhibitor or depletion of PHD3 significantly inhibits the activation of Chk1 and p53 in cardiomyocytes and the subsequent apoptosis induced by doxorubicin, hydrogen peroxide or hypoxia/re-oxygenation. Taken together, these data suggest that depletion of PHD3 leads to increased stabilization of HIF-1α and inhibition of DNA damage response, both of which may contribute to the cardioprotective effect seen with depletion of PHD3.

Keywords: Prolyl-4 hydroxylase domain protein, hypoxia inducible factor, ischemia-reperfusion, oxidative stress, DNA damage response

1. Introduction

Despite improvements in diagnosis and medical treatment, ischemic heart disease remains the leading cause of morbidity and mortality in the United States [1]. Heart failure resulting from myocardial infarction (MI) and reperfusion accounts for over two-thirds of all cases of heart failure in the United States [2]. Strategies designed to preserve functional myocardium after MI, such as reducing myocardial cell death or stimulating angiogenesis [3, 4], are therefore crucial for reducing the incidence of heart failure. Although hundreds of experimental interventions have been demonstrated to be cardioprotective in preclinical studies, most of them fail to be translated into clinical practice [5]. Nonetheless, the recent focus on activating the hypoxia-inducible factor (HIF) pathway, either by inhibiting HIF-1α degradation or by overexpressing HIF-1α, in the heart may show promise as a possible therapeutic avenue for treating ischemic heart disease [6, 7].

HIF-1 is the principle transcription factor involved in the adaptive response to hypoxia. HIF is a heterodimer comprised of an alpha subunit, which is very unstable under normoxic condition, and a beta subunit. During hypoxia, HIF-1α accumulates and forms a heterodimer with HIF-β to activate over 200 genes, many of which are involved in the regulation of cell survival, anaerobic metabolism and angiogenesis [8]. However, under normoxic condition, HIF-1α is hydroxylated resulting in its ubiquitination and subsequent proteasomal degradation [9, 10]. A family of Fe+2 and 2-oxoglutarate-dependent dioxygenases, termed Prolyl-4 Hydroxylase Domain (PHD) 1–3 proteins, is responsible for the hydroxylation of HIF-1α [10, 11]. Interestingly, both PHD2 and 3 are highly expressed in the heart [12]. Cardiac-specific knockdown or knockout of PHD2, the major HIF-1α prolyl-4 hydroxylase in the heart, increases the myocardium capillary density and protects mice from myocardial injury induced by ischemia or I/R [13–15]. PHD3 has been suggested to play a compensative role in the regulation of HIF-1α stability, especially when PHD2 is absent or under ischemic conditions [16, 17]. Knocking down the expression of PHD3 significantly increases the capillary density in ischemic hindlimb and improves blood perfusion to the ischemic foot [17]. In addition to its regulatory role in HIF pathway, PHD3 has long been considered a pro-apoptotic protein and regulates apoptosis of a wide variety of cell types in HIF-independent pathways [12, 18, 19]. Notably, we have recently demonstrated that PHD3 plays an important role in the DNA Damage Response (DDR) and apoptosis induced by DNA damage [20]. However, its role in cardiac function remains unclear. Based on these recent findings, we hypothesize that PHD3 may play a crucial role in cardiomyocyte apoptosis and depletion or inhibition of PHD3 may also be cardioprotective.

2. Materials and methods

2.1. Cell culture

HL-1 cardiomyocytes (derived from murine atrial cardiomyocytes) were maintained according to previously published methods [21]. Primary neonatal rat or mouse ventricular cardiomyocytes were isolated from 1-2-day-old rats or mice using neonatal cardiomyocyte isolation kit (Worthington-biochem) and maintained in MEM medium supplemented with 10% horse serum, 5% fetal bovine serum, antibiotics (100 U/ml penicillin, 68.6 mol/L streptomycin) and BrdU (100 μM). With this protocol, over 95% of cells remained are cardiomyocytes as determined by staining with MF-20 antibody that reacts with sarcomere myosins. pO2 was controlled by incubating cells at 37°C in humidified, O2/CO2-regulated incubator (Coy Laboratory Products) adjusted to 5% CO2 and the indicated pO2.

2.2. Western-blot, immunofluorescence and TUNEL staining

After appropriate treatments, cells were washed with PBS and harvested in lysis buffer (1% Triton X-100, 50 mmol/L Tris, pH 7.4, 150 mmol/L NaCl, protease and phosphatase inhibitors). Cell lysates were clarified by centrifugation at 16,000g for 10 minutes. Equal amounts of protein were immunoblotted with corresponding antibodies as described.

Freshly isolated hearts were fixed with 10% formalin and embedded in paraffin. Heart sections were mounted on glass slides and then de-paraffinized/hydrated for immunostaining or TUNEL staining. Cultured cells fixed in 4% paraformaldehyde or tissue slides were permeabilized with 0.2% Triton X-100 for 5 minutes at room temperature. After washing in PBS, the cells or slides were sequentially treated with 5% goat serum for 1 hour (for blocking), then with the primary antibodies overnight in the blocking solution. After 3 washes, cells or slides were incubated in the dark with a secondary antibody conjugated to Alexa Fluor 488 (Molecular Probes, Eugene, OR) in blocking solution for 60 minutes at room temperature and then counterstained with DAPI. TUNEL staining was performed following the manufacturer’s protocol (S7100, Millipore, MA). Images were taken with fluorescence microscopy or confocal laser scanning microscopy.

2.3. Caspase 3/7 activity assay

Caspase 3/7 activity was measured using a Caspase-Glo® 3/7 Assay according to the manufacturer’s instructions (Promega; Madison, WI). In brief, HL-1 cells were cultured in a 24-well plate. Following transfection of Si-Chk1 or scramble Si-RNA control for 2 days, cells were then treated with 1mM doxorubicin for 8 hours. After treatment, 100 μL of Caspase-Glo® 3/7 Reagent was added to each well for luminescence measurement.

2.4. Real-time PCR

cDNA was synthesized from 1 μg RNA purified from heart tissues using iScript™ cDNA synthesis kit (Bio-Rad, Hercules, CA, US). Gene-specific mRNA levels were measured using the LightCycler® 480 Real-Time PCR system (Roche Diagnostic Co.-Roche Applied Science, Indianapolis) with light cycler 480 probe master (Roche Diagnostic Co.) and their specific primers and probes (designed by Roche Universal ProbeLibrary Assay Design Center software at https://www.roche-applied-science.com/sis/rtpcr/upl/index.jsp?id=UP030000). Samples were analyzed in triplicate with each PCR reaction containing 2μl cDNA (diluted 10-fold), 6.25 μl master mix and 0.375 μl primer-probe. Results are expressed as the ratio of gene of interest corrected to the housekeeping gene mRNA levels and then normalized to wildtype. The primer sequences were: phosphofruktokinase 1 (Pfkl) forward, ATGGATCCCAGCAGCAAG and reverse, CCAGTGTTATAGCCGAACTGC; pyruvate dehydrogenase kinase 1 (PDK-1) forward, GTTGAAACGTCCCGTGCT and reverse, GCGTGATATGGGCAATCC; Phosphoglycerate kinase (PGK) forward, TACCTGCTGGCTGGATGG and reverse, CACAGCCTCGGCATATTTCT; BCL2/adenovirus E1B 19-kDa protein-interacting protein 3 (Bnip3) forward, CCTGTCGCAGTTGGGTTC and reverse, GAAGTGCAGTTCTACCCAGGAG; PHD3 forward, CAGGTTATGTTCGCCATGTG and reverse, AGGACCCCTCCGTGTAACTT;

2.5 Si-RNA

Two sets of si-RNA oligos for mouse CHEK1 gene (Gene ID 12649) were ordered from Life Technologies. Catalog numbers are Chek1MSS202946 (UCCAGUAAAUAAUGGUUCCAGUGAA; UUCACUGGAACCAUUAUUUACUGGA) and Chek1MSS202948 (GAUUCUUUACUAAAUUGGAUGCGGA; UCCGCAUCCAAUUUAGUAAAGAAUC). Si-RNA oligos for mouse PHD3 gene (Gene ID, 112407) were purchased from Santa Cruz Biotechnoloy (sc-45800).

2.6 Hypoxia and hypoxia-reoxygenation treatment of cultured cells

For study of apoptosis induced by hypoxia, HL-1 cardiomyocytes were placed in a 0.5% O2 hypoxic glove box (Coy Laboratory) in serum-free media for 48 hours. For studies of signaling transduction induced by hypoxia-reoxygenation, HL-1 cardiomyocytes were placed in a 0.5% O2 hypoxic glove box in serum-free media for 6 hours. Cells were then removed from the hypoxic glove box and media were replaced with fresh serum-free media pre-equilibrated in a normoxic incubator. Cells were harvested at times indicated in the figures. For apoptosis induced by hypoxia-reoxygenation, neonatal mouse ventricular cardiomyocytes were transduced with adenoviruses expressing LacZ or Cre recombinase for three days and then placed in an “ischemic buffer” (118 mmol/L NaCl, 24 mmol/L NaHCO3, 1.0 mmol/L NaH2PO4, 2.5 mmol/L CaCl2-2H2O, 1.2 mmol/L MgCl2, 20 mmol/L sodium lactate, 16 mmol/L KCl, and 10 mmol/L 2-deoxyglucose, pH adjusted to 6.2) pre-equilibrated in a 0.5% O2 incubator [22]. After 1 hour, reoxygenation was obtained by replacing the ischemic buffer with normal serum-free media pre-equilibrated in a normoxia incubator overnight.

2.7 Animals

PHD3f/f; Cre+/− and PHD3f/f; Cre−/− mice were described previously [20]. Genotypes of these mice were determined by PCR described previously or using the protocol provided by Jackson laboratory [23]. PHD3f/f; Cre+/− at 8~10 weeks old were intraperitoneally injected with tamoxifen (50 mg/kg/day) for five consecutive days to generate PHD3−/− mice [24]. Depletion of PHD3 in hearts was confirmed by real-time PCR or Western-blot one week after the first injection of tamoxifen, using primers described previously [23]. Littermate PHD3f/f; Cre−/− mice injected with tamoxifen were used as the controls. All animal protocols were reviewed and approved by the Institutional Animal Care Advisory Committee and were in compliance with the rules governing animal use as published by the National Institutes of Health.

2.8 LAD ischemia-reperfusion injury

Left anterior descending (LAD) coronary arteries of mice with indicated genotypes were tied for 40 minutes, followed by 1 or 3 days of reperfusion. Briefly, male mice (8–10 weeks old) were anesthetized with pentobarbital (45 mg/kg), intubated, and placed on a ventilator. The chest cavity was opened by an incision of the left fourth intercostal space, and the pericardial sac was removed to visualize the LAD coronary artery. A 7-0 silk suture was passed underneath the LAD artery ~1 to 2 mm below the left auricle and tied around a 1-mm length of polyethylene tubing (OD = 0.61 mm; Intramedic PE-10, Clay Adams, Parsippany, NJ) to produce myocardial blanching. After 40 minutes, blood flow was restored and the chest wall was then closed. Three days after reperfusion, the hearts were stained with Evan’s Blue to demarcate the area at risk (AAR) and with 2% triphenyl tetrazolium chloride (TTC) to identify infarcted area (IA). The area of IA and AAR were quantified using ImageJ (National Institutes of Health). For apoptosis analysis, 4 hearts from PHD3f/f; Cre−/− and 6 hearts from PHD3f/f; Cre+/− mice were fixed with 10% formalin and embedded with paraffin one day after reperfusion. Three sections from each heart were used for TUNEL staining. TUNEL positive cells from five views of each section in the area at risk were counted in a blinded manner.

2.9 Statistical Analysis

Data are presented as mean ± SEM. Differences between groups were evaluated for statistical significance using Student’s t-test. P values less than 0.05 were regarded as significant.

3. Results

3.1. Depletion of PHD3 attenuates ischemia-reperfusion injury and decreases cardiomyocyte apoptosis in vivo

To examine whether depletion of PHD3 is cardioprotective, we generated PHD3f/f; Cre+/− mice, which utilize a tamoxifen-inducible and Cre-mediated recombination system [20]. Depletion of PHD3 in the heart was obtained by intraperitoneal infusion of tamoxifen (50mg/kg/day) for five consecutive days. One week after the first injection of tamoxifen, myocardial injury was induced in PHD3f/f; Cre+/− mice and the littermate controls (PHD3f/f; Cre−/− mice) by subjecting them to ischemia for 40 minutes followed by reperfusion for 72 hours using a reversible ligation of the left anterior descending artery (LAD). Interestingly, although there were no gross abnormities observed in the hearts from PHD3f/f; Cre+/− mice, the infarct area (IA) normalized by area at risk (AAR) in PHD3f/f; Cre+/− mice was significantly smaller than that in the littermate controls (Figure 1A and B), suggesting that depletion of PHD3 protected hearts from ischemia-reperfusion (I/R) injury. In consistent with the pro-apoptotic role of PHD3 described in other cells [18–20], TUNEL staining revealed that cardiomyocyte apoptosis in the area of risk was also significantly decreased in PHD3f/f; Cre+/− mice at 24 hours after reperfusion (Figure 2). Taken together, these results suggest that depletion of PHD3 may protect mice from ischemia-reperfusion injury by decreasing cardiomyocyte apoptosis.

Figure 1. Depletion of PHD3 attenuates myocardial injury induced by I/R injury.

Figure 1

Open in a new tab

After 5 doses of tamoxifen, left anterior descending (LAD) coronary arteries of mice with indicated genotypes were tied for 40 minutes and then released for reperfusion. Three days after reperfusion, the hearts were stained with Evan’s Blue to demarcate the area at risk (AAR) and with 2% triphenyl tetrazolium chloride (TTC) to identify infarcted area (IA). Representative cross-sections of the stained hearts are shown in (A). Quantitative analysis is shown in (B). The numbers of mice analyzed are indicated in the bars respectively. *, p < 0.05.

Figure 2. Depletion of PHD3 inhibits cardiomyocyte apoptosis induced by I/R injury.

Figure 2

Open in a new tab

After 5 doses of tamoxifen infusion, left anterior descending (LAD) coronary arteries of mice with indicated genotypes were tied for 40 minutes and then released for reperfusion. Twenty-four hours after reperfusion, hearts were fixed with 10% formaldehyde and embedded in paraffin. Cross sections of hearts were then analyzed with TUNEL staining. Nuclei were stained with DAPI. Representative high magnification images of the AAR are shown in (A) and low magnification images of whole sections are shown in (B). Quantitative analysis of the apoptotic cells within the AAR is shown in (C). The numbers of mice analyzed are indicated in the bars respectively. *, p < 0.05. Data represent mean values ± SEM.

3.2. Depletion of PHD3 further stabilizes HIF-1α at hypoxic condition, which may contribute to the cardioprotective effect

It is well documented that PHD2 is the major HIF-1α prolyl-4 hydroxylase in the heart and depletion of PHD3 alone has no effect on cardiac HIF-1α protein levels [15, 16]. Consistently, we didn’t observe any significant accumulation of HIF-1α protein in the hearts from PHD3f/f; Cre+/− mice (Figure 3A). In addition, real-time PCR analysis demonstrated that there were no significant changes in the expression of some HIF target genes in the hearts of PHD3f/f; Cre+/− mice either (Figure 3B), suggesting that HIF pathway is not further activated at physiological condition in PHD3f/f; Cre+/− mice compared to PHD3f/f; Cre−/− mice. As shown in figure 3A and B, we could barely detect both PHD3 protein and mRNA in the hearts of PHD3f/f; Cre+/− mice, suggesting the successful deletion of PHD3 in the hearts. It was reported that knockdown of PHD2 increased the myocardium capillary density via HIF-1 pathway, which plays an important role in cardioprotection [13, 14]. Since we have not observed any significant activation of HIF-1 pathway in the heart of PHD3f/f null mice, we expect that depletion of PHD3 will not change the myocardium capillary density. To confirm this hypothesis, we analyzed the myocardium capillary density of PHD3f/f; Cre+/− or PHD3f/f; Cre−/− mice by immunostaining heart sections with anti-myosin and anti-E-lectin antibodies. As expected, we observed no significant difference in the myocardium capillary density between PHD3f/f; Cre+/− and PHD3f/f; Cre−/− mice (Figure 3C and D). Taken together, these results suggest that depletion of PHD3 has no effect on HIF-1 pathway and myocardium capillary density at physiological condition.

Figure 3. Depletion of PHD3 has no effect on HIF-1α protein level, the expression of HIF target genes or capillary density in the heart.

Figure 3

Open in a new tab

After 5 doses of tamoxifen, ventricles were excised and flash frozen. (A) Proteins extracted from ventricles of the indicated genotypes (n=3) were western-blotted with anti-HIF-1α and anti-PHD3 antibodies. Lysate from cardiomyocytes treated with DMOG (1mM) was used as the positive control for HIF-1α. (B) mRNAs were extracted from ventricles of the indicated genotypes. Relative mRNA level of HIF target genes and PHD3 were analyzed by quantitative real-time PCR. n = 3. (C) Heart sections of the indicated genotypes were immunostained with anti-myosin antibody and TRITC-E-lectin. Capillary densities are expressed as the number of lectin-positive objects per field of view. N.S., not significant, n = 3.

However, it has been reported that PHD3 itself is a HIF-1 target and can be induced by hypoxia, which may serve as a form of negative feedback mechanism to regulate HIF-1α stability at hypoxic condition [10, 25]. Consistently, we demonstrated that activation of HIF-1 pathway by either prolyl hydroxylase inhibitor dimethyloxaloylglycine (DMOG) or hypoxia increased the expression of PHD3 (Figure 3A and 4A). More importantly, depletion of PHD3 in neonatal mouse ventricular cardiomyocytes further increased HIF-1α protein level at hypoxic condition (Figure 4A), suggesting that PHD3 can regulate HIF-1α stability at hypoxic condition. It is well documented that activation of the HIF-1 pathway can turn on a large number of genes, which are involved in the regulation of cell survival and metabolic reprogramming to fight against hypoxia-induced damage [8]. Increased expression of HIF-1α has also been shown to inhibit apoptosis in a variety of cell types [26, 27]. Therefore, we hypothesized that increased expression of HIF-1α may also protect cardiomyocyte from apoptosis induced by hypoxia. To examine this hypothesis, we overexpressed a normoxia-stable HIF-1α mutant, in which two proline residues at position 402 and 564 are replaced with Ala and Gly respectively [27], in HL-1 cells and then cultured them under hypoxic condition for 48 hours to induce apoptosis. Not surprisingly, we demonstrated that overexpression of HIF-1αPP/AG significantly decreased the apoptosis of HL-1 cells cultured at hypoxic condition (Figure 4B and C). Taken together, we demonstrated that depletion of PHD3 further increased the protein level of HIF-1α at hypoxic condition and increased expression of HIF-1α protected cardiomyocytes from hypoxia-induced apoptosis.

Figure 4. Depletion of PHD3 further stabilizes HIF-1α and overexpression of normoxia-stable HIF-1α protects cardiomyocytes from hypoxia-induced apoptosis.

Figure 4

Open in a new tab

(A) Neonatal ventricular myocytes from PHD3f/f; Cre+/− or PHD3f/f; Cre−/− mice were treated with 4-hydroxyl-tamoxifen for 3 days to delete PHD3. Cells were then cultured at 0.5% or 21% O2 condition for 8 hours. Cells were then harvested for western blots with the indicated antibodies. (B), (C) HL-1 cardiomyocytes were infected with adenovirus expressing normoxia-stable HIF-1α-GFP (HIF-1αPP/AG-GFP) or lacZ for 24 hours. Infected cells were then cultured with fresh serum-free medium at 0.5% or 21% O2 conditions for additional 48 hours to induce apoptosis. Cardiomyocytes were then fixed and stained with DAPI. Apoptosis was then analyzed with TUNEL staining. *, p < 0.01, n = 3. Representative images were shown in (C).

3.3. Inhibition or depletion of PHD3 inhibits DNA damage response induced by doxorubicin in cardiomyocytes

It is generally accepted that oxidative stress plays a critical role in cardiomyocyte apoptosis induced by I/R injury [28]. Reactive oxygen species (ROS) induced by hypoxia-reoxygenation induces DNA damage and activates the DNA damage response (DDR) in human cancer cells and primary lymphocytes [29, 30]. However, whether oxidative stress induced by hypoxia/re-oxygenation also activates the DDR in cardiomyocytes, and how this might be mediated, is largely unclear. Interestingly, we have recently demonstrated that inhibition or depletion of PHD3 inhibits ATR/Chk1/p53 pathway and apoptosis induced by a wide variety of DNA damage agents, both in vitro and in vivo [20]. It is very interesting to examine whether PHD3 regulates the DDR and apoptosis induced by oxidative stress in cardiomyocytes.

Doxorubicin, a potent chemotherapy agent, causes cardiomyocyte apoptosis and cardiomyopathy[31]. It was demonstrated recently that oxidative DNA damage and subsequent activation of the DDR induced by doxorubicin played a pivotal role in this pathophysiological response [31, 32]. In order to better understand the role of PHD3 in the DDR and apoptosis induced by oxidative stress in cardiomyocytes, we first examined whether PHD3 is involved in the DDR induced by doxorubicin in cardiomyocytes. Consistent with previous reports, treatment of HL-1 cardiomyocytes with doxorubicin resulted in a robust activation of ATM/Chk1/p53 pathway and caspase-3 (Figure 5A). To examine the potential role of PHD3 in doxorubicin-induced DDR and apoptosis in cardiomyocytes, we pretreated HL-1 cells with dimethyloxaloylglycine (DMOG), a pan prolyl hydroxylase inhibitor, before treating them with doxorubicin. In consistent with our previous studies performed in other cell types [20], we demonstrated that DMOG dramatically inhibited the activation of both p53 and Chk1 and had no effect on the activation of ATM (Figure 5A and Figure S1A). Since depletion of PHD3 blocks the activation of Chk1 and p53 via ATR pathway but not ATM pathway[20], this result suggests that ATR, the other major upstream kinase of Chk1 and p53, is also activated by doxorubicin and PHD3 may also play a regulatory role in ATR/Chk1/p53 pathway in HL-1 cardiomyocytes. In addition, DMOG also dramatically inhibited the activation of caspase-3 induced by doxorubicin in HL-1 (Figure 5A).

Figure 5. Inhibition or depletion of PHD3 inhibits DNA damage response induced by doxorubicin.

Figure 5

Open in a new tab

(A) HL-1 cells were pre-treated with DMOG for 4h and then treated with doxorubicin (1μM) as indicated. Western blots were performed with the indicated antibodies. (B) HL-1 cells were infected with adenovirus expressing LacZ or normoxia-stable HIF-1αPP/AG for 24 hours. Cells were then treated with doxorubicin (1μM) and western blots were performed with the indicated antibodies. (C) After two days transfection with si-RNA as indicated, HL-1 cells were treated with doxorubicin (1μM) for 2 hours. Western blots were then performed with indicated antibodies.

Since HIF-1α can be stabilized by DMOG (Figure 3A), it is important to examine whether HIF-1α plays a role in the activation of Chk1/p53. Because HIF-1α protein is very unstable at normoxic condition, we overexpressed the normaxia-stable HIF-1αPP/AG in HL-1 cells and then treated the cells with doxorubicin. As shown in figure 5B, overexpression of HIF-1αPP/AG had no effect on the activation of Chk1 and p53, suggesting that the increased protein level of HIF-1α is not required for the inhibitory effect of DMOG on ATR/Chk1/p53 pathway. Finally, to confirm the specific role of PHD3 in ATR/Chk1/p53 pathway, we transfected HL-1 cells with si-PHD3 oligos to knock down the expression of endogenous PHD3 and demonstrated that PHD3 was crucial for the activation of Chk1 and p53 induced by doxorubicin in HL-1 cardiomyocytes (Figure 5C).

3.4. Inhibition of PHD3 decreases cardiomyocyte apoptosis induced by doxorubicin

It was recently reported that DDR plays an essential role in cardiomyocyte apoptosis induced by doxorubicin [31]. Consistently, we demonstrated that knocking down the expression of Chk-1 dramatically inhibited the cleavage and activation of caspase-3 induced by doxorubicin in HL-1 cells, suggesting that the activation of Chk-1 is required for cardiomyocyte apoptosis induced by doxorubicin (Figure 6A and B). Furthermore, we performed TUNEL staining assay and demonstrated that DMOG, which can inhibit Chk1 activation (Figure 5A), significantly inhibited HL-1 cell apoptosis induced by doxorubicin (Figure 6C and D), suggesting that PHD3 enzymatic activity may be crucial for cardiomyocyte apoptosis induced by doxorubicin.

Figure 6. DMOG inhibits HL-1 cardiomyocyte apoptosis induced by doxorubicin.

Figure 6

Open in a new tab

(A) HL-1 cells were transfected with two sets of si-RNA for Chk1 or scramble si-RNA as the control (Si-C) for two days. Cells were then treated with doxorubicin (1μM) as indicated. Western blots were then performed with the indicated antibodies. (B) After two days transfection with si-RNAs, HL-1 cells were treated with doxorubicin (1μM) for 8 hours and then harvested for caspase3/7 activity assay. Knocking down the expression of Chk-1 significantly inhibits caspase3/7 activity. N = 3, *p < 0.05. (C), (D) HL-1 cells were treated with doxorubicin for 24 hours with or without pretreatment of DMOG. Apoptosis was then analyzed with TUNEL staining and nuclei were stained with DAPI. Quantitative analysis from 3 independent experiments is shown in (D), *p < 0.05.

To determine whether the inhibitory effects of DMOG on the DDR and apoptosis were also preserved in primary cardiomyocytes, we isolated neonatal rat ventricular myocytes (NRVM) and performed similar experiments described above. As shown in Figure 7A, the activation of p53, Chk1 and caspase-3 were markedly inhibited by DMOG in NRVM. In addition, doxorubicin-induced apoptosis of NRVM was also significantly inhibited in the presence of DMOG (Figure 7B and C). In summary, these data suggest that PHD3 may play a pivotal role in the DDR in cardiomyocytes. Inhibition or depletion of PHD3 inhibits Chk1/p53 activation and subsequent apoptosis caused by doxorubicin in cardiomyocytes.

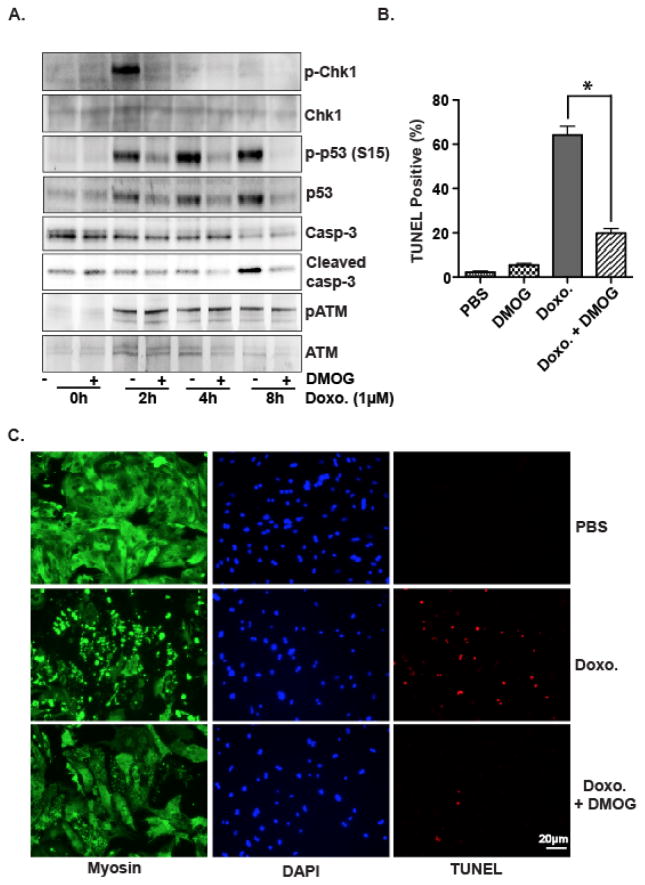

Figure 7. DMOG inhibits DNA damage response and apoptosis induced by doxorubicin in primary cardiomyocytes.

Figure 7

Open in a new tab

(A) Neonatal rat ventricular myocytes were pre-treated with DMOG for 4h and then treated with doxorubicin (1μM) as indicated. Western blots were performed with the indicated antibodies. (B), (C) Neonatal rat ventricular myocytes were treated with doxorubicin for 16h with or without pretreatment of DMOG. Cardiomyocyte apoptosis was then analyzed with TUNEL staining. Neonatal rat ventricular myocytes were also immunostained with MF20 antibody, which specifically recognizes myosin of striated muscle cells. Quantitative analysis is from 3 independent experiments. *p < 0.05. Representative images are shown in (C).

3.5. PHD3 plays crucial role in the DDR and subsequent apoptosis induced by oxidative stress

To determine the direct role of ROS in the DDR in cardiomyocytes, HL-1 cells or NRVM were treated with H2O2 in the presence of DMOG or KU-55933, an ATM specific inhibitor. Not surprisingly, treatment of H2O2 led to a robust activation of ATM and Chk1 (Figure 8A). The activation of Chk1 was partially inhibited by KU55933, suggesting that ATM partially contributes to the activation of Chk1 induced by H2O2 in cardiomyocytes (Figure 8A). Interestingly, although DMOG had no effect on ATM activation induced by H2O2, it almost completely inhibited the activation of Chk1 in HL-1 cardiomyocytes (Figure 8A), suggesting ATR is the major upstream kinase for Chk1 activation induced by H2O2. It is well accepted that reperfusion injury is mainly caused by the oxidative stress invoked by re-oxygenation. To determine whether oxidative stress resulted from hypoxia/re-oxygenation activates the DDR in cardiomyocytes, we cultured HL-1 cells under hypoxic condition for 6 hours and then returned them back to normoxic condition for further culturing. As shown in Figure 8B and Figure S2, re-oxygenation strongly activated ATM/Chk1 whereas pretreatment of cells with DMOG dramatically inhibited the activation of Chk1. Taken together, these results suggest that the DDR can be activated by oxidative stress associated with H2O2 or hypoxia/re-oxygenation in cardiomyocytes and that PHD3 may play a pivotal role in this response.

Figure 8. PHD3 plays a crucial role in DNA damage response and apoptosis induced by H2O2 or hypoxia-reoxygenation in cardiomyocytes.

Figure 8

Open in a new tab

(A) HL-1 cells were pre-treated with DMOG for 4h or KU55933 for 30 minutes and then treated with 100 μM or 200 μM H2O2 for 1 hour as indicated. Western blots were performed with the indicated antibodies. (B) HL-1 cells were cultured in a hypoxia chamber for 6 hours and then switched to normoxic conditions for the indicated time with or without pretreatment with DMOG. Western blots were performed with the indicated antibodies. (C) Neonatal mouse ventricular myocytes (NMVMs) from PHD3f/f; Cre+/− or PHD3f/f; Cre−/− mice were treated with 4-hydroxyl-tamoxifen for 3 days. Cells were then treated with NCS, Doxorubicin or H2O2 for 1h and western blots were performed with indicated antibodies. (D), (E) NMVMs from PHD3f/f mice were infected with adenovirus expressing cre recombinase or lacZ for 2 days. Infected cells were then cultured in ischemic medium at hypoxic condition for 1 hour. Re-oxygenation was obtained by culturing cells in normal medium at normoxic condition for 16 hours. Cells were immunostained with MF20 and apoptosis was analyzed with TUNEL staining. Quantitative analysis was shown in (E). n=3, *p < 0.05.

To further define the role of PHD3 in the DDR and apoptosis in cardiomyocytes, neonatal mouse ventricular myocytes (NMVM) were isolated from PHD3f/f; Cre +/− and control littermates, and exposed to either doxorubicin or H2O2. As shown in Figure 8C and Figure S1B, depletion of PHD3 markedly inhibited Chk1 activation induced by doxorubicin or H2O2 but not ATM activation. Notably, although treatment of neocarzinostatin, which induces DNA double-strand break, strongly activated ATM, it barely activated Chk1 in NMVM. Finally, hypoxia/re-oxygenation induced a substantial amount of apoptosis of NMVM with wild type PHD3 (Figure 8D and E). As expected, depletion of PHD3 significantly inhibited the apoptosis induced by hypoxia/re-oxygenation (Figure 8D and E).

Discussion

We have demonstrated for the first time that depletion of PHD3 protects the heart from myocardial injury and inhibits cardiomyocyte apoptosis induced by I/R in vivo or hypoxia in vitro in both HIF-1α-dependent and HIF-1α-independent pathways. Depletion or inhibition of PHD3 in cardiomyocytes further stabilizes HIF-1α at hypoxic condition and dramatically inhibits Chk1/p53 activation induced by doxorubicin, H2O2 or hypoxia/re-oxygenation, contributing to the cardioprotective effect seen with the depletion of PHD3.

Oxygen plays a key role in energy metabolism and is essential for the survival of aerobic organisms. Lack of oxygen will trigger a series of HIF-mediated adaptive responses [33]. Activation of the HIF pathway can turn on a large number of genes that are involved in the regulation of angiogenesis, vascular remodeling, cell survival and metabolic reprogramming to combat against hypoxia-induced damage. It is well documented that activation of the HIF-1α protects the heart from ischemia or I/R induced injury [8] [7, 15]. Notably, partial depletion of HIF-1α completely abolishes the ischemic preconditioning-induced cardioprotection in HIF-1α+/− mice [34], suggesting that the abundance of HIF-1α protein is a determining factor for its cardioprotective effect. It has been demonstrated that PHD family proteins play a central role in the regulation of the HIF-1α stability[35]. When oxygen availability is limited, PHD enzymatic activity will be inhibited, resulting in stabilization of HIF-1α protein and activation of HIF-1 pathway [35]. Although PHD2 is the major HIF-1α prolyl-4 hydroxylase in the heart and depletion of PHD3 alone has no effect on cardiac HIF-1α protein level at physiological condition, PHD3 has been suggested to play a compensative role in the regulation of HIF-1α stability, especially when PHD2 is absent or under ischemic condition [16, 17, 36]. Therefore, it is not surprising that we observed an increased induction of HIF-1α protein at hypoxia condition in PHD3 depleted cardiomyocytes. Since our data suggest that overexpression of HIF-1α protects cardiomyocytes from apoptosis induced by hypoxia, the increased stabilization of HIF-1α may partially contribute to the cardioprotection observed in PHD3 knockout mice.

Although activation of HIF pathway may be beneficial in treating or attenuating cardiac injury induced by ischemia or I/R, a growing body of evidence suggests that chronic activation of the HIF pathway also leads to cardiomyopathy [15, 37, 38]. In addition, activation of the HIF pathway has been implicated in many aspects of tumorigenesis because the same HIF-mediated pathways that are instrumental in cardioprotection (for example angiogenesis, anaerobic metabolism and cell survival) also promote survival of tumor cells [39]. For these reasons, caution must be taken when applying small-molecular inhibitors of PHDs to the treatment of ischemic heart diseases. In the meantime, there are a wide variety of signaling pathways that are independent of HIF pathway can be regulated by PHDs [40, 41]. We previously reported that PHD3 associated with and hydroxylated human homologue of Caenorhabditis elegans biological clock protein CLK-2 (HCLK2), an essential component of the ATR/Chk1/p53 pathway. The hydroxylation of HCLK2 is necessary for its interaction with ATR and the subsequent activation of ATR/Chk1 and the downstream p53. Inhibiting PHD3, either with the pan prolyl hydroxylase inhibitor DMOG or hypoxia, inhibits the activation of the ATR/Chk1 pathway but not ATM/Chk2 pathway and decreases apoptosis induced by DNA damage [20]. The data presented here suggest that this PHD3-dependent regulation on ATR/Chk1/p53 pathway is conserved in cardiomyocytes and it may be possible to develop PHD3 substrate-specific inhibitors that are capable of attenuating myocardial I/R injury without affecting HIF-mediated pathways.

Oxidative stress plays an important role in a wide range of heart diseases including myocardial infarction, hypertrophy and heart failure [42]. Pathologically high levels of ROS can damage cellular macromolecules such as lipids, proteins and DNA, which may eventually lead to the impairment of cardiac function [43]. Recently, it was reported that high levels of oxidative DNA damage and robust activation of the DDR are present in human hearts at end-stage cardiomyopathy, suggesting that DNA damage induced by chronic oxidative stress may contribute to the development of heart failure [44]. However, the role of the DDR induced by chronic oxidative stress observed in cardiomyopathy has not been well characterized. In contrast, acute and excessive production of ROS induced by doxorubicin was recently shown to activate the ATM/p53 pathway and promote cardiomyocyte apoptosis [32]. Partial depletion of p53 or treatment with antioxidant agents, which inhibit the activation of the ATM/p53 pathway, significantly attenuates cardiomyocyte apoptosis and contractile dysfunction [32]. p53 is a common downstream target of both the ATM/Chk2 and ATR/Chk1 pathways, the two major pathways of the DDR [45]. However, whether oxidative DNA damage activates the ATR/Chk1 pathway in cardiomyocytes is not known. Interestingly, our data demonstrate that both doxorubicin and H2O2 strongly activate Chk1, and inhibition of PHD3 dramatically inhibits the activation of Chk1, p53 and subsequent apoptosis in cardiomyocytes. Considering the essential role of PHD3 in the ATR/Chk1/p53 pathway [20], it is plausible that the ATR/Chk1 pathway may also be activated by oxidative DNA damage and therefore may play an important role of in cardiomyocyte apoptosis induced by oxidative stress. Furthermore, our data demonstrates that hypoxia-reoxygenation activates the DDR in cardiomyocytes but can be inhibited with depletion or inhibition of PHD3, suggesting that DDR inhibitors such as ATM or ATR specific inhibitors may also hold promise in ameliorating cardiac damage associated with hypoxia-reoxygenation injury.

Supplementary Material

supplement

Highlights.

  • Depletion of PHD3 attenuates myocardial injury induced by ischemia-reperfusion.

  • Depletion of PHD3 further stabilizes HIF-1α at hypoxic condition.

  • HIF-1α inhibits cardiomyocyte apoptosis induced by hypoxia.

  • Depletion of PHD3 inhibits Chk1/p53 activation induced by oxidative stress.

  • Depletion of PHD3 inhibits cardiomyocyte apoptosis induced by oxidative stress.

Acknowledgments

Sources of Funding

This work is supported by AHA NCRP Scientist Development Grant 10SDG3860014 (to L. Xie), NIH grants R01 HL061656 and HL112890 (to X. Pi), and R37 65619 (to C. Patterson).

We thank Guo-hua Fong for providing PHD3f/f mice and William C. Claycomb for providing HL-1 cardiomyocyte cell line. We are grateful to Andrea L. Portbury for discussion and editing.

Non-standard Abbreviations and Acronyms

PHD

prolyl-4 hydroxylase domain

LAD

left anterior descending

I/R

Ischemia-reperfusion

HIF

hypoxia inducible factor

DDR

DNA damage response

MI

myocardial infarction

AAR

area at risk

TTC

triphenyl tetrazolium chloride

ATM

ataxia telangiectasia mutated

ATR

ATM and Rad3-related

PKM2

pyruvate kinase M2

HCLK2

human homologue of the caenorhabditis elegans biological clock protein CLK-2

ROS

reactive oxygen species

Brdu

5-bromo-2′-deoxyuridine

DMOG

dimethyloxaloylglycine

Footnotes

Disclosures

None.

Publisher's Disclaimer: This is a PDF file of an unedited manuscript that has been accepted for publication. As a service to our customers we are providing this early version of the manuscript. The manuscript will undergo copyediting, typesetting, and review of the resulting proof before it is published in its final citable form. Please note that during the production process errors may be discovered which could affect the content, and all legal disclaimers that apply to the journal pertain.

References

  • 1.Rosamond W, Flegal K, Furie K, Go A, Greenlund K, Haase N, et al. Heart disease and stroke statistics--2008 update: a report from the American Heart Association Statistics Committee and Stroke Statistics Subcommittee. Circulation. 2008;117:e25–146. doi: 10.1161/CIRCULATIONAHA.107.187998. [DOI] [PubMed] [Google Scholar]
  • 2.Hunt SA, Abraham WT, Chin MH, Feldman AM, Francis GS, Ganiats TG, et al. ACC/AHA 2005 Guideline Update for the Diagnosis and Management of Chronic Heart Failure in the Adult: a report of the American College of Cardiology/American Heart Association Task Force on Practice Guidelines (Writing Committee to Update the 2001 Guidelines for the Evaluation and Management of Heart Failure): developed in collaboration with the American College of Chest Physicians and the International Society for Heart and Lung Transplantation: endorsed by the Heart Rhythm Society. Circulation. 2005;112:e154–235. doi: 10.1161/CIRCULATIONAHA.105.167586. [DOI] [PubMed] [Google Scholar]
  • 3.Shaw J, Kirshenbaum LA. Molecular regulation of autophagy and apoptosis during ischemic and non-ischemic cardiomyopathy. Autophagy. 2008;4:427–34. doi: 10.4161/auto.5901. [DOI] [PubMed] [Google Scholar]
  • 4.Yla-Herttuala S, Alitalo K. Gene transfer as a tool to induce therapeutic vascular growth. Nat Med. 2003;9:694–701. doi: 10.1038/nm0603-694. [DOI] [PubMed] [Google Scholar]
  • 5.Bolli R, Becker L, Gross G, Mentzer R, Jr, Balshaw D, Lathrop DA. Myocardial protection at a crossroads: the need for translation into clinical therapy. Circ Res. 2004;95:125–34. doi: 10.1161/01.RES.0000137171.97172.d7. [DOI] [PubMed] [Google Scholar]
  • 6.Eckle T, Kohler D, Lehmann R, El Kasmi K, Eltzschig HK. Hypoxia-inducible factor-1 is central to cardioprotection: a new paradigm for ischemic preconditioning. Circulation. 2008;118:166–75. doi: 10.1161/CIRCULATIONAHA.107.758516. [DOI] [PubMed] [Google Scholar]
  • 7.Kido M, Du L, Sullivan CC, Li X, Deutsch R, Jamieson SW, et al. Hypoxia-inducible factor 1-alpha reduces infarction and attenuates progression of cardiac dysfunction after myocardial infarction in the mouse. J Am Coll Cardiol. 2005;46:2116–24. doi: 10.1016/j.jacc.2005.08.045. [DOI] [PubMed] [Google Scholar]
  • 8.Loor G, Schumacker PT. Role of hypoxia-inducible factor in cell survival during myocardial ischemia-reperfusion. Cell Death Differ. 2008;15:686–90. doi: 10.1038/cdd.2008.13. [DOI] [PubMed] [Google Scholar]
  • 9.Hoffman MA, Ohh M, Yang H, Klco JM, Ivan M, Kaelin WG., Jr von Hippel-Lindau protein mutants linked to type 2C VHL disease preserve the ability to downregulate HIF. Hum Mol Genet. 2001;10:1019–27. doi: 10.1093/hmg/10.10.1019. [DOI] [PubMed] [Google Scholar]
  • 10.Epstein AC, Gleadle JM, McNeill LA, Hewitson KS, O’Rourke J, Mole DR, et al. C. elegans EGL-9 and mammalian homologs define a family of dioxygenases that regulate HIF by prolyl hydroxylation. Cell. 2001;107:43–54. doi: 10.1016/s0092-8674(01)00507-4. [DOI] [PubMed] [Google Scholar]
  • 11.Bruick RK, McKnight SL. A conserved family of prolyl-4-hydroxylases that modify HIF. Science. 2001;294:1337–40. doi: 10.1126/science.1066373. [DOI] [PubMed] [Google Scholar]
  • 12.Freeman RS, Hasbani DM, Lipscomb EA, Straub JA, Xie L. SM-20, EGL-9, and the EGLN family of hypoxia-inducible factor prolyl hydroxylases. Mol Cells. 2003;16:1–12. [PubMed] [Google Scholar]
  • 13.Natarajan R, Salloum FN, Fisher BJ, Kukreja RC, Fowler AA., 3rd Hypoxia inducible factor-1 activation by prolyl 4-hydroxylase-2 gene silencing attenuates myocardial ischemia reperfusion injury. Circulation research. 2006;98:133–40. doi: 10.1161/01.RES.0000197816.63513.27. [DOI] [PubMed] [Google Scholar]
  • 14.Huang M, Chan DA, Jia F, Xie X, Li Z, Hoyt G, et al. Short hairpin RNA interference therapy for ischemic heart disease. Circulation. 2008;118:S226–33. doi: 10.1161/CIRCULATIONAHA.107.760785. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 15.Holscher M, Silter M, Krull S, von Ahlen M, Hesse A, Schwartz P, et al. Cardiomyocyte-specific prolyl-4-hydroxylase domain 2 knock out protects from acute myocardial ischemic injury. The Journal of biological chemistry. 2011;286:11185–94. doi: 10.1074/jbc.M110.186809. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 16.Minamishima YA, Moslehi J, Padera RF, Bronson RT, Liao R, Kaelin WG., Jr A feedback loop involving the Phd3 prolyl hydroxylase tunes the mammalian hypoxic response in vivo. Mol Cell Biol. 2009;29:5729–41. doi: 10.1128/MCB.00331-09. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 17.Loinard C, Ginouves A, Vilar J, Cochain C, Zouggari Y, Recalde A, et al. Inhibition of prolyl hydroxylase domain proteins promotes therapeutic revascularization. Circulation. 2009;120:50–9. doi: 10.1161/CIRCULATIONAHA.108.813303. [DOI] [PubMed] [Google Scholar]
  • 18.Lipscomb EA, Sarmiere PD, Crowder RJ, Freeman RS. Expression of the SM-20 gene promotes death in nerve growth factor-dependent sympathetic neurons. J Neurochem. 1999;73:429–32. doi: 10.1046/j.1471-4159.1999.0730429.x. [DOI] [PubMed] [Google Scholar]
  • 19.Lee S, Nakamura E, Yang H, Wei W, Linggi MS, Sajan MP, et al. Neuronal apoptosis linked to EglN3 prolyl hydroxylase and familial pheochromocytoma genes: developmental culling and cancer. Cancer Cell. 2005;8:155–67. doi: 10.1016/j.ccr.2005.06.015. [DOI] [PubMed] [Google Scholar]
  • 20.Xie L, Pi X, Mishra A, Fong G, Peng J, Patterson C. PHD3-dependent hydroxylation of HCLK2 promotes the DNA damage response. J Clin Invest. 2012;122:2827–36. doi: 10.1172/JCI62374. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 21.Claycomb WC, Lanson NA, Jr, Stallworth BS, Egeland DB, Delcarpio JB, Bahinski A, et al. HL-1 cells: a cardiac muscle cell line that contracts and retains phenotypic characteristics of the adult cardiomyocyte. Proc Natl Acad Sci U S A. 1998;95:2979–84. doi: 10.1073/pnas.95.6.2979. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 22.Anderson ME, Brown JH, Bers DM. CaMKII in myocardial hypertrophy and heart failure. J Mol Cell Cardiol. 2011;51:468–73. doi: 10.1016/j.yjmcc.2011.01.012. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 23.Takeda K, Ho VC, Takeda H, Duan LJ, Nagy A, Fong GH. Placental but not heart defects are associated with elevated hypoxia-inducible factor alpha levels in mice lacking prolyl hydroxylase domain protein 2. Mol Cell Biol. 2006;26:8336–46. doi: 10.1128/MCB.00425-06. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 24.Moresi V, Williams AH, Meadows E, Flynn JM, Potthoff MJ, McAnally J, et al. Myogenin and class II HDACs control neurogenic muscle atrophy by inducing E3 ubiquitin ligases. Cell. 2010;143:35–45. doi: 10.1016/j.cell.2010.09.004. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 25.del Peso L, Castellanos MC, Temes E, Martin-Puig S, Cuevas Y, Olmos G, et al. The von Hippel Lindau/hypoxia-inducible factor (HIF) pathway regulates the transcription of the HIF-proline hydroxylase genes in response to low oxygen. J Biol Chem. 2003;278:48690–5. doi: 10.1074/jbc.M308862200. [DOI] [PubMed] [Google Scholar]
  • 26.Zaman K, Ryu H, Hall D, O’Donovan K, Lin KI, Miller MP, et al. Protection from oxidative stress-induced apoptosis in cortical neuronal cultures by iron chelators is associated with enhanced DNA binding of hypoxia-inducible factor-1 and ATF-1/CREB and increased expression of glycolytic enzymes, p21(waf1/cip1), and erythropoietin. The Journal of neuroscience : the official journal of the Society for Neuroscience. 1999;19:9821–30. doi: 10.1523/JNEUROSCI.19-22-09821.1999. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 27.Xie L, Johnson RS, Freeman RS. Inhibition of NGF deprivation-induced death by low oxygen involves suppression of BIMEL and activation of HIF-1. J Cell Biol. 2005;168:911–20. doi: 10.1083/jcb.200407079. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 28.Braunwald E, Kloner RA. Myocardial reperfusion: a double-edged sword? J Clin Invest. 1985;76:1713–9. doi: 10.1172/JCI112160. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 29.Hammond EM, Dorie MJ, Giaccia AJ. ATR/ATM targets are phosphorylated by ATR in response to hypoxia and ATM in response to reoxygenation. J Biol Chem. 2003;278:12207–13. doi: 10.1074/jbc.M212360200. [DOI] [PubMed] [Google Scholar]
  • 30.Kim BM, Choi JY, Kim YJ, Woo HD, Chung HW. Reoxygenation following hypoxia activates DNA-damage checkpoint signaling pathways that suppress cell-cycle progression in cultured human lymphocytes. FEBS Lett. 2007;581:3005–12. doi: 10.1016/j.febslet.2007.05.053. [DOI] [PubMed] [Google Scholar]
  • 31.L’Ecuyer T, Sanjeev S, Thomas R, Novak R, Das L, Campbell W, et al. DNA damage is an early event in doxorubicin-induced cardiac myocyte death. Am J Physiol Heart Circ Physiol. 2006;291:H1273–80. doi: 10.1152/ajpheart.00738.2005. [DOI] [PubMed] [Google Scholar]
  • 32.Yoshida M, Shiojima I, Ikeda H, Komuro I. Chronic doxorubicin cardiotoxicity is mediated by oxidative DNA damage-ATM-p53-apoptosis pathway and attenuated by pitavastatin through the inhibition of Rac1 activity. J Mol Cell Cardiol. 2009;47:698–705. doi: 10.1016/j.yjmcc.2009.07.024. [DOI] [PubMed] [Google Scholar]
  • 33.Semenza GL. Hypoxia-inducible factor 1 and cardiovascular disease. Annu Rev Physiol. 2014;76:39–56. doi: 10.1146/annurev-physiol-021113-170322. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 34.Cai Z, Zhong H, Bosch-Marce M, Fox-Talbot K, Wang L, Wei C, et al. Complete loss of ischaemic preconditioning-induced cardioprotection in mice with partial deficiency of HIF-1 alpha. Cardiovasc Res. 2008;77:463–70. doi: 10.1093/cvr/cvm035. [DOI] [PubMed] [Google Scholar]
  • 35.Kaelin WG, Jr, Ratcliffe PJ. Oxygen sensing by metazoans: the central role of the HIF hydroxylase pathway. Mol Cell. 2008;30:393–402. doi: 10.1016/j.molcel.2008.04.009. [DOI] [PubMed] [Google Scholar]
  • 36.Holscher M, Silter M, Krull S, von Ahlen M, Hesse A, Schwartz P, et al. Cardiomyocyte-specific prolyl-4-hydroxylase domain 2 knock out protects from acute myocardial ischemic injury. J Biol Chem. 2011;286:11185–94. doi: 10.1074/jbc.M110.186809. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 37.Moslehi J, Minamishima YA, Shi J, Neuberg D, Charytan DM, Padera RF, et al. Loss of hypoxia-inducible factor prolyl hydroxylase activity in cardiomyocytes phenocopies ischemic cardiomyopathy. Circulation. 2010;122:1004–16. doi: 10.1161/CIRCULATIONAHA.109.922427. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 38.Bekeredjian R, Walton CB, MacCannell KA, Ecker J, Kruse F, Outten JT, et al. Conditional HIF-1alpha expression produces a reversible cardiomyopathy. PloS one. 2010;5:e11693. doi: 10.1371/journal.pone.0011693. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 39.Semenza GL. Targeting HIF-1 for cancer therapy. Nat Rev Cancer. 2003;3:721–32. doi: 10.1038/nrc1187. [DOI] [PubMed] [Google Scholar]
  • 40.Jaakkola PM, Rantanen K. The regulation, localization, and functions of oxygen-sensing prolyl hydroxylase PHD3. Biological chemistry. 2013;394:449–57. doi: 10.1515/hsz-2012-0330. [DOI] [PubMed] [Google Scholar]
  • 41.Wong BW, Kuchnio A, Bruning U, Carmeliet P. Emerging novel functions of the oxygen-sensing prolyl hydroxylase domain enzymes. Trends in biochemical sciences. 2013;38:3–11. doi: 10.1016/j.tibs.2012.10.004. [DOI] [PubMed] [Google Scholar]
  • 42.Dhalla NS, Temsah RM, Netticadan T. Role of oxidative stress in cardiovascular diseases. J Hypertens. 2000;18:655–73. doi: 10.1097/00004872-200018060-00002. [DOI] [PubMed] [Google Scholar]
  • 43.Giordano FJ. Oxygen, oxidative stress, hypoxia, and heart failure. J Clin Invest. 2005;115:500–8. doi: 10.1172/JCI200524408. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 44.Siggens L, Figg N, Bennett M, Foo R. Nutrient deprivation regulates DNA damage repair in cardiomyocytes via loss of the base-excision repair enzyme OGG1. Faseb J. 2012;26:2117–24. doi: 10.1096/fj.11-197525. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 45.Cimprich KA, Cortez D. ATR: an essential regulator of genome integrity. Nat Rev Mol Cell Biol. 2008;9:616–27. doi: 10.1038/nrm2450. [DOI] [PMC free article] [PubMed] [Google Scholar]
