Abstract
As part of a program targeted at developing a resorbable valved tube for replacement of the right ventricular outflow tract, we compared three biopolymers (polyurethane [PU], polyhydroxyalkanoate (the poly(3-hydroxybutyrate-co-3-hydroxyvalerate-co-4-hydroxyvalerate) [PHBVV]), and polydioxanone [PDO]) and two biofunctionalization techniques (using adipose-derived stem cells [ADSCs] or the arginine-glycine-aspartate [RGD] peptide) in a rat model of partial inferior vena cava (IVC) replacement. Fifty-three Wistar rats first underwent partial replacement of the IVC with an acellular electrospun PDO, PU, or PHBVV patch, and 31 nude rats subsequently underwent the same procedure using a PDO patch biofunctionalized either by ADSC or RGD. Results were assessed both in vitro (proliferation and survival of ADSC seeded onto the different materials) and in vivo by magnetic resonance imaging (MRI), histology, immunohistochemistry [against markers of vascular cells (von Willebrand factor [vWF], smooth muscle actin [SMA]), and macrophages ([ED1 and ED2] immunostaining)], and enzyme-linked immunosorbent assay (ELISA; for the expression of various cytokines and inducible NO synthase). PDO showed the best in vitro properties. Six weeks after implantation, MRI did not detect significant luminal changes in any group. All biopolymers were evenly lined by vWF-positive cells, but only PDO and PHBVV showed a continuous layer of SMA-positive cells at 3 months. PU patches resulted in a marked granulomatous inflammatory reaction. The ADSC and RGD biofunctionalization yielded similar outcomes. These data confirm the good biocompatibility of PDO and support the concept that appropriately peptide-functionalized polymers may be successfully substituted for cell-loaded materials.
Introduction
Congenital heart diseases occur at a prevalence of 8 to 12 per 1000 births1 and often require reconstruction of the right ventricular outflow tract (RVOT). However, currently used devices lack regeneration and growth potential, leading to subsequent reoperations with high morbidity and mortality.2–4 Therefore, the development of biocompatible materials whose growth would keep pace with that of the child5–11 still remains a clinically relevant issue.
In this setting, we have previously demonstrated the ability of a monovalved polydioxanone (PDO) patch to restore a functional RVOT in growing lambs.12 As part of a move toward a valved tube, we then completed this two-stage study. First, a head-to-head comparison was performed between a PDO (taken as our reference) and two other polymers, polyhydroxyalkanoate (PHA) and polyurethane (PU), which have already been used in cardiovascular research with encouraging results in terms of endothelialization and biocompatibility.10,11,13–15 In the second step, we leveraged previous findings from our laboratory12 and others16–18 showing that cells seeded onto polymers implanted in the circulation are rapidly cleared and compared two functionalization modalities of the polymer patch based on cell seeding and peptide grafting, respectively. To this end, we selected adipose-derived stem cells (ADSCs) and the tripeptide arginine-glycine-aspartate (RGD) with the premise that this motif, which has a long-standing efficacy record in biomaterial functionalization,19,20 might allow scaffold repopulation from the host cells.
Materials and Methods
Patch fabrication
Materials
PDO, PU, 1,1,1,3,3,3-hexafluoro-2-propanol (HFIP), and chloroform were procured from Sigma-Aldrich (Gillingham, United Kingdom). Poly(3-hydroxybutyrate-co-3-hydroxyvalerate-co-4-hydroxyvalerate) (PHBVV) a polyhydroxyalkanoate (PHA) was a kind gift from Bio-On SRL (Bologna, Italy) and supplied to this project as an experimental grade. RGD peptide (Ac-Gly-Arg-Cys-Gly-Arg-Gly-Asp-Ser-Pro-Gly-NH2) was provided by QGel SA (Lausanne, Switzerland).
Polymer processing
Solutions for electrospinning (ES) were prepared by adding the appropriate amount of polymer and peptide to the desired solvent; the resultant mixtures were stirred overnight until homogeneous solutions were obtained. The RGD-loaded polymers were prepared by directly ES a mixture of PDO and RGD, thereby allowing a one-step approach for peptide incorporation. The solutions were subsequently loaded into a 5-mL syringe and a metal needle (spinneret; 0.61 mm inner diameter) attached to the syringe. A high-voltage DC power supply (HCP35-35,000; FuG Elektronik, Rosenheim, Germany) was used to apply a positive voltage between the spinneret and a grounded metal collector plate (20×20 cm) covered in aluminum foil. The spinneret to collector distance was kept constant at 12 cm for all experiments. The polymer solution was ejected from the syringe at 1 mL/h using a syringe pump (KDS100; Cole-Parmer, London, United Kingdom). ES was carried out under ambient conditions (22°C±3°C; relative humidity 35%±8%). Full details of the ES parameters are given in Table 1. The production of PU and PDO fibers was highly reproducible, while the processing of the PHBVV proved to be less consistent, possibly because of the failure of using HFIP as the solvent for ES this material and the subsequent switch to chloroform. The thickness of the produced patches used for the following in vitro and in vivo experiments was ∼350 μm.
Table 1.
The Electrospinning Parameters Used to Prepare Patches of PDO, PU, and PHBVV
| Fiber ID | Polymer | Solvent | Polymer conc. (% w/v) | RGD conc. (mg/mL) | Applied voltage (kV) |
|---|---|---|---|---|---|
| PDO | PDO | HFIP | 7 | 0 | 13.5 |
| PU | PU | HFIP | 5 | 0 | 15 |
| PHBVV | PHBVV | Chloroform | 7 | 0 | 12 |
| PDO-RGD | PDO | HFIP | 7 | 1.7 | 13.5 |
HFIP, 1,1,1,3,3,3-hexafluoro-2-propanol; PDO, polydioxanone; PHBVV, poly(3-hydroxybutyrate-co-3-hydroxyvalerate-co-4-hydroxyvalerate); PU, polyurethane; RGD, arginine-glycine-aspartate.
Characterization
Scanning electron microscopy (SEM) was undertaken using a Quanta 200 FEG ESEM (FEI, Hillsborough, OR). Samples were gold sputtered before examination. The images obtained were analyzed using the ImageJ software (National Institutes of Health, Bethesda, MD); fiber diameters were measured at over 50 locations. X-ray photoelectron spectroscopy (XPS) was performed at the NEXUS facility (Newcastle University) with the aid of a K-alpha instrument (Thermo Scientific, East Grinstead, United Kingdom) equipped with a monochromated Al Kα X-ray source. A pass energy of 40 eV and a step size of 0.1 eV were employed. Spectra were processed using the CasaXPS software (Casa Software Ltd., Teignmouth, United Kingdom).
ADSC harvest, isolation, and characterization
Subcutaneous inguinal adipose tissue was collected from Wistar rats under general anesthesia by isoflurane® (AbbVie, Rungis, France) and shipped to STROMALab (Toulouse, France) for ADSC isolation according to a previously described protocol.21 Subconfluent ADSCs were obtained after 6 days and phenotypically characterized by flow cytometry (FACSCalibur™; BD Biosciences, Franklin Lakes, NJ).
In vitro experimentation
ADSCs were cultivated in an alpha-MEM medium (Gibco, Carlsbad, CA) supplemented with 10% fetal bovine serum (Biowest, Kansas City, MO), 1% antibiotic–antimycotic solution (Sigma-Aldrich, Saint Louis, MO), and 0.02% b-FGF (R&D system, Minneapolis, MN). The medium was changed every 2 days. When a sufficient cell number was obtained, 1 cm2 of the PDO, PU, and PHBVV patches were manually seeded with ADSCs for 48 h at 37°C under static conditions.
Cell viability on the seeded grafts was assessed by an MTT (3-[4, 5-dimethylthiazolyl-2]-2, 5-diphenyltetrazolium bromide) assay. Briefly, 1 cm2 patches were seeded with 105, 106, or 3.5×106 ADSCs for 48 h in 24-well plates. Subsequently, 10 μL of 5 mg/mL MTT solution (Sigma-Aldrich, Saint Louis, MO) for 100 μL medium was added in each well. After 3 h of incubation at 37°C, 30 μL of isopropanol was added to each well for 10 min. Each sample was transferred to a 96-well plate and read with a Dynex OpsysMR™ (Thermo labsystems, Milford, MA) enzyme-linked immunosorbent assay (ELISA) plate reader (test wavelength of 570 nm, reference wavelength of 630 nm). The acellular medium, cells killed by hydrogen peroxide, and unseeded cells were used as controls.
An additional set of PDO, PU, and PHBVV patches seeded with 3.5×106 ADSCs for 48 h was trypsinized (Gibco) for 5 min and the cells were collected. Cell proliferation, apoptosis, and necrosis were then assessed by flow cytometry using Ki67, Annexin 5, and 7 AAD (all three from BD Pharmingen, San Jose, CA), respectively.
Study design and surgical procedures
Care of animals was in accordance with institutional guidelines. The ethics committee for animal experimentation of Paris Descartes reviewed and approved the study protocol (#13-046). A total of 84 rats were used for the study.
The study was divided into two parts. The first stage (n=53) consisted of the comparison of three bioabsorbable polymers, PDO, PU, and PHBVV, in a Wistar female rat model (Janvier Labs SAS, Saint-Berthevin, France). The second stage (n=31) consisted of the comparison of two biofunctionalization techniques in an immunodeficient female nude rat model (Charles River, L'Arbresle, France), chosen because of the use of allogenic cells. In light of the results obtained in this initial set of experiments, the polymer selected for the biofunctionalization comparison was PDO.
All polymers were implanted as patches on the inferior vena cava (IVC) of rats. On a warming pad and under general anesthesia by isoflurane (AbbVie), a midline laparotomy was performed. The IVC was gently occluded with microvascular clamps. A longitudinal venotomy was performed and the patch was sutured using separated 9-0 polypropylene sutures (Ethicon, Somerville, NJ). After unclamping, vascular patency was visually assessed and the incision was conventionally closed in layers. The animals were then closely monitored for the occurrence of hind limb paralysis, taken as a surrogate manifestation of IVC thrombosis. Animals were sacrificed by an intra-aortic injection of Pentothal (Thiopenthal®; Ceva Santé Animal, Libourne, France) at 6 weeks or 3 months after the patch implantation. Macroscopic patch overviews were taken with a digital camera before harvesting the patches and the surrounding IVC.
Magnetic resonance imaging
Six weeks after patch implantation, magnetic resonance imaging (MRI) was performed in 11 isoflurane-anesthetized animals from each group to assess potential luminal changes such as thrombosis, stenosis, or dilatation. MRI was performed with a dedicated small-animal 4.7 Tesla MRI system (Biospec 47/40 USR; Bruker, Karlsruhe, Germany), using a quadrature transmit/receive body coil with a 7-cm inner diameter. The sequence of interest, a two-dimensional time-of-flight magnetic resonance angiography (2D TOF MRA), was performed to study the IVC. Axial slices were acquired from the renal vessels to the iliac bifurcation. The distance between the iliac bifurcation and the patch was measured before explantation, which allowed to identify the MRI slices corresponding to the area of patch implantation. The imaging parameters were chosen to provide bright-blood weighting, whereas signal from tissue was significantly decreased as follows: TR/TE, 18/4 ms; α=90°; field of view, 7×5 cm; matrix, 359×256; plane resolution, 195×195 μm; slice thickness, 0.7 mm; and interslice distance, 0.55 mm; for three excitations.
MRI data were analyzed using an in-house software routine in the Matlab® software (Mathworks, Natick, MA). First, the vascular tree was segmented by a thresholding technique. Only bright pixels, corresponding to moving volumes of blood, were selected. Second, for each examination, the IVC was separated automatically from the aorta and other vascular structures using a strategy of contraction/expansion of the segmented vascular tree. A visual interface enabled the operator to control the segmentation with the possibility of correcting it manually. Finally, the surface of the IVC was evaluated on each slice to calculate the corresponding diameter. The native IVC was taken as the reference for diameter comparison. A 20% difference (either increase or decrease) between the diameter of the native untreated IVC and that of the patched caval segment was considered significant.
Macroscopic and histological examination
After explantation, the samples were longitudinally incised and the luminal surface of the explanted patch and the IVC was examined to detect any thrombosis. The samples were then embedded in the Tissue-TeK Optimal Temperature Cutting (OCT) medium (Sakura, Torrance, CA) and frozen at −180°C in liquid nitrogen until they were sliced into 7-μm-thick cryosections using an ultramicrotome (LM 1850; Leica, Wetzlar, Germany). Frozen tissue sections were stained by standard hematoxylin and eosin, Sirius red, and alcian blue. For immunochemistry analyses, frozen tissue sections were assessed for markers of ED1 (1:100, anti-CD68) and ED2 macrophages (1:75, anti-CD163; both from AbdSerotec, Raleigh, NC). Antibody binding was detected using a biotinylated secondary antibody (1:200, anti-mouse rat absorbed IgG; ABCYS, Les Ulis, France) followed by the binding of an ABC/PO complex and color development with 3′,3 diaminobenzidine. Nuclei were counterstained with hematoxylin.
In immunofluorescence analyses, frozen tissue sections were assessed for markers of endothelial cells [von Willebrand factor (vWF), 1:200, polyclonal rabbit IgG, Dako, Glostrup, Denmark and smooth muscle cells (smooth muscle actin [SMA]), 1:400, clone 1A4; Sigma]. The binding of primary antibodies was detected by incubating the sections with Texas-red-conjugated anti-rabbit IgG (1:500, Alexa Fluor, Eugene, OR) or FITC-conjugated anti-mouse IgG (1:300, Vector, Burlingame, CA) antibodies. Nuclear counterstaining was performed with 4′,6-diamidino-2-phenylindole. Frozen tissue sections from both Wistar and nude rat IVC served as controls. All samples were analyzed with a microscope (Leica DMIL, Wetzlar, Germany) equipped with a digital camera (Qicam; Qimaging, Burnaby, Canada) at 20×magnification. Digital images were then processed with the Metamorph® software (Universal Imaging Corporation, Downington, PA). vWF and SMA results are expressed as a ratio between the endoluminal surface occupied by vWF- or SMA-positive cells and that of the whole patch. ED1 and ED2 results are expressed as a ratio between the surface occupied by ED1- or ED2-positive cells and that of the whole patch.
ELISA tests
The explanted patches were separated from the native IVC and dissolved in a Tri-Reagent solution (Sigma) for protein extraction during 24 h before ELISA testing. Rat monocyte-chemoattractant protein-1 (MCP-1), interleukin-6 (IL-6), and interleukin-10 (IL-10) ELISA kits (RayBio, Norcross, GA), and the rat inducible NO synthase (iNOS) ELISA kit (SunRedBio, Shangai, China) were used as per the manufacturer's protocols. The results were read in a Dynex Opsys MR (ThermoLabsystems, Vienna, VA) ELISA plate reader (450 nm wavelength).
Statistical analyses
All values are expressed as mean±standard deviation for continuous variables and n (%) for categorical variables. Comparisons between the three biopolymers were performed using analysis of variance or analysis of variance on ranks (when appropriate) for quantitative variables, and using an exact Fisher test for qualitative variables. Multiple comparisons were done using pairwise comparison with Tukey correction for post-hoc tests. Comparisons between the two biofunctionalization techniques were performed using Student's t-test or Wilcoxon–Mann–Whitney test when appropriate. For all analyses, a two-tailed p-value <0.05 was considered statistically significant. Statistical analyses were performed by an independent statistician blinded to the treatment group, using the SAS 9.2 software (Statistical Analysis System, Cary, NC).
Results
Electrospun patch fabrication and characterization
SEM images of the PDO, PU, and PHBVV fibers are shown in Figure 1. In all cases, the materials produced consisted of intertwined meshes of one-dimensional fiber strands. The mats were observed to be porous, with maximum pore sizes of ca. 1–2 μm. The fibers were generally linear and had smooth surfaces. The PU materials appeared “flattened,” while the PHBVV materials showed evidence for some “bead-on-string” type morphology, likely related to the difficulties in optimizing ES of this polymer (Fig. S1). Fiber diameters and the porosity are detailed in Table 2.
FIG. 1.
Scanning electron microscopy images of the electrospun fiber mats. (a, b) PDO fibers; (c) PDO-RGD fibers; (d) PU fibers; (e, f) PHBVV fibers. (applied voltage: 2.0 kV for PDO; 5.0 kV for PDO-RGD, PU, and PHBVV). PDO, polydioxanone; PU, polyurethane; RGD, arginine-glycine-aspartate.
Table 2.
Characterizing Data on the Electrospinning Fibers Produced
| Fiber ID | Diameter (nm) | Porosity (%) |
|---|---|---|
| PDO | 578±234 | 85.3 |
| PU | 856±198 | 88.5 |
| PHBVV | 606±268 | 86.1 |
| PDO-RGD | 133±28.1 | 84.5 |
Diameters are reported as mean±SD, and porosity has been calculated using the method of Ghasemi-Mobarakeh et al.47
To confirm the successful incorporation of the peptide into the PDO-RGD fibers, XPS was used to probe the fiber surface composition. The spectra clearly show the presence of N atoms; these can only come from the RGD peptide, thereby demonstrating that peptide is displayed at the surface of the fibers. From three independent measurements, the surface composition (as weight%) is calculated to be C: 56.8%±0.91%; O: 40.8%±0.72%; and N: 2.38%±0.24%. From the ratio at which the starting materials were combined, the bulk fibers should comprise C: 46.8%; O: 46.7%; N: 0.46%; and S: 0.064%. This, therefore, indicates that there is some sequestration of peptide to the fiber surfaces (the observed N content is ca. 5-fold greater than that calculated for the bulk).
In vitro assessment
Cultivated ADSCs expressed CD44 and CD90, were negative for CD45, and were able to differentiate into adipocytes and osteoblasts in response to the appropriate cues (Oil-Red-O and Alizarin red, respectively). On the basis of the MTT assay, the viability of ADSC was greater on PDO than on PHBVV and PU patches (global p-value <0.0001; Fig. 2). Flow cytometry revealed that ADSCs had high proliferation rates (PDO: 55%; PHBVV: 64%; PU: 55%) and low apoptosis and death rates (PDO: 1.25% [apoptosis] and 1.2% [death]; PHBVV: 3.2% and 5.4%; PU: 5.65% and 2.2%; Fig. 3).
FIG. 2.
MTT assay results. PDO shows the best in vitro properties with a significantly higher cell viability after seeding than the other materials. With a 3.5×106 ADSC seeding, cell viability with PDO is significantly higher than that in PHBVV (PHBVV: 0.99±0.13 and PDO: 1.30±0.25; p<0.046). Cell viabilities in PDO and PHBVV are higher than in the PU group (0.59±0.15; p<0.0001 and p<0.0089, respectively) (Data were compared by analysis of variance and pairwise comparison with Tukey correction for multiple comparisons; *p<0.05; **p<0.0001; ns, not significant). ADSC, adipose-derived stem cell.

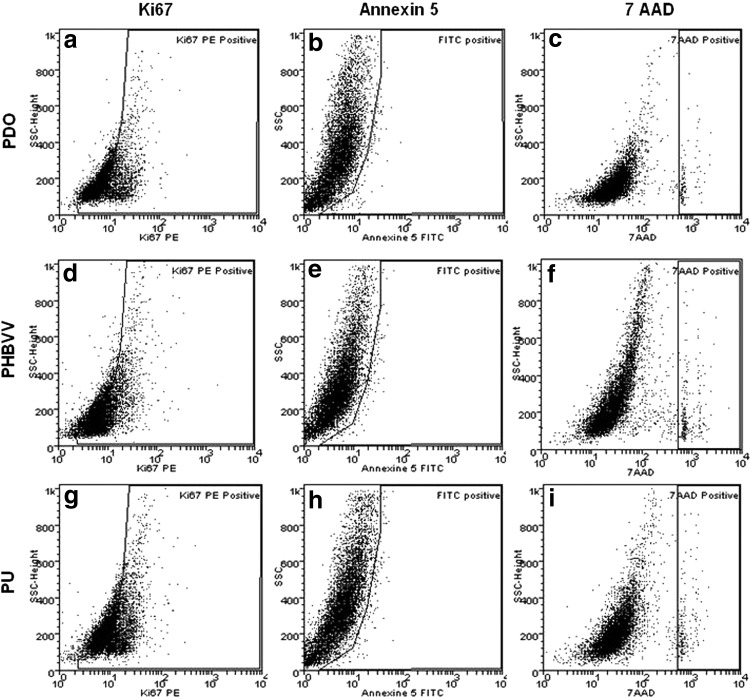

FIG. 3.
Flow cytometry data for the polymer patches. ADSC seeded on PDO, PHA, and PU exhibits high proliferation (a, d, g) and low apoptosis and necrosis (b, e, h; c, f, i) rates. PHA, polyhydroxyalkanoate.
In vivo polymer comparison
Fifty-three female Wistar rats underwent a partial replacement of the IVC with an acellular electrospun PDO (n=18), PU (n=21), or PHBVV (n=14) patch. None of them displayed any postoperative paralysis. Eleven rats in each group underwent MRI imaging at 6 weeks, which showed no stenosis, thrombosis, or aneurysm in the area of the patch implantation (Fig. 4). Forty-four rats were sacrificed at 6 weeks and three rats of each group at 3 months. Macroscopically, there was no thrombosis on the endoluminal surface of any of the three polymers tested. At 3 months, the PDO patches could no longer be detected and distinguished from the native IVC, whereas the PHBVV patches were not as completely integrated (Fig. 5a, b). In the PU group, granulomas were found in 4 (22%) of the 18 patches at 6 weeks and in all specimens at 3 months (Fig. 5c). Figures 6 and 7 (a, f, k) show the different degradation rates of the biopolymers.
FIG. 4.
Magnetic resonance imaging (a) and reconstruction (b). Example of a PDO patch implanted on the IVC of a Wistar rat. No thrombosis, stenosis, or dilatation was found in any rat investigated in this study. IVC, inferior vena cava. Color images available online at www.liebertpub.com/tea
FIG. 5.
Macroscopic views of the implanted patches at 3 months. All grafted vessels were patent at 3 months postimplantation. The PDO patch is completely integrated in the IVC wall (a), whereas the PHBVV patch can still be distinguished from the IVC (b). A granuloma surrounds the PU patch (c). Scale bar: 3 mm. Color images available online at www.liebertpub.com/tea
FIG. 6.
Analysis of the biopolymer patches explanted after 6 weeks. All biopolymers are evenly lined with endothelial cells (b, g, l). The number of SMA-positive cells is higher on PDO and PHBVV patches in comparison with the PU patches (c, h, m). PU patches are insulated by macrophages (i, j), whereas inflammatory cells infiltrate both PDO (d, e) and PHBVV patches (n, o). Hematoxylin/eosin and DAPI staining shows a greater cellularization of the PDO and PHBVV patches compared with PU (a, b, c, f, g, h, k, l, m). Scale bar: 50 μm. SMA, smooth muscle actin. Color images available online at www.liebertpub.com/tea
FIG. 7.
Analysis of the biopolymer patches explanted after 3 months. All biopolymers are evenly lined with endothelial (b, g, l) and smooth muscle cells (c, h, m). PDO has totally disappeared and is replaced by a neotissue similar to the native IVC (a–e). PU is encapsulated in a granulomatous inflammatory reaction (f, i, j). PHBVV starts to be degraded (k, n, o). DAPI staining again shows a greater cellularization of the PDO and PHBVV patches compared with PU (b, c, g, h, l, m). Scale bar: 50 μm. Color images available online at www.liebertpub.com/tea
Histological and ELISA results at 6 weeks and 3 months are summarized in Tables 3 and 4, respectively. Hematoxylin/Eosin staining reveals that the cells were able to penetrate the whole thickness of the PDO (loaded with RGD or not) and PHBVV patches, whereas they were only found surrounding the PU patches, either at 6 weeks or 3 months (Figs. 6 and 7a, f, k). The three polymeric patches were evenly lined by vWF-positive cells at 6 weeks and 3 months (Figs. 6 and 7b, g, l). The number of SMA-positive cells was higher on PDO and PHBVV patches than on PU patches (p=0.006 and p=0.0173, respectively, at 6 weeks; Figs. 6 and 7c, h, m). Inflammatory cells were found surrounding the PU patches, whereas they infiltrated the PDO and PHBVV ones (Figs. 6 and 7d, e, i, j, n, o). The infiltration of proinflammatory ED1 macrophages was lower in the PHBVV group than in the PDO (p=0.0084) and PU (p=0.0066) groups at 6 weeks. At 3 months, the ED1 infiltration had markedly decreased compared to the 6-week time-point in the PDO and PHBVV patches (−80% and −33%, respectively), whereas it remained stable and high in the PU group (92% at 6 weeks and 83% at 3 months). ED2 regulatory macrophages and the ED2/ED1 ratio were higher in the PU group at 6 weeks. At 3 months, ED2/ED1 ratios had increased in the PDO and PHBVV groups (+45% and +7%, respectively, compared to 6 weeks), and decreased in the PU group (−16%). The latter polymer yielded the lowest ratio of regulatory macrophages relative to the total macrophage pool (ED2/ED1=56%±6%, versus 64%±31% for PHBVV and 100% for PDO). Three months after implantation, there was evidence for an extracellular matrix synthesis of varying extent and pattern in the three biopolymer-treated groups (Fig. 8). PDO was associated with the greatest collagen and glycosaminoglycan density in a well-organized extracellular matrix, resembling that of the native IVC composition, followed by PHBVV (Fig. 8a, b, e, f). The extracellular matrix in contact with PU appeared to be less developed and less organized (Fig. 8c, d).
Table 3.
Histological and ELISA Assessments of Nonbiofunctionalized Polymers at 6 Weeks
| PDO (n=15) | PU (n=18) | PHBVV (n=11) | Global p-value | |
|---|---|---|---|---|
| vWF (%) | 100 | 100 | 100 | ns |
| SMA (%) | 96 (±9) | 59 (±35) | 89 (±22) | 0.0006 |
| ED1 (%) | 92 (±14) | 92 (±12) | 71 (±24) | 0.0038 |
| ED2 (%) | 50 (±13) | 66 (±19) | 37 (±17.5) | 0.0002 |
| ED2/ED1 (%) | 55 (±14) | 72.5 (±19) | 58 (±30) | 0.0414 |
| Granuloma, n (%) | 0 | 4 (22) | 0 | ns |
| IL-6 (pg/mL) | 305 (±195) | 163 (±143) | 6 (±9.85) | <0.0001 |
| MCP 1 (pg/mL) | 25,073 (±10,736) | 13,009 (±7552) | 5782 (±6491) | <0.0001 |
| iNOS (ng/mL) | 2.56 (±4.06) | 2.58 (±2.88) | 1.40 (±1.01) | ns |
| IL-10 (pg/mL) | 2186 (±1279) | 1309 (±1177) | 807 (±613) | 0.015 |
Data were analyzed by analysis of variance or analysis of variance on ranks (when appropriate) for quantitative variables; exact Fisher test for qualitative variables; and pairwise comparisons with Tukey correction for multiple comparisons.
±values in paranthesis represent standard deviation.
ELISA, enzyme-linked immunosorbent assay; IL, interleukin; iNOS, inducible NO synthase; ns, not significant; SMA, smooth muscle actin; vWF, von Willebrand factor.
Table 4.
Histological and ELISA Assessments of Nonbiofunctionalized Polymers at 3 Months
| PDO (n=3) | PU (n=3) | PHBVV (n=3) | |
|---|---|---|---|
| vWF (%) | 100 | 100 | 100 |
| SMA (%) | 100 | 78 (±29) | 100 |
| ED1 (%) | 12 (±3) | 83 (±6) | 38 (±28) |
| ED2 (%) | 12 (±3) | 47 (±6) | 20 (±9) |
| ED2/ED1 (%) | 100 | 56 (±6) | 64 (±31) |
| Granuloma | 0 | 3 (100) | 0 |
| IL-6 (pg/mL) | 433 (±64) | 254 (±49) | 12 (±9.6) |
| MCP 1 (pg/mL) | 14,998 (±6915) | 11,170 (±2381) | 4800 (±5732) |
| iNOS (ng/mL) | 1.52 (±0.95) | 2.73 (±1.04) | 2.74 (±2.45) |
| IL-10 (pg/mL) | 2117 (±305) | 1228 (±307) | 1567 (±805) |
±values in paranthesis represent standard deviation.
FIG. 8.
Extracellular matrix synthesis of the biopolymer patches explanted after 3 months. PDO is the polymer showing the most similarities with the native rat IVC in terms of collagen (a) and glycosaminoglycans (b) density, followed by PHBVV (e, f). Extracellular matrix in contact with the PU material appears less well-organized (c, d). Scale bar: 50 μm. Color images available online at www.liebertpub.com/tea
At 6 weeks, explanted patches of PHBVV and PDO showed higher concentrations of IL-6 than PU (p=0.0002 and p<0.0001, respectively). IL-6 was further upregulated in each group at 3 months compared to 6 weeks (PDO: +42%; PU: +57%; PHBVV: +98%). At 6 weeks, PDO showed higher concentrations of MCP-1 compared to PHBVV and PU (p<0.0001 and p=0.0007, respectively); however, at 3 months, values had decreased in all three groups (PDO: −40%; PU: −14%; PHBVV: −17%). There were no significant differences in iNOS concentrations between the three biopolymer patches (p=0.90). The expression of the anti-inflammatory IL-10 cytokine was highest in the PDO group at 6 weeks (global p-value=0.015). IL-10 production was then stable in the PDO and PU groups, whereas its expression nearly doubled in the PHBVV group (+94%) between 6 weeks and 3 months.
Biofunctionalization techniques comparison
Thirty-one immunodeficient nude rats underwent an IVC partial replacement by either a PDO patch seeded with ADSC (n=17) or a PDO patch biofunctionalized by RGD (n=14). The MRI imaging at 6 weeks failed to detect thrombosis or stenosis in the patch implantation area. No granulomas or thrombosis were found during the macroscopic analyses (Fig. S2). At 6 weeks, the biofunctionalized patches were well integrated to the native IVC wall and their luminal surfaces were evenly lined with continuous layers of endothelial (Fig. 9b, g) and smooth muscle cells (Fig. 9c, h). The ED1 macrophage infiltration was more pronounced in ADSC-biofunctionalized patches (p=0.049; Fig. 9d, i), whereas ED2 regulatory macrophage infiltration was similar in both groups (Fig. 9e, j). ELISA measurements of IL-6, IL-10, iNOS, and MCP-1 showed no statistical differences between ADSC and RGD biofunctionalization. The histological and ELISA results at 6 weeks are summarized in Table 5.
FIG. 9.
Analysis of the biofunctionalized patches removed after 6 weeks. Both ADSC- and RGD-biofunctionalized patches are evenly lined with endothelial (b, g) and smooth muscle cells (c, h) and are infiltrated by cells (a, f). ED1 (d, i) and ED2 (e, j) macrophages infiltrate both patches. Scale bar: 50 μm. Color images available online at www.liebertpub.com/tea
Table 5.
Histological and ELISA Assessments of Biofunctionalized Polymers at 6 Weeks
| ADSC (n=10) | RGD (n=7) | p-Value | |
|---|---|---|---|
| vWF (%) | 100 | 100 | ns |
| SMA (%) | 97 (±5) | 100 | ns |
| ED1 (%) | 100 | 93 (±9.5) | 0.049 |
| ED2 (%) | 36.5 (±12) | 43 (±18) | ns |
| ED2/ED1 (%) | 36.5 (±12) | 47 (±19) | ns |
| IL-6 (pg/mL) | 16 (±25) | 12 (±19) | ns |
| MCP 1 (pg/mL) | 7112 (±9548) | 3949 (±6920) | ns |
| iNOS (ng/mL) | 0.67 (±0.40) | 0.65 (±0.51) | ns |
| IL-10 (pg/mL) | 1197 (±938) | 1088 (±1490) | ns |
Data were analyzed by Student's t-test and Wilcoxon–Mann–Whitney tests.
±values in paranthesis represent standard deviation.
ADSC, adipose-derived stem cell.
At 3 months, the cell and peptide-biofunctionalized patches had disappeared and were fully integrated in the native IVC wall. There were no statistical differences between the two biofunctionalization techniques with regard to histological and ELISA endpoints (Fig. 10 and Table 6). In comparison to the 6-week data, there was a decrease in the number of ED1 macrophages and an increase of ED2 regulatory macrophages in both groups. There was also evidence for a well-organized extracellular matrix, similar to that of the native IVC, with no difference between the two biofunctionalized polymers (Fig. 11). IL-6, MCP-1, and iNOS expressions were further upregulated at 3 months in both groups compared to the 6 weeks, whereas IL-10 concentrations remained stable (Fig. S3).
FIG. 10.
Analysis of the biofunctionalized patches removed after 3 months. Both ADSC- and RGD-biofunctionalized patches are evenly lined with endothelial (b, g) and smooth muscle cells (c, h). Macrophage infiltration has distinctly decreased from 6 weeks (a, f), with a shift toward a regulatory pattern (d, e, i, j). Scale bar: 50 μm. Color images available online at www.liebertpub.com/tea
Table 6.
Histological and ELISA Assessments of Biofunctionalized Polymers at 3 Months
| ADSC (n=7) | RGD (n=7) | p-Value | |
|---|---|---|---|
| vWF (%) | 100 | 100 | ns |
| SMA (%) | 100 | 100 | ns |
| ED1 (%) | 66 (±39) | 69 (±25) | ns |
| ED2 (%) | 41 (±30) | 51 (±23) | ns |
| ED2/ED1 (%) | 69 (±31) | 76 (±21) | ns |
| IL-6 (pg/mL) | 31 (±25) | 18 (±19) | ns |
| MCP 1 (pg/mL) | 17,594 (±13,235) | 6574 (±5751) | ns |
| iNOS (ng/mL) | 1.31 (±0.93) | 2.79 (±2.86) | ns |
| IL-10 (pg/mL) | 1392 (±645) | 1266 (±637) | ns |
Data were analyzed by Student's t-test and Wilcoxon–Mann–Whitney tests.
±values in paranthesis represent standard deviation.
FIG. 11.
Extracellular matrix synthesis of the biofunctionalized patches explanted after 3 months. ADSC-seeded PDO (a, b) and RGD-grafted PDO (c, d) do not show any differences in extracellular matrix composition or organization, which are similar to those of the native IVC extracellular matrix. Scale bar: 50 μm. Color images available online at www.liebertpub.com/tea
Discussion
Several materials have been tested clinically for reconstructing the RVOT,22–29 but their common limitation is the lack of a growth potential that leads to reoperations, with their attendant risk of increased morbidity and mortality.
In an attempt to address this issue, we have undertaken a program aimed at developing a degradable valved polymeric tube designed to harness endogenous healing mechanisms to achieve the full replacement of the device by an autologous living conduit. Initial proof-of-principle experiments entailing the placement of a mesenchymal stem cell-seeded PDO monocusp patch across the pulmonary annulus in growing lambs confirmed the high biocompatibility of this polymer which, over time, was replaced by a host-derived tissue histologically similar to the native pulmonary arterial wall.12 This result is consistent with the successful outcomes yielded by PDO valvular rings implanted in children.30 However, a drawback of PDO in our experiments was its fast degradation that led us to compare it, in a head-to-head fashion, with two other polymers (PU and PHBVV). All three materials were selected for their alleged biocompatibility, mechanical properties, suitability for ES-based manufacturing, and possibility of regulatory approvability for human use. Although some teams have made replacements of the RVOT in rats,31 we found partial replacement of the rat IVC, which shares with the pulmonary artery low-pressure patterns, a more suitable model for screening experiments.
In our study, the three different acellular electrospun patches displayed complete in vivo endothelialization at 6 weeks and two of them, PDO and PHBVV, featured a continuous layer of smooth muscle cells at 3 months. We assume that self-endothelialization and neovessel regeneration were obtained by both recruitment of circulating progenitor cells and migration from the edges of the native vessel.32 Although we did not investigate the endothelial cell function, the latter was likely adequate since no thrombosis was found either macroscopically or microscopically. Overall, our results are in line with those of Matsumura et al. who evaluated cell-free scaffolds in the IVC and pulmonary valve locations in dogs and found endothelialization, vascular smooth muscle cell proliferation, and synthesis of an extracellular matrix.33,34
Such remodeling of the matrix is a key process in vascular restoration and is impacted by the number and polarity of invading monocytes and macrophages. From this standpoint, PDO and PHVBB outperformed PU with regard to the predominance of infiltrating regulatory ED2 macrophages, a phenotype associated with less inflammatory tissue scarring and improved remodelling.35,36 The enhanced ED2 response to PDO and PHBVV is consistent with our concurrent findings of higher expressions of the anti-inflammatory IL-10 cytokine and MCP-1 chemokine. In contrast, PU was associated with a much greater inflammatory response, with a persisting insulation of the patches and, occasionally, granulomas, which have also been reported in other applications.37,38 Whether a physicochemically different PU might more favorably affect host tissue responses will be the subject of future investigations.
Another important finding from the previous work of our laboratory and others12,16–18 is that polymer-seeded cells are cleared over time, which leads to speculate that the grafted cells do not structurally integrate within the neovessel wall, but rather act as platforms releasing signalling molecules that may recruit host cells. This hypothesis provides a robust rationale for testing whether cells can, thus, be replaced by biomimetic compounds, which could duplicate their recruiting effects and promote self-healing. Indeed, the use of different bioactive peptides as substitutes for cell therapy has been successfully tested in cardiac regeneration and other specialties.17,39–42
In the present study, we selected RGD, a tripeptide composed of arginine-glycine-aspartate that mimics the integrin-binding site of cells and the extracellular matrix43 and has already been successfully tested as a biofunctionalization motif.44 Grafting of RGD on a polymer was compared, again in a head-to-head fashion, with ADSC selected because of their ease of procurement, richness of their secretome, and potential for human applications. PDO was chosen as the material common to these two biologics because it had yielded the most encouraging signals in the first set of experiments and with the recognition that its above-mentioned fast degradation kinetics was not a definite limiting factor, in which it could be addressed by altering density of the fiber network through fine-tuned ES settings or by combining it with another polymer featuring superior mechanical properties.
No significant differences were found between RGD and ADSC in terms of vascular remodeling, neovessel formation, inflammatory cell response, and cytokine secretion. This result is consistent with that reported by Roh et al.17 who showed, in a murine model of infrarenal IVC replacement, that the restorative patterns observed after implantation of a human bone marrow mononuclear cell-seeded polymer could be duplicated by replacing cells with MCP-1 grafting on the scaffold. We acknowledge, however, that in the absence of covalent binding, the PDO can dissolve from the surface of the polymer with the possibility that its soluble form may, at the opposite of our objective, act as an integrin blocker preventing cell adhesion.45–46 Thus, while the method used in this study for immobilizing RGD in the scaffold does not allow to conclusively establish that the tripeptide actually contributed to recruit host cells, the slow degradation rate of PDO may still have permitted RGD embedded into the network to remain active with regard to cell homing during a prolonged period of time, while the outer fibers were being dissolved.
Altogether, these data reinforce the idea that engineering of polymeric scaffolds might allow to skip seeding of cells, provided the scaffolds are functionalized with bioactive peptides able to enhance host-cell homing to generate a native-like tissue. Should such a concept be confirmed in clinically relevant large animal models, it could dramatically streamline the translational process and open clinically relevant perspectives for the RVOT replacement in children suffering from congenital cardiac abnormalities.
Supplementary Material
Acknowledgments
This work was funded by grants from the Agence de la Biomédecine (Biogreffe) and LabEx REVIVE by the LeDucq Foundation (SHAPEHEART network). The authors thank the Fonds d'Etudes et de Recherche du Corps Médical des Hôpitaux de Paris for its support. The authors thank Bio-On SRL for the kind gift of PHBVV, QGel for providing the RGD, and the EPSRC for access to the UK National EPSRC XPS User Service (NEXUS) at Newcastle University. We also thank Dr. Naoko Sano for performing XPS measurements, and Mr. David McCarthy for recording SEM images.
Disclosure Statement
No competing financial interests exist.
