. 1994 Jul 19;91(15):6824–6829. doi: 10.1073/pnas.91.15.6824

Genome structure and evolution in Drosophila: applications of the framework P1 map.

D L Hartl 1, D I Nurminsky 1, R W Jones 1, E R Lozovskaya 1
PMCID: PMC44290  PMID: 8041703

Abstract

Physical maps showing the relative locations of cloned DNA fragments in the genome are important resources for research in molecular genetics, genome analysis, and evolutionary biology. In addition to affording a common frame of reference for organizing diverse types of genetic data, physical maps also provide ready access to clones containing DNA sequences from any defined region of the genome. In this paper, we present a physical map of the genome of Drosophila melanogaster based on in situ hybridization with 2461 DNA fragments, averaging approximately 80 kilobase pairs each, cloned in bacteriophage P1. The map is a framework map in the sense that most putative overlaps between clones have not yet been demonstrated at the molecular level. Nevertheless, the framework map includes approximately 85% of all genes in the euchromatic genome. A continuous physical map composed of sets of overlapping P1 clones (contigs), which together span most of the euchromatic genome, is currently being assembled by screening a library of 9216 P1 clones with single-copy genetic markers as well as with the ends of the P1 clones already assigned positions in the framework map. Because most P1 clones from D. melanogaster hybridize in situ with chromosomes from related species, the framework map also makes it possible to determine the genome maps of D. pseudoobscura and other species in the subgenus Sophophora. Likewise, a P1 framework map of D. virilis affords potential access to genome organization and evolution in the subgenus Drosophila.

Full text

PDF
6824

Images in this article

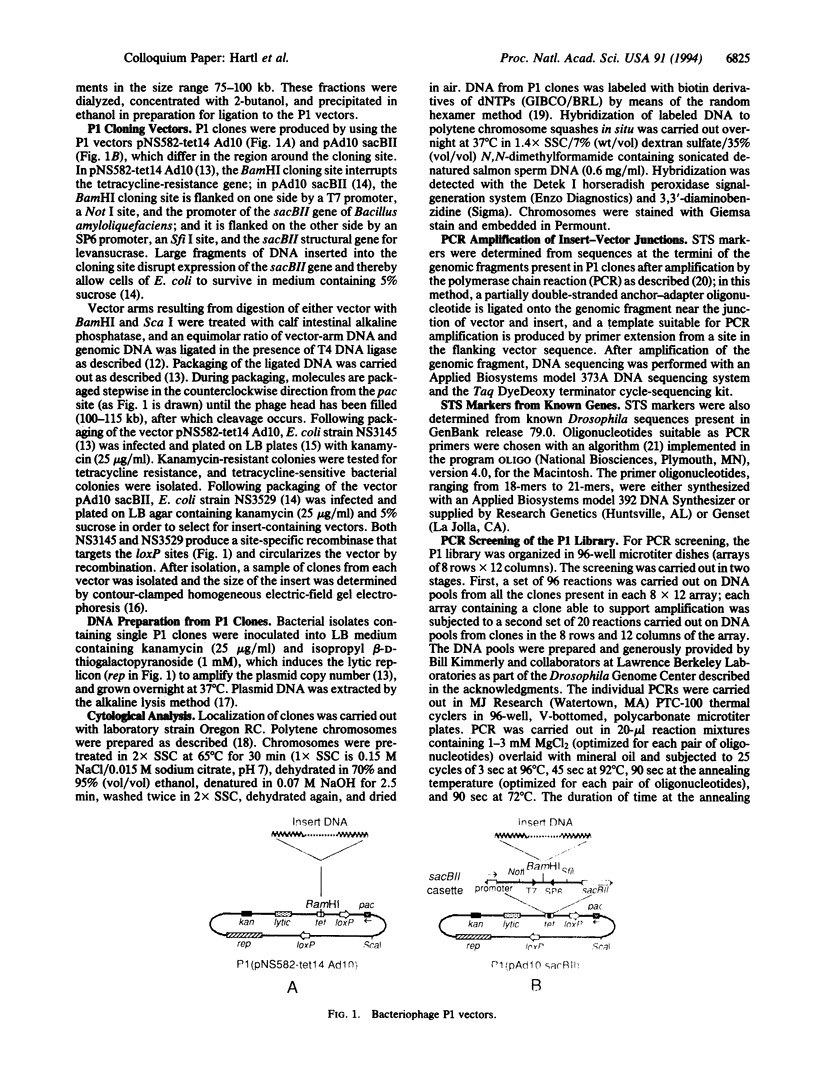

6825Image
on p.6825

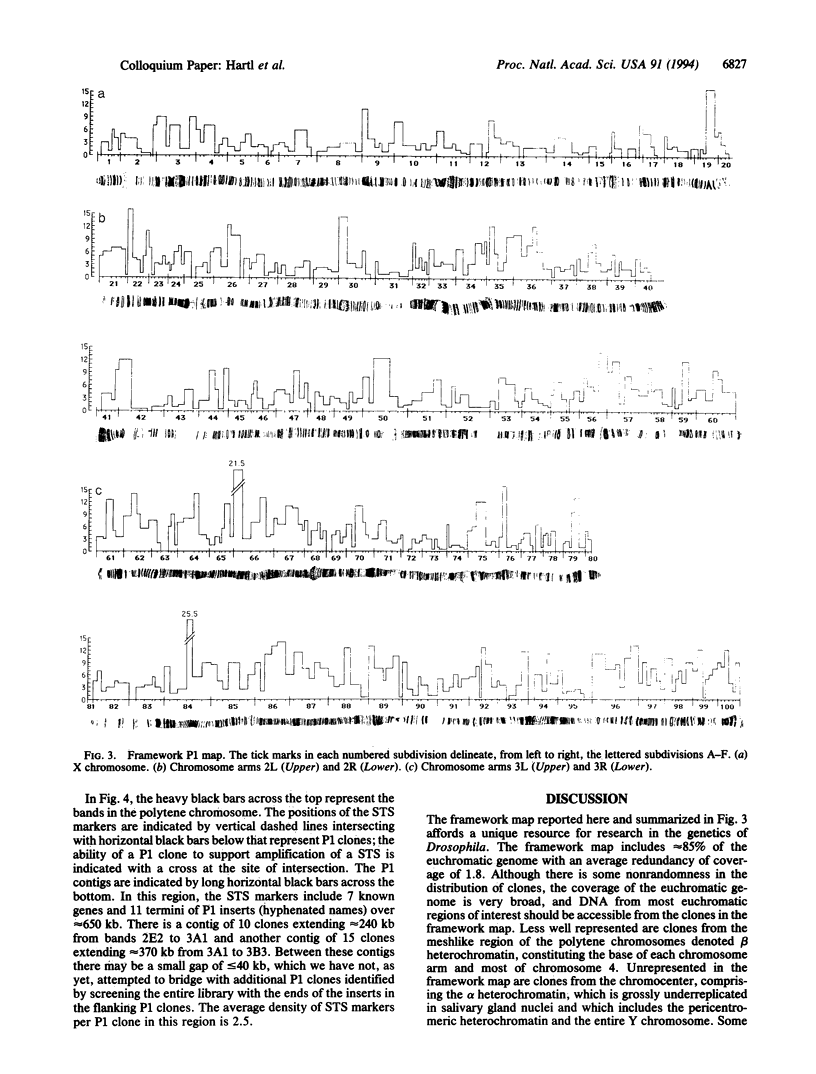

6827Image
on p.6827

Selected References

These references are in PubMed. This may not be the complete list of references from this article.

  1. Ajioka J. W., Smoller D. A., Jones R. W., Carulli J. P., Vellek A. E., Garza D., Link A. J., Duncan I. W., Hartl D. L. Drosophila genome project: one-hit coverage in yeast artificial chromosomes. Chromosoma. 1991 Sep;100(8):495–509. doi: 10.1007/BF00352200. [DOI] [PubMed] [Google Scholar]
  2. Beverley S. M., Wilson A. C. Molecular evolution in Drosophila and the higher Diptera II. A time scale for fly evolution. J Mol Evol. 1984;21(1):1–13. doi: 10.1007/BF02100622. [DOI] [PubMed] [Google Scholar]
  3. Birnboim H. C., Doly J. A rapid alkaline extraction procedure for screening recombinant plasmid DNA. Nucleic Acids Res. 1979 Nov 24;7(6):1513–1523. doi: 10.1093/nar/7.6.1513. [DOI] [PMC free article] [PubMed] [Google Scholar]
  4. Cohen D., Chumakov I., Weissenbach J. A first-generation physical map of the human genome. Nature. 1993 Dec 16;366(6456):698–701. doi: 10.1038/366698a0. [DOI] [PubMed] [Google Scholar]
  5. Collins F., Galas D. A new five-year plan for the U.S. Human Genome Project. Science. 1993 Oct 1;262(5130):43–46. doi: 10.1126/science.8211127. [DOI] [PubMed] [Google Scholar]
  6. Coulson A., Sulston J., Brenner S., Karn J. Toward a physical map of the genome of the nematode Caenorhabditis elegans. Proc Natl Acad Sci U S A. 1986 Oct;83(20):7821–7825. doi: 10.1073/pnas.83.20.7821. [DOI] [PMC free article] [PubMed] [Google Scholar]
  7. Feinberg A. P., Vogelstein B. "A technique for radiolabeling DNA restriction endonuclease fragments to high specific activity". Addendum. Anal Biochem. 1984 Feb;137(1):266–267. doi: 10.1016/0003-2697(84)90381-6. [DOI] [PubMed] [Google Scholar]
  8. Hartl D. L., Ajioka J. W., Cai H., Lohe A. R., Lozovskaya E. R., Smoller D. A., Duncan I. W. Towards a Drosophila genome map. Trends Genet. 1992 Feb;8(2):70–75. doi: 10.1016/0168-9525(92)90353-6. [DOI] [PubMed] [Google Scholar]
  9. Hartl D. L., Lozovskaya E. R. The Drosophila genome project: current status of the physical map. Comp Biochem Physiol B. 1992 Sep;103(1):1–8. doi: 10.1016/0305-0491(92)90404-f. [DOI] [PubMed] [Google Scholar]
  10. Kafatos F. C., Louis C., Savakis C., Glover D. M., Ashburner M., Link A. J., Sidén-Kiamos I., Saunders R. D. Integrated maps of the Drosophila genome: progress and prospects. Trends Genet. 1991 May;7(5):155–161. doi: 10.1016/0168-9525(91)90379-5. [DOI] [PubMed] [Google Scholar]
  11. Kohara Y., Akiyama K., Isono K. The physical map of the whole E. coli chromosome: application of a new strategy for rapid analysis and sorting of a large genomic library. Cell. 1987 Jul 31;50(3):495–508. doi: 10.1016/0092-8674(87)90503-4. [DOI] [PubMed] [Google Scholar]
  12. Lozovskaya E. R., Petrov D. A., Hartl D. L. A combined molecular and cytogenetic approach to genome evolution in Drosophila using large-fragment DNA cloning. Chromosoma. 1993 Mar;102(4):253–266. doi: 10.1007/BF00352399. [DOI] [PubMed] [Google Scholar]
  13. Merriam J., Ashburner M., Hartl D. L., Kafatos F. C. Toward cloning and mapping the genome of Drosophila. Science. 1991 Oct 11;254(5029):221–225. doi: 10.1126/science.254.5029.221. [DOI] [PubMed] [Google Scholar]
  14. Nurminsky D. I., Hartl D. L. Amplification of the ends of DNA fragments cloned in bacteriophage P1. Biotechniques. 1993 Aug;15(2):201-2, 206-8. [PubMed] [Google Scholar]
  15. Olson M. V., Dutchik J. E., Graham M. Y., Brodeur G. M., Helms C., Frank M., MacCollin M., Scheinman R., Frank T. Random-clone strategy for genomic restriction mapping in yeast. Proc Natl Acad Sci U S A. 1986 Oct;83(20):7826–7830. doi: 10.1073/pnas.83.20.7826. [DOI] [PMC free article] [PubMed] [Google Scholar]
  16. Pierce J. C., Sauer B., Sternberg N. A positive selection vector for cloning high molecular weight DNA by the bacteriophage P1 system: improved cloning efficacy. Proc Natl Acad Sci U S A. 1992 Mar 15;89(6):2056–2060. doi: 10.1073/pnas.89.6.2056. [DOI] [PMC free article] [PubMed] [Google Scholar]
  17. Rychlik W., Rhoads R. E. A computer program for choosing optimal oligonucleotides for filter hybridization, sequencing and in vitro amplification of DNA. Nucleic Acids Res. 1989 Nov 11;17(21):8543–8551. doi: 10.1093/nar/17.21.8543. [DOI] [PMC free article] [PubMed] [Google Scholar]
  18. Segarra C., Aguadé M. Molecular organization of the X chromosome in different species of the obscura group of Drosophila. Genetics. 1992 Mar;130(3):513–521. doi: 10.1093/genetics/130.3.513. [DOI] [PMC free article] [PubMed] [Google Scholar]
  19. Smoller D. A., Petrov D., Hartl D. L. Characterization of bacteriophage P1 library containing inserts of Drosophila DNA of 75-100 kilobase pairs. Chromosoma. 1991 Sep;100(8):487–494. doi: 10.1007/BF00352199. [DOI] [PubMed] [Google Scholar]
  20. Sternberg N. Bacteriophage P1 cloning system for the isolation, amplification, and recovery of DNA fragments as large as 100 kilobase pairs. Proc Natl Acad Sci U S A. 1990 Jan;87(1):103–107. doi: 10.1073/pnas.87.1.103. [DOI] [PMC free article] [PubMed] [Google Scholar]
  21. Vollrath D., Davis R. W. Resolution of DNA molecules greater than 5 megabases by contour-clamped homogeneous electric fields. Nucleic Acids Res. 1987 Oct 12;15(19):7865–7876. doi: 10.1093/nar/15.19.7865. [DOI] [PMC free article] [PubMed] [Google Scholar]
  22. de Frutos R., Peterson K. R., Kidwell M. G. Distribution of Drosophila melanogaster transposable element sequences in species of the obscura group. Chromosoma. 1992 Mar;101(5-6):293–300. doi: 10.1007/BF00346008. [DOI] [PubMed] [Google Scholar]
