. 2015 May 12;10(5):e0125919. doi: 10.1371/journal.pone.0125919

Peripapillary Retinal Nerve Fiber Layer Changes in Preclinical Diabetic Retinopathy: A Meta-Analysis

Xiaofei Chen 1, Chuang Nie 1, Yan Gong 1, Ying Zhang 1, Xin Jin 1, Shihui Wei 1, Maonian Zhang 1,*
Editor: Alan Stitt2
PMCID: PMC4429076  PMID: 25965421

Abstract

Background

Diabetic retinopathy is a microvascular neurodegenerative disorder in diabetic patients. Peripapillary retinal nerve fiber layer changes have been described in patients with preclinical diabetic retinopathy, but study results have been inconsistent.

Objective

To assess changes in peripapillary retinal nerve fiber layer thickness in diabetic patients with preclinical diabetic retinopathy.

Methods

A literature search was conducted through PubMed, EMBASE, Web of Science and Cochrane Library. Case-control studies on RNFL thickness in preclinical diabetic retinopathy patients and healthy controls were retrieved. A meta-analysis of weighted mean difference and a sensitivity analysis were performed using RevMan 5.2 software.

Results

Thirteen case-control studies containing 668 diabetic patients and 556 healthy controls were selected. Peripapillary RNFL thickness was significantly reduced in patients with preclinical diabetic retinopathy compared to healthy controls in studies applying Optical Coherence Tomography (-2.88μm, 95%CI: -4.44 to -1.32, P = 0.0003) and in studies applying Scanning Laser Polarimeter (-4.21μm, 95%CI: -6.45 to -1.97, P = 0.0002). Reduction of RNFL thickness was significant in the superior quadrant (-3.79μm, 95%CI: -7.08 to -0.50, P = 0.02), the inferior quadrant (-2.99μm, 95%CI: -5.44 to -0.54, P = 0.02) and the nasal quadrant (-2.88μm, 95%CI: -4.93 to -0.82, P = 0.006), but was not significant in the temporal quadrant (-1.22μm, 95%CI: -3.21 to 0.76, P = 0.23), in diabetic patients.

Conclusion

Peripapillary RNFL thickness was significantly decreased in preclinical diabetic retinopathy patients compared to healthy control. Neurodegenerative changes due to preclinical diabetic retinopathy need more attention.

Introduction

Diabetic retinopathy is a retinal vascular lesion in patients with diabetic mellitus[1]. Studies have indicated that neurodegenerative changes have also been found in the retina of diabetic patients, including apoptosis of retinal neuronal cells and activation of glial cells [2–4]. In addition, previous clinical studies have found impairment of visual functions, such as contrast sensitivity and color vision, as well as electrophysiological changes in diabetic patients with early diabetic retinopathy[5–9]. Recently, defects in Humphrey Matrix testing and multifocal electroretinograms, both of which are associated with retinal neuronal dysfunction, have been described in diabetic patients without visible vascular changes in the retina[10,11].

Axons of retinal ganglion cells compose the retinal nerve fiber layer (RNFL) in the retina and then form the optic nerve connecting the eyeball and brain. Retinal nerve fiber layer (RNFL) loss is recognized as an important neurodegenerative sign in glaucoma[12]. Thinning of the RNFL has also been found in multiple sclerosis[13], Parkinson’s disease[14] and Alzheimer’s disease[15], indicating neurodegeneration of the retina. In recent years, several studies have indicated occurrence of peripapillary RNFL thinning in the retina of diabetic patients without detectable diabetic retinopathy[16,17], while the difference of RNFL thickness between diabetic patients and healthy controls was not significant in other studies[18,19]. If RNFL thinning is significant in diabetic patients with preclinical diabetic retinopathy, evaluation of peripapillary RNFL thickness would be very important, because early detection and treatment of diabetic retinopathy is critical to reduce the risk of blindness[20]. To address this issue, a systemic review and meta-analysis of studies investigating peripapillary RNFL thicknesses of diabetic patients without clinical diabetic retinopathy and healthy controls were performed.

Materials and Methods

Search strategy

Databases including PubMed, EMBASE, Web of Science and the Cochrane Library were searched using the terms “diabetes mellitus”, “retinal nerve fiber layer” and “RNFL” up to February 24th, 2015. Language and location were not restricted. References lists of all included studies were also carefully checked.

Study Selection

Studies that fulfill the following criteria were included for meta-analysis: 1. healthy controls were included; 2. patients had diabetes mellitus; and 3. thickness of the peripapillary RNFL was measured. Studies were excluded for anyone of the following reasons: 1. peripapillary RNFL thickness was not quantitatively measured; 2. a subgroup of patients without clinical diabetic retinopathy (NDR) was not included; 3. both eyes were used for statistical analysis; and 4. data of RNFL thickness were not eligible for analysis. Two reviewers (C.X.F and Z.M.N) evaluated each study based on the above criteria and disagreements were solved by discussion.

Data Extraction

Data were retrieved by two reviewers (C.X.F and N.C) independently including first author, year of publication, location, number of subjects, type of diabetes, duration of diabetes, mean age, gender, level of HbA1c, type of measuring instrument, and average peripapillary RNFL thickness in total and in four quadrants (superior, inferior, temporal and nasal). Discrepancies were discussed until an agreement was reached.

Quality Assessment

The Newcastle-Ottawa Scale (NOS) was used to evaluate the method quality of included studies[21]. The selection criteria of subjects, comparability between controls and cases and outcomes of each study were assessed with scores raging from 1 to 9. A score of 6 or higher was considered to be of relatively higher quality. The assessment was conducted by two reviewers (C.X.F and N.C) and differences were discussed until an agreement was reached.

Statistical Analysis

Cochrane Collaboration’s Review Manager Software (RevMan 5) was used for data analysis. Means and standard deviations of the RNFL thickness values were obtained as continuous variables to calculate the weighted mean difference. Heterogeneity of the included studies was tested by Chi-square test and Higgins I2 test. The fixed-effect analysis model was applied if the heterogeneity was not significant (P>0.10, I2<50%). Otherwise, the random-effect analysis model was used (P≤0.10, I2≥50%). Publication bias was evaluated by Funnel plot. Sensitivity analysis was conducted by sequentially excluding one study each time and recalculating weighted mean difference of RNFL thickness of the remained studies. A p value<0.05 was considered significant.

Results

Characteristics and Quality of Selected Studies

In the records initially identified, RNFL thickness was quantitatively evaluated by Optical Coherence Tomography (OCT), Scanning Laser Polarimeter (SLP) containing GDx with fixed corneal compensator mode (GDx NFA) and GDx with variable corneal compensator mode (GDx VCC) or Heidelberg Retina Tomography (HRT). The selection process is shown in Fig 1. During selection, one study using OCT was excluded because a smaller scanning circle of 2.4 mm in diameter was applied in this study, while a scanning circle of 3.4–3.46 mm in diameter was applied in other studies[22]. Two studies using HRT were excluded because no subgroup of diabetic patients without clinical diabetic retinopathy was analyzed[23,24]. Finally, 13 studies [10,16–19,25–32] applying OCT or SLP for RNFL evaluation were included in our study.

Fig 1. Process of study selection.

Fig 1

Open in a new tab

NDR, diabetic patients without clinical diabetic retinopathy.

The included studies were published from 2002 to 2014, with 1 each from Greece, Italy, Brazil, Korea, Taiwan, Hong Kong, and 2 each from Japan and Mainland China and 3 from Turkey. The characteristics and quality of studies are shown in Table 1.

Table 1. Characteristics and quality of selected studies.

Study Location Type of DM No. of eyes Age (years) Gender (M/F) Duration of DM (years) HbA1c (%) Instrument Study quality
DM HC DM HC DM HC
Xin (2014) China 2 48 30 57 56 25/23 16/14 6.1±2.3 6.7±1.0 3D-OCT 6
Ma (2013) China 2 96 115 51.1 58.6 51/45 60/55 33.75±9.11* NR SD-OCT 6
Lung (2012) Hong Kong 2 10 14 51 49.4 NR 6.9±6.9 NR Stratus OCT 5
Gonul (2011) Turkey 1 98 49 17.02 18.71 54/44 20/29 60.76±50.41* NR Stratus OCT 5
Park (2011) Korea NR 37 40 66.2 64.3 15/22 21/19 12.3±3.3 4.4±2.3 Cirrus OCT 6
Oshitari (2009) Japan 2 45 30 61.6 60.0 25 16 4.8±4.4 7.4±1.9 Stratus OCT 5
Peng (2009) Taiwan 1&2 99 77 56.9 55.2 50/49 30/47 6.2±4.4 8.3±1.8 Stratus OCT 6
Sugimoto (2005) Japan 2 32 34 55.4 50.9 NR 7.9±7.3 6.90±1.75 OCT 6
Takis (2014) Greece 2 27 25 65.4 62.8 10/17 10/15 12.8±5.9 7.2±1.6 SLP 6
Parravano (2008) Italy 1 30 30 36.77 35.87 11/19 9/21 12.23±10.83 7.38±1.19 SLP 6
Lonneville (2003) Turkey 2 40 50 54.9 51.2 14/26 22/28 98.7±92.1* 11.8±1.0 SLP 5
Lopes (2002) Brazil 1 12 12 30 29 4/8 4/8 14±5 6.9±2.3 SLP 7
Ozdek (2002) # Turkey 2 50 50 50.8 51.2 NR 37.7±43.5* 6.6±0.8 SLP 5
44 49.8 64.9±64.3* 9.5±1.4
Open in a new tab

DM, diabetic mellitus; HC, healthy controls; NR, not reported;

* Duration of DM (months);

# Two groups of diabetic patients without diabetic retinopathy included in the study.

Meta-analysis

The peripapillary RNFL thickness difference between diabetic patients without diabetic retinopathy and age-matched healthy controls were analyzed separately in studies using OCT and studies using SLP, because the values obtained through the two instruments were not comparable. In the 8 studies applying OCT, the heterogeneity of the included studies was not significant (P = 0.60, I2 = 0%), therefore, the fixed-effect analysis model was used. The results of a meta-analysis showed that peripapillary RNFL thickness in diabetic patients without diabetic retinopathy was significantly less than that in age-matched healthy controls (-2.88μm, 95%CI: -4.44 to -1.32, P = 0.0003, Fig 2). Meanwhile, analysis of the 5 studies applying SLP also showed reduced peripapillary RNFL thickness (-4.21μm, 95%CI: -6.45 to -1.97, P = 0.0002, Fig 3) in diabetic patients without diabetic retinopathy. A subgroup analysis based on the type of diabetes was also performed in studies using SLP. The results indicated that average RNFL thickness decreased both in type 1(-3.52μm, 95%CI: -6.00 to -1.03, P = 0.006, Fig 4) and type 2 (-4.39μm, 95%CI: -8.02 to -0.76, P = 0.02, Fig 4) diabetic patients.

Fig 2. Meta-analysis of average RNFL thickness of diabetic patients and healthy controls in studies using OCT.

Fig 2

Open in a new tab

Fig 3. Meta-analysis of average RNFL thickness of diabetic patients and healthy controls in studies using SLP.

Fig 3

Open in a new tab

Fig 4. Subgroup analysis of average RNFL thickness of type 1 and type 2 diabetic patients.

Fig 4

Open in a new tab

The peripapillary RNFL thickness in four quadrants was also analyzed in the studies using OCT. As shown in Fig 5, RNFL thicknesses in the superior quadrant (-3.79μm, 95%CI: -7.08 to -0.50, P = 0.02), inferior quadrant (-2.99μm, 95%CI: -5.44 to -0.54, P = 0.02) and nasal quadrant (-2.88μm, 95%CI: -4.93 to -0.82, P = 0.006) of the retinas in diabetic patients were significantly reduced, but thickness reduction was not observed in the temporal quadrant (-1.22μm, 95%CI: -3.21 to 0.76, P = 0.23).

Fig 5. Meta-analysis of RNFL thickness in four quadrants in studies using OCT.

Fig 5

Open in a new tab

A, superior; B, inferior; C, temporal; D, nasal.

No obvious publication bias was identified by funnel plots in studies to assess average RNFL thickness in total and in four quadrants (Fig 6 and Fig 7). A sensitivity analysis was performed in studies using OCT and in studies using SLP. The results indicated that the reduction of RNFL thickness in diabetic patients was still significant no matter which one was excluded in studies using OCT or SLP (Table 2).

Fig 6. Funnel plot of all selected studies using OCT and studies using SLP.

Fig 6

Open in a new tab

A, Funnel plot of studies using OCT; B, Funnel plot of studies using SLP.

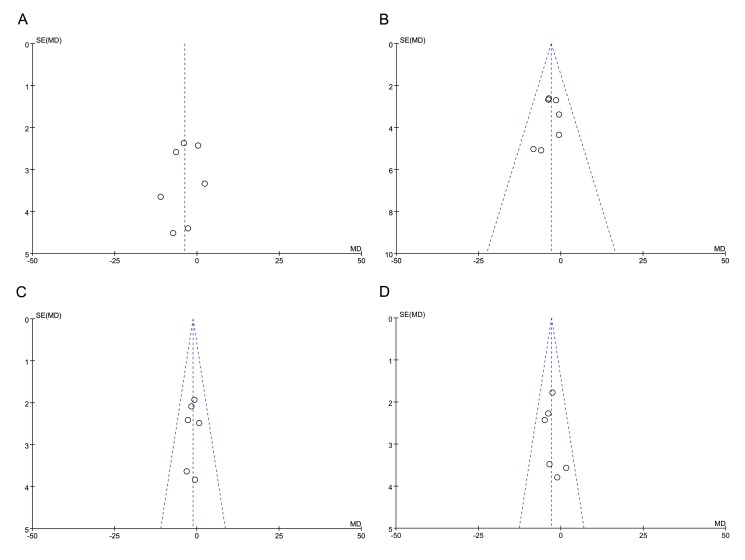

Fig 7. Funnel plot of studies assessing RNFL thickness in four quadrants using OCT.

Fig 7

Open in a new tab

A, superior; B, inferior; C, temporal; D, nasal.

Table 2. Results of sensitivity analysis.

Fixed-effect analysis Random-effect analysis Heterogeneity
Study excluded Mean difference (μm, 95%CI) p value Mean difference (μm, 95%CI) p value I 2 (%)
Xin (2014) -2.84 (-4.41 to -1.27) 0.0004 -2.84 (-4.41 to -1.27) 0.0004 0
Ma (2013) -3.38 (-5.09 to -1.67) 0.0001 -3.38 (-5.09 to -1.67) 0.0001 0
Lung (2012) -3.00 (-4.58 to -1.42) 0.0002 -3.00 (-4.58 to -1.42) 0.0002 0
Gonul (2011) -2.54 (-4.37 to -0.71) 0.007 -2.54 (-4.37 to -0.71) 0.007 0
Park (2011) -3.18 (-4.81 to -1.56) 0.0001 -3.18 (-4.81 to -1.56) 0.0001 0
Oshitari (2009) -2.79 (-4.41 to -1.16) 0.0008 -2.79 (-4.41 to -1.16) 0.0008 0
Peng (2009) -2.26 (-4.11 to -0.42) 0.02 -2.26 (-4.11 to -0.42) 0.02 0
Sugimoto (2005) -2.89 (-4.49 to -1.28) 0.0004 -2.89 (-4.49 to -1.28) 0.0004 0
Takis (2014) -4.41 (-5.97 to -2.84) 0.00001 -4.83 (-7.52 to -2.14) 0.0004 59
Parravano (2008) -4.57 (-6.36 to -2.77) 0.00001 -4.71 (-7.75 to -1.68) 0.002 62
Lonneville (2003) -3.00 (-4.55 to -1.45) 0.0001 -3.00 (-4.55 to -1.45) 0.0001 0
Lopes (2002) -3.80 (-5.24 to -2.37) 0.00001 -3.97 (-6.44 to -1.50) 0.002 64
Ozdek (2002) -4.12 (-5.64 to -2.59) 0.00001 -4.57 (-7.42 to -1.71) 0.002 66
Open in a new tab

Discussion

The data of this study showed that the average peripapillary RNFL thickness in diabetic patients without clinical diabetic retinopathy was significantly decreased compared to age-matched healthy controls.

In the selected studies, a circular circumpapillary scan of 3.4–3.46 mm in diameter was applied by OCT to calculate RNFL thickness, while a calculation circle with 2.4 mm in inner diameter and 3.2 mm in outer diameter was used by GDx VCC and an ellipse at 1.75 disc diameter was used by GDx NFA. Although different peripapillary target areas were measured by OCT and SLP, analysis showed that the results were consistent. In addition, two studies using HRT, that evaluated RNFL thickness at the edge of optic disc, also showed reduced peripapillary RNFL thickness in diabetic patients[23,24].

In the study of Takahashi et al[33], both stratus OCT and GDx VCC were applied to detect RNFL loss in patients with mild to moderate diabetic retinopathy and glaucoma, and RNFL thinning in diabetic patients was detected by GDx VCC but not by OCT. The authors suggested the difference was caused by fluid accumulation in the retina due to relatively severe diabetic retinopathy in this study and involvement of Müller cells and astrocytes during RNFL measurement by OCT[34]. The researchers also speculated that the difference could be not obvious when evaluating RNFL in diabetic patients without diabetic retinopathy. However, in other studies, RNFL thinning was accelerated by the progression of diabetic retinopathy[16,35].

Retinal nerve fiber loss was considered to be associated with retinal ganglion cell dysfunction and apoptosis. In diabetic animal models, damage of retinal neuronal cells and inner retinal thinning have been detected in the early stage of diabetic retinopathy[36,37]. Neuronal apoptosis in the retina of diabetic patients has also been reported by Barber et al[3]. Both anterograde and retrograde axonal transportation was compromised in diabetic animals, most likely because of damaged polyol metabolism and impaired mitochondria function of retinal ganglion cells[38,39]. The cross-sectional size of large optic nerve fibers has also been found to decrease in diabetic rats[40].

In addition, obvious accumulation of advanced glycation end products (AGEs) in the cribriform plates, connective tissues and around vessels of the optic nerve of diabetic patients has been reported[41]. AGEs have been considered contributing to dysfunction of intracellular anti-oxidant enzymes, transcription factors and mitochondrial proteins, as well as impairment of elastic property of the extracellular matrix and cribriform plates[42,43].

Other than the initial neuronal degenerative changes, microangiopathy caused by diabetes in the optic nerve head has also been attributed to the RNFL defection. Chihara et al.[44] reported RNFL loss in diabetic patients through fundus photograph and speculated that cotton-wool spots, which are caused by microvascular nonperfusion and sometimes fade without visible signs in the retina, may attribute to the damage of retinal nerve fibers. Nevertheless, the pathophysiological microvascular changes of diabetic retinopathy, including endothelium dysfunction, vascular basement membrane thickening, pericyte apoptosis and capillary occlusion, may also involve capillary vessels in the optic nerve[45–48].

A coorelation between blood glucose (BG) control and RNFL defects has not been shown. In a previous study, the mean superior maximum of RNFL was reduced in BG-non-regulated diabetic patients without diabetic retinopathy, but not in BG-regulated diabetic patients[32]. In another study, none of the GDx variables of RNFL were changed in diabetic patients after one-month of BG regulation[30]. Additional information on metabolic parameters is needed to further investigate reasons for different results among these studies. A multiple-center and large-scale study with higher method quality is necessary.

Some limitations exist in this meta-analysis. First, although there was no restriction in language, location, or evaluation methods during the search in databases, the included studies that applied OCT for RNFL measurement were all conducted in Asia, while the included studies applying SLP were performed in Europe, South America and Asia. No studies using HRT were included. Second, in several studies, method quality, as assessed by NOS, was relatively low, mainly because the representativeness of cases and controls, as well as blinding methods, was not clarified. Third, the type of diabetes mellitus was not considered in some studies. Additionally, the age, duration of disease, and level of HbA1c were different among included studies, all of which could be confounding factors during meta-analysis.

In conclusion, peripapillary RNFL thickness was significantly reduced in diabetic patients without detectable diabetic retinopathy. Measurement of peripapillary RNFL thickness may become a novel way to evaluate and monitor early retinal changes in diabetic patients. Multicenter studies with larger population are still necessary to assess the efficacy and importance of this measurement. Nevertheless, neurodegenerative changes of retina and corresponding visual functional impairment in diabetic patients need more attention during clinical evaluation of diabetic retinopathy.

Supporting Information

S1 Checklist. PRISMA Checklist.

(DOC)

Click here for additional data file. (64KB, doc)
S1 Diagram. PRISMA Flow Diagram.

(DOC)

Click here for additional data file. (60.5KB, doc)
S1 Text. Search Strategy and Records from EMBASE.

(TXT)

Click here for additional data file. (302.6KB, txt)

Data Availability

All relevant data are within the paper and its supporting information files.

Funding Statement

The authors have no support or funding to report.

References

  • 1. Gardner T, Antonetti D, Barber A, LaNoue K, Levison S. Diabetic retinopathy: more than meets the eye. Surv Ophthalmol. 2002; 47 Suppl 2: S253–S262. [DOI] [PubMed] [Google Scholar]
  • 2. Oshitari T, Yamamoto S, Hata N, Roy S. Mitochondria- and caspase-dependent cell death pathway involved in neuronal degeneration in diabetic retinopathy. Br J Ophthalmol. 2008; 92: 552–556. 10.1136/bjo.2007.132308 [DOI] [PubMed] [Google Scholar]
  • 3. Barber A, Lieth E, Khin S, Antonetti D, Buchanan A, Gardner T. Neural apoptosis in the retina during experimental and human diabetes. Early onset and effect of insulin. J Clin Invest. 1998; 102: 783–791. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 4. Rungger-Brändle E, Dosso A, Leuenberger P. Glial reactivity, an early feature of diabetic retinopathy. Invest Ophthalmol Vis Sci. 2000; 41: 1971–1980. [PubMed] [Google Scholar]
  • 5. Sokol S, Moskowitz A, Skarf B, Evans R, Molitch M, Senior B. Contrast sensitivity in diabetics with and without background retinopathy. Arch Ophthalmol. 1985; 103: 51–54. [DOI] [PubMed] [Google Scholar]
  • 6. Greenstein V, Shapiro A, Zaidi Q, Hood D. Psychophysical evidence for post-receptoral sensitivity loss in diabetics. Invest Ophthalmol Vis Sci. 1992; 33: 2781–2790. [PubMed] [Google Scholar]
  • 7. Bresnick G, Condit R, Palta M, Korth K, Groo A, Syrjala S. Association of hue discrimination loss and diabetic retinopathy. Arch Ophthalmol. 1985; 103: 1317–1324. [DOI] [PubMed] [Google Scholar]
  • 8. Aylward G, Billson F. The scotopic threshold response in diabetic retinopathy—a preliminary report. Aust N Z J Ophthalmol. 1989; 17: 369–372. [DOI] [PubMed] [Google Scholar]
  • 9. Caputo S, Di Leo M, Falsini B, Ghirlanda G, Porciatti V, Minella A, et al. Evidence for early impairment of macular function with pattern ERG in type I diabetic patients. Diabetes Care. 1990; 13: 412–418. [DOI] [PubMed] [Google Scholar]
  • 10. Parravano M, Oddone F, Mineo D, Centofanti M, Borboni P, Lauro R, et al. The role of Humphrey Matrix testing in the early diagnosis of retinopathy in type 1 diabetes. Br J Ophthalmol. 2008; 92: 1656–1660. 10.1136/bjo.2008.143057 [DOI] [PubMed] [Google Scholar]
  • 11. Harrison W, Bearse M, Ng J, Jewell N, Barez S, Burger D, et al. Multifocal electroretinograms predict onset of diabetic retinopathy in adult patients with diabetes. Invest Ophthalmol Vis Sci. 2011; 52: 772–777. 10.1167/iovs.10-5931 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 12. Zangwill L, Bowd C. Retinal nerve fiber layer analysis in the diagnosis of glaucoma. Curr Opin Ophthalmol. 2006; 17: 120–131. [DOI] [PubMed] [Google Scholar]
  • 13. Petzold A, de Boer J, Schippling S, Vermersch P, Kardon R, Green A, et al. Optical coherence tomography in multiple sclerosis: a systematic review and meta-analysis. Lancet Neurol. 2010; 9: 921–932. 10.1016/S1474-4422(10)70168-X [DOI] [PubMed] [Google Scholar]
  • 14. Satue M, Garcia-Martin E, Fuertes I, Otin S, Alarcia R, Herrero R, et al. Use of Fourier-domain OCT to detect retinal nerve fiber layer degeneration in Parkinson's disease patients. Eye (Lond). 2013; 27: 507–514. 10.1038/eye.2013.4 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 15. Marziani E, Pomati S, Ramolfo P, Cigada M, Giani A, Mariani C, et al. Evaluation of retinal nerve fiber layer and ganglion cell layer thickness in Alzheimer's disease using spectral-domain optical coherence tomography. Invest Ophthalmol Vis Sci. 2013; 5: 5953–5958. [DOI] [PubMed] [Google Scholar]
  • 16. Oshitari T, Hanawa K, Adachi-Usami E. Changes of macular and RNFL thicknesses measured by Stratus OCT in patients with early stage diabetes. Eye (Lond). 2009; 23: 884–889. 10.1038/eye.2008.119 [DOI] [PubMed] [Google Scholar]
  • 17. Park H, Kim I, Park C. Early diabetic changes in the nerve fibre layer at the macula detected by spectral domain optical coherence tomography. Br J Ophthalmol. 2011; 95: 1223–1228. 10.1136/bjo.2010.191841 [DOI] [PubMed] [Google Scholar]
  • 18. Sugimoto M, Sasoh M, Ido M, Wakitani Y, Takahashi C, Uji Y. Detection of early diabetic change with optical coherence tomography in type 2 diabetes mellitus patients without retinopathy. Ophthalmologica. 2005; 219: 379–385. [DOI] [PubMed] [Google Scholar]
  • 19. Lung J, Swann P, Wong D, Chan H. Global flash multifocal electroretinogram: early detection of local functional changes and its correlations with optical coherence tomography and visual field tests in diabetic eyes. Doc Ophthalmol. 2012; 125: 123–135. 10.1007/s10633-012-9343-0 [DOI] [PubMed] [Google Scholar]
  • 20. Early Treatment Diabetic Retinopathy Study research group. Photocoagulation for diabetic macular edema. Early Treatment Diabetic Retinopathy Study report number 1. Arch Ophthalmol. 1985; 103: 1796–1806. [PubMed] [Google Scholar]
  • 21. Stang A. Critical evaluation of the Newcastle-Ottawa scale for the assessment of the quality of nonrandomized studies in meta-analyses. Eur J Epidemiol. 2010; 25: 603–605. 10.1007/s10654-010-9491-z [DOI] [PubMed] [Google Scholar]
  • 22. Verma A, Raman R, Vaitheeswaran K, Pal S, Laxmi G, Gupta M, et al. Does neuronal damage precede vascular damage in subjects with type 2 diabetes mellitus and having no clinical diabetic retinopathy? Ophthalmic Res. 2012; 47: 202–207. 10.1159/000333220 [DOI] [PubMed] [Google Scholar]
  • 23. Tekeli O, Turaçli M, Atmaca L, Elhan A. Evaluation of the optic nerve head with the heidelberg retina tomograph in diabetes mellitus. Ophthalmologica. 2008; 222: 168–172. 10.1159/000126079 [DOI] [PubMed] [Google Scholar]
  • 24. Toprak I, Yildirim C, Yaylali V. Optic disc topographic analysis in diabetic patients. Int Ophthalmol. 2012; 32: 559–564. 10.1007/s10792-012-9610-9 [DOI] [PubMed] [Google Scholar]
  • 25. Xin C, Wang J, Meng X, Jia Y, Wang H. Effect on the retinal fiber thickness in early diabetes. National Medical Journal of China. 2014; 94: 208–211. [PubMed] [Google Scholar]
  • 26. Ma J, Zhang Y, Zhu T, Xu J. Correlation of optic retinal nerve fiber layer thickness and visual function in patients with nonproliferative diabetic retinopathy. Chinese journal of ophthalmology. 2013; 49: 514–520. [PubMed] [Google Scholar]
  • 27. Gonul S, Ozkagnici A, Ozturk B, Kerimoglu H, Sahin A. Evaluation of retinal nerve fiber layer thickness with optical coherence tomography in type 1 diabetes mellitus patients. Turkiye Klinikleri Journal of Medical Sciences. 2011; 31: 1100–1105. [Google Scholar]
  • 28. Peng P, Lin H, Lin S. Nerve fibre layer thinning in patients with preclinical retinopathy. Can J Ophthalmol. 2009; 44: 417–422. 10.3129/i09-112 [DOI] [PubMed] [Google Scholar]
  • 29. Takis A, Alonistiotis D, Panagiotidis D, Ioannou N, Papaconstantinou D, Theodossiadis P. Comparison of the nerve fiber layer of type 2 diabetic patients without glaucoma with normal subjects of the same age and sex. Clin Ophthalmol. 2014; 8: 455–463. 10.2147/OPTH.S47762 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 30. Lonneville Y, Ozdek S, Onol M, Yetkin I, Gürelik G, Hasanreisoğlu B. The effect of blood glucose regulation on retinal nerve fiber layer thickness in diabetic patients. Ophthalmologica. 2003; 217: 347–350. [DOI] [PubMed] [Google Scholar]
  • 31. Lopes de Faria J, Russ H, Costa V. Retinal nerve fibre layer loss in patients with type 1 diabetes mellitus without retinopathy. Br J Ophthalmol. 2002; 86: 725–728. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 32. Ozdek S, Lonneville Y, Onol M, Yetkin I, Hasanreisoğlu B. Assessment of nerve fiber layer in diabetic patients with scanning laser polarimetry. Eye (Lond). 2002; 16: 761–765. [DOI] [PubMed] [Google Scholar]
  • 33. Takahashi H, Chihara E. Impact of diabetic retinopathy on quantitative retinal nerve fiber layer measurement and glaucoma screening. Invest Ophthalmol Vis Sci. 2008; 49: 687–692. 10.1167/iovs.07-0655 [DOI] [PubMed] [Google Scholar]
  • 34. Jaffe G, Caprioli J. Optical coherence tomography to detect and manage retinal disease and glaucoma. Am J Ophthalmol. 2004; 137: 156–169. [DOI] [PubMed] [Google Scholar]
  • 35. Takahashi H, Goto T, Shoji T, Tanito M, Park M, Chihara E. Diabetes-associated retinal nerve fiber damage evaluated with scanning laser polarimetry. Am J Ophthalmol. 2006; 142: 88–94. [DOI] [PubMed] [Google Scholar]
  • 36. Martin P, Roon P, Van Ells T, Ganapathy V, Smith S. Death of retinal neurons in streptozotocin-induced diabetic mice. Invest Ophthalmol Vis Sci. 2004; 45: 3330–3336. [DOI] [PubMed] [Google Scholar]
  • 37. van Dijk H, Kok P, Garvin M, Sonka M, Devries J, Michels R, et al. Selective loss of inner retinal layer thickness in type 1 diabetic patients with minimal diabetic retinopathy. Invest Ophthalmol Vis Sci. 2009; 50: 3404–3409. 10.1167/iovs.08-3143 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 38. Ino-Ue M, Zhang L, Naka H, Kuriyama H, Yamamoto M. Polyol metabolism of retrograde axonal transport in diabetic rat large optic nerve fiber. Invest Ophthalmol Vis Sci. 2000; 41: 4055–4058. [PubMed] [Google Scholar]
  • 39. Fernandez D, Pasquini L, Dorfman D, Aldana Marcos H, Rosenstein R. Early distal axonopathy of the visual pathway in experimental diabetes. Am J Pathol. 2012; 180: 303–313. 10.1016/j.ajpath.2011.09.018 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 40. Zhang L, Ino-ue M, Dong K, Yamamoto M. Retrograde axonal transport impairment of large- and medium-sized retinal ganglion cells in diabetic rat. Curr Eye Res. 2000; 20: 131–136. [PubMed] [Google Scholar]
  • 41. Amano S, Kaji Y, Oshika T, Oka T, Machinami R, Nagai R, et al. Advanced glycation end products in human optic nerve head. Br J Ophthalmol. 2001; 85: 52–55. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 42. Albon J, Karwatowski W, Avery N, Easty D, Duance V. Changes in the collagenous matrix of the aging human lamina cribrosa. Br J Ophthalmol. 1995; 79: 368–375. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 43. Chen M, Curtis T, Stitt A. Advanced glycation end products and diabetic retinopathy. Curr Med Chem. 2013; 20: 3234–3240. [DOI] [PubMed] [Google Scholar]
  • 44. Chihara E, Matsuoka T, Ogura Y, Matsumura M. Retinal nerve fiber layer defect as an early manifestation of diabetic retinopathy. Ophthalmology. 1993; 100: 1147–1151. [DOI] [PubMed] [Google Scholar]
  • 45. Ciulla T, Amador A, Zinman B. Diabetic retinopathy and diabetic macular edema: pathophysiology, screening, and novel therapies. Diabetes Care. 2003; 26: 2653–2664. [DOI] [PubMed] [Google Scholar]
  • 46. Ciulla T, Harris A, Latkany P, Piper H, Arend O, Garzozi H, et al. Ocular perfusion abnormalities in diabetes. Acta Ophthalmol Scand. 2002; 80: 468–477. [DOI] [PubMed] [Google Scholar]
  • 47. Miyamoto K, Ogura Y. Pathogenetic potential of leukocytes in diabetic retinopathy. Semin Ophthalmol. 1999; 14: 233–239. [DOI] [PubMed] [Google Scholar]
  • 48. Slagle W, Musick A, Eckermann D. Diabetic papillopathy and its relation to optic nerve ischemia. Optom Vis Sci. 2009; 86: e395–e403. 10.1097/OPX.0b013e318198927c [DOI] [PubMed] [Google Scholar]
