Essential role of the cytochrome P450 CYP4F22 in the production of acylceramide, the key lipid for skin permeability barrier formation

Significance

The sphingolipid backbone ceramide is the major lipid species in the stratum corneum and plays a pivotal function in skin permeability barrier formation. Acylceramide is an important epidermis-specific ceramide species. However, the details of acylceramide production, including its synthetic genes, reactions and their orders, and intracellular site for production, have remained unclear. In the present study, we identified the cytochrome P450, family 4, subfamily F, polypeptide 22 (CYP4F22) as the missing fatty acid ω-hydroxylase required for acylceramide synthesis. We also determined that CYP4F22 is a type I endoplasmic reticulum membrane protein and that its substrate is ultra-long-chain fatty acids. Our findings provide important insights into the molecular mechanisms of not only acylceramide production but also skin permeability barrier formation.

Abstract

A skin permeability barrier is essential for terrestrial animals, and its impairment causes several cutaneous disorders such as ichthyosis and atopic dermatitis. Although acylceramide is an important lipid for the skin permeability barrier, details of its production have yet to be determined, leaving the molecular mechanism of skin permeability barrier formation unclear. Here we identified the cytochrome P450 gene CYP4F22 (cytochrome P450, family 4, subfamily F, polypeptide 22) as the long-sought fatty acid ω-hydroxylase gene required for acylceramide production. CYP4F22 has been identified as one of the autosomal recessive congenital ichthyosis-causative genes. Ichthyosis-mutant proteins exhibited reduced enzyme activity, indicating correlation between activity and pathology. Furthermore, lipid analysis of a patient with ichthyosis showed a drastic decrease in acylceramide production. We determined that CYP4F22 was a type I membrane protein that locates in the endoplasmic reticulum (ER), suggesting that the ω-hydroxylation occurs on the cytoplasmic side of the ER. The preferred substrate of the CYP4F22 was fatty acids with a carbon chain length of 28 or more (≥C28). In conclusion, our findings demonstrate that CYP4F22 is an ultra-long-chain fatty acid ω-hydroxylase responsible for acylceramide production and provide important insights into the molecular mechanisms of skin permeability barrier formation. Furthermore, based on the results obtained here, we proposed a detailed reaction series for acylceramide production.

A skin permeability barrier protects terrestrial animals from water loss from inside the body, penetration of external soluble materials, and infection by pathogenetic organisms. In the stratum corneum, the outermost cell layer of the epidermis, multiple lipid layers (lipid lamellae) play a pivotal function in barrier formation (Fig. S1) (1–3). Impairment of the skin permeability barrier leads to several cutaneous disorders, such as ichthyosis, atopic dermatitis, and infectious diseases.

Fig. S1.

Structures of the epidermis, the stratum corneum, acylceramide, and protein-bound ceramide. Acylceramides are produced mainly in the stratum granulosum and partly in the stratum spinosum and are stored in lamellar bodies as glucosylated forms (acyl glucosylceramides). At the interface of the stratum granulosum and stratum corneum, the lamellar bodies fuse with the plasma membrane and release their contents into the extracellular space, where acyl glucosylceramides are converted to acylceramides. Thus, released acylceramides, FAs, and cholesterol form lipid lamellae in the stratum corneum. Some acylceramide is hydrolyzed to ω-hydroxyceramide, followed by covalent binding to corneocyte surface proteins to create corneocyte lipid envelopes. Acylceramide contains ULCFAs with carbon chain lengths of C28–C36. The FA elongase ELOVL1 produces VLCFAs, which are further elongated to ULCFAs by ELOVL4 (29). The ceramide synthase CERS3 creates an amide bond between ULCFA and LCB (17). ω-Hydroxylation of ULCFA is required for acylceramide production. However, the responsible ω-hydroxylase had not been identified previously; its identification is the subject of this research.

The major components of the lipid lamellae are ceramide (the sphingolipid backbone), cholesterol, and free fatty acid (FA). In most tissues, ceramide consists of a long-chain base (LCB; usually sphingosine) and an amide-linked FA with a chain length of 16–24 (C16–C24) (4, 5). On the other hand, ceramide species in the epidermis are strikingly unique (Fig. S2A). For example, epidermal ceramides contain specialized LCBs (phytosphingosine and 6-hydroxysphingosine) and/or FAs with α- or ω-hydroxylation (1–3). In addition, substantial amounts of epidermal ceramides have ultra-long-chain FAs (ULCFAs) with chain lengths of 26 or more (≥C26) (4, 5). Unique epidermal ceramides are acylceramides having C28–C36 ULCFAs, which are ω-hydroxylated and esterified with linoleic acid [EOS in Fig. S1; EODS, EOS, EOP, and EOH in Fig. S2A; EOS stands for a combination of an esterified ω-hydroxy FA (EO) and sphingosine (S); DS, dihydrosphingosine; P, phytosphingosine; H, 6-hydroxysphingosine] (1–3, 6, 7). These characteristic molecules may be important to increase the hydrophobicity of lipid lamellae and/or to stabilize the multiple lipid layers. Linoleic acid is one of the essential FAs, and its deficiency causes ichthyosis symptoms resulting from a failure to form normal acylceramide (8). Ichthyosis is a cutaneous disorder accompanied by dry, thickened, and scaly skin; it is caused by a barrier abnormality. In patients who have atopic dermatitis, both total ceramide levels and the chain length of ceramides are decreased, and ceramide composition is altered also (9–11).

Fig. S2.

Structure and synthetic pathways of ceramides in mammals. (A) Structure and nomenclature of epidermal ceramides. Epidermal ceramides are classified into 12 classes depending on their differences in the LCB and FA moieties. N-type and A-type ceramides contain C16–C30 FAs (n = 1–15), whereas EO-type ceramides contain C28–C36 FAs (n = 13–21) (6, 7). (B) FA elongation and ceramide synthesis in mammals. The FA elongation pathways of saturated and monounsaturated FAs and the ceramide-synthetic pathways are illustrated. E1–E7 and C1–C6 indicate the ELOVL (ELOVL1–7) and CERS (CERS1–6) isozymes involved in each step, respectively. The differences in the letter size of E1–E7 reflect their enzyme activities in each FA elongation reaction. Cer, ceramide; MUFA, monounsaturated FA; SFA, saturated FA.

In addition to its essential function in the formation of lipid lamellae, acylceramide also is important as a precursor of protein-bound ceramide, which functions to connect lipid lamellae and corneocytes (Fig. S1) (12, 13). After the removal of linoleic acid, the exposed ω-hydroxyl group of acylceramide is covalently bound to corneocyte proteins, forming a corneocyte lipid envelope. Acylceramides and protein-bound ceramides are important in epidermal barrier formation, and mutations in the genes involved in their synthesis, including the ceramide synthase CERS3, the 12(R)-lipoxygenase ALOX12B, and the epidermal lipoxygenase-3 ALOXE3, can cause nonsyndromic, autosomal recessive congenital ichthyosis (ARCI) (3, 14–16). CERS3 catalyzes the amide bond formation between an LCB and ULCFA, producing ULC-ceramide, which is the precursor of acylceramide (Fig. S1 and Fig. S2B) (17). ALOX12B and ALOXE3 are required for the formation of protein-bound ceramides (13, 18). Other ARCI genes include the ATP-binding cassette (ABC) transporter ABCA12, the transglutaminase TGM1, NIPAL4 (NIPA-like domain containing 4)/ICHTHYIN, CYP4F22/FLJ39501, LIPN (lipase, family member N), and PNPLA1 (patatin-like phospholipase domain containing 1) (16, 19). The exact functions of NIPAL4, LIPN, and PNPLA1 are currently unclear. Causative genes of syndromic forms of ichthyosis also include a gene required for acylceramide synthesis: the FA elongase ELOVL4, which produces ULCFA-CoAs, the substrate of CERS3 (20).

Although acylceramide is essential for the epidermal barrier function, the mechanism behind acylceramide production is still poorly understood, leaving the molecular mechanisms behind epidermal barrier formation unclear. For example, acylceramide production requires ω-hydroxylation of the FA moiety of ceramide. However, the ω-hydroxylase responsible for this reaction was unidentified heretofore (Fig. S1). Here, we identified the cytochrome P450, family 4, subfamily F, polypeptide 22 (CYP4F22), also known as “FLJ39501,” as this missing FA ω-hydroxylase required for acylceramide production. CYP4F22 had been identified as one of the ARCI genes (21), although its function in epidermal barrier formation remained unsolved. Our findings clearly demonstrate a relationship between ARCI pathology, acylceramide levels, and ω-hydroxylase activity.

Results

Identification of CYP4F22 as the FA ω-Hydroxylase Required for ω-Hydroxyceramide Production.

Although researchers have long known that ω-hydroxylation is essential for acylceramide formation, they have puzzled over which gene is responsible for this reaction. To identify this gene, we first established a cell system that produced ULC-ceramides, a possible substrate of interest for ω-hydroxylase, because most cells cannot produce such extremely long ceramides. HEK 293T cells overproducing the FA elongase ELOVL4 and/or the ceramide synthase CERS3 were labeled with [³H]sphingosine, and the chain lengths of ceramides were determined by reverse-phase TLC. Although overexpression of either ELOVL4 or CERS3 alone did not result in the production of ULC-ceramides, their co-overproduction caused generation of ULC-ceramides with ≥C26 (Fig. 1A). They migrated more slowly than long-chain (LC; C16–C20) ceramides and very long-chain (VLC; C22–C24) ceramides on reverse-phase TLC. Production of ULC-ceramides with chain lengths up to C36 also was confirmed by LC-MS analysis (Fig. S3). When labeled lipids were separated by normal-phase TLC, ULC-ceramides were detected as a band at the adjacent, upper position of VLC-ceramides (Fig. 1B).

Fig. 1.

Overproduction of ELOVL4 and CERS3 causes generation of ULC-ceramides. HEK 293T cells were transfected with plasmids encoding 3xFLAG-ELOVL4 and 3xFLAG-CERS3, as indicated. Cells were labeled with [³H]sphingosine for 4 h at 37 °C. Lipids were extracted, separated by reverse-phase TLC (A) or normal-phase TLC (B), and detected by autoradiography. Cer, ceramide; GlcCer, glucosylceramide; SM, sphingomyelin; SPH, sphingosine.

Fig. S3.

MRM chromatogram of ceramides produced by combined ELOVL4 and CERS3 expression. Lipids were extracted from HEK 293T cells transfected with control vector (A) or pCE-puro 3xFLAG-ELOVL4 and pCE-puro 3xFLAG-CERS3 (B) or mouse epidermis (C) and subjected to UPLC/ESI-MS using a triple quadrupole mass spectrometer (Xevo TQ-S; Waters). Each ceramide was detected by MRM by setting the appropriate [M+H]⁺ and [M+H−H₂O]⁺ values at Q1 and m/z 264.2 (corresponding to C18:0 sphingosine) at Q3. Each MRM peak was overlaid using MassLynx software. Insets show enlarged views of the indicated areas of the original chromatograms.

It has been reported that the cytochrome P450 (CYP) inhibitor aminobenzotriazole inhibits the generation of ω-hydroxyceramide in cultured human keratinocytes (22). In humans, 57 CYP genes exist, and mammalian CYP genes are classified into 18 families and 43 subfamilies. Some CYP4F members are implicated in the ω-hydroxylation of long-chain FAs (23, 24), raising the possibility that certain CYP4F subfamily members are responsible for ω-hydroxylation of ULCFAs in acylceramide formation. To test this possibility, we cloned all the human CYP4F subfamily genes (CYP4F2, 3A, 3B, 8, 11, 12, and 22), and each was expressed as an N-terminally 3xFLAG-tagged protein in HEK 293T cells overproducing 3xFLAG-ELOVL4 and 3xFLAG-CERS3. All CYP4F subfamily proteins were expressed at similar levels (Fig. 2A). Among the CYP4F subfamily members, only CYP4F22 caused the disappearance of ULC-ceramide, which was concomitant with the production of a new band at the position of ω-hydroxyceramide (Fig. 2B and Fig. S4). LC-MS analysis determined that this band indeed represented ω-hydroxyceramides with C28–C36 (Fig. S5). Thus, CYP4F22 is the ω-hydroxylase required for ω-hydroxyceramide production.

Fig. 2.

CYP4F22 is involved in ω-hydroxyceramide synthesis. HEK 293T cells were transfected with plasmids encoding 3xFLAG-ELOVL4, 3xFLAG-CERS3, and 3xFLAG-CYP4F subfamily members, as indicated. (A) Total lysates prepared from the transfected cells were separated by SDS/PAGE, followed by immunoblotting with anti-FLAG antibodies. (B) Cells were labeled with [³H]sphingosine for 4 h at 37 °C. Lipids were extracted, separated by normal-phase TLC, and detected by autoradiography. Cer, ceramide; GlcCer, glucosylceramide; SM, sphingomyelin; SPH, sphingosine; ω-OH, ω-hydroxy.

Fig. S4.

TLC chromatogram of ceramides. The acylceramide EOS and ω-hydroxyceramide were prepared as follows. Lipids were prepared from mouse epidermis and separated by normal-phase TLC. Silica containing EOS ceramide was scraped from the TLC plate and eluted with chloroform/methanol (1:2, vol/vol). A portion of EOS ceramide was converted to ω-hydroxyceramide by hydrolysis of the ester bond connecting ω-hydroxyceramide and linoleic acid with 0.1 M NaOH. The prepared EOS ceramide and ω-hydroxyceramide, as well as C24:0 ceramide (Avanti Polar Lipids), C16:0 ceramide (Avanti Polar Lipids), and glucosylceramide (Avanti Polar Lipids), were separated by normal-phase TLC and visualized by cupric acetate/phosphoric acid staining. Cer, ceramide; GlcCer, glucosylceramide; ω-OH Cer, ω-hydroxyceramide.

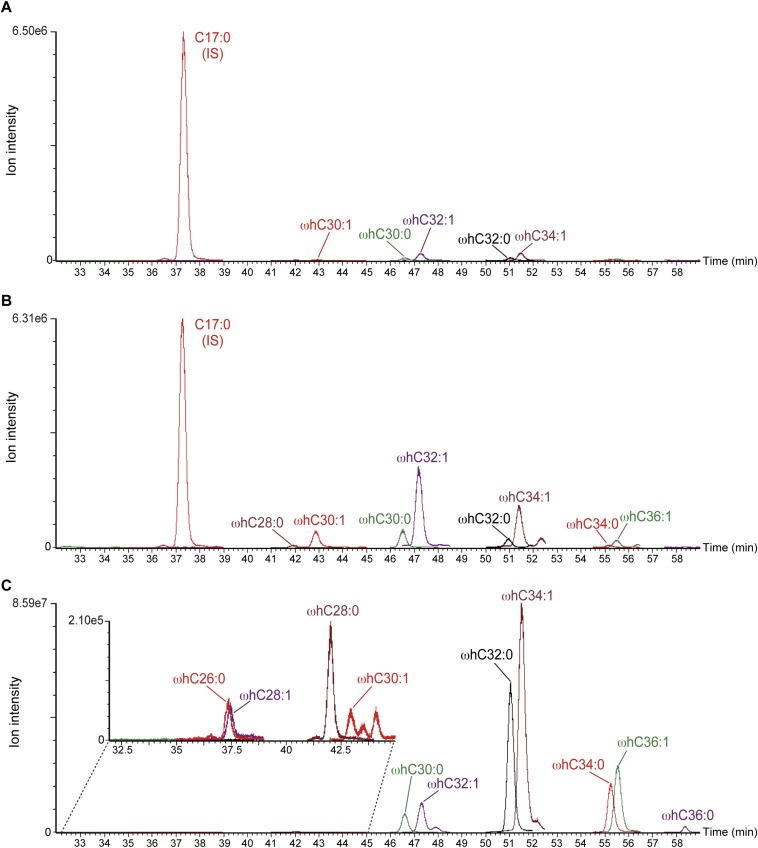

Fig. S5.

MRM chromatogram of ω-hydroxyceramide species produced by CYP4F22. Lipids were extracted from HEK 293T transfected with pCE-puro 3xFLAG-ELOVL4 and pCE-puro 3xFLAG-CERS3, together with control vector (A) or pCE-puro 3xFLAG-CYP4F22 (B). EOS from mouse epidermis was treated with an alkali to liberate ω-hydroxyceramides (C). Lipids were subjected to UPLC/ESI-MS. Each ceramide was detected by MRM by setting the appropriate [M+H]⁺ and [M+H−H₂O]⁺ values at Q1 and m/z 264.2 at Q3. Each MRM peak was overlaid using MassLynx software. ωhC30:1, ω-hydroxyceramide with a chain length of C30:1. IS, internal control (C17:0 ceramide). The Inset in C shows an enlarged large view of the indicated area of the original chromatogram.

Correlation Between CYP4F22 Activity and Ichthyosis Pathology.

Although the CYP4F22 gene has been identified as one of the ARCI-causative genes (21, 25), its function in epidermal barrier formation has remained unsolved. Five missense mutations, all of which cause amino acid substitutions (F59L, R243H, R372W, H435Y, and H436D), have been found in the CYP4F22 of patients with ichthyosis. To examine their role in ichthyosis pathology, we introduced these mutations into CYP4F22 and examined the ω-hydroxylase activity of the resultant mutant proteins. All mutant proteins were expressed at levels equivalent to the wild-type protein (Fig. 3A), and indeed all ω-hydroxylase activity of the mutant CYP4F22 proteins decreased to 4–20% of wild-type protein activity (Fig. 3B). Therefore, protein activity and ichthyosis pathology were nicely correlated.

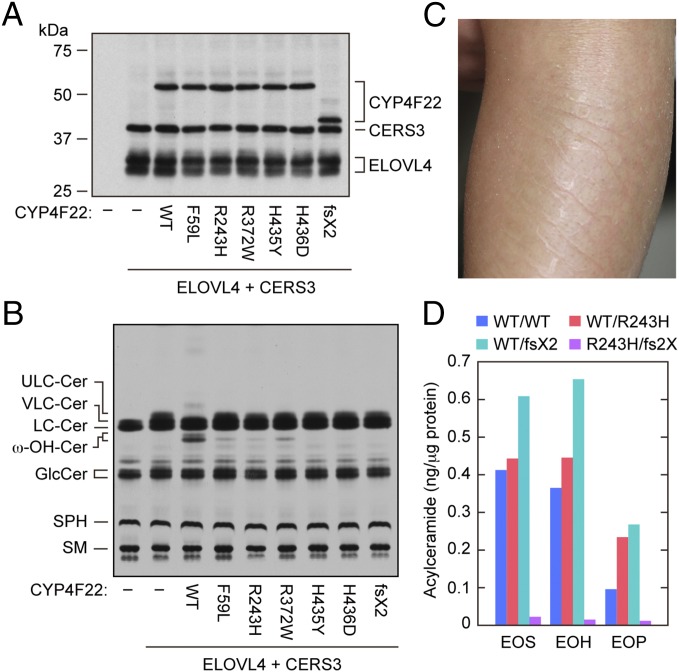

Fig. 3.

Hydroxylase activity of CYP4F22 is impaired by ichthyosis-causing mutations. (A and B) HEK 293T cells were transfected with plasmids encoding 3xFLAG-ELOVL4, 3xFLAG-CERS3, and 3xFLAG-CYP4F22 (wild type or mutant), as indicated. (A) Total cell lysates prepared from the transfected cells were separated by SDS/PAGE and subjected to immunoblotting with anti-FLAG antibodies. (B) The transfected cells were labeled with [³H]sphingosine for 4 h at 37 °C. Extracted lipids were separated by normal-phase TLC and detected by autoradiography. Cer, ceramide; GlcCer, glucosylceramide; SM, sphingomyelin; SPH, sphingosine; ω-OH, ω-hydroxy. (C) Representative clinical feature of a 2-y-old ARCI patient. Leaf-like flakes presented on the extensor side of the left lower limb before tape stripping. (D) Acylceramide (EOS, EOH, and EOP) levels in stratum corneum of a control (WT/WT), carriers (WT/R243H, the ichthyosis patient’s father, and WT/D380T fs2X (fs2X), the patient’s mother), and an ARCI patient (R243H/D380T fs2X) were measured by LC-MS.

Those points being noted, ichthyosis resulting from CYP4F22 mutation is quite rare. In fact, only ∼20 patients have been reported in Mediterranean populations (21), and only a single patient has been reported in Japan (25). The Japanese patient has compound heterozygous CYP4F22 mutations: One is a point mutation (c.728G→A) causing an amino acid substitution (p.R243H; R243H), and the other is a deletion (c.1138delG) causing a frame shift (p.D380TfsX2; D380TfsX2) in which Asp380 is replaced by Thr followed by a stop codon (25). The mutant R243H exhibited decreased activity as described above (Fig. 3B). We also introduced the c.1138delG mutation into CYP4F22 and examined the ω-hydroxylase activity of its truncated protein product. D380TfsX2 (predicted molecular mass, 44.8 kDa) migrated faster than the wild-type protein (62.0 kDa; Fig. 3A), and we found that it exhibited no activity (Fig. 3B).

To confirm our conclusion that CYP4F22 is involved in the production of acylceramide through ω-hydroxyceramide synthesis, we subjected the stratum corneum of the Japanese patient (Fig. 3C) and those of controls (her parents and a healthy volunteer) to LC-MS analysis and examined the levels of 11 major ceramide species. Although statistical analysis could not be performed because of the low number of samples, all three acylceramides containing sphingosine (EOS), 6-hydroxysphingsoine (EOH), and phytosphingosine (EOP) were apparently decreased in the ARCI patient to one tenth of the levels in controls (Fig. 3D and Table S1). Instead, the nonacylated ceramides NS (which is a combination of sphingosine and a nonhydroxylated FA) and AS (which is a combination of sphingosine and an α-hydroxylated FA) seemed to be increased (Table S1). These results confirm that ω-hydroxyceramide production by CYP4F22 is indeed required for acylceramide synthesis.

Table S1.

Ceramide levels in the stratum corneum

Ceramide class	Ceramide level, ng/μg protein
	Control	Patient	Mother	Father
NDS	1.10	0.82	2.63	2.17
NS	1.94	3.58	5.16	3.34
NH	3.21	1.82	6.55	4.27
NP	5.07	2.06	12.77	9.07
ADS	0.64	0.46	0.81	0.90
AS	1.36	4.20	3.18	2.61
AH	2.64	2.94	4.53	4.88
AP	2.59	2.33	4.57	7.51
EOS	0.41	0.02	0.61	0.44
EOH	0.37	0.02	0.65	0.45
EOP	0.10	0.01	0.27	0.24
Total	19.44	18.26	41.73	35.86

Control, wild type; patient, R243H/D380T fs2X; patient’s mother, WT/D380T fs2X; patient’s father, WT/R243H.

CYP4F22 Is a Type I Endoplasmic Reticulum Membrane Protein.

We next examined the subcellular localization of CYP4F22 by subjecting 3xFLAG-tagged CYP4F22 to indirect immunofluorescence microscopy (Fig. 4A). 3xFLAG-CYP4F22 exhibited a reticular localization pattern and was colocalized with calnexin, HA-ELOVL4, and HA-CERS3, all of which are endoplasmic reticulum (ER) proteins, indicating that CYP4F22 is localized in the ER. A hydropathy plot showed that CYP4F22 contains a highly hydrophobic region at the N terminus as well as some weak hydrophobic stretches (Fig. 4B). To reveal the membrane topology of CYP4F22, we introduced an N-glycosylation cassette, which is N-glycosylated when exposed to the lumen of the ER, into several positions of CYP4F22: the N terminus, E85/K (between Glu85 and Lys86 residues), H155/R, A285/L, C361/R, D455/N, and R508/K. Of these fusion proteins, only CYP4F22 containing the N-glycosylation cassette at the N terminus received glycosylation, because the shift in molecular weight was observed upon treatment with endoglycosidase H (Fig. 4C). This result indicates that CYP4F22 spans the ER membrane once. Furthermore, it oriented its N terminus to the ER lumen and oriented the large, hydrophilic C-terminal domain containing the active site to the cytosolic side of the ER membrane. The same membrane topology was determined for other CYP members by the detection of N-terminal N-glycosylation (26, 27).

Fig. 4.

CYP4F22 is a type I ER membrane protein. (A, D, and E) HeLa cells were transfected with plasmids encoding HA-ELOVL4, HA-CERS3, 3xFLAG-CYP4F22, and 3xFLAG-CYP4F22ΔN (CYP4F22 lacking 54 N-terminal amino acids), as indicated. (A and D) Cells were subjected to indirect immunofluorescence microscopic observation. (Scale bars, 10 μm.) (B) The hydrophilicity of CYP4F22 was analyzed by MacVector software (MacVector) using the Kyte and Doolittle algorithm (window size, 15). (C) HEK 293T cells were transfected with pCE-puro 3xFLAG-CYP4F22, pCE-puro 3xFLAG-CYP4F22 (N-term: insertion of the N-glycosylation cassette to the N terminus), pCE-puro 3xFLAG-CYP4F22 (E85/K: insertion of the cassette between Glu-85 and Lys-86), pCE-puro 3xFLAG-CYP4F22 (H155/R), pCE-puro 3xFLAG-CYP4F22 (A285/L), pCE-puro 3xFLAG-CYP4F22 (C361/R), pCE-puro 3xFLAG-CYP4F22 (D455/N), or pCE-puro 3xFLAG-CYP4F22 (R508/K). Lysates (3 μg) prepared from transfected cells were treated with or without endoglycosidase H (Endo H) and were separated by SDS/PAGE, followed by immunoblotting with anti-FLAG antibodies. (E) Total cell lysates (10 μg) were centrifuged at 100,000 × g for 30 min at 4 °C. The resulting supernatant (soluble fraction, S) and pellet (membrane fraction, M) were subjected to immunoblotting using anti-FLAG, anti-calnexin (membrane protein marker) or anti-GAPDH (soluble protein marker) antibodies. IB, immunoblotting. (F) HEK 293T cells transfected with plasmids encoding 3xFLAG-ELOVL4, 3xFLAG-CERS3, and 3xFLAG-CYP4F22 [wild type or CYP4F22ΔN (ΔN)], as indicated, were labeled with [³H]sphingosine for 4 h at 37 °C. Lipids were extracted, separated by normal-phase TLC, and detected by autoradiography. Cer, ceramide; GlcCer, glucosylceramide; SM, sphingomyelin; SPH, sphingosine; ω-OH, ω-hydroxy.

When the N-terminal hydrophobic region was removed, the resulting CYP4F22ΔN became distributed throughout the cytoplasm (Fig. 4D). CYP4F22ΔN was fractionated into both soluble and membrane fractions by ultracentrifugation, in contrast to full-length CYP4F22, which was detected only in the membrane fraction (Fig. 4E). These results confirmed that CYP4F22 is a type I ER membrane protein. CYP4F22ΔN could not produce ω-hydroxyceramide (Fig. 4F), suggesting that anchoring to the ER membrane, where all the reactions of acylceramide synthesis occur, is crucial for the CYP4F22 function.

ULCFAs Are Substrates of CYP4F22.

It was still unclear whether CYP4F22 introduces an ω-hydroxyl group into ULCFAs before or after the formation of ceramide. Therefore, we examined ω-hydroxy FA levels using LC-MS in the presence of the ceramide synthase inhibitor fumonisin B₁. If ω-hydroxylation occurs before ceramide production, it was expected that free ω-hydroxy FA levels should be increased with fumonisin B₁ treatment. We found that ω-hydroxy FA levels with C26–C36 were increased significantly by the addition of fumonisin B₁ (Fig. 5A), suggesting that ω-hydroxylation occurs before ceramide production. Thus, it is highly likely that the substrates of CYP4F22 are not ceramides but rather are FAs, the same type of substrate catalyzed by other CYP4F family members.

Fig. 5.

CYP4F22 hydroxylates ULCFAs. (A) Keratinocytes were differentiated for 7 d in the presence or absence of 10 μM fumonisin B₁. Lipids were extracted, treated with an alkali, and derivatized to AMPP amides. Derivatized FAs were analyzed by a Xevo TQ-S LC/MS system and quantified by MassLynx software. Statistically significant differences are indicated; *P < 0.05, **P < 0.01; t test. hC26:0, hydroxy C26:0 FA. (B) Total membrane fractions (50 μg) prepared from BY4741 bearing the pAK1017 (vector) or pNS29 (His₆-Myc-3xFLAG-CYP4F22) plasmids were incubated with 10 μM C30:0 FA and 1 mM NADPH as indicated for 1 h at 37 °C. Lipids were extracted, derivatized to AMPP amides, and analyzed as in A. The values represent the amount of each FA ω-hydroxylase activity relative to that of the vector/−NADPH sample. The value of the CYP4F22/+NADPH sample was statistically different from the values of all other samples (**P < 0.01; t test). hC30:0, hydroxy C30:0 FA. (C and D) HEK 293T cells were transfected with the plasmids encoding ELOVL1 or ELOVL4, CERS2 or CERS3, and CYP4F22. Transfected cells were labeled with [³H]sphingosine for 4 h at 37 °C. Extracted lipids were separated by reverse-phase TLC (C) or by normal-phase TLC (D) and detected by autoradiography. Cer, ceramide; GlcCer, glucosylceramide; SM, sphingomyelin; SPH, sphingosine; ω-OH, ω-hydroxy.

To confirm that the substrates of CYP4F22 are FAs, we performed an in vitro analysis using yeast, which has no endogenous FA ω-hydroxylase activity. When C30:0 FA was used as a substrate, the total membrane fractions prepared from yeast bearing a vector plasmid exhibited FA ω-hydroxylase activity only at background levels (Fig. 5B). On the other hand, the ectopic expression of human CYP4F22 resulted in the production of ω-hydroxy FA in an NADPH-dependent manner (Fig. 5B). The hydroxylation reactions by CYP generally require O₂ and NADPH. These results indicated that the substrates of CYP4F22 are indeed FAs.

Acylceramide specifically contains ULCFA (mostly C28–C36) as its FA component. It is possible that the substrate preference of CYP4F22 determines the FA chain length of acylceramides. To examine this possibility, we prepared HEK 293T cells producing different sets of ceramides with specific chain lengths by introducing particular combinations of ceramide synthase and FA elongase (ELOVL1 and CERS2, C22–C24 ceramides; ELOVL1 and CERS3, C26 ceramide; and ELOVL4 and CERS3, ≥C26 ceramides) (Fig. 5C) (28, 29). Mammals have six ceramide synthases (CERS1–6) and seven FA elongases (ELOVL1–7), and each exhibits characteristic substrate specificity (Fig. S2B) (2, 4, 5, 28). When CYP4F22 was expressed in these cells producing different ceramide species, ω-hydroxyceramides were produced in cells producing C26 ceramide (ELOVL1/CERS3 combination) and ≥C26 ceramides (the ELOVL4/CERS3 combination) but not in cells producing C22–C24 ceramides (the ELOVL1/CERS2 combination) (Fig. 5D). These results suggest that CYP4F22 can ω-hydroxylate ULCFAs (≥C26) but not VLCFAs (C22 and C24). The levels of ω-hydroxyceramide produced in ELOVL1/CERS3 cells were similar to those in ELOVL4/CERS3 cells, although the levels of nonhydroxyceramide substrates were much higher in ELOVL1/CERS3 cells (Fig. 5C). Thus, CYP4F22 exhibits especially high activity toward ULCFAs with ≥C28.

Discussion

Here we identified CYP4F22 as an ULCFA ω-hydroxylase involved in acylceramide production. Acylceramide is quite important for epidermal barrier formation, and impairment of its production (e.g. by ELOVL4 and CERS3 mutations) causes ichthyosis (15, 20). CYP4F22 was first identified as an ARCI-causative gene by Fischer and her coworkers (21). They proposed that CYP4F22 and most other ichthyosis-causative genes are involved in a metabolic pathway producing 12-lipoxygenase products (hepoxilins and trioxilins) from arachidonic acid by analogy to the 5-lipoxygenase pathway creating leukotrienes. In their scenario, arachidonic acid is first converted to 12(R)-hydroperoxyeicosatetraenoic acid [12(R)-HPETE] by one of the ichthyosis gene products, ALOX12B, and then to 12(R)-hepoxilin A₃ by another ichthyosis gene product, ALOXE3. 12(R)-Hepoxilin A₃ is further converted to a triol compound, 12(R)-trioxilin A₃. CYP4F22 was proposed to be involved in the metabolism of 12(R)-trioxilin A₃ by converting 12(R)-trioxilin A₃ to 20-hydroxy-12(R)-trioxilin A₃. However, the exact roles of hepoxilins and trioxilins in epidermal barrier formation and/or keratinocyte differentiation are still unclear. Furthermore, recent findings have demonstrated that ALOX12B and ALOXE3 are involved in the reactions necessary for conversion of acylceramide to protein-bound ceramide, i.e., peroxidation of the linoleate moiety and subsequent epoxyalcohol derivatization (13). In addition, ALOX12B was proven not to be involved in hepoxilin/trioxilin production (30). These findings suggest that, although hepoxilin/trioxilin metabolism may not be relevant to the pathogenesis of ichthyosis, the impairment of acylceramide/protein-bound ceramide formation causes ichthyosis. Based on these recent findings, some researchers have predicted that CYP4F22 is involved in acylceramide generation (3, 31), but until now their suppositions have lacked experimental evidence.

We determined the membrane topology of CYP4F22 (Fig. 4C), which indicates that the large C-terminal hydrophilic domain including catalytic residues is located in the cytosol. Therefore, ω-hydroxylation of the ULCFA portion of acylceramide must occur on the cytosolic side of the ER membrane. Based on this finding, we propose a working model for the process of acylceramide production in the ER membrane as follows (Fig. S6). Elongation of palmitoyl-CoA to ULCFA-CoA occurs on the cytoplasmic side of the ER membrane. Because lipids comprising the ER membrane are mostly C16 and C18, ULCFA (C28–C36) portions of ULCFA-CoAs should be bent in the cytosolic leaflet of the ER membrane (Fig. S6) or should penetrate into the luminal leaflet. Although the latter possibility cannot be excluded, we prefer the former, because in the latter model ULCFA must flip-flop at least three times in the ER membrane in the course of acylceramide production. Because the substrates of CYP4F22 are ULCFAs (Fig. 5), ULCFA-CoAs should be converted to ULCFAs before ω-hydroxylation. After ω-hydroxylation of ULCFAs by CYP4F22, the resulting ω-hydroxy-ULCFA is converted to ω-hydroxy-ULCFA-CoA by acyl-CoA synthetase. ACSVL4/FATP4 is the candidate acyl-CoA synthetase for this reaction, because Acsvl4-mutant mice exhibited skin barrier defects (32). CERS3 catalyzes the formation of ω-hydroxyceramide from ω-hydroxy-ULCFA-CoA and LCB. An unknown acyltransferase then introduces linoleic acid into the ω-hydroxy group of ω-hydroxyceramide, generating acylceramide.

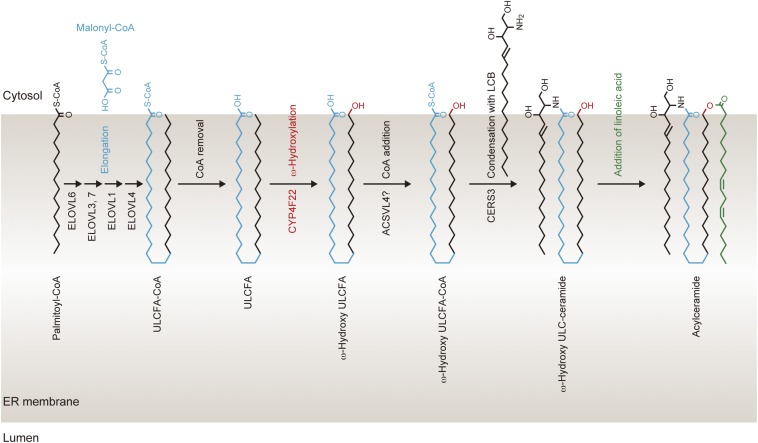

Fig. S6.

Working model for the acylceramide synthesis in the ER. Palmitoyl-CoA is elongated to ULCFA-CoA on the cytosolic side of the ER membrane. During FA elongation, ULCFA (C30–C36) portions of ULCFA-CoAs may be bent in the cytosolic leaflet of the ER membrane. After conversion of ULCFA-CoA to ULCFA, the ω-carbon of ULCFA is hydroxylated by CYP4F22. ω-Hydroxy-ULCFA then is converted to ω-hydroxy-ULCFA-CoA by acyl-CoA synthetase, followed by synthesis of ω-hydroxyceramide by CERS3. Finally, an acyltransferase catalyzes the formation of an ester bond between linoleic acid and the ω-hydroxy group of ω-hydroxyceramide, producing acylceramide.

Our results presented here demonstrate, for the first time to our knowledge, that CYP4F22 is a bona fide ULCFA ω-hydroxylase required for acylceramide production. Our findings provide important insights into the molecular mechanisms of skin permeability barrier formation. Future development of compounds that strengthen the skin permeability barrier by increasing acylceramide-synthetic proteins such as ELOVL4, CERS3, and CYP4F22 may be useful for treatment of cutaneous disorders including ichthyosis and atopic dermatitis.

Materials and Methods

Details of the materials and methods used for all procedures are given in SI Materials and Methods.

Ethics.

Stratum corneum was obtained from an ARCI patient (a 2-y-old girl) (25), carriers (her parents) (mother, 35 y old, c.1138delG; father, 39 y old, c.728G→A), and a healthy control (an 11-y-old girl). This study was approved by the ethical committees of Nagoya University Graduate School of Medicine and the Kao Corporation. Informed consent was obtained from all participants after the procedures had been explained. Informed consents for the girls were obtained from their parents.

Plasmids.

Human CYP4F subfamily genes and the human CERS3 gene were amplified by PCR using their respective forward and reverse primers listed in Table S2. The amplified DNAs first were cloned into pGEM-T Easy Vector (Promega) and then were transferred to the pCE-puro 3xFLAG-1 plasmid, a mammalian expression vector designed to produce an N-terminal 3xFLAG-tagged protein.

Table S2.

Primers used in this study

Primer	Sequence
CYP4F2-F	5′-GGATCCATGTCCCAGCTGAGCCTGTCCTGG-3′
CYP4F2-R	5′-TCAGCTCAGGGGCTCCACCCGCAGC-3′
CYP4F3-F	5′-AGATCTATGCCACAGCTGAGCCTGTCCTCGC-3′
CYP4F3-R	5′-TCAGCTCAGGGGCTCCACCCGCAGC-3′
CYP4F11-F	5′-AGATCTATGCCGCAGCTGAGCCTGTCCTGGC-3′
CYP4F11-R	5′-TCACTGTGAGTTCGCACCCAGGGGC-3′
CYP4F12-F	5′-AGATCTATGTCGCTGCTGAGCCTGCCCTGGC-3′
CYP4F12-R	5′-TCACTGCAAGCTTACATTCAGGGGC-3′
CYP4F8-F	5′-GGATCCATGTCGCTGCTGAGCCTGTCTTGGC-3′
CYP4F8-R	5′-TCAGCCCAGGGGTTCTACTCGCAGC-3′
CYP4F22-F	5′-GGATCCATGCTGCCCATCACAGACCGCCTGC-3′
CYP4F22-R	5′-TCAGGCCCGCGGAGGCAGCGGCTCC-3′
CERS2-F	5′-TGTCGACATGCTCCAGACCTTGTATGATTACTTC-3′
CERS2-R	5′-TCAGTCATTCTTACGATGGGTTGTATTG-3′
CERS3-F	5′-GGATCCATGTTTTGGACGTTTAAAGAATGGTTC-3′
CERS3-R	5′-CTAATGGCCATGCTGGCCATTGGGAAT-3′
F59L-F	5′-GCGGCTGCGCTGCTTGCCCCAGCCTCCCCGG-3′
F59L-R	5′-CCGGGGAGGCTGGGGCAAGCAGCGCAGCCGC-3′
R243H-F	5′-GCTGTCTGTCCGGCACCAGTATCGCTTGCAC-3′
R243H-R	5′-GTGCAAGCGATACTGGTGCCGGACAGACAGC-3′
R372W-F	5′-GAAGTCATGAAAGGCTGGGAGCTGGAGGAGC-3′
R372W-R	5′-GCTCCTCCAGCTCCCAGCCTTTCATGACTTC-3′
H435Y-F	5′-CAGCATCTATGGAACCTACCACAACCCCACAG-3′
H435Y-R	5′-CTGTGGGGTTGTGGTAGGTTCCATAGATGCTG-3′
H436D-F	5′-CATCTATGGAACCCACGACAACCCCACAGTG-3′
H436D-R	5′-CACTGTGGGGTTGTCGTGGGTTCCATAGATG-3′
D380T fsX2-F	5′-GAGCTGGAGGAGCTGGAGTGGACGATCTGACTCAGCTGCCC-3′
D380T fsX2-R	5′-GGGCAGCTGAGTCAGATCGTCCACTCCAGCTCCTCCAGCTC-3′
T-E85/K-F	5′-GAGGCGGGCCTTCAAGATGAGGGATCCAAGAAGGTACTGGACAACATG-3′
T-E85/K-R	5′-CATGTTGTCCAGTACCTTCTTGGATCCCTCATCTTGAAGGCCCGCCTC-3′
T-H155/R-F	5′-GGTGACAAGTGGAGCCGGCACGGATCCCGTCGCCTGCTGACACCCGCC-3′
T-H155/R-R	5′-GGCGGGTGTCAGCAGGCGACGGGATCCGTGCCGGCTCCACTTGTCACC-3′
T-A285/L-F	5′-CCAGGAACGGCGGCGGGCAGGATCCCTGCGTCAGCAGGGGGCCGAG-3′
T-A285/L-R	5′-CTCGGCCCCCTGCTGACGCAGGGATCCTGCCCGCCGCCGTTCCTGG-3′
T-C361/R-F	5′-CCGGAATACCAGGAGAAATGCGGATCCCGAGAAGAGATTCAGGAAGTC-3′
T-C361/R-R	5′-GACTTCCTGAATCTCTTCTCGGGATCCGCATTTCTCCTGGTATTCCGG-3′
T-D455/N-F	5′-CCCTACCGCTTTGACCCGGACGGATCCAACCCACAGCAGCGCTCTCC-3′
T-D455/N-R	5′-GGAGAGCGCTGCTGTGGGTTGGATCCGTCCGGGTCAAAGCGGTAGGG-3′
T-R508/K-F	5′-CGAACGCGCAAGGTGCGGCGGGGATCCAAGCCGGAGCTCATACTGCGC-3′
T-R508/K-R	5′-GCGCAGTATGAGCTCCGGCTTGGATCCCCGCCGCACCTTGCGCGTTCG-3′

[³H]Sphingosine Labeling Assay.

Cells were labeled with 2 μCi [3-³H]sphingosine (20 Ci/mmol; PerkinElmer Life Sciences) for 4 h at 37 °C. Lipids were extracted as described previously (28, 33) and separated by normal-phase TLC and reverse-phase TLC.

Lipid Analysis Using LC-MS.

FAs and ceramides prepared from cultured cells were analyzed by reversed-phase LC/MS using ultra-performance liquid chromatography (UPLC) coupled with electrospray ionization (ESI) tandem triple quadrupole MS (Xevo TQ-S; Waters). Each ceramide species was detected by multiple reaction monitoring (MRM) by selecting the m/z ([M−H₂O+H]⁺ and [M+H]⁺) of specific ceramide species at Q1 and the m/z 264.2 at Q3 (Table S3). FAs were analyzed after derivatization to N-(4-aminomethylphenyl)pyridinium (AMPP) amides using the AMP⁺ Mass Spectrometry Kit (Cayman Chemical). Hydroxy FA species were detected by MRM by selecting the m/z ([M+H]⁺) of the derivatized hydroxy FA species at Q1 and the m/z 238.9 at Q3, corresponding to the fragment cleaved between C3 and C4 of derivatized FAs (Table S3). Stratum corneum ceramides were analyzed by reversed-phase LC/MS using the Agilent 1100 Series LC/MSD SL system (Agilent Technologies). Each ceramide species was detected by selected ion monitoring as m/z [M+CH₃COO]⁻ (Table S4).

Table S3.

Selected m/z values for ceramide and FA species in MS analysis

Lipid species	Precursor ion, Q1	Product ion, Q3	Collision energy, V
d18:1/C16:0 Cer	520.2, 538.2	264.2	20
d18:1/C18:0 Cer	548.2, 566.2	264.2	20
d18:1/C20:0 Cer	576.3, 594.3	264.2	20
d18:1/C22:0 Cer	604.3, 622.3	264.2	25
d18:1/C24:1 Cer	630.3, 648.3	264.2	25
d18:1/C24:0 Cer	632.3, 650.3	264.2	30
d18:1/C26:1 Cer	658.4, 676.4	264.2	30
d18:1/C26:0 Cer	660.4, 678.4	264.2	30
d18:1/C28:1 Cer	686.4, 704.4	264.2	30
d18:1/C28:0 Cer	688.4, 706.4	264.2	30
d18:1/C30:1 Cer	714.4, 732.4	264.2	35
d18:1/C30:0 Cer	716.4, 734.4	264.2	35
d18:1/C32:1 Cer	742.5, 760.5	264.2	35
d18:1/C32:0 Cer	744.5, 762.5	264.2	40
d18:1/C34:1 Cer	770.5, 788.5	264.2	40
d18:1/C34:0 Cer	772.5, 790.5	264.2	40
d18:1/C36:1 Cer	798.5, 816.5	264.2	45
d18:1/C36:0 Cer	800.5, 818.5	264.2	45
d18:1/ωhC24:0 Cer	648.3, 666.3	264.2	30
d18:1/ωhC26:1 Cer	674.4, 692.4	264.2	30
d18:1/ωhC26:0 Cer	676.4 694.4	264.2	30
d18:1/ωhC28:1 Cer	702.4, 720.4	264.2	30
d18:1/ωhC28:0 Cer	704.2, 722.4	264.2	30
d18:1/ωhC30:1 Cer	730.4, 748.4	264.2	35
d18:1/ωhC30:0 Cer	732.4, 750.4	264.2	35
d18:1/ωhC32:1 Cer	758.5, 776.5	264.2	35
d18:1/ωhC32:0 Cer	760.5, 778.5	264.2	40
d18:1/ωhC34:1 Cer	786.5, 804.5	264.2	40
d18:1/ωhC34:0 Cer	788.5, 806.5	264.2	40
d18:1/ωhC36:1 Cer	814.5, 832.5	264.2	40
d18:1/ωhC36:0 Cer	816.5, 834.5	264.2	40
ωhC26:1 FA	577.2	238.9	55
ωhC26:0 FA	579.2	238.9	55
ωhC28:1 FA	605.2	238.9	55
ωhC28:0 FA	607.2	238.9	55
ωhC30:1 FA	633.2	238.9	60
ωhC30:0 FA	635.2	238.9	60
ωhC32:1 FA	661.2	238.9	60
ωhC32:0 FA	663.2	238.9	60
ωhC34:1 FA	689.2	238.9	60
ωhC34:0 FA	691.2	238.9	60
ωhC36:1 FA	717.2	238.9	60
ωhC36:0 FA	719.2	238.9	60

Cer, ceramide; ωh, ω-hydroxy.

Table S4.

Selected m/z values for ceramide species in the MS analysis of the stratum corneum of human subjects

m/z value	Ceramide species
570.5	NDS C32
584.5	NDS C33	NH C32	AS C32
598.5	NDS C34	NH C33	AS C33
612.5	NDS C35	NH C34	AS C34
626.5	NDS C36	NH C35	AS C35
640.5	NDS C37	NH C36	AS C36
654.5	NDS C38	NH C37	AS C37
668.6	NDS C39	NH C38	AS C38
682.6	NDS C40	NH C39	AS C39
696.6	NDS C41	NH C40	AS C40
710.6	NDS C42	NH C41	AS C41
724.6	NDS C43	NH C42	AS C42
738.6	NDS C44	NH C43	AS C43
752.6	NDS C45	NH C44	AS C44
766.7	NDS C46	NH C45	AS C45
780.7	NDS C47	NH C46	AS C46
794.7	NDS C48	NH C47	AS C47
808.7	NDS C49	NH C48	AS C48
822.7	NDS C50	NH C49	AS C49
836.7	NDS C51	NH C50	AS C50
850.7	NDS C52	NH C51	AS C51
864.8	NDS C53	NH C52	AS C52
878.8	NDS C54	NH C53	AS C53
892.8		NH C54	AS C54
602.5	AP C32
616.5	AP C33
630.5	AP C34
644.5	AP C35
658.5	AP C36
672.6	AP C37
686.6	AP C38
700.6	AP C39
714.6	AP C40
728.6	AP C41
742.6	AP C42
756.6	AP C43
770.7	AP C44
784.7	AP C45
798.7	AP C46
812.7	AP C47
826.7	AP C48
840.7	AP C49
854.7	AP C50
868.8	AP C51
882.8	AP C52
896.8	AP C53
910.8	AP C54
568.5	NS C32
582.5	NS C33
596.5	NS C34
610.5	NS C35
624.5	NS C36
638.5	NS C37
652.5	NS C38
666.6	NS C39
680.6	NS C40
694.6	NS C41
708.6	NS C42
722.6	NS C43
736.6	NS C44
750.6	NS C45
764.7	NS C46
778.7	NS C47
792.7	NS C48
806.7	NS C49
820.7	NS C50
834.7	NS C51
848.7	NS C52
862.8	NS C53
876.8	NS C54
586.5	NP C32	ADS C32
600.5	NP C33	ADS C33	AH C32
614.5	NP C34	ADS C34	AH C33
628.5	NP C35	ADS C35	AH C34
642.5	NP C36	ADS C36	AH C35
656.5	NP C37	ADS C37	AH C36
670.6	NP C38	ADS C38	AH C37
684.6	NP C39	ADS C39	AH C38
698.6	NP C40	ADS C40	AH C39
712.6	NP C41	ADS C41	AH C40
726.6	NP C42	ADS C42	AH C41
740.6	NP C43	ADS C43	AH C42
754.6	NP C44	ADS C44	AH C43
768.7	NP C45	ADS C45	AH C44
782.7	NP C46	ADS C46	AH C45
796.7	NP C47	ADS C47	AH C46
810.7	NP C48	ADS C48	AH C47
824.7	NP C49	ADS C49	AH C48
838.7	NP C50	ADS C50	AH C49
852.7	NP C51	ADS C51	AH C50
866.8	NP C52	ADS C52	AH C51
880.8	NP C53	ADS C53	AH C52
894.8	NP C54	ADS C54	AH C53
908.8			AH C54
1072.9	EODS C66
1086.9	EODS C67	EOH C66
1100.9	EODS C68	EOH C67
1114.9	EODS C69	EOH C68
1128.9	EODS C70	EOH C69
1142.9	EODS C71	EOH C70
1156.9	EODS C72	EOH C71
1170.9		EOH C72
1070.9	EOS C66
1084.9	EOS C67
1098.9	EOS C68
1112.9	EOS C69
1126.9	EOS C70
1140.9	EOS C71
1154.9	EOS C72
1088.9	EOP C66
1102.9	EOP C67
1116.9	EOP C68
1130.9	EOP C69
1144.9	EOP C70
1158.9	EOP C71
1172.9	EOP C72

Immunoblotting.

Immunoblotting was performed as described previously (34, 35) using anti-FLAG M2 (1.85 μg/mL) (Sigma), anti-calnexin 4F10 (1 μg/mL) (Medical & Biological Laboratories), or anti-GAPDH 6C5 (1 μg/mL; Ambion, Life Technologies) antibody as a primary antibody and an HRP-conjugated anti-mouse IgG F(ab’)₂ fragment (1:7,500 dilution; GE Healthcare Life Sciences) as a secondary antibody. Labeling was detected using Pierce ECL Western Blotting Substrate (Thermo Fisher Scientific).

SI Materials and Methods

Cell Culture and Transfection.

HeLa and HEK 293T cells were cultured in DMEM (Sigma) supplemented with 10% FBS, 100 U/mL penicillin, and 100 μg/mL streptomycin. HEK 293T cells were grown in dishes precoated with 0.3% collagen. Transfections were performed using Lipofectamine Reagent and Plus Reagent (Life Technologies), according to the manufacturer's protocols. Normal human epidermal keratinocytes isolated from juvenile donors were purchased from CELLnTEC and grown in PCT Epidermal Keratinocyte Medium (CELLnTEC). Keratinocyte differentiation was induced by exchanging the medium to Epidermal Keratinocyte 3D Prime Medium (CELLnTEC) after the cell confluency reached ≥80%.

The Saccharomyces cerevisiae strain BY4741 (MATa his3Δ1 leu2Δ0 met15Δ0 ura3Δ0) (36) was used. Cells were grown in synthetic complete (SC) medium (0.67% yeast nitrogen base and 2% d-glucose) containing 0.5% casamino acids, 20 mg/mL adenine, and 20 mg/mL tryptophan but lacking uracil (SC-URA).

Plasmids.

The pCE-puro 3xFLAG-ELOVL4 plasmid encoding N-terminally 3xFLAG-tagged ELOVL4 has been described previously (29). Human CYP4F subfamily genes and the human CERS3 gene were amplified by PCR using their respective forward and reverse primers listed in Table S2. The amplified DNAs first were cloned into pGEM-T Easy Vector (Promega) and then were transferred to the pCE-puro 3xFLAG-1 plasmid, a mammalian expression vector designed to produce an N-terminal 3xFLAG-tagged protein. The CYP4F22 gene was also transferred to the pAK1017 plasmid (URA3 marker, CEN), a yeast expression vector designed to produce an N-terminal, tandemly oriented His₆-, Myc-, and 3xFLAG-tagged protein under the control of the TDH3 (glyceraldehyde 3-phosphate dehydrogenase) promoter, creating the pNS29 plasmid. Ichthyosis mutations were introduced into the CYP4F22 gene using the QuikChange Site-Directed Mutagenesis Kit (Agilent Technologies), using the primers described in Table S2. The N-glycosylation site cassette was inserted into the CYP4F22 gene as described previously (37), using the T (topology)-series primers listed in Table S2.

[³H]Sphingosine Labeling Assay.

HEK 293T cells were transfected with appropriate plasmids. Twenty-four hours after transfection, cells were labeled for 4 h at 37 °C with 2 μCi [3-³H]sphingosine (20 Ci/mmol; PerkinElmer Life Sciences). Cells were washed twice with 1 mL of PBS and suspended in 100 μL of PBS. Lipids were extracted by successive addition and mixing of 375 μL of chloroform/methanol/HCl (100:200:1, vol/vol/vol), 125 μL of chloroform, and 125 μL of 1% KCl. Phases were separated by centrifugation (20,000 × g at room temperature for 3 min), after which the organic (lower) phase was recovered, dried, and subjected to normal-phase TLC (Silica Gel 60 TLC plates; Merck Millipore) with the following solvent systems: (i) chloroform/methanol/water (40:10:1, vol/vol/vol), developed to 2 cm from the bottom of the TLC plate, dried, and then developed again to 5 cm from the bottom; (ii) chloroform/methanol/acetic acid (47:2:0.5, vol/vol/vol), developed to the top; and (iii) hexane/diethylether/acetic acid (65:35:1, vol/vol/vol), developed to the top twice. Labeled lipids were visualized by spraying the plate with a fluorographic reagent [2.8 mg/mL 2,5-diphenyl-oxazole in 2-methylnaphthalene/1-buthanol (1:3.3, vol/vol)]. The TLC plate was exposed to X-ray film at −80 °C.

For reverse-phase TLC analysis, extracted lipids were suspended in 150 μL of 90% methanol and mixed with 150 μL of hexane. Methanol/water and hexane phases were separated by centrifugation, and the hexane (upper) phase was recovered. After hexane extraction was repeated three times, the extracted lipids were combined, dried, and suspended in chloroform/methanol (2:1, vol/vol). Lipids were separated by reverse-phase TLC with Silica Gel 60 RP-18 F254s TLC plates (Merck Millipore) with chloroform/methanol/water (15:15:2, vol/vol/vol) and detected as described above.

Lipid Analysis by MS.

To examine ceramide and FA species prepared from cultured cells, lipids were analyzed by UPLC coupled with ESI tandem triple quadrupole MS (Xevo TQ-S; Waters). Cells were washed twice with 1 mL of PBS, suspended in 1 mL of PBS, and detached from culture dishes by pipetting. Cell suspensions were transferred to silicon-coated plastic tubes. After centrifugation (400 × g at room temperature for 3 min), cells were suspended in 100 μL of PBS, followed by the successive addition and mixing of 375 μL of chloroform/methanol/12 M formic acid (100:200:1, vol/vol/vol), 2 μL of 25 μM C17:0 ceramide (internal standard; Avanti Polar Lipids), 125 μL of chloroform, and 125 μL of water. After centrifugation (9,000 × g at room temperature for 1 min), the organic phase was recovered and dried. Lipids were suspended in 200 μL of chloroform/methanol (1:2, vol/vol) and were mixed with 6 μL of 4 M KOH. After incubation for 1 h at 37 °C, lipids were mixed with 7 μL of 4 M formic acid, 66.6 μL of chloroform, and 133.3 μL of water. After centrifugation (9,000 × g at room temperature for 1 min), the organic phase was recovered, dried, and dissolved in 50 μL of chloroform/methanol (1:1, vol/vol). As controls, epidermal lipids were prepared from mice as described previously (29, 38). Lipids were resolved by UPLC on a reverse-phase column (ACQUITY UPLC BEH C18 column, length 150 mm; Waters) at 45 °C and were detected by MS. The flow rate was 0.1 mL/min in the binary gradient system using a mobile phase A [acetonitrile/water/methanol (4:4:2, vol/vol/vol) containing 0.1% formic acid and 0.025% ammonia] and a mobile phase B [2-propanol/methanol (4:1, vol/vol) containing 0.1% formic acid and 0.025% ammonia]. The elution gradient steps were as follows: 0 min, 5% B; 0–10 min, gradient to 60% B; 10–50 min, gradient to 80% B; 50–55 min, gradient to 100% B; 55–65 min, 100% B; 65–66 min, gradient to 5% B; 66–80 min, 5% B. The ESI capillary voltage was set at 3.0 kV; the sampling cone was set at 30 V; and the source offset was set at 50 V in positive ion mode. Each ceramide species was detected by MRM by selecting the m/z ([M−H₂O+H]⁺ and [M+H]⁺) of specific ceramide species at Q1 and the m/z 264.2 at Q3 (Table S3). Data analysis and quantification were performed using MassLynx software (Waters).

For quantitation of FAs in keratinocytes, lipids were extracted and treated with an alkali as described above. As an internal standard, C13:0 FA (0.2 pmol; Sigma) was added. Extracted lipids were dried, derivatized by an AMP⁺ Mass Spectrometry Kit (Cayman Chemical) according to the manufacturer’s protocol, and resolved by UPLC-ESI MS essentially as described above except as outlined below. The flow rate was set at 0.15 mL/min and the elution gradient steps were set as follows: 0 min, 5% B; 0–3 min, gradient to 60% B; 3–10 min, gradient to 80% B; 10–11 min, gradient to 100% B; 11–20 min, 100% B; 20–21 min, gradient to 5% B; 21–30 min, 5% B. Hydroxy FA species were detected by MRM by selecting the m/z ([M+H]⁺) of the derivatized hydroxy FA species at Q1 and the m/z 238.9 at Q3, corresponding to the fragment cleaved between C3 and C4 of derivatized FAs (Table S3).

To examine ceramide species in the stratum corneum of human subjects, tape stripping was performed by pressing an acryl film tape (465#40; Teraoka Seisakusho) to the skin of the forearm. Five strips, measuring 25 mm × 50 mm each, were obtained from a single person. The tapes were immersed in 3.0 mL methanol with 60 μL 500 nM C17:0 ceramide as an internal standard. After 10 min of sonication, the lipid extracts were dried under a nitrogen stream and then were dissolved in chloroform/methanol/2-propanol (10:45:45, vol/vol/vol) so that the final concentration of the internal standard was 50 nM. This lipid solution was subjected to reversed-phase LC/MS. An Agilent 1100 Series LC/MSD SL system equipped with a multi-ion source, ChemStation software, a 1,100-well plate autosampler (Agilent Technologies), and an L-column ODS (2.1 mm i.d. × 150 mm; Chemicals Evaluation and Research Institute) was used. Chromatographic separation of the lipids was achieved at a flow rate of 0.2 mL/min using a binary gradient solvent system of mobile phase C [methanol/ water (1:1, vol/vol) containing 5 mM acetic acid and 10 mM ammonium acetate] and mobile phase D (2-propanol containing 5 mM acetic acid and 10 mM ammonium acetate). The mobile phases were consecutively programmed as follows: 0–1 min, 20% D; 1–2 min, gradient to 60% D; 2–30 min, gradient to 100% D; 30–35 min, 100% D; 35–45 min, 20% D. The injection volume was 20 μL. The column temperature was maintained at 40 °C. Mass spectrometry parameters were as follows: polarity, negative ion mode; flow of heated dry nitrogen gas, 4.0 L/min; nebulizer gas pressure, 60 psi; heater temperature of nitrogen gas, 350 °C; vaporizer temperature, 200 °C; capillary voltage, 4,000 V; charging voltage, 2,000 V; fragmenter voltage, 200 V. Each ceramide species was detected by selected ion monitoring as m/z [M+CH₃COO]⁻ (Table S4).

Immunofluorescence Microscopy.

Indirect immunofluorescence microscopy was performed essentially as described previously (39), using anti-FLAG M2 (10 μg/mL; Sigma), anti-calnexin 4F10 (10 μg/mL; Medical & Biological Laboratories), or anti-HA HA-7 (50 μg/mL; Sigma) antibody as a primary antibody and Alexa Fluor 488-conjugated anti-rabbit antibody or Alexa Fluor 594-conjugated anti-mouse antibody (each at 5 μg/mL; Molecular Probes, Life Technologies) as a secondary antibody. Coverslips were mounted with Prolong Gold Antifade Reagent (Molecular Probes, Life Technologies) and observed under a Leica DM5000B microscope (Leica Microsystems).

Deglycosylation.

Protein deglycosylation was performed using endoglycosidase H (New England Biolabs), according to the manufacturer’s instructions.

In Vitro FA ω-Hydroxylase Assay.

Total membrane fractions were prepared from yeast cells as described previously (40) and were suspended in assay buffer [100 mM potassium phosphate (pH 7.4), 10% glycerol, 1× Complete protease inhibitor mixture (EDTA-free; Roche Diagnostics), 1 mM phenylmethylsulfonyl fluoride, and 1 mM DTT]. The substrate C30:0 FA (1 mM, 0.5 μL; Tokyo Chemical Industry) was dissolved in chloroform, aliquoted into plastic tubes, dried, and then suspended in a mixture of 25 μL of yeast membrane fractions (50 μg protein), 23 μL of assay buffer, and 1 μL of 10% digitonin by sonication. After addition of 1 μL of 50 mM NADPH or water, samples were incubated for 1 h at 37 °C. Lipids were extracted by the successive addition and mixing of 33.15 μL of 5 M HCl, 91.85 μL of water, 100 μL of ethanol, and 700 μL of hexane. After centrifugation, the organic phase was recovered, dried, derivatized by an AMP⁺ Mass Spectrometry Kit, and resolved by UPLC-ESI MS, as described above.
