. Author manuscript; available in PMC: 2016 Mar 24.
Published in final edited form as: ACS Nano. 2015 Feb 18;9(3):3032–3043. doi: 10.1021/nn507243w

Use of a Pro-Fibrogenic Mechanisms-Based Predictive Toxicological Approach for Tiered Testing and Decision Analysis of Carbonaceous Nanomaterials

Xiang Wang †,‡, Matthew C Duch ζ, Nikhita Mansukhani ζ, Zhaoxia Ji ‡, Yu-Pei Liao †, Meiying Wang †, Haiyuan Zhang ‡, Bingbing Sun †, Chong Hyun Chang ‡, Ruibin Li †, Sijie Lin ‡, Huan Meng †,‡, Tian Xia †,‡, Mark C Hersam ζ, André E Nel †,‡,*
PMCID: PMC4539018  NIHMSID: NIHMS714768  PMID: 25646681

Abstract

Engineered carbonaceous nanomaterials (ECNs), including single-wall carbon nanotubes (SWCNTs), multi-wall carbon nanotubes (MWCNTs), graphene and graphene oxide (GO), are potentially hazardous to the lung. With incremental experience in the use of predictive toxicological approaches, seeking to relate ECN physicochemical properties to adverse outcome pathways (AOPs), it is logical to explore the existence of a common AOP that allows comparative analysis of broad ECN categories. We established an ECN library comprised of three different types of SWCNTs, graphene and graphene oxide (two sizes) for comparative analysis according to a cell-based AOP that also plays a role in the pathogenesis of pulmonary fibrosis. SWCNTs synthesized by Hipco, arc discharge and Co-Mo catalyst (CoMoCAT®) methods were obtained in their as-prepared (AP) state, following which they were further purified (PD) or coated with Pluronic (PF108) or bovine serum albumin (BSA) to improve dispersal and colloidal stability. Graphene oxide (GO) was prepared as two sizes, GO-small (S) and GO-large (L), while the graphene samples were coated with BSA and PF108 to enable dispersion in aqueous solution. In vitro screening showed that AP- and PD-SWCNTs, irrespective of the method of synthesis, as well as graphene (BSA) and GO (S and L) could trigger interleukin 1β (IL-1β) and transforming growth factor (TGF-β1) production in myeloid (THP-1) and epithelial (BEAS-2B) cell lines, respectively. Oropharyngeal aspiration in mice confirmed that AP-Hipco tubes, graphene (BSA), GO-S and GO-L could induce IL-1β and TGF-β1 production in the lung in parallel with lung fibrosis. Notably, GO-L was the most pro-fibrogenic material based on rapid kinetics of pulmonary injury. In contrast, PF108-dispersed SWCNTs and -graphene failed to exert fibrogenic effects. Collectively, these data indicate that the dispersal state and surface reactivity of ECNs play key roles in triggering a pro-fibrogenic AOP, which could prove helpful for hazard ranking and a proposed tiered testing approach for large ECN categories.

Keywords: Engineered carbonaceous nanomaterials, SWCNT, graphene, graphene oxide, NLRP3 inflammasome lung fibrosis

Engineered carbonaceous nanomaterials (ECN), including carbon nanotubes (CNTs), graphene and graphene oxide (GO), have been shown to be capable of inducing lung injury.1–8 For instance, single-walled (SW) and multi-walled carbon nanotubes (MWCNTs) generate acute lung injury as well as sub-chronic granulomatous inflammation and fibrosis in the rodent lung, whether through intratracheal instillation or aerosolized inhalation.1–4 Similarly, graphene and GO are capable of inducing pulmonary inflammation and fibrosis.5–8 However, in spite of overlapping properties and the ability to cause qualitatively similar lung damage, these materials differ significantly with respect to shape, aspect ratio, electronic properties and surface reactivity, begging the question as to whether there is a common adverse outcome pathway (AOP) on which to base structure-activity relationships (SARs) that can be used to categorize materials based on lung fibrosis potential. Moreover, previous investigation of the hazard potential of SWCNTs has predominantly explored tubes synthesized by one of the major synthesis methods, without direct comparison of how different levels of catalyst impurities, tube dimensions, aspect ratios or structural defects of tubes synthesized by gas phase decomposition of CO (Hipco), electric arc discharge, or silica-supported Co-Mo catalyst (CoMoCAT®) may contribute to lung injury.9 Also, no systematic study has been undertaken to directly compare graphene with CNTs based on shared or different physicochemical properties, including the possibility that a common AOP could emerge for hazard ranking and material comparisons that can be instructive for regulatory decision-making.

We have previously demonstrated that MWCNTs can trigger pro-fibrogenic responses in cells and the intact rodent lung, which allows a comparative analysis, for a large number of materials in one assessment, of how dispersion, hydrophobicity, surface functionalization, surface coating and bioavailability contribute to hazard potential.3,10–12 These studies demonstrated that better dispersed MWCNTs are more prone towards inducing interleukin-1β (IL-1β) and transforming growth factor-β1 (TGF-β1) production in macrophages and epithelial cells, respectively. Alveolar epithelial cells and macrophages constitute a trophic cellular unit in which intercellular communication through cytokines and growth factors plays a key role in the pathogenesis of pulmonary fibrosis.13 Triggering of IL-1β production in macrophages results from tube damage to lysosomes, leading to the assembly of the NLRP3 (NOD-like receptor family, pyrin domain containing 3) inflammasome, which is responsible for converting pro-IL-1β to IL-1β.10–11 IL-1β acts in synergy with epithelial produced TGF-β1 to promote epithelial-mesenchymal transition, which cumulates in the formation of fibroblast-like cells that deposit collagen in the lung.14 This march of events presents us with a series of molecular biomarkers that can be tracked at cellular and organ level to establish a predictive toxicological paradigm, which can be used to compare the hazard potential of large batches of ECNs other than MWCNTs.13 This knowledge could be of potential use to establish structure-activity relationships for grouping, ranking and risk assessment of a wide range of ECNs, with the ability to establish decision trees for further testing requirements.

In this study we established an ECN library comprised of three different types of SWCNTs as well as graphene and GO for comparative analysis and identification of overlapping and unique physicochemical properties that trigger lung fibrosis. We demonstrate that the state of dispersion as well as the type of dispersant (e.g., BSA vs Pluronic F108) play major roles in the pro-fibrogenic effects of SWCNTs, irrespective of the method of synthesis, impurities, or length of these materials. We also show that the dispersal state and surface functionalization play major roles in determining the toxicological potential of ECNs in the mouse lung. The relationship of these properties to a common AOP could prove helpful for establishing provisional SARs, which can be used to formulate further testing strategies of a broad range of ECNs according to a tiered approach that we will propose.

RESULTS

Characterization of SWCNT, Graphene, and Graphene Oxide

We established an ECN library comprised of SWCNTs, graphene, and graphene oxide (GO) to perform a comparative analysis of physicochemical properties that could lead to pulmonary fibrosis. All materials were comprehensively characterized as shown in Figure 1, Table 1 and Table 2. SWCNTs were synthesized according to the Hipco, arc discharge (Arc) and CoMoCAT® (SG65) methods. The as-prepared (AP) tubes were further purified (PD) by acid treatment to reduce impurity levels (with the exception of SG65-SWCNTs supplied in purified format only). While TEM analysis did not show obvious structural differences in the tubes synthesized by the 3 different methods (Figure 1A), ICP-MS analysis revealed differences for the metal impurities (Table 1A). Thus, AP-Hipco tubes had a Fe content of 31 %, which decreased to 16 % after purification. PF108 surface coating and centrifugational harvesting further decreased the Fe content to 6.5 %. Similarly, the Y and Ni contents of electric arc discharge tubes decreased from 11.91 % and 32.71 %, respectively, to 0.55 % and 1.60 % after purification. These amounts decreased to 0.06 % and 0.15 % after PF108 coating. Purified CoMoCAT® tubes had Co and Mo contents of 0.65 % and 4.73 %, respectively, which decreased to 0.22 % and 1.58 % after PF108 dispersion. Following dispersion in DI H2O, the hydrodynamic sizes of AP and PD Hipco tubes were 1218 nm and 584 nm, respectively, which decreased to 272 nm after PF108 coating. PF108 coating also decreased the bundle diameter from 10 nm to less than this size. Similar trends could be seen in Arc and CoMoCAT® tubes (Table 1A). It should be noted that the PF108 coating procedure involves ultrasonication, which reduces the average size of the carbon nanomaterials, and centrifugation, removing sedimenting species, including aggregates and large catalyst particles, more quickly, thus reducing the metal content (see methods for more details).15–16

Figure 1. Representative transmission electron microscopy (TEM) images of the SWCNTs, graphene and graphene oxide nanomaterials.

Figure 1

Figure 1

Open in a new tab

TEM images were acquired using a JEOL 100 CX transmission electron microscope at 80 kV in the UCLA BRI Electron Microscopy Core. AP: as prepared; PD: purified; PF108: PF108-dispersed.

Table 1.

Physicochemical Characterization of SWCNTs.

Properties Tools Unit SWCNTs
AP-Hipco PD-Hipco PF108-Hipco AP-Arc PD-Arc PF108-Arc PD-SG65 PF108-SG65
Tube diameter UV-vis nm 0.70–1.13 0.70–1.13 0.70–1.13 1.22–1.96 1.22–1.96 1.22–1.96 0.68–0.98 0.68–0.98
Bundle diameter TEM nm 10.7±3.6 13±3.5 5–10 6.3±2.0 7.5±2.4 ~5 7.4±2.3 ~5
Length TEM/AFM µm 1000–5000 500–1500 500–1500 100–1000 100–1000 100–1000 450–2000 450–2000
Metal Impurity ICP-MS % 31.35 16.01 6.52 11.91+32.71 0.55+1.60 0.06+0.15 0.65+4.73 0.22+1.58
Fe Y+Ni Co+Mo
ζ potential in H2O ZetaPALS mV −22.3±0.7 −39.9±2.7 −10.4±1.8 −25.4±0.7 −29.3±2.43 −6.3±1.1 −23.4±1.0 −9.0±0.6
Size in H2O DLS nm 1218±507 584±180 272±26 880±175 644±206 150±23 458±128 154±32
Size in BEGM DLS nm 1156.8±20.5 688.1±46.2 121.8±1.6 974.5±14.3 565.6±34.6 120.9±1.7 327.5±5.1 169.4±6.3
Size in RPMI DLS nm 920.2±45.2 639.5±25.1 78.1±0.6 836.5±23.3 602.4±14.9 78.9±0.8 305.3±4.1 97.4±2.2
Open in a new tab

The average lengths and diameters of the tubes were assessed by UV-vis and TEM microscopy (JEOL 100 CX transmission electron microscope). The elemental composition was determined by ICP-MS. The zeta potential was measured using a ZetaSizer Nano-ZS (Malvern Instruments, Worcestershire WR, UK). The hydrodynamic diameters in H2O, BEGM and RPMI were determined using high throughput dynamic light scattering (HT-DLS, Dynapro Plate Reader, Wyatt Technology). AP: as prepared; PD: purified; PF108: Pluronic F108.

Table 2.

Physicochemical Characterization of graphene and graphene oxide.

Properties Technique Unit Graphene Graphene oxide
G PF108-G GO-S GO-L
Diameter TEM/AFM nm 640 45 179.3 1676.6
ζ potential in H2O ZetaPALS mV −27.14 ±0.57 −8.7 ±0.78 −30.91 ±2.74 −14.83 ±1.58
Size in H2O DLS nm 1179.2±109.1 236.3±19.5 329.9±28.4 2007.8±135.7
Size in BEGM DLS nm 743.8±124.5 128.3±10.3 2368.0±263.8 3431.7±393.7
Size in RPMI DLS nm 1035.9±247.3 109.6±9.7 629.3±38.2 2133.9±314.4
Open in a new tab

The average diameter of the graphene and graphene oxide were assessed by UV-vis and TEM microscopy (JEOL 100 CX transmission electron microscope). The elemental composition was determined by ICP-MS. The zeta potential was measured using a ZetaSizer Nano-ZS (Malvern Instruments, Worcestershire WR, UK). The hydrodynamic diameters in H2O, BEGM and RPMI were determined using high throughput dynamic light scattering (HT-DLS, Dynapro Plate Reader, Wyatt Technology). BSA: bovine serum albumin; G: graphene; PF108: Pluronic F108; GO-graphene oxide; S: small; L: large.

Our library also included 2-dimensional, sheet-like graphene and graphene oxide (GO) flakes (Figure 1B). The primary size of the small flakes (GO-S) was 329 nm, while that of the large flakes (GO-L) was 2007 nm (Table 1B). Because of the hydrophobicity of graphene and the lack of colloidal stability in aqueous media, we used bovine serum albumin (BSA) and PF108 to improve material dispersion by surface coating. The average flake size of graphene decreased from 640 nm to 45 nm after FP108 coating (Table 1B). After aqueous suspension, the hydrodynamic sizes of the BSA and PF108 coated graphene yielded agglomerated flakes of sizes 1179.2 nm and 236.3 nm, respectively. GO-S and GO-L were generated by varying the sonication power output, resulting in flake sizes of 179.3 and 1676.6 nm, respectively. No dispersant was needed for graphene oxide (GO), which is hydrophilic in nature. However, when performing the cellular studies, GO may interact with BSA in the cell culture medium but were not deliberately applied as a coat. The zeta potentials of these materials were in the range of −8.7 to −30.91 mV in distilled water. The hydrodynamic sizes for GO-S and GO-L were 239.9 nm and 2007.8 nm, respectively.

Comparison of ECN materials for their abilities to induce Lysosomal Damage and IL-1β production in THP-1 Cells

We used the monocytic-derived cell line, THP-1, to assess NLRP3 inflammasome activation and IL-1β production as previously described.11,13 Assessment of cell viability showed that only BSA-dispersed AP- and PD-SWCNTs showed a significant decline of cellular viability (as determined by MTS and LDH assays) at relatively high concentrations > 50 µg/mL (Figure S1A, B). In contrast, all PF108-dispersed materials and GO failed to exhibit cytotoxicity (Figure S1A, B). Assessment of IL-1β levels in the culture supernatants showed that AP- and PD-SWCNTs (BSA-coated), graphene and BSA-dispersed GO induced significant increases above the non-treated control, while PF108-dispersed tubes and graphene showed little or no effect (Figure 2A and B). Both the cell viability and cytokine data are correlated to the suspension (colloidal) stability of these materials, with the PF108-dispersed SWCNTs eliciting significantly less IL-1β production compared to BSA-dispersed AP- and PD-tubes (Figures 2A and S1A and B). This is in agreement with the enhanced suspension stability of PF108 vs BSA-coated tubes (Figure S2). Moreover, PF108-coating also had improved the colloidal stability of graphene compared to the BSA-coated material. The decreased sedimentation rate of PF108-coated graphene flakes was accompanied by decreased cytotoxicity and IL-1β production, likely as a result of decreased cellular exposure at the surface of the dish. Suspension stability affects the bioavailability and the cellular uptake of ECN materials in THP-1 cells as determined by side scatter analysis (Figure S3). This demonstrated that all the materials except for PF108-coated graphene are taken up in THP-1 cells and are capable of inducing IL-1β production.

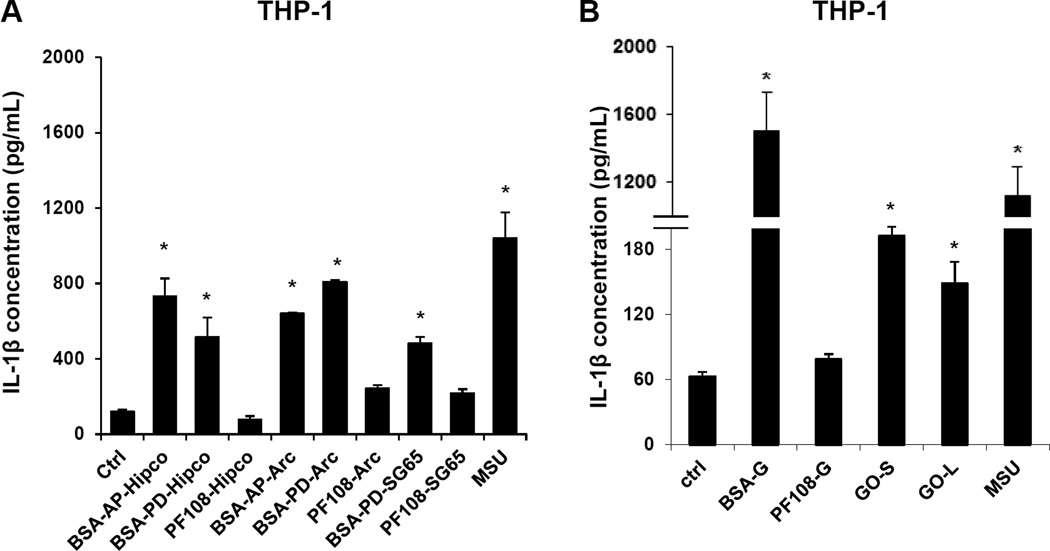

Figure 2. Comparative pro-fibrogenic effect of SWCNTs, graphene (G) and graphene oxide (GO) ECNs, as reflected by IL-1β production and NLRP3 inflammasome activation in THP-1 cells.

Figure 2

Figure 2

Open in a new tab

IL-1β levels were determined by ELISA, using the supernatants of THP-1 cells treated with SWCNTs (A), graphene and graphene oxide (B) for 24 h. * p <0.05 compared to control. (C) Confocal microscopy demonstrating the effects of tube coating on lysosome damage in THP-1 cells. Lysosomal damage and cathepsin B release were determined by Magic Red™ staining. THP-1 cells were seeded into 8-well chamber slides and incubated with 100 µg/mL AP, PD and PF108-Hipco SWCNTs, graphene and graphene oxide (C) in complete RPMI 1640 for 24 h. After fixation and permeabilization, cells were stained with Magic Red™ (ImmunoChemistry Technologies), wheat germ agglutinin 633 and Hoechst 33342 dye, followed by visualization under a confocal 1P/FCS inverted microscope. Monosodium urate (MSU) crystals were used as a positive control demonstrating that the punctate Magic Red™ staining seen in intact lysosomes (control cells) changes to diffuse cytosolic fluorescence after damage to the lysosome.

Because NLRP3 inflammasome activation by MWCNTs requires lysosomal damage and cathepsin B release,3,11 we used a fluorescent cathepsin B substrate, Magic Red™, to study lysosome integrity and enzyme release by confocal microscopy. This demonstrated that BSA-dispersed AP and PD tubes of the Hipco variety, BSA-graphene (BSA-G), GO-S and GO-L could induce lysosomal damage and the cytosolic release of cathepsin B (Figure 2C). In contrast, PF108-dispersed tubes and graphene did not result in lysosome damage, as demonstrated by the speckled fluorescence of Magic Red™ in the intact organelle. Similarly, BSA-dispersed AP and PD tubes obtained by Arc discharge or PD tubes obtained though CoMoCAT synthesis, induced lysosome damage, while PF108-coated tubes had no effect on the lysosome (data not shown). All considered, the confocal data agrees with IL-1β profiles, confirming that lysosome damage is instrumental in generating the NLRP3-mediated inflammatory responses.

Comparison of the ECN Materials for their ability to induce TGF-β1 Production in BEAS-2B Cells

Because TGF-β1 production by alveolar epithelial cells contributes to the pathogenesis of pulmonary fibrosis (in synergy with IL-1β), we assessed TGF-β1 levels in the supernatant of the transformed human lung epithelial cell line, BEAS-2B. Although none of the ECN materials impacted BEAS-2B cell viability (Figures S4A and B), the BSA-coated AP- and PD-SWCNTs, BSA-coated graphene and both types of GO induced significant TGF-β1 production (Figure 3A and B). GO-L induced a more robust response (Figure 3B). In contrast, PF108 coating protected all of the listed ECNs from triggering TGF-β1 production (Figure 3A and B). All considered, the TGF-β1 data are in good agreement with the colloidal suspension stability index (Figure S2C and D) of the various materials, as discussed for IL-1β production.

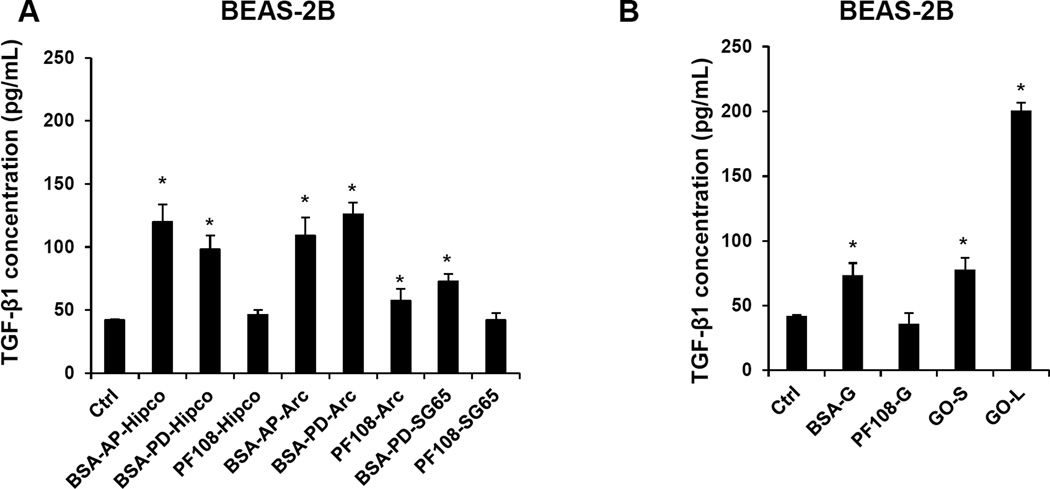

Figure 3. Comparison of the pro-fibrogenic effects of SWCNTs, graphene (G) and graphene oxide (GO) nanomaterials on TGF-β1 production in BEAS-2B cells.

Figure 3

Open in a new tab

BEAS-2B cells were treated for 24 h with the SWCNTs, graphene and GO nanomaterials at the dose of 100 µg/mL and the supernatants collected to measure the TGF-β1 production by ELISA. * p <0.05 compared to control.

SWCNTs, Graphene, and Graphene Oxide induce Acute Lung Inflammation in Mice

Oropharyngeal aspiration of 2 mg/kg of each of the graphene materials as well as Hipco SWCNTs was used to determine the possible effects on pulmonary inflammation in C57BL/6 mice. This dose was selected based on prior dose response studies that were undertaken on MWCNTs and SWCNTs; 2 mg/kg falls on the linear part of the dose-response curve.3,11,17 The mice were sacrificed after 40 h to collect bronchoalveolar lavage fluid (BALF) and lung tissue. We have previously shown that IL-1β is produced within this time window in response to MWCNTs, while the production of TGF-β1 occurs over days to weeks. BALF analysis showed increased neutrophil counts and LIX (LPS-induced CXC chemokine) levels for all the materials tested, including for quartz (QTZ), which was used as a positive control (Figure S5A, B and C). The occurrence of acute inflammation was confirmed by H&E staining of lung sections, which showed mild inflammation around small- and medium-sized airways, except for the GO materials, which generated more intense inflammation, particularly GO-L (Figure S4D). Measurement of IL-1β levels in the BAL fluid showed that while AP-Hipco, BSA-G and GO-S induced statistically significant increases, PF108-G and GO-L did not show increased production at 40 h (Figure 4A). QTZ also induced a robust response. The apparent failure of GO-L to induce an IL-1β response was surprising in light of its robust effect in THP-1 cells (Figure 2B). This unexpected outcome prompted us to revisit the kinetics of the IL-1β production in the lung by sacrificing the animals at 6 h, 40 h, 3, 7 and 21 days following the aspiration of GO-L, GO-S and QTZ (Figure 4). Interestingly, this experiment demonstrated high levels of IL-1β production in response to GO-L by 6 h followed by a rapid decline and a second small rise at day 3. In contrast, GO-S induced an early increase but this was accompanied by a prominent second IL-1β peak by 40 h (Figure 4B). The significant difference in the kinetics of IL-1β production by GO-L and GO-S at 40 h explains the data in Figure 4A, where 40 h after exposure to GO-L, there is no evidence of increased IL-1β production. QTZ also induced two peaks of IL-1β production at 6 and 40 h, followed by prolonged cytokine elevation for up to 21 days.

Figure 4. IL-1β production in response to bolus aspiration of ECNs, followed by acute or kinetic analysis of the BALF in mice.

Figure 4

Open in a new tab

(A) C57BL/6 mice were exposed to Hipco-SWCNTs, graphene and graphene oxide at 2 mg/kg by oropharyngeal aspiration, followed by BALF collection after 40h to determine IL-1β activity with an ELISA kit (n=6 animals per group). 5 mg/kg Min-U-Sil served as positive control. * p < 0.05 compared with control. (B) Kinetics experiment in which C57BL/6 mice were exposed to graphene materials (2 mg/kg) and Min-U-Sil (5 mg/kg) by oropharyngeal aspiration, followed by sacrifice after 6 h, 18 h, 40 h, 3 d, 7 d and 21 d. The BALF was collected to determine IL-1β levels by ELISA. * p < 0.05 compared to control. There were 6 animals in each group.

Selected ECN Materials show differential effects on Lung Fibrosis

We also assessed sub-chronic lung injury 21 days after a single oropharyngeal instillation of 2 mg/kg Hipco tubes (BSA and PF108-coated), graphene (BSA and PF108-coated), GO-L and GO-S. Although the neutrophil counts were not increased in the BALF at this time point (Figure S6A), H&E staining showed pulmonary infiltrates around small- and medium-sized airways for most tested materials (Figure S6B). GO-L exerted the most prominent effect besides QTZ. While IL-1β levels returned to baseline after 21 days (Figure 4B), AP-Hipco tubes, BSA-G, GO-S and GO-L generated significant TGF-β1 elevations (Figure 5A). In contrast, PF108-dispersed SWCNTs and graphene failed to exert similar effects (Figure 5A). The kinetics of TGF-β1 production by graphene materials in the experiment described in Figure 5B showed a rise in growth factor production by 40 h, followed by a progressive rise over the next 20 days (Figure 5B). GO-L induced a more robust response than GO-S. Clear evidence of increased collagen production by AP-Hipco, BSA-G, GO-S, GO-L nanoparticles and QTZ could be demonstrated by the Sircol assay (Figure 5C) as well as the trichrome staining (blue) (Figure 5D). GO-L induced the most robust response besides QTZ, while PF108-dispersed SWCNT and PF108-dispersed graphene failed to show pro-fibrogenic effects. All considered, the 21 day study showed that all ECNs, except PF108-dispersed materials, induce pulmonary fibrosis at 2 mg/Kg, with GO-L providing the strongest response. This study confirms the utility of the predictive lung fibrosis paradigm for comparative analysis and ranking of toxicological potential of the broad range of ECNs.

Figure 5. Comparison of the fibrogenic effects of ECNs in a sub-chronic oropharyngeal installation study.

Figure 5

Figure 5

Figure 5

Open in a new tab

The experiment described in Figure 4A was repeated, except that the mice were sacrificed 21 days after oropharyngeal aspiration of Hipco-SWCNTs, graphene and GO at 2 mg/kg (n=6 animals per group). The BALF was collected to determine TGF-β1 (A) levels. We also used the BALF collected from the kinetics experiment described in Figure 4B to measure the TGF-β1 (B) levels. * p < 0.05 compared to control. (C) Total lung collagen in the 21 d experiment, using the Sircol soluble collagen kit (Biocolor Ltd., Carrickfergus, UK). * p < 0.05 compared to control. (D) Collagen deposition in the lung as determined by Masson’s trichrome staining. Lung tissues from (C) were embedded, sectioned and stained with the Masson’s trichrome. These lung images, shown at 100 × magnification, are representative of the findings in each group. The blue staining represents collagen staining. Min-U-Sil exposed animals served as a positive control.

DISCUSSION

In this study, we compared the cellular and pulmonary responses of a library of SWCNTs and graphene materials according to a predictive paradigm that link lysosome injury and cytokine production to the pathogenesis of pulmonary fibrosis. We demonstrate that in spite of the differences in the physicochemical properties of the SWCNTs and graphene flakes in terms of size, shape, metal content, and colloidal stability, all the materials are capable of triggering NLRP3 inflammasome activation, IL-1β and TGF-β1 production and lung fibrosis, with variable levels of injury. GO-L induced the most pronounced pro-fibrogenic effects. Coating of graphene and SWCNTs with PF108 decreased their pro-fibrogenic potential, demonstrating the importance of ECN surface reactivity in determining bioavailability and lysosomal injury as key ingredients of a lysosome/inflammasome-injury pathway in the lung. All considered, these data demonstrate the utility of a predictive toxicological paradigm for SWCNTs and graphene (in addition to MWCNTs), and show lysosome damage and NRLP3 inflammasome activation can be used as a final common pathway for ranking of the lung fibrosis potential of a wide range of ECNs. This ranking can be used towards a tiered decision-making process for the safety testing of ECNs.

Although it has been shown that the presence of SWCNT metal impurities can play a role in cytotoxicity and acute pulmonary and cardiovascular responses,18–19 we did not observe a major impact on cell viability outcome during the purification and reducing the metal content of the raw tubes (Table 1A). Moreover, there were also no major differences between the raw and purified tubes in terms of their abilities to trigger IL-1β and TGF-β1 production in THP-1 and BEAS-2B cells, respectively (Figures 2A and 3A). These data suggest that a tube characteristic such as a reactive carbon surface plays an important role in the pro-fibrogenic effects. This notion is further supported by the finding that PF108 coating prevents the damaging effects of SWCNT surfaces in the lysosome, leading to reduced IL-1β production. In this regard, we have recently shown that the generation of reactive oxygen species (ROS) plays a role in the catalytic injury by SWCNTs, in part through the activation of NADPH oxidase during the phagocytic uptake these materials by macrophages.35 This suggests that the long aspect ratio of the tubes is important for contact and wrapping by the surface membrane, at which site the assembled NADPH-P complex is incorporated into the phagosome.35 Moreover, the space constraints in the lysosome allow close contact of the tubes with the organelle membrane, allowing the reactive surface and oxygen radical generation to deliver an injurious impact to the lysosome membrane. The combination of oxidative stress and cathepsin B release, leads to NLRP3 inflammasome activation and IL-1β production.35 This scenario could also explain the protective effect of PF108, which remains stably attached to the tube surfaces under acidic lysosomal conditions, thereby interfering in damage to the lysosomal membrane, as described for MWCNTs.11 While it is interesting that we did not observe major differences between Hipco, Arc and CoMoCAT® SWCNTs in terms of cellular pro-fibrogenic responses, it is important to explain that these synthesis methods could nonetheless contribute to a different set of biological outcomes that could be triggered by different levels of metal impurities. These include the presence of iron (Fe) in Hipco SWCNT’s, Ni in Arc and Co in CoMoCAT® SWCNTs. These metals have been shown to play a role in ROS generation, cytotoxicity and pro-inflammatory outcomes by non-lysosomal pathways.20–23

Graphene is a two dimensional (2D) material that is currently being explored in a variety of several possible biomedical applications.24–27 It is of interest that BSA-coated graphene poses the same hazard potential as one-dimensional SWCNTs, in spite of the differences in shape, size, aspect ratio, and metal content.5,17 Although we lack a clear understanding of the earliest mechanism of biological injury by graphene, this report demonstrates that the graphene surface, similar to SWCNTs and MWCNTs, is capable of triggering lysosomal injury and participating in a final common AOP that culminates in pulmonary fibrosis. Decreased engagement of this AOP by PF108 coating of the graphene surface, likely reflects dampening of the epoxide, carboxyl, and hydroxyl groups on the reactive GO surface. These groups are capable of oxygen radical generation, which could contribute to the lysosome damage and activation of NLRP3 inflammasome, similar to MWCNTs and SWCNTs.28 In addition to surface reactivity, the size of the graphene flakes is important, as shown by the enhanced impact of larger flake surfaces in being able to trigger IL-1β production and pulmonary fibrosis. These data are in agreement with previous findings showing that GO is more injurious than graphene in the lung, whether introduced intratracheally or intravenously.5,29–31 A further important feature of GO is the hydrophilicity and aqueous stability of this material from the perspective that these features facilitate the razor-like morphology of GO flakes, enabling them to slip through the cell membrane and entering subcellular structures like lysosomes.32 This could explain why the GO flakes with larger surface dimensions could speed up the kinetics of IL-1β production in the lung, in addition to stimulating more organ fibrosis. It has also been demonstrated previously that the size of GO flakes determine multivalent interactions between the functionalized surface and Toll-like receptors on the cell surface.33 The hydrophilicity of GO flakes and their good dispersion may also allow deeper and more homogeneous distribution in the lung, compared to SWCNTs and pristine graphene.5,31

An important outcome of this study is the ability to achieve toxicological ranking of a diverse set of ECNs based on an AOP that is involved in the pathophysiology of disease. The capacity to compare large numbers of materials according to a common predictive toxicological paradigm holds great promise for expedited ranking of ECNs, which can then be used for categorization as well as integrative decision-making. Because of a growing interest in multi-wall and single-wall CNTs as well as graphene for industrial and biomedical applications, it is likely that increased commercialization will intensify the need to make decisions on whether these materials are safe to enter the marketplace. Currently, for regulatory purposes, each nanomaterial is treated on a case by case basis, which could lead to unnecessary duplication of effort towards safety assessment. For inhaled materials, such as CNTs, current regulations could require a 90 day inhalation study, which could be very expensive and difficult to accomplish for a large number of materials. Our use of a predictive toxicological paradigm, which can be implemented by rapid throughput methodology based an AOP that can be rapidly assessed in cells and easily confirmed by short-term bonus instillation studies in the rodent lung, could be used for a tiered testing paradigm that could replace the 90-day inhalation study (Figure 6). Thus, screening of pro-fibrogenic responses in epithelial cells and macrophages could allow newly introduced ECNs to undergo expedited testing against a library of previously screened materials (such as the one shown here) to obtain a provisional Tier 1 hazard ranking. If the new material demonstrates significant hazard potential in a Tier 1 assay, coupled with information of possible inhalation exposure in humans, it would be possible to perform a short-term bonus instillation (Tier 2) study, which should include positive and negative control materials to confirm or refute the in vitro prediction. If the short-term aspiration study confirms the hazard potential, this could help to justify the performance of a 90 day installation study (Tier 3) when significant uncertainty exists of how a new ECN may perform under aerosolized inhalation conditions. Hopefully, this scenario will only be used sparingly in light of the costs and the labor intensity of an inhalation study. We propose that the iterative use of a tiered approach will, over time, provide the incremental knowledge and data to allow acceptance, validation and incremental shift towards using in vitro approaches with sparing use of animals. Such an approach will also allow the assembly of libraries of ECN materials in which accentuation of certain properties such as CNT length, aspect ratio, surface functionality, surface coatings, surface defects, impurities, chirality, electronic properties, and defects can be introduced to allow the development of more detailed quantitative SARs and categorization. Such a knowledge base could have an important impact on regulatory decision-making, and safer design of ECNs, as demonstrated by the use of ECN surface coating with PF108.

Figure 6. Outline of a possible tiered testing approach, according to which a decision analysis can be developed for safety assessment of broad groups of ECNs, with a view to expediting testing, and regulatory decision-making.

Figure 6

Open in a new tab

Conclusion

In this study, we compared diverse ECNs for their ability to engage in pro-fibrogenic responses at the cellular level and culminating in pulmonary fibrosis. We demonstrate that the reactive surface of the ECNs is the primary physicochemical characteristic in this mechanistic paradigm, which can help predict the materials that are likely to trigger pro-fibrogenic responses in vitro and in vivo. This establishes an AOP that can be used for hazard ranking and setting up a tiered decision-making process for additional in vivo testing. PF108 coating is capable of passivating reactive ECN surfaces, which prevents lysosomal damage, NLRP3 inflammasome activation, IL-1β production and lung fibrosis.

MATERIALS AND METHODS

Source and Preparation of Carbonaceous Nanomaterials

We used SWCNTs prepared by three different methods in this study. As-prepared (AP) and purified (PD) HiPco SWCNTs were purchased from NanoIntegris (Skokie, IL). AP- and PD-Arc-discharge SWCNTs were purchased from Carbon Solutions, Inc (Riverside, CA). PD-CoMoCat (PD-SG65) SWCNTs were purchased from Southwest Nano Technologies (Norman, OK). Pluronic F108 (BASF Corporation, NJ, USA) dispersed SWCNTs (Hipco, Arc and CoMoCat®) were prepared by sonicating the purified grade materials in 2 % w/v PF108, followed by centrifugation to remove large aggregates and impurities as described previously.17 PF108-dispersed graphene (PF108-G) was produced by ultrasonication of graphite flakes (3061 grade material from Asbury Graphite Mills) in a 2% aqueous PF108 solution, followed by centrifugation at ~4620 g for 30 min to remove large flakes. Subsequent ultracentrifugation at 288000 g for 12 h was used to concentrate and further purify the solution. Aggregated graphene was produced by flocculation though the addition of four parts isopropyl alcohol to one part dispersed graphene, followed by extensive washing in deionized water. Graphene oxide (GO) was produced via a modified Hummer's method from Asbury Mills 3061 grade graphite.34 After oxidation, samples were washed via filtration and centrifugation. Small-sized GO (GO-S) was produced by horn sonication of the washed material, using a Fisher Scientific Model 500 Sonic Dismembrator, fitted with a 1/2” tip. Sonication was carried out at ~55 W (50% amplitude) in an ice bath for 1 h. Large-sized GO (GO-L) was produced by bath sonication for 1 h. Both GO-S and GO-L were subsequently centrifuged for 30 min in a Beckman Coulter J26-XPI at 5000 rpm (~4,620g) to remove large aggregates. The top 80% of the supernatant was taken off as the final use material.

Chemicals and experimental materials

Bronchial epithelial growth medium (BEGM) was obtained from Lonza (Mapleton, IL, USA). BEGM is supplemented with a number of growth factors, including bovine pituitary extract, insulin, hydrocortisone, hEGF, epinephine, triiodothyronine, transferrin, gentamicin/amphotericin-B and retinoic acid. Roswell Park Memorial Institute medium 1640 (RPMI 1640) was purchased from Invitrogen (Carlsbad, CA, USA). Low-endotoxin bovine serum albumin (BSA) and fetal bovine serum (FBS) were from Gemini Bio-Products (West Sacramento, CA, USA). Dipalmitoylphosphatidylcholine (DPPC) was purchased from Sigma-Aldrich (St. Louis, MO, USA). Min-U-Sil was obtained from U.S. Silica (Frederick, MD, USA). All the SWCNT, graphene or graphene oxide stock solutions were prepared using pure deionized water (DI H2O) with resistivity >18 Ω-cm.

Preparation of Nanoparticle suspensions

For BSA/DPPC dispersal, both dispersants were added at 0.6 mg/mL and 0.01 mg/mL, respectively, before adding a 5 mg/mL ECN stock solution. To obtain highly dispersed PF108 tubes, ~33 mg of powder was added to 12 mL of 2 % w/v PF108 aqueous solution, before sonication with a Fisher Scientific Model 500 Scientific Dismembrator for 1 h at 20 % amplitude. These tubes were subsequently centrifuged at 32000 g for 30 min and the supernatants retained as the PF108 dispersed stock solution.

Cell culture and co-incubation with SWCNT, graphene and GO

BEAS-2B and THP-1 cells were obtained from ATCC (Manassas, VA). 1×104 BEAS-2B cells were cultured in 0.1 mL BEGM in 96-well plates at 37 °C. THP-1 cells were pretreated with 1 µg/mL phorbol 12-myristate acetate (PMA) overnight and primed with 10 ng/mL lipopolysaccharide (LPS). Aliquots of 3 × 104 primed cells were cultured in 0.1 mL medium with carbon nanoparticles in 96-well plates (Costar, Corning, NY, USA) at 37 °C for 24 h. All the carbon nanoparticle suspensions were freshly prepared. After 24 h of culture, the supernatants were collected for the measurement of IL-1β (BD Biosciences, San Diego, CA) and TGF-β1 (Promega, Madison, WI) using ELISA kits according to manufacturer's instructions. Concentrations were expressed as pg/mL.

Confocal microscopy using Magic Red™ to assess lysosomal damage and cathepsin B release

1×105 primed THP-1 cells were seeded into each well of an 8-well chamber and incubated with 100 µg/mL SWCNTs, graphene or GO flakes in RPMI 1640 for 4 h. After fixation in 4 % paraformaldehyde for 1 h in PBS, cells were washed three times with PBS and stained with Magic Red™ (ImmunoChemistry Technologies) at 26 nM for 1 h. Following further washes with PBS, the cell membrane and nucleus were co-stained for 30 min with 5 µg/mL Alexa Fluor633-conjugated wheat germ agglutinin (WGA) and Hoechst 33342, respectively. The chamber was visualized under a confocal microscope (Leica Confocal 1P/FCS) in the CNSI Advanced Light Microscopy/Spectroscopy Shared Facility. High magnification images were obtained with the 100× objective. Cells without nanoparticle treatment were used as control. Cells treated with 100 µg/mL monosodium urate (MSU) crystals as the positive control.

Mouse exposure and assessment of exposure outcomes

Eight-week-old male C57Bl/6 mice were purchased from Charles River Laboratories (Hollister, CA). All animals were housed under standard laboratory conditions according to UCLA guidelines for care and treatment as well as the NIH Guide for the Care and Use of Laboratory Animals in Research (DHEW78-23). The animal experiments were approved by the Chancellor's Animal Research Committee at UCLA and include standard operating procedures for animal housing (filter-topped cages; room temperature at 23 ± 2 °C; 60 % relative humidity; 12 h light, 12 h dark cycle) and hygiene status (autoclaved food and acidified water). Animal exposures to nanoparticles were carried out by an oropharyngeal aspiration method developed at NIOSH.35 Briefly, the animals were anesthetized by intraperitoneal injection of ketamine (100 mg/kg)/xylazine (10 mg/kg) in a total volume of 100 µL. With the anesthetized animals held in a vertical position, a 50 µl PBS suspension containing 50 µg nanoparticles was instilled at the back of the tongue to allow pulmonary aspiration. The experiment included control animals receiving the same volume of PBS with BSA (0.6 mg/mL) and DPPC (0.01 mg/mL). The positive control group in each experiment received 5 mg/kg crystalline silica in the form of quartz (Min-U-Sil or QTZ). We performed two kinds of animal experiments, namely a study in which SWCNT, graphene and GO were compared for lung fibrosis potential, as well as performing a kinetics study in which the animals were observed for various lengths of time following oropharyngeal instillation. The mice in the comparison experiments were sacrificed at 40 h and 21 days post-exposure, while the mice in the kinetics study were sacrificed at 6 h, 18 h, 40 h, 3 d and 7 d post-exposure. The bronchoalveolar lavage fluid (BALF) and lung tissues from each experiment were collected as previously described.36 The BALF was used for performance of total and differential cell counts and the measurement of IL-1β and TGF-β1 levels. Lung tissues were stained with hematoxylin/eosin or Masson’s trichrome.

Sircol assay to assess total collagen production

The right upper lobe of each lung was suspended in PBS at ~ 50 mg tissue per ml and homogenized with a tissue homogenizer (Fisher Scientific). Triton X-100 was added at 1% and the samples incubated for 18 h at room temperature. Acetic acid was added to a final of 0.5 M and incubated at room temperature for 90 minutes. Cellular debris was pelleted by centrifugation and the supernatants used to assess total protein, using a BCA Assay kit (Pierce/ThermoFisher Scientific). The Sircol Soluble Collagen Assay kit (Biocolor Ltd., Carrickfergus, UK) was used to extract collagen from duplicate samples, using 200 µL of supernatant and 800 µL Sircol Dye Reagent according to the manufacturer’s instructions. Similar prepared collagen standards (10–50 µg) were run in parallel. Collagen pellets were washed twice with alcohol and dried before suspension in an alkaline reagent. Absorbance at 540 nm was read on a plate reader (SpectroMax M5e, Molecular Devices Corp., Sunnyvale, CA). Data were expressed as µg of soluble collagen per mg of total protein.

Statistical Analysis

Mean and standard deviation (SD) was calculated for each parameter. Results were expressed as mean ± SD of multiple determinations. Comparisons within each group were conducted by a two-sided Student's t test. A statistically significant difference was assumed with p <0.05.

Supplementary Material

Supplemental

Acknowledgements

Research reported in this publication was supported by the National Institute of Environmental Health Sciences of the National Institutes of Health under Award Number RO1ES022698 and U19ES019528. The content is solely the responsibility of the authors and does not necessarily represent the official views of the National Institutes of Health. This study is also based upon work supported by the National Science Foundation and the Environmental Protection Agency under Award No. DBI-1266377. Fluorescent microscopy was performed at the CNSI Advanced Light Microscopy/Spectroscopy Shared Facility at UCLA.

Footnotes

Supporting Information Available: Cell viability, suspension stability, in vitro cell uptake, in vivo cytokine production at 40 h and 21 d, neutrophil count, H&E staining. This material is available free of charge via the Internet at http://pubs.acs.org.
