An analysis of MIF structural features that control functional activation of CD74

Georgios Pantouris 1,5, Mansoor Ali Syed 2,5, Chengpeng Fan 1,6, Deepa Rajasekaran 1, Thomas Yoonsang Cho 1,7, Eric M Rosenberg Jr 1, Richard Bucala 3,4, Vineet Bhandari 2, Elias J Lolis 1,4,*
PMCID: PMC4575896  NIHMSID: NIHMS719012  PMID: 26364929

SUMMARY

For more than fifteen years, the tautomerase active site of macrophage migration inhibitory factor (MIF) and its catalytic residue Pro1 have been being targeted for the development of therapeutics that block activation of its cell surface receptor, CD74. Neither the biological role of the MIF catalytic site nor the mechanistic details of CD74 activation are well understood. The inherently unstable structure of CD74 remains the biggest obstacle in structural studies with MIF for understanding the basis of CD74 activation. Using a novel approach, we elucidate the mechanistic details that control activation of CD74 by MIF surface residues and identify structural parameters of inhibitors that reduce CD74 biologic activation. We also find that N-terminal mutants located deep in the catalytic site affect surface residues immediately outside the catalytic site, which are responsible for reduction of CD74 activation.

Graphical Abstract

graphic file with name nihms719012u1.jpg

INTRODUCTION

Macrophage migration inhibitory factor (MIF) is an inflammatory protein with an eponymous activity that was first described using conditioned media of activated lymphocytes almost 50 years ago (Bloom and Bennett, 1966; David, 1966). As a cytokine, MIF has some unique properties. It is constitutively expressed with no signal sequence, is present in the cytosol of all nucleated cells where it interacts with p53 and other proteins, has an enzymatic site, possesses a solvent channel along the 3-fold axis of the trimer, and is exported to the extracellular milieu in response to diverse stimuli or cell stress (Conroy, et al., 2010). MIF binds the type-II receptor CD74 (Leng, et al., 2003) and the chemokine receptors CXCR2 and CXCR4 (Bernhagen, et al., 2007; Liehn, et al., 2013) mediating distinct signaling mechanisms that lead to a variety of biological responses (Bernhagen, et al., 2007; Leng, et al., 2003). These activities include regulation of chemotaxis, proliferation, angiogenesis and atherogenesis, with effects on sepsis and general inflammation, autoimmune disease, cardiovascular disease, and cancer growth, survival, and metastases (Ayoub, et al., 2008; Bach, et al., 2008; Noels, et al., 2009).

CD74 also has an intracellular role as the invariant chain associated with the processing of MHC class II proteins and is destined for proteolysis to produce a 15mer peptide (known as CLIP) that binds to MHC class II antigen site before it is displaced by antigenic peptides (Riberdy, et al., 1992). About 5% of the expressed CD74 traffics to the cell surface independent of MHC class II and functions as the MIF receptor. The recombinant CD74 extracellular domain is inherently unstable due to a number of flexible regions (Jasanoff, et al., 1995; Jasanoff, et al., 1998), its propensity to be cleaved by enzymes (Bergmann, et al., 2013; Riberdy, et al., 1992), and the absence of the transmembrane region that contributes to the stability of the CD74 trimer (Ashman and Miller, 1999). Consequently, only the NMR structure of the small trimeric domain of extracellular CD74 is known (Jasanoff, et al., 1998). Attempts to use the extracellular CD74 domain for structural studies with MIF have not been successful to date.

The three-dimensional structure of human MIF (Sun, et al., 1996) has the same topology as two microbial enzymes that are members of the tautomerase superfamily, 4-oxalocrotonate tautomerase (4-OT) and 2-carboxymethyl-5-hydroxymucanate isomerase (CHMI) (Subramanya, et al., 1996). Other than the general base catalyst, Pro1, found deep within a catalytic cavity, the proteins that belong to the tautomerase superfamily do not have significant sequence similarity. The members of this superfamily form dimers (Almrud, et al., 2002), trimers (Sun, et al., 1996), or hexamers (Subramanya, et al., 1996) with catalytic sites at clefts between subunits, resulting in two, three, and six sites for each oligomer. All of these proteins, including MIF, have a pKa < 7.0 for Pro1 (Stivers, et al., 1996; Swope, et al., 1998) that is 3 pH units lower than a typical N-terminal proline, consistent with a role as a catalytic base. A physiologic substrate for MIF has not been identified, but natural (p-hydroxyphenylpyruvate) and unnatural ligands (D-dopachrome and its analogues) were fortuitously found as “model” tautomerase substrates (Rosengren, et al., 1997; Rosengren, et al., 1996) and used for structure-based inhibitor design (Lubetsky, et al., 2002; Lubetsky, et al., 1999) or high throughput screening (HTS) (Cho, et al., 2011; Ouertatani-Sakouhi, et al., 2010). Interestingly, the MIF-ligand complexes can function (a) as disruptors of MIF-CD74 interactions (no binding) (Cournia, et al., 2009; Takahashi, et al., 2009), (b) as wild-type MIF (no effect on MIF binding to CD74) (Cournia, et al., 2009), (c) up-regulators of CD74 binding and signaling (Jorgensen, et al., 2010), or (d) CD74 antagonists (Cho, et al., 2011; Jorgensen, et al., 2011). The structural source of these different functional effects by ligands binding to the same site is not understood and the parameters distinguishing these various effects remain unknown. Using MIF N-terminal mutants and MIF covalent inhibitors, we investigated the biological role of the MIF catalytic pocket and identified mutant and ligand properties that provide new insight in the functional activation of CD74. We elucidated the surface residues that play a key role in activation of CD74 and provide the first detailed analysis of the structural features of catalytic inhibitors that dysregulate CD74 activation.

RESULTS

The MIF active site in activation of CD74

To probe residues of the MIF enzymatic pocket involved in receptor activation, we characterized MIF mutants and MIF-covalent inhibitor complexes using a previously established lung neutrophil recruitment assay (Takahashi, et al., 2009). CD74 is not expressed by neutrophils. However, intratracheal or intranasal administration of recombinant MIF activates CD74 on the surface of alveolar macrophages, leading to p44/p42 MAPK signaling and the secretion of two neutrophil-recruiting chemokines, MIP-2 and KC. There is no evidence that MIF interacts with any chemokine receptor on neutrophils as neutrophil-recruitment to the lung in inhibited by an anti-CD74 monoclonal antibody (Fig. S1).

An alanine insertion mutant between Pro1 and Met2 of the MIF sequence (abbreviated as the PAM mutant) had been structurally characterized, moving the catalytic residue Pro1 into the center of the MIF active site pocket (Lubetsky, et al., 1999). In the present study two additional alanine insertions, PAAM (PA2M) and PAAAM (PA3M), were engineered and used with PAM to probe functional MIF-CD74 interactions. The rationale behind this approach was that the position of Pro1 was known to be at the center of the active site pocket (PAM) (Lubetsky, et al., 1999), while for PA2M and PA3M Pro1 was predicted to be close to the protein-solvent interface and in the solvent, respectively. The expectation was there would be (a) no biological activity for all three mutants if a side chain from CD74 occupied the aromatic active site and was responsible for most of the binding energy, similar to a tryptophan residues for growth hormone interacting with its receptor (Clackson and Wells, 1995), (b) full biological activity for PAM, but no activity for PA2M and PA3M if the binding interactions involved surface residues at the active site-solvent boundary, or (c) full activity for all three mutants if neither the catalytic site nor the surrounding surface area were involved in CD74 interactions. The in vivo results indicate that the PAM mutant has similar neutrophil recruitment activity as wild-type MIF, and the PA2M and PA3M mutants have no significant activity when compared to control (Fig. 1a). We also determined whether the reduction of activity was due to the inability of the PA2M and PA3M mutants to bind CD74 or that these mutants functioned as antagonists by administering wild-type MIF with different stoichiometries of PA2M or PA3M (Fig. 1b). The results showed a dose-dependent antagonist effect for PA2M at stoichiometries of 1:1 and 1:5 (wild-type MIF:PA2M). The PA3M mutant at the same stoichiometries also showed an antagonist effect but it did not achieve significance between the two MIF:PA3M stoichiometries. High-resolution structures of the PA2M and PA3M mutants were determined (Table S1) to confirm the location of Pro1 (Fig. 1c–1e). Based on these structures and that of wild-type MIF (PDB 3DJH), the protein-solvent interface is in the proximity of the terminal side chain atoms for residues Lys32 and Tyr36 at the entrance of the active site pocket (Fig. 1e). The mutants distinguished whether occupation of part of the catalytic site (PAM), the entire site (PA2M), or extension into the solvent (PA3M) results in differences for lung neutrophil recruitment due to CD74 binding and signaling.

Figure 1. In vivo functional assays of PAnM mutants and comparison between the position of Pro1 in the crystal structures of PAnM mutants and wild-type MIF.

Figure 1

Open in a new tab

(a) In vivo neutrophil recruitment assay demonstrates that statistically significant fewer neutrophils are recruited to the lung by PA2M and PA3M, while PAM has similar activity to wild-type MIF. (b) In vivo assay of wild-type MIF with the PA2M or PA3M mutant at 1:1 and 1:5 stoichiometric ratios shows antagonism by these two mutants. (c) The 2Fo-Fc electron density maps of PA2M and PA3M. The maps were contoured at 1.5σ and 1σ, respectively. (d) Comparison of the proline positions for wild-type, PAM, PA2M, PA3M after superposition of residues 2-114 for wild-type MIF and the equivalent residues from the mutants. The gray shape represents the active site pocket of wild-type MIF as determined by the solvent surface. The green, cyan, magenta, and yellow carbon atoms for Pro1 represent wild-type MIF, and mutants PAM, PA2M, or PA3M, respectively. (e) The MIF-solvent interface at the surface of active site is defined by the terminal side chain atoms of the active site residues Lys32 and Tyr36. The Pro1 position of PAM, PA2M, and PA3M is shown in a different orientation relative to figure 1d.

We determined the structures of four covalent inhibitors complexed to MIF (Table S2). The electron density map of each inhibitor (1, 10, 14, and 21) covalently bound to Pro1 and their second order kinetics are provided (Fig. 2, Fig. 3). The mechanism of covalent formation is shown in the supplemental material (Fig. S2). The size and orientation of each covalent inhibitor bound to Pro1 is unique, providing an alternative approach relative to the PAnM (n=1 to 3) mutants to study lung neutrophil recruitment (Fig. 4a–4c). We measured the recruitment of neutrophils to the lung by intranasal instillation of each MIF-inhibitor complex at a dose of 1 μg (Fig. 4d). Two of the MIF-inhibitor complexes (MIF-1 and MIF-10) have reduced neutrophil recruitment activity (≤ 50%) and possess chemical moieties in the solvent or at the protein-solvent interface (Fig. 4b). Covalent modification by 14 results in a small chemical adduct buried deep inside the active site (Fig. 4c). The neutrophil recruitment activity of the MIF-14 complex is similar to apo MIF (Fig. 4d). Inhibitor 21 occupies the active site facing the channel along the 3-fold axis away from the solvent (Fig. 4c) and, like 14, has activity that is similar to wild-type MIF. The MIF-1 and MIF-10 complexes were further characterized and found to have a dose-dependent antagonist effect (Fig. 4e).

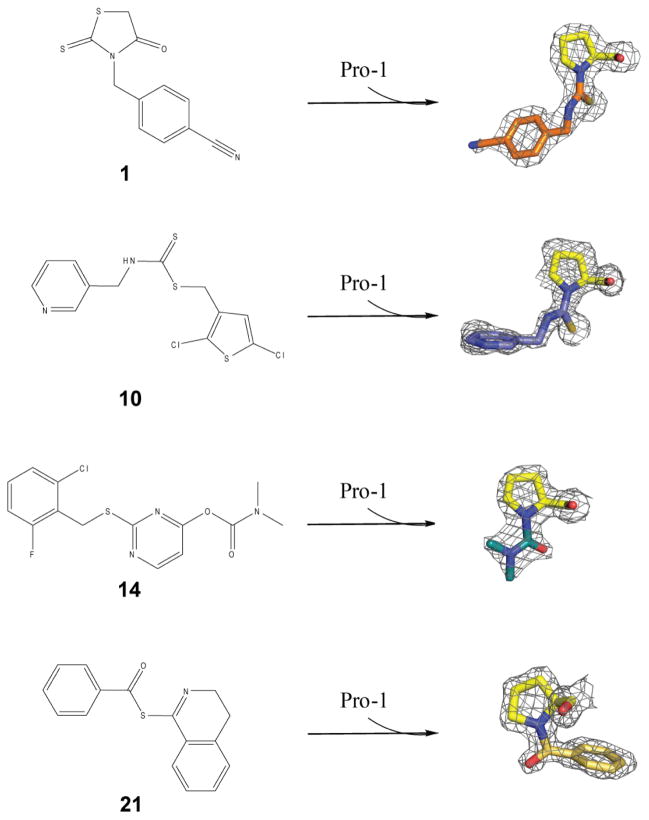

Figure 2. Chemical structure of compounds 1, 10, 14 and 21 and the electron density of each Pro1-covalent product.

Figure 2

Open in a new tab

Illustration of chemical structures of compounds 1, 10, 14 and 21. The 2Fo-Fc maps of the compounds complexed to Pro1, contoured at 1.5σ, are also shown. Pro1 is shown in yellow while compounds 1, 10, 14 and 21 in orange, purple, dark green and gold respectively.

Figure 3. Kinetic analyses of MIF-inhibitor complexes.

Figure 3

Open in a new tab

Wild-type MIF was mixed with equal stoichiometries of 1, 10, 14 and 21 and the tautomerase activity of MIF was assessed over time. The data were fitted in a hyperbolic curve and the second-order rate constants were calculated according to the following equation: y= A/(Akt +1) with A= initial effective free [MIF] and k= second-order rate constant. The curves were plotted in ORIGIN and are shown. The curve for only MIF-1 is shown.

Figure 4. Orientations of 1, 10, 14, and 21 chemical adducts covalently bonded to Pro1 and the in vivo functional assay of each complex.

Figure 4

Open in a new tab

(a) The chemical adduct of 1 (orange carbon atoms) and 10 (purple carbon atoms) penetrates or is at the protein-solvent interface. Chemical adducts from 14 (dark green carbon atoms) and 21 (gold carbon atoms) remain buried in the active site pocket. (b) The position of 1 and 10 in context of the protein-solvent interface. (c) The position of 14 and 21 in context of the protein-solvent interface. (d) Percentage neutrophils in the bronchoalveolar lavage recruited by MIF-1, MIF-10, MIF-14, and MIF-21. (e) The two MIF-inhibitor complexes (MIF-1 and MIF-10) that reduce lung neutrophil recruitment function as antagonists based on the activity of mixtures of complexes with wild-type MIF at 1:1 and 1:5 stoichiometric ratios, respectively.

Based on the crystallographic and in vivo results, the PAnM mutants and the covalent complexes were segregated into two groups. The first group is composed of the mutants or MIF-covalent inhibitor complexes that extend to either the MIF-solvent interface or into the solvent. These are the PA2M and PA3M mutants and the MIF-1 and MIF-10 complexes, and cause reduction of neutrophil recruitment to the lung. The second group (PAM mutant, MIF-14, and MIF-21) has the proline residue or inhibitors buried in the active site pocket, resulting in neutrophil recruiting activity similar to wild-type MIF. These results indicate that occupancy of the catalytic site without perturbing the solvent interface does not inhibit activation of CD74 and neutrophil recruiting activity. Any molecule that reaches the protein-solvent interface (PA2M and MIF-10) or extends out of the active site (PA3M and MIF-1) reduces MIF-mediated neutrophil recruitment activity to lung.

Role of Pro1 and N-terminal region in activation of CD74

Previous studies reported on Pro1 mutants suggested that this residue is important for MIF biological activity (Fingerle-Rowson, et al., 2009; Swope, et al., 1998). One of these studies showed that a Pro1 to glycine mutation (P1G) resulted in a catalytically inactive protein that maintains significant, albeit reduced, binding to its cell surface receptor CD74 and reduced biologic activity (Fingerle-Rowson, et al., 2009). This is in contrast to the results of the PAnM insertion mutants and the covalent inhibitors described above. In order to better understand the published findings, we decided to probe the role of Pro1 in more detail. In addition to studying Pro1, we also sought answers with respect to the multiple conformations that Met2 adopts in various MIF crystal structures and whether these are related to protein function. We deleted the initiating methionine and Pro1 (ΔP1, resulting in the MIF sequence Met2-Ala114), mutated Pro1 to methionine (P1M with the mutant Met1 followed by the wild-type sequence Met2-Ala114), and created the single site mutation Met2 to alanine (M2A). The P1M mutant had neutrophil recruiting activity similar to wild-type MIF, indicating that Pro1 is not needed for activation of CD74 (Fig. 5a). M2A and the deletion mutant ΔP1 reduced neutrophil recruitment activity by ~50% (Fig. 5a). The three dimensional structures were as expected for P1M and M2A (Table S3, Fig. 5b). Surprisingly, one of two conformations for Met2 in the ΔP1 deletion mutant overlaps with the location for the wild-type Pro1 but this cannot be attributed to any functional activity because the M2A mutant that contains Pro1 in the wild-type location also has 50% neutrophil recruiting activity of wild-type MIF (Fig. 5b). Comparison of B-factors from wild-type MIF (PDB 3DJH) and P1G MIF (PDB 1P1G) along with ΔP1, P1M, and M2A mutants in this study provided some insight into their activities (Fig. 5c). The last three mutants (ΔP1, M2A, and P1G) had increased B-factors at the N-terminus in contrast to the P1M mutant. Changes in the N-terminal B-factors were accompanied with B-factor changes at surface-exposed residues outside the catalytic cavity. For example, all four N-terminal mutants had an increased B-factor for K32 but mutation of this residue did not affect CD74 activation (Fig. 5c). However, residues Tyr36 and Lys66 have a common B-factor increase only for P1G, ΔP1, and M2A compared to P1M or wild-type MIF. B-factor analysis has been used to infer the dynamics of residues or regions of proteins (Lu, et al., 2006). Although the B-factor values can only be correlated qualitatively with in vivo activities, they provide insight into the structural and dynamic features of solvent exposed residues at the cavity that lead to different neutrophil recruiting activities. This conclusion is also supported by the findings from the previous section, which showed that chemical moieties of inhibitors or alanine insertion mutants that reach or penetrate the protein-solvent interface (PA2M, PA3M, MIF-1 and MIF-10) bind but do not effectively activate CD74. To support this conclusion, we mutated a number of solvent exposed residues and tested in vivo function.

Figure 5. Neutrophil recruitment assay and crystallographic B-factor analyses of MIF N-terminal mutants.

Figure 5

Open in a new tab

(a) In vivo neutrophil recruitment assay of P1M, ΔP1 and M2A. The ΔP1 and M2A inhibit recruitment of neutrophil to the lung by ~50%. The reduction of P1M was not statistically significant. (b) The 2Fo-Fc electron density maps of P1M, M2A and ΔP1 mutants. The maps were contoured at 1.5σ. (c) Analyses of the residual crystallographic B-factors of P1M, P1G, M2A and ΔP1. Mutation of P1M increased the normalized B-factors in two particular regions outside the active site. These regions are marked with a star. The P1G, M2A and ΔP1 mutants increase the B-factors of the highlighted N-terminal part of β1-strand resulting in changes that eventually reached the surface.

MIF surface residues involved in key interaction points with CD74

Due to the observations of the previous section, residues K32, Y36 and K66 were tested as single alanine mutants. To identify other MIF surface residues that might interact with CD74, we made a number of double mutants and tested them in vivo. All the double mutants chosen for this study are located around the cavity (P34A/Q35A, S63A/I64A, and W108A/N109A) except for a control mutant (Q24A/Q25A), which is located on the surface of the first α-helix away from the cavity. For the double mutants that were inactive or partially active, we made single alanine mutants to determine their activities (Fig. 6a). Interestingly, the alanine mutant of K32, the residue with a dramatic B-factor increase for the fully functional P1M mutant, does not affect the biological activity. P34A/Q35A and the control mutant Q24A/Q25A also maintain full activity. I64A and W108A were partially active. Y36A, K66A and N109A do not have any neutrophil recruiting activities. Crystallographic analyses of Y36A, K66A, N109A and the control mutant Q24A/Q25A showed that the mutations caused no conformational changes (Table S4). Surprisingly, I64A and W108A could not be crystallized in normal MIF crystallization conditions or under new crystallization screening conditions. Therefore, we are unable to determine with certainty whether any unanticipated conformational changes are responsible for their partial activity. Nonetheless, the findings define surface regions around the active site that are involved in functional interactions with CD74 (Fig. 6b).

Figure 6. Surface mutations reveal the MIF residues that play a key role in activation of CD74.

Figure 6

Open in a new tab

(a) Neutrophil recruitment activities of the surface mutants. The effect of Y36A, K66A and N109 are not statistically significant compared to saline alone (p>0.05). The partial agonists I64A and W108A are statistically significant compared to MIF (p<0.01) and to saline (p<0.05). (b) The MIF surface mutants used in this study are show in different colors according to their in vivo activities and crystallographic structures. The red highlighted regions show the surface residues that do not activate CD74 with a three-dimensional structure that illustrates there are no conformational changes. Orange are the two partial agonists that could not be crystallized. The fully active surface residues are shown in blue.

DISCUSSION

In the absence of a MIF-CD74 co-crystal structure, we used a novel approach to identify MIF residues that activate CD74. Alanine insertion mutants between Pro1 and Met2 as well as MIF-inhibitor complexes were employed. Neither the PAnM mutants nor the MIF-covalent inhibitor complexes can dissociate during the time course of the in vivo experiment. The use of a covalent inhibitor also prevents any off-target effects that can complicate the interpretation of the results. This allowed us to make definitive conclusions about CD74 activation. Our findings show that Pro1 and the active site pocket of MIF are not involved in interactions with CD74. These findings support the concept that a chemical moiety of an MIF inhibitor outside the active site is important for reducing MIF activation of CD74. We analyzed the surface exposed atoms of proline for each PAnM mutant and the solvent exposed atoms for each covalent inhibitor. We observed that the active proteins (wild-type MIF, PAM, MIF-14 and MIF-21) have a solvent exposed surface area of atoms (either proline atoms or atoms from the covalent inhibitors) of 21Å2 or less. The partially active or inactive proteins have solvent accessible areas of at least 44Å2 (Table S5). This is likely to be one of the physicochemical parameters that leads to CD74 antagonism.

There are three related studies that include three-dimensional structures of MIF-ligand complexes with CD74 binding or functional data where the functional effects of chemical moieties outside the active site were not examined (Cho, et al., 2011; Pantouris, et al., 2014; Takahashi, et al., 2009). In two of these studies, chemical moieties that penetrate into the solvent significantly reduce binding to CD74 (Cho, et al., 2011; Pantouris, et al., 2014). In the third study, a prototypical competitive inhibitor of human MIF, (S,R)-3-(4-hydroxyphenyl)-4,5-dihydro-5-isoxazole acetic acid methyl ester (ISO-1), decreased CD74-dependent neutrophil recruitment to the lung by 50% (Takahashi, et al., 2009). We analyzed the MIF-ISO-1 structure (PDB 1LJT) and found that a chemical moiety from ISO-1 protrudes from the active site into the solvent (Fig. S3) (Lubetsky, et al., 2002). These findings support the concept that chemical moieties of MIF inhibitors outside the active site are important for regulating CD74 activation and signaling.

B-factor analysis of Pro1 or Met2 mutants (P1G, P1M and M2A), and the deletion mutant of Pro1 (ΔP1) showed differences with respect to wild-type MIF. The findings suggest that these mutants influence the dynamics of surface residues surrounding the cavity to reduce or abolish CD74 activation. Functional analyses of alanine mutants for residues identified Tyr36, Lys66 and Asn109 as key residues that control activation of CD74. Other residues, such as Lys32, Pro34, and Gln35 as well as control residues for this experiment (Gln24 and Gln25) are not involved in CD74 activation. A similar B-factor analysis has been used to directly explain biological properties of other proteins (Hsieh, et al., 2013; Marx, et al., 2008).

The findings in this study reveal that neither abolishing the tautomerase activity nor mutation of Pro1 affects protein-protein interactions and reduction of CD74 activation. The mutants of Pro1 (and Met2) influence the B-factors of specific surface residues that reduce CD74 activation when mutated, indicating that residues at the surface surrounding the catalytic site pocket of MIF are involved in activation of CD74. The mechanism for the N-terminal mutants that leads to B-factor changes at specific surface residues remains to be determined by molecular dynamics simulations. The knowledge gained herein advances our understanding of the structural and chemical basis of CD74 activation and provides vital information for the development of new MIF-based therapeutics.

SIGNIFICANCE

Macrophage migration inhibitory factor (MIF) is a cytokine that is expressed in all types of human cells and plays a key role in many diseases via its binding to the cell surface receptor CD74. A small molecule inhibitor of CD74 is yet to be discovered while there are numerous tautomerase inhibitors of MIF. The MIF-inhibitor complexes have varying effects in their interactions with CD74 including from abolishing interactions, up-regulating CD74 signaling, antagonizing CD74 signaling, or have no effect on CD74 function. Our study provides the first comprehensive analysis of the MIF parameters that control functional activation of CD74 and clarify the properties of MIF inhibitors to effectively inhibit CD74. First, the catalytic pocket of MIF is not involved in interactions with CD74. However, inhibitors that bind to the pocket must penetrate the protein-solvent interface to function as CD74 antagonists. Second, mutations of N-terminal residues affect key surface residues that cause reduction or complete inhibition of CD74 activation when mutated. These key residues are mapped on the three-dimensional surface of MIF to identify the region that involved in CD74 interactions. Mutants of residues that do not affect CD74 activation are also used to provide a more comprehensive map for understanding these interactions. This study enhances our understanding of MIF-mediated CD74 activation and aids in the development of novel therapeutics.

EXPERIMENTAL PROCEDURES

Mutagenesis

The MIF mutants were synthesized using the megaprimer method (Ke and Madison, 1997). The pET-11b/WT MIF served as the template, and the oligonucleotides shown in the supplemental material were amplified producing the desired mutation. The clone of PAM was previously reported (Lubetsky, et al., 1999).

Expression and Purification of Recombinant human MIF and MIF Mutants

Expression and purification of recombinant human MIF and MIF mutants were performed as described previously (Lubetsky, et al., 1999). Each pET-11b plasmid containing the cDNA of interest was transformed in E. coli BL21-Gold (DE3) cells. The cells were grown at 37°C to an O.D.600=0.6 and induced using IPTG at final concentration of 1 mM. After 4 hours at 37°C, the cells were harvested and stored at −20°C until further use. For purification, the cells were thawed and lysed using sonication in 20 mM Tris pH 7.4, 20 mM NaCl containing a protease inhibitor cocktail tablet. Cell debris was removed via centrifugation for 45 min at 28,000 x g. The supernatant was filtered using a syringe-driven filter unit and loaded onto a Q-Sepharose column (120 ml) connected in series with an SP column (55 ml). Both wild-type MIF and MIF mutants were not retained from either columns, and collected as flow-though, which was ~95% pure. MIF was further purified using size-exclusion chromatography (16/60 Superdex 75) in the same buffer.

Enzyme Kinetics

Kinetic analyses of MIF-covalent inhibitor formation were performed using the Tecan Infinite M200 spectrophotometer at 306nm with a Corning semitransparent 96-well plate. Prior to carrying out any experiment, a stock solution of 4-hydroxyphenylpyruvate (4-HPP) in 0.5 M ammonium acetate, pH 6.2 was prepared and equilibrated for 24 hours at room temperature to allow for keto-enol equilibration. MIF and each inhibitor was mixed and an aliquot was removed at various time points and added to wells containing the tautomerase mixture to measure the remaining tautomerase activity. Each measurement lasted 90 seconds with readings taken every ten seconds. The volume of the tautomerase reaction mixture was 150 μL and contained 0.416 M borate, pH 6.2, 0.5 mM HPP, DMSO or inhibitor dissolved in DMSO, and 5 μM MIF. The final concentrations of 1, 10, 14 and 21 were 5 μM (equal stoichiometric ratios with MIF). In all cases, controls and compounds were at a final concentration of 1 % v/v DMSO. All the experiments were performed at 25°C. The data were fitted to a hyperbolic curve using ORIGIN 9.0 and the second-order rate constants were calculated as described elsewhere (Crichlow, et al., 2012).

Murine in vivo Recruitment of Neutrophils to the Lung

Neutrophils recruitment was measured using C57BL/6J mice (8–12 wk old) according to the protocol described by Fan et al (Fan, et al., 2013). All samples were administrated to murine lungs via the intranasal route as 50 μL saline solutions with recombinant human MIF at 1 μg, and the anti-murine CD74 monoclonal antibody (BD Pharmigen, San Jose, CA, cat no. 555317) at 10 μg. MIF mutants and each of the MIF-covalent inhibitor complexes were also administrated as solutions containing 1 μg of sample. Each compound was incubated with MIF at 1:1 stoichiometric ratio at 4°C for 24 hours. The complete modification of MIF by each inhibitor at 24 hours was based on the second order kinetics of each inhibitor. For in vivo antagonist assays, wild-type (WT) MIF and each mutant or MIF-inhibitor complex were administrated at 1:1 and 1:5 stoichiometric ratios (WT MIF:MIF mutant or MIF-inhibitor complex). The total number of neutrophils was calculated using the differential cell count of a minimum number of 200 cells stained with HEMA 3 (Fisher Scientific). For direct comparison of two data sets, the two tailed t-test was used. The protocol followed for the mice experiments was reviewed and approved by Yale University’s Institutional Animal Care and Use Committee (IACUC).

Crystallization, Data Collection, Structure Determination, and Refinement

The MIF mutants and MIF-covalent inhibitor complexes were crystallized by vapor diffusion in hanging drop trays. Purified MIF mutants were concentrated to 18 mg/ml. For the MIF-covalent inhibitor complexes, MIF was concentrated to 18 mg/ml, mixed with each compound at 1:3 molar ratio (MIF:inhibitor), and incubated at 4°C overnight. Before crystallization, all samples were spun for 5 min at 16000 x g. Equal volumes of mutant or MIF-inhibitor complex were mixed with the well reservoir (2 μl:2 μl) and allowed to equilibrate at 20°C. Crystals appeared within two weeks. PA2M and PA3M were crystallized in 20 mM MES pH 6.5, 2 M ammonium sulfate. The other mutants and the four MIF-inhibitor complexes were crystallized in 20 mM Tris, pH 7.4, 2 M ammonium sulfate and 3% 2-propanol. All crystals were flash frozen in the mother liquor with 25% glycerol. Diffraction data of PA2M were collected at beamline X25 (wavelength=1.1 Å) of the Brookhaven National Synchrotron Light Source (NSLS). Diffraction data of PA3M, P1M, Q24A/Q25A and the MIF-covalent inhibitor complexes were collected at Yale School of Medicine on a R-AXIS IV++ image plate detector (Rigaku, Tokyo, Japan) with a Rigaku 007 rotating copper anode X-ray generator (wavelength=1.5418 Å). Diffraction data of Y36A, K66A and N109A were also collected at Yale School of Medicine on a Rigaku Pilatus 200K Detector using the same type of generator as described above. For M2A and ΔP1, the diffraction data were collected at Saint Louis University, school of medicine, using an R-AXIS IV++ image plate detector, wavelength=1.5418 Å. All the data sets were collected at temperatures between 90–100°K. All data sets (except PA3M) were integrated and scaled using HKL2000 programs suit (Otwinowski and Minor, 1997). For PA3M, the data set was integrated with MOSFLM (Battye, et al., 2011) and scaled with SCALA (Evans, 2006). The structures were solved by molecular replacement using PHASER (McCoy, et al., 2007) and refined by Phenix (Adams, et al., 2010) (PA2M and PA3M) or Refmac (Winn, et al., 2003) (for the other mutants and MIF-covalent inhibitor complexes). Ramachandran analysis showed 0% outliers and 98.20% (P1M), 98.81% (M2A), 98.79% (ΔP1), 98.88% (PA2M), 97.72% (PA3M), 98.81% (Q24A/Q25A), 98.33% (Y36A), 98.81% (K66A), 97.92% (N109A), 98.51% (MIF-1), 99.09% (MIF-10), 99.11% (MIF-14) and 98.21% (MIF-21) residues in preferred regions. Topology models of the inhibitors were produced by the PRODRG server (Schuttelkopf and van Aalten, 2004) and fitted in the model using COOT (Emsley, et al., 2010). The 2Fo-Fc maps were generated by FFT (Winn, et al., 2011) and visualized in PyMOL (DeLano, 2002). The structure of WT MIF (PDB 3DJH) was superposed to the MIF mutants and MIF-inhibitor complexes using SUPERPOSE (CCP4 supported) (Winn, et al., 2011). The RMSD values showed high superposition agreement with wild-type MIF. The values varied between 0.10Å and 0.29Å and provided in the supplemental material (Table S6). Analyses of the solvent accessible surface area of atoms in MIF-inhibitor complexes or the proline in wild-type and PAnM mutants were calculated using AREAIMOL (Winn, et al., 2011). The detailed statistics of the data sets are presented in Table S1 (PA2M and PA3M), Table S2 (MIF-covalent inhibitor complexes), Table S3 (P1M, M2A and ΔP1) and Table S4 (Q24A/Q25A, Y36A, K66A and N109A).

Supplementary Material

1
2

Highlights.

  • study of the MIF structural features that control activation of CD74

  • mapping of the MIF surface residues that involved in interactions with CD74

  • correlation between MIF’s crystallographic B-factors and CD74 activation

  • detailed analysis of the role of MIF catalytic pocket in activation of CD74

Acknowledgments

We thank Dr. Sorabh Agarwal, Saint Louis University School of Medicine, for collecting the data sets of M2A and ΔP1 mutants. This work was supported by NIH grants AI065029 and AI082295.

Footnotes

AUTHOR CONTRIBUTIONS

G.P. designed the strategy that was followed in the experiments, expressed and purified WT MIF and all the MIF mutants, supervised the kinetic experiments, analyzed data, performed the crystallization of the MIF mutants and MIF-inhibitor complexes, carried out the in vivo studies of I64A, W108A and N109A and wrote the manuscript. M.A.S. carried out the majority of the in vivo studies (PAnM mutants, MIF-inhibitor complexes, N-terminal mutants and surface mutants) and analyzed data, C.F. solved the structures of PA2M and PA3M mutants, D.R. contributed to the biochemistry, T.Y.C. carried out the high throughput screening of small molecule inhibitors, E.R. did the kinetic experiments for MIF-inhibitor complexes, R.B. contributed to data analysis, V.B. supervised the in vivo studies, and E.J.L. conceived, supervised the project, analyzed data, and wrote the manuscript. All authors have given approval to the final version of the manuscript.

ACCESSION CODES

Coordinates and structural factors have been deposited in the Protein Data Bank under the accession codes 4GRN (PA2M), 4GRO (PA3M), 4PO1 (MIF-1), 4TRF (MIF-10), 4POH (MIF-14), 4PLU (MIF-21), 4PKZ (P1M), 4XX7 (M2A), 4XX8 (ΔP1), 4TRU (Q24A/Q25A), 5BSI (Y36A), 5BSC (K66A) and 5BS9 (N109A).

SUPPORTING INFORMATION

Supplemental information, figures and crystallographic tables are available in the online version of the paper.

Publisher's Disclaimer: This is a PDF file of an unedited manuscript that has been accepted for publication. As a service to our customers we are providing this early version of the manuscript. The manuscript will undergo copyediting, typesetting, and review of the resulting proof before it is published in its final citable form. Please note that during the production process errors may be discovered which could affect the content, and all legal disclaimers that apply to the journal pertain.
